KLEEMANN Gigas

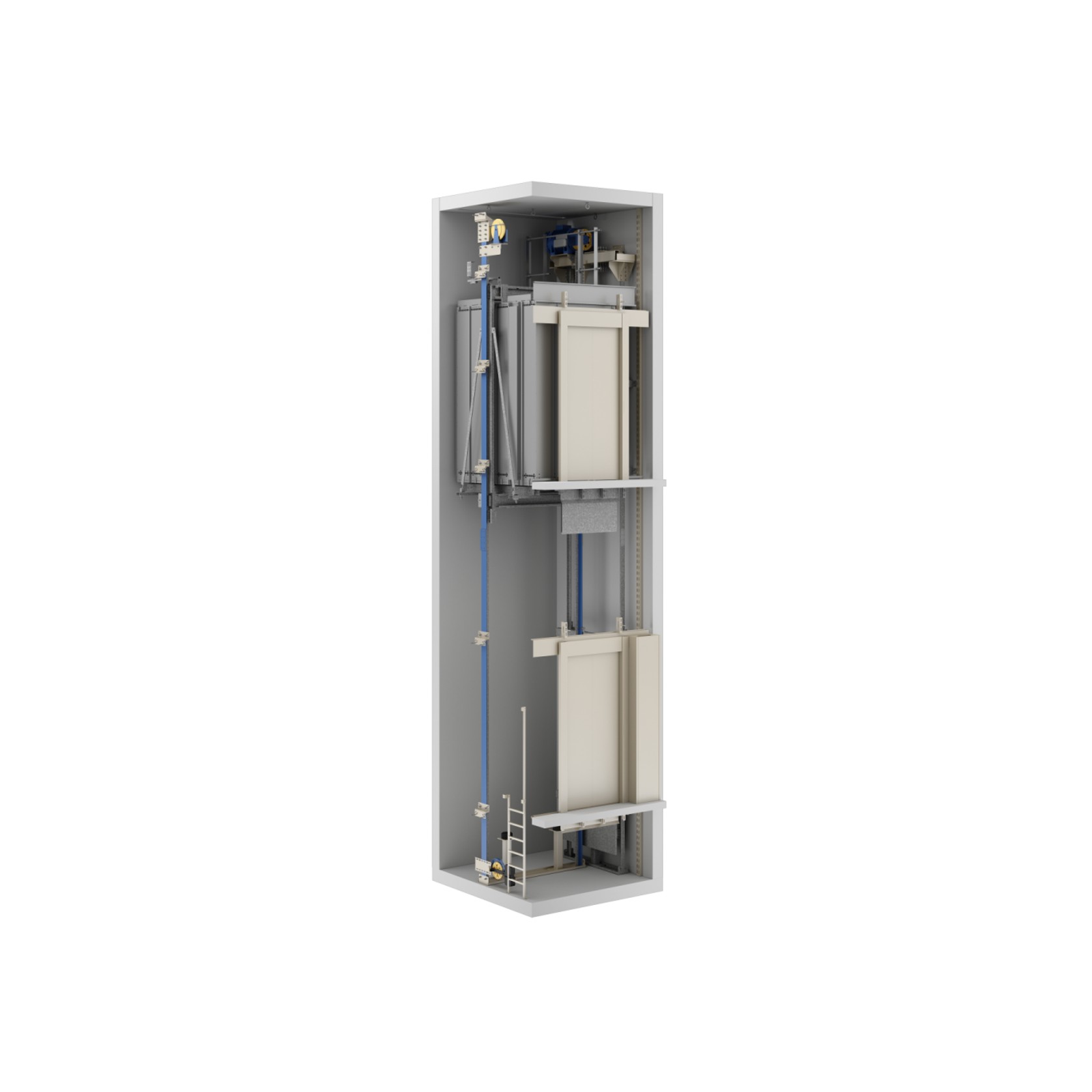

Atlas Gigas R is the first choice for a range of commercial and public buildings operating rated loads of 1150–2500kg. Offering the option to install a larger car in a standard-sized shaft, Atlas Gigas R provides optimum space efficiency for buildings with high density passenger flow.
Atlas Gigas R features KLEEMANN’s premium quality gearless motor and is equipped with a state-of-the-art inverter that provides outstanding ride quality and exceptionally low energy consumption and sound levels.
- CategoryLifts & Elevators
- RangeCommercial & Public
- BrandKLEEMANN
- Warranty12 months
Model: Atlas Gigas R
Rated Load (Kg): 1150-2500
Suspension: 2:1
Machine Room: MRL (MR)
Max Travel (m): 45
Max Number of Stops: 16
Max Speed (m/s): 1,6
Min Pit Depth (mm): 1100
Min Headroom (mm): 3800
Maximum car entrances: 2
Reliability
Atlas Gigas R is equipped with certified safety components of the highest quality, ensuring the excellent lift operation, even for extremely demanding needs.
Spatial efficiency
Optimum space efficiency is granted for high density passenger flow provided by the capability for larger car installation in a standard shaft.
Extra safety features
Safety and durability in public buildings are enhanced with the special features for vandal resistant lifts (EN81-71), firefighting lifts (EN81-72) and earthquake resistant lifts (EN 81-77 or ASME A17.1).
Eco-design
Atlas Gigas R has been designed according to the Eco design principles (ISO 14006) and holds an Environmental Product Declaration in compliance with ISO 14025.
Machine lifting system
Atlas Gigas R is supplied with a machine lifting system, especially designed to facilitate the installation of high rated load lifts, hence, larger motors.
Fast delivery
KLEEMANN provides record fast delivery for standard orders.
