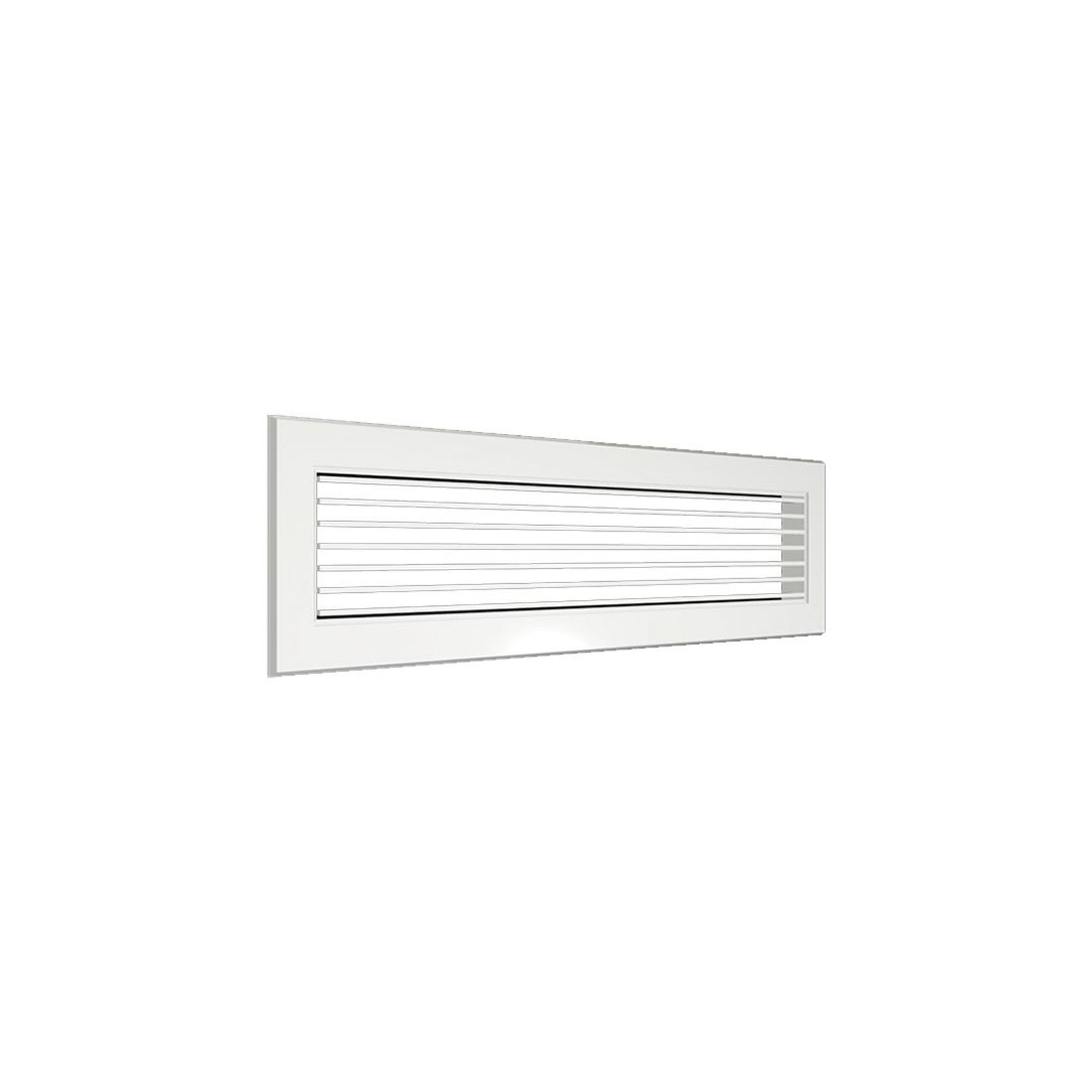

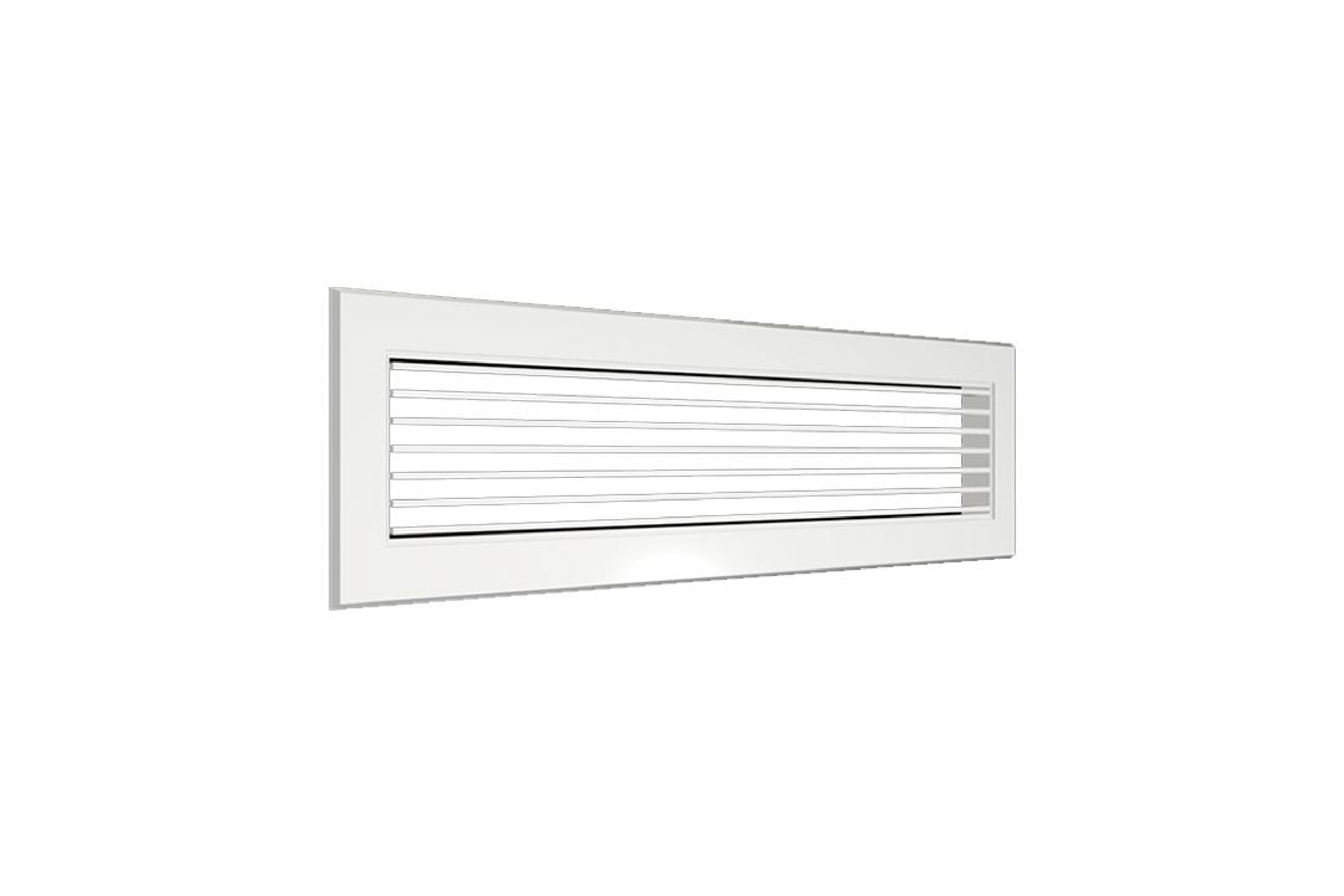

LD1200 Fine line Linear Bar Diffusers
by Holyoake Air Management Solutions
Auckland
- 429.9K profile views
- 27 saves
The same basic extruded design as LD-600 Linear Diffuser except that the 3.25mm x 16mm fixed bar-type louvers are spaced on 12.5mm centres.
Ideal for applications where greater capacity is needed and more free area is desired.
Use as supply or return. Equally efficient for heating, cooling, ventilating.
Product Details
- Product
- LD1200 Fine line Linear Bar Diffusers
- Category
- Ventilation Components
- Range
- Air Diffusers
Product specified by
Daniel Marshall ArchitectsArchitects
Johnston ArchitectsArchitects
Dalman ArchitectsArchitects
Sheppard & Rout ArchitectsArchitects
South ArchitectsArchitects
Ignite ArchitectsArchitects
Bossley ArchitectsArchitects
Glamuzina ArchitectsArchitects
Space StudioInterior Designers
Rylock® Windows & DoorsManufacturers and Suppliers
Marina Mathews PhotographyPhotographers
Jason Mann PhotographyPhotographers
The same basic extruded design as LD-600 Linear Diffuser except that the 3.25mm x 16mm fixed bar-type louvers are spaced on 12.5mm centres.
Ideal for applications where greater capacity is needed and more free area is desired.
Use as supply or return. Equally efficient for heating, cooling, ventilating.
- Specs
Linear Bar Diffusers shall be Holyoake Model LD-1200, 3.25mm fine line bars at 12.5mm centres - Blades shall be set at 0-degree deflection. Linear Bar Diffusers shall be of extruded aluminium construction to the sizes as documented. Fine line linear blades shall be mechanically expanded into machine notched mullions spaced at no greater then 300mm centres. Diffusers shall be finished in powder coat and fitted with accessories and dampers where indicated as manufactured by Holyoake.
Downloads
Downloads (2)2 Direct downloads • 11 Available on request
Frequently asked questions about
LD1200 Fine line Linear Bar Diffusers
The LD1200 Fine line Linear Bar Diffusers is supplied by Holyoake Air Management Solutions. It is also on their website, and you can browse every product Holyoake Air Management Solutions lists on ArchiPro.
Holyoake Air Management Solutions does not publish a price for the LD1200 Fine line Linear Bar Diffusers on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Air Diffusers range from Holyoake Air Management Solutions, where you can see every product in the range together.
Yes. It has been specified in projects on ArchiPro, including Takapuna Beach House by Daniel Marshall Architects, Mountain View Retreat by Johnston Architects and Bunker House | Project of the Month by Dalman Architects. See how it was used in a finished space.
from this page, see their contact details on ArchiPro, or visit their website. The Holyoake Air Management Solutions profile on ArchiPro has the rest of their products.
