Lindab AIRY Ducting Systems

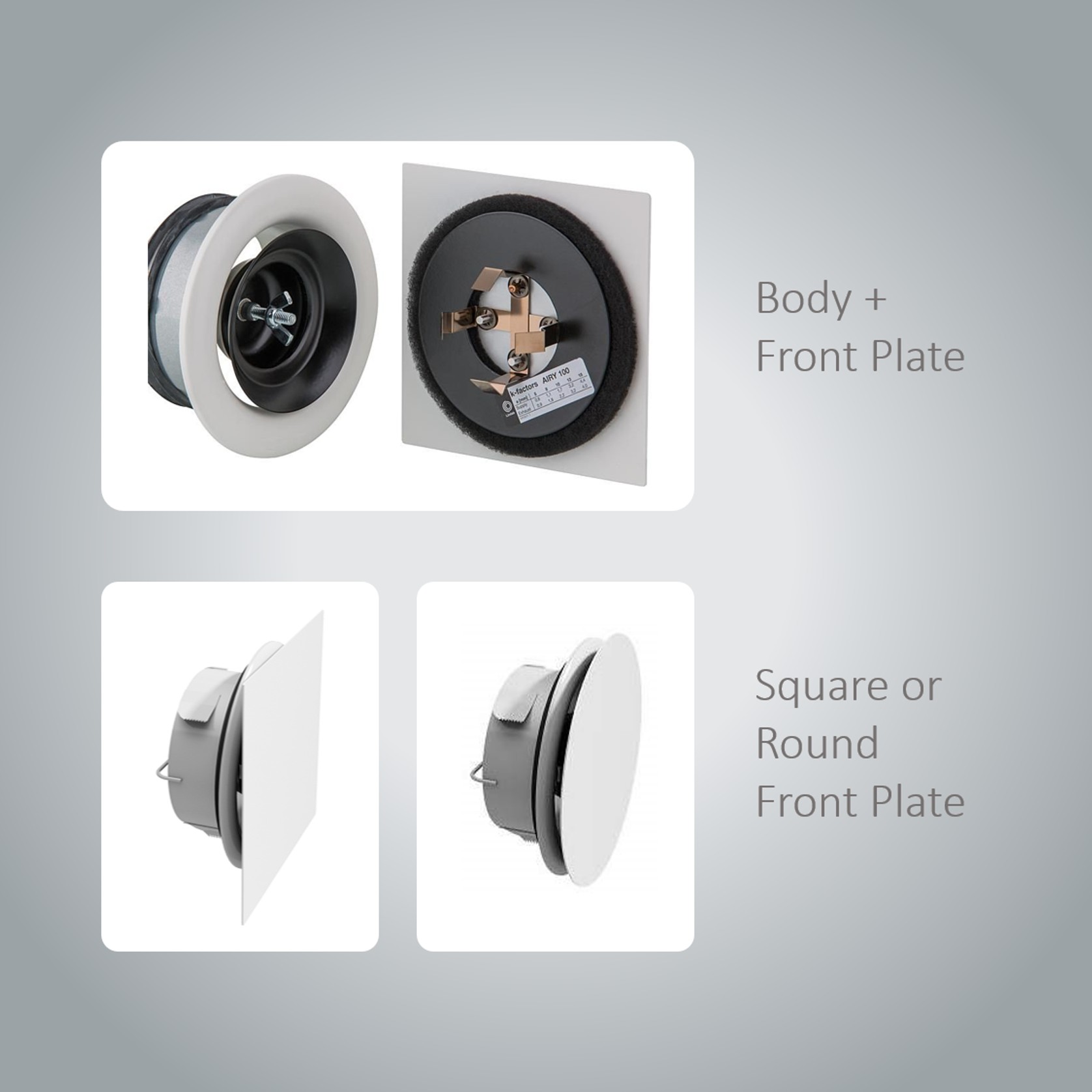

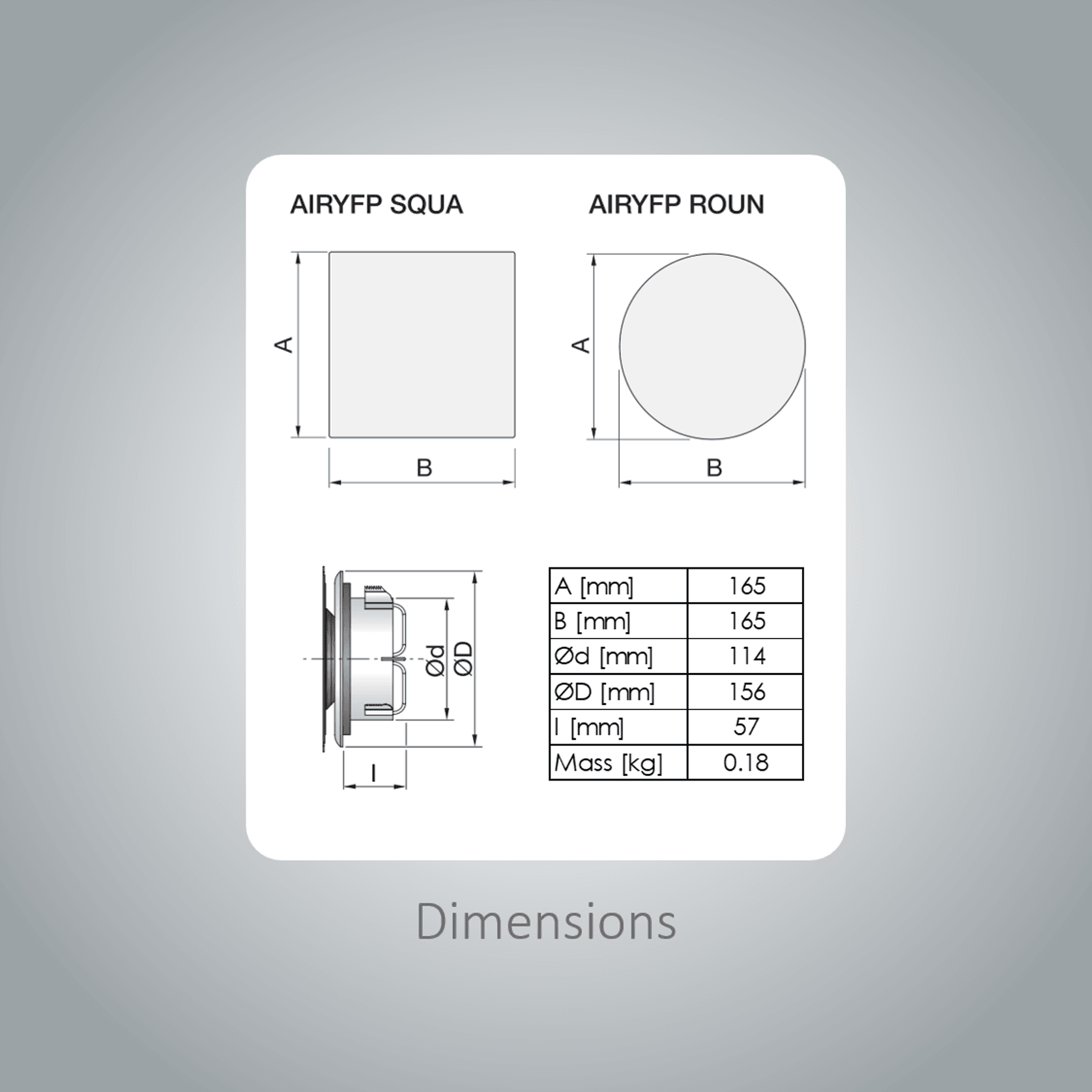

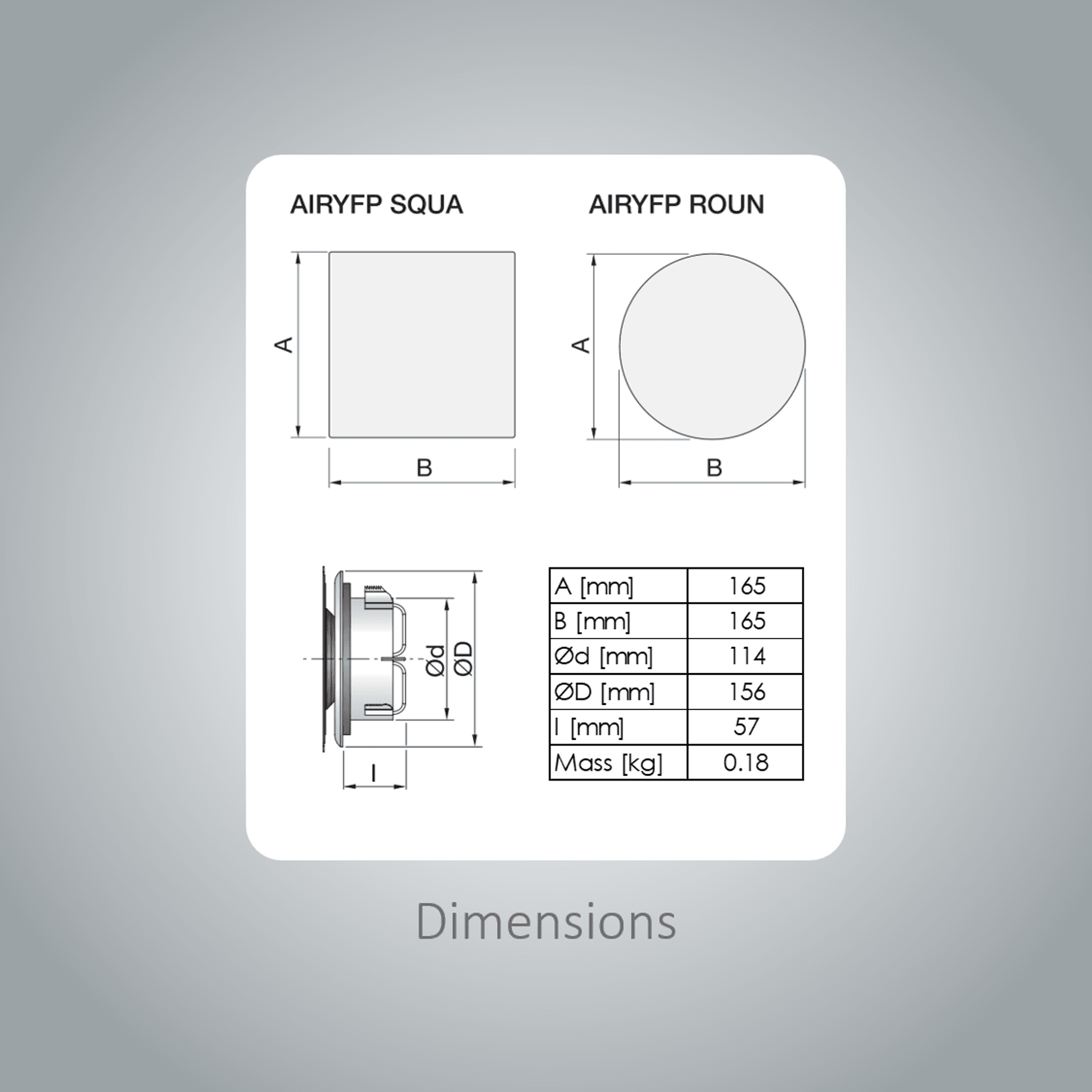

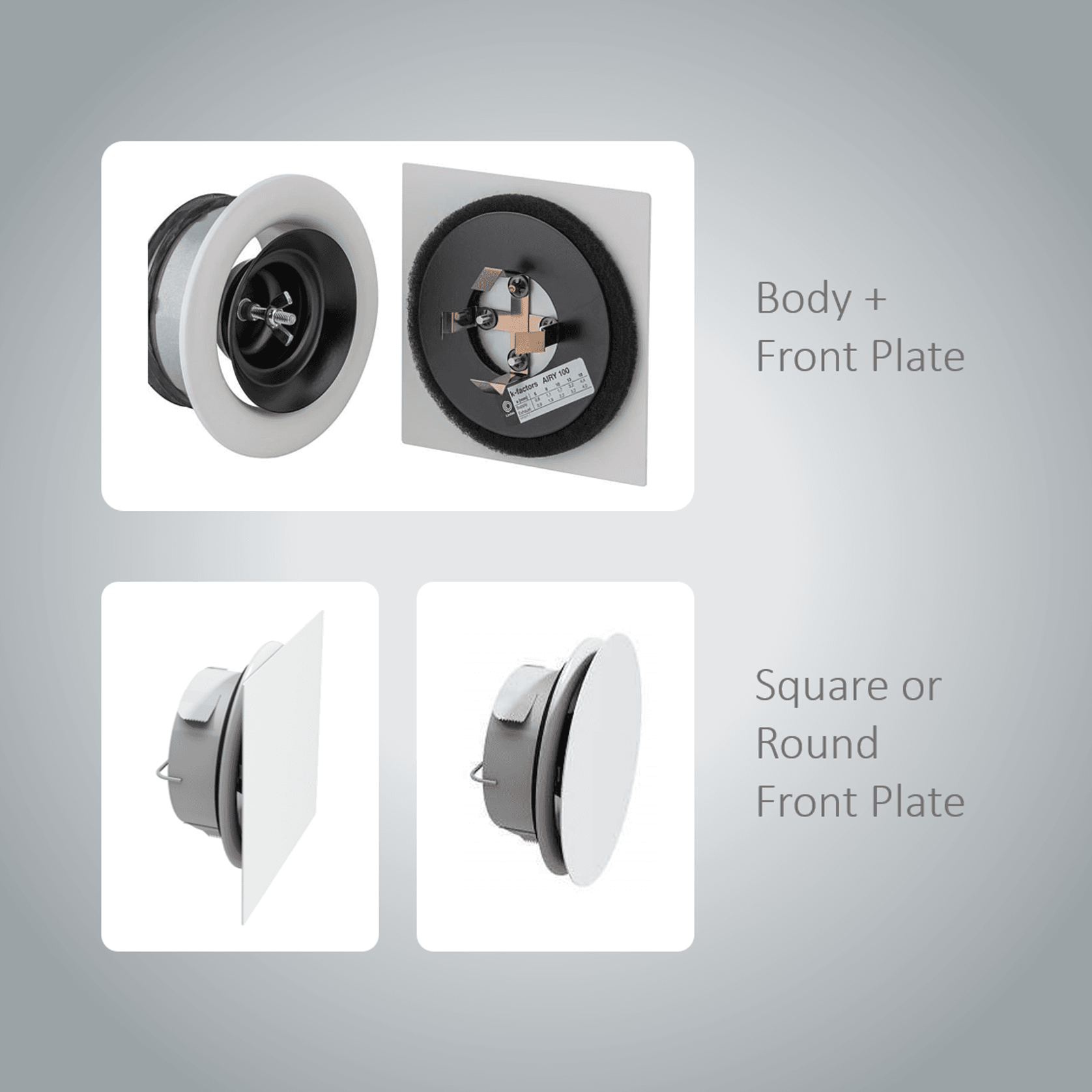

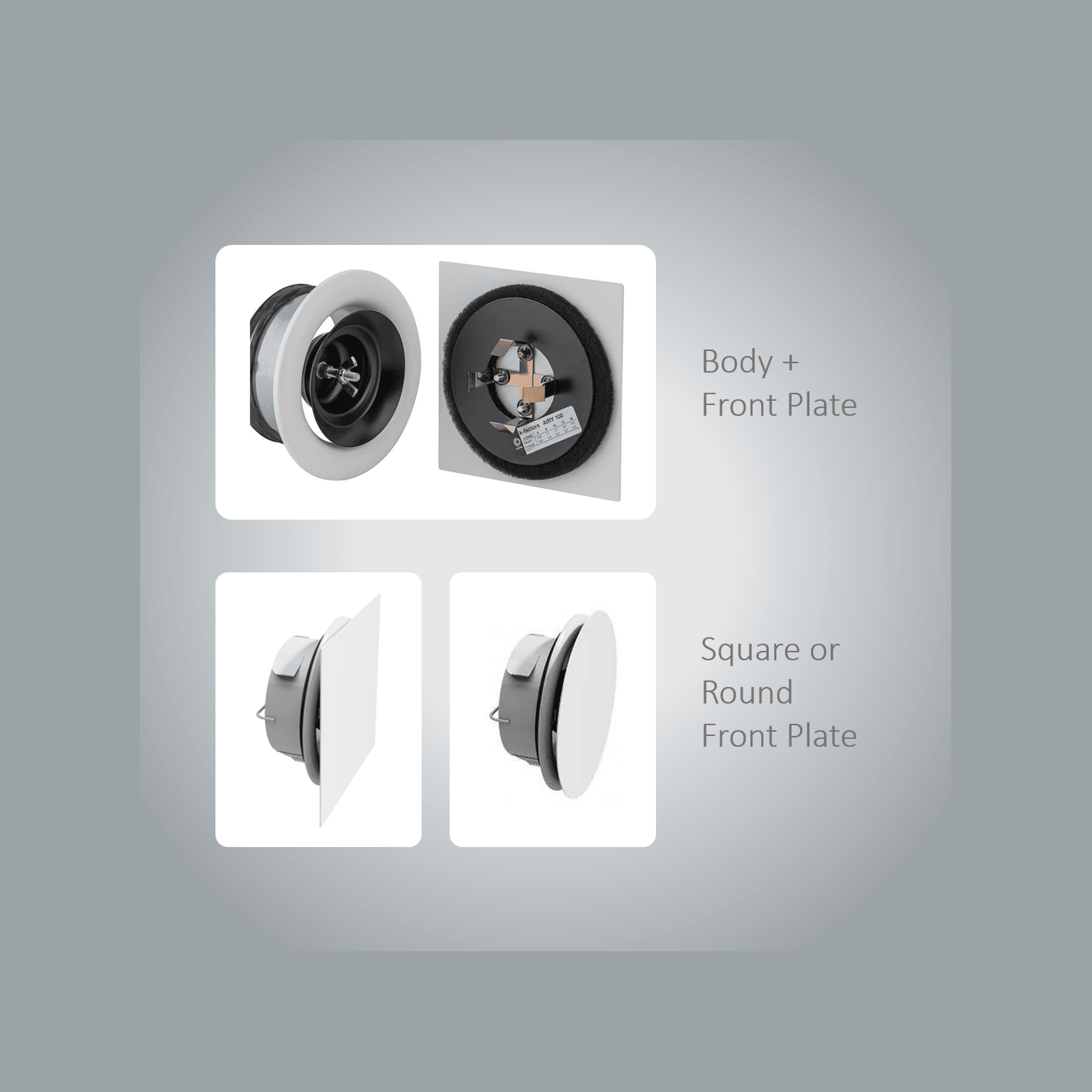

The valve consists of two parts; the valve body and the flat front plate.

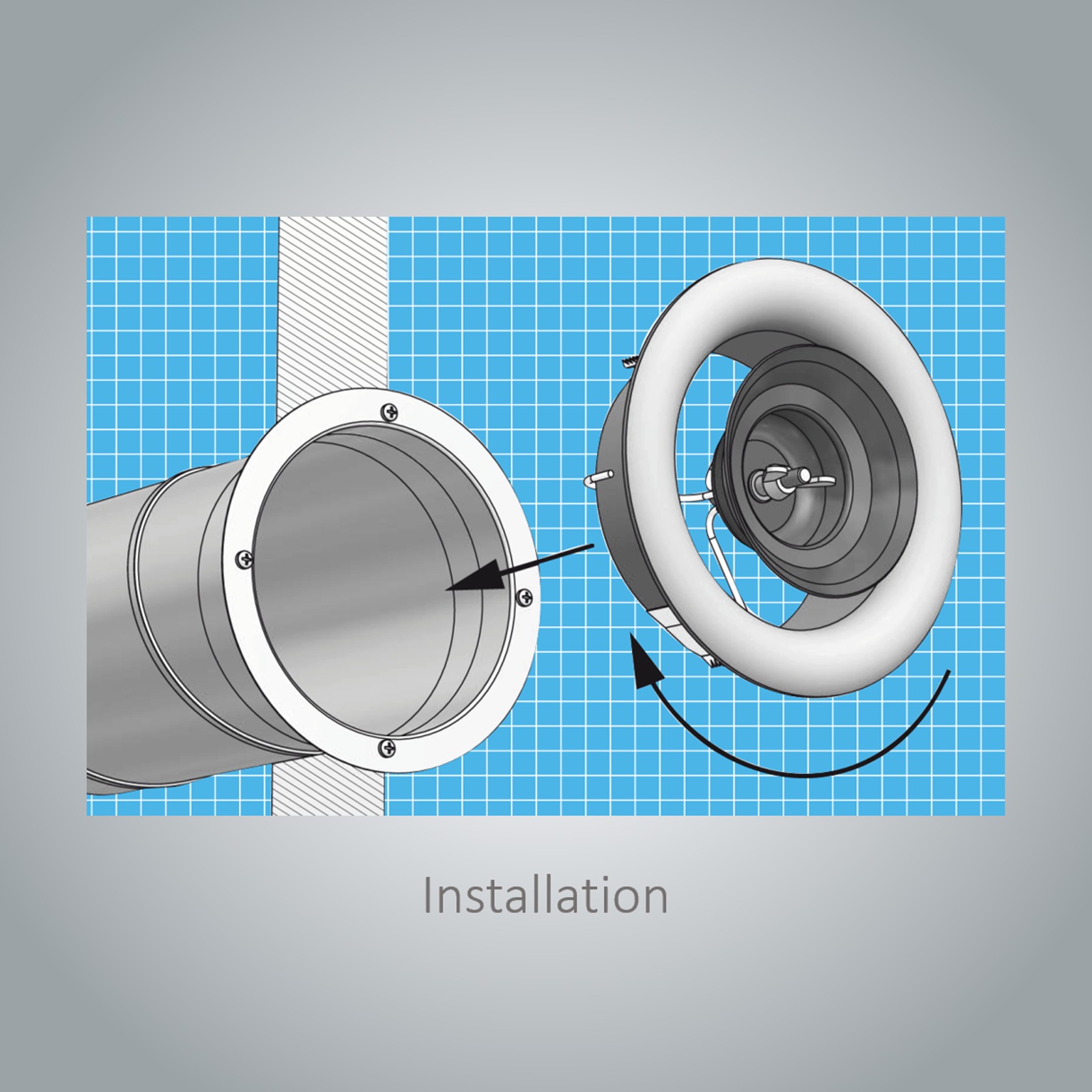

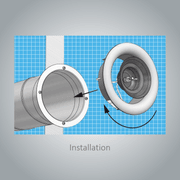

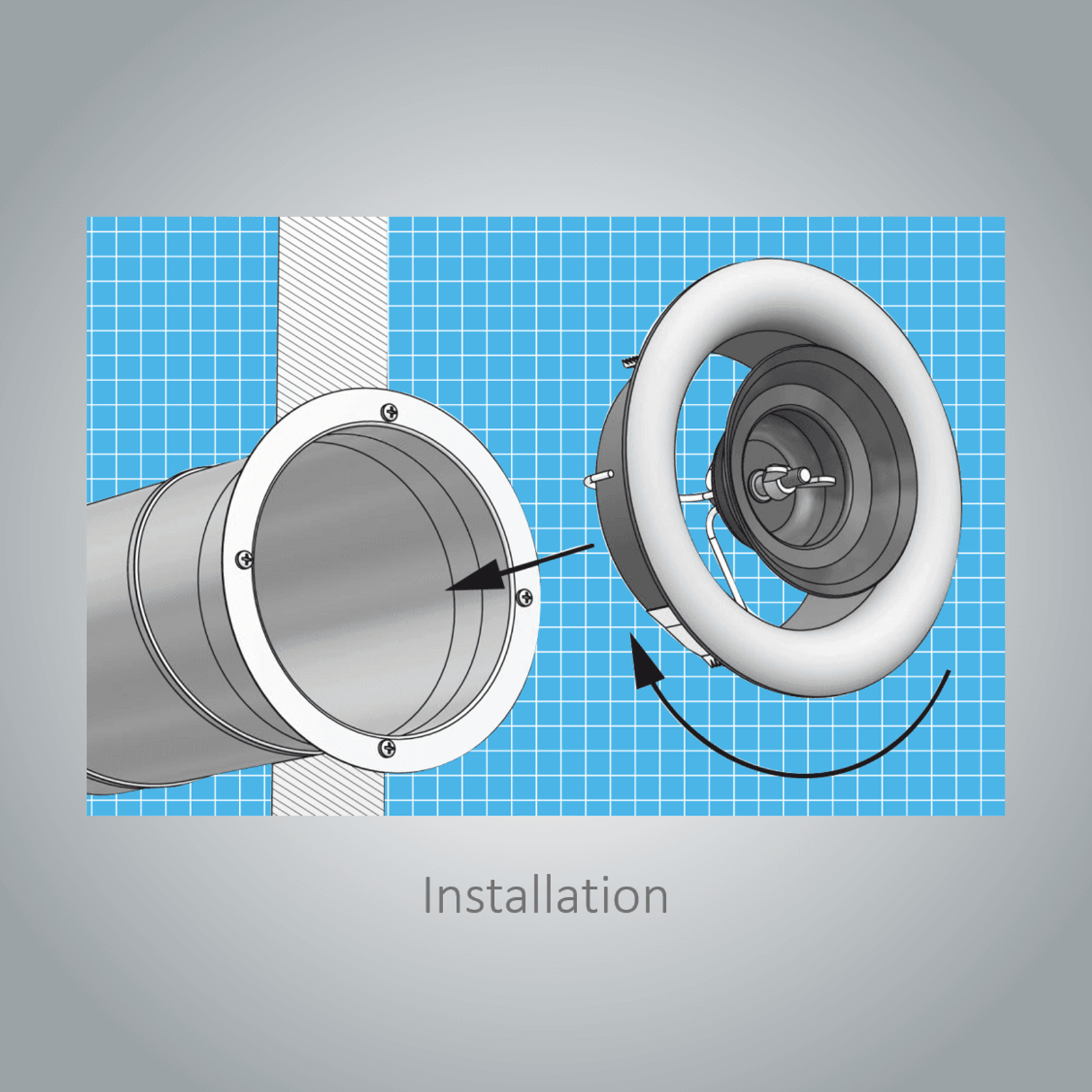

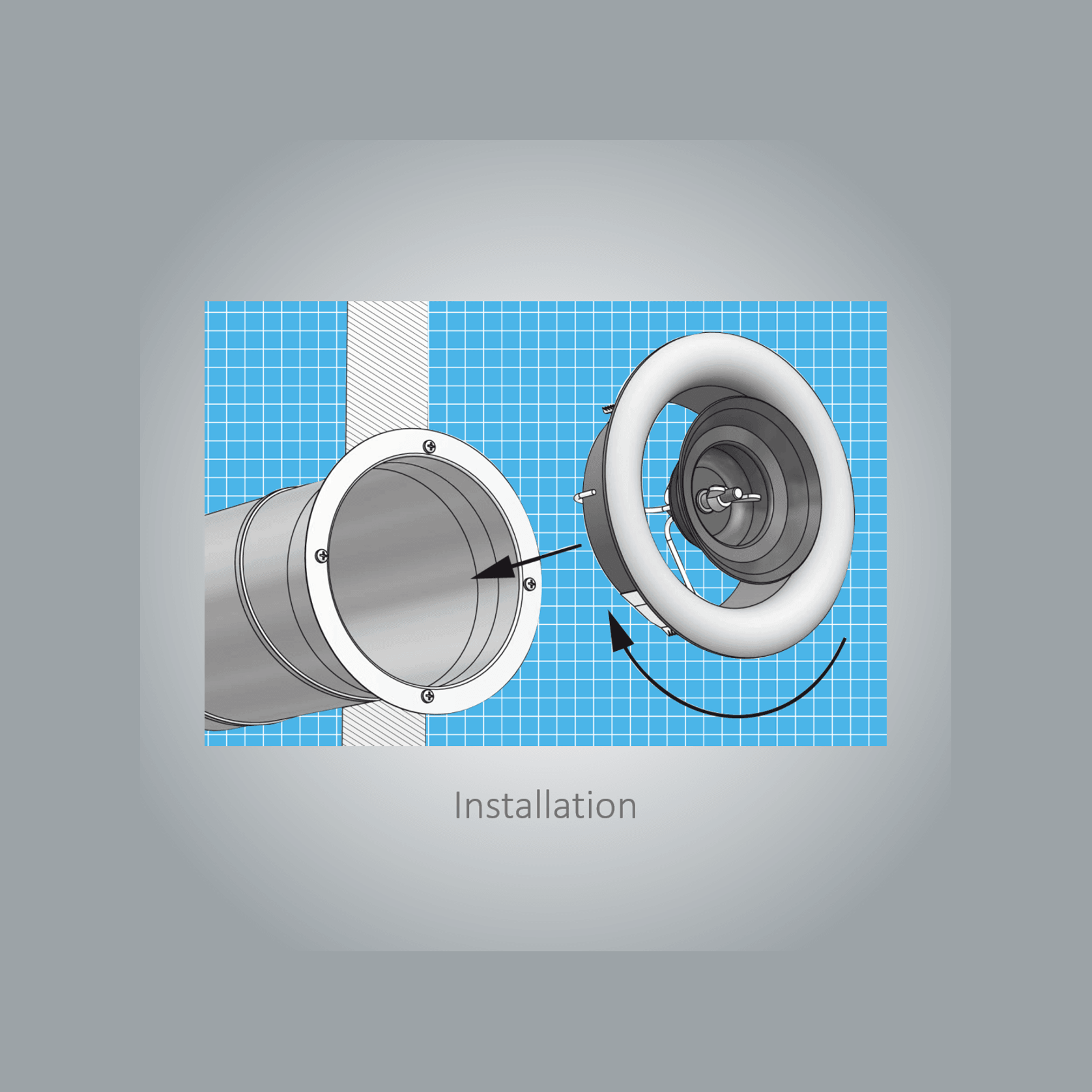

The valve body can be easily fixed to a 125mm duct system or valve socket (e.g. BlauFast RPZ125) via the flexible spring wings. The front plate clicks to the valve body via springs.Note:

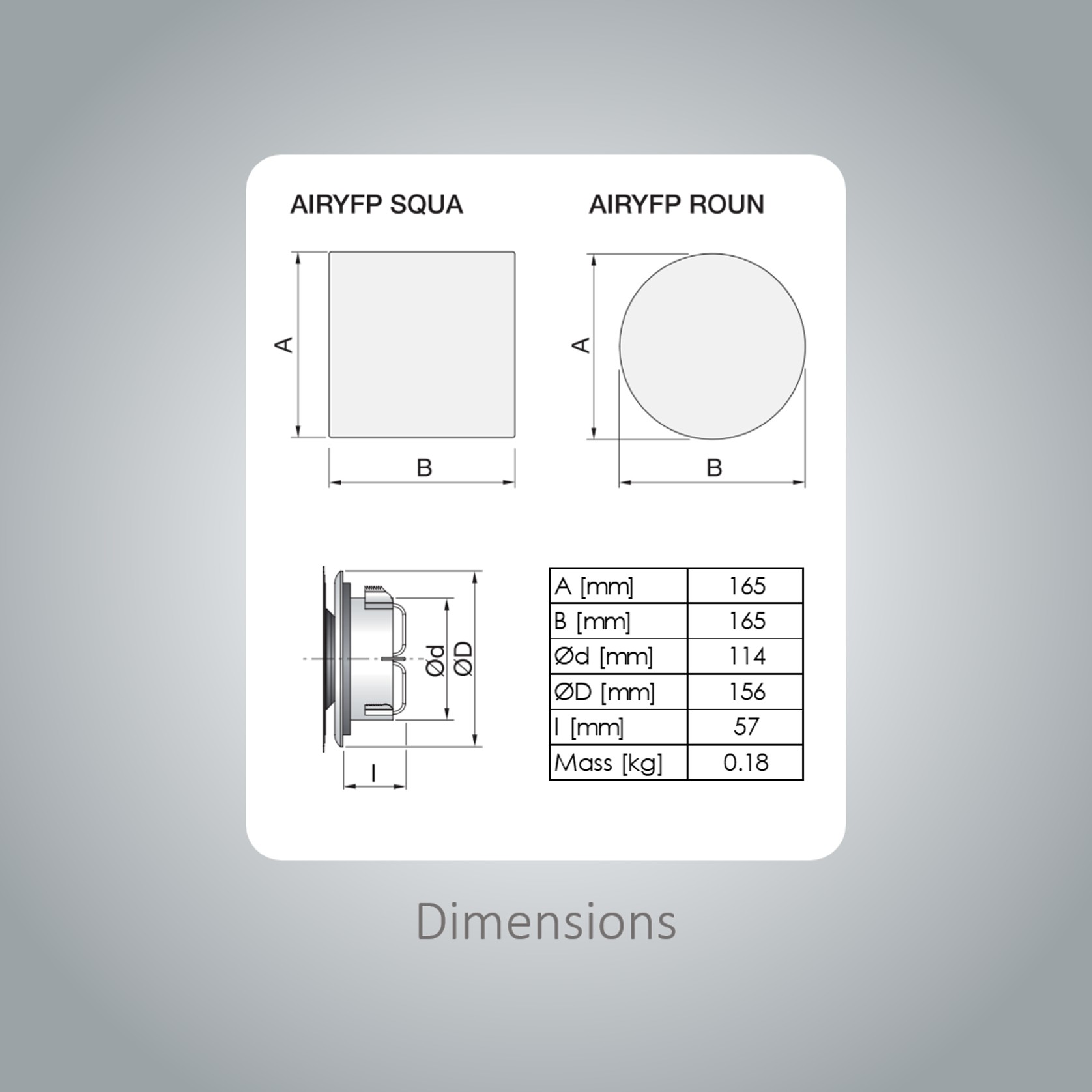

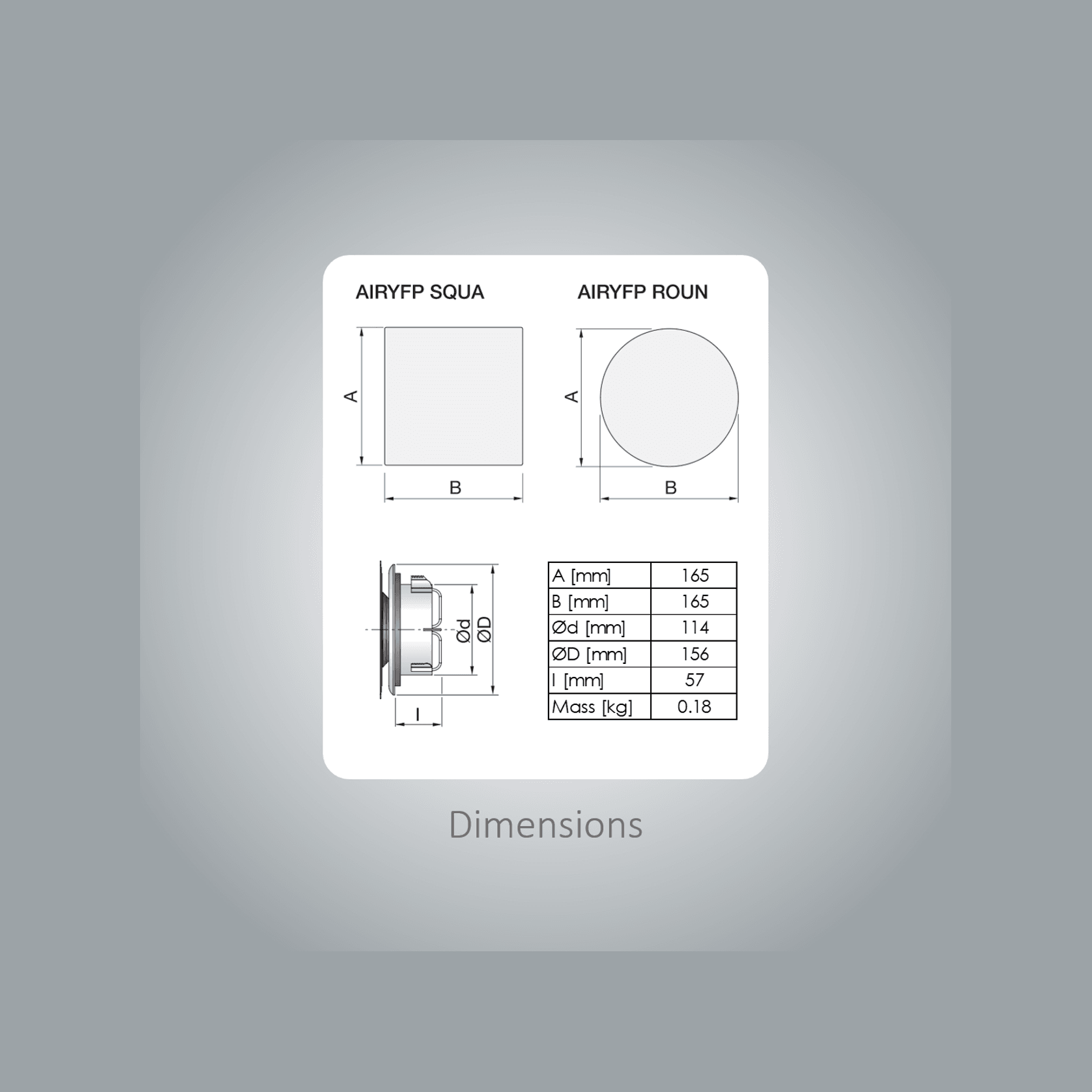

• The valve body has to cover the brim of the product it is fitted into. Therefor the maximum diameter of the brim for the AIRY 125 is 150mm.

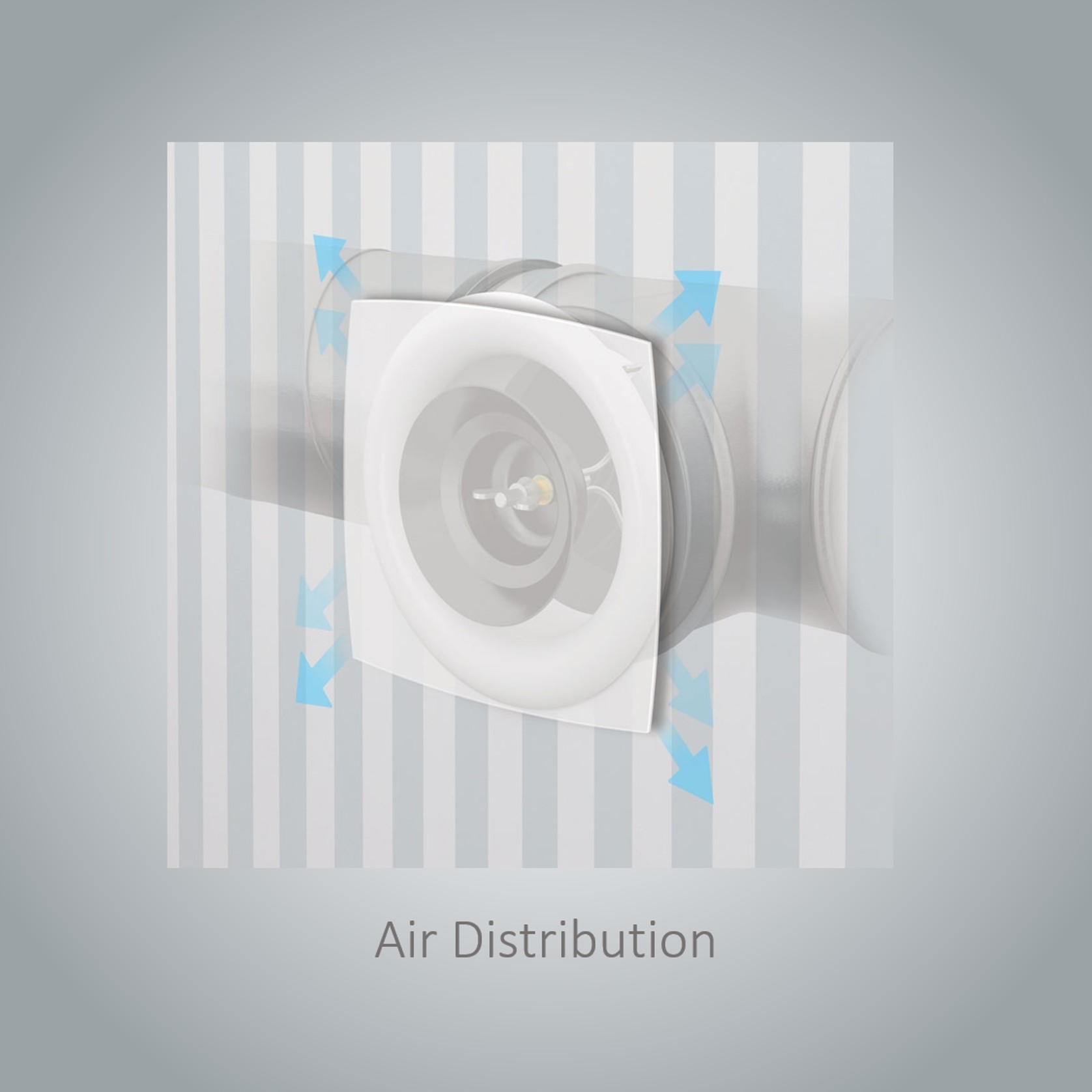

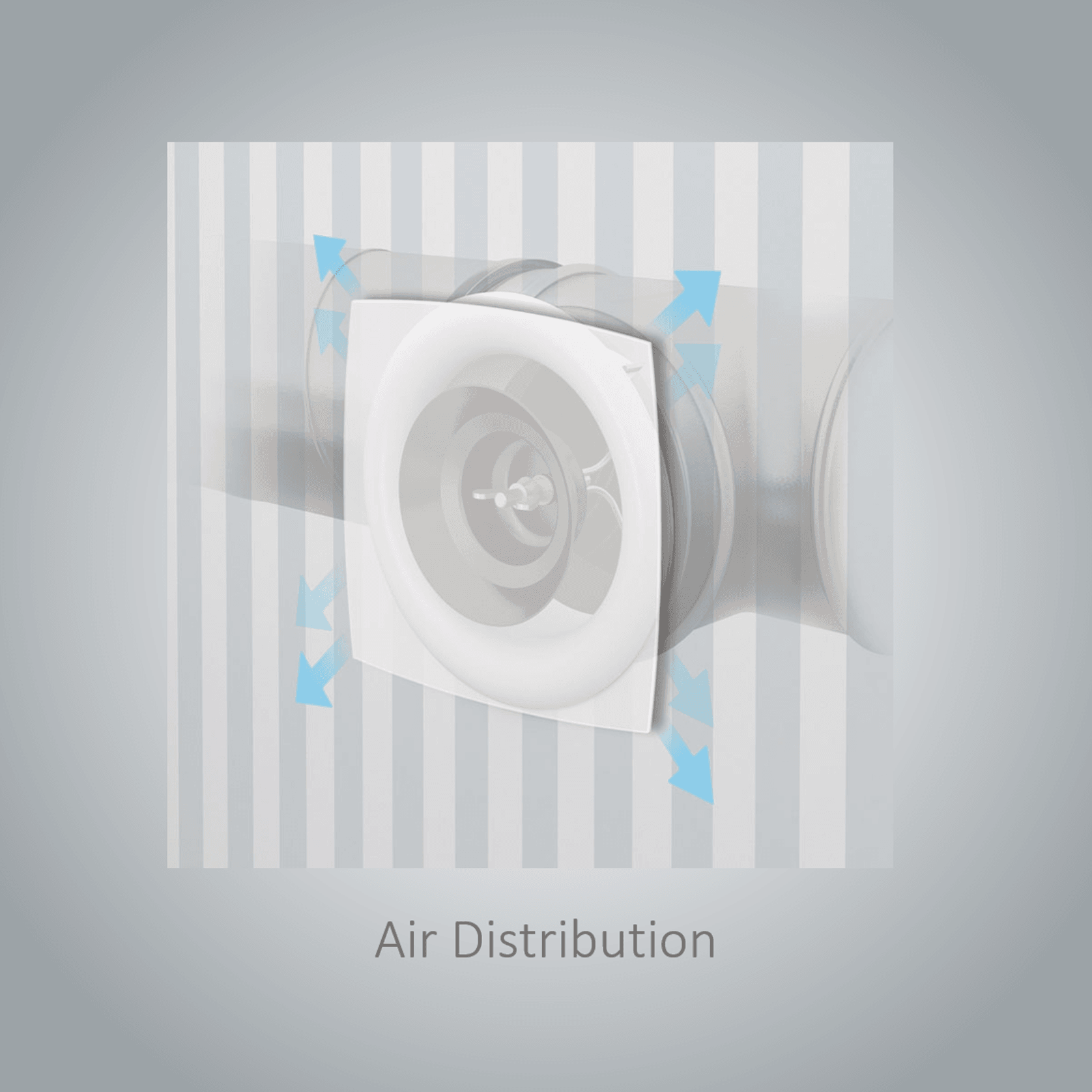

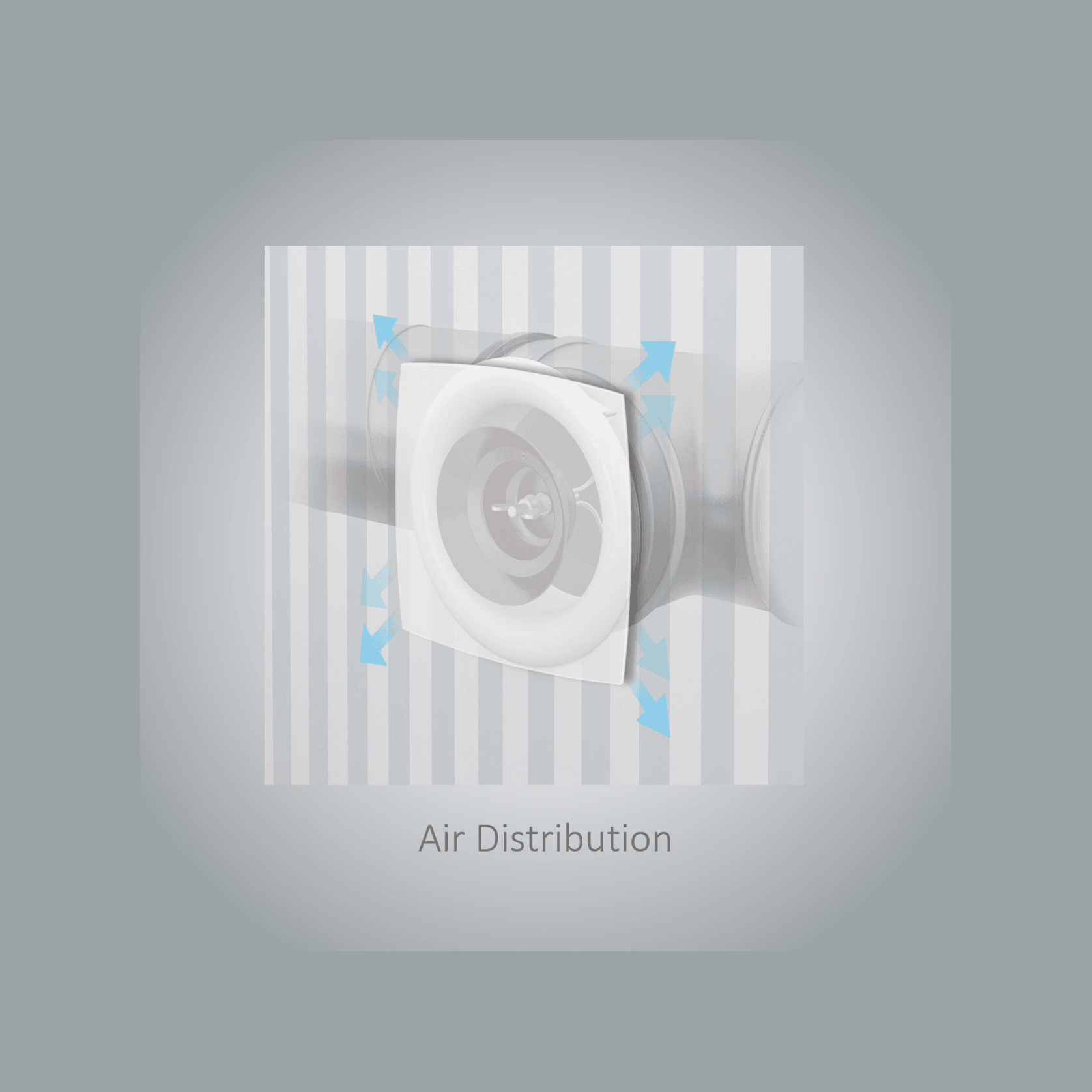

• The AIRY can be equipped with a blanking (off sector plate) to close parts of its 360° air flow.
• The airflow can be adjusted by screw in or out the inner valve plate. Note that as smaller the gap and higher the airflow, the more noise can occur.

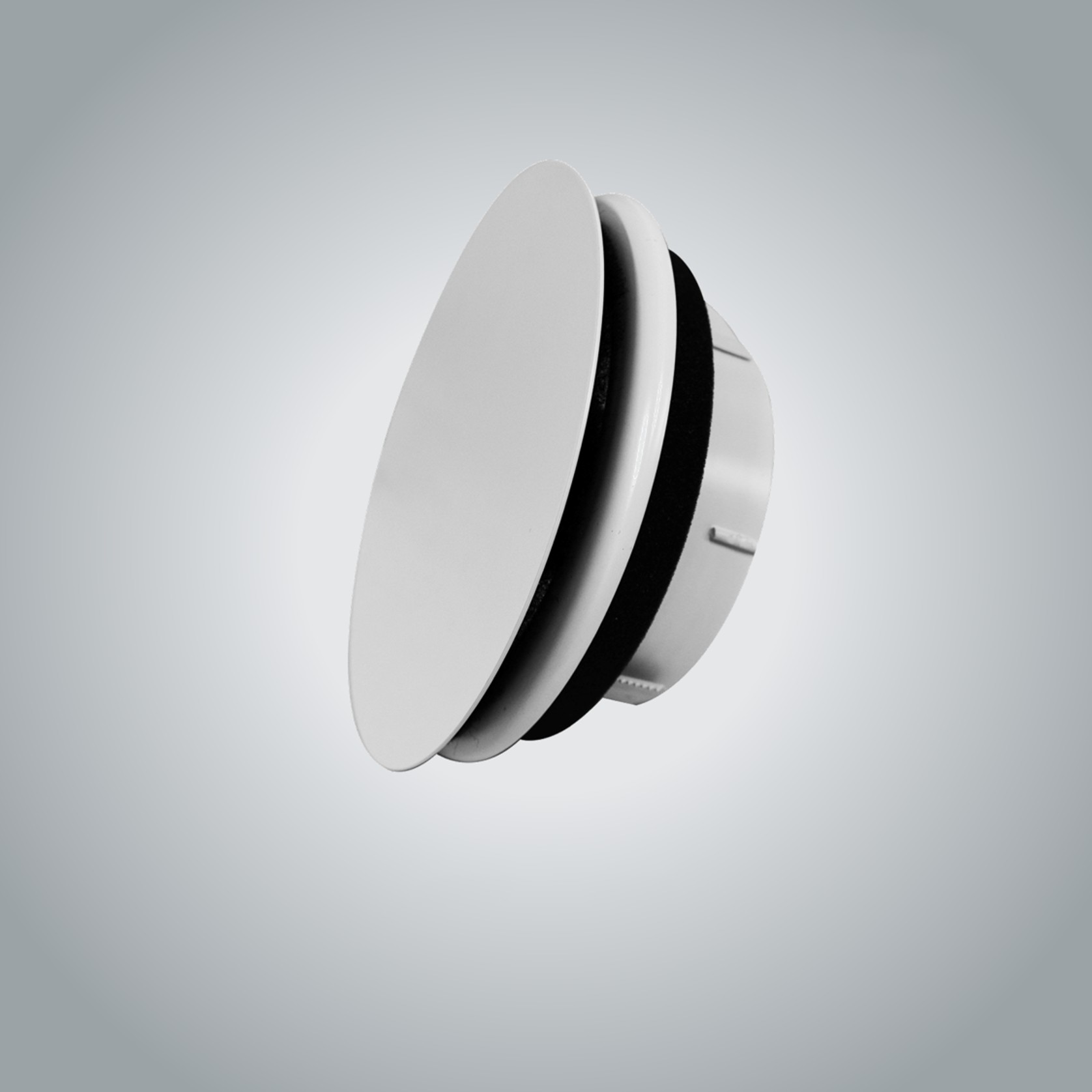

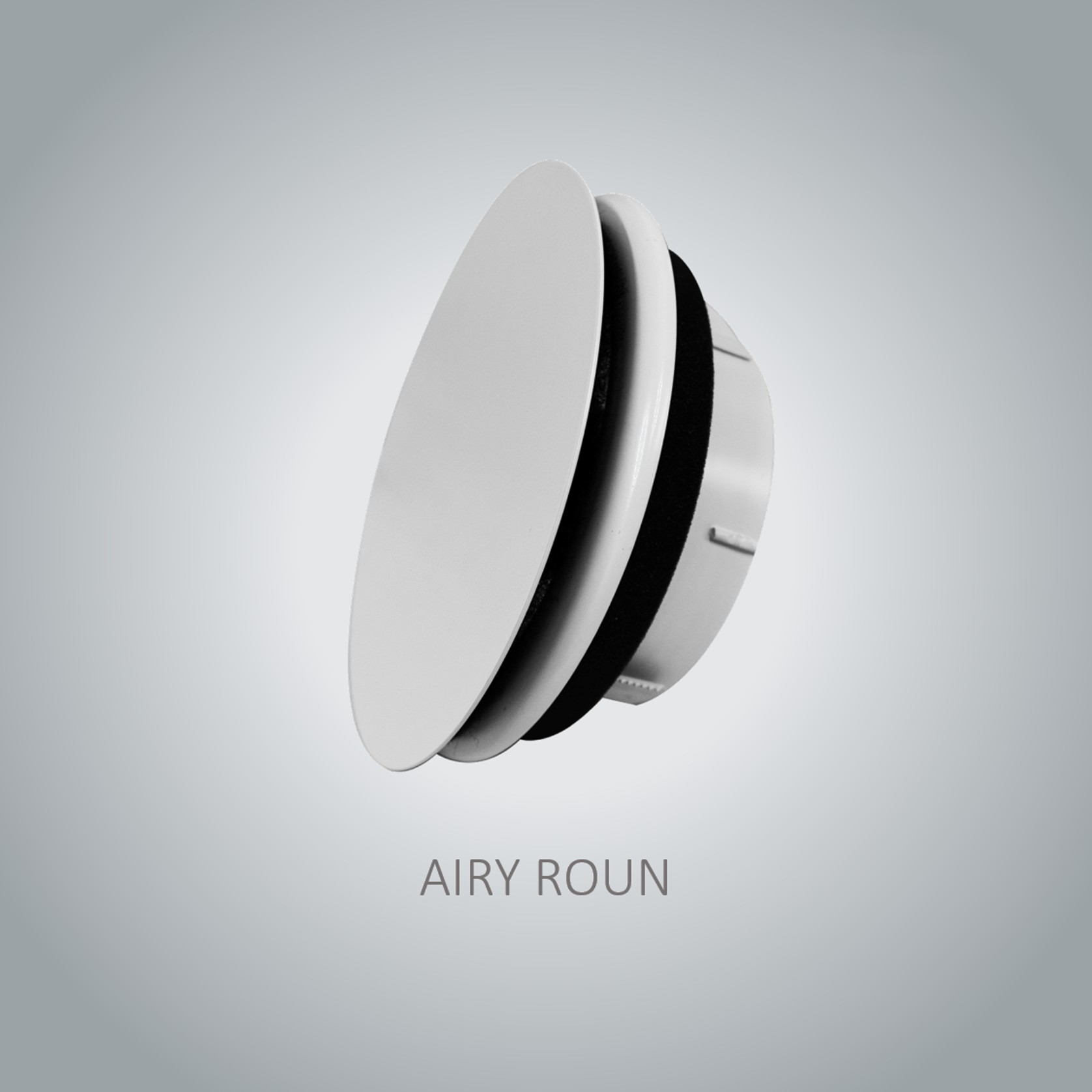

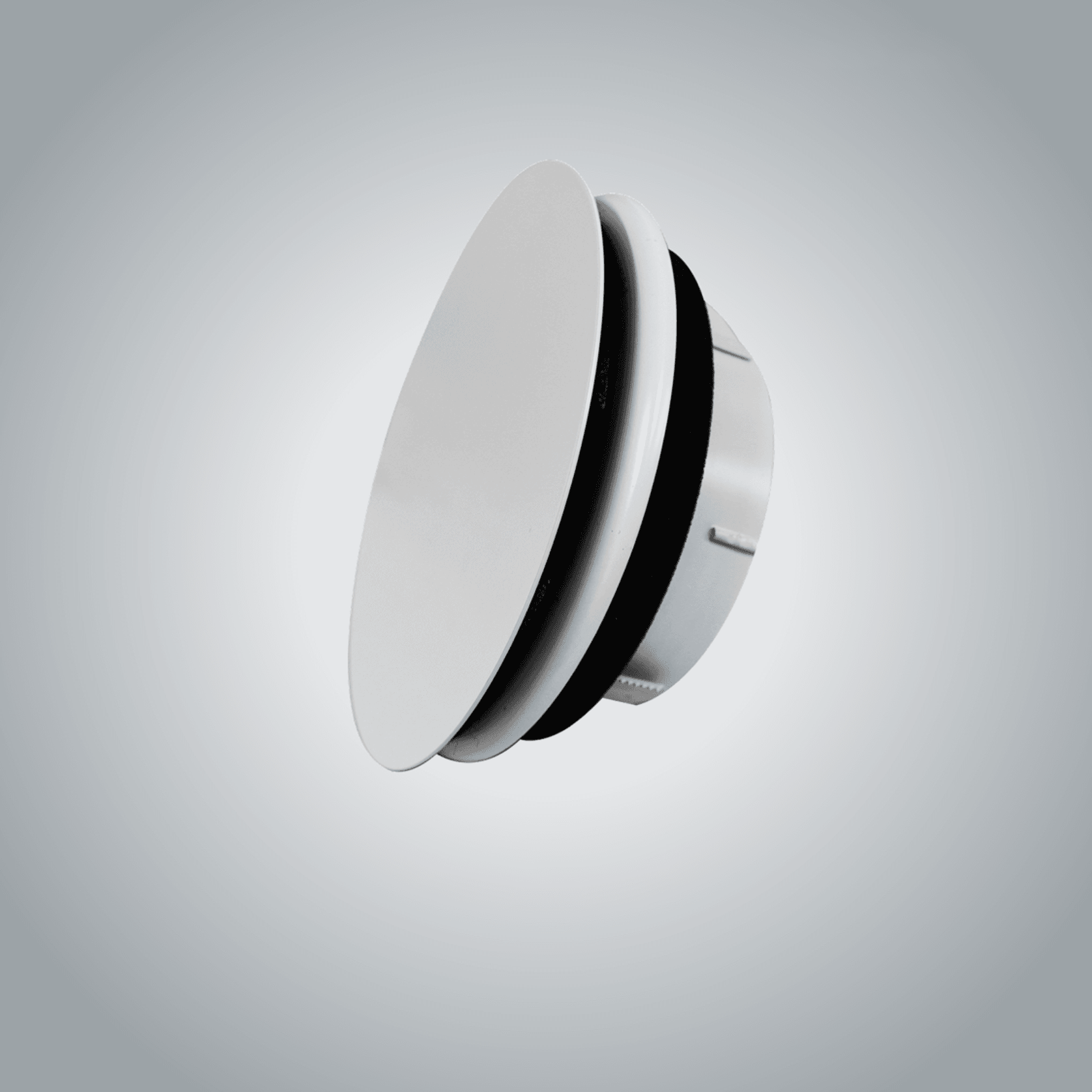

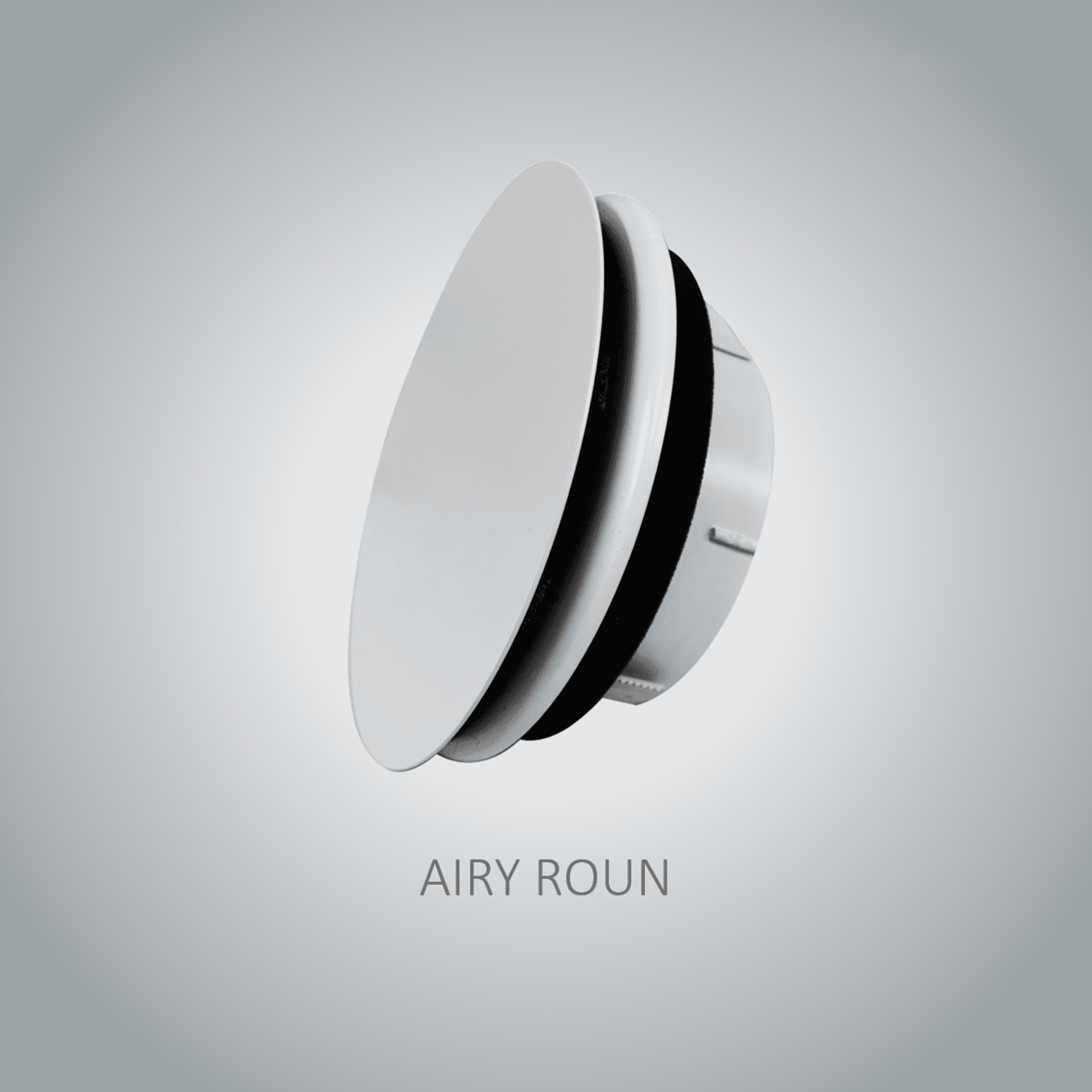

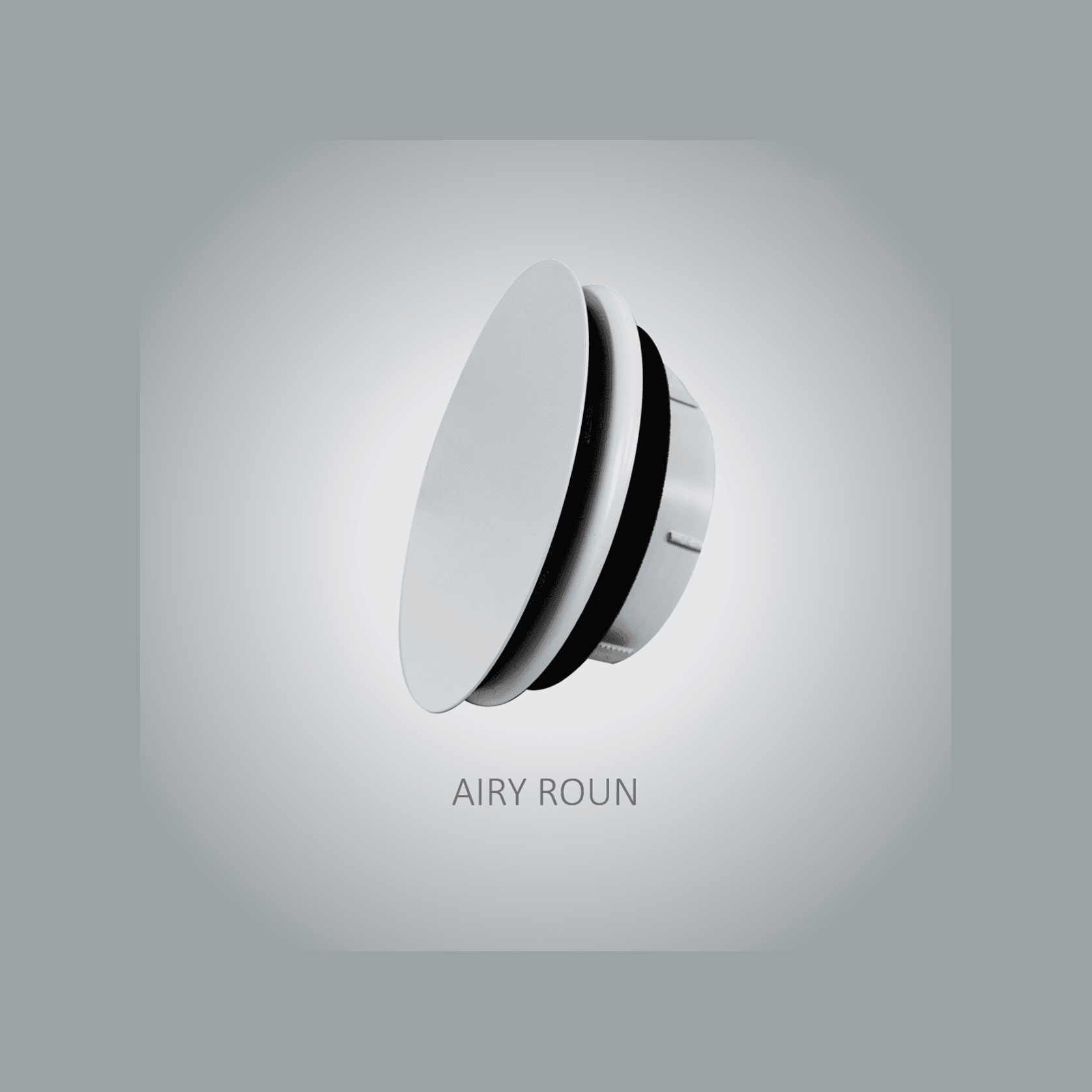

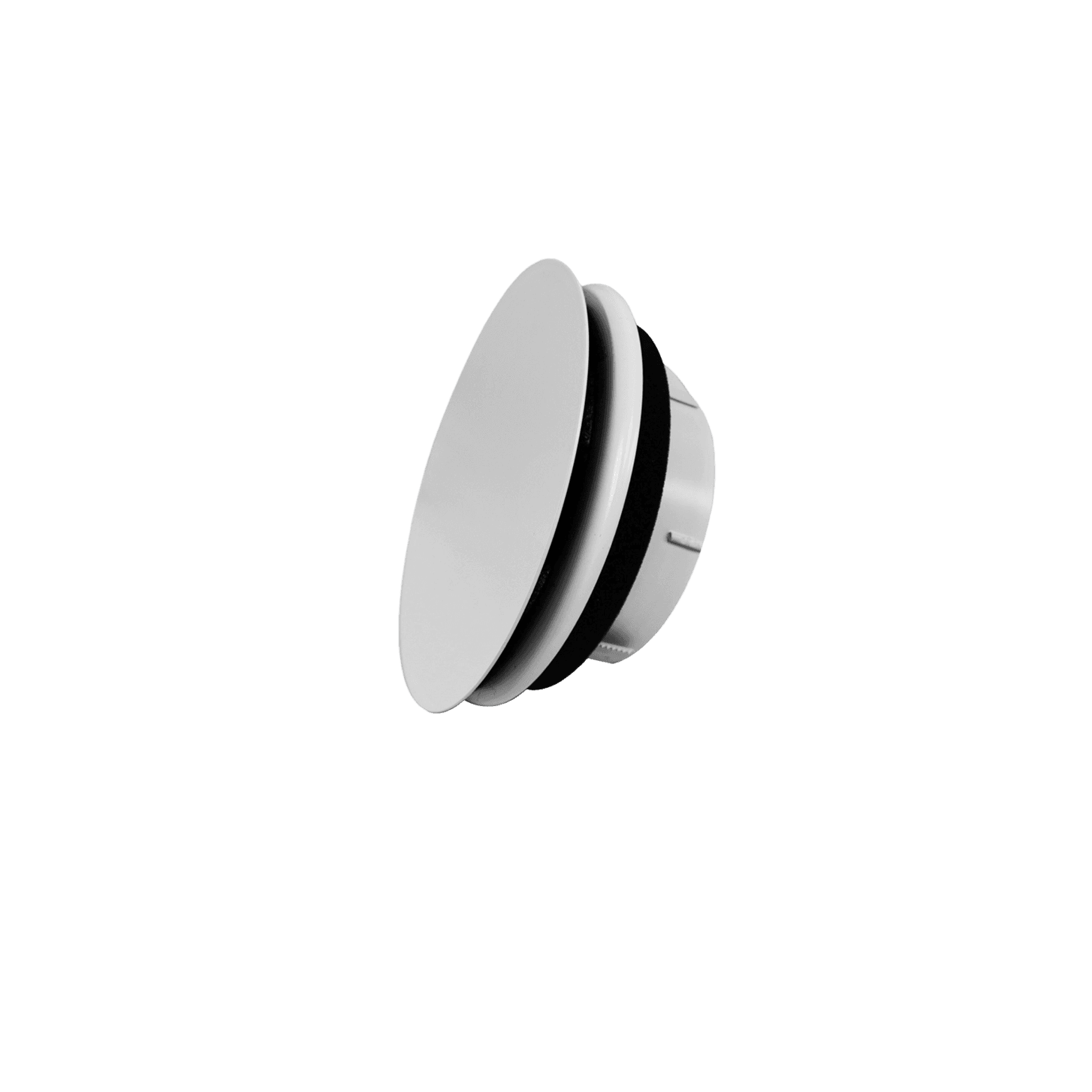

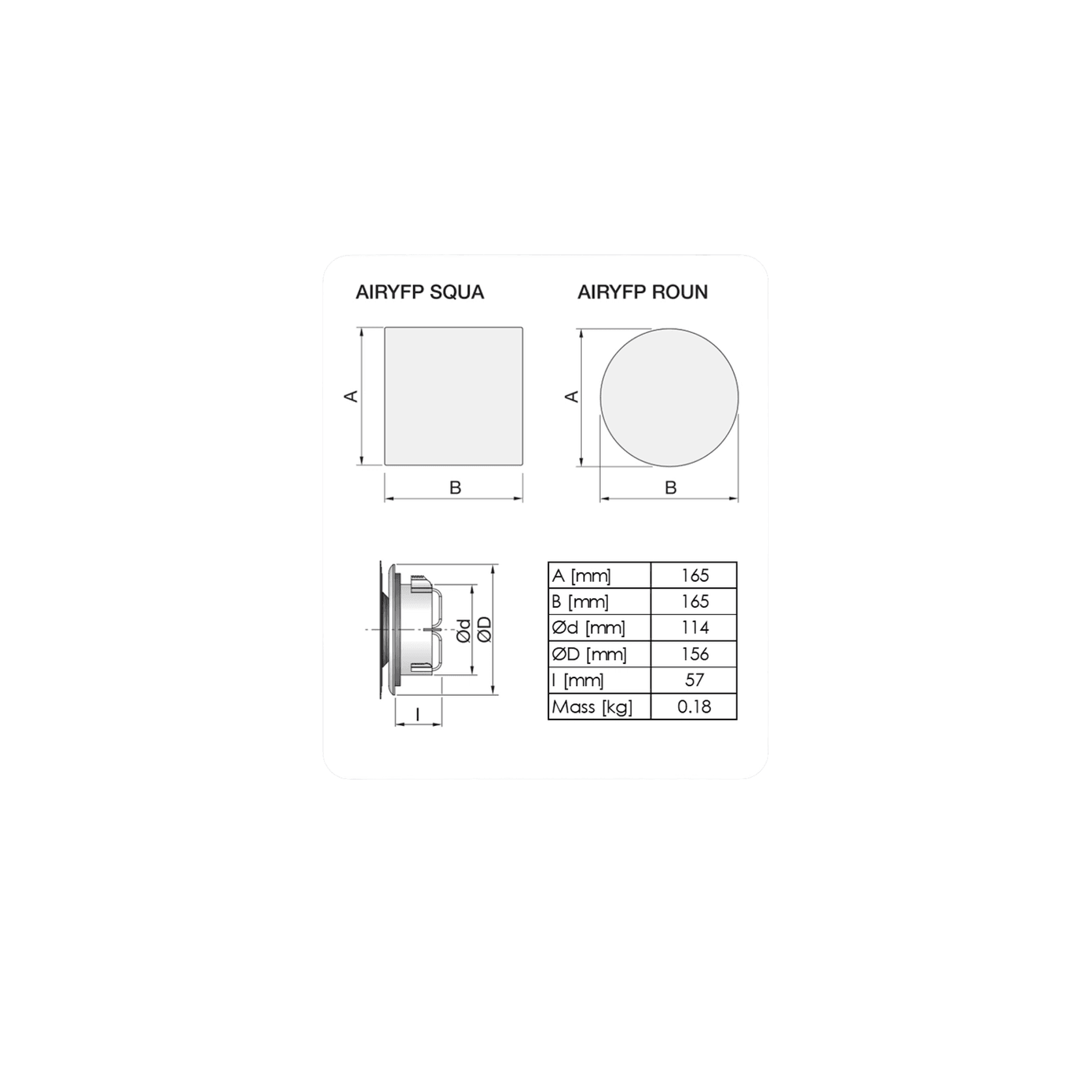

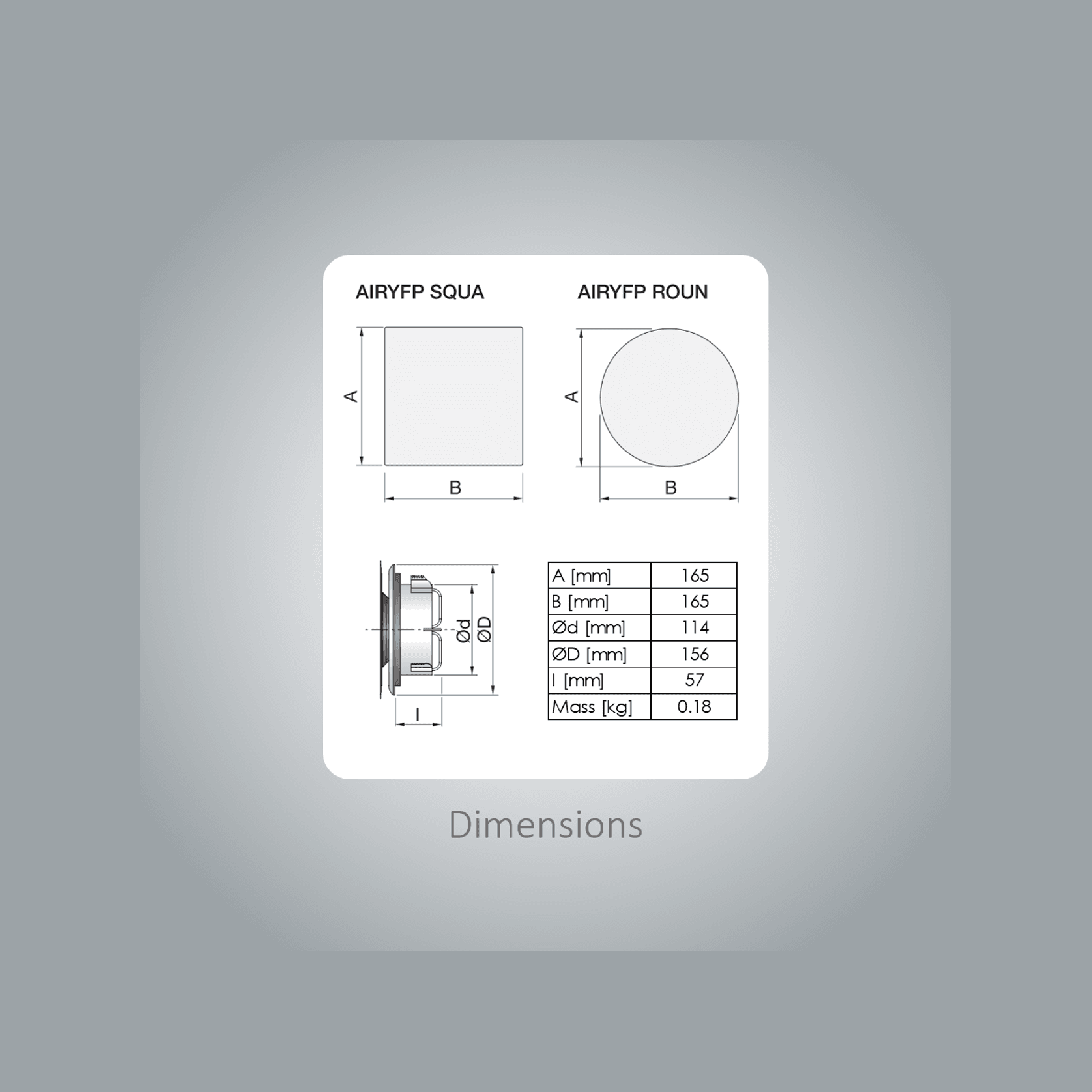

• AIRY 125 Round
  Valve body with round shaped front plate.

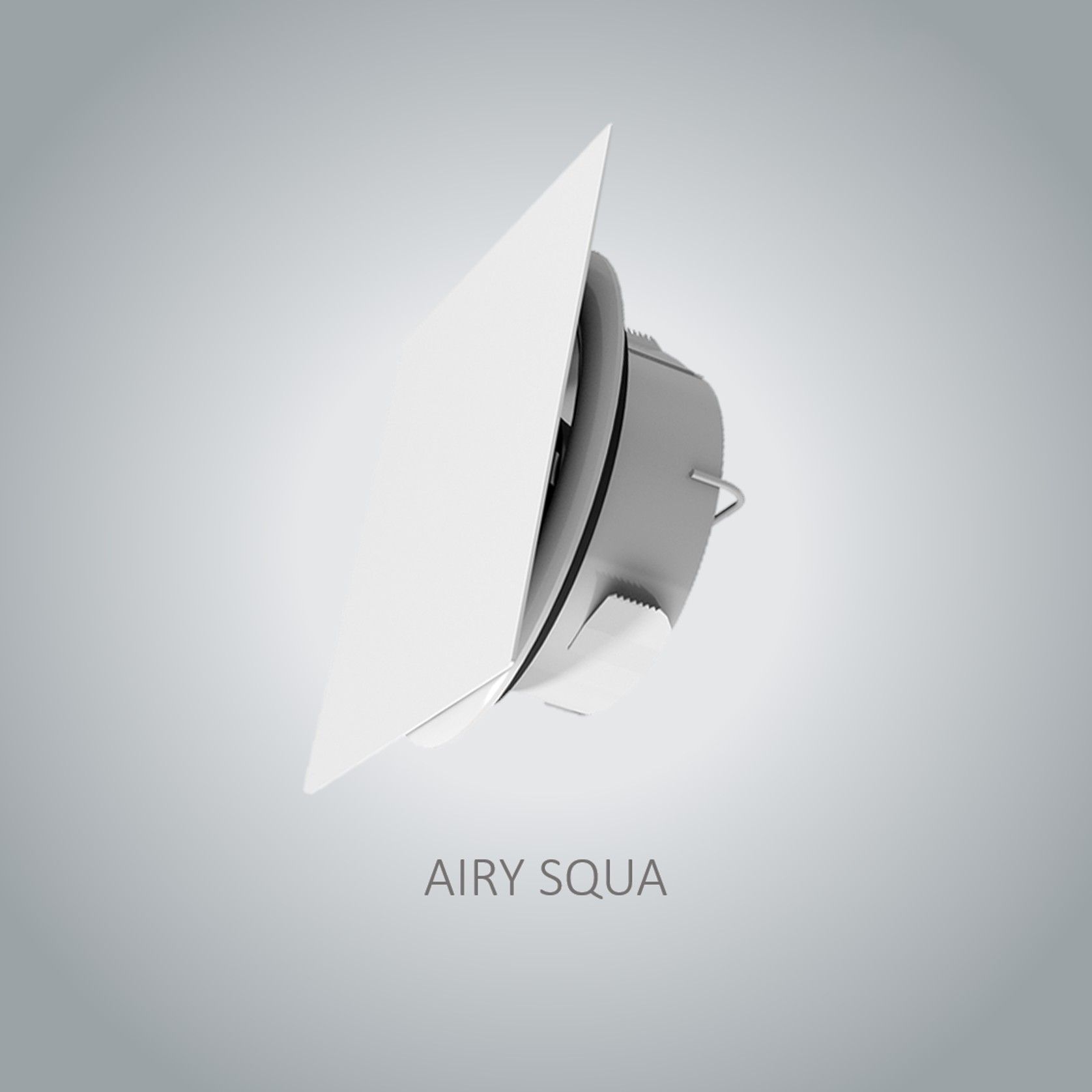

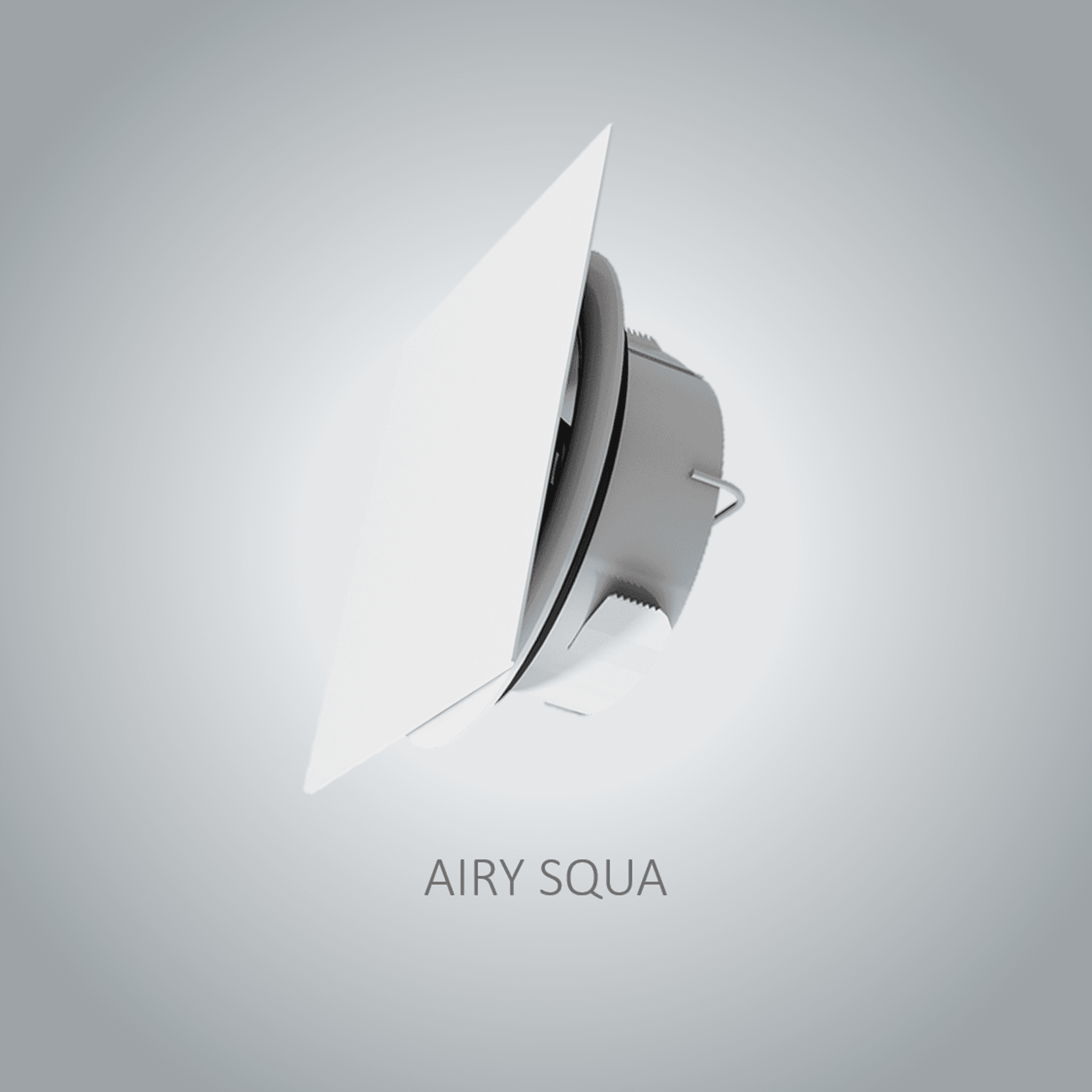

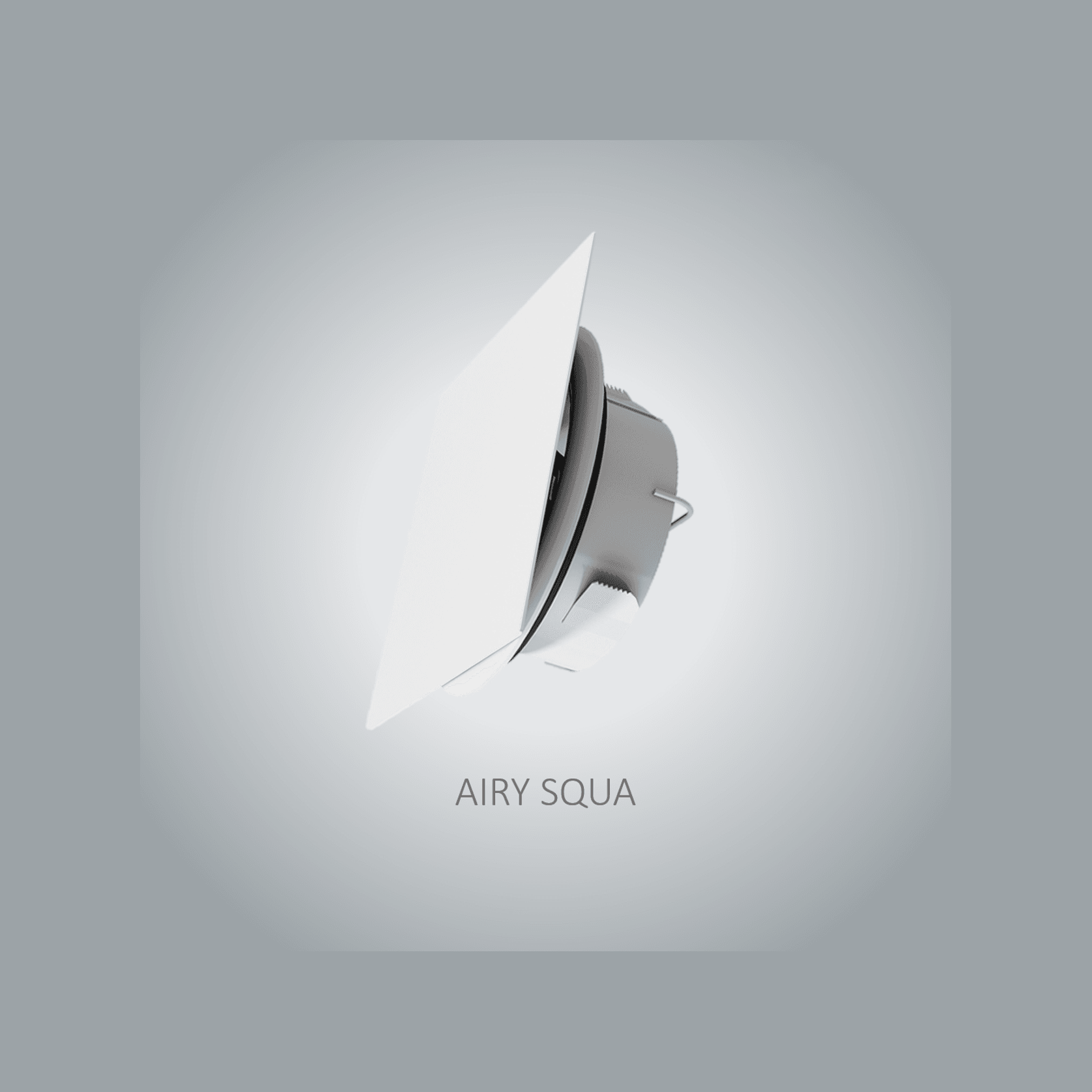

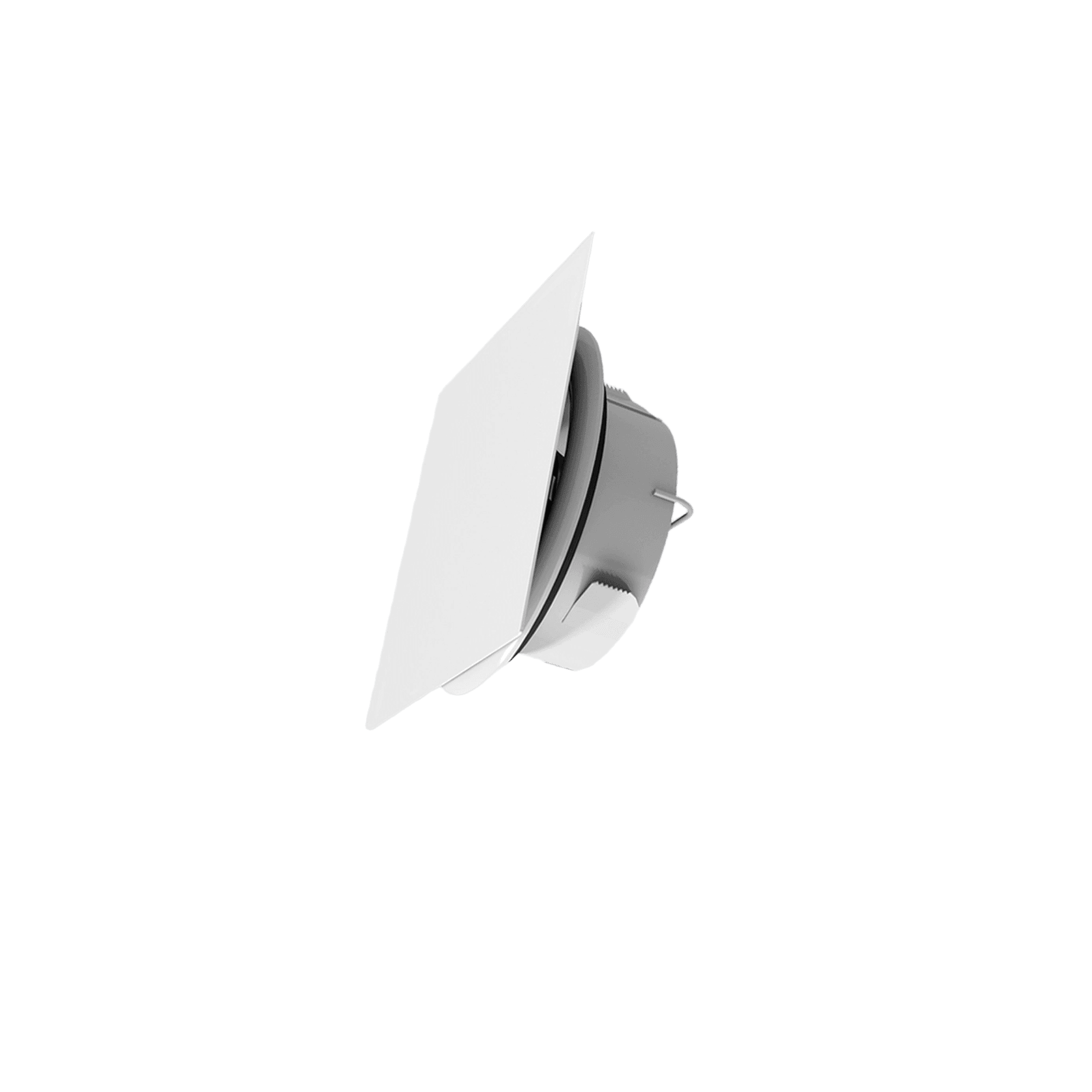

• AIRY 125 Square
  Valve body with squared shaped front plate.
