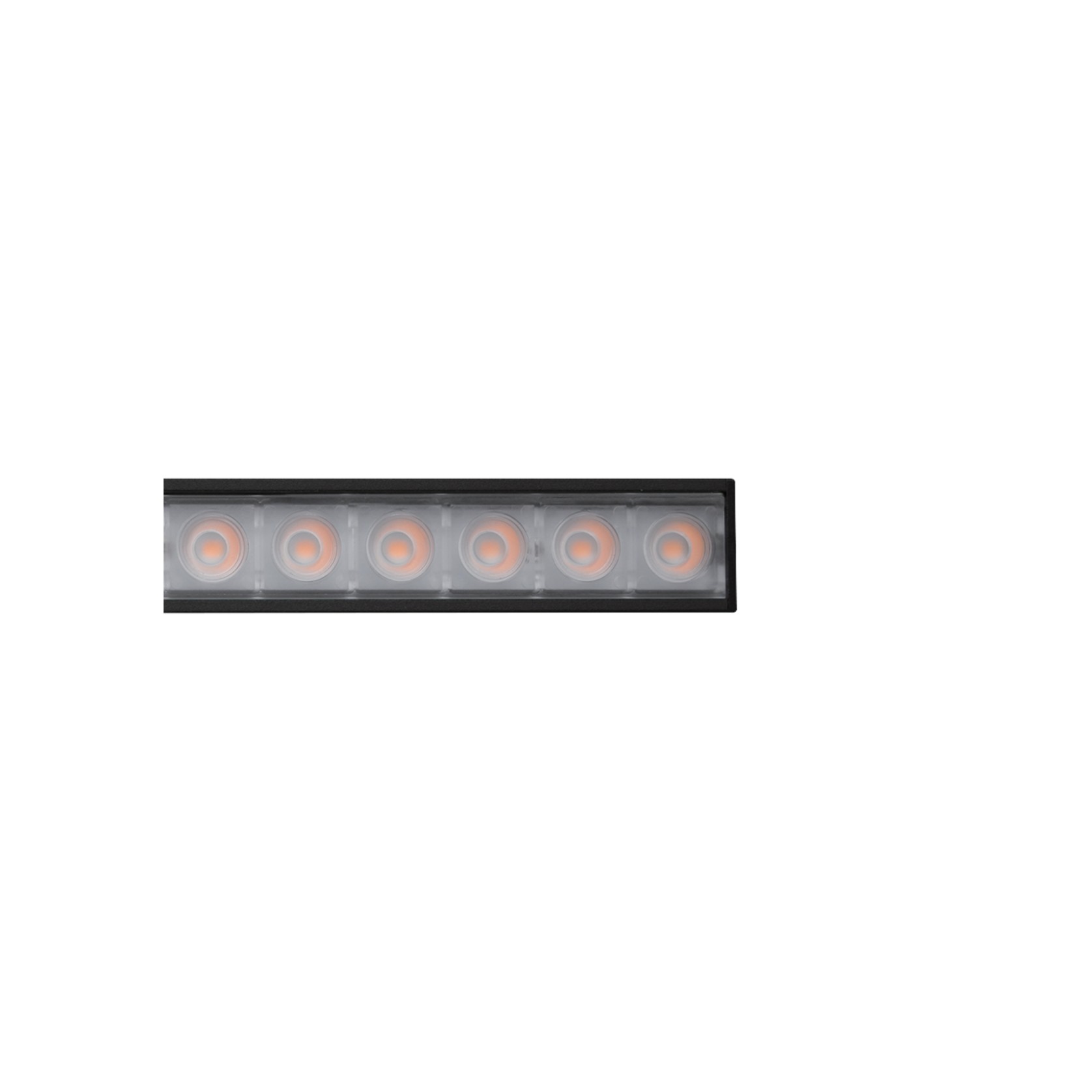

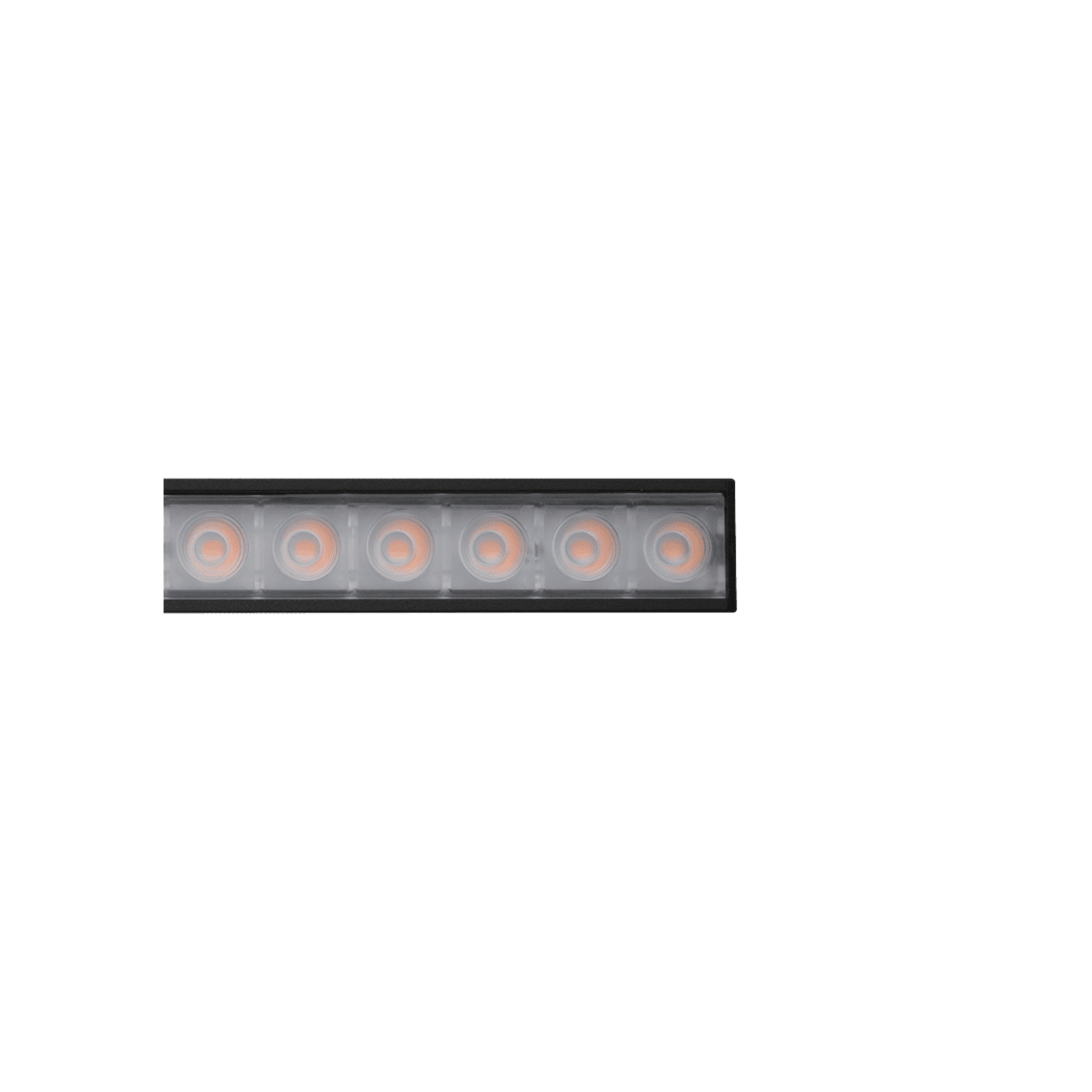

10W Optical Linear 48VDC LED Track Luminaire

A 48VDC low voltage track system is synonymous with electrical safety, permitting greater flexibility and ease of use including installation. The luminaire can be installed and moved to any position without the need for turning off the power to the track. This is due to its low voltage input of 48VDC. No tools are required, the luminaires simply snap-lock into position, remaining in place until you want to remove or re-position the luminaire.

The elegant and minimalist design permits a range of micro luminaires ranging from spots, pendants and linear sources with many features. The system features simple on/off operation with additional dimming options to suit a number of protocols such as DALI or Bluetooth dimming. The system is designed to suit applications from residential through to retail and commercial. The Lino-F2 is covered by a 5 year warranty.

Details
  • Category
    Track Lights
  • Range
    48VDC System
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage: 10W (System)

Luminous Flux: 788 Lm

Luminaire Efficacy: 78.8 Lm/W

CCT:

  • 2700K
  • 3000K
  • 4000K

CRI: >90

Beam:

  • 15°, 30°, 50° (Round)
  • 34°x62°, 60°x36°, 19°x42°, 35°x48° (Oval)
  • 26°x28° (Wallwasher)

Colour Deviation: 3-SDCM

Size: 22mm Width x 23mm Height x 246mm Length

Dimming:

  • Non-dimmable
  • Dali-2
  • BLE (Casambi)

Longevity: >50,000Hrs L90 B10

Finish Options: Black

Warranty: 5 Years
