Lockwood 202 Series Artefact 10mm Radius Corner Pl

Auckland, New Zealand

664.0K profile views
60 saves

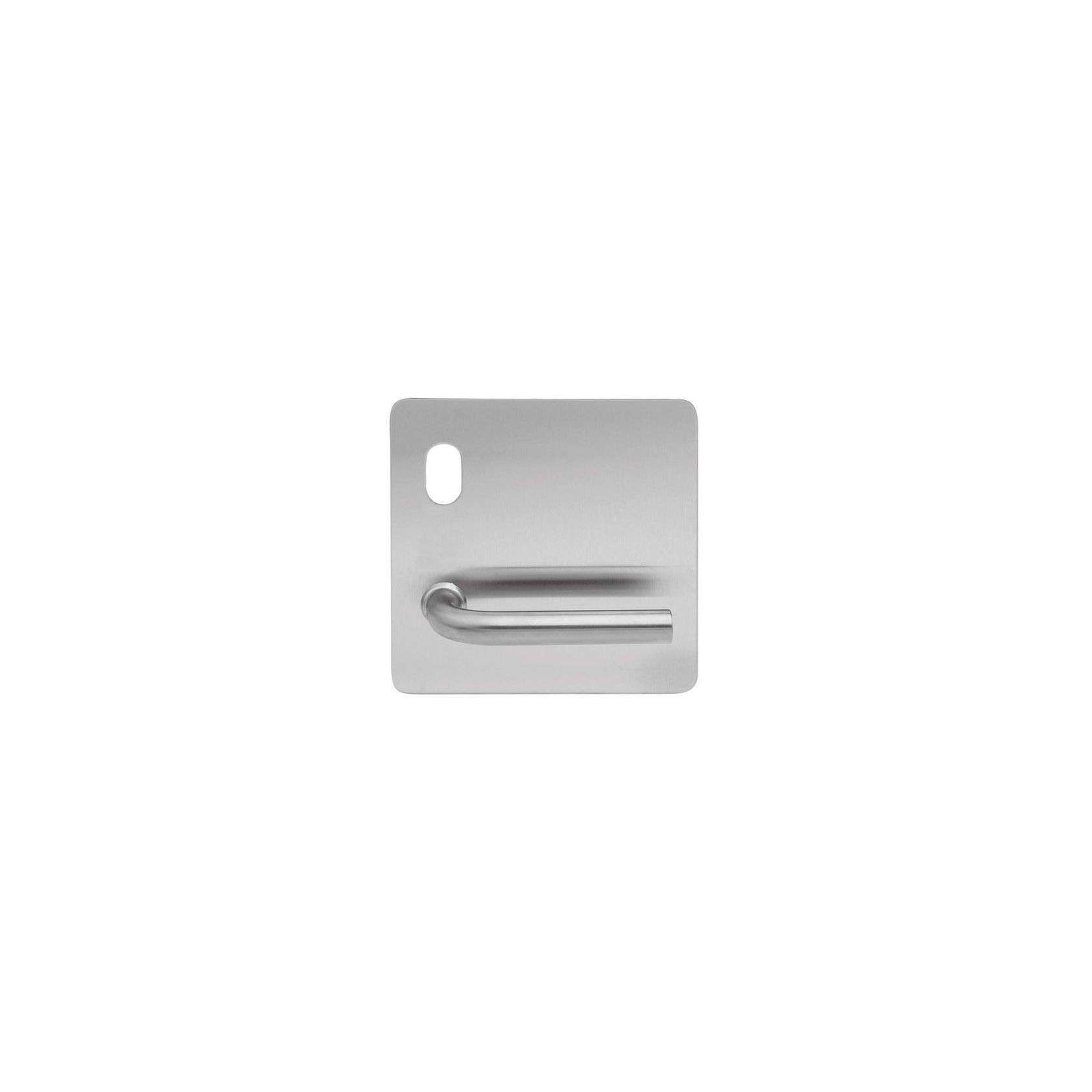

The 202 Series Door Furniture is 162mm square with 10mm radius corners. Concealed fixed plates have studs with internal threads located in each corner, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.

assa abloy lockwood door hardware handle stainless steel

Product Details

Product: Lockwood 202 Series Artefact 10mm Radius Corner Pl
Category: Commercial Doors
Sold by: ASSA ABLOY
Range: Lockwood - Commercial
Designer: ASSA ABLOY
Brand: ASSA ABLOY

Product Variants

Colours

ASSA ABLOY is specified by

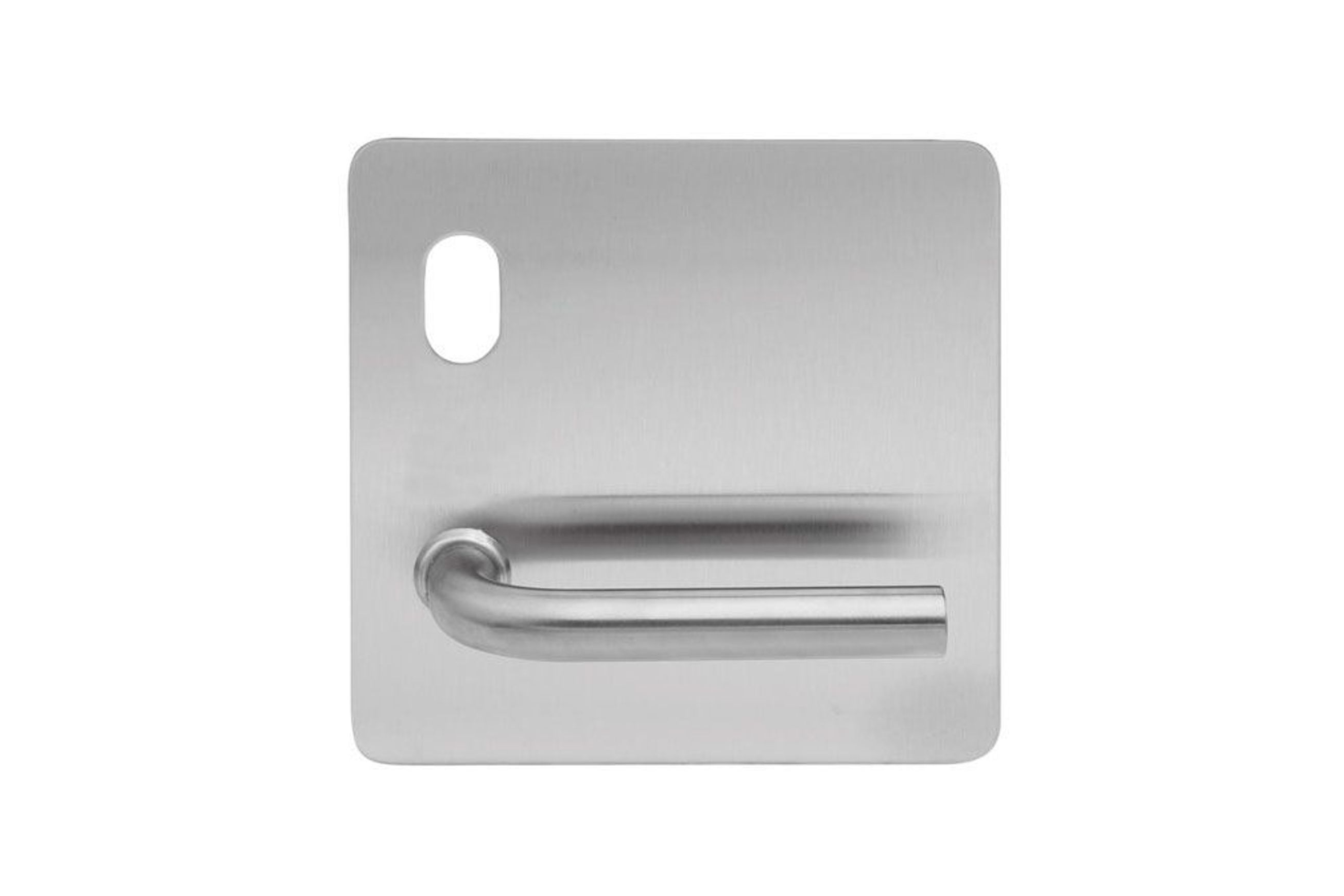

Lockwood 202 Series Artefact 10mm Radius Corner Pl

The 202 Series Door Furniture is 162mm square with 10mm radius corners.

Concealed fixed plates have studs with internal threads located in each corner, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.

Scope of use

Suitable for use in public, commercial, industrial and institutional buildings, where there is a need for high grade and durable fittings.

Application

Designed for use with Lockwood 3570 Series Mortice Locks; Latches and Push and Pull doors.

Specs / Details

Materials
Aluminium, stainless steel and brass.

Door Thickness
35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.
Note: When using flush pulls back to back the minimum door thickness is 40mm.

Finishes

Standard

Natural Anodised Aluminium NT
Stainless Steel SS

Non Standard

Polished Stainless Steel PS
Powdercoat PC
Marine Grade MG
Polished Brass PB

Performance

External plate with 96 lever
Concealed fixing with screws at 4 points
Privacy indicating emergency turn snib
Left handed
Fire rated up to 2 hours
Supplied in trade pack
