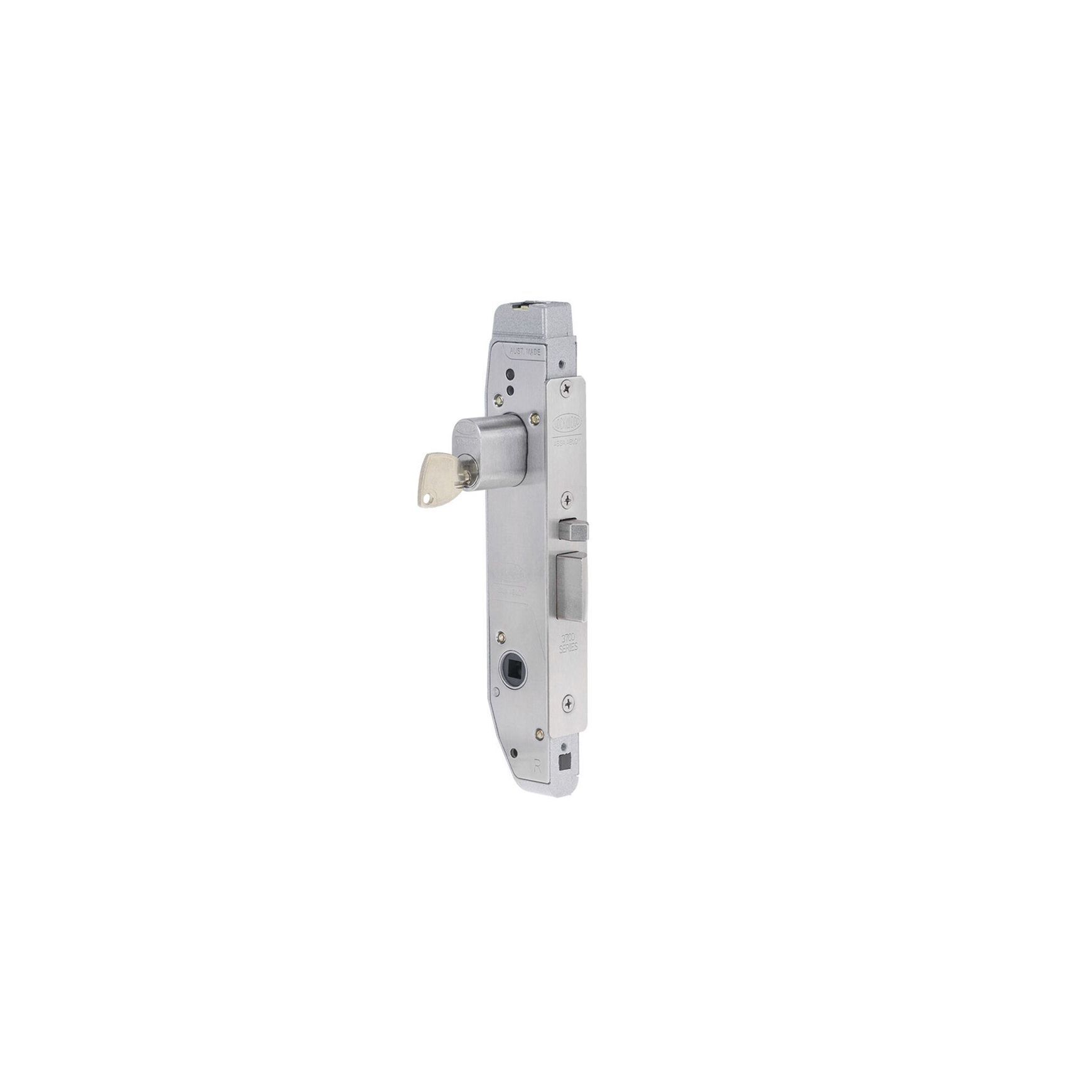

Lockwood Selector Series Electric Mortice Locks
- 192.8K profile views
- 17 saves

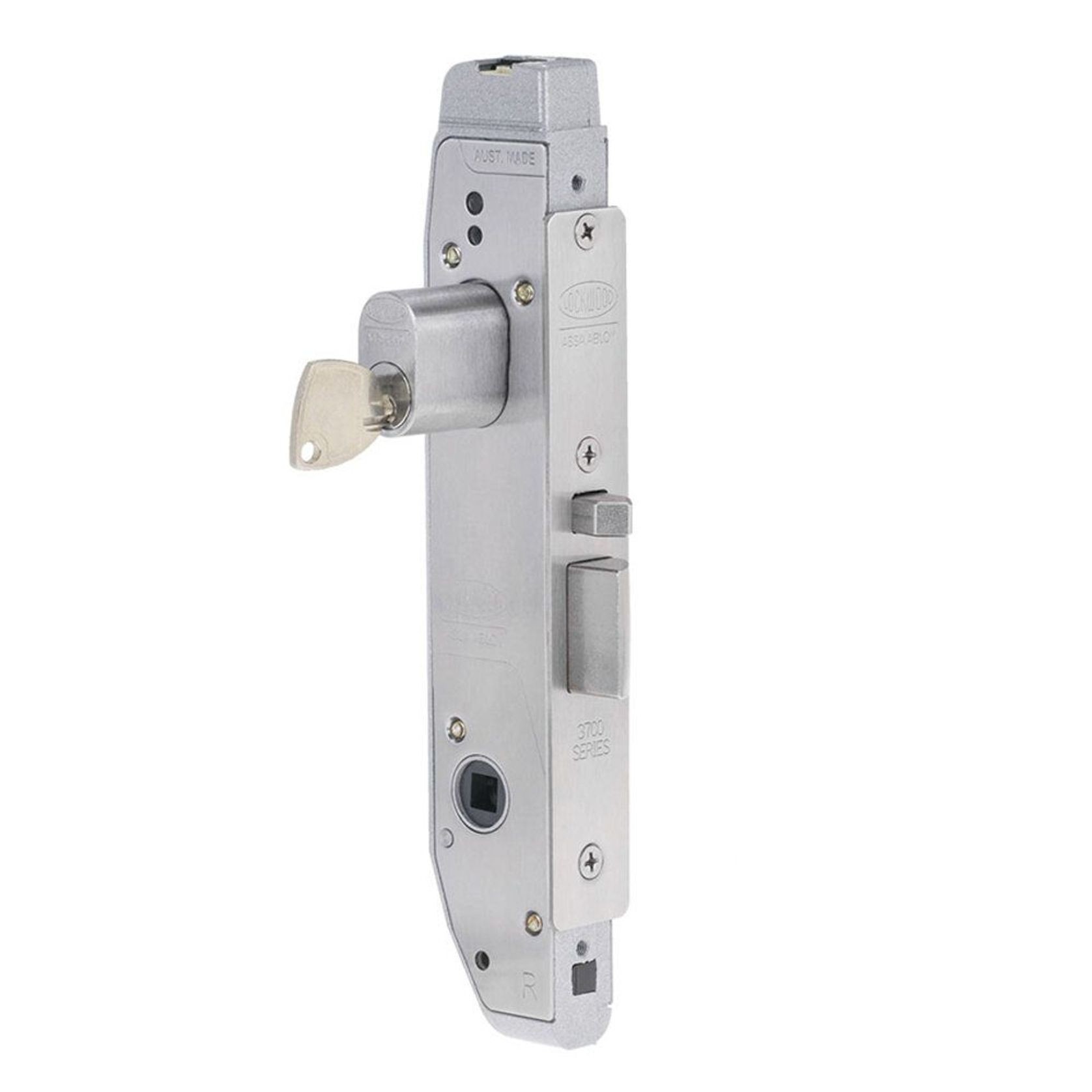

Designed and manufactured in Australia the Selector® 3782EL is a high performance electric mortice lock for narrow stile hinged doors. Designed to meet the varying requirements of commercial applications the lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers. These locks comply with building regulations for single-action escape doors.
Key Features
- Variable voltage from 9 – 28VDC
- Simple in field selectable from power to lock to power to open
- Full range of monitoring including REX, Deadlatch, Door position, KOM and lock status
- On board door status LEDs improves installation and reliability
- Unique functions for double reader applications which allows external side to fail securely while internal side fails safe allowing free egress escape
- Motor driven providing lower power usage in some applications
Product Details
- Product
- Lockwood Selector Series Electric Mortice Locks
- Category
- Latches and Locks
ASSA ABLOY Door Locks & Security Solutions is specified by
Wood MarshArchitects
Design King CompanyArchitects
Katz ArchitectureArchitects
Abe McCarthy ArchitectsArchitects
ClarkeHopkinsClarkeArchitects
Woods BagotArchitects
Rama ArchitectsArchitects
Ha ArchitectureArchitects
JOST ArchitectsArchitects
Winter ArchitectureArchitects
DX ArchitectsArchitects
Keeler HardwareManufacturers and Suppliers
Australian Institute of ArchitectsAssociations
Alabaster WorkshopManufacturers and Suppliers
Glasshouse ProjectsDesign & Build
Studio NicholasInterior Designers
KarmatectureBuilding Designers
Designed and manufactured in Australia the Selector® 3782EL is a high performance electric mortice lock for narrow stile hinged doors.
Designed to meet the varying requirements of commercial applications the lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers. These locks comply with building regulations for single-action escape doors.
Key Features
- Variable voltage from 9 – 28VDC
- Simple in field selectable from power to lock to power to open
- Full range of monitoring including REX, Deadlatch, Door position, KOM and lock status
- On board door status LEDs improves installation and reliability
- Unique functions for double reader applications which allows external side to fail securely while internal side fails safe allowing free egress escape
- Motor driven providing lower power usage in some applications
- Specs
Furniture
Compatible with Lockwood 4800 and 5800 Series Furniture. Range includes functions with lens to allow LED indication.Voltage
9 – 28VDC
Current
300mA MAX (20mA continuous if LEDs are activated)Monitoring
Key override (NC), Deadlatch (NC), Door Position (NC), REX (NO / NC) and Lock Status (NC) – all 30VDC 50mA MAXEnvironment
-15 to 60ºCCase / Cover
High purity zinc alloy material cases with stainless steel chassis platesBackset
23mm, 25.4mm, 30mm, 38mmCabling
Supplied with 3.6m cable with 12 pin connector and water deflecting bootRecommended cabling
8AWG (0.82mm²) cable runs up to 30mLatch Bolts
Latch bolts are made with stainless steel, 15mm in size
Deadlatching is achieved by an auxiliary stainless steel latch bolt
Reversible for both left and right hand doors, opening in or opening out whilst lock is in door
Separate auxiliary bolt moves into lock case simultaneously with latch bolt
Radius bolt provides greater deadlatch throw and smoother closing actionCylinder Retaining Pin
Hard-drawn spring steel wire, corrosion protected.Door Thickness
Metal doors: 35 to 50mm
Timber doors: 32 to 50mm
Specify Selector® 3782-TFKIT for timber door fixing kit to convert an aluminium fix lock to timber door fixing. The timber door fixing kit includes a long faceplate, strike and screws to suit a timber door and jambDoor Clearance
To ensure correct functioning of the deadlatching mechanism and security for all locks, the clearance between the door and the frame should be 3mm.Security
All Selector® 3782EL Series Cylinder Mortice Locks conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008). Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder.Durability
All Selector® 3782EL Series Cylinder Mortice Locks conform with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008).Anti-Corrosion
All Selector® 3782EL Series Cylinder Mortice Locks conform with Level C6 (168 hours) Australian Standard (AS4145.2-2008).Cylinder
Requires standard Lockwood oval shaped brass cylinders and brass barrels. Lockwood cylinders include bump resistant five pin tumbler mechanism.Keying
- Restricted Special Keying – Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication and can also include specially designed keying systems such as master key systems. This allows for different levels of mechanical access control.
- Lockwood Keying Platforms – More information
Standard Finishes
Stainless Steel SSExtended Cylinders
Modular Cylinder Extensions are available for thicker doors.Rebate
Rebate kits to suit 13mm standard rebate are available. Only suitable for use with 30mm and 38mm backset locks.
Downloads
Downloads (3)3 Direct downloads • 7 Available on request
Frequently asked questions about
Lockwood Selector Series Electric Mortice Locks
The Lockwood Selector Series Electric Mortice Locks is supplied by ASSA ABLOY Door Locks & Security Solutions. It is also on their website, and you can browse every product ASSA ABLOY Door Locks & Security Solutions lists on ArchiPro.
ASSA ABLOY Door Locks & Security Solutions does not publish a price for the Lockwood Selector Series Electric Mortice Locks on ArchiPro. for pricing, or visit their website.
It is listed under Latches and Locks on ArchiPro, where you can compare it with latches and locks from other suppliers.

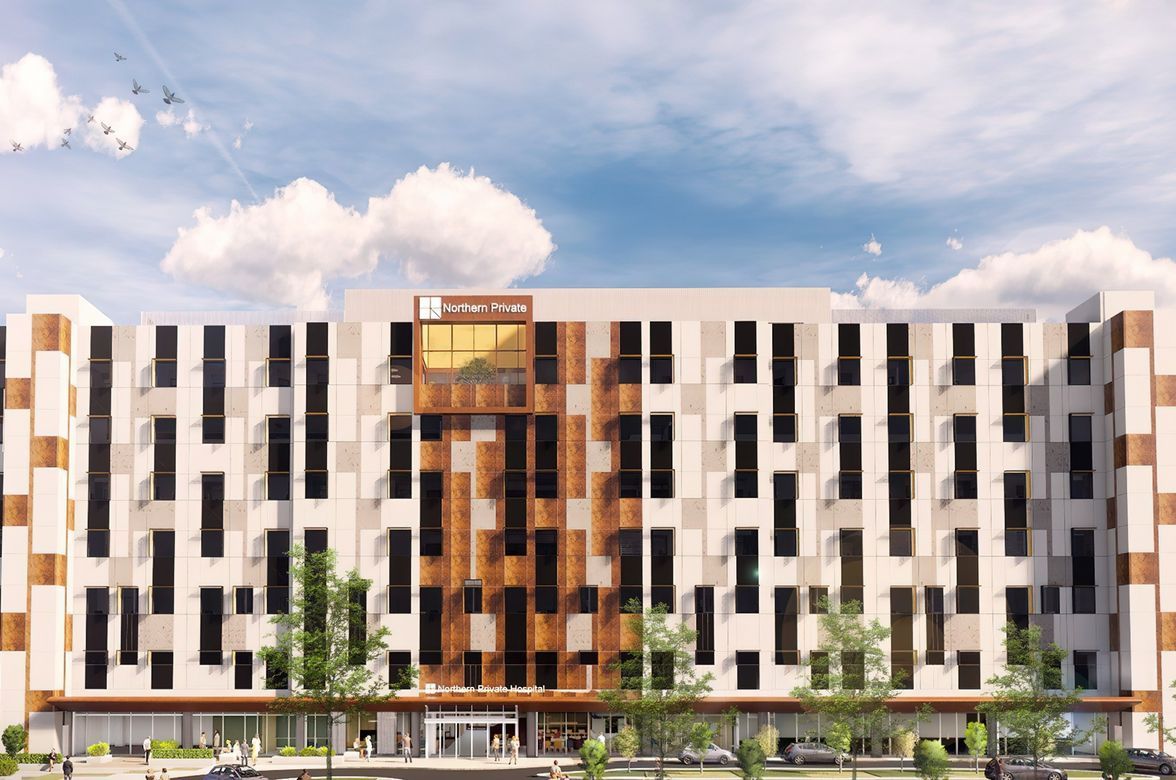

Yes. It has been specified in projects on ArchiPro, including Northern Private Hospital by ASSA ABLOY Door Locks & Security Solutions. See how it was used in a finished space.
