Steel

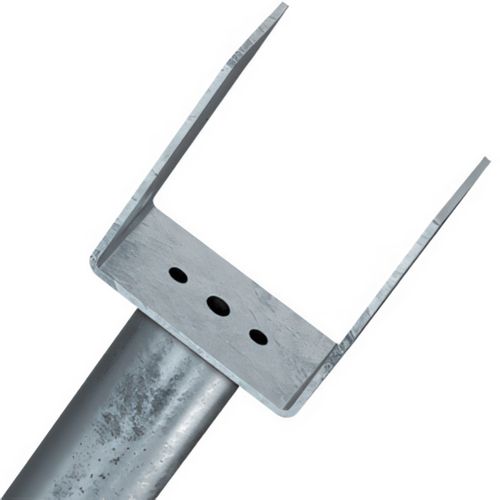

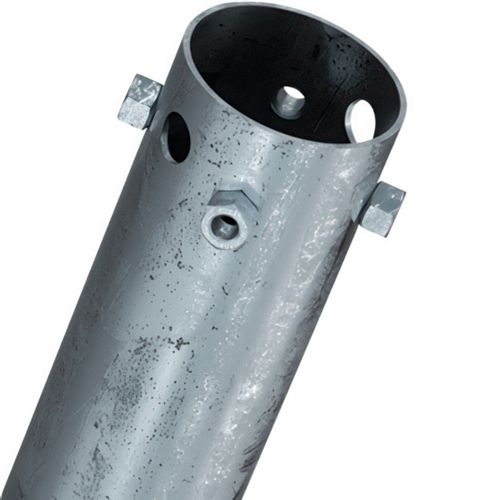

Designed with a centered M thread that can support significant weights and objects when screwed directly to the ground screw. Suitable but not limited to prefabricated garages, containers, large boardwalks and civil structures.

Details
  • Category
    Ground Screws
Specifications

Construction:

  • Flange: Sheet metal S355
  • Continuous welded helix
  • Coating: Hot-dip galvanized according to DIN EN ISO 1461

 Parts:

KSF M 114 x 2100 - M24

  • Nominal length (mm): 2100
  • Tube diameter (mm): 114.30
  • Weight (kg): 21
  • Item number: 24223

KSF M 89 x 2100 - M24

  • Nominal length (mm): 2100
  • Tube diameter (mm): 88.90
  • Weight (kg): 18
  • Item number: 24219

KSF M 76 x 2100 - M16

  • Tube diameter (mm): 76.10
  • Nominal length (mm): 2100
  • Weight (kg): 16
  • Item number: 24215

KSF M 76 x 1300 - M12

  • Nominal length (mm): 1300
  • Tube diameter (mm): 76.10
  • Weight (kg): 7
  • Item number: 24212
SKU: m-serie-1
