Steel

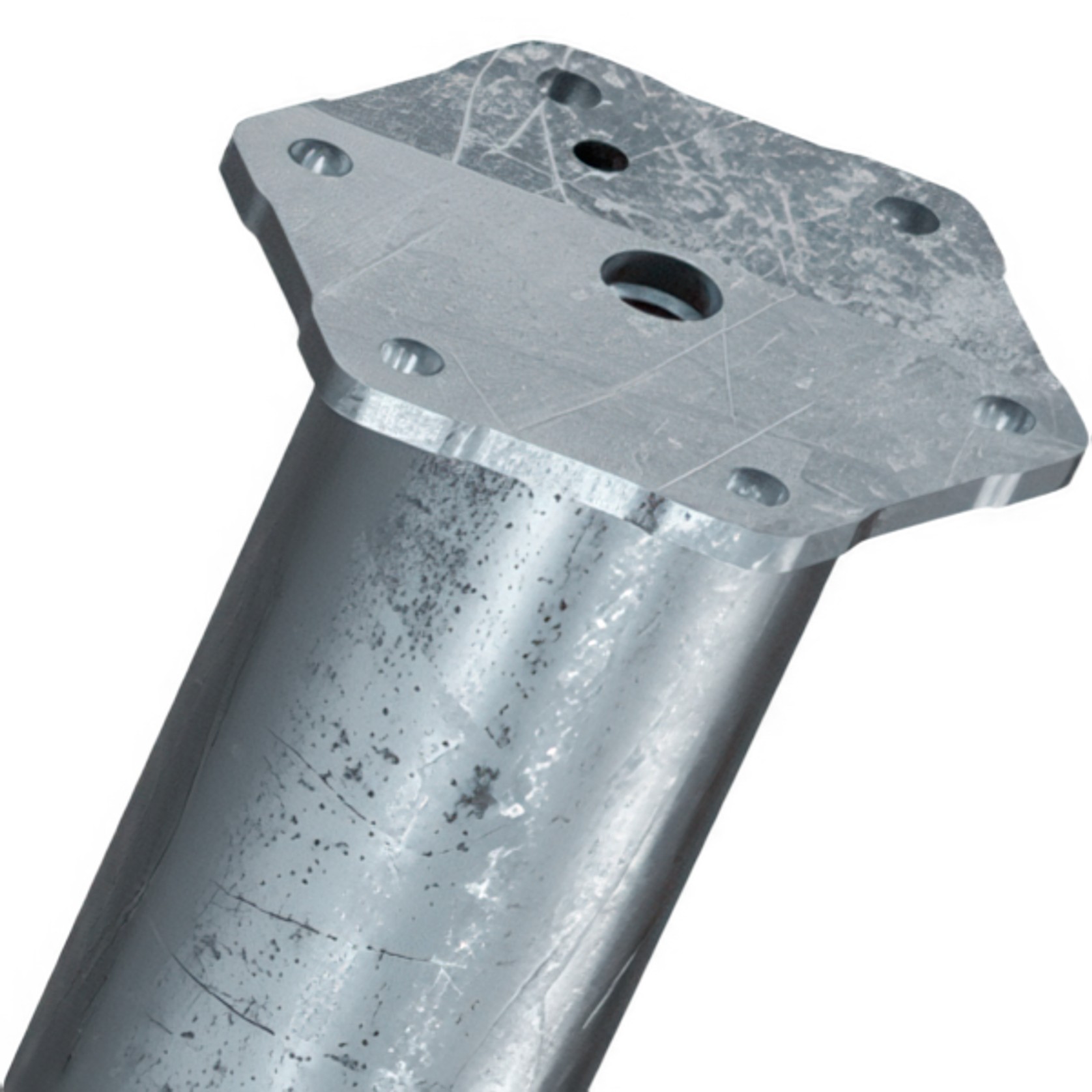

The screw foundations of the V-series belong to the extendable screw foundations. Depending on the project, the screw foundations can be expanded and were therefore specially developed for projects with high load-bearing requirements.

Details
  • Category
    Ground Screws
Specifications

Construction:

  • Flange: Sheet metal S 355
  • Continuous welded helix
  • Average zinc layer thickness: 100 µm according to DIN EN ISO 1461
  • Extra hard Hardox drive point
  • Extra thick 5-mm-helix

Accessories:

  • Connection Screw Set: 4 pcs, 1.14 kg
  • Item No. 25605

Parts:

KSF V 114 x 5 x 2000-PT

  • Nominal length (mm): 2000
  • Tube diameter (mm): 114
  • Weight (kg): 30
  • Steel grade (tube): S 235
  • Item number: 25611

KSF V 114 x 5 x 1500-ET

  • Nominal length (mm): 1500
  • Tube diameter (mm): 114
  • Weight (kg): 22
  • Steel grade (tube): S 235
  • Item number: 25613

KSF V 114 x 5 x 1500-EH

  • Nominal length (mm): 1500
  • Tube diameter (mm): 114
  • Weight (kg): 24
  • Steel grade (tube): S 235
  • Item number: 25612

KSF V 114 x 5 x 860-PT

  • Nominal length (mm): 860
  • Tube diameter (mm): 114
  • Weight (kg): 11
  • Steel grade (tube): S 235
  • Item number: 25614

KSF V 114 x 5 x M24-E

  • Nominal length (mm): 300
  • Tube diameter (mm): 114
  • Weight (kg): 7
  • Steel grade (tube): S 235
  • Item number: 25674
Features
  • Cost efficient
  • Very fast project workflow
  • For grounds with low load carrying capacities
  • No drilling or excavation waste, no disposal costs (full displacement pile)
  • Suitable screwing and test equipment available, according to mechanical engineering guidelines
  • Small excavators offer high savings
