MTC Manual Thermostat

By Coldbuster Floor Heating
Visit Website
White
MTC - L50 x W84 x H115 mm

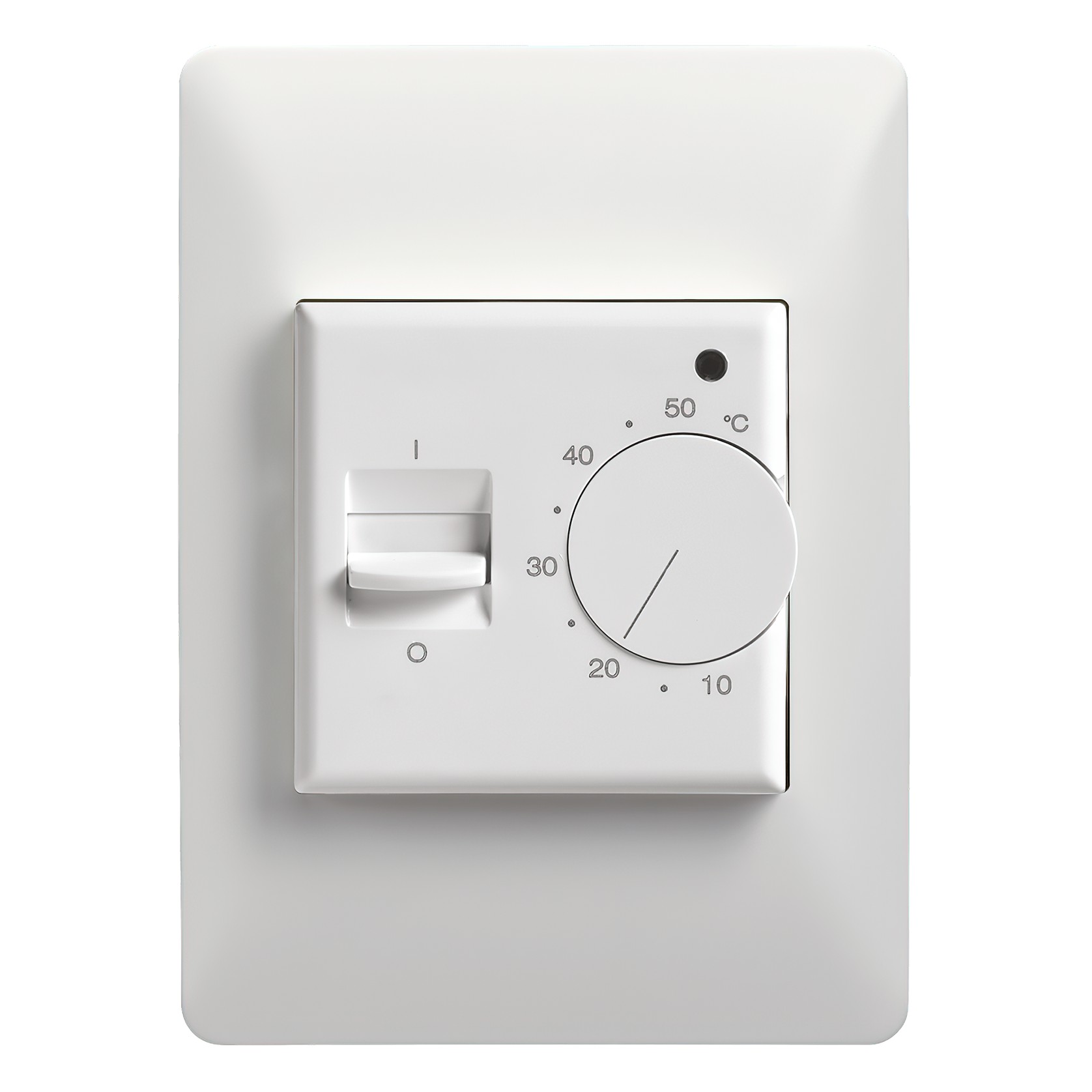

MTC is an electronic heating thermostat designed to be installed in a standard single gang electrical box with a minimum width of 2-1⁄4”. Once installed, it requires no maintenance.

An LED illuminates to indicate a call“ for heating, this also aids in system testing. An ON/OFF selector switch on the front of the cover makes system operation is extremely simple.

Details
  • Category
    Thermostat Control
  • Range
    Thermostats
  • Brand
    Coldbuster
  • Warranty
    3 years
General
  • Type of use
    • Commercial and Residential
    • Commercial
    • Residential
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation recommended
  • Assembly
    No assembly required
Specifications

Technical Data:

  • Power supply 240V AC ±10%, 50-60 Hz
  • Output relay, SPST (resistive load)   16A
  • Built-in switch 2 pole, 16A
  • Ambient operating temperature 32-122°F (0-50°C)
  • Scale limitation- minimum and maximum
  • Scale range – 50-122°F (10-50°C)
  • On/Off differential   –  0.7°F (0.4°C)
  • Enclosure – IP20
  • Dimensions (HxWxD) – 115 x 84 x 50 mm

Floor Sensor Installation:

The sensor shall be mounted in a conduit which should be sealed and placed as high as possible in the concrete, etc. The sensor wiring may be extended up to 150’ (50 m) using 18 gauge wire and the wiring resistance shall not exceed 20 ohms. Sensor wires must be kept in a separate conduit, away from all other wirings. The sensor and wires must be protected from damage during the installation. If the shielded wire is used, it must not be grounded but connected to terminal 6 on the thermostat.

Scope of use

MTC is an electronic heating thermostat designed to be installed in a standard single gang electrical box with a minimum width of 2-1⁄4”. Once installed, it requires no maintenance.

Features
  • Push-on/off button
  • Manual non-programmable thermostat.
  • Temperature control knob.
  • Remote Floor sensor
  • Locking mechanism
  • Can be set to limit temp (min & max)
  • Heat on indicator light
