How much does the OAMARU DL56WH Recessed Downlight cost?

Prolux Lighting does not publish a price for the OAMARU DL56WH Recessed Downlight on ArchiPro. Send them an enquiry for pricing, or visit their website.

OAMARU DL56WH Recessed Downlight

Name: OAMARU DL56WH Recessed Downlight
Brand: Prolux Lighting

by Prolux Lighting

Auckland, New Zealand

591.8K profile views
93 saves

Visit Website

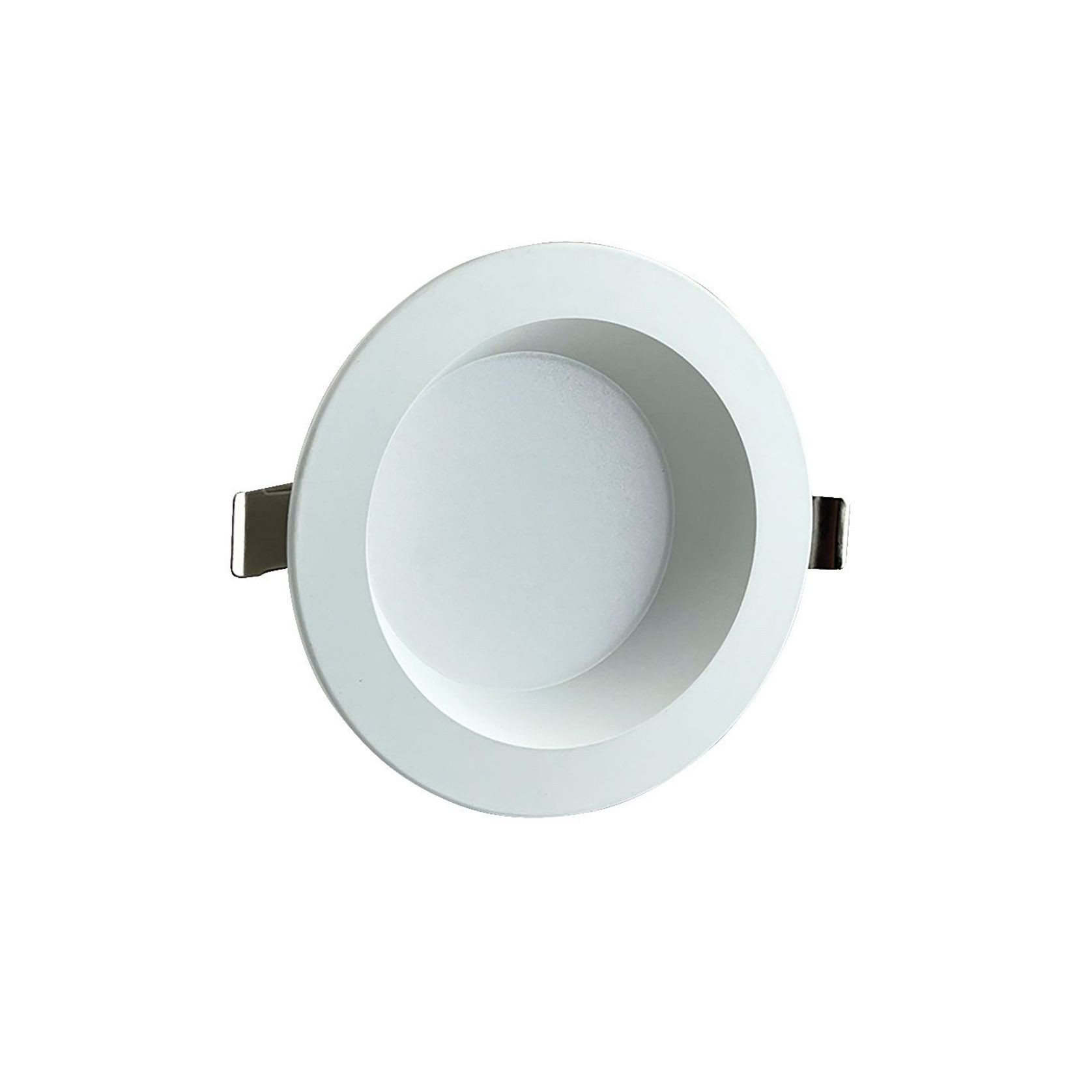

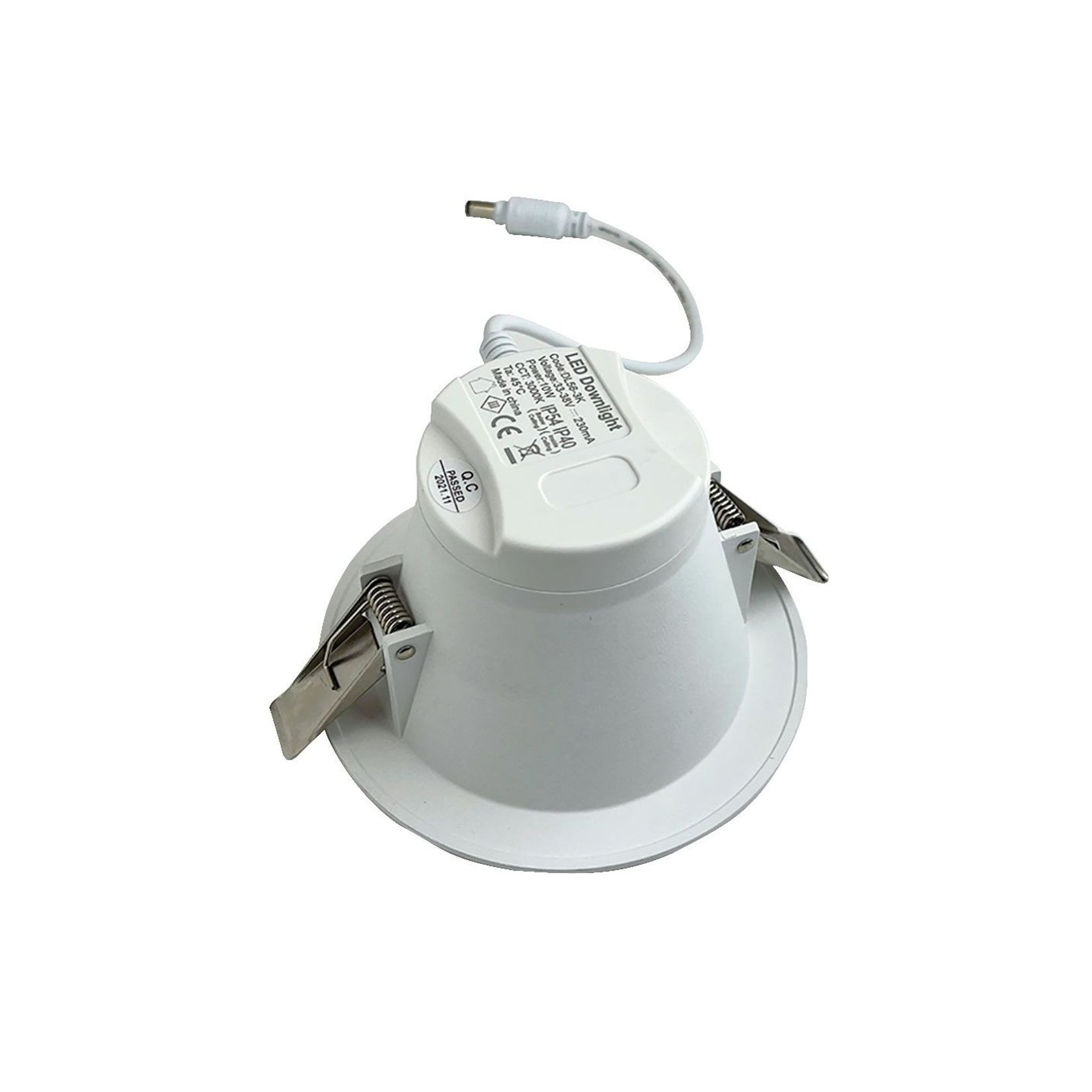

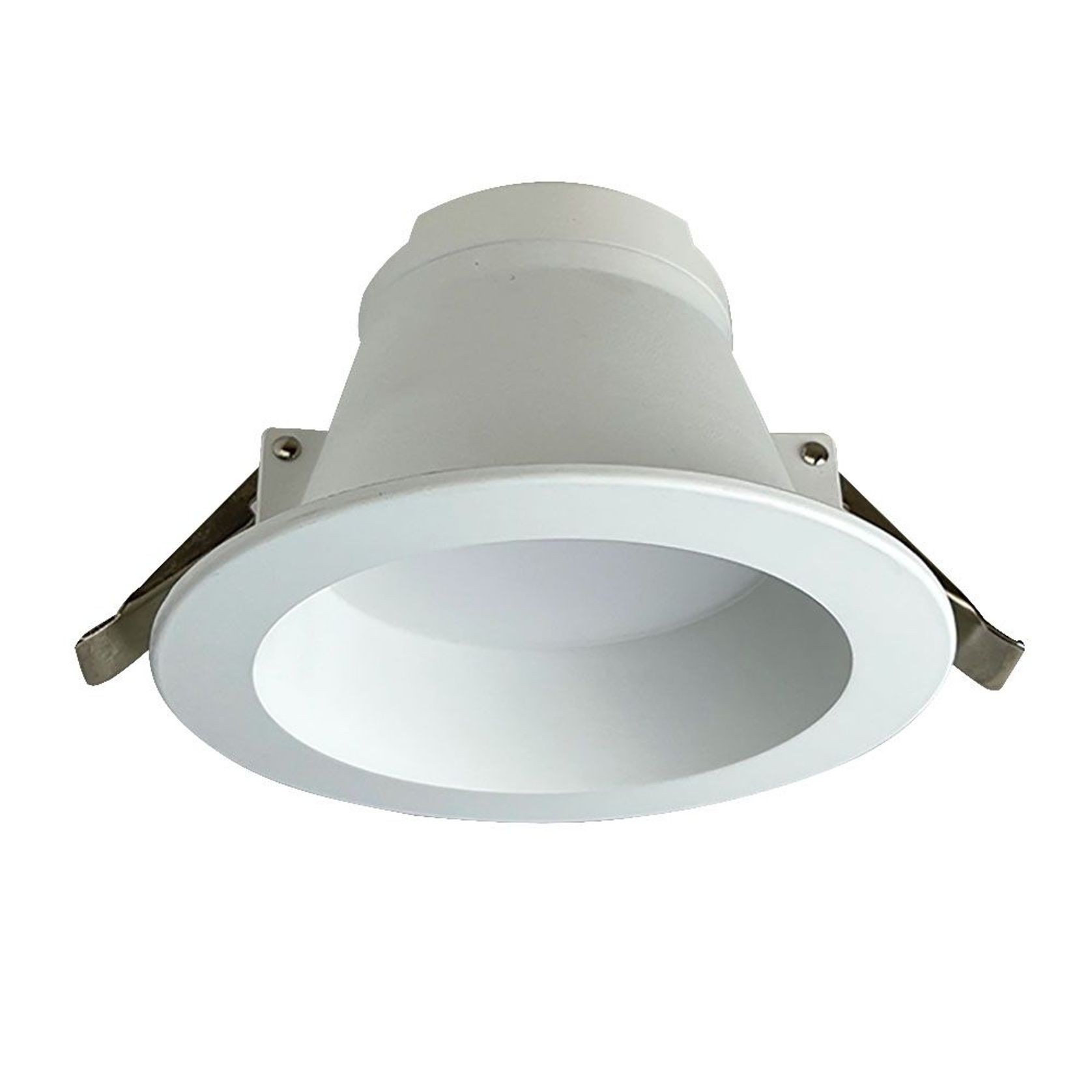

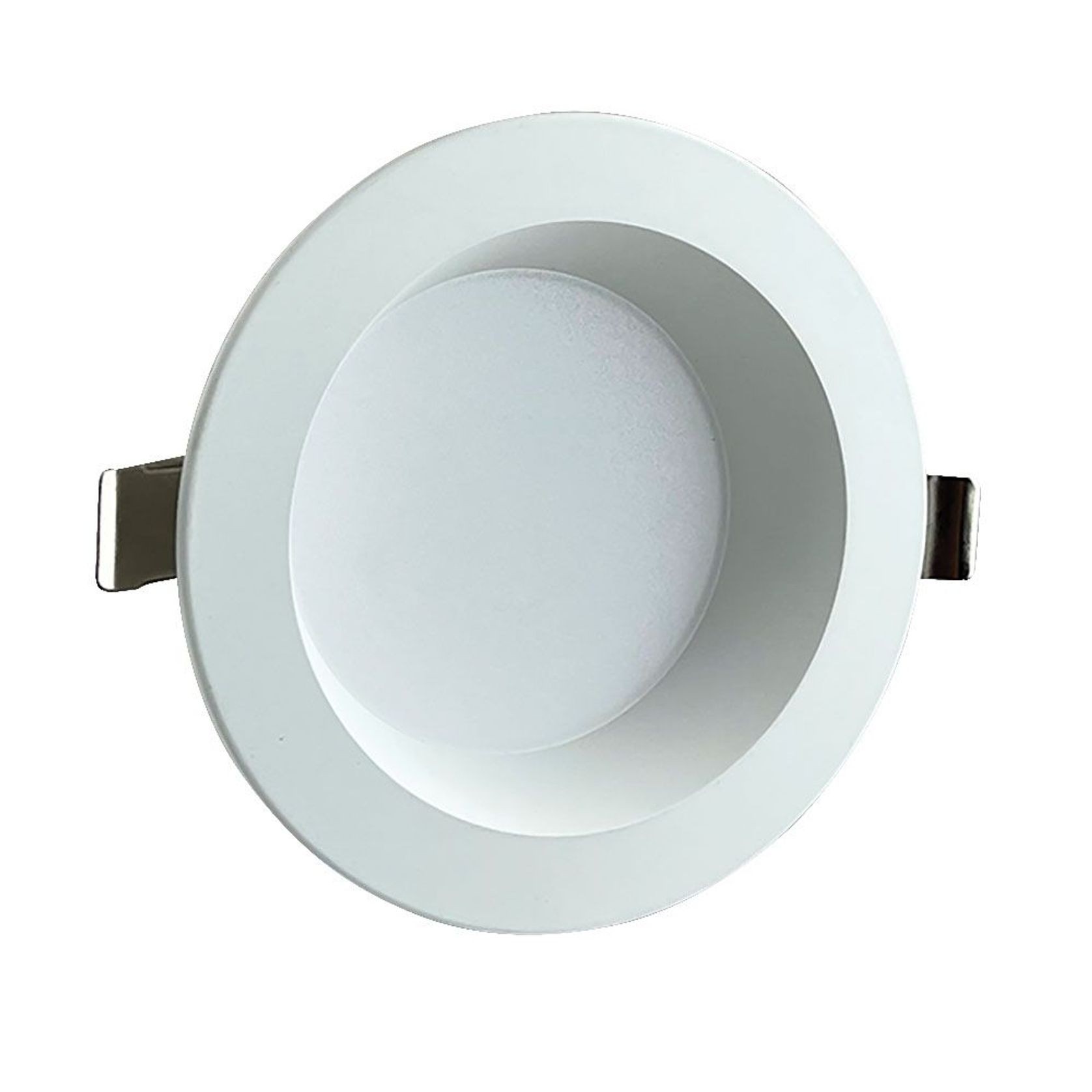

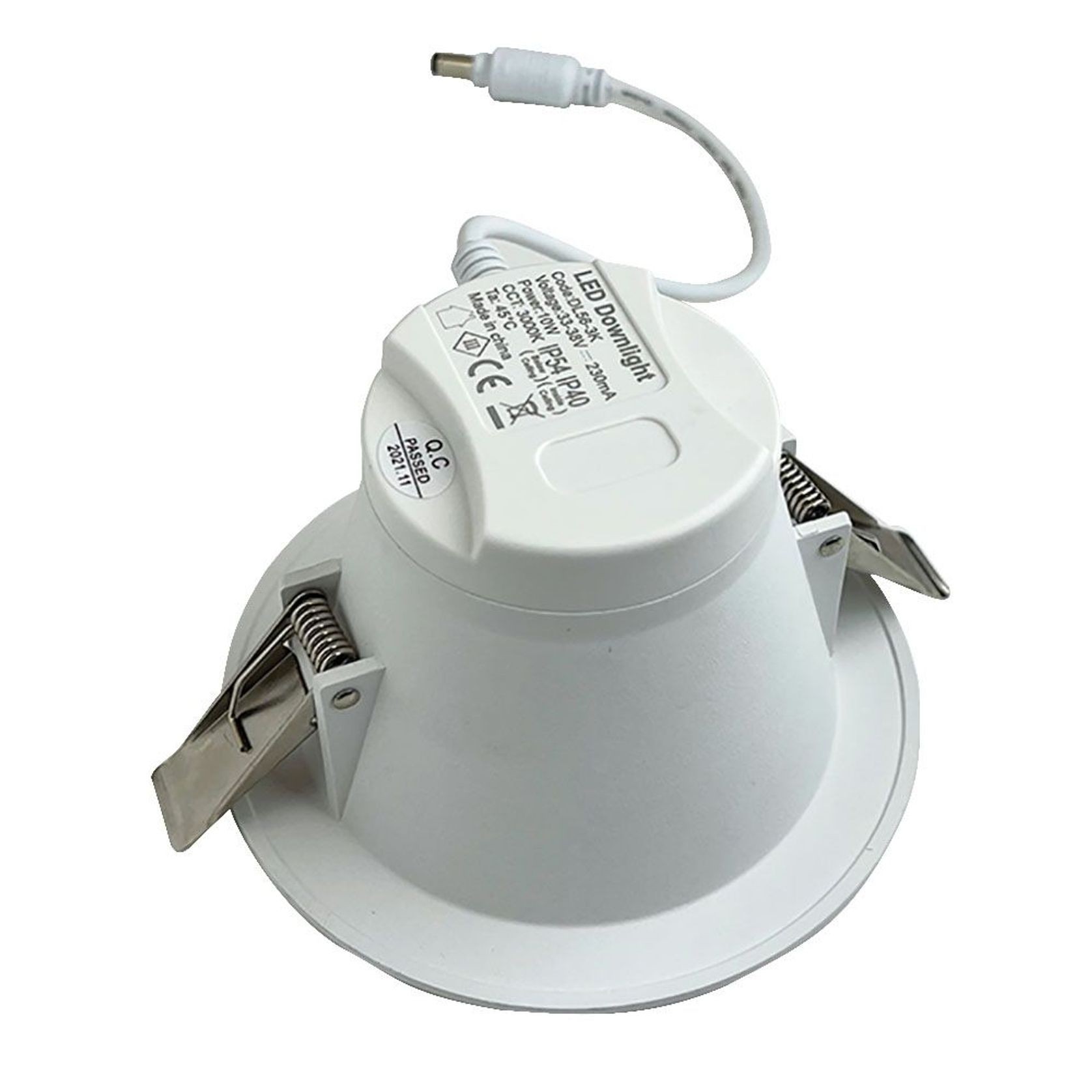

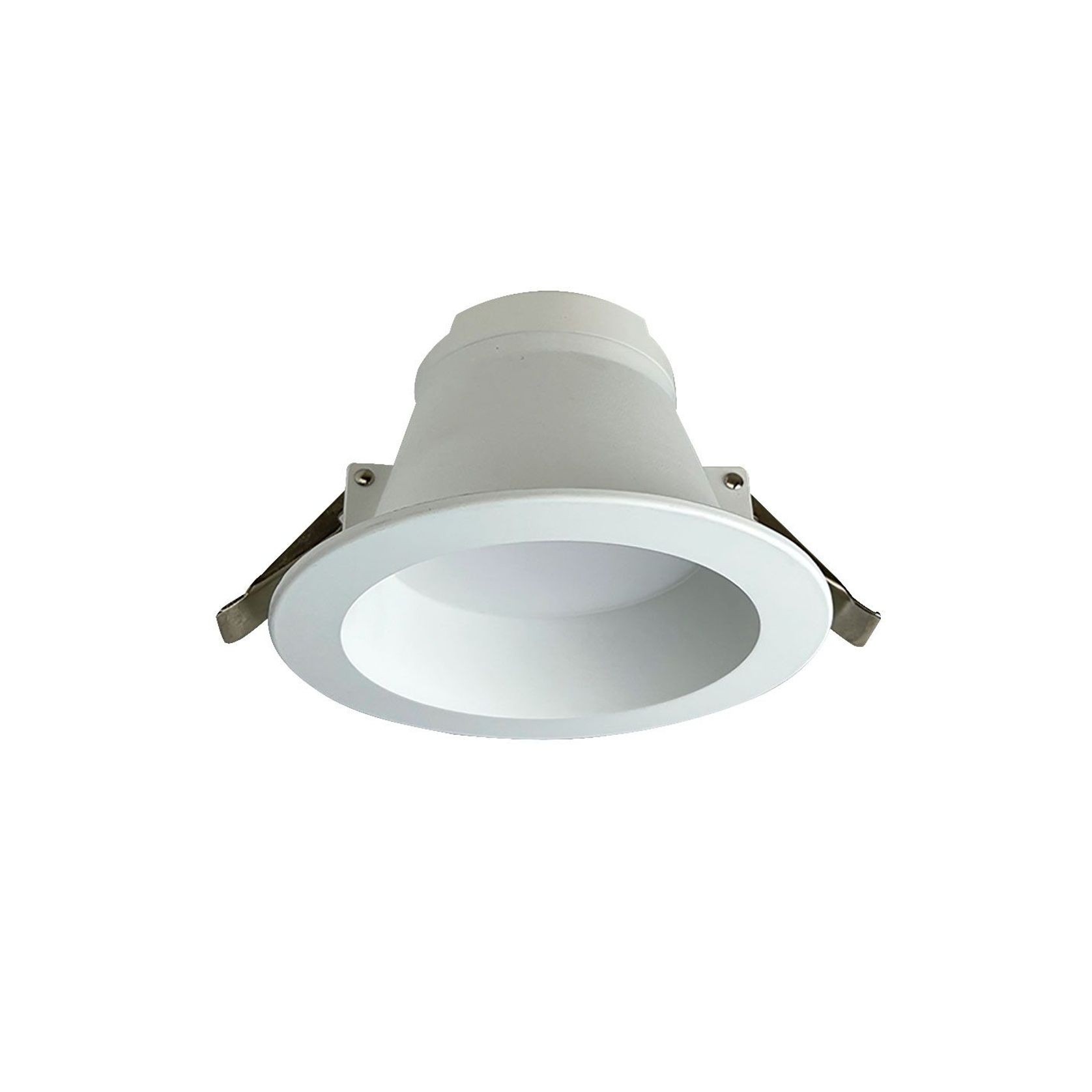

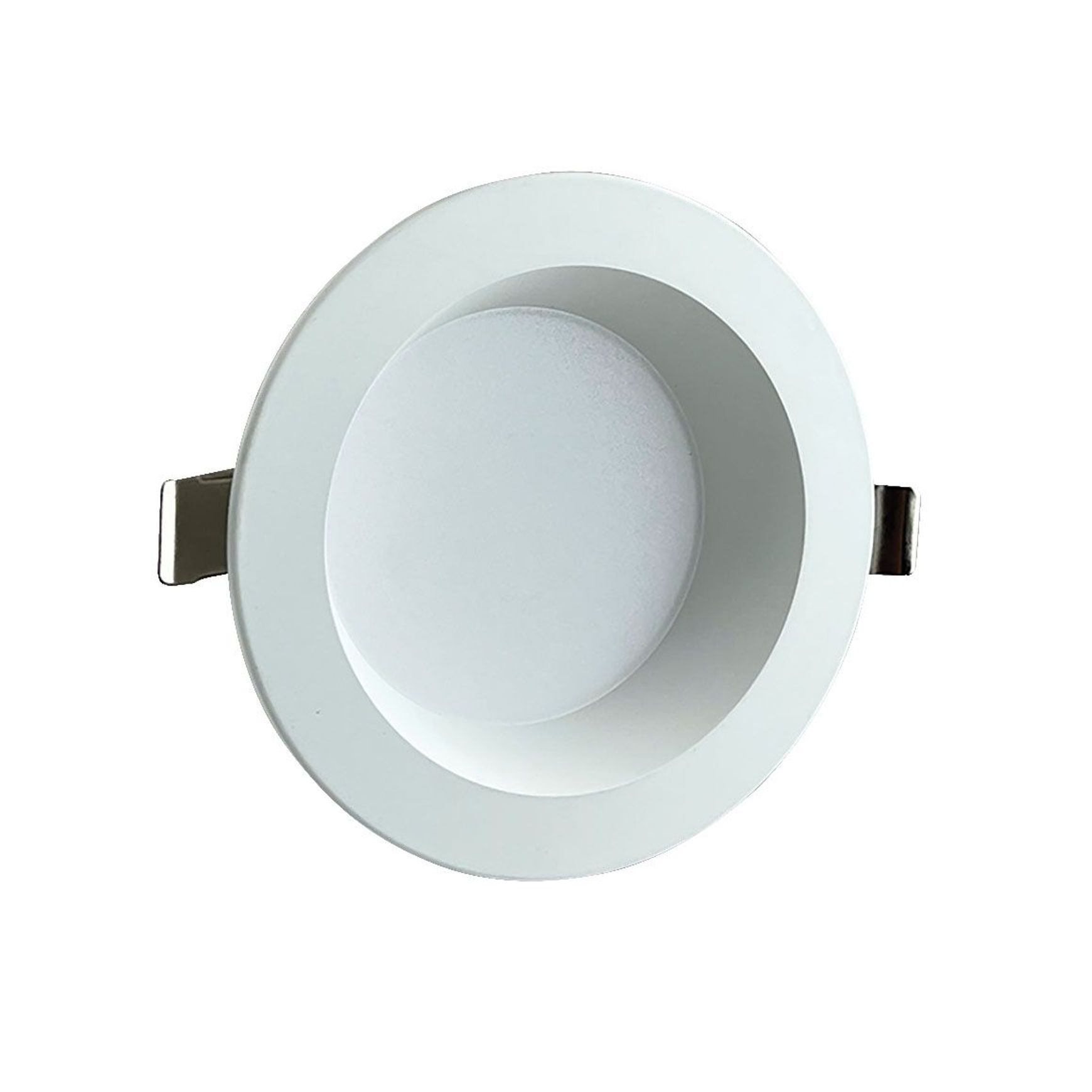

The Oamaru is a white downlight made from polycarbonate. It features a 240V 10W 3K SMD LED that's dimmable, providing an 850-lumen output. This downlight has a diffused beam angle (effectively 160 degrees), making it suitable for general lighting. It measures 115mm in diameter and 61mm in height, fitting cutouts of 90mm (90-105mm range). Classified as IC-F, it can be installed under insulation. The front face is IP54, making it suitable for indoor and outdoor use.

Tags

lighting designer lighting residential lighting lights downlights

Product Details

Product: OAMARU DL56WH Recessed Downlight
Category: Downlights
Sold by: Prolux Lighting
Brand: Prolux Lighting
Warranty: 3 years

Prolux Lighting is specified by

(46) Professionals

Visit site

It features a 240V 10W 3K SMD LED that's dimmable, providing an 850-lumen output. This downlight has a diffused beam angle (effectively 160 degrees), making it suitable for general lighting. It measures 115mm in diameter and 61mm in height, fitting cutouts of 90mm (90-105mm range). Classified as IC-F, it can be installed under insulation. The front face is IP54, making it suitable for indoor and outdoor use.

The Oamaru is a white downlight made from polycarbonate.

Specs

Colours: White
Material: Aluminium
Wattage: 10W
Voltage: 240V AC
Colour Temperature (Kelvin): 3K
Dimensions: 115mm ⌀ x 71mm H
Cutout: 90-95mm
Dimmable?: Yes, TRIAC
IP Rating: IP44
Beam Angle: ~160°
Lumens: 840lm

Additional Notes

IC-F Abut & Cover Rated, can be installed under insulation using the ICD driver supplied. Minimum distance to timber building elements 25mm.

Features

IP44 Rating
90-95mm Cutout
3K Colour Temperature
10W Power
840 Lumens
TRIAC Dimmable
~160° Beam Angle
