Smart Tilt Classic Series Downlights

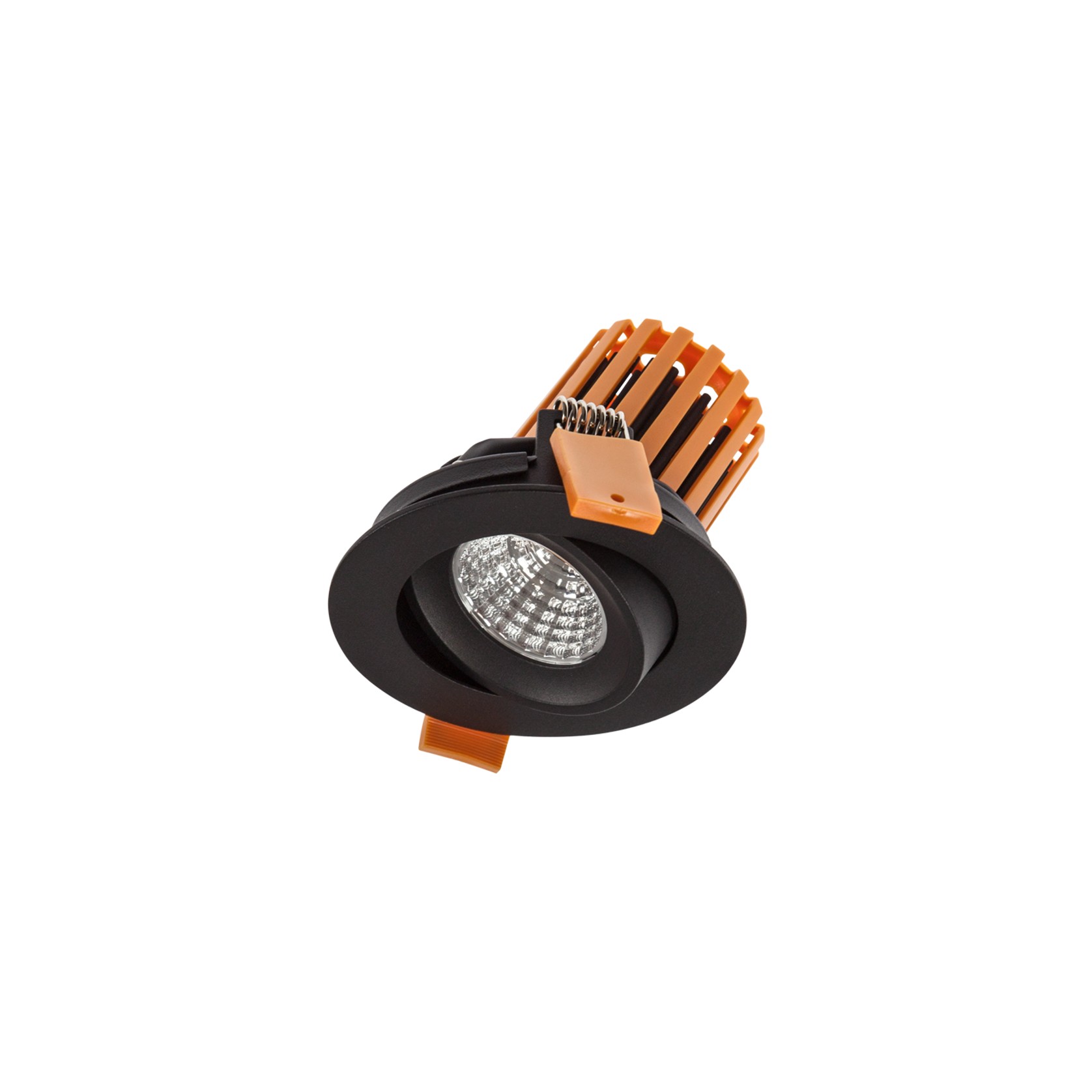

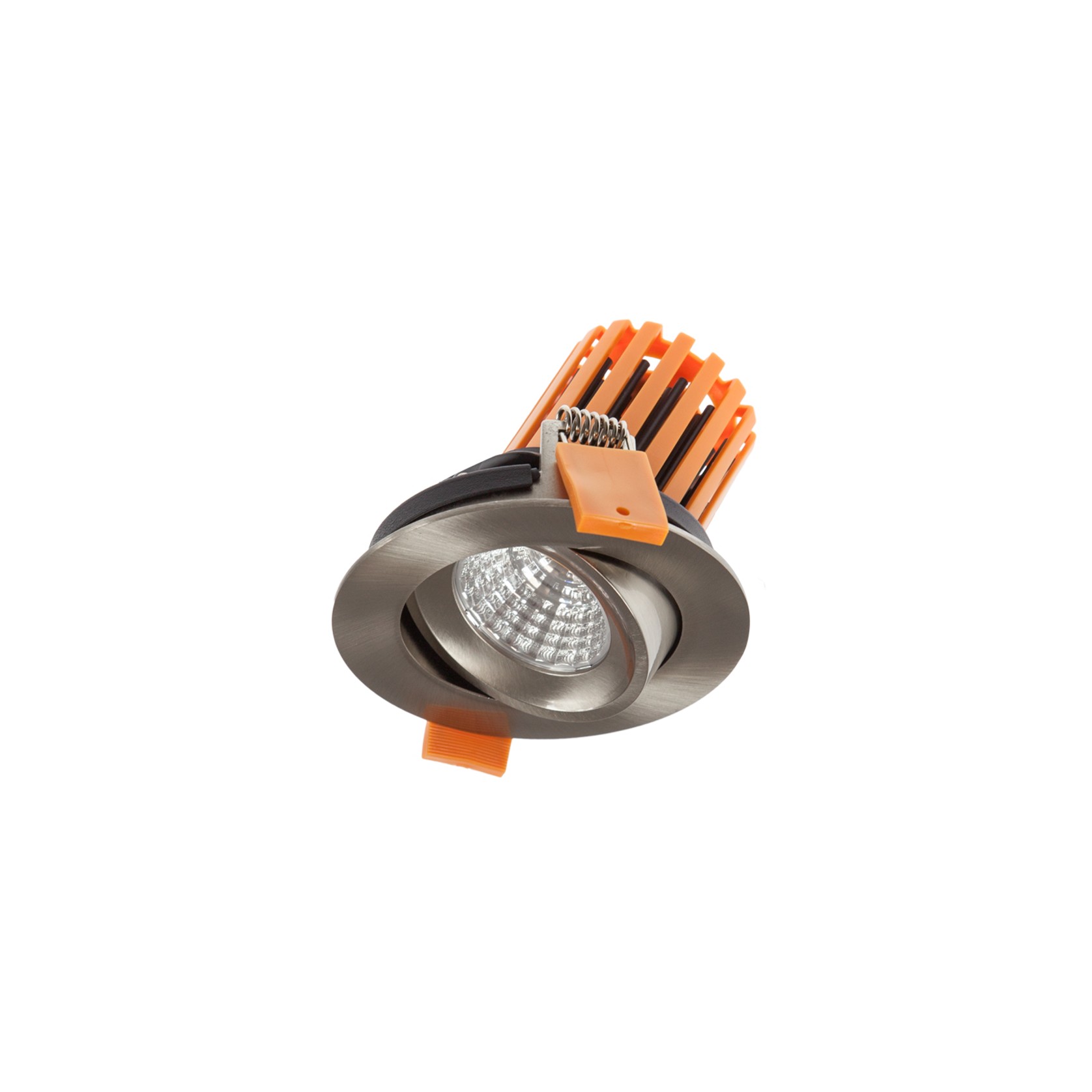

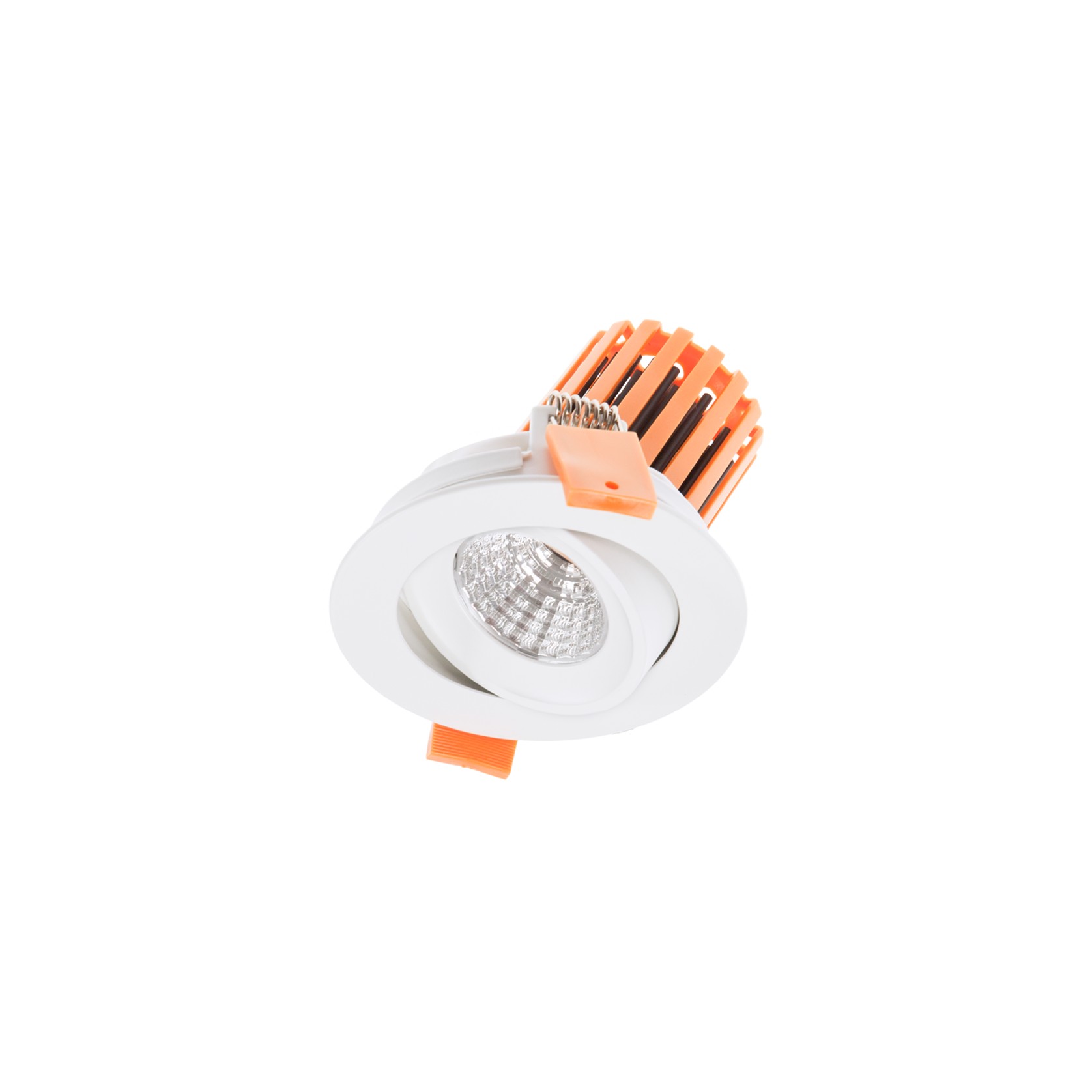

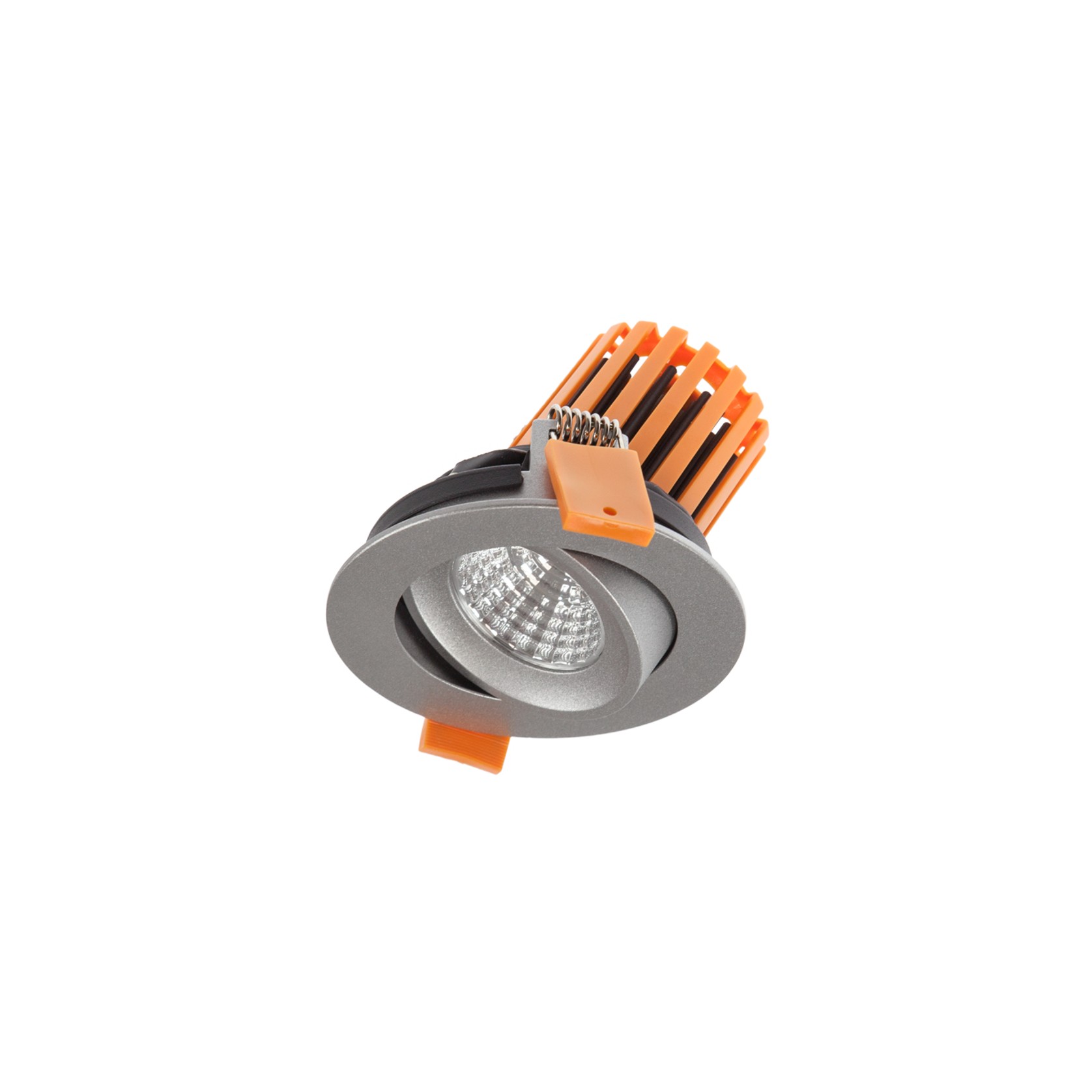

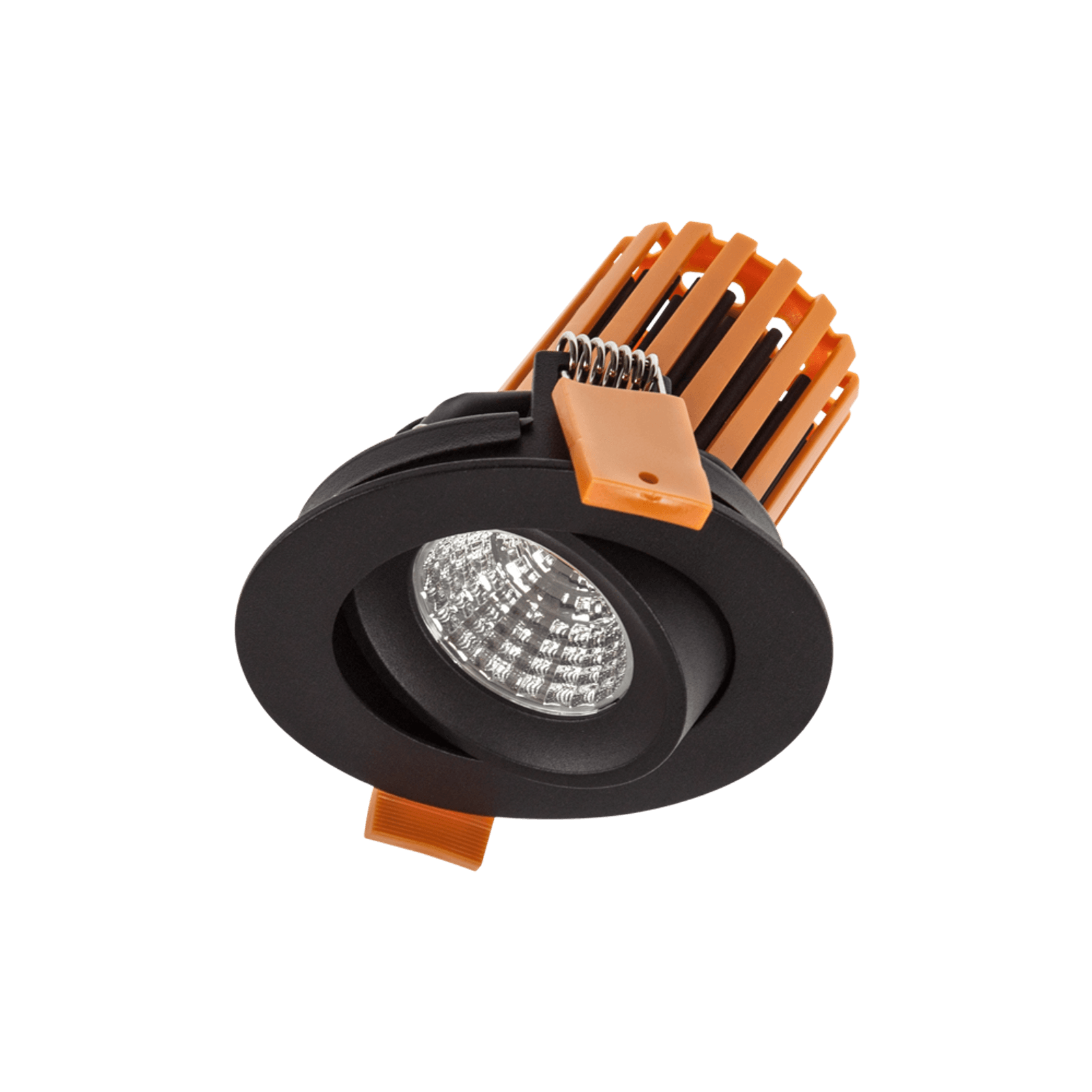

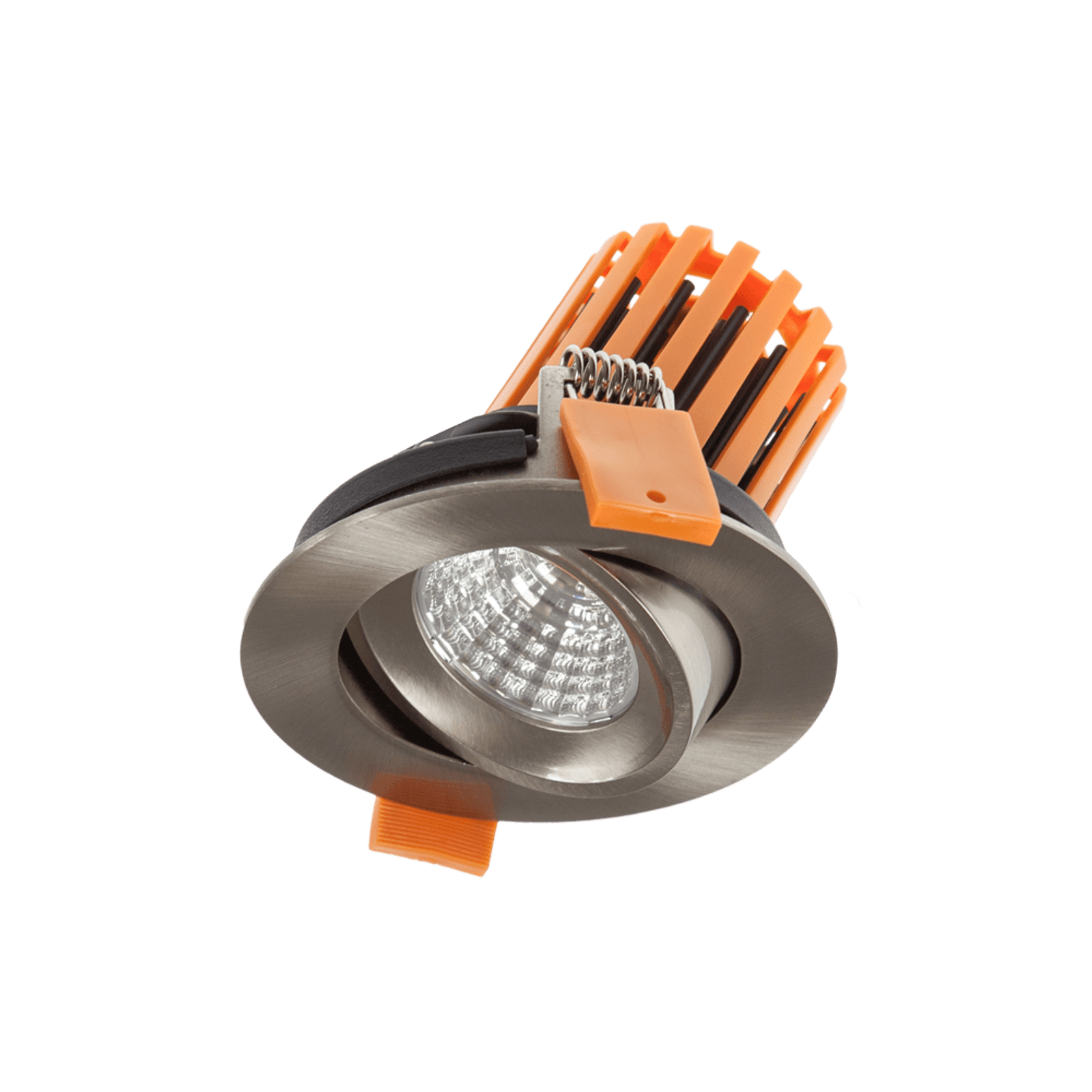

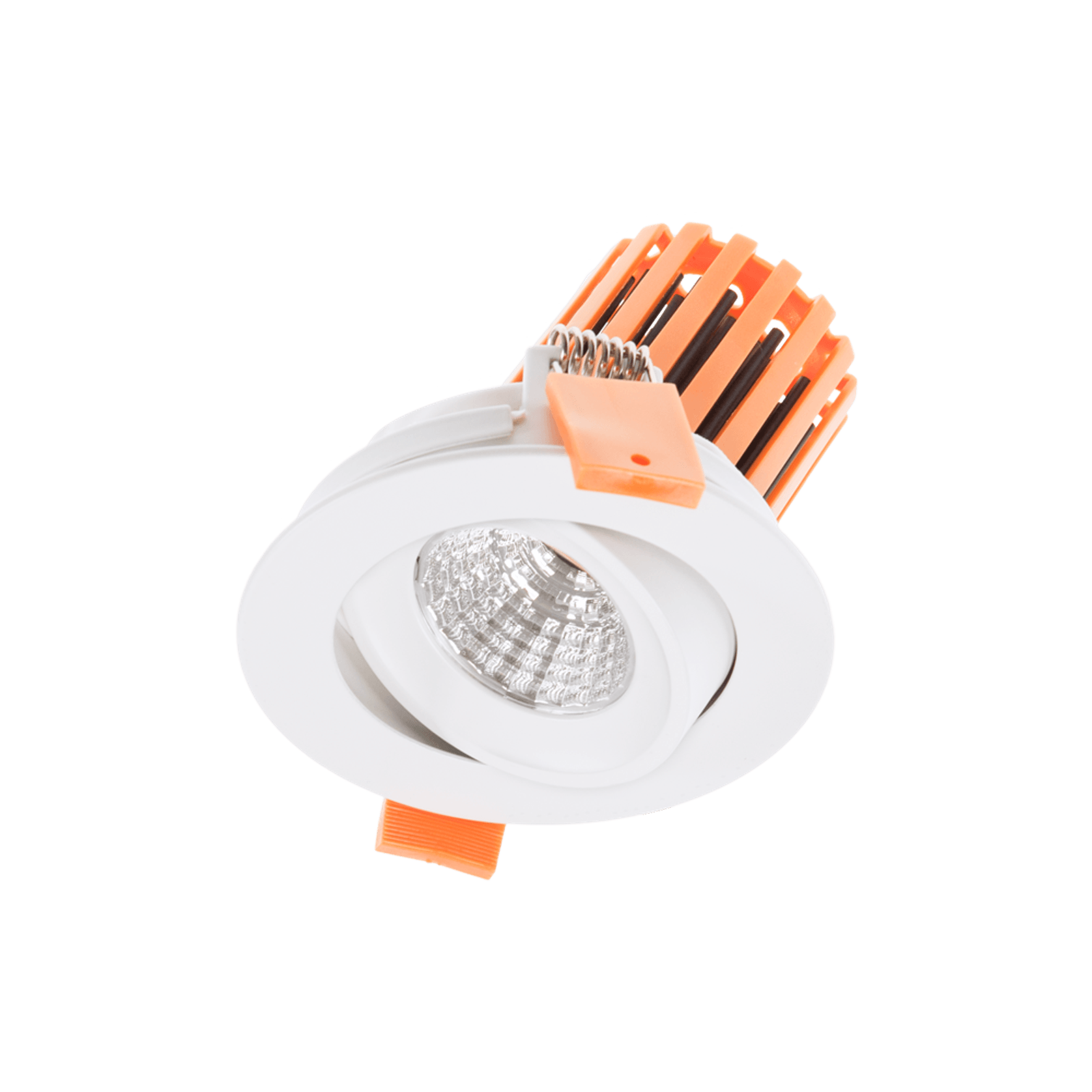

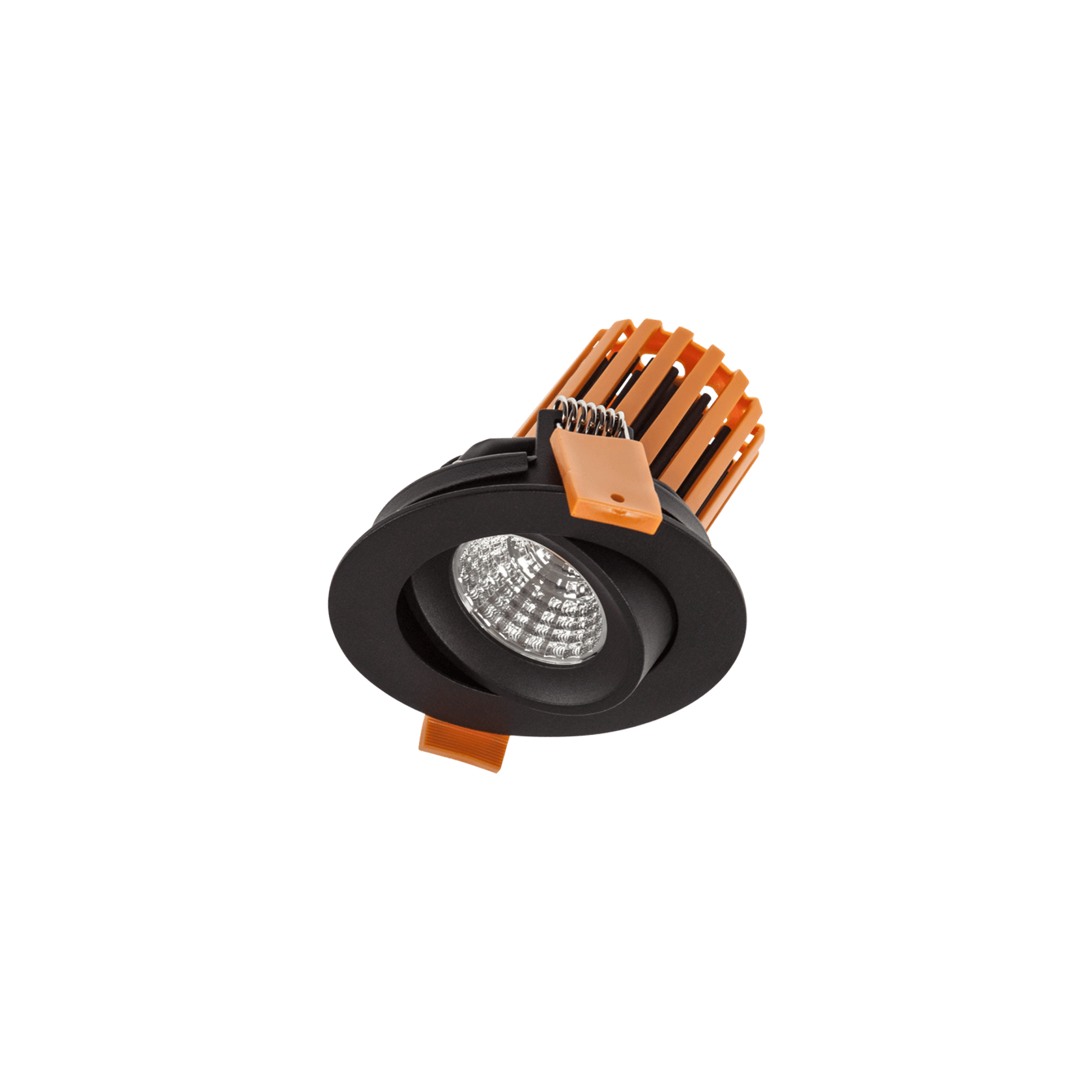

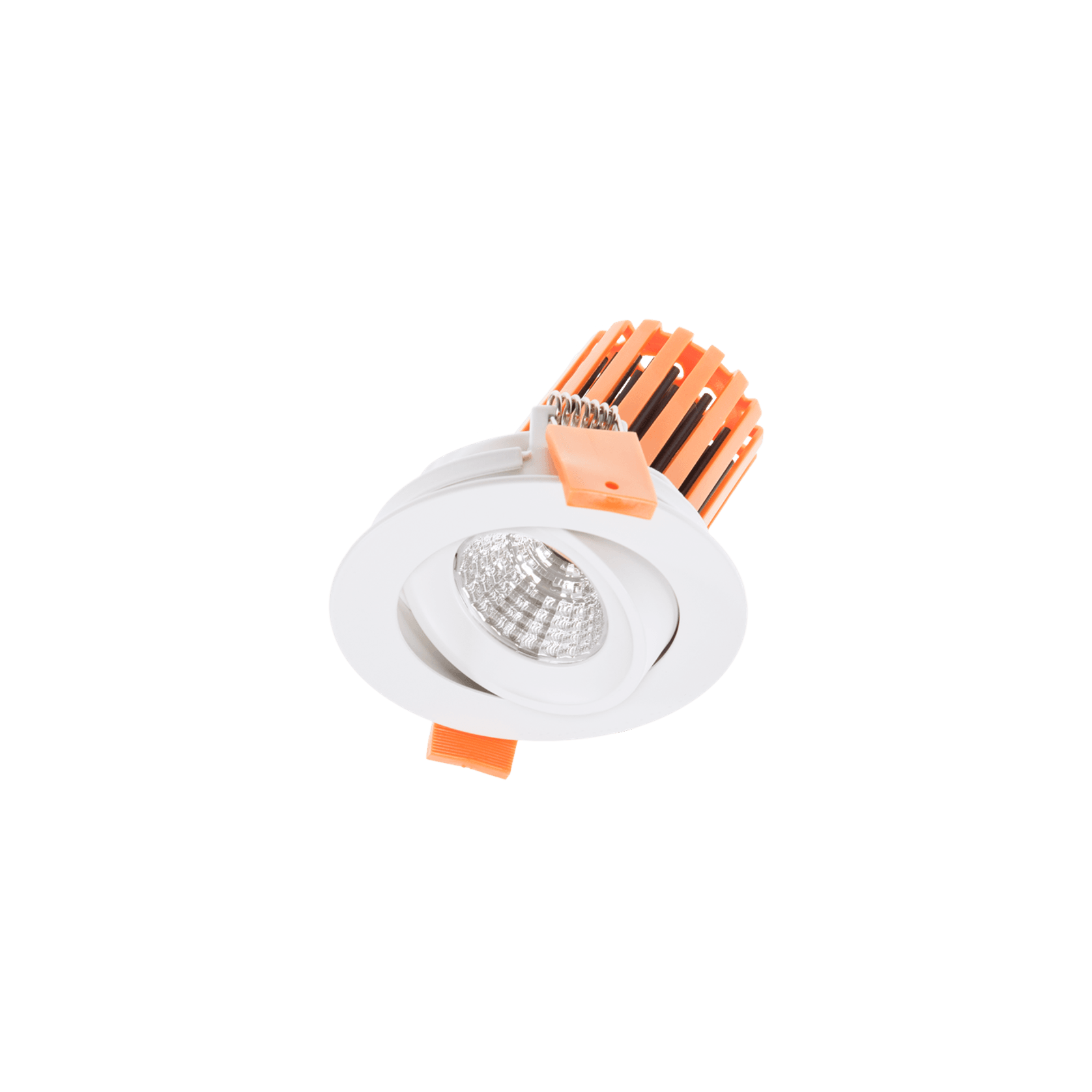

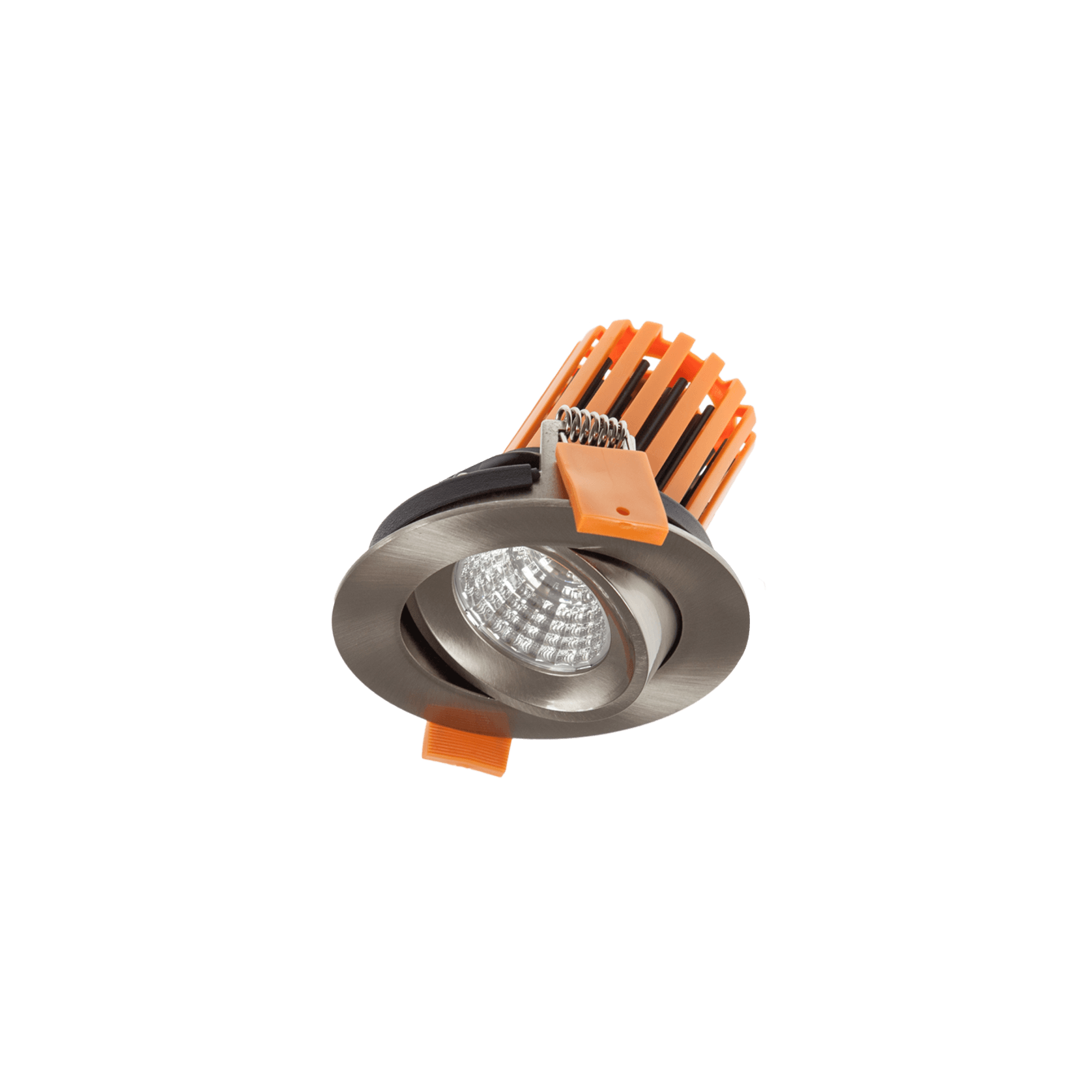

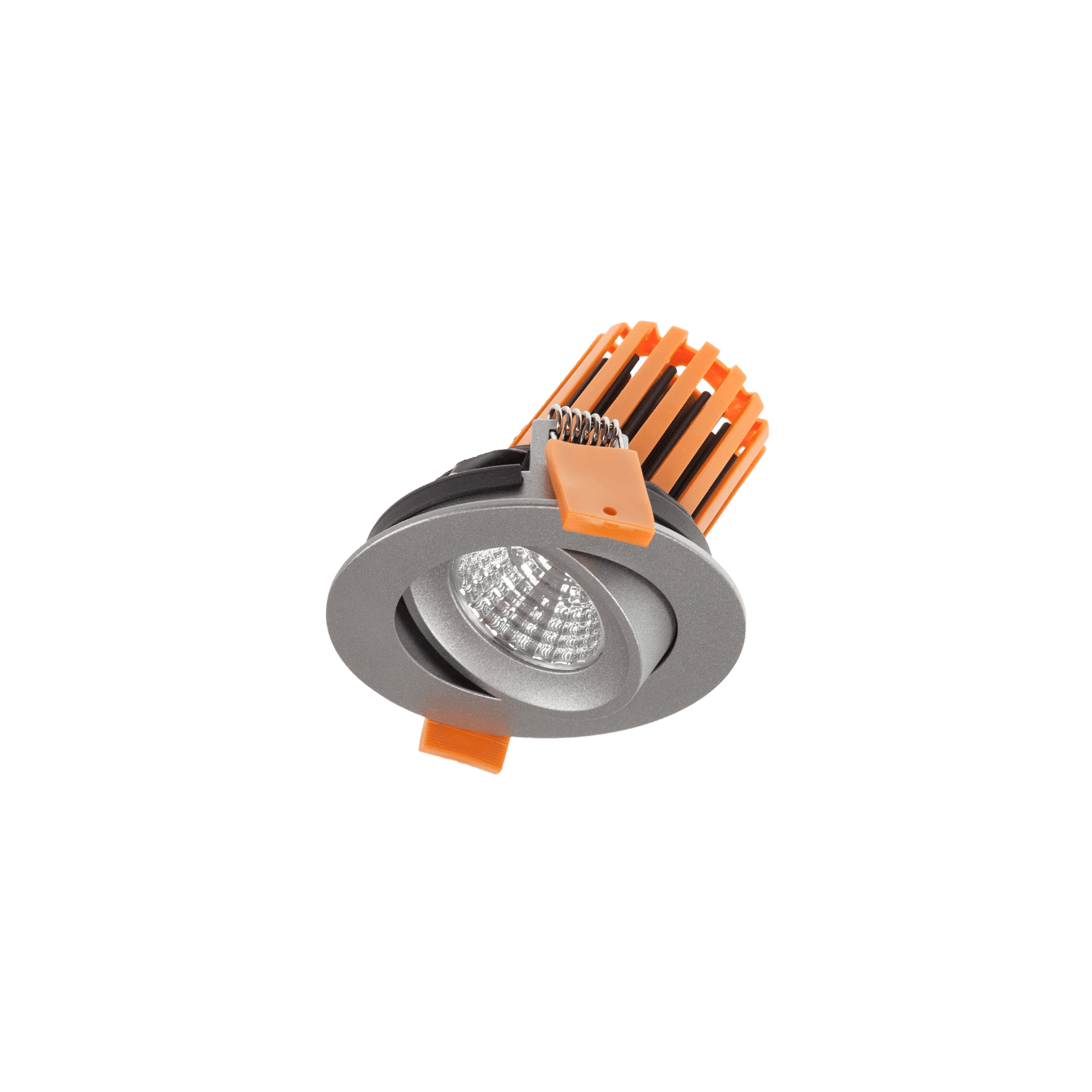

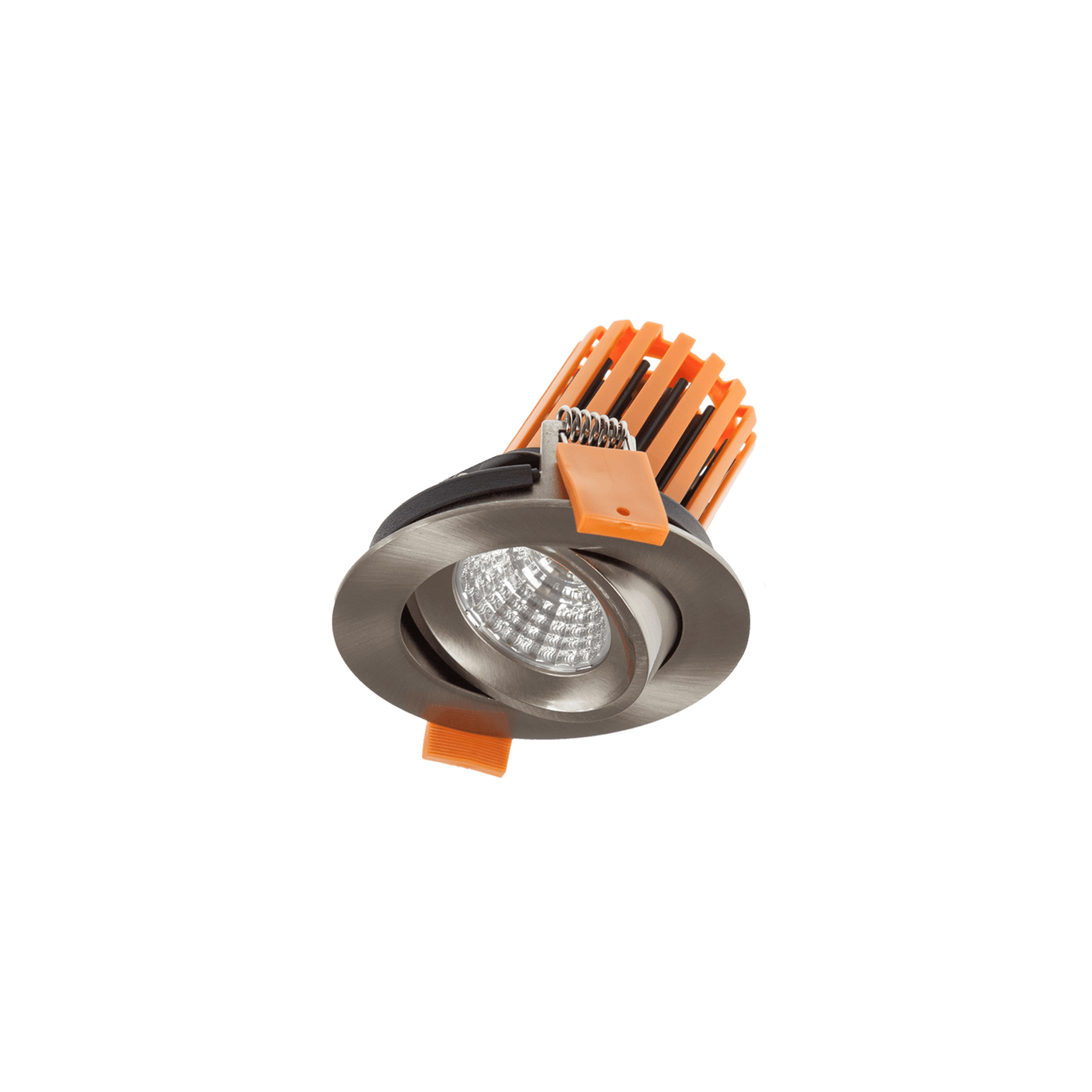

IP44 Recessed Retrofit Smart Tilt Downlight Kit
PRODUCT CODE: R692

WATTS 9.5W
DIMENSIONS D96 x H79mm
CUT OUT Ø 82-84mm
COLOUR TEMPERATURE 3000K Warm White or 4000K Natural White
LUMENS 3000K Warm White 830lm / 4000K Natural White 870lm / 3000-2000K Sunset Dim 550lm
CRI Standard/CRI90, Sunset Dim/CRI95
LIFESPAN 50,000 Hours (L70)
BEAM ANGLE 60°
TILT ANGLE 30° (Patented IP44 tilt gasket)
MATERIAL Aluminum and Patented PC Heat Shield
IP RATING IP44
CLEARANCE 25mm recommended for optimum lifespan. 0mm required. Rear of fitting may abut structural members and building elements.
CLASSIFICATION IC Rated
DRIVER Under Insulation Dimmable Go Link 260mA Driver features power indicator safety light
APPLICATION Interior only, suitable for new and retrofit applications
WARRANTY 5 Year Warranty

Colours available

Visit company website
Request price / brochure
Downloads
Contact the supplier
