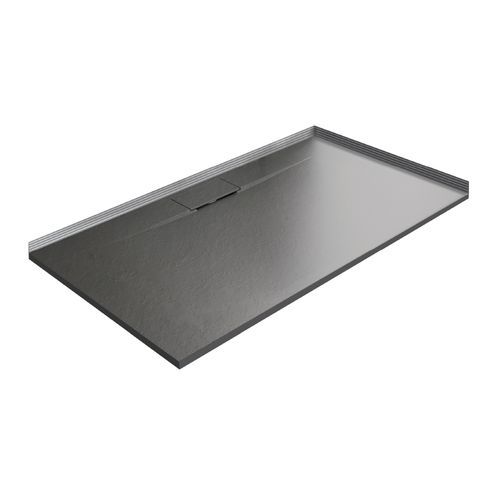

Pinnacle Alcove Tray 900x1400x900

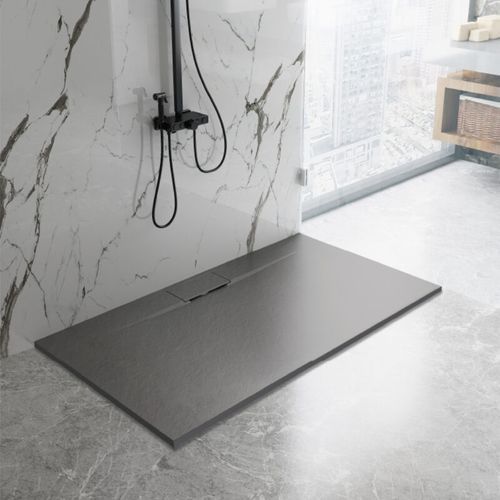

900x1400x900 Alcove trays can create new options for bathrooms. Removing a shower over bath or Shub? Add luxury and space by optimising the width available, but keeping a similar projection into the bathroom.

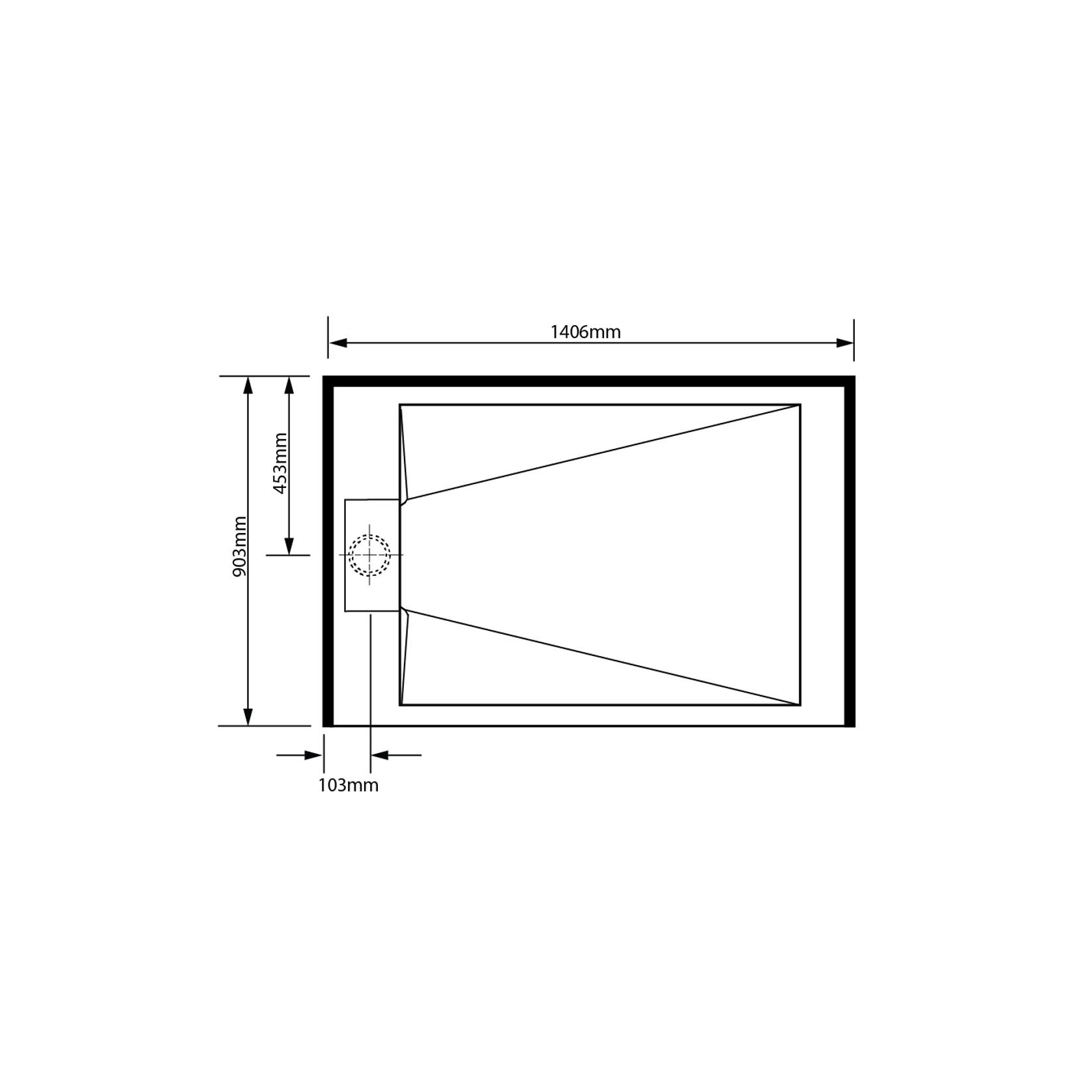

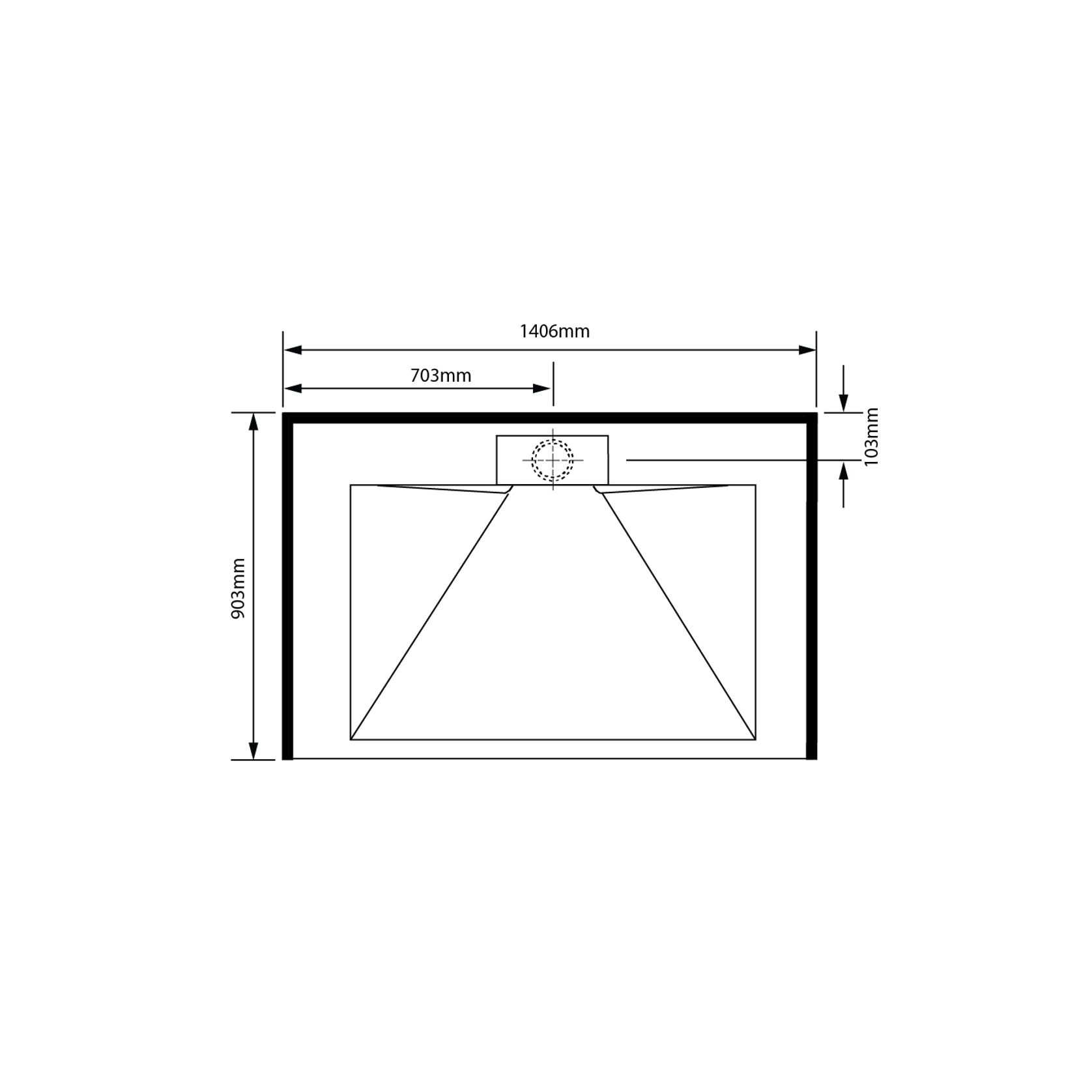

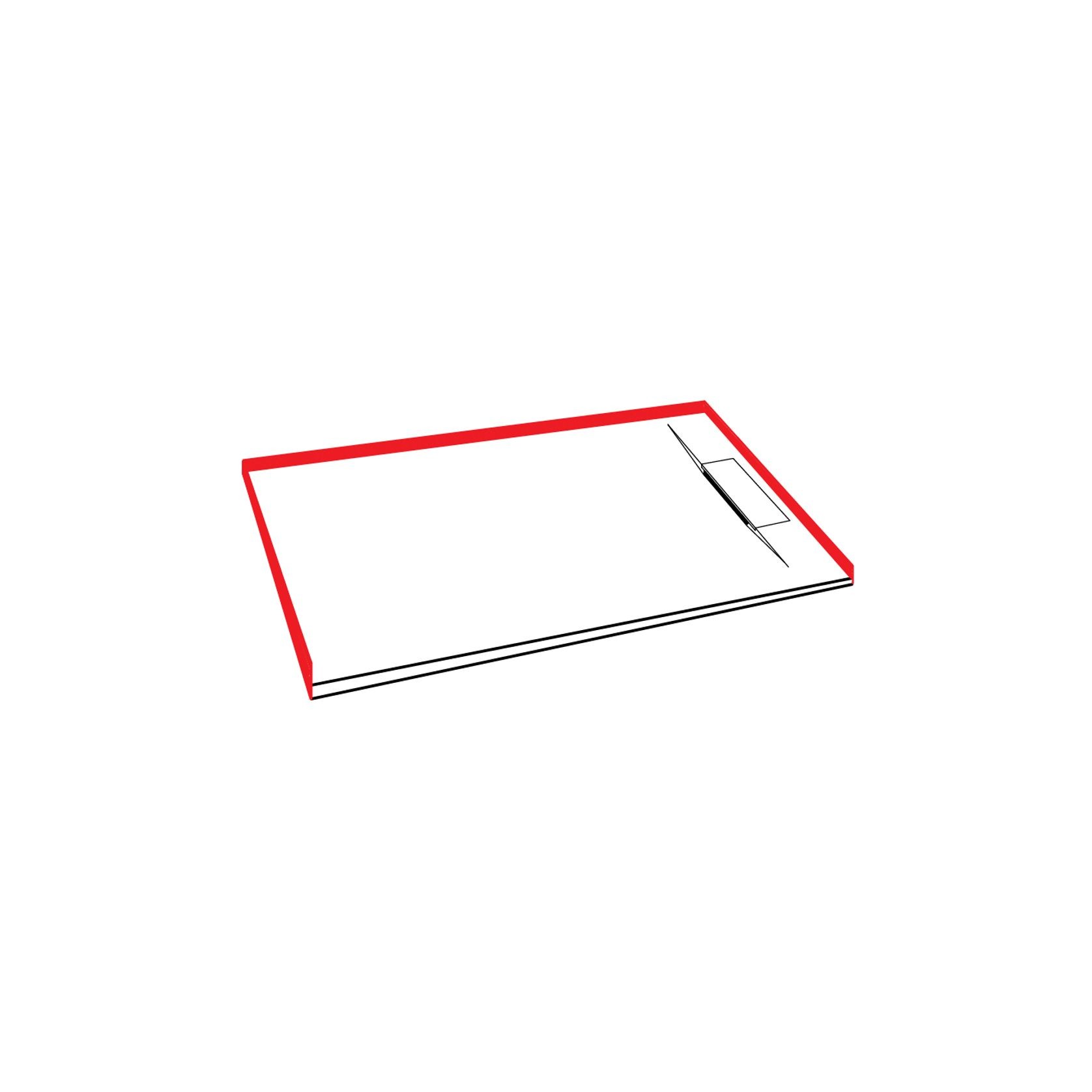

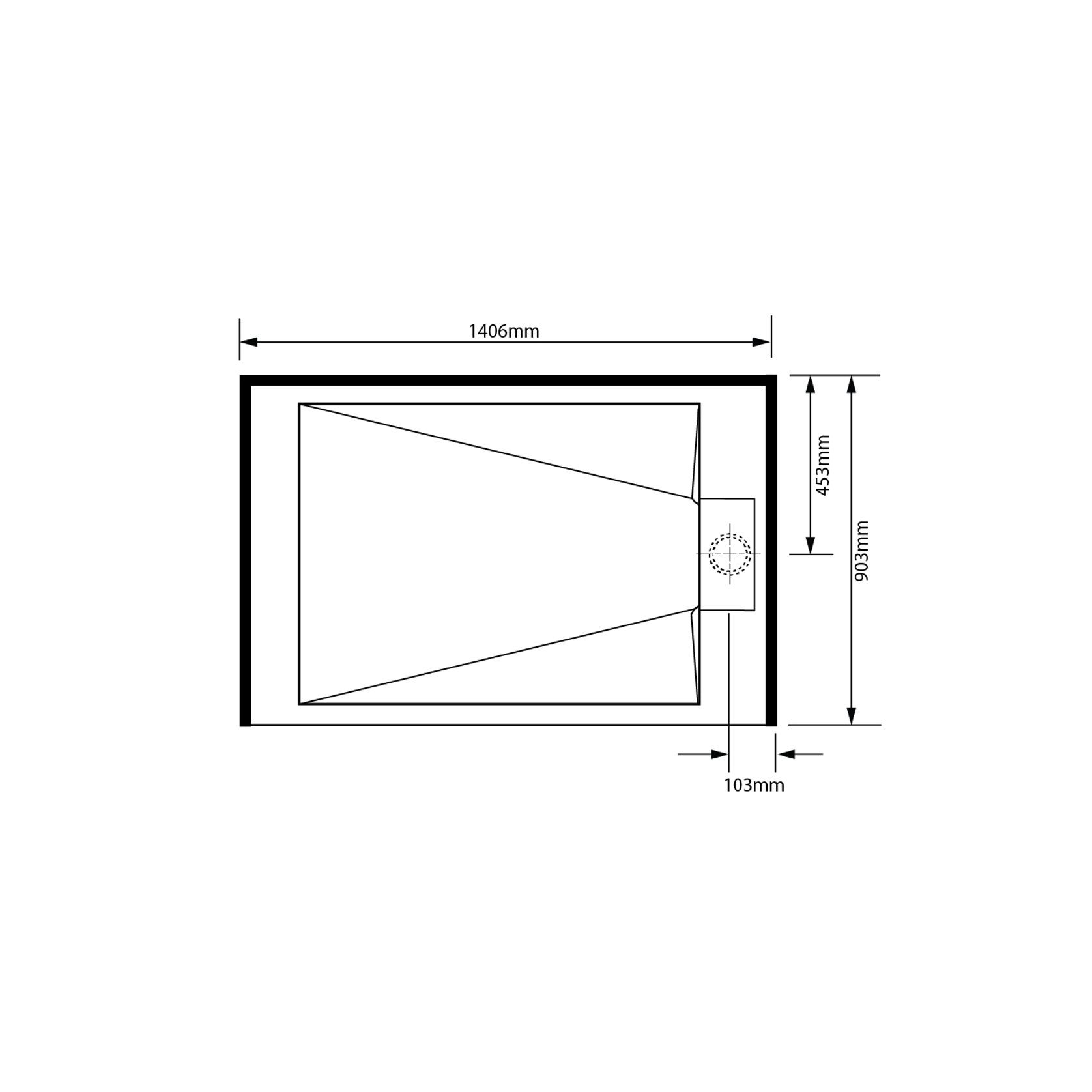

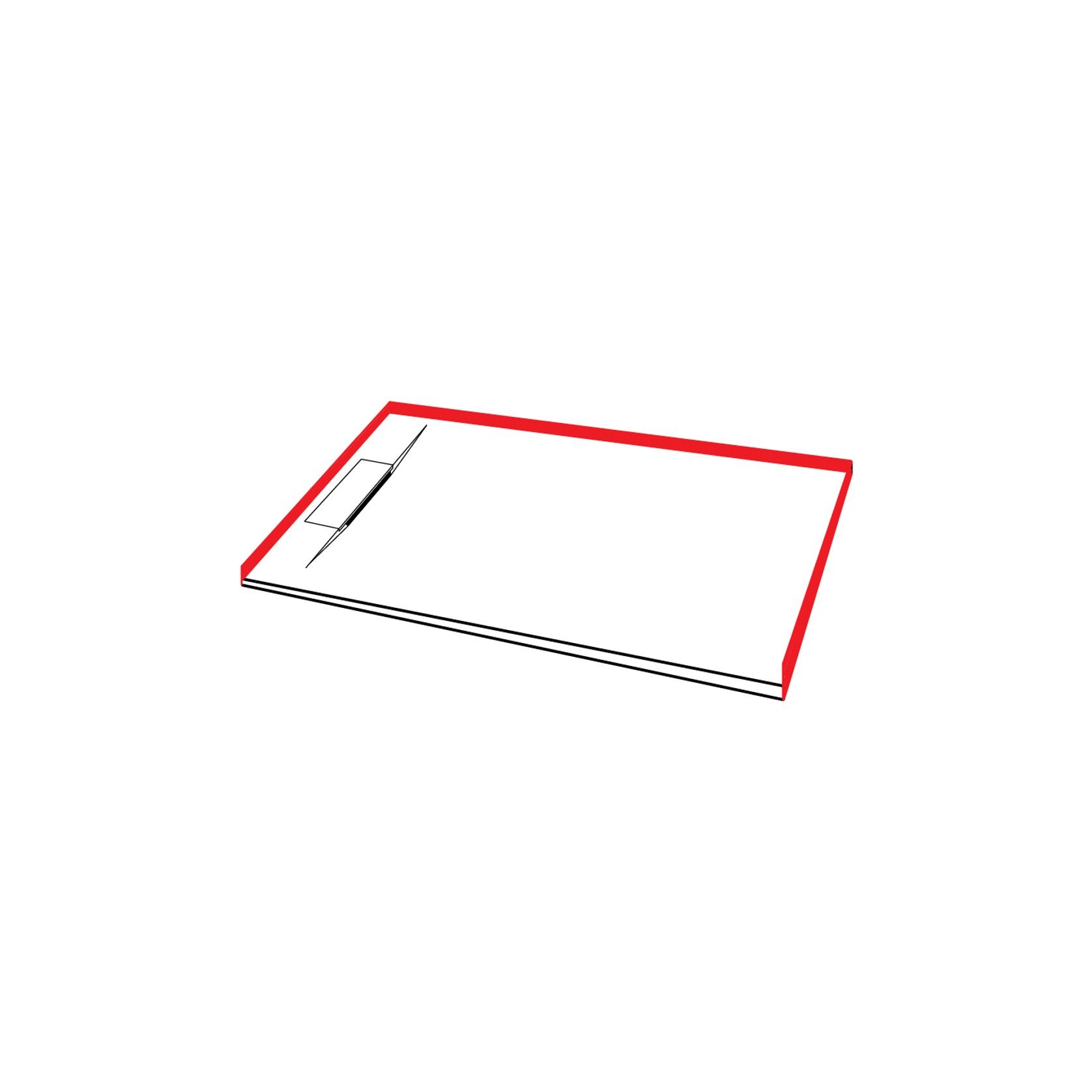

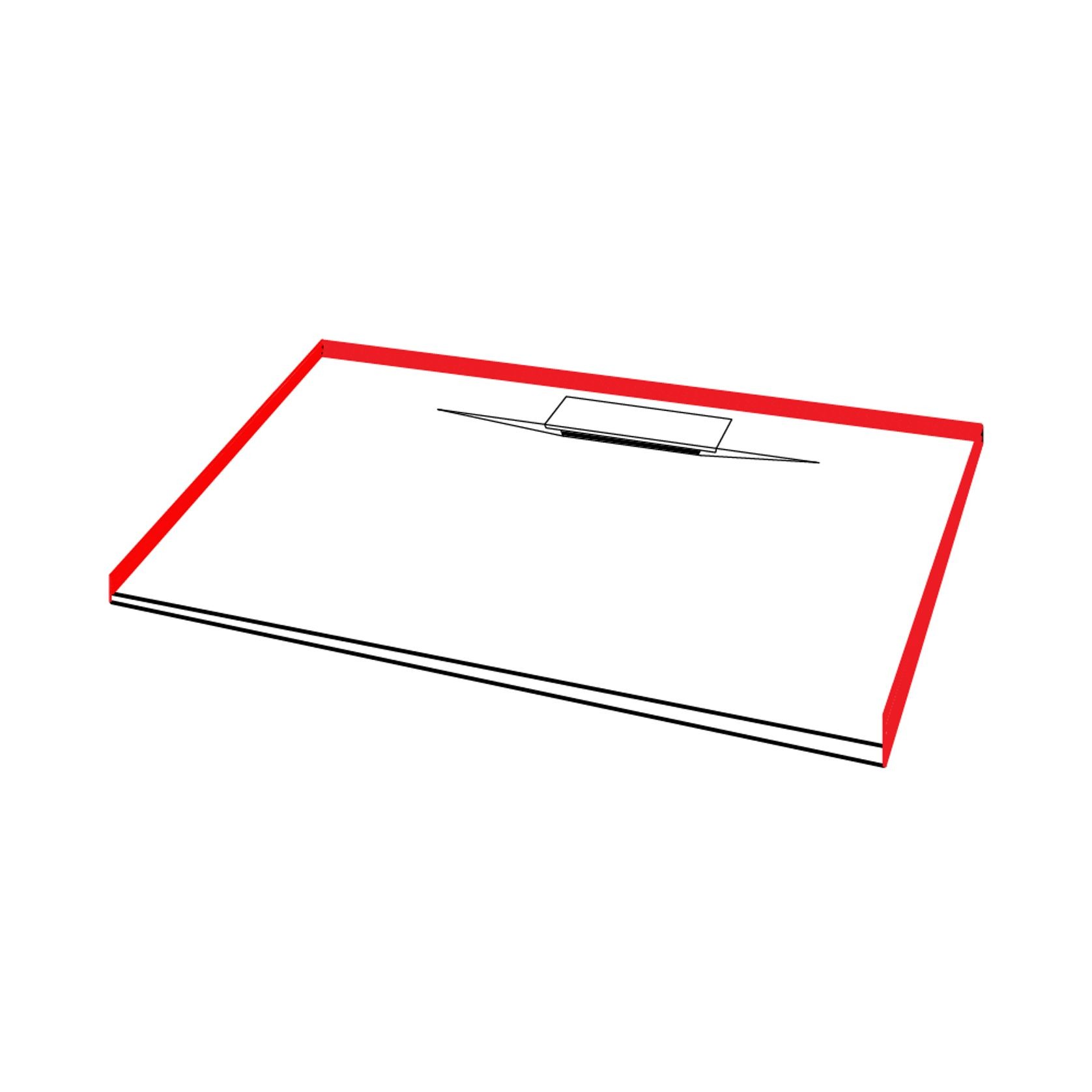

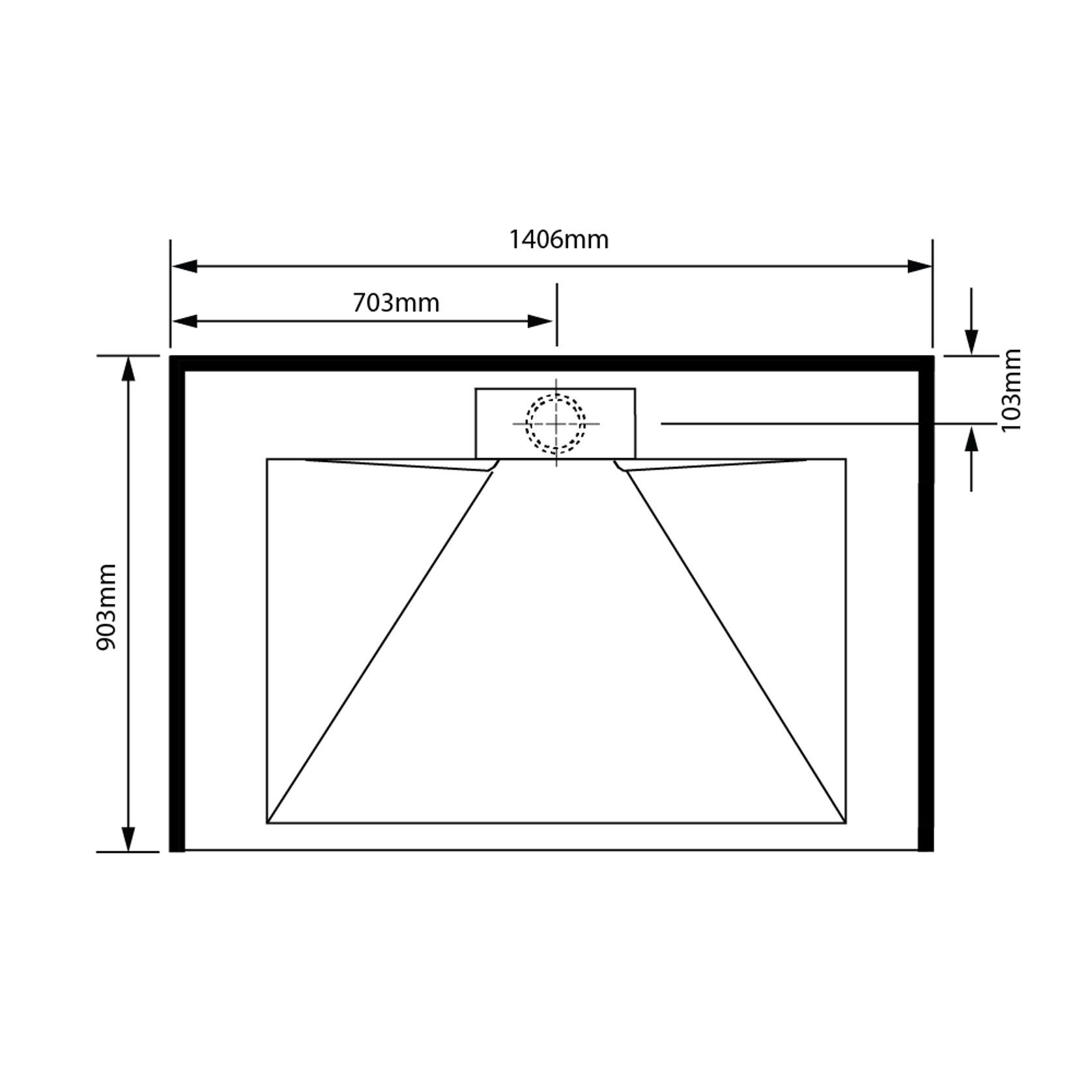

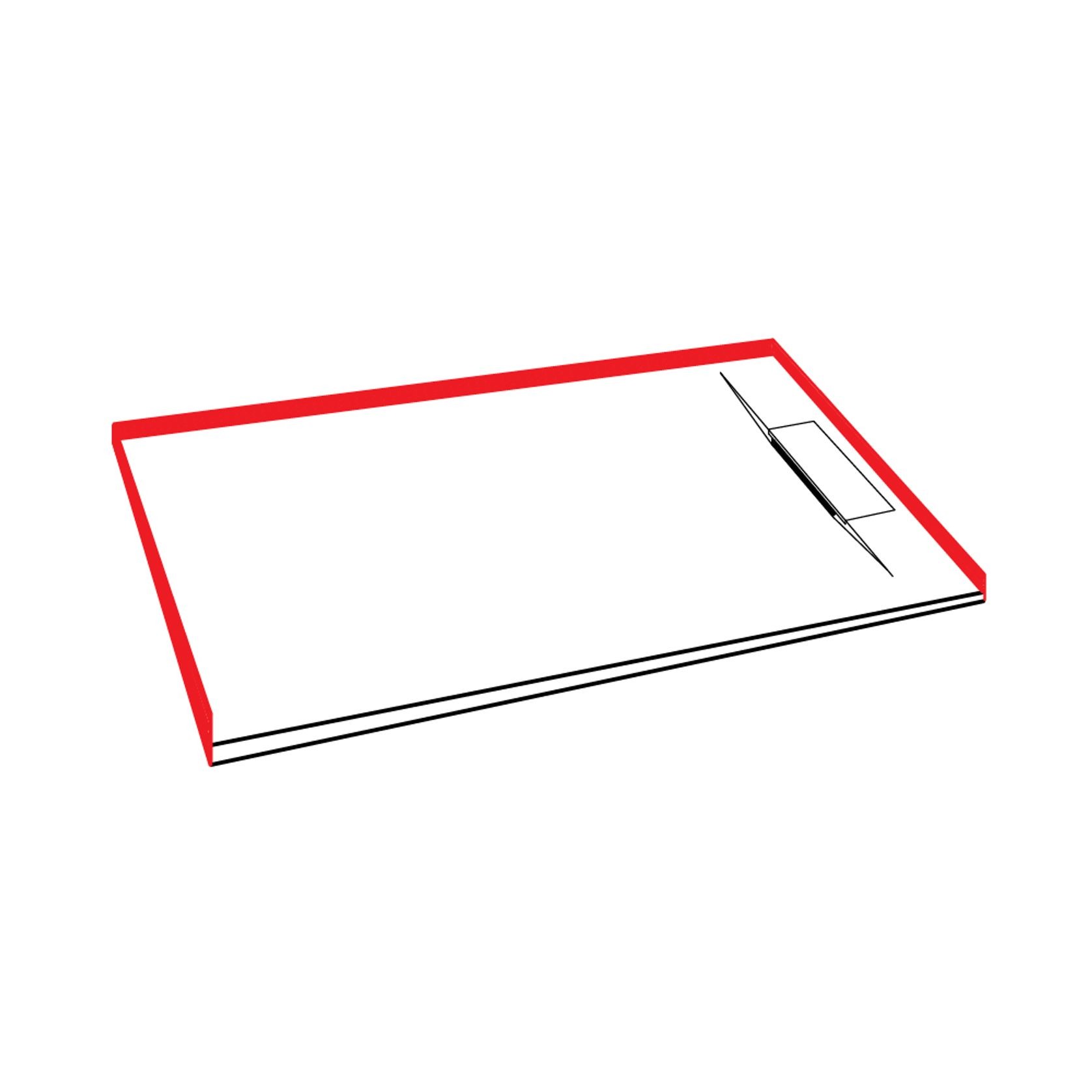

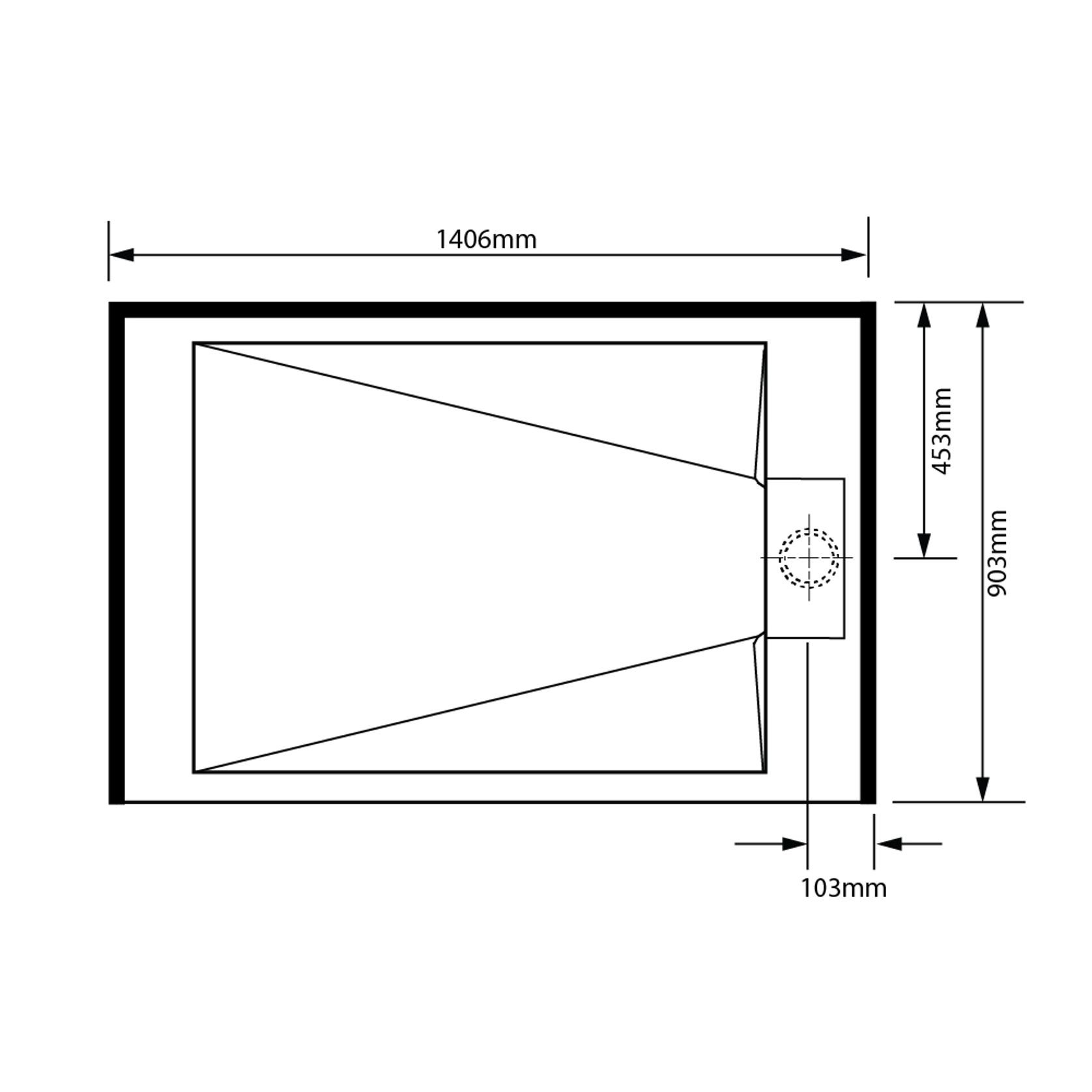

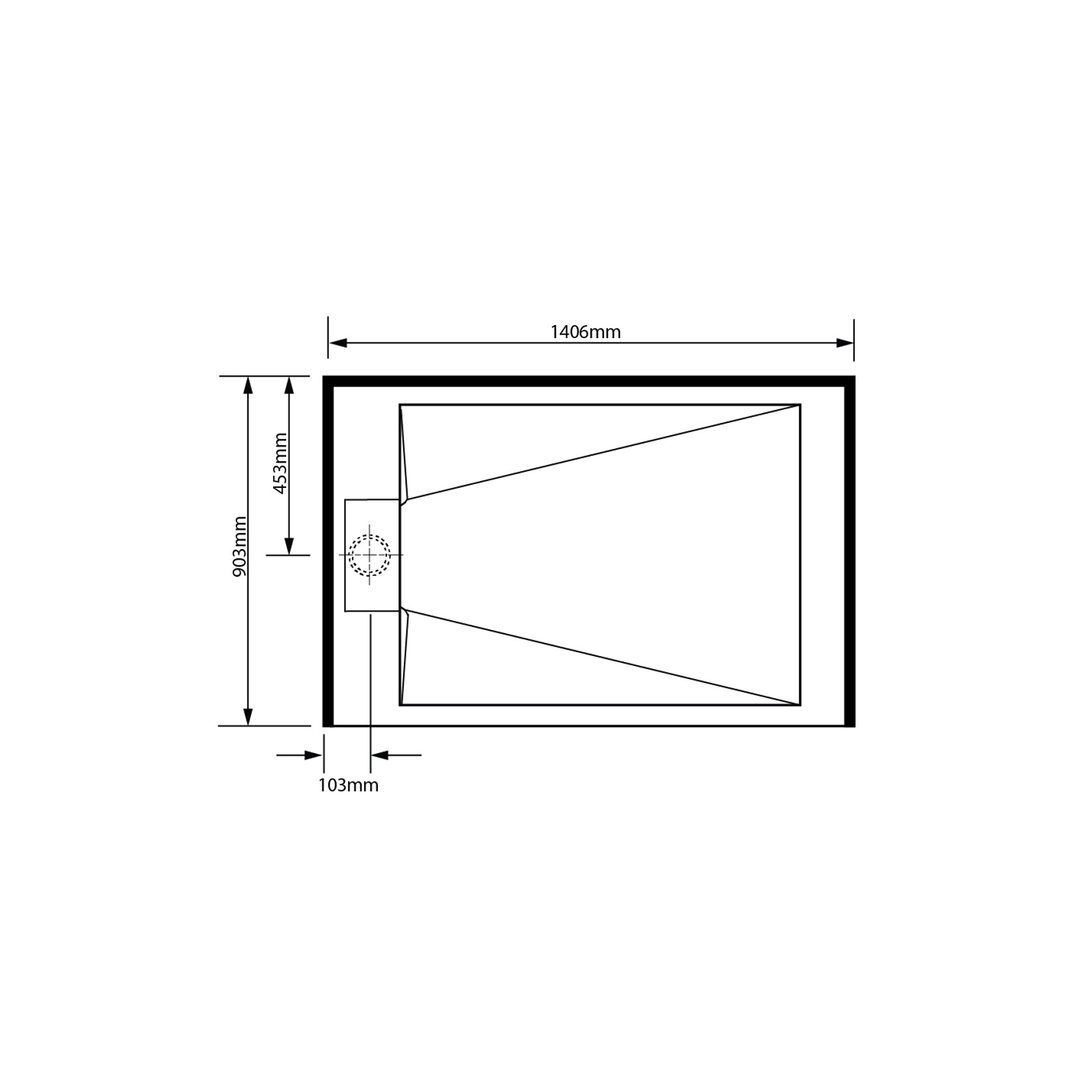

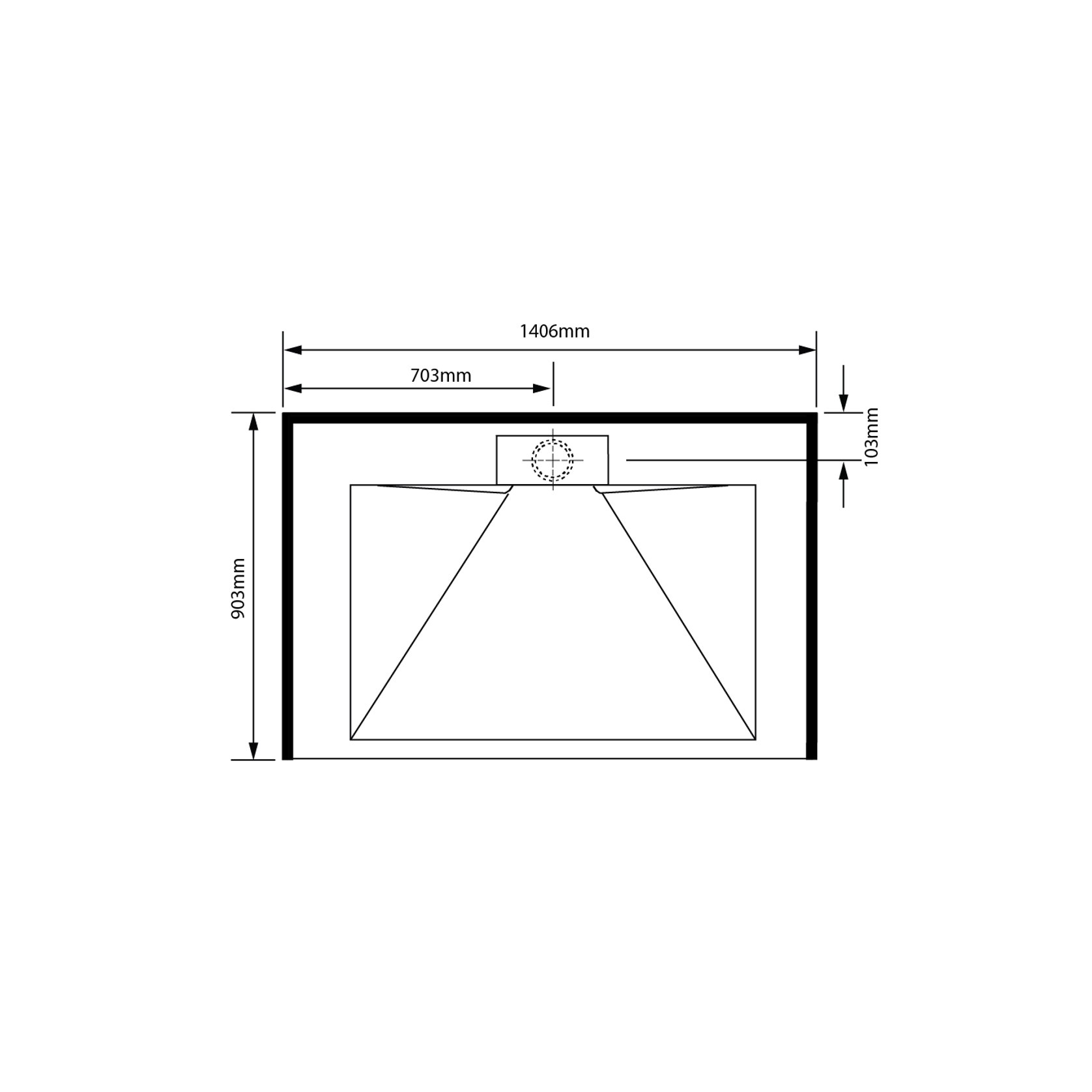

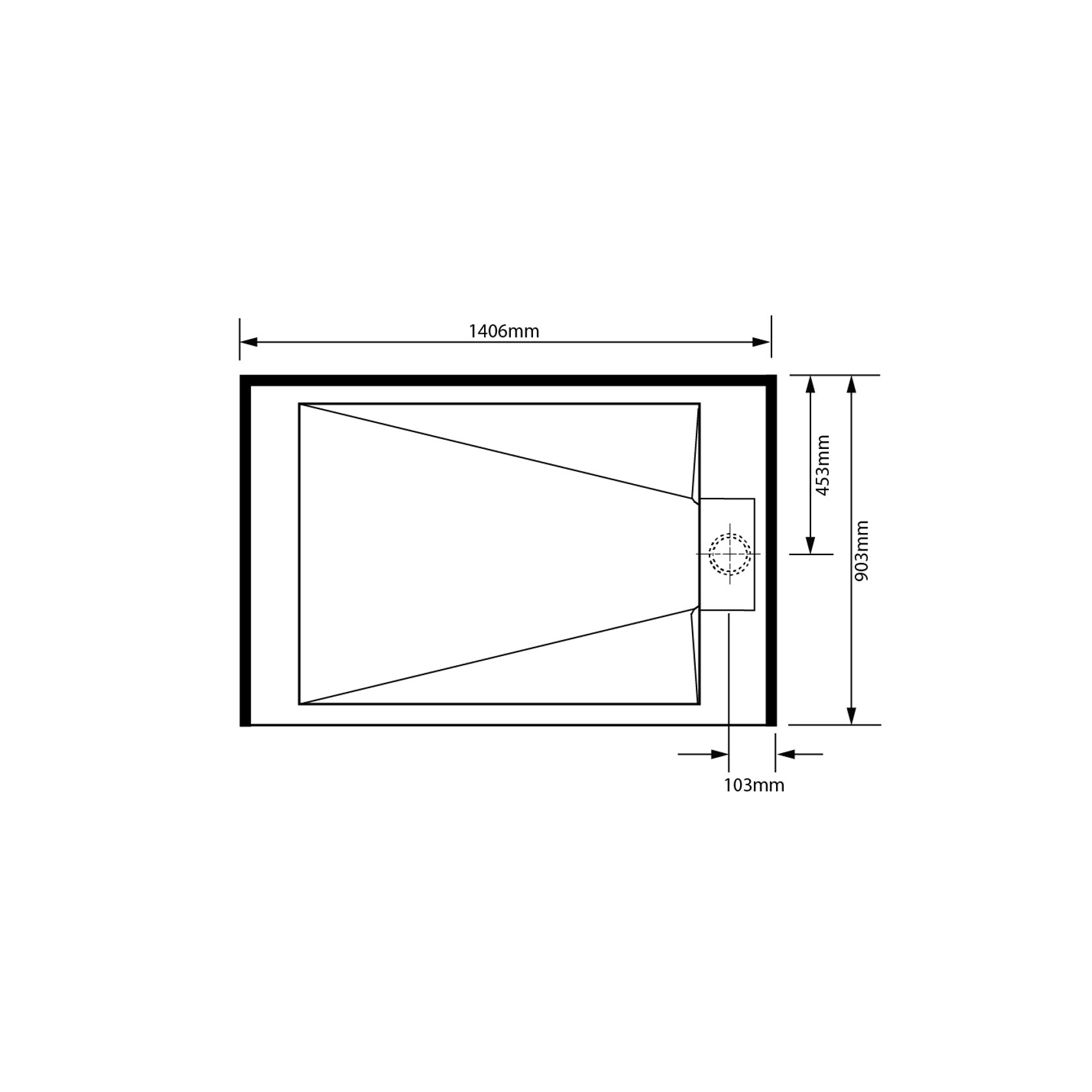

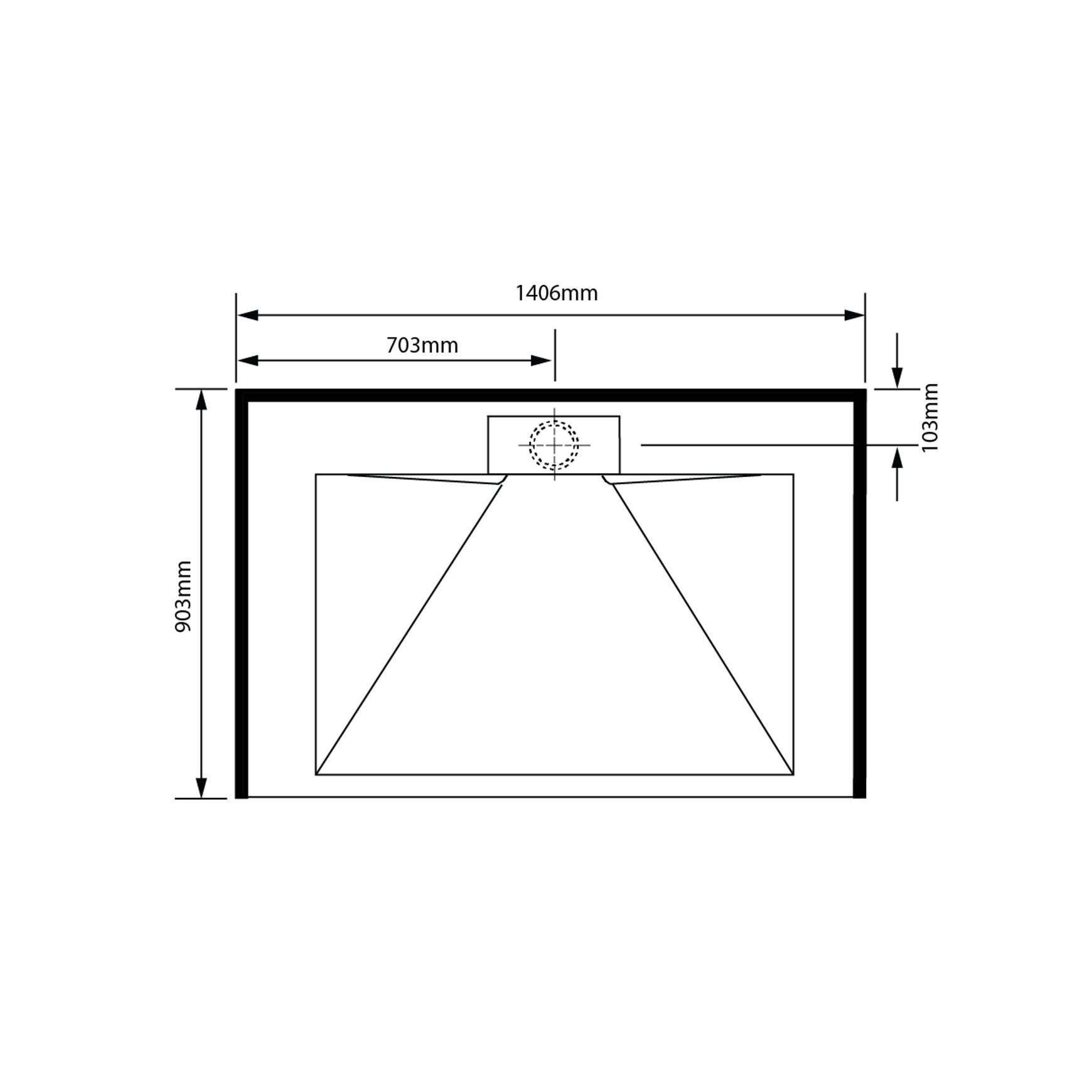

Pinnacle trays offer 3 waste outlet positions to cater for all waste and water outlet positions.
SEAMLESS DESIGN
Symphony Pinnacle trays feature a hidden waste design. An easy clean waste is hidden under a cover lid. Water exits the tray via a waste “slot” and when cleaning is required, the lid easily lifts up revealing the waste and the removable waste bucket.
WATERTIGHT STRENGTH

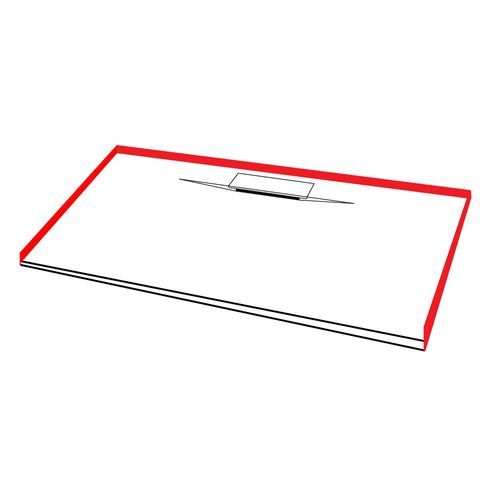

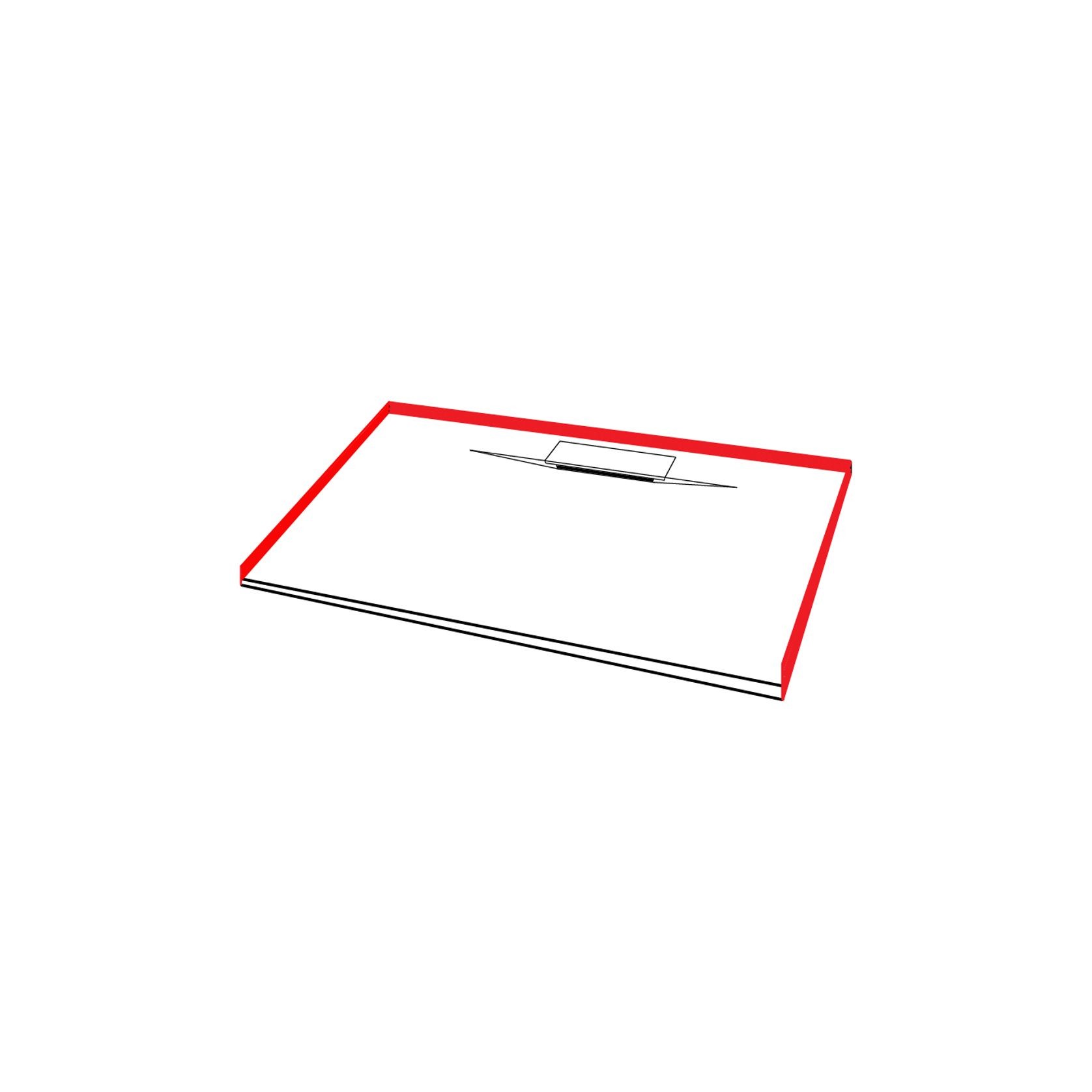

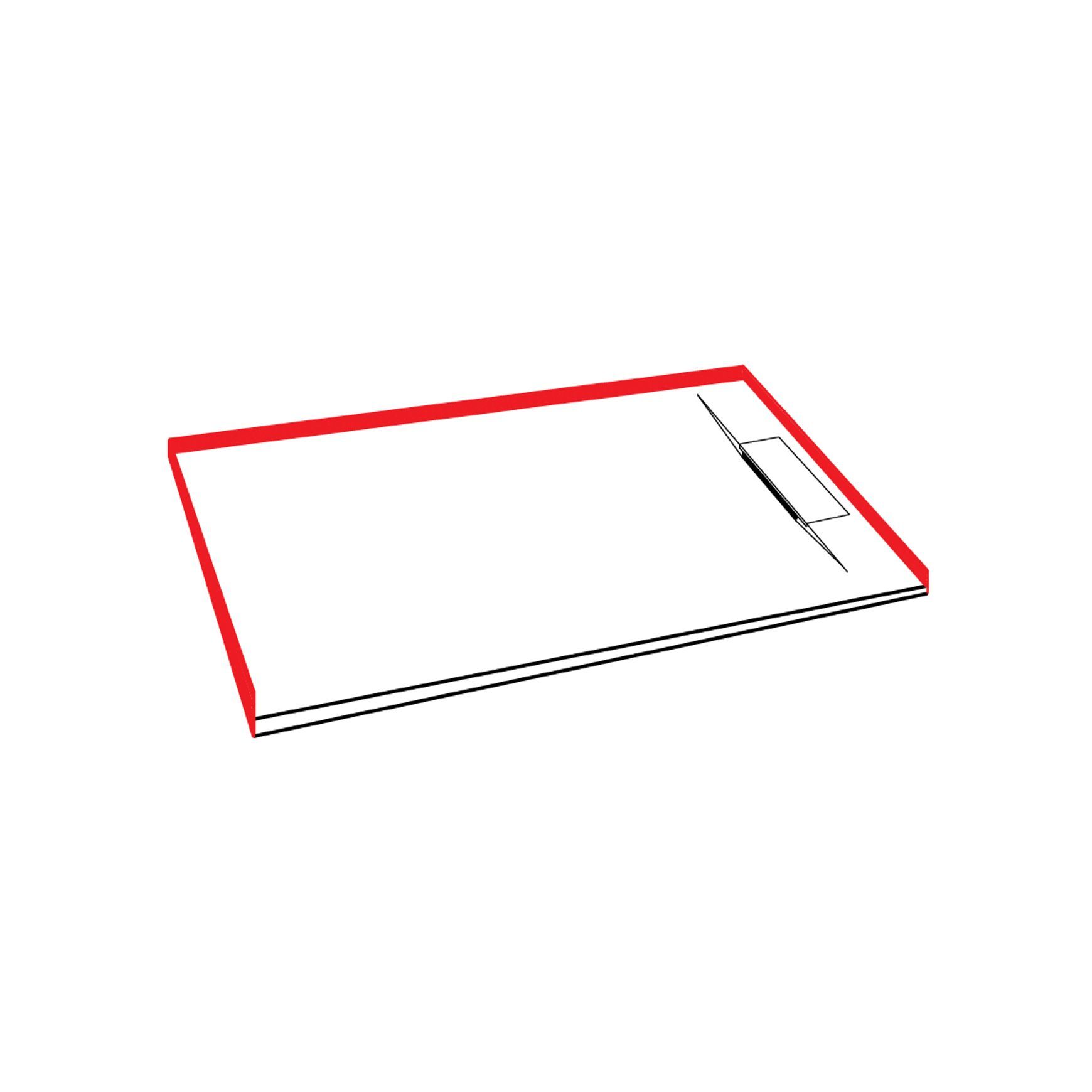

Watertightness is just as important as strength. That’s why Pinnacle trays feature factory-fitted 30mm high Aluminium Upstands which feature horizontal ribs to aid sealant or waterproofing material retention.
LOW PROFILE
Pinnacle trays have an ultra low height profile of 26mm. This could easily be lowered with flooring installation up to the side of the tray. Pinnacle trays can also be recessed into the floor if required.
DURABLE AND SAFE
SMC is a composite material made from resin, fillers and glass fibre. The material is poured into precision alloy moulds at over 150°C and compressed, leaving a precise, solid form which will not distort, discolour, or break down after years of use.
The surface is finished to mimic natural slate, which also provides a non-slip finish for added safety.
- CategoryShower Trays & Drains
- RangePinnacle
- BrandSymphony Showers
- Warranty10 years
Standard 900mm projection
- 3 waste options
- Ultra low 26mm profile
- Suitable for pivot and sliding doors
- Perfect replacement for a 3-sided Shower Enclosure
Fill one end wall of the bathroom with a spacious shower.
The tray upstands are factory fitted in New Zealand using quality Sika product so please allow a minimum of 15 working days for manufacture (plus 5 to 10 working days for delivery).
