Pinnacle Alcove Tray 900x1600x900
Auckland, New Zealand
- 280.6K profile views
- 71 saves
900x1600x900 Alcove trays provide a huge showering space. The ultimate replacement for a 3 sided shower over bath, or design with a complete wall to be a showering paradise.

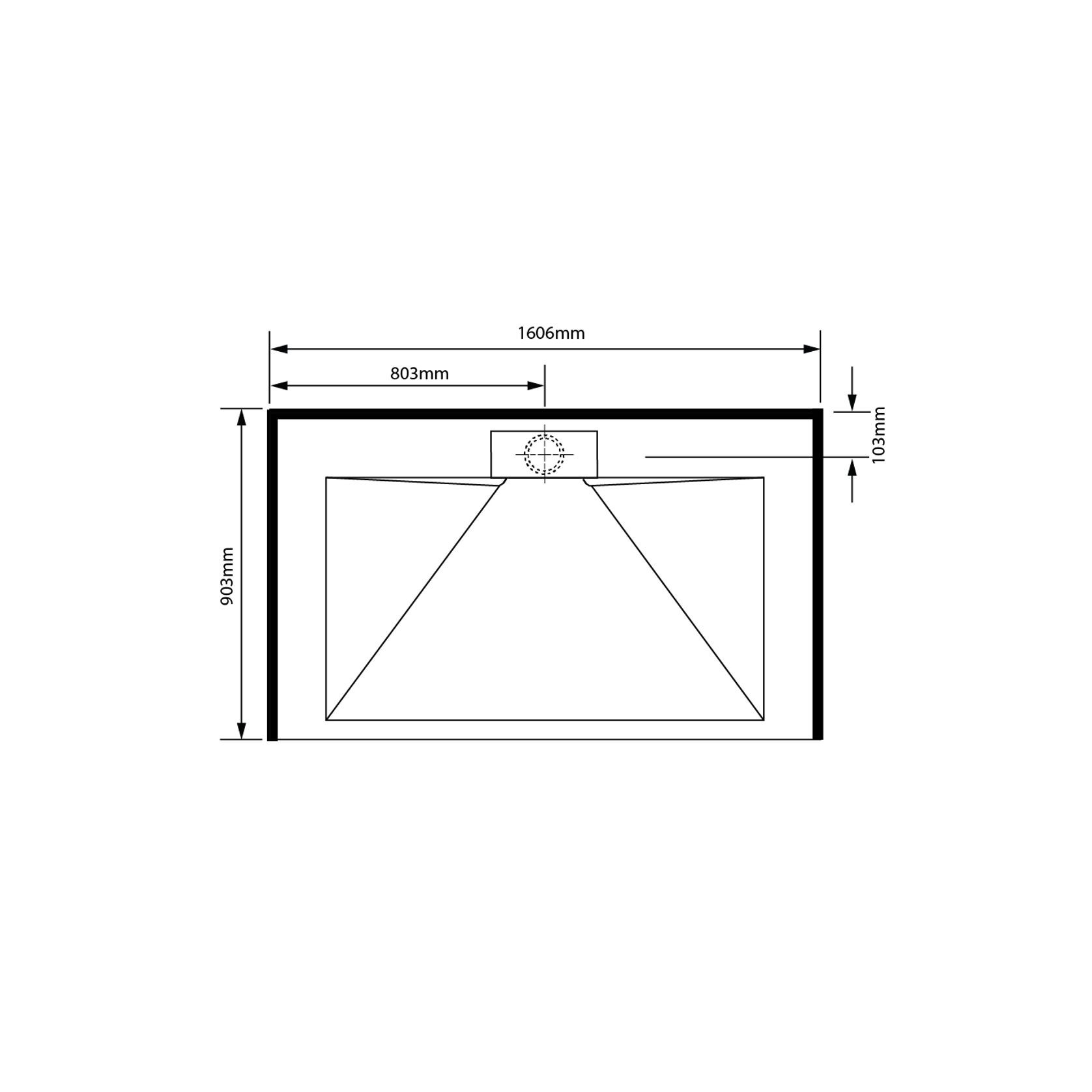

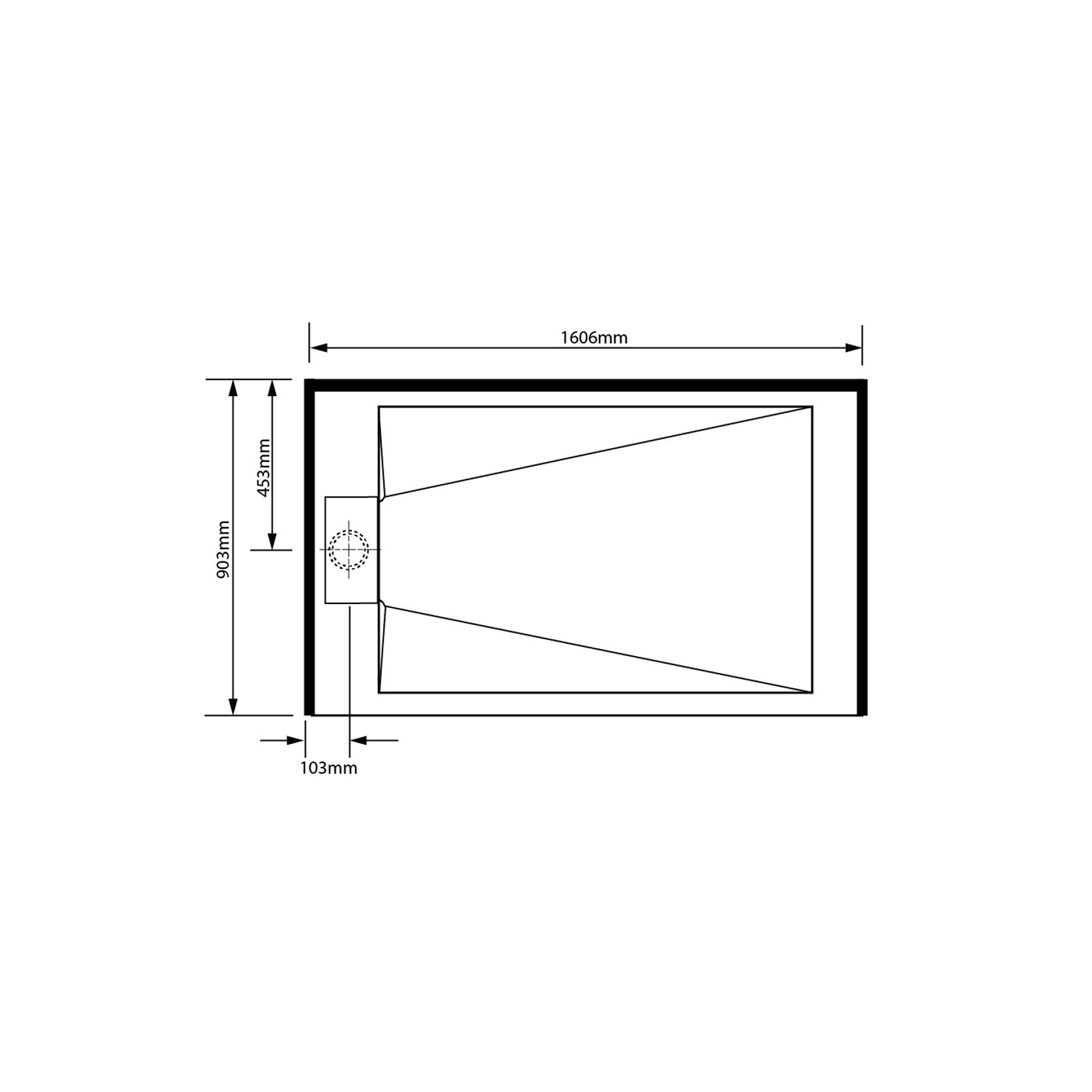

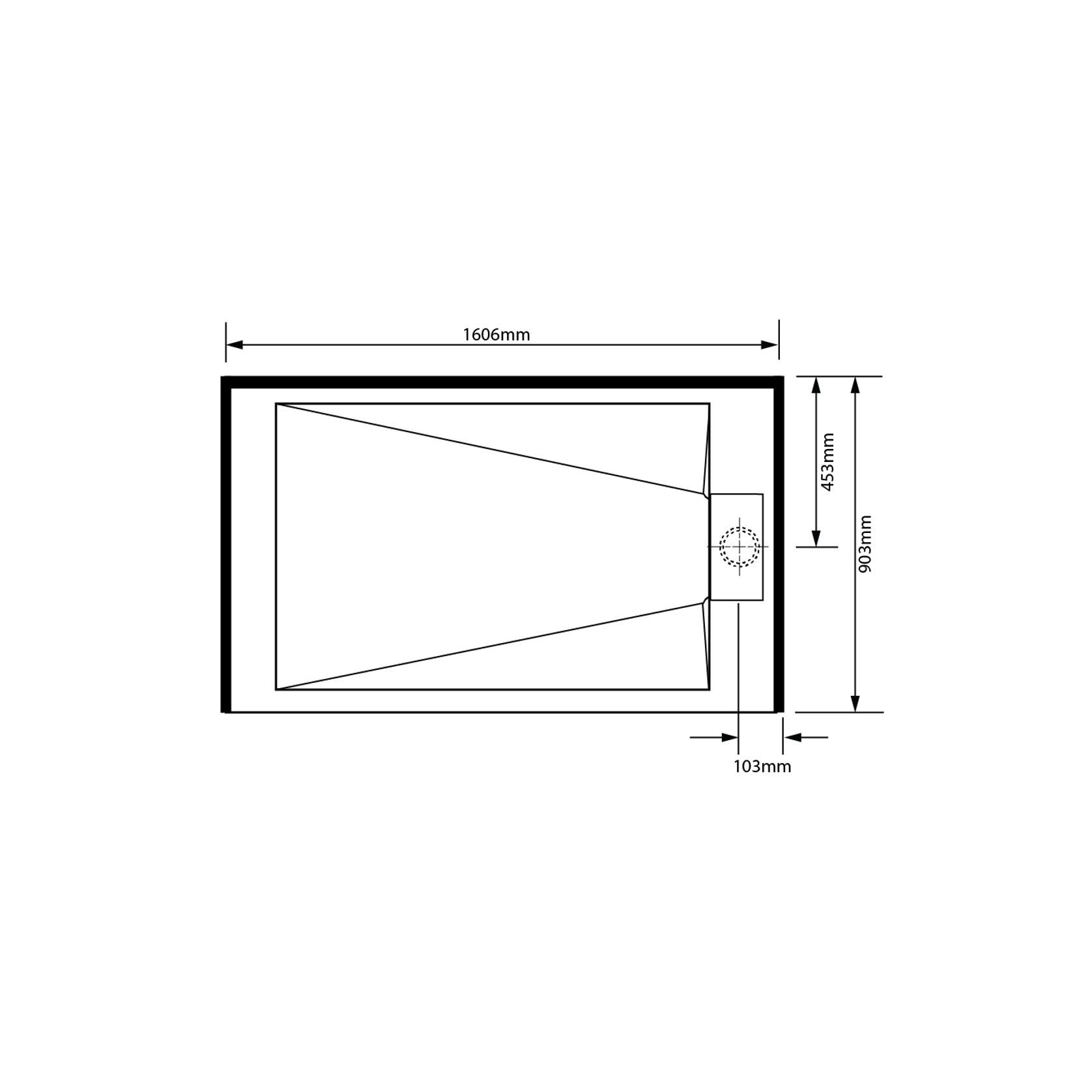

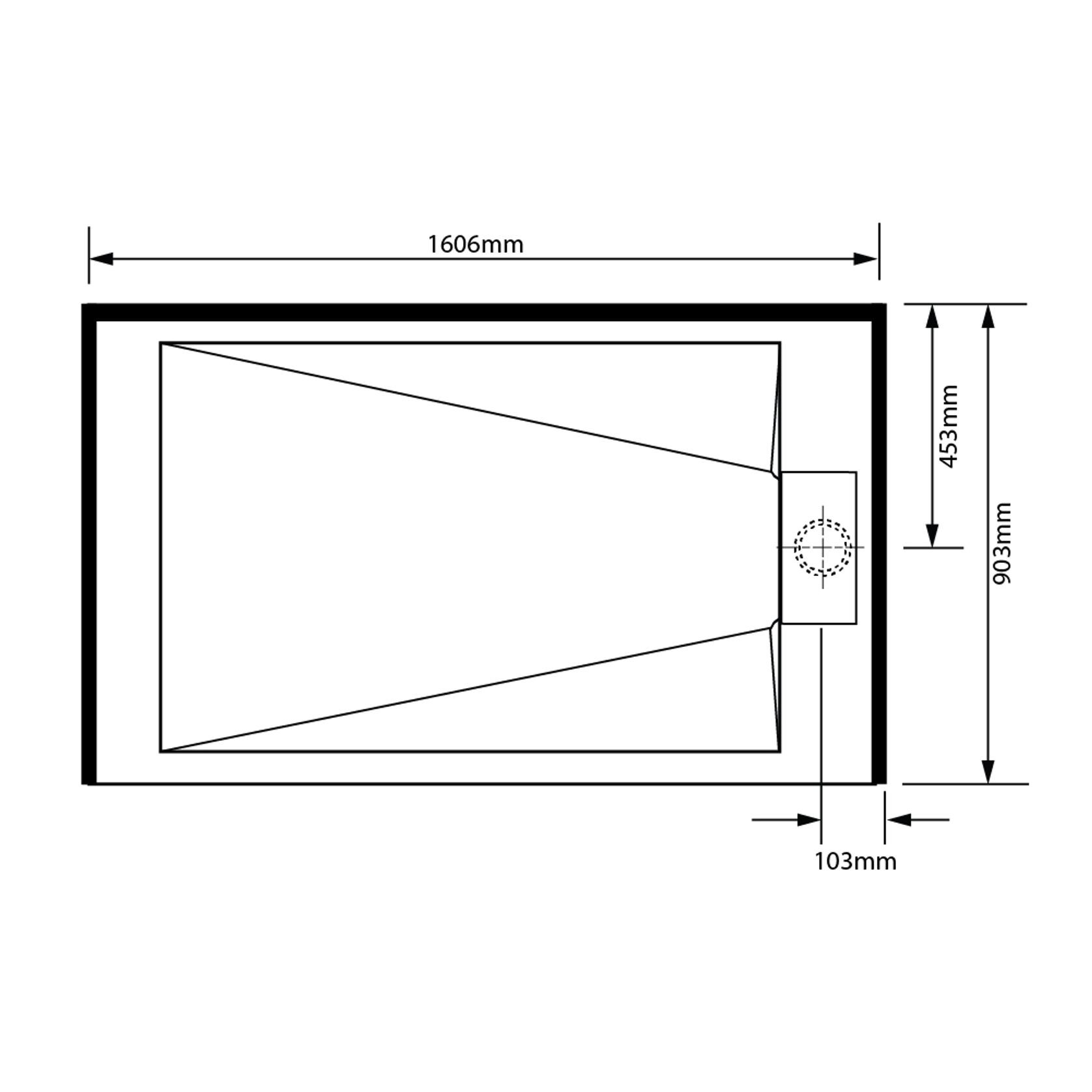

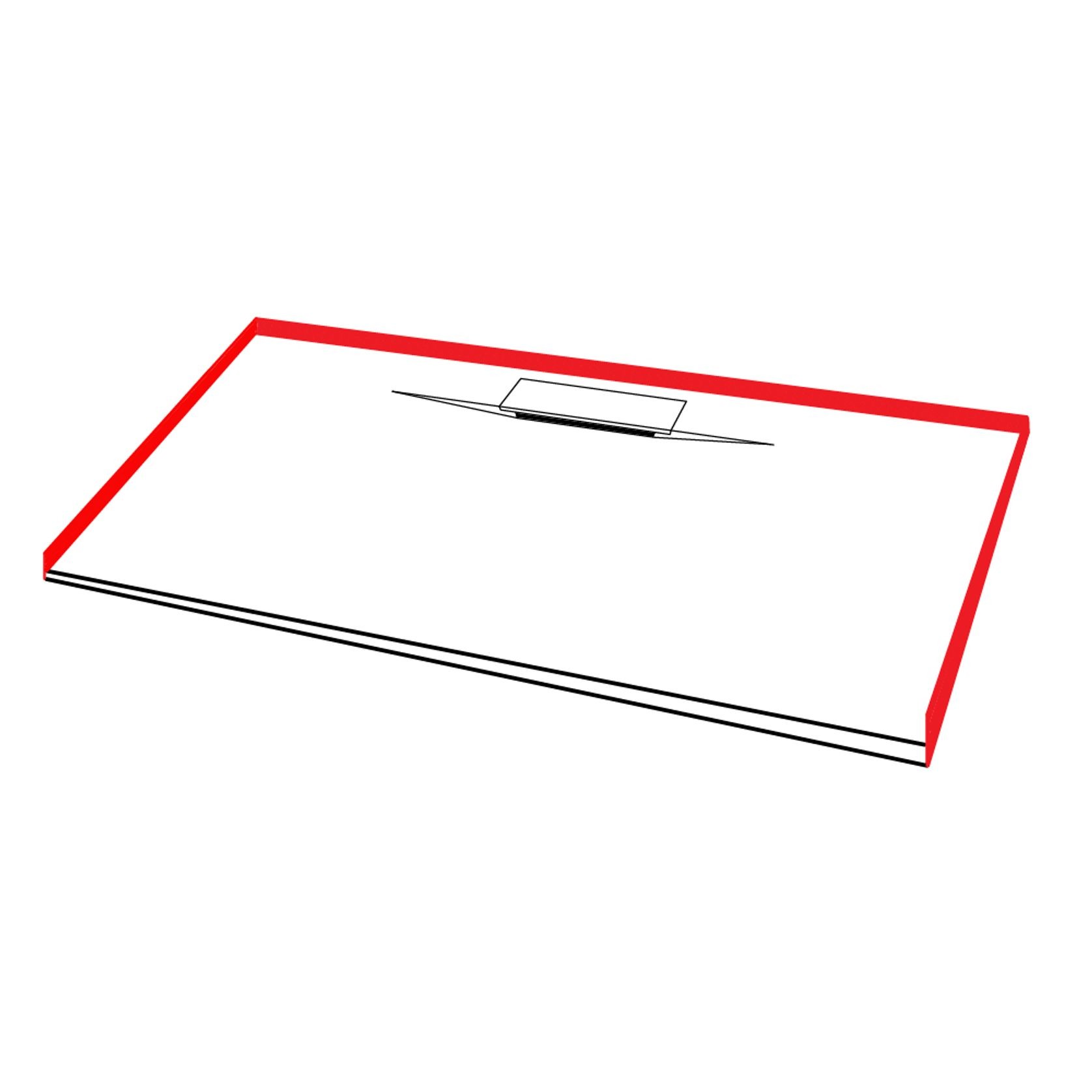

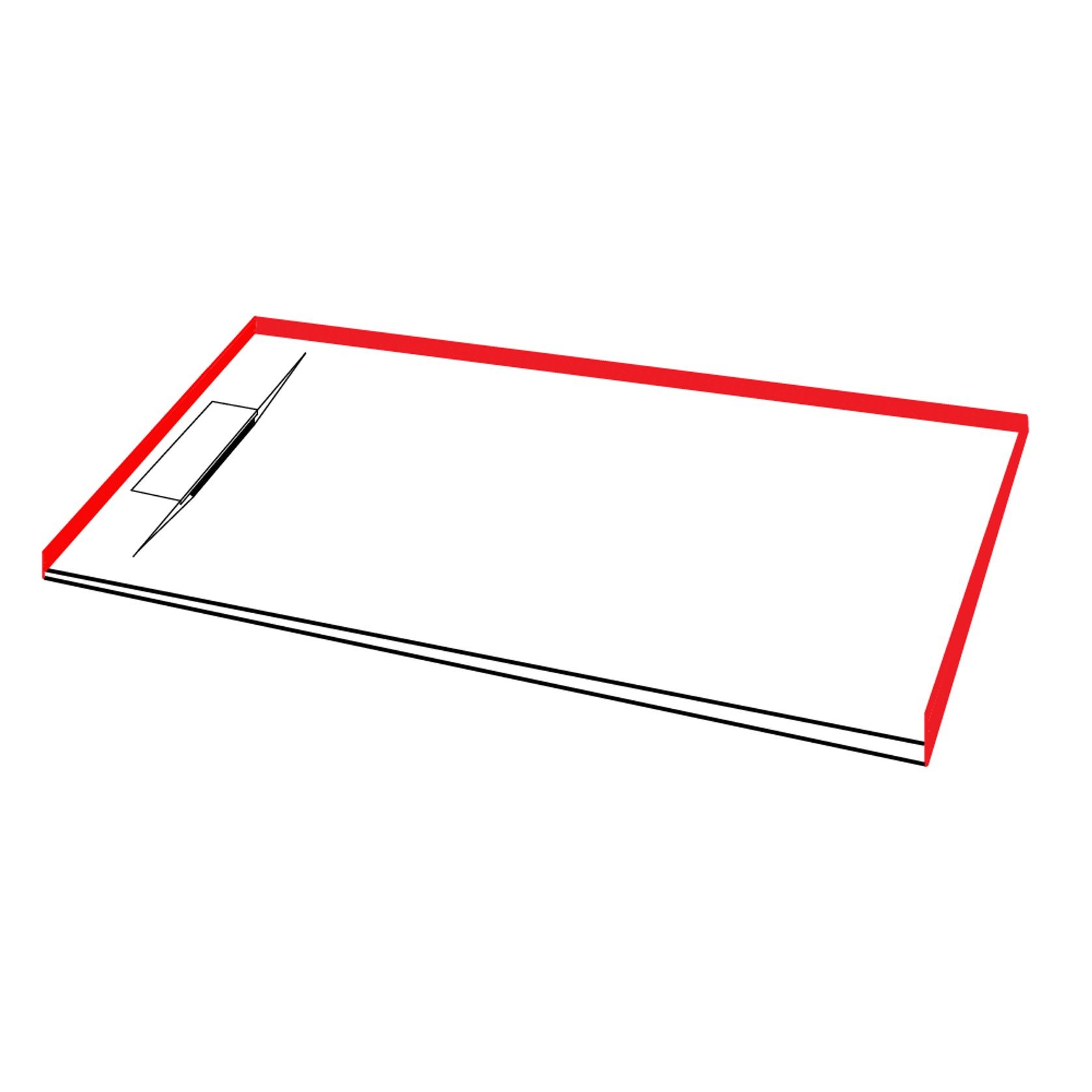

Pinnacle trays offer 3 waste outlet positions to cater for all waste and water outlet positions.
SEAMLESS DESIGN
Symphony Pinnacle trays feature a hidden waste design. An easy clean waste is hidden under a cover lid. Water exits the tray via a waste “slot” and when cleaning is required, the lid easily lifts up revealing the waste and the removable waste bucket.
WATERTIGHT STRENGTH

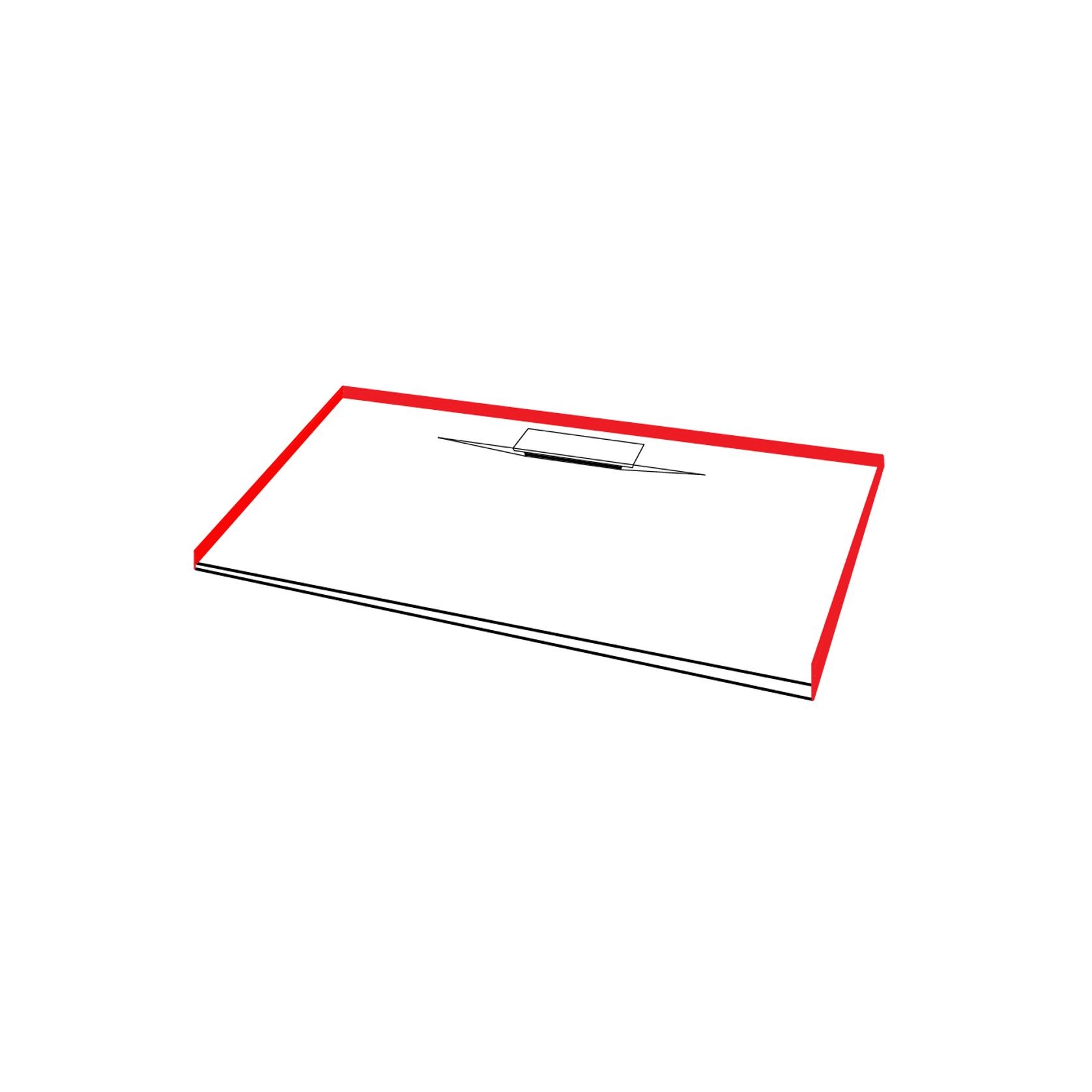

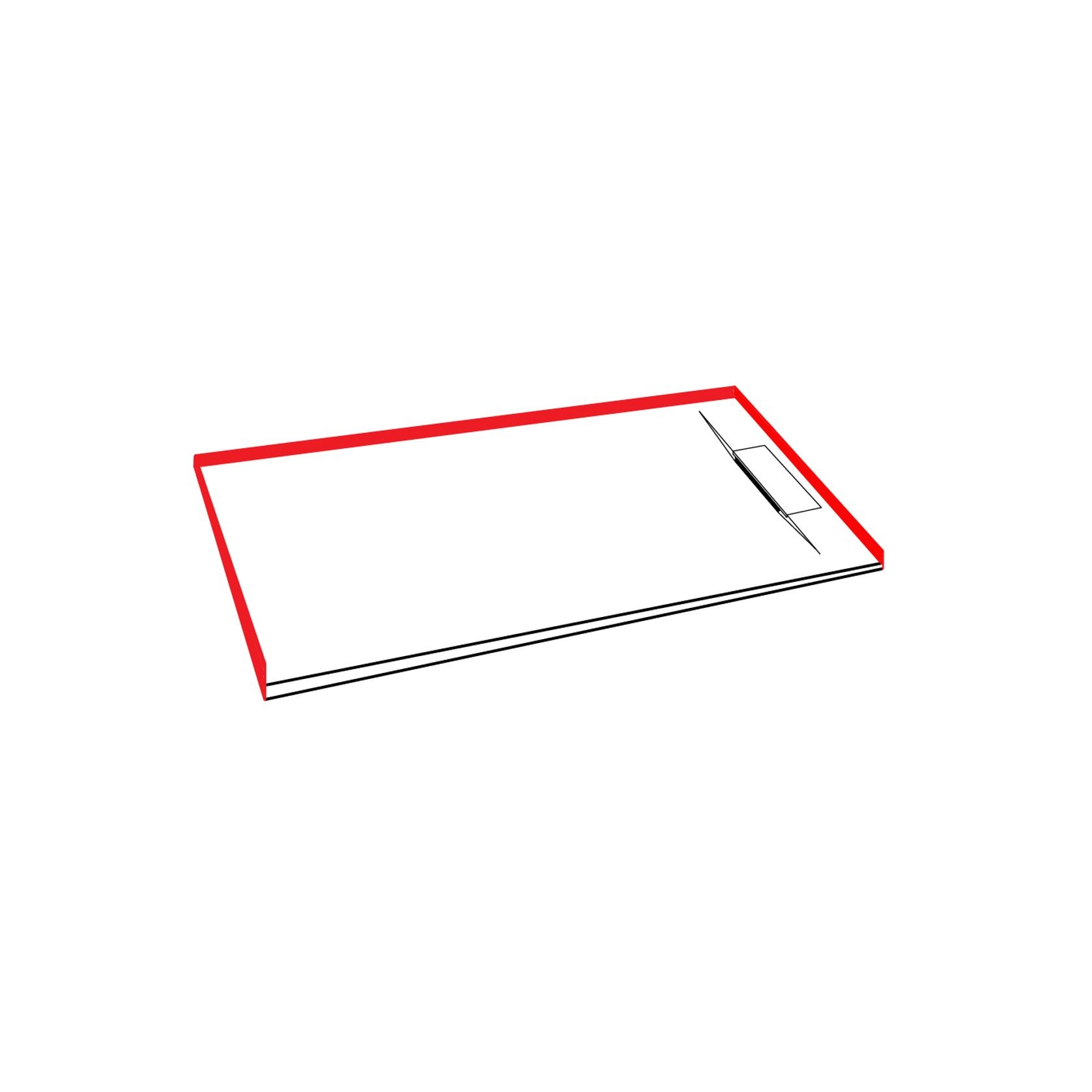

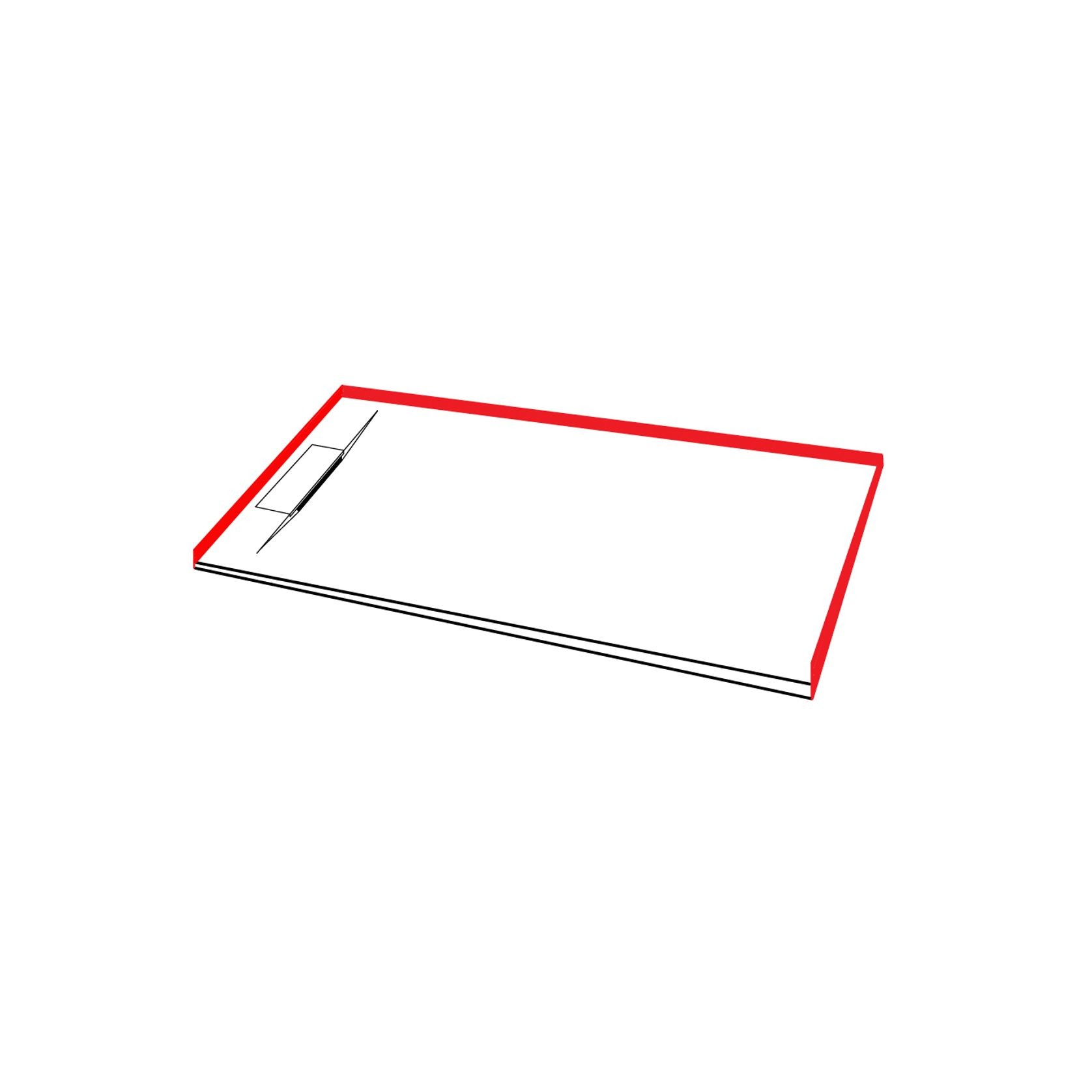

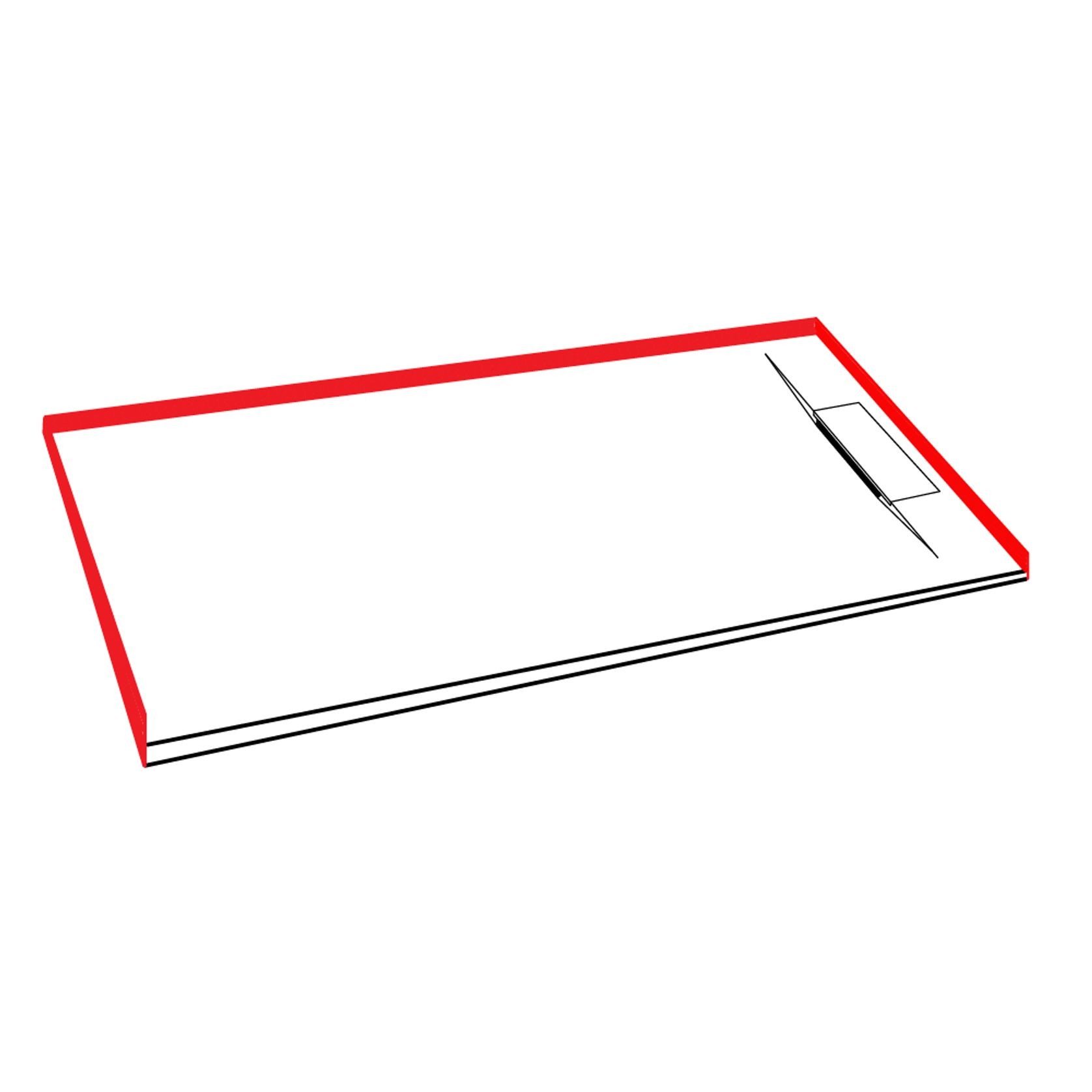

Watertightness is just as important as strength. That’s why Pinnacle trays feature factory-fitted 30mm high Aluminium Upstands which feature horizontal ribs to aid sealant or waterproofing material retention.
LOW PROFILE
Pinnacle trays have an ultra low height profile of 26mm. This could easily be lowered with flooring installation up to the side of the tray. Pinnacle trays can also be recessed into the floor if required.
DURABLE AND SAFE
SMC is a composite material made from resin, fillers and glass fibre. The material is poured into precision alloy moulds at over 150°C and compressed, leaving a precise, solid form which will not distort, discolour, or break down after years of use.
The surface is finished to mimic natural slate, which also provides a non-slip finish for added safety.
Product Details
- Product
- Pinnacle Alcove Tray 900x1600x900
- Category
- Shower Trays & Drains
- Sold by
- Symphony Showers
- Range
- Pinnacle
- Brand
- Symphony Showers
- Warranty
- 10 years
Product Variants
- Model
Symphony Showers is specified by
900x1600x900 Alcove trays provide a huge showering space.
The ultimate replacement for a 3 sided shower over bath, or design with a complete wall to be a showering paradise.
Pinnacle trays offer 3 waste outlet positions to cater for all waste and water outlet positions.
SEAMLESS DESIGN
Symphony Pinnacle trays feature a hidden waste design. An easy clean waste is hidden under a cover lid. Water exits the tray via a waste “slot” and when cleaning is required, the lid easily lifts up revealing the waste and the removable waste bucket.
WATERTIGHT STRENGTH
Watertightness is just as important as strength. That’s why Pinnacle trays feature factory-fitted 30mm high Aluminium Upstands which feature horizontal ribs to aid sealant or waterproofing material retention.
LOW PROFILE
Pinnacle trays have an ultra low height profile of 26mm. This could easily be lowered with flooring installation up to the side of the tray. Pinnacle trays can also be recessed into the floor if required.
DURABLE AND SAFE
SMC is a composite material made from resin, fillers and glass fibre. The material is poured into precision alloy moulds at over 150°C and compressed, leaving a precise, solid form which will not distort, discolour, or break down after years of use.
The surface is finished to mimic natural slate, which also provides a non-slip finish for added safety.
- Features
Standard 900mm projection
- 3 waste outlet options
- Ultra low 26mm profile
- Suitable for pivot and sliding doors
- Perfect replacement for a 3-sided Shower Enclosure, shower over bath
Fill one end wall of the bathroom with a spacious shower.
- Tray Upstands
The tray upstands are factory fitted in New Zealand using quality Sika product so please allow a minimum of 15 working days for manufacture (plus 5 to 10 working days for delivery).
Downloads
Downloads (3)3 Direct downloads • 11 Available on request
Frequently asked questions about
Pinnacle Alcove Tray 900x1600x900
The Pinnacle Alcove Tray 900x1600x900 is supplied by Symphony Showers. It is also on their website, and you can browse every product Symphony Showers lists on ArchiPro.
Symphony Showers does not publish a price for the Pinnacle Alcove Tray 900x1600x900 on ArchiPro. for pricing, or visit their website.

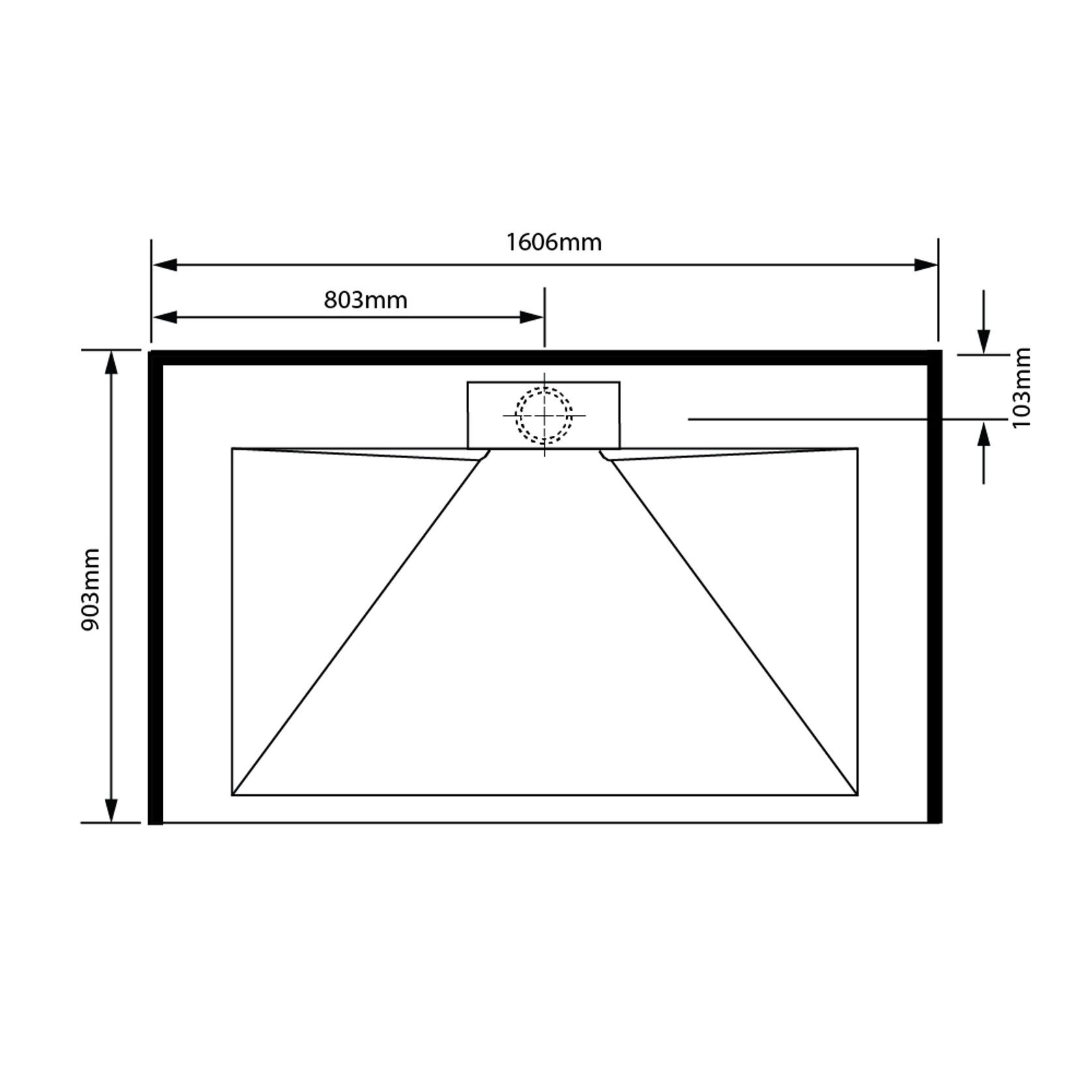

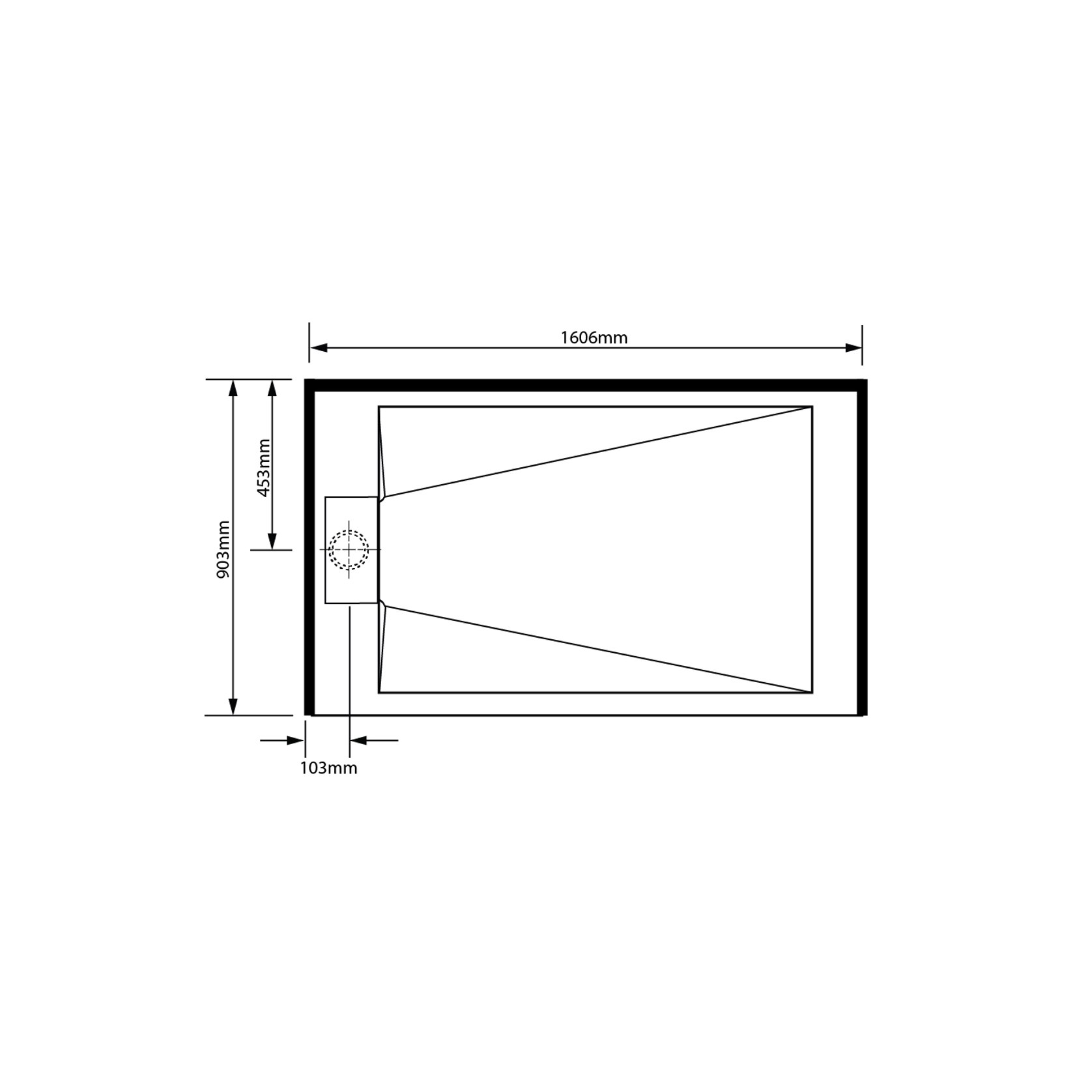

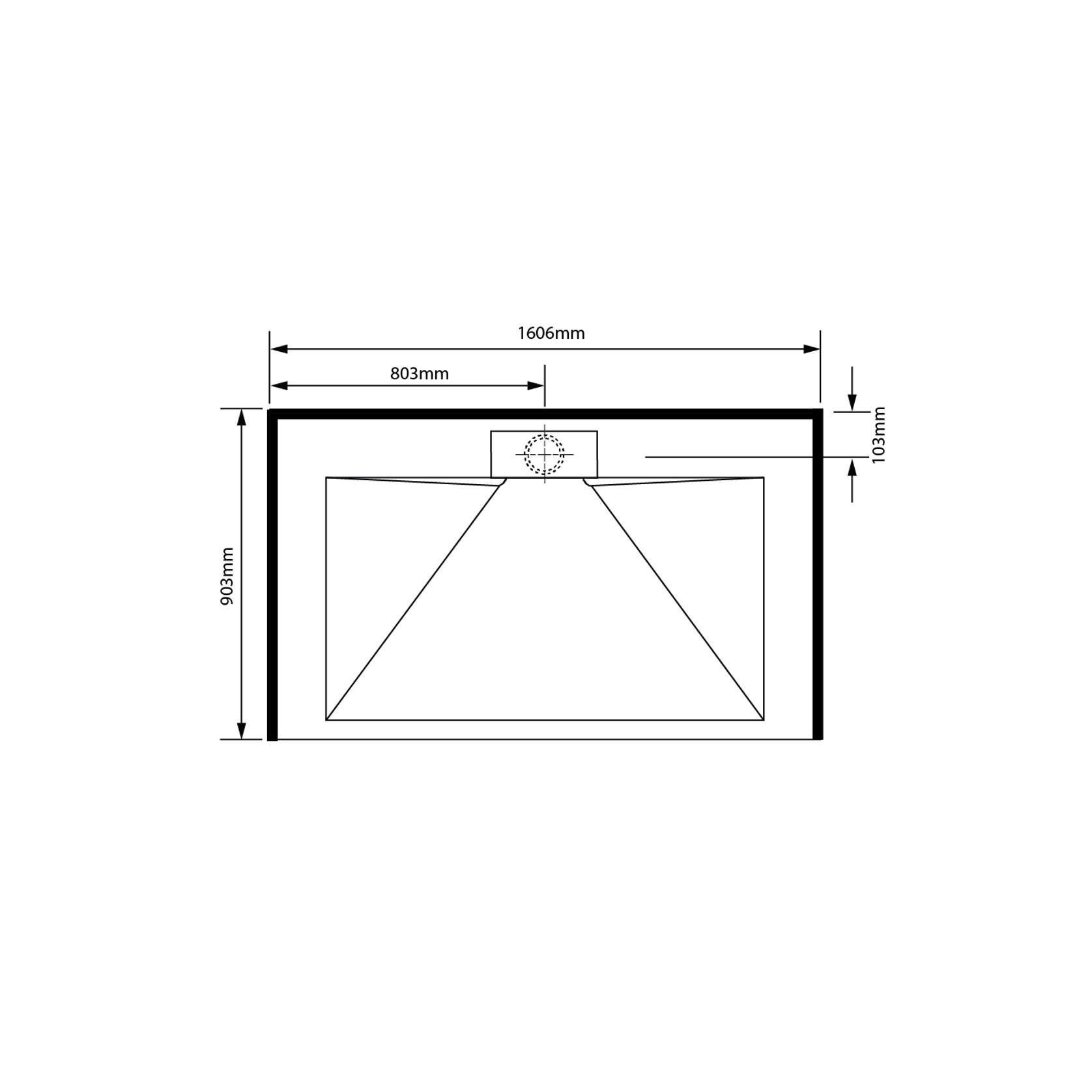

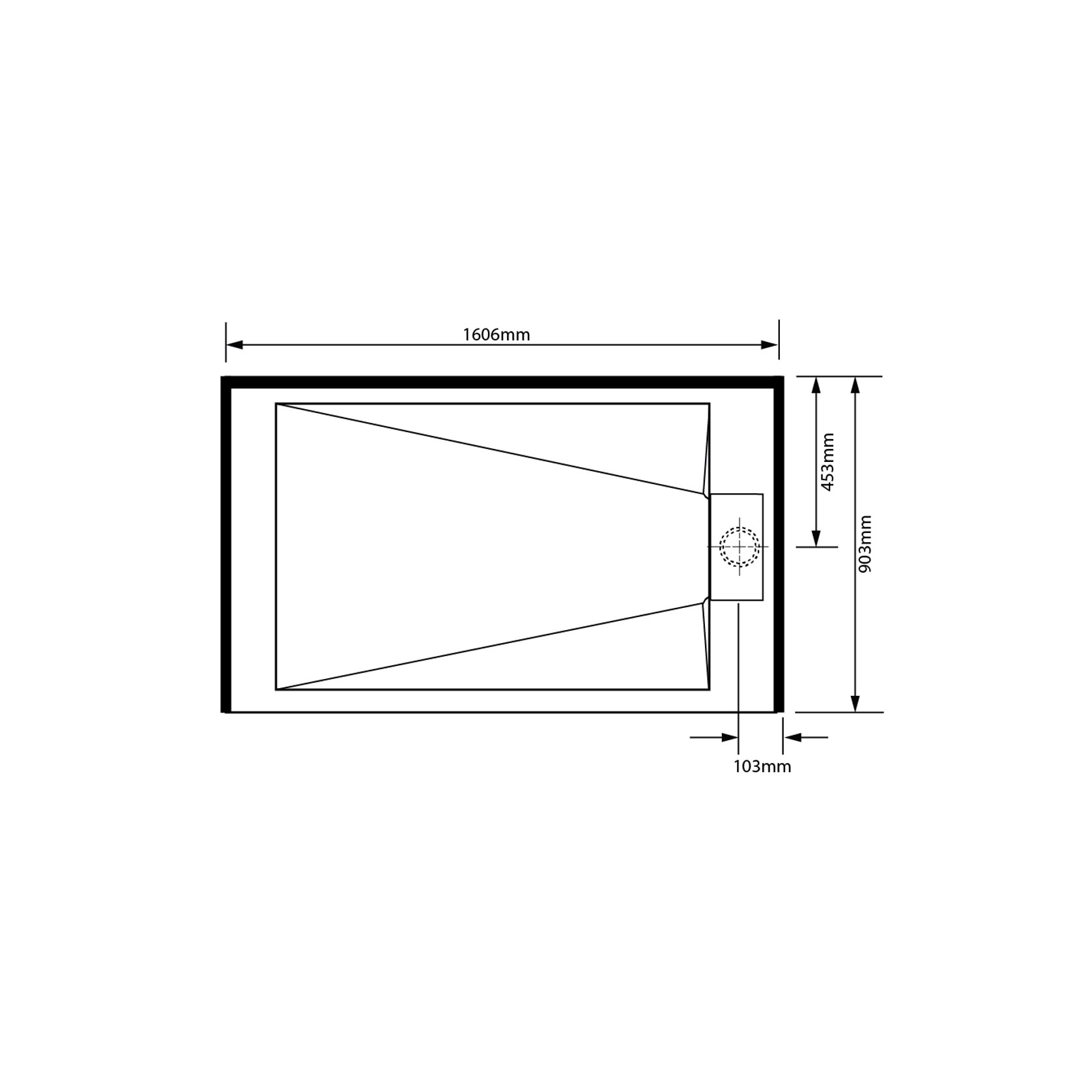

It comes in 9 model options (Rear Waste Black, Rear Waste White, Rear Waste Grey, LH Waste Black, LH Waste White, LH Waste Grey, RH Waste Black, RH Waste White, RH Waste Grey). Pick one in the row under the description to see it.
