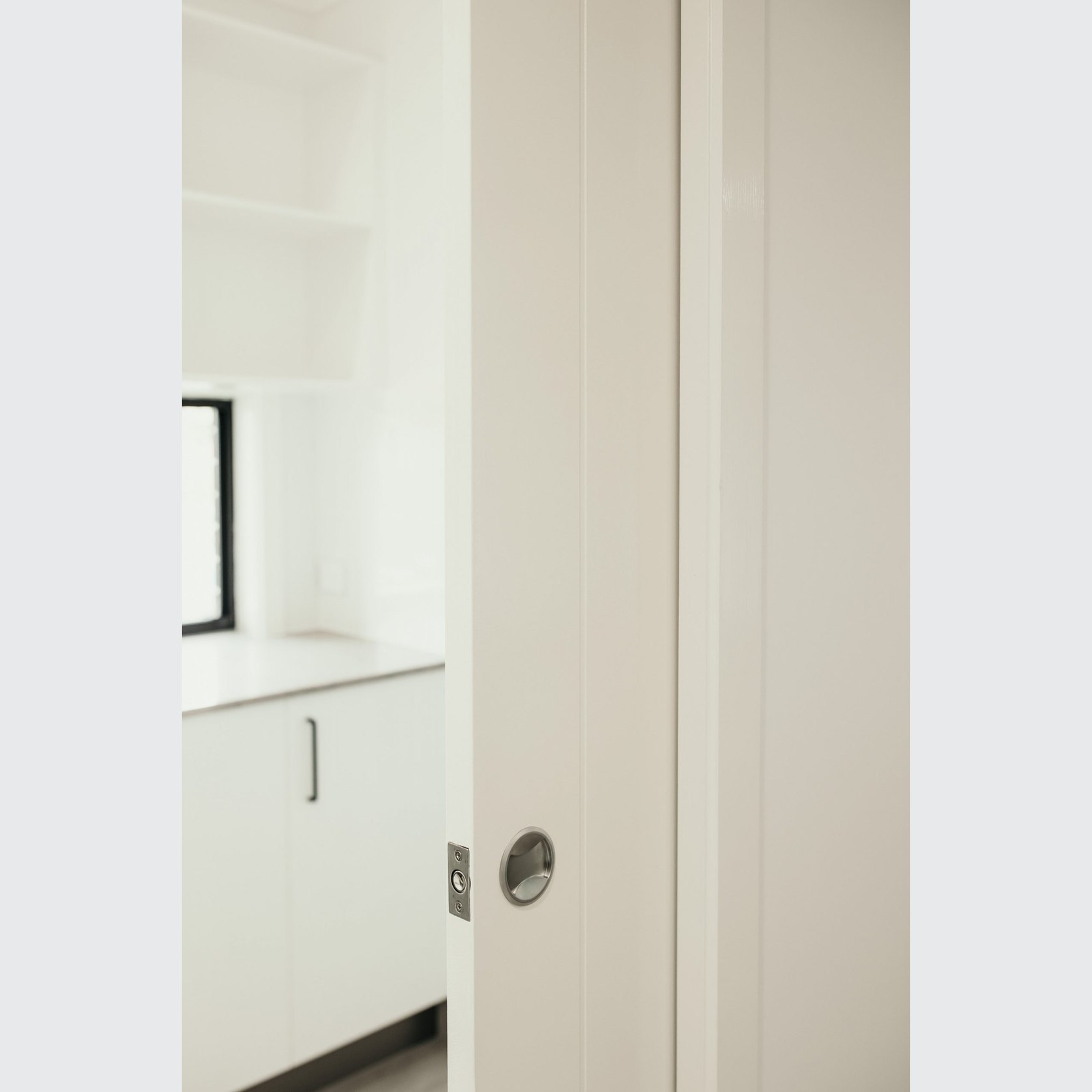

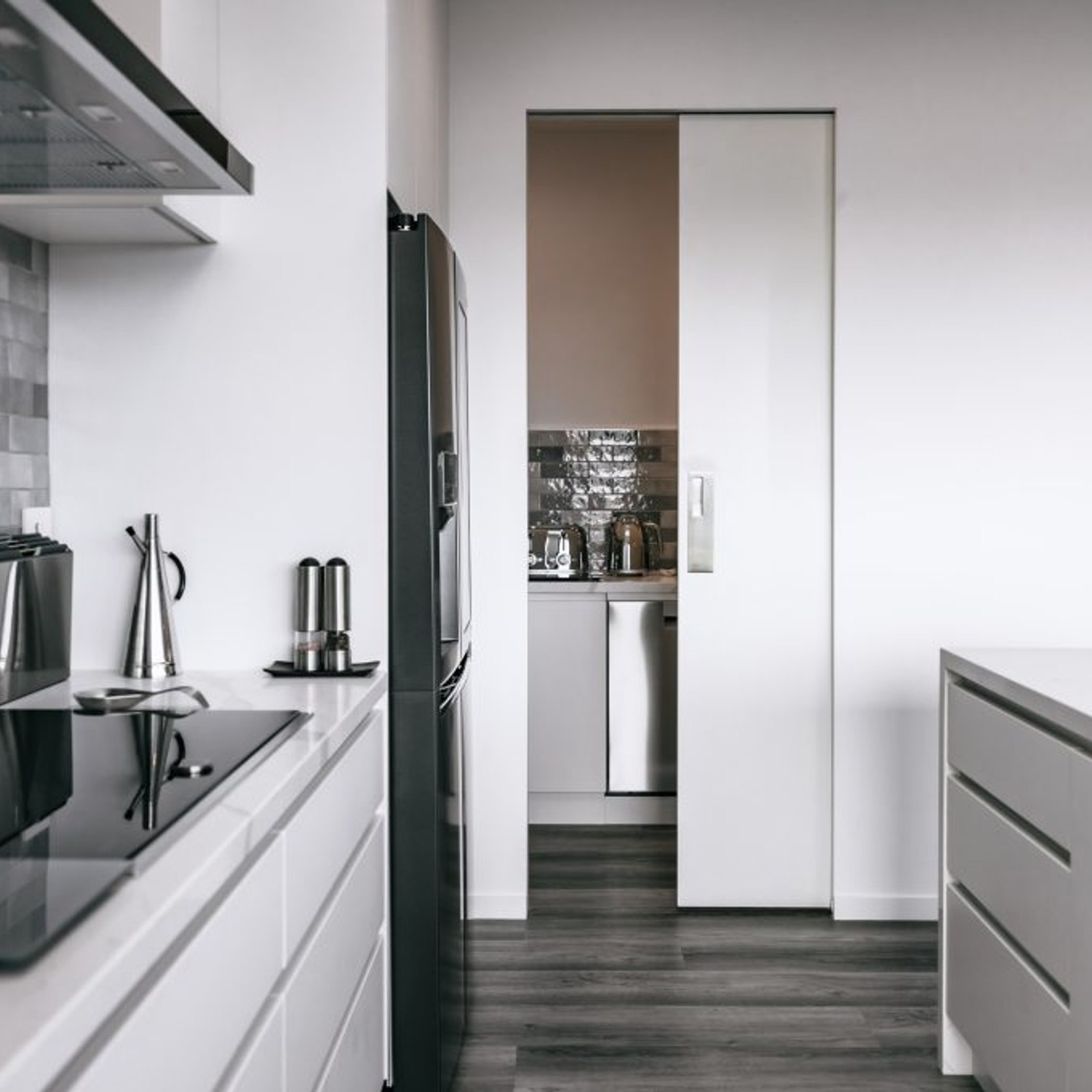

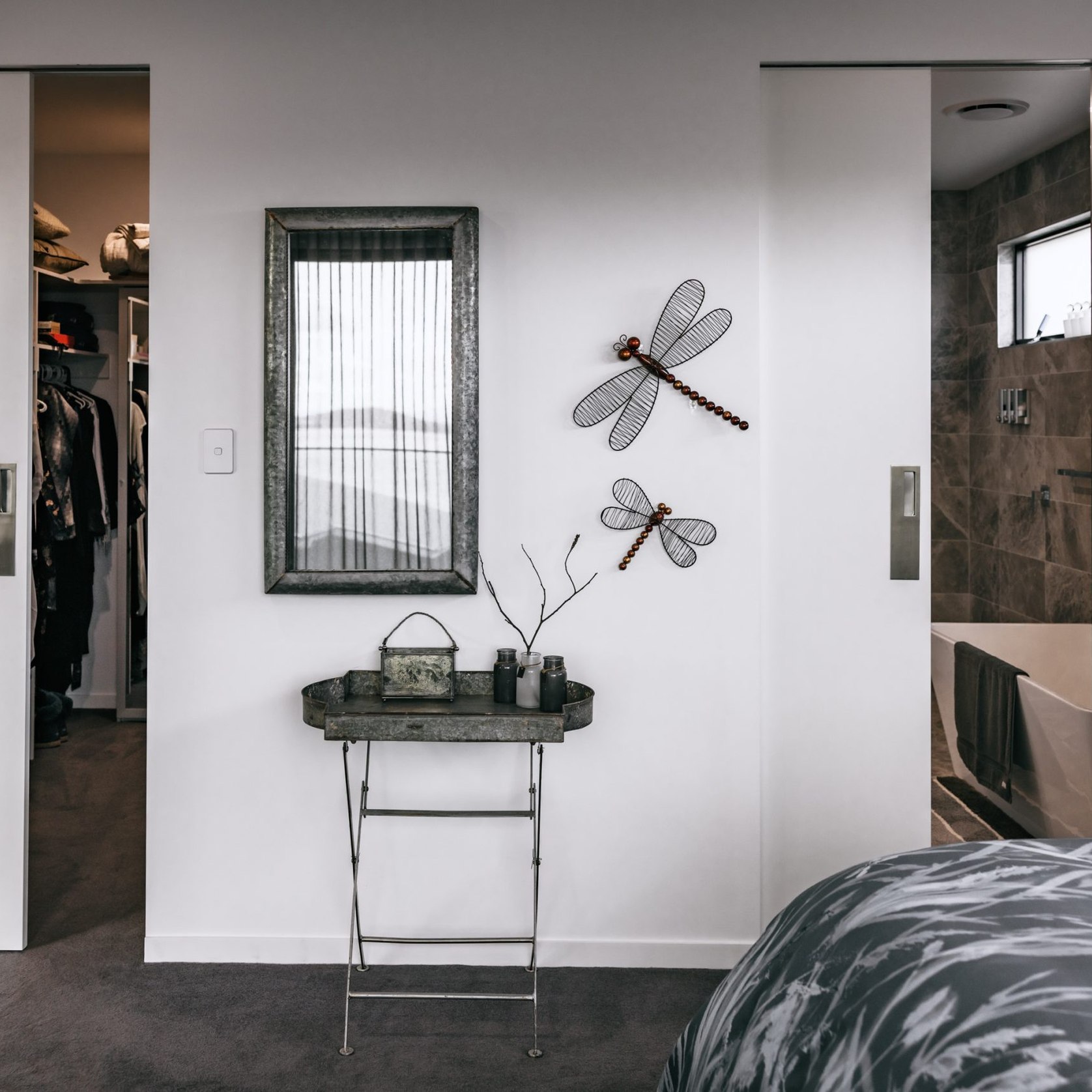

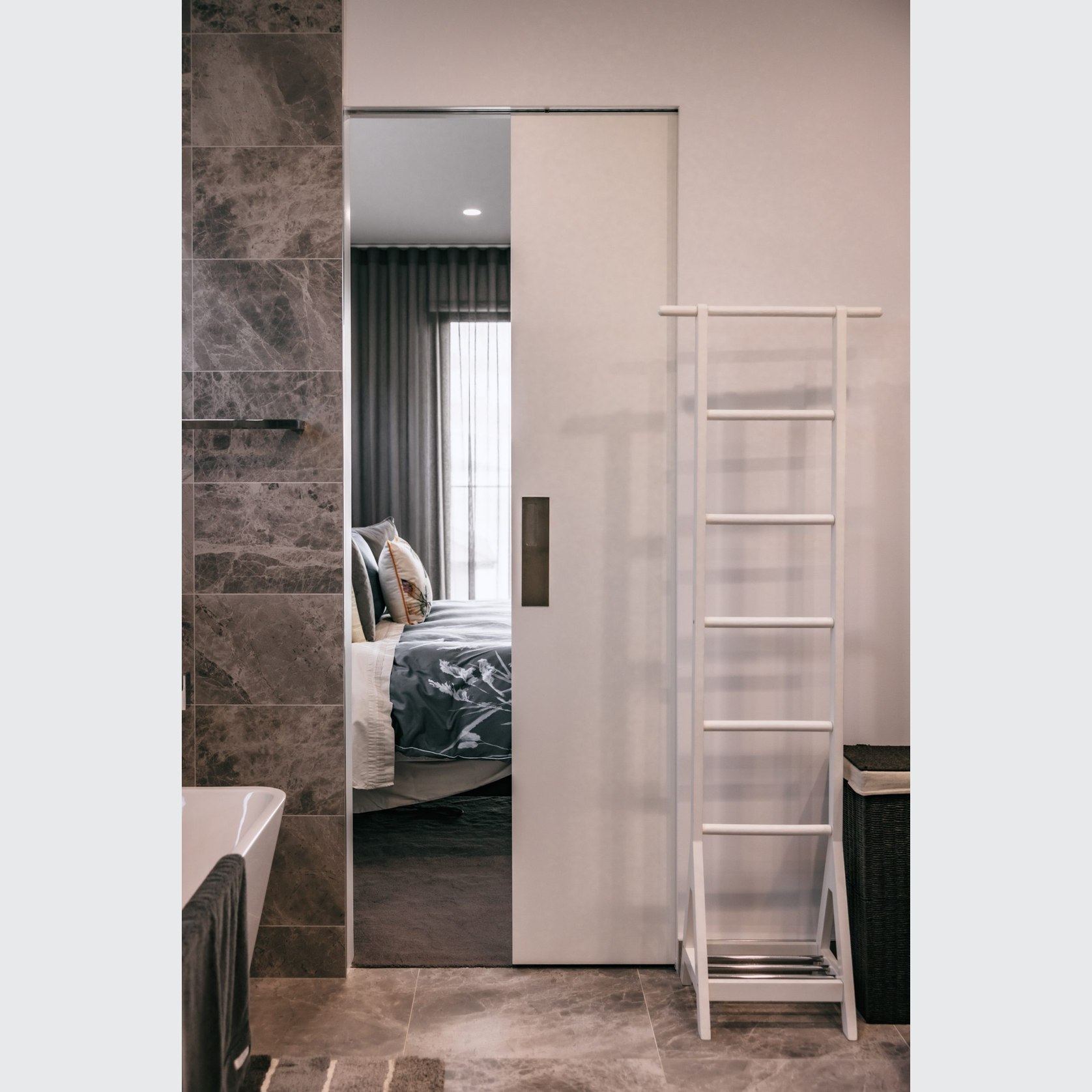

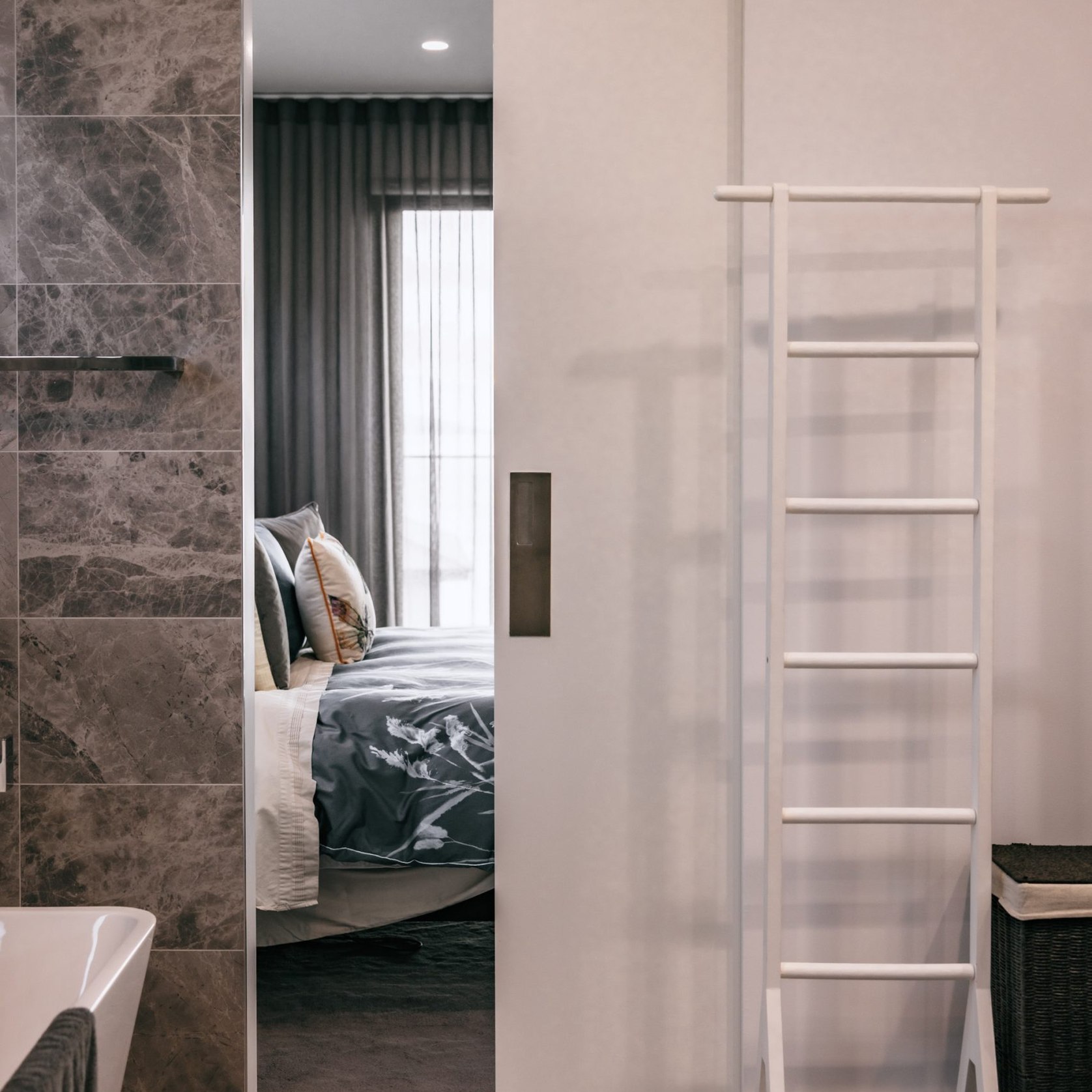

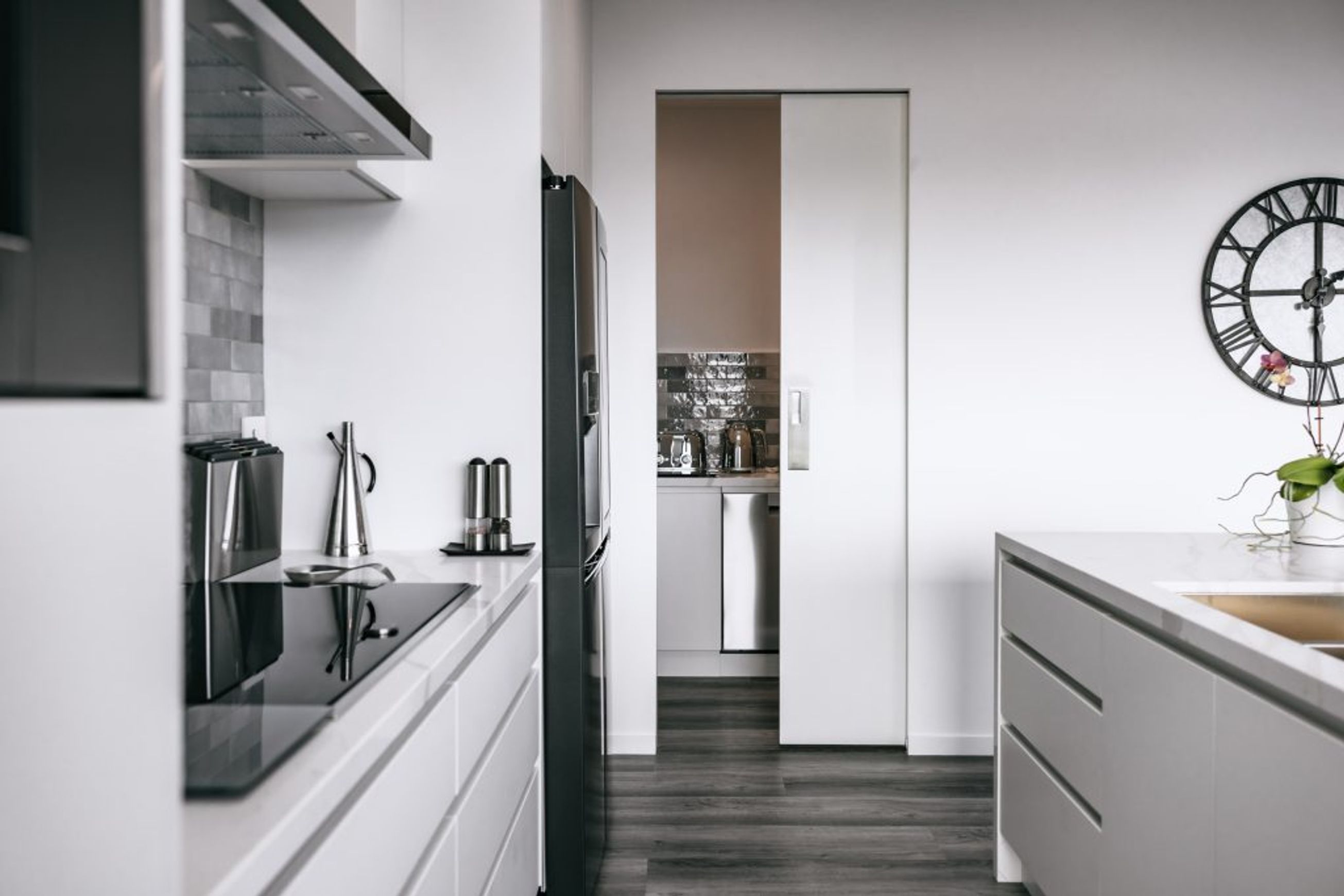

ProLine™ 60kg Cavity Sliding Doors
by Triline Cavity Sliding Door solution
Sydney, Australia
- 100.5K profile views
- 19 saves
By making some smart design changes we can now offer you a cost-effective architectural solution on your standard-sized cavity units which suit “off-the-shelf” doors.

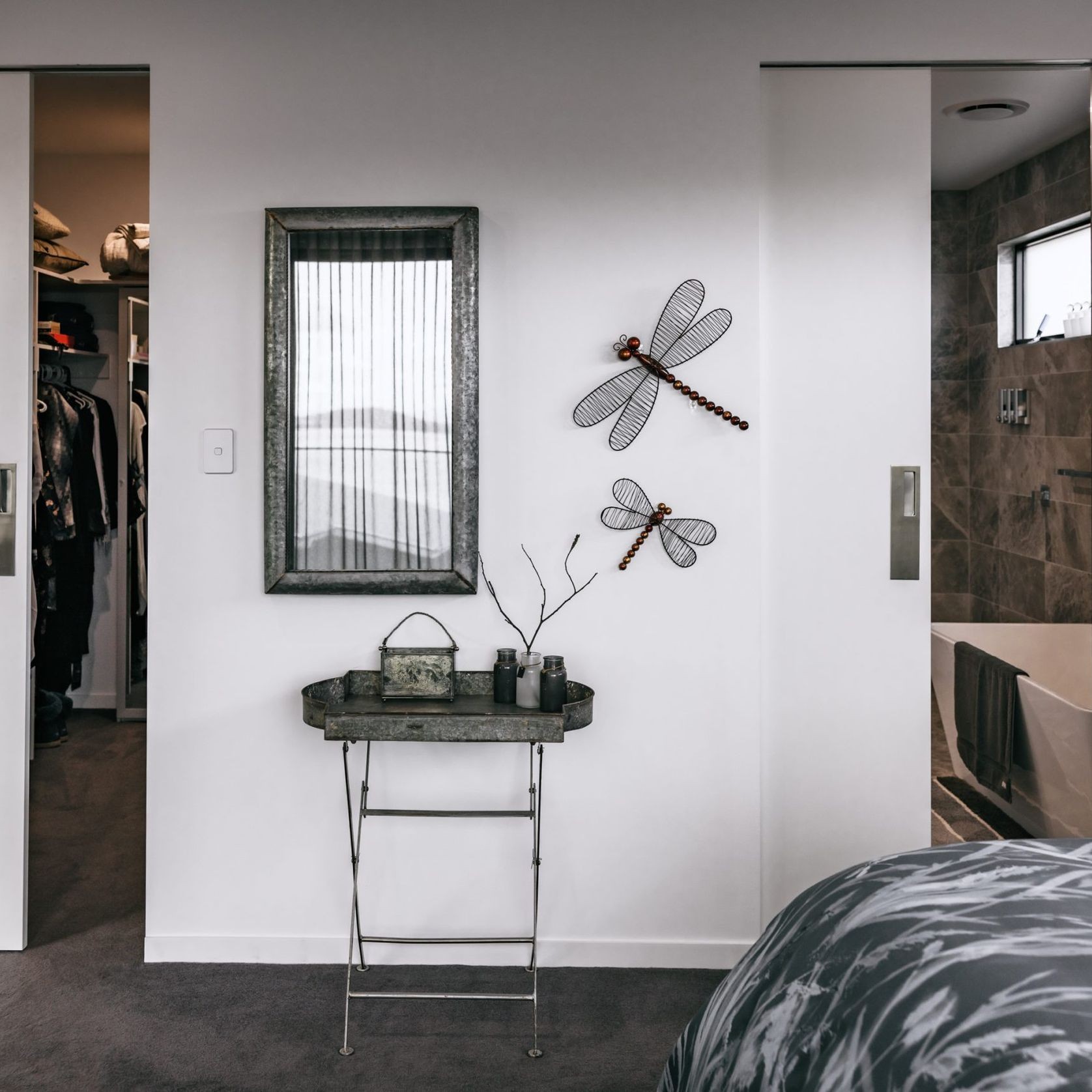

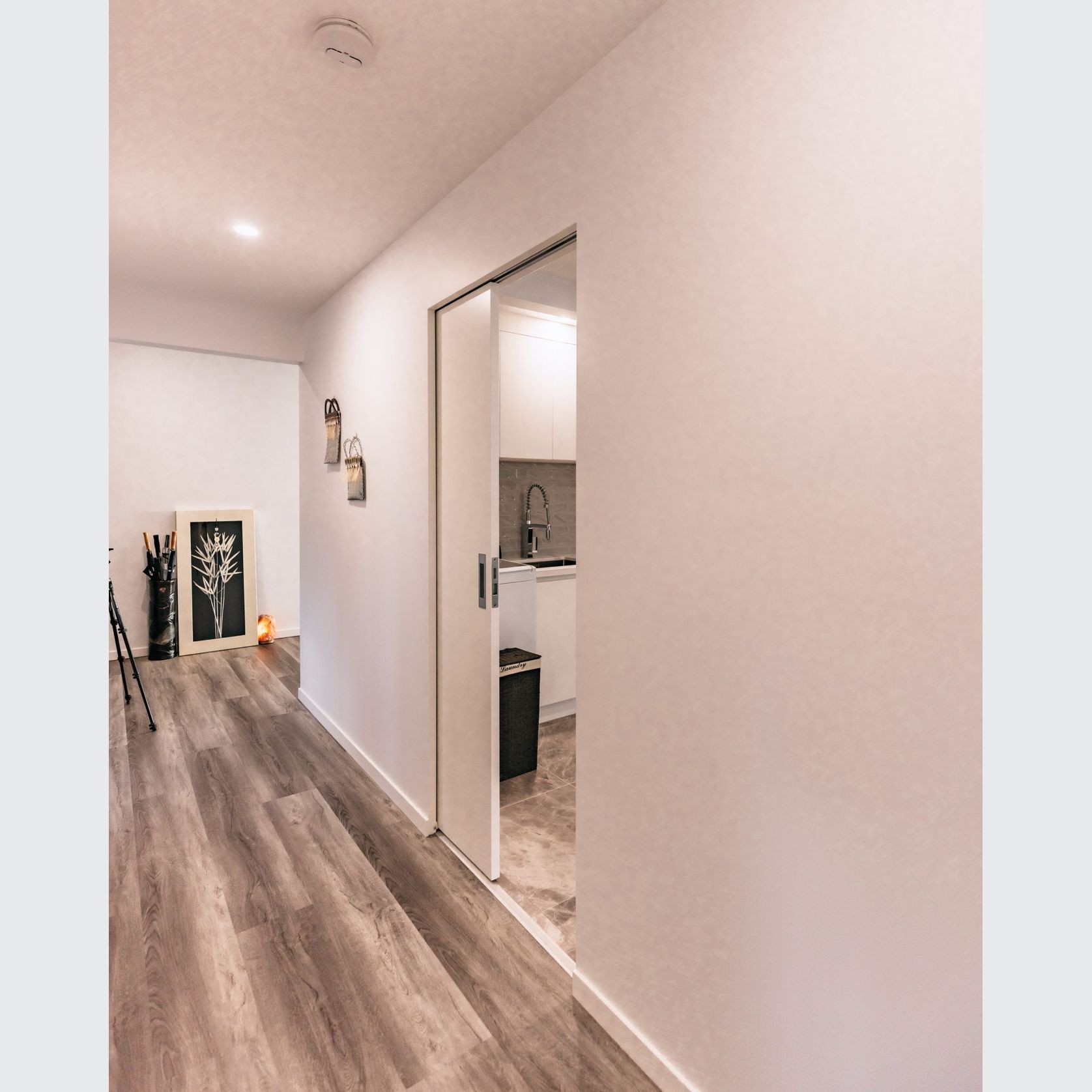

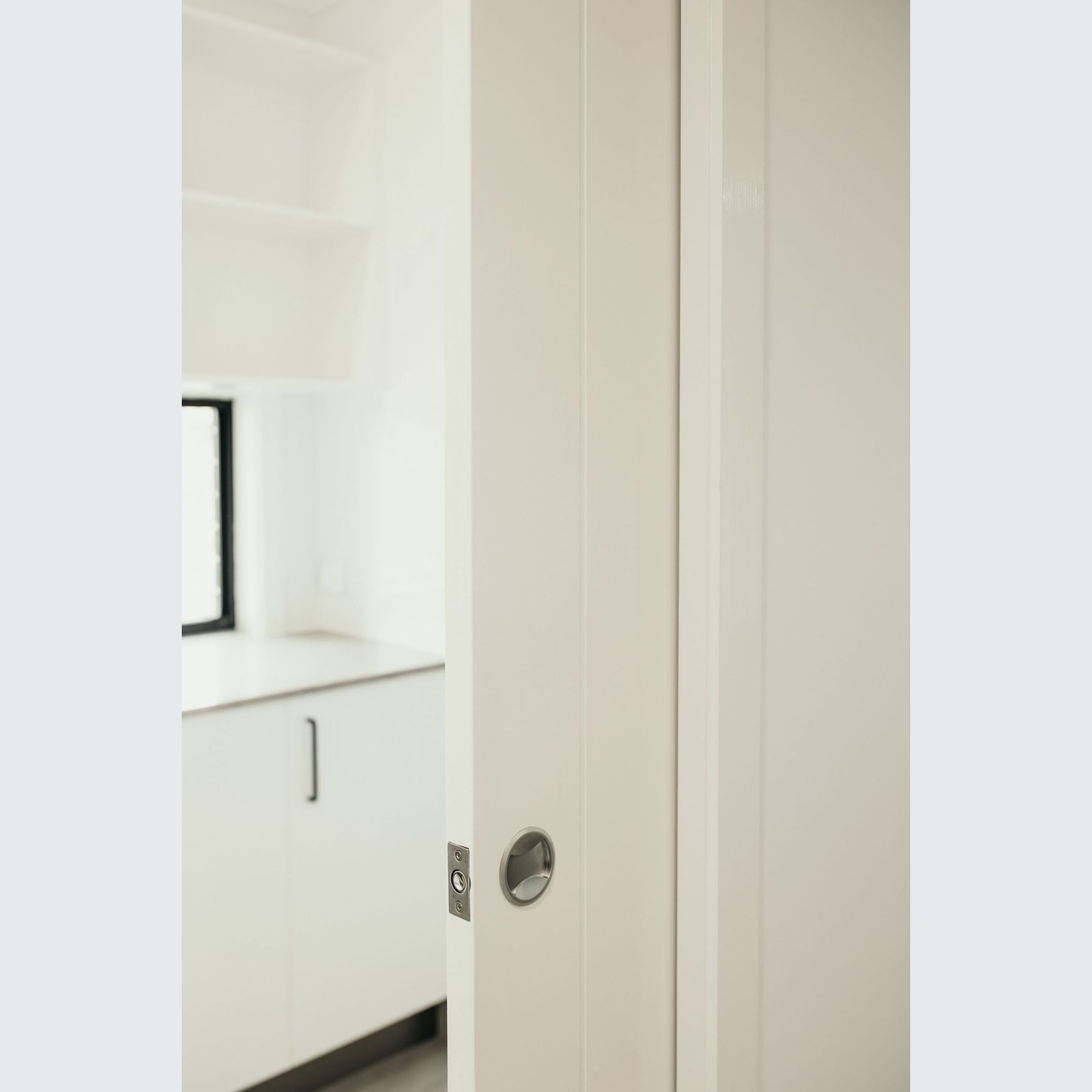

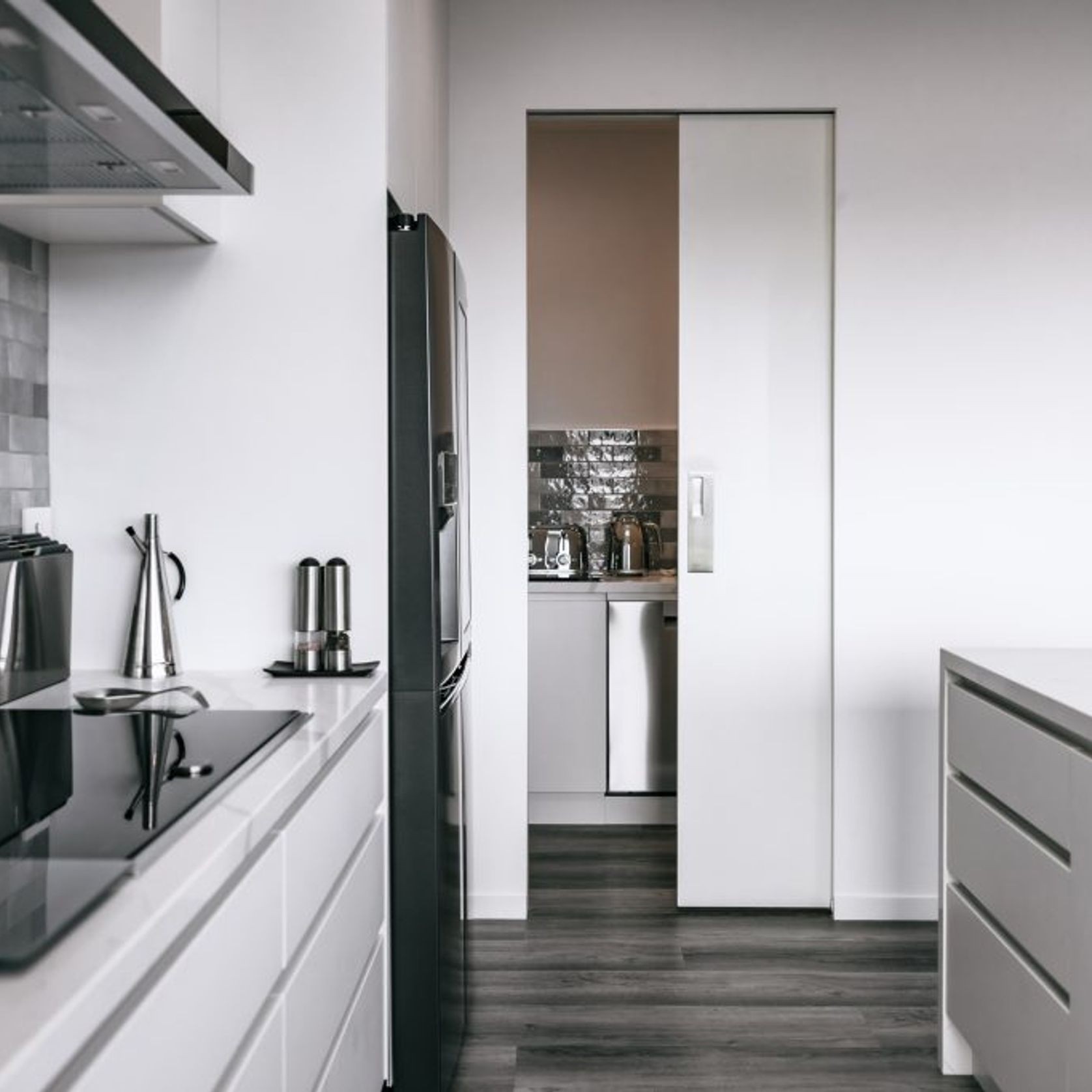

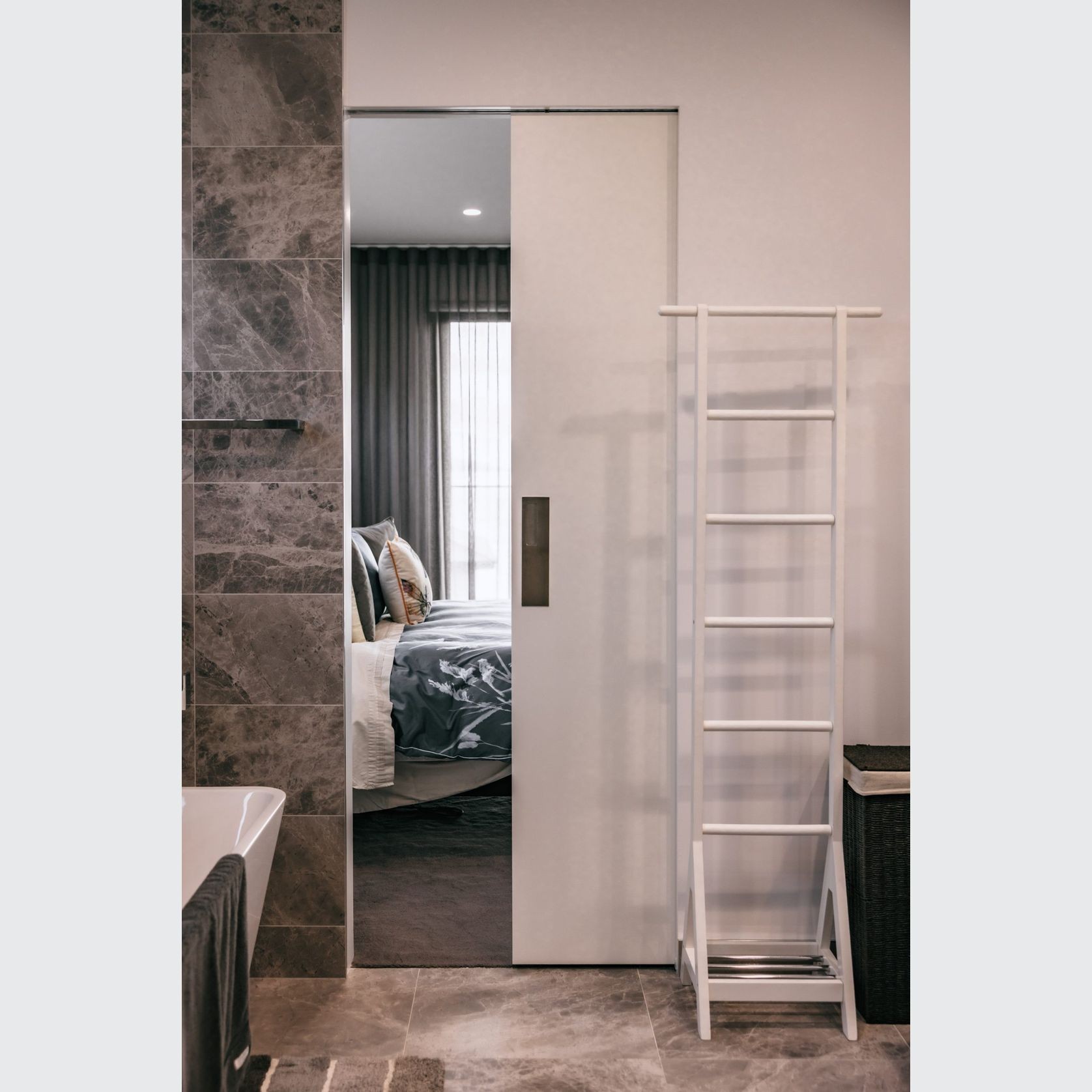

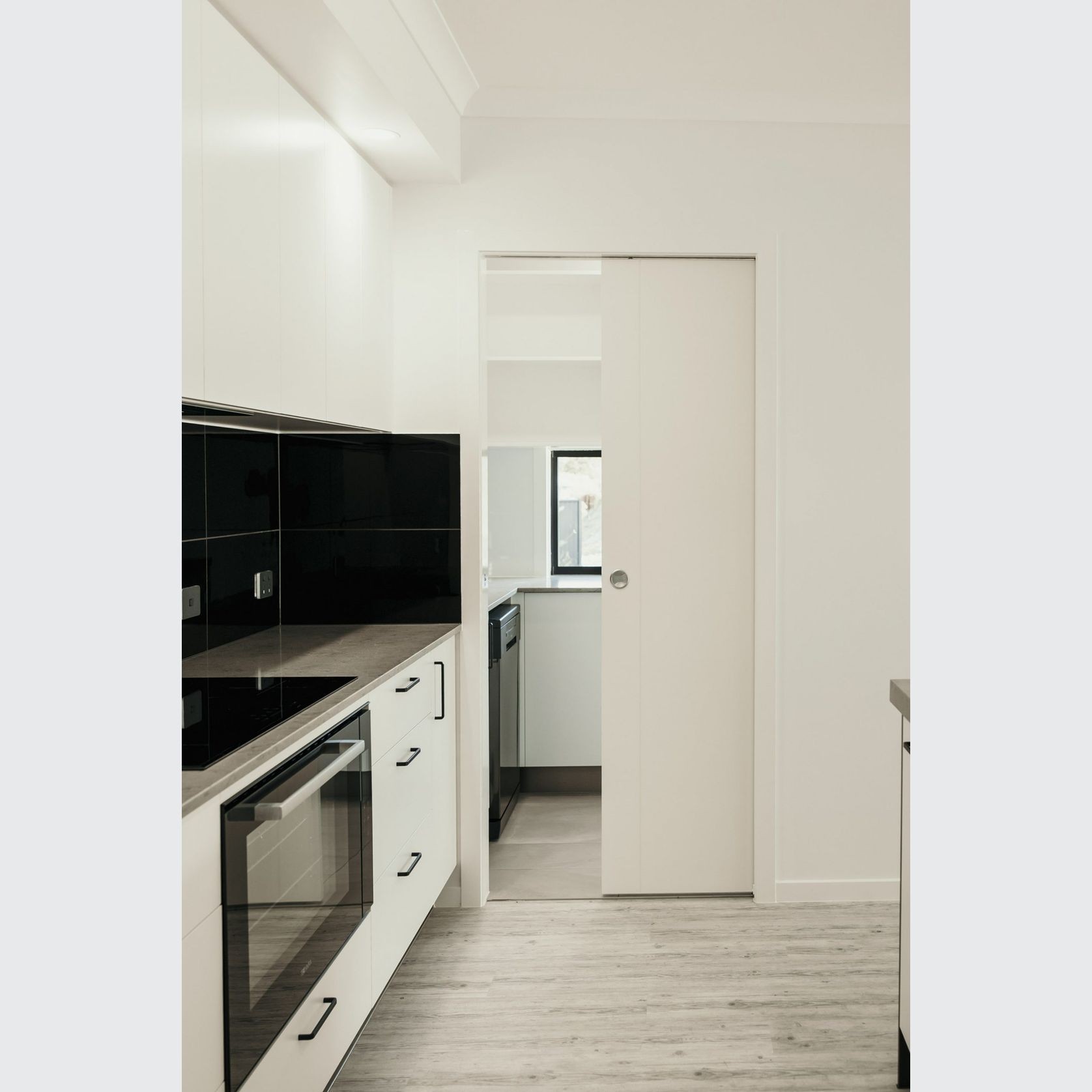

With a door weight rating of up to 60kg this new generation Zero Clearance cavity system achieves the desired clean line look on all your standard-sized sliding doors. In using the Pro-Line60™ on the standard-sized cavity units, this will match with full height Zero Clearance units ensuring consistency to doorways throughout the dwelling.
Product Details
- Product
- ProLine™ 60kg Cavity Sliding Doors
- Category
- Cavity Slider Doors
- Range
- Architectural
- Designer
- Triline
- Brand
- Triline
- Country of origin
- Australia
- Type of use
- Commercial and Residential
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Professional installation recommended
- Assembly
- Minor assembly required
- Warranty
- Lifetime
Triline Cavity Sliding Door solution is specified by
Maguire + Devine ArchitectsArchitects
Robinson ArchitectsArchitects
ArchierArchitects
Woods BagotArchitects
Preston LaneArchitects
Biotope Architecture and InteriorsArchitects
J Mammone ArchitectureArchitects
Starbox ArchitectureArchitects
mj architectureArchitects
Paradise TimbersManufacturers and Suppliers
Lawless Wagner BuildersBuilders
Zanetto BuildersBuilders
Lane Group ConstructionBuilders
Gold Leaf ConstructionsBuilders
LAWRIE ConstructionsConstruction
Reitsma & AssociatesBuilding Designers
By making some smart design changes we can now offer you a cost-effective architectural solution on your standard-sized cavity units which suit “off-the-shelf” doors.
With a door weight rating of up to 60kg this new generation Zero Clearance cavity system achieves the desired clean line look on all your standard-sized sliding doors. In using the Pro-Line60™ on the standard-sized cavity units, this will match with full height Zero Clearance units ensuring consistency to doorways throughout the dwelling.
- Specs
- Door Clearances:

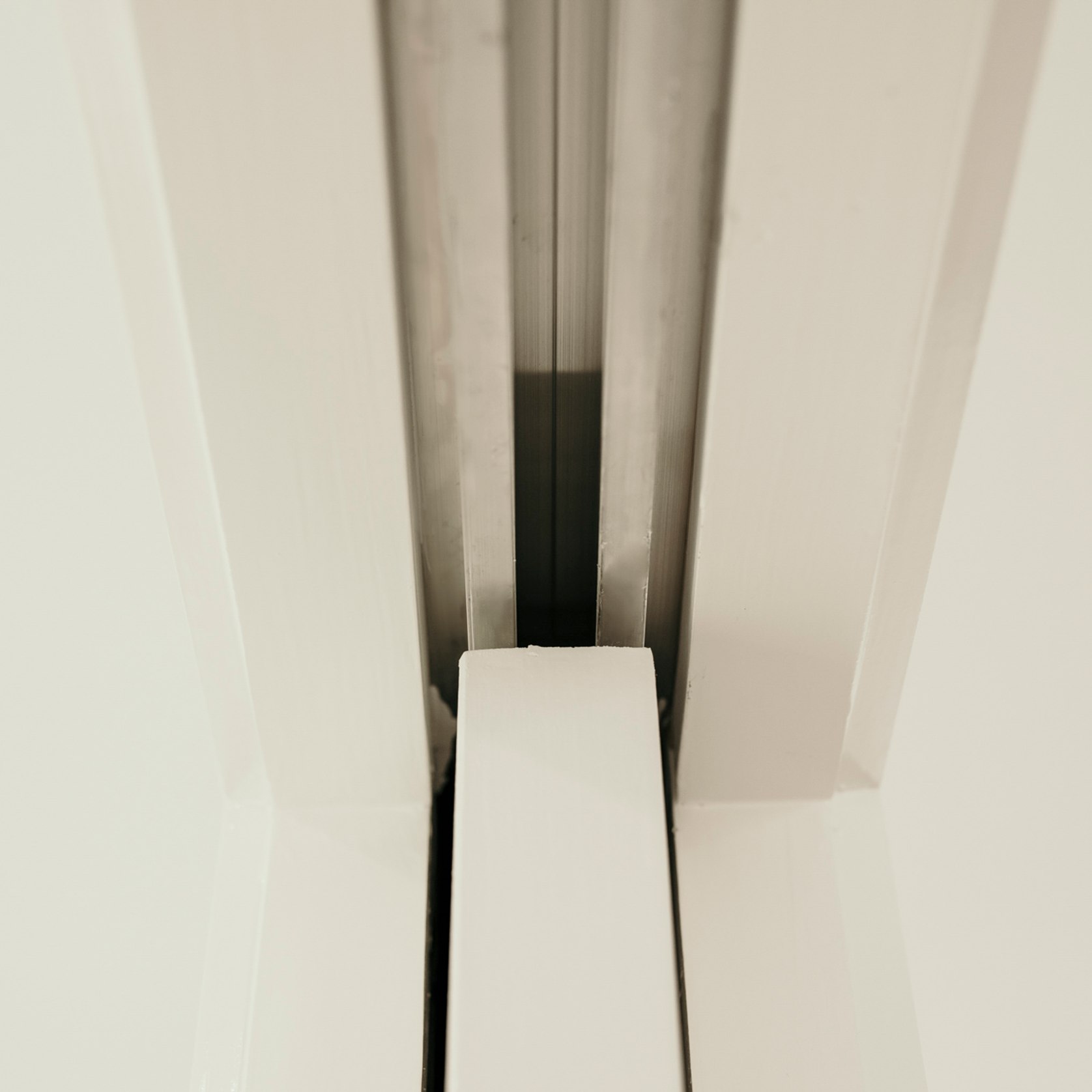

- Between track & door: 8mm +/-3mm
- Below door: 23mm +/-3mm
- Single door opening
- Opening Width (Stud to Stud):
- 2 x door width + 60mm
- Opening Height (Floor to Trimmer):
- door height + 75mm
- Double door opening
- Opening Width (Stud to Stud):
- 4 x door width + 60mm
- Opening Height (Floor to Trimmer):
- door height + 75mm
- Features

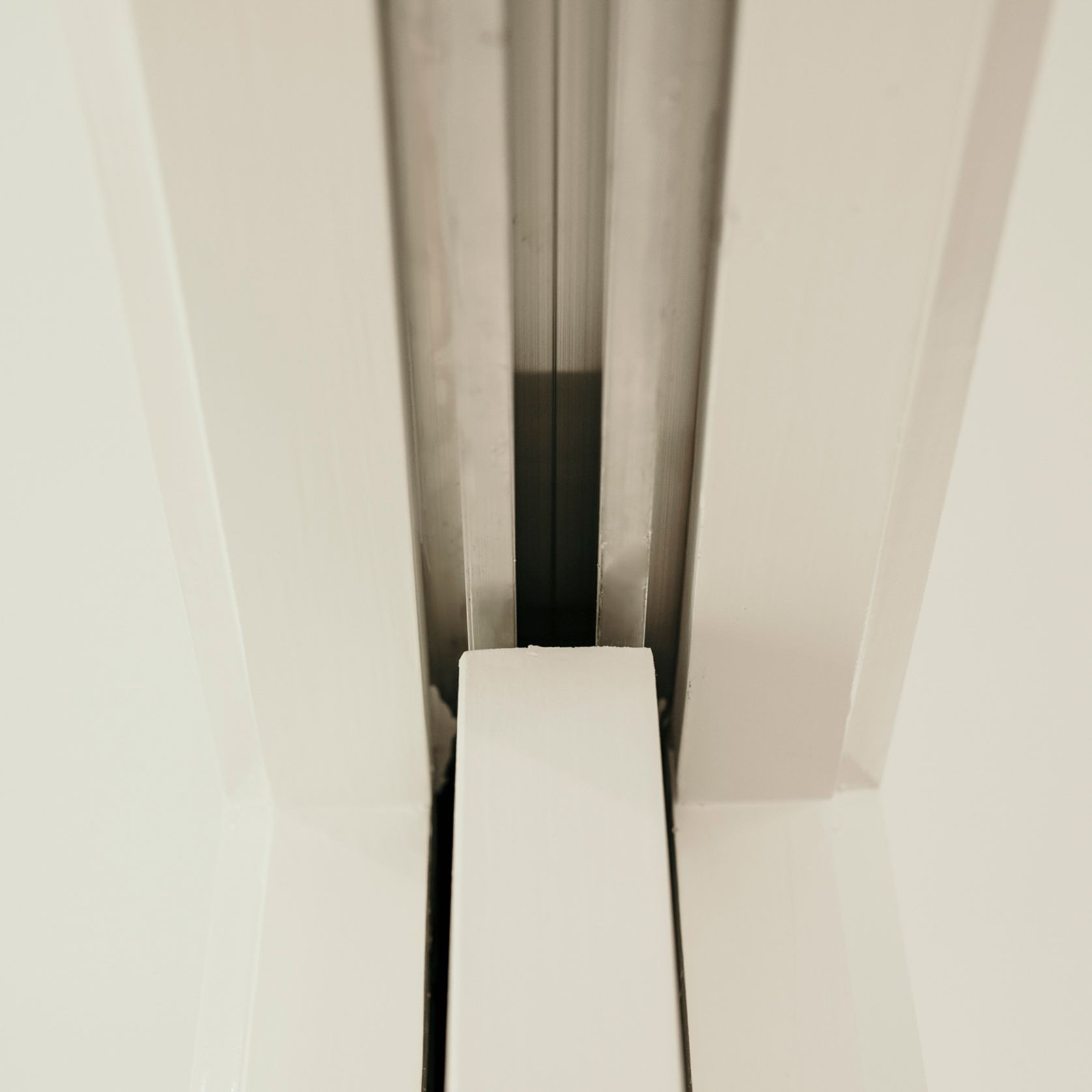

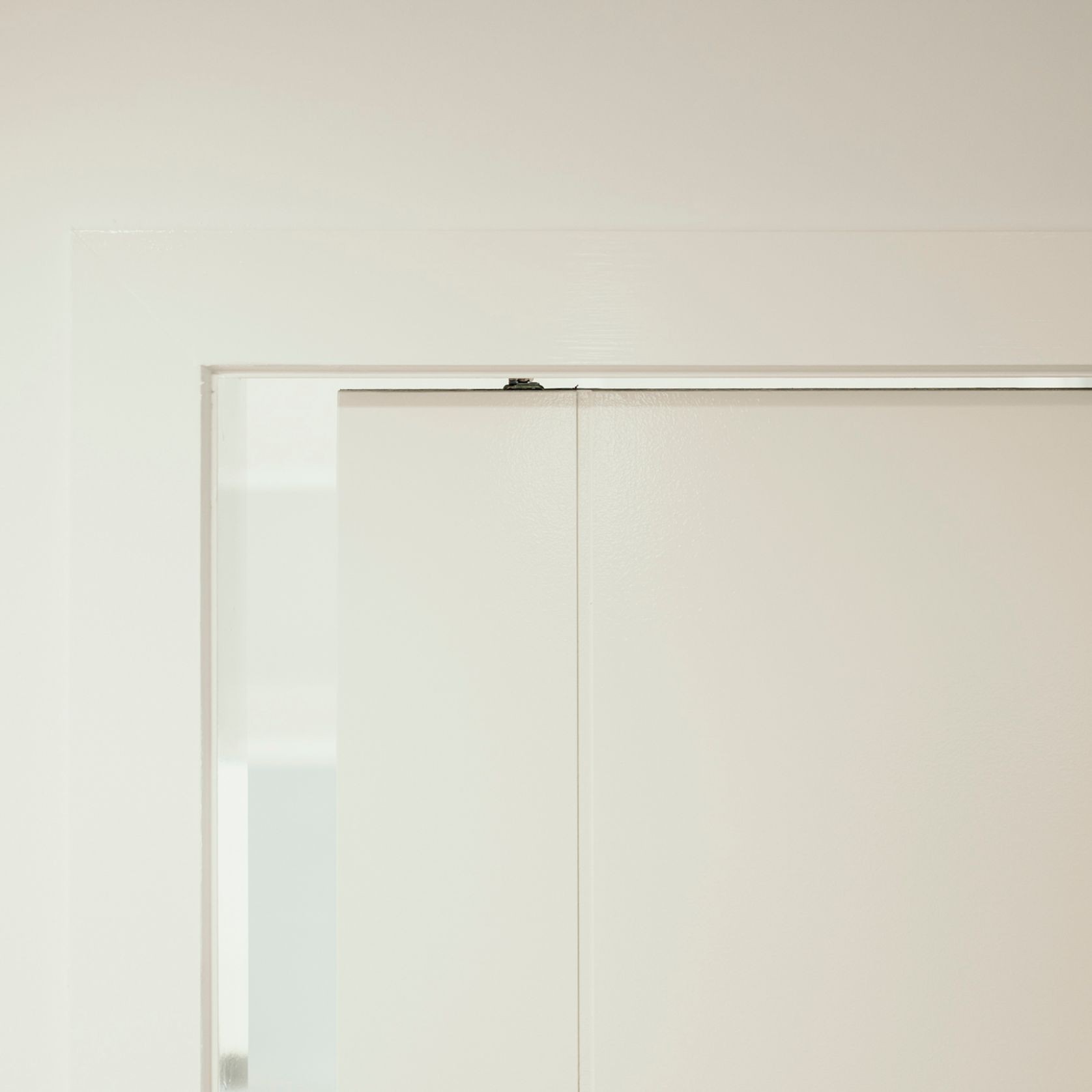

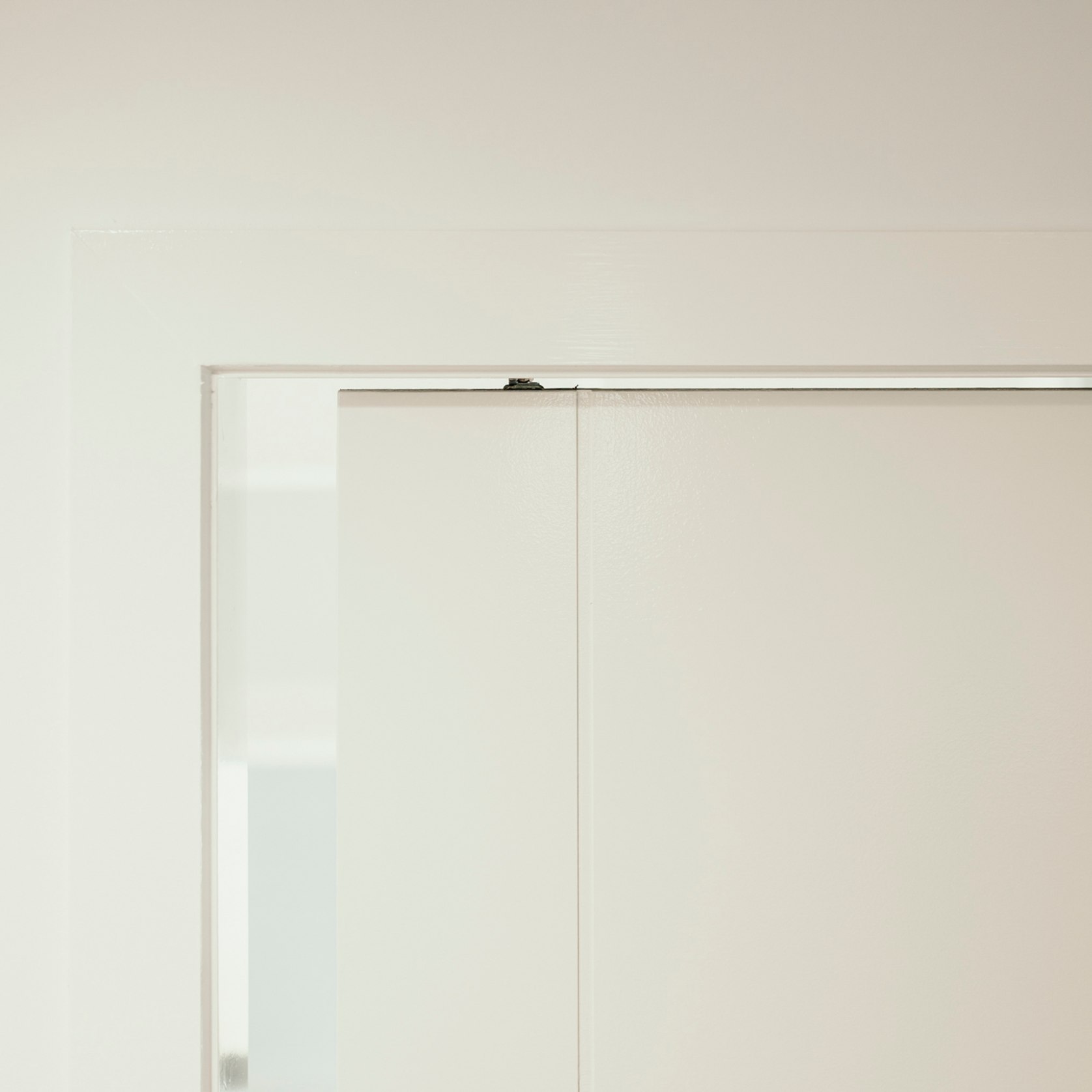

- No pelmets – achieve the same minimalist, clean-lined look of the Zero Clearance cavity unit
- Max 60kg door weight
- Affordable upgrade from the standard Phoenix unit to achieve up-market feel on standard-sized sliding doors
- Quicker installation time
- Suits off the shelf doors with no need for bigger top & bottom rails for hardware rebates
- Cavity Sliding Doors
Our cavity sliding door range includes plenty of products and styles. Cavity sliding doors are elegant and discreet and will work when you need to minimise the intrusion of your space. Whether in the form of a single sliding panel or a double cavity sliding door. Not sure which cavity slider is for you? Use our product assessment tool to point you in the right direction. Or fill out our Triline Cavity Slider Selection Sheet and email to the sales team.
