The striking appearance achieved with floor-to-ceiling doors presents its own unique challenges when it comes to sliding door hardware. Modern minimalist—clean lines demand unobtrusive hardware that is concealed from view.

The Triline architectural cavity sliding door range has been designed to achieve clearances of 3-5mm between the track & top of the door. With no hanger plates or screws protruding above the top edge of the door, the door can be adjusted to achieve a minimal Zero Clearance™ look.

Available for full height doors, or to suit standard height doors as single units, or to suit double doors sliding on either side on a single track.

In addition to the minimalist hanger fittings, the Triline Zero Clearance™ range comes with a precision bearing bottom roller guide system as standard, fully concealed in the bottom edge of the door, extending the Zero Clearance™ look to the floor.

To complement the Zero Clearance™ range, Triline can also offer various options for doors to suit providing a complete package. Doors can be rebated for hard-ware if required, saving time during installation.

Details
  • Category
    Cavity Slider Doors
  • Range
    Architectural
  • Brand
    Triline
  • Designer
    Triline
Specifications
  • Max Door Height: 3000mm
  • Max Door Width: 3000mm
  • N.B. Max door height and width may vary depending on the weight of the door.
  • One piece aluminium head track
  • Brio sliding door hardware
  • LVL or Hoop Pine Rails & Rear Post
  • Aluminium Vertical Angles
  • Reveals are made of KDHW or FJ Hoop Pine depending on the accessibility and requirements
  • Other reveal species or custom thickness available upon request
Triline Cavity Sliding Door solution
View locations (3)
If you are an Architect, Designer or Builder please get in touch for a consultation with us directly. If you are a Home Owner please send us an enquiry and we will reply to you promptly. Feel free to attach your plans so that we can support you.
Visit Website

About the
Seller

Triline cavity sliding door solutions offer a premium product and service. Priding ourselves on continued repeat business from satisfied clients who work with us on regular basis for commercial and residential projects around Australia.

The idea for Triline Quality Door Systems was born in 1996 when founder and home builder, Stuart Colledge, noticed that there was no easy way to obtain pocket sliding doors in Tasmania. After a few years of extensive product research, design and development, Triline launched its first cavity sliders in a leading hardware store in Hobart. Over the next eight years our output increased steadily and by 2004 we outgrew our facilities. 2005 saw us expand to a larger premises and, as a result, we have significantly increased our production output.

With more space and the passion to go further, we overhauled and re-designed our cavity pocket system. After much refinement and consultation with our customers, the Phoenix™ cavity slider was formed. We continue to grow and improve our product range to give our customers more options and avenues for creative exploration in internal sliding doors. We also seek ways to better construct our cavity sliding doors to ensure our customers have the latest in architectural design and material performance.

Triline Cavity Sliding Door solution

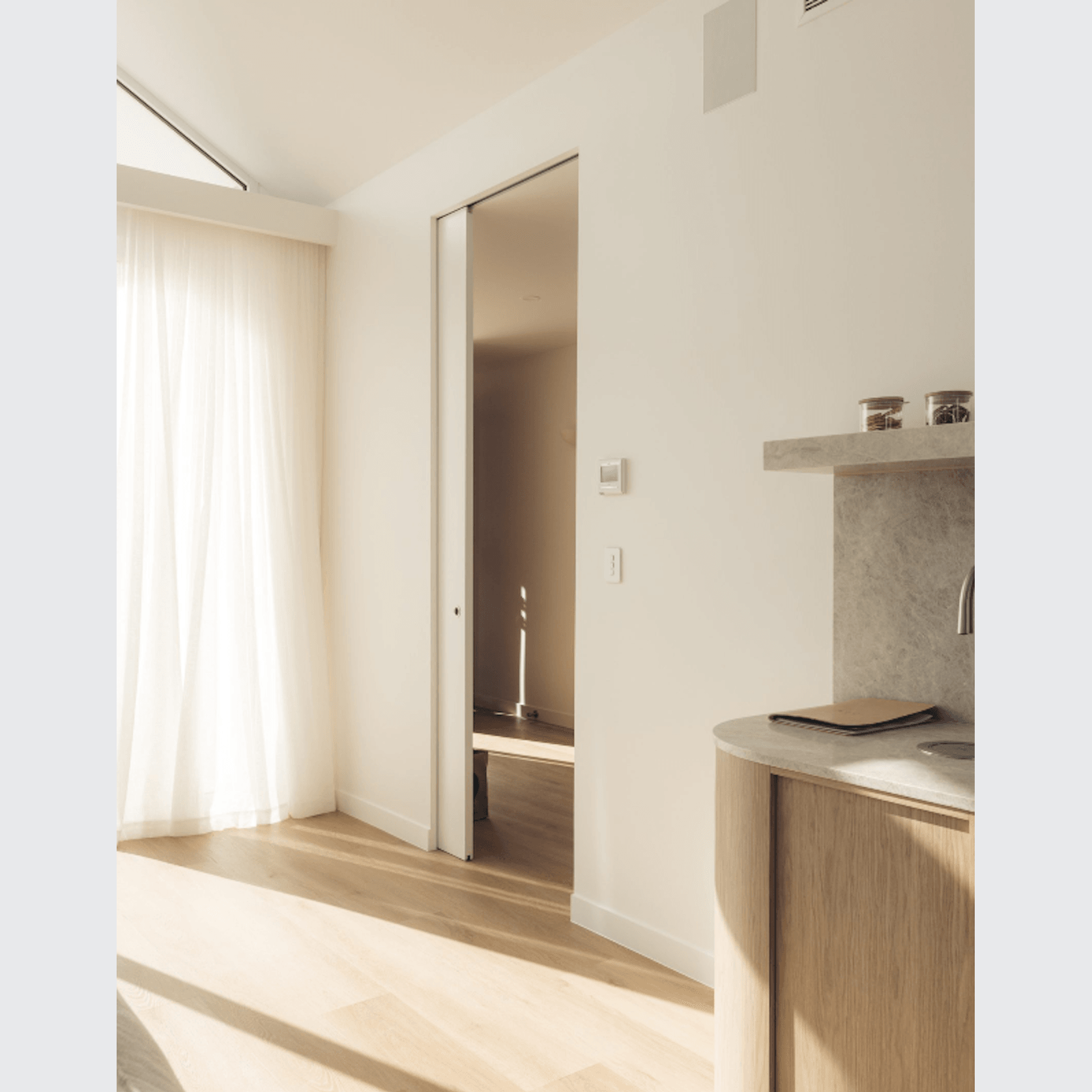

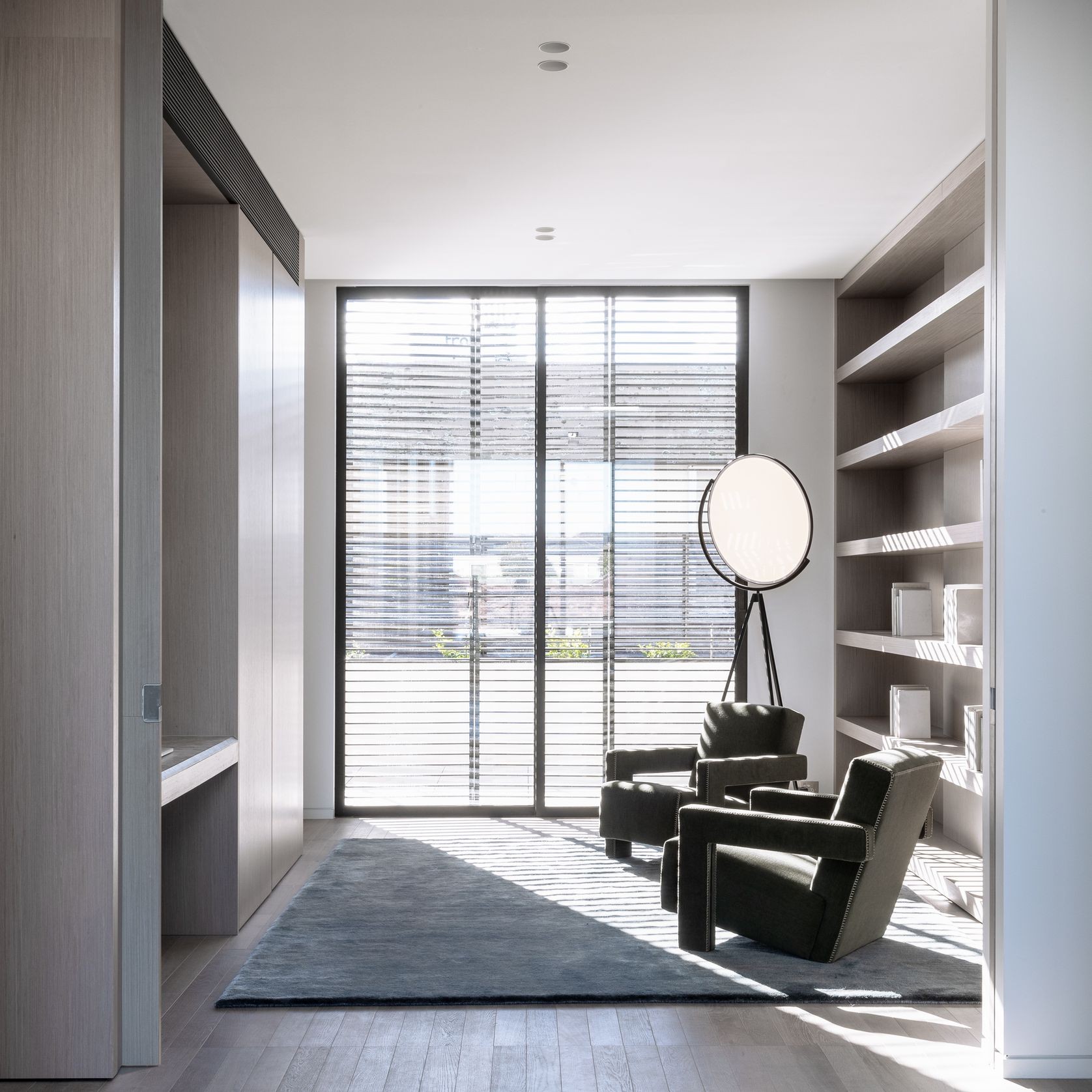

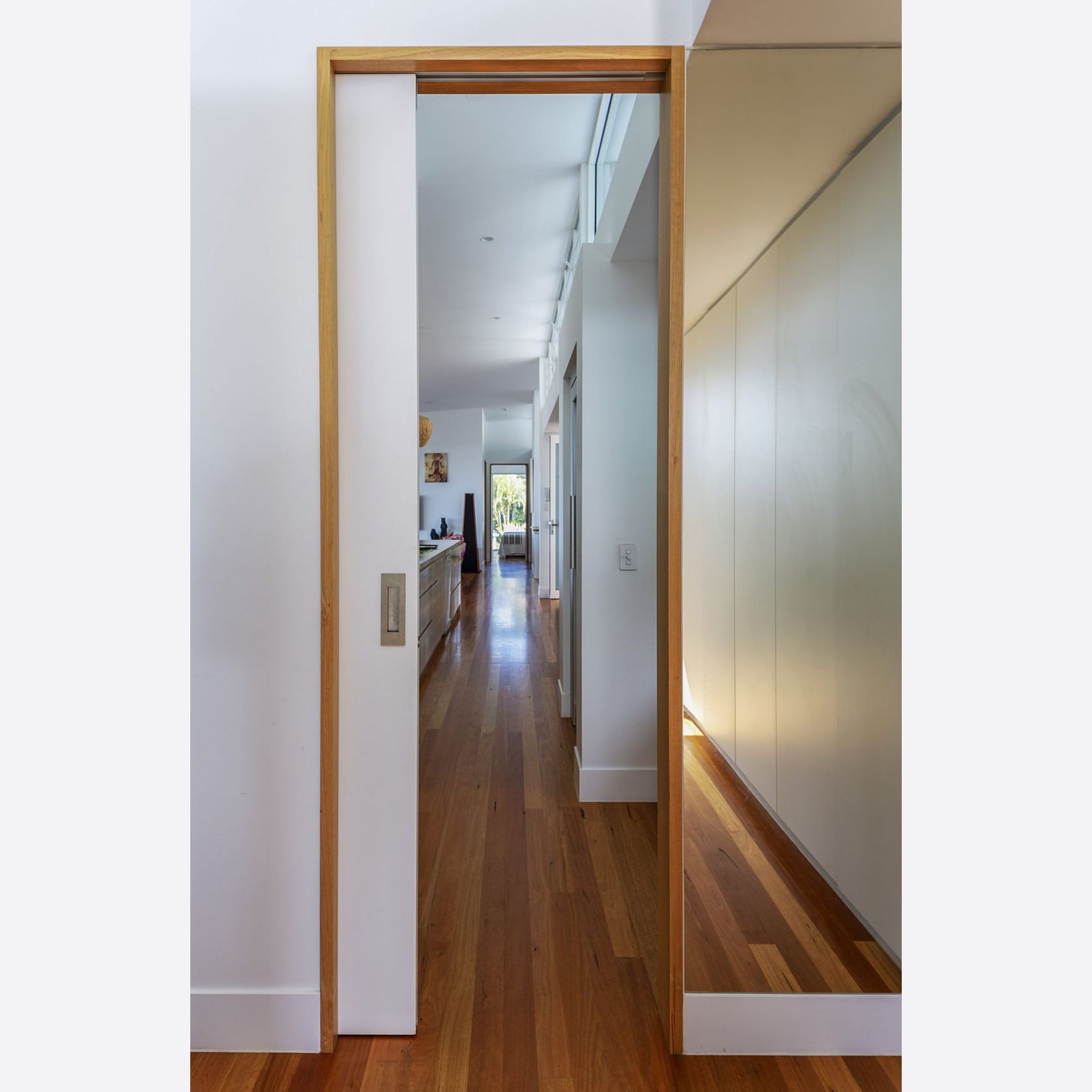

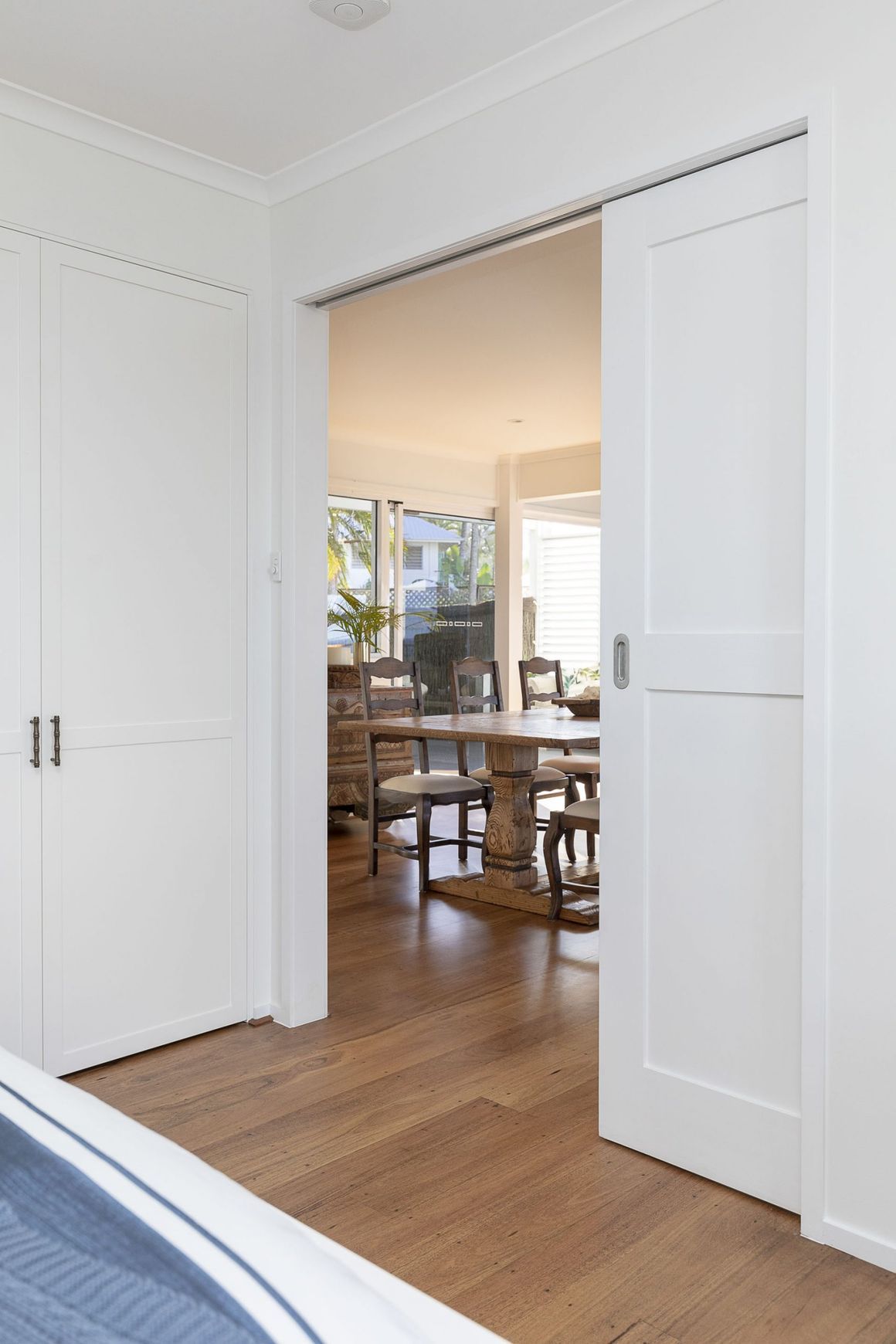

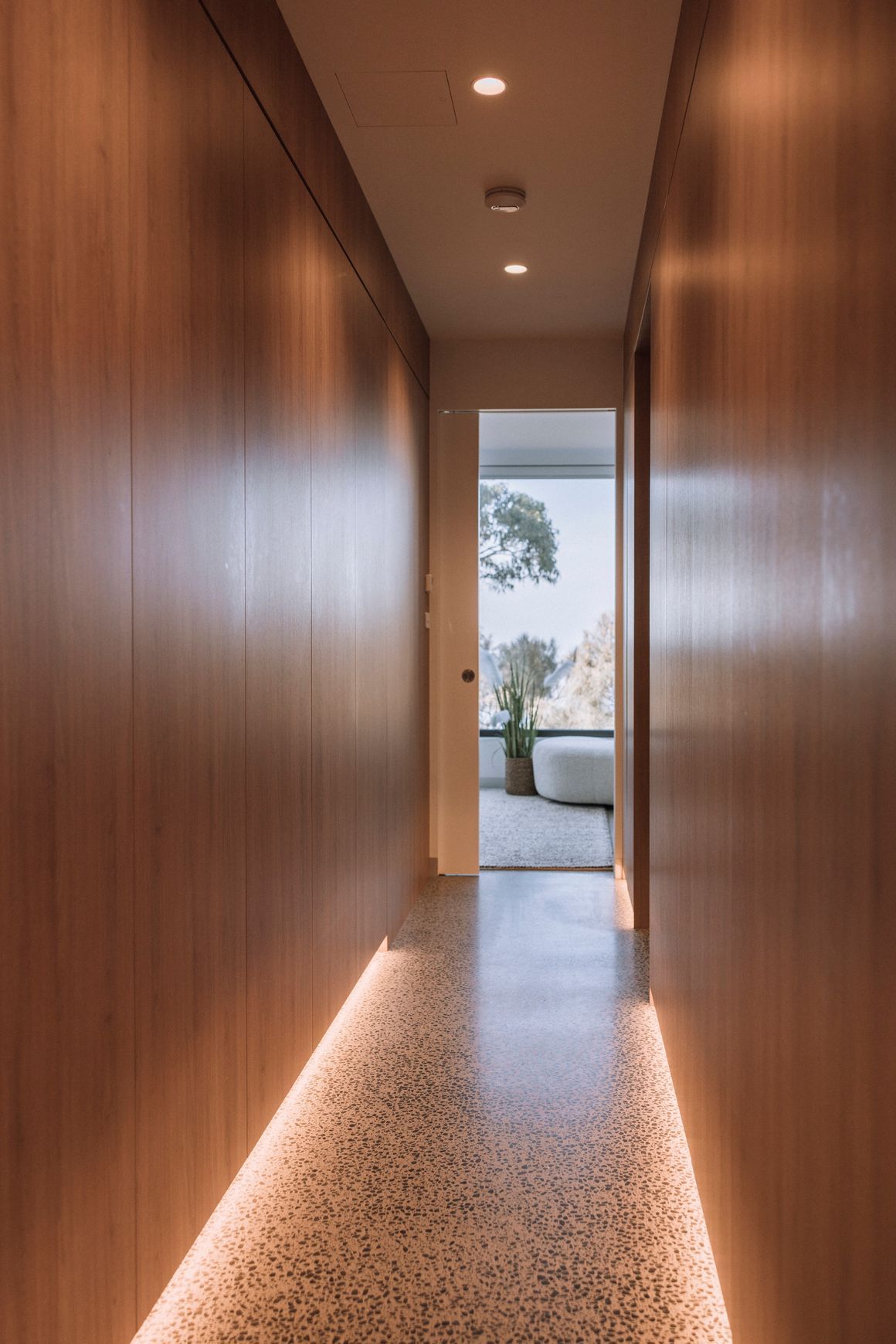

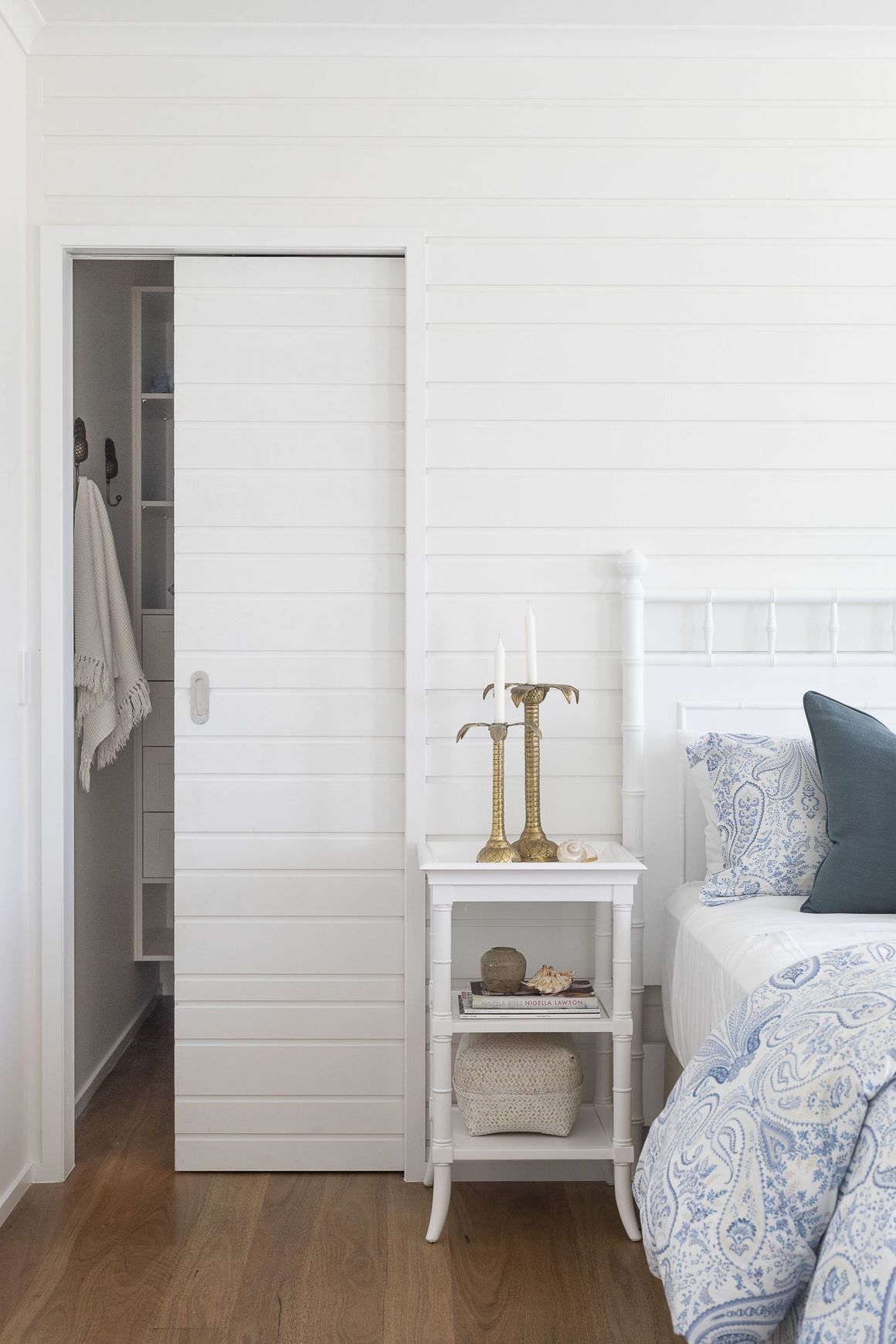

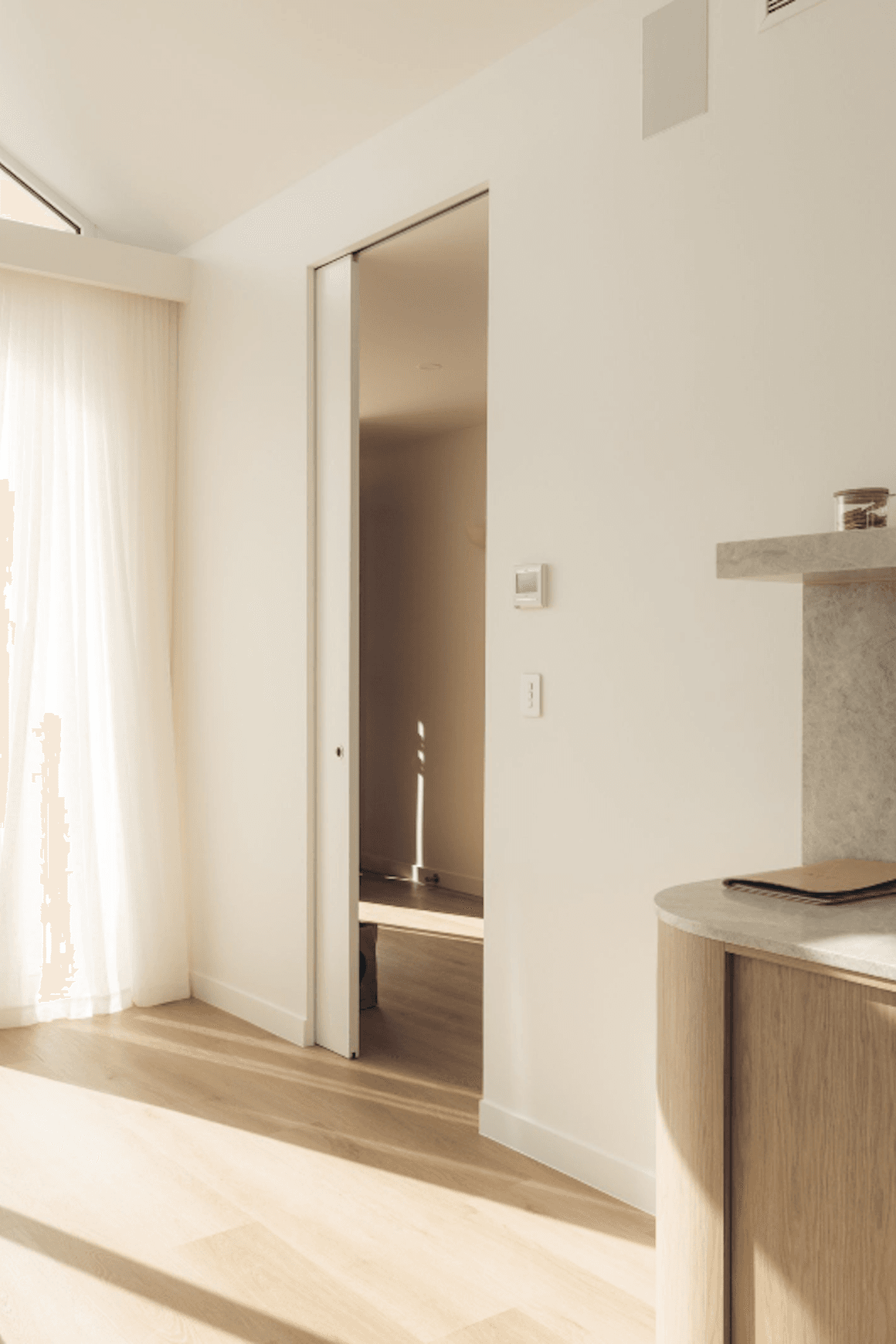

Zero Clearance™ Cavity Sliding Doors
