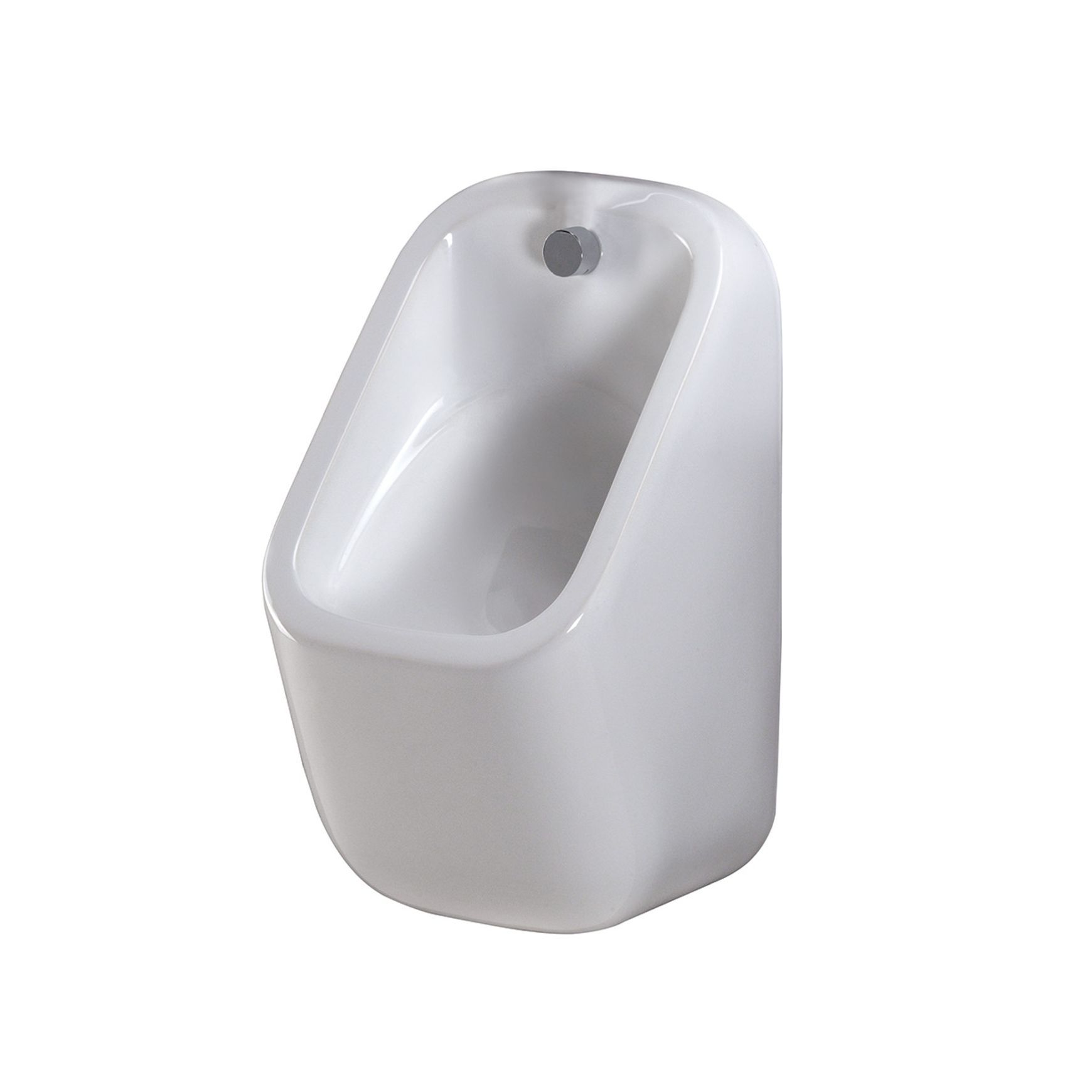

RAK Series Wall Hung Urinal

By MacDonald Industries
Website

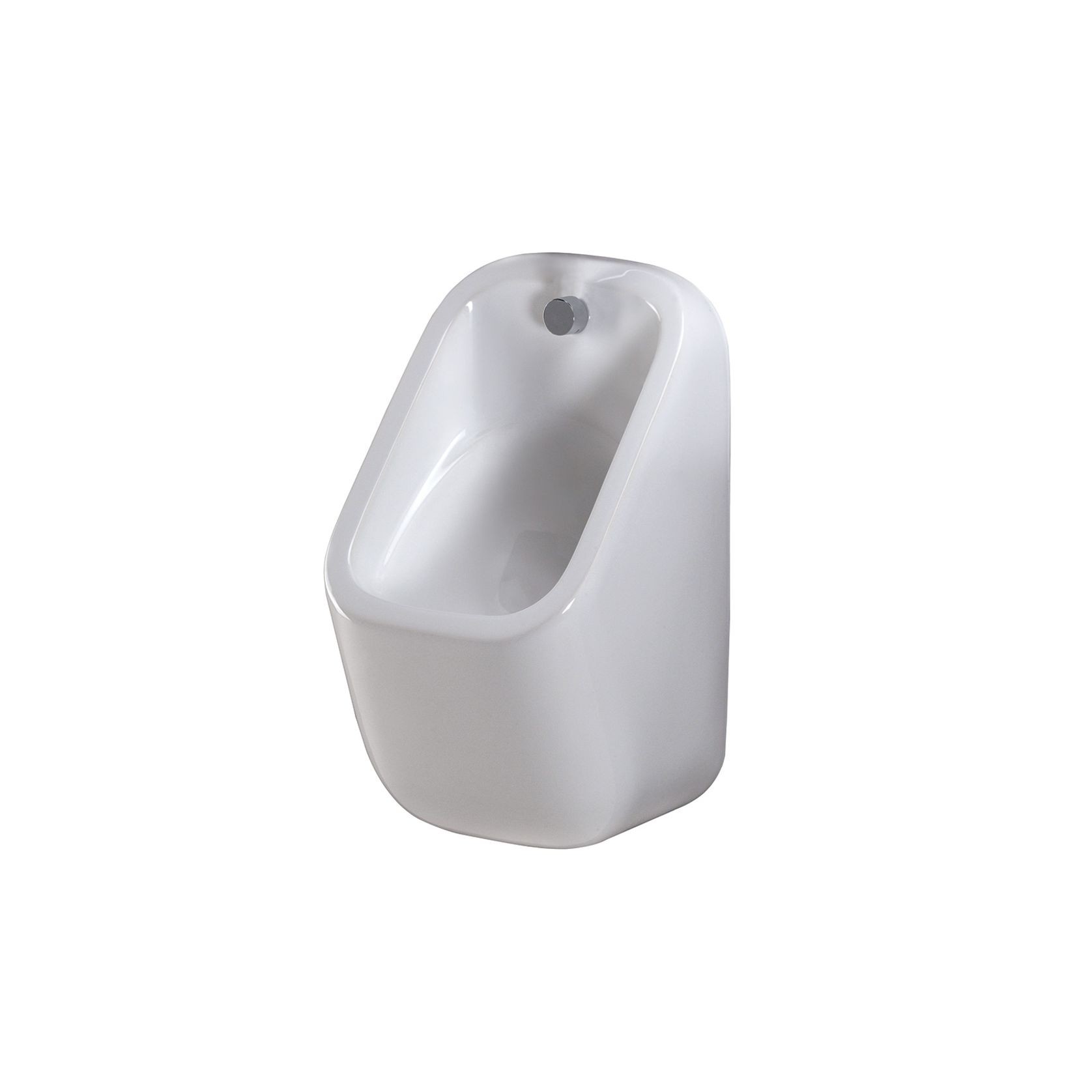

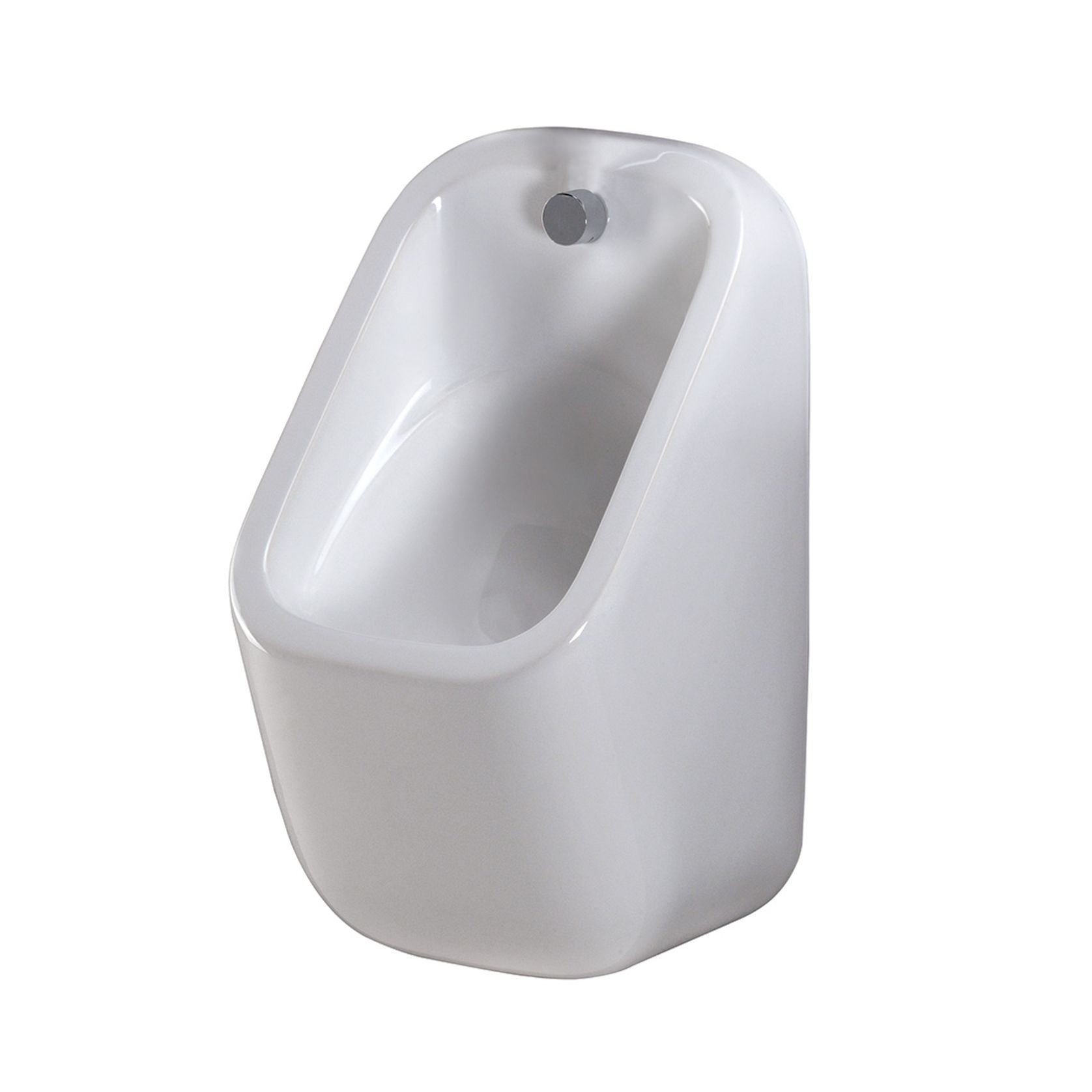

The Series urinal is a modern twist on the commercial bathroom. With stunning good looks and market leading build quality it’s the perfect choice to bring your bathroom up to date. The Series urinal has a back inlet water connection, and a concealed waste trap.

Details
  • Category
    Commercial Toilets and Urinals, Urinals
  • Range
    Series
  • Brand
    RAK Ceramics
  • Warranty
    1 year
General
  • Country of origin
    United Arab Emirates
  • Type of use
    Commercial
  • Installation
    Professional installation recommended
Specifications

Colour: White only.
Inlet connection: ½" BSP inlet connection included using flexible tubing provided. ½" wing back in wall and connection to flushing valve by others.
Waste outlet: Supplied with 40mm bottle trap. Requires 50mm PVC socket outlet in wall in position shown on installation instructions provided.
Flush Valve: By others, suitable pressure range 100-500kPa. Valve must have ability to regulate flow rate, refer to Delabie range
Fixings: OC36-TBKT wall fixing kit included.

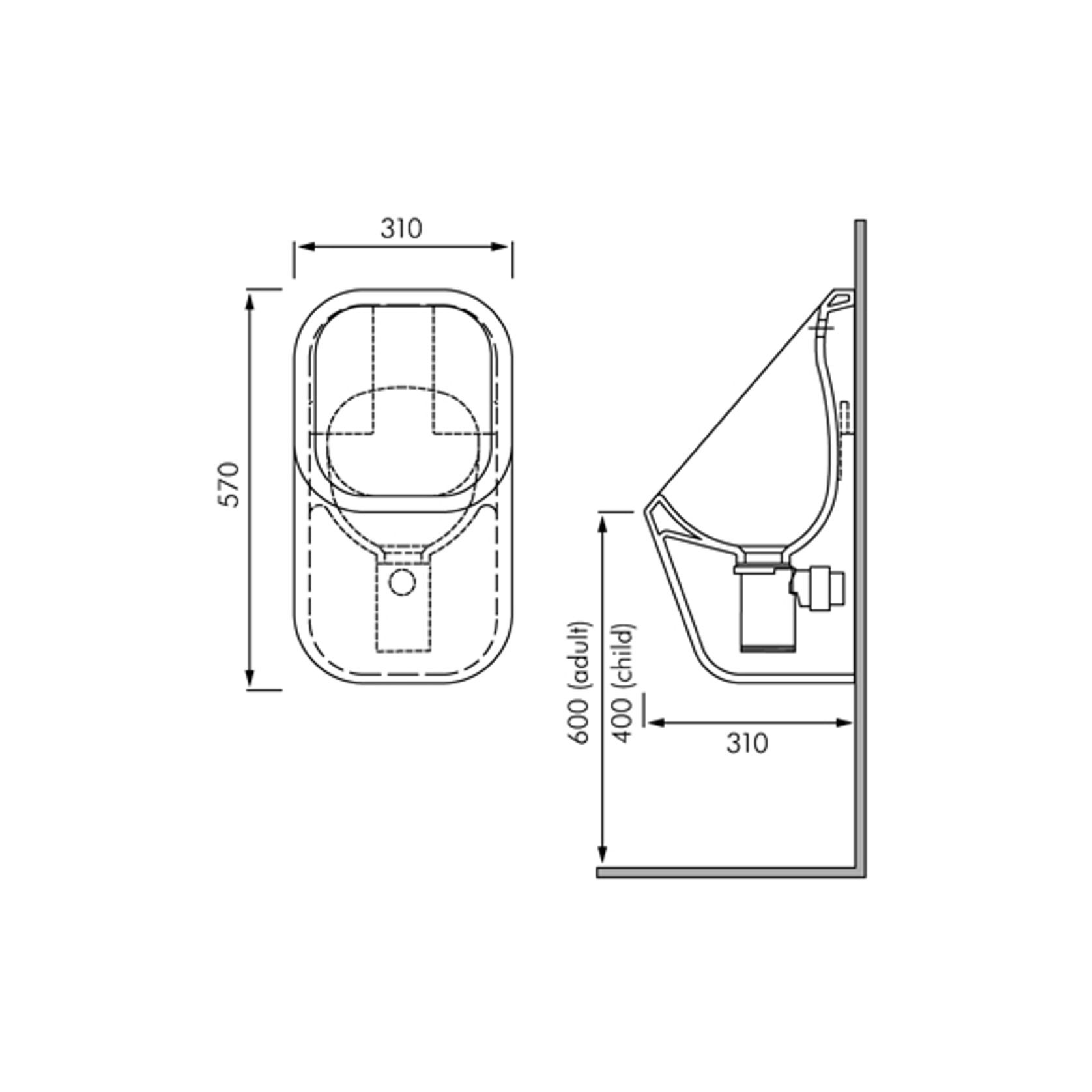

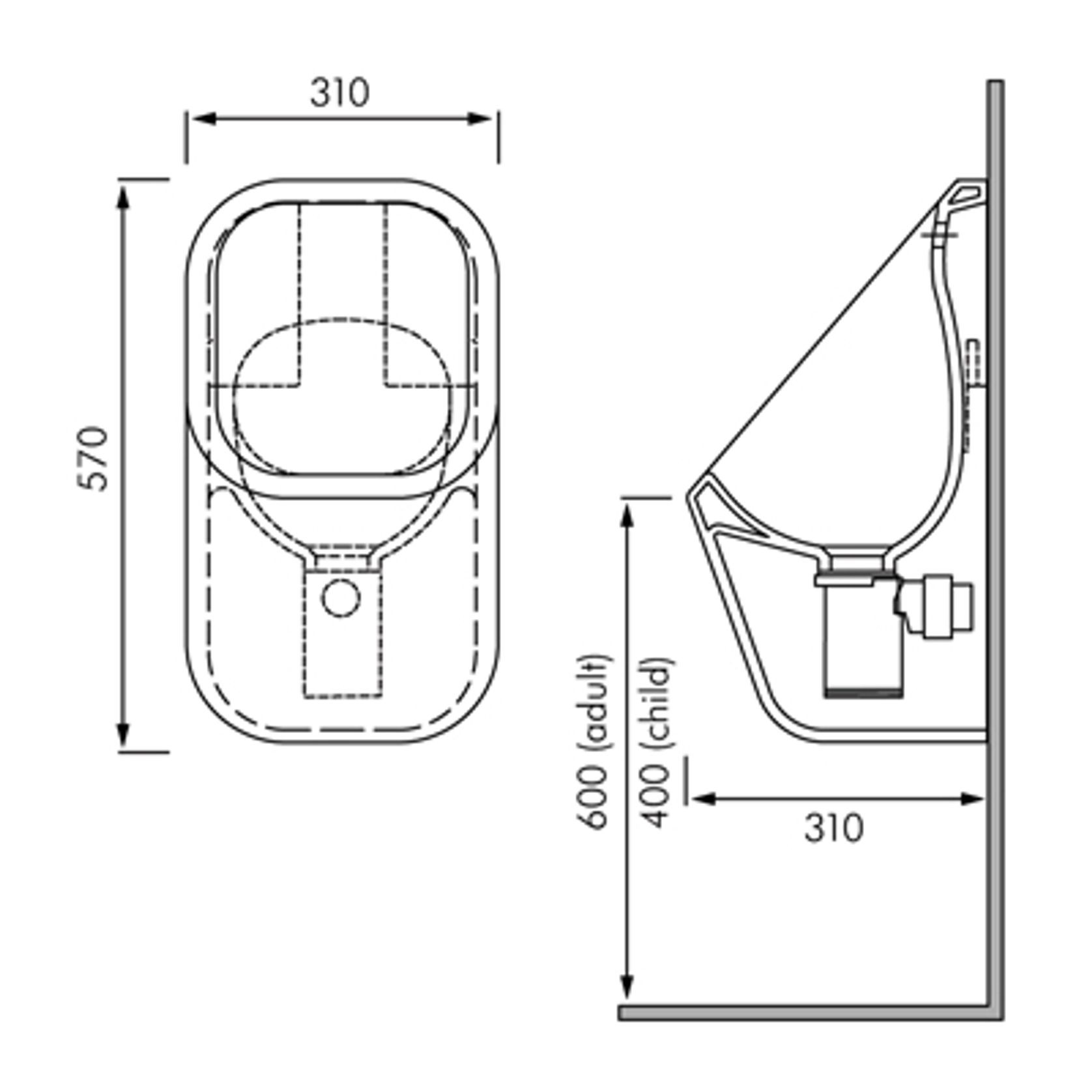

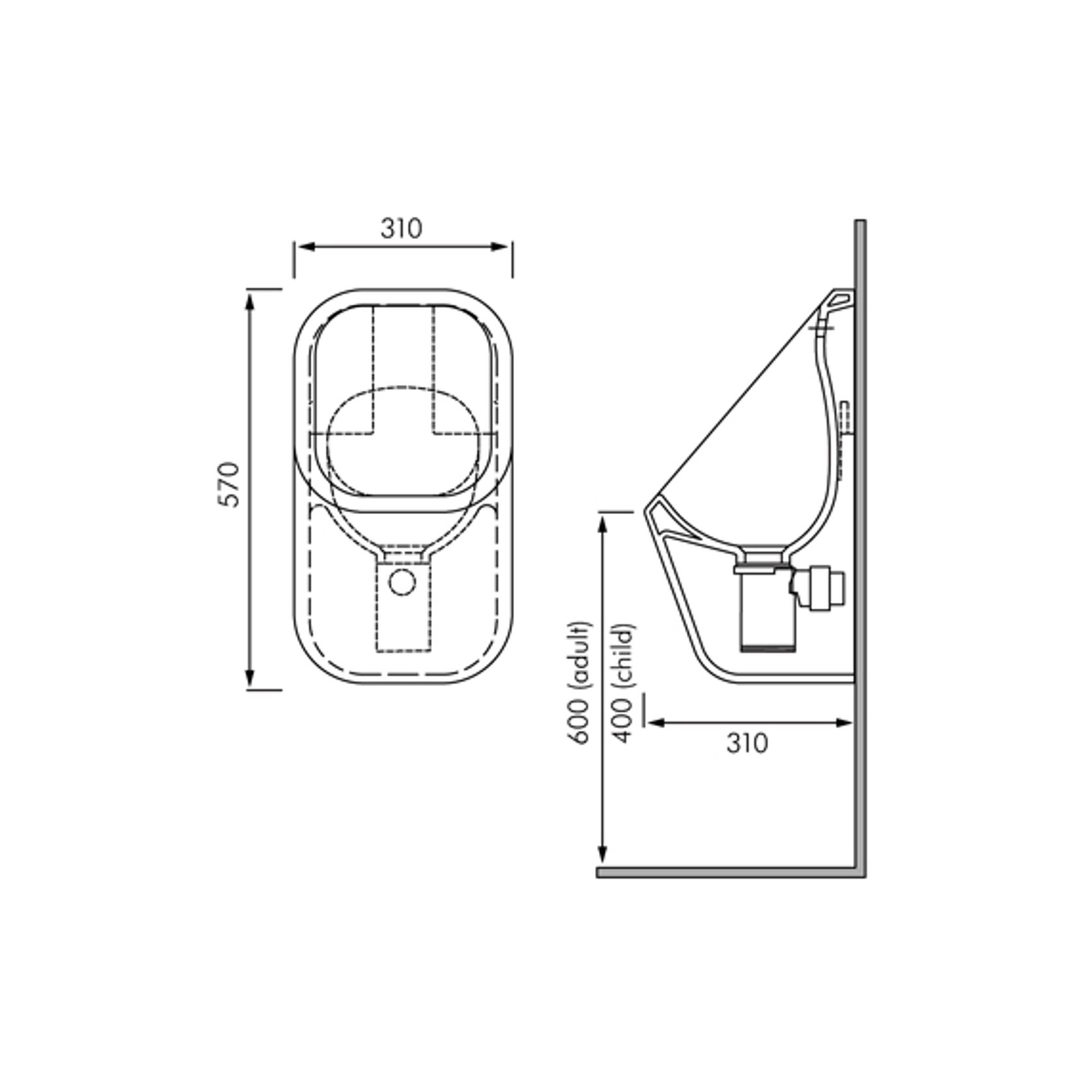

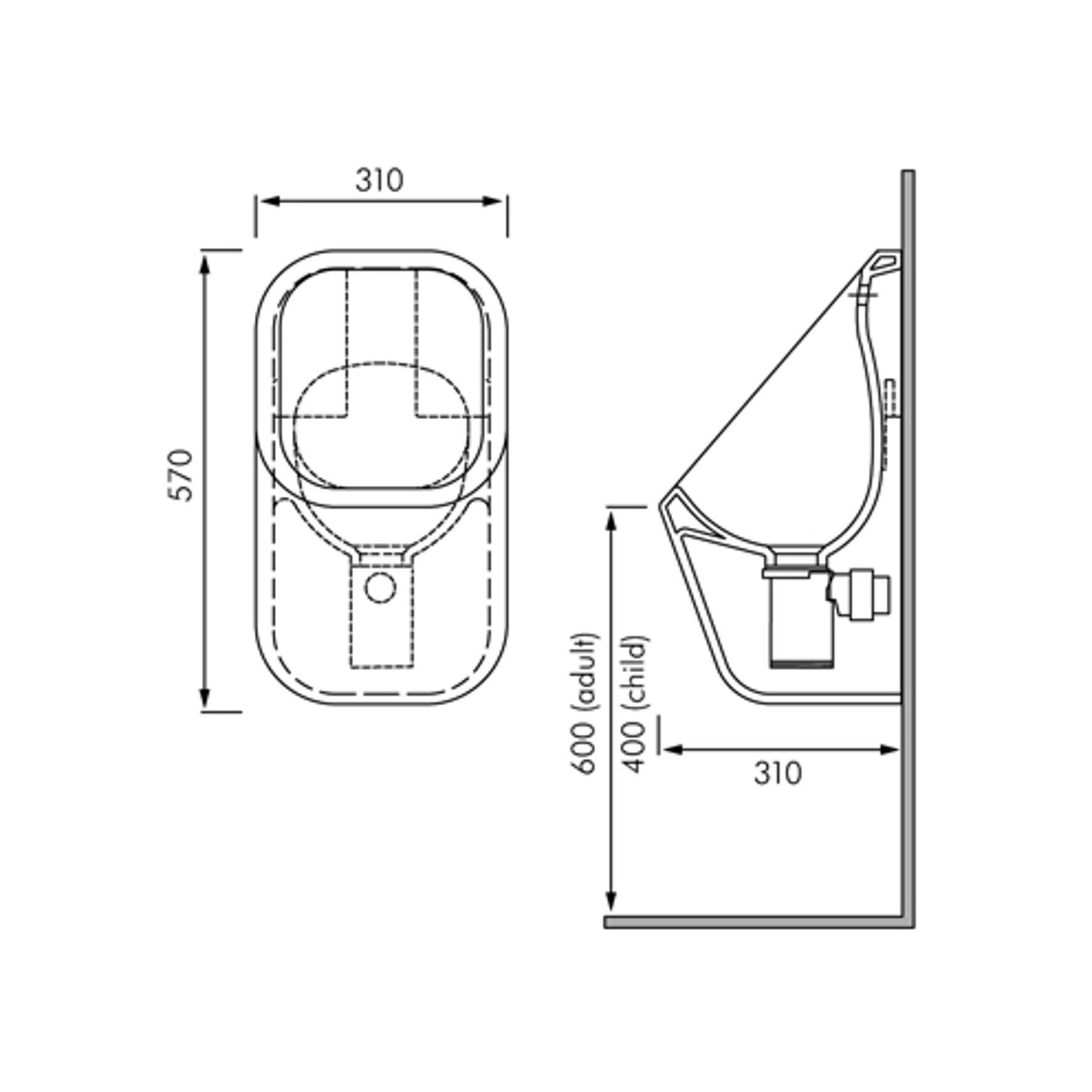

Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.

Scope of use

Care should be taken to ensure correct flushing volumes are maintained to ensure complete hygiene and complete rinsing of waste pipes.

Models Available

RA-SE3100 - RAK Series urinal complete with fixing kit.
