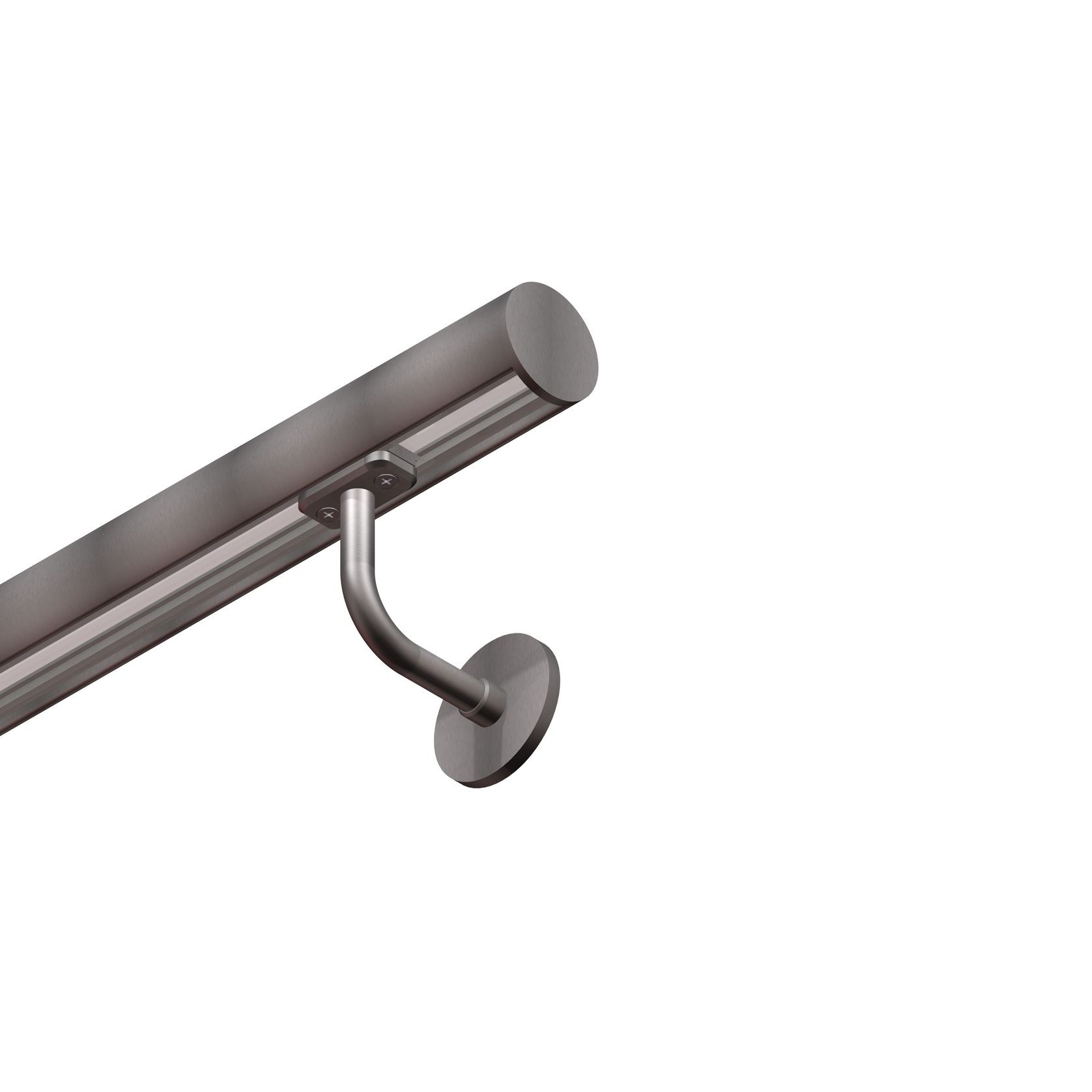

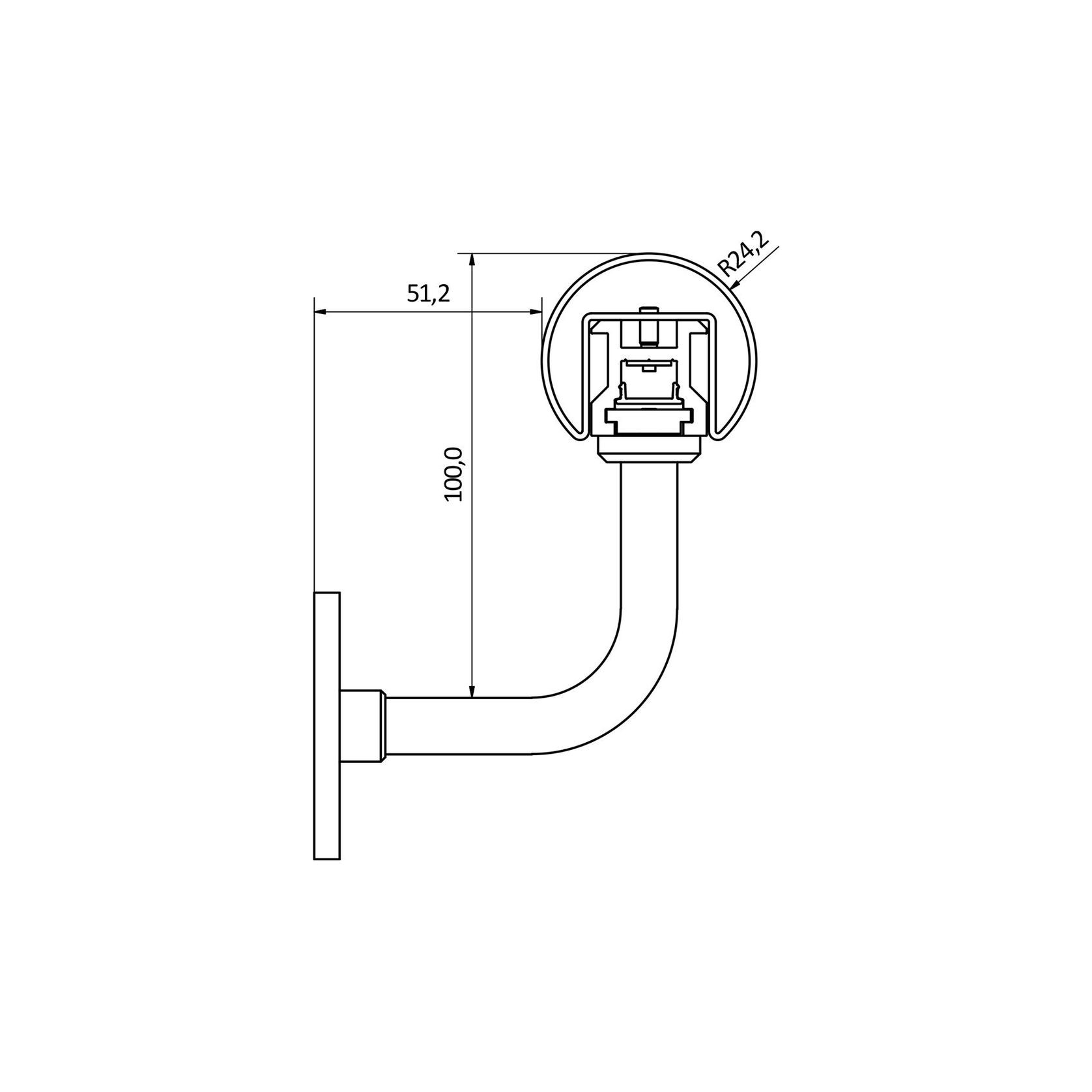

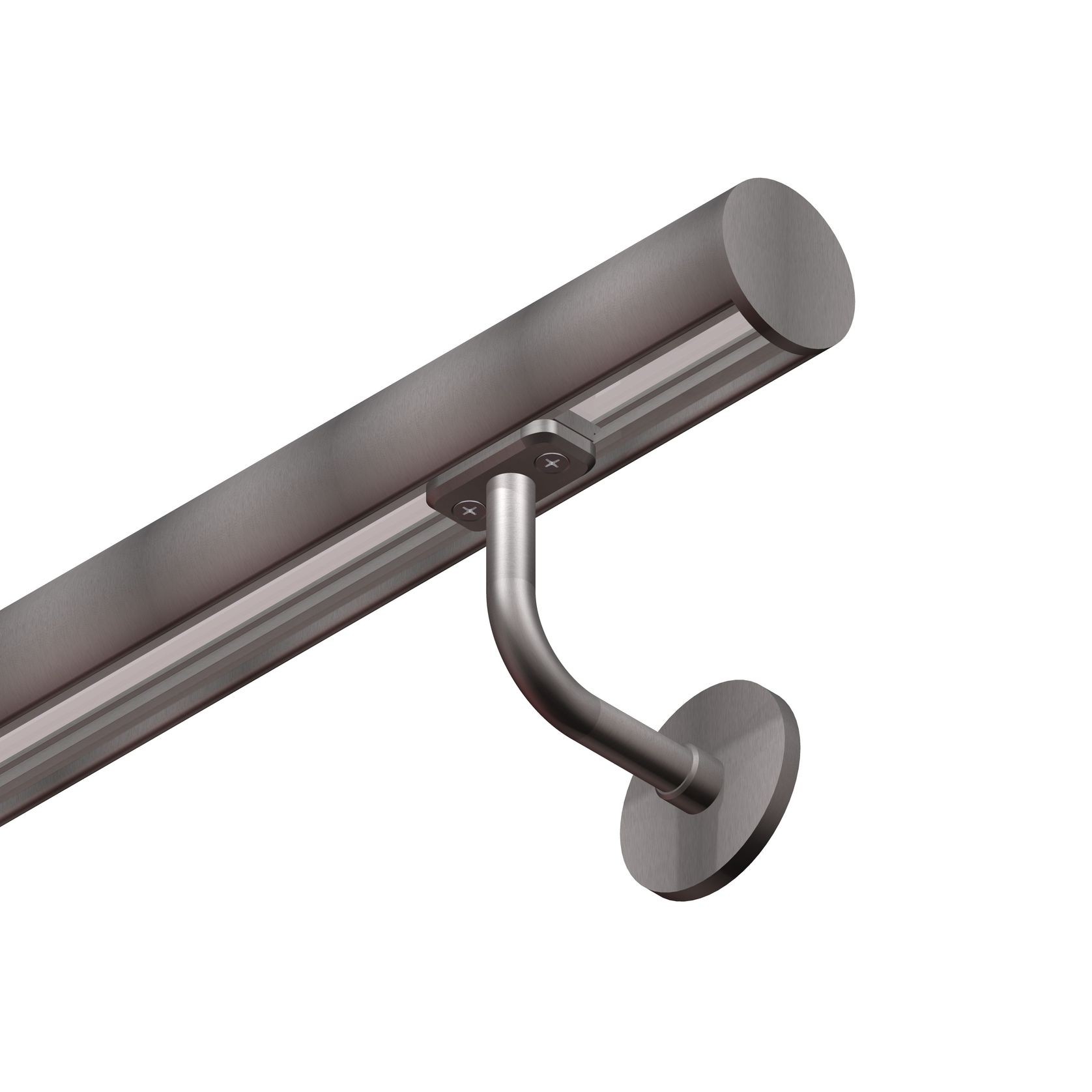

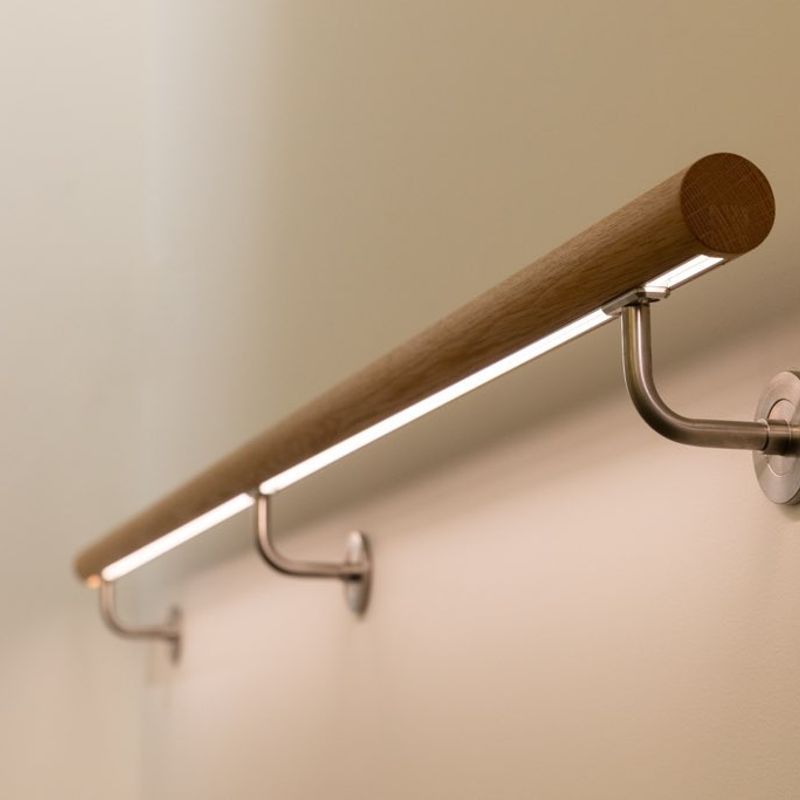

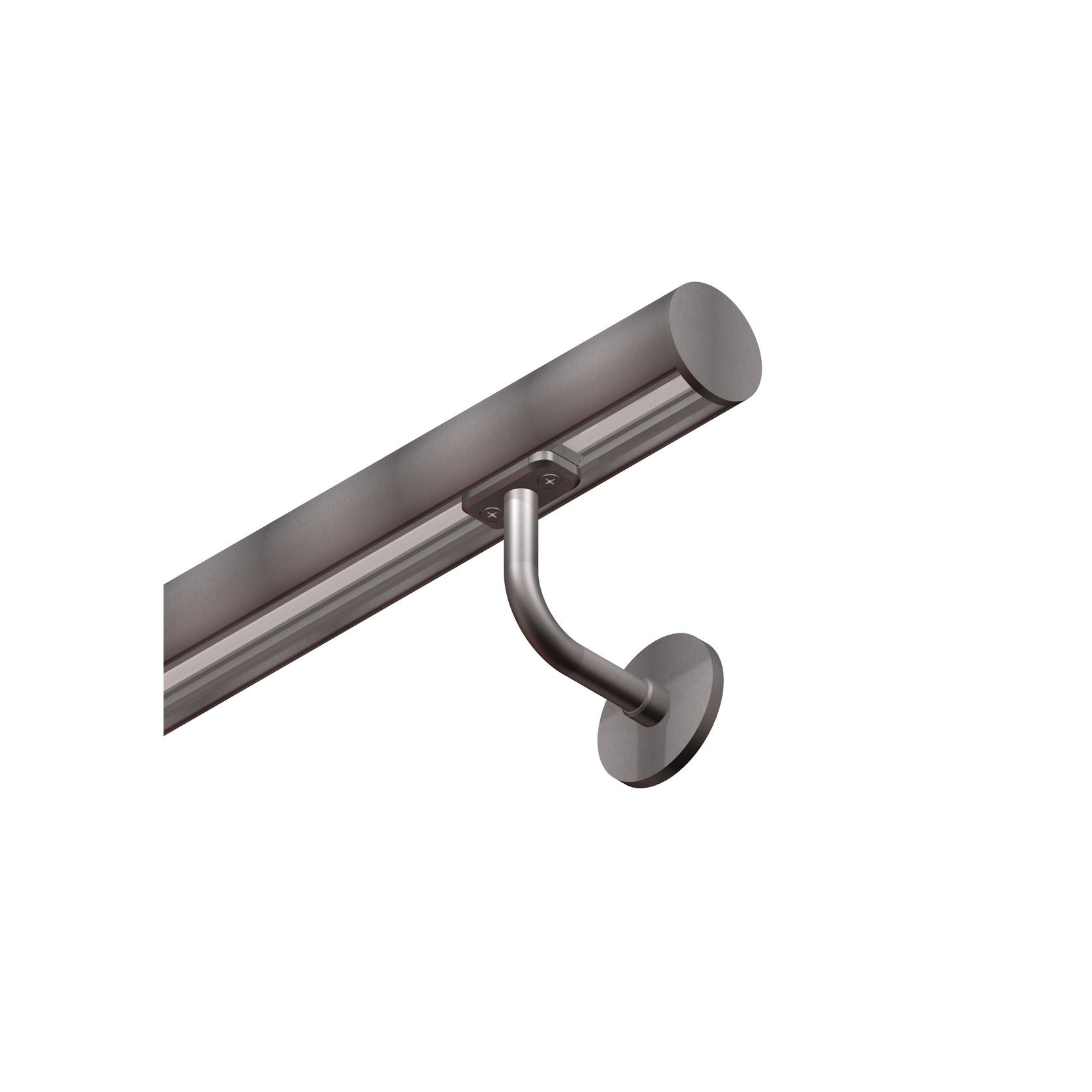

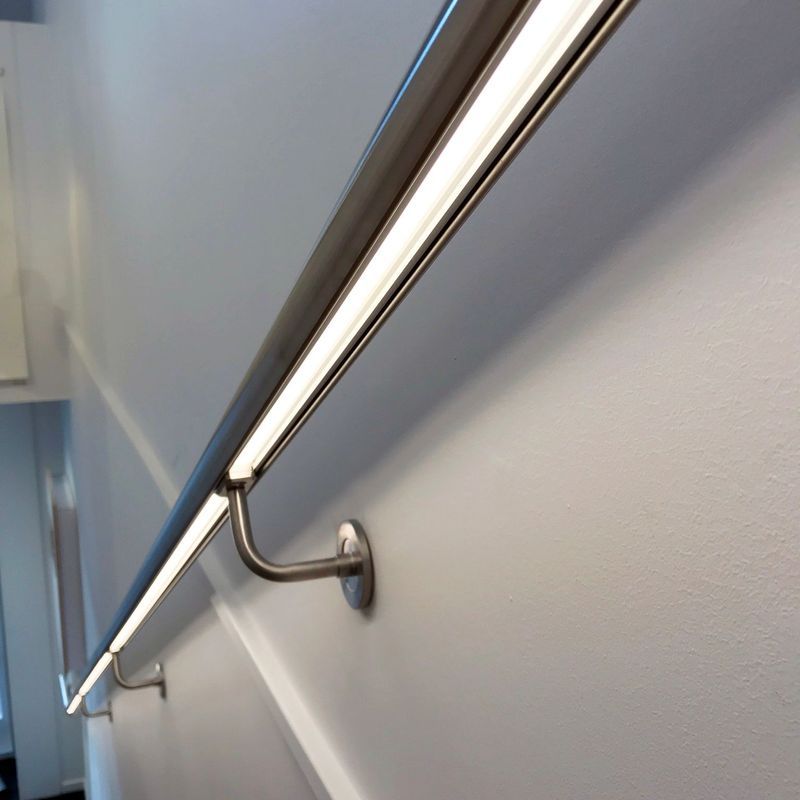

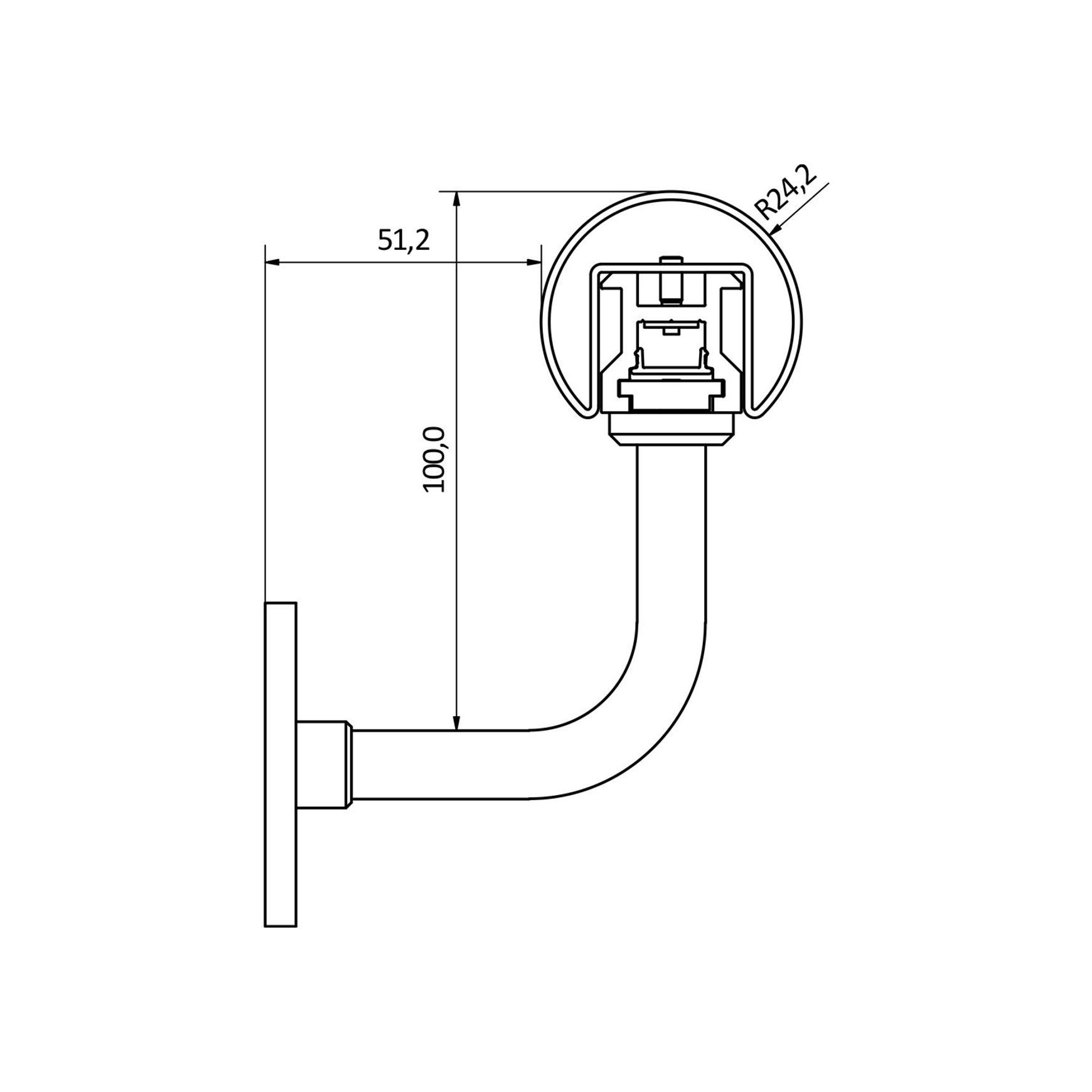

Richie Rail 26 Handrail LED Strip is a unique illuminated handrail system with a diameter of 48.3mm. Hollow wall brackets conceal the power supply to the LED strip, and the low voltage input makes the handrail safe to touch.

The innovative sliding wall brackets allow minimal power feeds to the LED strip for simple installation. Richie Rail 26 is suitable for use on residential and commercial stairs and thoroughfares including accessible routes and exterior urban spaces. Richie Rail 26 can be supplied as a “plug-and-play” modular system, or as a seamless, fully welded system.

Details
  • Category
    Stair Lights
  • Brand
    Offspring Profiles
Specifications

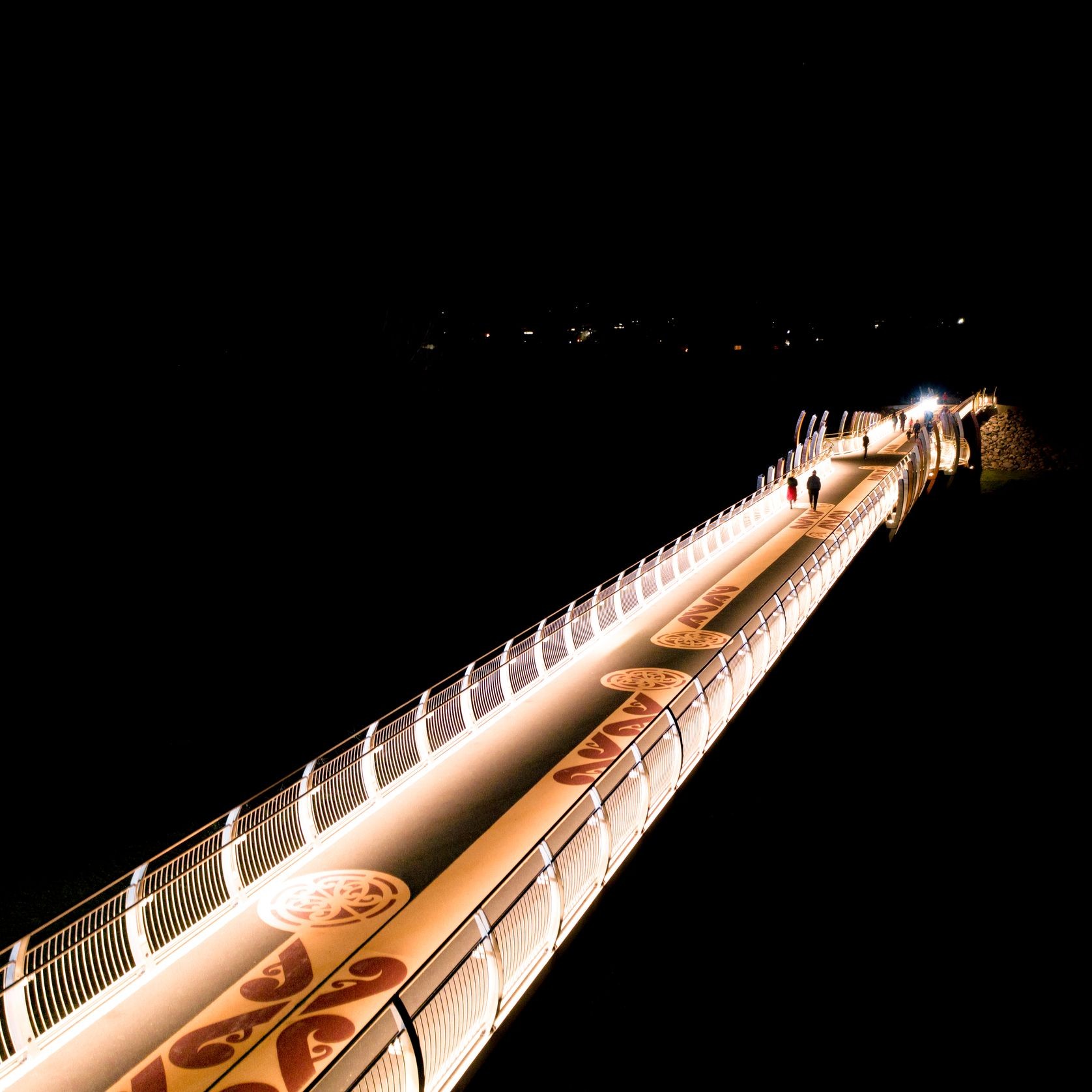

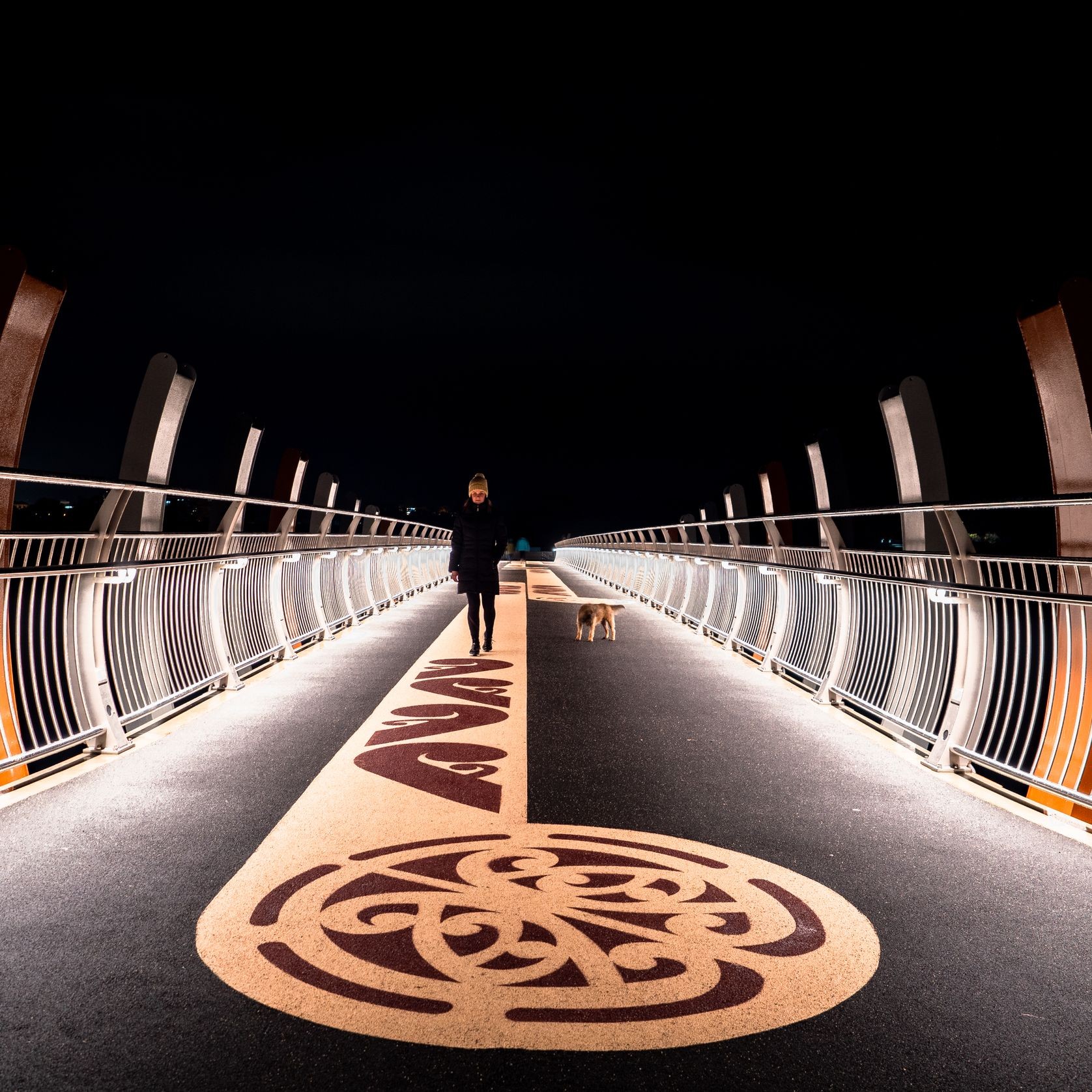

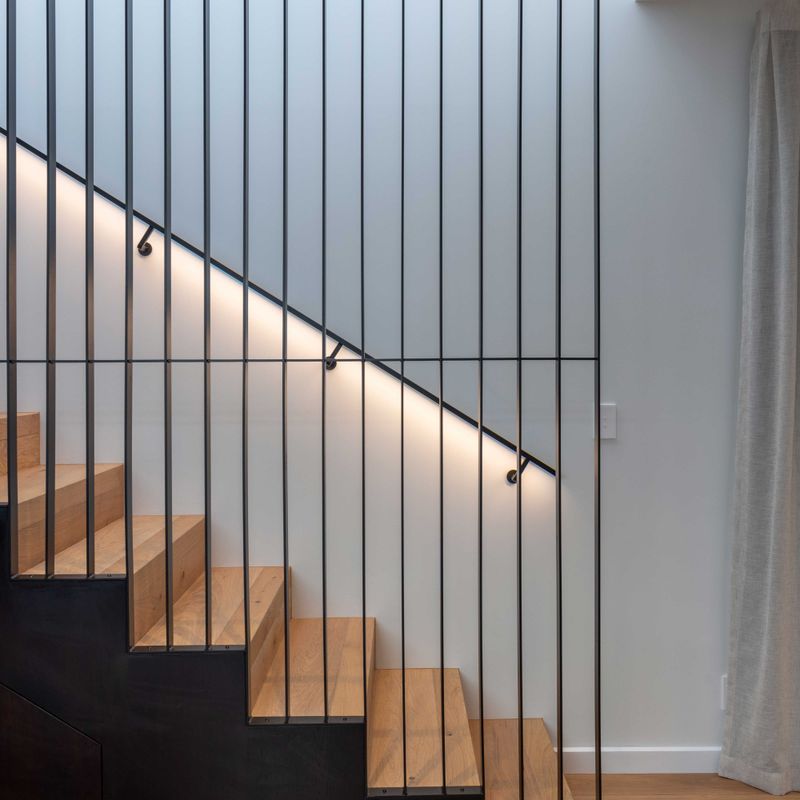

  • Applications - Stairs and ramps for commercial, residential and public spaces, accessible routes.
  • Installation - Interior or exterior (with IP65/IP67 rated LED strip).
  • Material - 316 stainless steel rail and components (including wall brackets, post tops etc), marine-grade extruded aluminium, polycarbonate diffuser.
  • Finish - Satin 316 Stainless Steel
  • Light source - LED ribbon strip
  • Power Supply - 24V DC - remove driver options ranging from 6W up to 320W
  • Dimming - Various options available including DALI, o10V, DMX - please enquire
  • Mounting Options - Wall mounted, post-top
  • Features - New Zealand designed and made, hollow wall brackets that conceal power cable and don't interrupt the LED strip or diffuser, uniform lighting (reduces or eliminates the appearance of LED 'dots' with opal diffuser)
  • Option for continuous emergency lighting.
