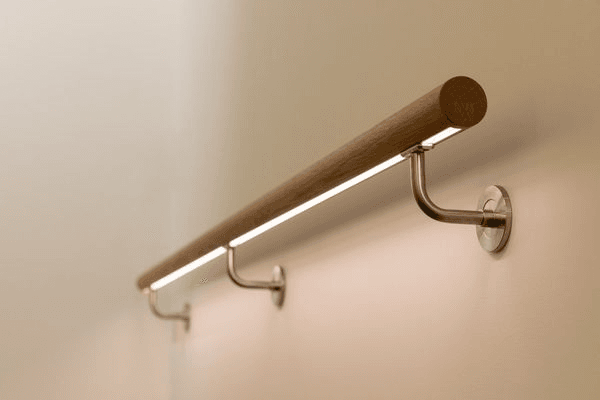

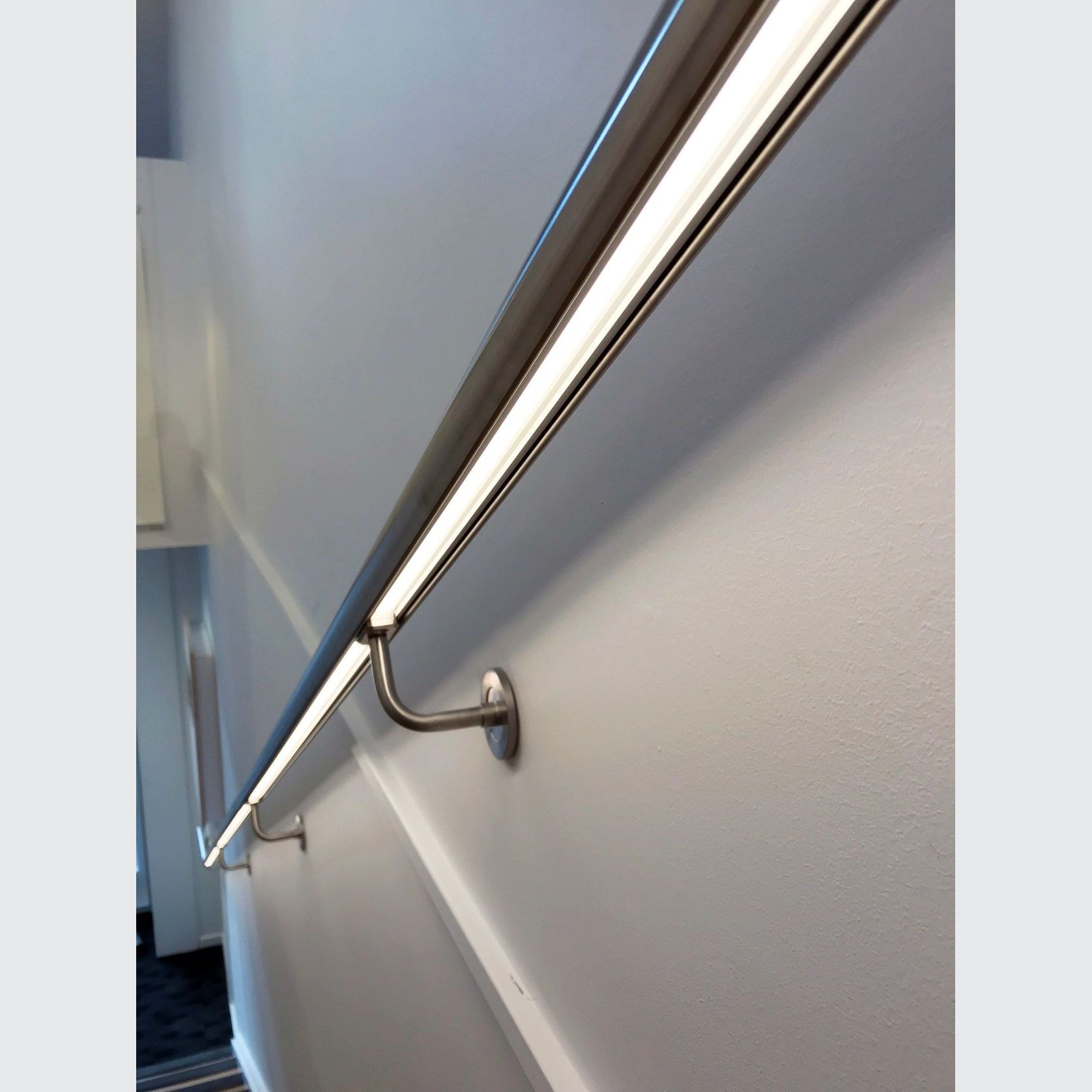

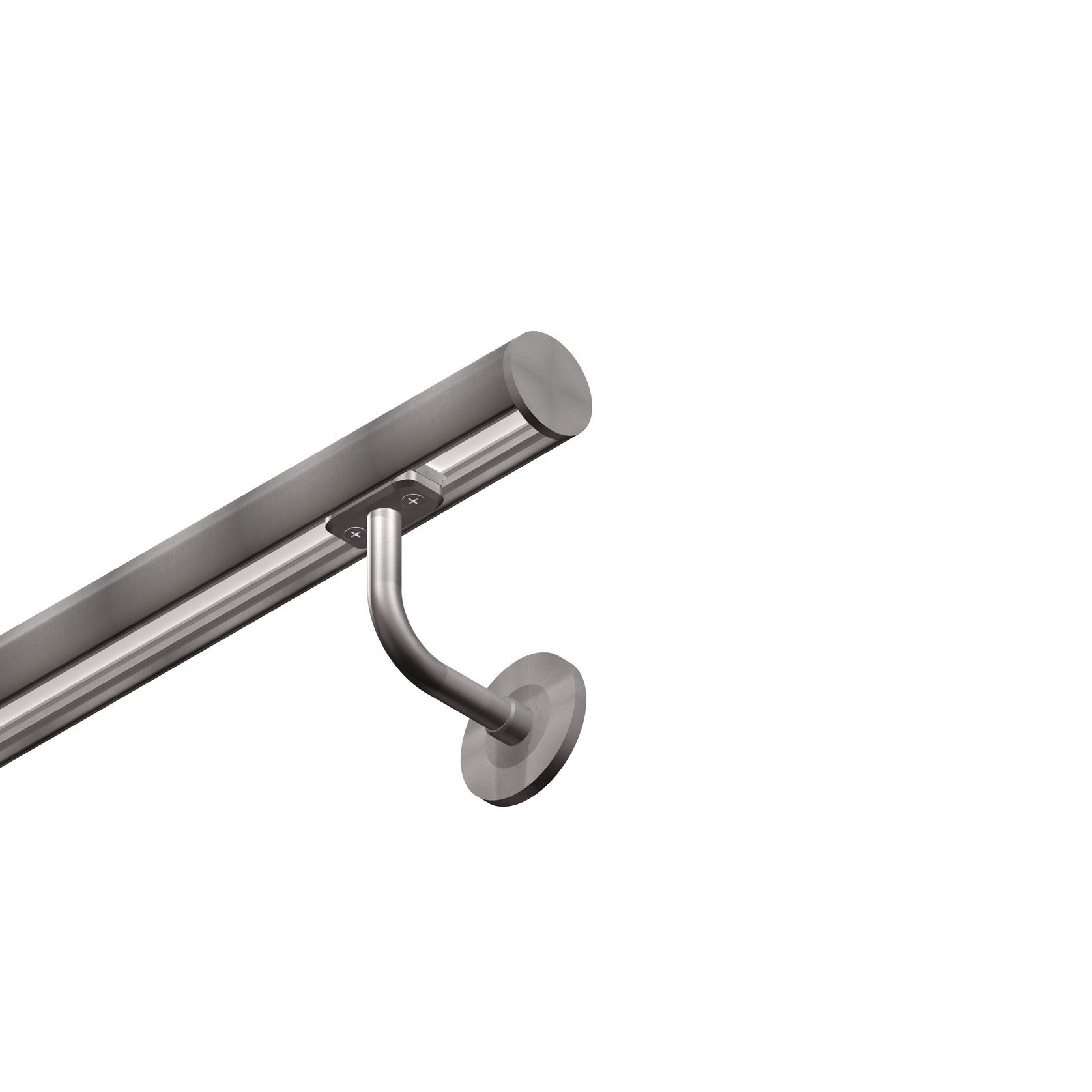

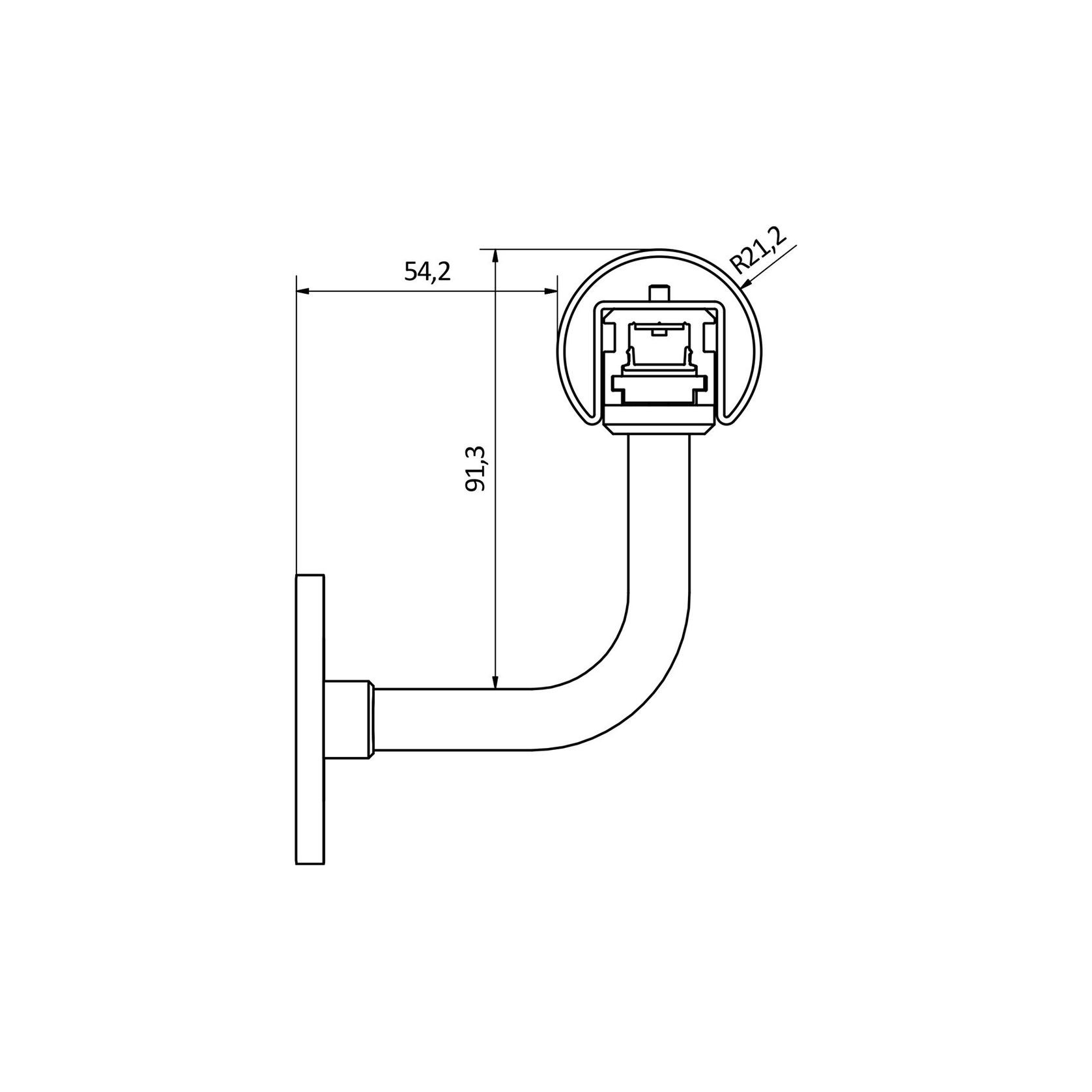

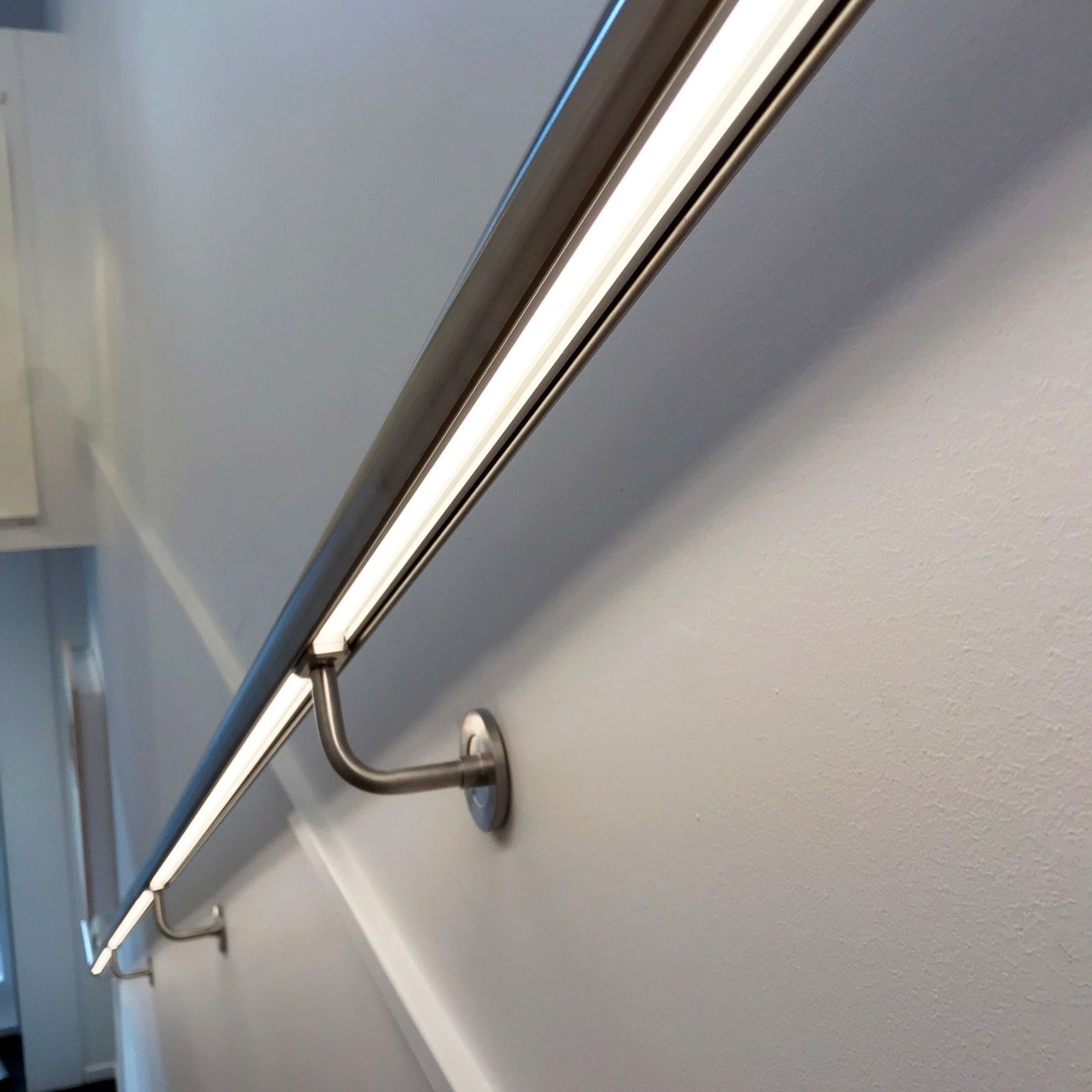

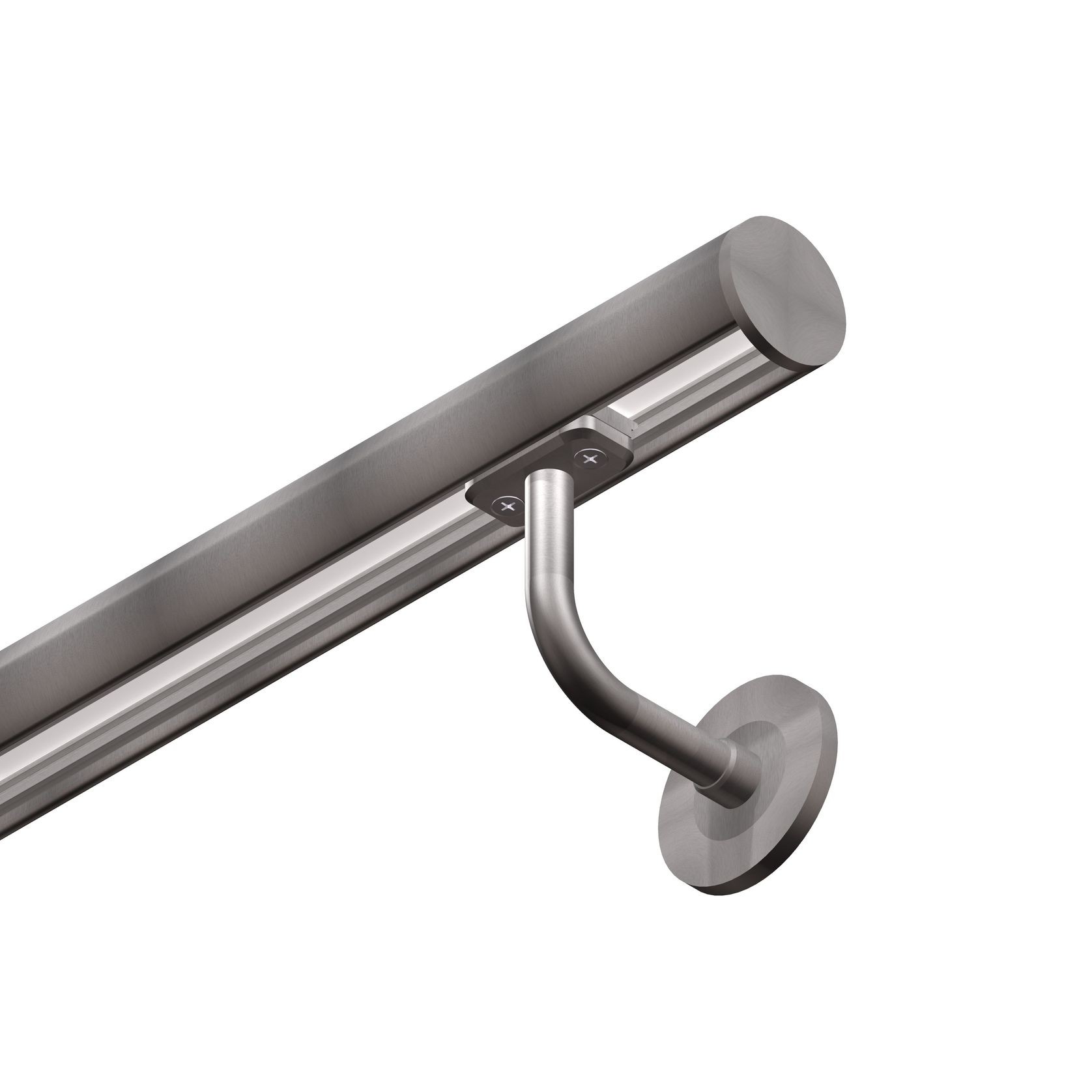

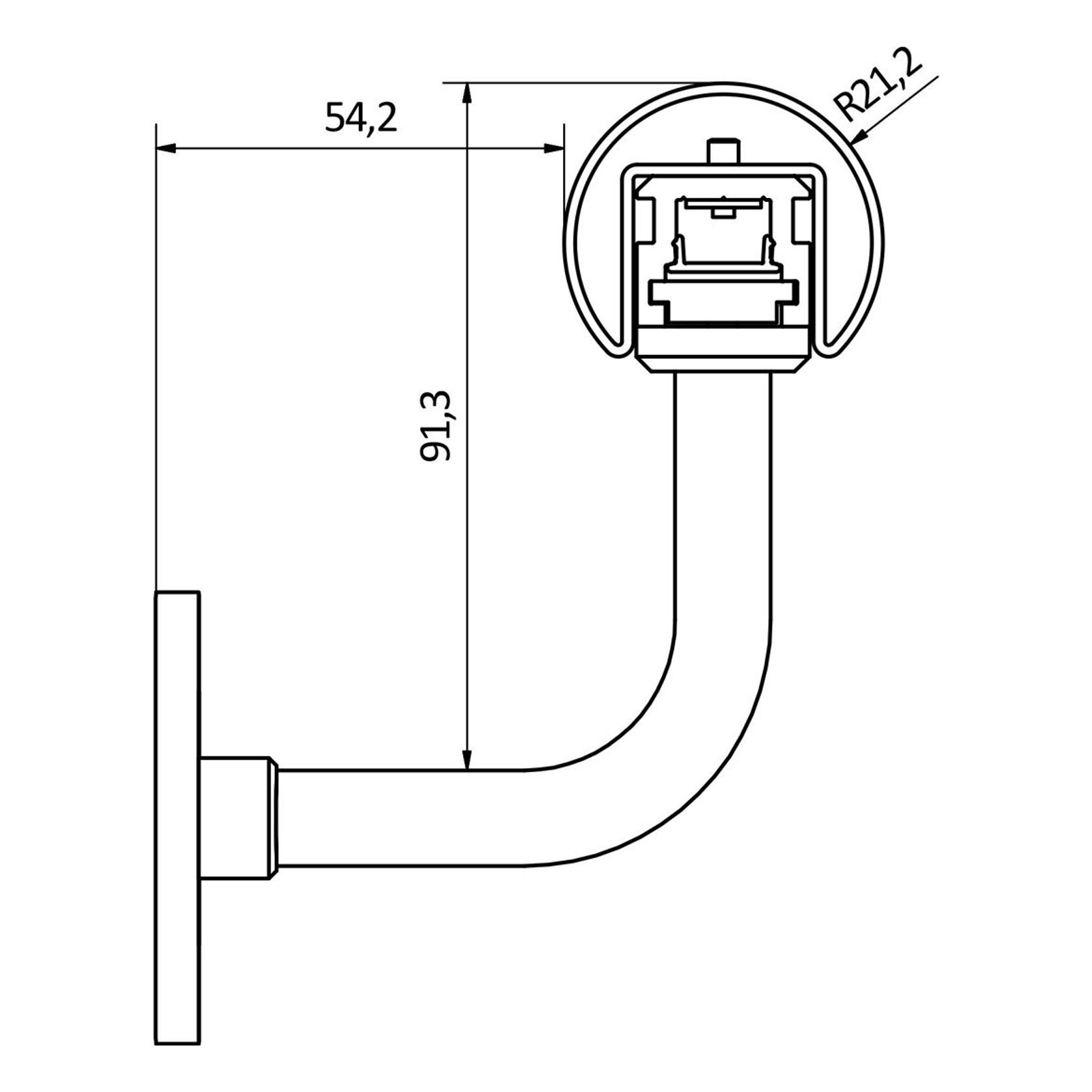

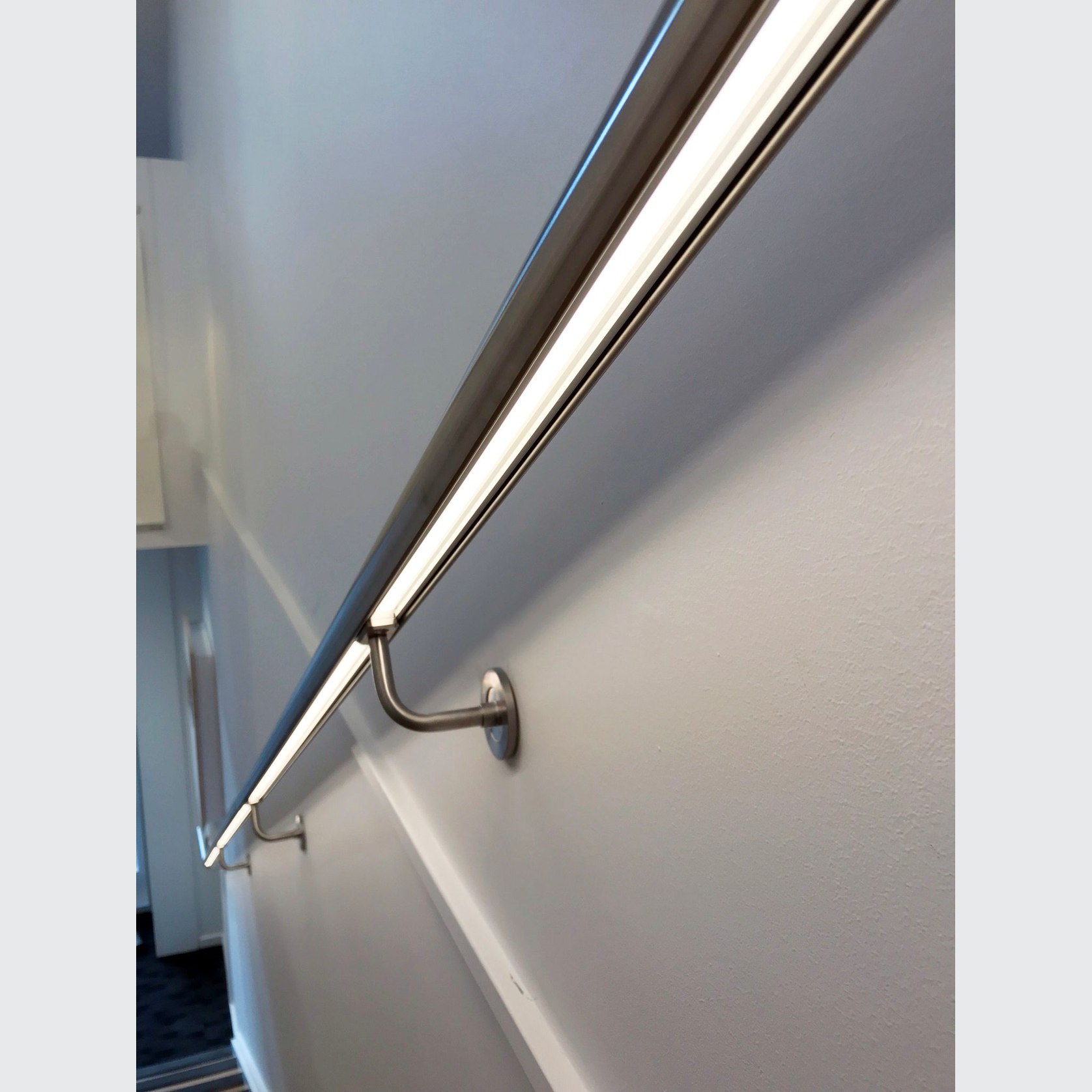

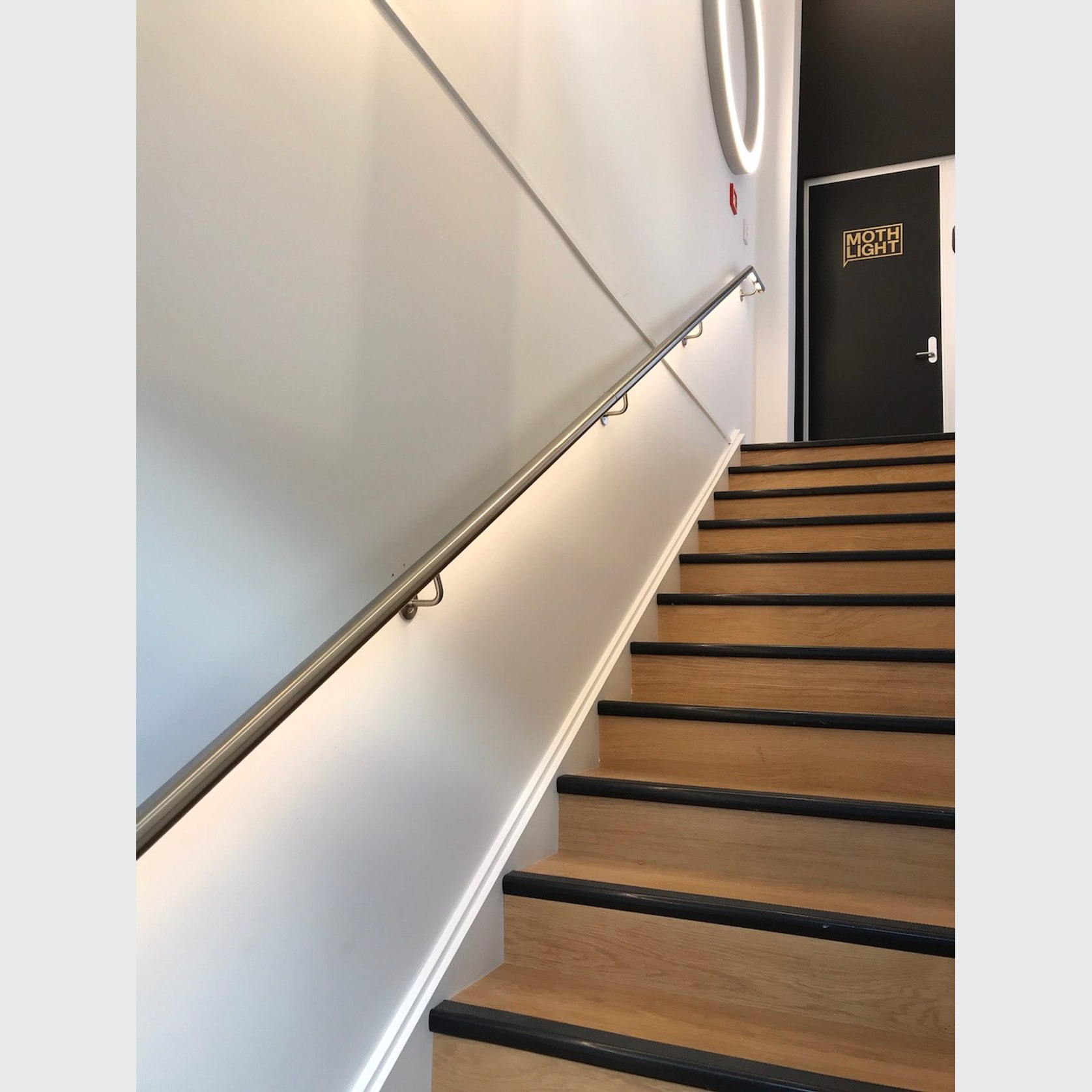

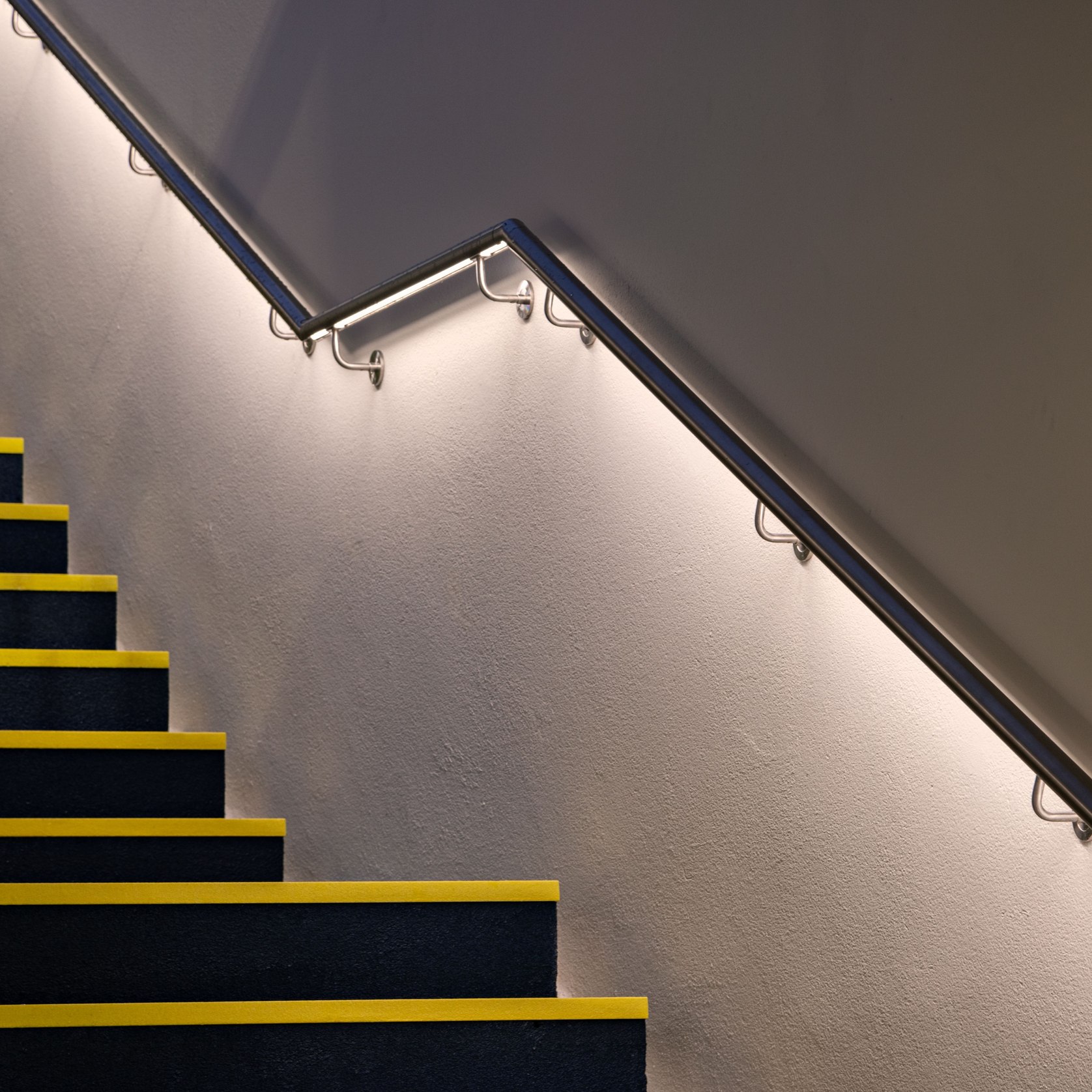

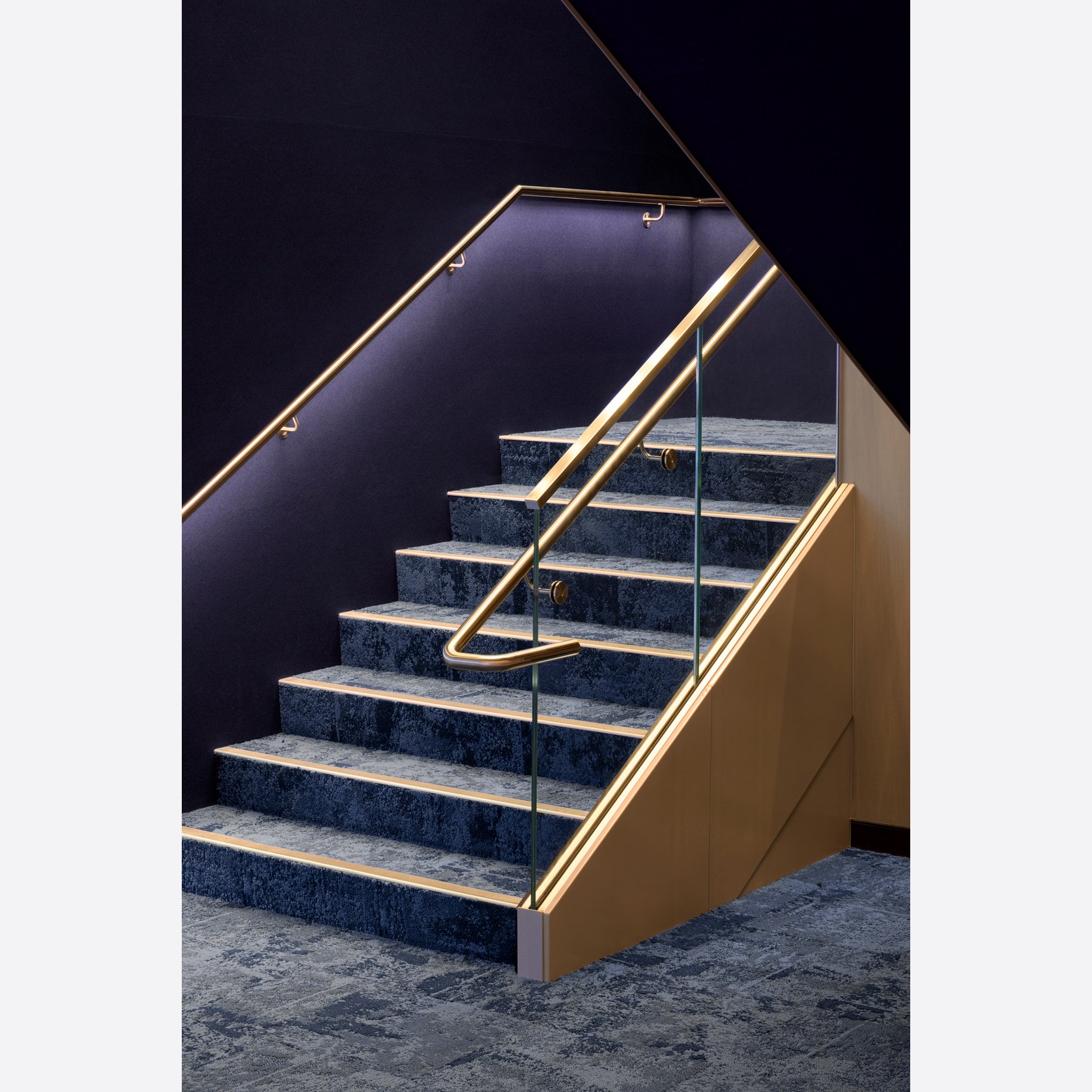

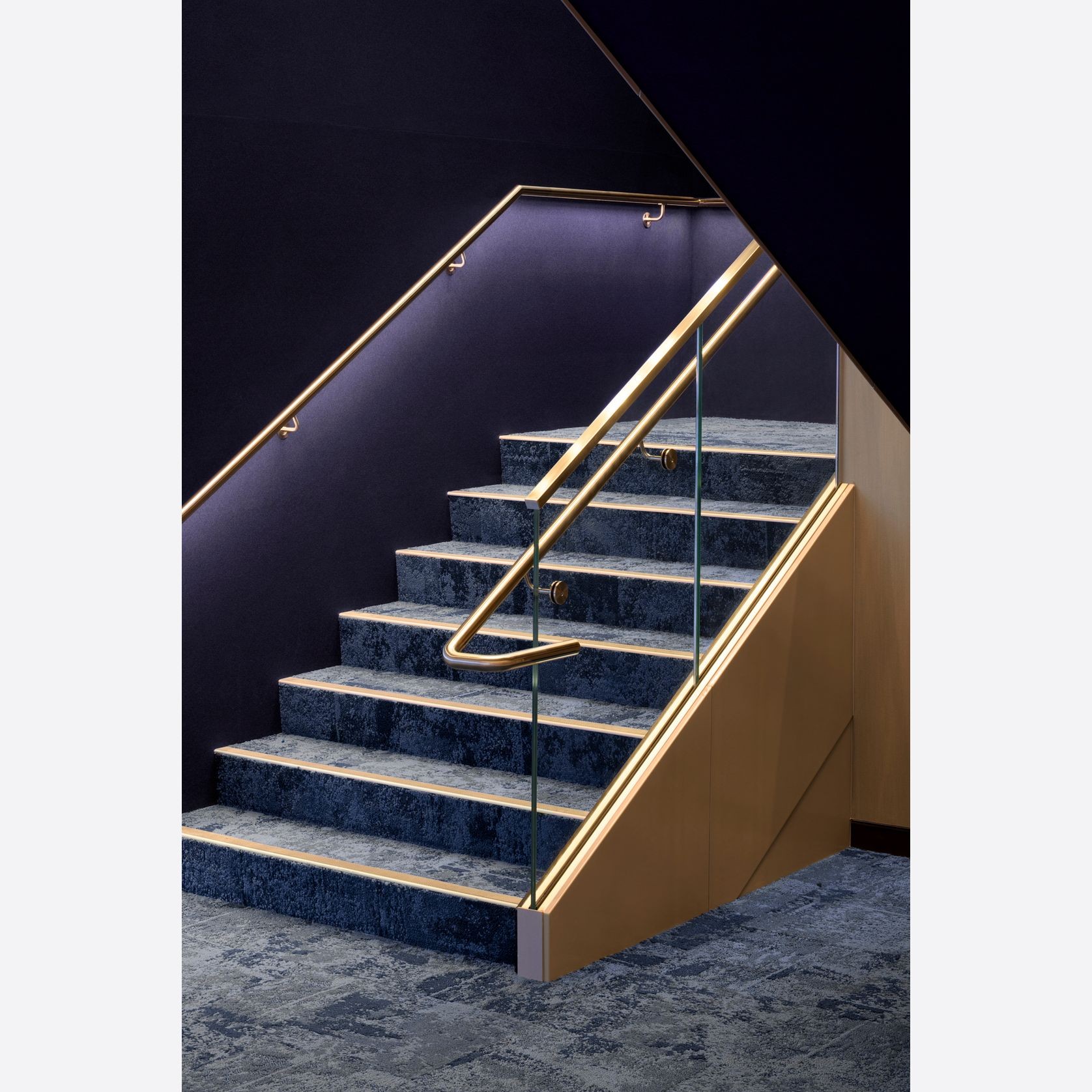

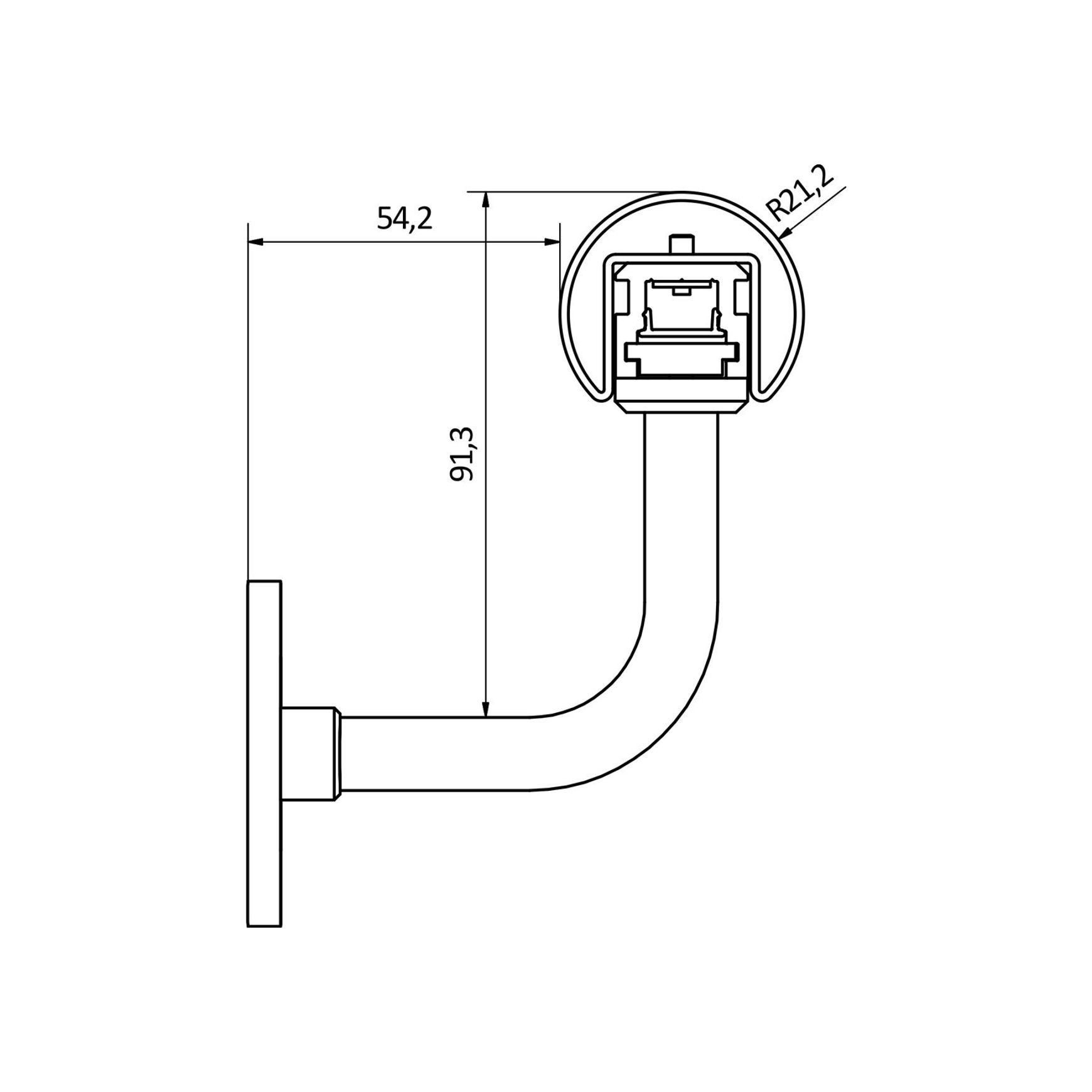

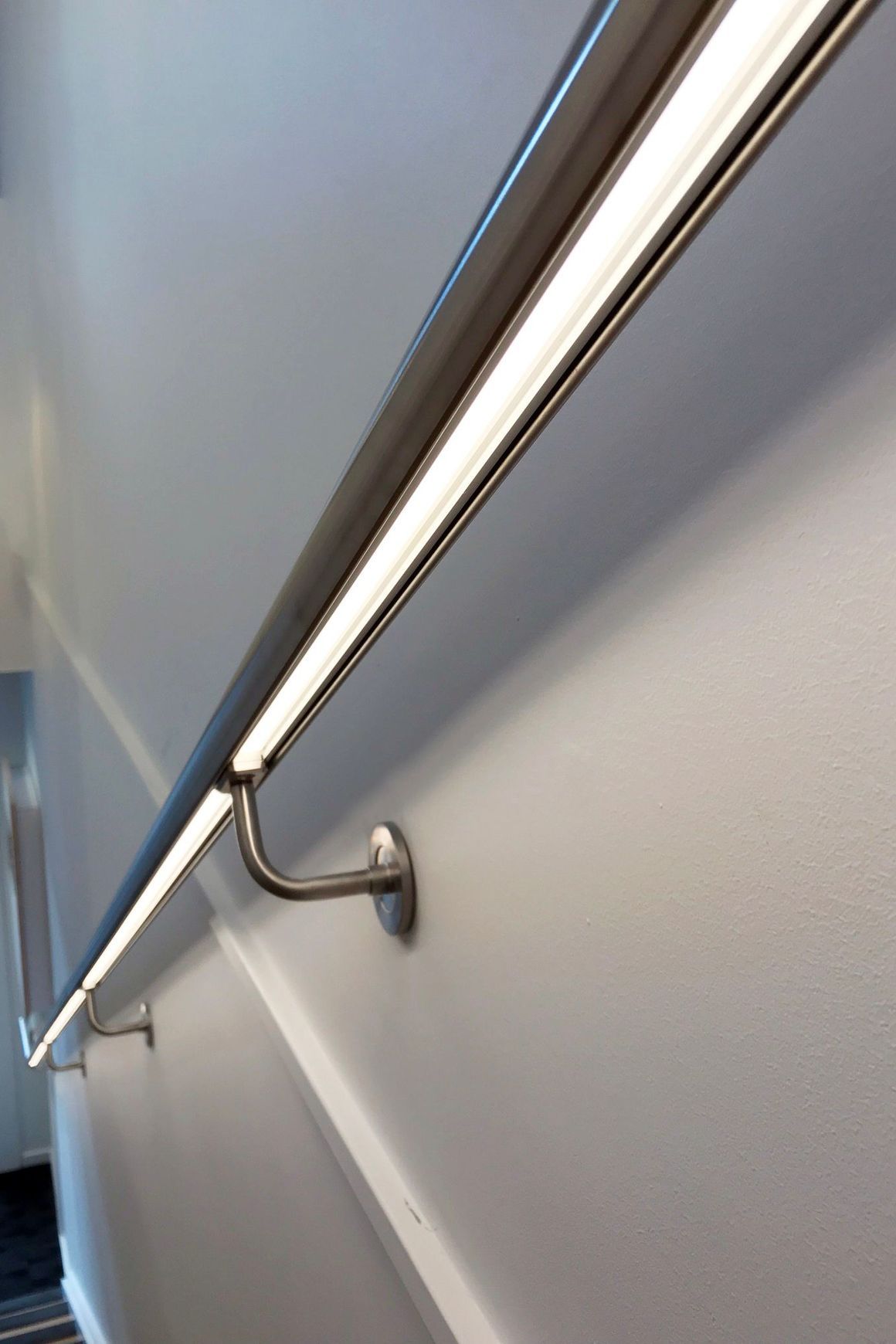

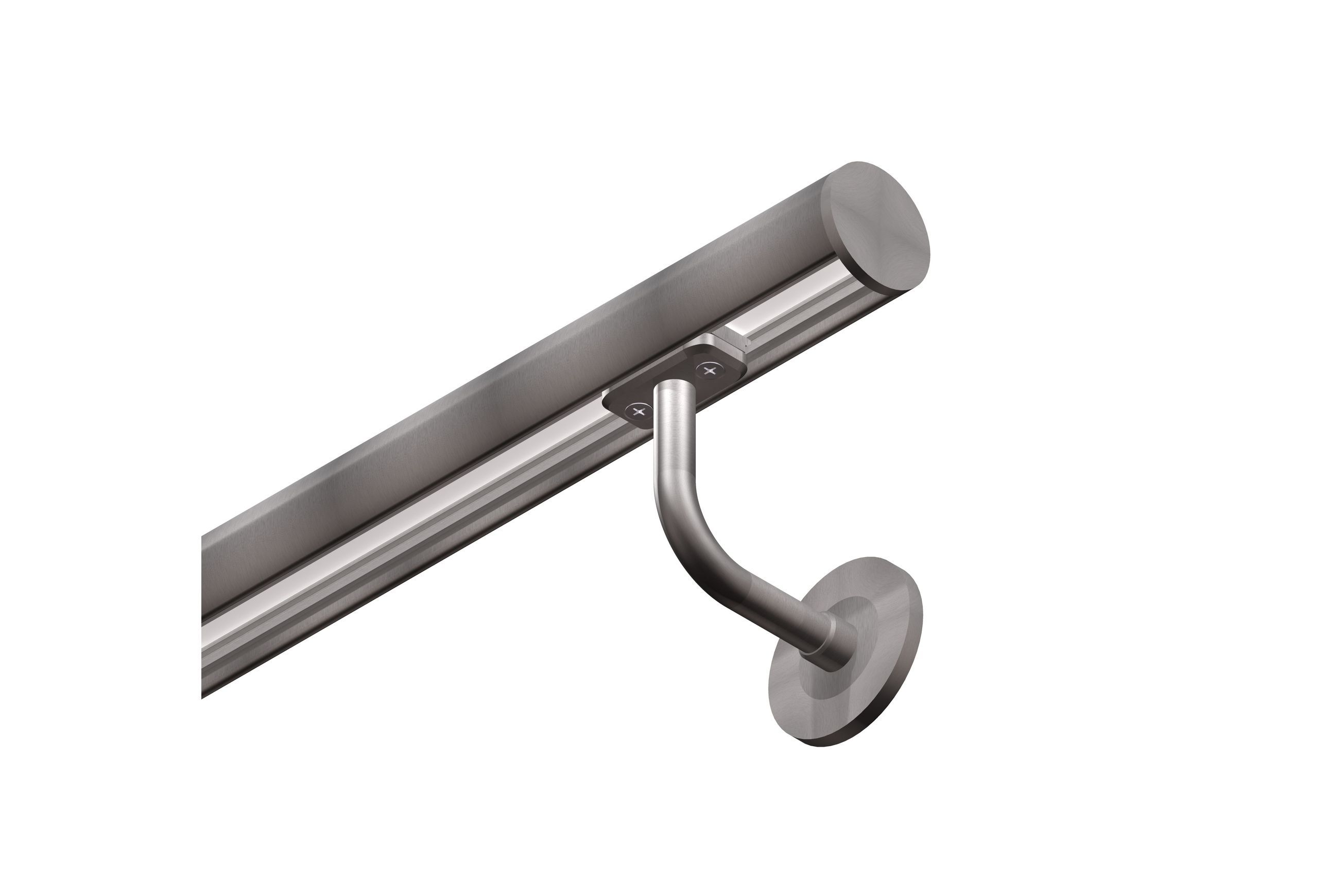

Richie Rail 20 Handrail LED Strip is a unique illuminated handrail system with a diameter of 42.4mm. Hollow wall brackets conceal the power supply to the LED strip, and the low voltage input makes the handrail safe to touch. The innovative sliding wall brackets allow minimal power feeds to the LED strip for simple installation.

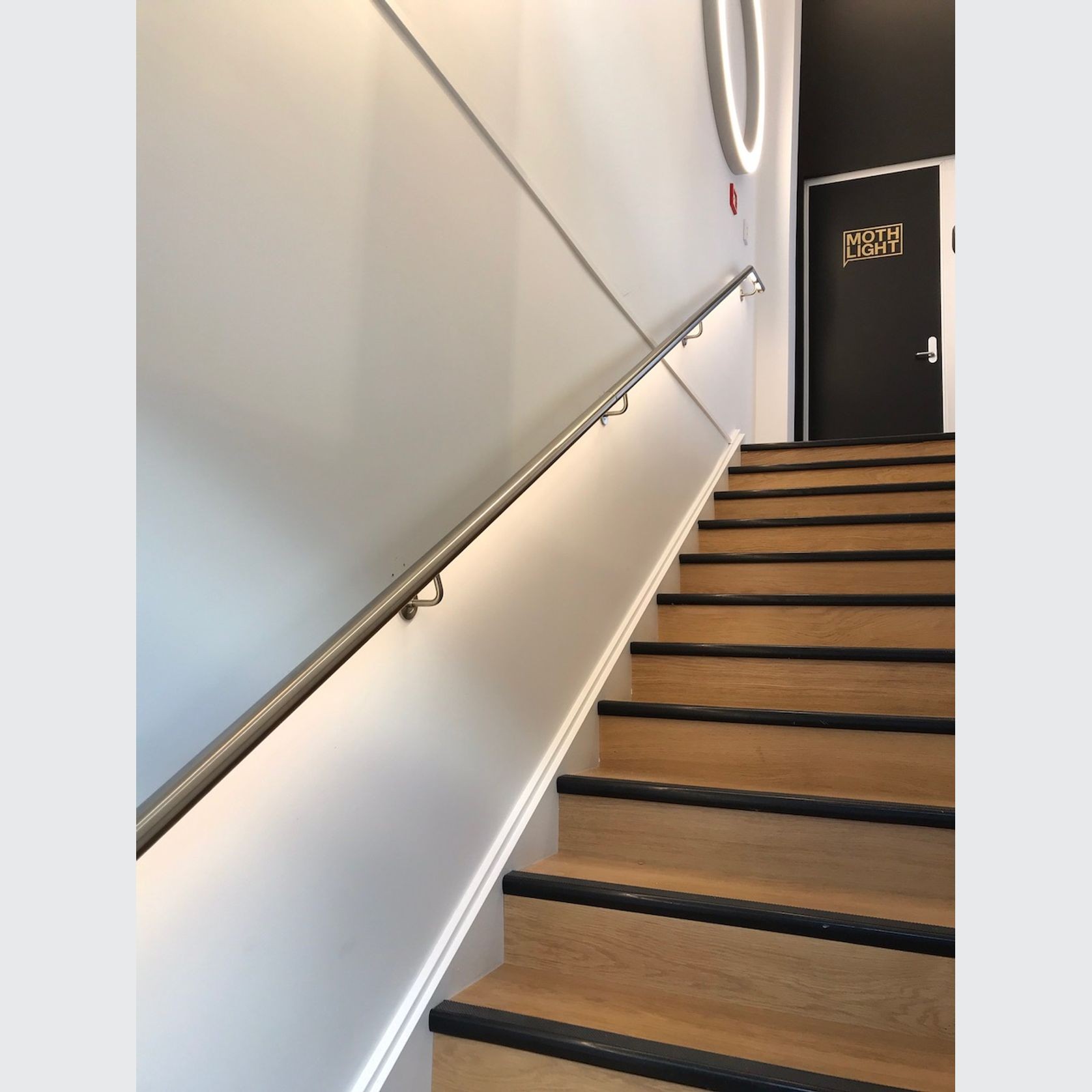

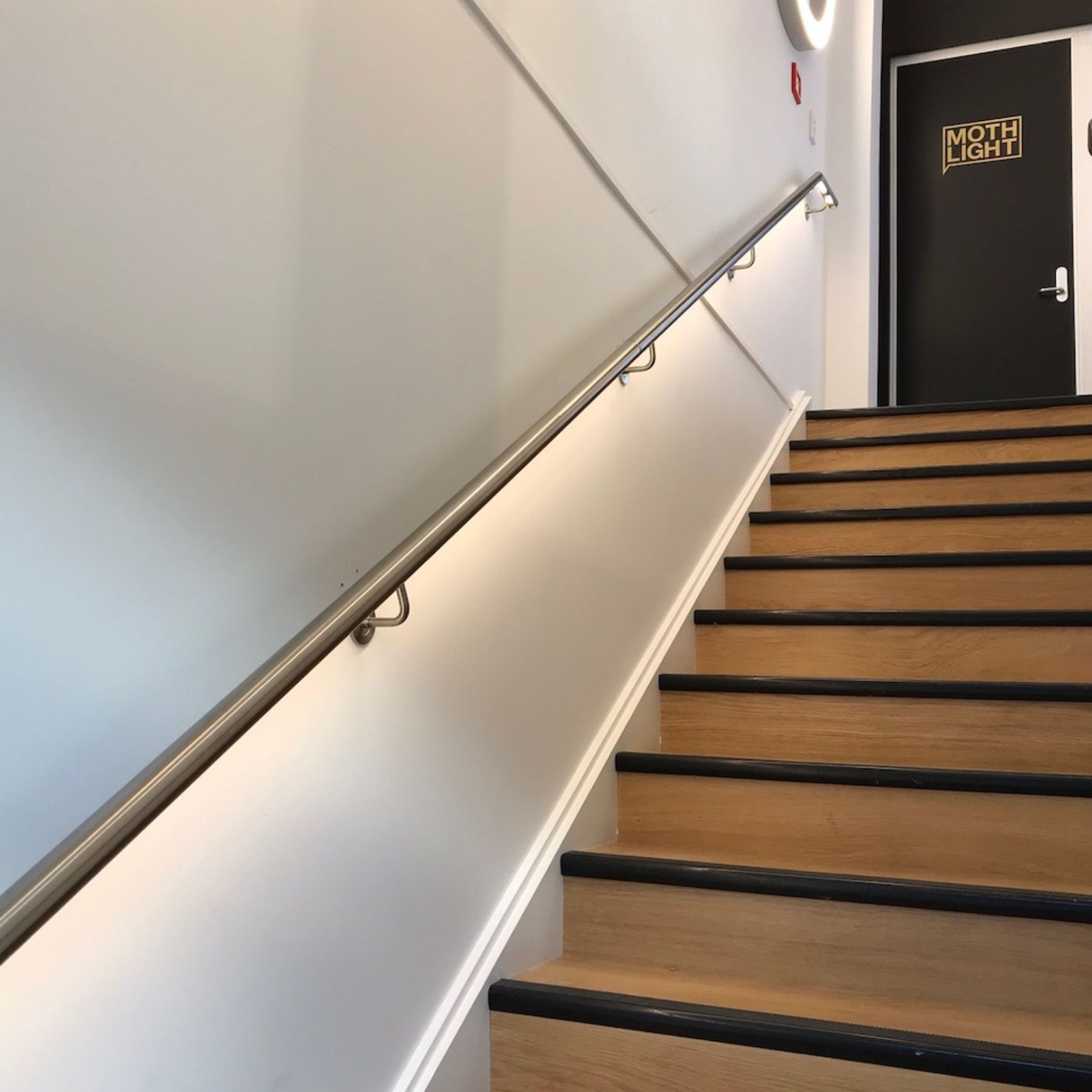

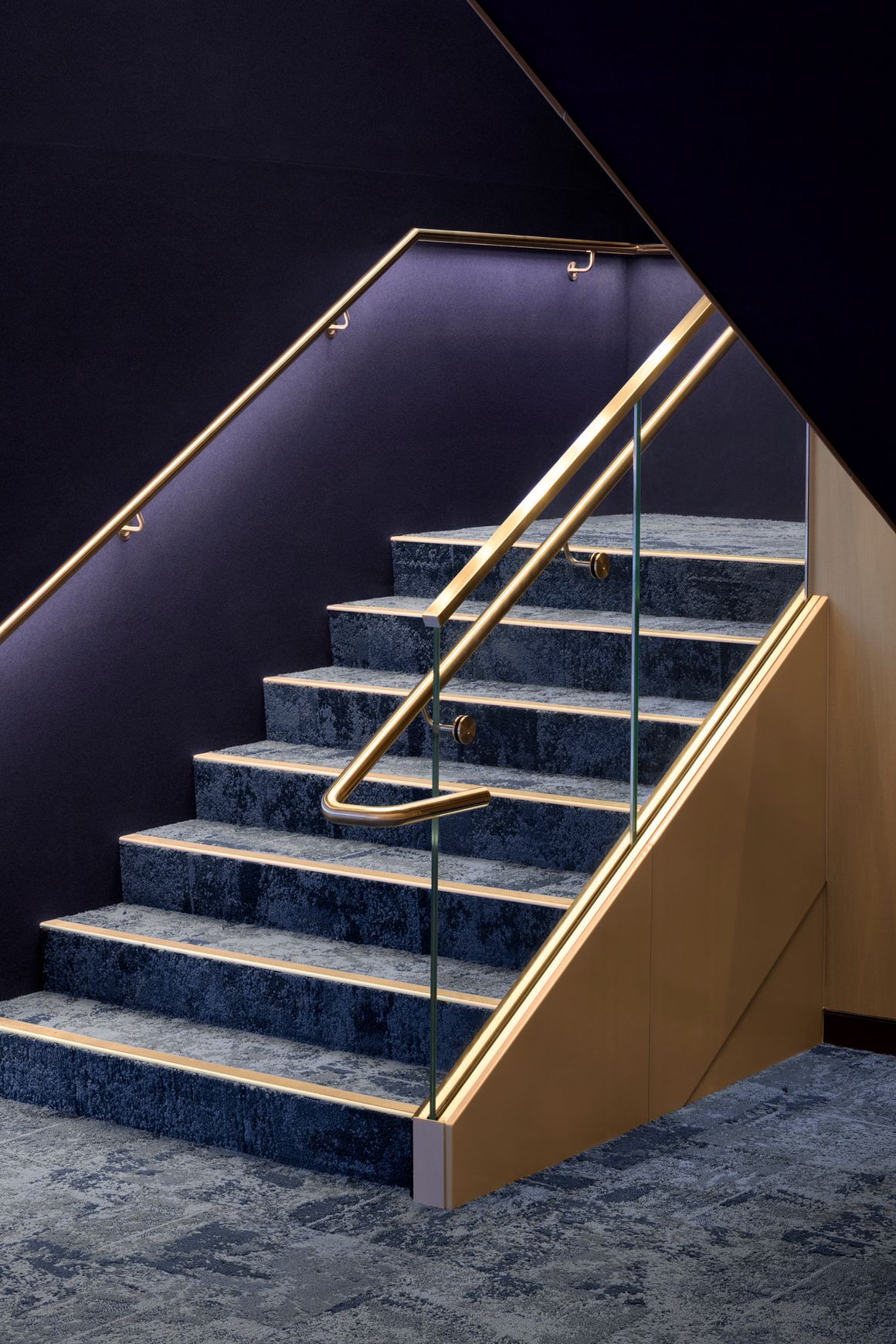

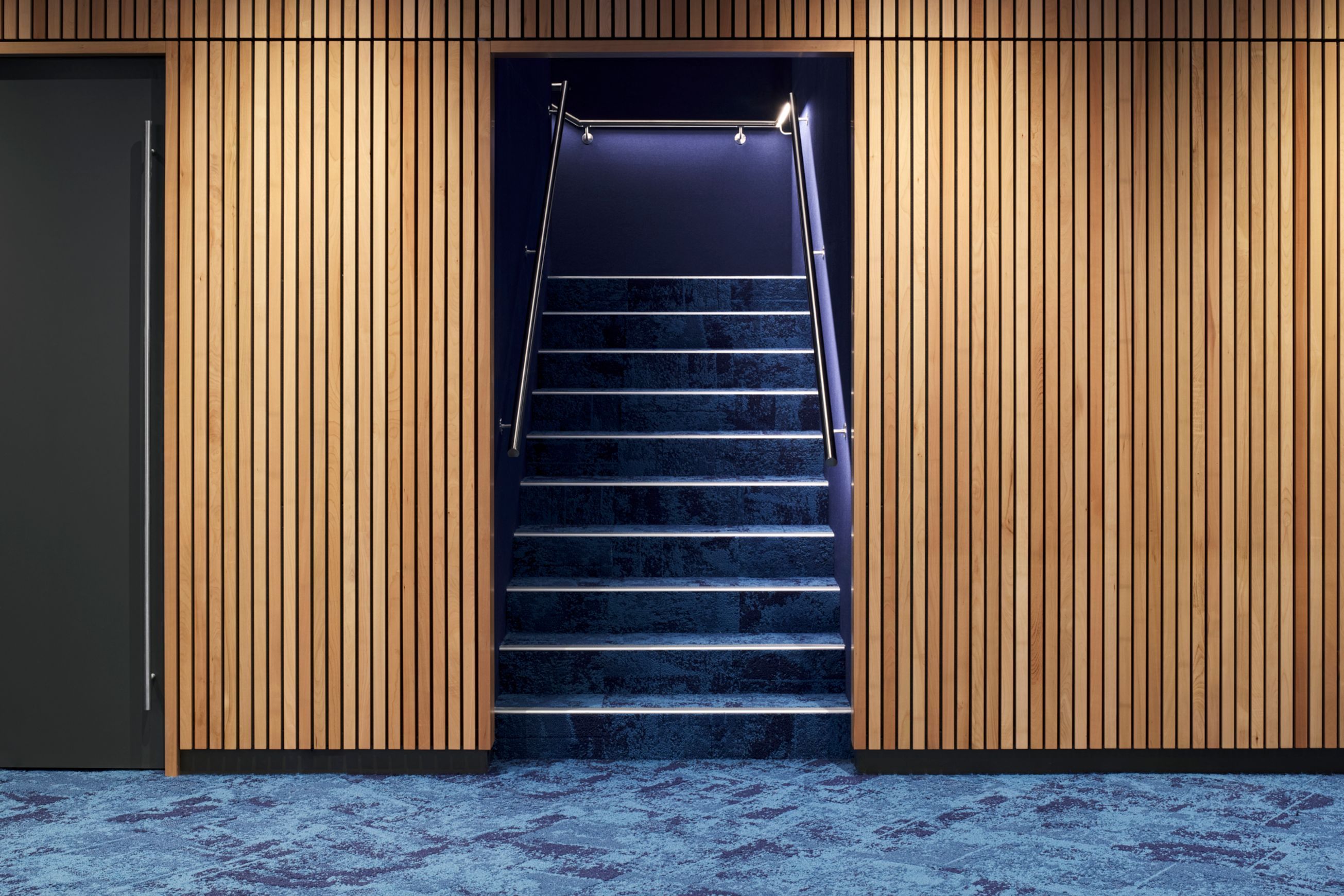

Richie Rail 20 is suitable for use on residential and commercial stairs and thoroughfares including accessible routes and exterior urban spaces. Richie Rail 20 can be supplied as a “plug-and-play” modular system, or as a seamless, fully welded system.

Tags

led strip lighting stair light handrail lighting commerical lighting

Product Details

Product: Richie Rail 20 Handrail LED Strip
Category: Stair Lights
Sold by: Offspring Profiles®
Range: Handrail Lighting
Brand: Offspring Profiles

Offspring Profiles® is specified by

(25) Professionals

Visit site

Hollow wall brackets conceal the power supply to the LED strip, and the low voltage input makes the handrail safe to touch. The innovative sliding wall brackets allow minimal power feeds to the LED strip for simple installation. Richie Rail 20 is suitable for use on residential and commercial stairs and thoroughfares including accessible routes and exterior urban spaces. Richie Rail 20 can be supplied as a “plug-and-play” modular system, or as a seamless, fully welded system.

Richie Rail 20 Handrail LED Strip is a unique illuminated handrail system with a diameter of 42.4mm.

Specs: Applications - Stairs and ramps for commercial, residential and public spaces, accessible routes.

Installation - Interior or exterior (with IP65/IP67 rated LED strip).

Material - 316 stainless steel rail and components (including wall brackets, post tops etc), marine-grade extruded aluminium, polycarbonate diffuser.

Finish - Satin or polished 316 stainless steel

Light source - LED ribbon strip

Power supply - 24V DC - remote driver options ranging from 6W up to 320W

Dimming - Various options available including DALI, o-10V, DMX - please enquire

Mounting options - Wall mounted, post-top

Features - New Zealand designed and made, hollow wall brackets that conceal power cable and don't interrupt the LED strip or diffuser, uniform lighting (reduced or eliminates the appearance of LED 'dots' with opal diffuser), option for continuous emergency lighting, compliant to AS/NZS2293 with remote mounted emergency pack

Downloads

Downloads (11)11 Direct downloads • 11 Available on request

Get more Specific.

Offspring Profiles®

offspringprofiles.co.nz

Visit the Offspring Profiles® website for the full range, specification detail and where to buy this product.

Visit Website

Awards

2021

INNOVATION AWARD OF EXCELLENCE

IESANZ

2021

AwardINNOVATION AWARD OF EXCELLENCE

OrganisationIESANZ

Frequently asked questions about
Richie Rail 20 Handrail LED Strip

The Richie Rail 20 Handrail LED Strip is supplied by Offspring Profiles®. It is also on their website, and you can browse every product Offspring Profiles® lists on ArchiPro.

Offspring Profiles® does not publish a price for the Richie Rail 20 Handrail LED Strip on ArchiPro. for pricing, or visit their website.

Yes. It is part of the Handrail Lighting range from Offspring Profiles®, where you can see every product in the range together.

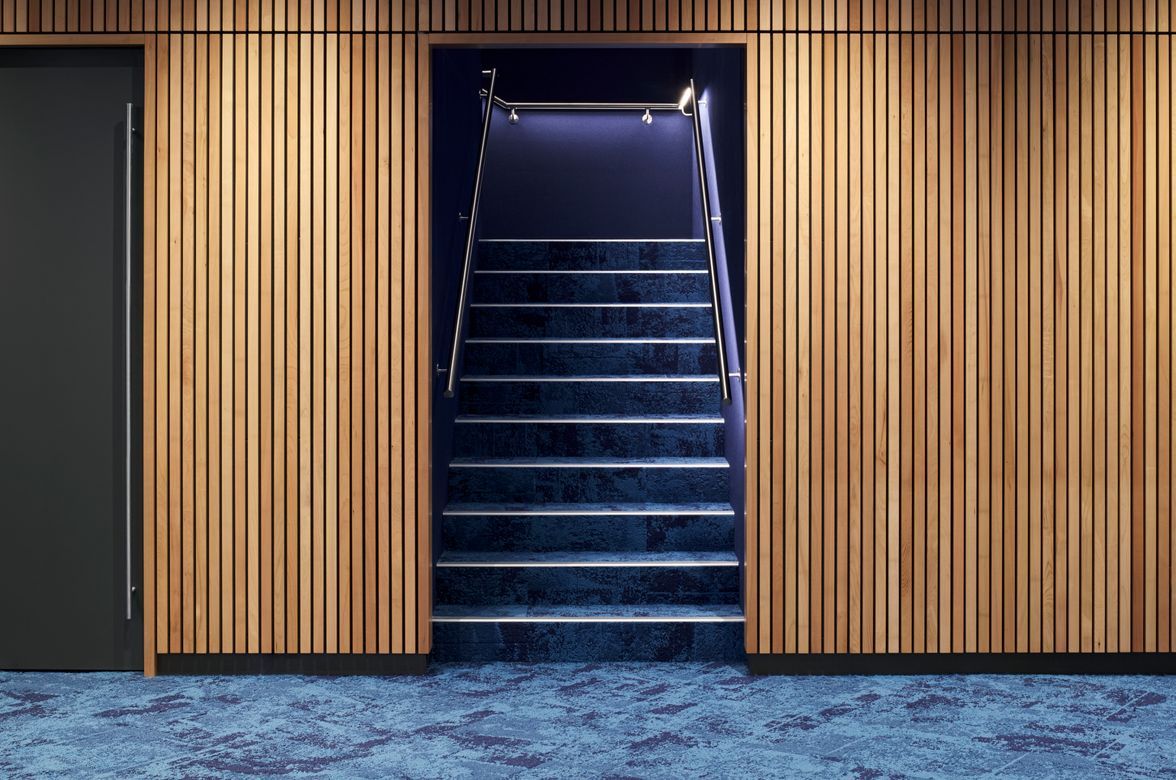

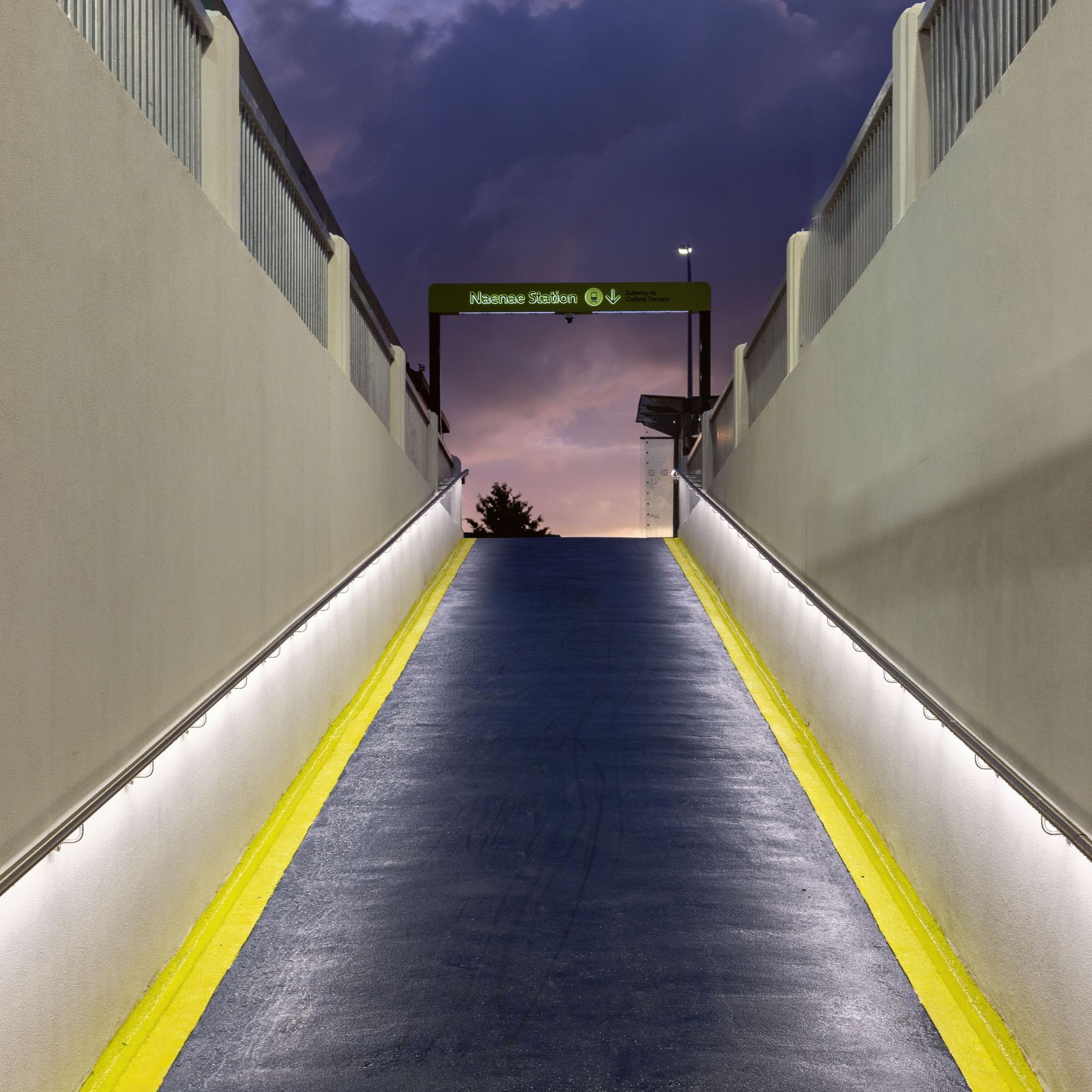

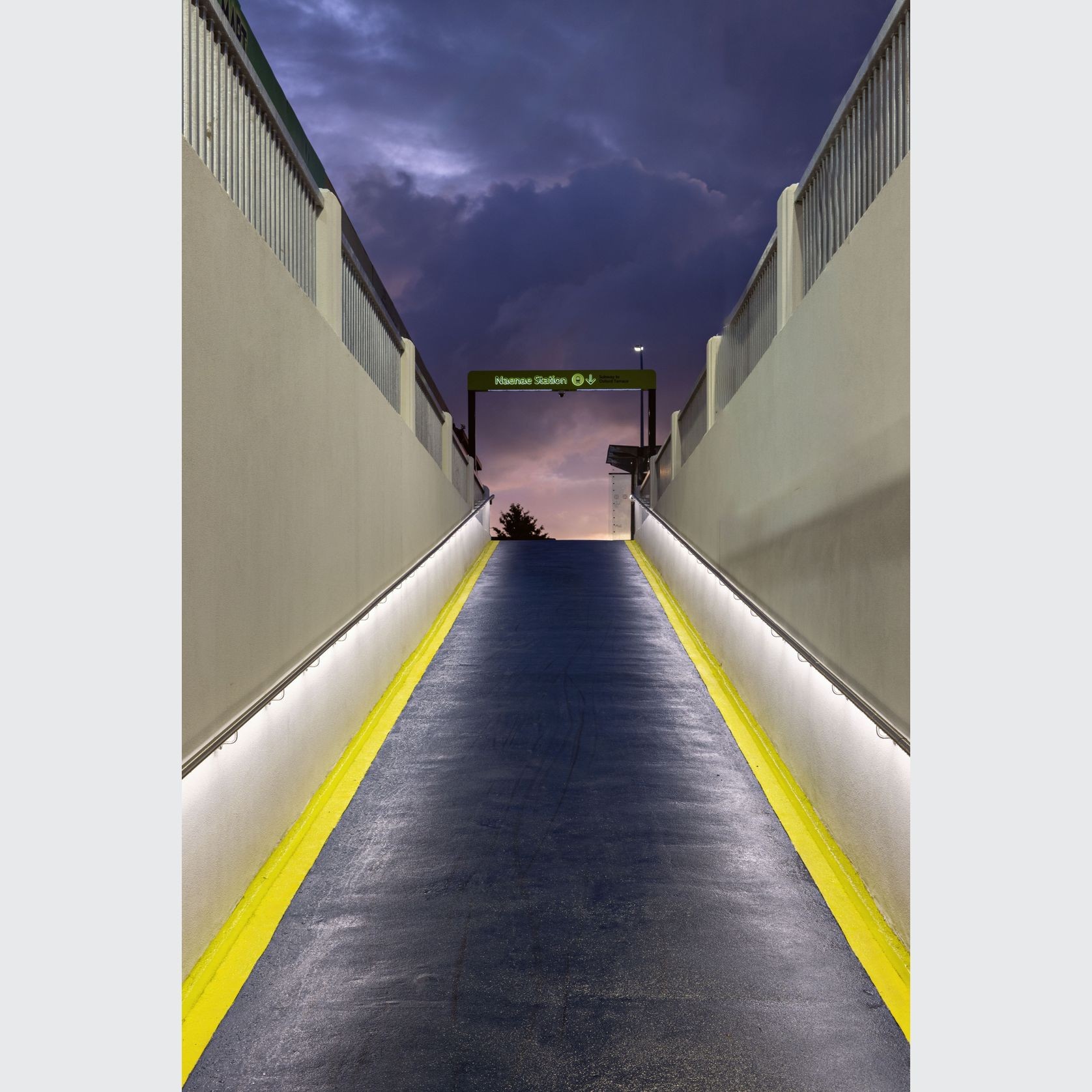

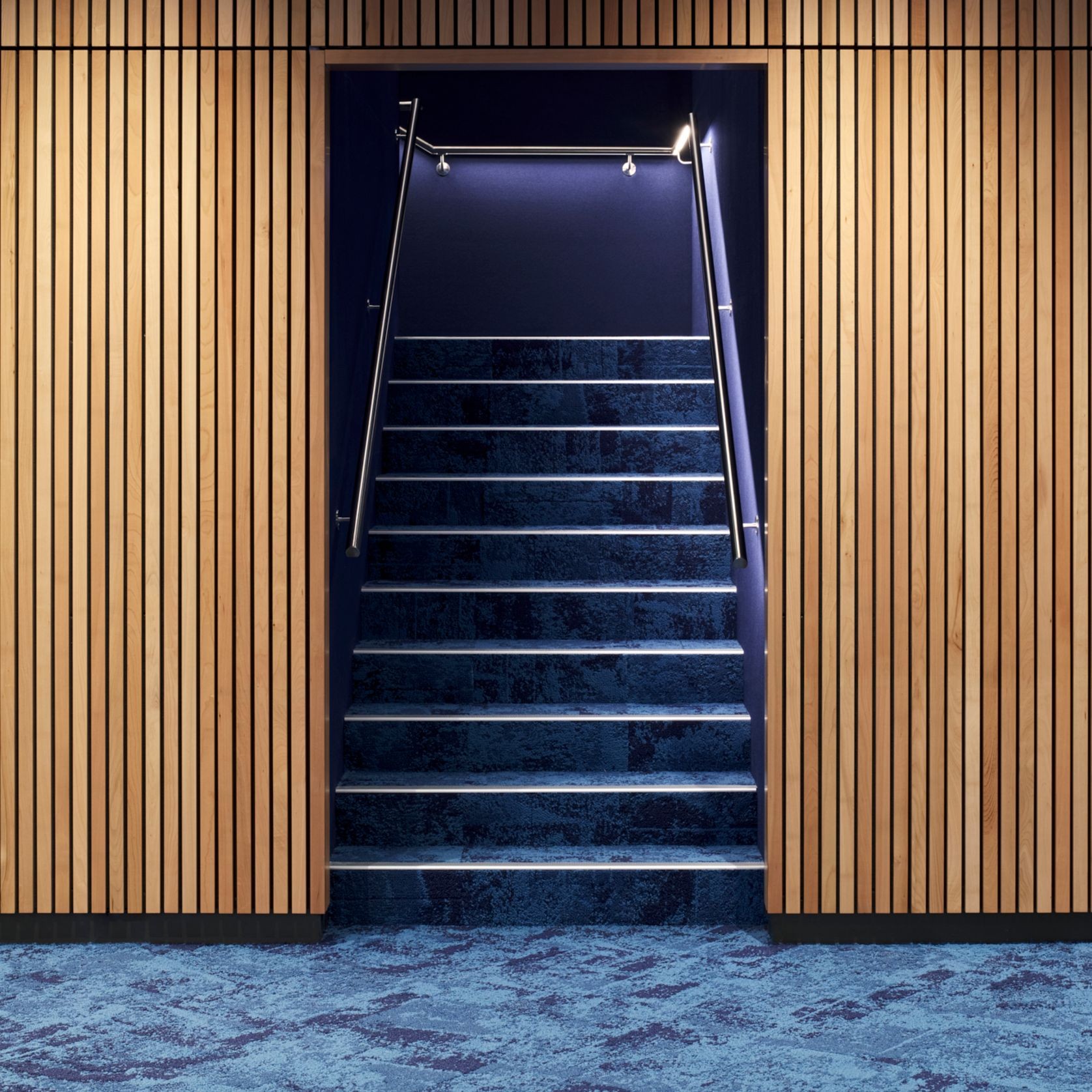

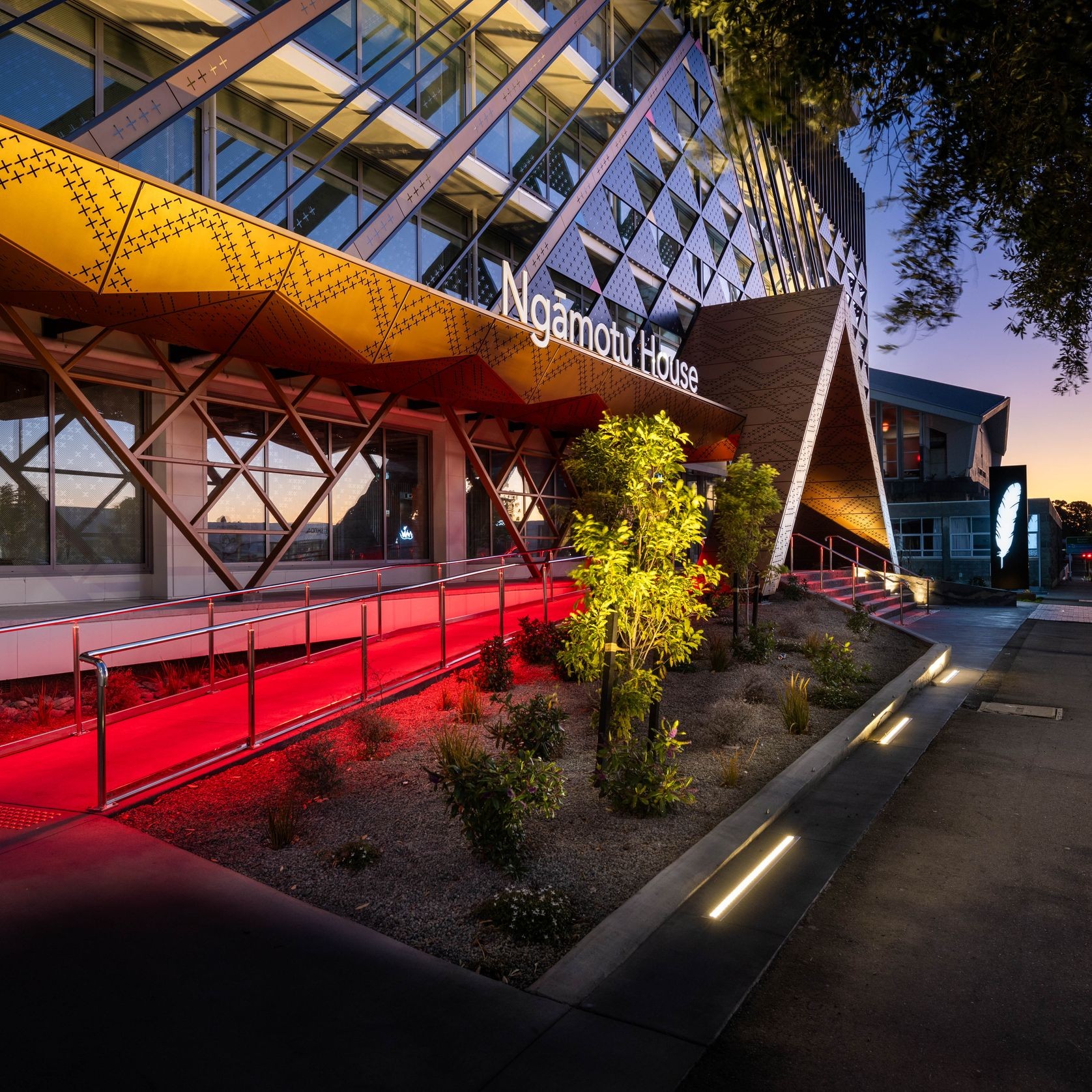

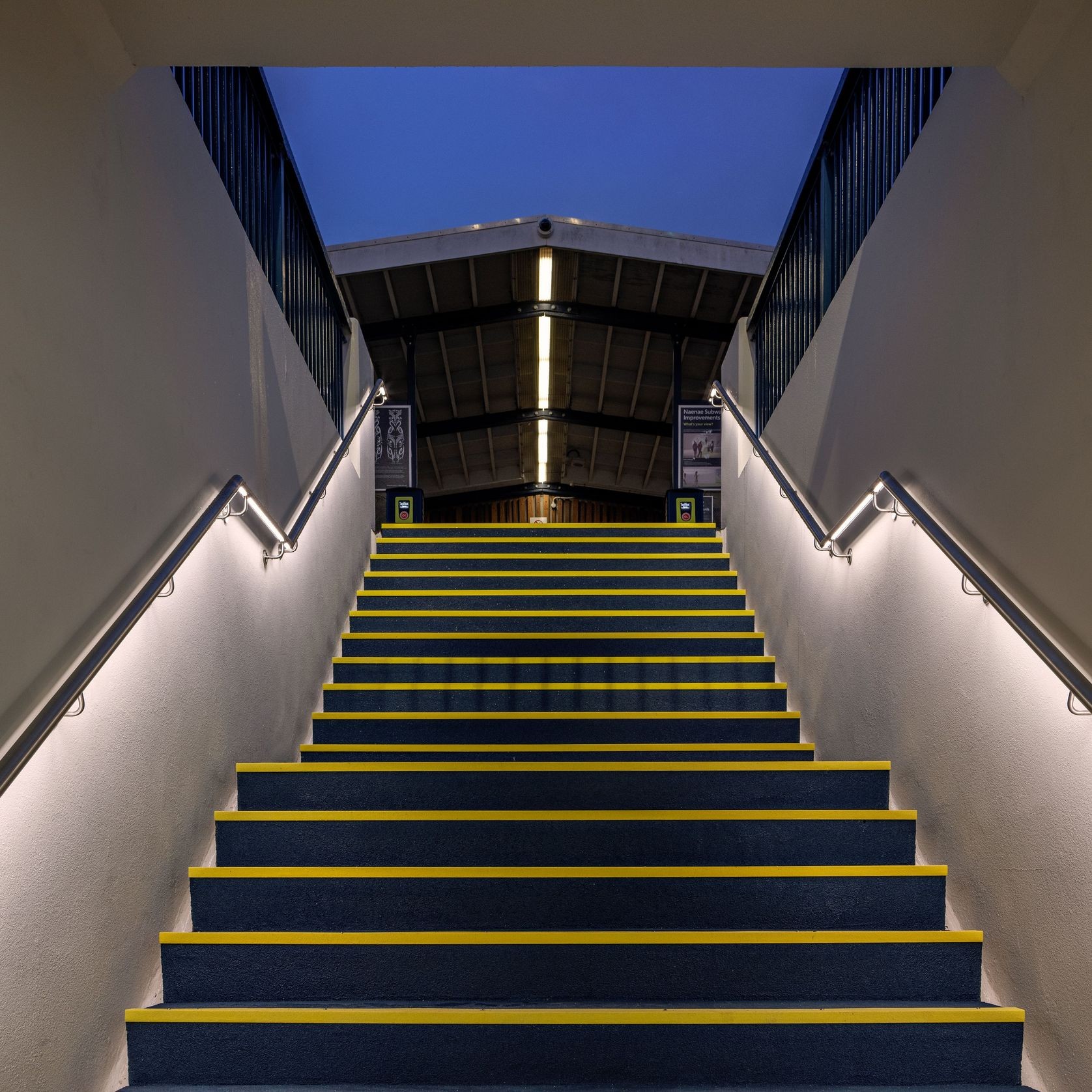

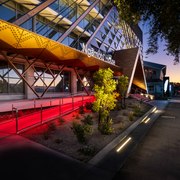

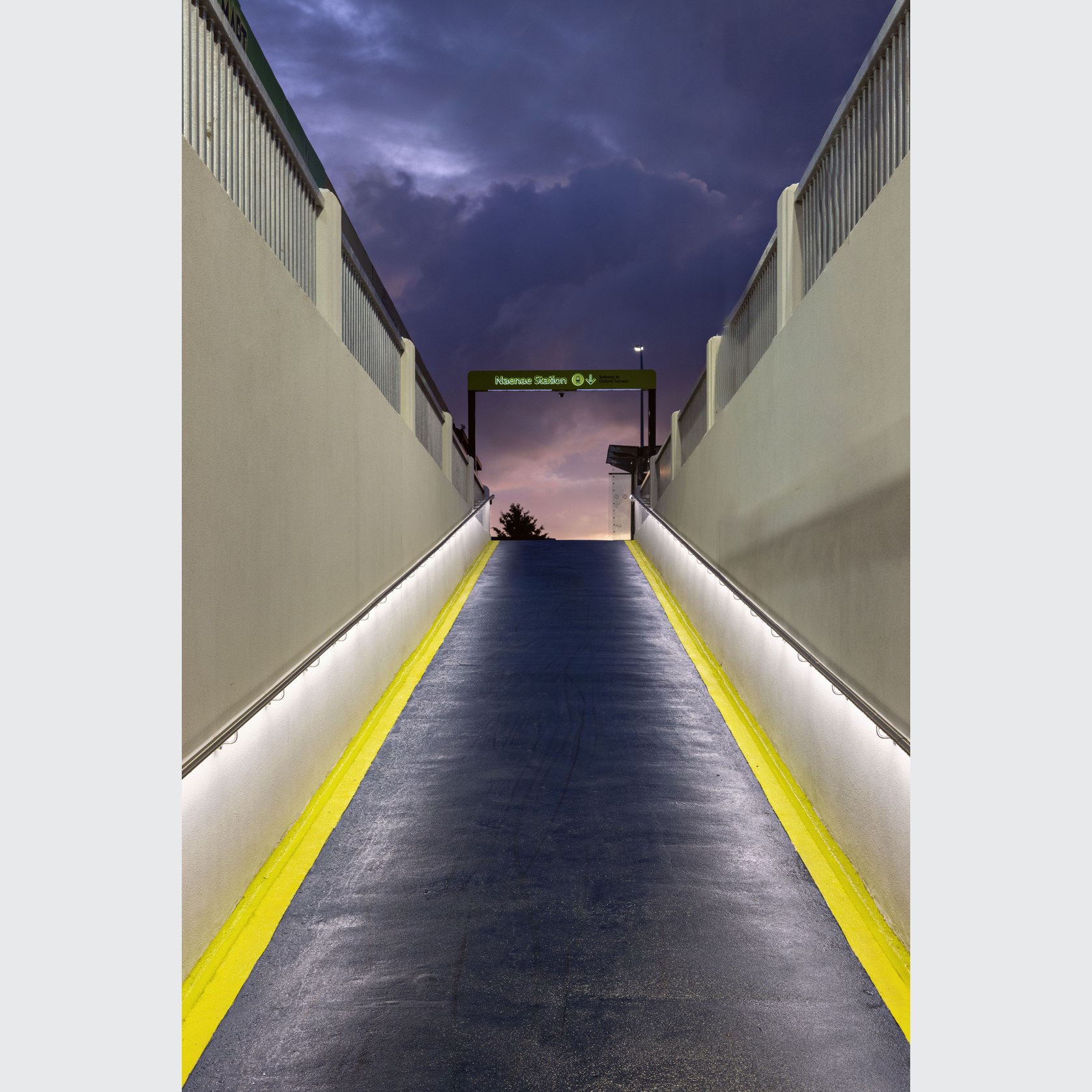

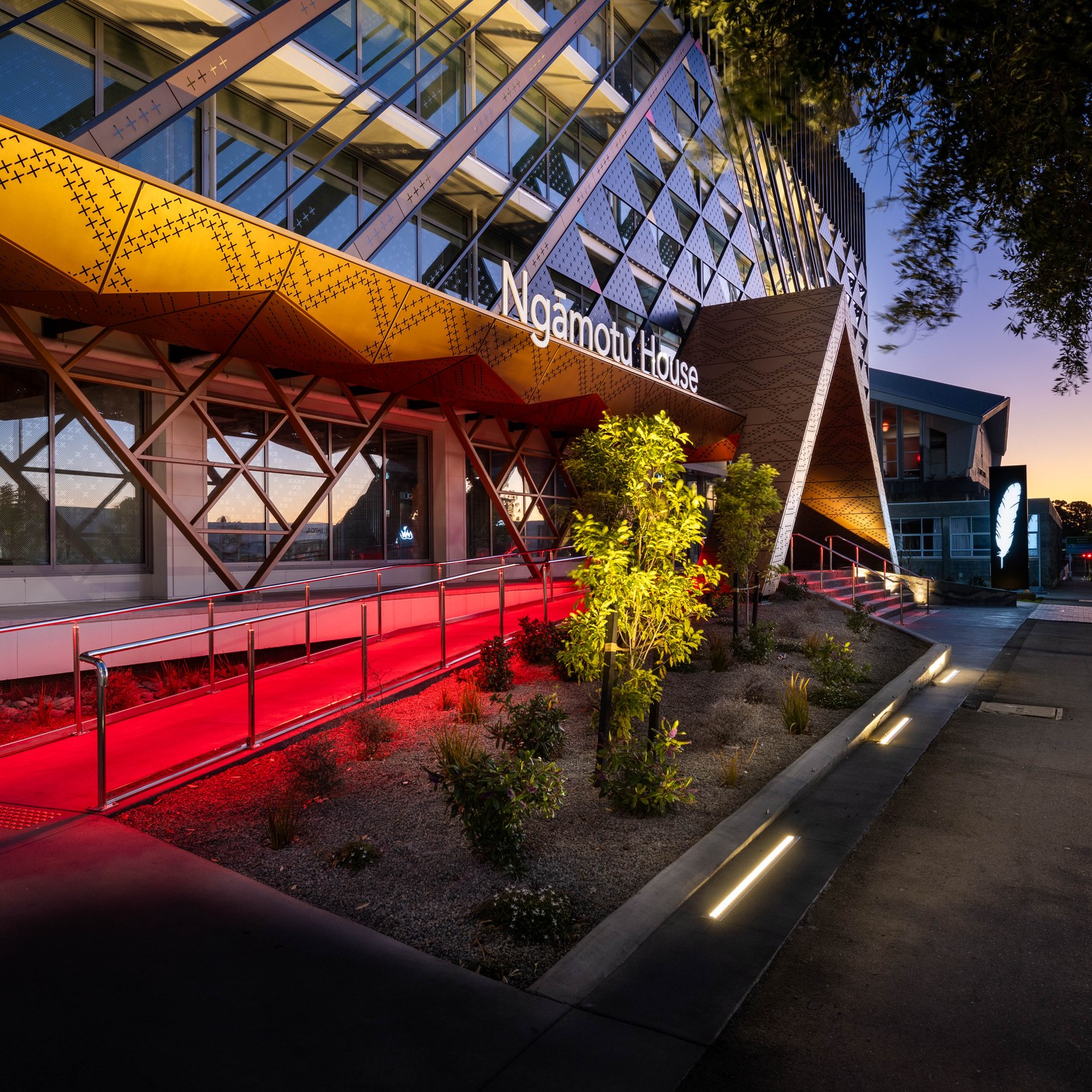

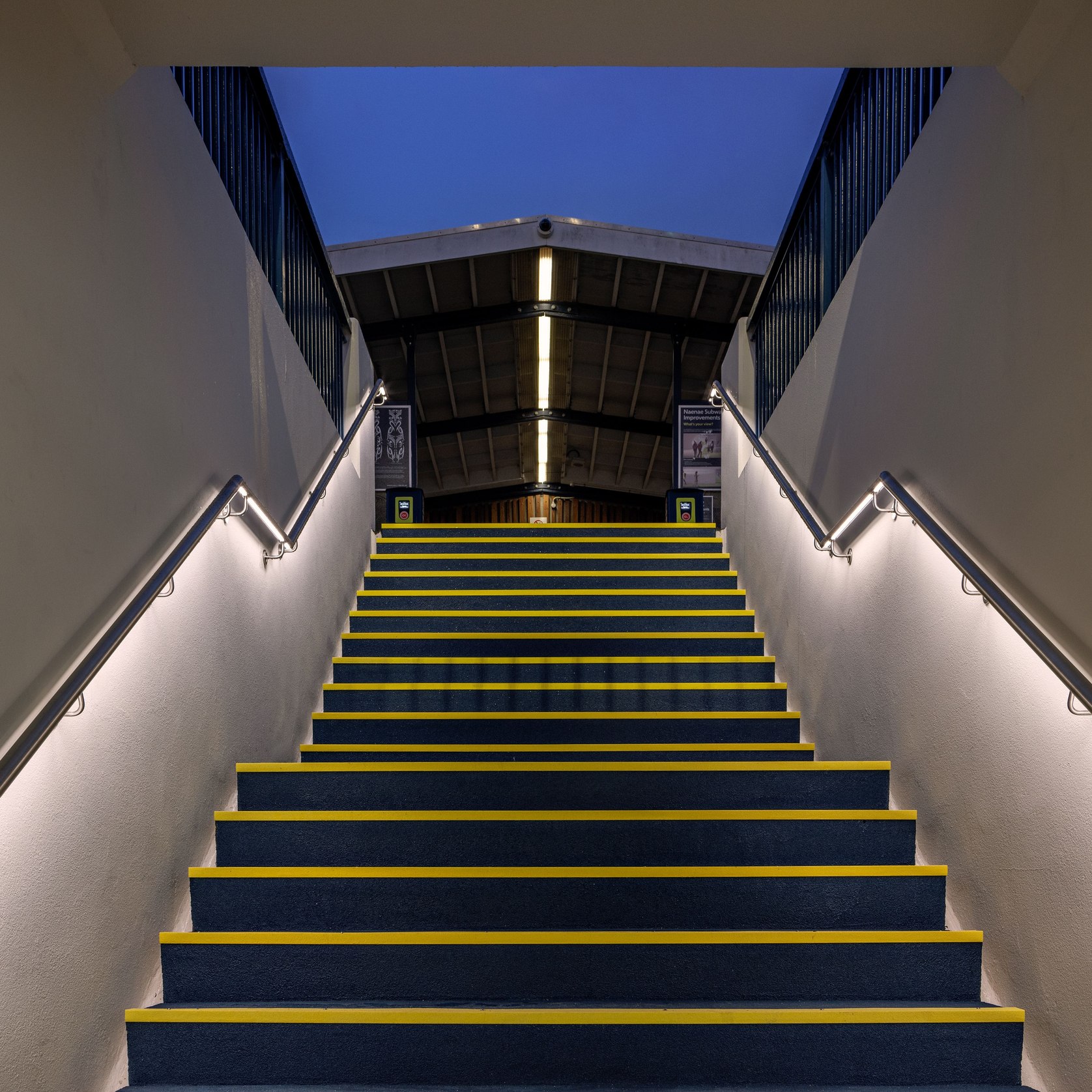

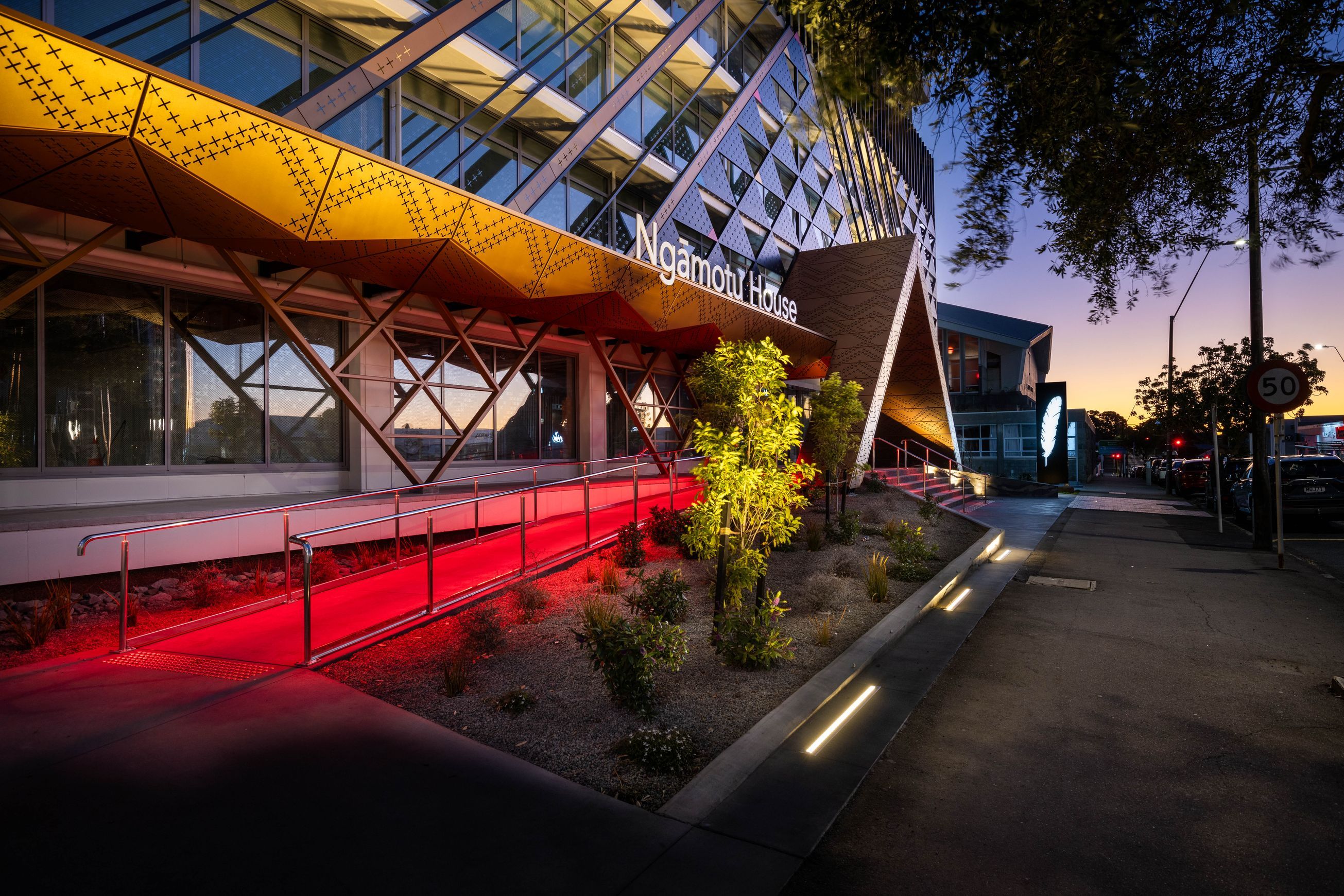

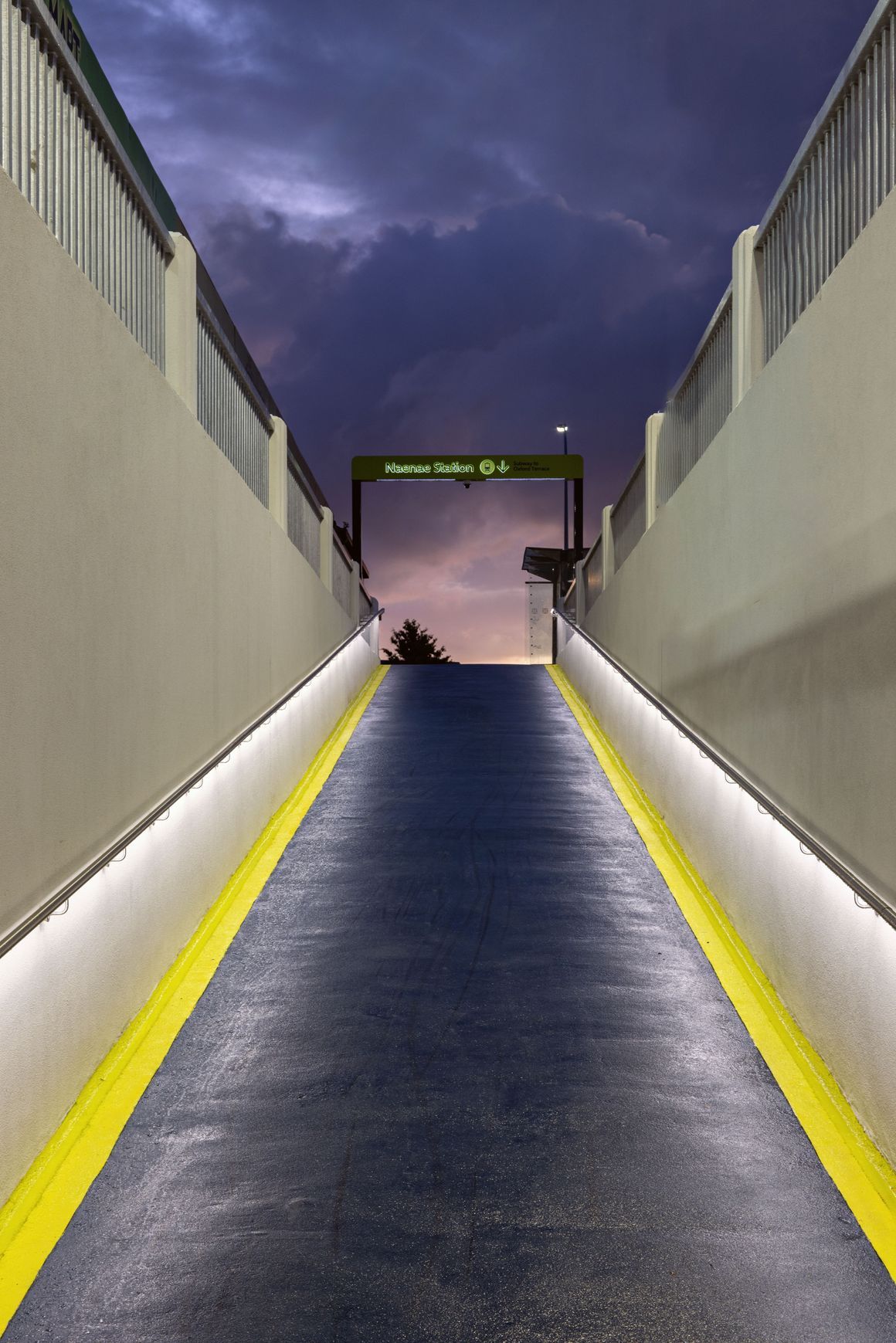

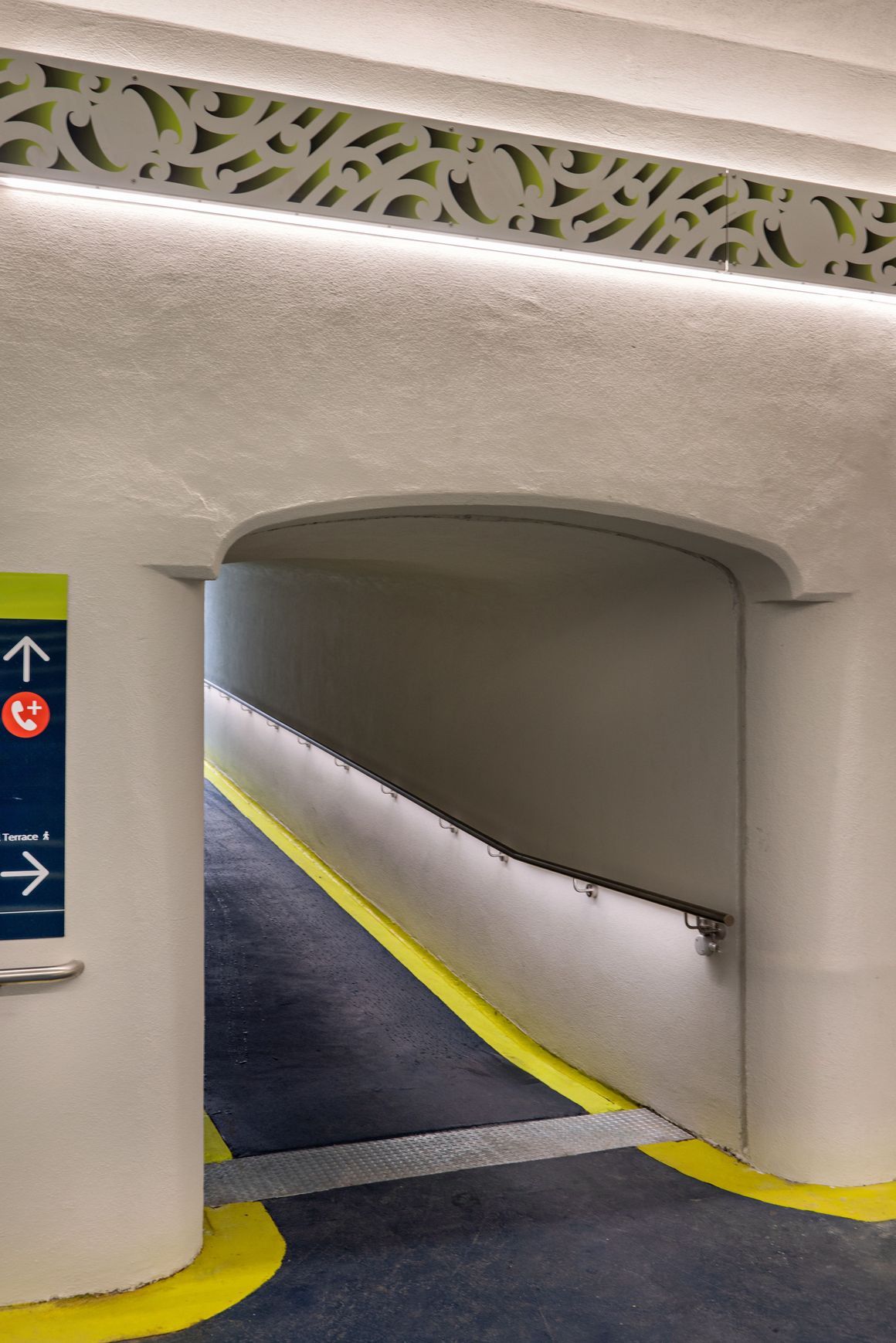

Yes. It has been specified in projects on ArchiPro, including Ngāmotu House by Offspring Profiles®, BNZ Place by Offspring Profiles® and Naenae Train Station by Offspring Profiles®. See how it was used in a finished space.
