RS-485/DMX512 Gateway

Direct Control
Visit Website
RS-485/DMX512 Gateway gallery detail image
Dynalite

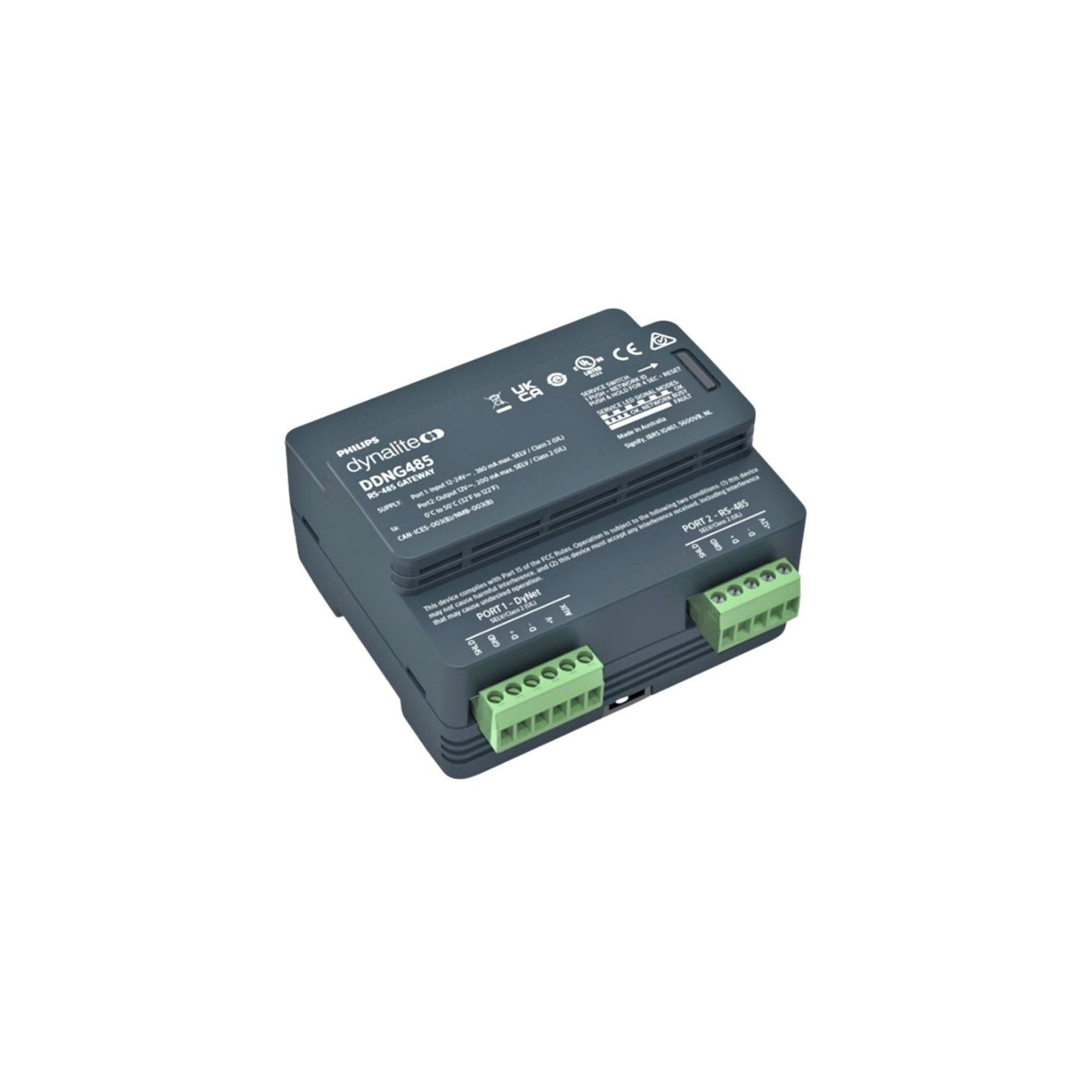

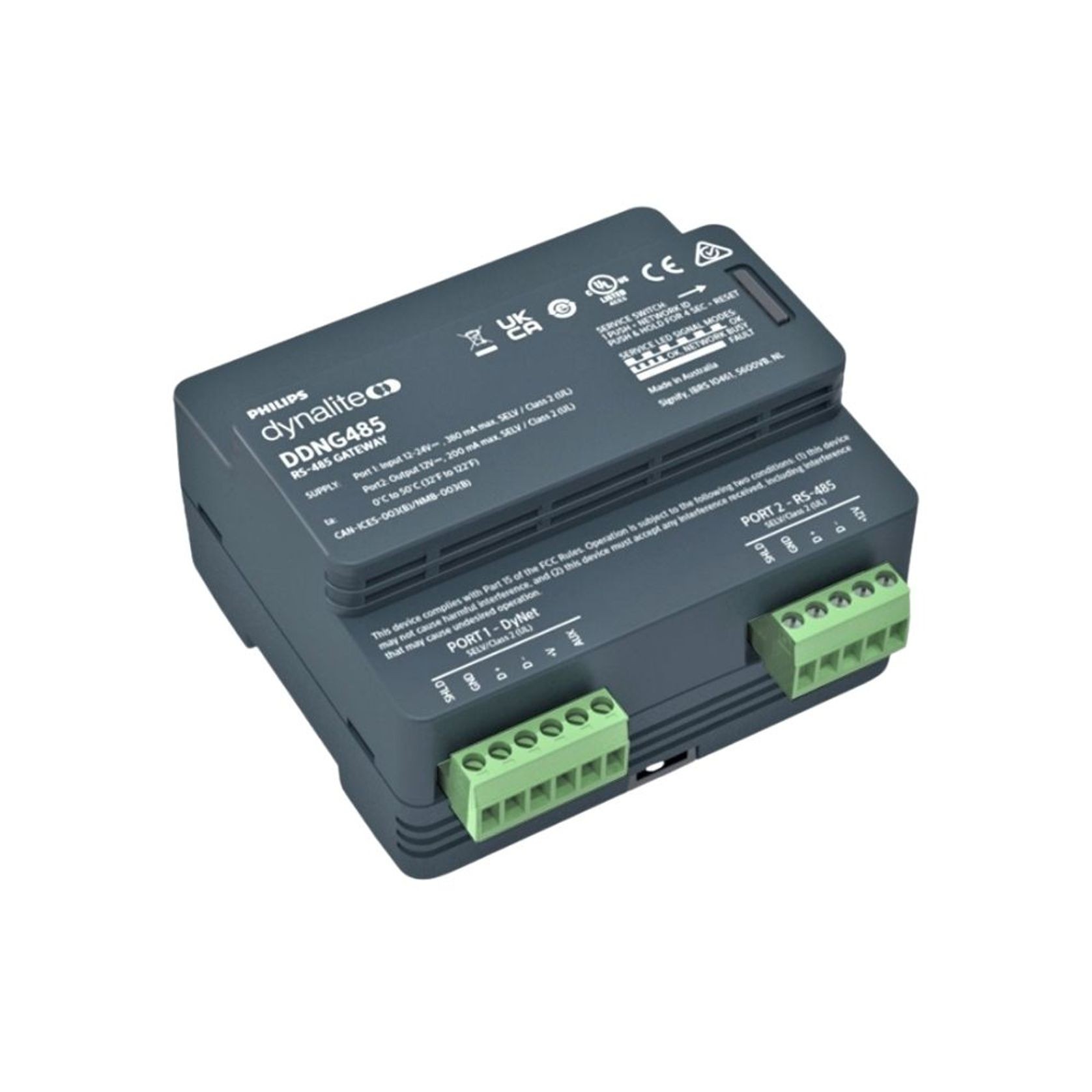

The Philips Dynalite RS-485/DMX512 Gateway is designed to enable seamless communication between RS-485 networks and third-party systems such as audio-visual, Modbus meters, and building automation systems. The gateway features two opto-isolated RS-485 ports, allowing for the creation of trunk and spur topologies on large-scale projects. This setup provides a high-speed backbone that is opto-coupled to multiple lower-speed spurs, making it ideal for complex building control and energy management applications.

In addition to its RS-485 functionality, the RS-485/DMX512 Gateway supports DMX512, transmitting or receiving up to 512 DMX channels with automatic DyNet conversion and task triggering. This feature is particularly useful in scenarios where house lighting requires temporary control from a DMX console, such as in theatres and auditoriums.

The RS-485/DMX512 Gateway also includes electrical fault isolation, which isolates faults to individual network spurs, minimising disruptions and maintaining network reliability. The device is equipped with a programmable logic controller (PLC), capable of processing complex logic, including conditional and sequential operations, packet filtering, and DyNet to DyNet 2 translation.

The RS-485/DMX512 Gateway is DIN rail mountable, allowing for easy installation into distribution boards or other electrical enclosures, making it a flexible solution for large-scale building automation and network control systems.

Details
  • Category
    Lighting Automation, Controllers
General
  • Country of origin
    Australia
  • Type of use
    Commercial
  • Installation
    Professional installation required
Features

Key Features:

  • RS-485 Network Bridge: Enables trunk and spur topology, providing a high-speed backbone for large projects.
  • DMX512 Support: Transmits or receives up to 512 DMX channels, with automatic DyNet conversion and task triggering, perfect for applications such as theatre lighting.
  • Third-Party System Integration: Routes DyNet to third-party systems such as audio-visual equipment, Modbus metres, and building automation systems for a fully integrated control network.
  • Electrical Fault Isolation: Isolates faults to individual network spurs, ensuring reliability across the network.
  • Programmable Logic Controller (PLC): Supports comprehensive logic processing, including conditional and sequential logic, packet filtering, and DyNet to DyNet 2 translation.
  • Flexible Mounting Solution: DIN rail mountable, designed for easy installation into distribution boards or electrical enclosures.
Applications

Applications:

  • Large-Scale Building Automation: Ideal for complex projects that require a high-speed communication backbone with lower-speed spurs.
  • Theatre and Auditorium Lighting: Enables temporary control of house lights via DMX consoles while maintaining integration with the larger building control system.
  • Energy Management and Building Control: Facilitates integrated control between building automation systems, Modbus metres, and other third-party systems for centralised energy management.
