Stainless Steel: 316L marine grade
Skimmer Lid Sizes: 306mm & 342mm square (342mm fits all Australian Skimmer Box Openings)

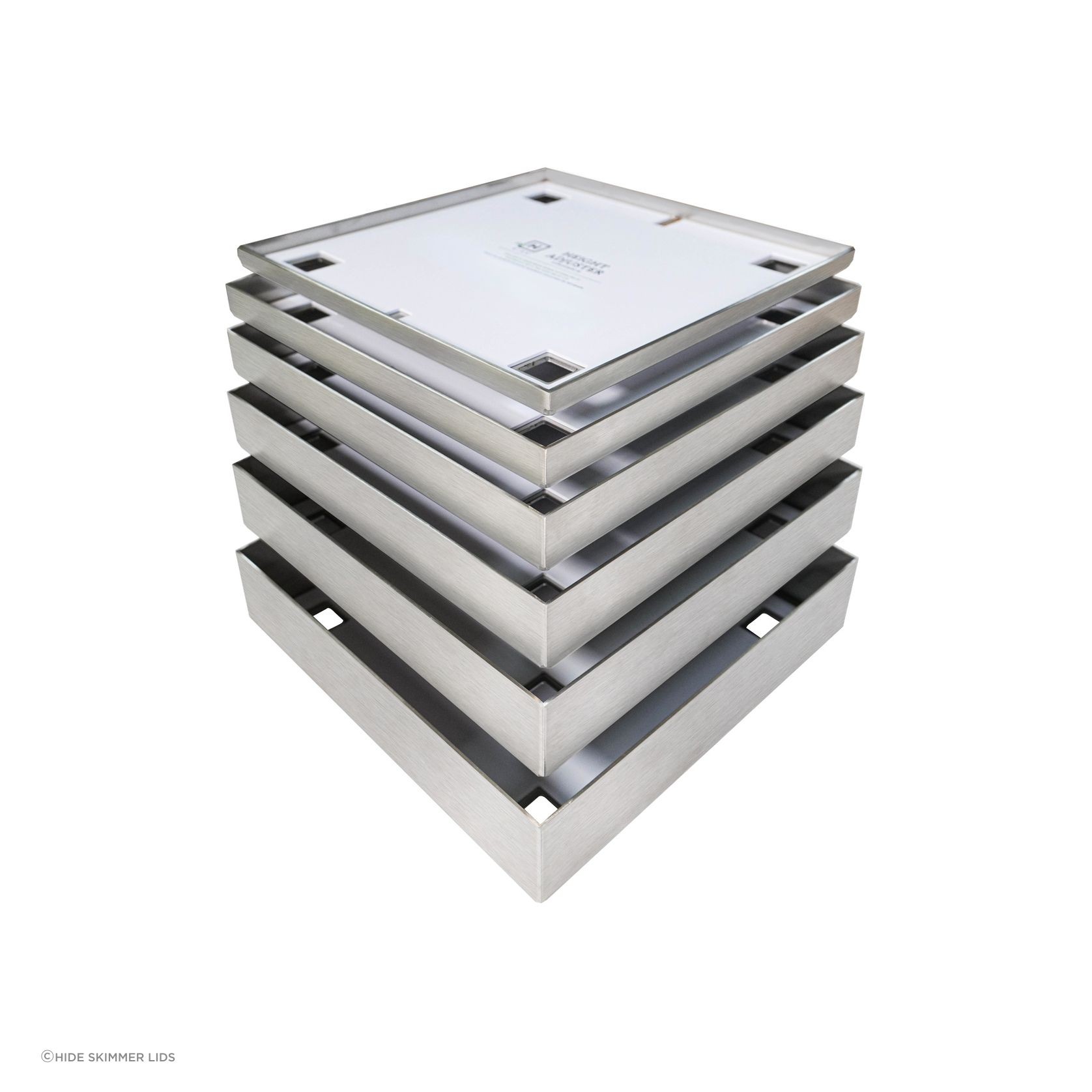

Depth: Specify a depth equal to or the next depth above your inlay material thickness. The depths are 10mm, 15mm, 20mm, 30mm, 40mm, 50mm, and 60mm.
Access opening: Ensure the underside opening dimension is larger than required. Extra space will allow flexibility in the system's positioning.
The HSL342 has an underside opening of 288mm
The HSL306 has an underside opening of 252mm
Polymer: When earthing cannot be achieved, such as in a pool renovation, HIDE has a range of covers that do not require earthing. Bond Free Polymer
Retail pricing is shown. Trade pricing is available for trades, please contact your local HIDE distributor for more details.

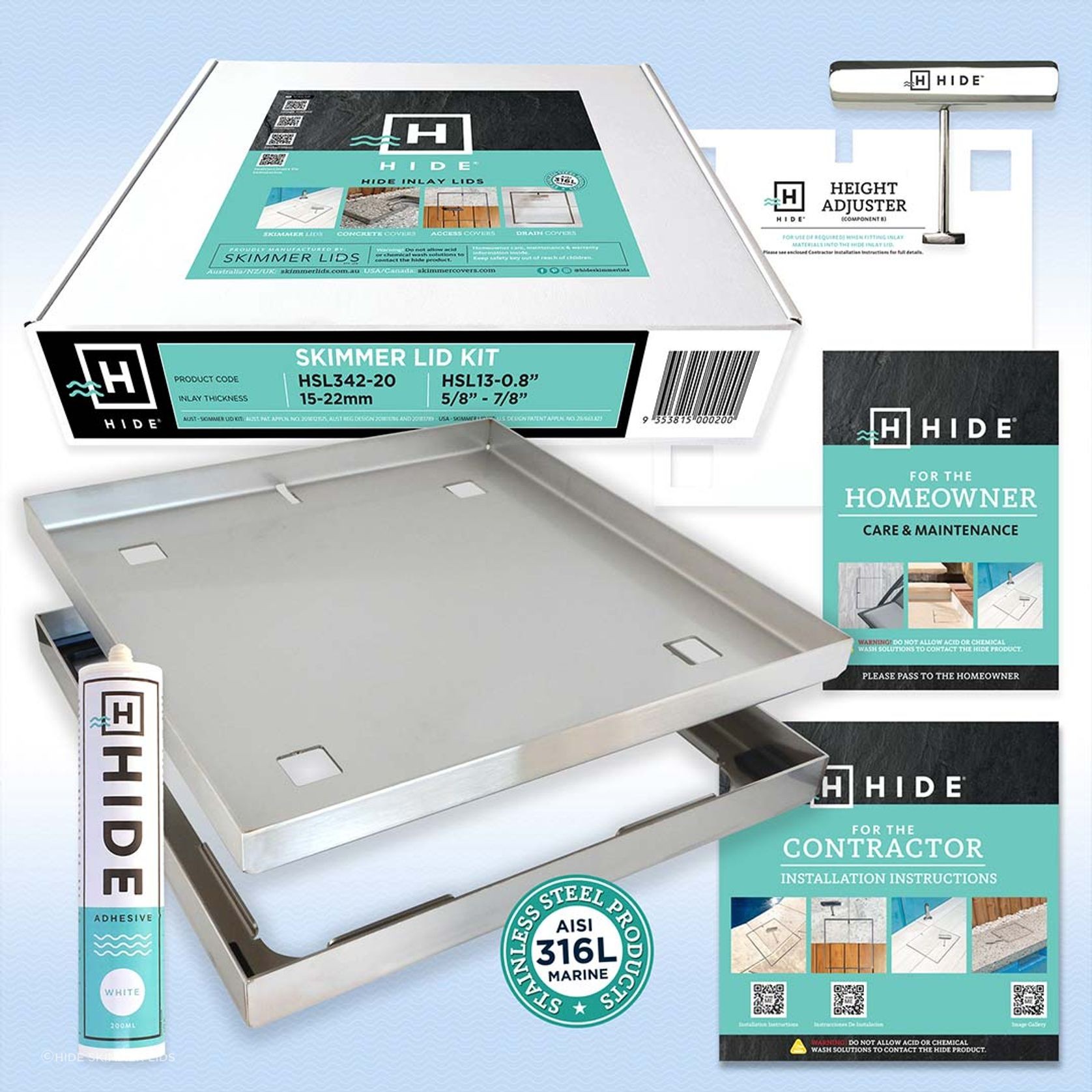

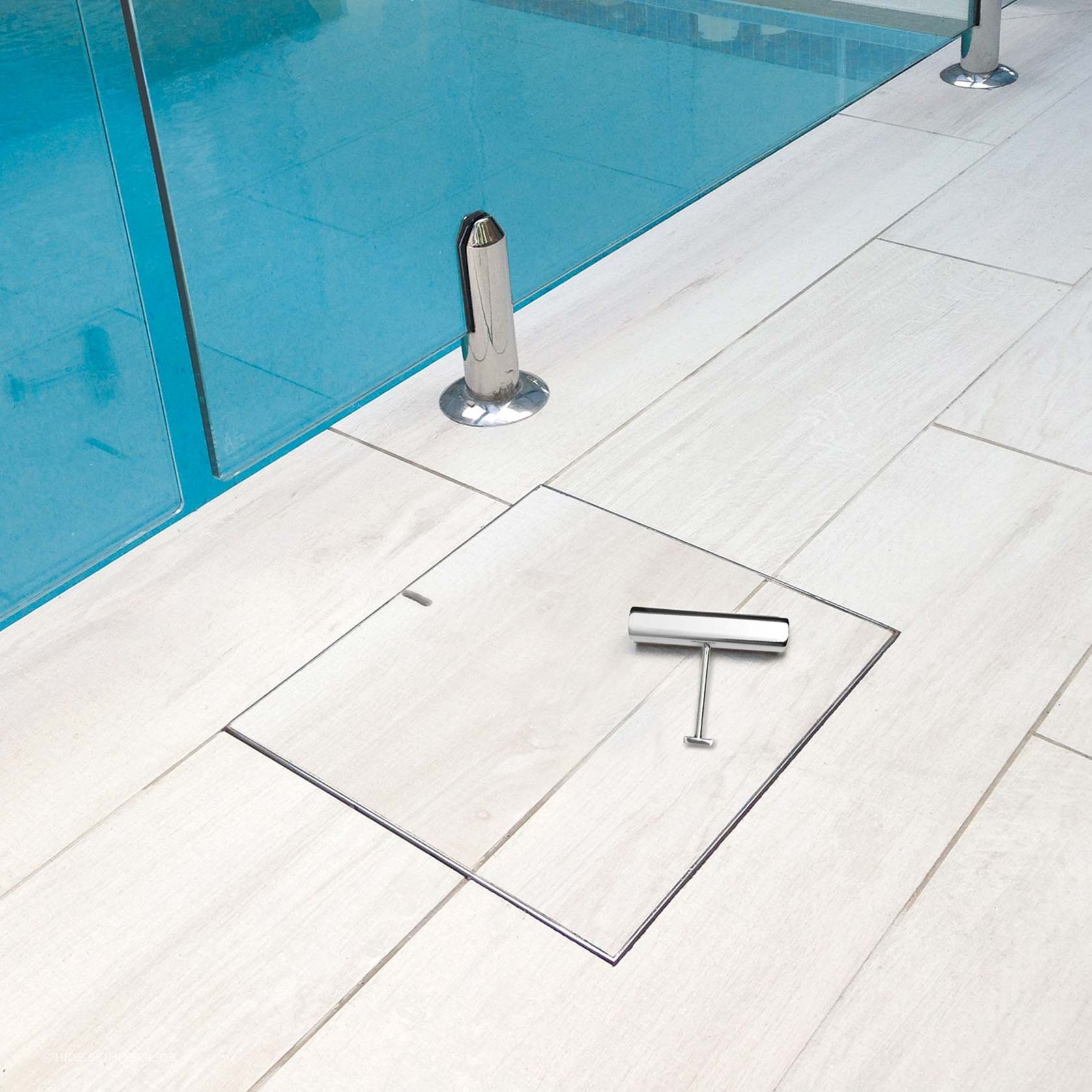

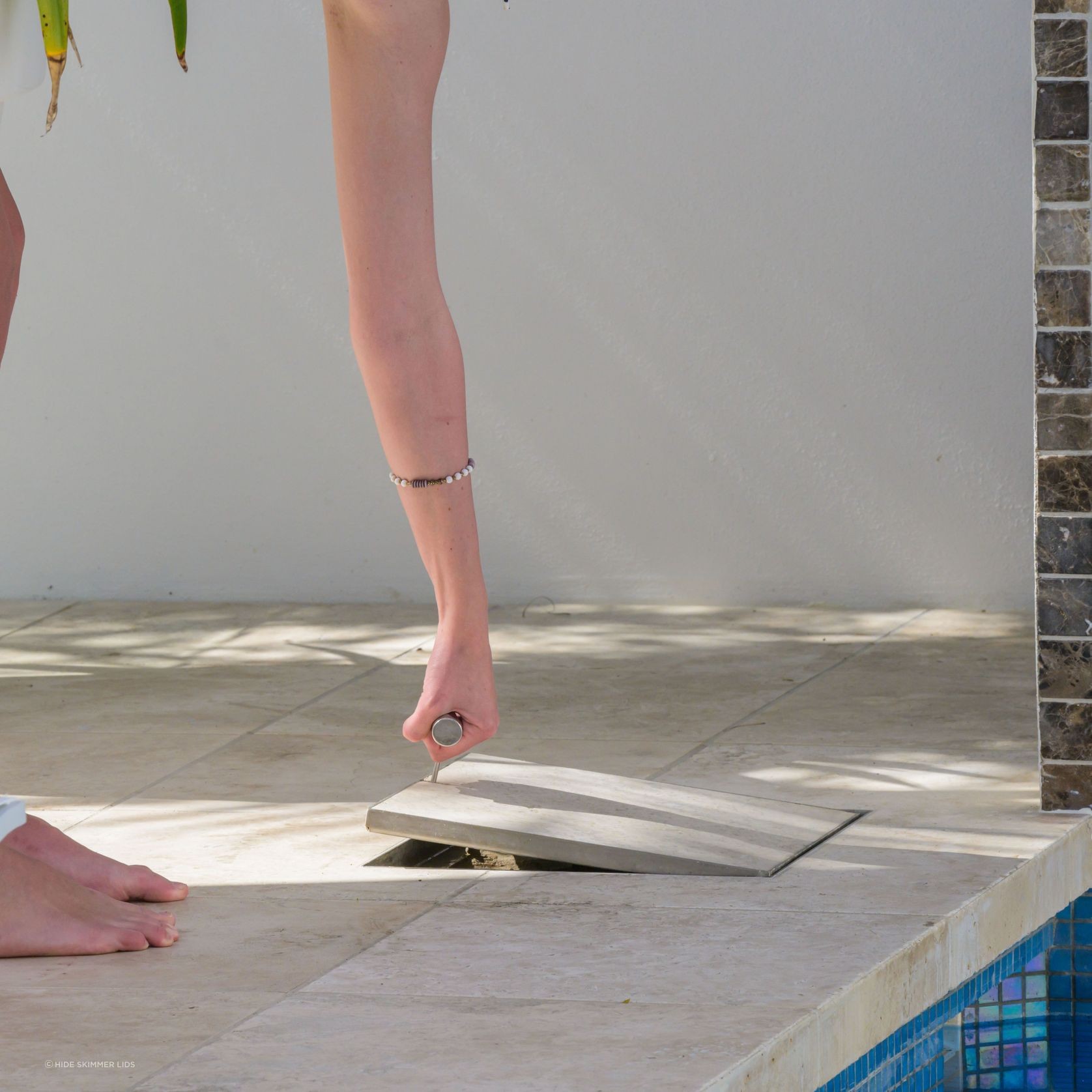

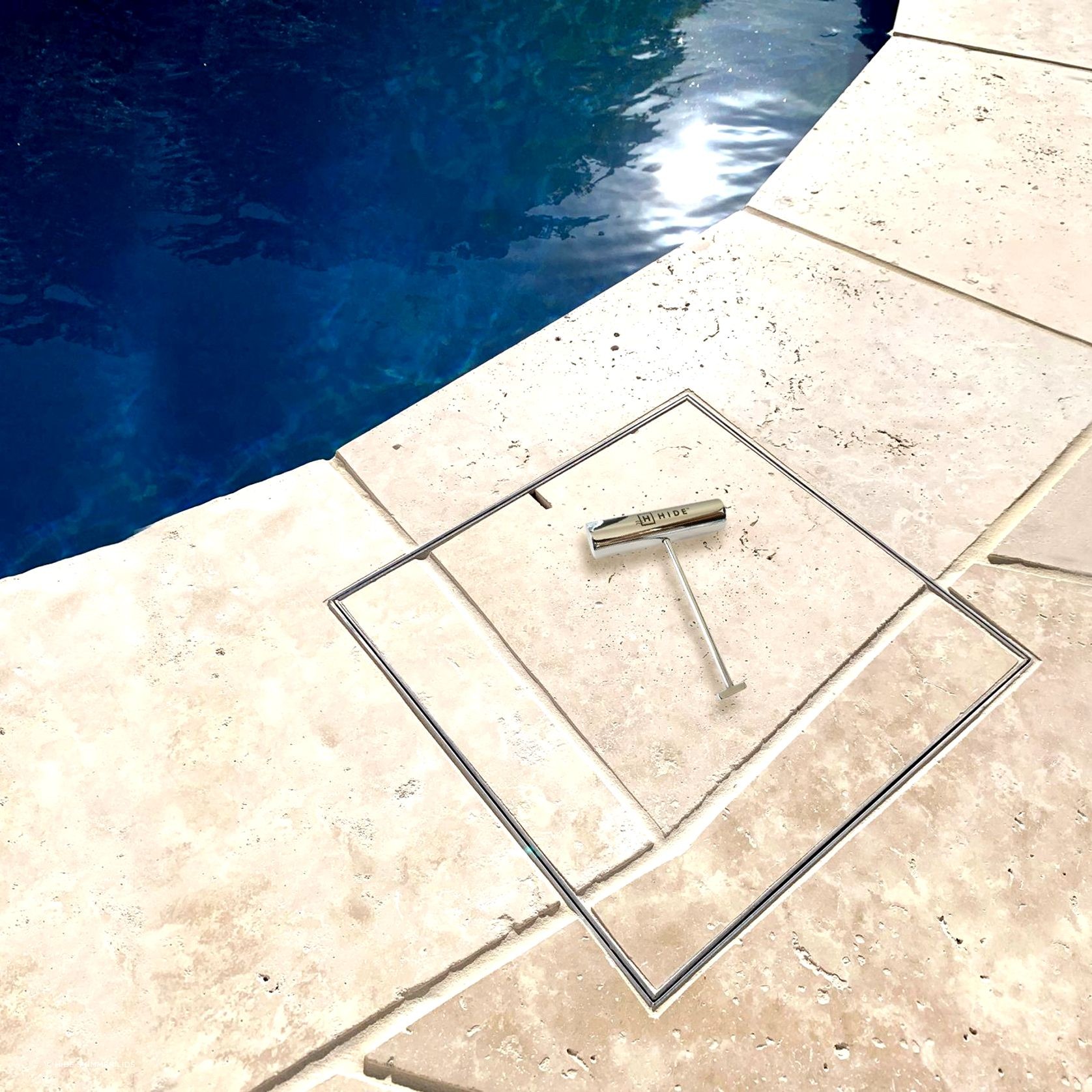

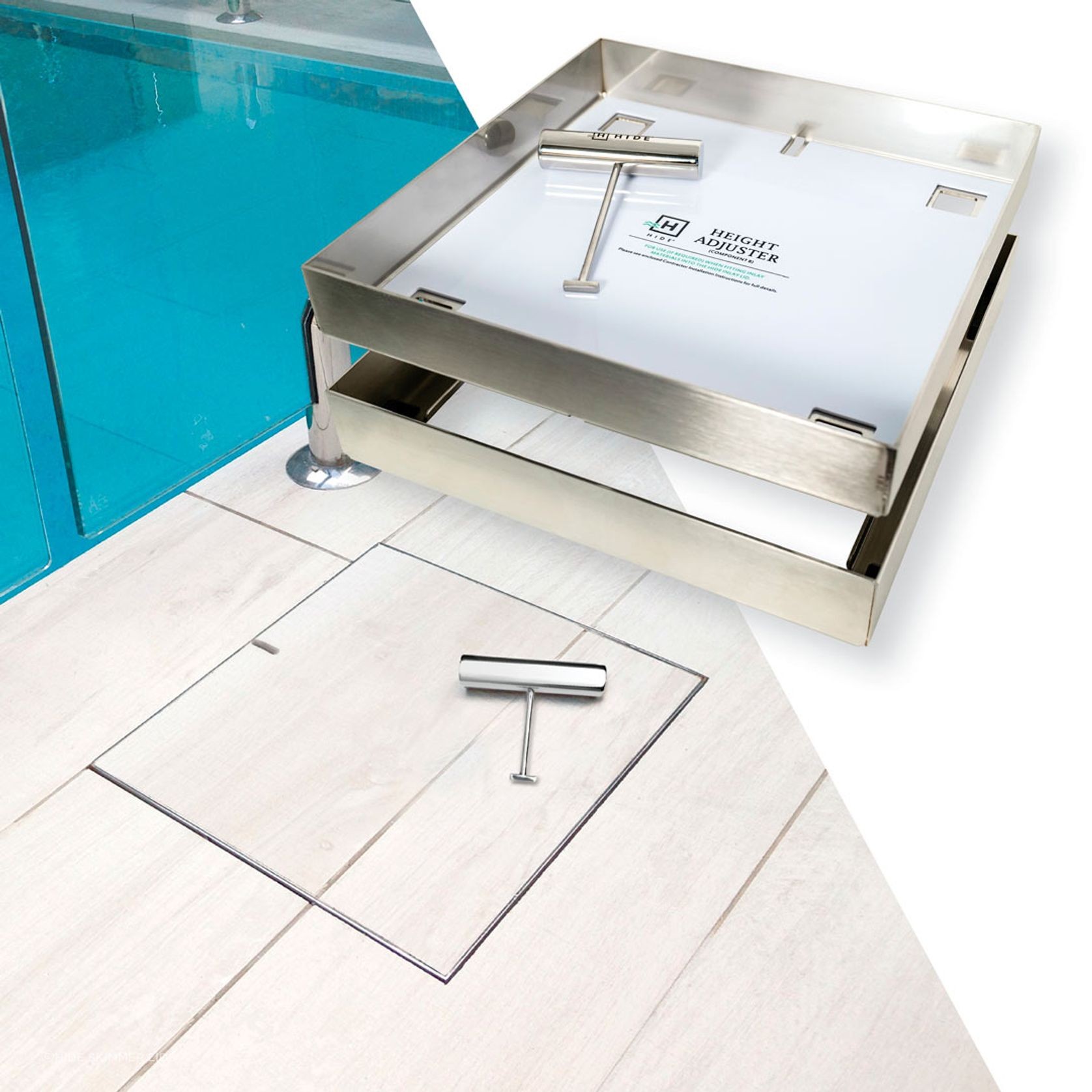

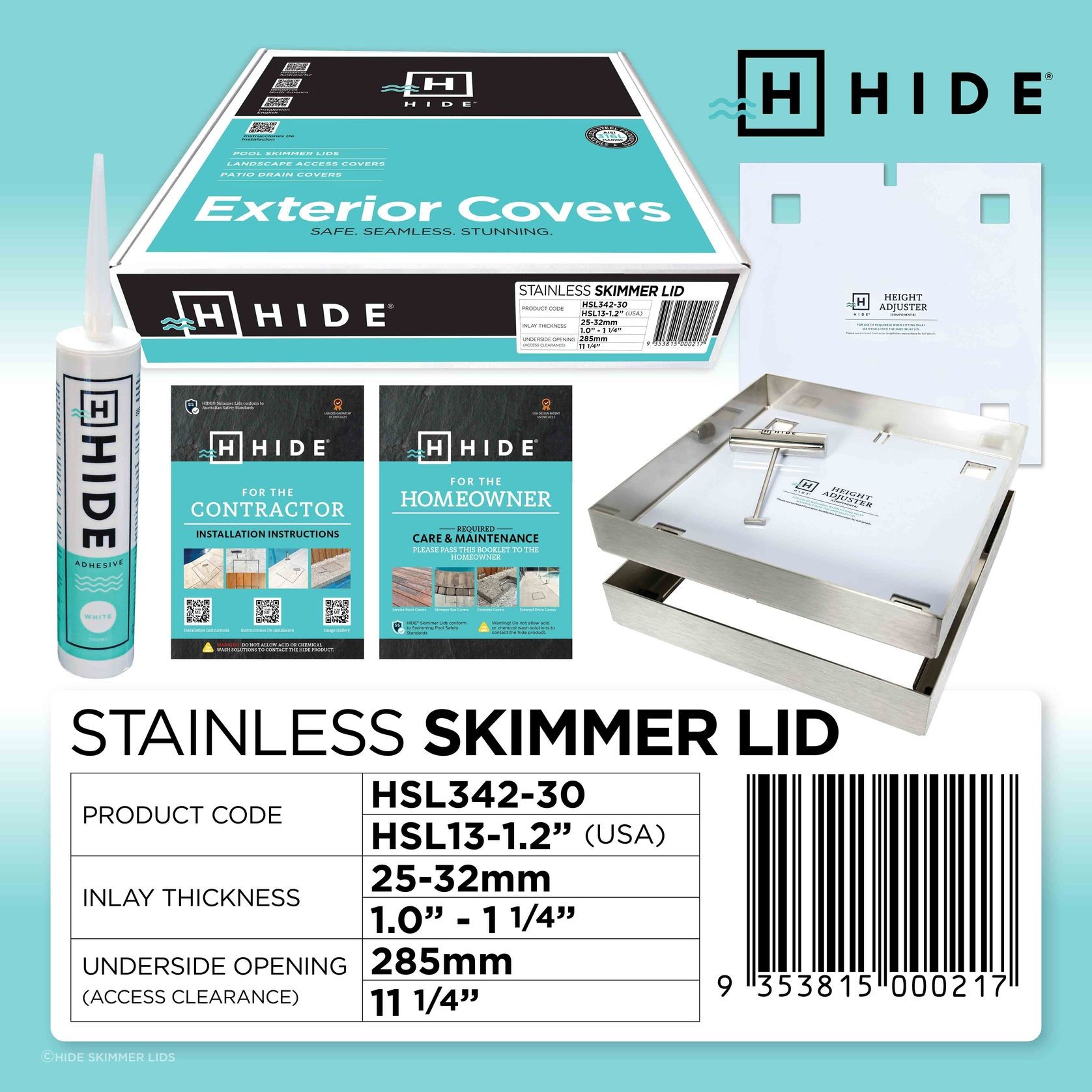

1. HIDE Safety Key: A stainless steel tool enables the installed HIDE lid to be safely and easily opened/closed.
2. HIDE Height Adjuster: Used only when additional height is required. Combined with adhesive, the Height Adjuster can fill up to 8mm of void (3mm Adhesive / 2mm Adjuster thickness / 3mm Adhesive). By adjusting this ratio as required, you will achieve a flush finish with the top of the inlay lid. (See 5. Adhesive)

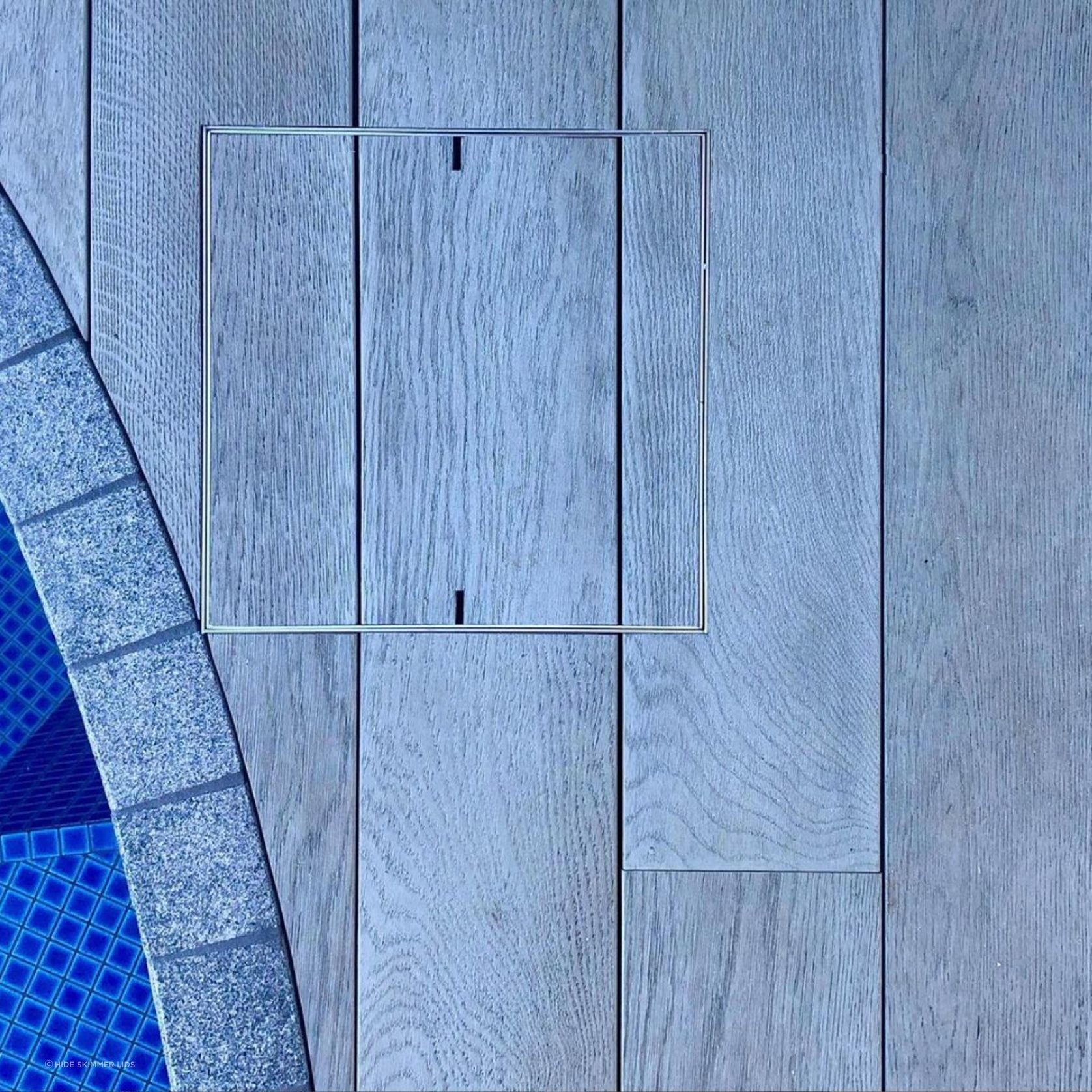

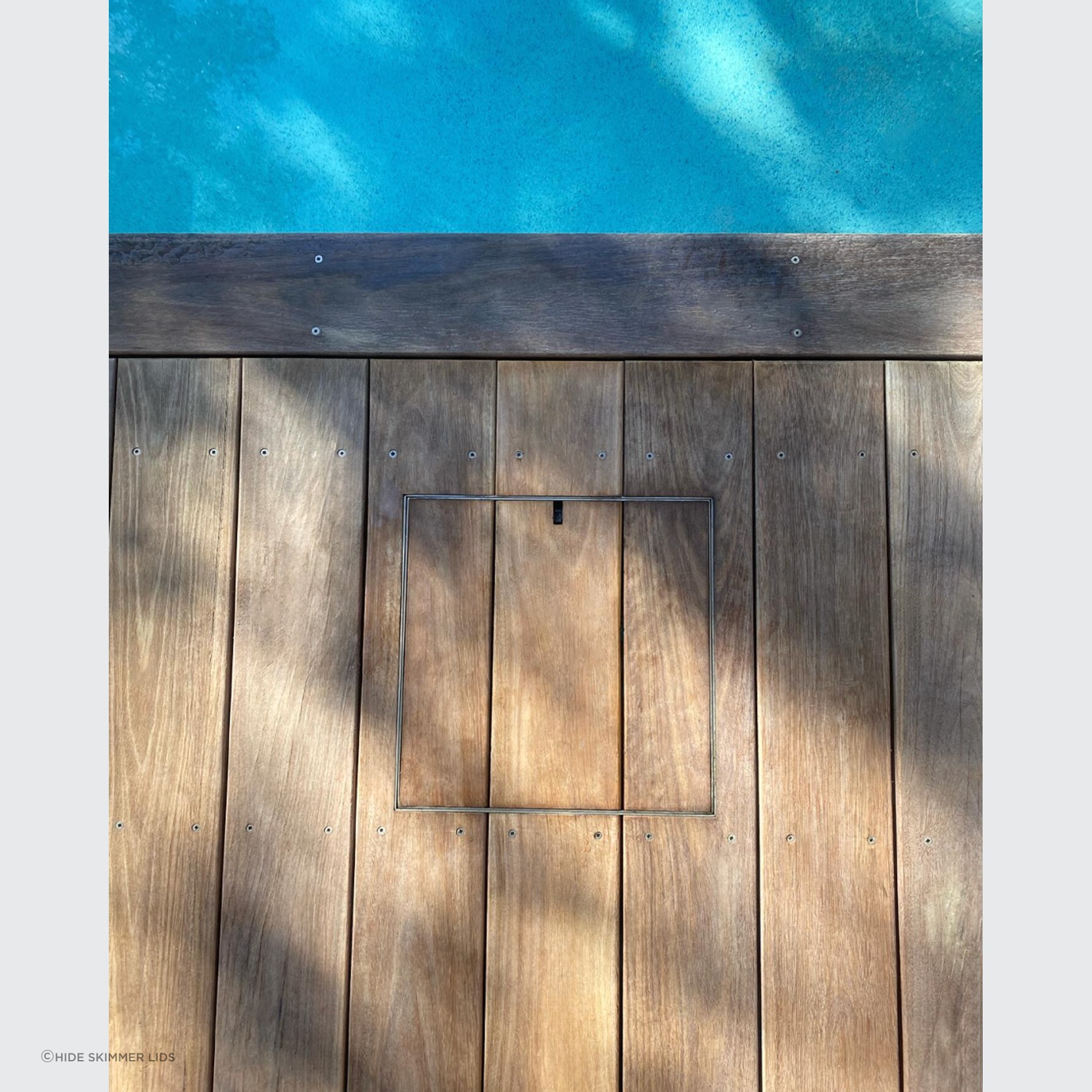

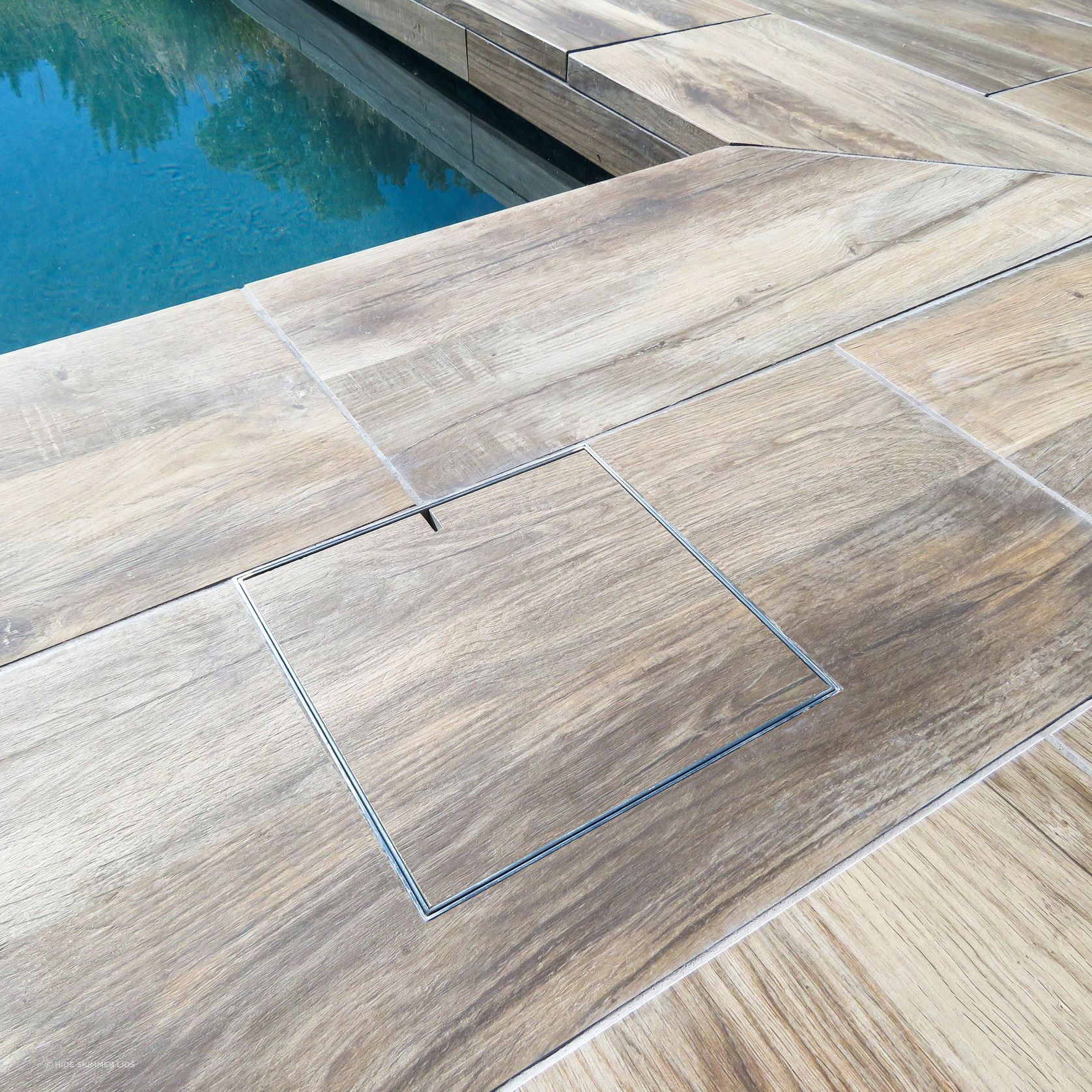

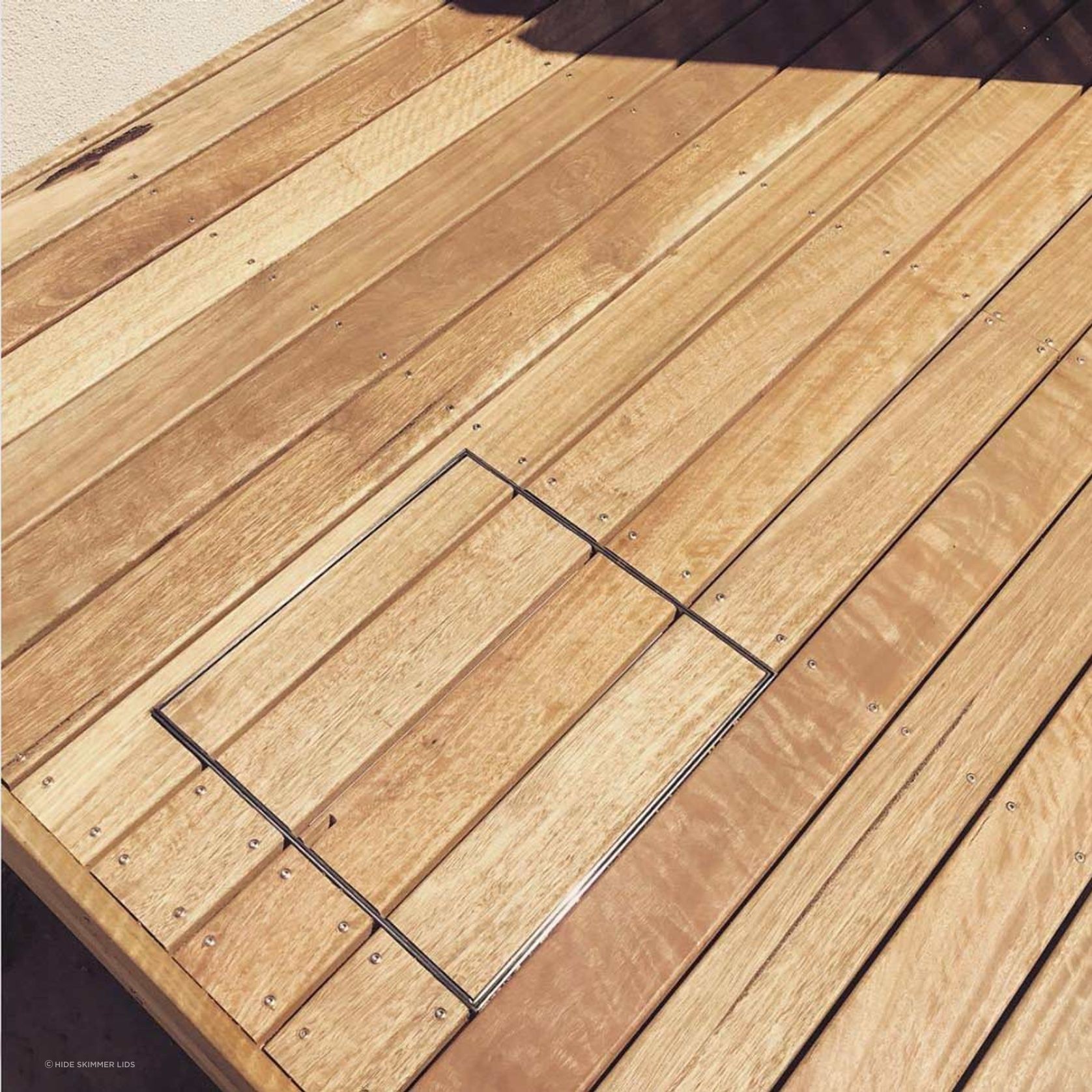

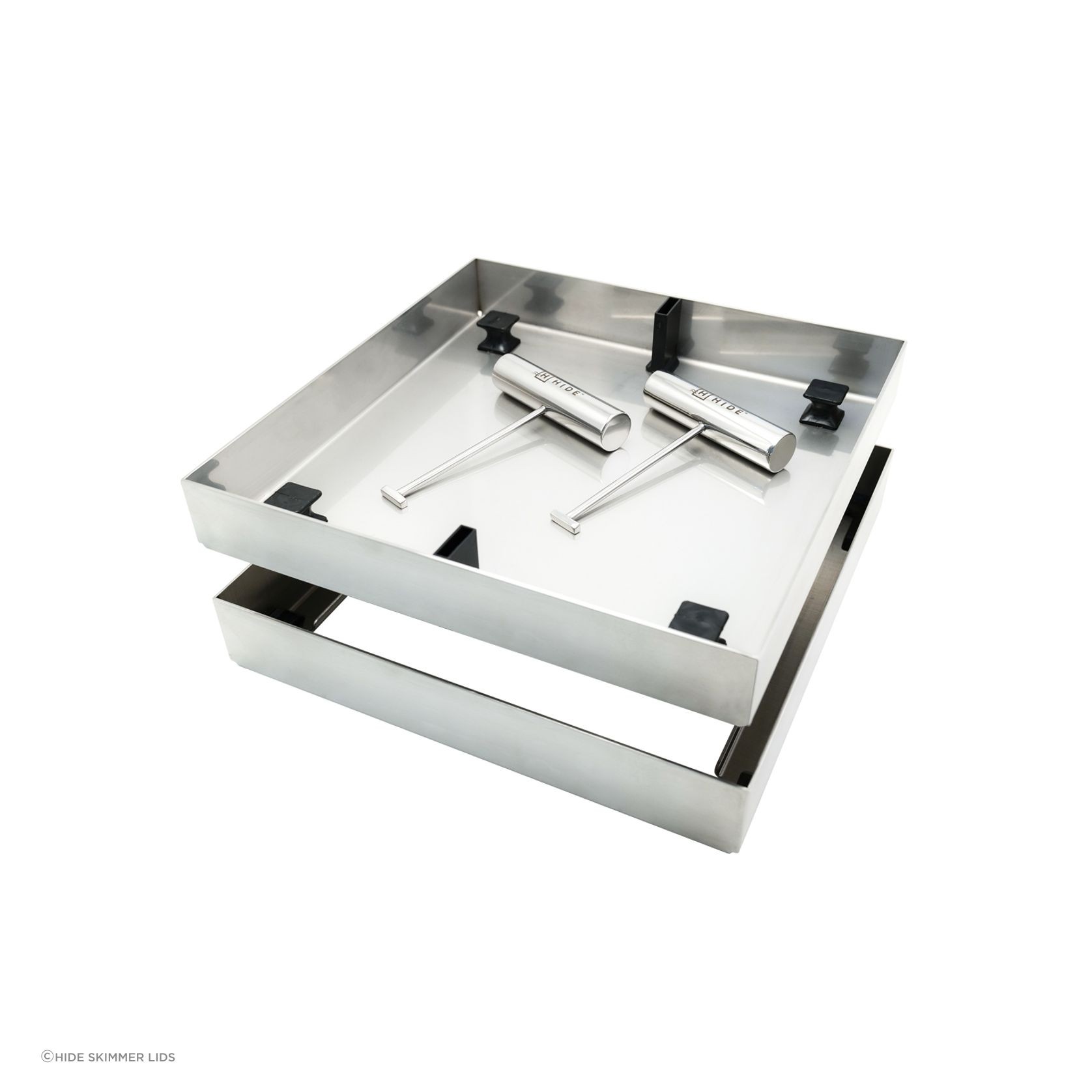

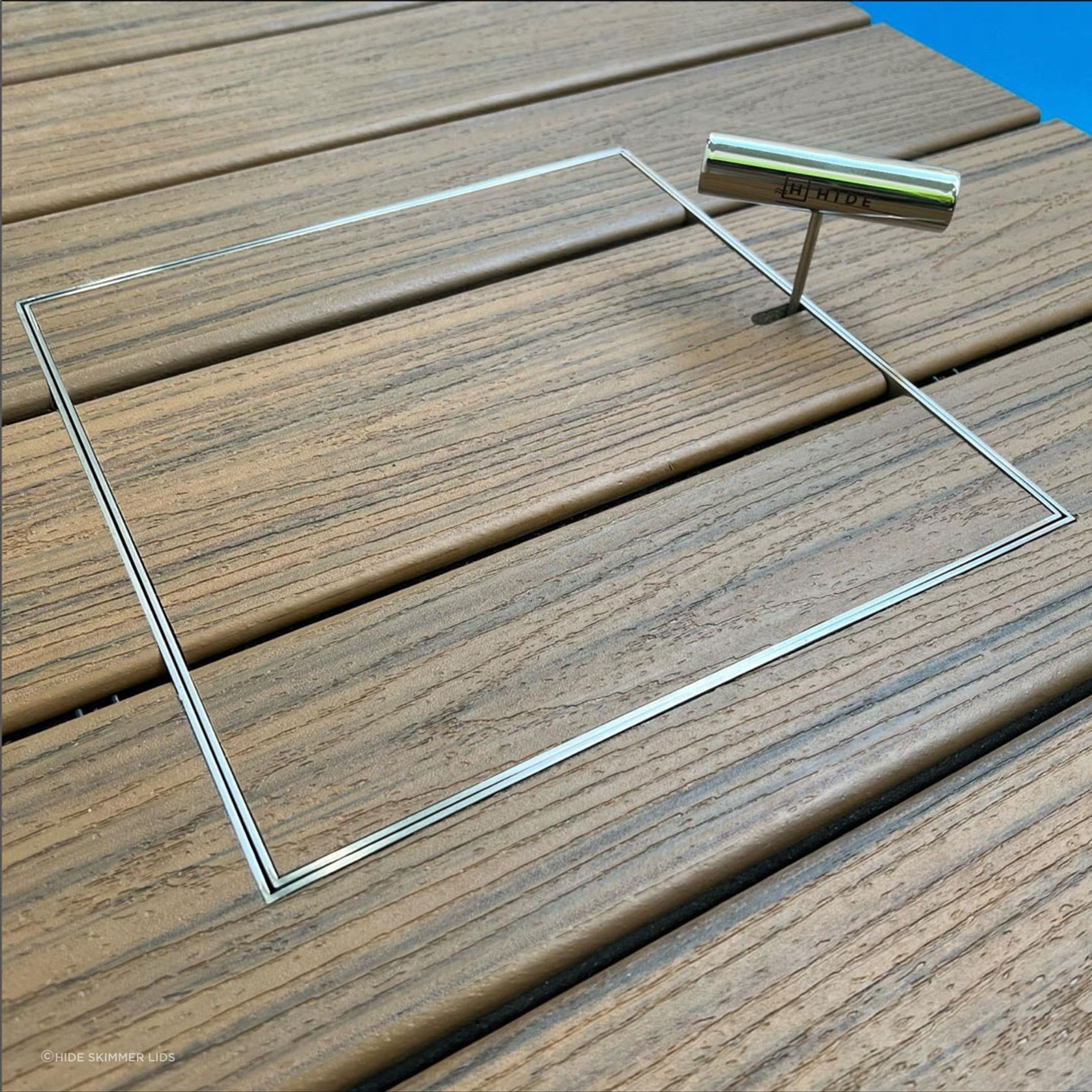

3. HIDE Inlay Lid: A stainless steel tray that holds the Inlay (landscape) materials you’ve chosen, e.g. tile, paver, concrete, decking, etc.Â
4. HIDE Edge Protector: A stainless steel frame inserted into a recess within the landscaped area. It protects the copping and surrounds from chipping and breakage when the inlay lid is opened or closed.
5. HIDE Adhesive: Specially formulated Adhesive for bonding almost any material to Stainless Steel. Adjust the amount of adhesive used to achieve a flush finish.
6. Documents: Contractor installation instructions, homeowner information and warranty.
The HIDE product range includes Skimmer Lids, Access Covers, Square Drain Covers and Linear Drain Covers. The first step is to determine which HIDE product you need.
There are only two factors to consider: The size of the service opening you need to access and the thickness of your inlay material.
Kit Size: Skimmer Covers
The 342mm kit has an underside opening of 288mm square.
(allowing 288mm squared clear access)
The 306mm kit has an underside opening of 252mm square.
(allowing 252mm squared clear access)
Download this product table here: Skimmer Lid Specification
Code Guide Example 1: HSL342-20
HIDE Skimmer Lid 342mm square, with an internal depth of 20mm.Â
The HIDE kit system is suitable for new landscape projects and can usually be retrofitted in existing landscaped areas. Because of its luxury, safe, and durable finish, HIDE is a necessary upgrade.
The comprehensive installation instructions will guide the contractor through the process of achieving a seamless finish in either a new build or a replacement.
Watch this 5-minute retrofit video
HIDE Skimmer Lids Pty Ltd manufactures stainless steel Skimmer Lids, Access Covers and Drain Covers for external use in any patio, pool and landscape. HIDE Covers are a cosmetic hidden inlay cover that blends into your landscape.

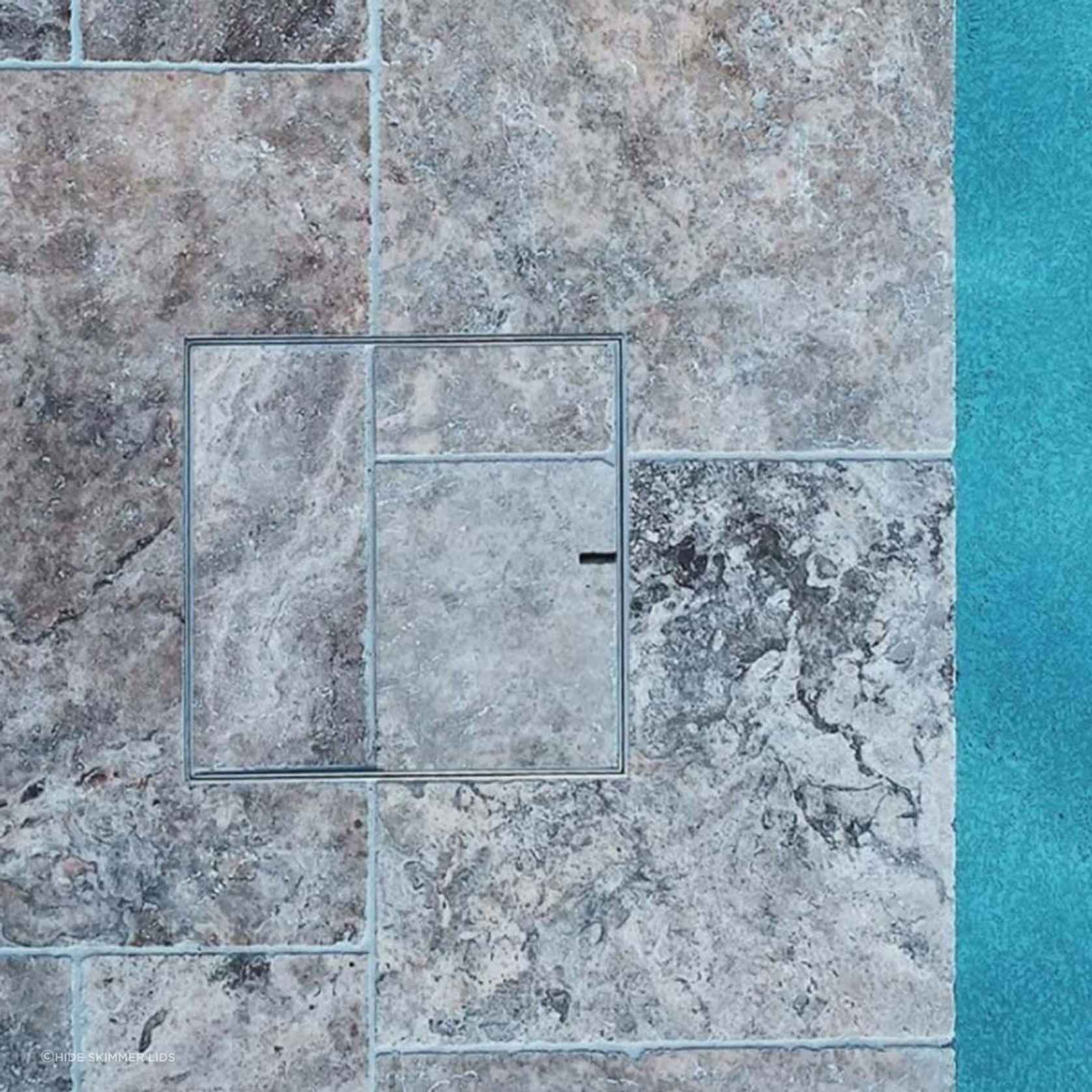

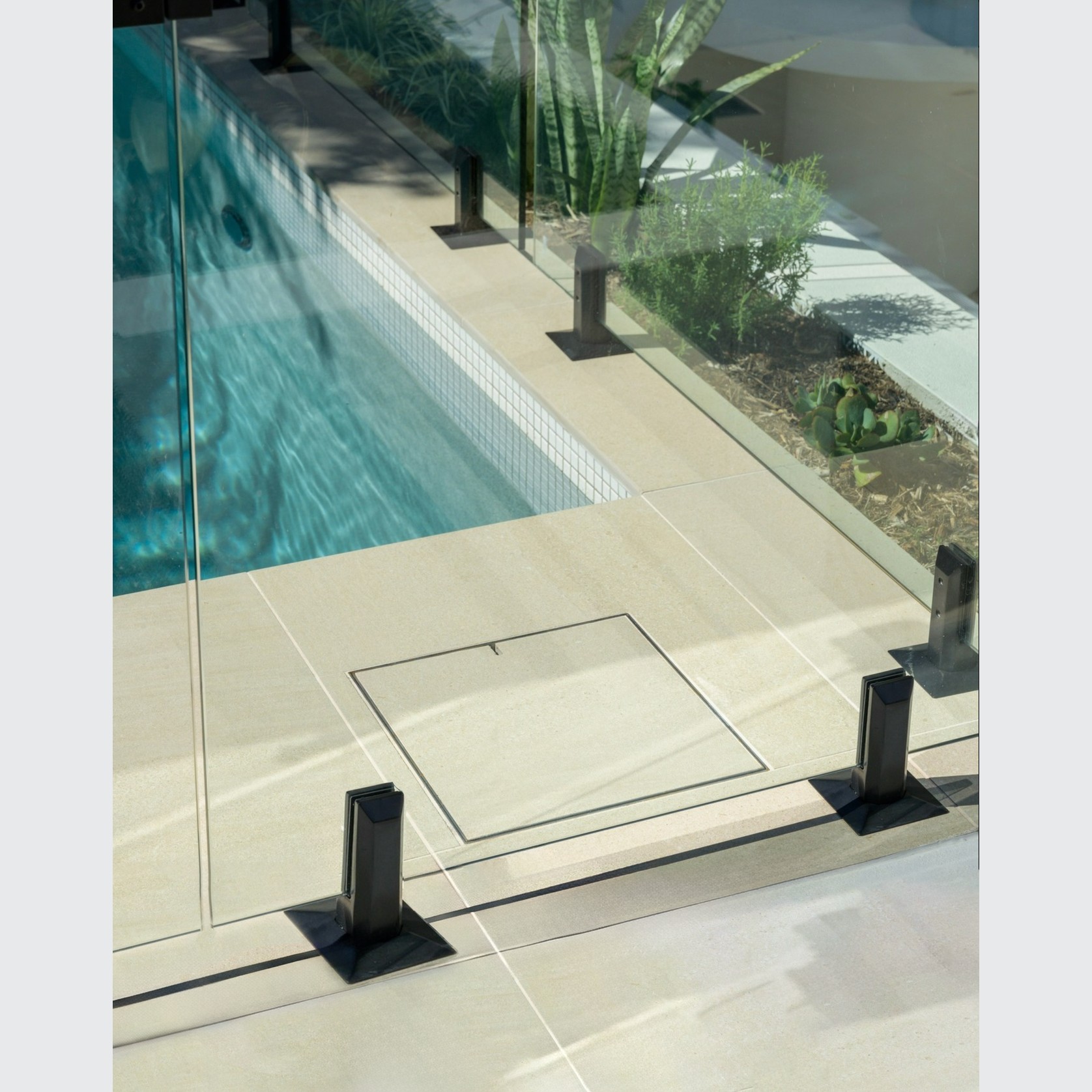

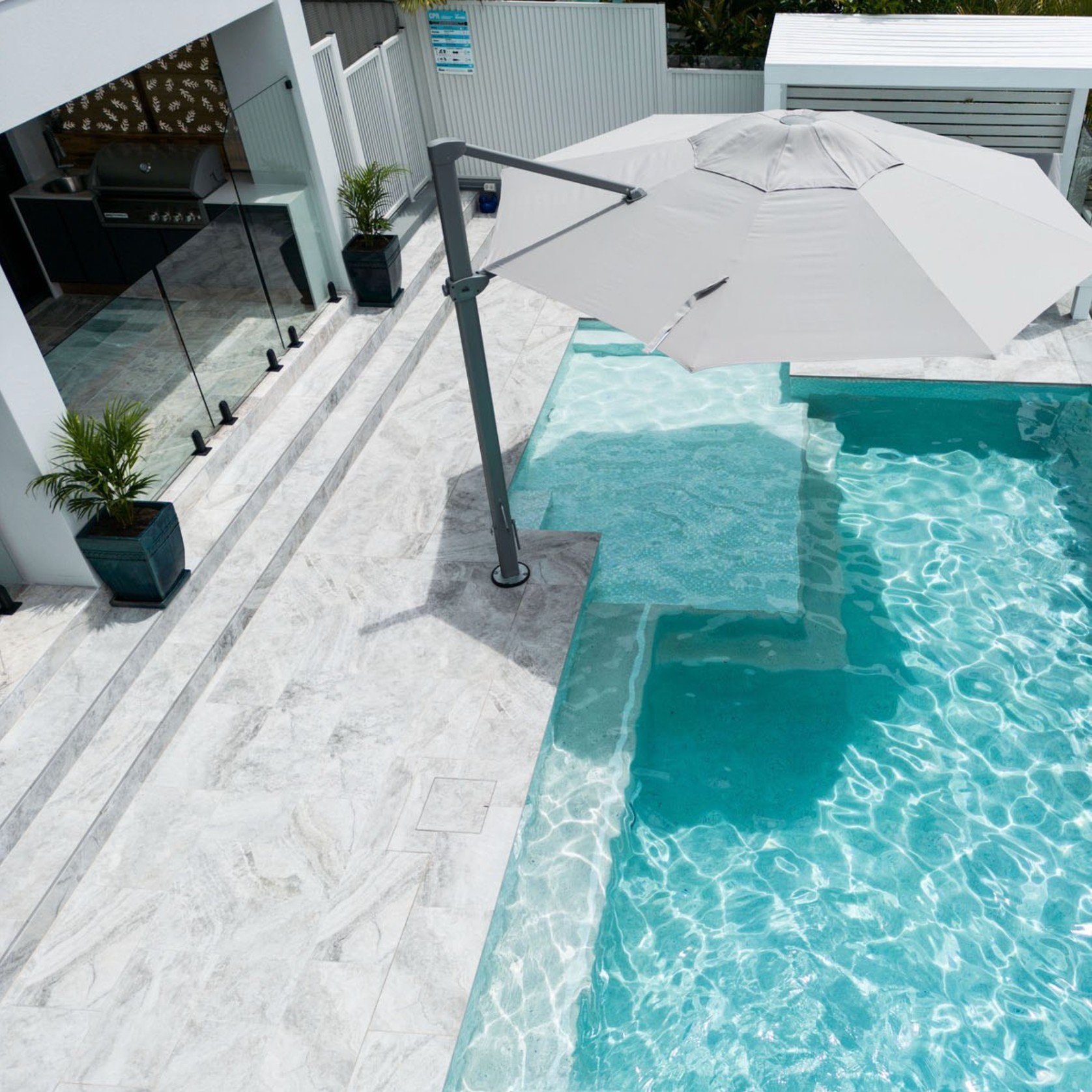

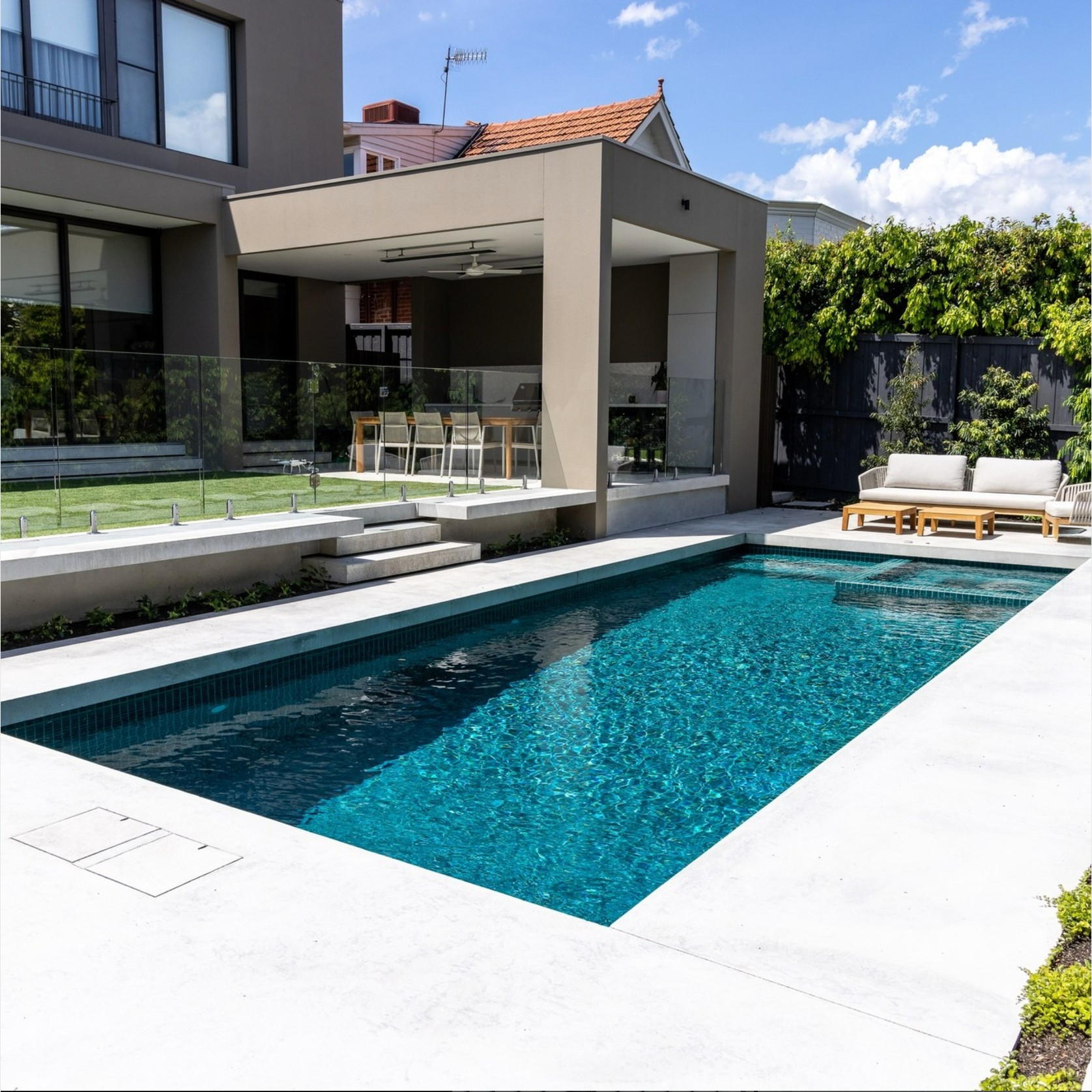

The HIDE system incorporates your selected surface material into the lid, enabling the HIDE Lid to blend into the surrounding landscape, creating a superior, seamless finish.
HIDE's innovative lids for skimmer boxes, access points and drain covers provide a robust and safe solution to other traditional, less aesthetic covers. They protect your stone and your family for years to come.
