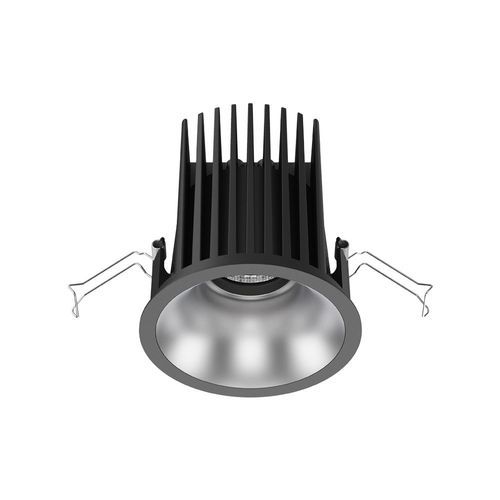

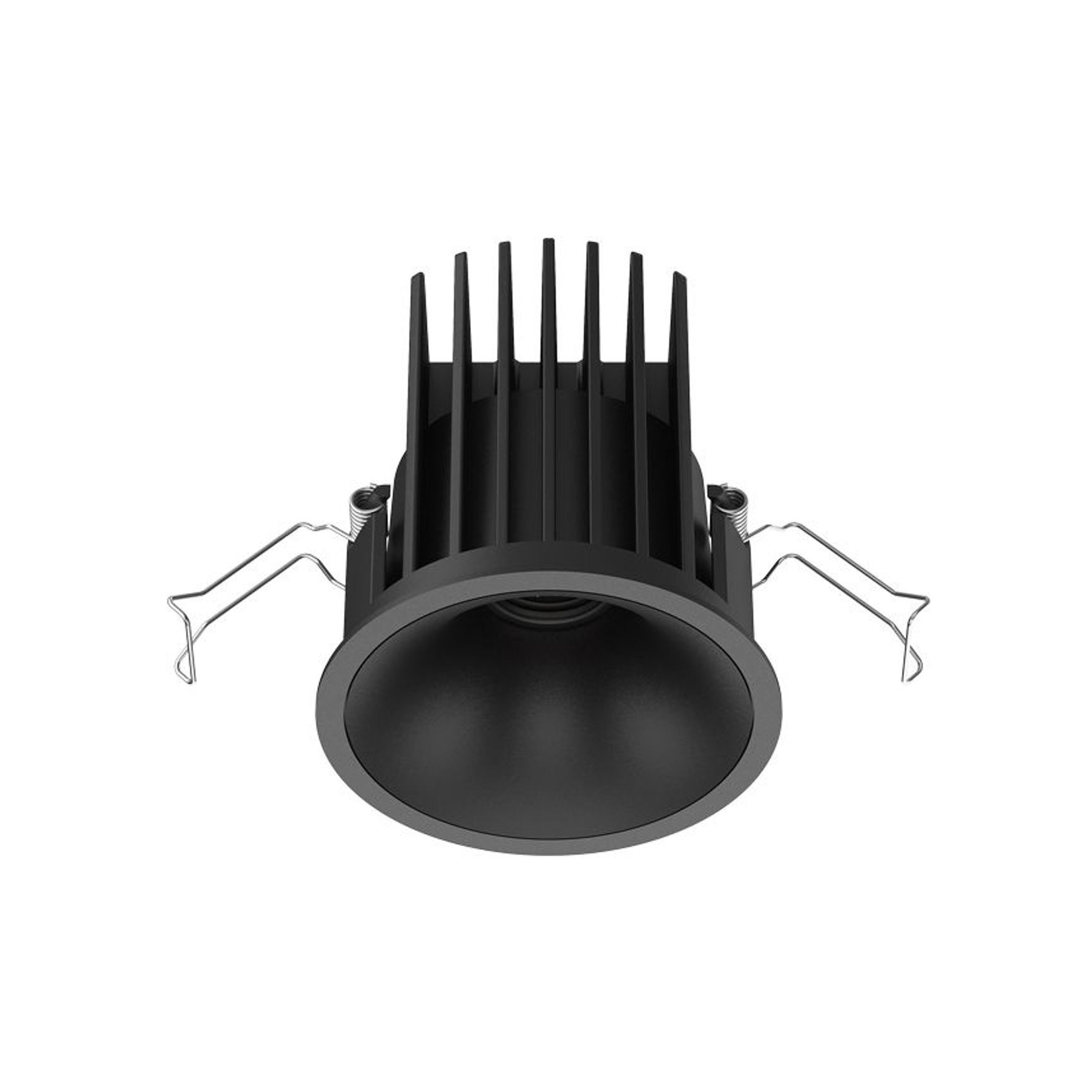

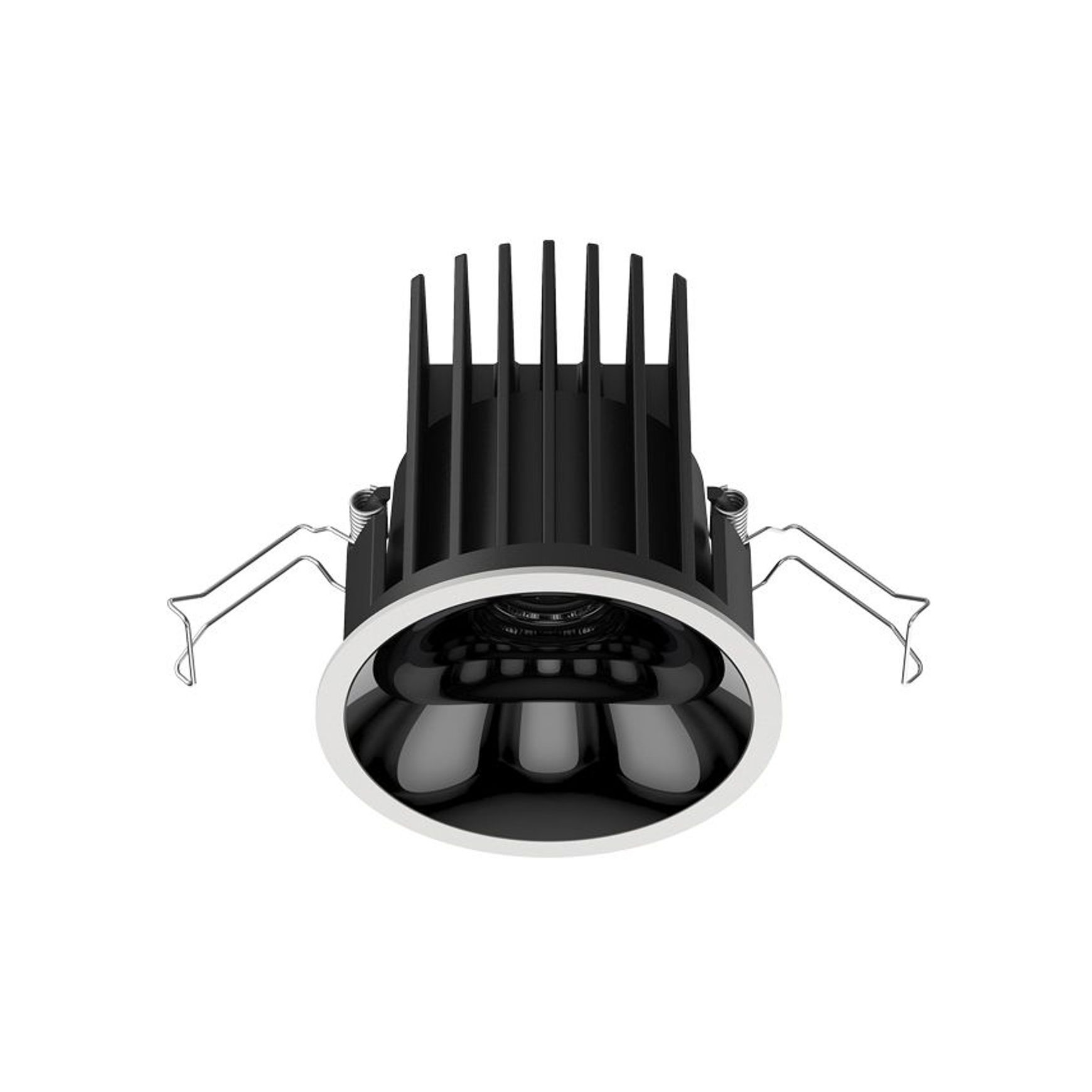

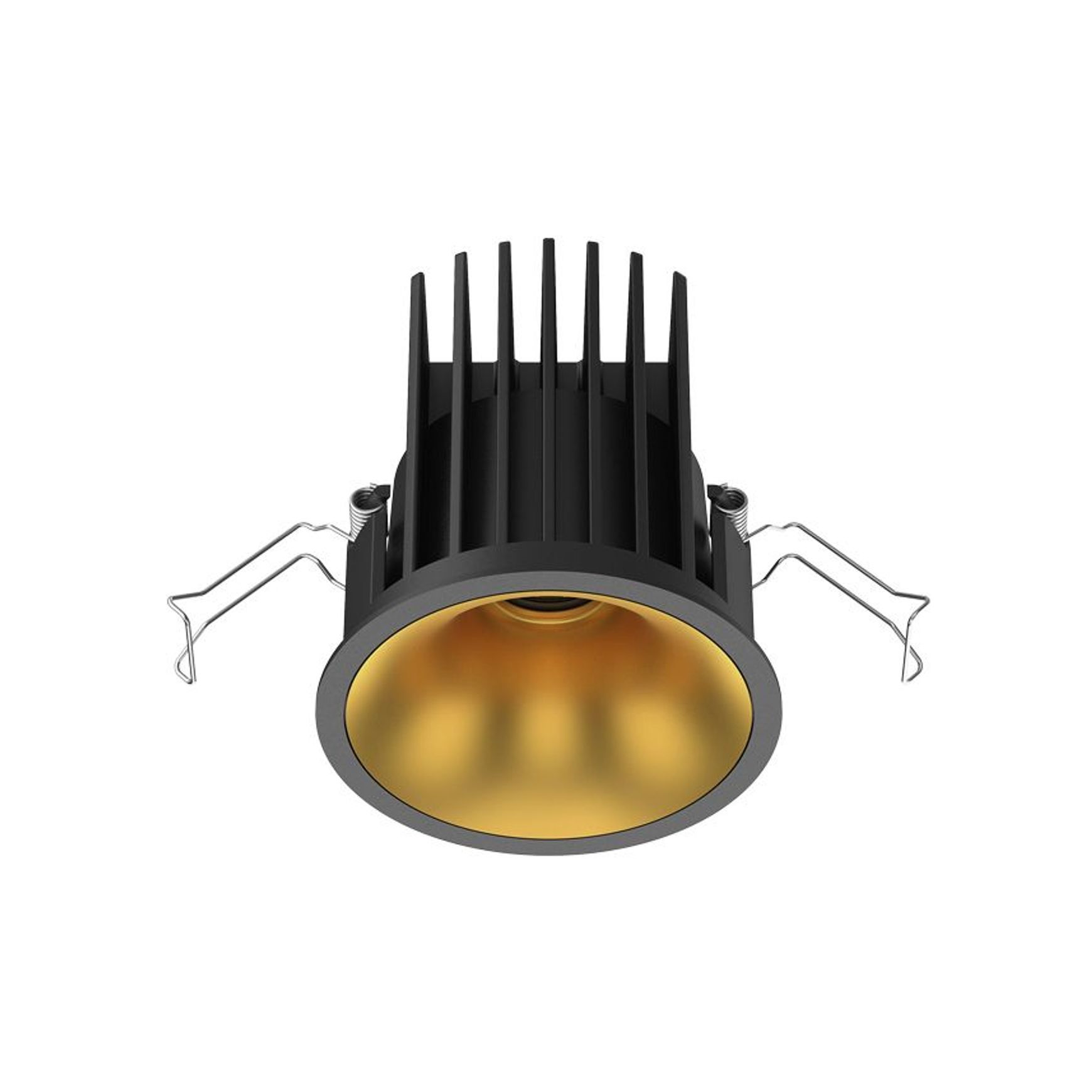

14W Cevon Medium Darklight Slim Trim
- 1.0M profile views
- 112 saves
R536
Recessed Fixed Downlight Kit
Cevon Medium Darklight Slim Trim
Designed for maximum visual comfort the Halcyon Darklight Series features a range of reflector options with an anti-reflective coated glass lens for precise illumination. Powered by up to CRI 97+ light source for bold and saturated colours the Darklight series creates the ultimate lighting effect through the illusion of light appearing from nowhere.
Product Details
- Product
- 14W Cevon Medium Darklight Slim Trim
- Category
- Downlights
- Sold by
- Halcyon Lighting
- Light bulb type
- LED
- Fitting type
- Recessed light
- Warranty
- 5 years
Product Variants
- Colours
R536Recessed Fixed Downlight KitCevon Medium Darklight Slim Trim Designed for maximum visual comfort the Halcyon Darklight Series features a range of reflector options with an anti-reflective coated glass lens for precise illumination.
Powered by up to CRI 97+ light source for bold and saturated colours the Darklight series creates the ultimate lighting effect through the illusion of light appearing from nowhere.
- Specs
R536 Slim Trim
Dimensions D83 x H85mm
Watts 14W
Beam 40
Cut Out Ø 76mm
Lumens <1065lm
Input 240V AC
Colour Temp 3000K
CRI CRI97
Lifespan 105,000hrs (L90 B10)
UGR Suitable for installations requiring UGR of less than 19
Binning SDCM 2
Material Aluminium, glass
IP Rating IP43
Classification IC Rated
Driver Included
Dimming/Control TRIAC Dimmable (Dali and Casambi available on request)
TLAs "Flicker-free", PstLM ≤1.0; SVM ≤0.4
Installation Slim trim, cut holes with extra care
Application Interior, recessed
Warranty 5 Year Warranty- Features
- IP43
- CRI97
- 105,000hr (L90 B10) lifespan
- SDCM 2
- Dimmable Driver included
- Flicker-free (PstLM ≤1.0; SVM ≤0.4)
- 5 Year Warranty
- Scope of use
Interior residential or commercial downlighting
Downloads
Downloads (3)3 Direct downloads • 10 Available on request
Frequently asked questions about
14W Cevon Medium Darklight Slim Trim
The 14W Cevon Medium Darklight Slim Trim is supplied by Halcyon Lighting. It is also on their website, and you can browse every product Halcyon Lighting lists on ArchiPro.
Halcyon Lighting does not publish a price for the 14W Cevon Medium Darklight Slim Trim on ArchiPro. for pricing, or visit their website.

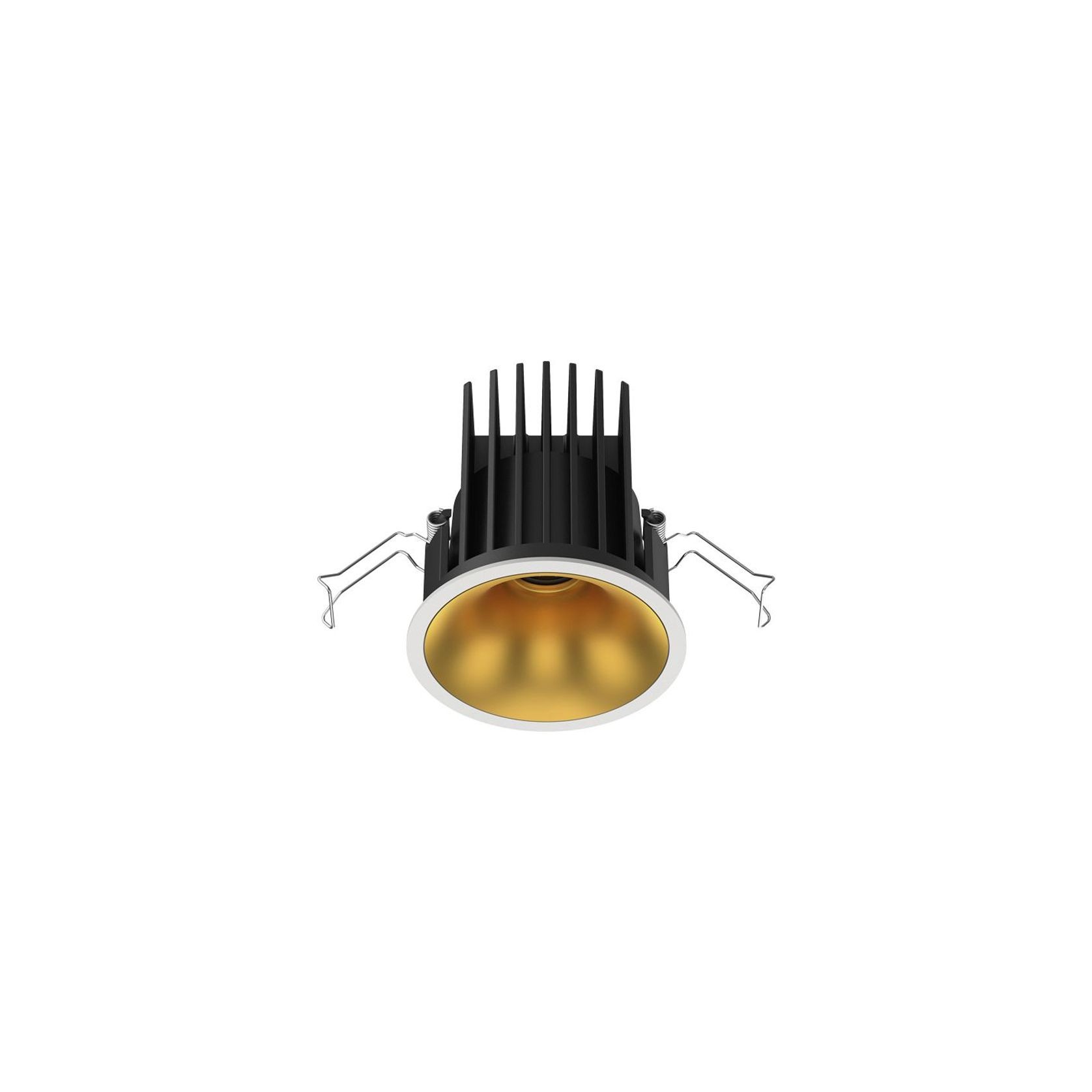

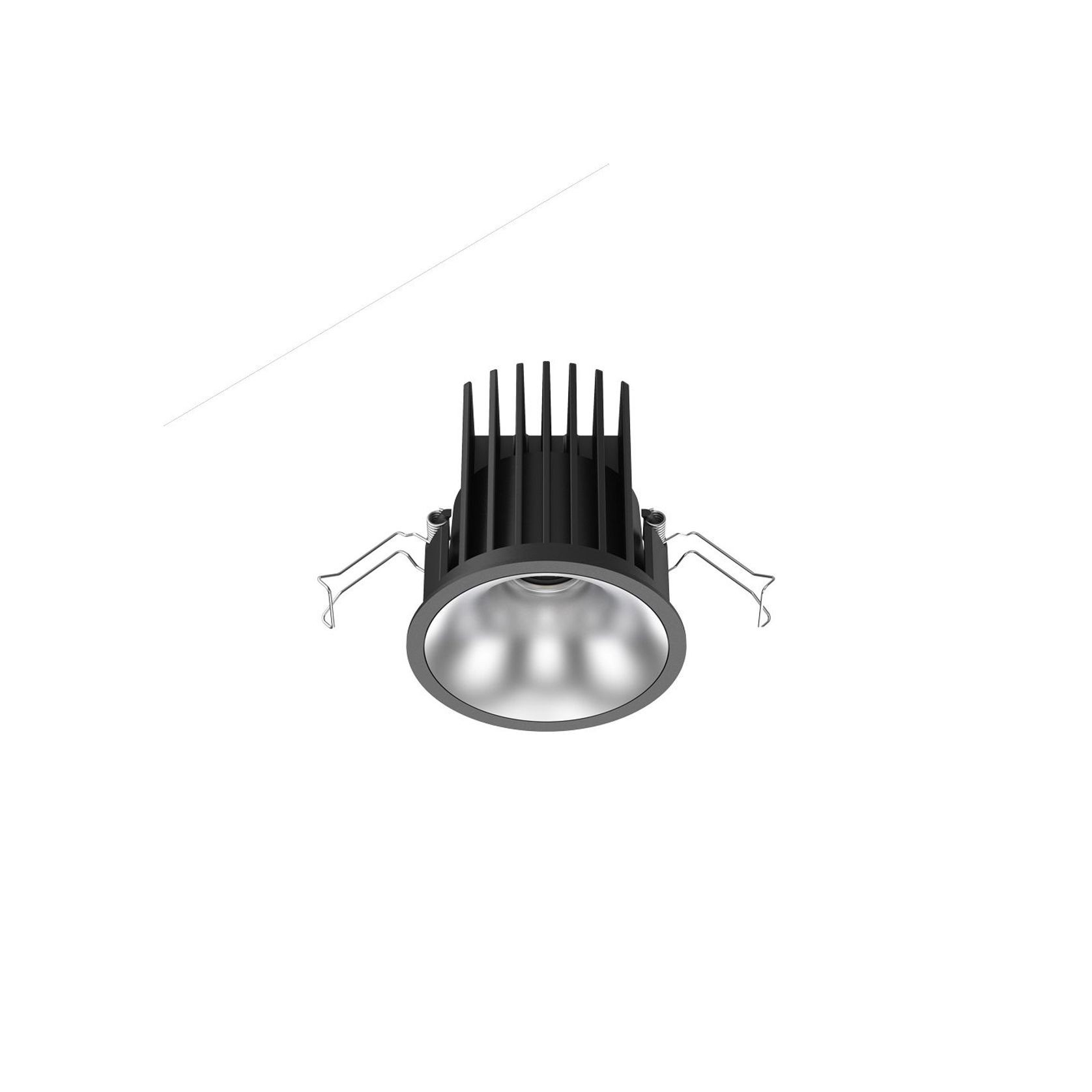

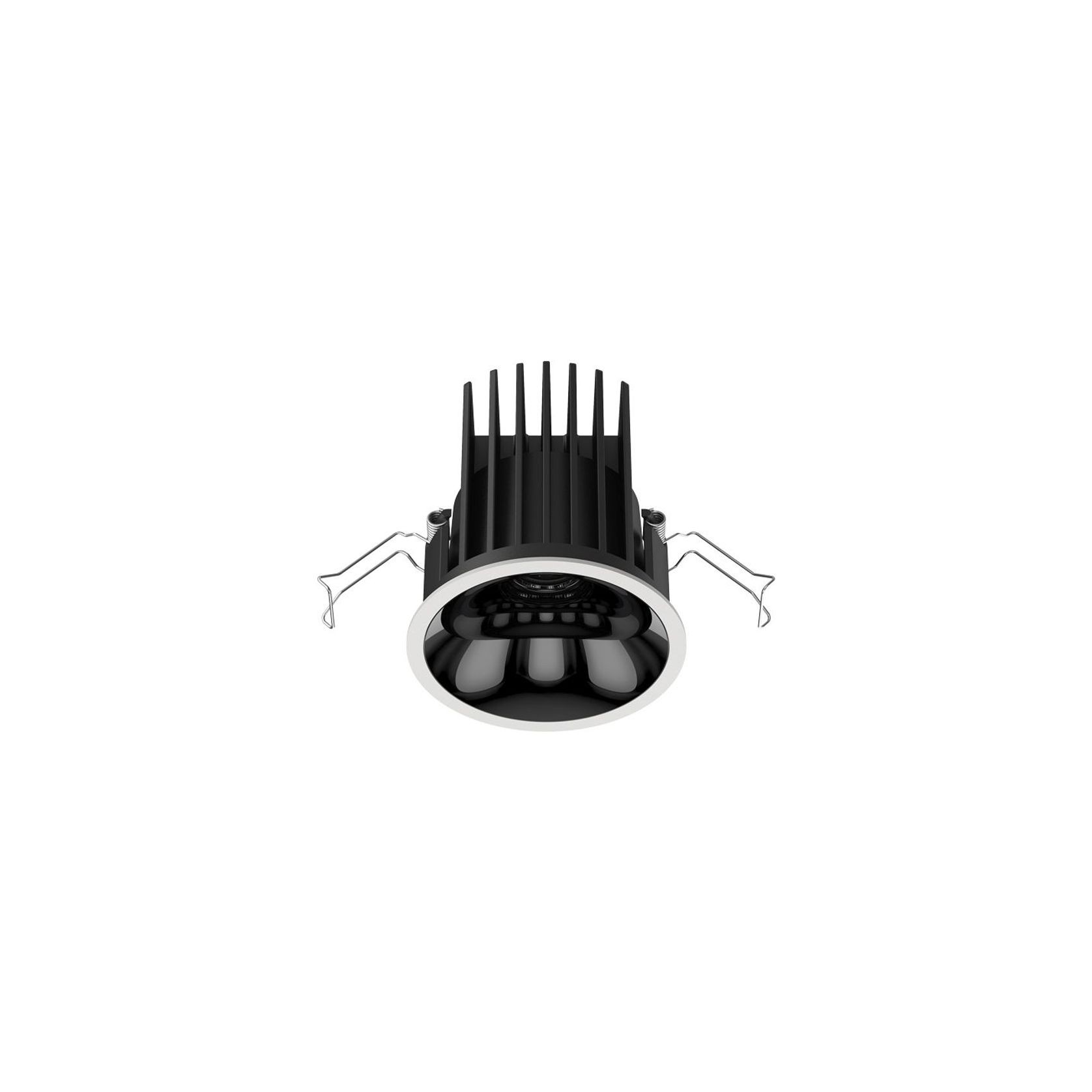

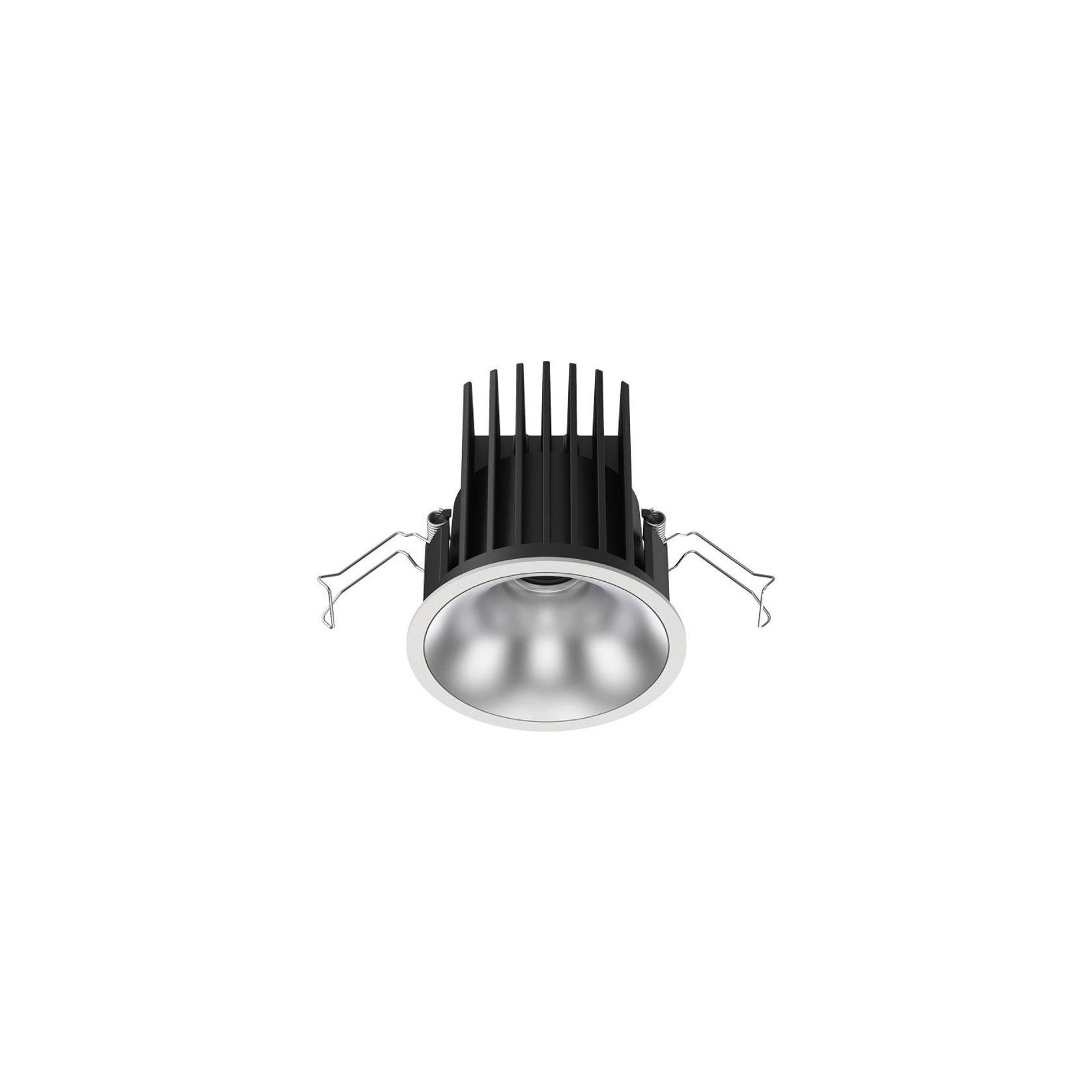

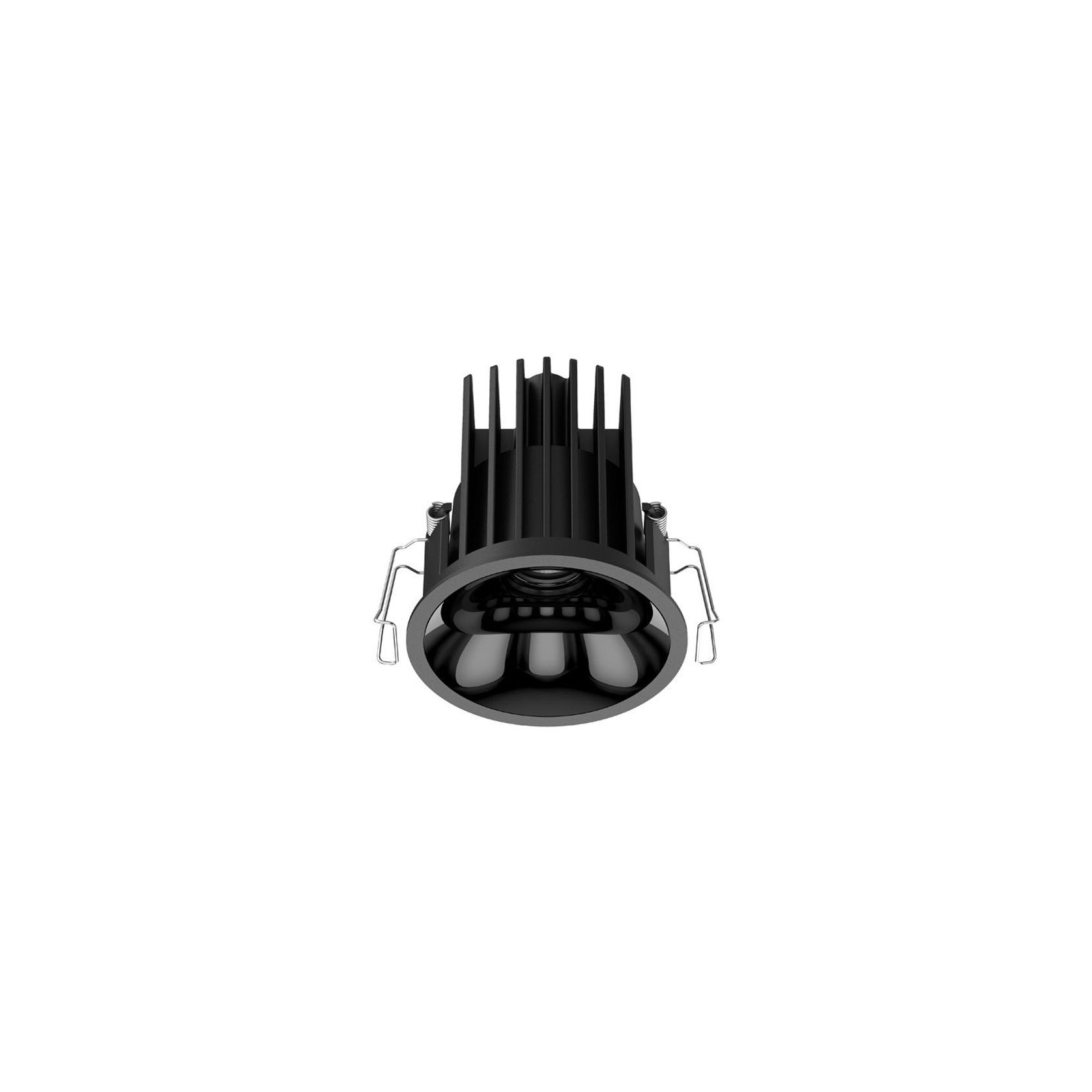

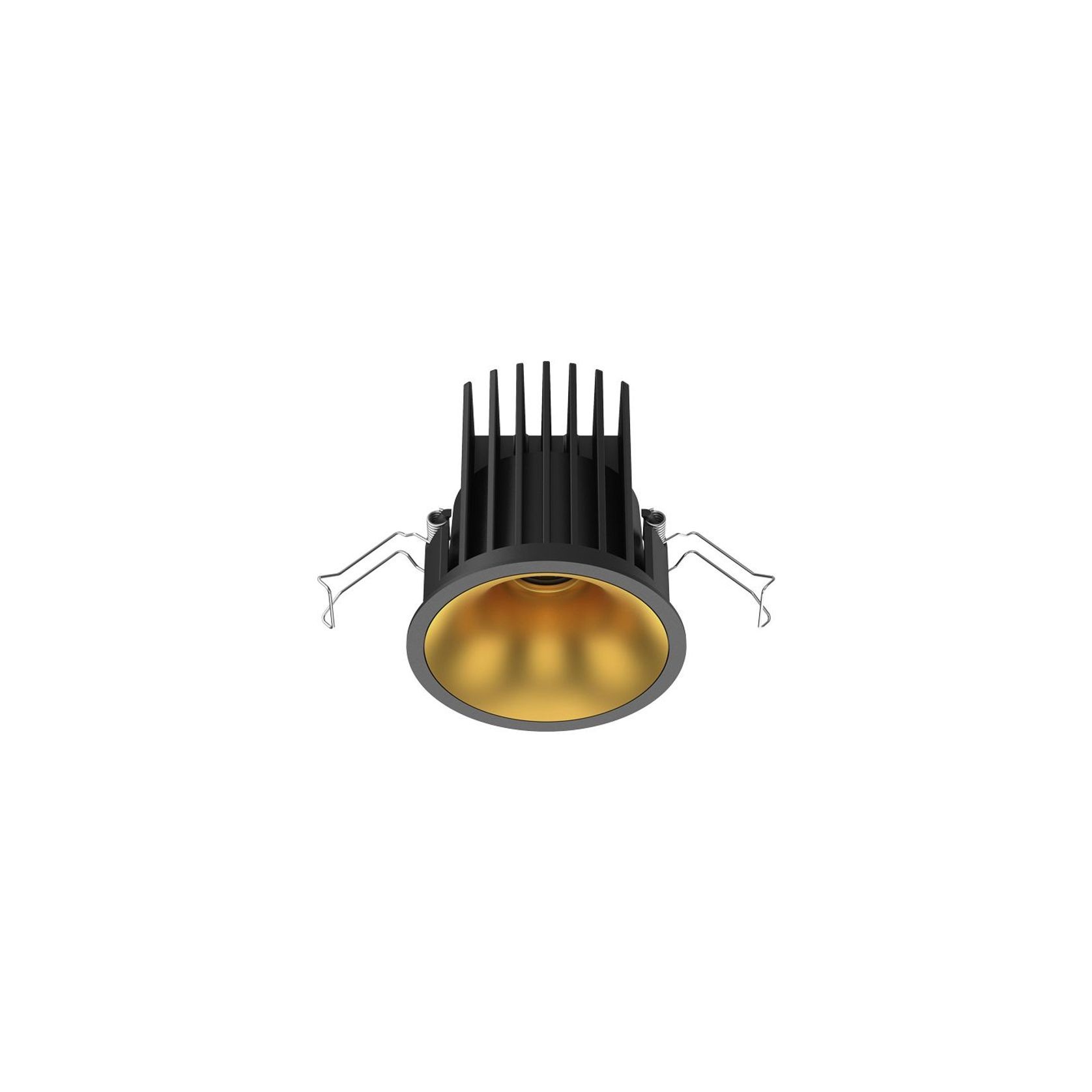

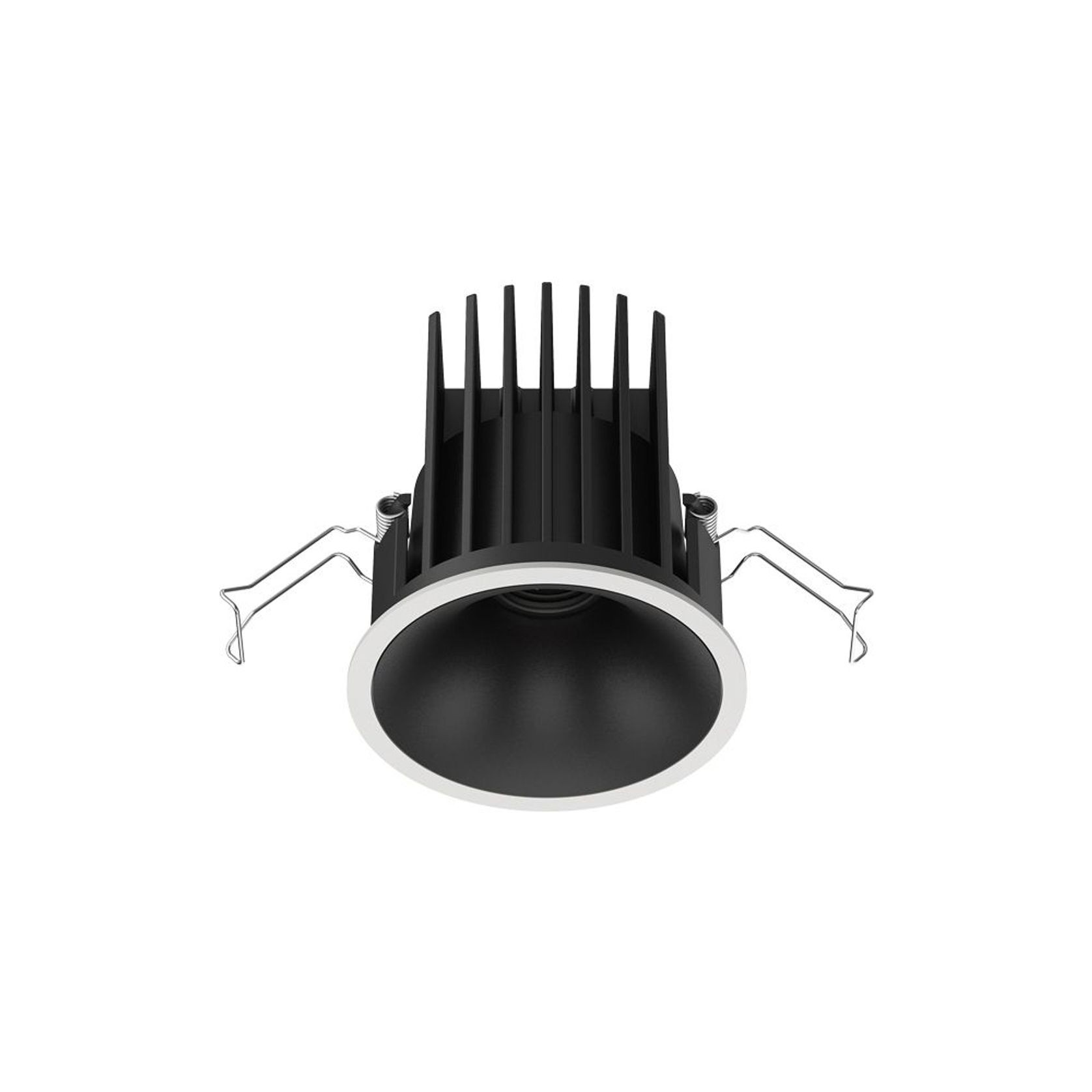

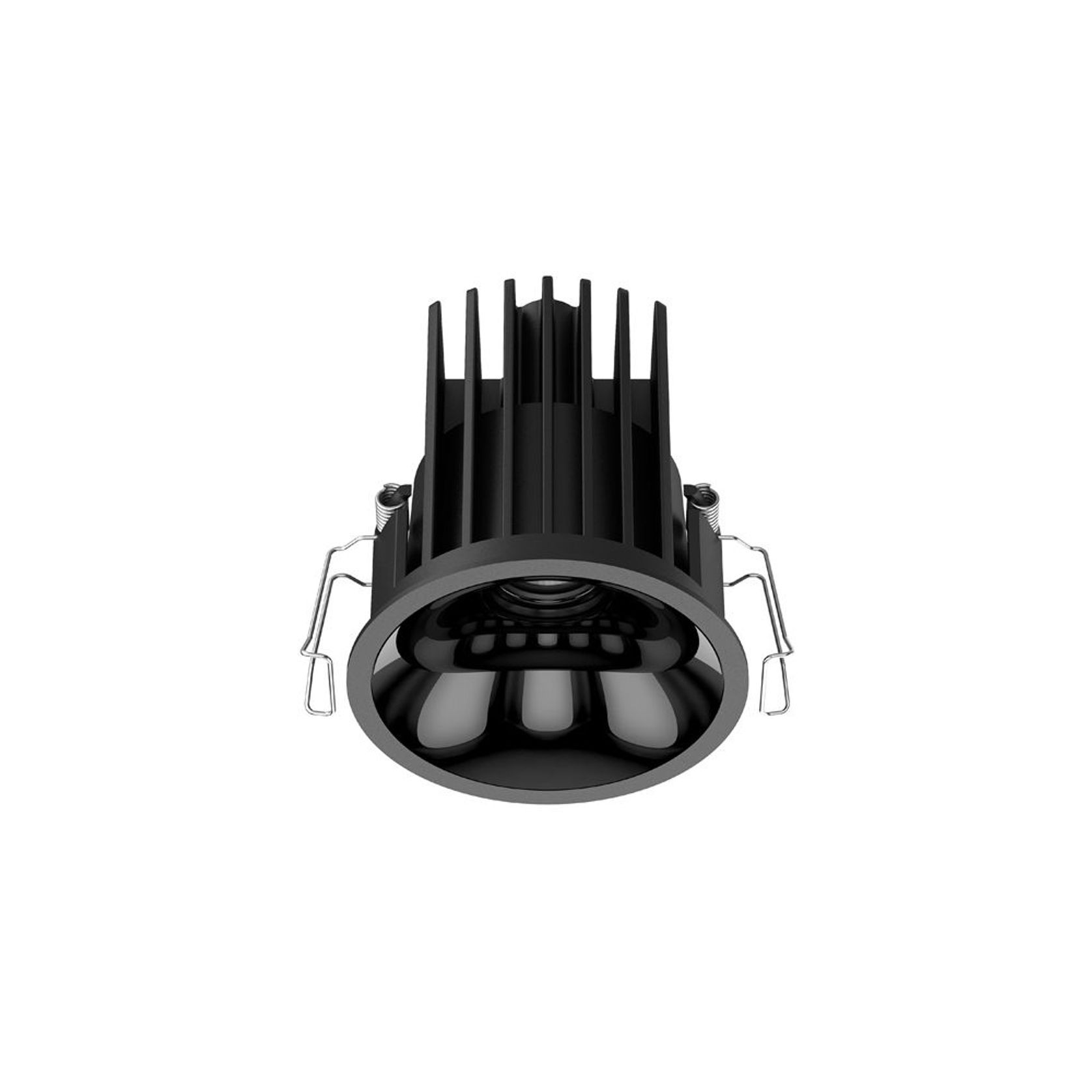

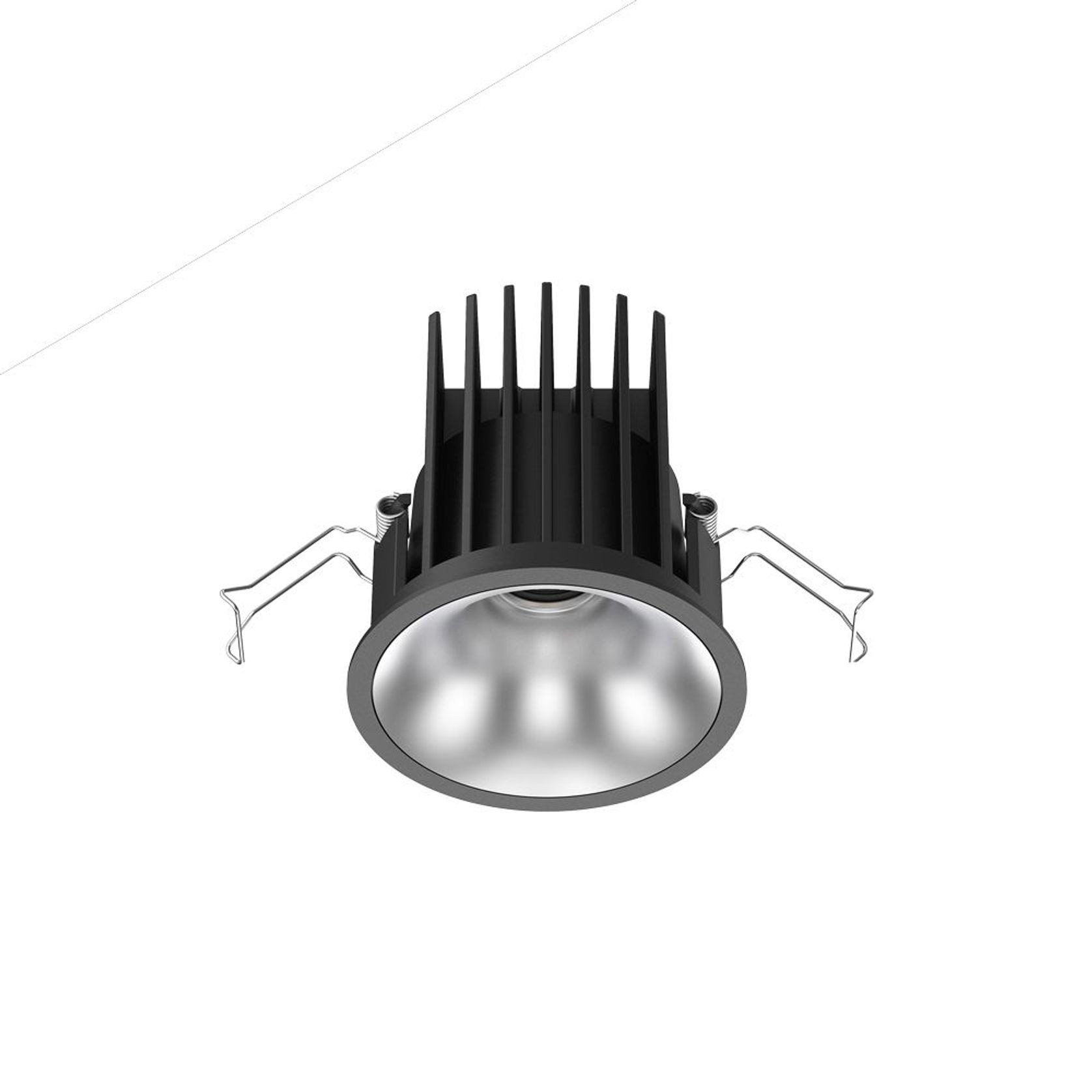

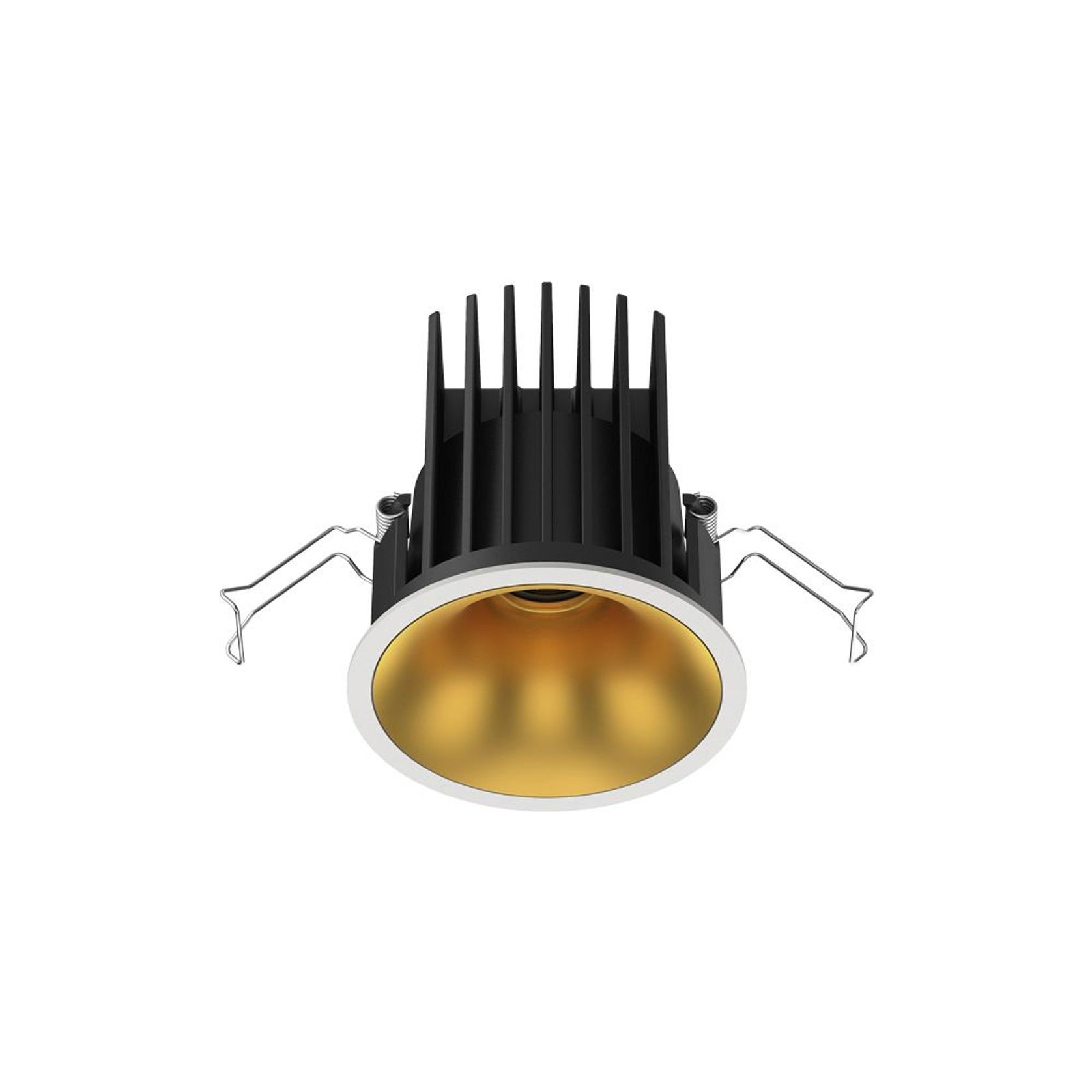

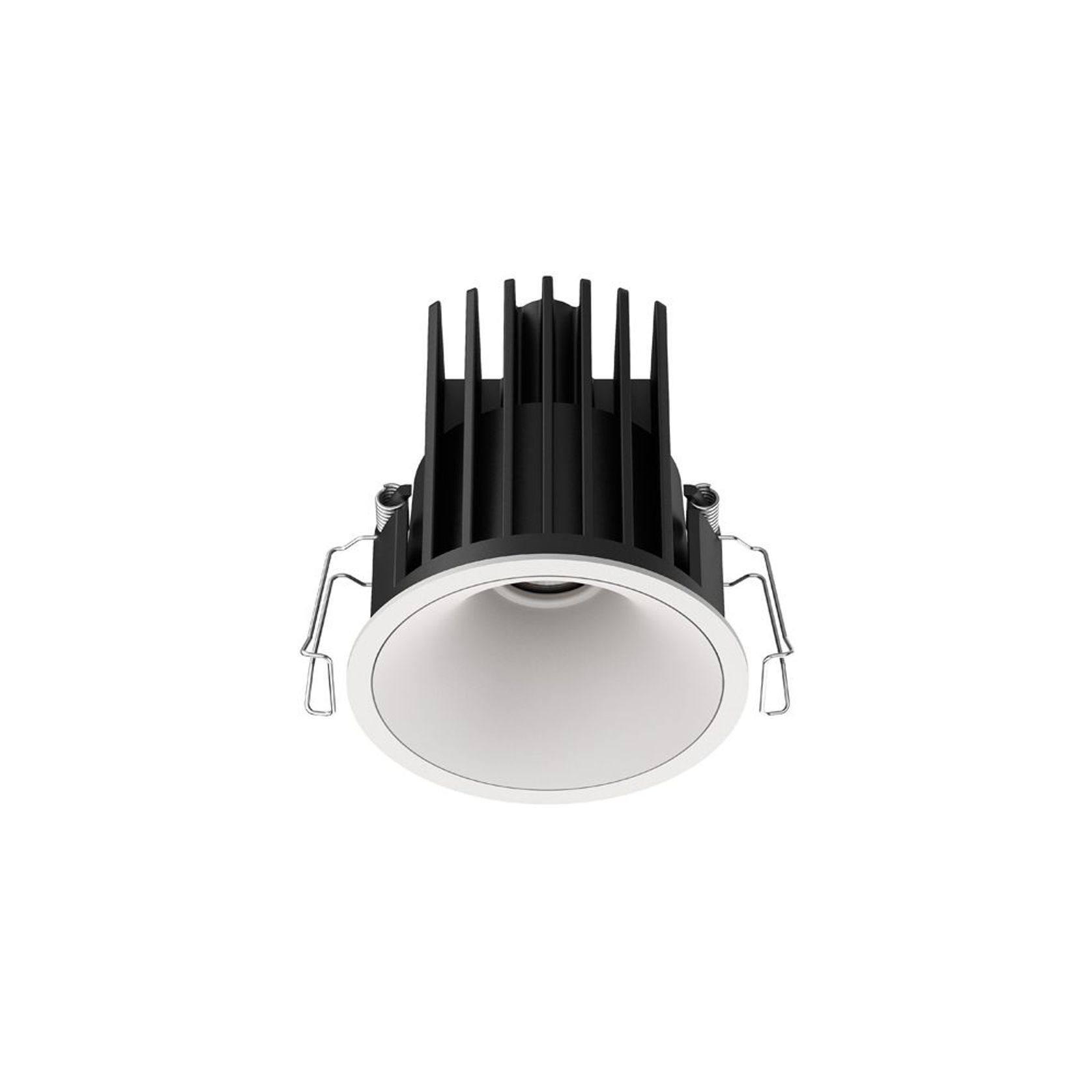

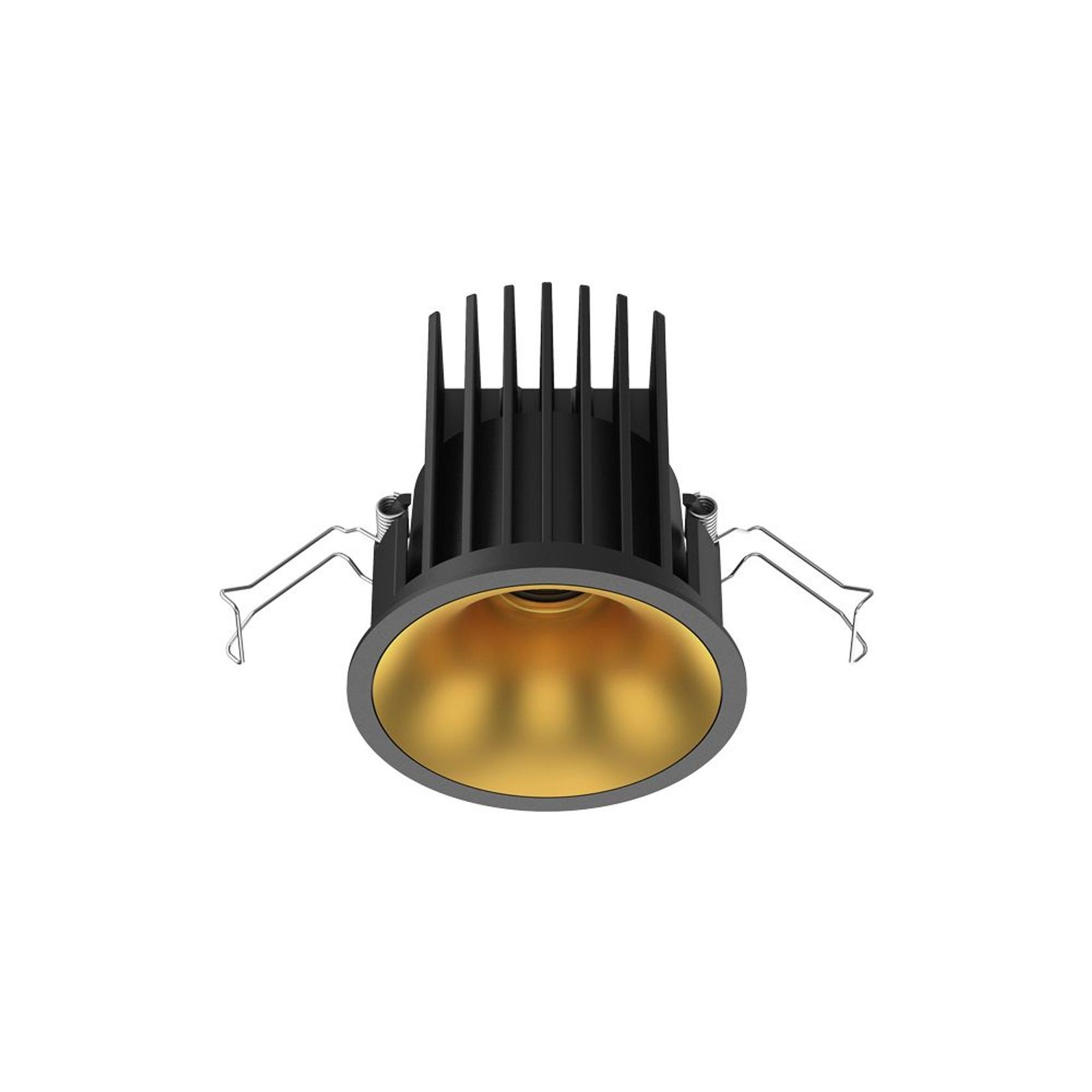

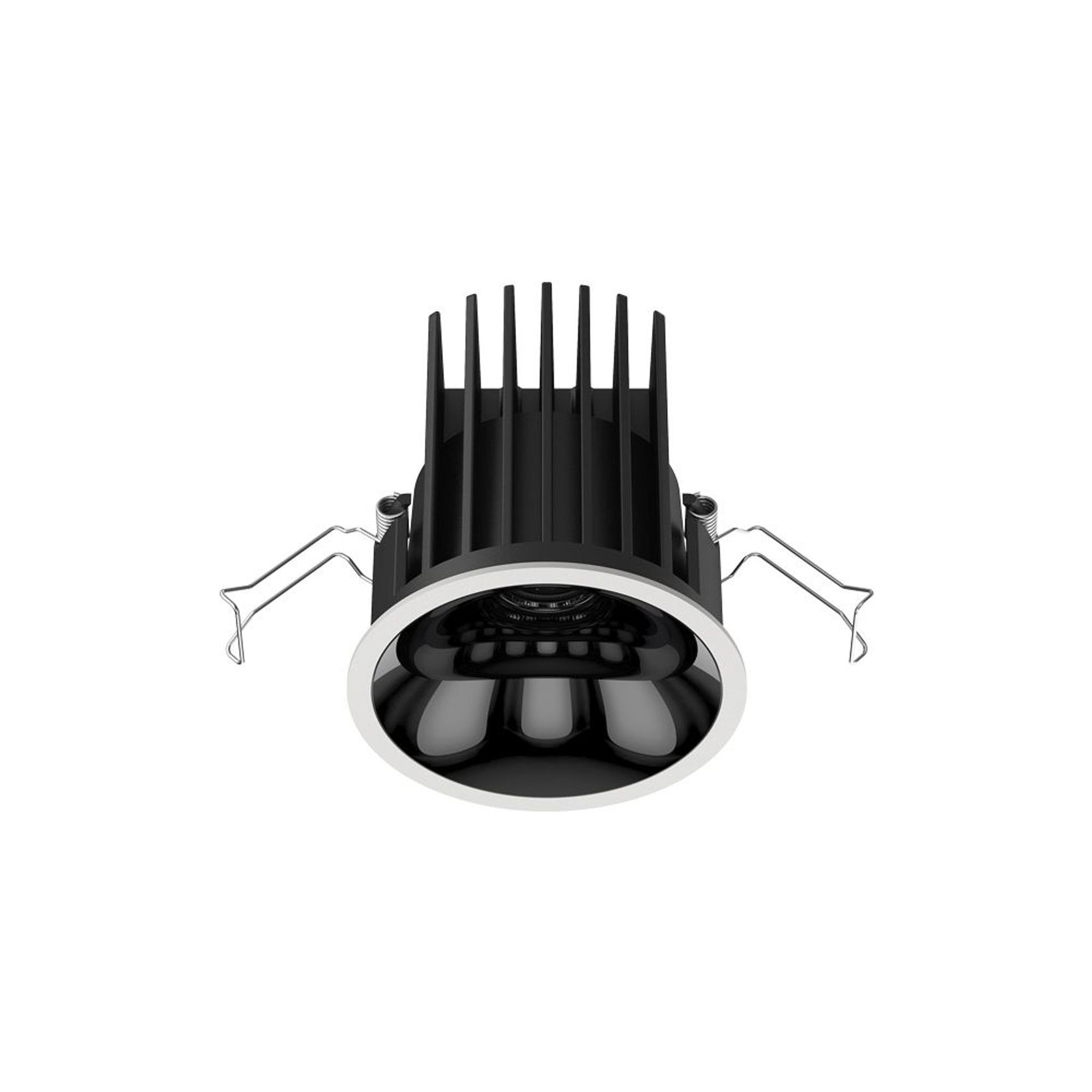

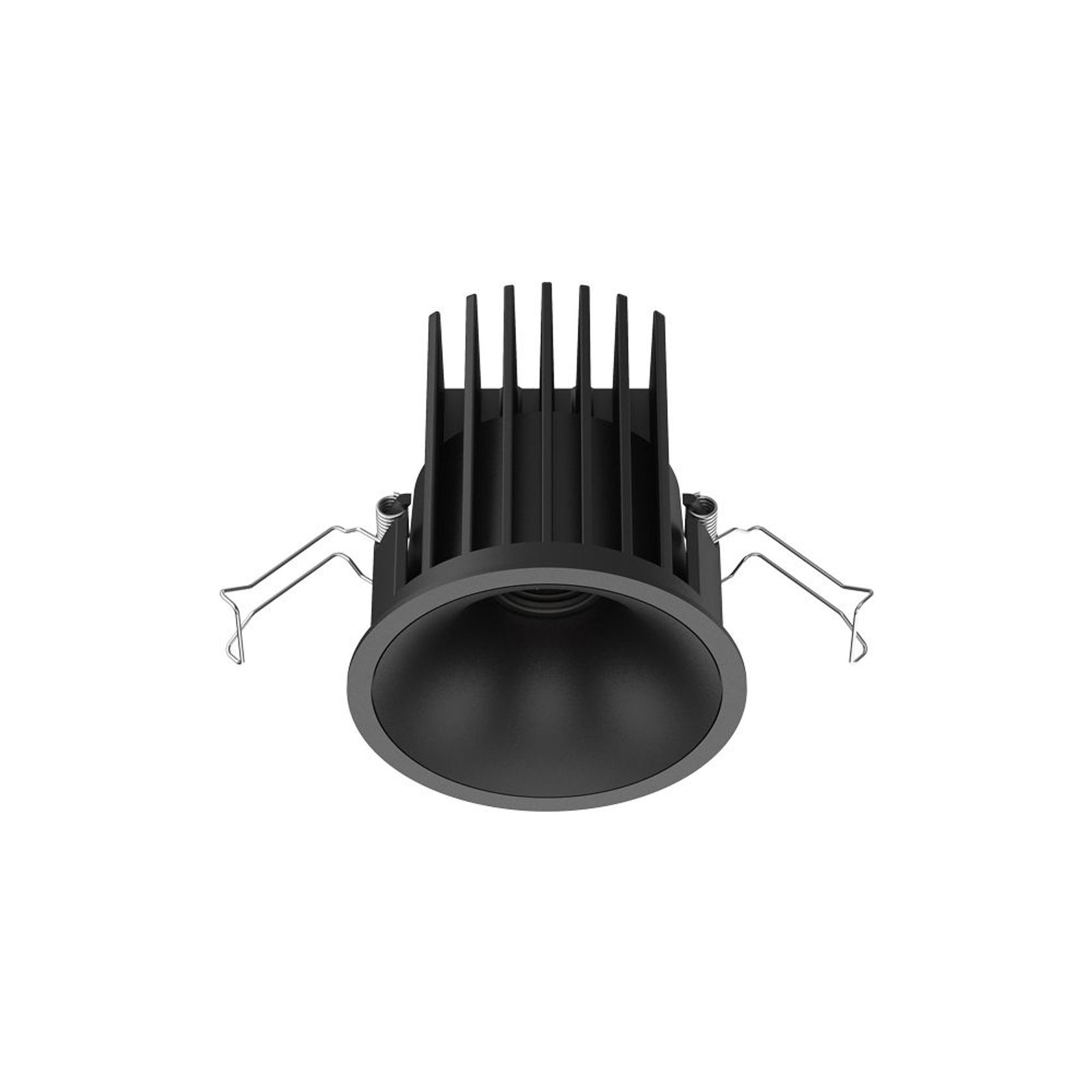

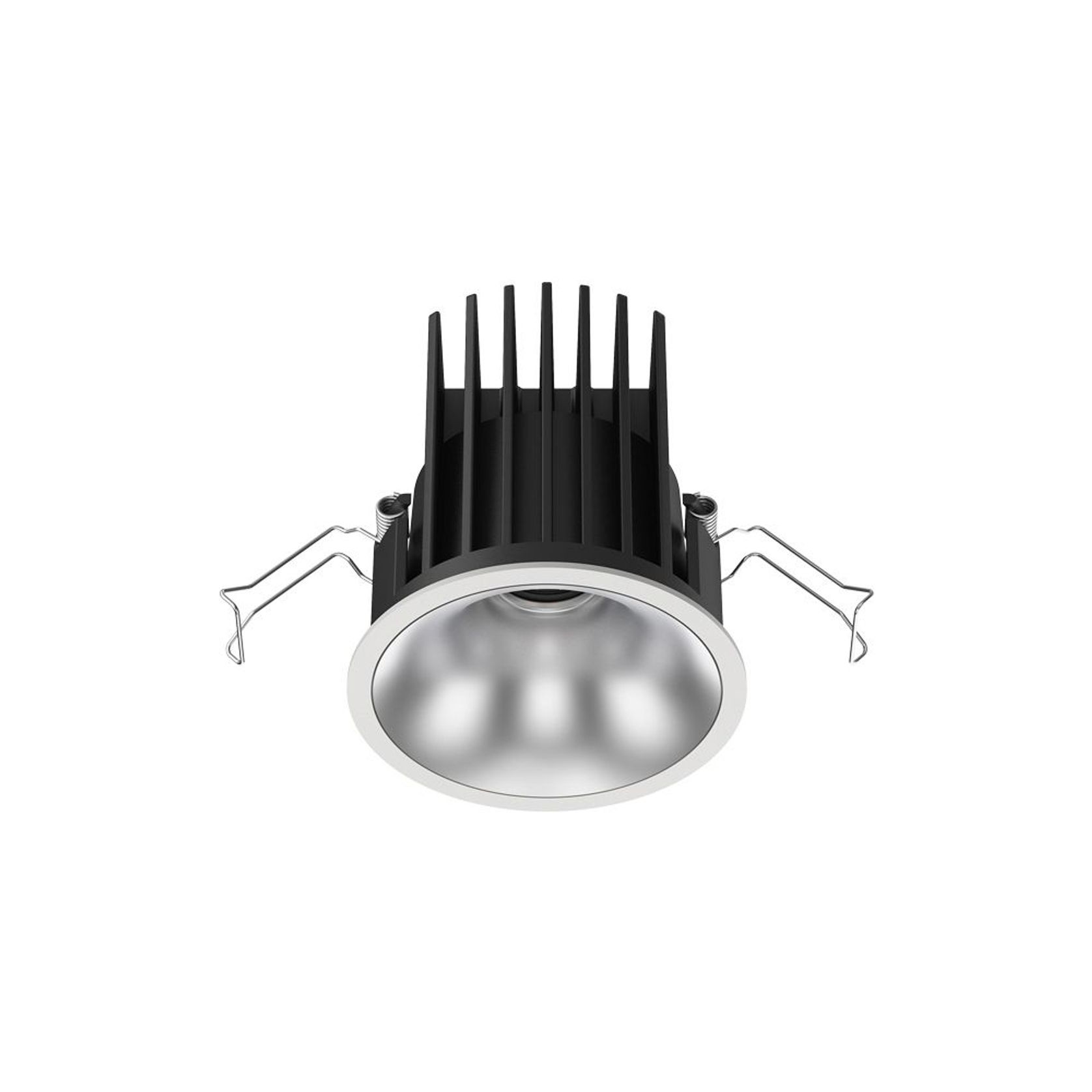

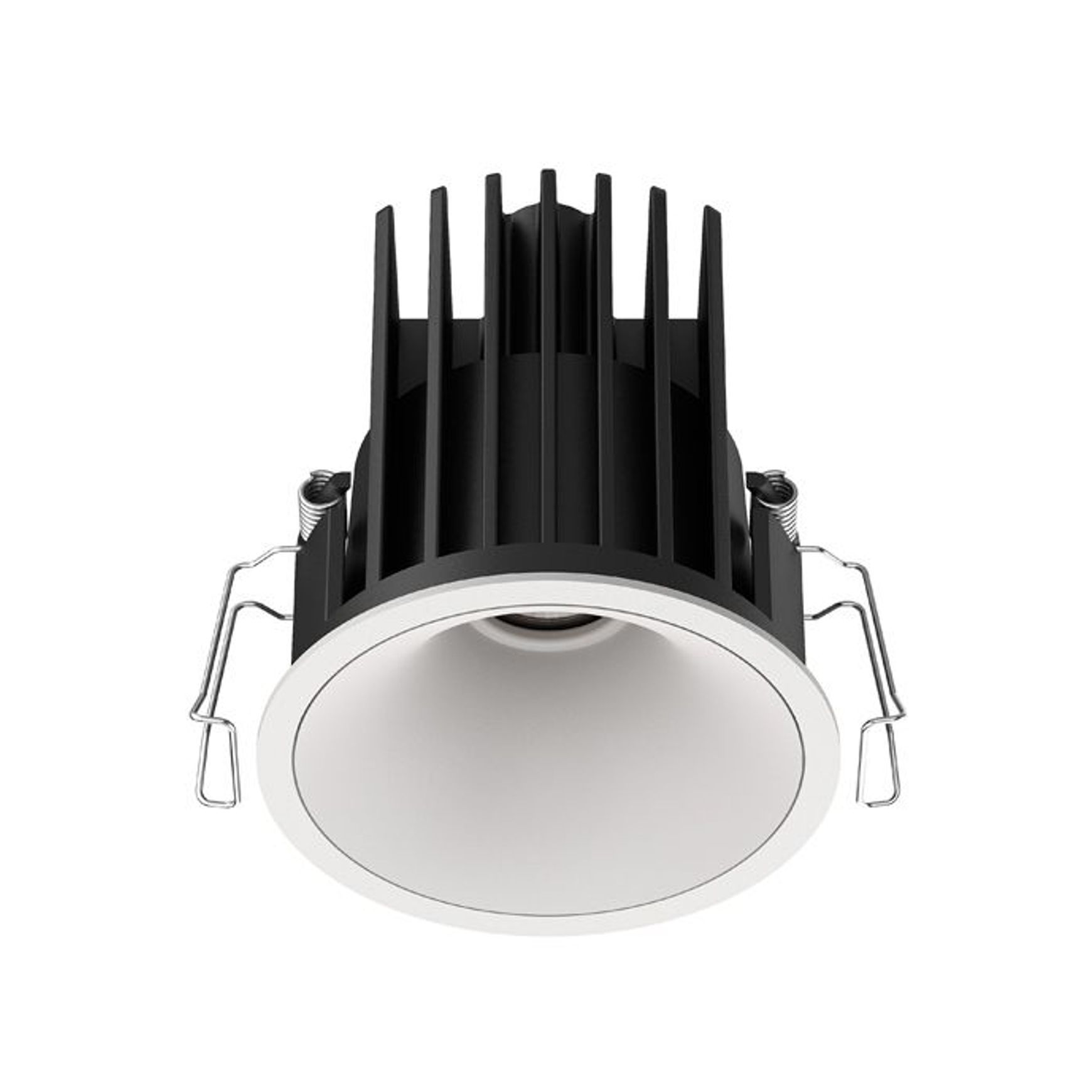

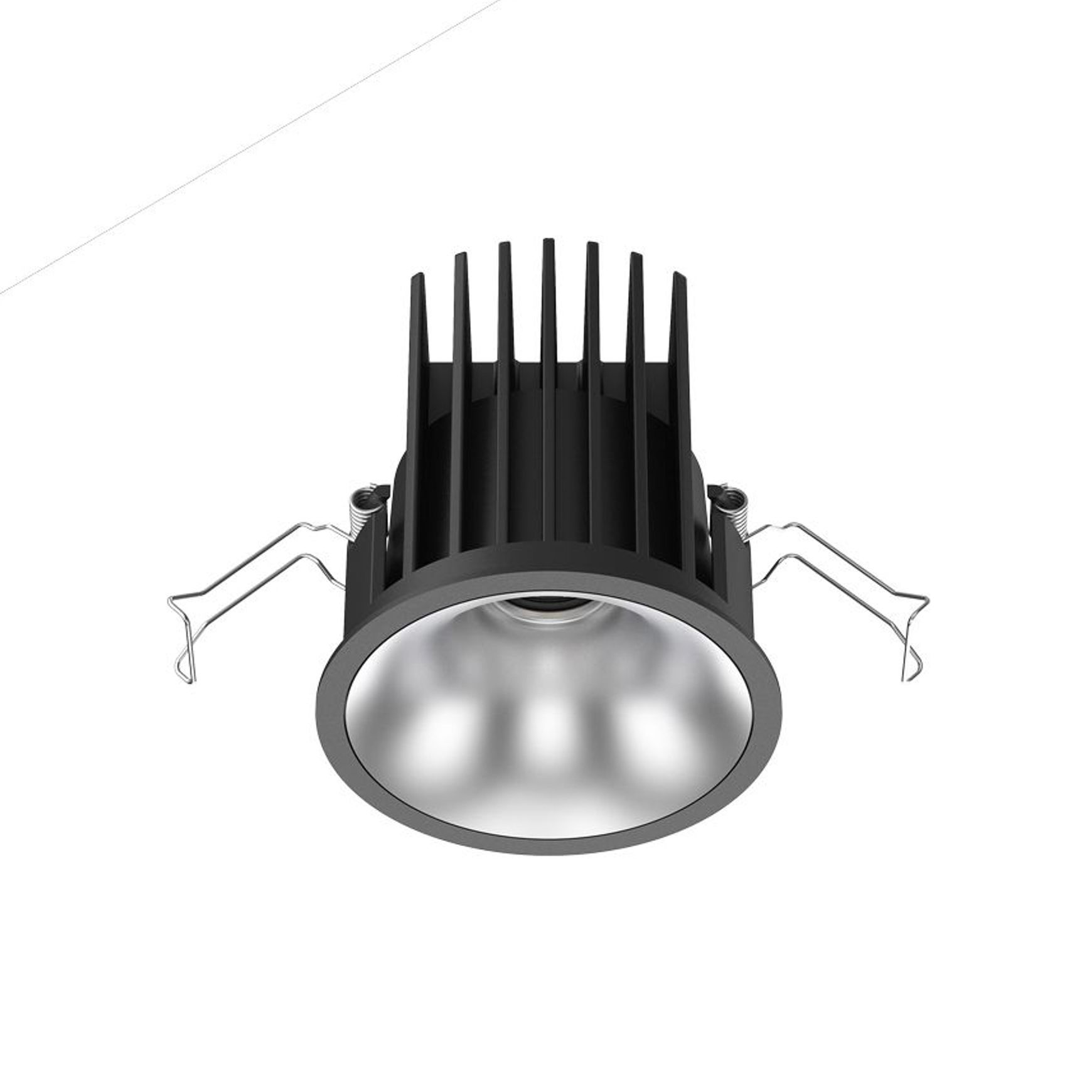

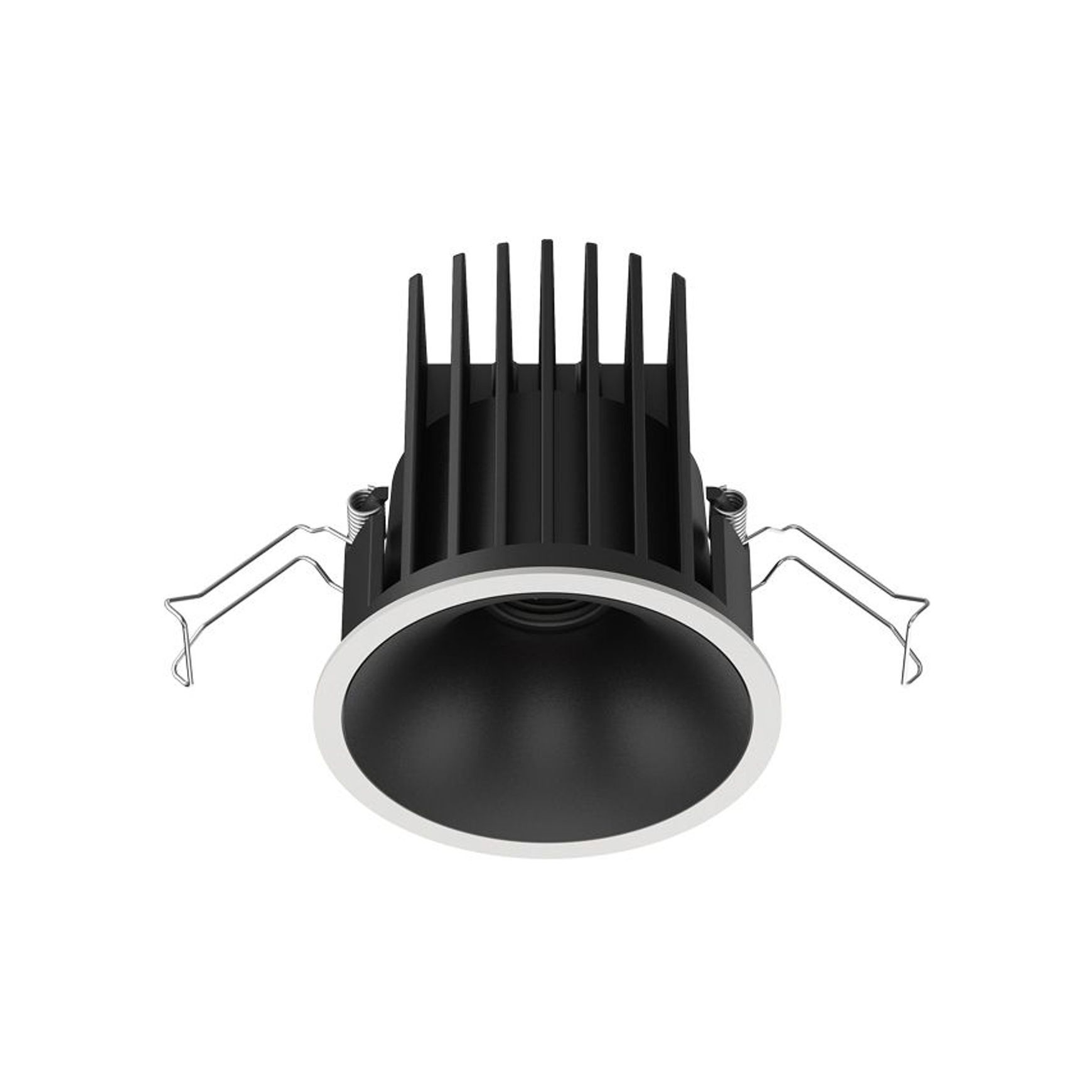

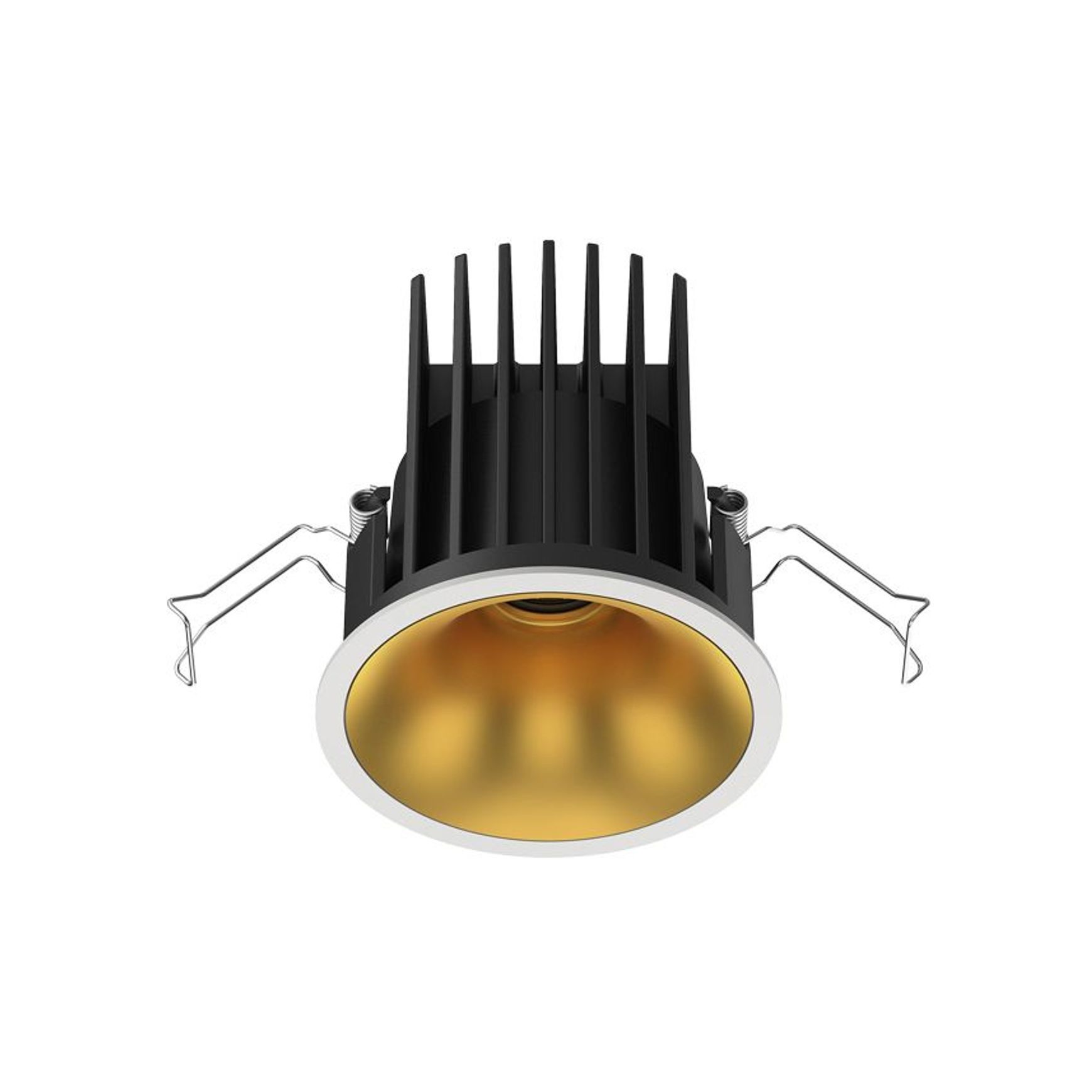

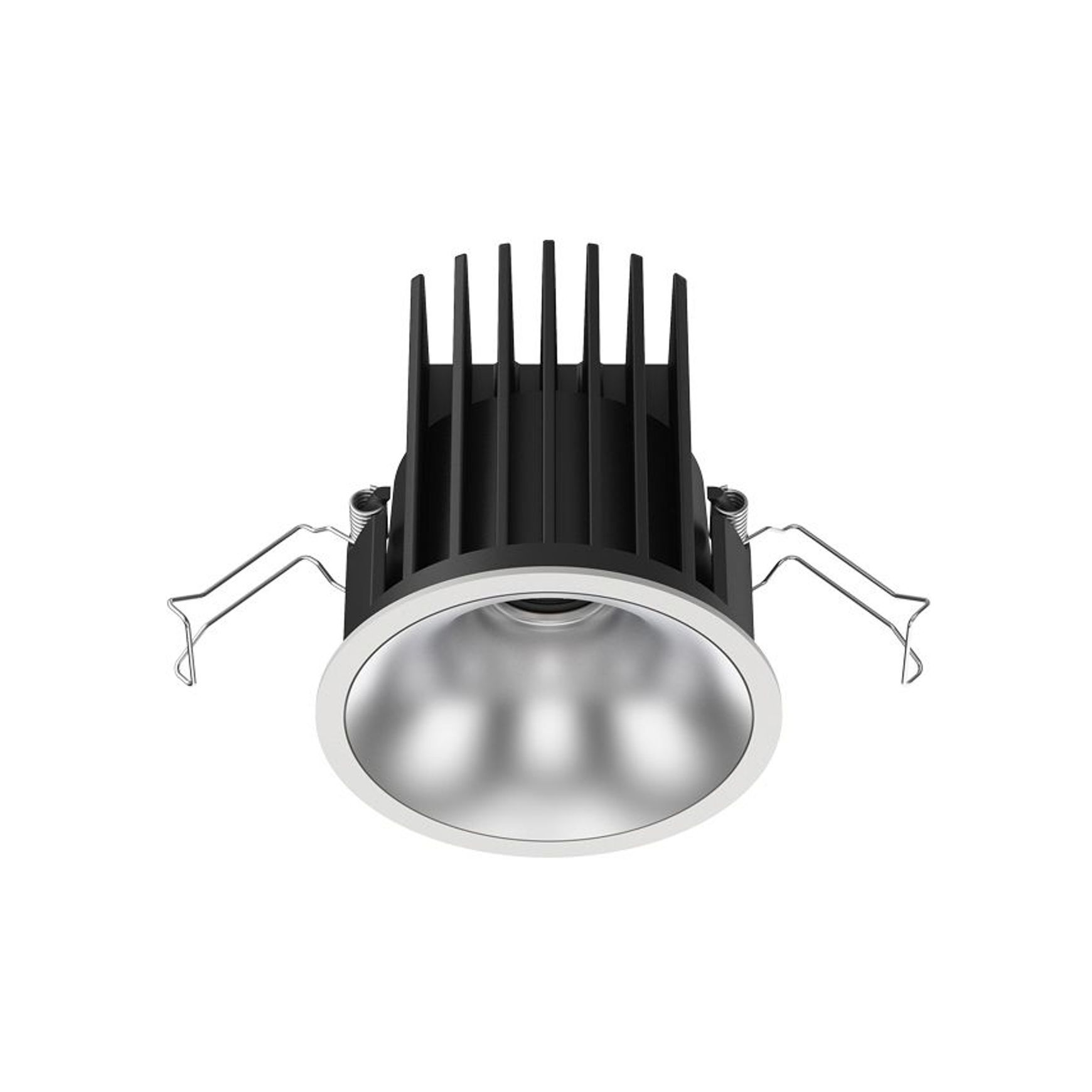

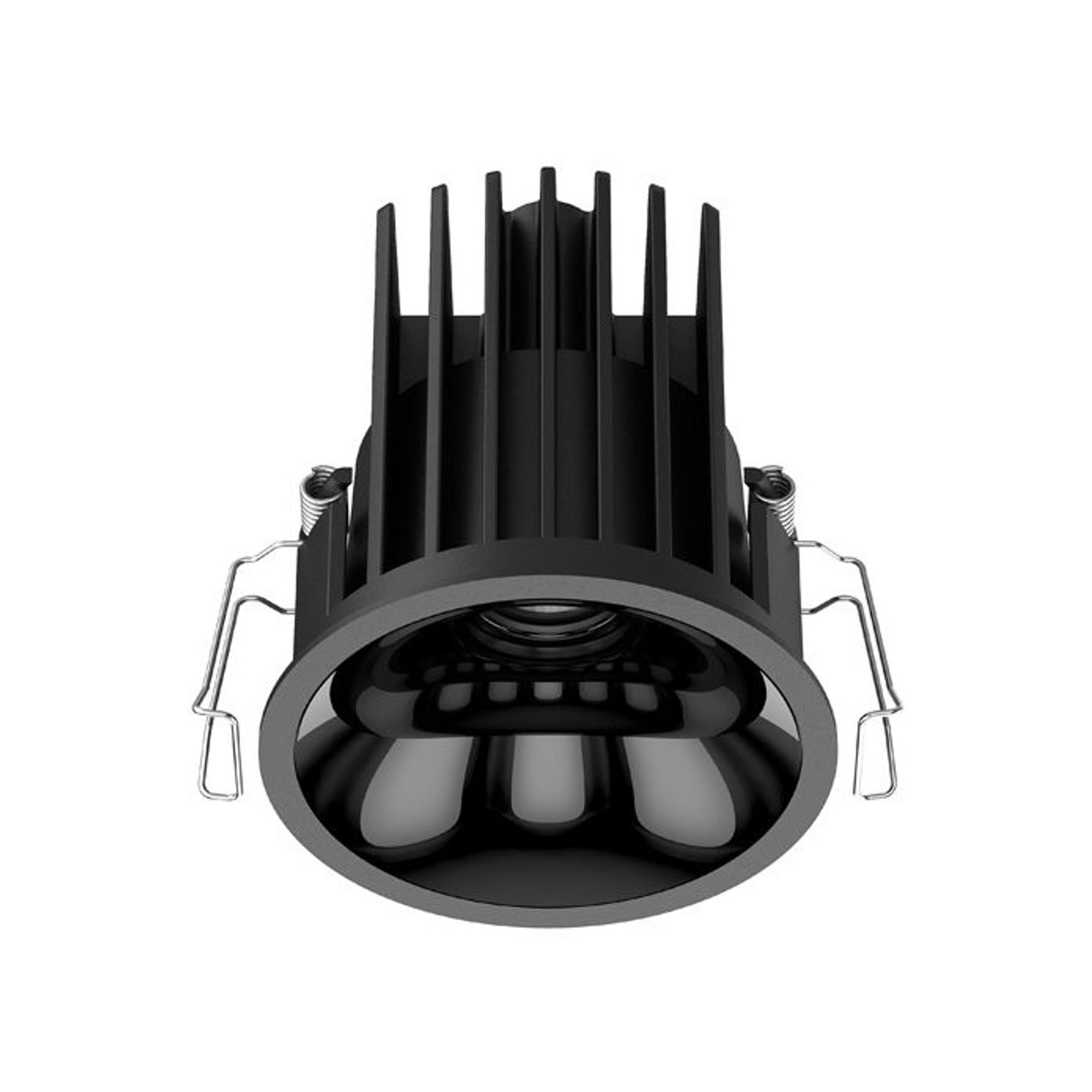

It comes in 9 colour options (White, White/Black, White/High Gloss Black, Black/High Gloss Black, White/Silver, Black/Gold, White/Gold, Black, Black/Silver). Pick one in the row under the description to see it.

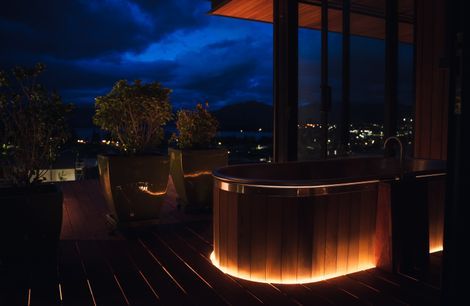

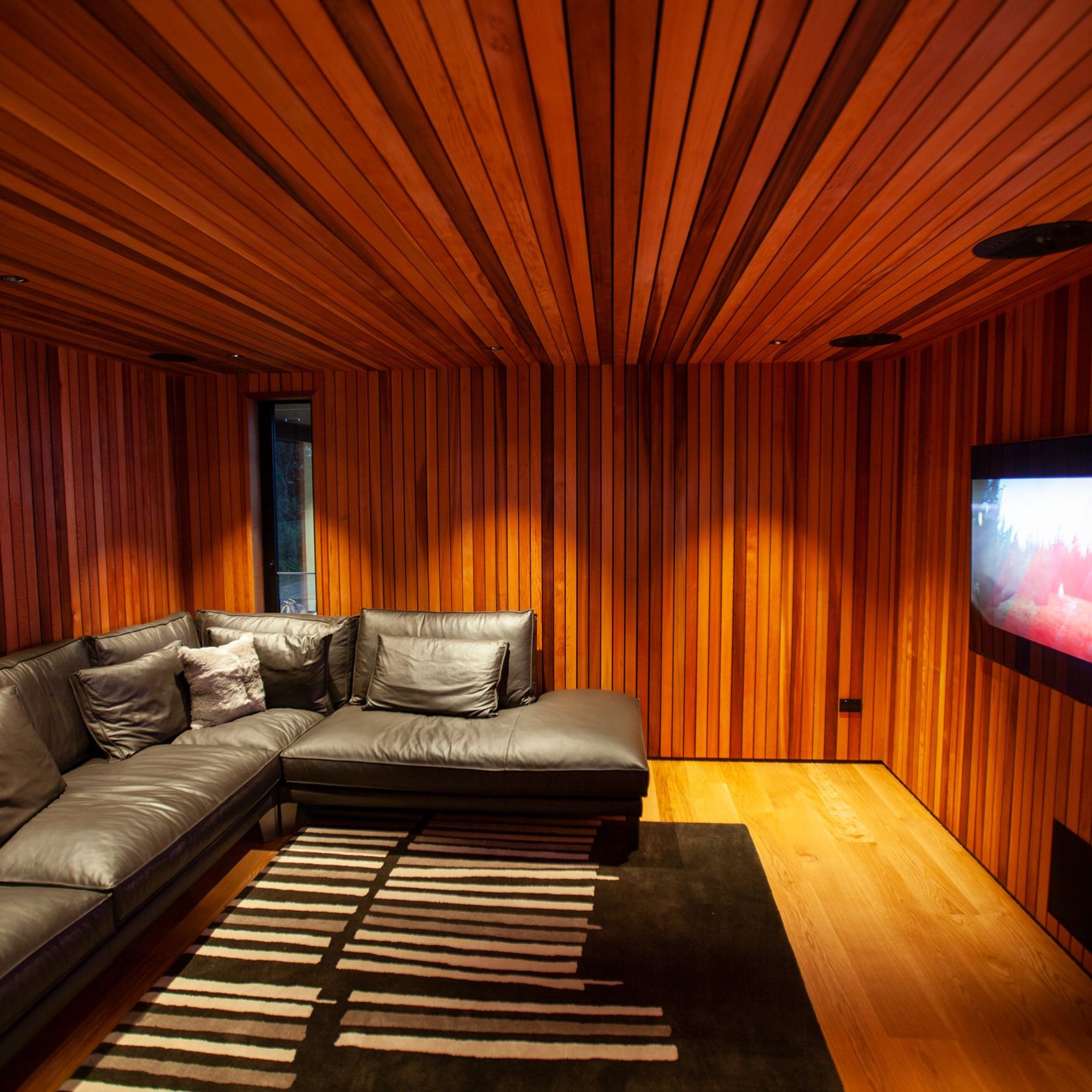

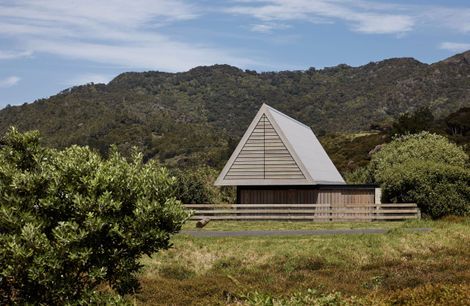

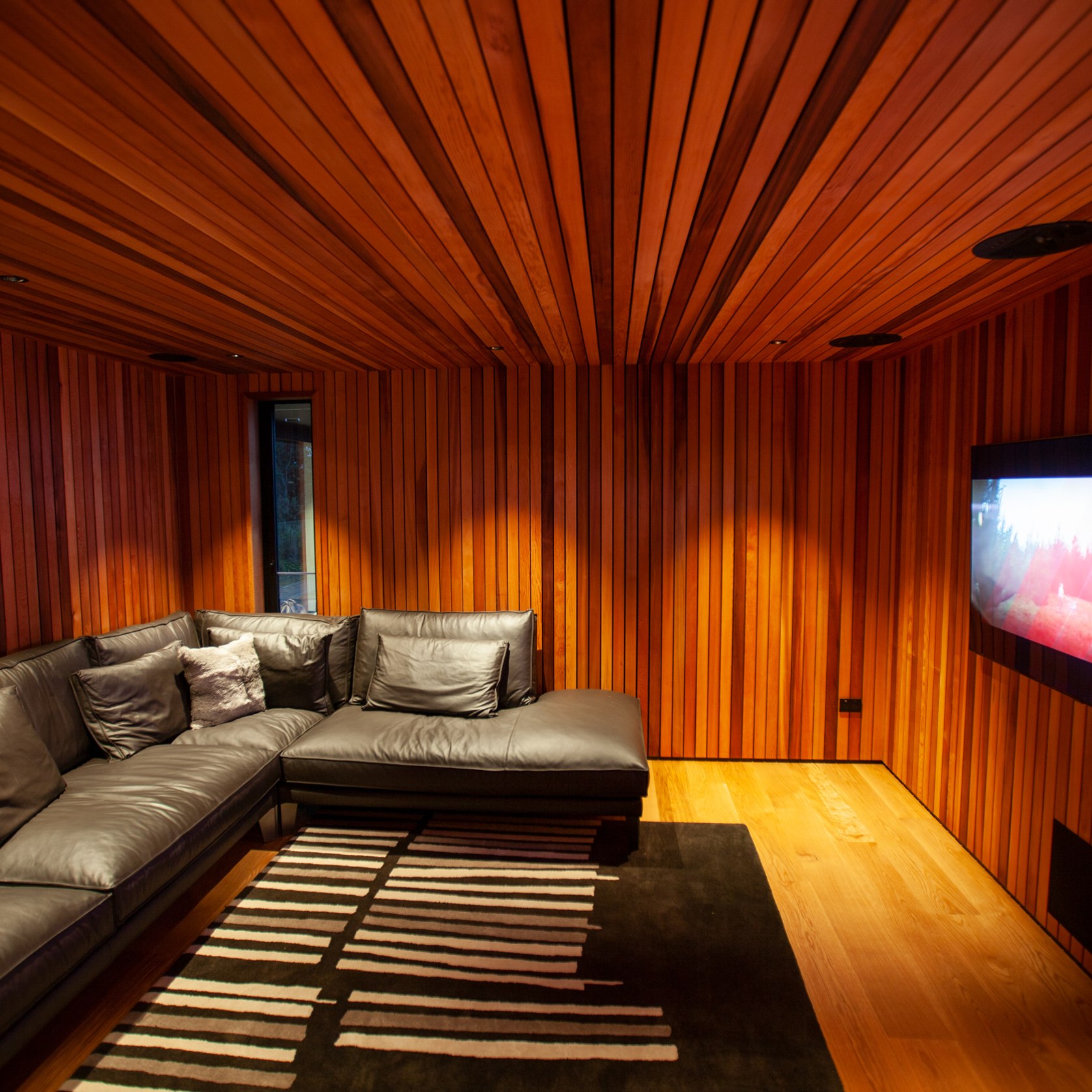

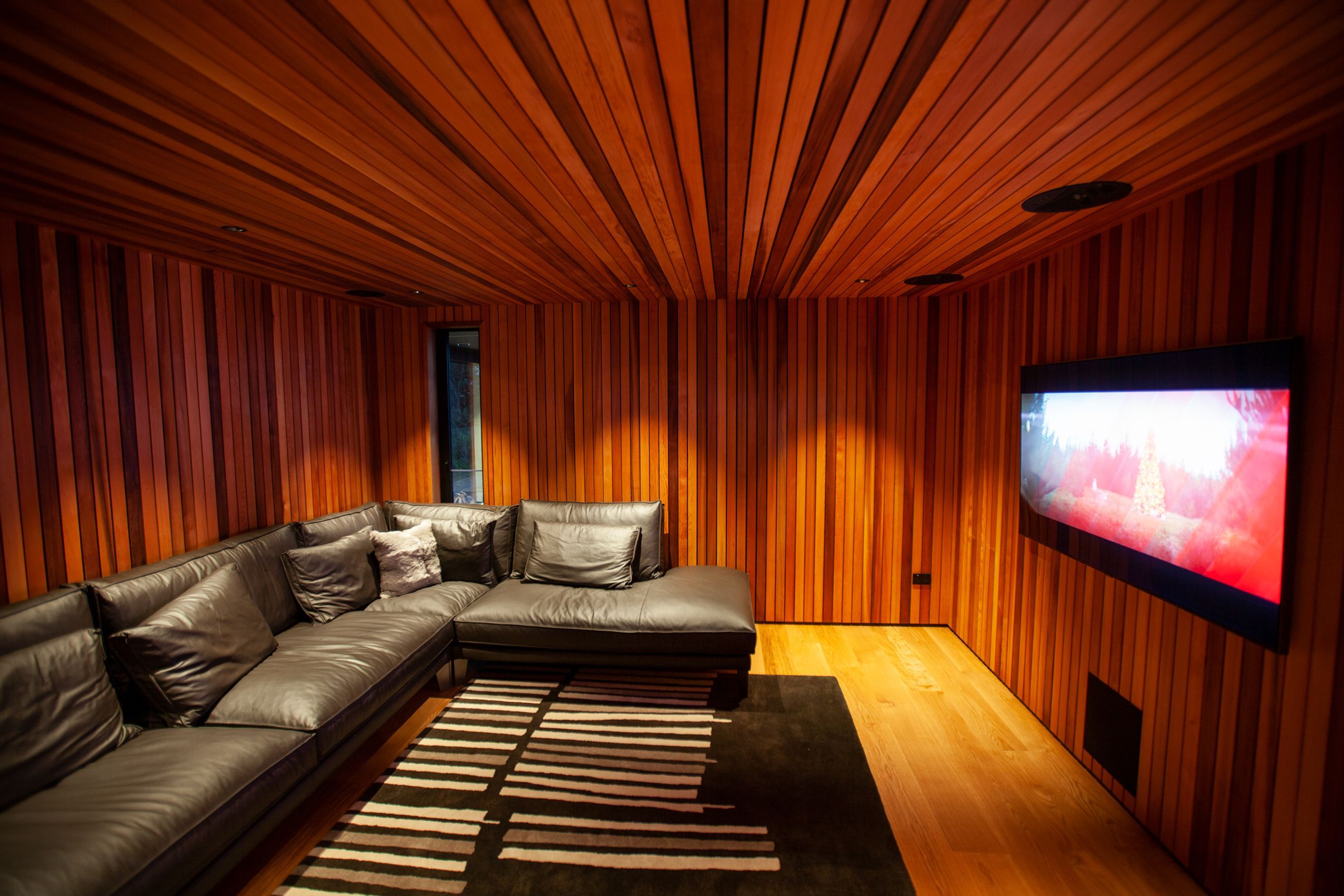

Yes. It has been specified in projects on ArchiPro, including Lake Hāwea Home by Pretty Sweet Lighting, Bunker House | Project of the Month by Dalman Architects and Fale Marker by RTA Studio. See how it was used in a finished space.
from this page, see their contact details on ArchiPro, or visit their website. The Halcyon Lighting profile on ArchiPro has the rest of their products.
