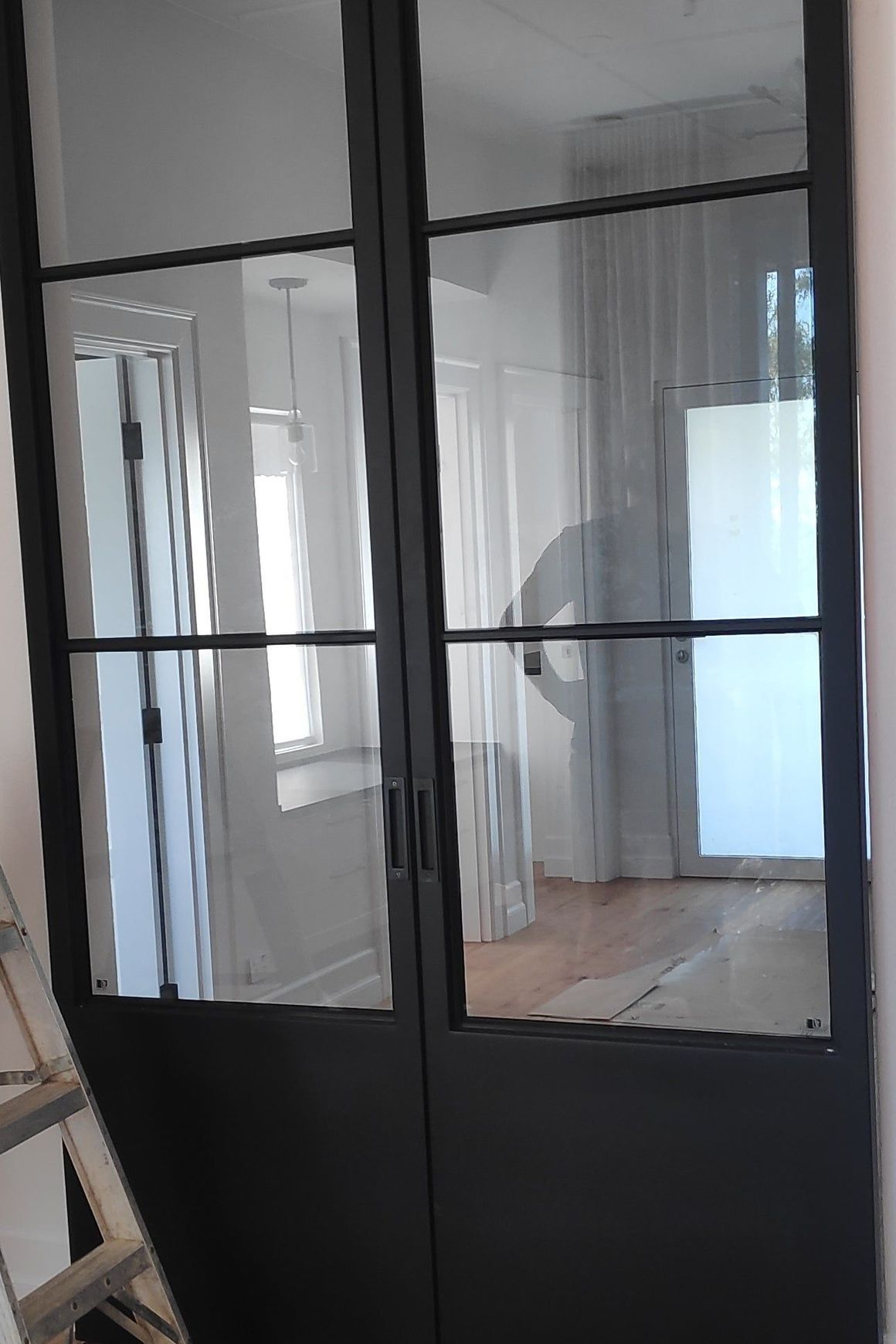

Steel Frame Glass Barn Sliding Doors - Galvanised FPS50

ZEN
Not Applicable

Steel Frame Glass Barn Sliding Doors - Galvanised FPS50 Profile

All doors custom made no standard sizes. Door size over 1200mm wide will need to be double doors.

Details
  • Category
    Sliding Doors
  • Brand
    Zen Doors
  • Warranty
    5 years
Specifications
  • Zen Barn Sliding Doors
  • Use: Internal
  • Door Design: Custom

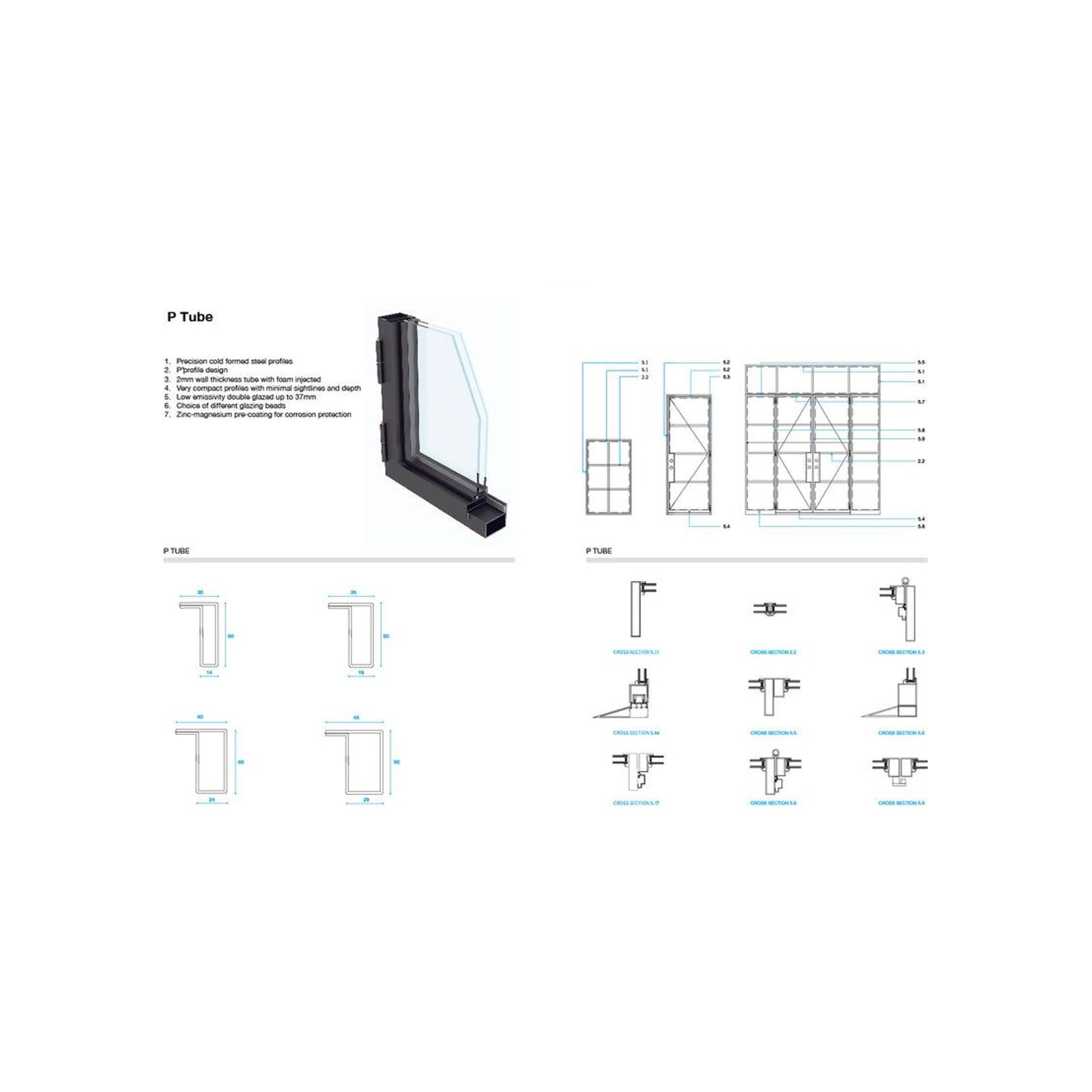

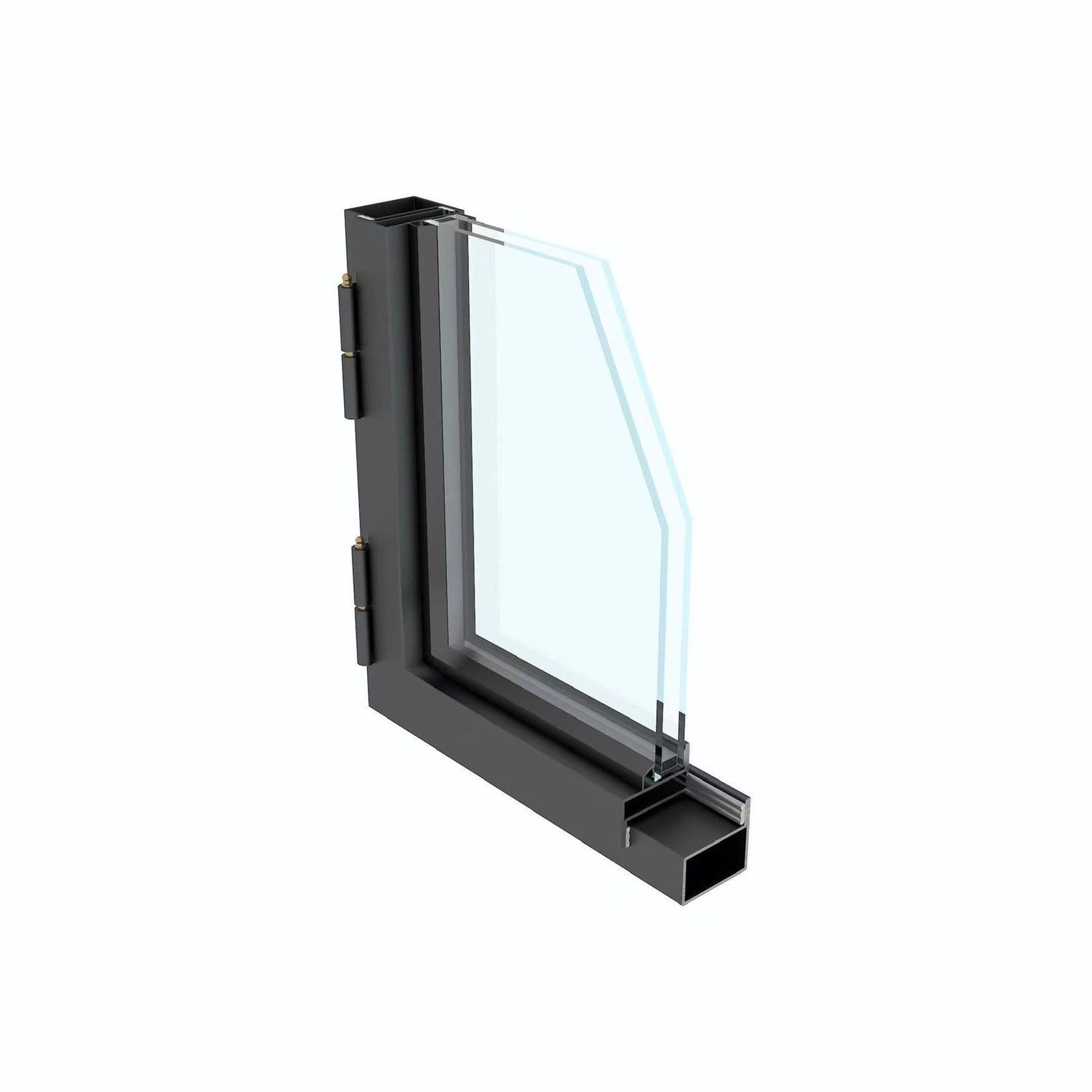

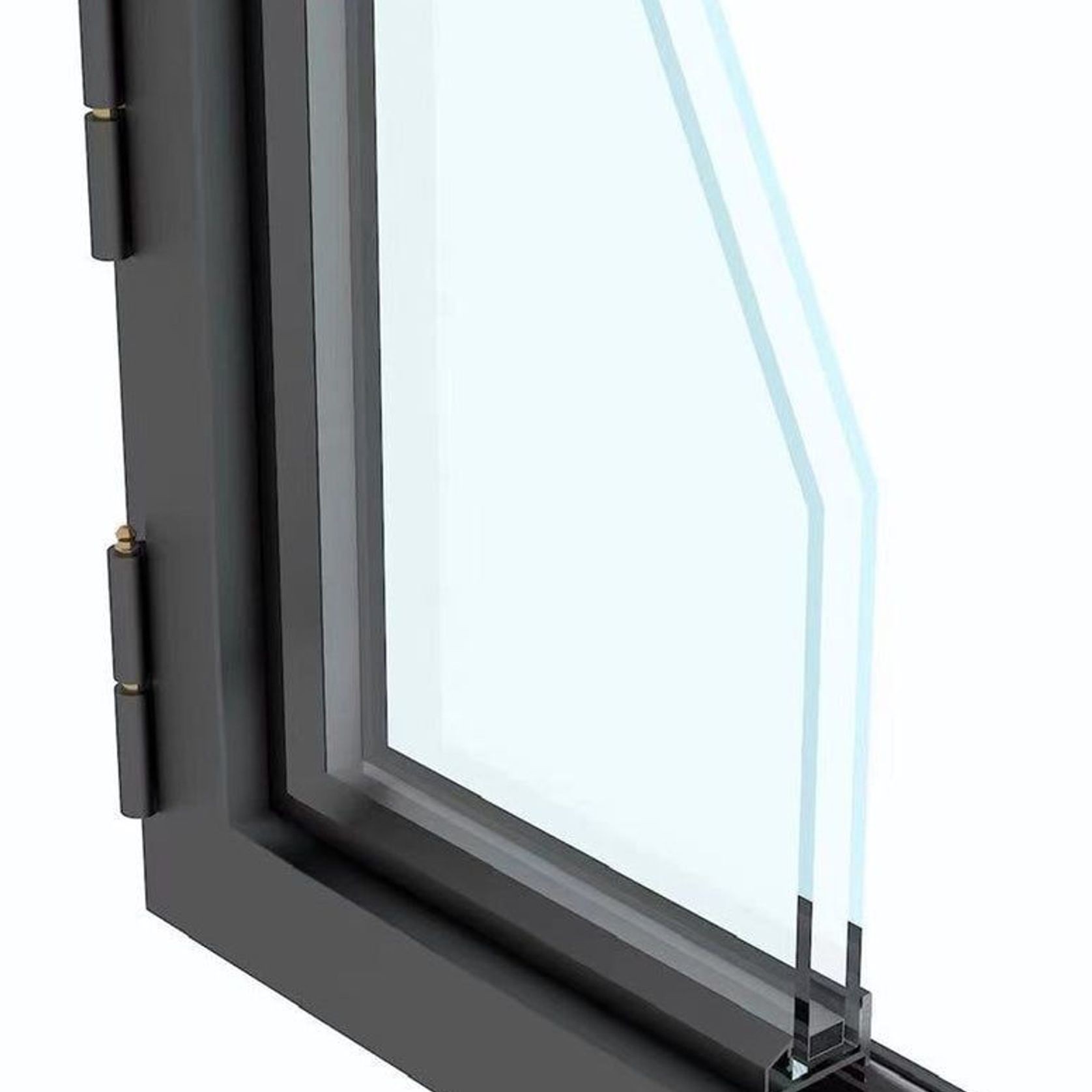

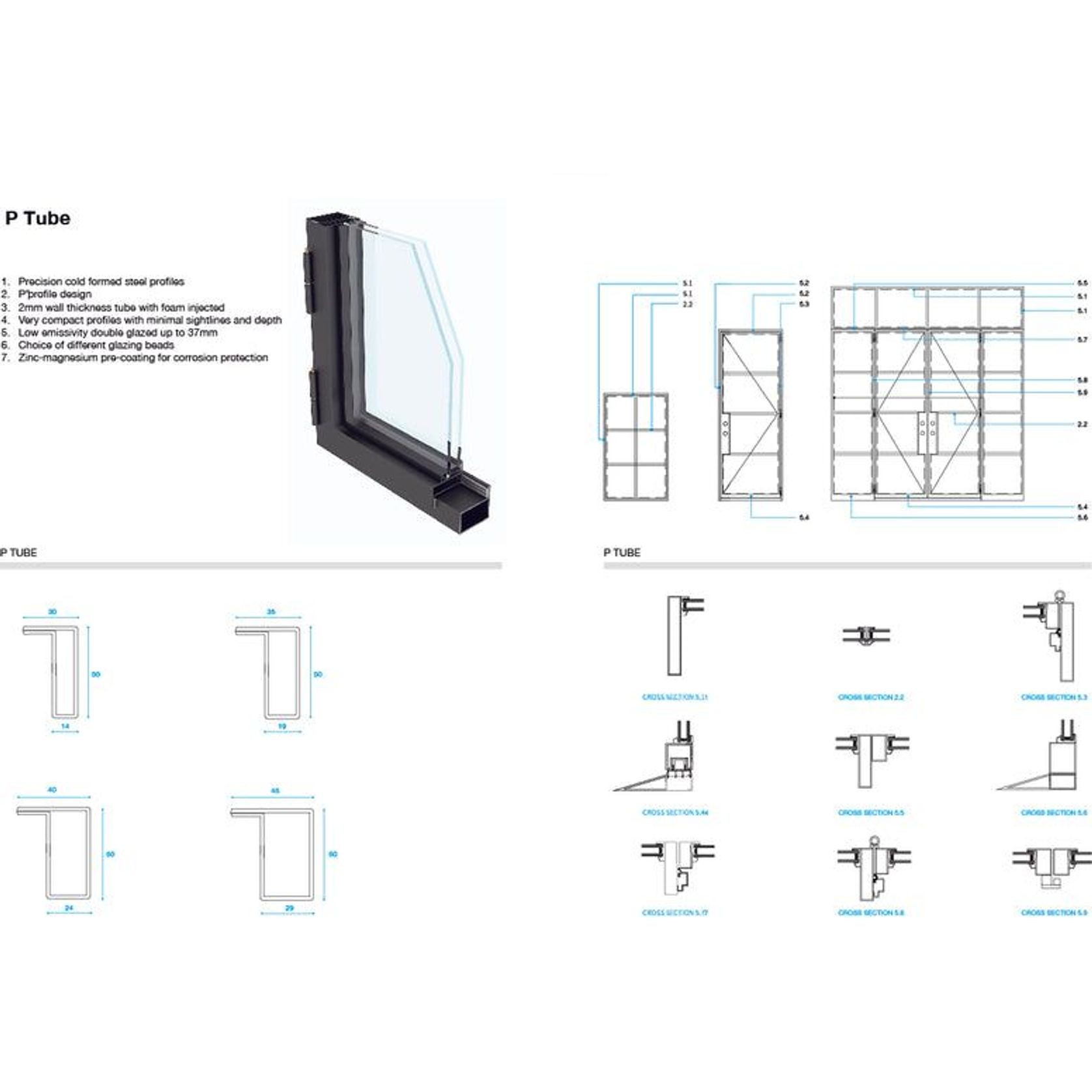

  • Material: Precision cold formed galvanised steel profiles - ”P” profile design
  • 3.2mm wall thickness tube with foam injected - Very compact profiles with minimal depth and sight-lines
  • Surface treatment: Zinc-magnesium pre-coating for corrosion protection
  • Gritblasting SA 2.5;
  • The 1st layer is a sealing primer
  • The 2nd layer is a high-durable top coating;
  • Total thickness is at least 150-180 microns according to VMRG quality requirements.
  • Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
  • Colour: Standard Finishes or Large Range of RAL Powder Coat colours at extra cost, https://www.ralcolorchart.com/
  • Door Frame: 50mm x 30mm
  • Glass Type: Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E
  • Glass Thickness: 5/8/10mm single glazed toughened safety glass
  • TDL: 20T
  • Beads: CTM20
  • Door Type: Barn Sliding
  • Max Door Panel Size: H3000mm x W1200mm
  • Sliding Track: Up to W2400mm (Longer tracks will be connected with joiners)
  • Mounting Type: Exposed Sliding Track & Rollers with floor guides
  • Handles: Recessed Handle or Custom Steel Pull
  • Hardware: Heavy Duty Rollers and Sliding Track
  • Package: 5 Layers of packing, plastic film, soft foam sheet, corrugated paper board, bubble wrap and Wooded Sealed Box
  • CAD Design Drawing: Yes
Features
  • Modern Architectural Design
  • Custom Hand Made Construction for Durable Functionality
  • Built from High Quality Galvanised Steel Tube Profile
  • Fluorocarbon Coating better than Powder coating
  • Steel Sliding Track and Heavy Duty Rollers Included
  • Single Glazed Toughened Safety Glass included in price (Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E)
  • Custom Steel Pull Handles Included in price
  • Designed to Impress and Built to Last
  • Orders Made from June 2023 - *5 Year Warranty - Must comply with our installation requirements.
