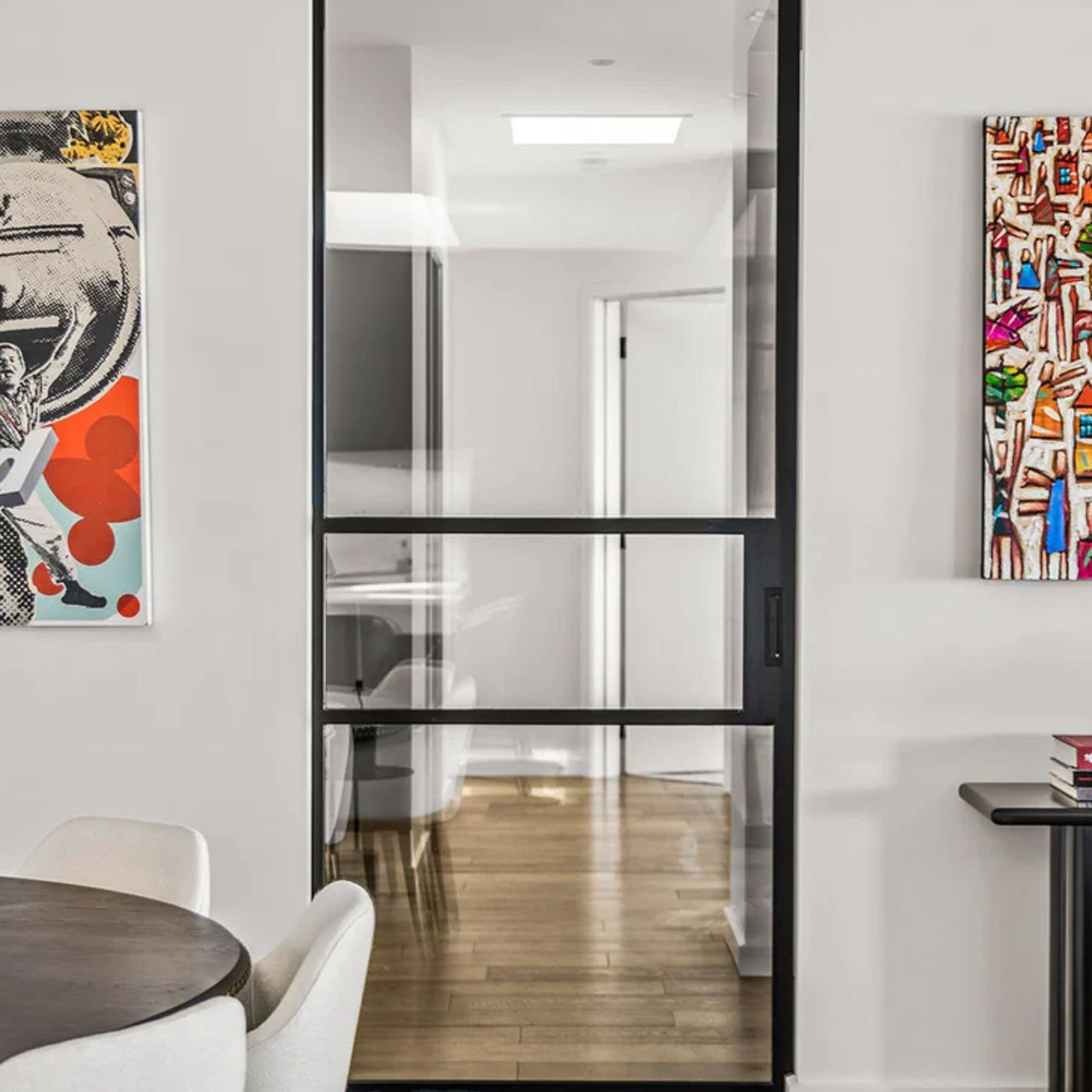

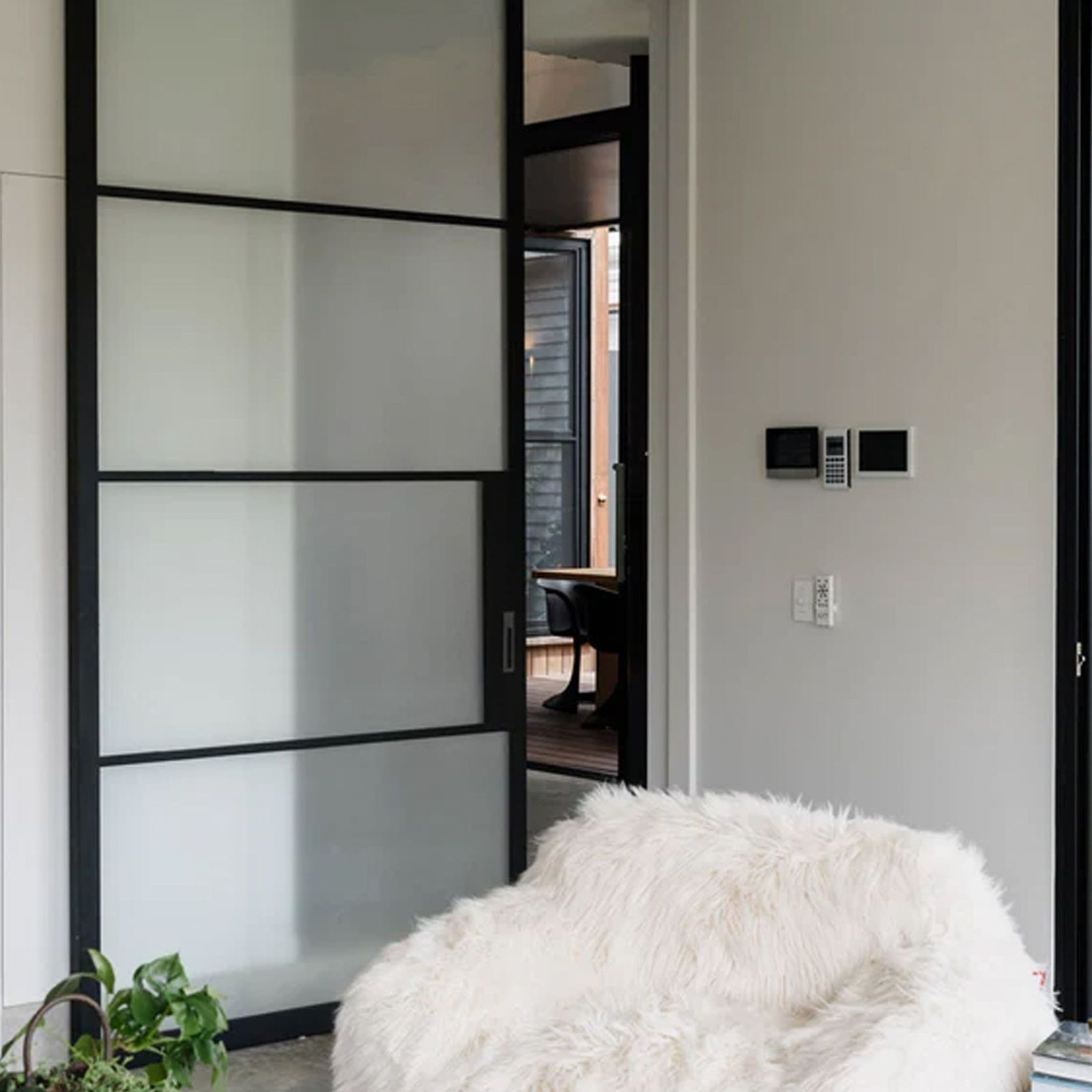

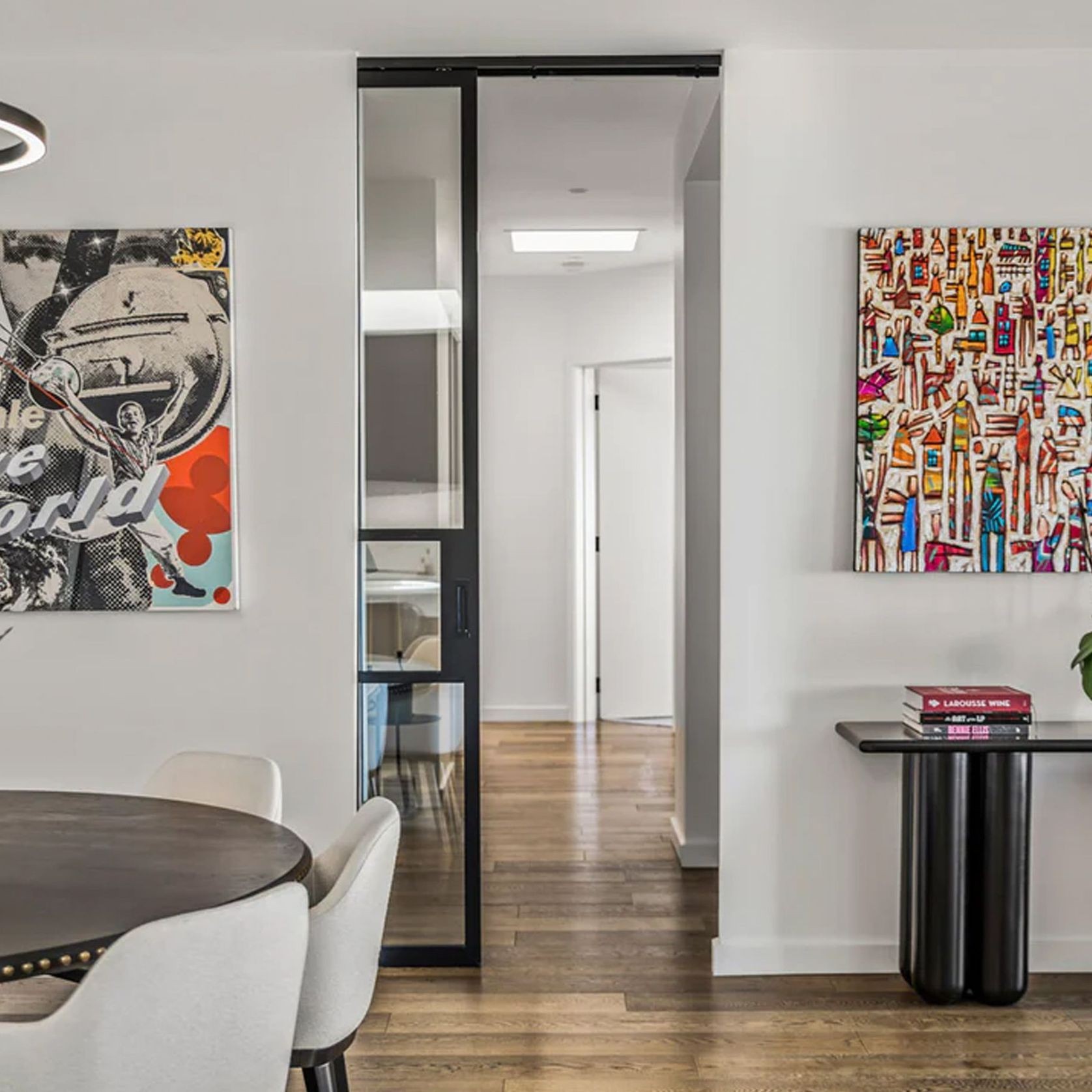

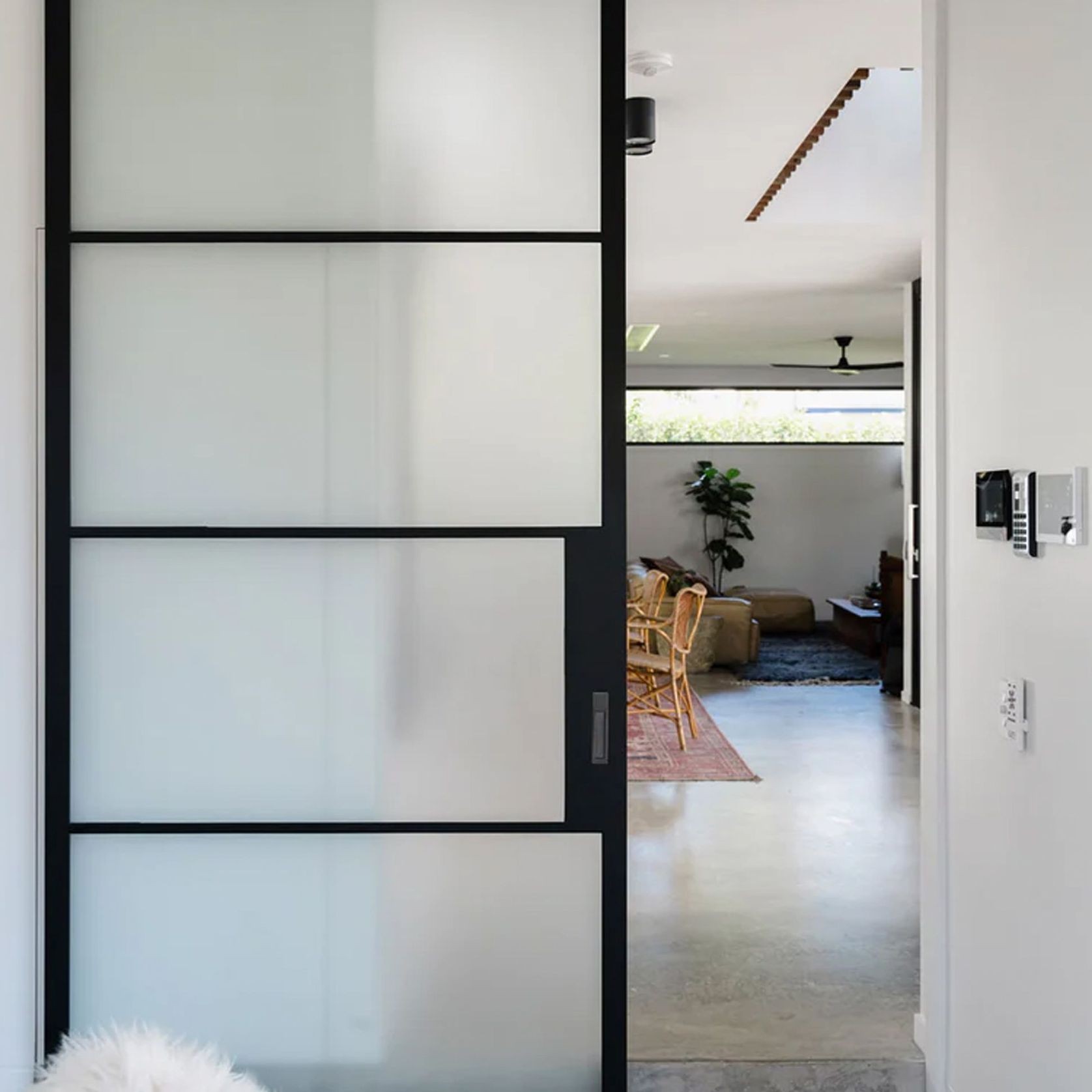

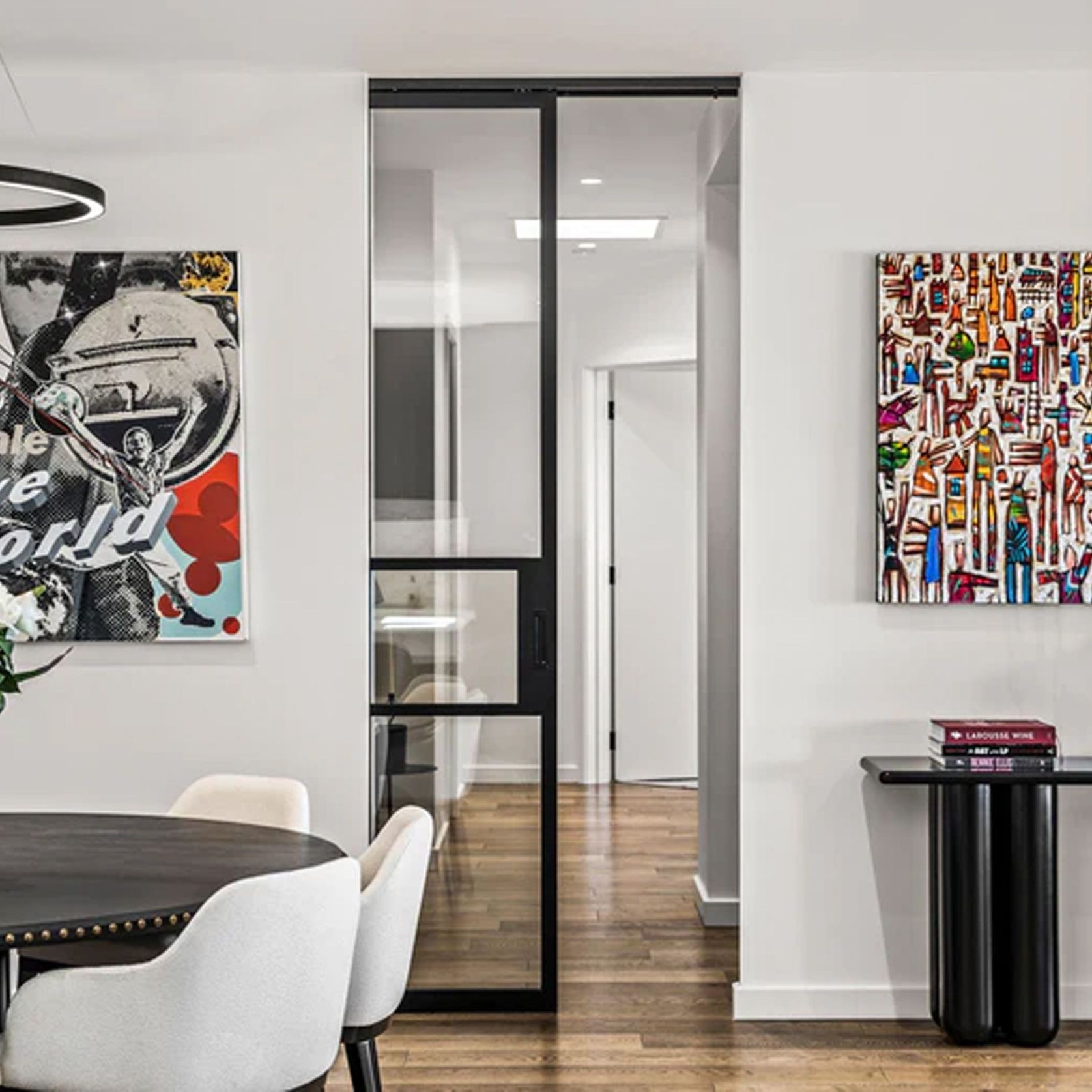

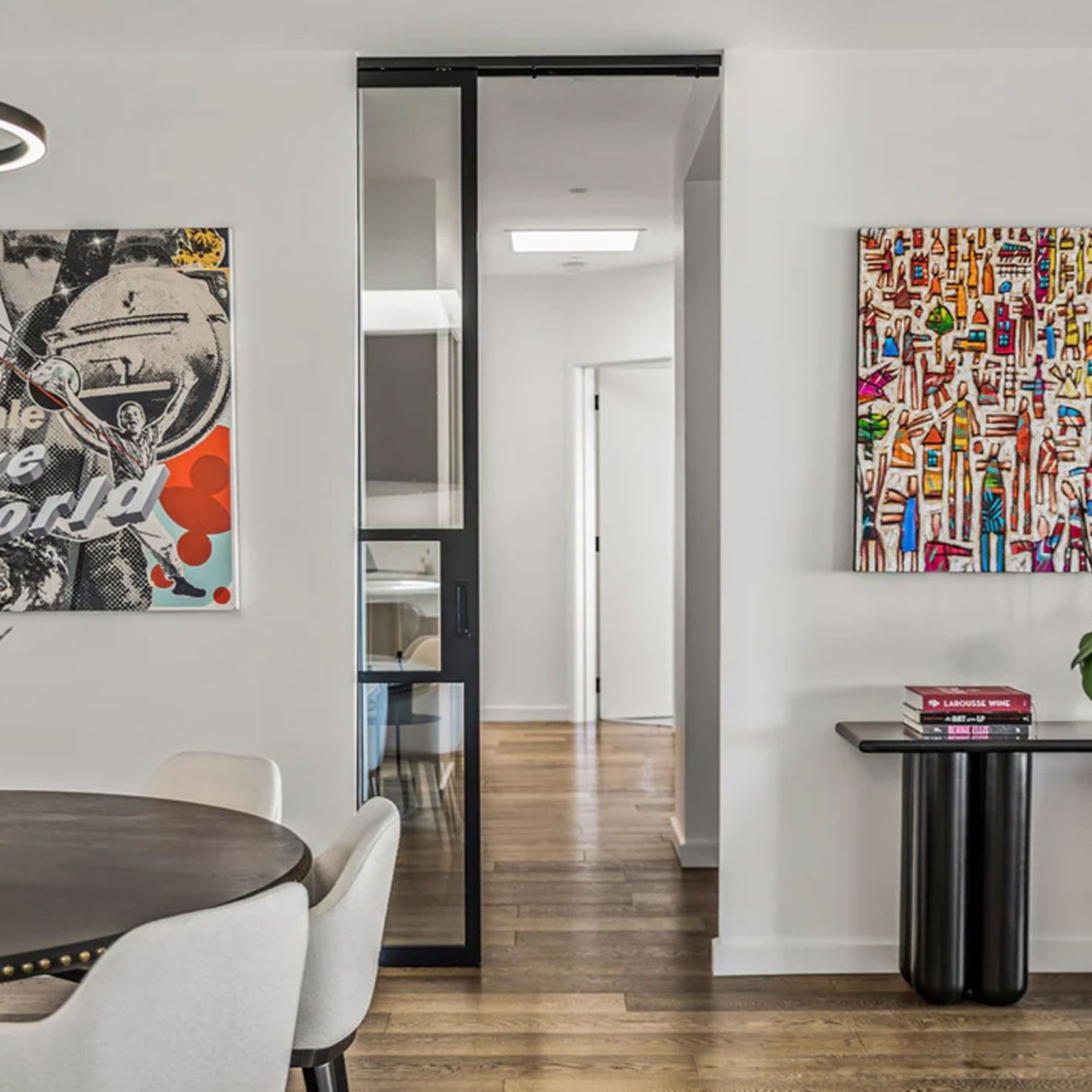

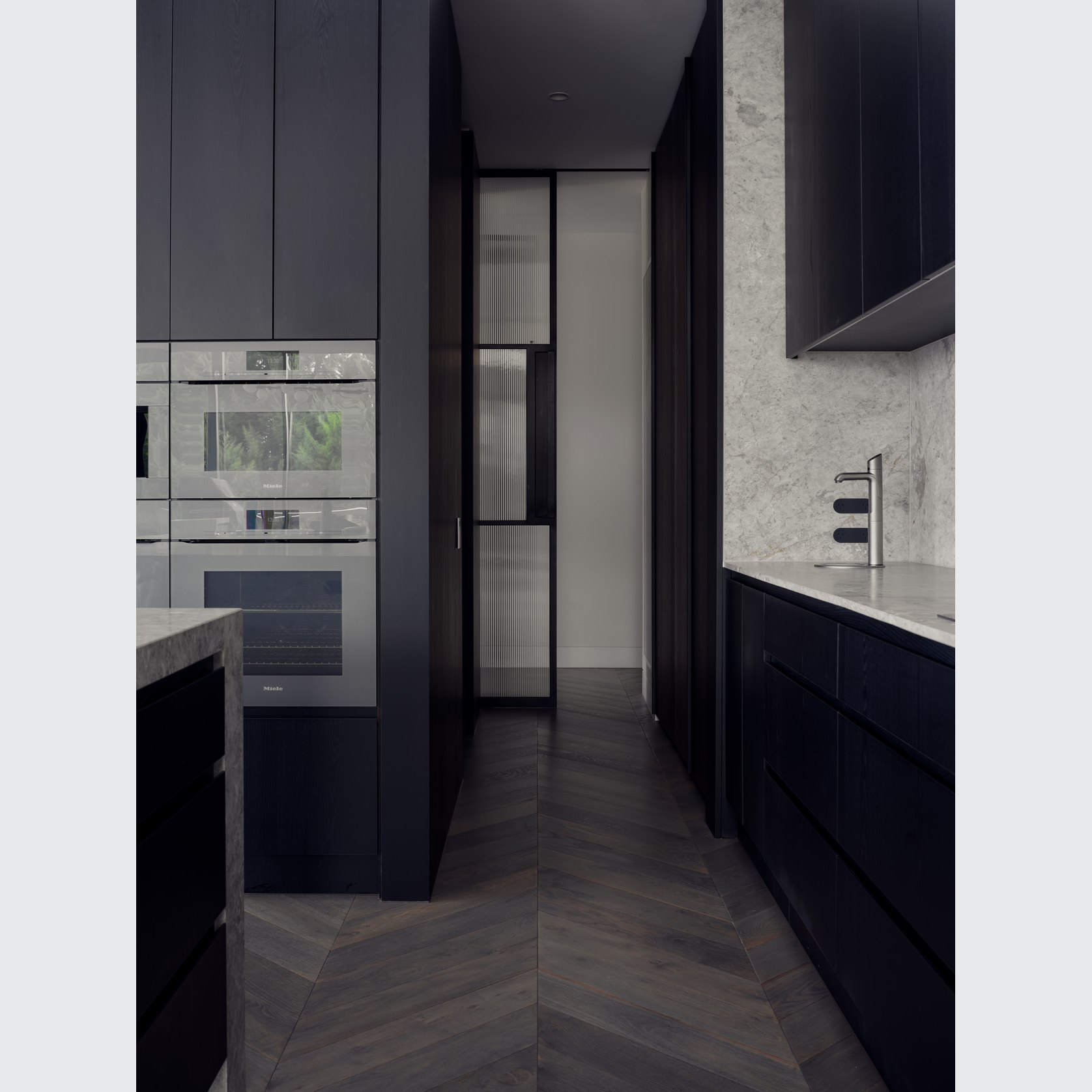

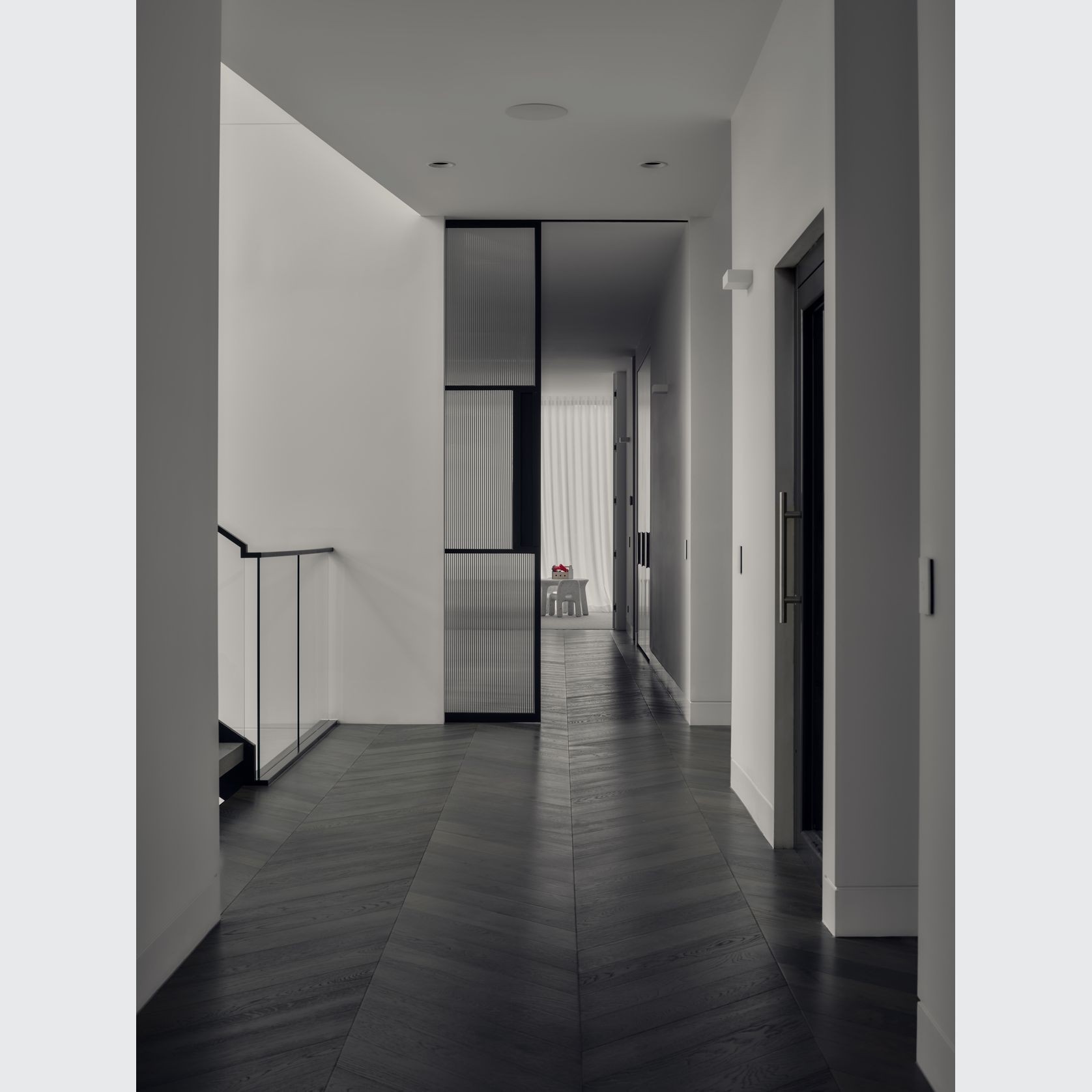

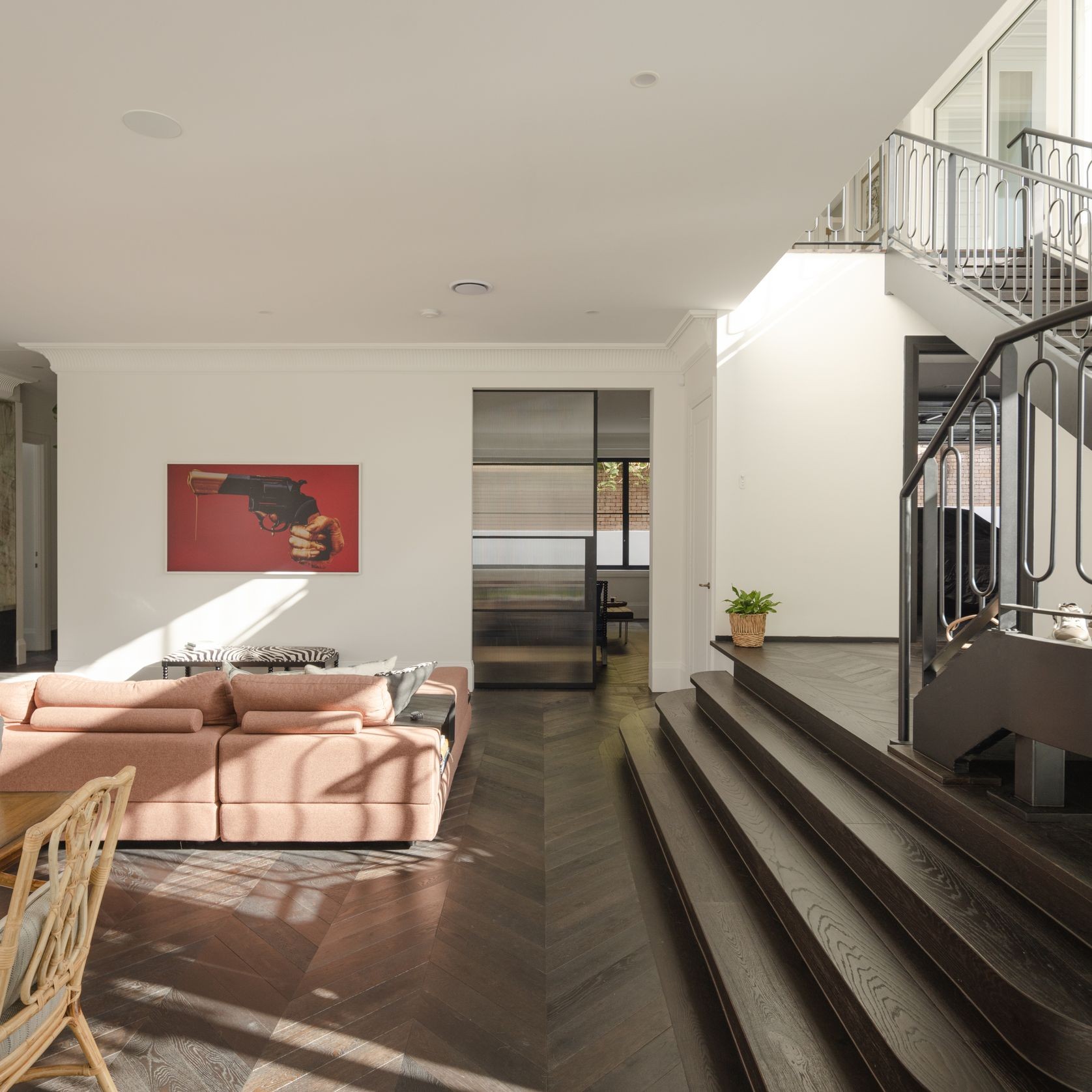

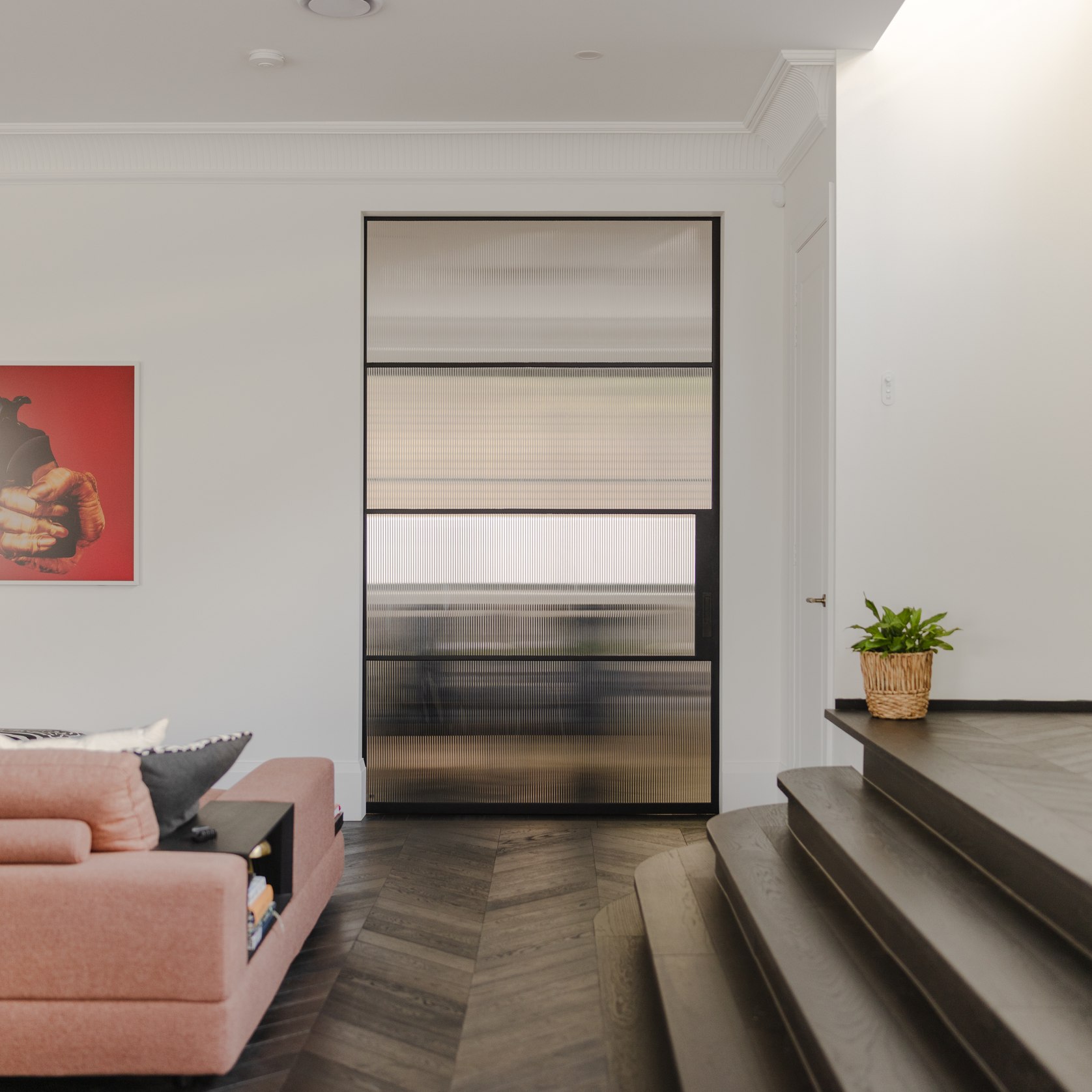

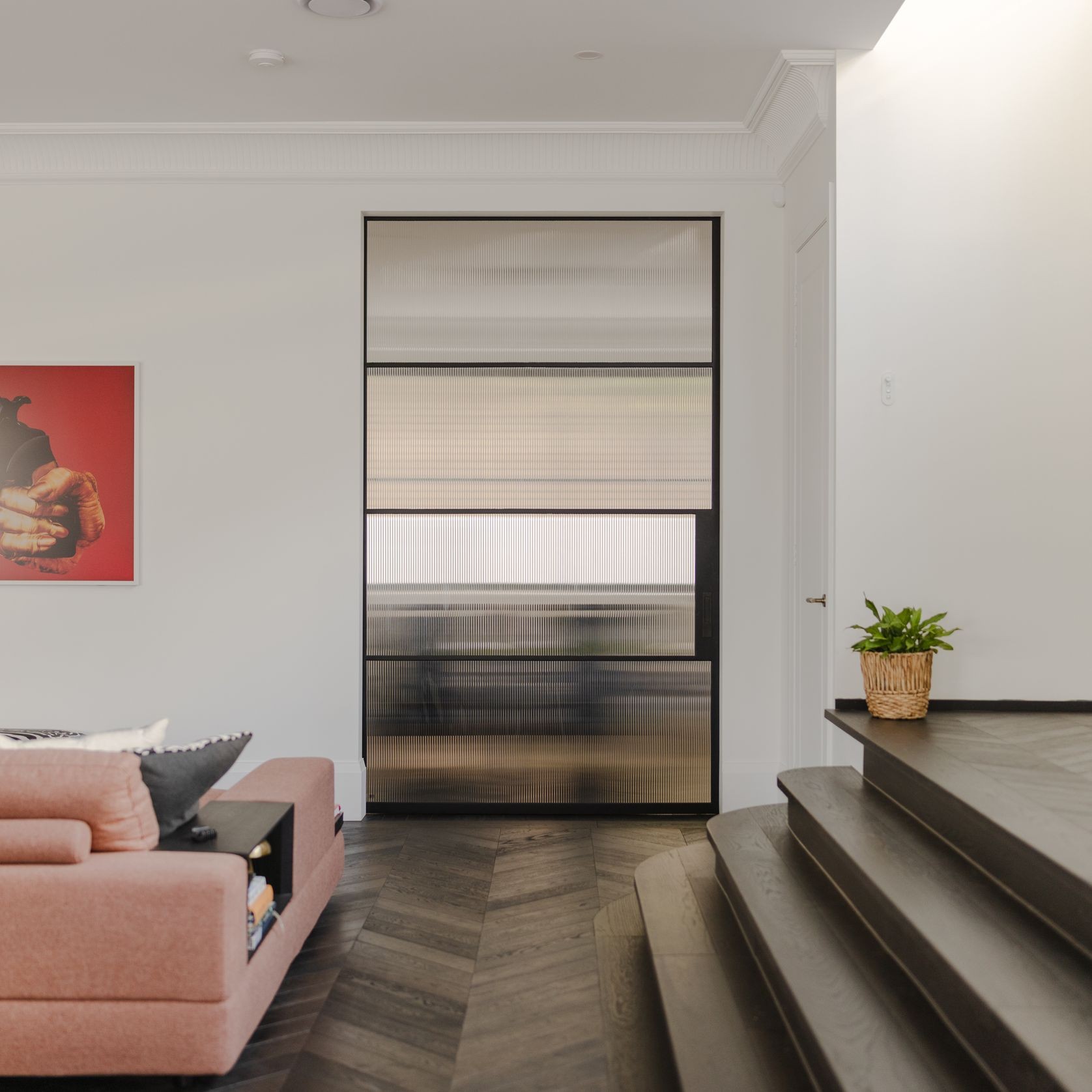

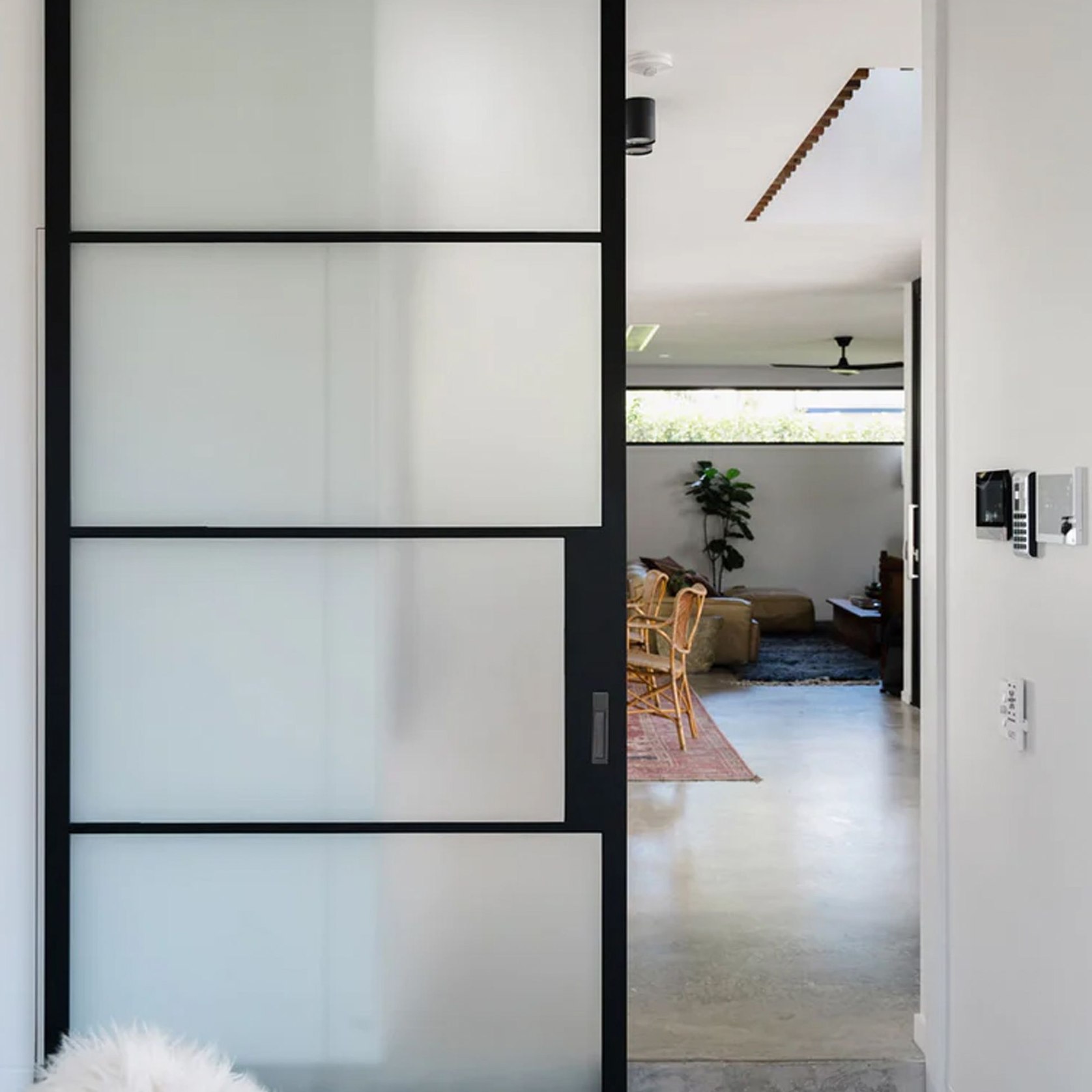

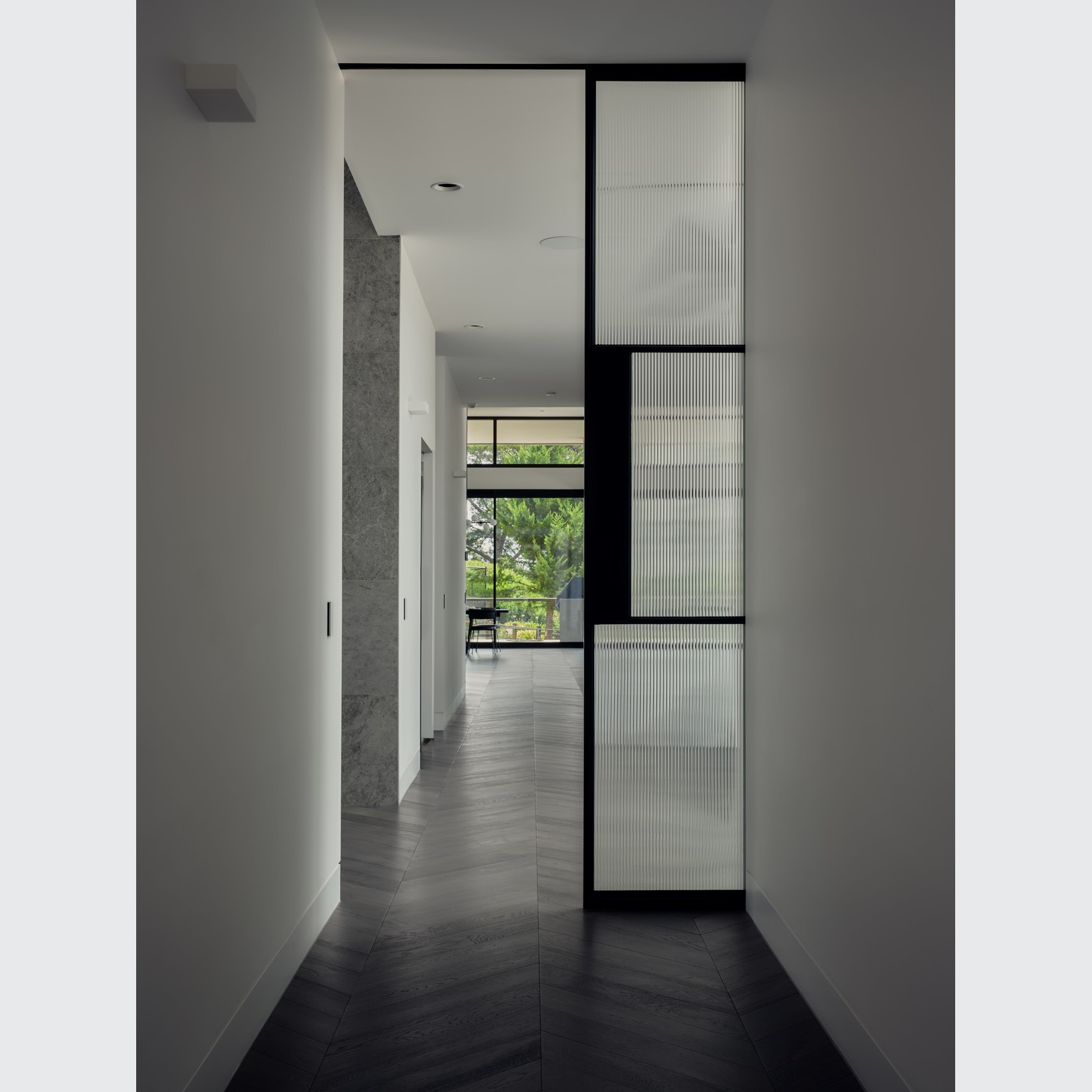

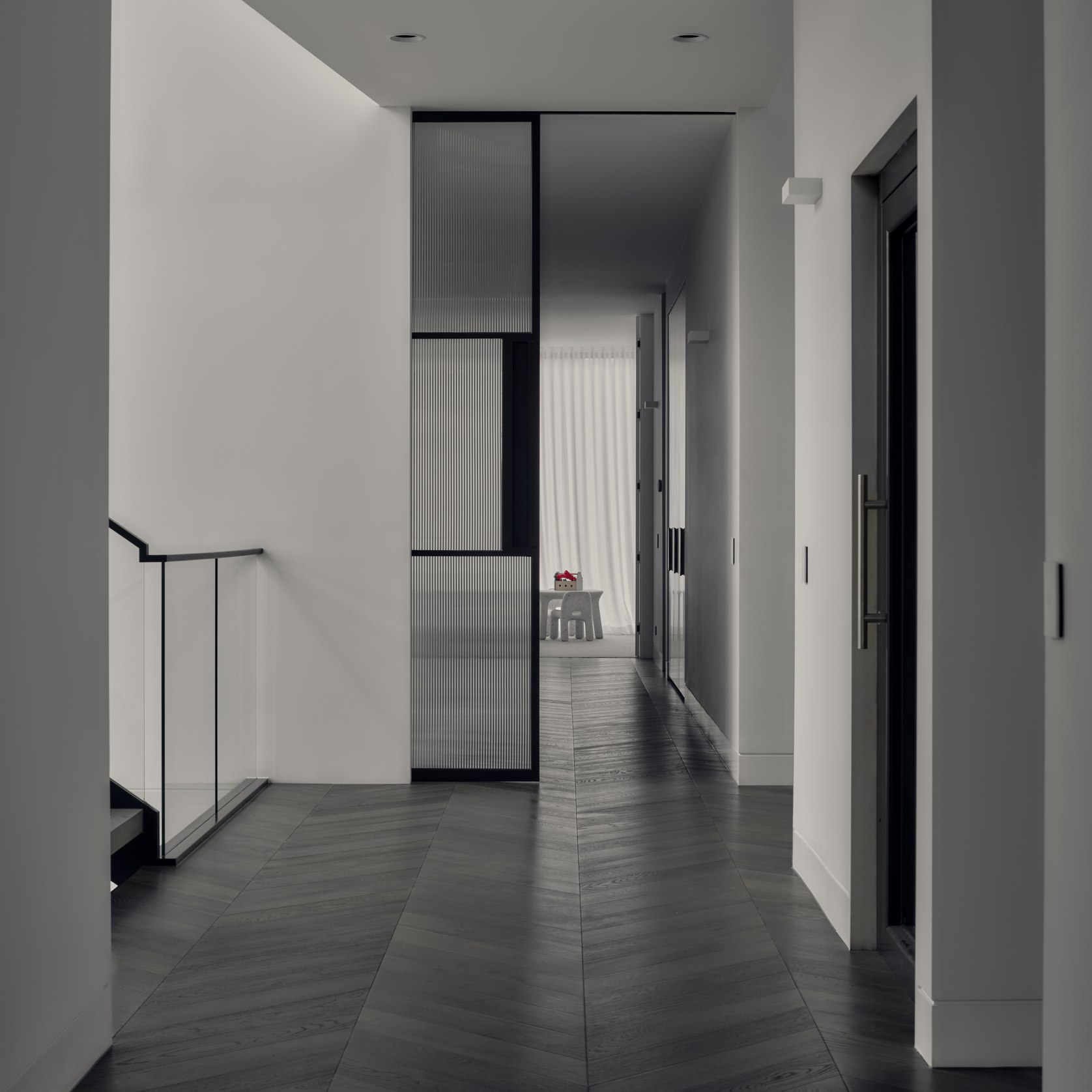

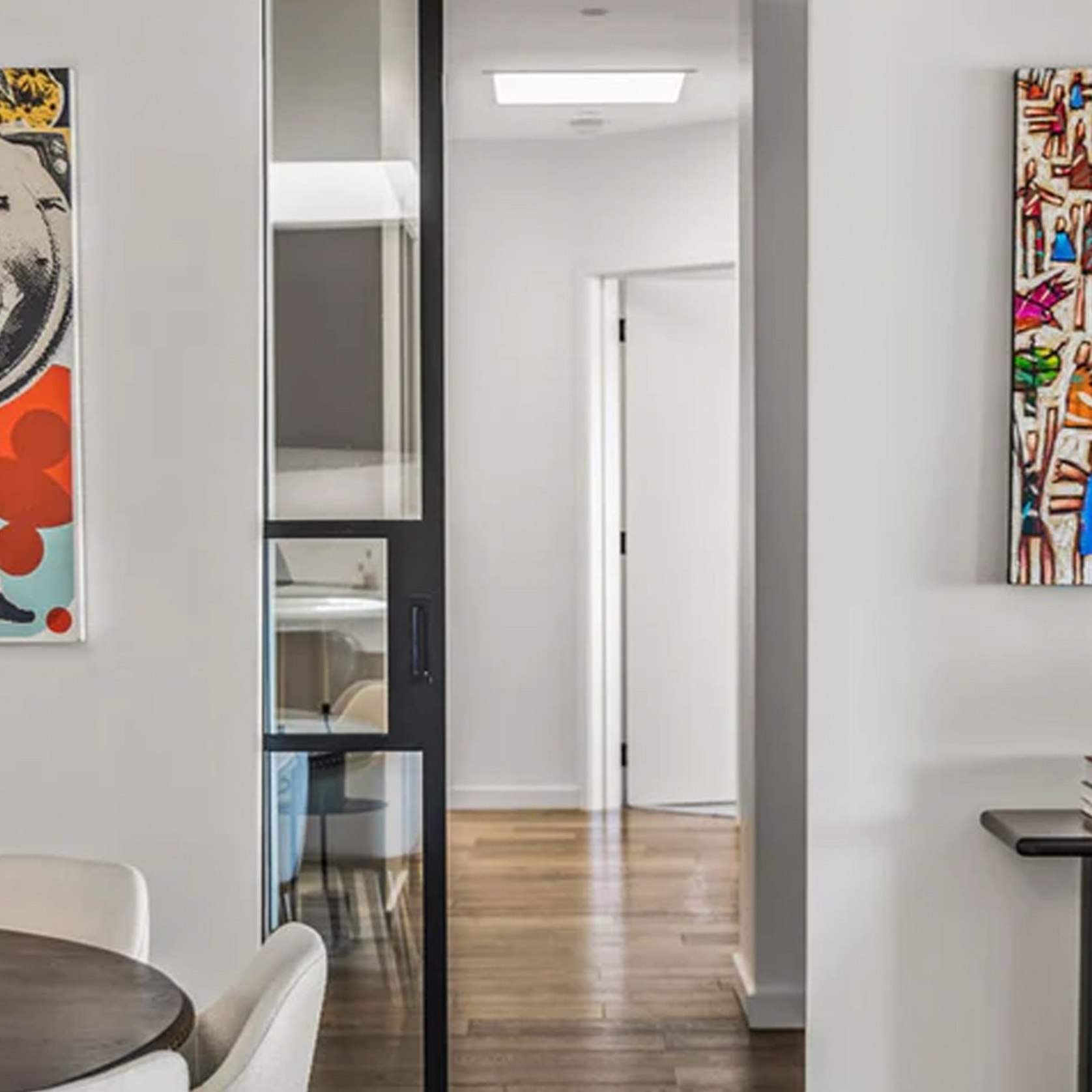

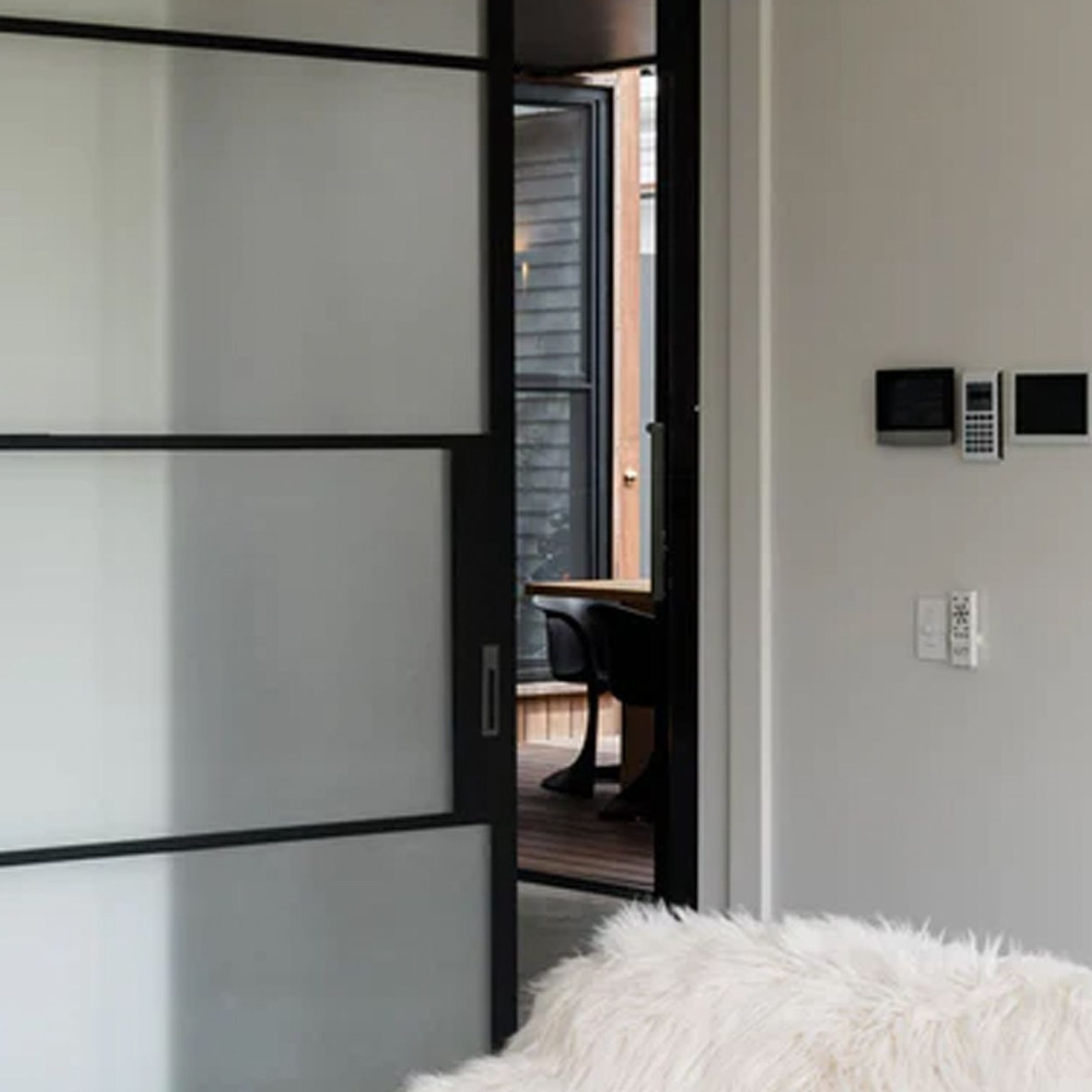

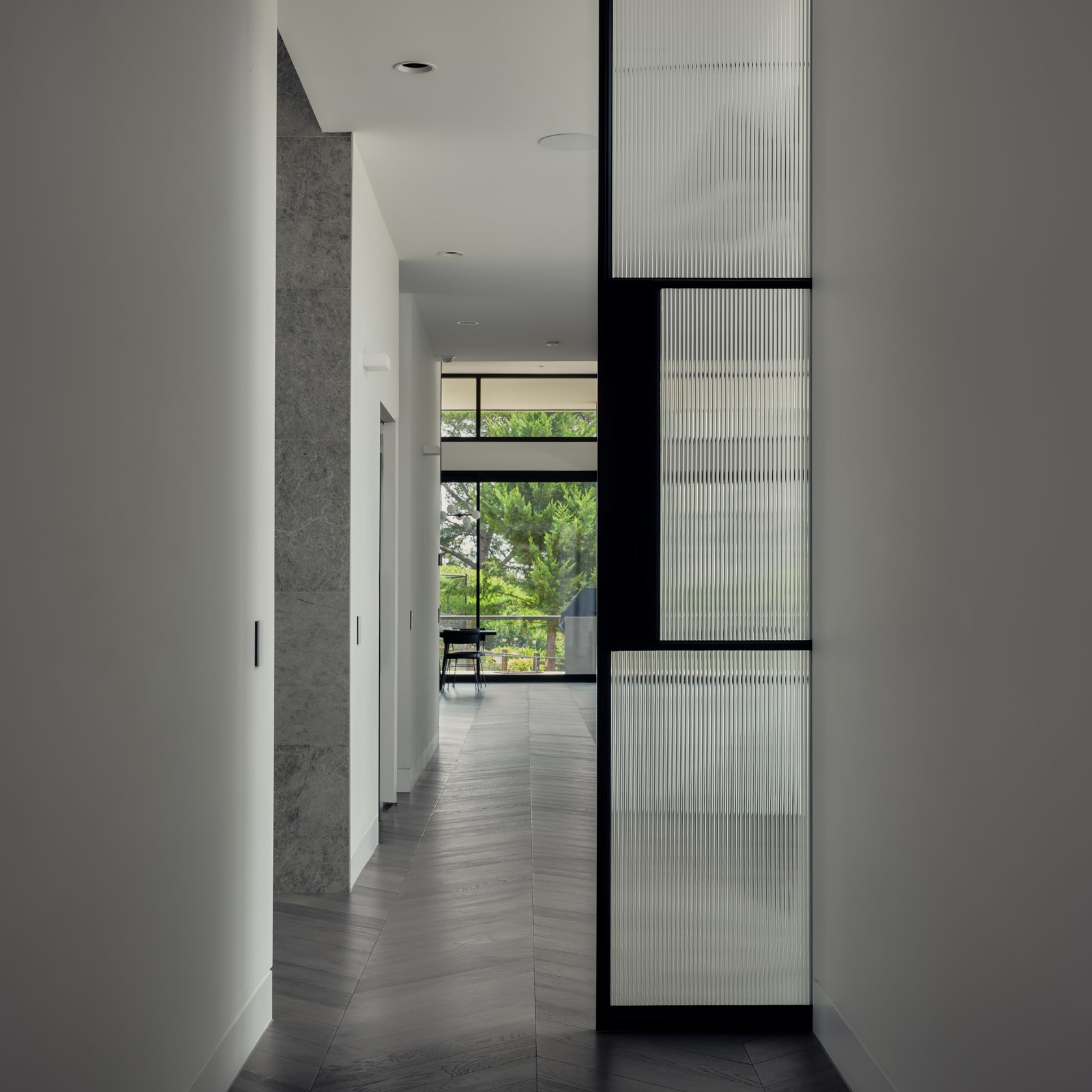

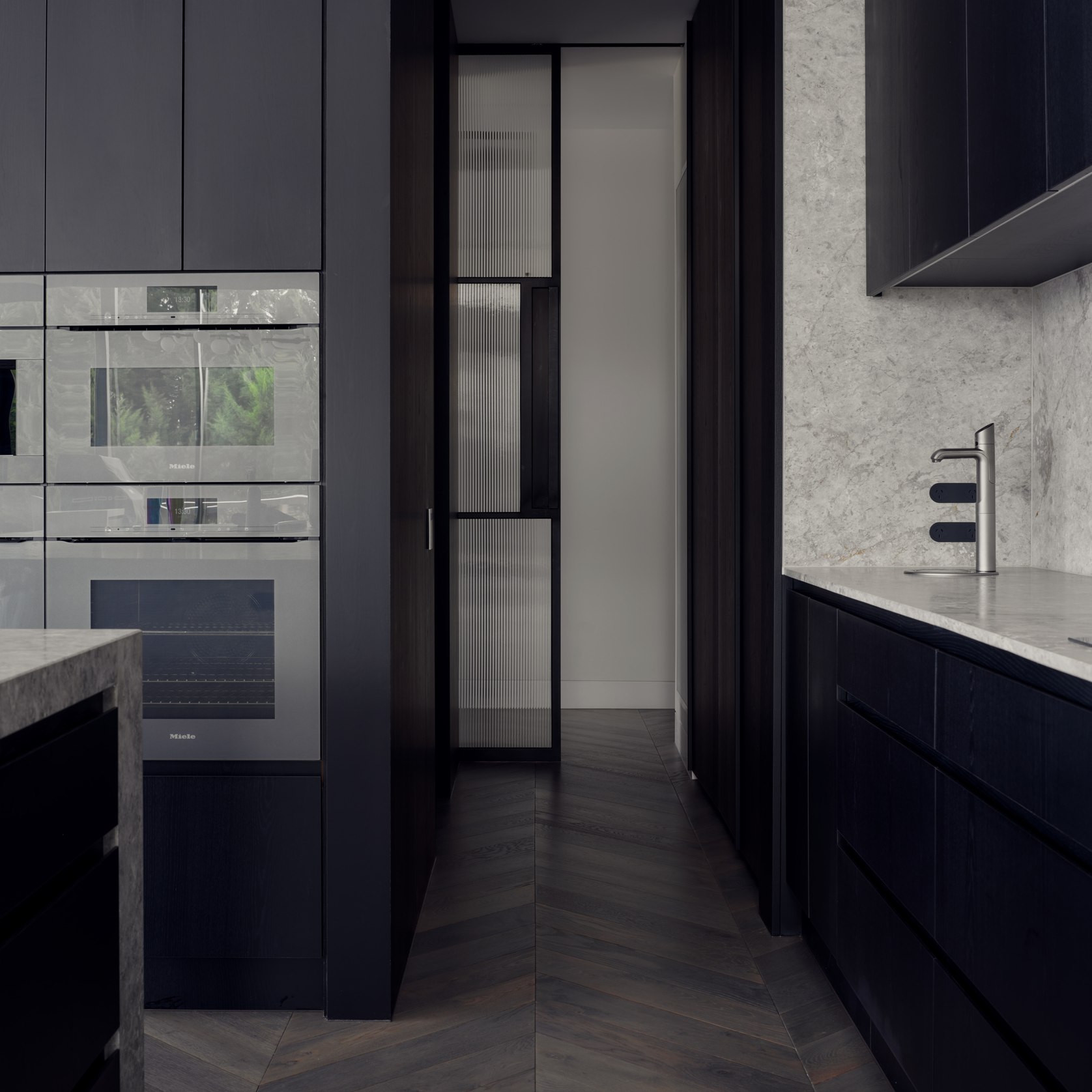

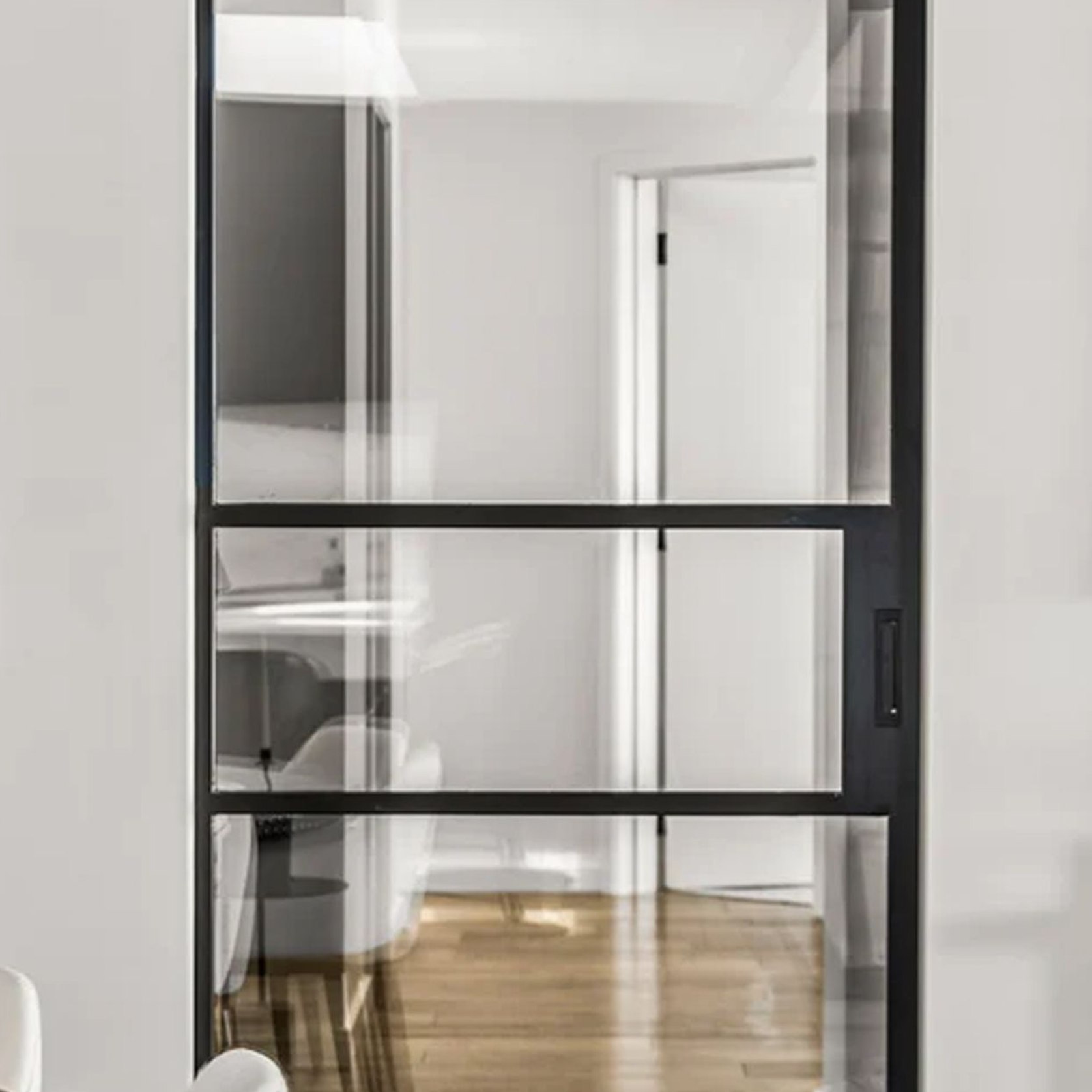

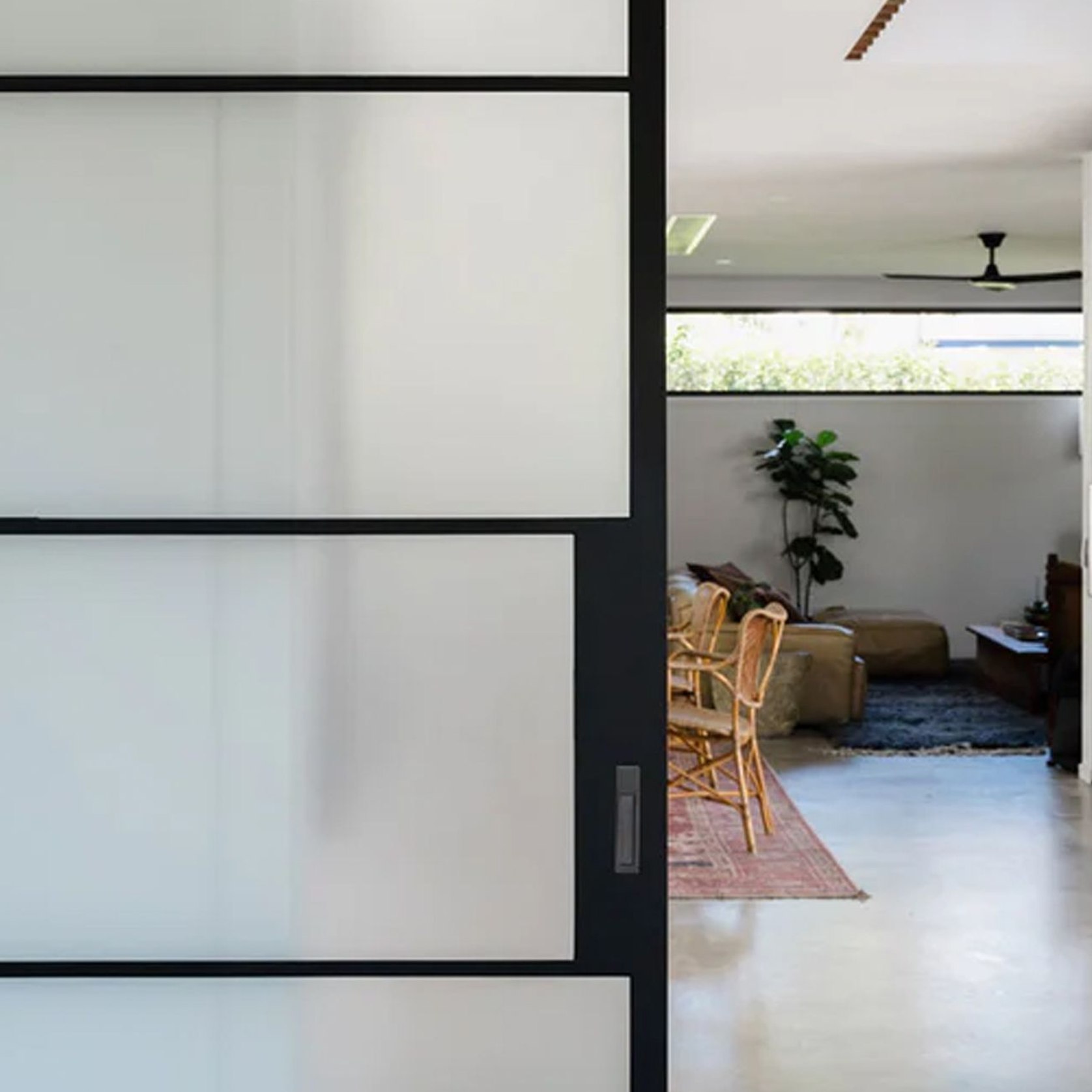

Steel Frame Glass Internal Cavity Sliding Doors - Galvanised FPS50 Profile
Engineered with precision and versatility in mind, the FPS50 Slimline Tube Steel Profile delivers a sleek, modern aesthetic with outstanding structural integrity. Its cold-formed tubular steel design offers exceptional strength while maintaining ultra-slim sightlines, perfect for projects demanding both elegance and durability.
Designed to balance form and function, the FPS50 seamlessly integrates into contemporary architecture—offering flexibility in design, superior craftsmanship, and enduring performance for residential and commercial spaces alike.
Product Details
- Product
- Steel Frame Internal Sliding Doors - Galvanised FPS50
- Category
- Sliding Doors
- Sold by
- Zen Doors & Windows
- Range
- Zen Doors & Windows
- Brand
- Zen Doors & Windows
- Warranty
- 5 years
Product Variants
- Colours
Zen Doors & Windows is specified by
Steel Frame Glass Internal Cavity Sliding Doors - Galvanised FPS50 Profile Engineered with precision and versatility in mind, the FPS50 Slimline Tube Steel Profile delivers a sleek, modern aesthetic with outstanding structural integrity.
Its cold-formed tubular steel design offers exceptional strength while maintaining ultra-slim sightlines, perfect for projects demanding both elegance and durability.
Designed to balance form and function, the FPS50 seamlessly integrates into contemporary architecture—offering flexibility in design, superior craftsmanship, and enduring performance for residential and commercial spaces alike.
- Specs
- Zen Steel Frame Internal Cavity Sliding Doors – Galvanised FPS50 Profile
- Door Design: Custom
- Door Type: Cavity Sliding Doors
- Location: Internal
- Hinges: 3 or 4 Heavy Duty Welded, Lift-off, 180-degree hinges with brass washers
- Mounting Type: Top Mounted Sliding Track & Rollers with floor guides (We DO NOT supply the Cavity Pocket for your wall cavity)
- Door Sash: 30mm x 50mm
- Open way (entering): Slide Left or Slide Right
- Glass Type: Visit our Glazing options page
- Glass Thickness: Visit our Glazing options page
- TDL: 20T or 30T
- Beads: CTL 10, CTL15, CTM20, CTM30
- Colour Finish: Visit our Paint Finishes page
- Pull Handles: Visit our Custom Pull Handles page
- Max Door Panel Size: H3000mm x W1500mm (Single Glazed)
- Sliding Track: W3000mm (will be separated in two 1500mm sections)

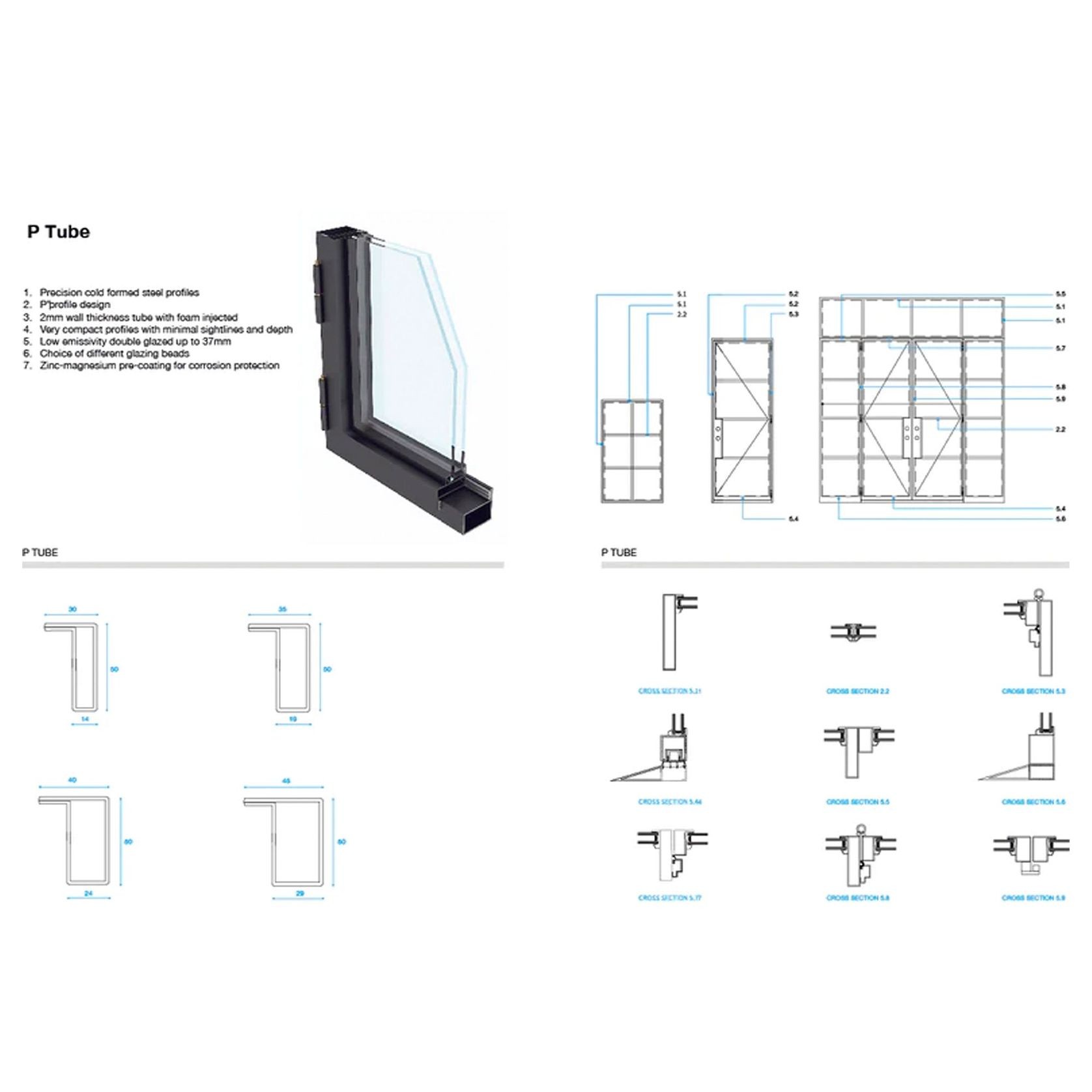

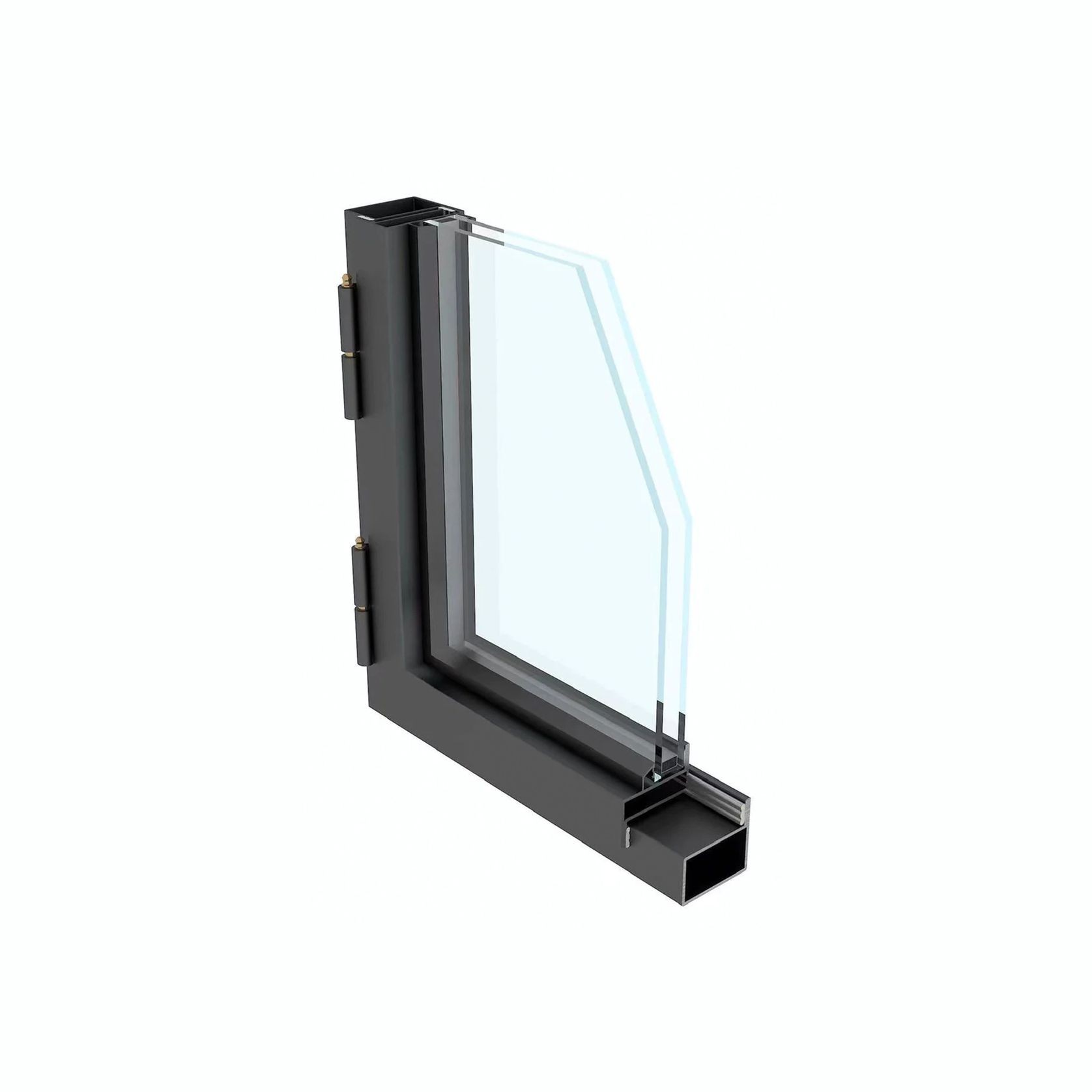

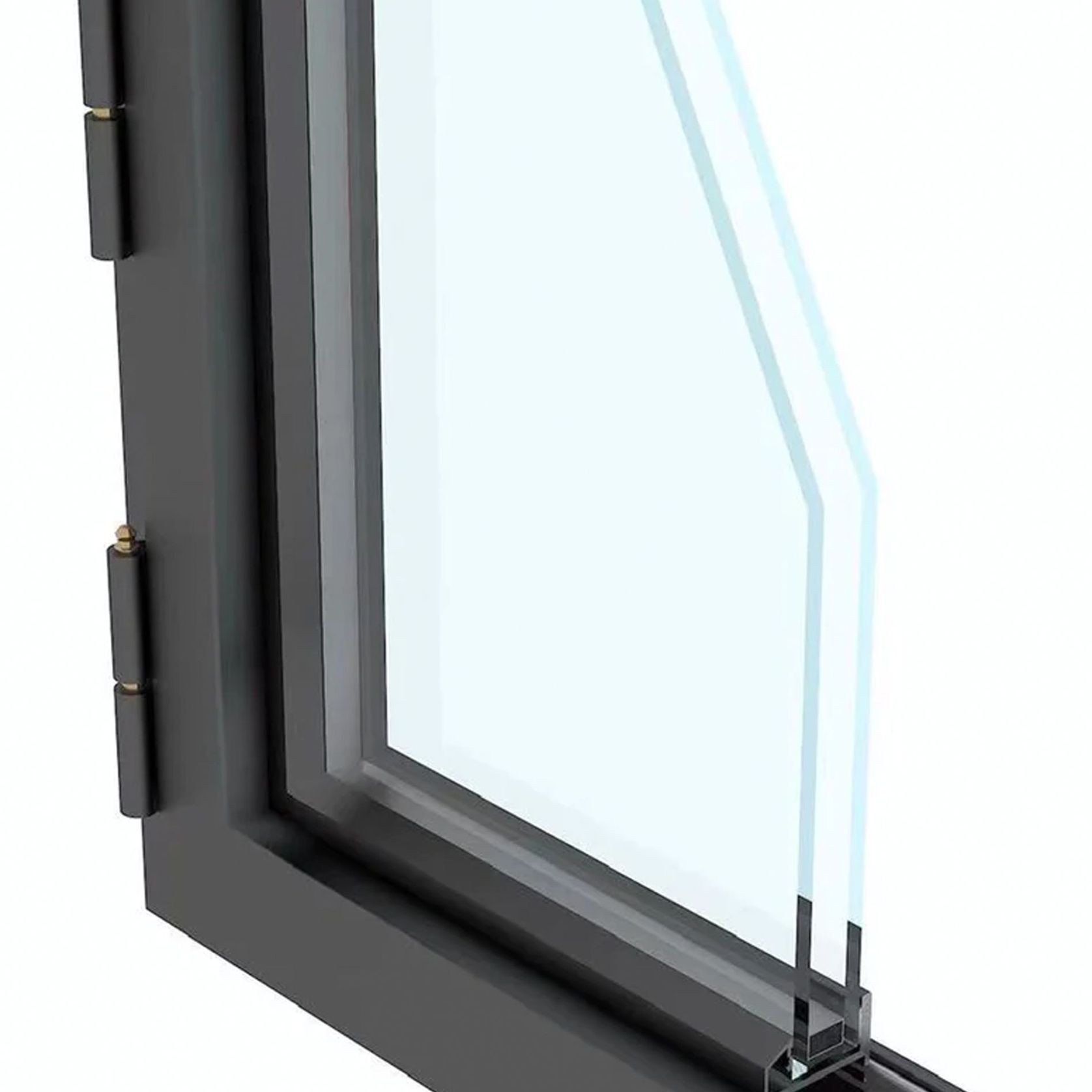

- Material: Precision cold formed galvanised FPS50 Slimline Tube Steel Profile – ”P” profile design 1.8mm wall thickness tube with foam injected – Very compact profiles with minimal depth and sight-lines
- Surface treatment: Zinc-magnesium pre-coating for corrosion protection
Gritblasting SA 2.5; The 1st layer is a sealing primer; The 2nd layer is a high-durable top coating; Total thickness is at least 150-180 microns according to VMRG quality requirements. - Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
- Package: Sealed Wooden Box
- CAD Design Drawing: Yes
- Zen Steel Frame Internal Cavity Sliding Doors – Galvanised FPS50 Profile
- Features
- Modern Architectural Design
- Custom Hand Made Construction for Durable Functionality
- Built from High Quality Galvanised Steel Tube FPS50 Profile
- Fluorocarbon Coating, a superior finish to Powder coating
- Single or Double Glazing Available
- High Quality Door Hardware
- Designed to Impress and Built to Last
- 5 Year Warranty
- Modern Architectural Design
Downloads
Downloads (3)3 Direct downloads • 6 Available on request
Frequently asked questions about
Steel Frame Internal Sliding Doors - Galvanised FPS50
The Steel Frame Internal Sliding Doors - Galvanised FPS50 is supplied by Zen Doors & Windows. It is also on their website, and you can browse every product Zen Doors & Windows lists on ArchiPro.
Zen Doors & Windows does not publish a price for the Steel Frame Internal Sliding Doors - Galvanised FPS50 on ArchiPro. for pricing, or visit their website.
It comes in 15 colour options (Matt Black, White, Medium Bronze, Silver Pewter, Antique Copper, ORB Light Bronze, Heavy Bronze, Gold Rush, Heavy Silver, Medium Copper Sponge, Heavy Gold, Pewter Charcoal Taupe, Gold, Antique Gold, Monument). Pick one in the row under the description to see it.
Yes. It has been specified in projects on ArchiPro, including Mt Martha Beach House by Zen Doors & Windows and Brunswick Arch House by Zen Doors & Windows. See how it was used in a finished space.
from this page, see their contact details on ArchiPro, or visit their website. The Zen Doors & Windows profile on ArchiPro has the rest of their products.
