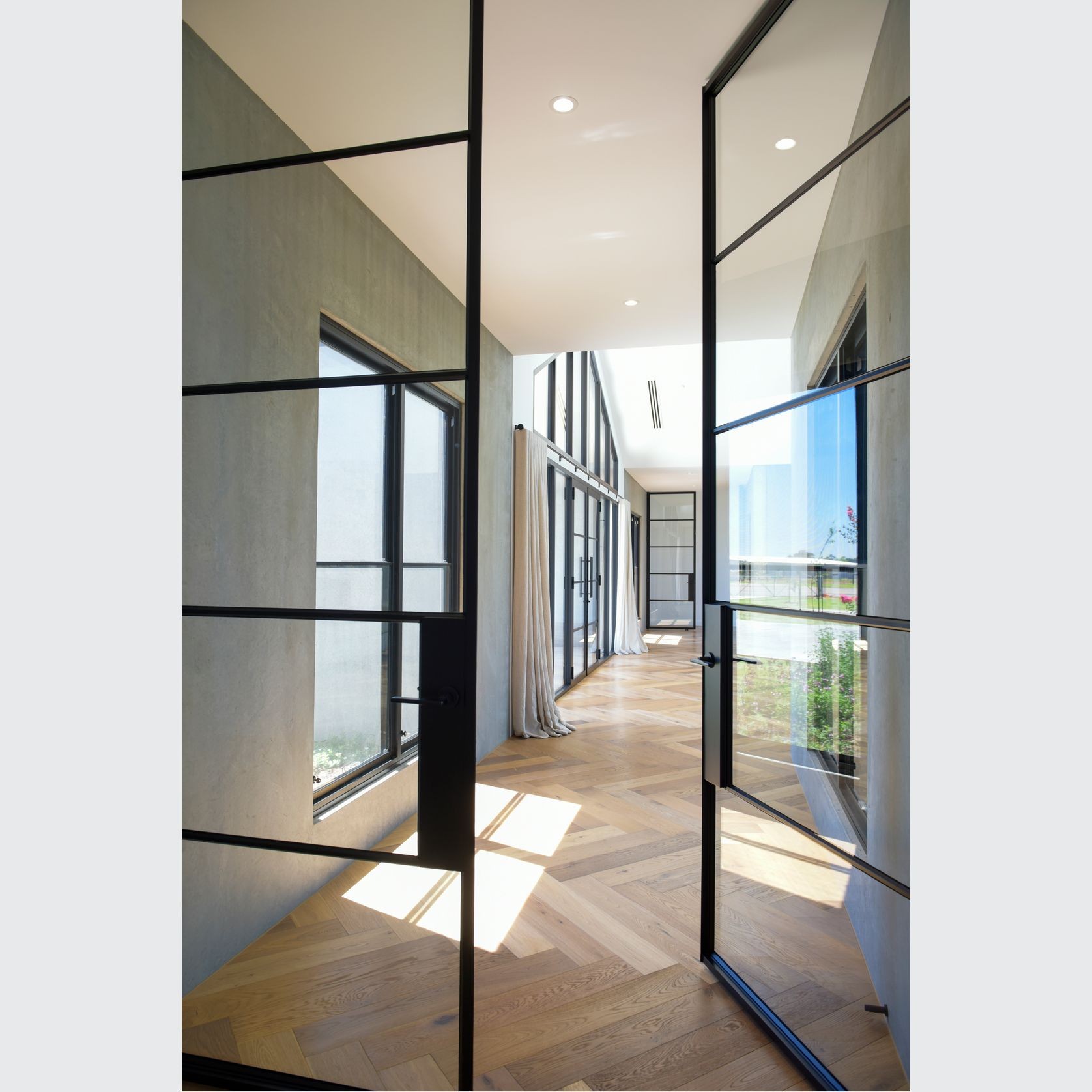

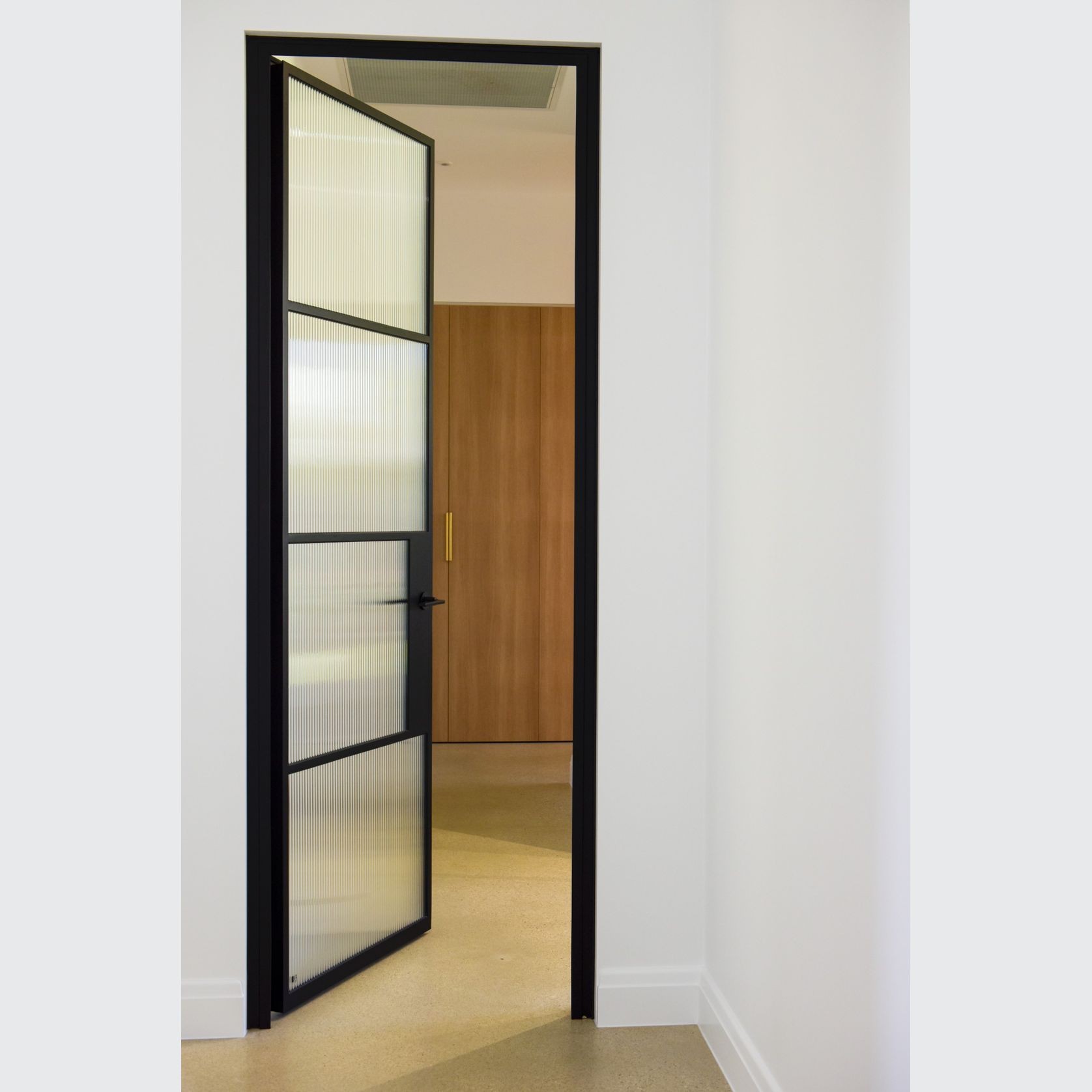

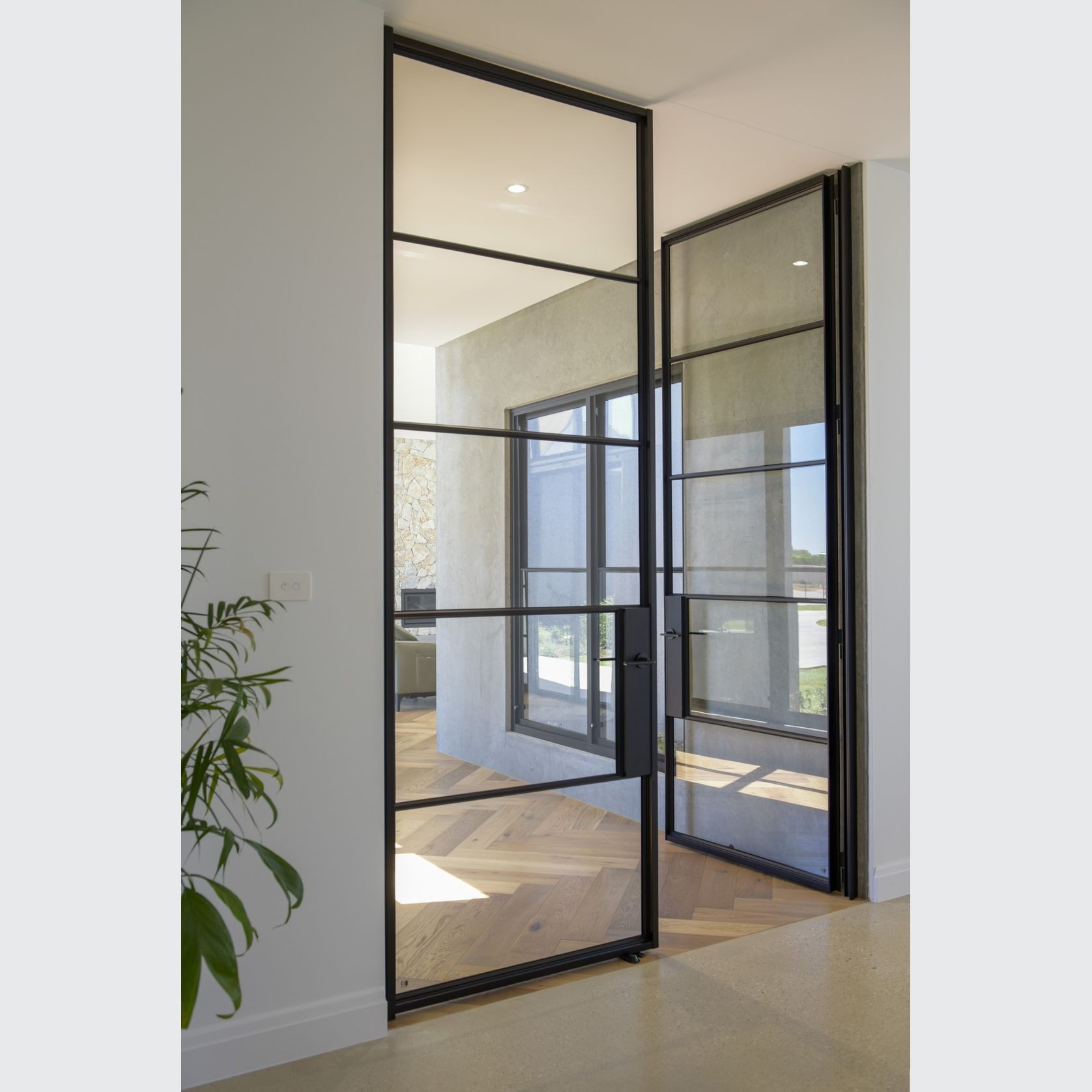

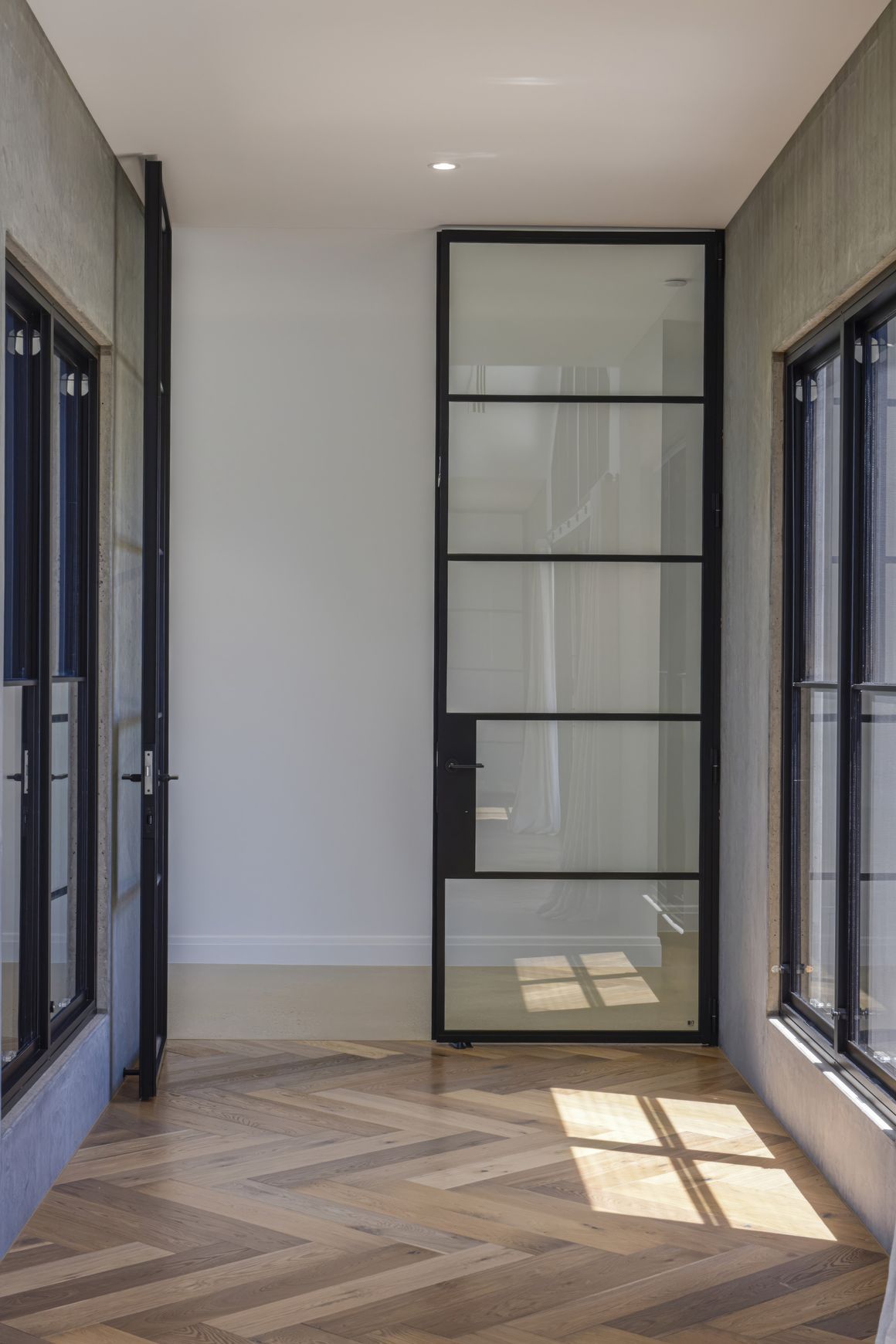

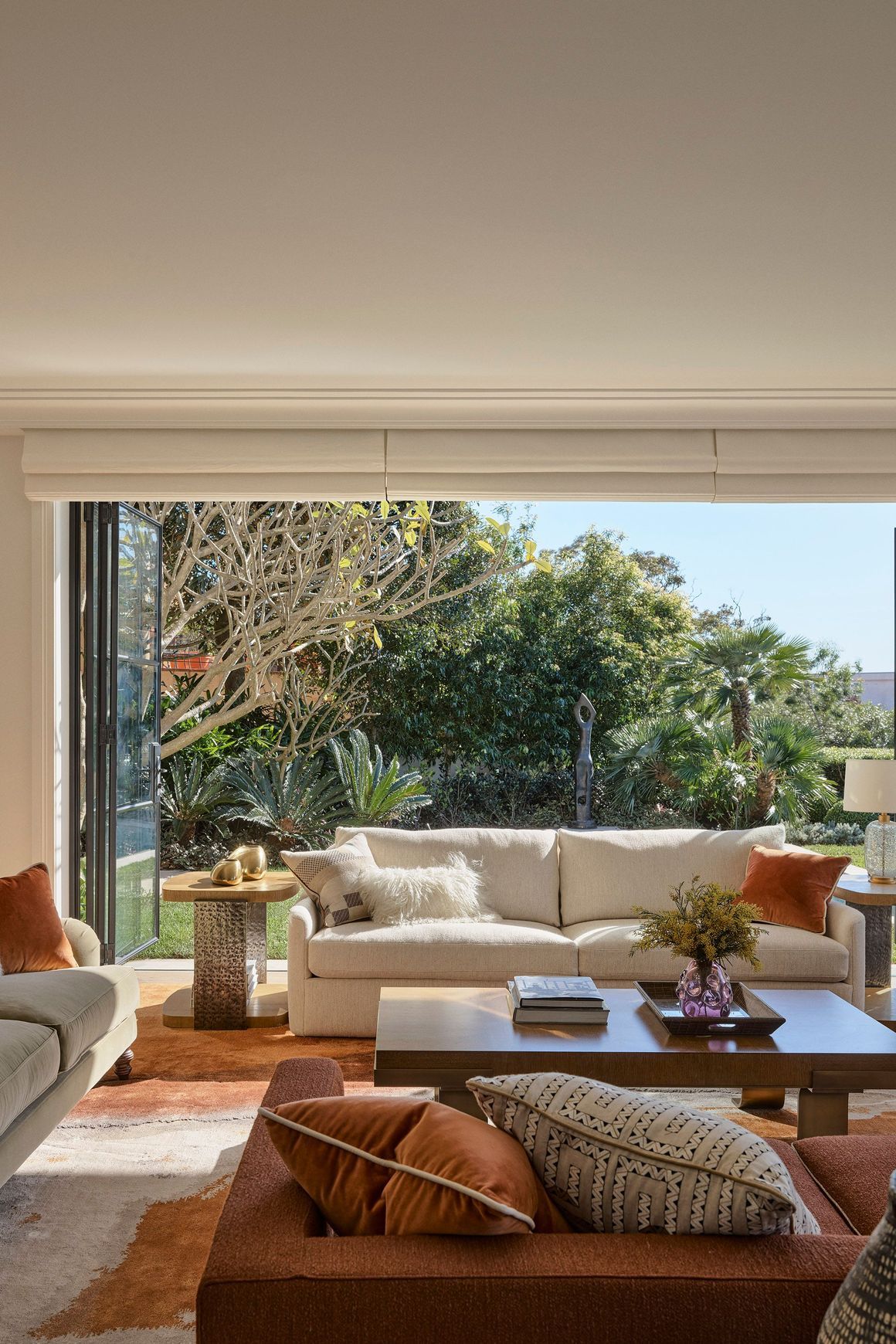

Steel Frame Glass Hinge Doors - Galvanised W40 Profile

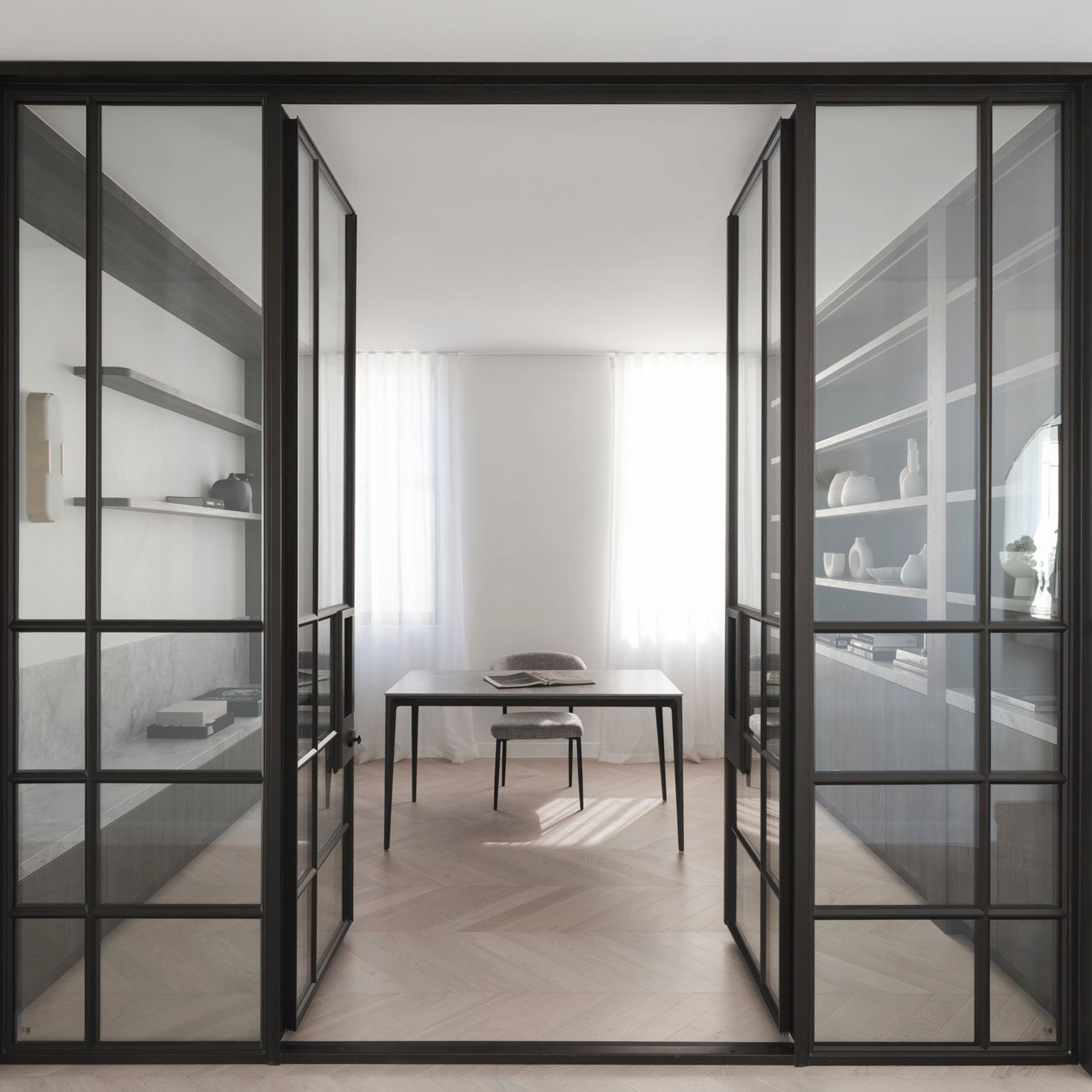

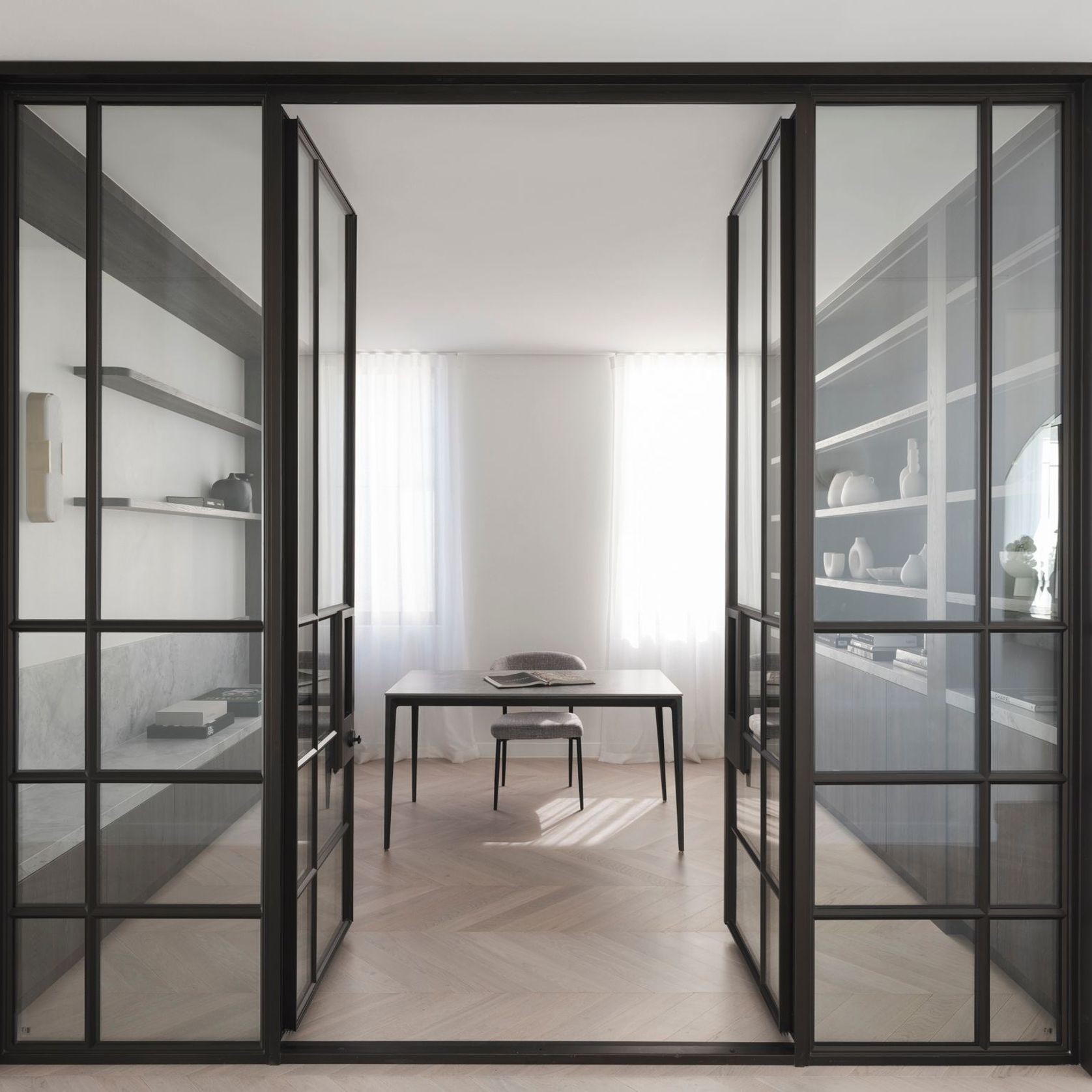

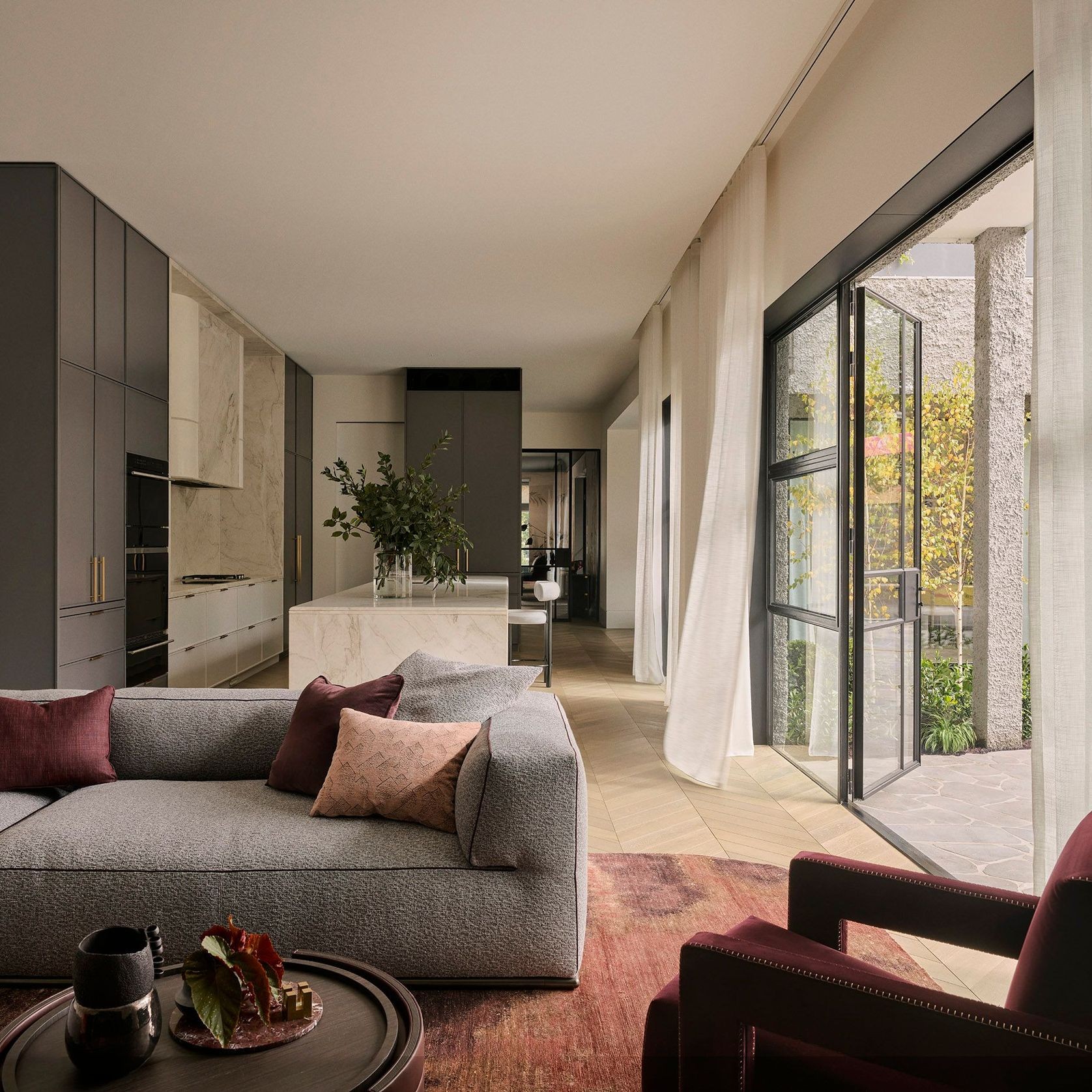

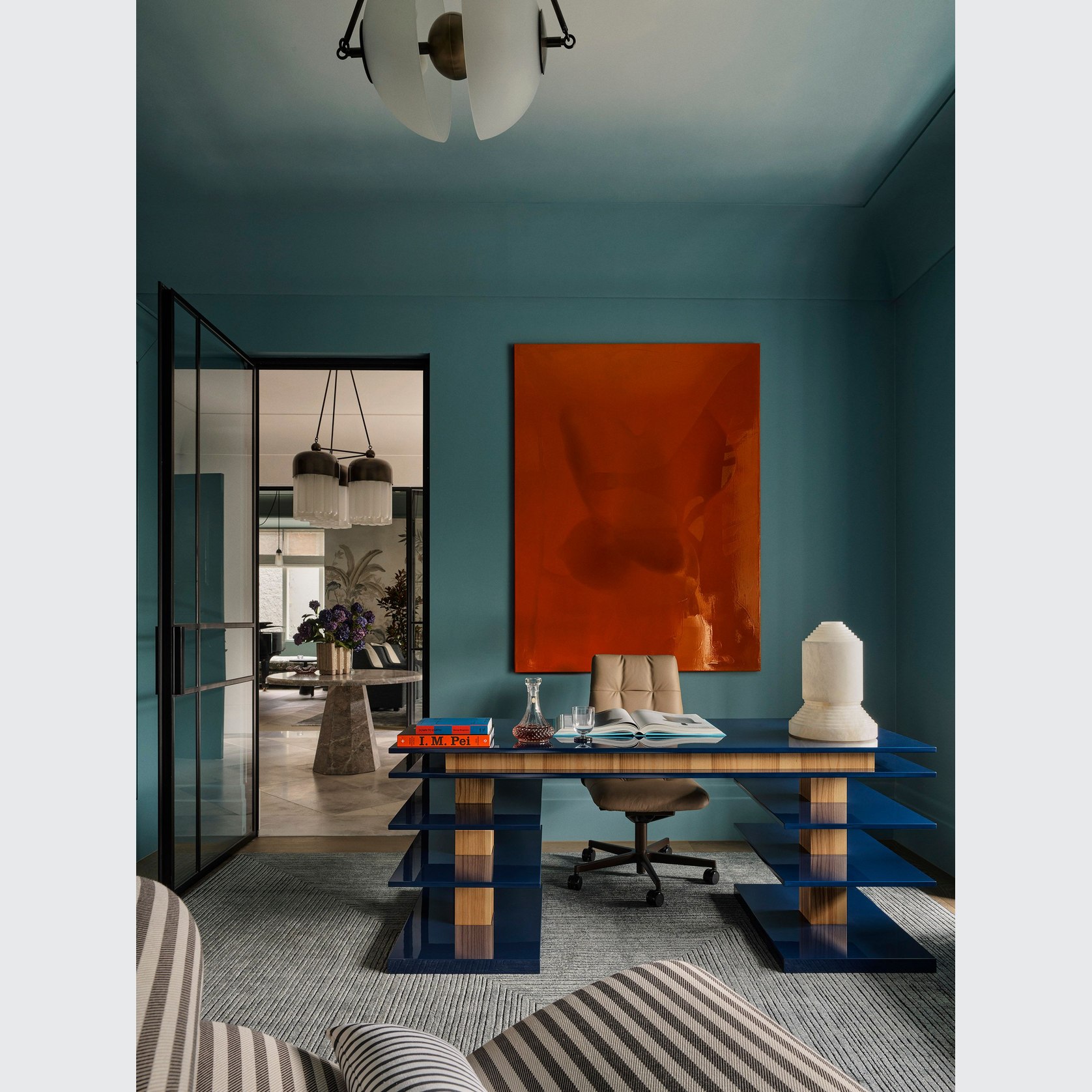

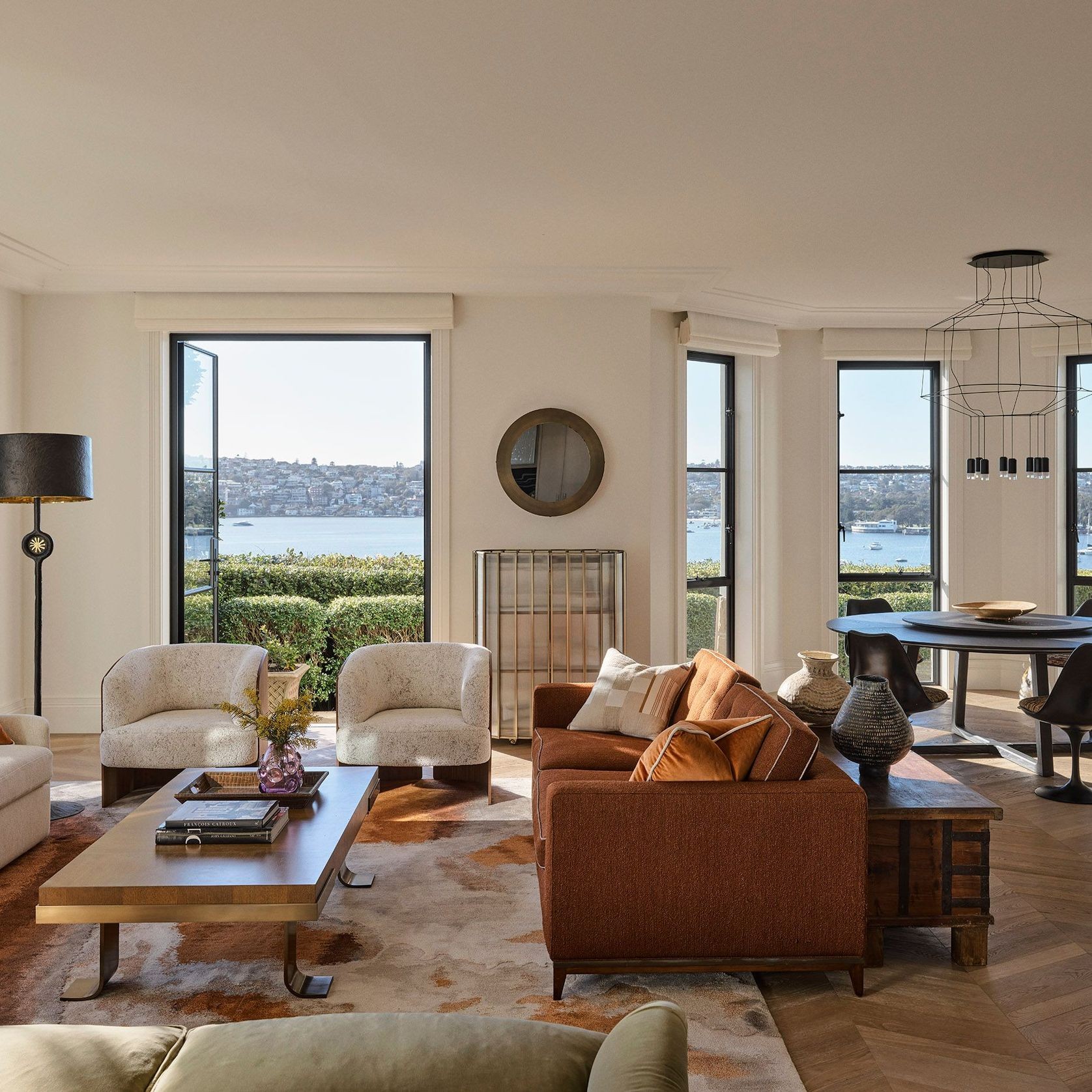

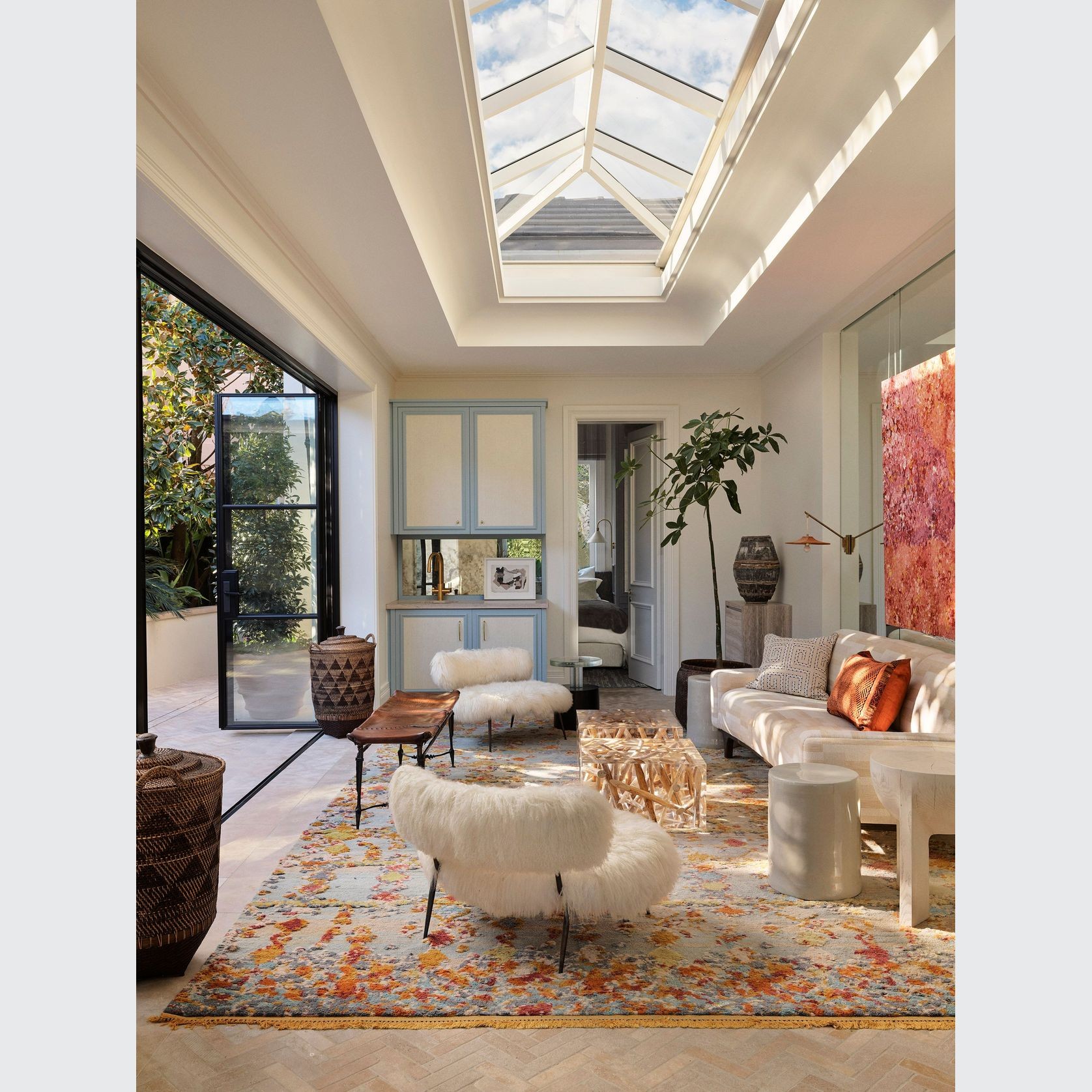

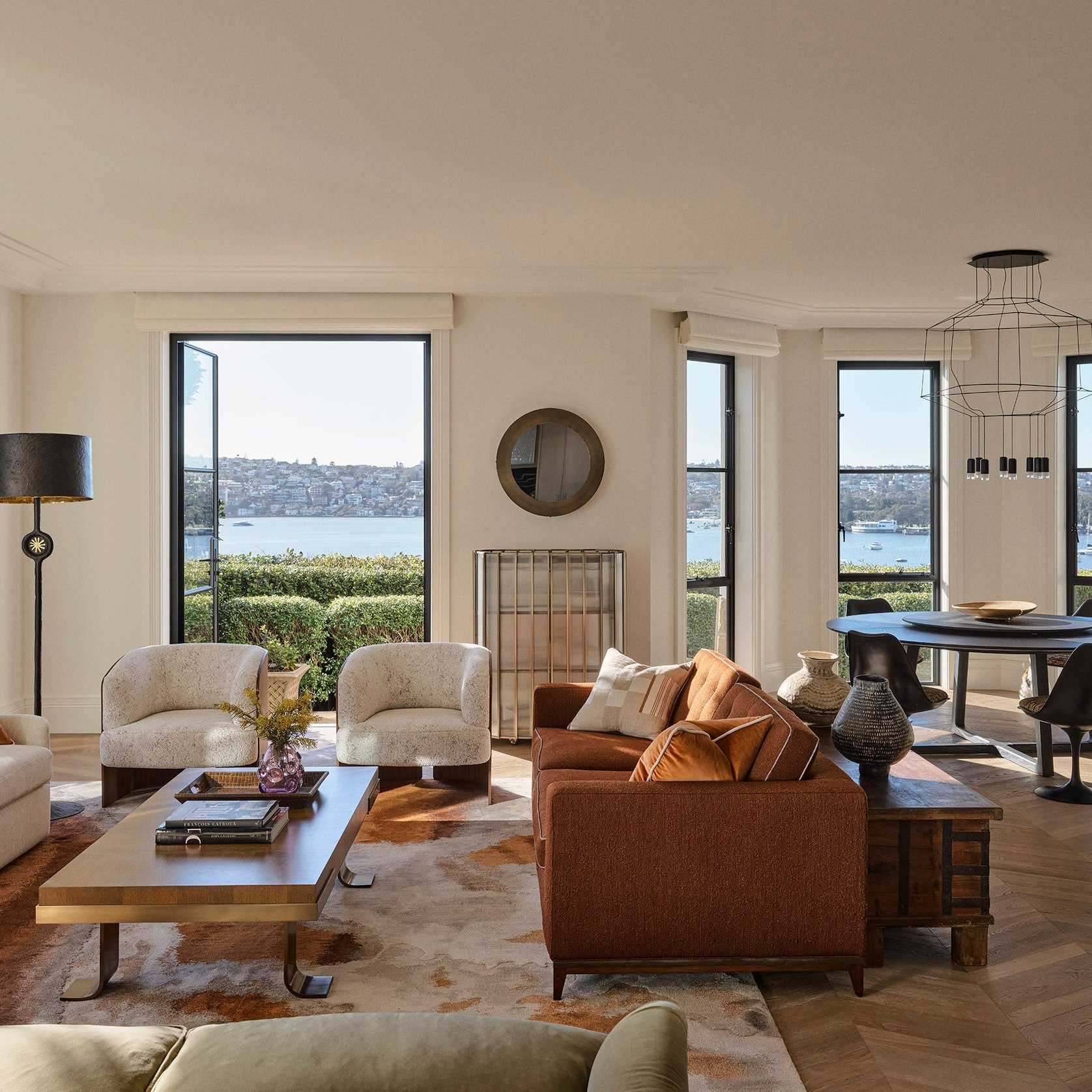

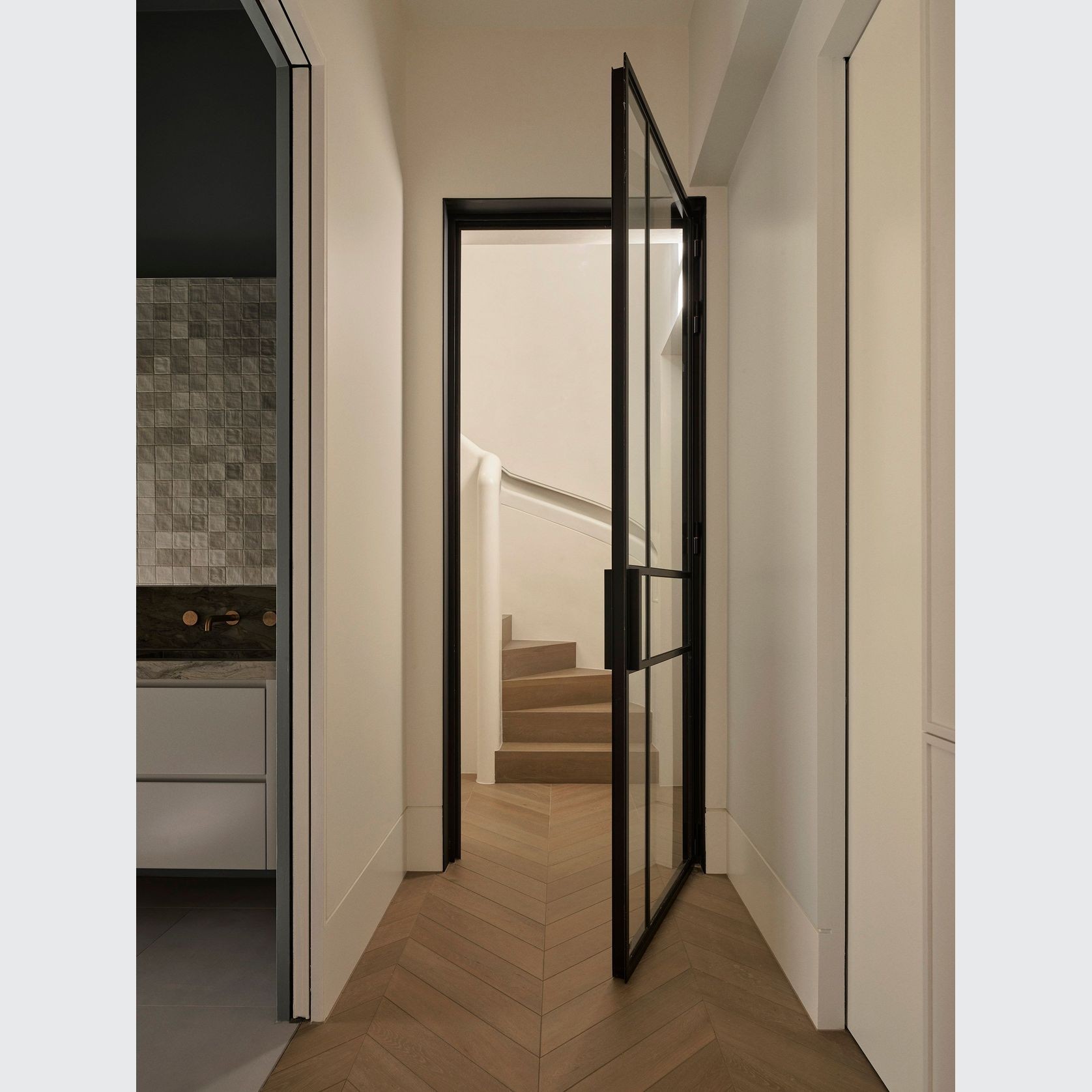

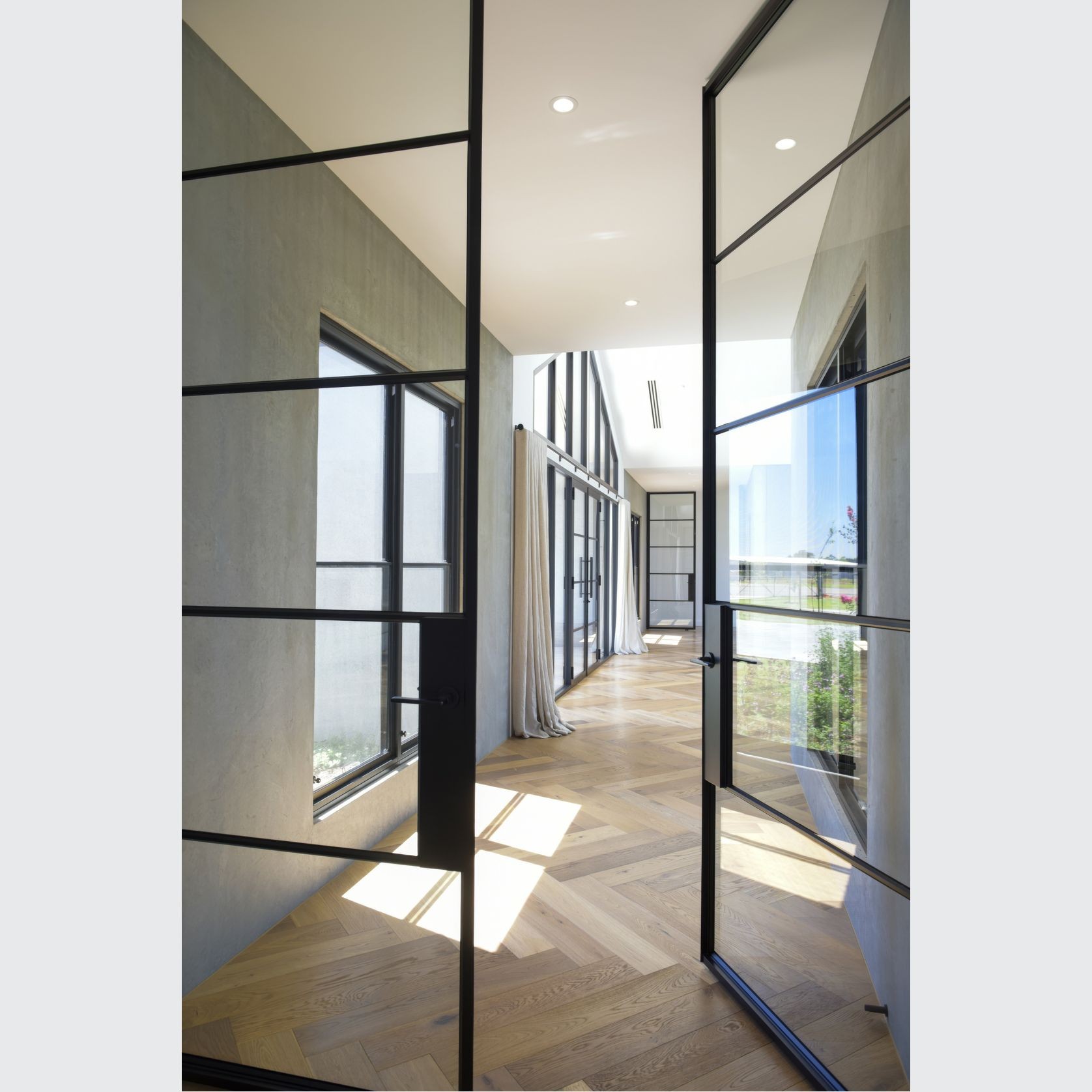

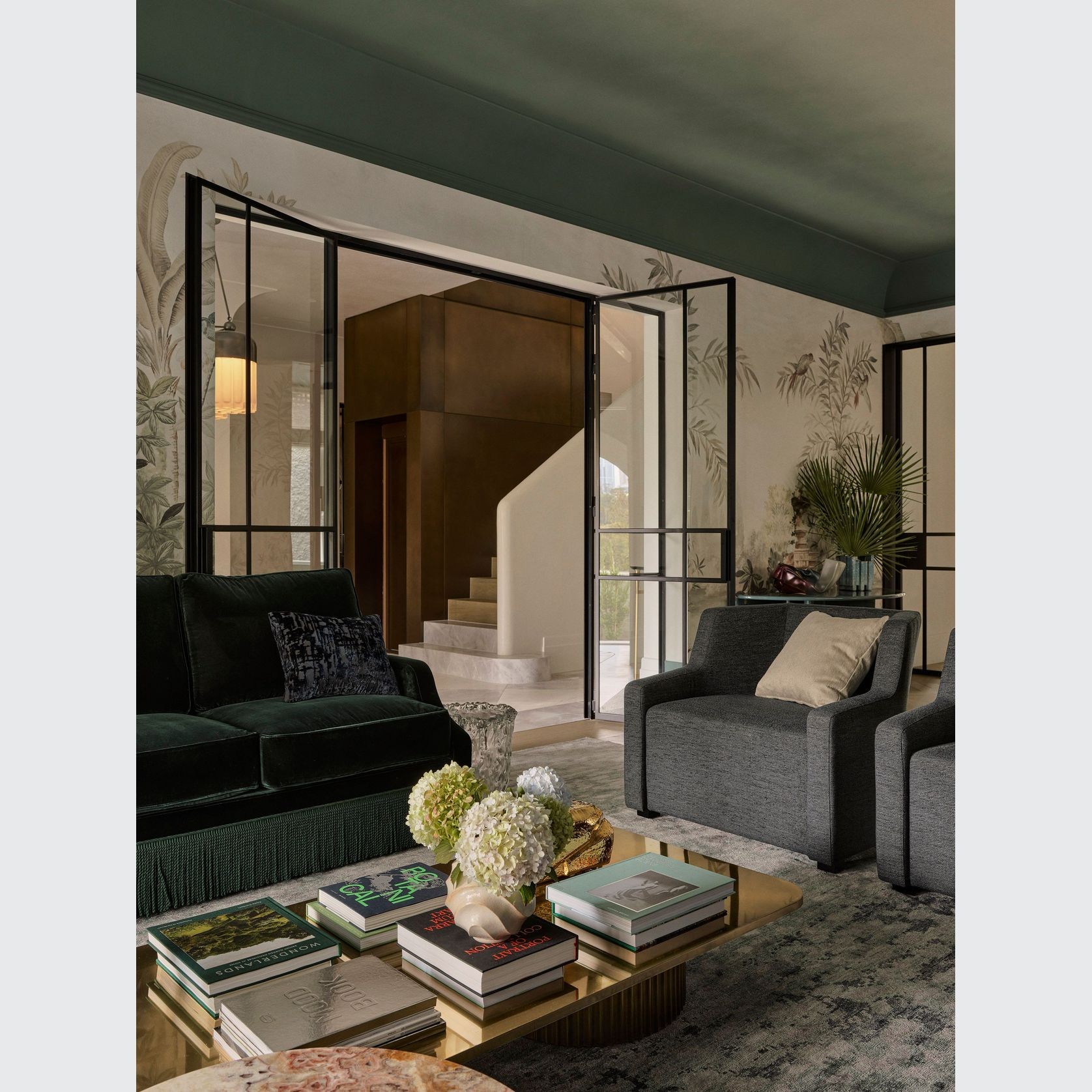

Perfect for interior or exterior doors and windows, partitions or exterior façades, the W40 profile combines structural power with visual subtlety. Its clean geometry, deep shadows, and minimalist framing create a timeless aesthetic suited for premium homes, heritage restorations, and architectural showpieces.
The W40 system is our strongest most robust solid steel profile, engineered to accommodate glass thicknesses of up to 27mm, offering excellent thermal and acoustic control options.
Product Details
- Product
- Steel Frame Glass Hinge Doors - Galvanised W40
- Category
- Hinged Doors
- Sold by
- Zen Doors & Windows
- Range
- Zen Doors & Windows
- Brand
- Zen Doors & Windows
- Warranty
- 5 years
Product Variants
- Colours
Product specified by
Steel Frame Glass Hinge Doors - Galvanised W40 Profile Perfect for interior or exterior doors and windows, partitions or exterior façades, the W40 profile combines structural power with visual subtlety.
Its clean geometry, deep shadows, and minimalist framing create a timeless aesthetic suited for premium homes, heritage restorations, and architectural showpieces.
The W40 system is our strongest most robust solid steel profile, engineered to accommodate glass thicknesses of up to 27mm, offering excellent thermal and acoustic control options.
- Specs
- Zen Steel Hinge Doors & Windows – Ottostumm W40 Swiss Steel Profile
- Door Design: Custom
- Door Type: Hinged Doors
- Location: External or Internal
- Hinges: 3 or 4 Heavy Duty Welded, Lift-off, 180-degree hinges with brass washers
- Mounting Type: Tabs Outside of Jamb, Pre-Drilled Mounting Holes Inside of Jamb – visit our Mounting Types page for more options
- Door Jamb & Sash: 55mm x 67mm (Overall)
- Open way (entering): In-Swing or Out-Swing
- Sill/Threshold: 25mm x 150mm Forward Sloping or Square
- Door Bottom Rubber Seal: Optional
- Magnetic Catches: Precision Magnetic Catches
- Glass Type: Visit our Glazing options page
- Glass Thickness: Visit our Glazing options page
- TDL: 20T or 30T
- Beads: CTL 10, CTL15, CTM20, CTM30
- Colour Finish: Visit our Paint Finishes page

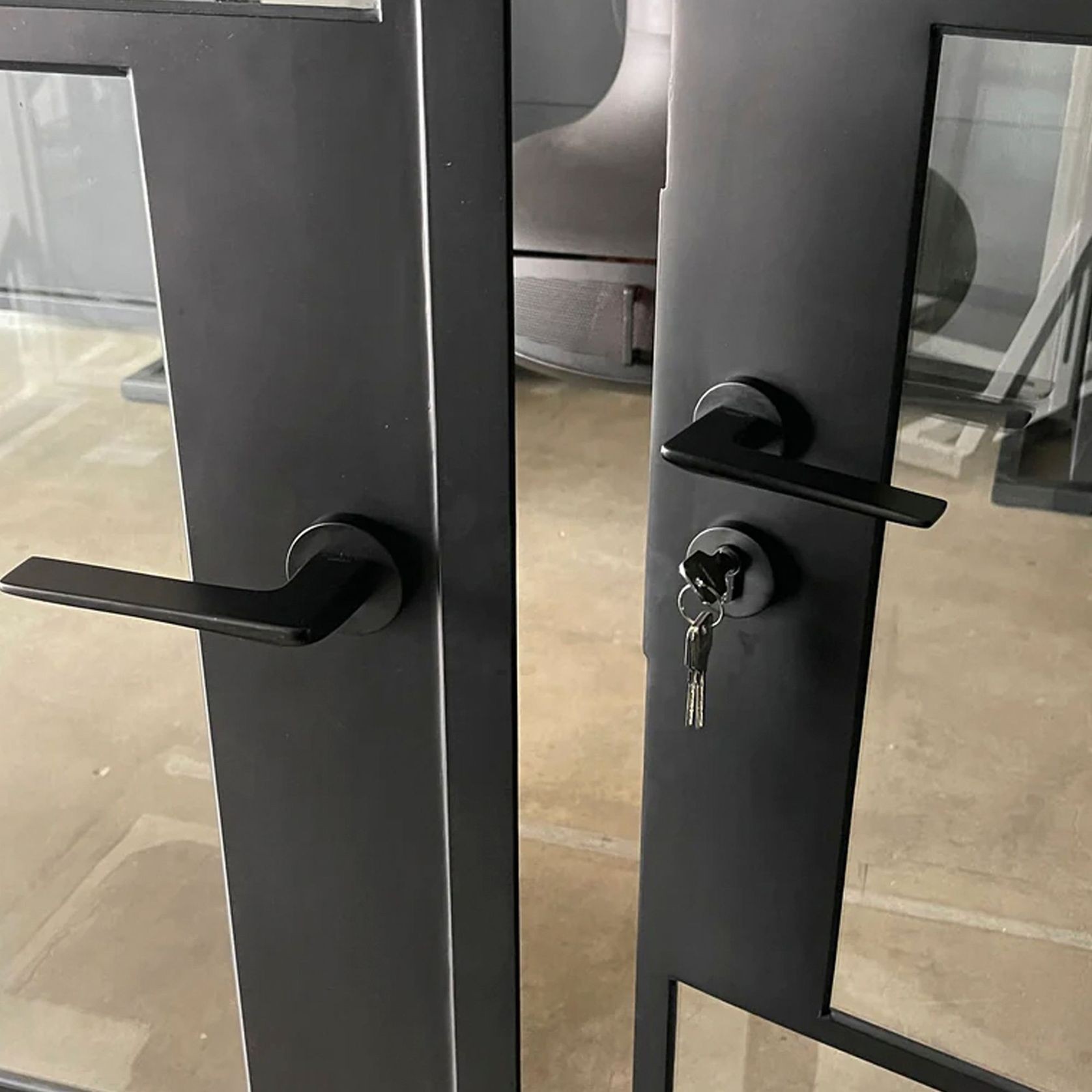

- Lever Handles: Visit our Pittella page
- Pull Handles: Visit our Custom Pull Handles page
- Locks: Visit our Pittella page

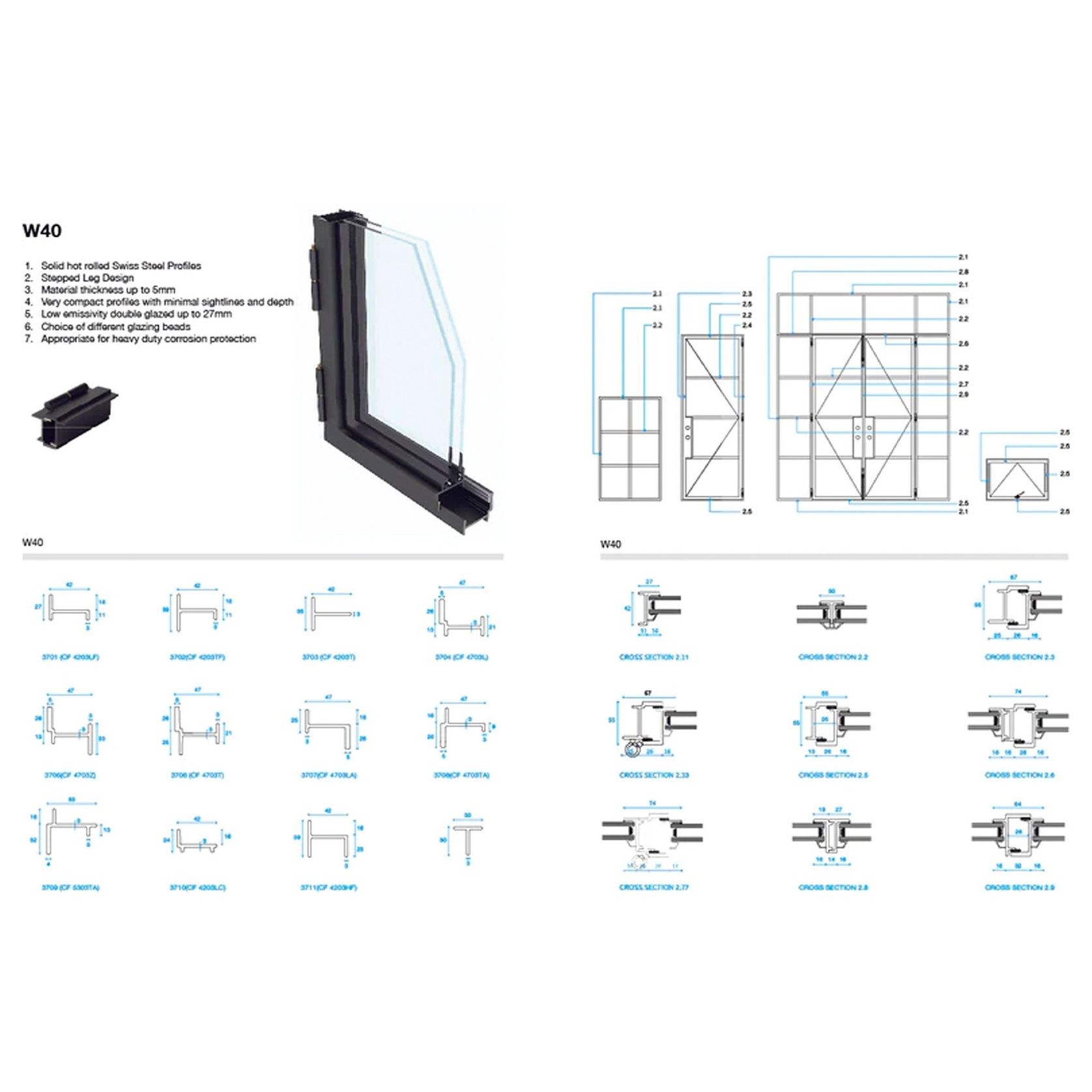

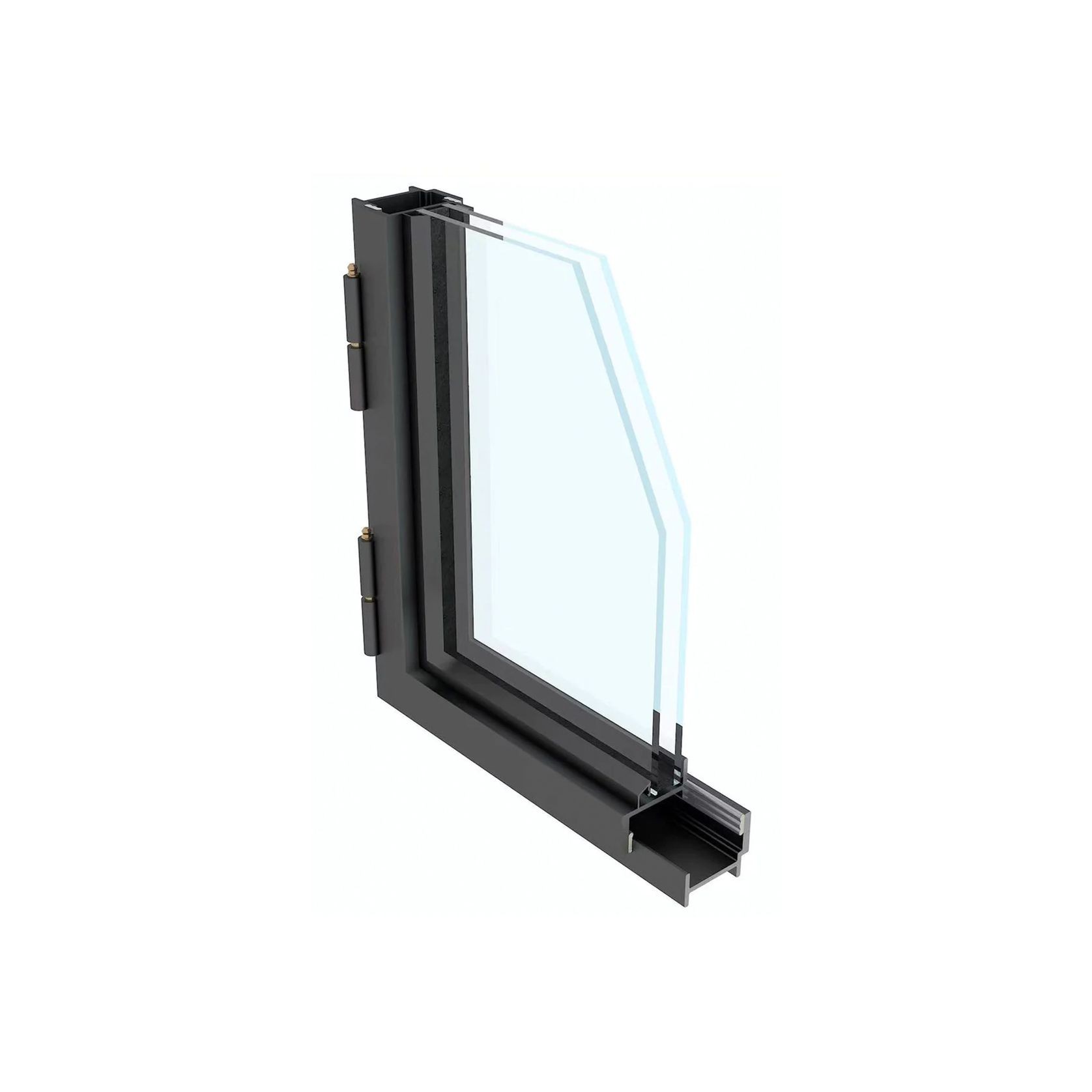

- Material: Solid Hot Rolled Swiss Ottostumm W40 Steel Profile
Stepped leg design, material thickness up to 5mm – Very compact profiles with minimal depth and sight-lines
Appropriate for heavy duty corrosion protection - Surface treatment: Zinc-magnesium pre-coating for corrosion protection
Gritblasting SA 2.5; The 1st layer is a sealing primer; The 2nd layer is a high-durable top coating; Total thickness is at least 150-180 microns according to VMRG quality requirements. - Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
- Package: Sealed Wooden Box
- CAD Design Drawing: Yes
- Zen Steel Hinge Doors & Windows – Ottostumm W40 Swiss Steel Profile
- Features
- Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings, with accompanying Certificate of Compliance to meet Occupancy Permit requirements and BASIX requirements Australia wide.
- Modern Architectural Design
- Custom Hand Made Construction for Durable Functionality
- Built from High Quality Galvanised Solid Hot Rolled W40 Profile
- Fluorocarbon Coating, a superior finish to Powder coating
- Single, Double or Triple Glazing Available
- High Quality Door Hardware
- Designed to Impress and Built to Last
- 5 Year Warranty
- Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings, with accompanying Certificate of Compliance to meet Occupancy Permit requirements and BASIX requirements Australia wide.
- Scope of use
Zen Doors Steel Frame Hinge Doors are Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings. This makes them suitable for installation in both internal and external residential and commercial applications.
Downloads
Downloads (3)3 Direct downloads • 6 Available on request
Frequently asked questions about
Steel Frame Glass Hinge Doors - Galvanised W40
The Steel Frame Glass Hinge Doors - Galvanised W40 is supplied by Zen Doors & Windows. It is also on their website, and you can browse every product Zen Doors & Windows lists on ArchiPro.
Zen Doors & Windows does not publish a price for the Steel Frame Glass Hinge Doors - Galvanised W40 on ArchiPro. for pricing, or visit their website.
It comes in 15 colour options (Matt Black, White, Medium Bronze, Silver Pewter, Antique Copper, ORB Light Bronze, Heavy Bronze, Gold Rush, Heavy Silver, Medium Copper Sponge, Heavy Gold, Pewter Charcoal Taupe, Gold, Antique Gold, Monument). Pick one in the row under the description to see it.

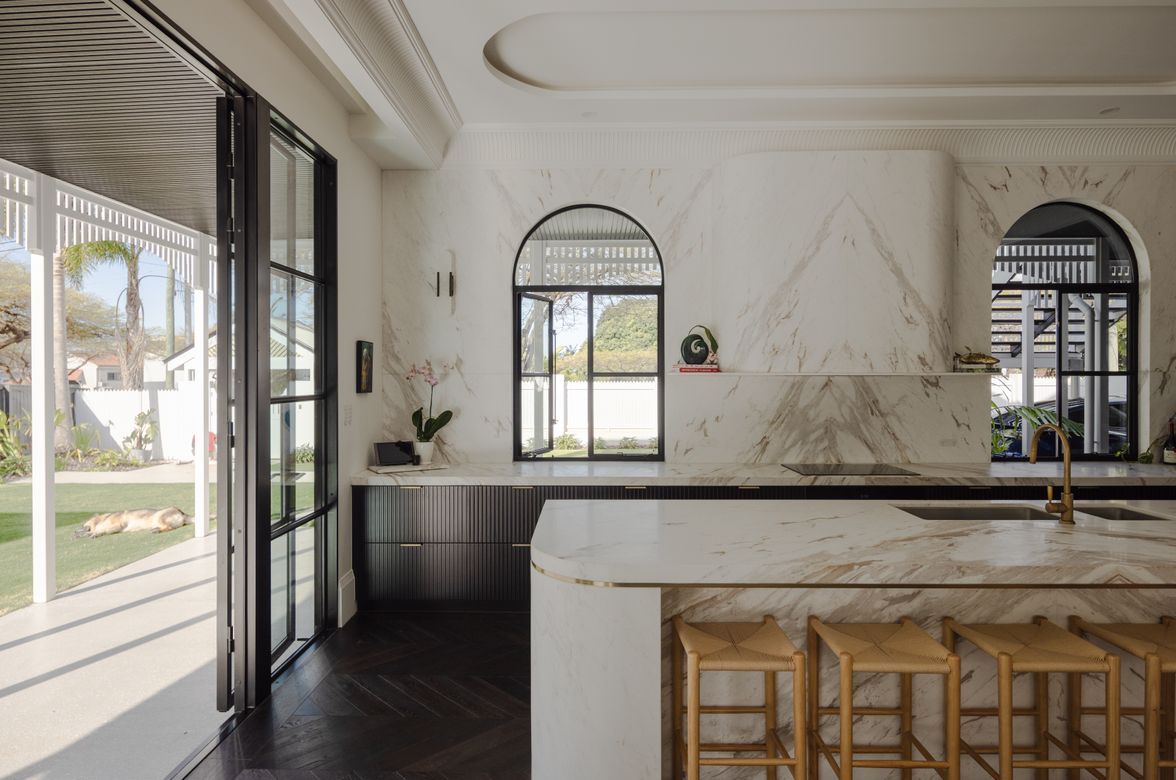

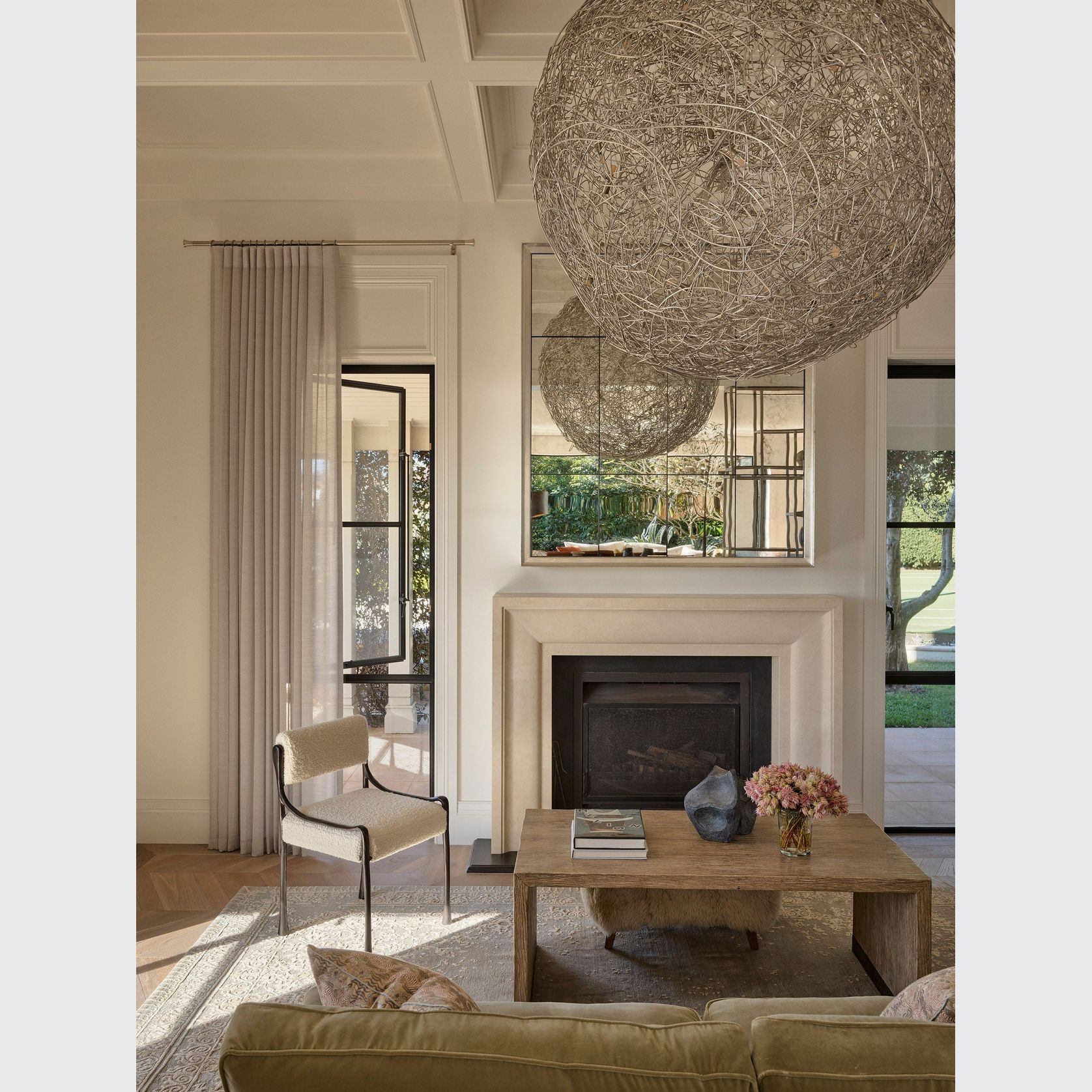

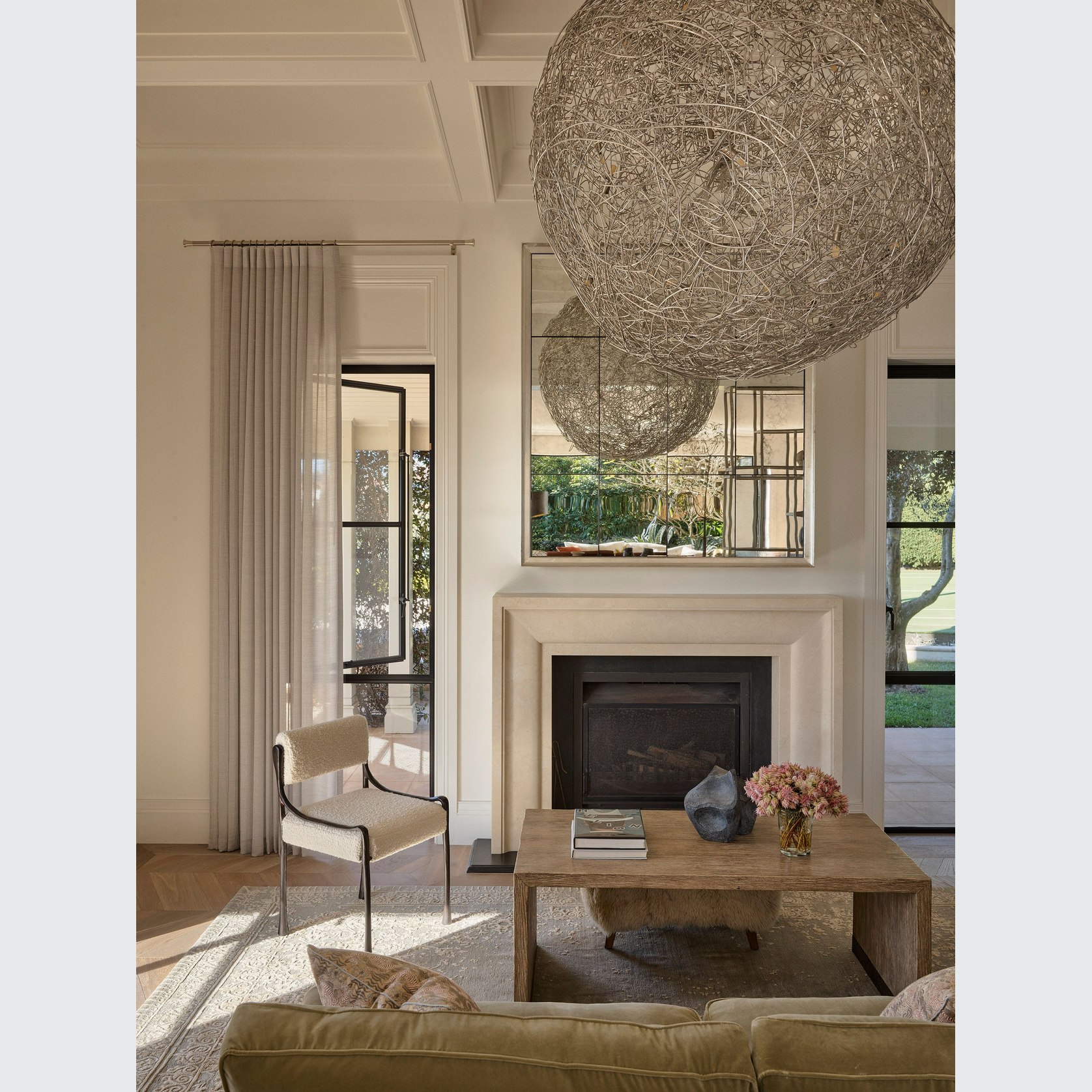

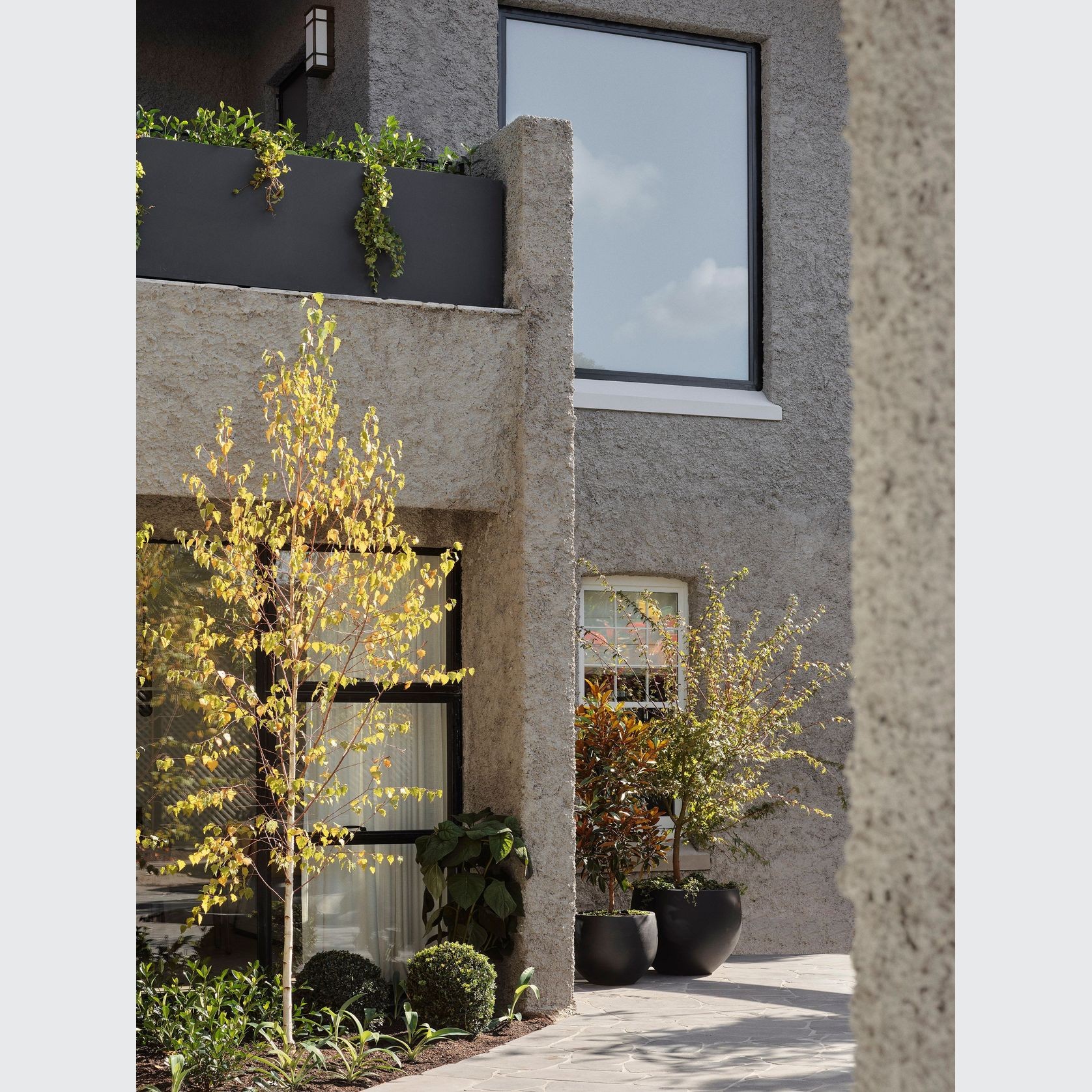

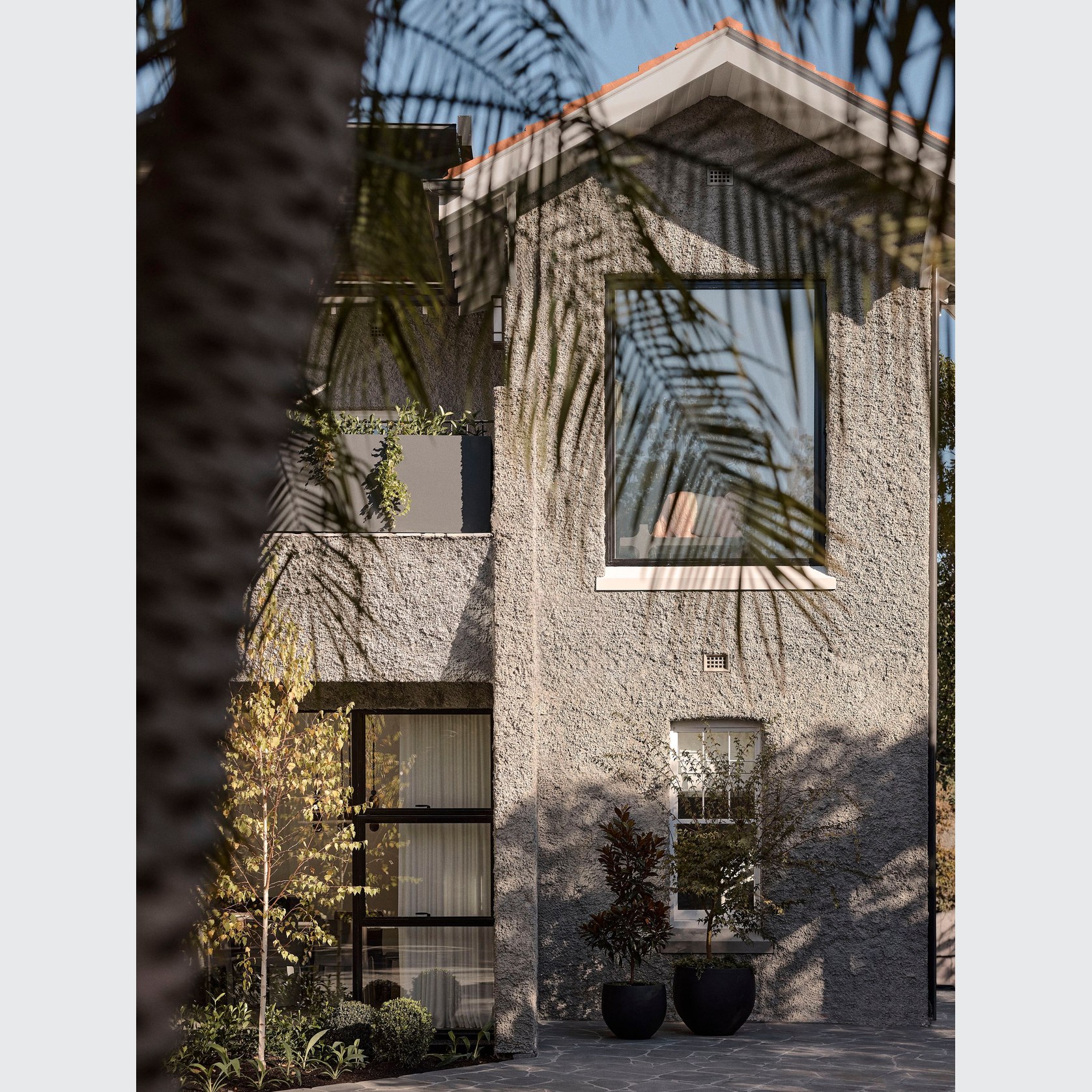

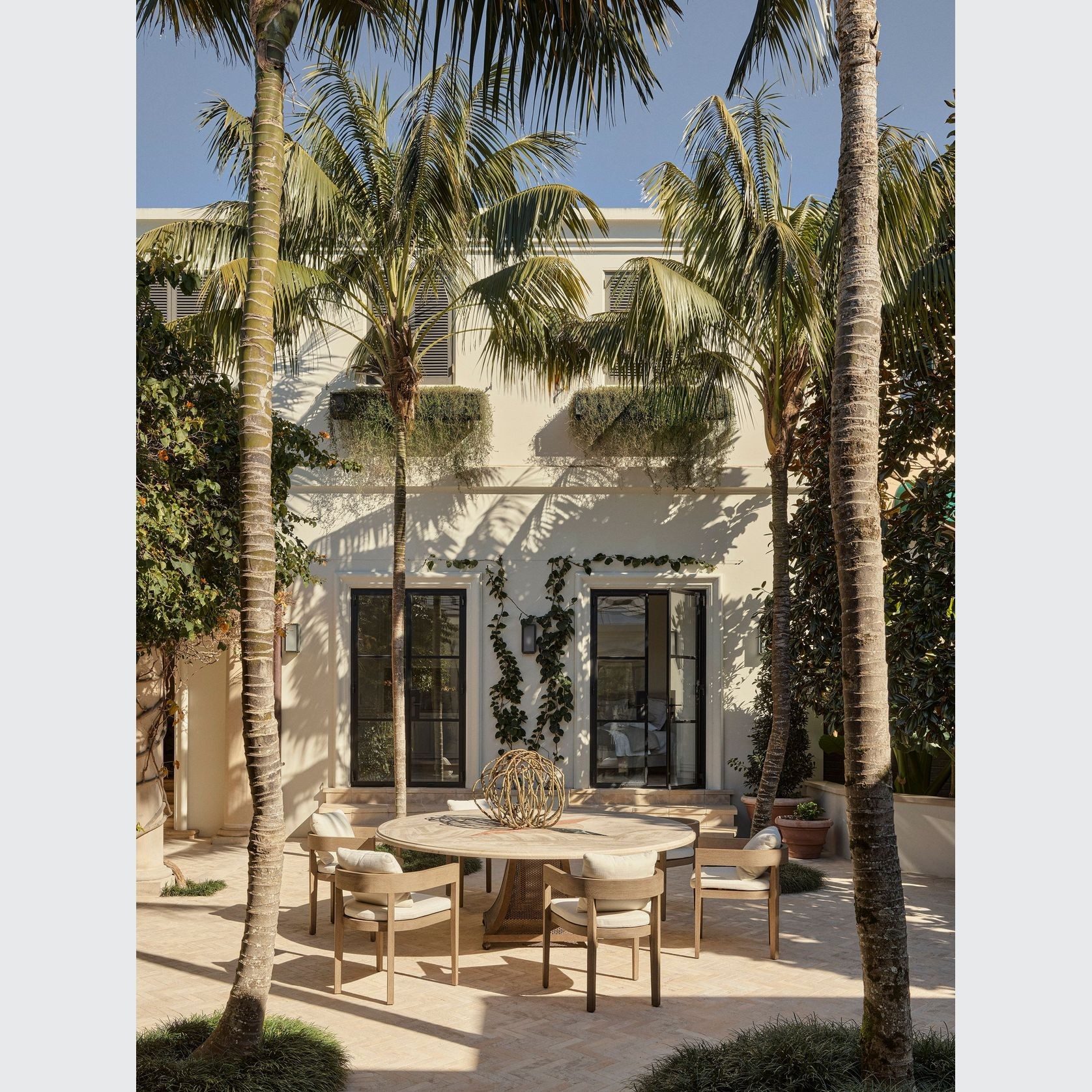

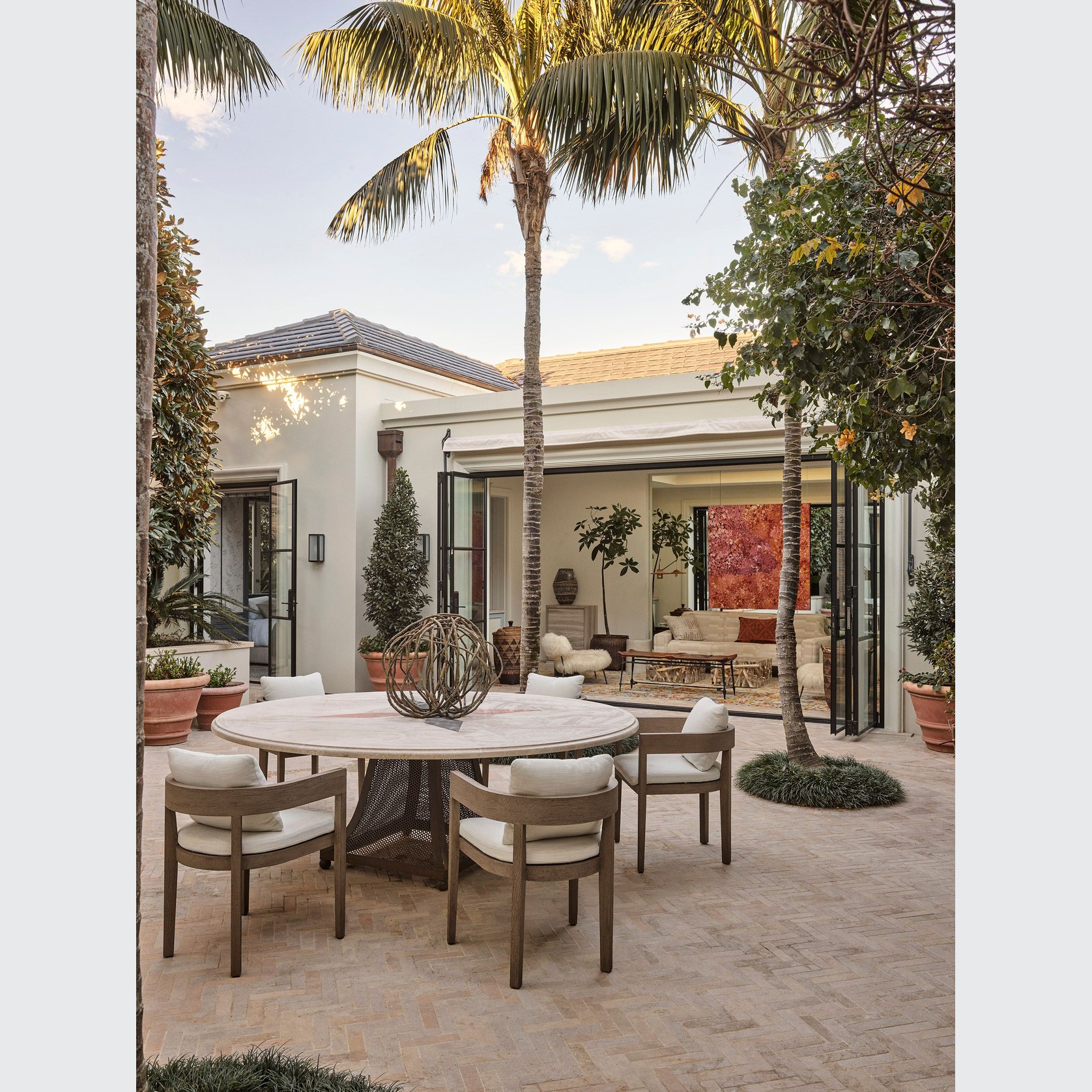

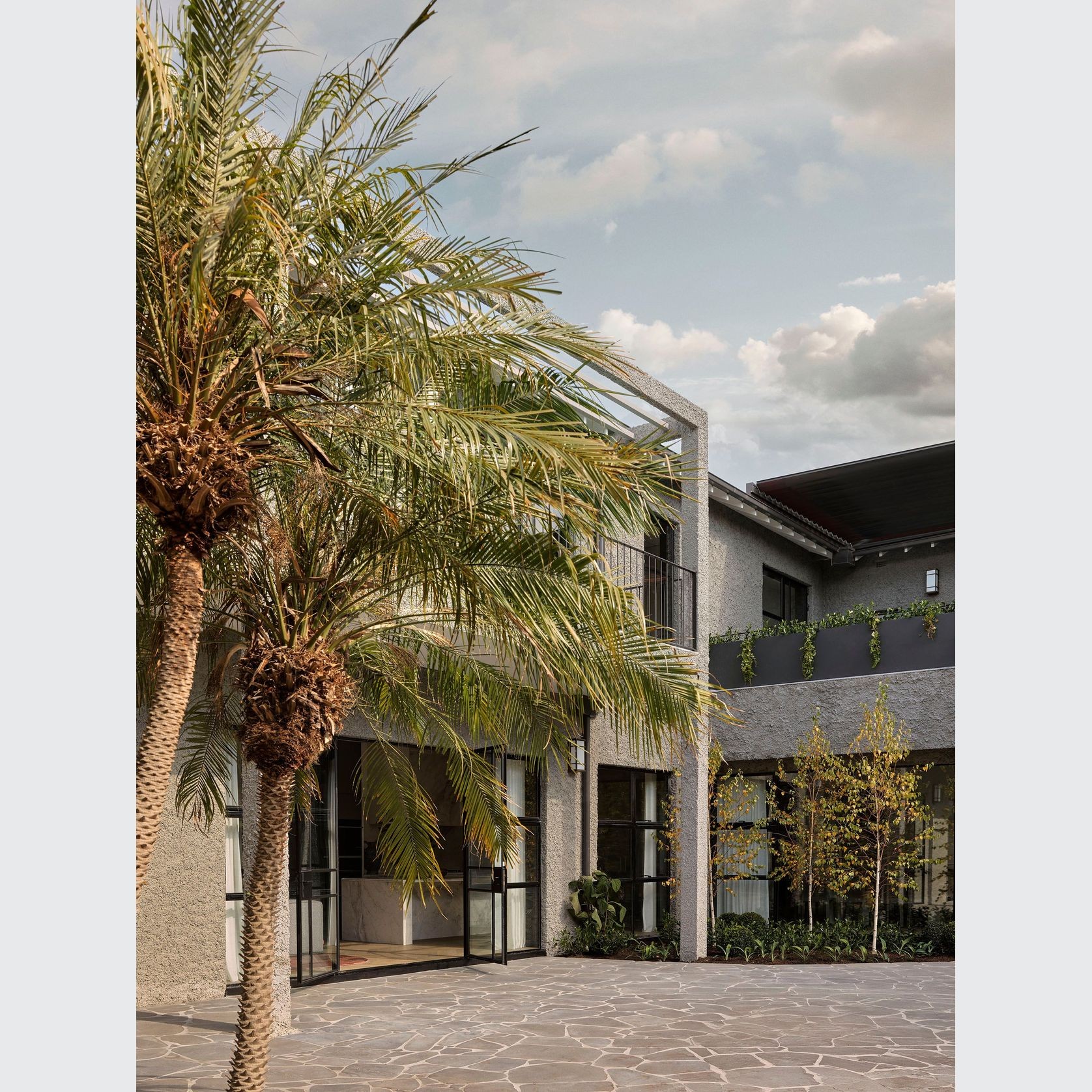

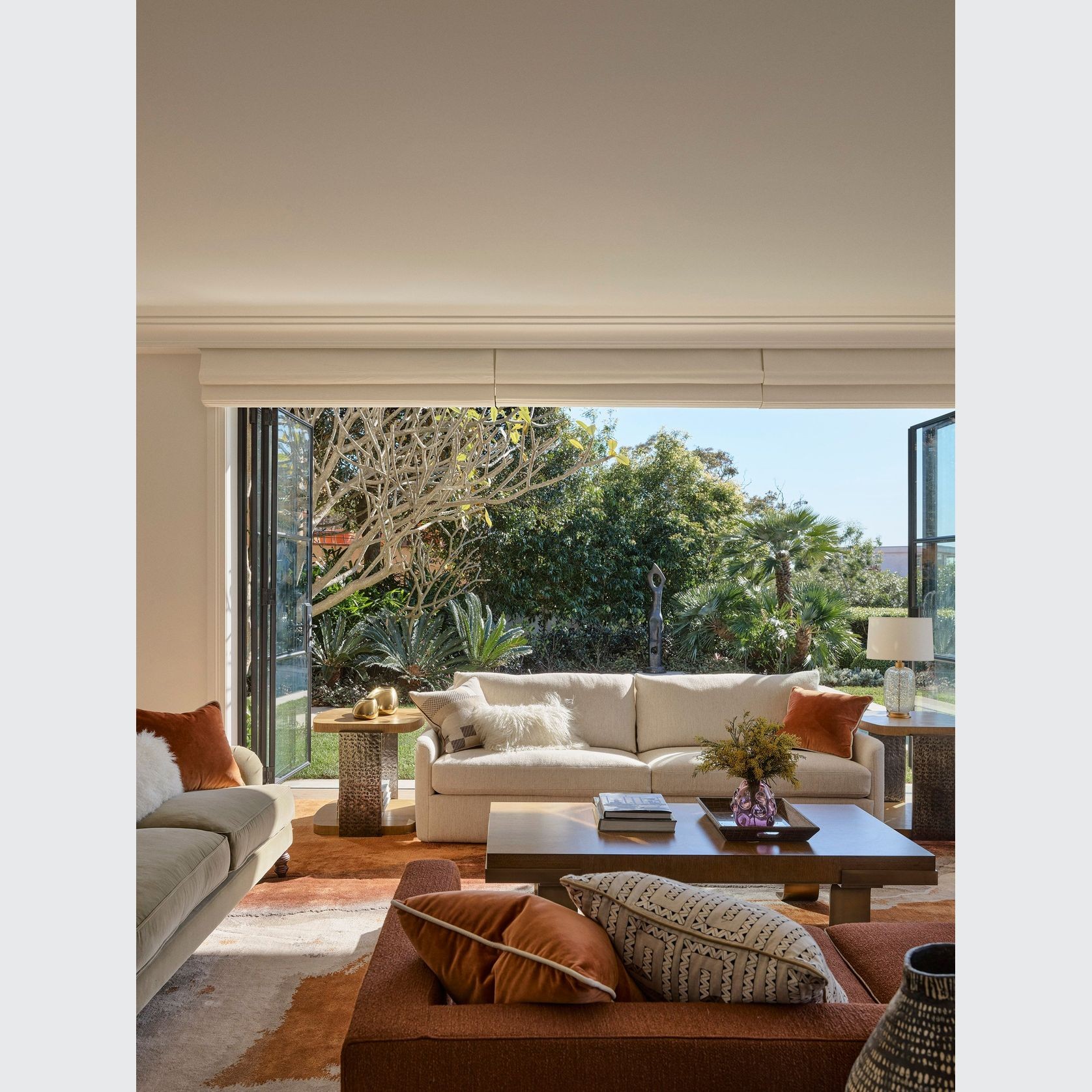

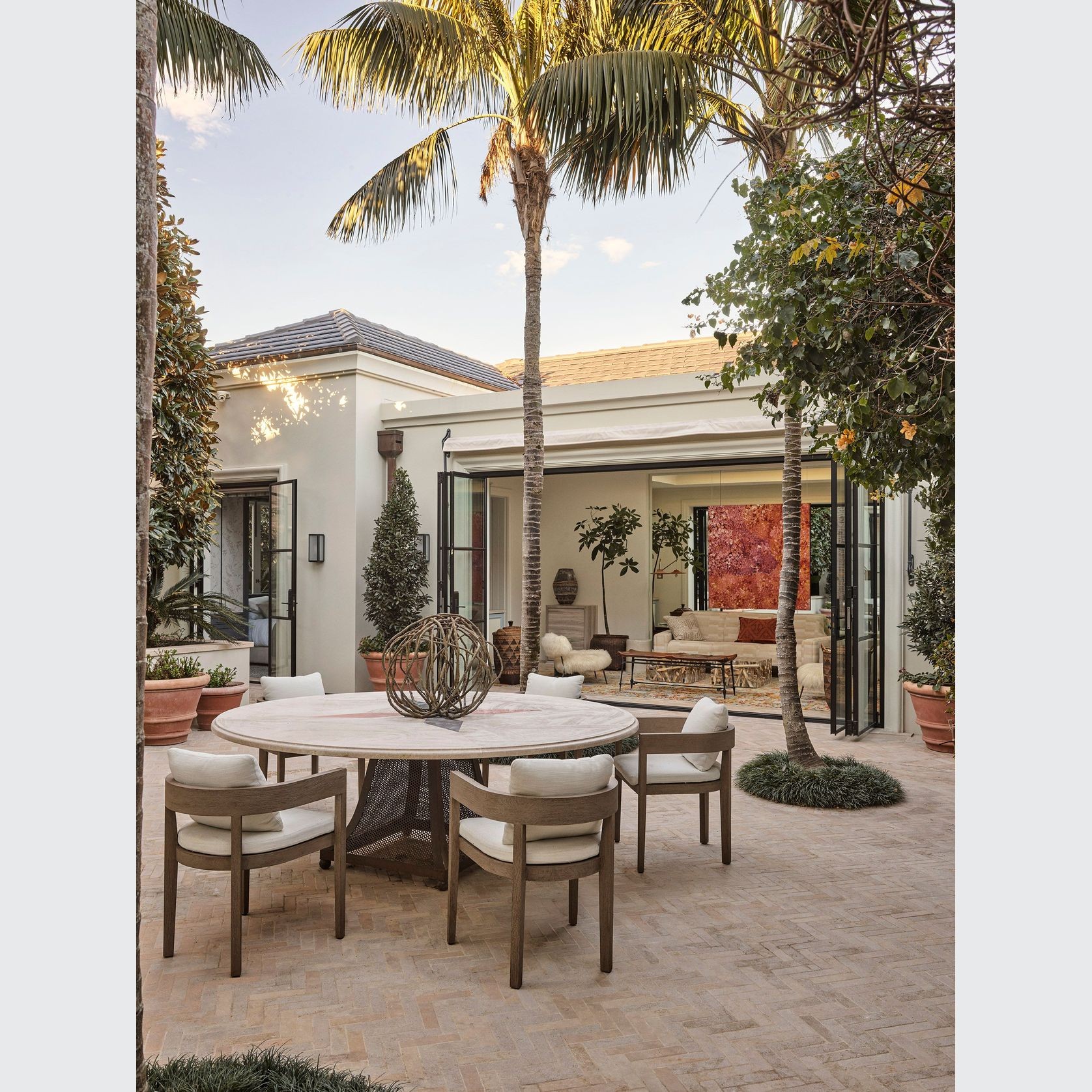

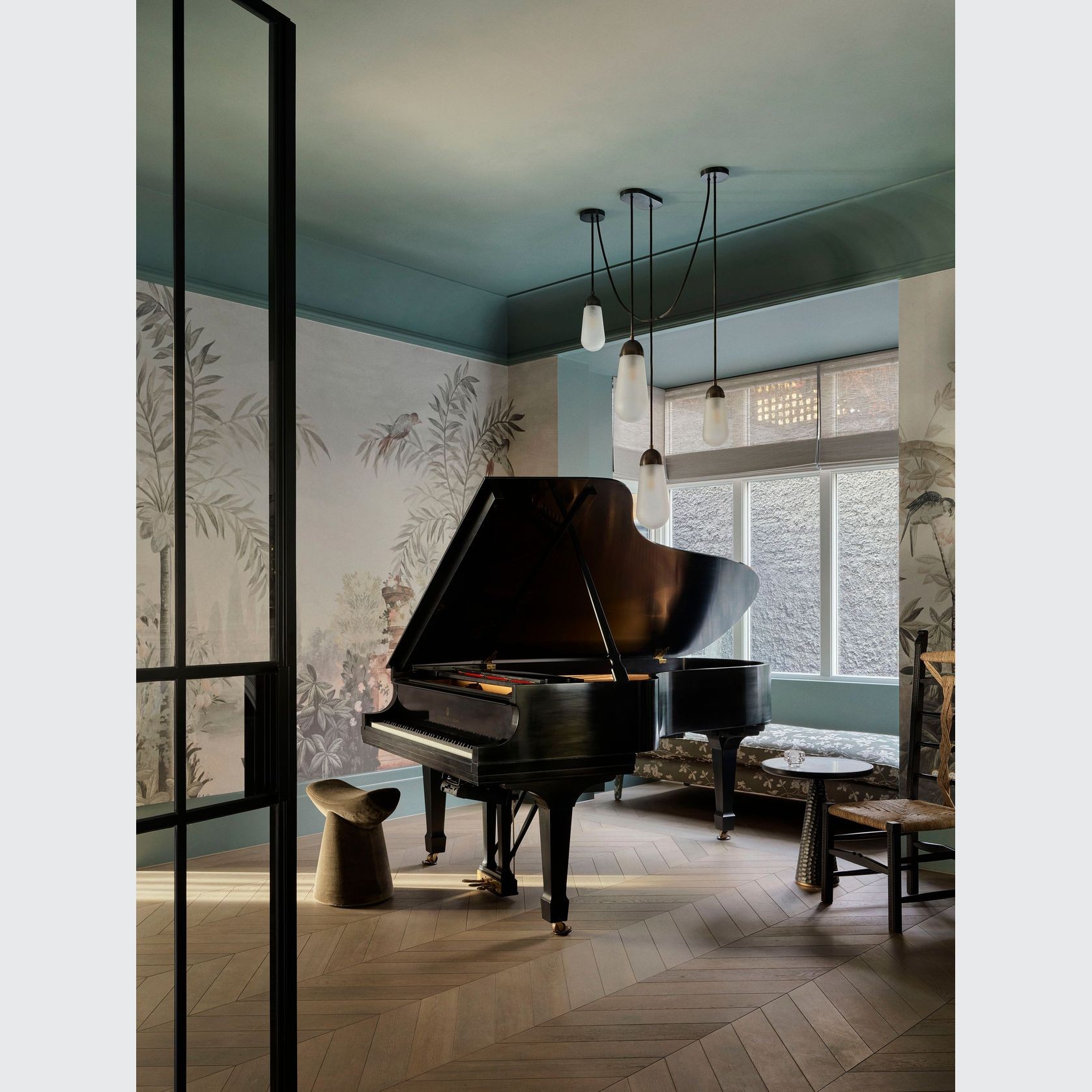

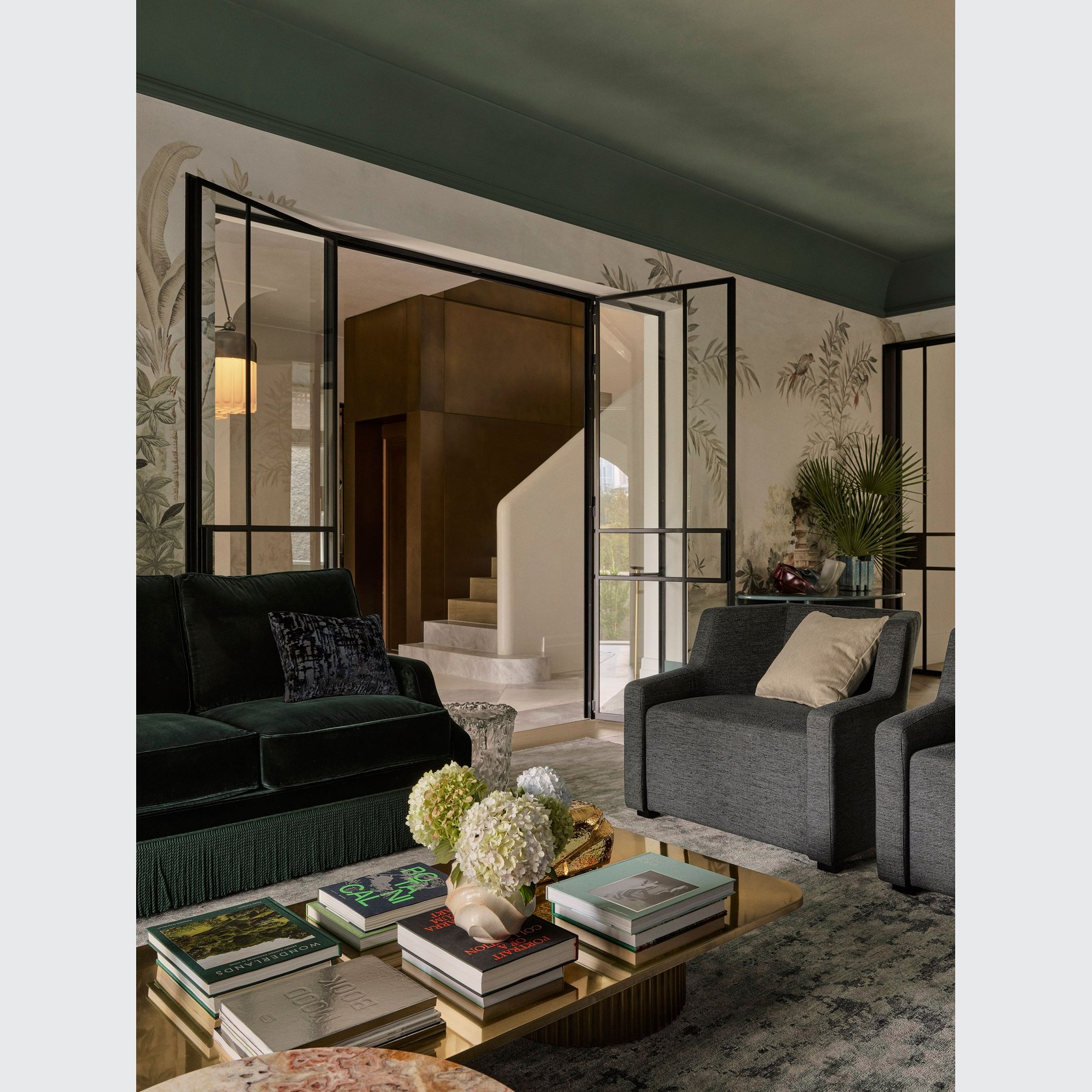

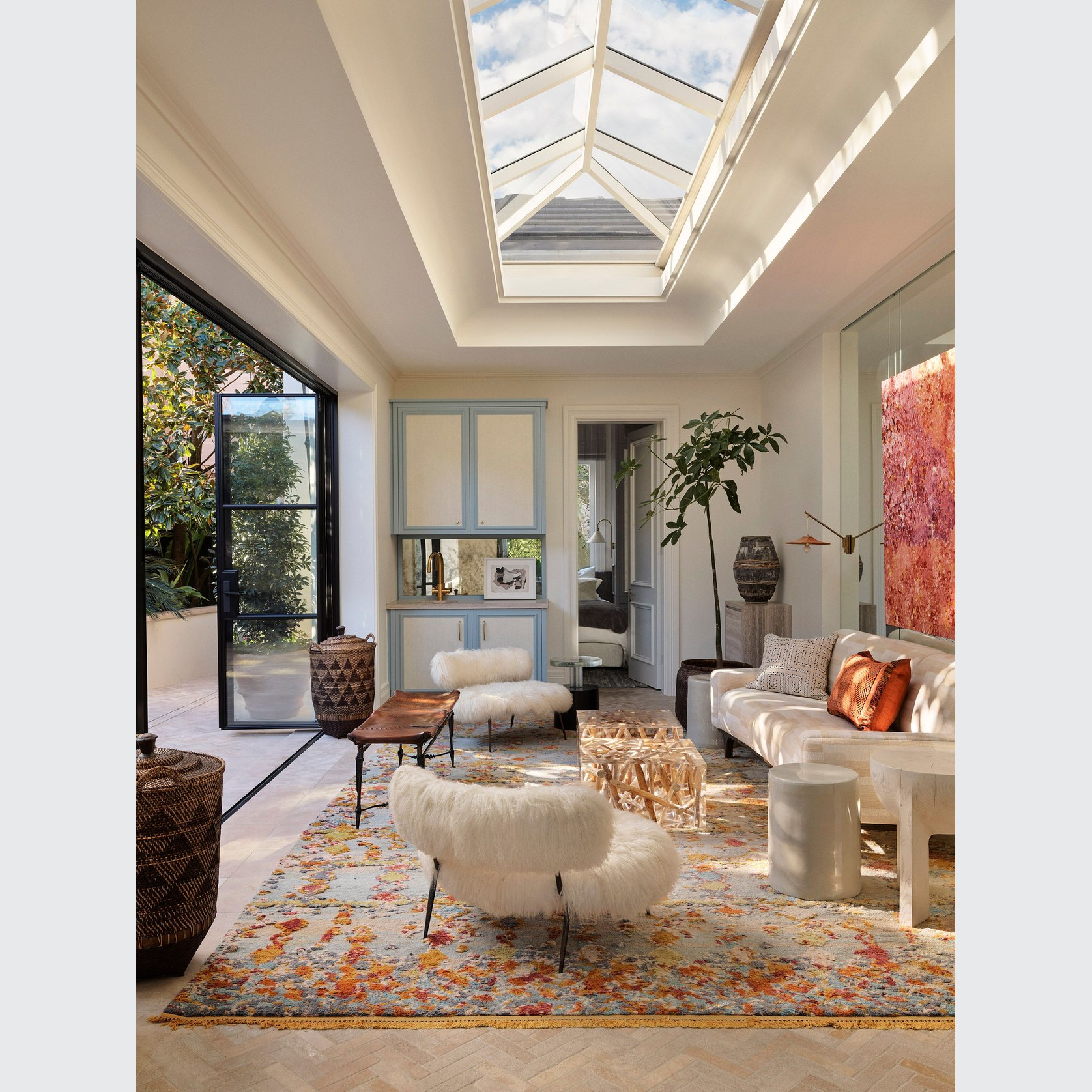

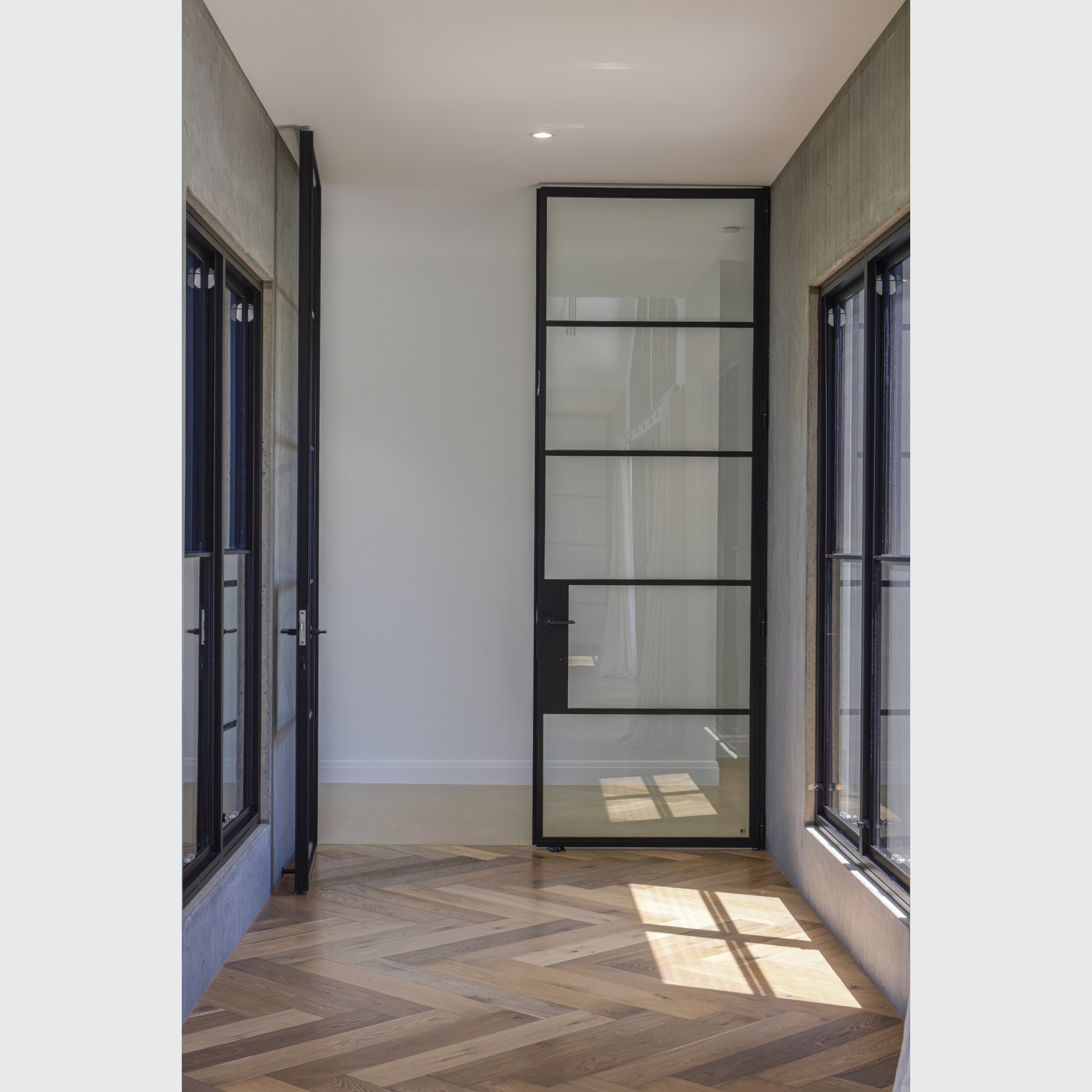

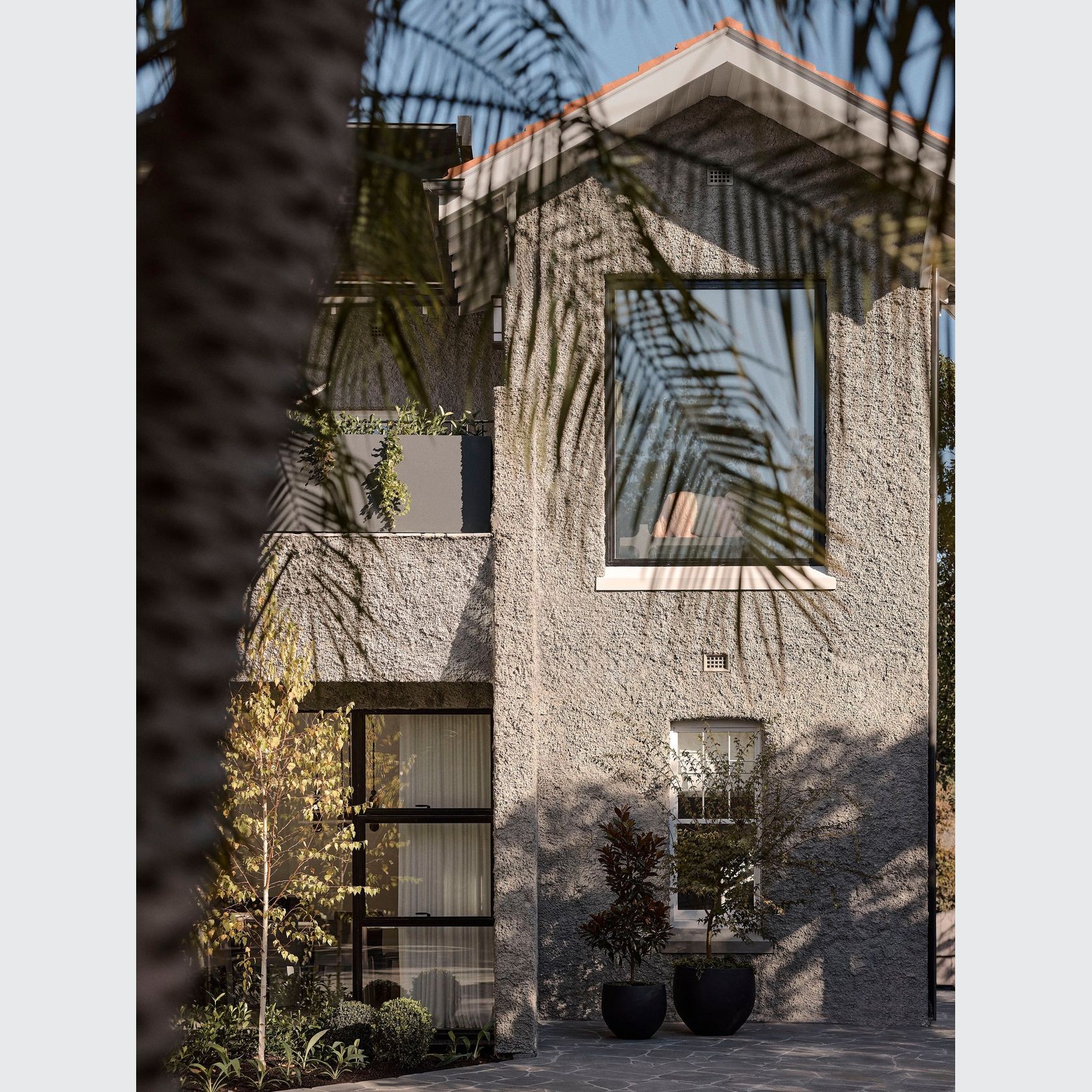

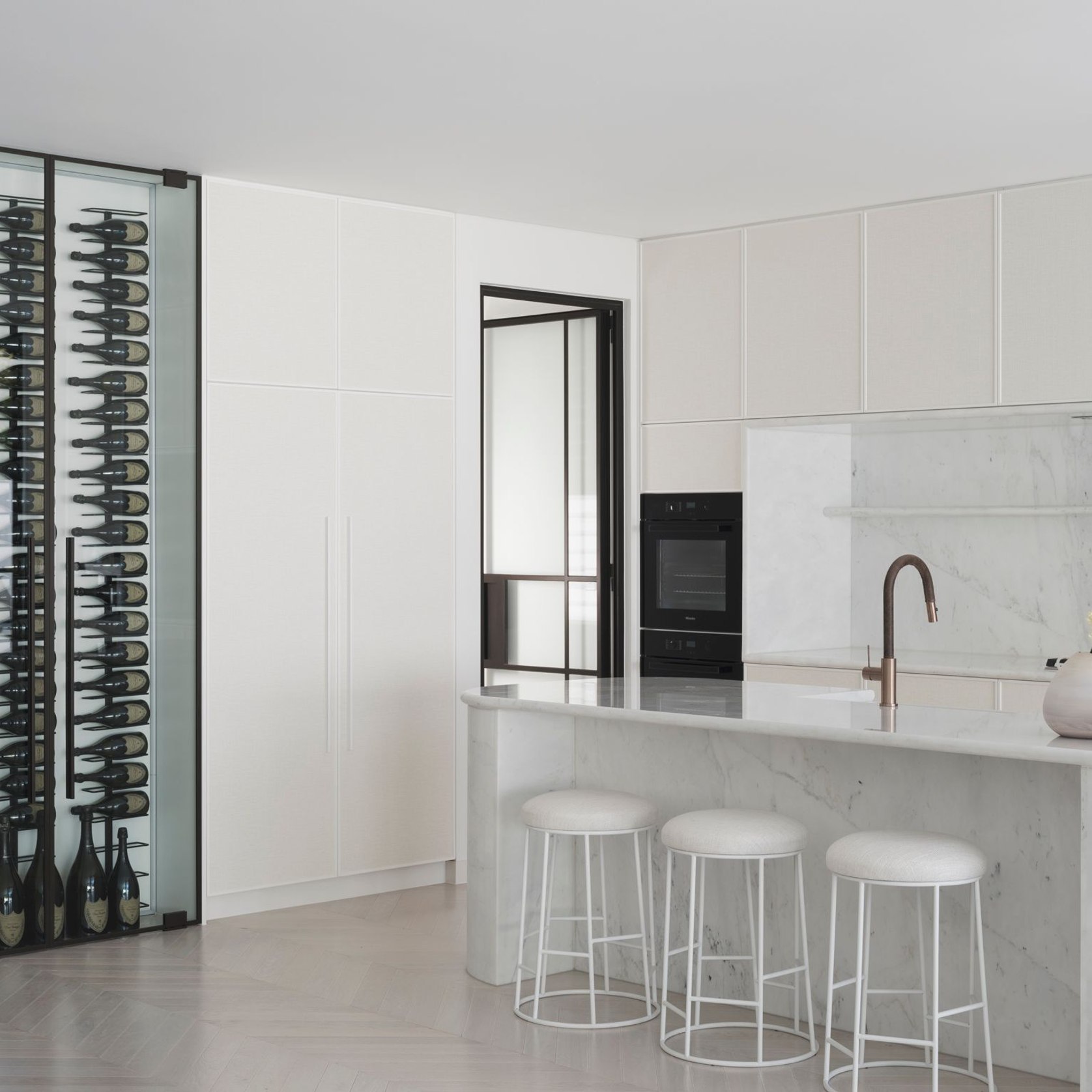

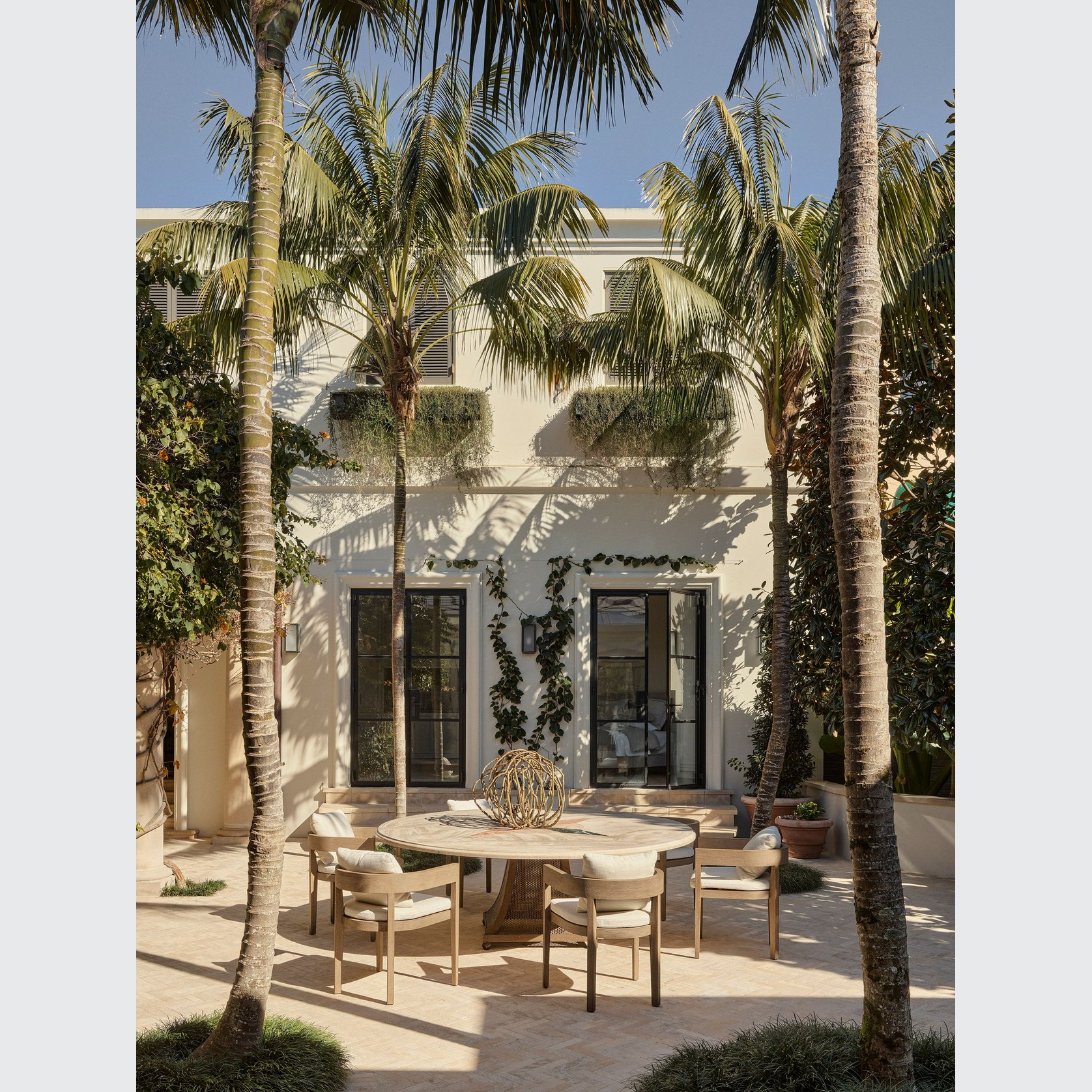

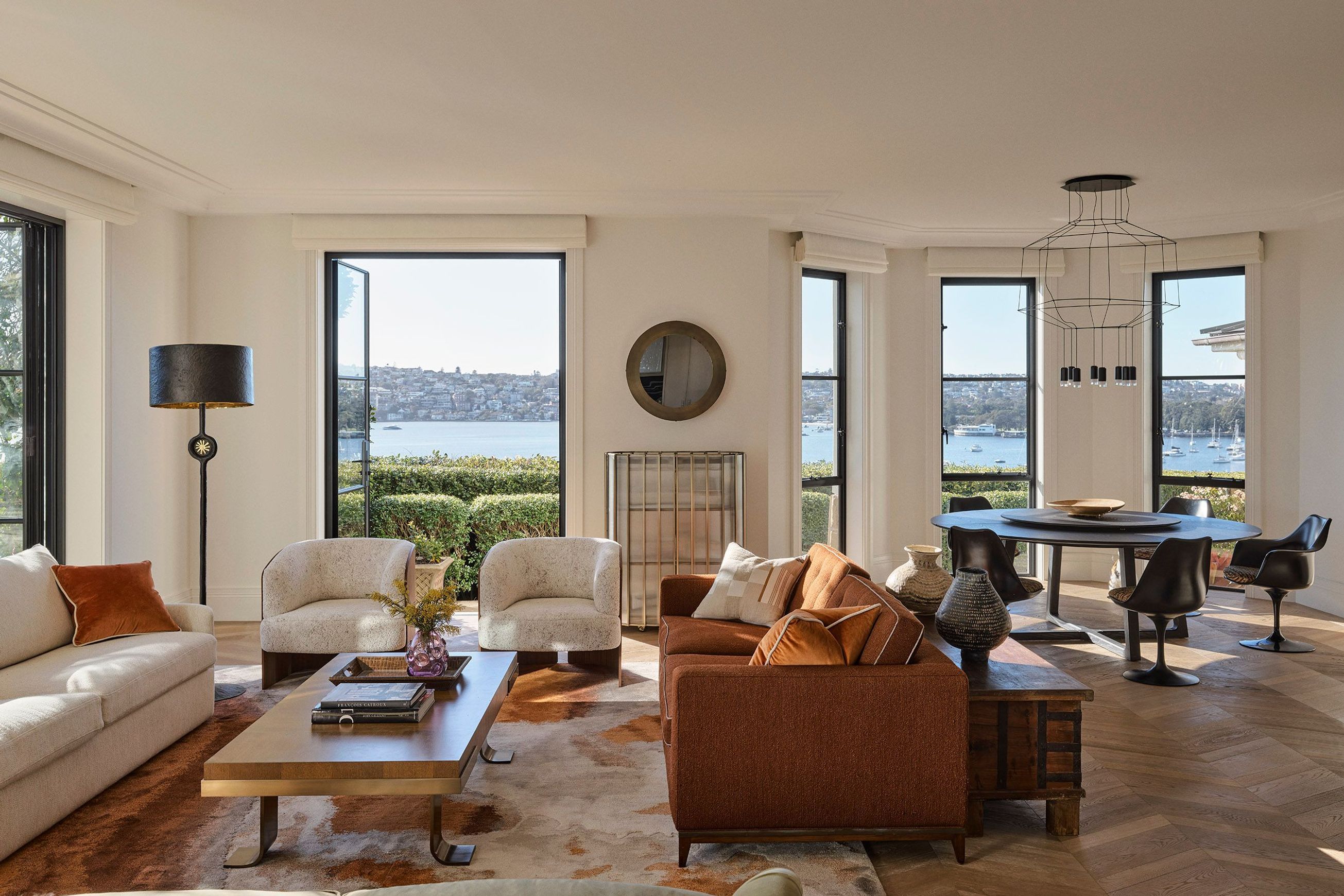

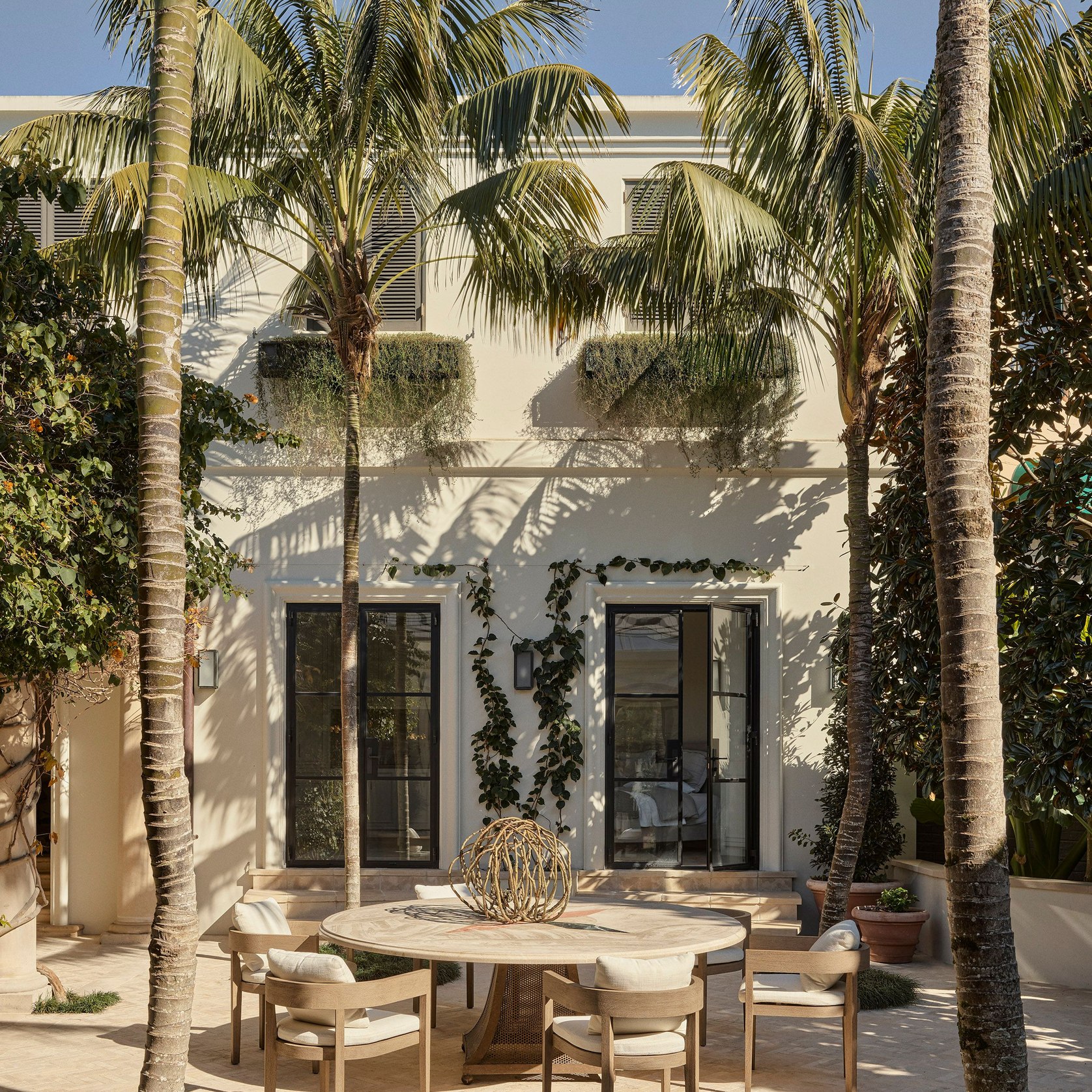

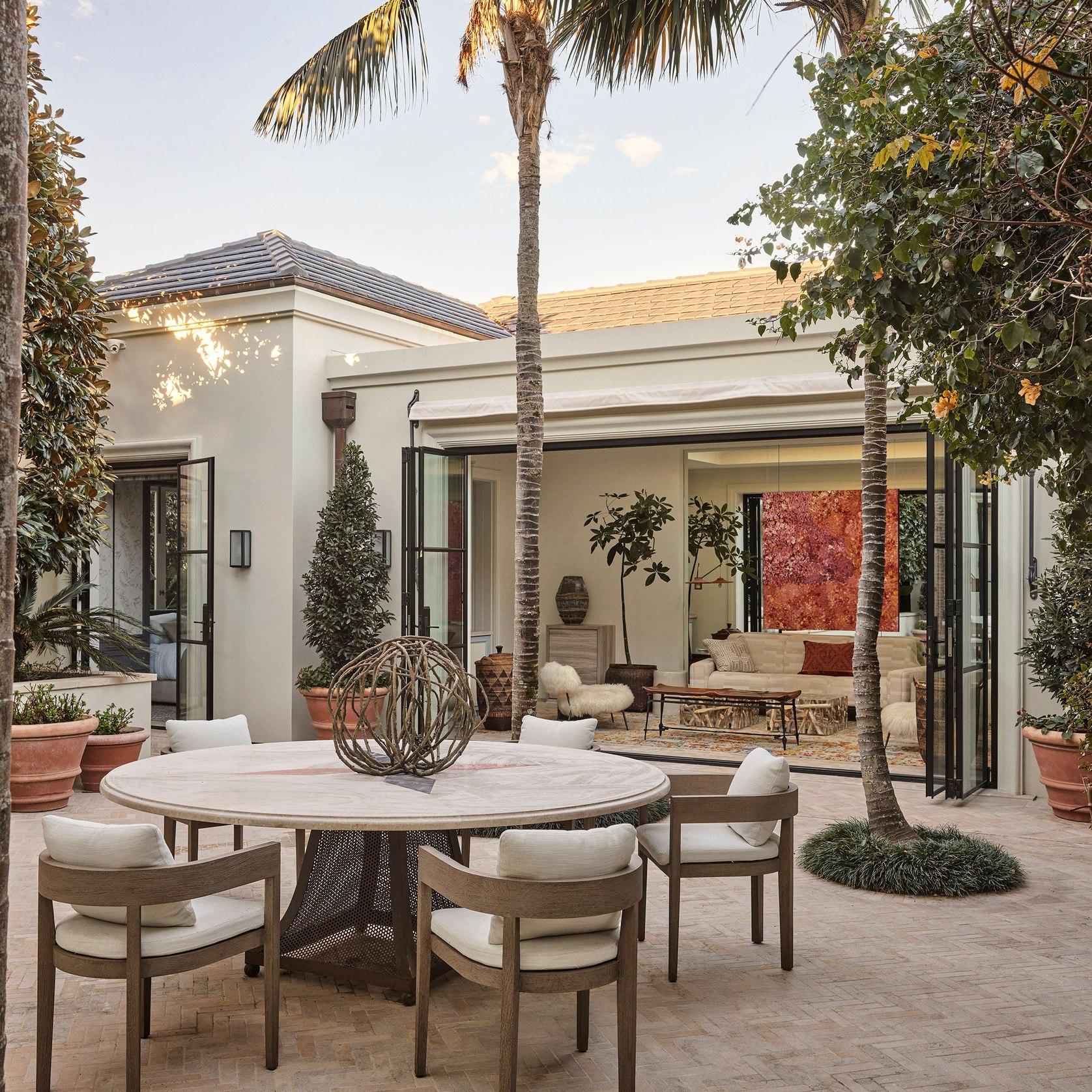

Yes. It has been specified in projects on ArchiPro, including Point Piper Harbour House by Zen Doors & Windows, Botanical House South Yarra by Zen Doors & Windows and Ascot Queenslander by Zen Doors & Windows. See how it was used in a finished space.
