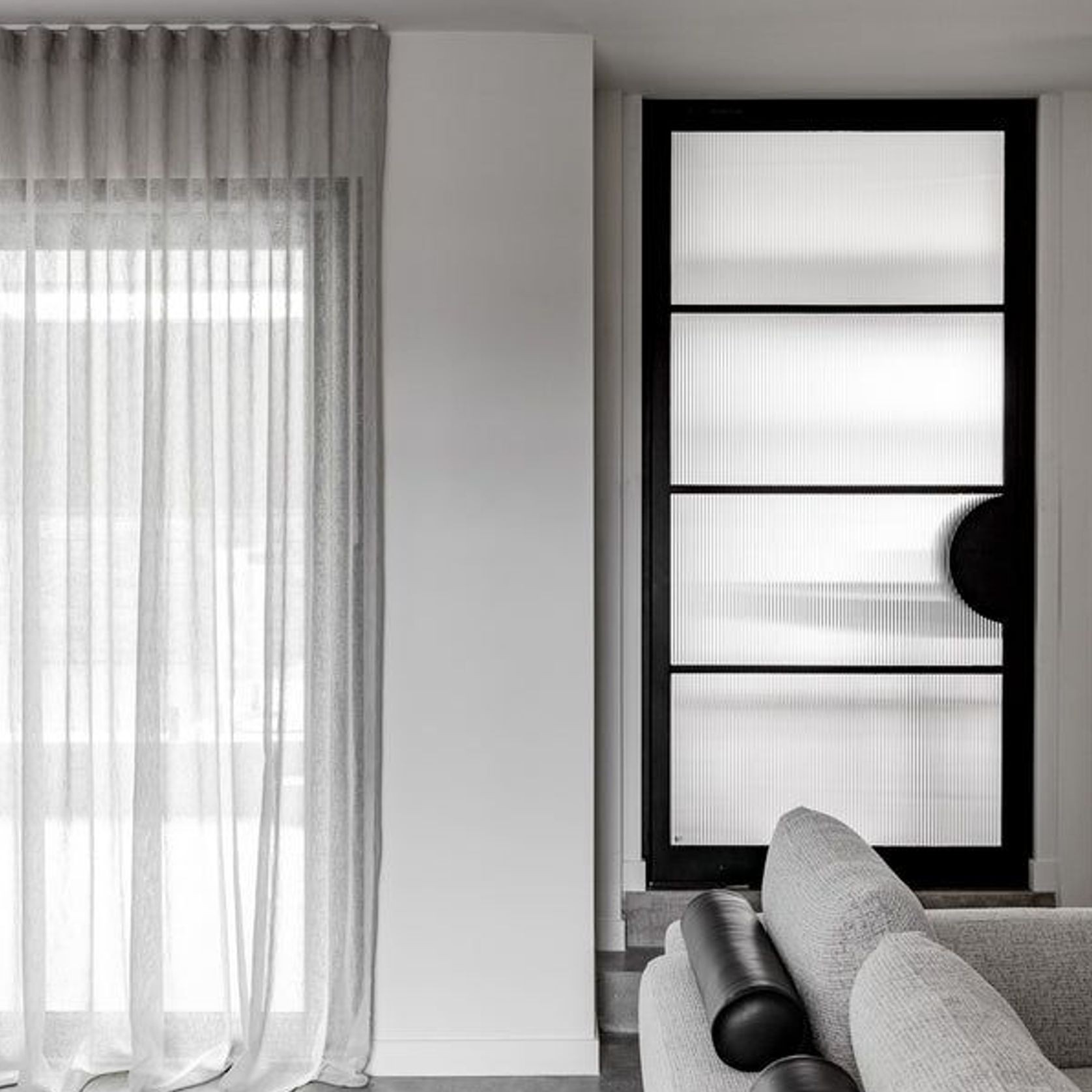

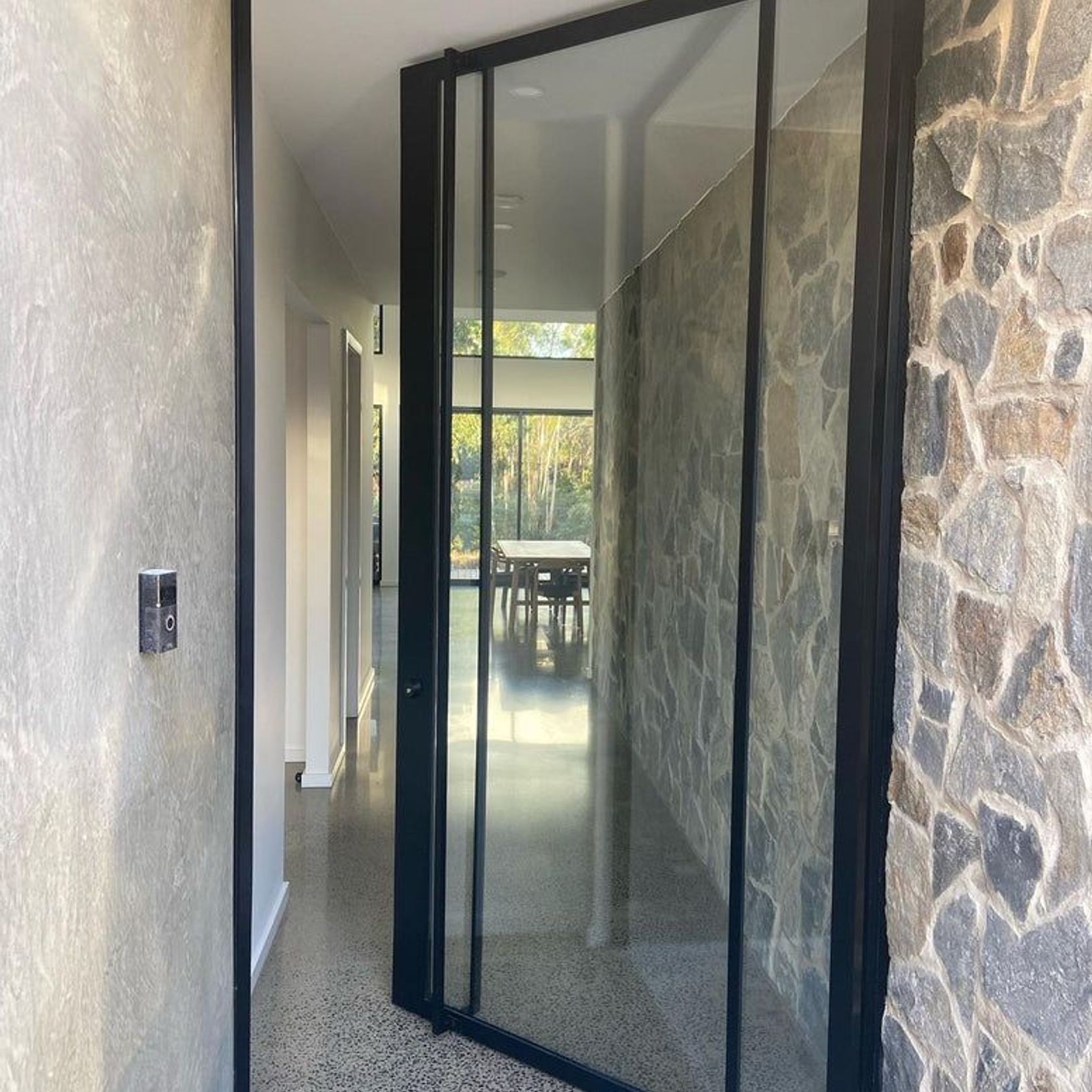

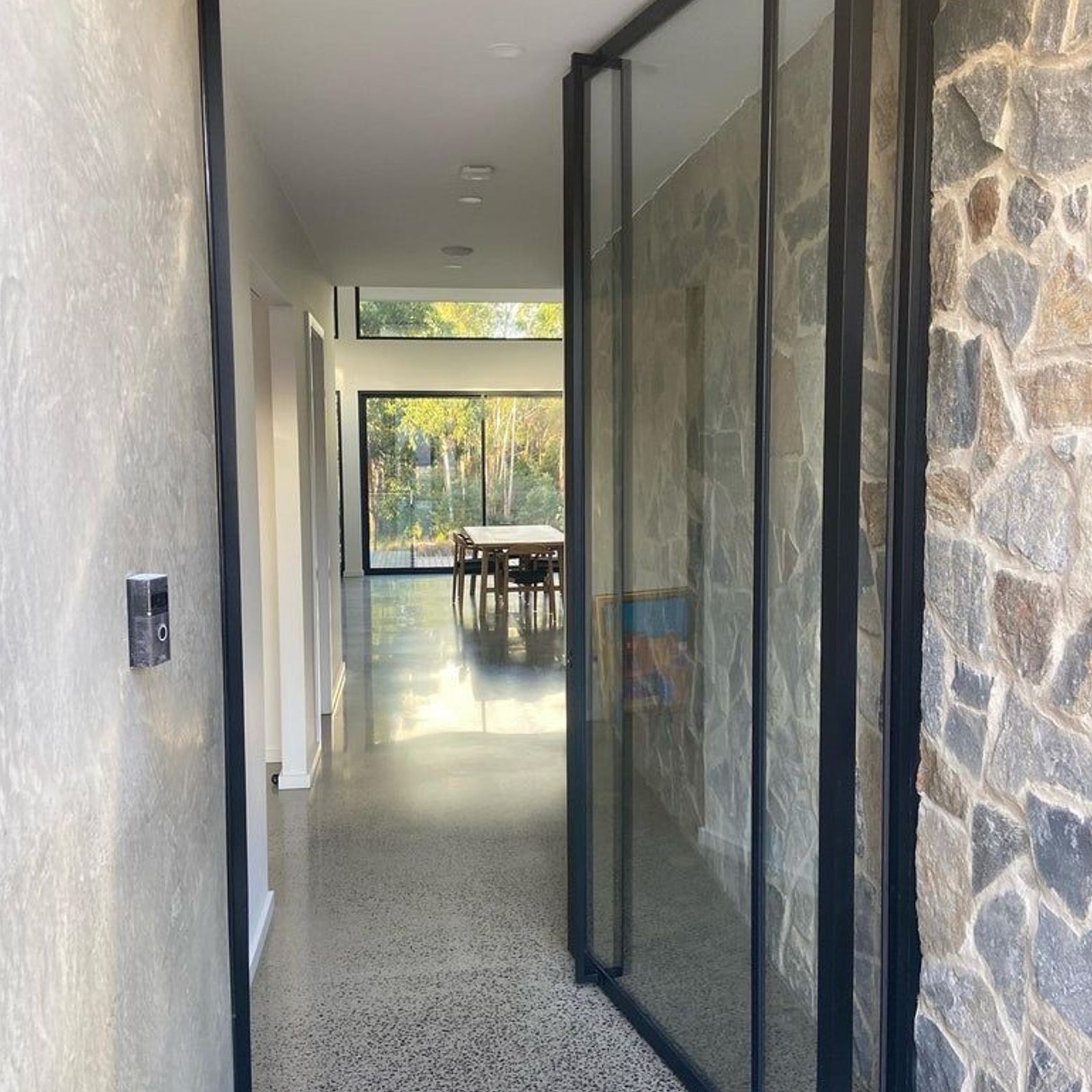

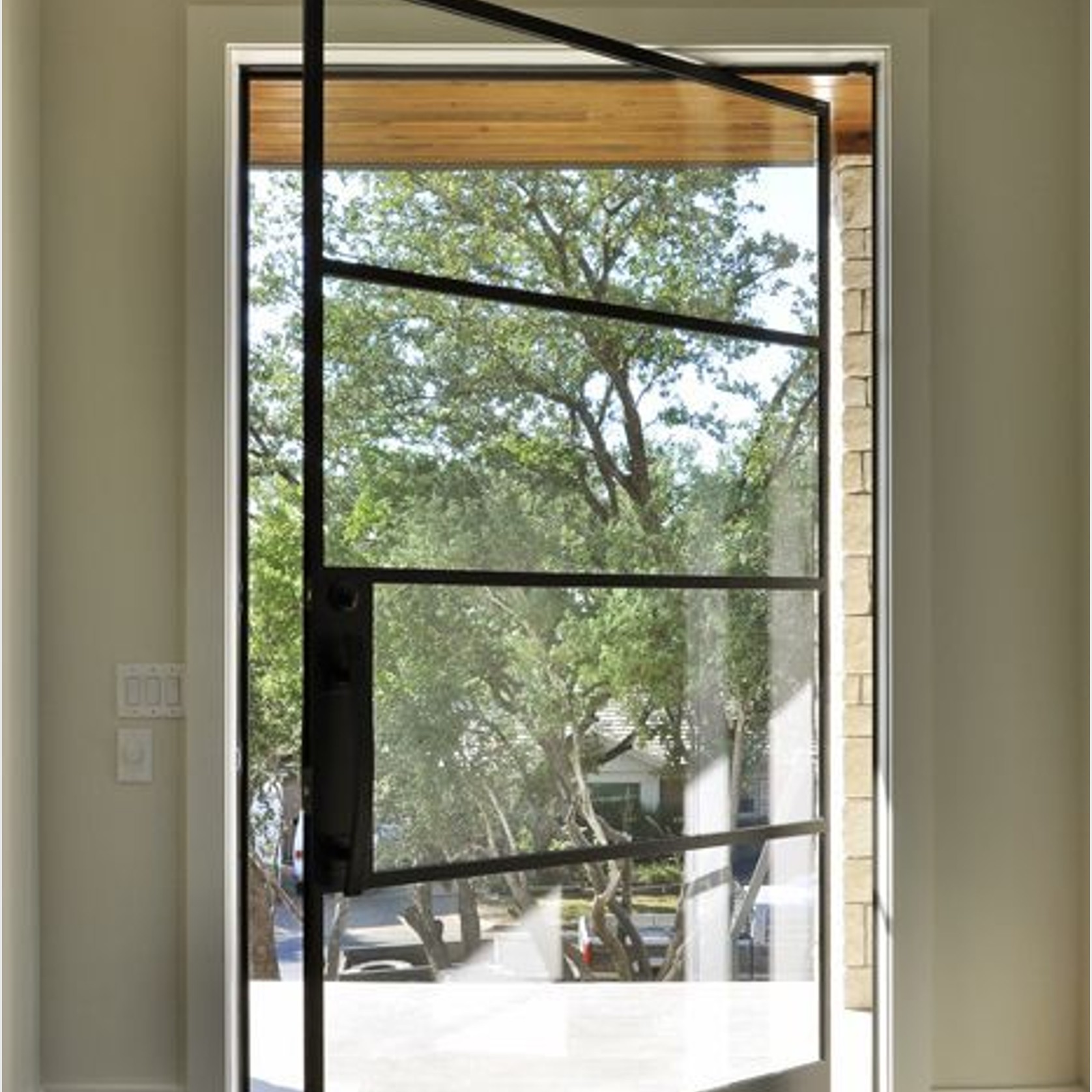

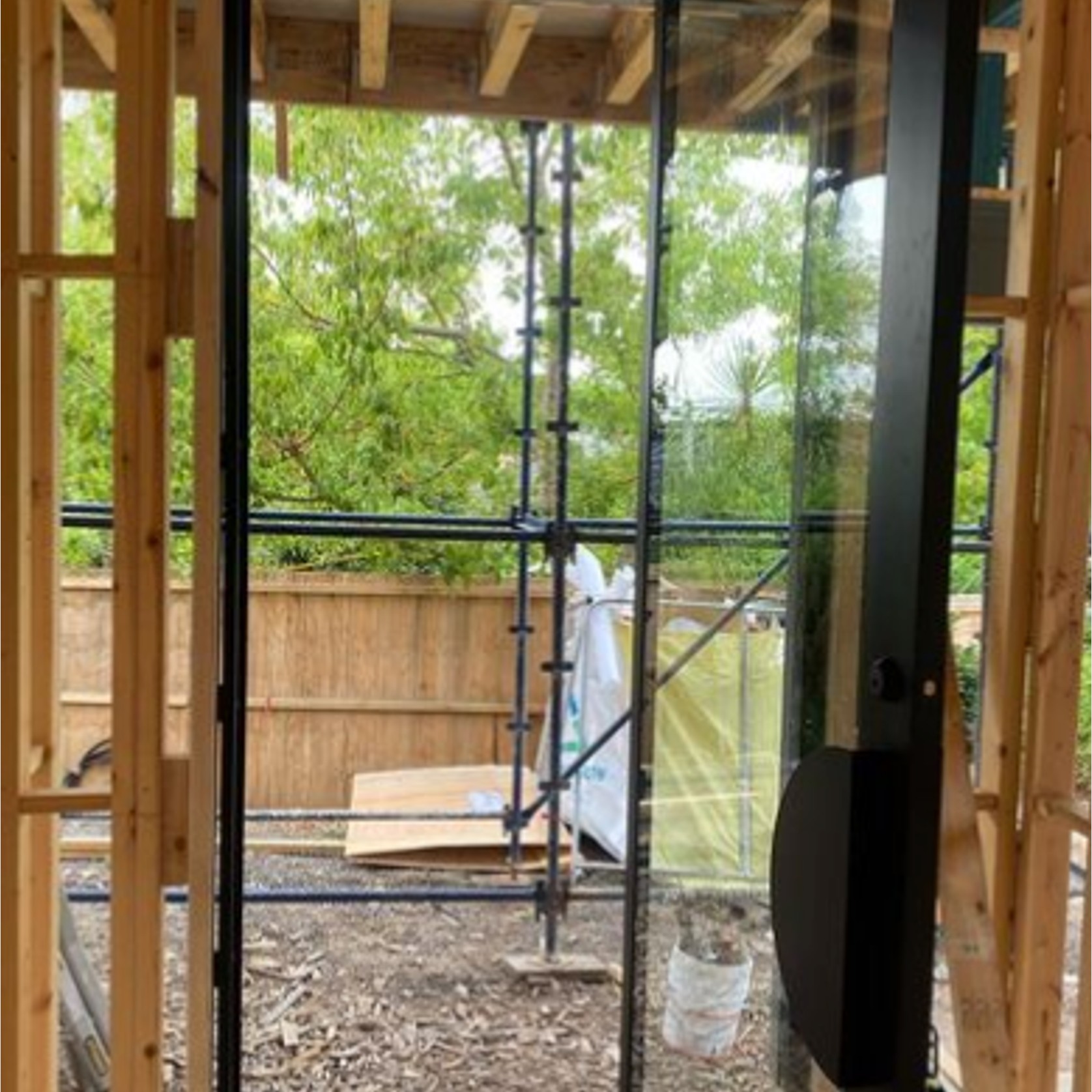

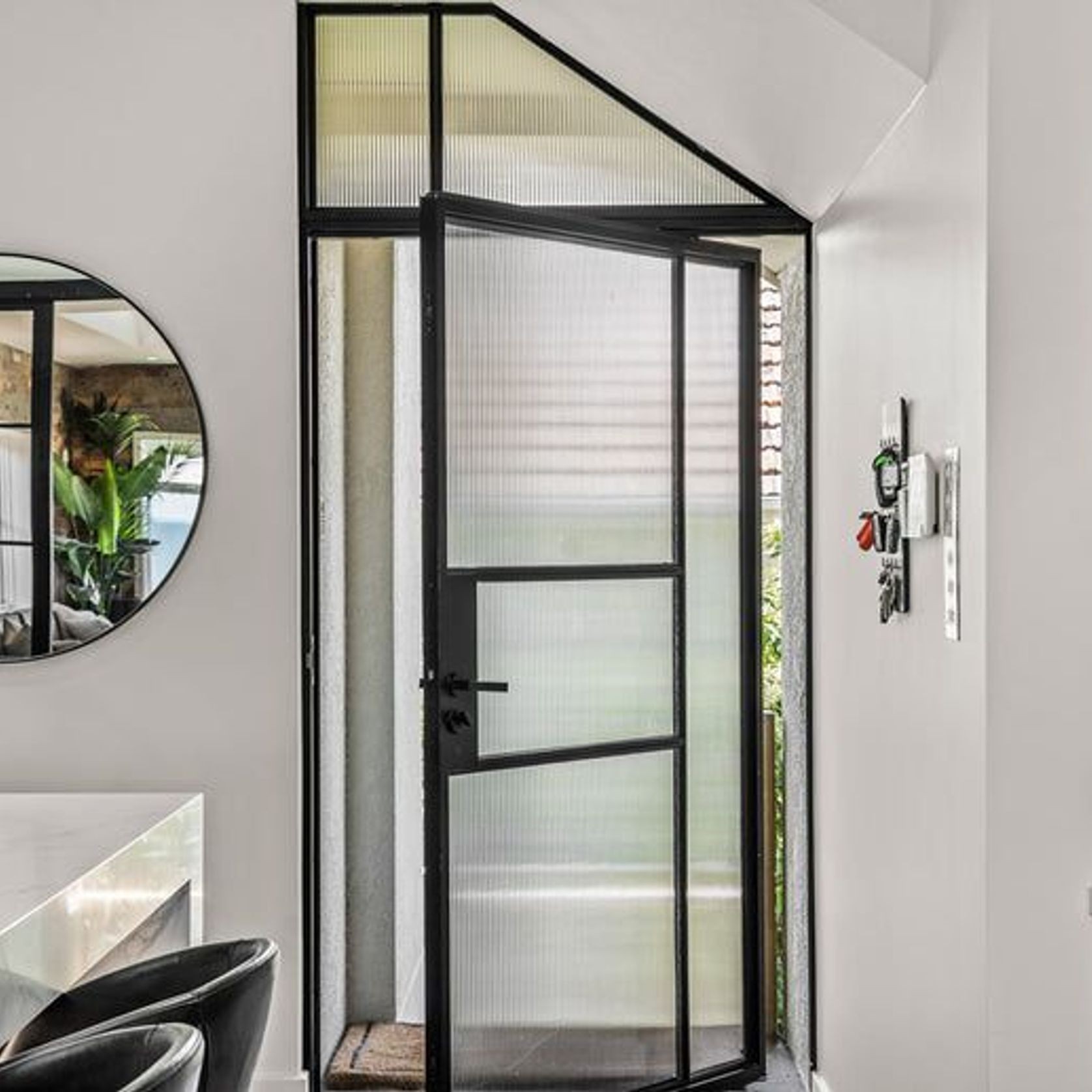

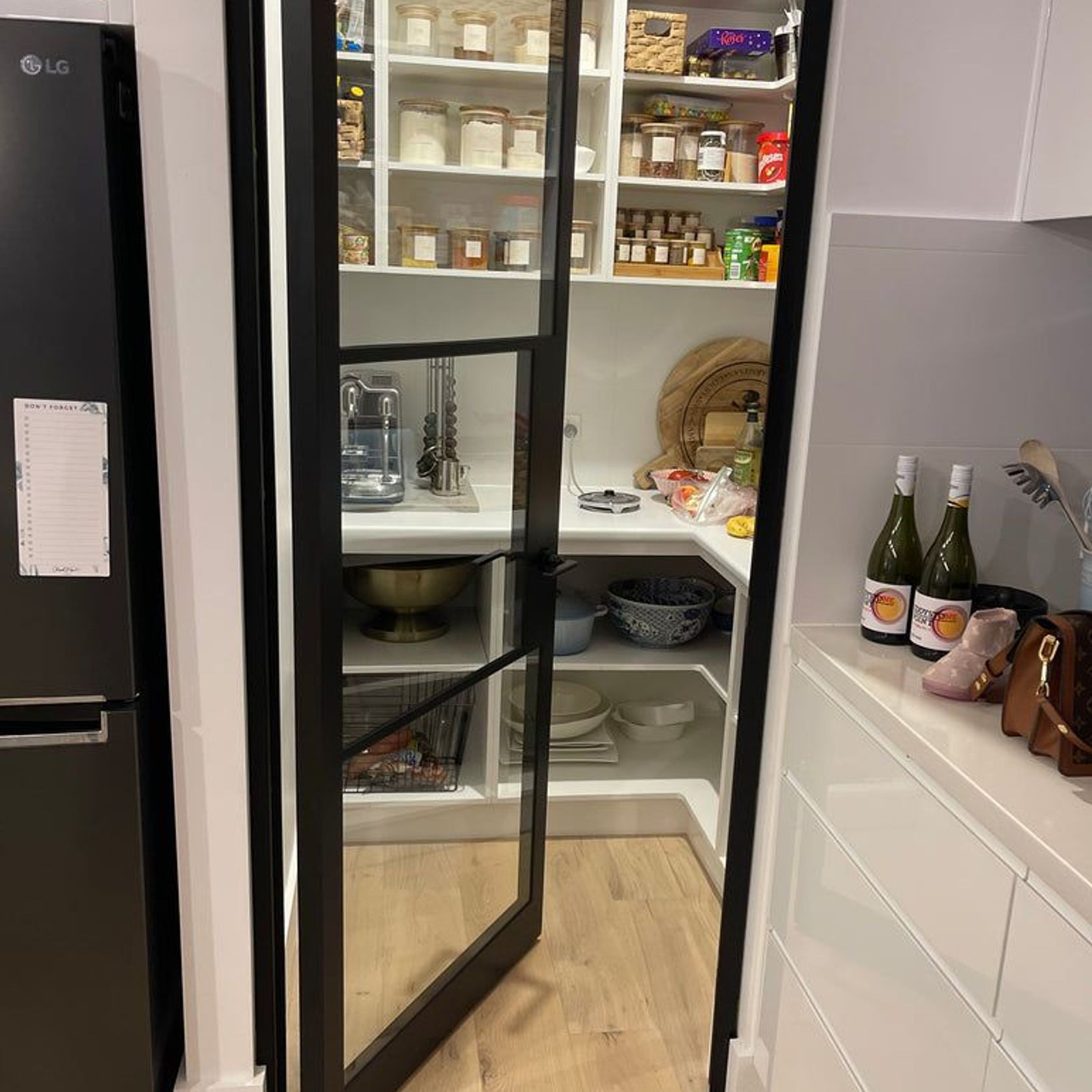

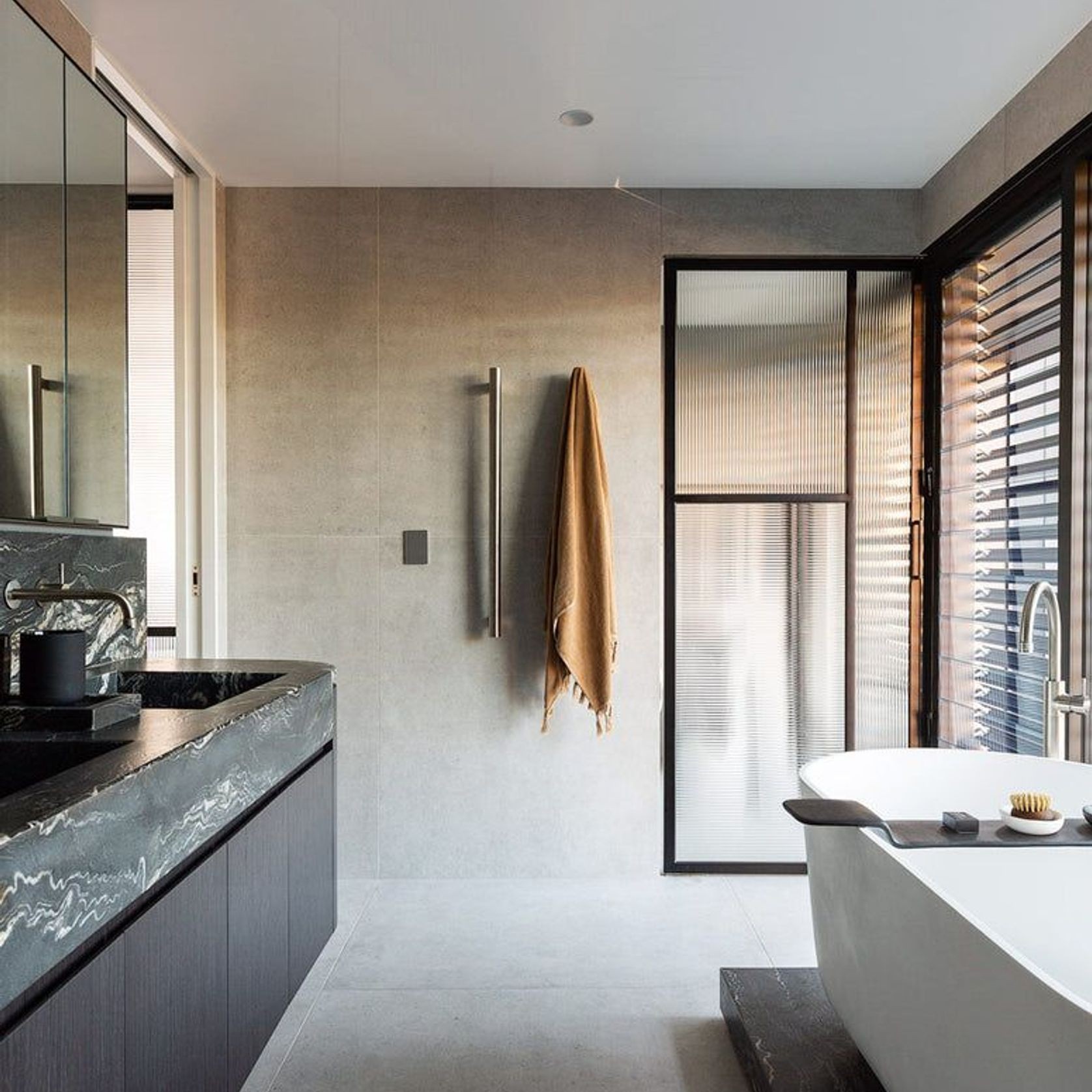

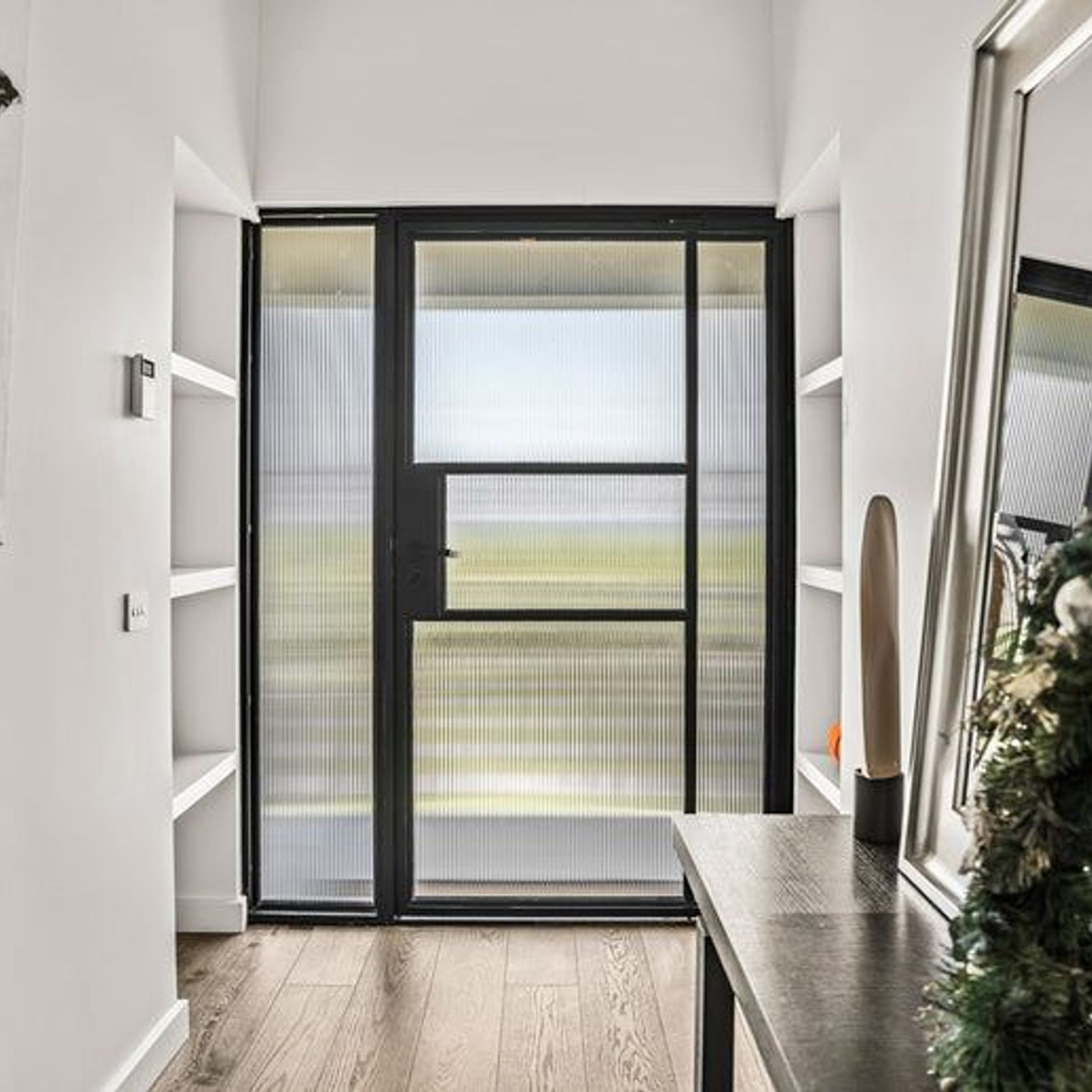

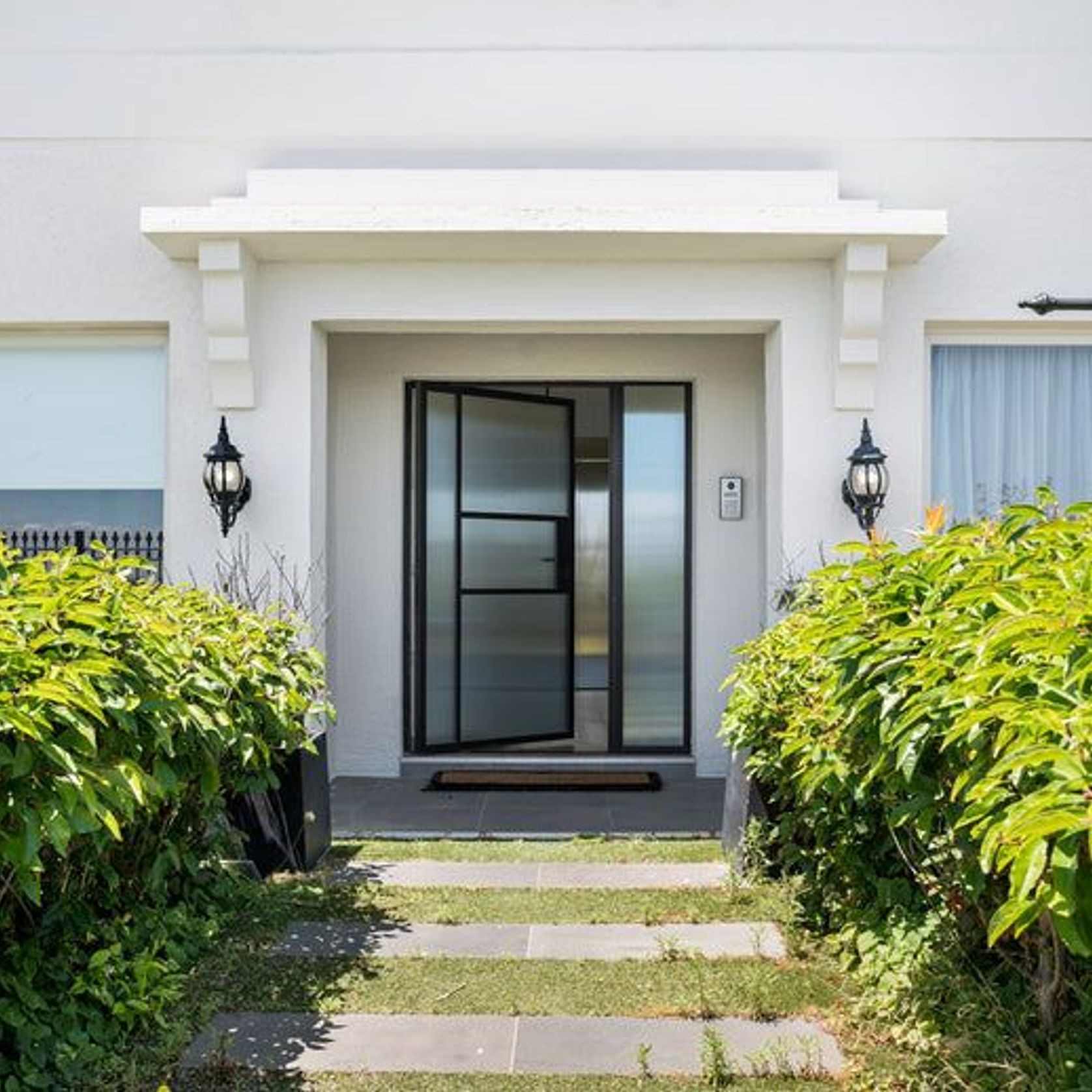

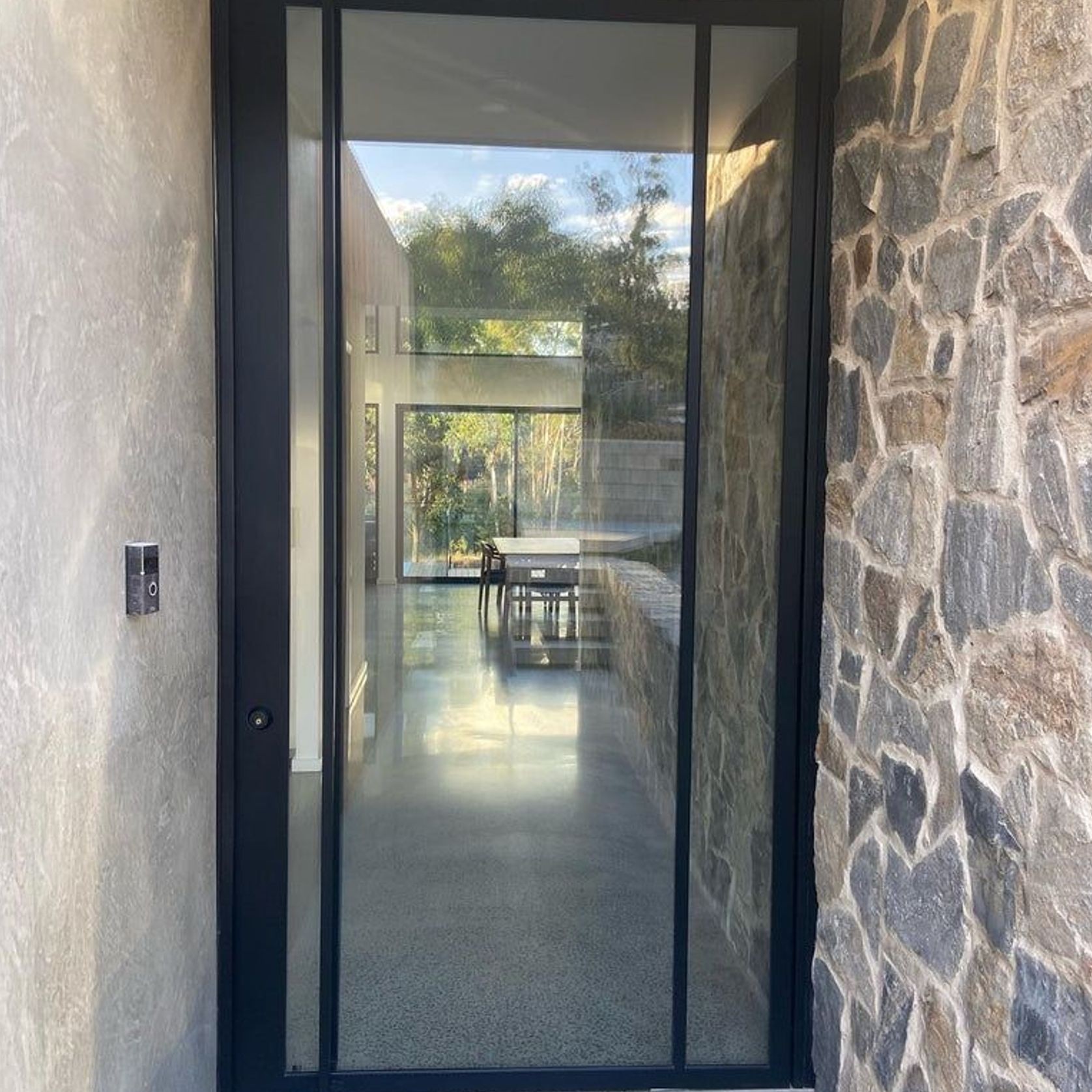

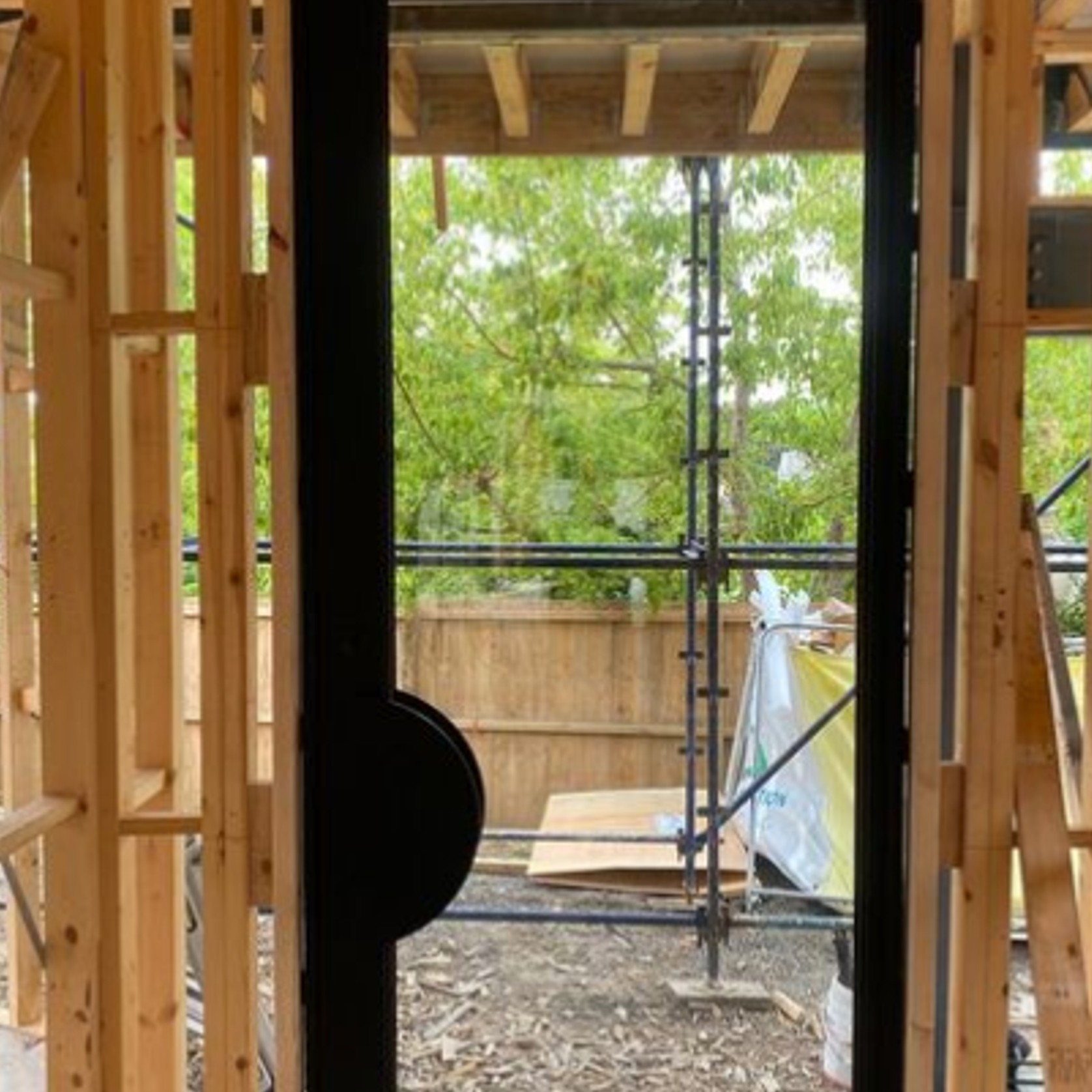

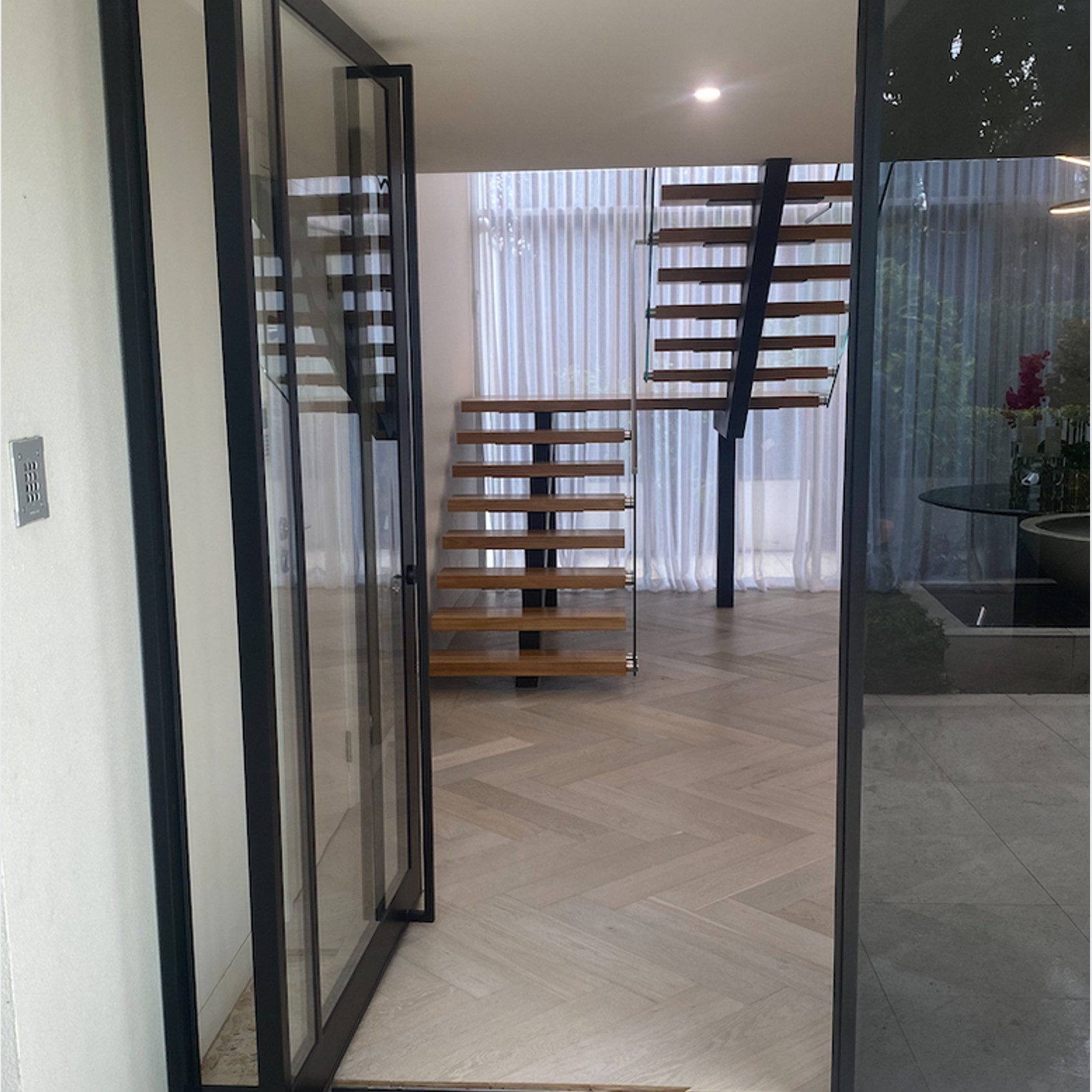

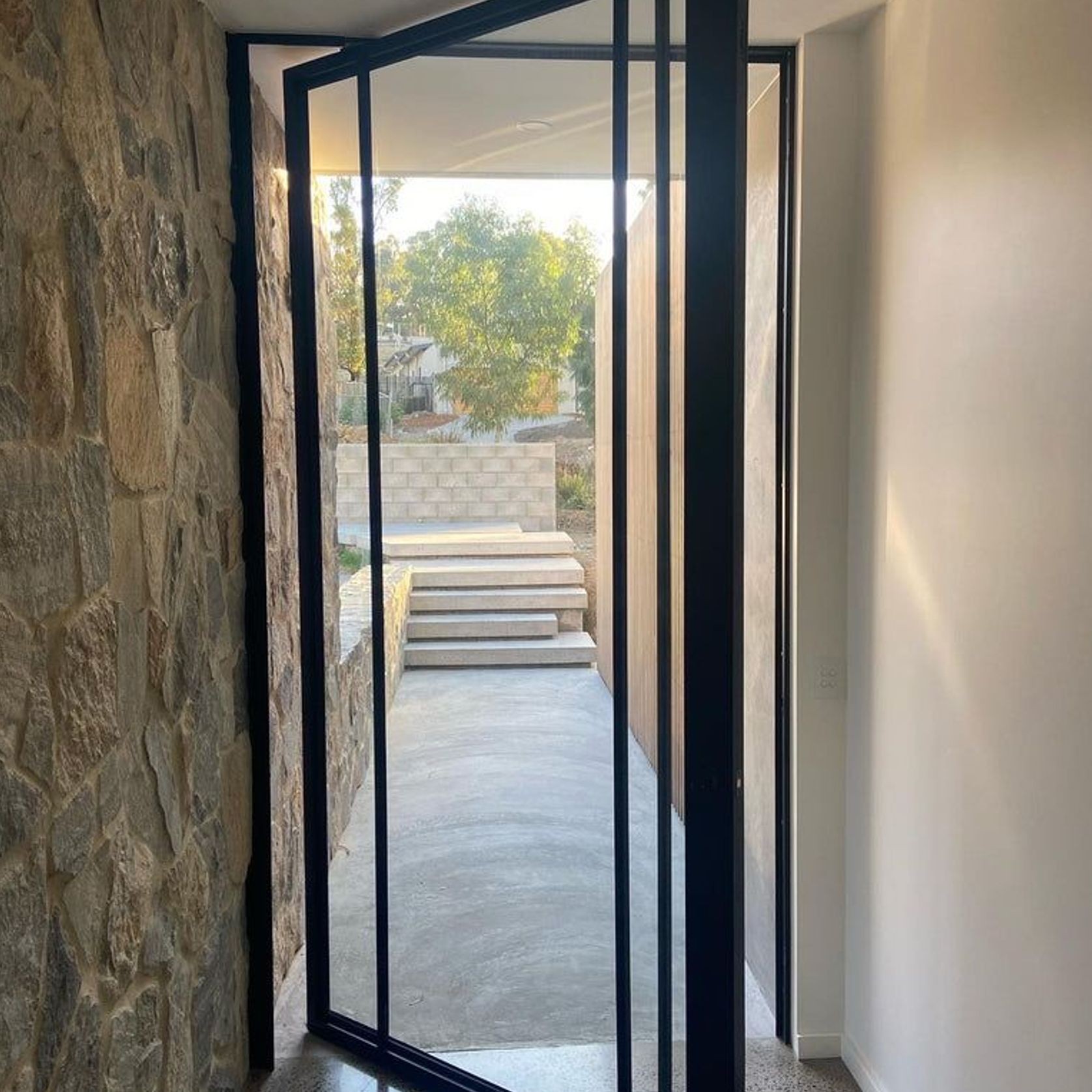

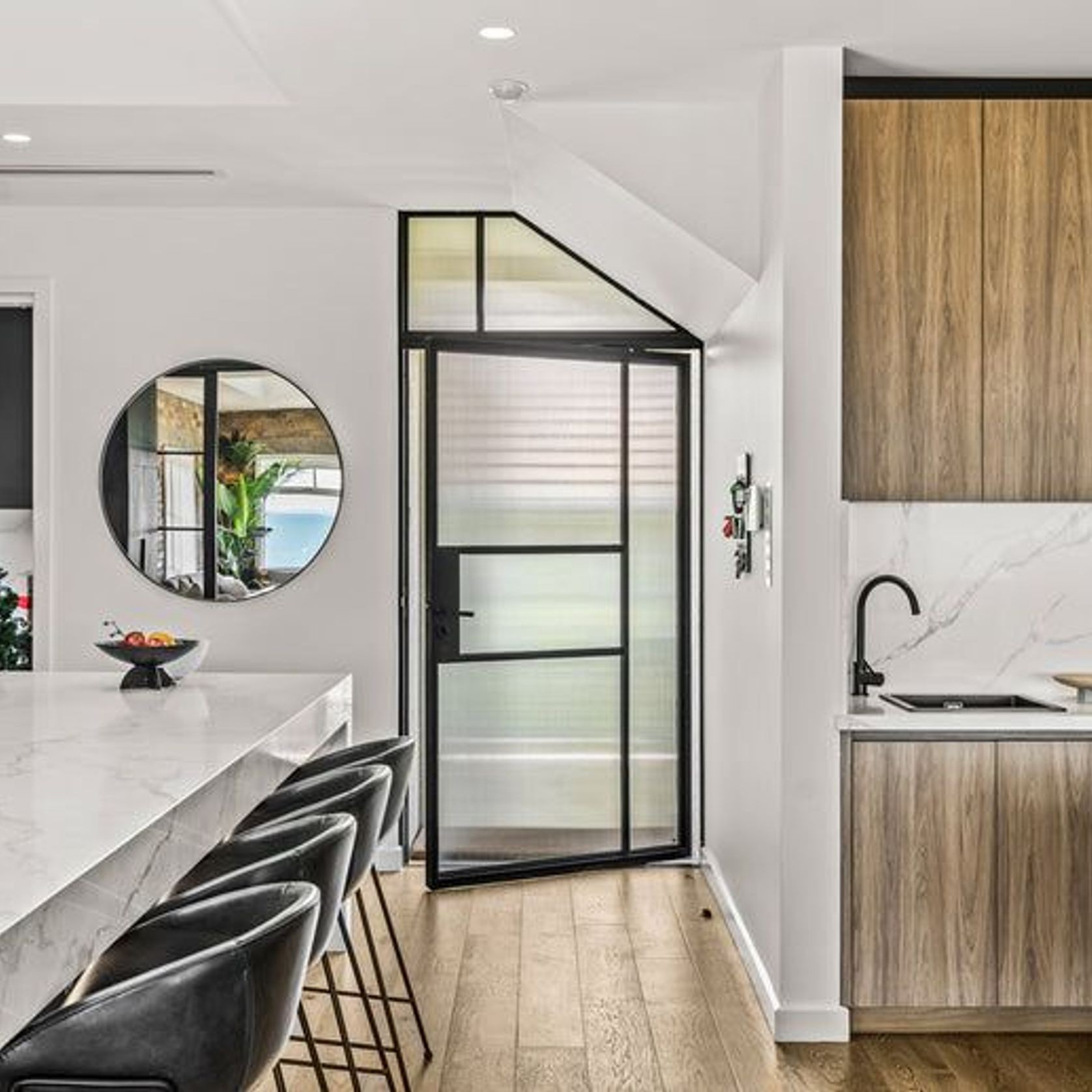

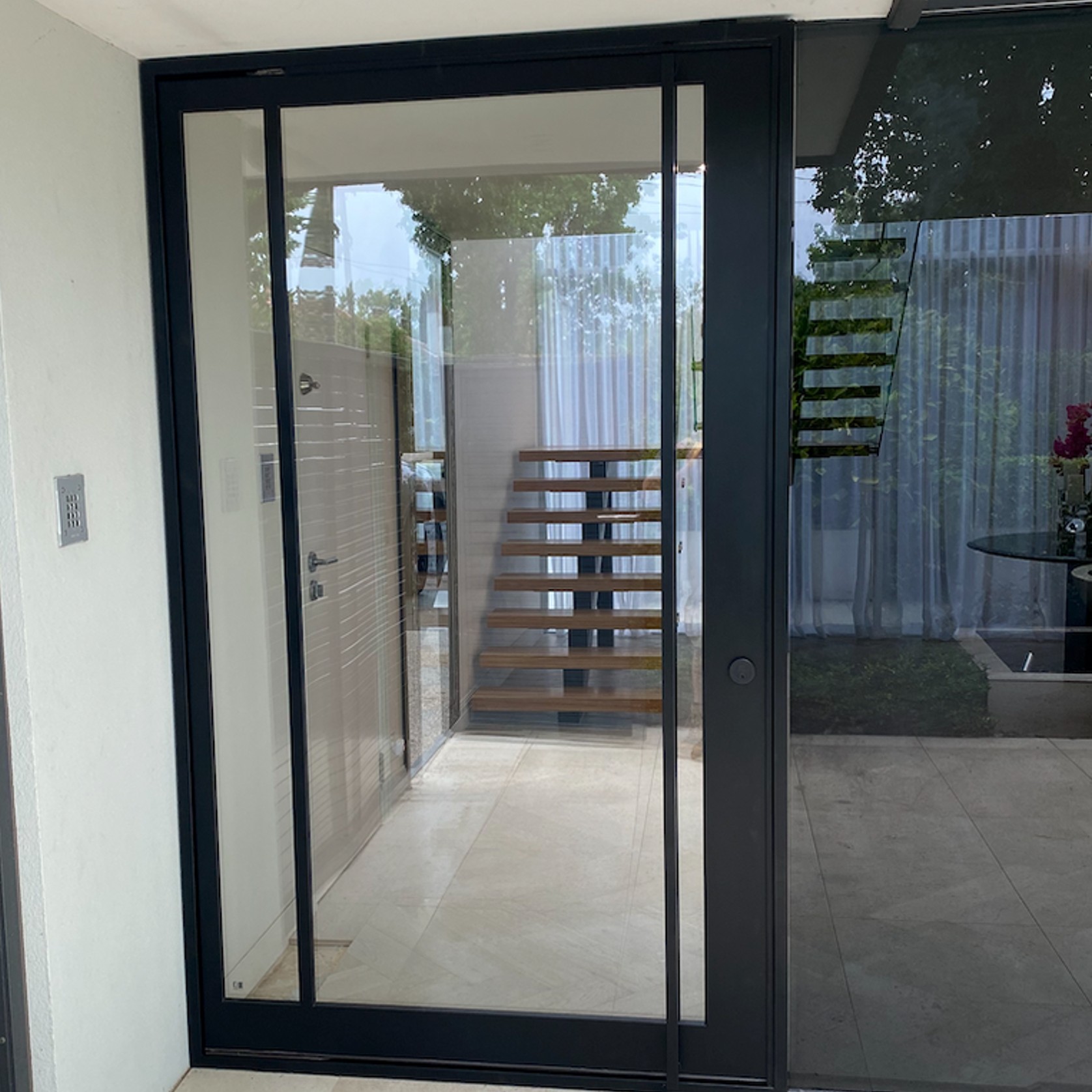

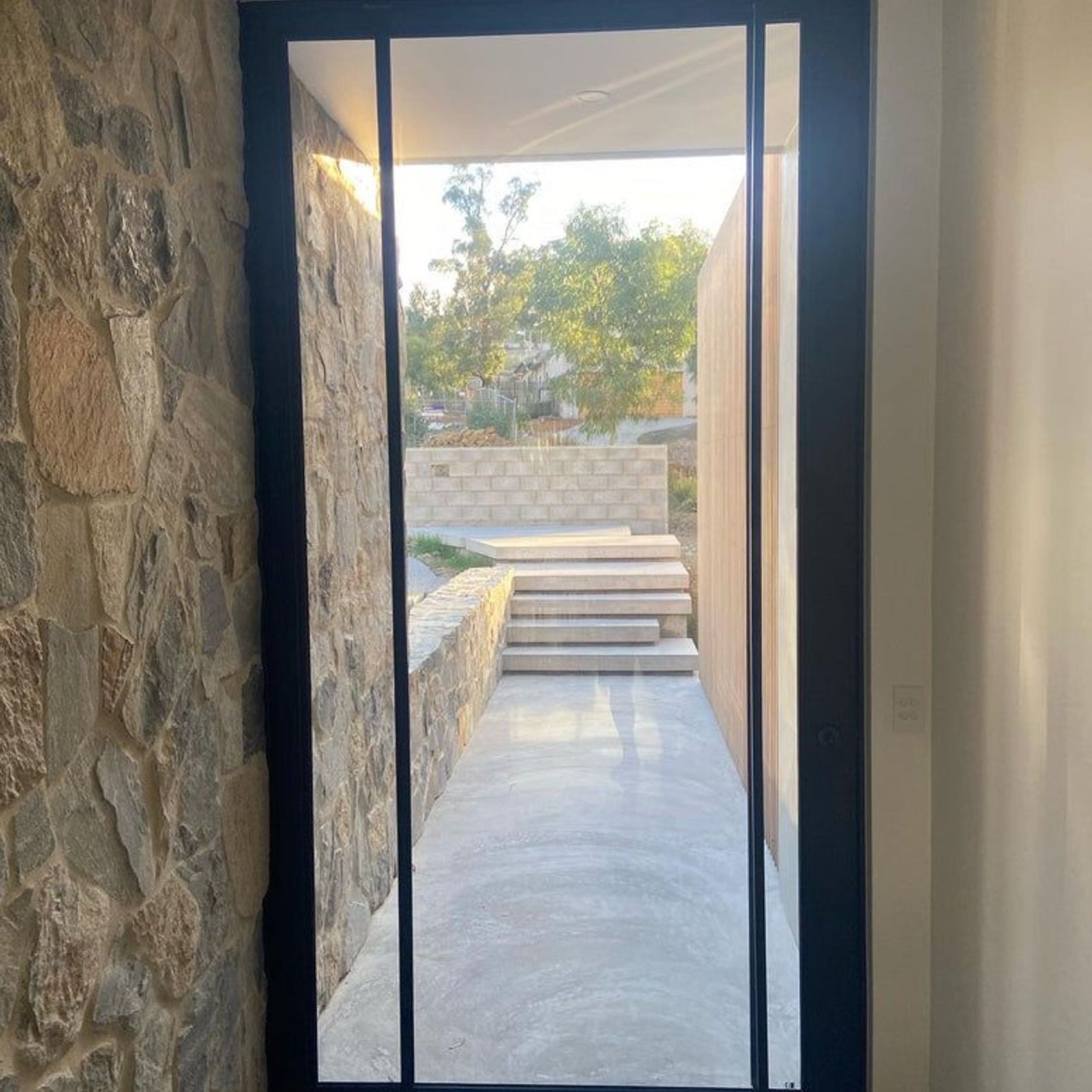

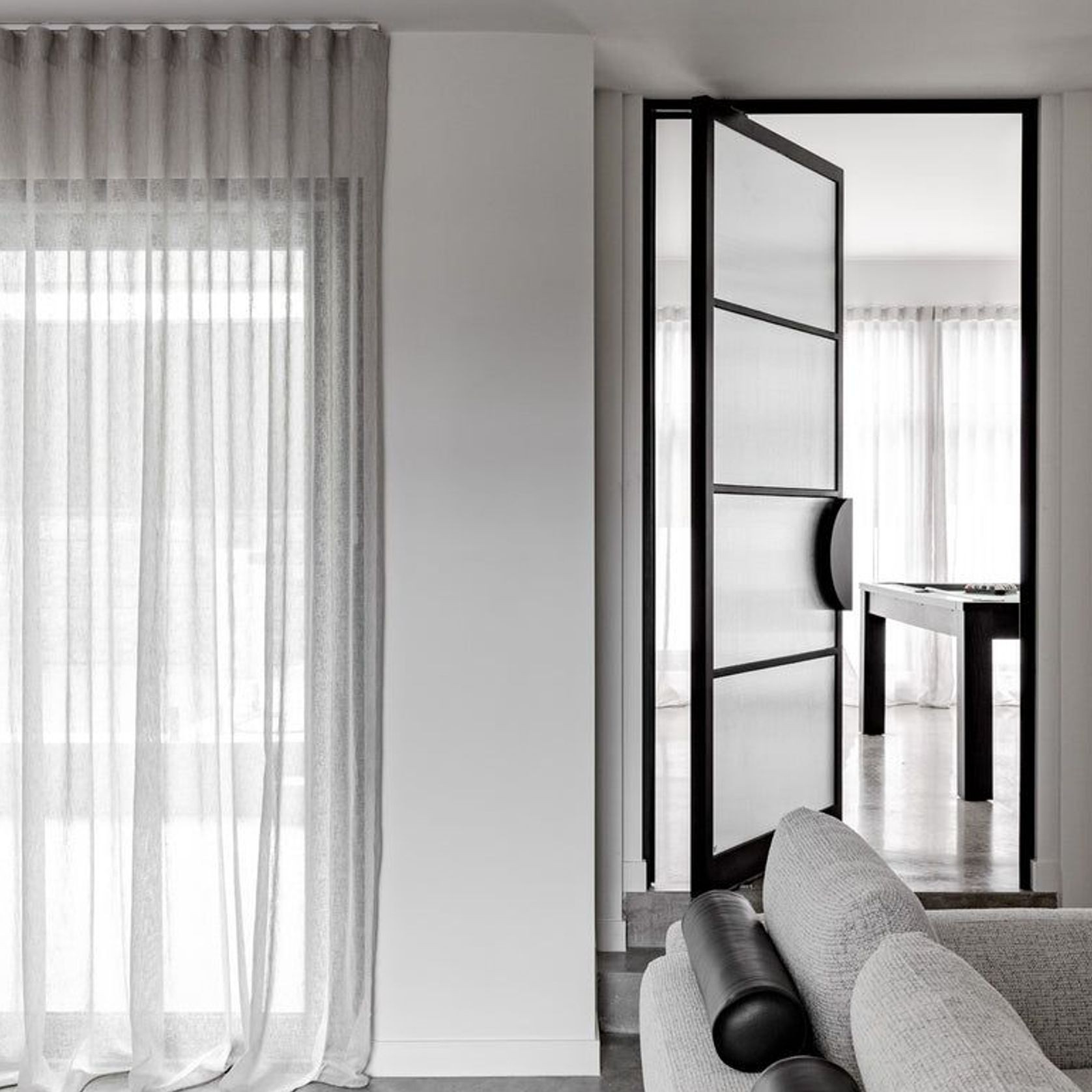

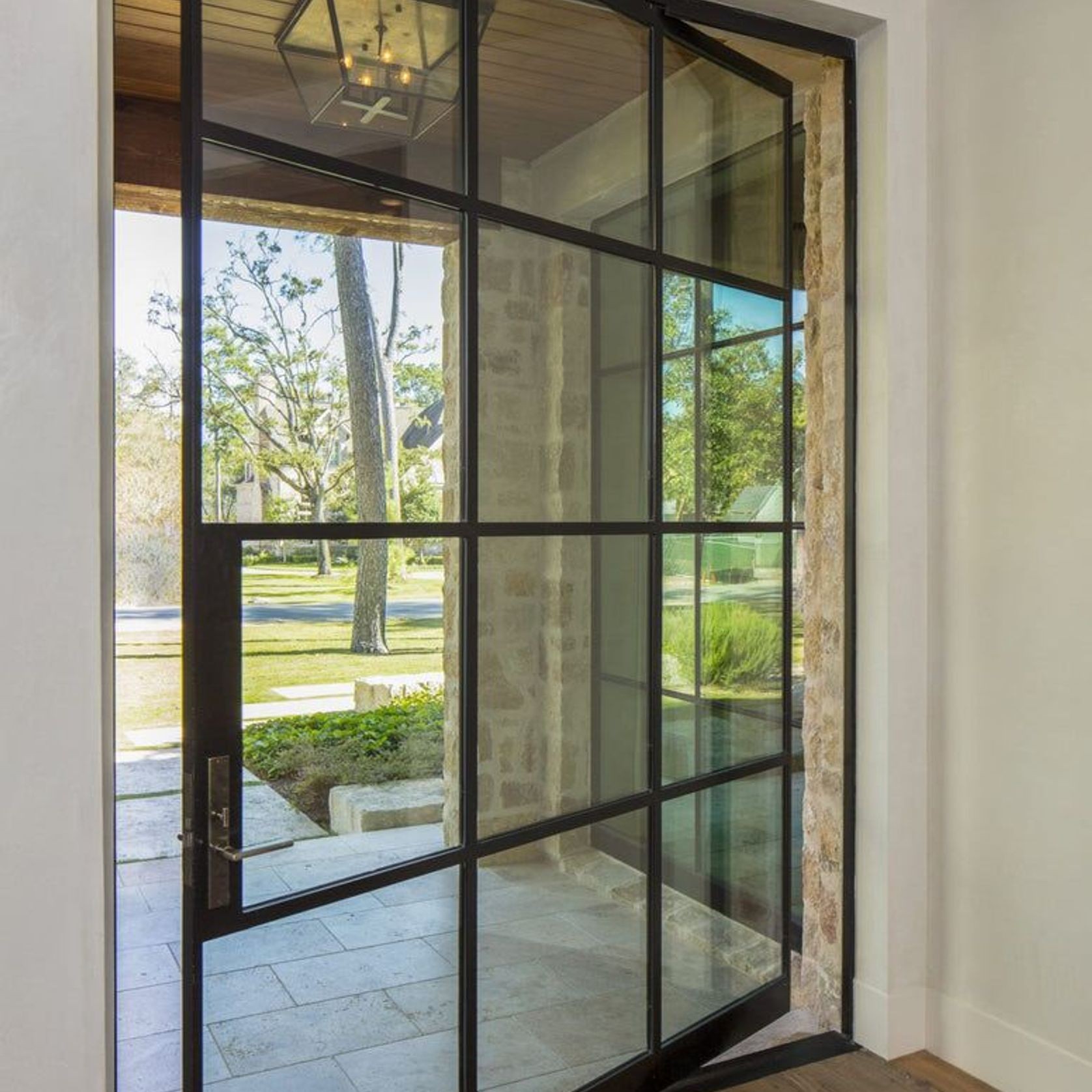

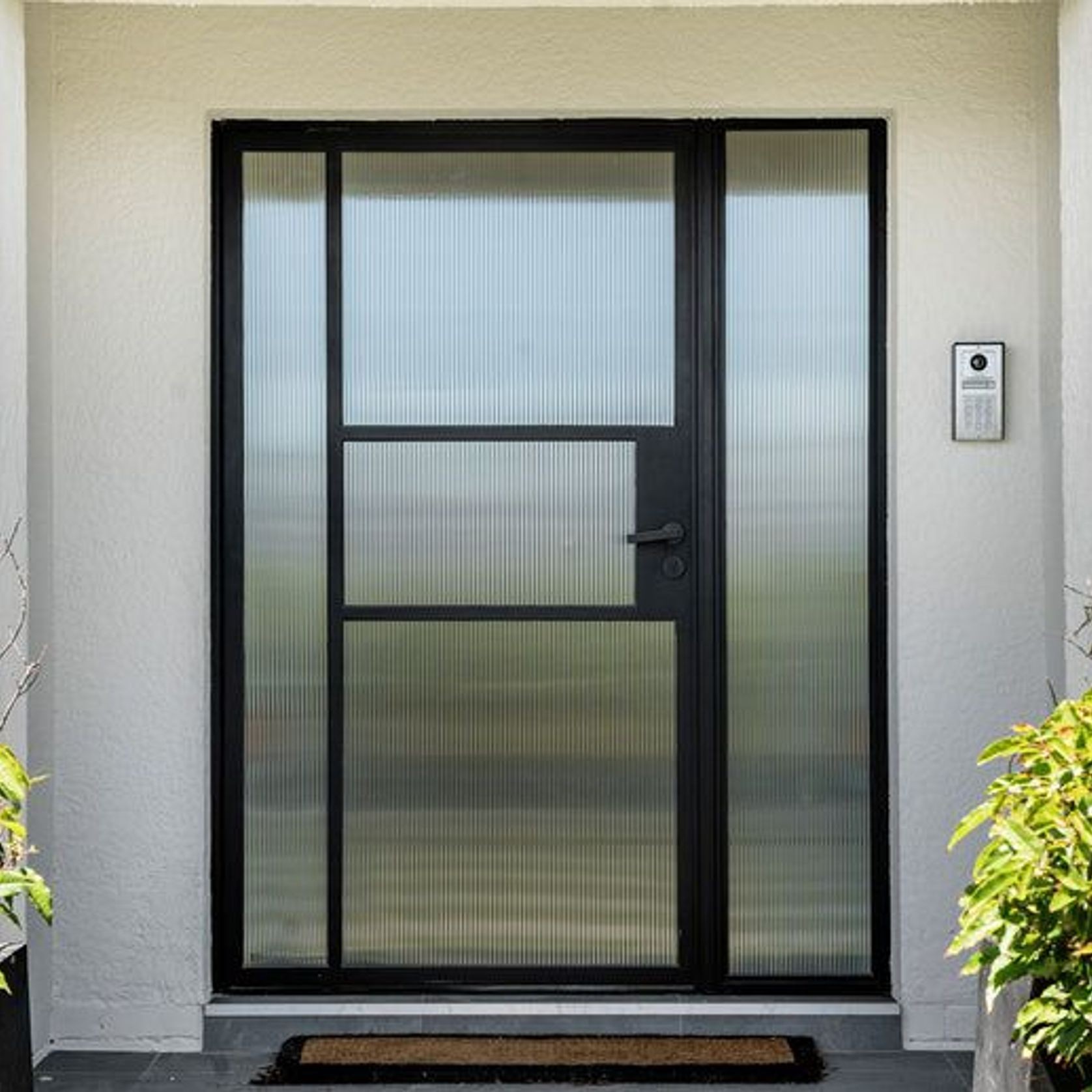

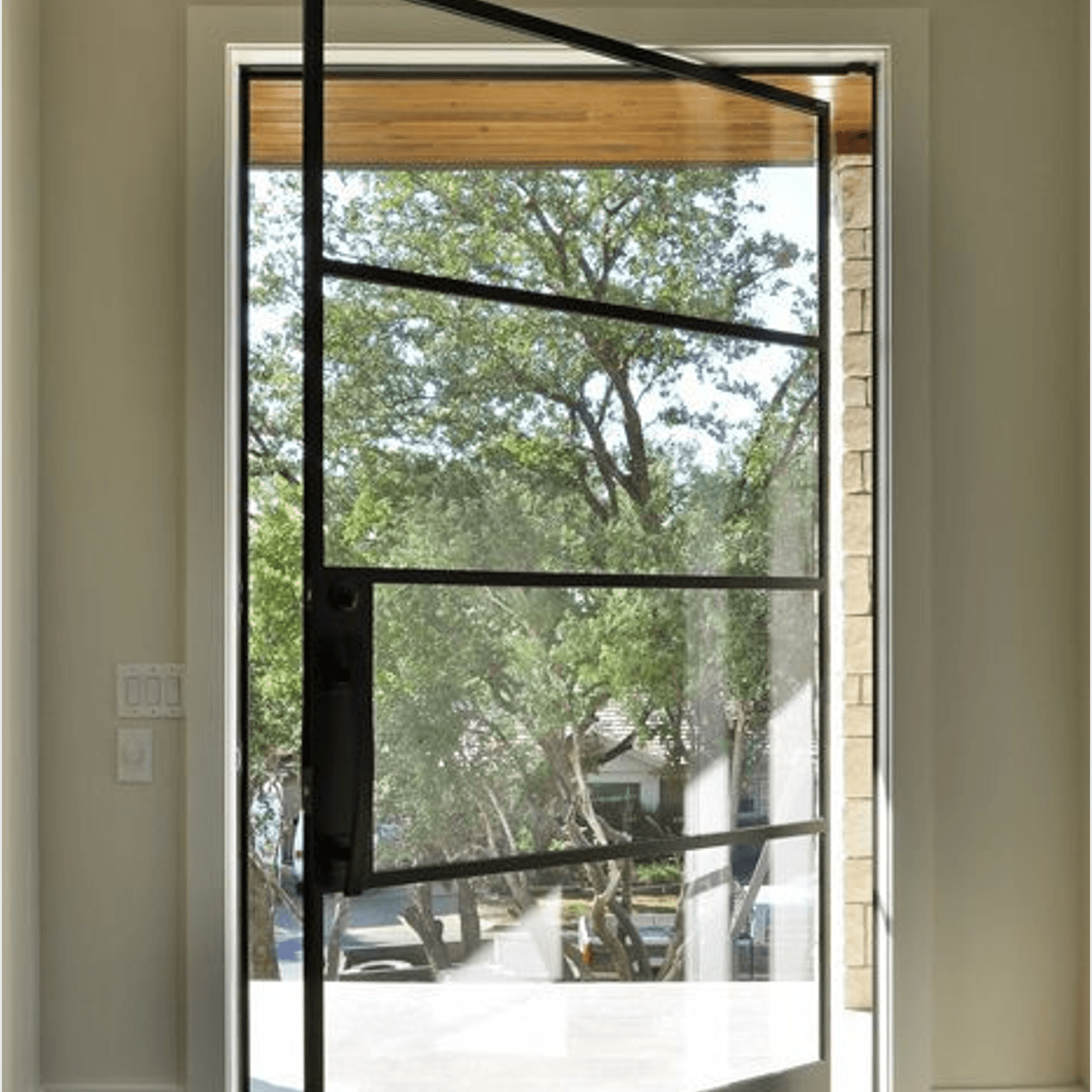

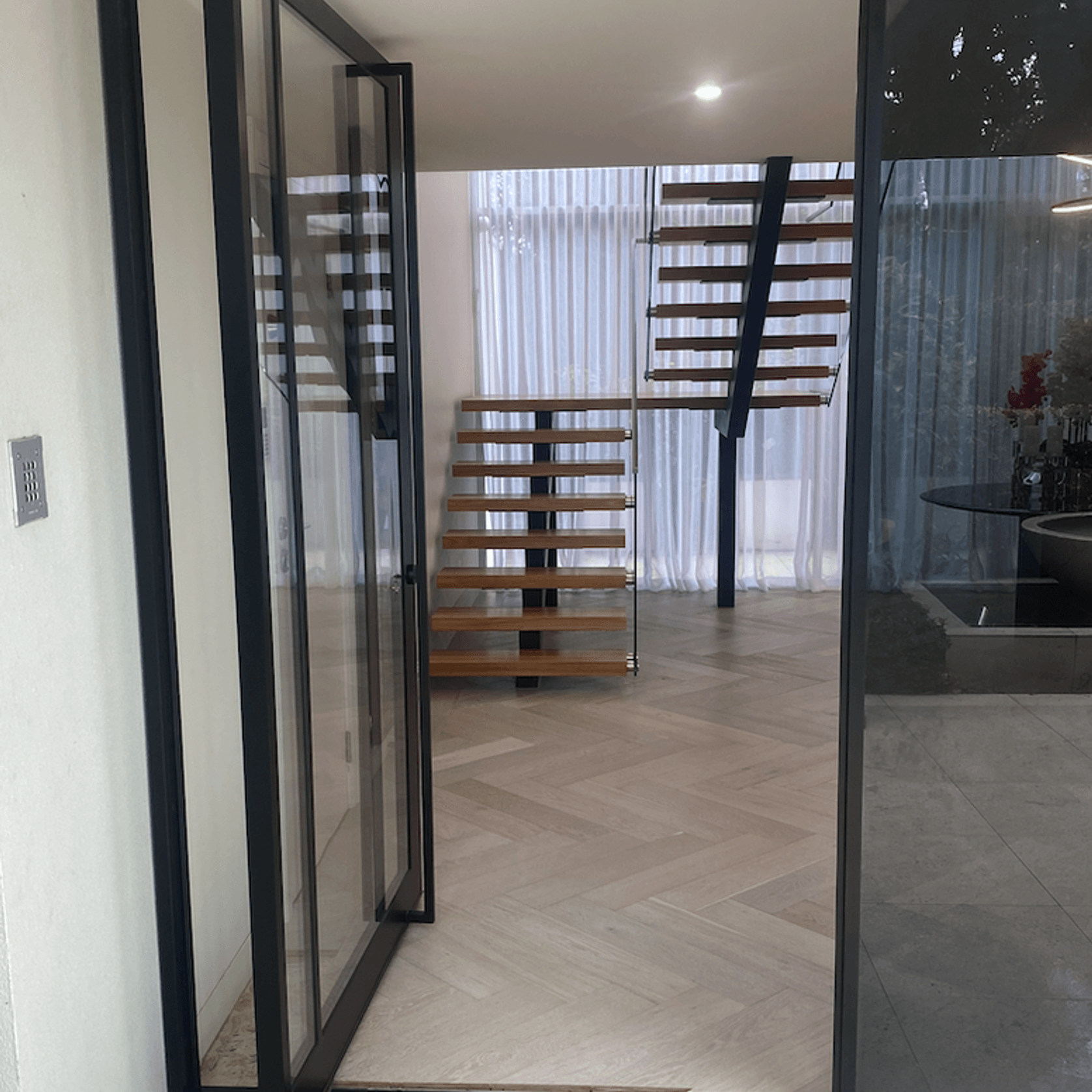

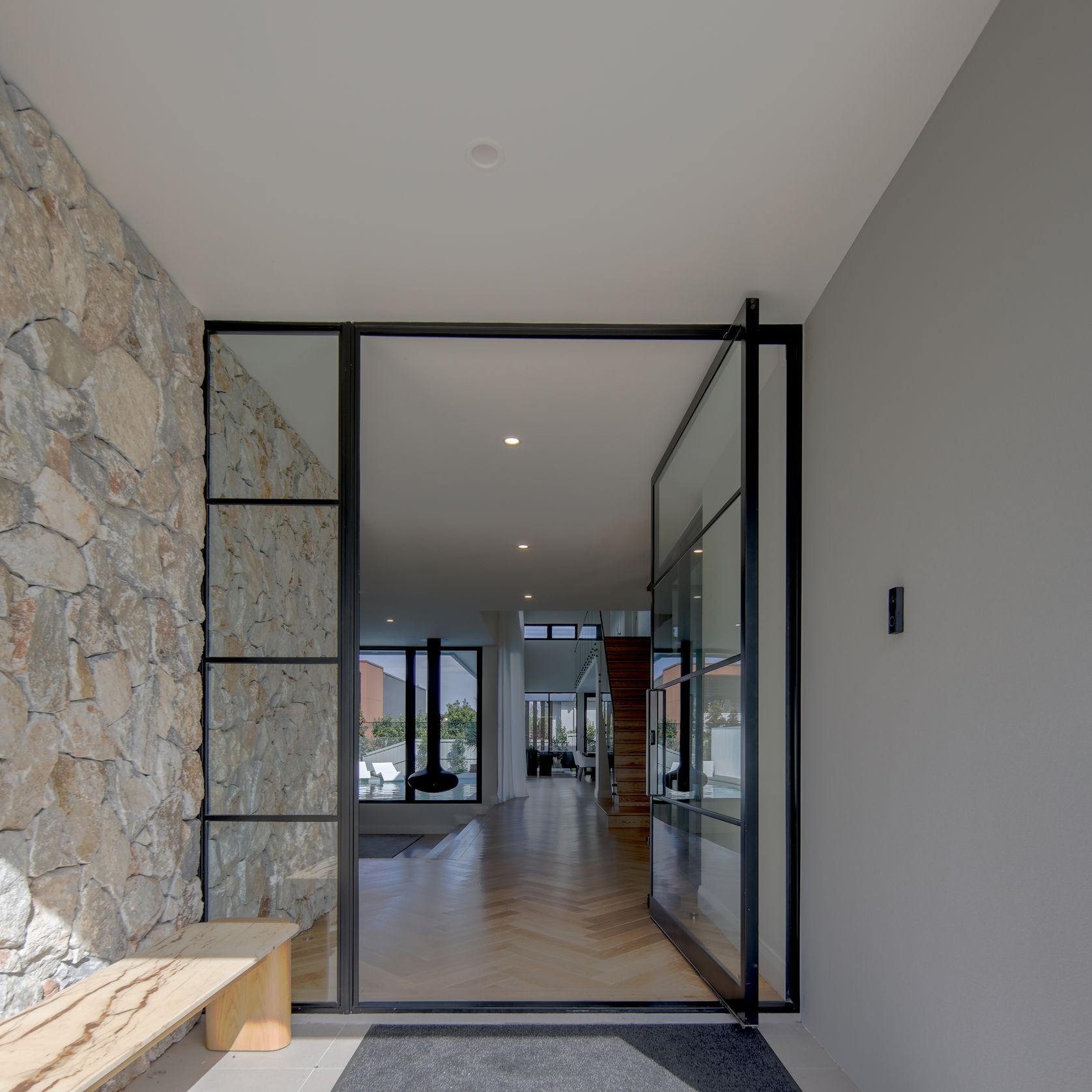

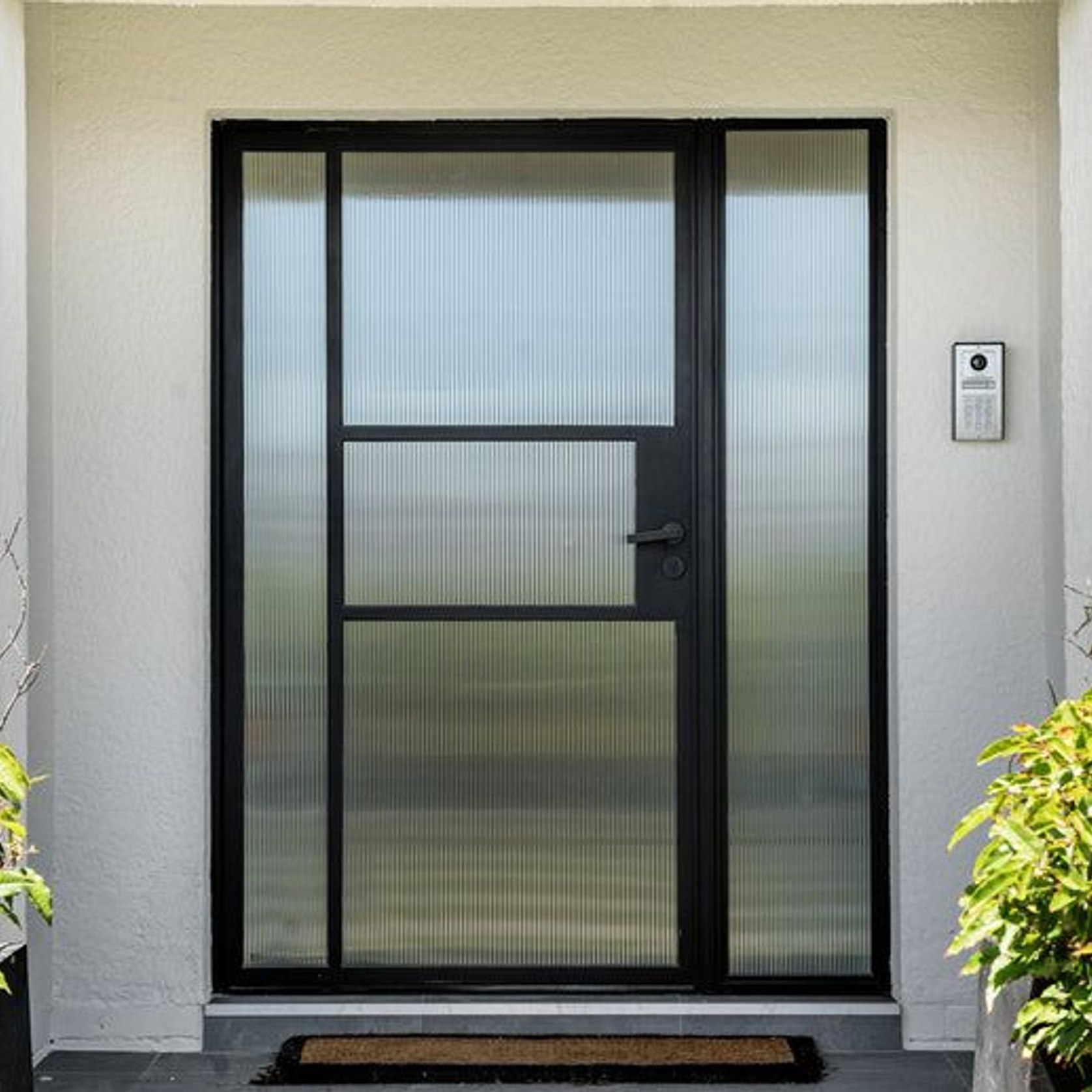

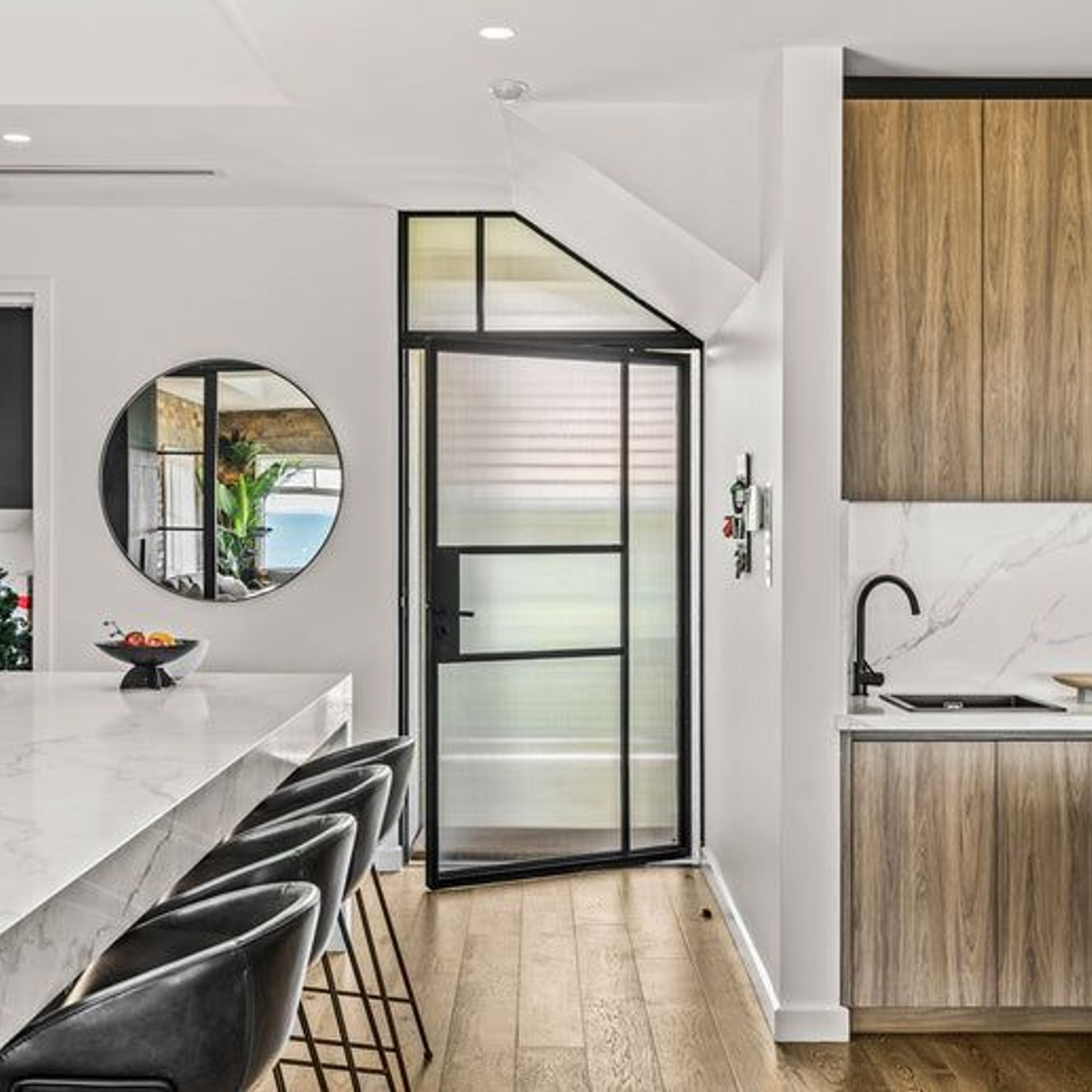

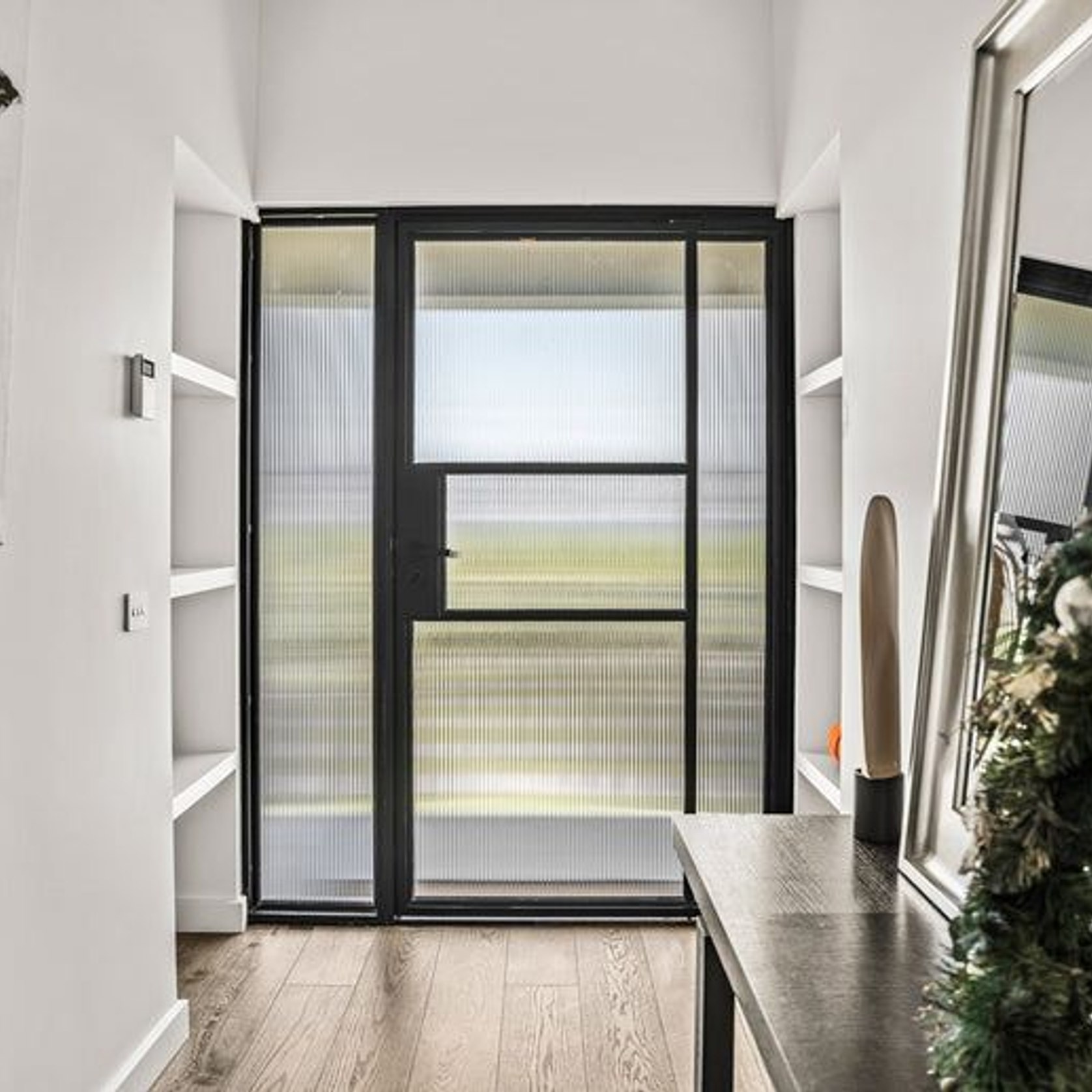

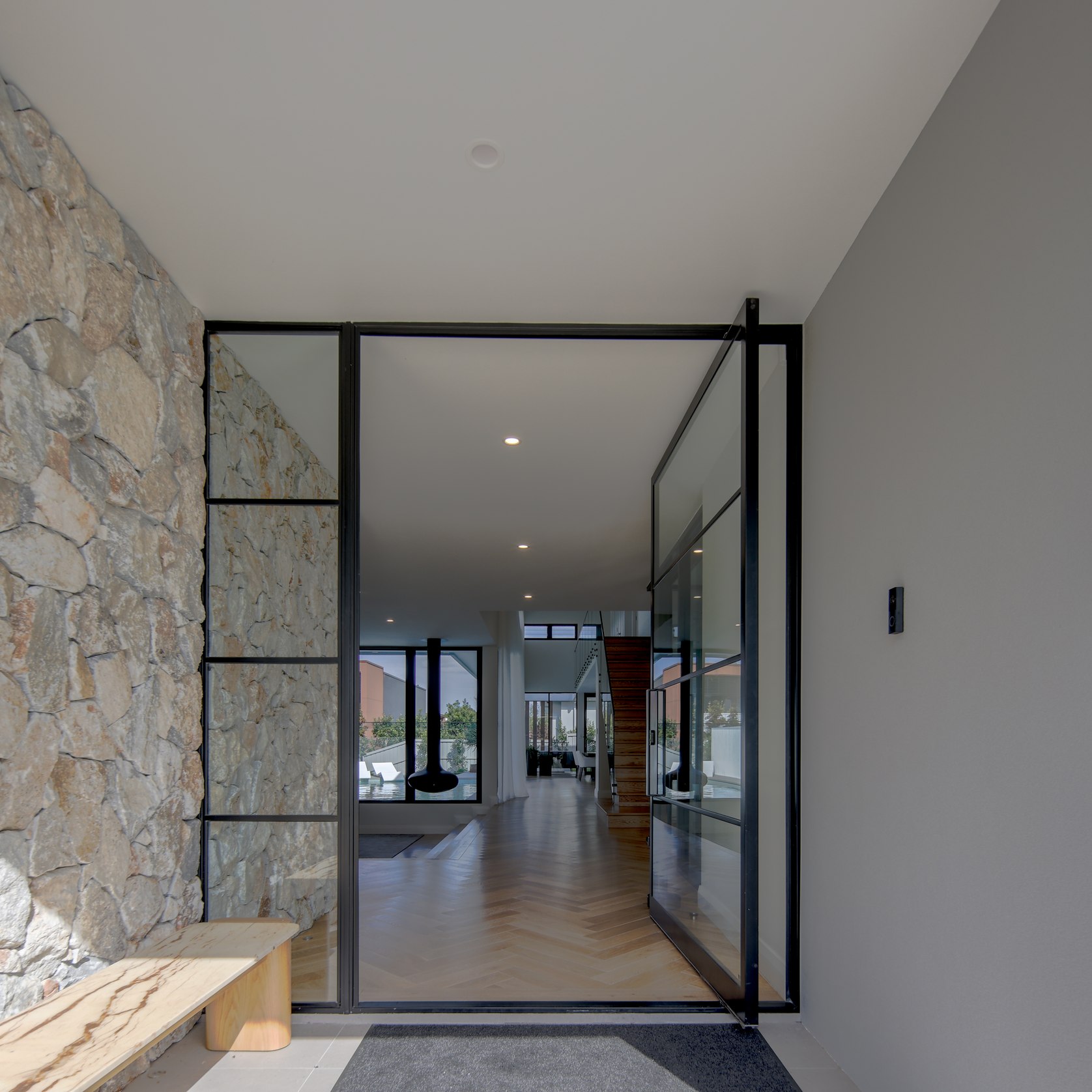

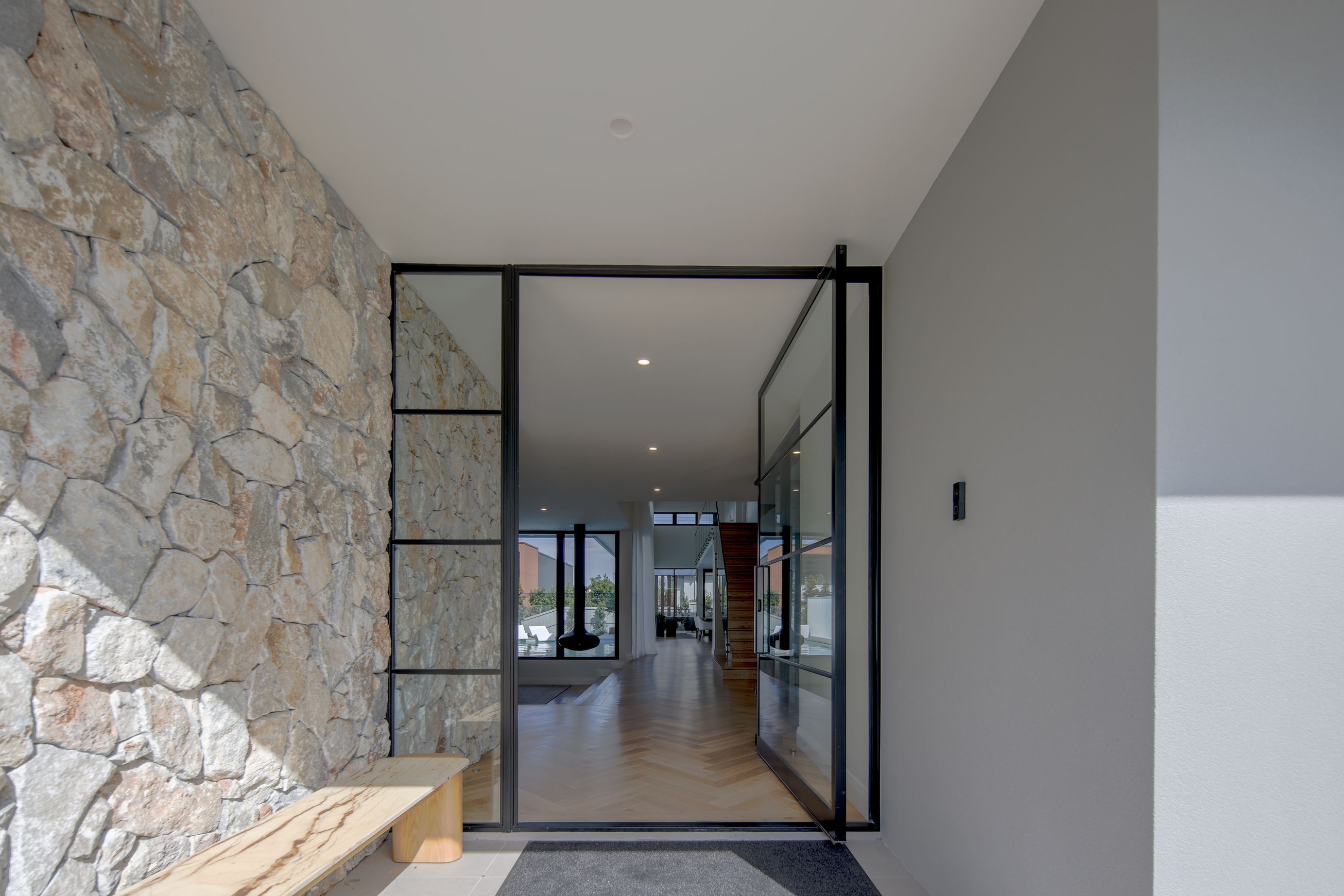

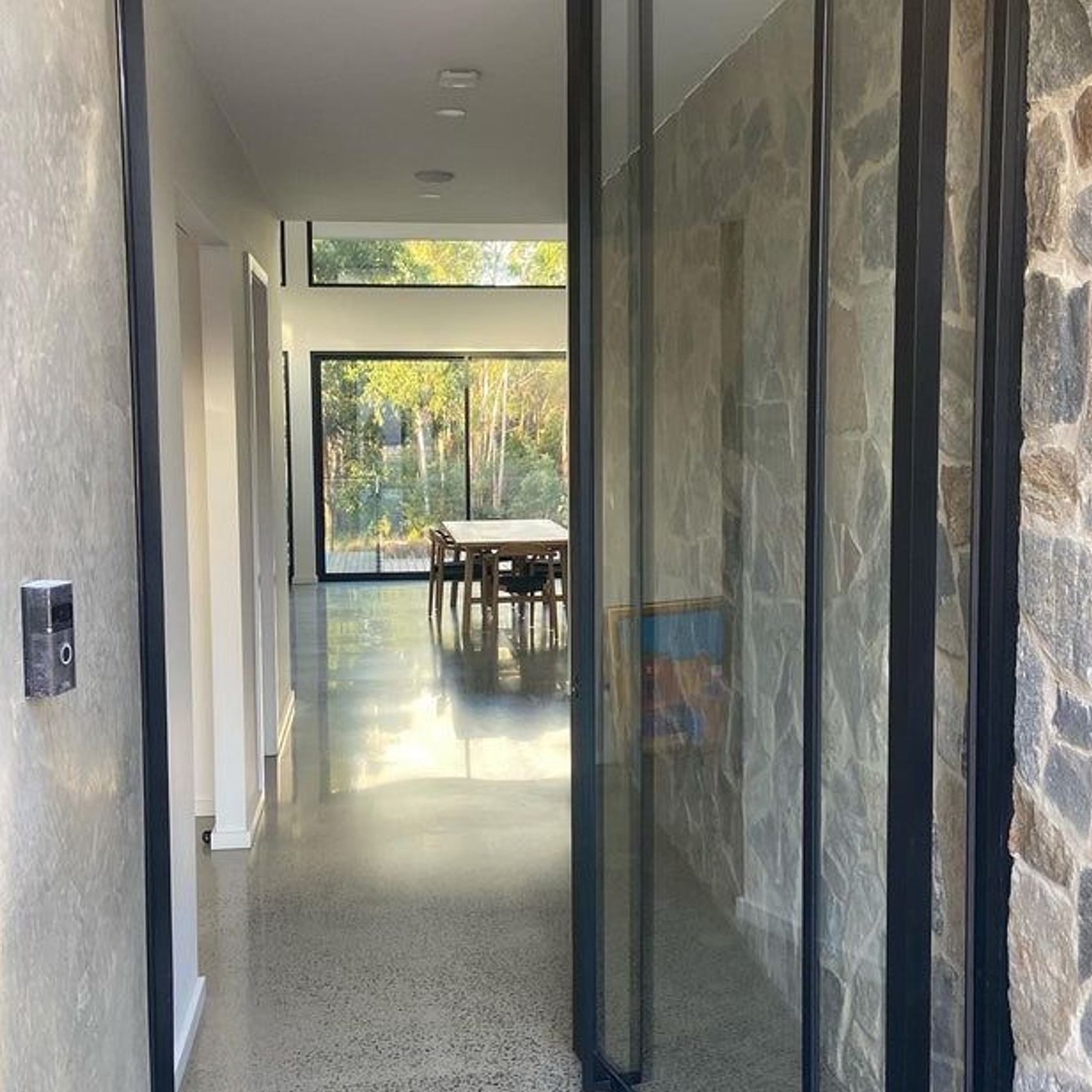

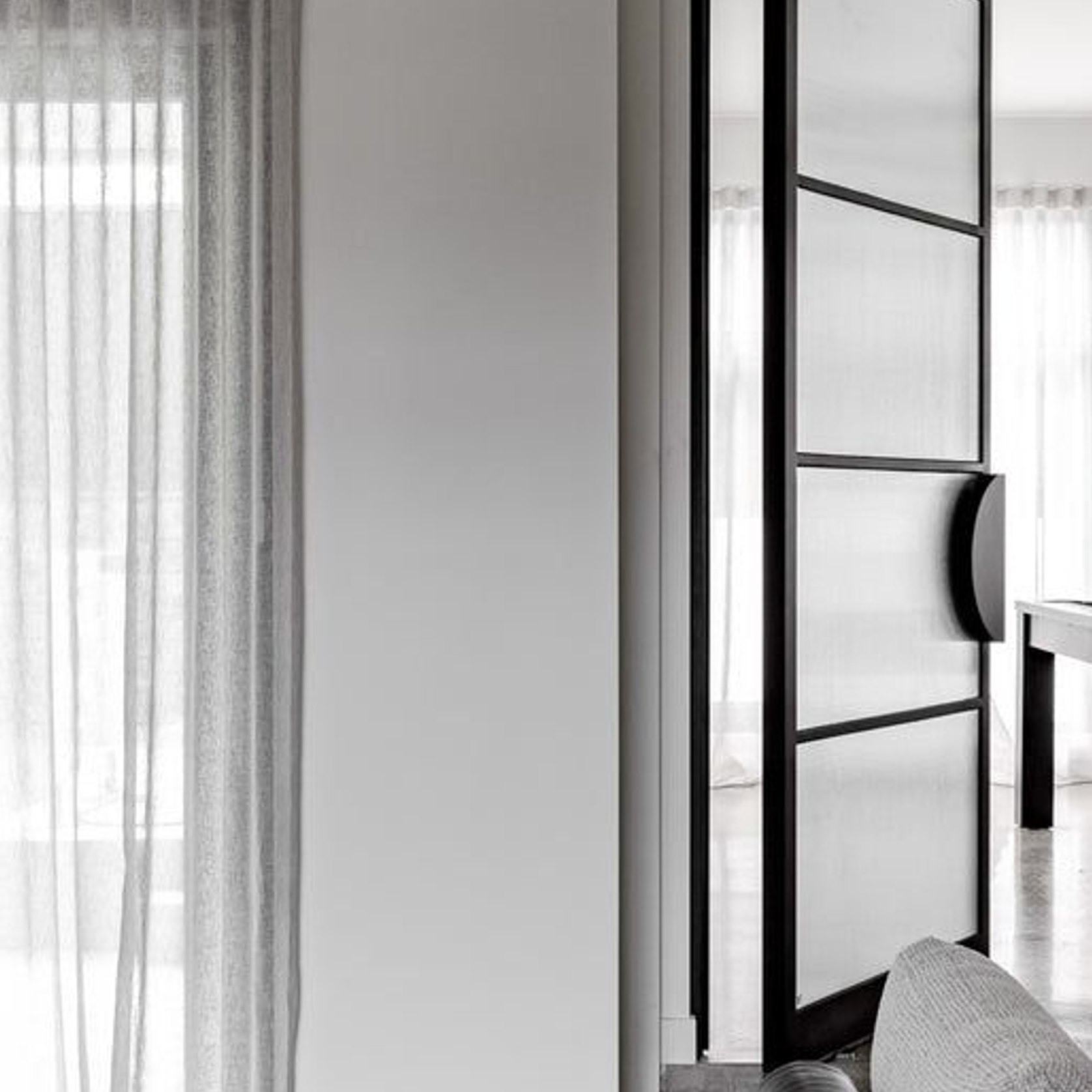

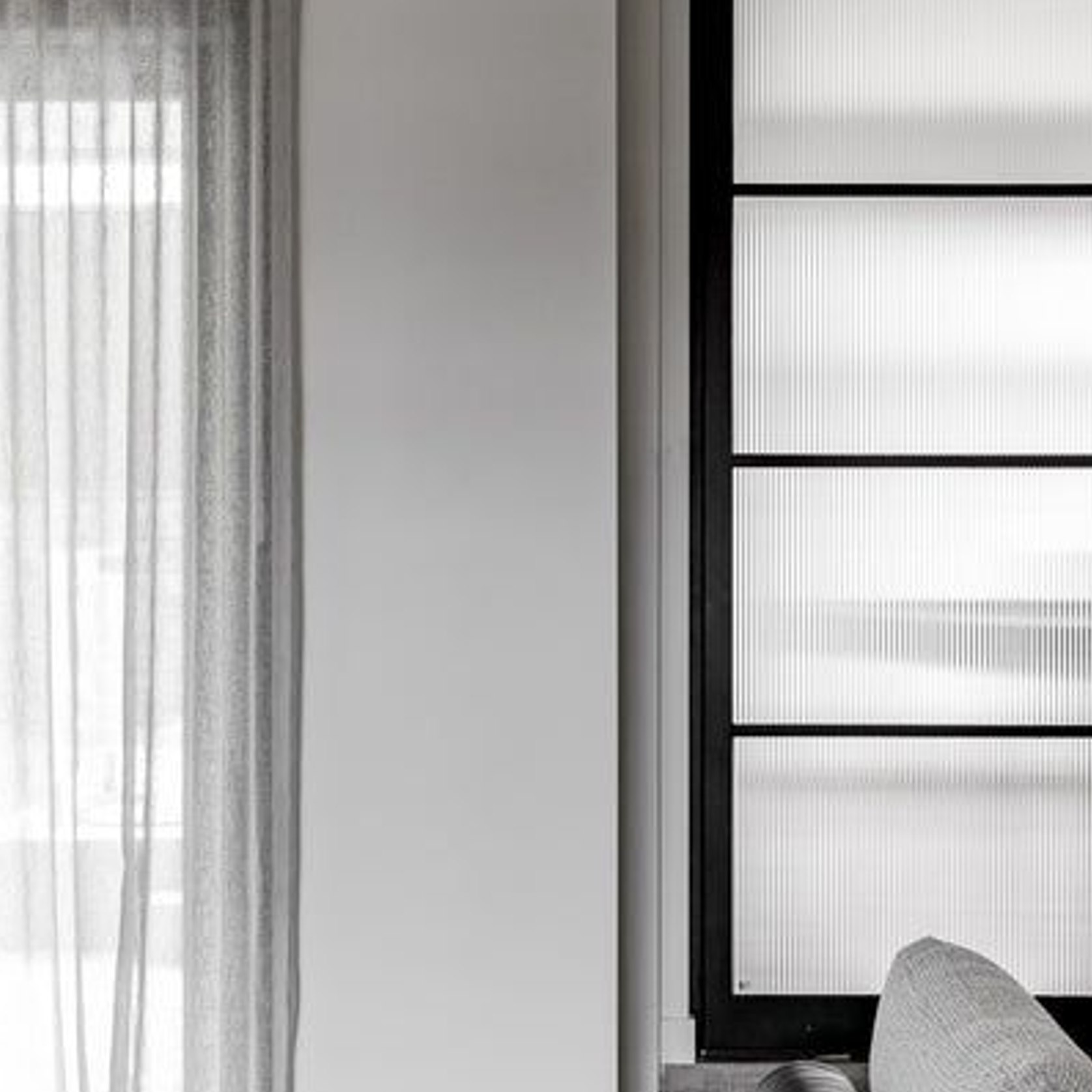

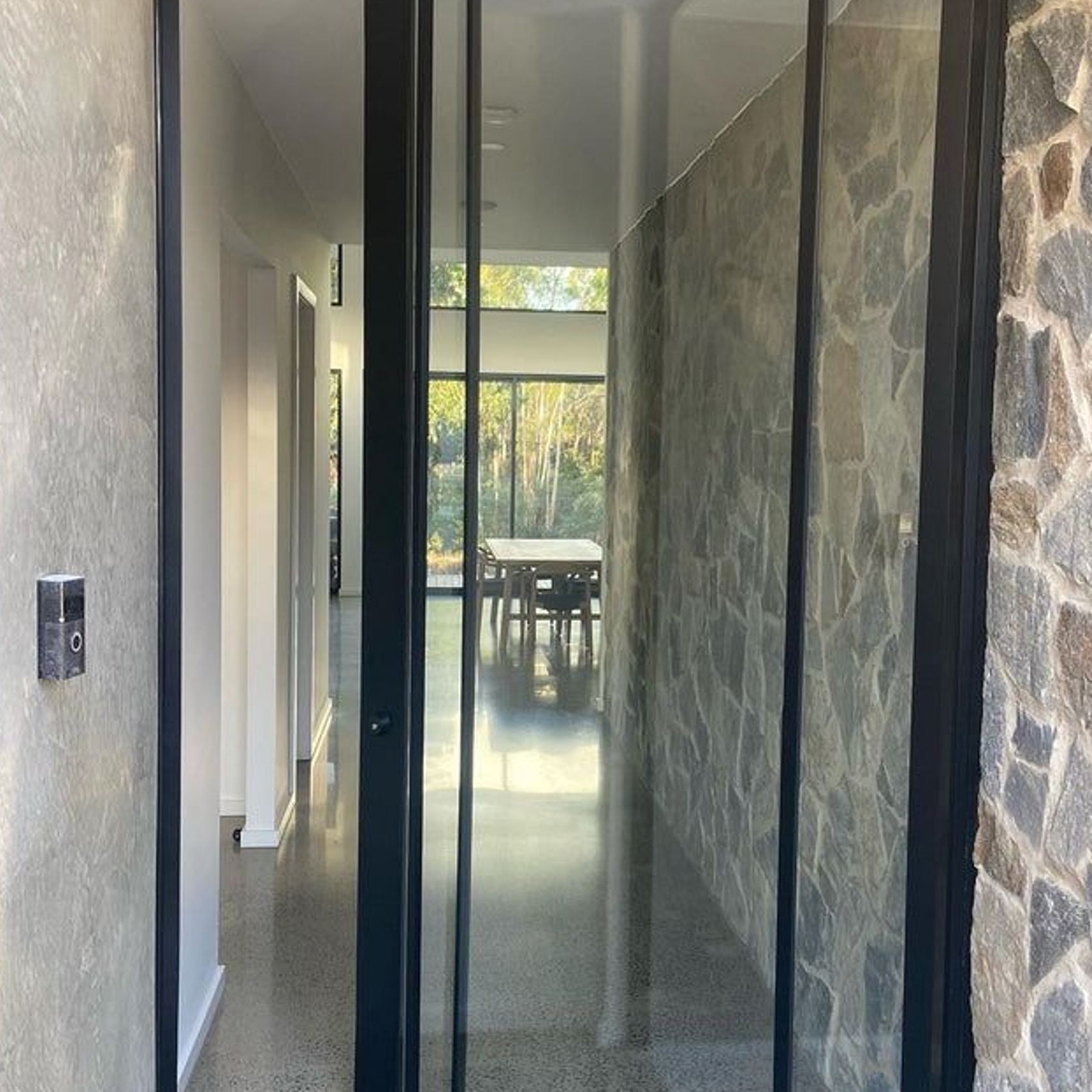

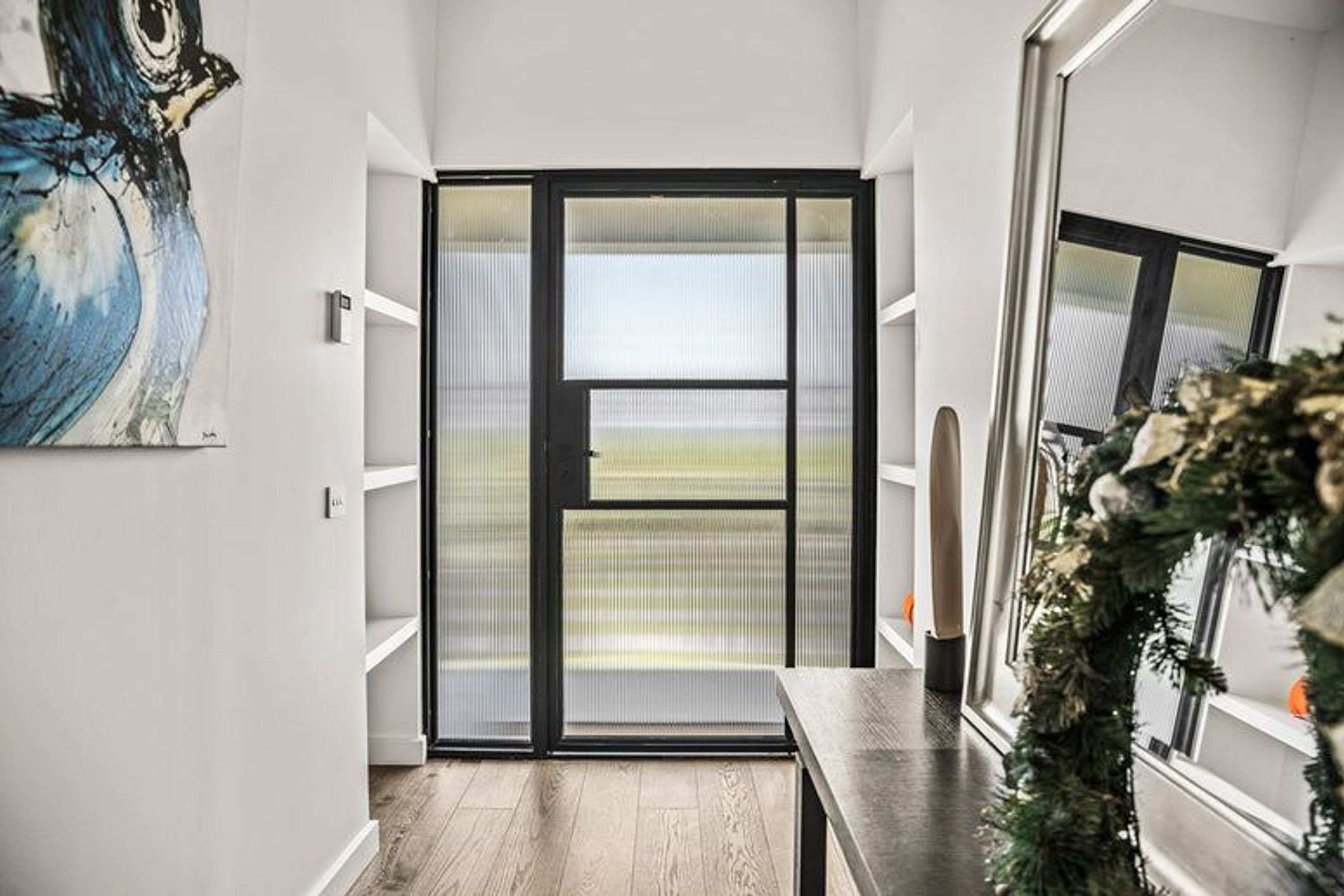

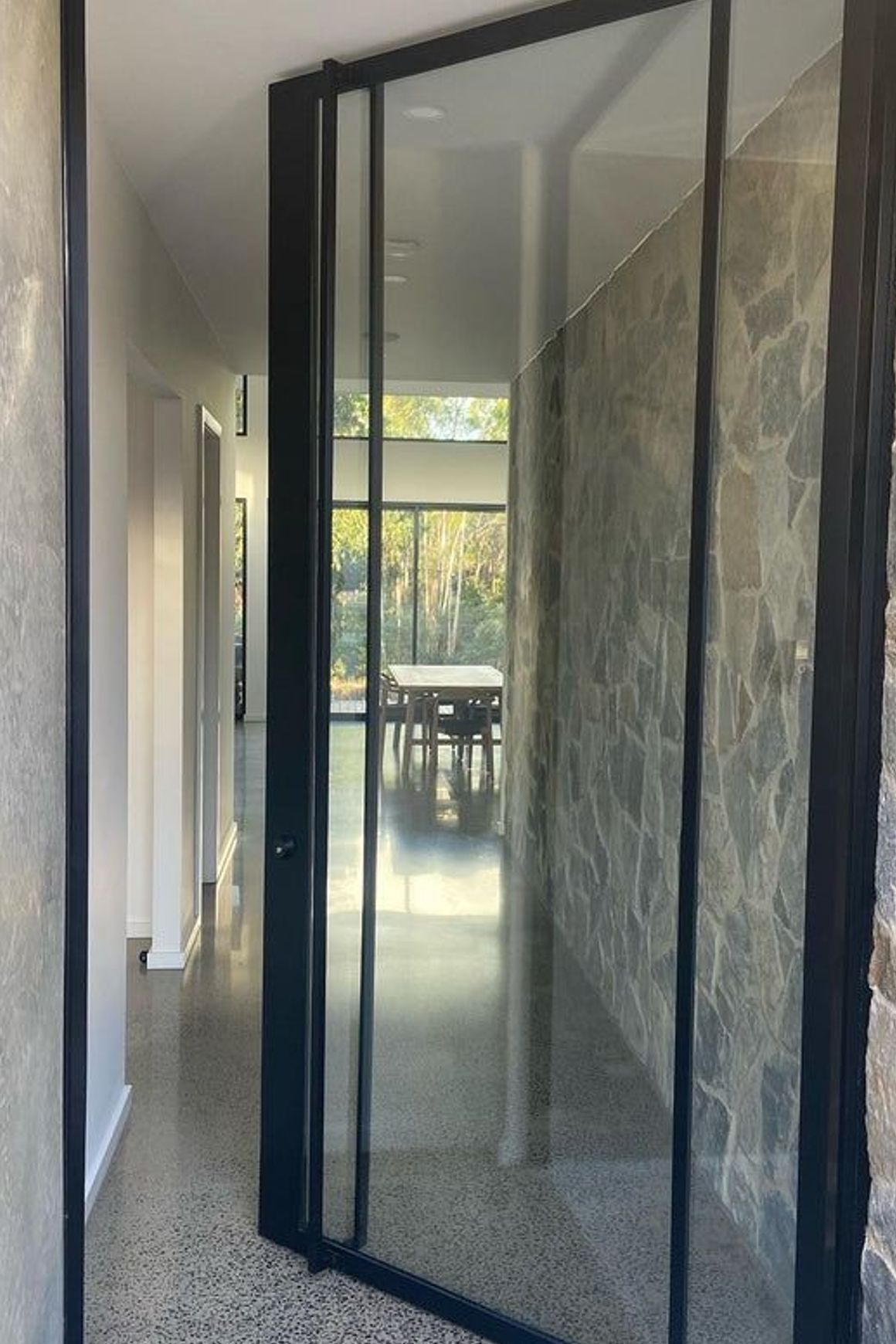

Steel Frame Glass Pivot Doors - Galvanised FPS50

By ZEN
Antique Copper

Steel Frame Glass Pivot Doors - Galvanised FPS50

All Zen entry door designs are available on hinge or pivot doors. All doors are custom made no standard sizes.

Details
  • Category
    Pivot Doors
  • Brand
    Zen Doors
  • Warranty
    5 years
Specifications
  • Zen Steel Pivot Doors
  • Use: Internal or External
  • Door Design: Custom
  • Material: Precision cold formed galvanised steel profiles - ”P” profile design
  • 3.2mm wall thickness tube with foam injected - Very compact profiles with minimal depth and sight-lines
  • Surface treatment: Zinc-magnesium pre-coating for corrosion protection
  • Gritblasting SA 2.5;
  • The 1st layer is a sealing primer
  • The 2nd layer is a high-durable top coating;
  • Total thickness is at least 150-180 microns according to VMRG quality requirements.
  • Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
  • Colour: Standard Finishes or Large Range of RAL Powder Coat colours at extra cost, https://www.ralcolorchart.com/
  • Door Jamb: 25/30/40/50mm x 50/75/100mm+
  • Door Frame: 30mm x 50mm
  • Glass Type: Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E
  • Glass Thickness: 5/8/10mm single glazed toughened safety glass
  • TDL: 20T/30T
  • Beads: CTM20/30
  • Door Type: Pivot
  • Max Door Size: H3000mm x W2000mm (depending on hardware)
  • Pivot Hardware:
    DFG893R (B.G.T01.0000.027)
    ≤1500mm*3050mm; ≤100kg
    DFG895R (B.G.T01.0000.026)
    ≤2500mm*3050mm; ≤200kg
    (Fritsjurgen System M+, Dorma or other hardware at extra cost)
  • Mounting Type: Holes Inside of Jamb or Mounting Tabs Outside of Jamb
  • Open way (entering): In-swing/Out-swing left/right
  • Handles: SEMAR matt black lever with spring latch or Custom Pull with Roller Catch

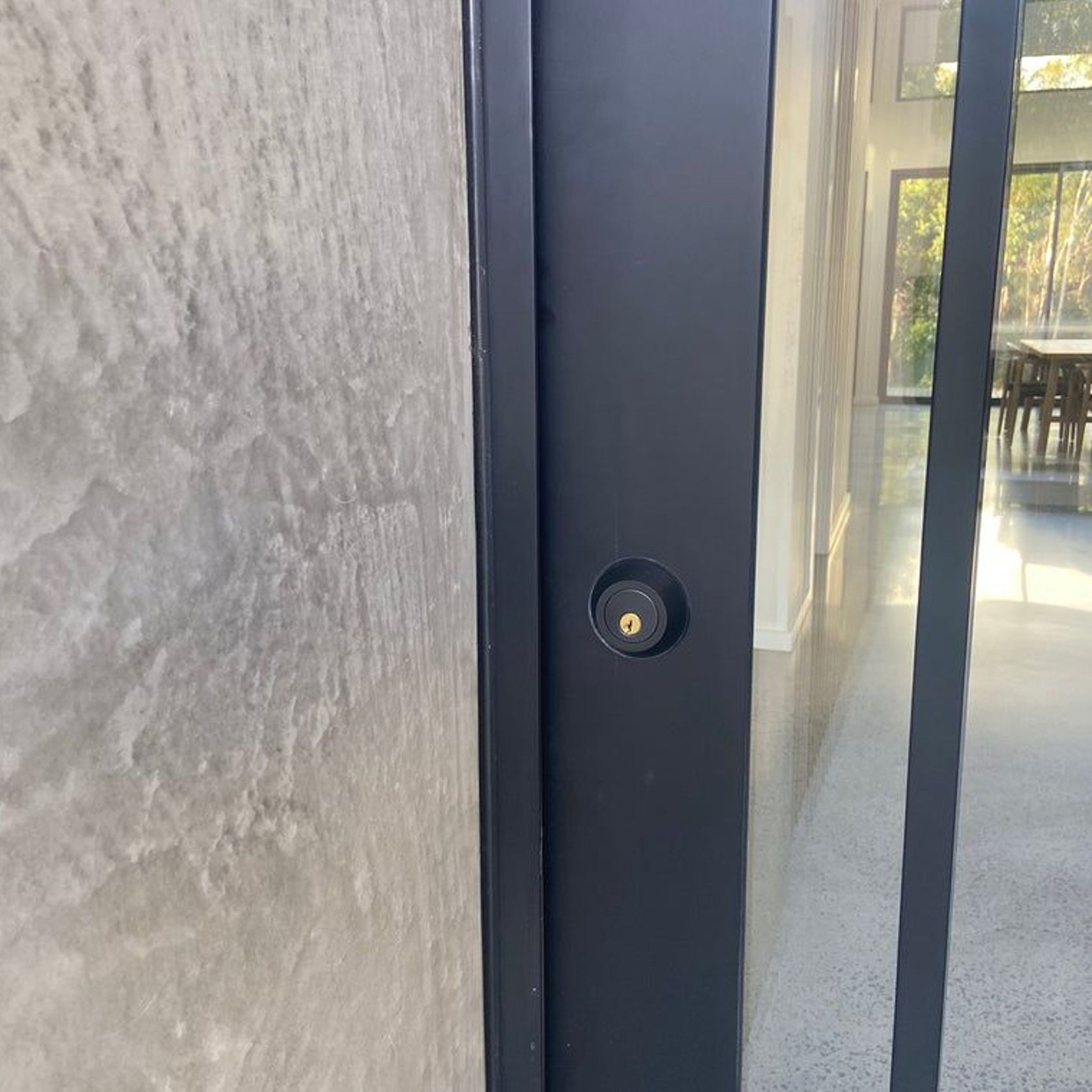

  • Lock: Yes/No (Standard deadbolt) Electronic Strike and Mortice Lock available at extra cost
  • Roller Catch: Yes
  • Door Sill: Yes/No
  • Rubber Drop Seal: Yes/No
  • Package: 5 Layers of packing, plastic film, soft foam sheet, corrugated paper board, bubble wrap and Wooded Sealed Box
  • CAD Design Drawing: Yes

NOTE: Total Door Frame and Sidelight Windows can be custom made to any size you need, please contact us if you require highlight windows and need a more customised estimate.

NOTE: External Doors and Windows can be supplied glazed or un-glazed depending on your building surveyor/certifier.

Features
  • Unique Modern Custom Architectural Design
  • Hand Made Construction for Durable Functionality
  • Built from High Quality Galvanised Steel
  • Fluorocarbon Coating
  • Steel Door Jamb Included for Extra Strength and Longevity
  • Heavy Duty Soft Close Concealed Pivot Hardware Included (Fritsjurgen System M+, Dorma or other hardware at extra cost - contact us)
  • Single, Double or Triple Glazing (Price shown is for single glazed clear glass)
  • Glazing included in price
  • Designed to Impress and Built to Last
  • Orders Made from June 2023 - *5 Year Warranty - Must comply with our installation requirements.
