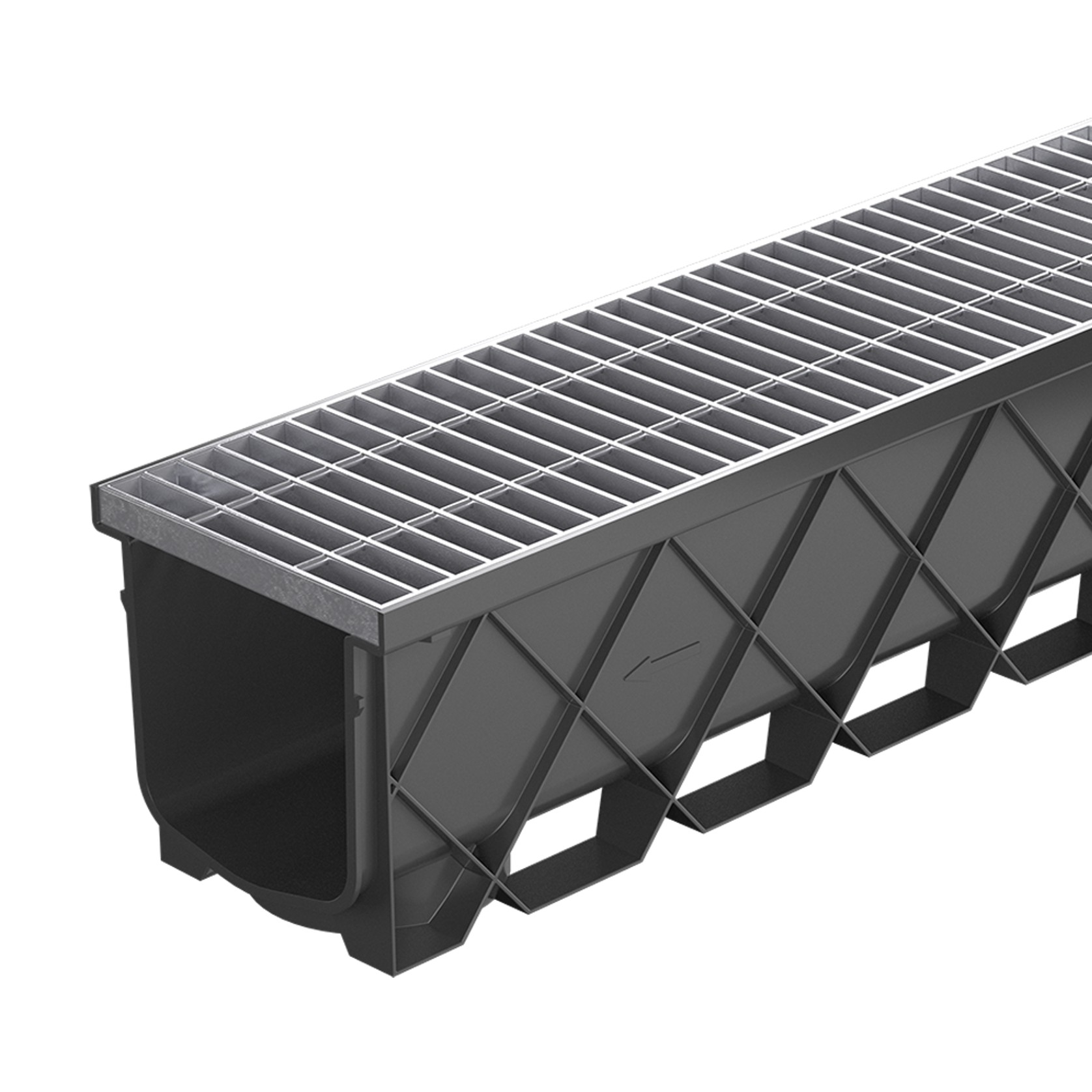

Storm Master® – 1m with Galvanised Steel Class B Grate
RELN Storm Master is the commercial drainage solution with a deep 200mm profile. Storm Master effectively collects and distributes substantial volumes of surface water throughout its system. The Class B Galvanised Grate is ideal for trafficable areas in commercial applications.
RELN Storm Master is the commercial surface drainage solution, perfect for heavy-use commercial applications, where heavy surface water flows or heavy vehicle and pedestrian traffic is a factor. The range is strong, durable and can withstand 10 tonne of vehicle weight when installed correctly, being the master when it comes to commercial surface drainage.
- CategoryStormwater Drainage
- RangeStorm Master®
EXTERNAL DIMENSIONS
Measurement of the external perimeter.
- Length- 1000mm
- Width- 273mm
- Depth- 263mm
INTERNAL DIMENSIONS
Measurement of the internal perimeter.
- Length- 1000mm
- Width- 200mm
- Depth- 200mm
WEIGHT- 14.4kg
- Durability – Channel made in Australia from tough, durable, and lightweight UV stabilised recycled plastic. Class B Grate made from Galvanised Steel.
- Easy to install – Storm Master is a breeze to install with its easy connecting channels, interchangeable grates and hold down feet to stop floatation during the pouring of concrete.
- Perfect for Commercial Surface Drainage – With a range of accessories and grate options, Storm Master is the perfect large capacity drainage for commercial applications
- Class B Load Rating – Ideal for trafficable areas in domestic and light commercial applications.
- Large 200mm profile – A large profile, ideal for clearing high flows of surface water.
- Plumber-friendly – Bottom outlet can be cut or drilled to fit 90mm PVC stormwater pipe
- Environmentally friendly – Made from 100% UV stabilised recycled plastic
Other products
in this range
About the
Seller
RELN is the drainage brand you can be confident in trusting. Their products are durable, made to last and are designed and manufactured in Australia. RELN's focus is to deliver quality product, at the right place, and the right time. They continue to stay at the forefront of innovation, designing and manufacturing product ranges for surface water, ground water and black water applications, as well as a range of agriculture products.
Their philosophy is to produce product from 100% recycled plastic, and they are proud to say that they've been doing it for many years and will continuously do so.
They are a multi-award winning and quality-endorsed Australian company, known for designing and producing innovative quality plastic products for the Australian and international markets.
