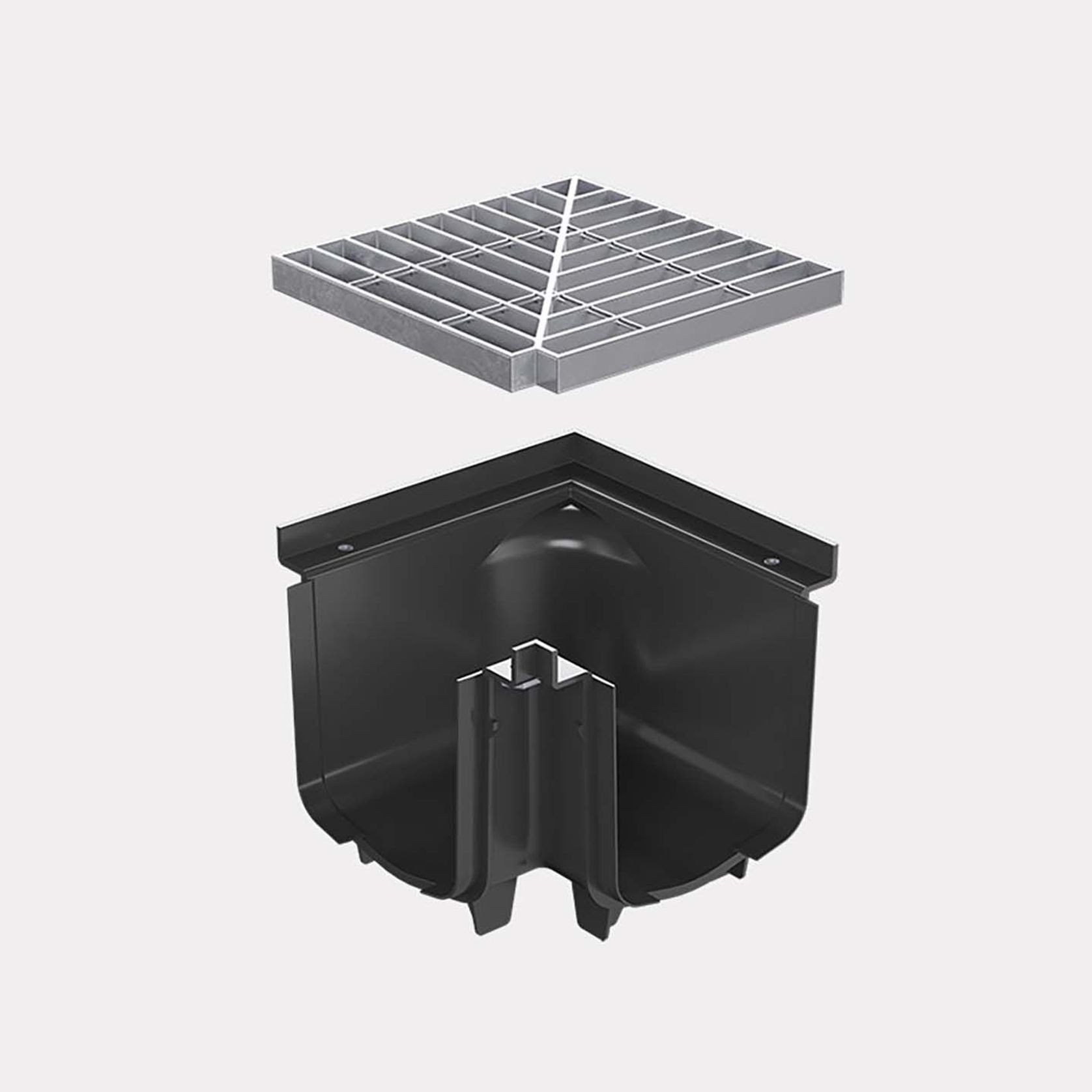

Storm Master® – Corner with Galvanised Class B Grate
The Storm Master Corner allows a 90 degree change of direction in RELN Storm Master Channels. The unique design allows left or right turns, and is easy to install. The Class B Galvanised Grate is ideal for trafficable areas in commercial applications.
RELN Storm Master is the commercial surface drainage solution, perfect for heavy-use commercial applications, where heavy surface water flows or heavy vehicle and pedestrian traffic is a factor. The range is strong, durable and can withstand 10 tonne of vehicle weight when installed correctly, being the master when it comes to commercial surface drainage.
- CategoryStormwater Drainage
- RangeStorm Master®

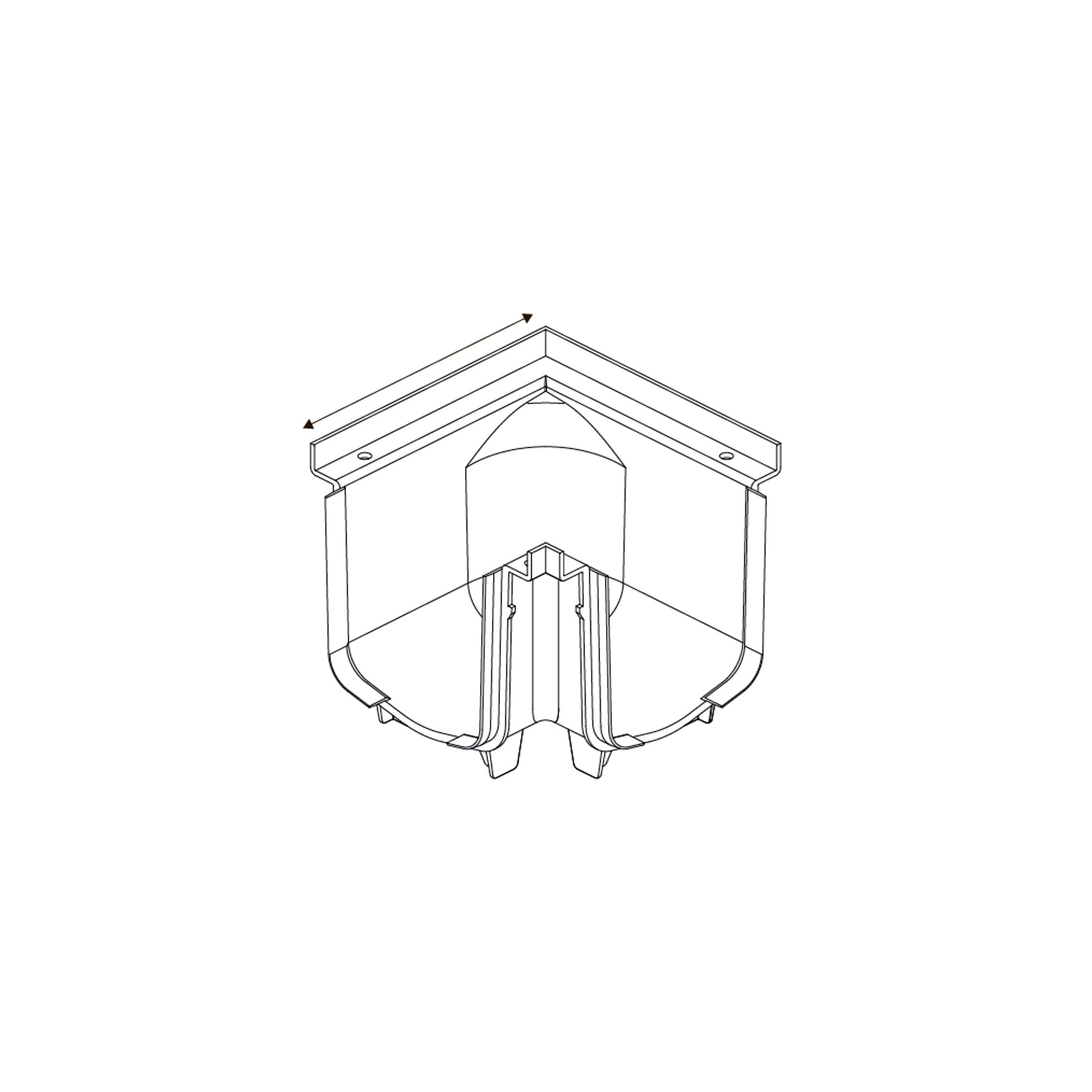

EXTERNAL DIMENSIONS
Measurement of the external perimeter.
- Length- 290mm
- Width- 290mm
- Depth- 263mm
INTERNAL DIMENSIONS
Measurement of the internal perimeter.
- Length- 290mm
- Width- 200mm
- Depth- 200mm
WEIGHT- 4.9kg
- Durability – Channel made in Australia from tough, durable, and lightweight UV stabilised recycled plastic. Class B Grate made from Galvanised Steel.
- Easy to install – Storm Master is a breeze to install with its easy connecting channels, interchangeable grates and hold down feet to stop floatation during the pouring of concrete.
- Perfect for Commercial Surface Drainage – With a range of accessories and grate options, Storm Master is the perfect large capacity drainage for commercial applications
- Class B Load Rating – Ideal for trafficable areas in domestic and light commercial applications.
- Large 200mm profile – A large profile, ideal for clearing high flows of surface water.
- Plumber-friendly – Bottom outlet can be cut or drilled to fit 90mm PVC stormwater pipe
- Environmentally friendly – Made from 100% UV stabilised recycled plastic
