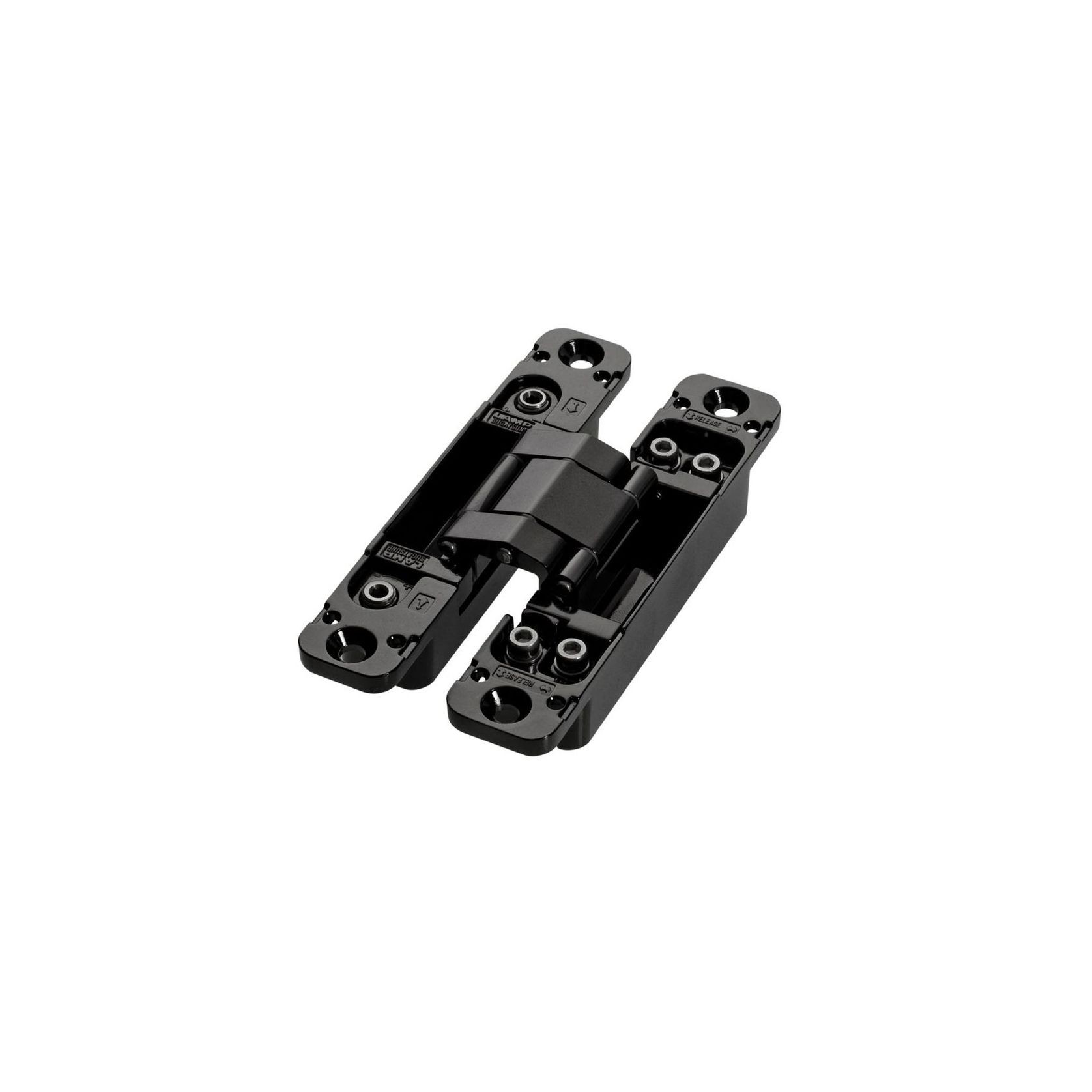

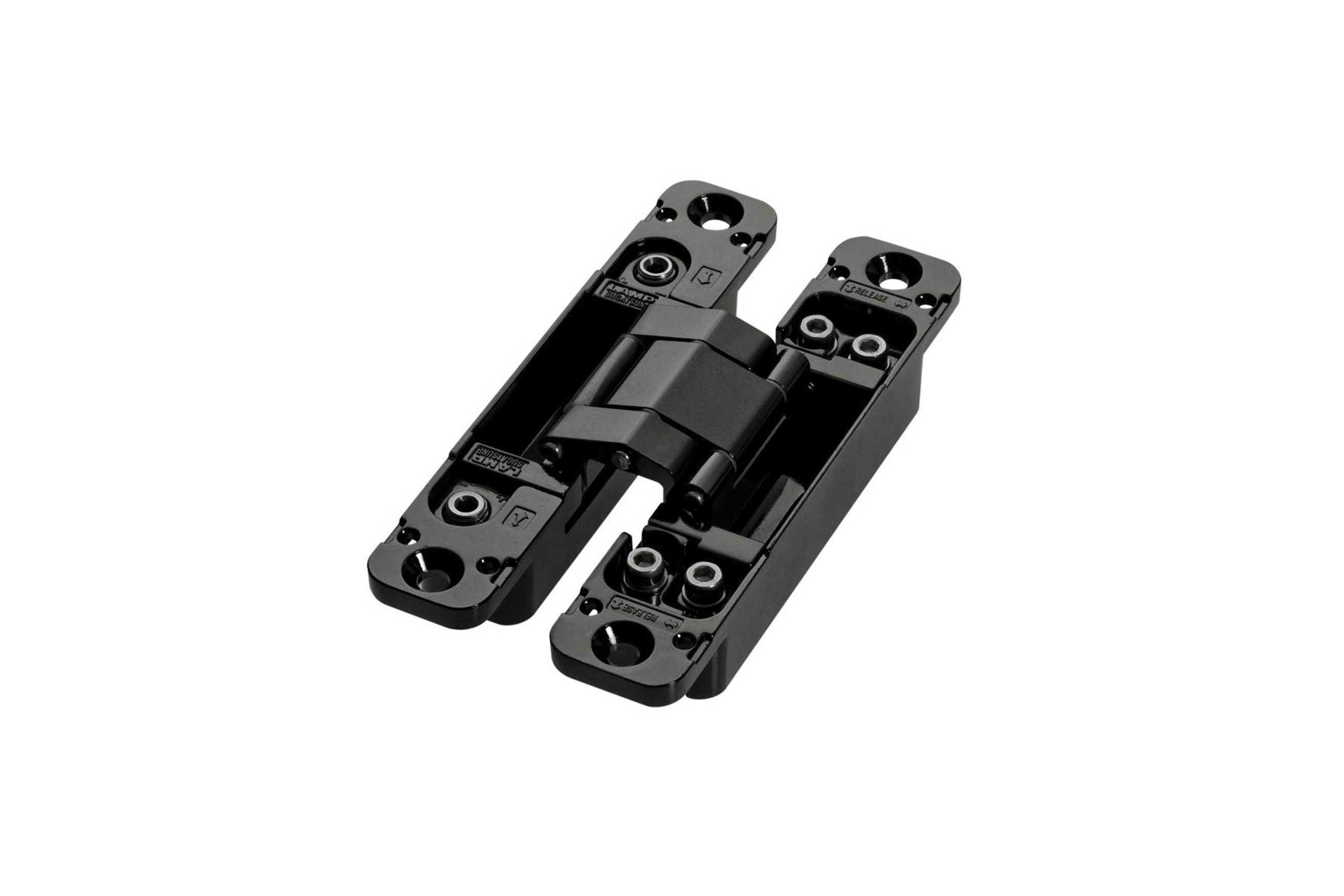

Sugatsune HES3D-120 Concealed Hinges
Auckland
- 169.9K profile views
- 69 saves
HES hinge design allows vertical, horizontal, and depth adjustment after hinge is installed
- 2-piece assembly for easy installation and adjustment
- Successfully passed 300,000 open/close private cycle tests
- Supplied with stainless steel flathead screws and template

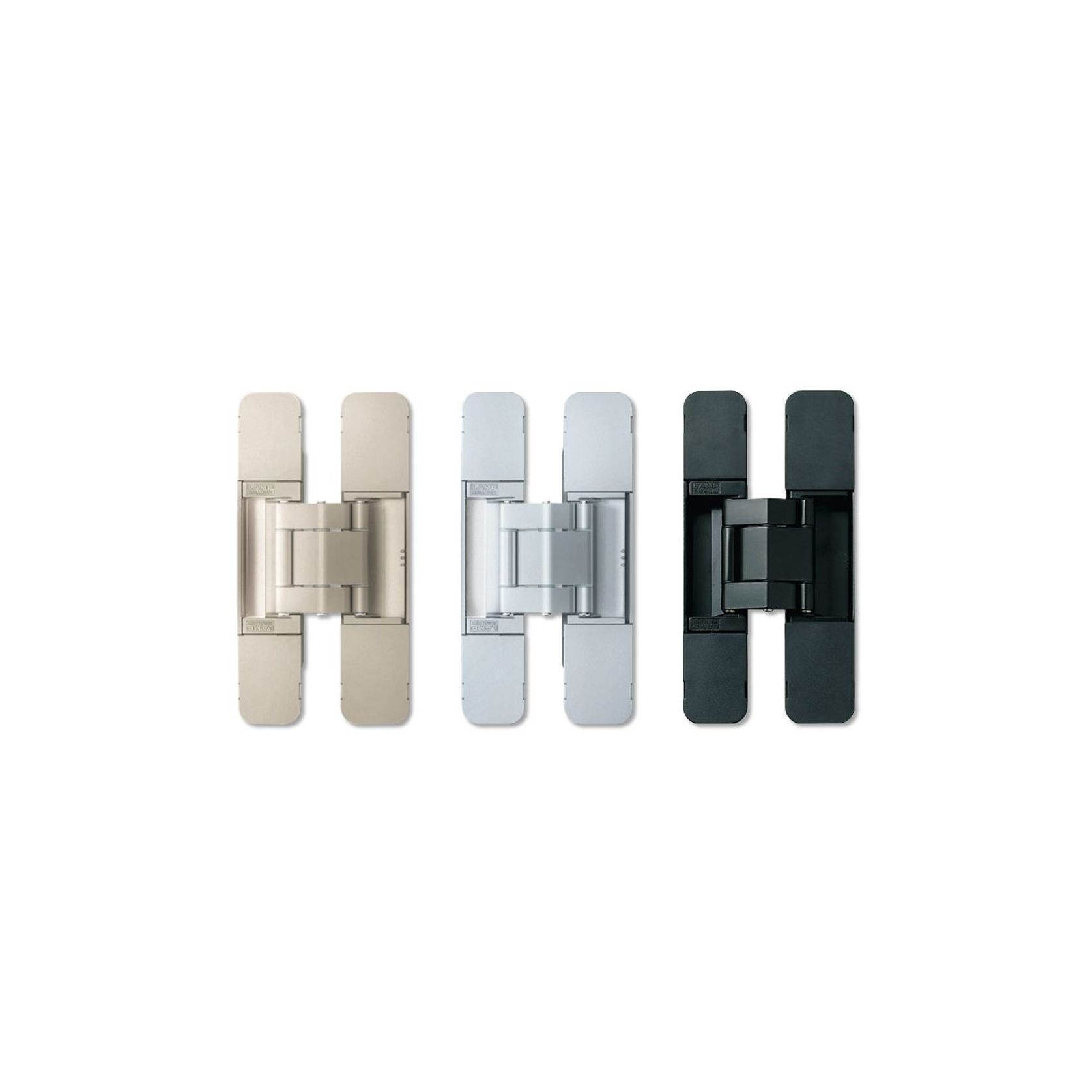

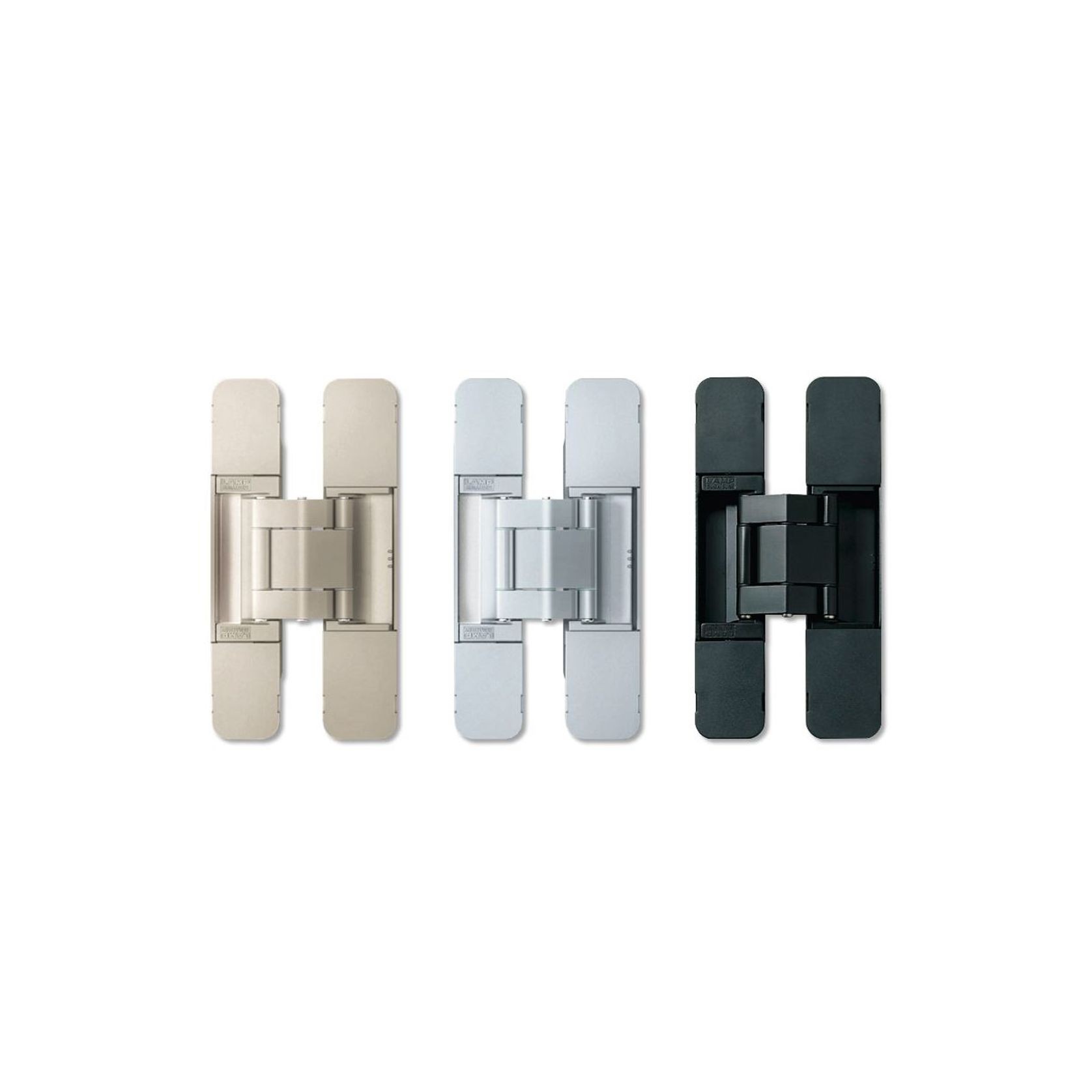

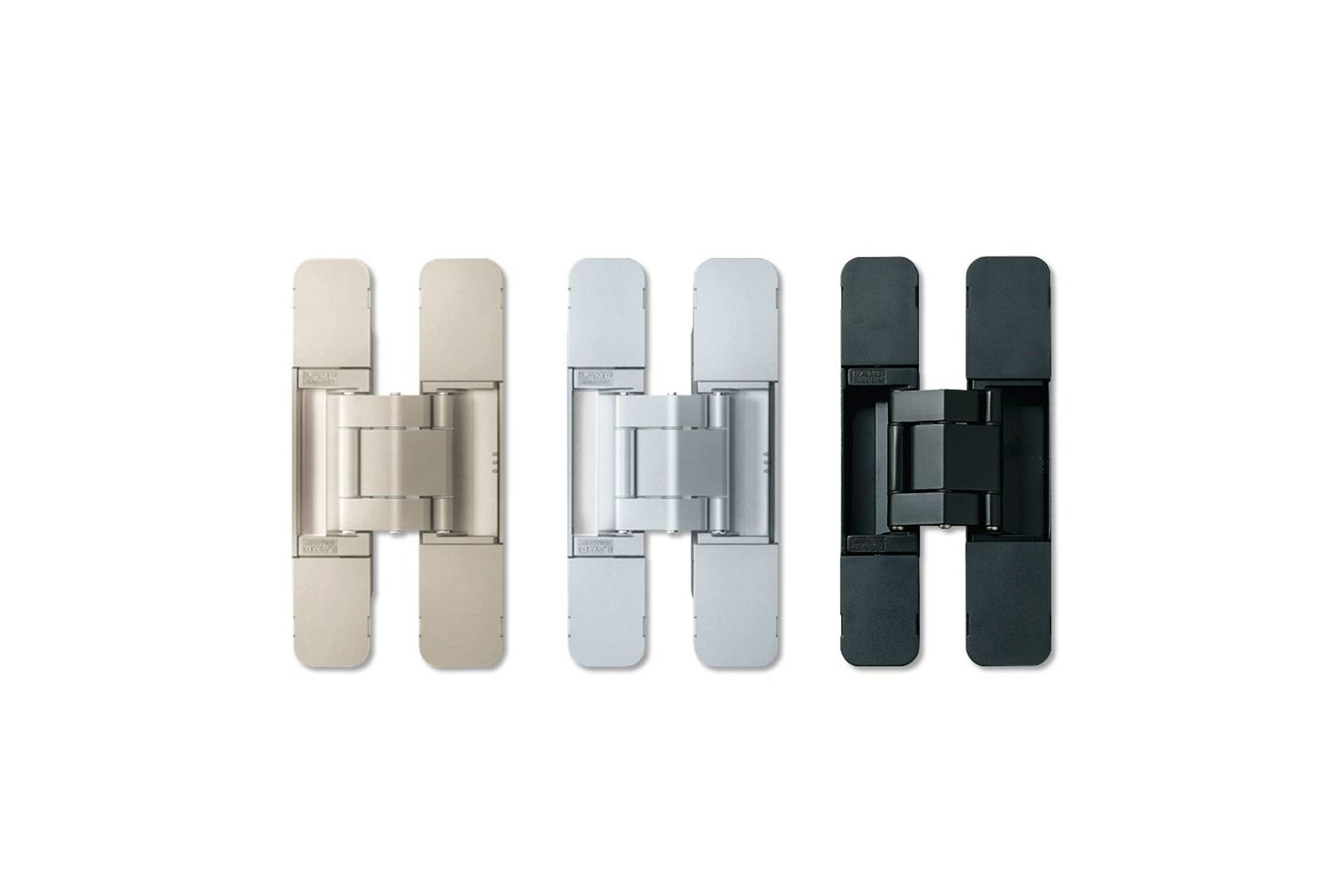

- Available in Dull Chrome (DC), Dull Nickel (DN) and Black (BL)
Note: Designed for interior installation.
Optional HES3D-120BKT mounting brackets available for installation onto steel doors and frames.
Product Details
- Product
- Sugatsune HES3D-120 Concealed Hinges
- Category
- Door and Window Hinges
- Sold by
- Unique Hardware Solutions
- Brand
- Sugatsune
- Country of origin
- Japan
- Type of use
- Commercial and Residential
- Care and cleaning
- Easy maintenance
- Installation
- Professional installation recommended
Unique Hardware Solutions is specified by
SGAArchitects
McCoy + Heine ArchitectsArchitects
Julian Guthrie ArchitectureArchitects
Studio2 ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Christian Anderson ArchitectsArchitects
Bull O'Sullivan ArchitectureArchitects
Nasko FactoryJoiners
CWB ConstructionBuilders
Furze Architecture & DesignArchitectural Designers
GS Cayless ConstructionBuilders
CV InteriorsInterior Designers
Crittall Steel Windows and DoorsManufacturers and Suppliers
Grandvue JoineryCarpenters & Cabinetmakers
HES hinge design allows vertical, horizontal, and depth adjustment after hinge is installed
- 2-piece assembly for easy installation and adjustment
- Successfully passed 300,000 open/close private cycle tests
- Supplied with stainless steel flathead screws and template
- Available in Dull Chrome (DC), Dull Nickel (DN) and Black (BL)
Note: Designed for interior installation.
Optional HES3D-120BKT mounting brackets available for installation onto steel doors and frames.
- Scope of use
Interior hidden doors
- Specs / Details
- Door Weight: Max 30kg /2pcs, 40kg/3pcs
- Door thickness: Min 29mm
- Door Dimensions: Max H 2400mm x W 900mm
- Door Weight: Max 30kg /2pcs, 40kg/3pcs
