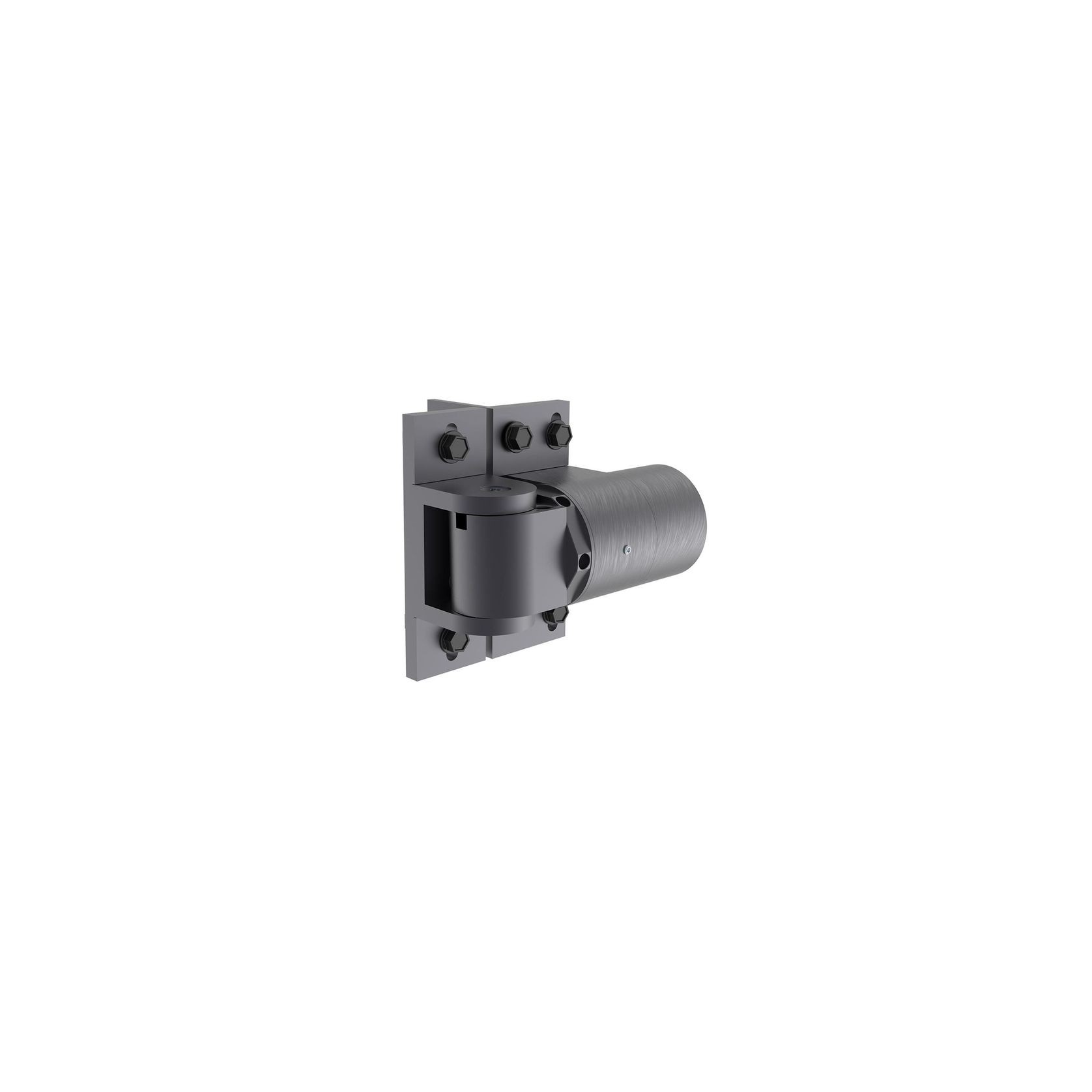

Sureclose® Readyfit 108 Hinge Set

By ASSA ABLOY
Website

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. This SureClose READYFIT 180 model provides 180˚ opening and closing, making it convenient for high-traffic applications. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. Each externally mountable READYFIT model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. Its remarkably simple for a commercial-style gate closer product. All SureClose® housings are made of high-grade aluminum. Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts.

Details
  • Category
    Gate Accessories, Automatic Gates, Security Gates
  • Range
    Sureclose®
  • Brand
    D&D Technologies
  • Designer
    D&D Technologies
General
  • Country of origin
    Australia
Specifications
  • Product Code: 74108333T-74108335T
  • Gate Type: Self-Closing
  • Gate Material: Aluminum, Steel/Ornamental Iron
  • Self-Closing Gate Weight: Up to 80kg (180lb)
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 50mm+ (2")
  • Ideal Gate Gap: 12-35mm
  • Fixing Method: Screw-On, Weld-On
  • Colour/Finish: Black Anodised
Scope of use

Gate Application: Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate

Features

Externally Mounted, Heavy Duty Hydraulic Gate Hinge-Closer

  • Provides 180˚ gate closing
  • Hidden hydraulics for quiet, controlled closing
  • Weld-on models feature proprietary finish – no need to grind off before welding!
  • For gate gaps of Min.12mm - Max 35mm
  • Self-closes gates up to 80kg (180 lb) – See Chart
  • Screw-on or weld-on (screws and brackets included)

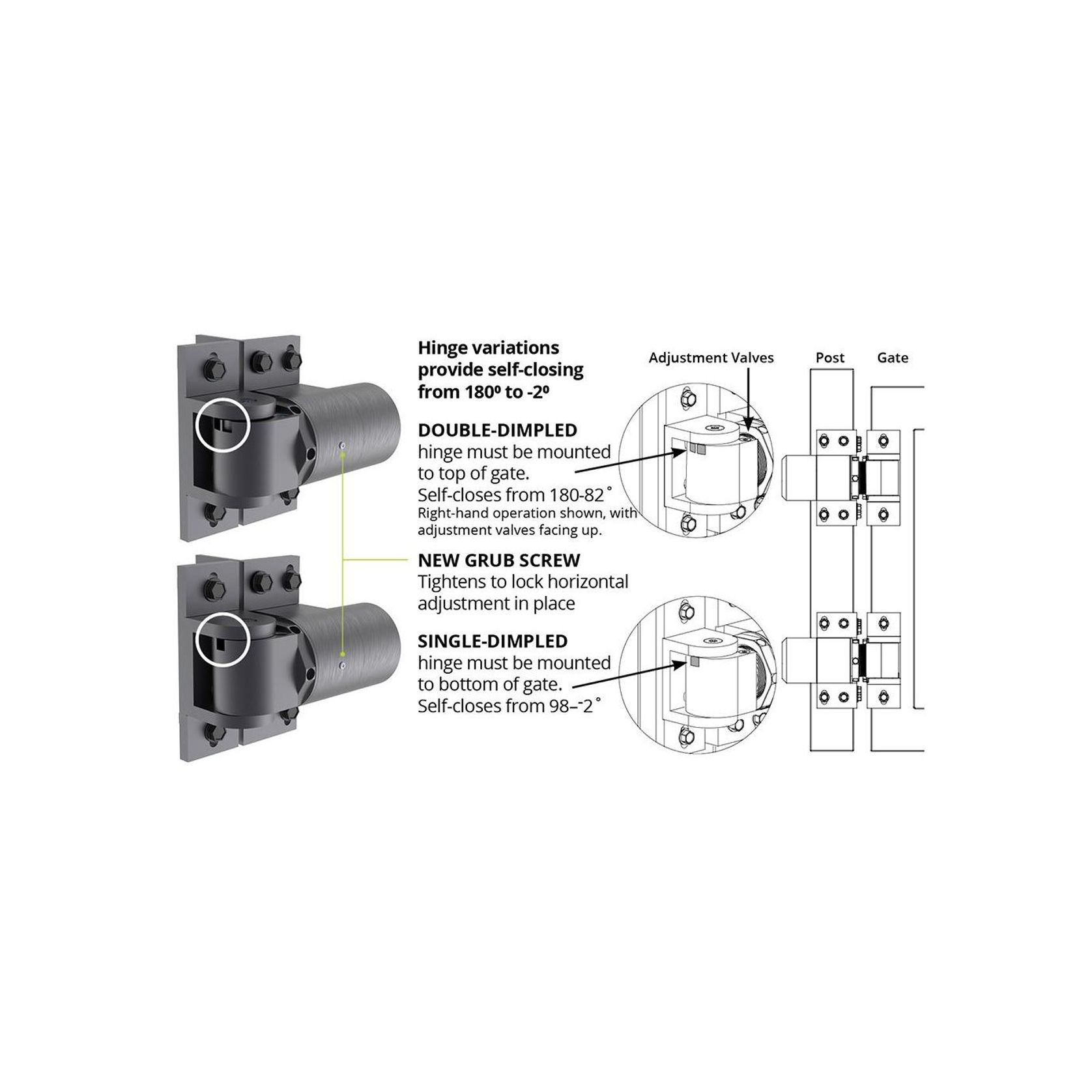

  • Alignment legs give double face-fixing strength
  • Adjustable Final Snap-Close Action
  • Emergency override feature for safety and longevity
  • Minimum fence post size 50mm (2”)
SKU: 74108333T-74108335T
