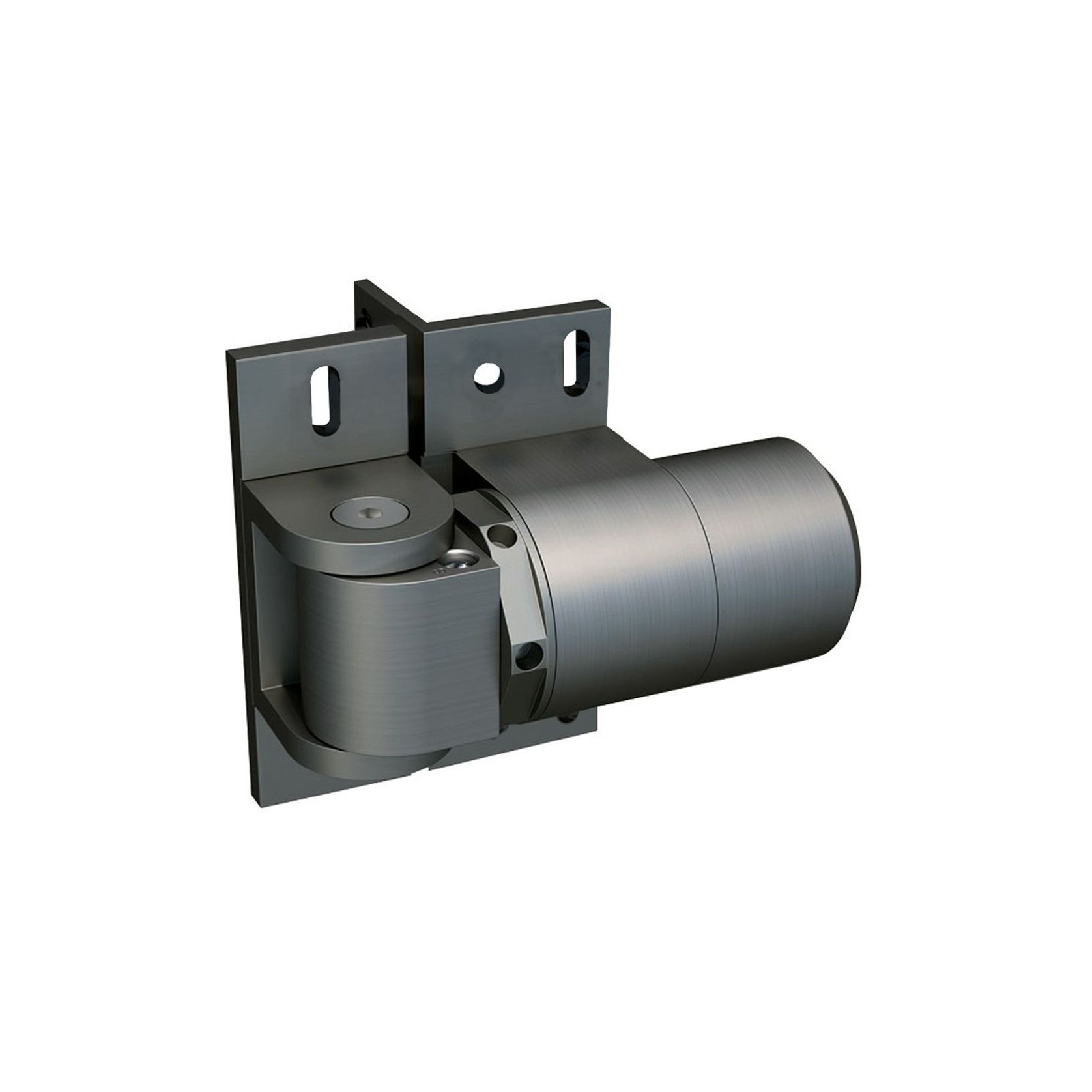

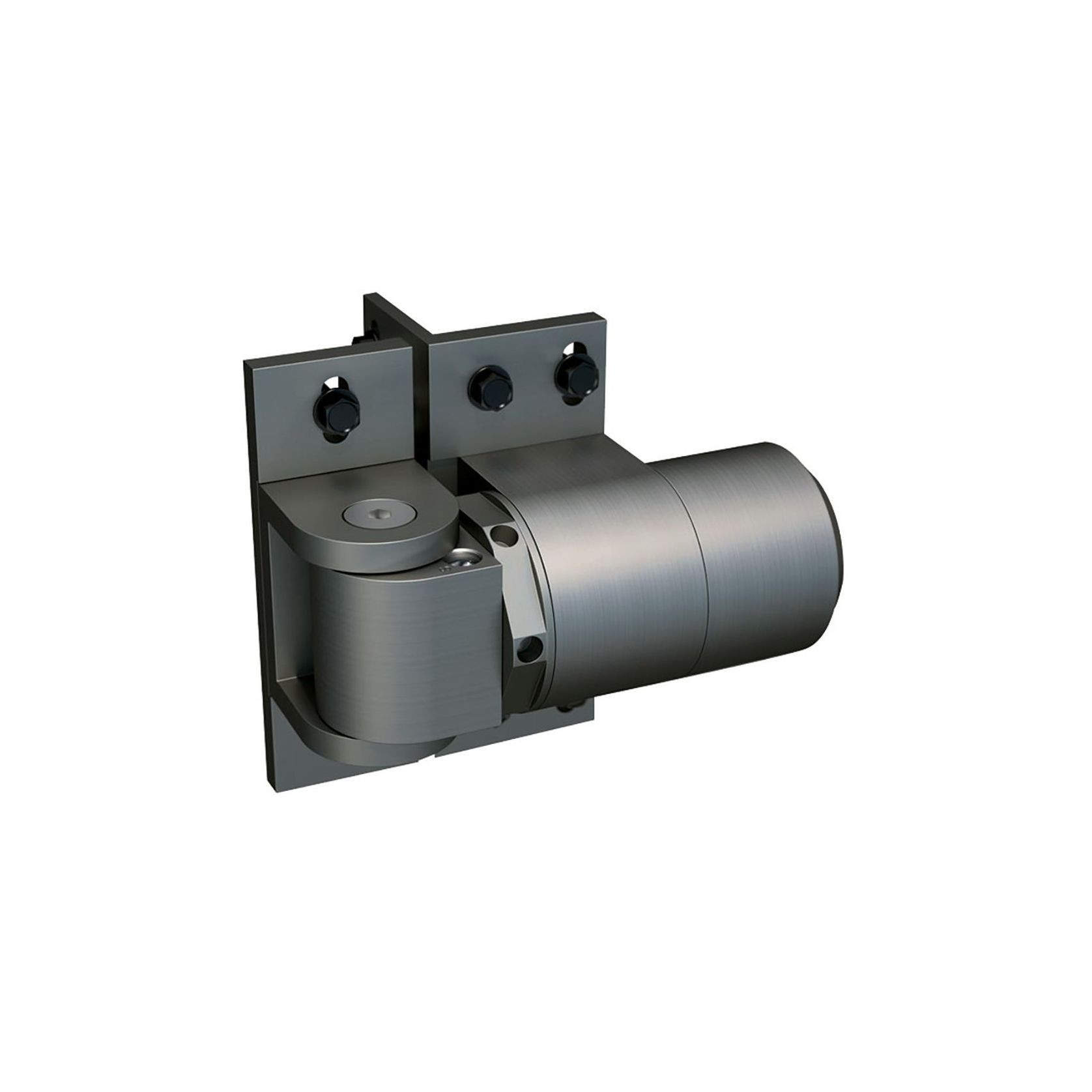

Sureclose® Readyfit 108 Hinge With Safety Feature
by ASSA ABLOY
Auckland, New Zealand
- 663.8K profile views
- 60 saves
Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing.
There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. Each ReadyFit model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied.
The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. Its remarkably simple for a commercial-style gate closer product.
All SureClose® Hinges and Closers are made of high-grade aluminium. Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts.
Product Details
- Product
- Sureclose® Readyfit 108 Hinge With Safety Feature
- Category
- Gate Accessories
- Sold by
- ASSA ABLOY
- Range
- Sureclose®
- Designer
- D&D Technologies
- Brand
- D&D Technologies
- Country of origin
- Australia
- Warranty
- 5 years
ASSA ABLOY is specified by
Bossley ArchitectsArchitects
YokeArchitects
ASC ArchitectsArchitects
Evelyn McNamara ArchitectureArchitects
GHD DesignArchitects
Moller ArchitectsArchitects
ContextArchitects
Sheppard & Rout ArchitectsArchitects
Designgroup Stapleton ElliottArchitects
DLA ArchitectsArchitects
Dalman ArchitectsArchitects
Francis Gp ArchitectsArchitects
Respond ArchitectsArchitects
SA StudioArchitects
Borrmeister ArchitectsArchitects
Ignite ArchitectsArchitects
Paul Brown & Associates LimitedArchitects
RTA StudioArchitects
Smith ArchitectsArchitects
Gary Todd ArchitectureArchitects
Jigsaw ArchitectsArchitects
E13 Performance WindowsGlaziers
Landmark Homes New ZealandBuilders
Walker ArchitectureArchitectural Designers
ArmstrongLocksmiths
DuluxManufacturers and Suppliers
Alpha 1 BuildersBuilders
Supreme Lock & HardwareHardware Installers
Morlite Aluminium – Nulook® DunedinManufacturers and Suppliers
Altus® Window SystemsJoinery Installers & Repairs
Steel & TubeManufacturers and Suppliers
Lewis WindowsServices
Rylock® Windows & DoorsManufacturers and Suppliers
Landmark Homes Auckland CentralDesign & Build
High Performance WindowsMetal Fabricators and Welders
O'Neil + Shirley ArchitectureArchitectural Designers
Nebulite® Windows & Doors SouthlandGlaziers
Fisher® Windows and Doors GisborneGlaziers
PJM Project ManagementProject Managers
Landmark Homes Auckland - North Shore & RodneyBuilders
David Reid HomesDesign & Build
Clements Windows & DoorsGlaziers
VoxellArchitectural Designers
Golden Homes CanterburyDesign & Build
FocusplanInterior Designers
The House CompanyBuilders
Vistalite® Windows and DoorsManufacturers and Suppliers
Nulook® Windows & Doors CanterburyGlaziers
eHausDesign & Build
Foley GroupInterior Designers
Fisher® Windows and DoorsManufacturers and Suppliers
Conder ConstructionConstruction
Nebulite® TaranakiManufacturers and Suppliers
Cogan Custom HomesBuilders
New Zealand Green Building CouncilAssociations
Maddren HomesBuilders
ThermosashManufacturers and Suppliers
Nulook® Windows & Doors New PlymouthGlaziers
Nebulite® Windows & Doors Garden CityGlaziers
Landmark Homes GisborneBuilders
Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers.
These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing.
There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. Each ReadyFit model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied.
The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. Its remarkably simple for a commercial-style gate closer product.
All SureClose® Hinges and Closers are made of high-grade aluminium. Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts.
- Specs
- Product Code: 74108323T, 74108325T
- Gate Type: Self-Closing
- Gate Material: Aluminium, Steel/Ornamental Iron
- Self-Closing Gate Weight: Up to 120kg (260lbs)
- Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
- Gate Frame/Post Shape: Square-to-Square
- Min Post Size: 50mm+
- Ideal Gate Gap: 12-35mm
- Fixing Method: Screw-On, Bolt-On, Weld-On
- Colour/Finish: Black Anodised
- Features
Externally Mounted, Hydraulic Self-Closing Hinge-Closer
- Controlled quiet close
- Gap variance of 12-35mm
- Self-closes gates up to 120kg (260lb) – See Chart
- Multiple mounting options, includes fasteners
- Final Snap Close Action
- Maximum opening angle 88
- Alignment legs give double face-fixing strength
- Emergency Override feature for safety and longevity
- Minimum fence post size 50mm (2")
- Must install a gate-stop to prevent the gate opening more than 90
- 5 Year Limited Warranty
- Scope of use
Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
