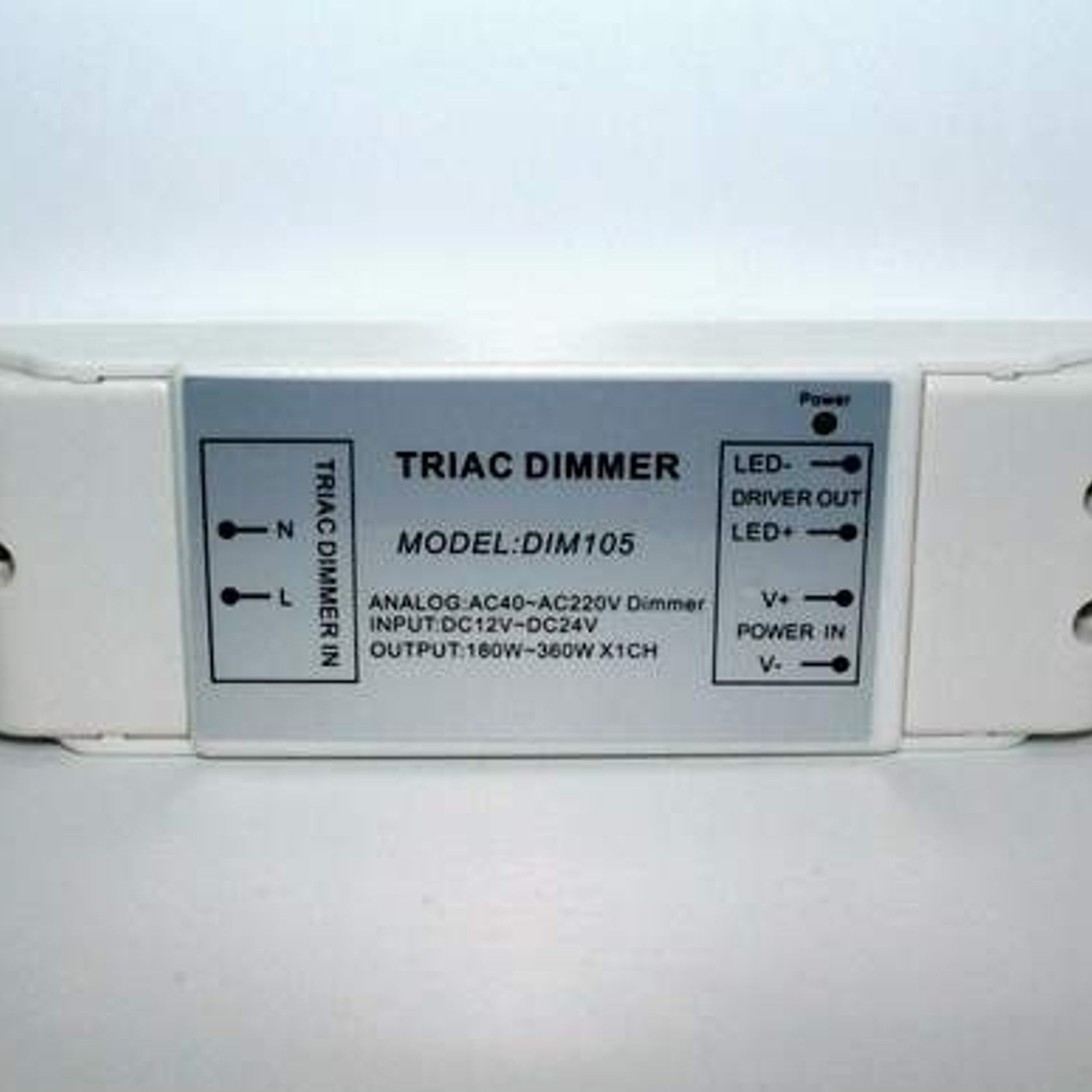

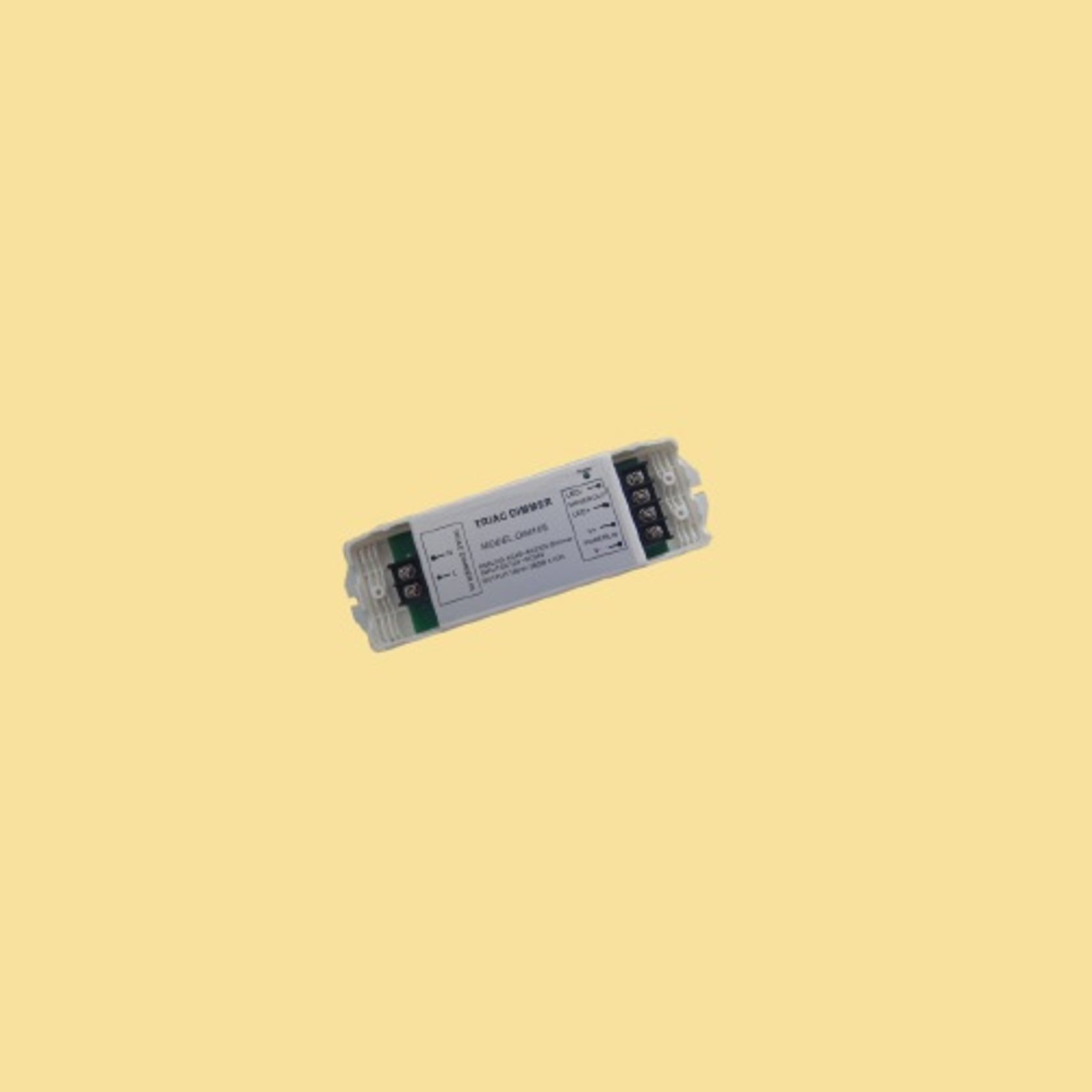

Triac Dimmer

By TecLED
Visit Website

This dimmer is a constant voltage dimmer with an output current of 15A max. Adopt the advanced microcomputer control technology, and use the advanced electronic components. This dimmer has stable performance and
high quality. It can be used for various spaces such as buildings, hotels and home.

Features:
Triac dimming, input dimming signal: AC40V~220V
Supports all the Triac dimming systems, such as Lutron, Clipsal and Dynalite
Single channel output, output current 15A Max
The dimming curve smooth, no flicker
0-100% brightness control

View PDF Brochure and Specifications

Details
  • Category
    Light Switches & Dimmers
Specifications
Input Voltage DC 12-24V Dimming Voltage AC 40-220V Output Current 15A max Output Power 12V:180W max 24V:360W max Work Temp. -20 - 50℃ Product Size 167(L)×52(W)×24(H) mm Pack Size 175(L)×57(W)×30(H) mm N.W. 83.5g G.W. 114g
