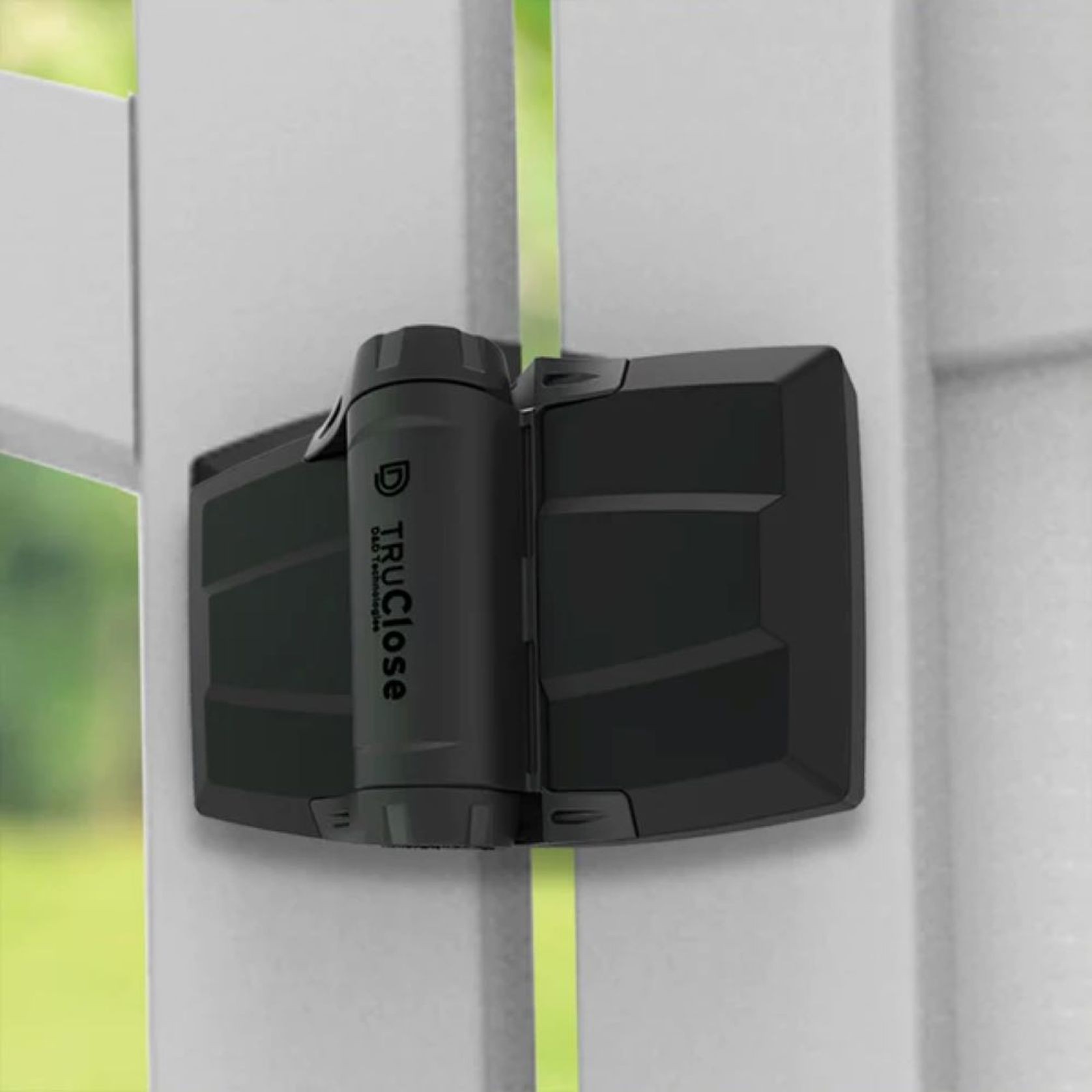

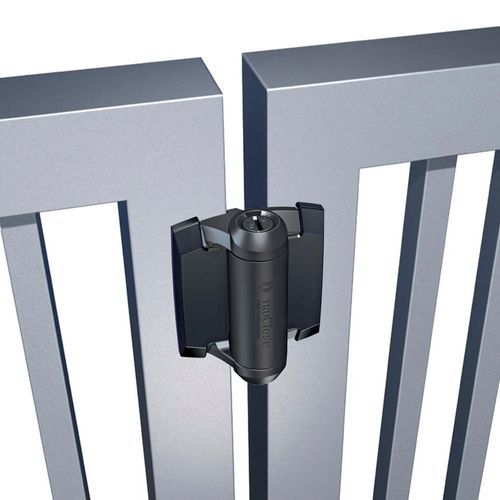

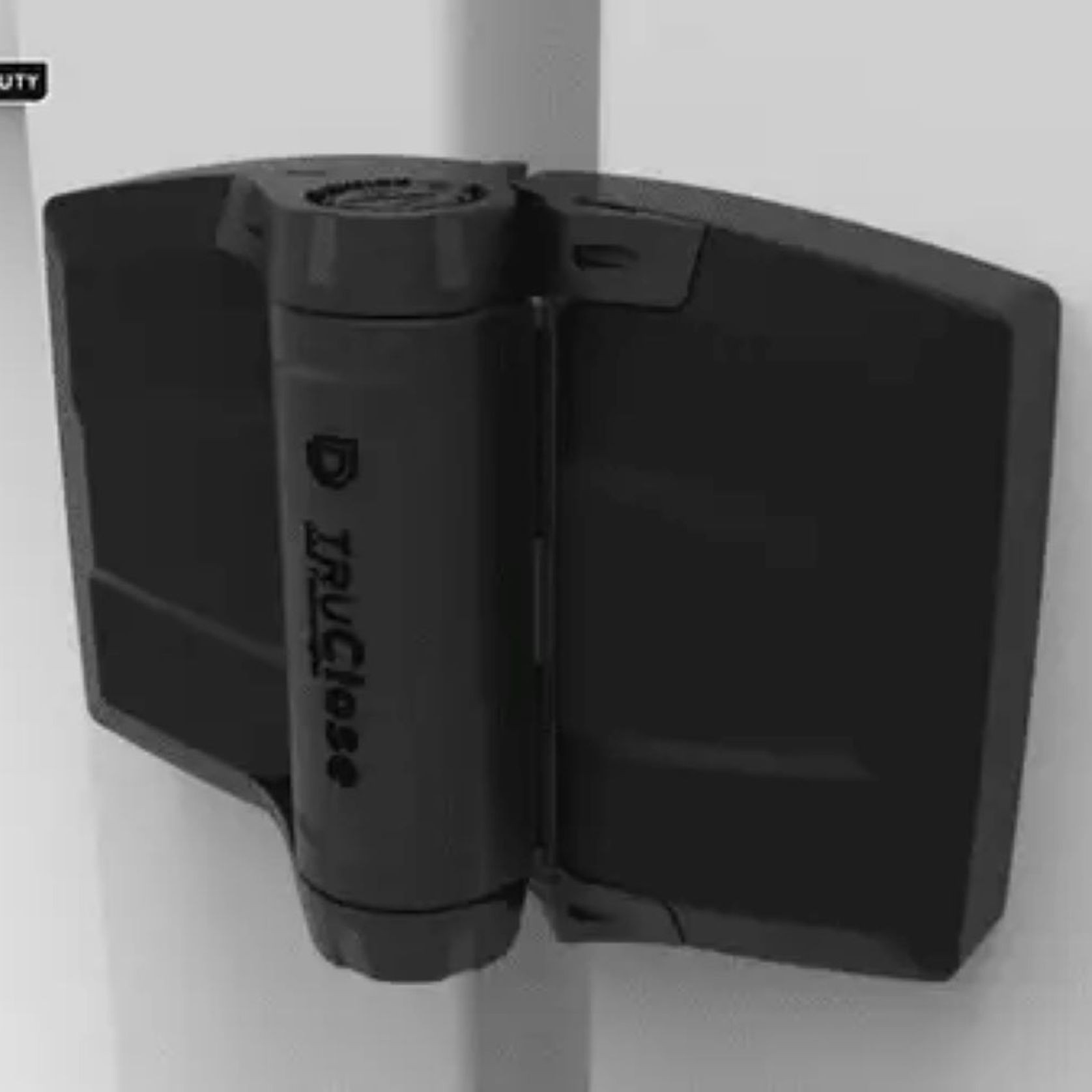

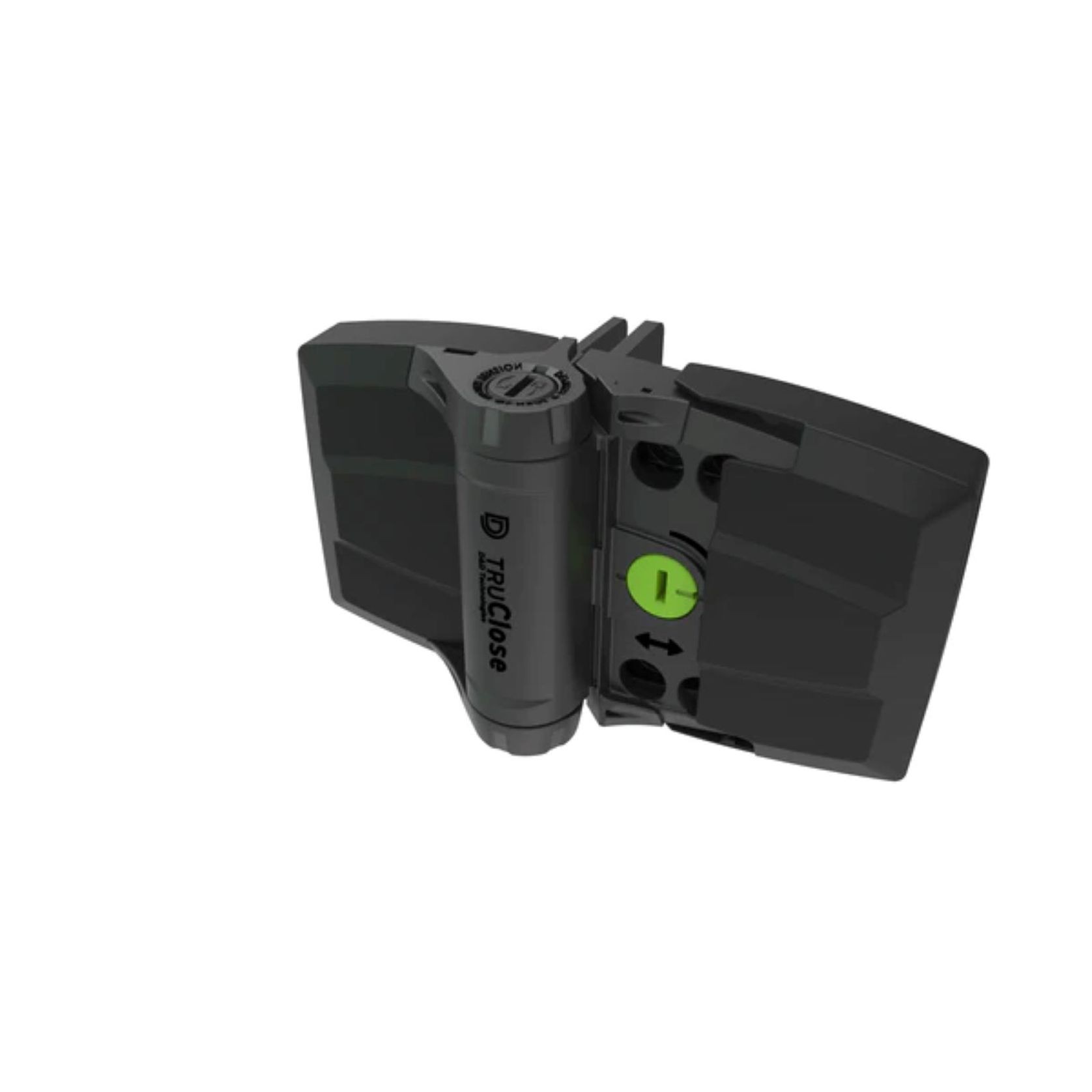

TruClose® Multi-Adjust™ Heavy Duty Series 3

TruClose® Gate Hinges are the world's most trusted gate hinges.

Specs

Brand: TruClose®

Product Code: TCHDMA1S3BT, TCHDMA1S3WT

Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate

Gate Type: Self-Closing

Gate Material: Vinyl/PVC

Self-Closing Gate Weight: Up to 70kg (154lbs)

Approx Gate Size: 1m H x 1.8m W (3ft x 6ft)

Gate Frame/Post Shape: Square-to-Square

Min Post Size: 70mm+ (3")

Ideal Gate Gap: 25mm (1")

Fixing Method: Screw-On

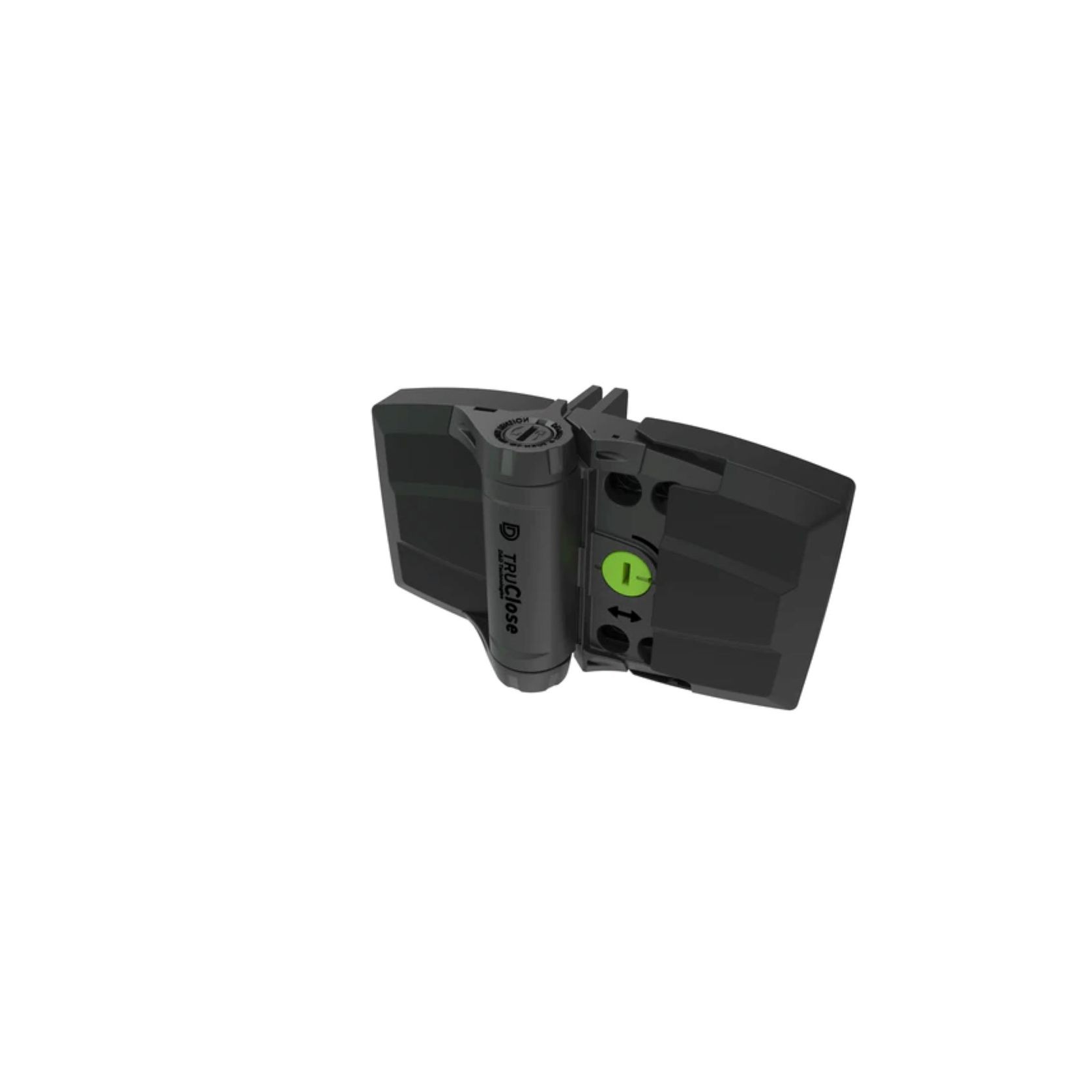

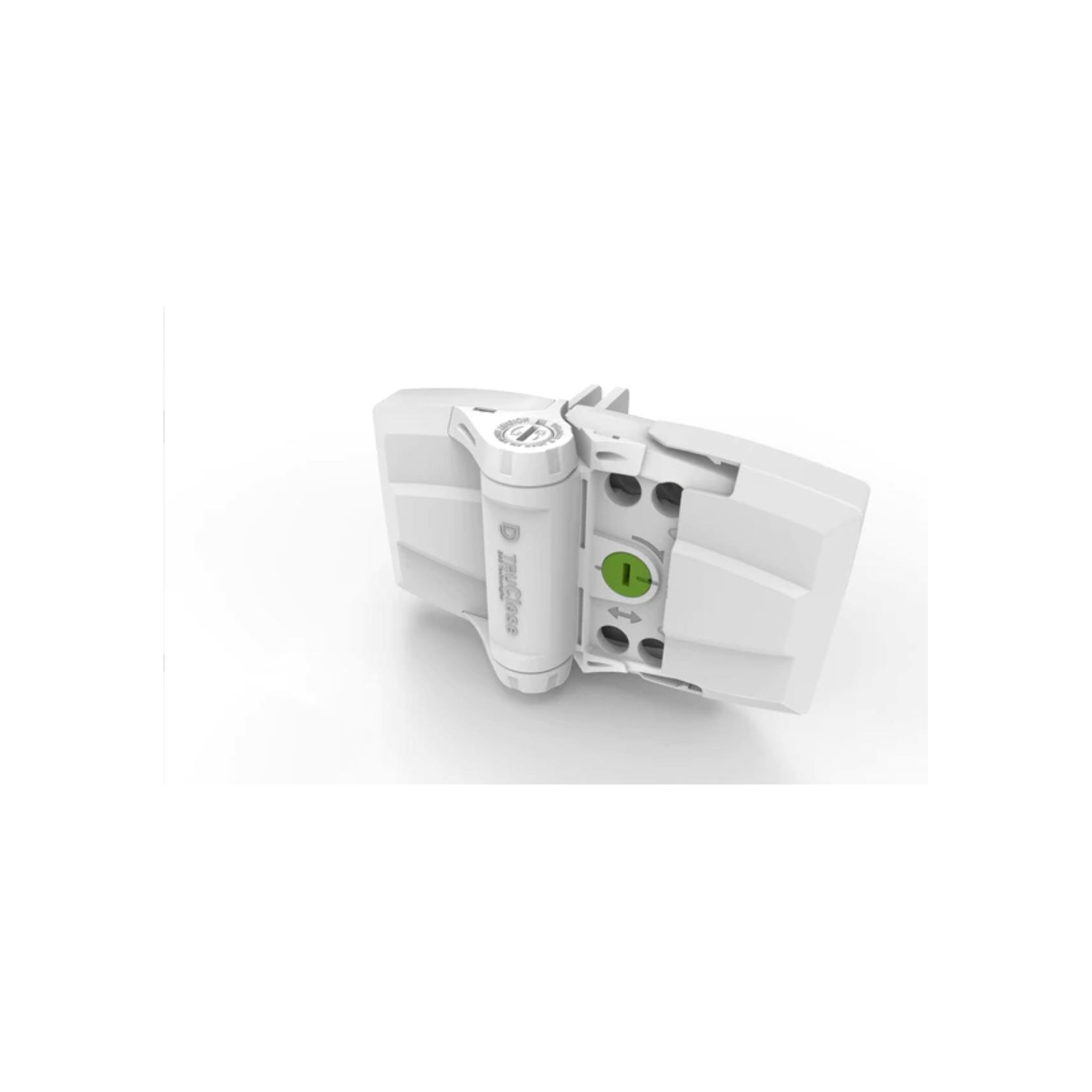

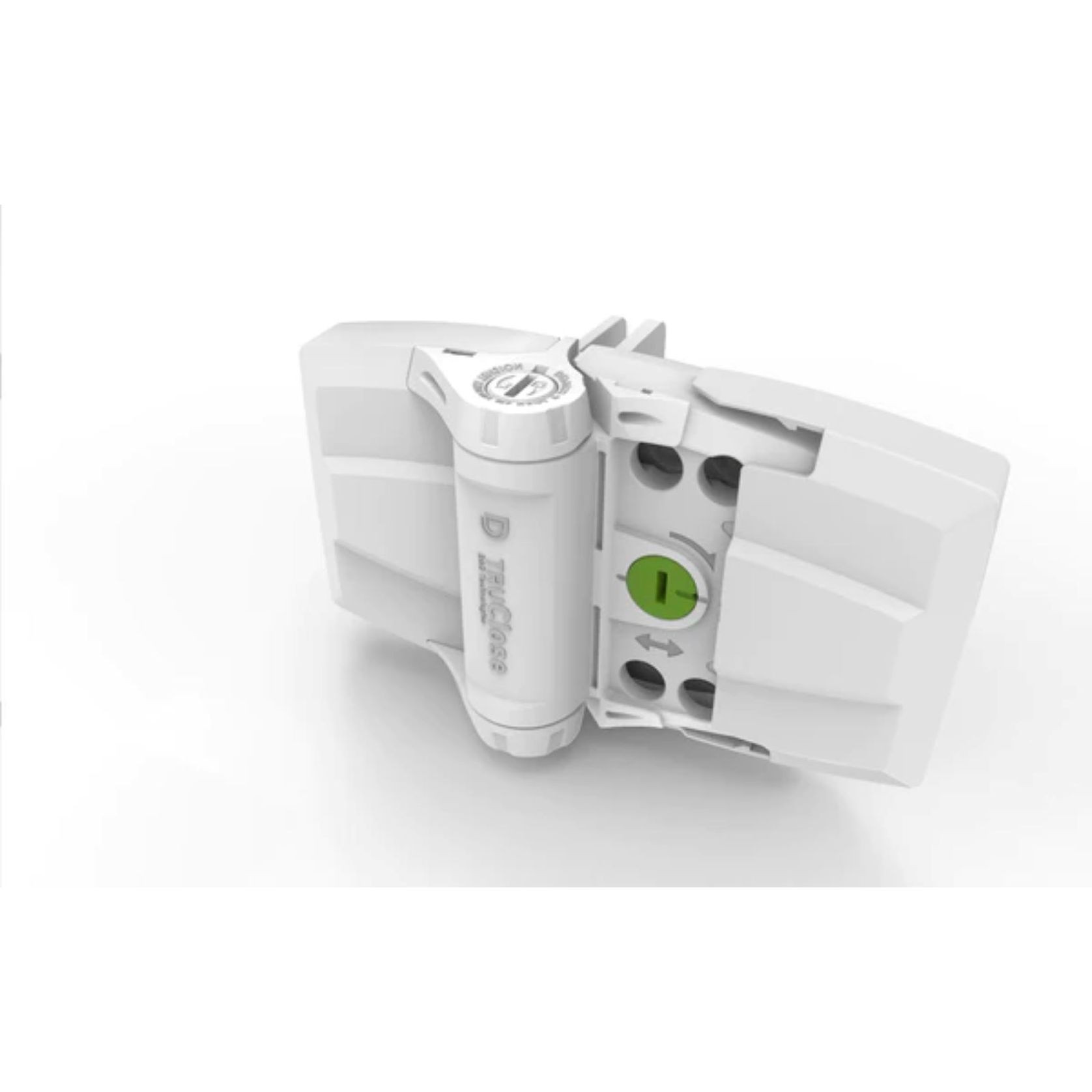

Colour/Finish: Black, White

Features

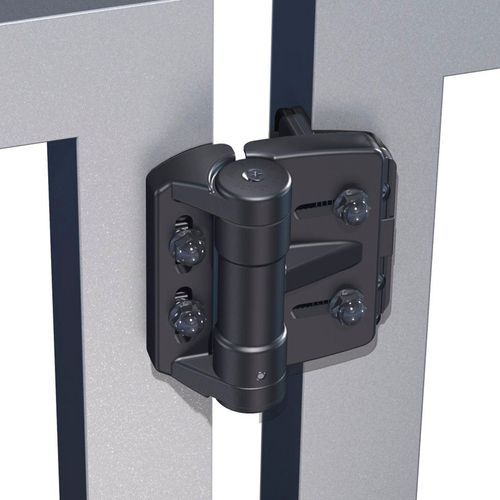

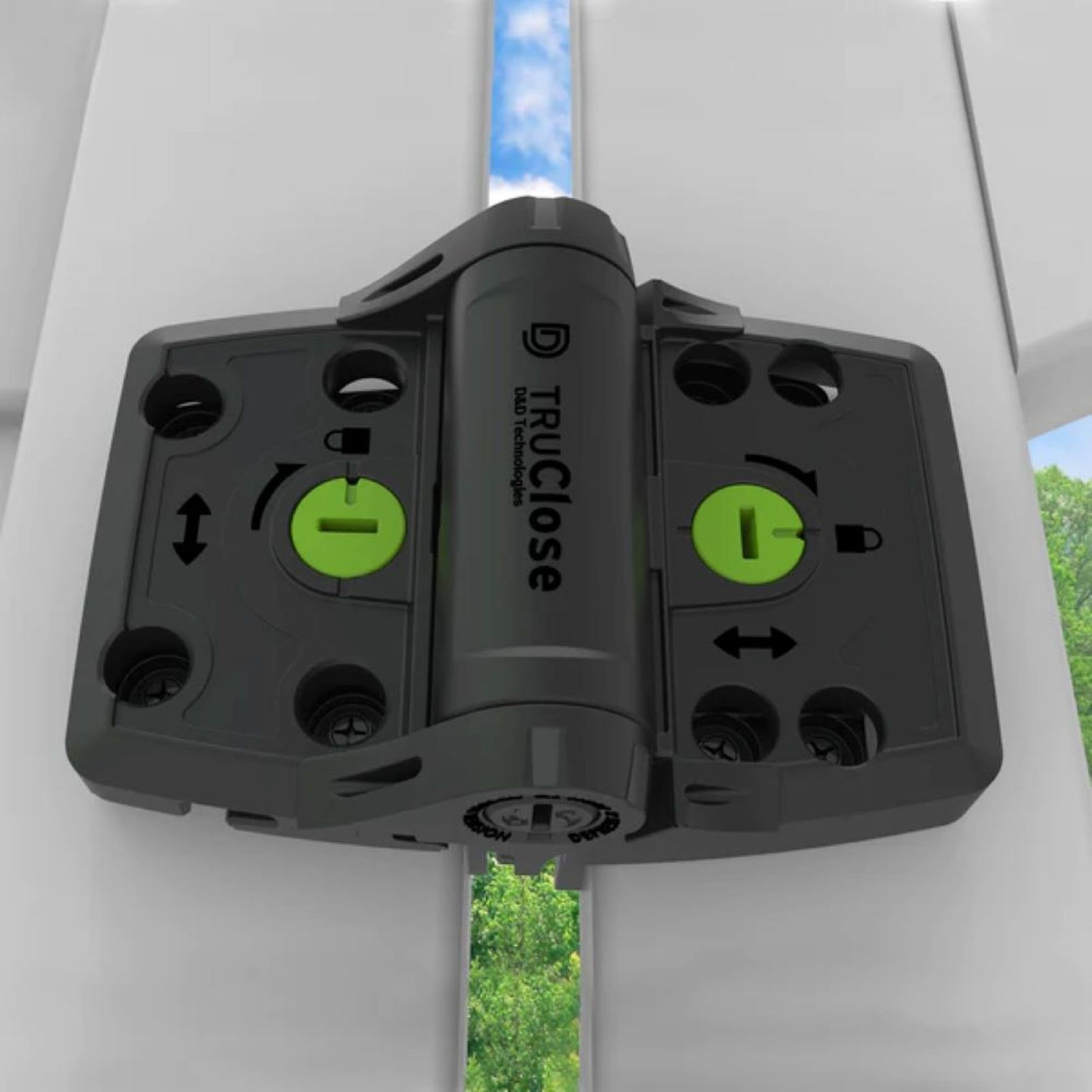

• Patented 3-in-1 adjustment, solves gate sag for good!
• Gate gap variance from 16-43mm (5/8" – 1 11/16")
• Self-closes vinyl & composite gates up 70kg (154 lbs)
• Won’t rust, bind, sag or stain
• Made from super-strong engineered polymer
• Internal stainless steel spring and components
• UV stabilised, self-lubricating durability
• Only one person needed to hang large gates
• Independently tested to comply with AS1926 -12 standards
• Australian Made
• Lifetime Warranty

Scope of use

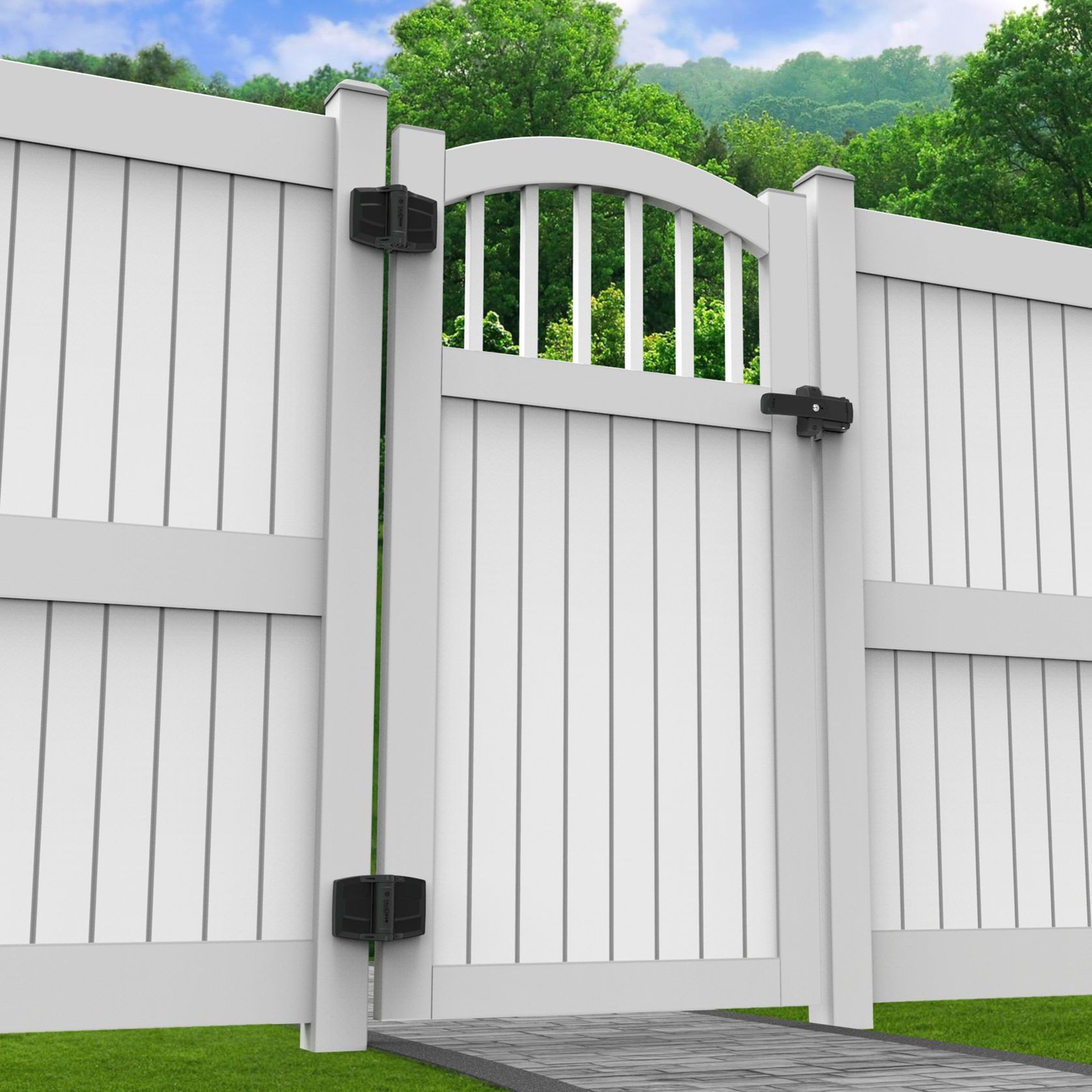

Tension adjustable, self closing hinges with easy vertical and horizontal adjustments. They’re ideal for heavy or high-traffic vinyl or composite gates and will self close gates weighing up to 70kg (154 lbs).
