How much does the Truclose® Mini Multi-Adjust™ Round Hinge cost?

ASSA ABLOY does not publish a price for the Truclose® Mini Multi-Adjust™ Round Hinge on ArchiPro. Send them an enquiry for pricing, or visit their website.

Truclose® Mini Multi-Adjust™ Round Hinge

Name: Truclose® Mini Multi-Adjust™ Round Hinge
Uploaded: 2023-08-27
Channel: ASSA ABLOY
Description: These polymer hinges were devised to overcome all the problems associated with conventional gate hinges rust, binding, sagging and staining.

by ASSA ABLOY

Auckland, New Zealand

666.0K profile views
60 saves

Visit Website

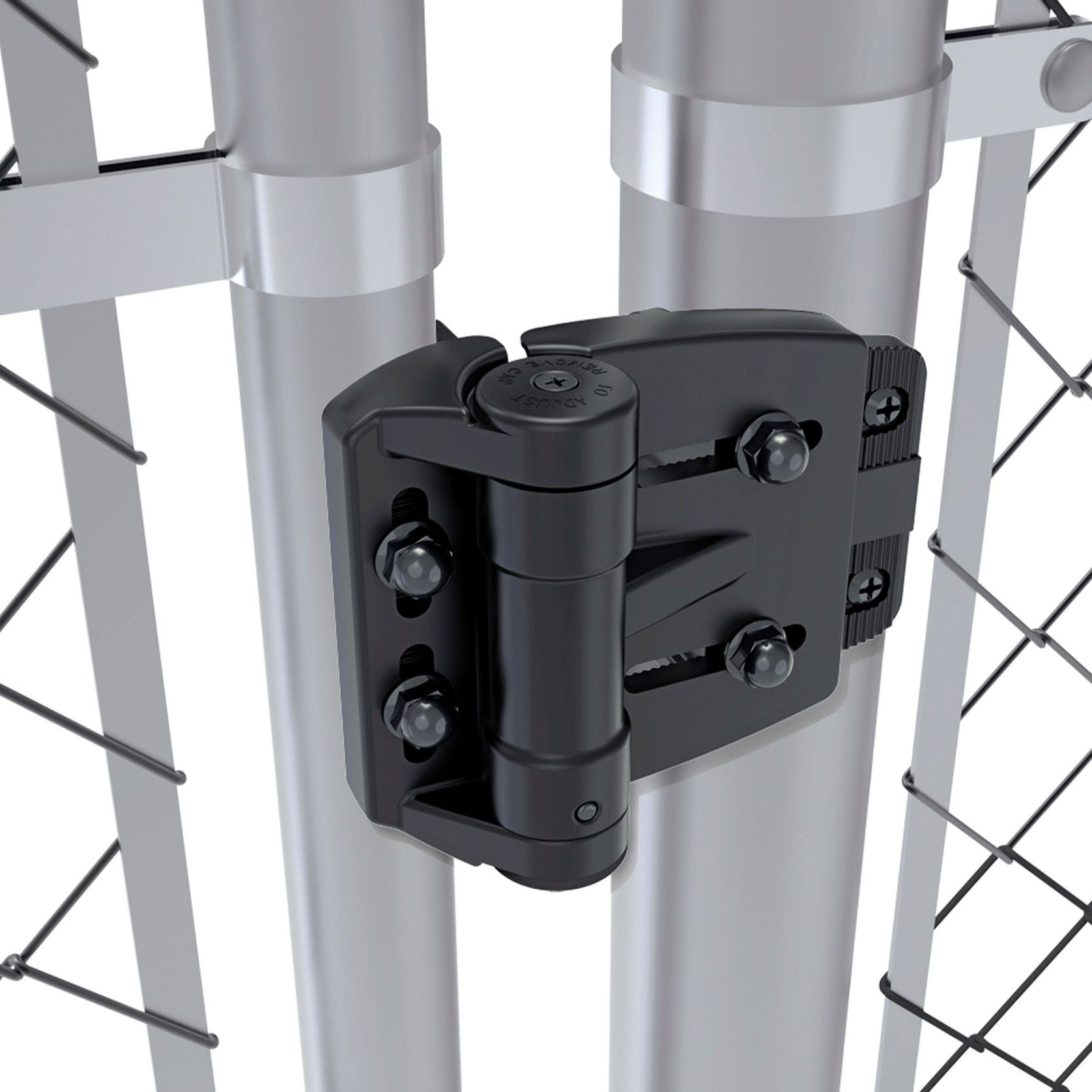

its to diameters: Gate frame: 35mm & 41mm. Post: 48-51, 60 & 73mm Gate frame: 1⅜ & 1⅝ Post: 1⅞-2, 2⅜ & 2⅞ TruClose® Gate Hinges are the world's most trusted gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges rust, binding, sagging and staining. The TruClose® MINI MULTI-ADJUST™ Hinges are versatile hinges designed for round-posted fences and gates with large gate gaps. Theyre ideal for heavy or high-traffic metal, wood or vinyl gates weighing up to 25kg. TruClose hinges are quick and easy to install and to adjust for self-closing speed. D&D has sold millions of award-winning TruClose® Gate Hinges worldwide.

Tags

truclose d&d technologies hardware latches hinges

Product Details

Product: Truclose® Mini Multi-Adjust™ Round Hinge
Category: Gate Accessories
Sold by: ASSA ABLOY
Range: Truclose®
Designer: D&D Technologies
Brand: D&D Technologies
Country of origin: Australia
Warranty: Lifetime

ASSA ABLOY is specified by

(56) Professionals

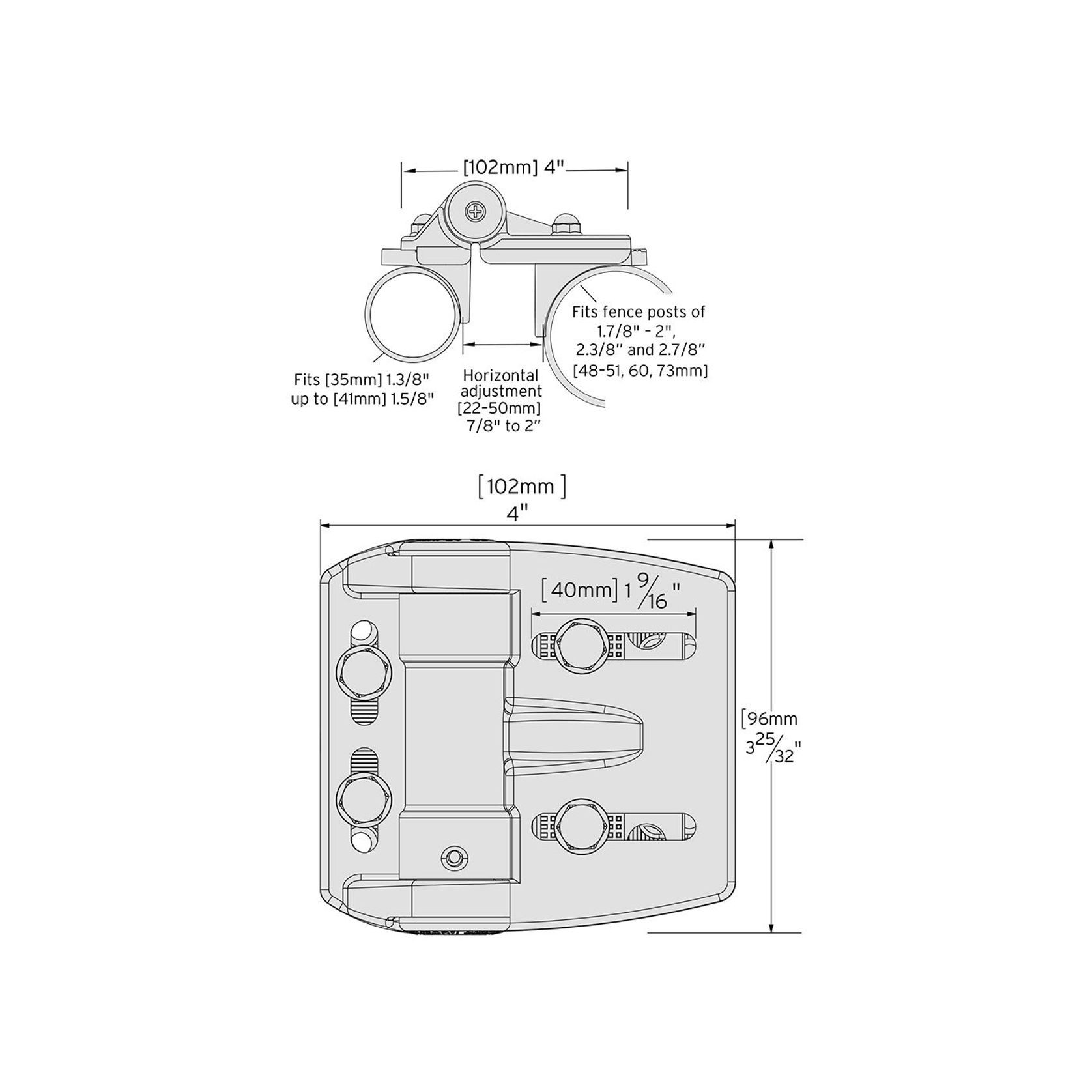

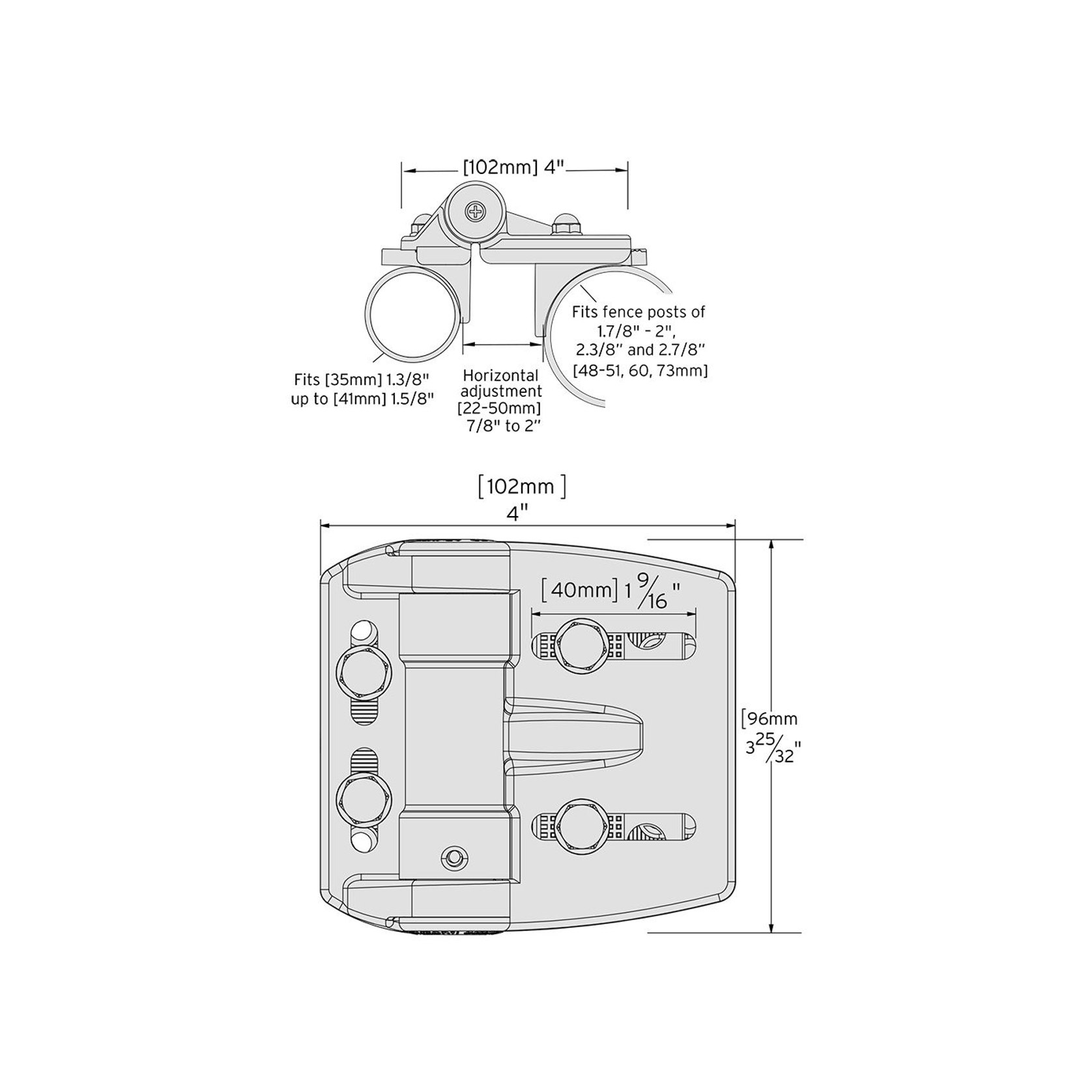

Truclose® Mini Multi-Adjust™ Round Hinge dimensions

Visit site

Post: 48-51, 60 & 73mm Gate frame: 1⅜ & 1⅝ Post: 1⅞-2, 2⅜ & 2⅞ TruClose® Gate Hinges are the world's most trusted gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges rust, binding, sagging and staining. The TruClose® MINI MULTI-ADJUST™ Hinges are versatile hinges designed for round-posted fences and gates with large gate gaps. Theyre ideal for heavy or high-traffic metal, wood or vinyl gates weighing up to 25kg. TruClose hinges are quick and easy to install and to adjust for self-closing speed. D&D has sold millions of award-winning TruClose® Gate Hinges worldwide.

its to diameters: Gate frame: 35mm & 41mm.

Specs: Product Code: TCAMA2RND

Gate Type: Self-Closing

Gate Material: Chain Link

Self-Closing Gate Weight: Up to 25kg (55lbs)

Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)

Gate Frame/Post Shape: Round-to-Round

Ideal Gate Gap: 35mm

Fixing Method: Screw-On

Colour/Finish: Black

Round Post Diameter: TCAMA2RND: Gate frame: 35 & 41mm, Post: 48–51, 60, 73mm
Features: Highly adjustable, Self Closing Hinge for chainlink gates

3-way adjustment - vertical, horizontal & tension

Up to 19mm adjustment

For gate gaps from 22-50mm (.9-2")

Self-closes wood and vinyl gates up 25kg (55 lbs)

Won’t rust, bind, sag or stain

Made from super-strong engineered polymer

UV stabilized, self-lubricating durability

Internal stainless steel spring and components

Easy alignment legs & adjustment slots

Australian Made

Lifetime Warranty
Scope of use: Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Security Gate, Privacy Gate

Downloads

Downloads (3)3 Direct downloads • 10 Available on request

Get more Specific.

ASSA ABLOY

au.ddtech.com

Visit the ASSA ABLOY website for the full range, specification detail and where to buy this product.

Visit Website

Frequently asked questions about
Truclose® Mini Multi-Adjust™ Round Hinge

The Truclose® Mini Multi-Adjust™ Round Hinge is supplied by ASSA ABLOY. It is also on their website, and you can browse every product ASSA ABLOY lists on ArchiPro.
