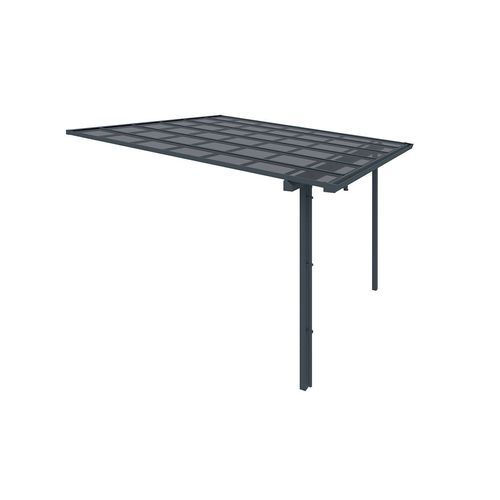

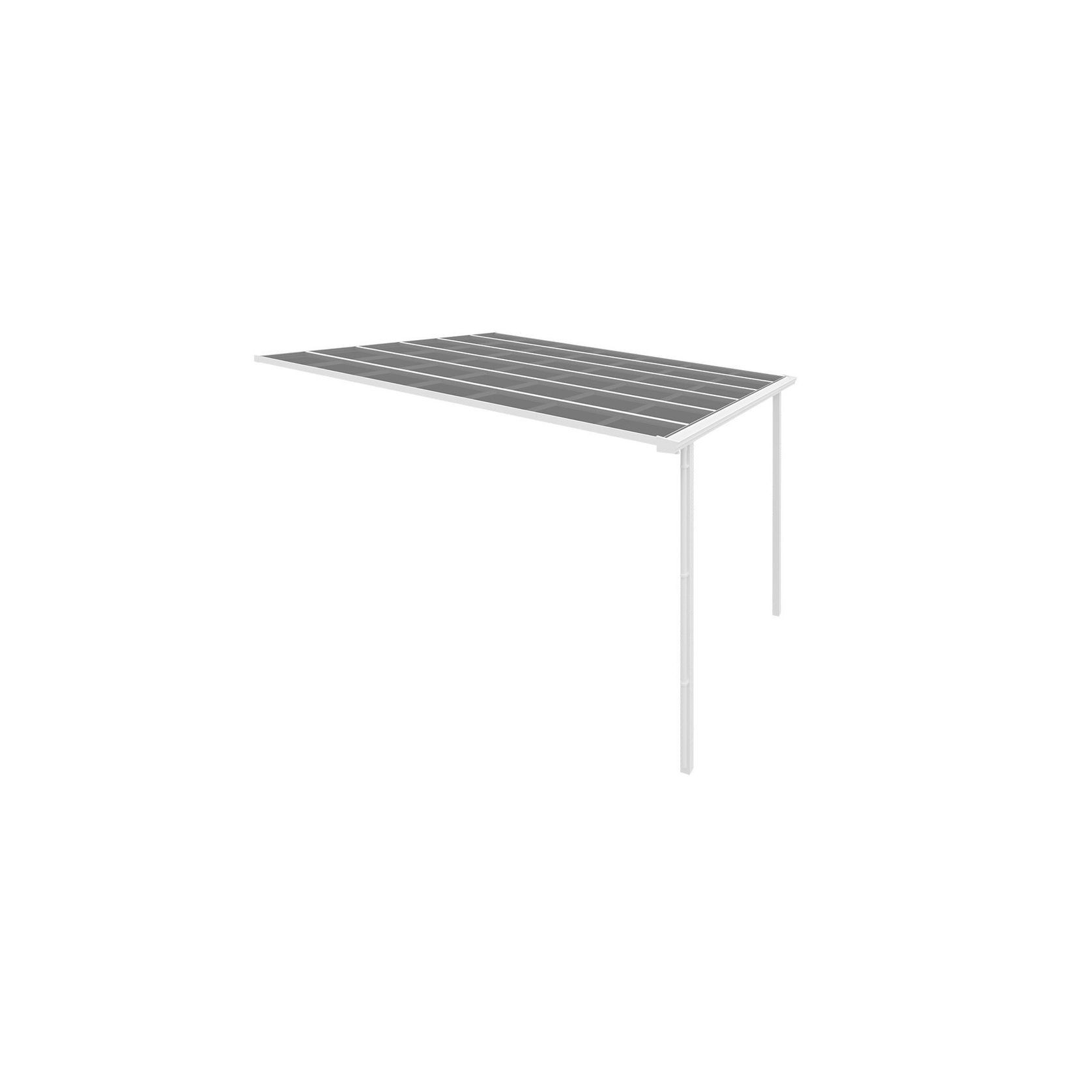

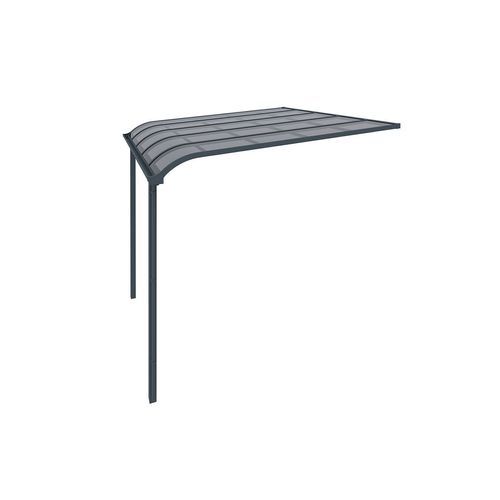

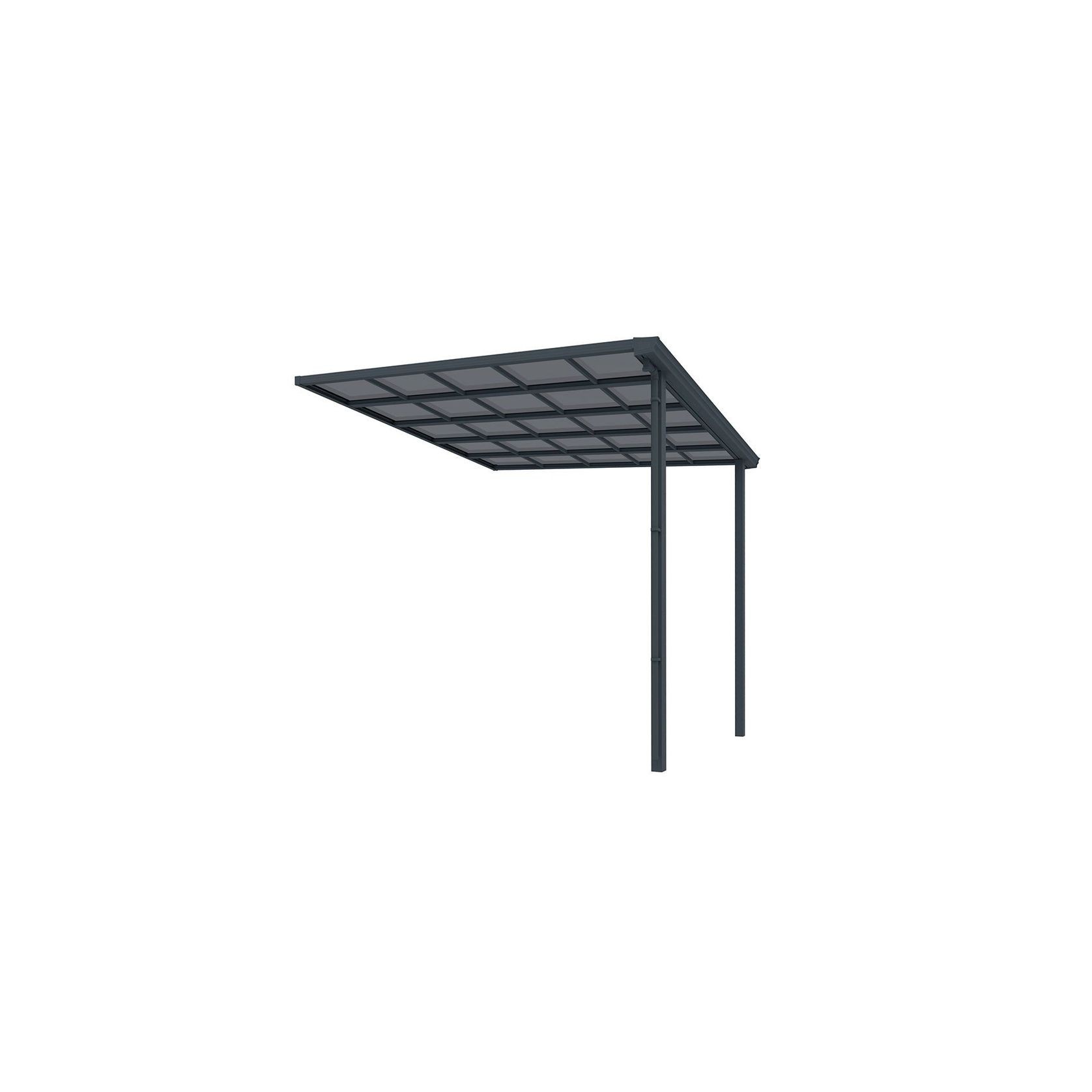

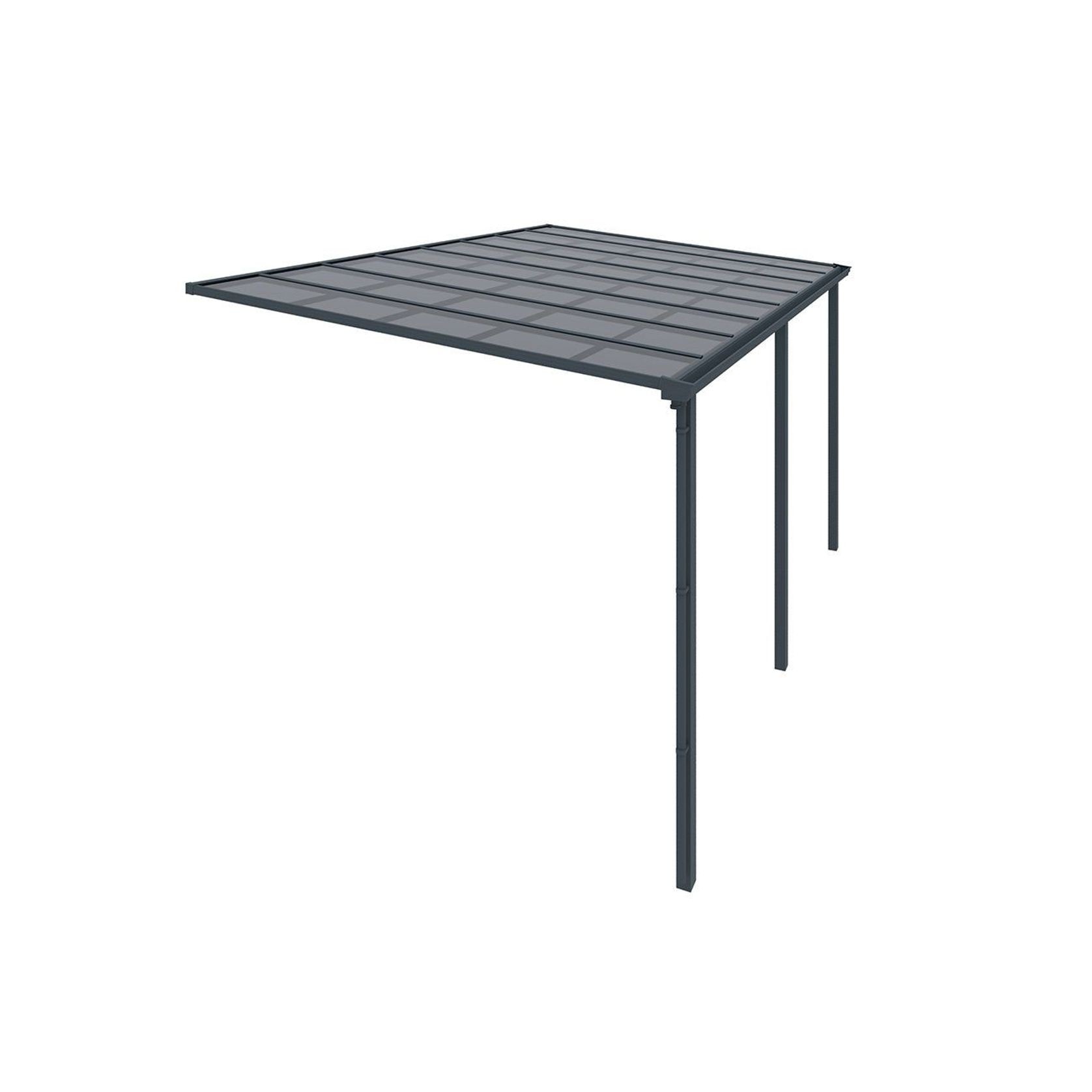

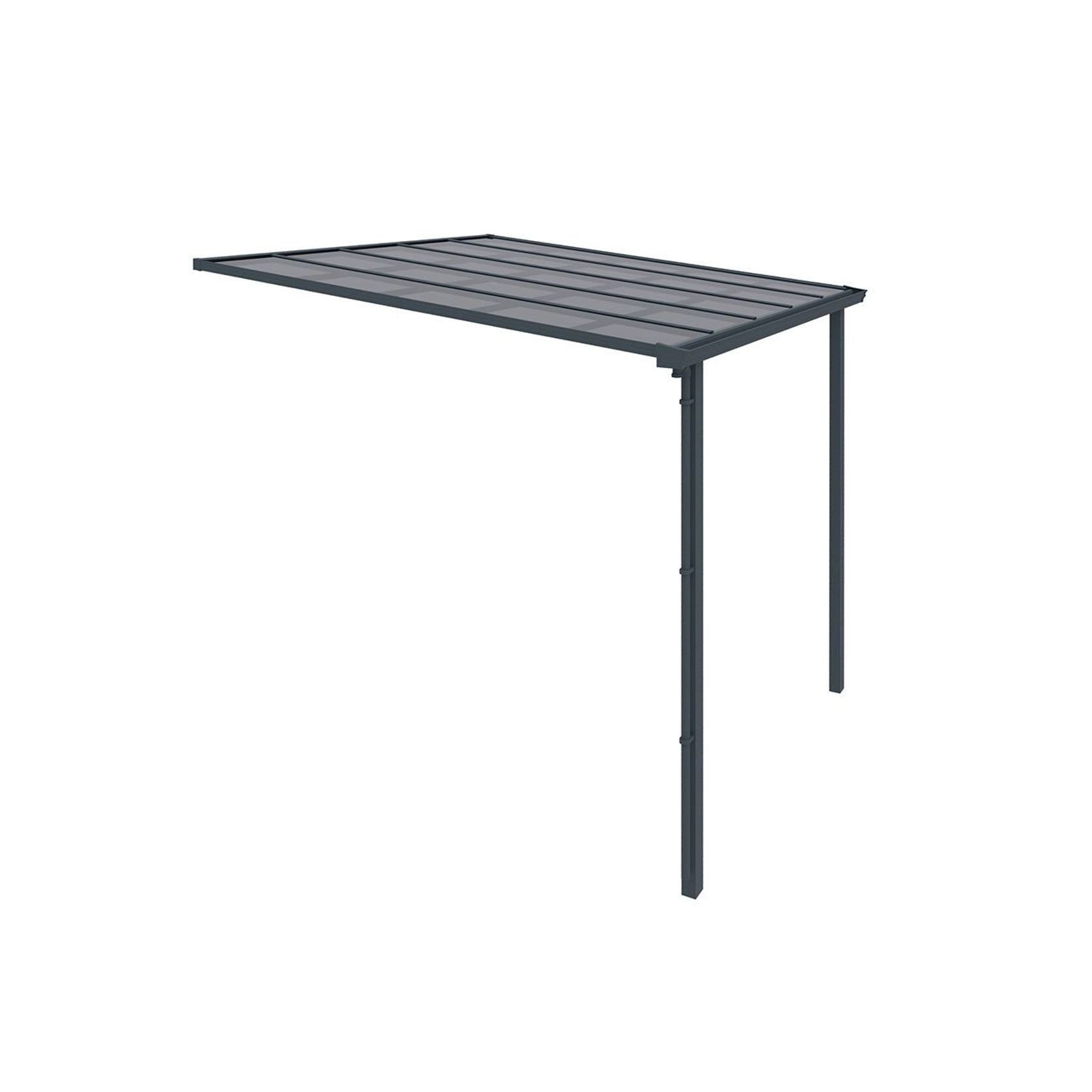

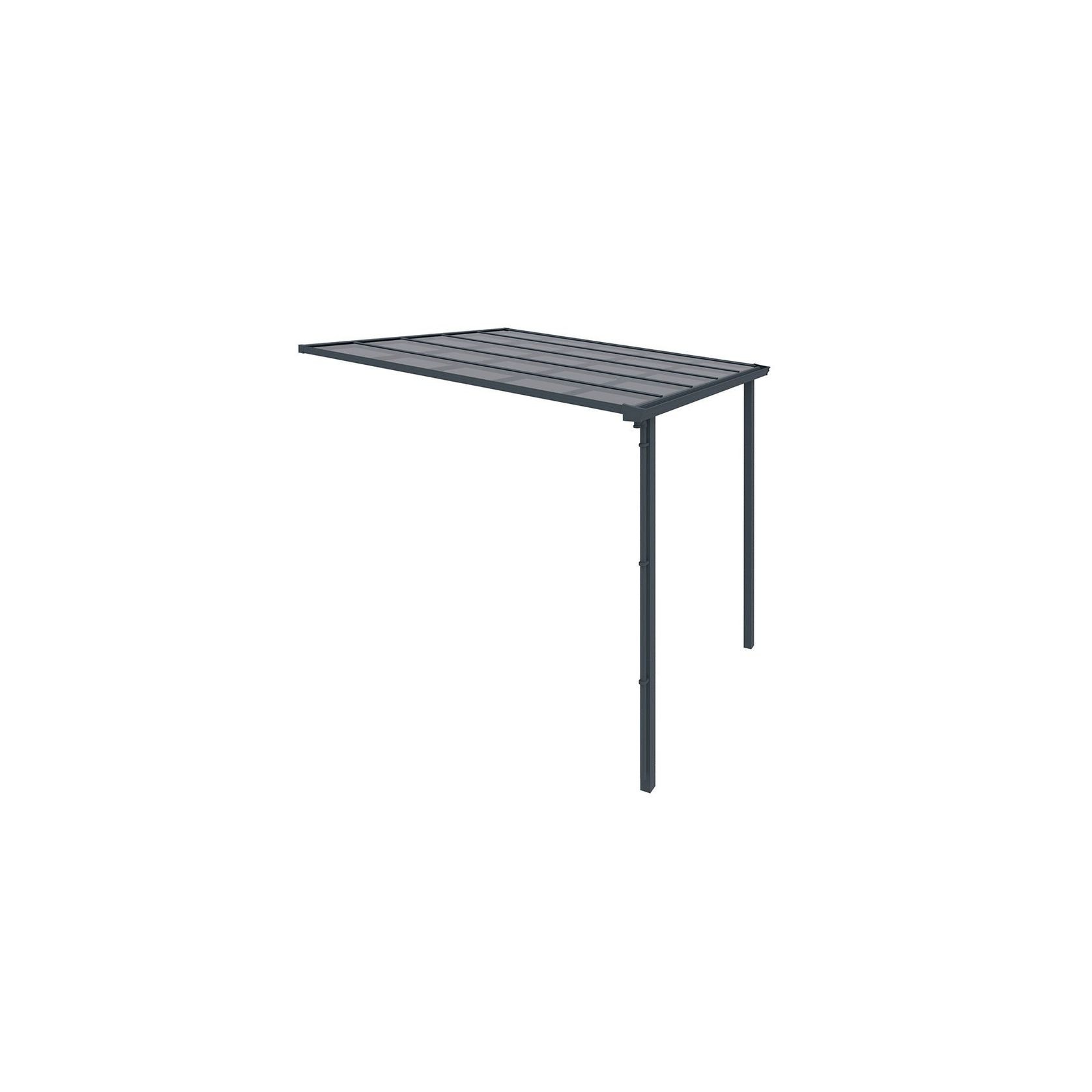

Urban Wall Mounted Patio Cover Collection

$1,799.99
$1,439.99
White / Light Grey
Aluminium
Aluminium

The best way to protect your outdoor furniture and provide a place of refuge from the elements is to install an Urban Collection Wall Mounted Patio Covers are easy to assemble, so you can start enjoying them straight away.

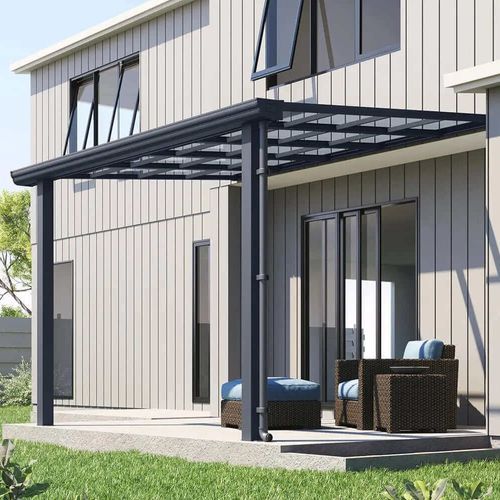

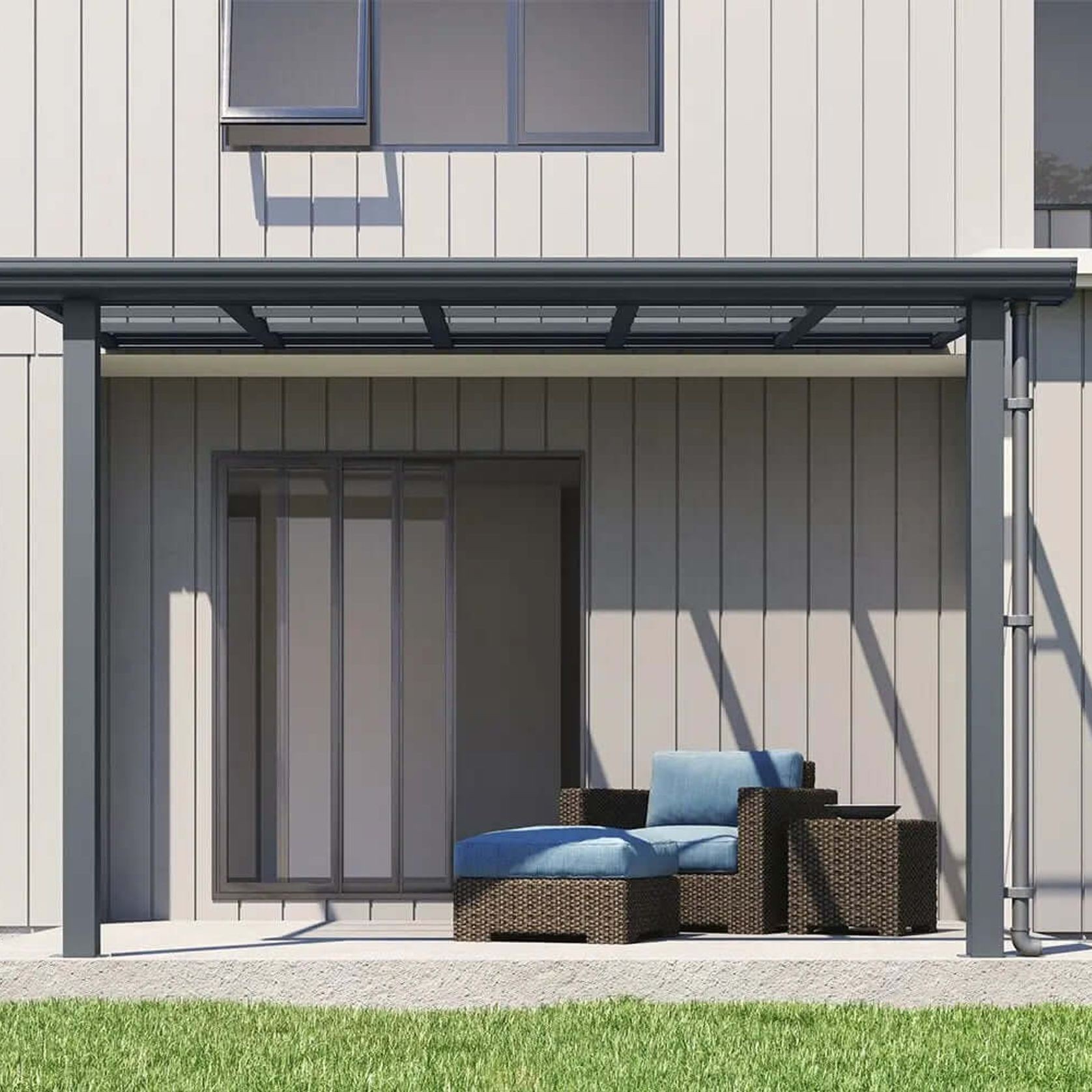

The wall mounted cover is ideal for extending your living space outdoors, protecting your BBQ area, shelter over the spa, or even as a carport.

Constructed from our Akzo powder-coated aluminium, it is designed to be suitable in the harsh New Zealand elements and last for years to come. The elegant grey hue of the frame suits all homes and outdoor spaces. Simply install against a solid wall structure with the help of a handy professional.

Using impact-resistance German designed Bayer® 2mm PC polycarbonate roof shields, the structure helps ward off harsh UV rays, rain or even snowfall. These polycarbonate panels are environmentally friendly and coated with an anti-ultraviolet treatment to help insulate and provide added comfort below. Stronger and safer than acrylic or tempered glass, you can depend on the structure to provide shelter year round adding a perfect spot for socialising with friends and family.

Optimise your outdoor living space with this stylish and functional unit.

Note: This product requires professional installation. Get in touch with our installation team or call 0800 298 398

NB: It takes 8-12 weeks for color customization.

Details
  • Category
    Awnings
  • Range
    Wall Mounted Patio Cover
  • Warranty
    10 years
Specifications
  • Frame Material: Powder Coated Aluminium Alloy (6063-T5)
  • Roof Panel Material: 2mm Bayer® PC Polycarbonate Sheets, double sides 50 μm anti-UV surface treatment

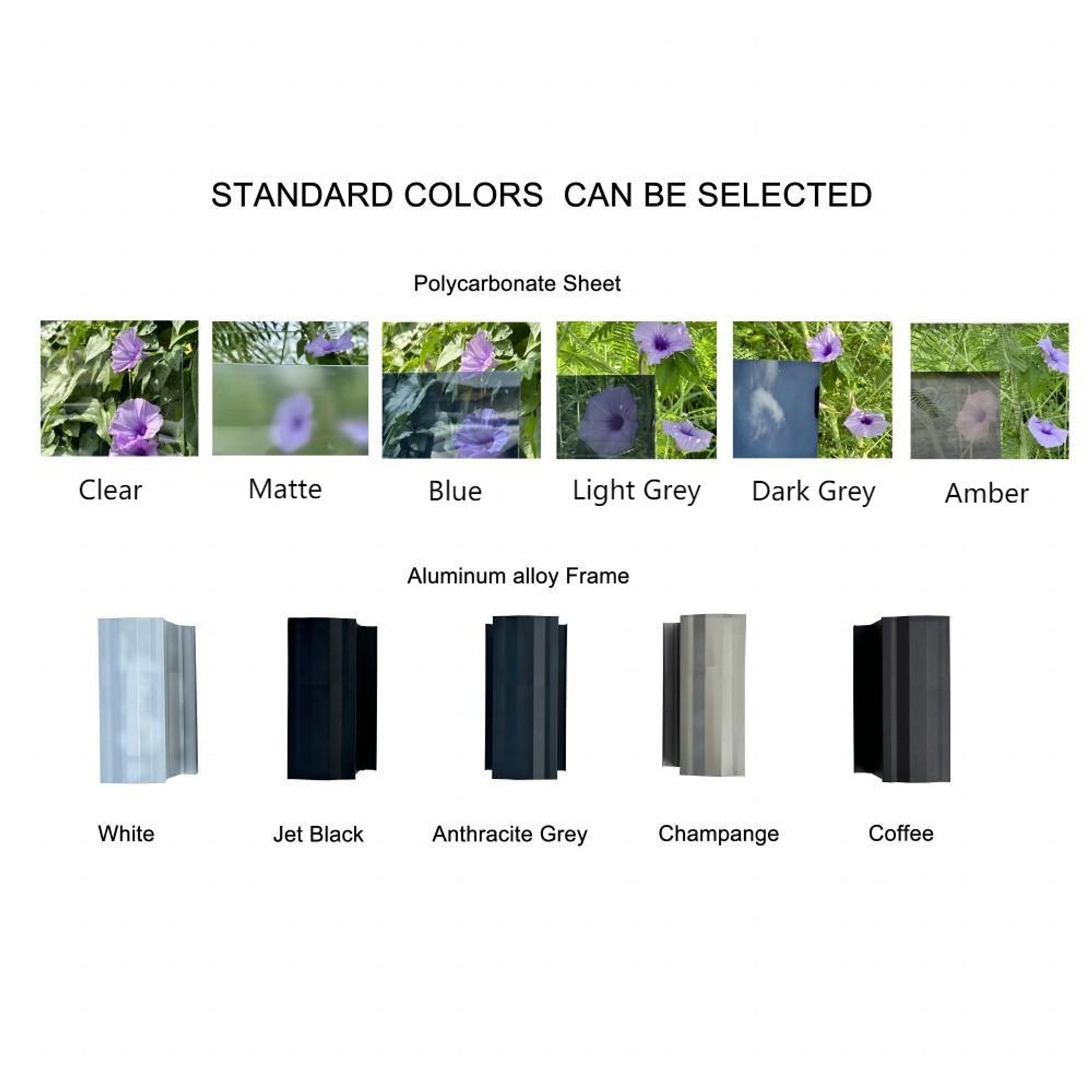

  • Aluminum Frame Color Option:  White / Black / Grey / Champagne /  Coffee
  • Roof panel Color Option: Clear / Matte/ Blue / Light Grey / Dark Grey / Amber
  • Post: 70 x 90mm Thickness: 2mm
  • The Post height: 2800mm
  • Down Pipe: 2800mm
  • Side Frame: 60.5 x 56mm, thickness: 1.3mm - 2.6mm
  • Middle Frame: 73 x 53mm, thickness:1.4mm - 2.6mm
  • Gutter: 162 x 88mm, thickness: 2mm
  • Wall Tube: 67 x 46.3mm, thickness: 1.7mm
  • Small Bracket: 36 x 25mm, thickness: 1mm
  • Wind Load: 120km/h
  • Snow Load: 0.2kn/m² (snow thickness: 20cm)
  • Roof Panel Temperature Range: -40°C to +120°C
  • Roof Panel Sunshine Blockout: 70%
  • Roof Panel UV Protection: 99%
  • Waterproof Strip Material: EPDM
  • Package Material: Carton
  • 10-year warranty on the aluminium frame
  • 10-year warranty on polycarbonate roof sheets
Features
  • Stylish and functional.
  • German designed Bayer® 2mm PC polycarbonate panels.
  • Impact resistant, eco-friendly, UV-resistant panels.
  • Insulates for added comfort.
  • 6063-T5 aluminium frame.
  • Akzo Powder-coated.
  • Water and corrision resistant.
  • Provides protection against sun, rain and snowfall.
  • Extends your living space outdoors.
  • Socialise outdoors all year round.
  • 10-year warranty on the aluminium frame
  • 10-year warranty on polycarbonate roof sheets
  • Straightforward installation - instructions & accessories included.
Packages

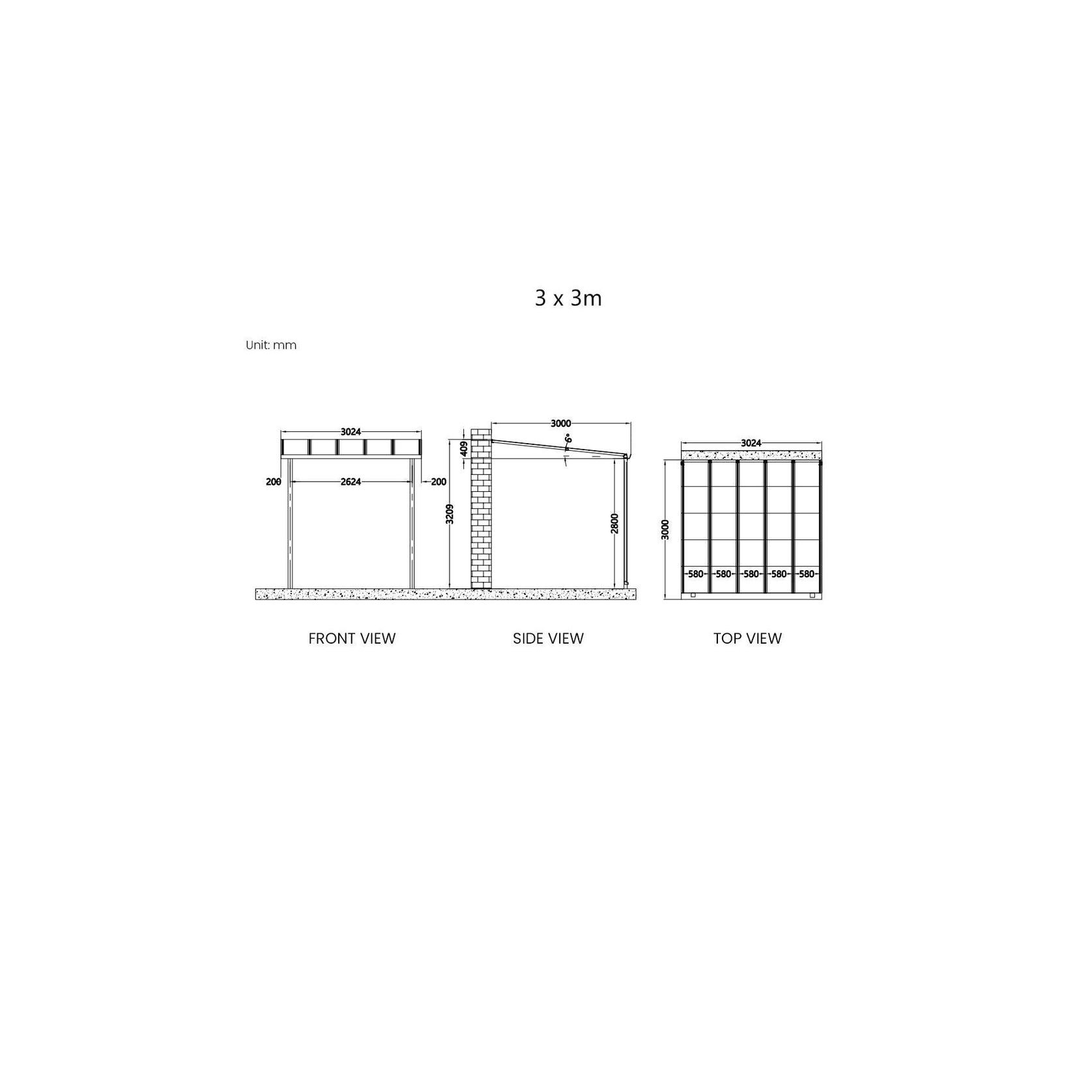

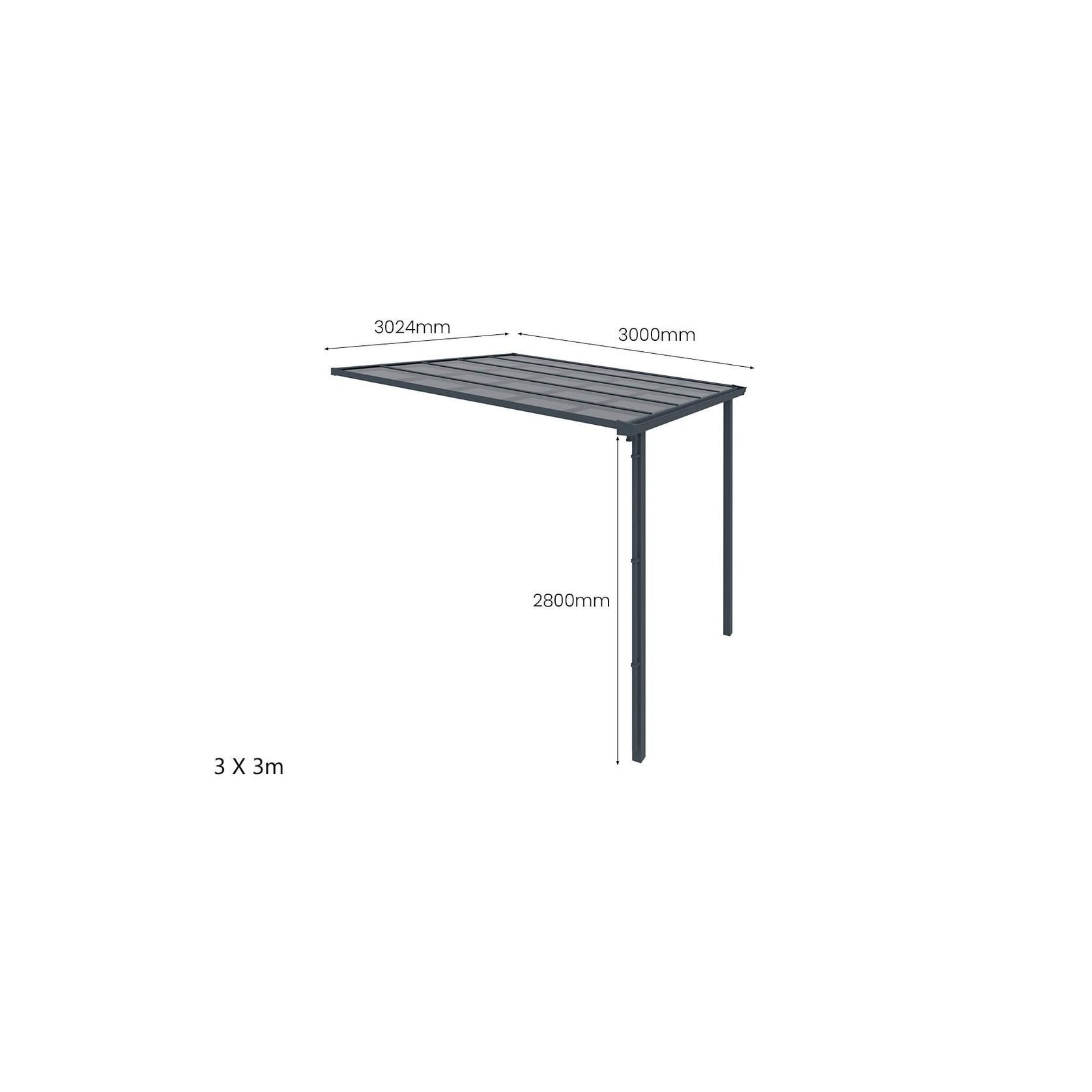

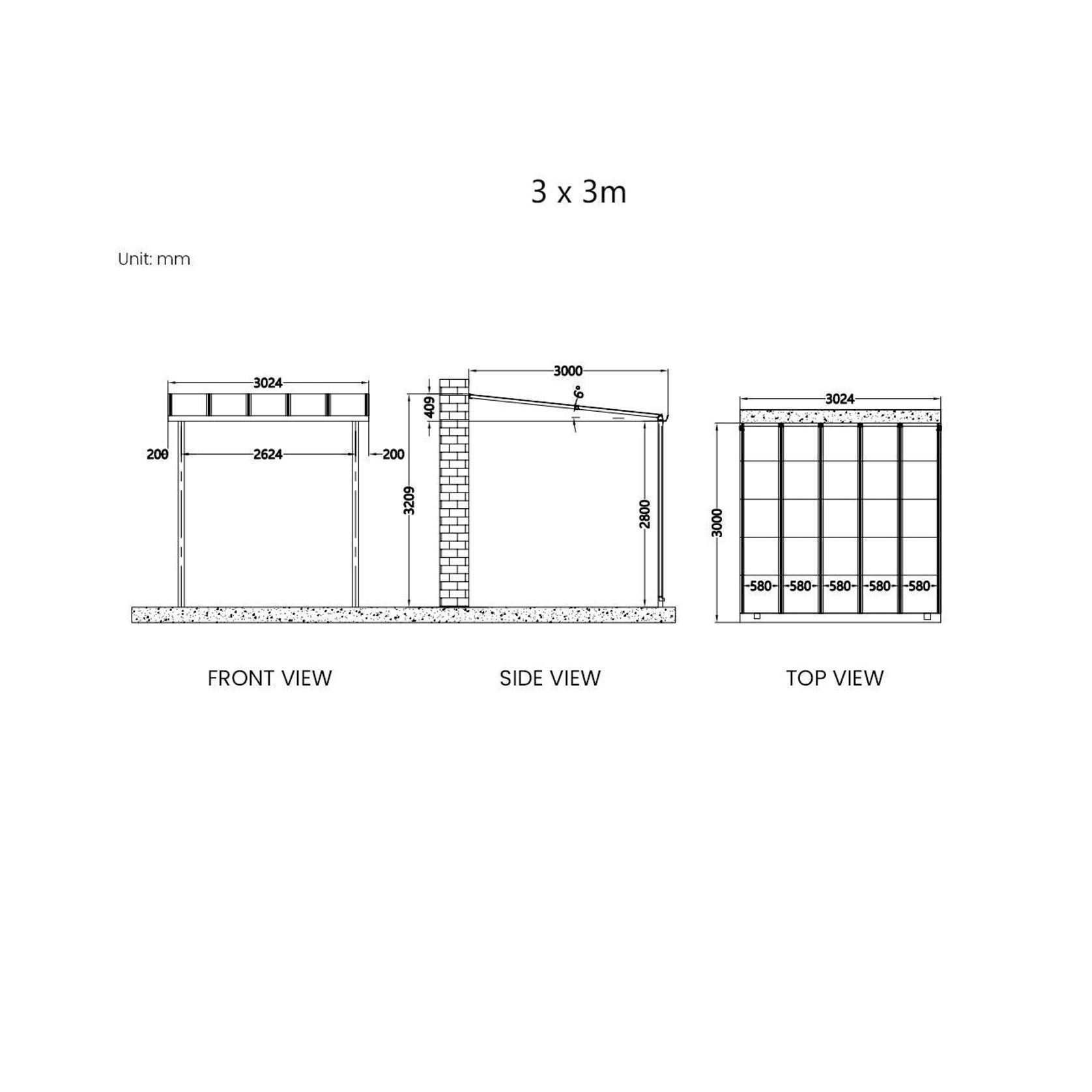

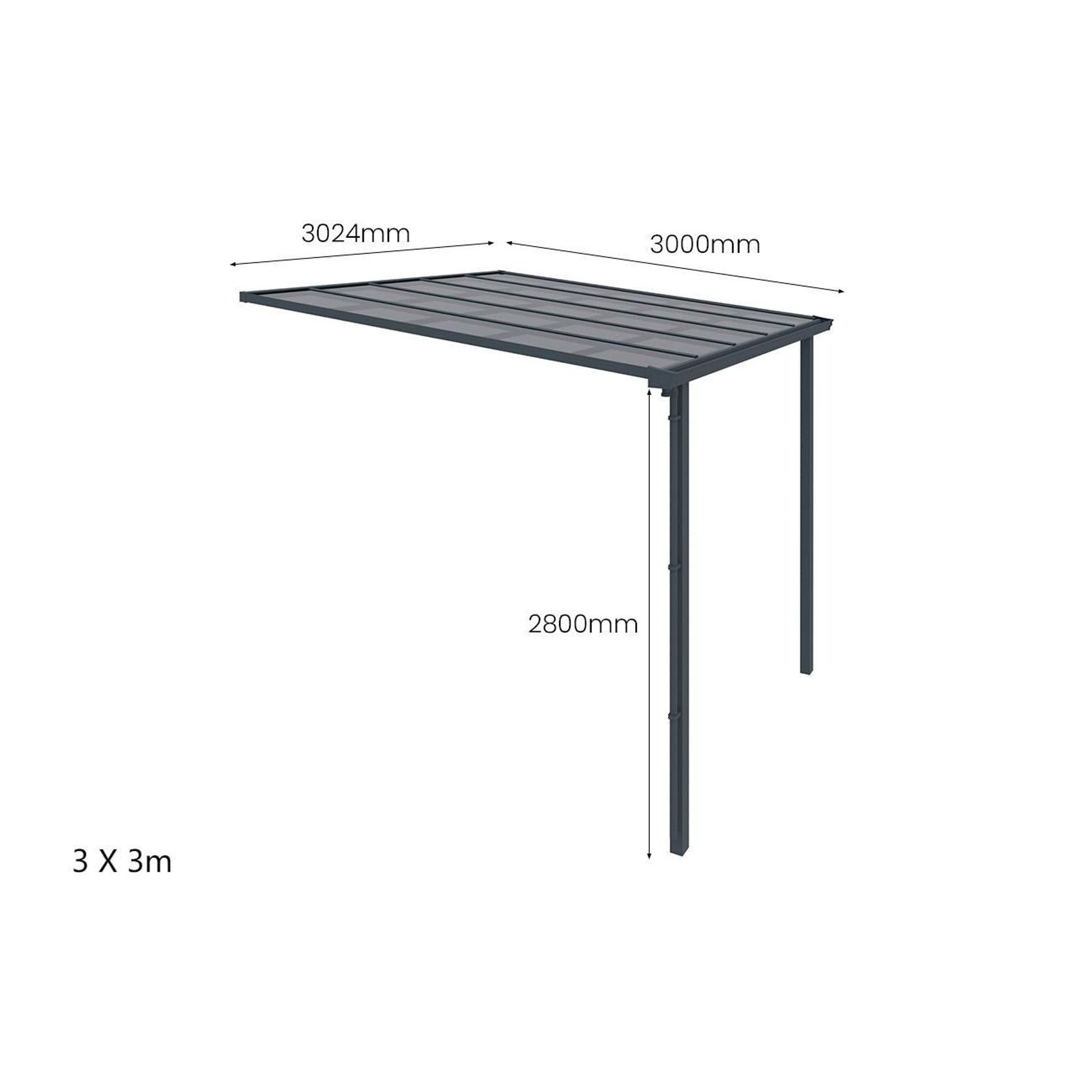

3 x 3m

  • Package 1: 350 x 33 x 22cm,52kg
  • Package 2: 50.5 x 50.5 x 63.5cm, 26kg

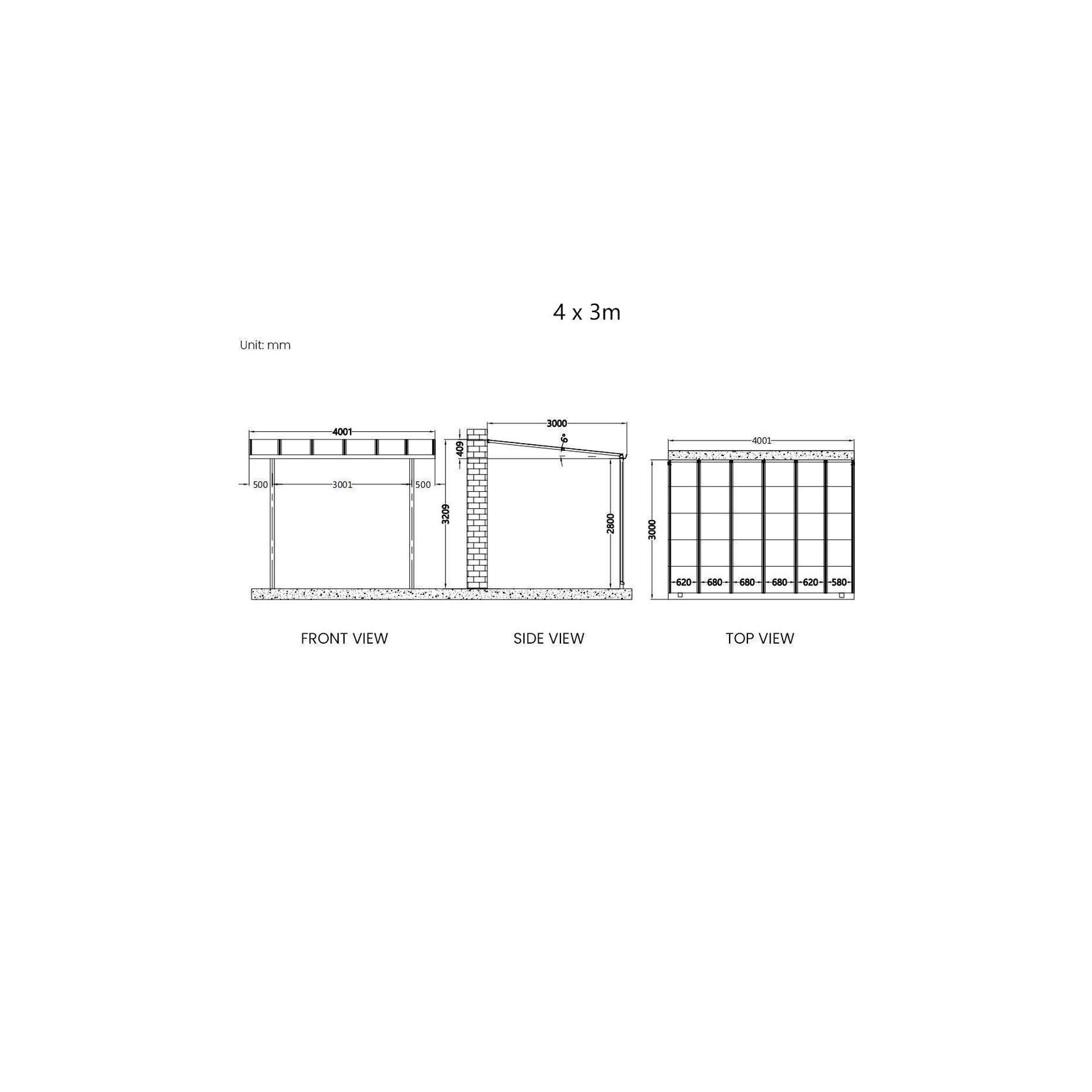

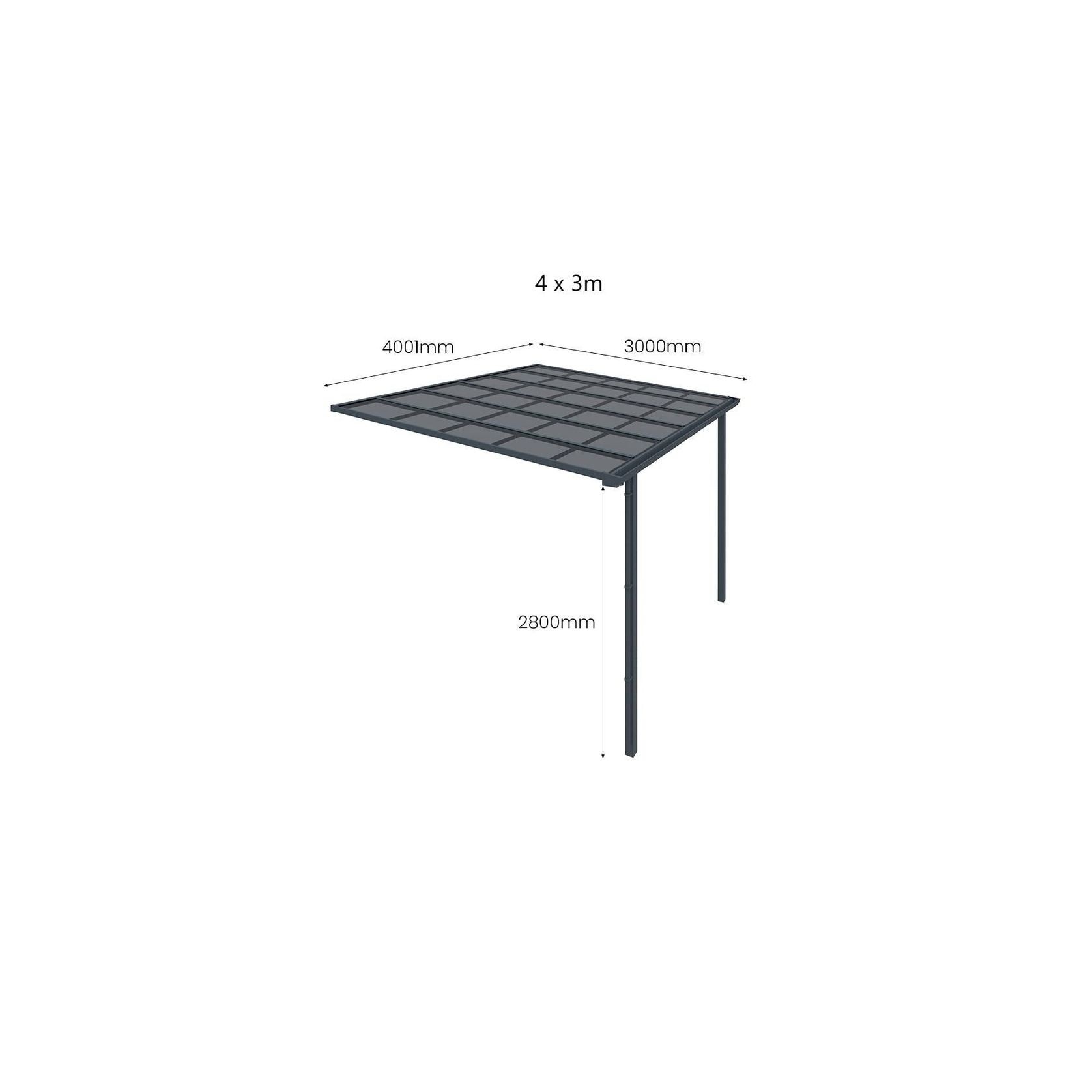

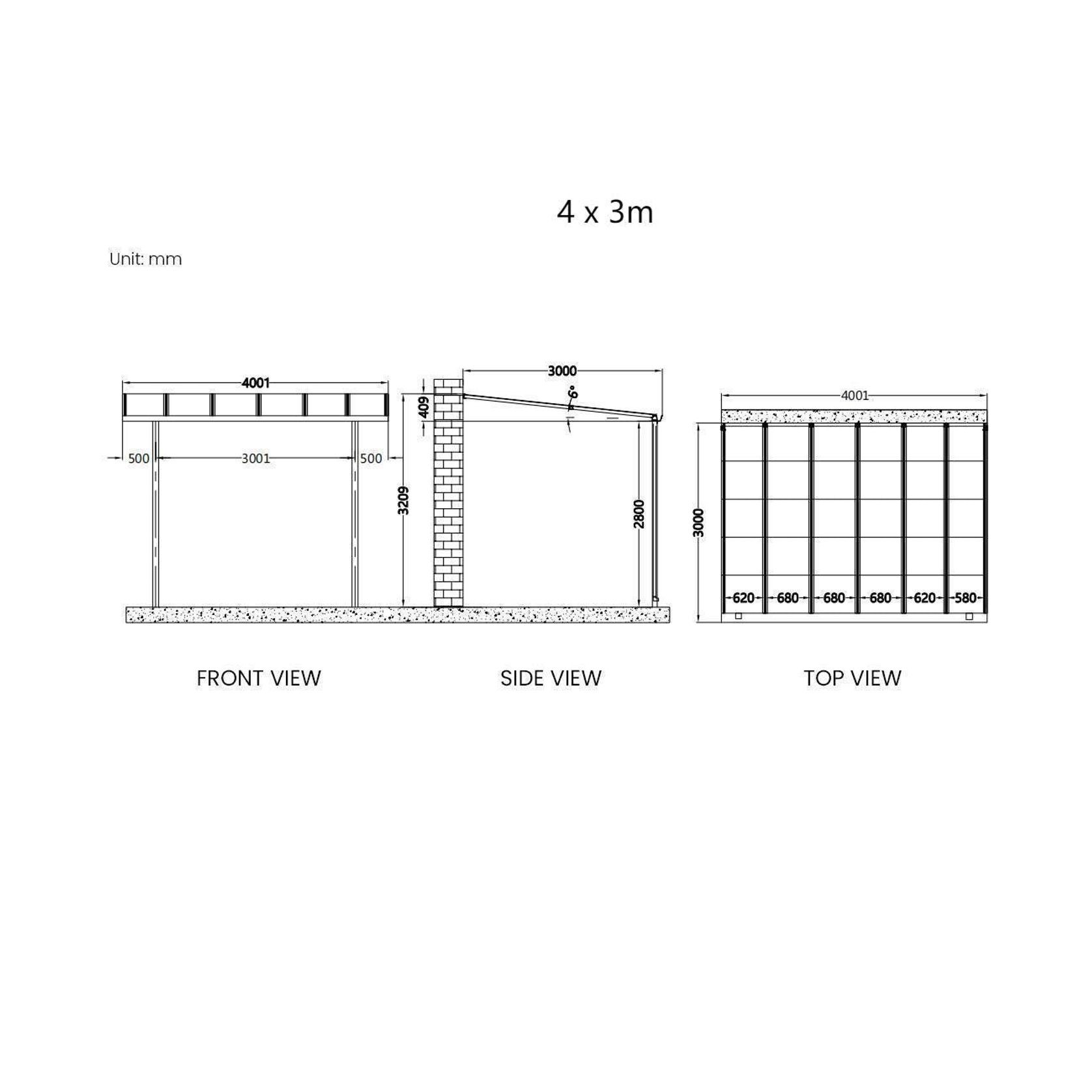

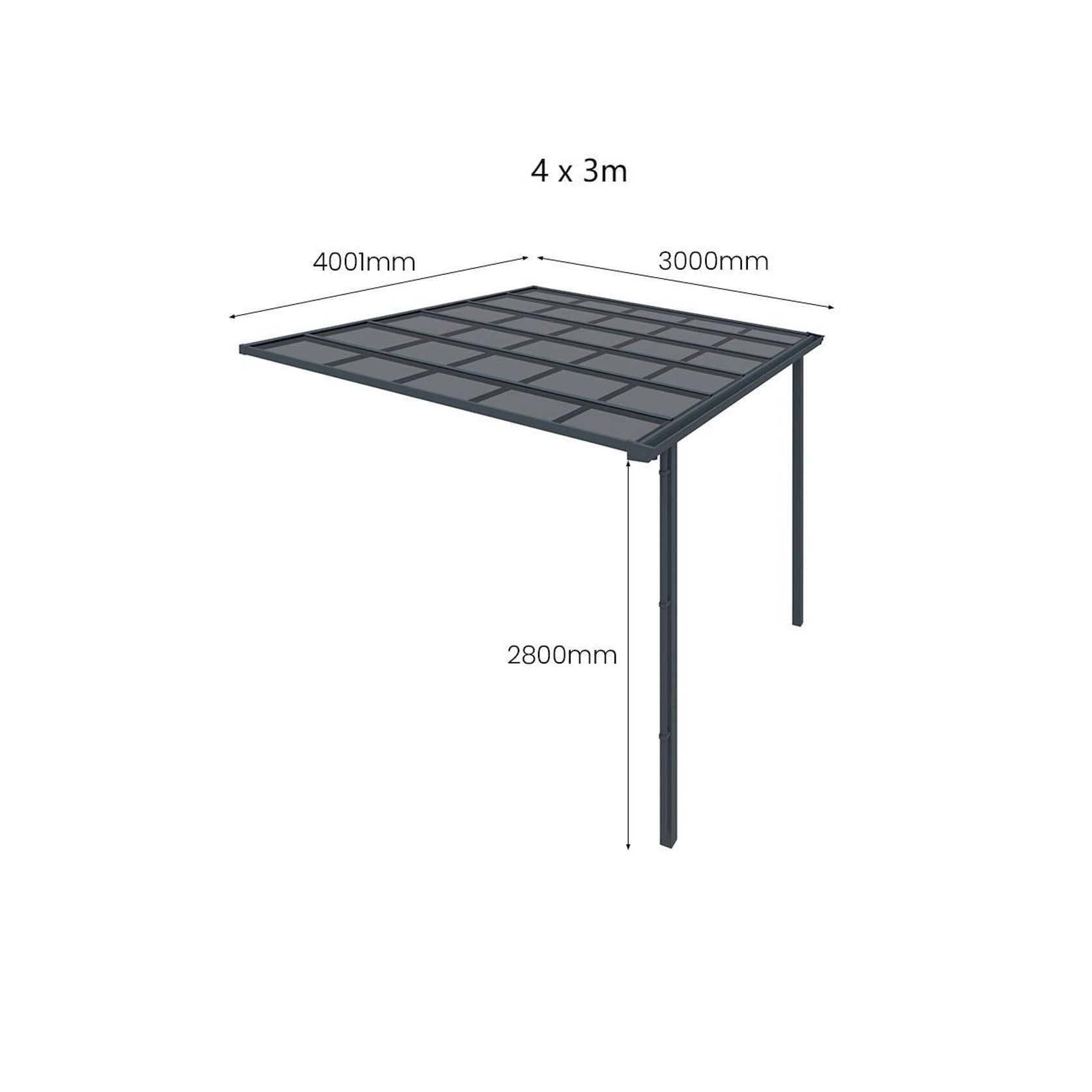

4 x 3m

  • Package 1: 404.5 x 31 x 23.5cm, 63kg
  • Package 2: 50.5 x 50.5 x 73.5cm, 33.5kg

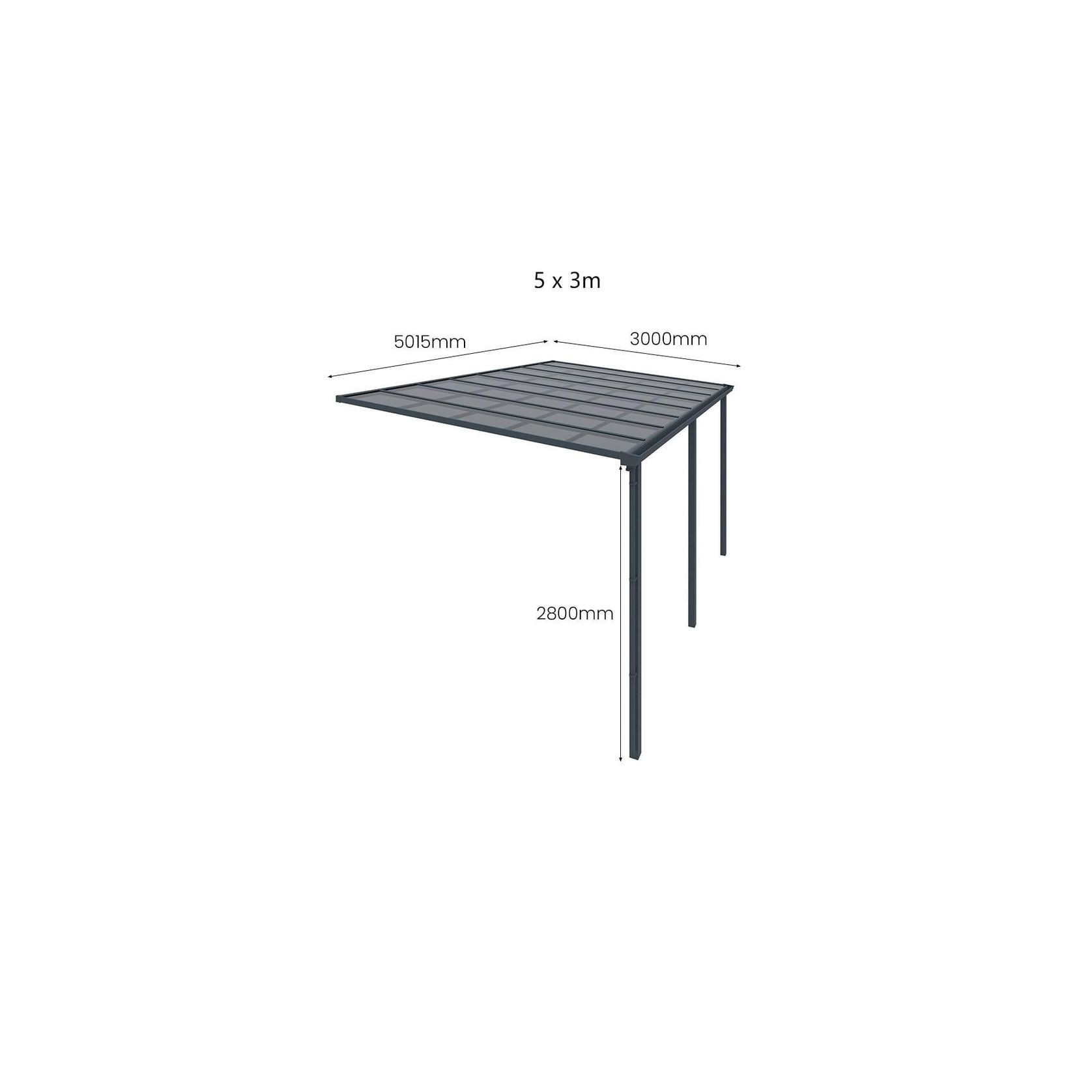

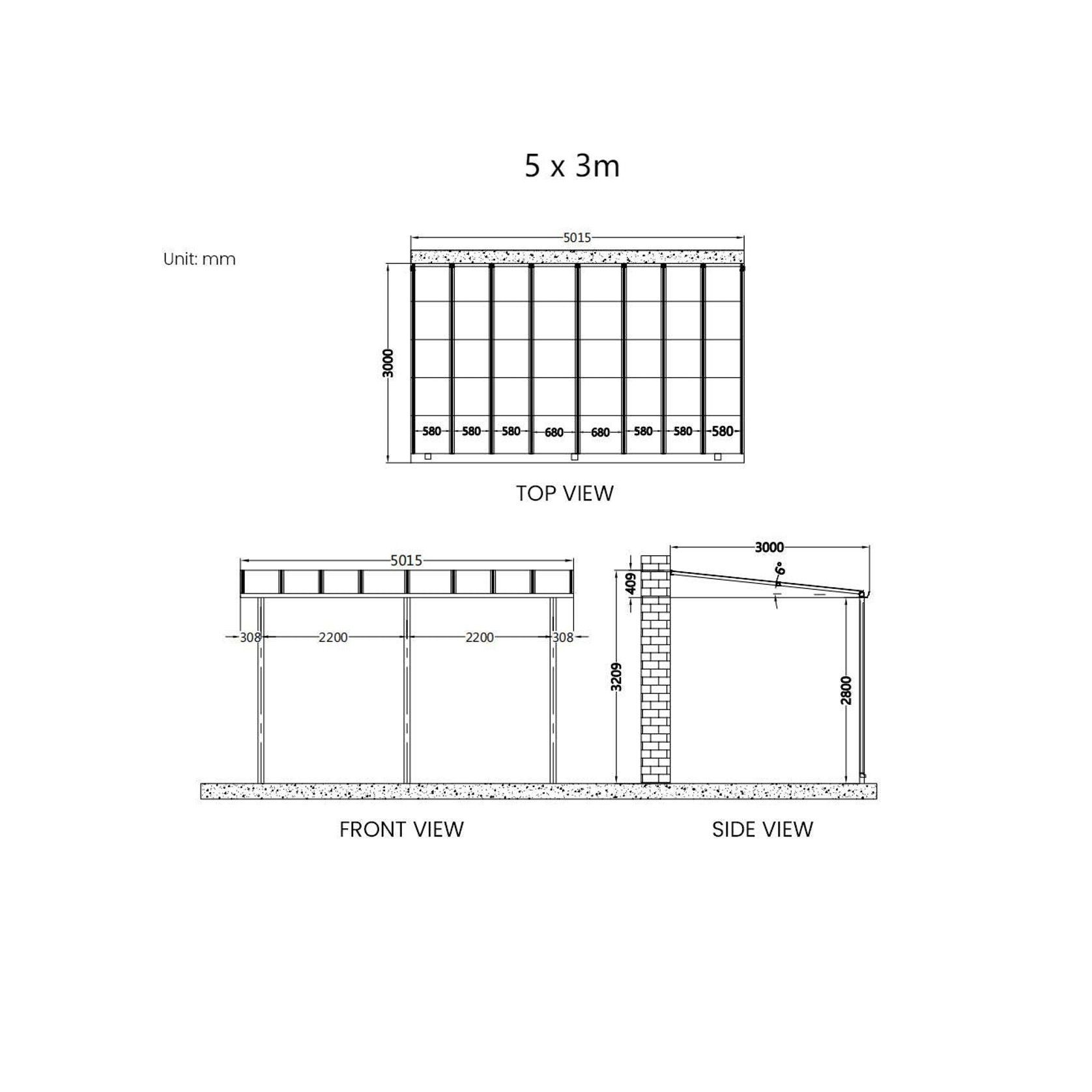

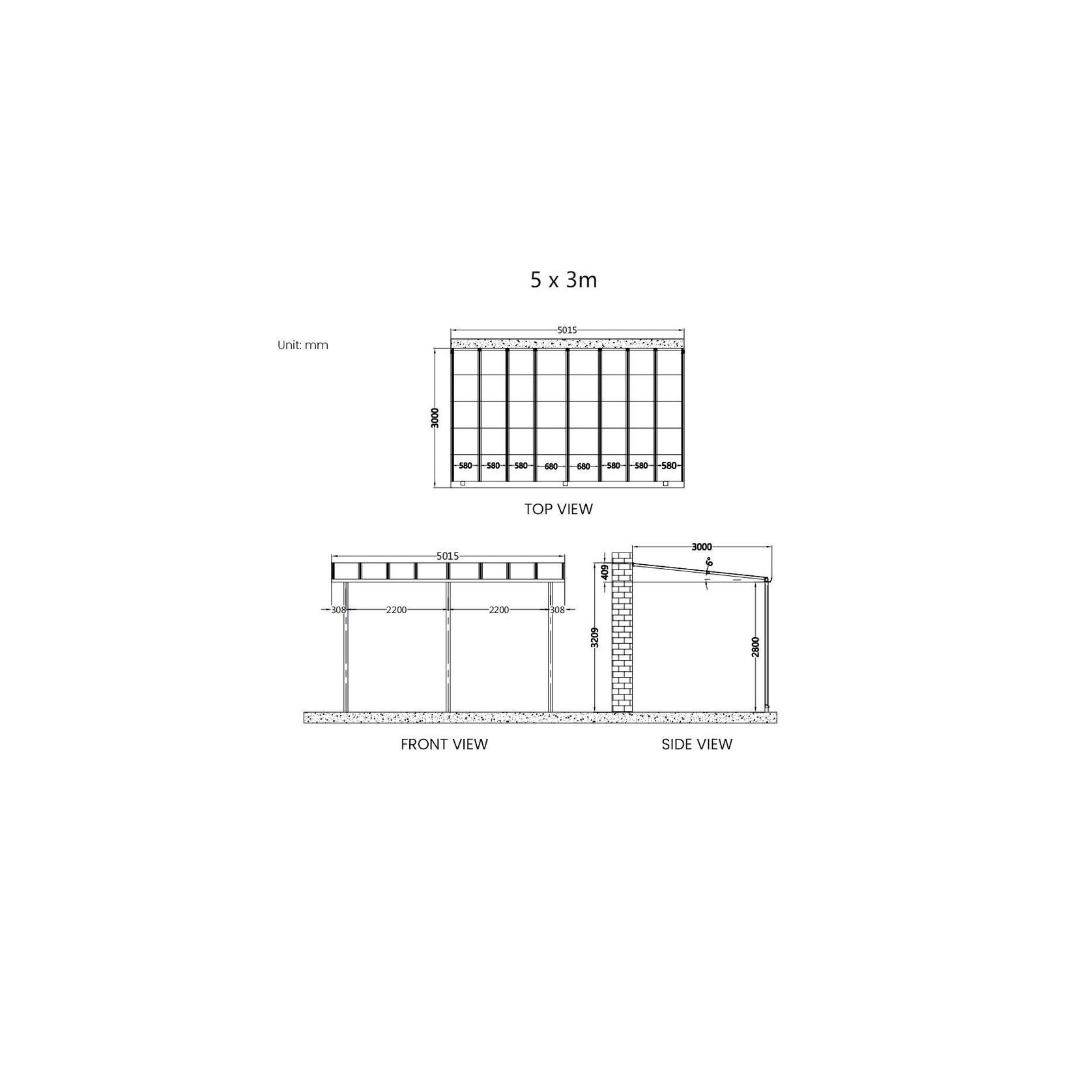

5 x 3m

  • Package 1: 297.5 x 24.5 x 19.5cm, 51kg
  • Package 2: 287 x 30.5 x 23.5cm, 31kg
  • Package 3: 52.5 x 52.5 x 73.5cm, 41.5kg

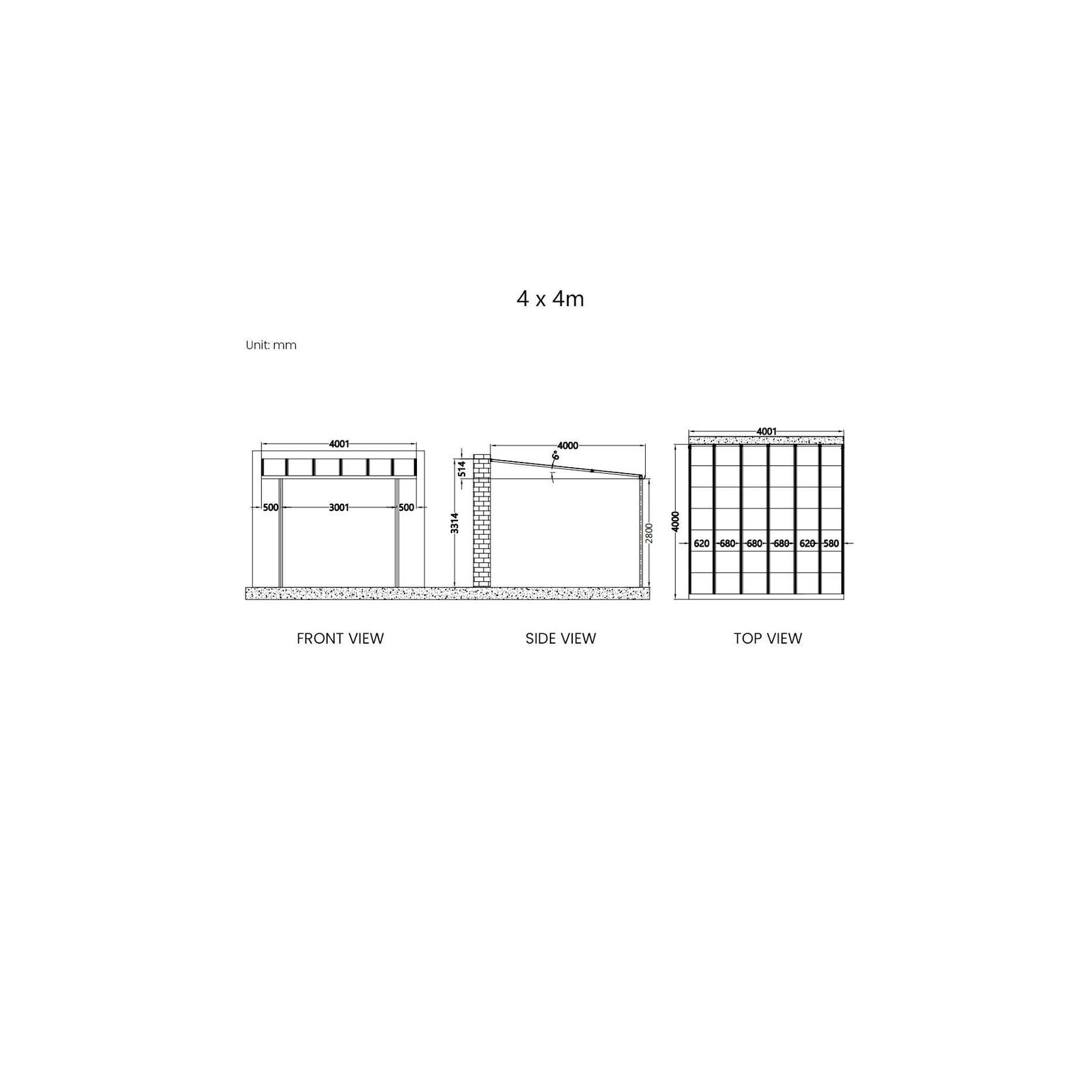

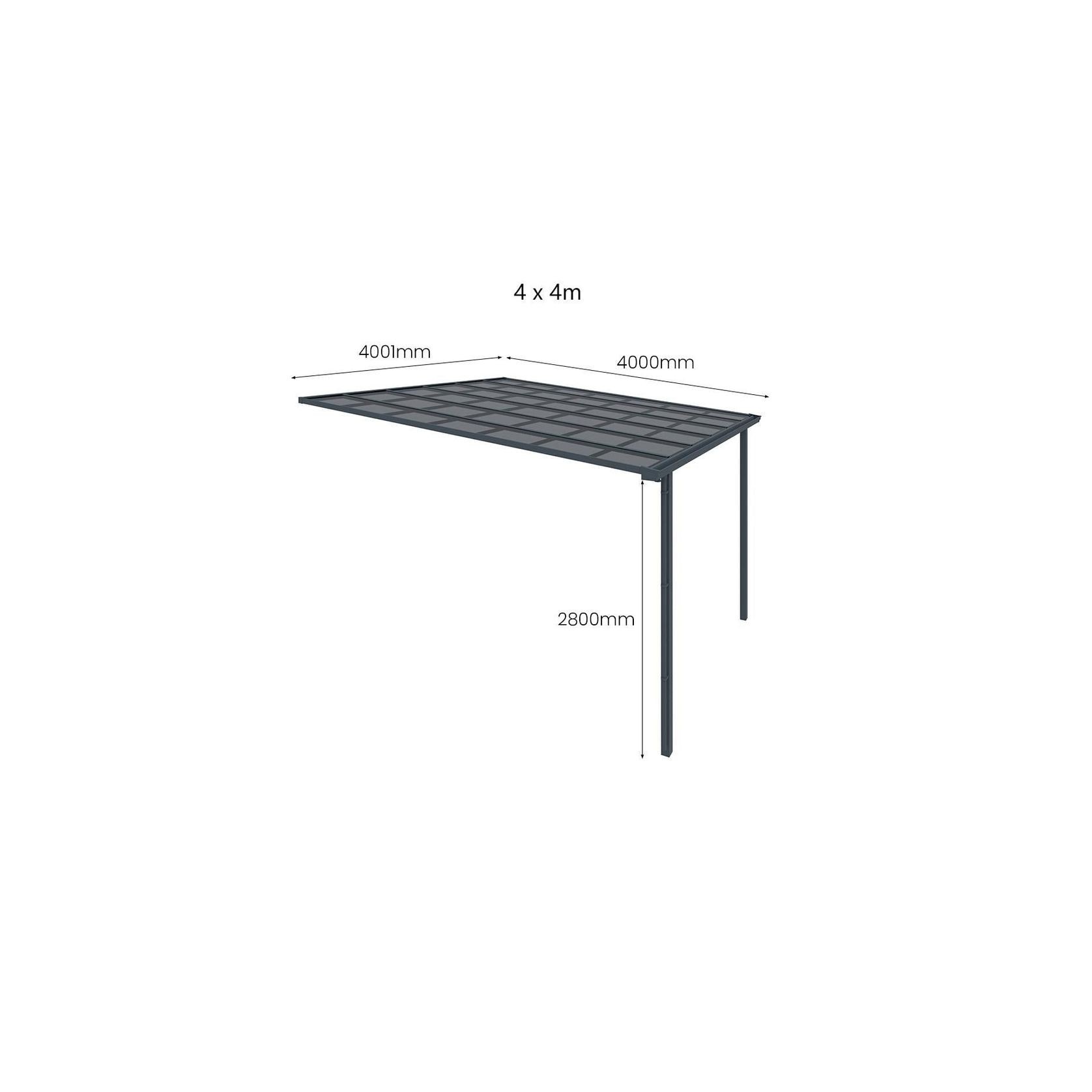

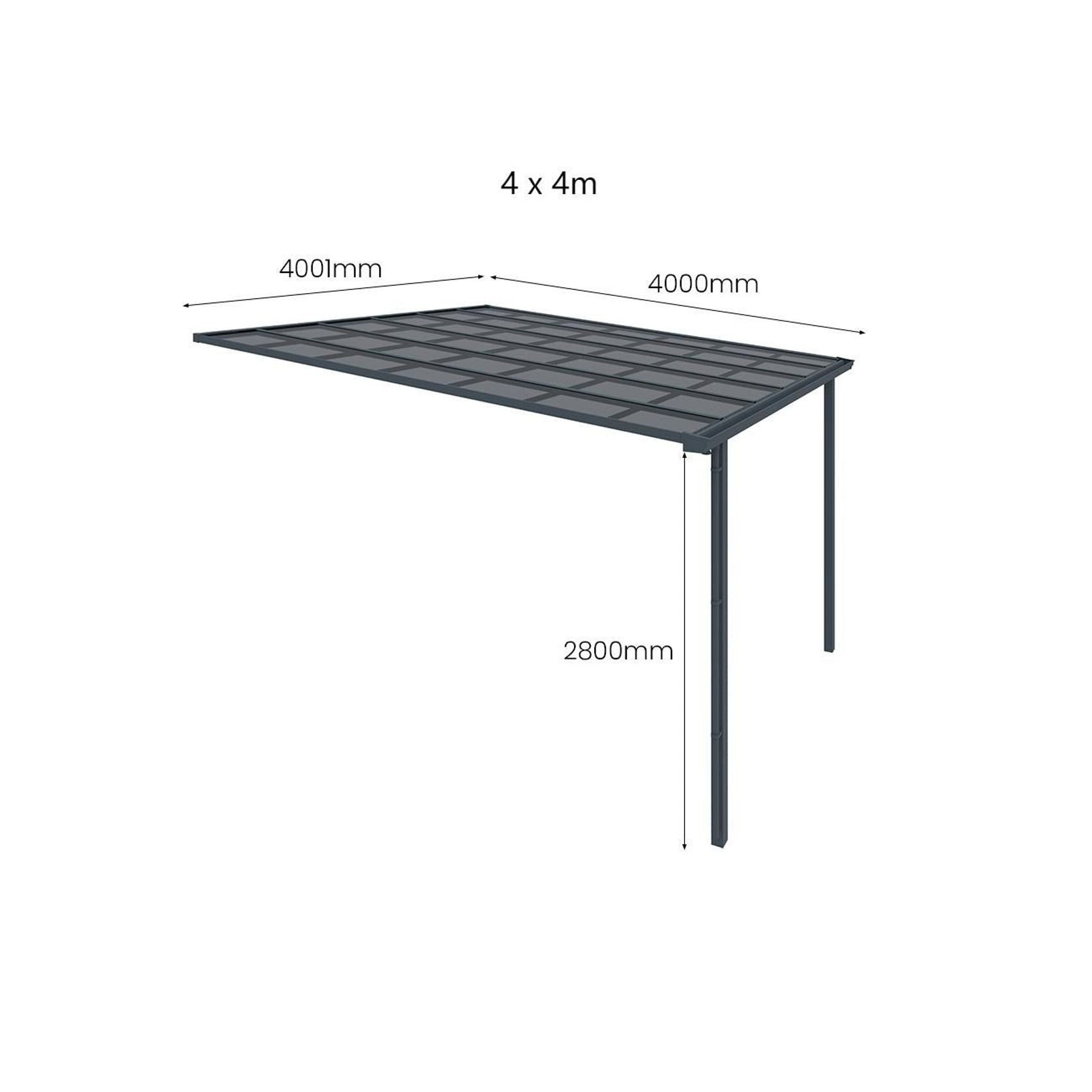

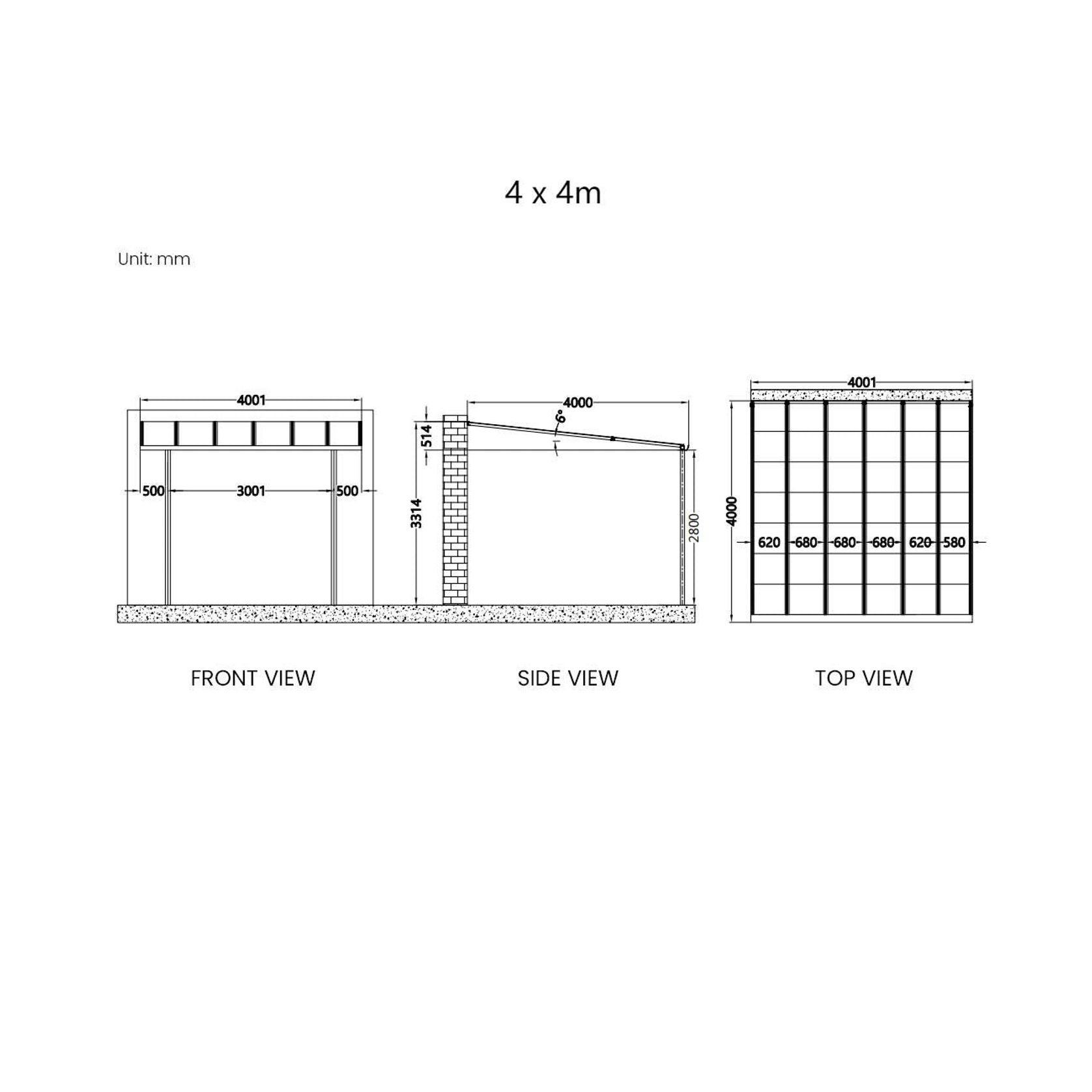

4 x 4m

  • Package 1: 397.5 x 27.5 x 14.5cm, 33.5kg
  • Package 2: 404 x 22.3 x 18.5cm, 42kg
  • Package 3: 53.5 x 53.5 x 74cm, 43kg

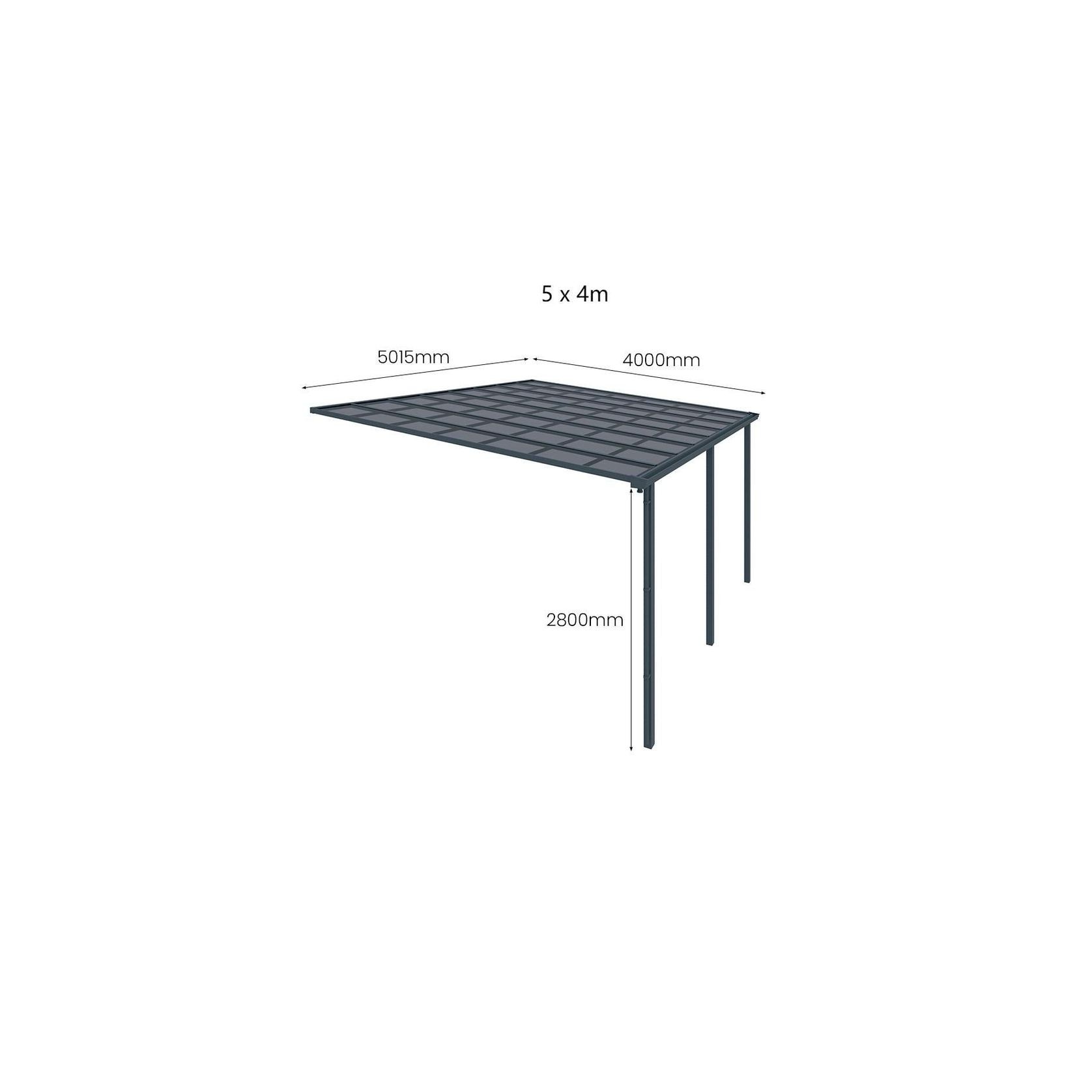

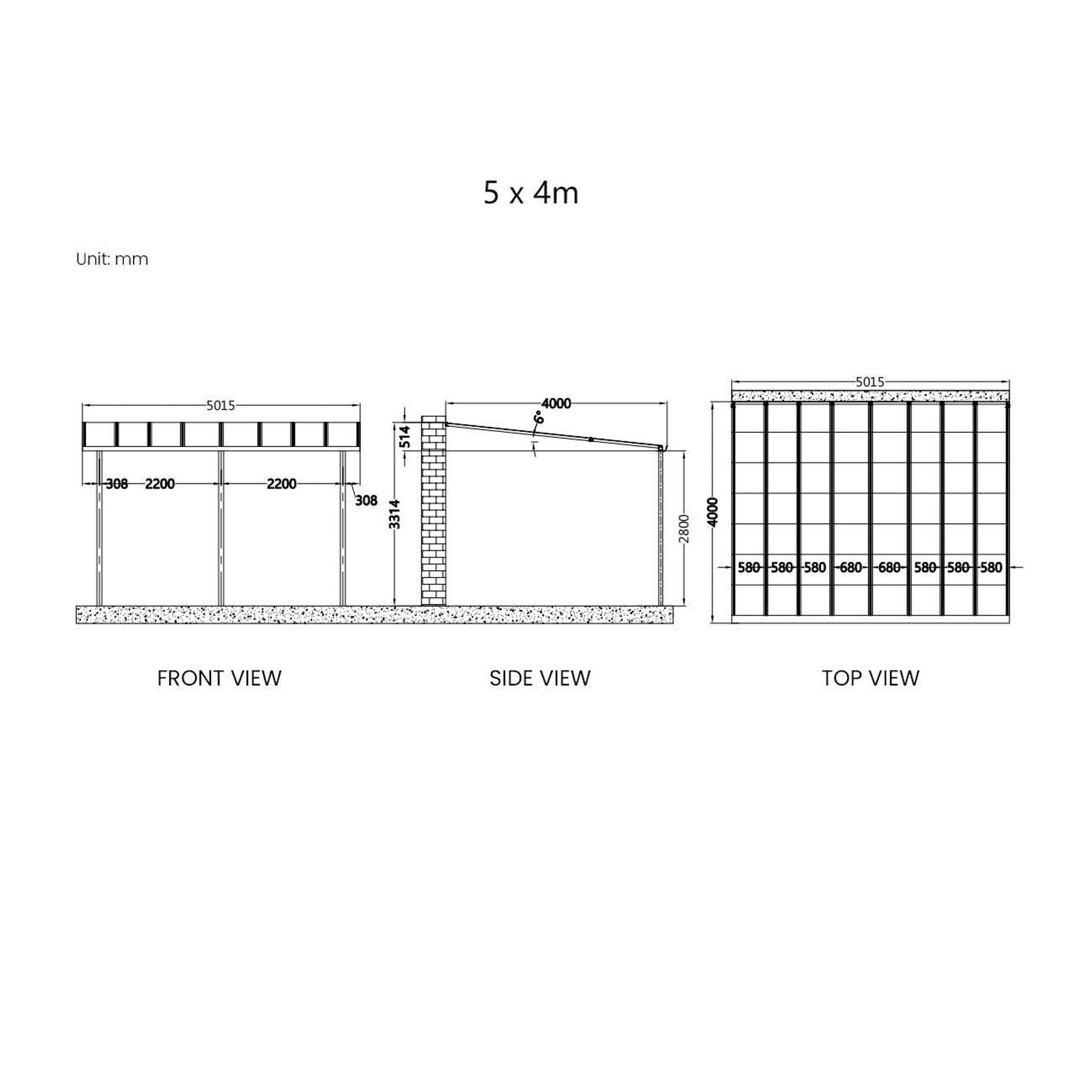

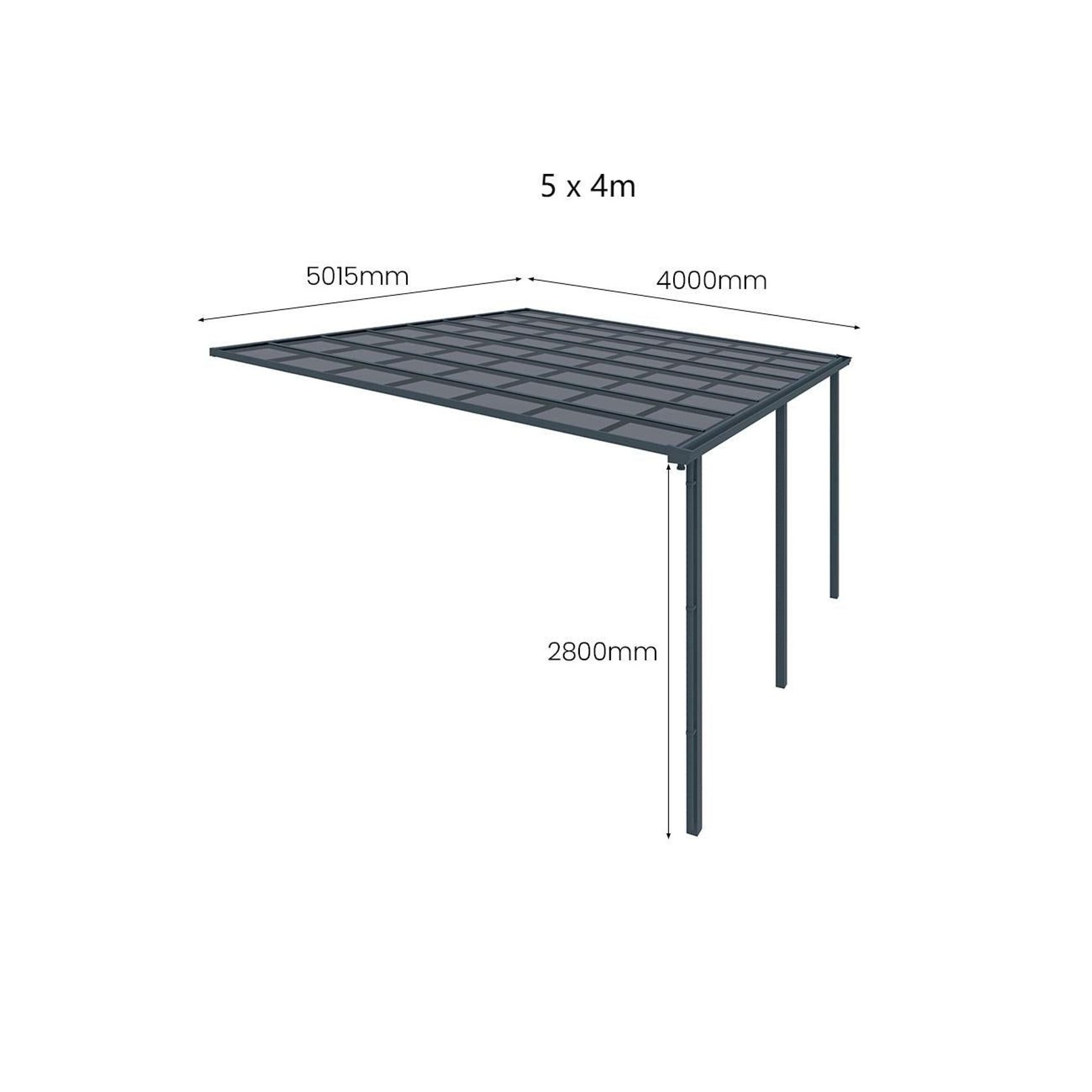

5 x 4m

  • Package 1: 397.5 x 24.5 x 19cm, 43kg
  • Package 2: 2.88 x 30.5 x 23.5cm, 56kg
  • Package 3: 50 x 50 x 64cm, 25.5kg
  • Package 4: 50 x 50 x 64cm, 31.5kg

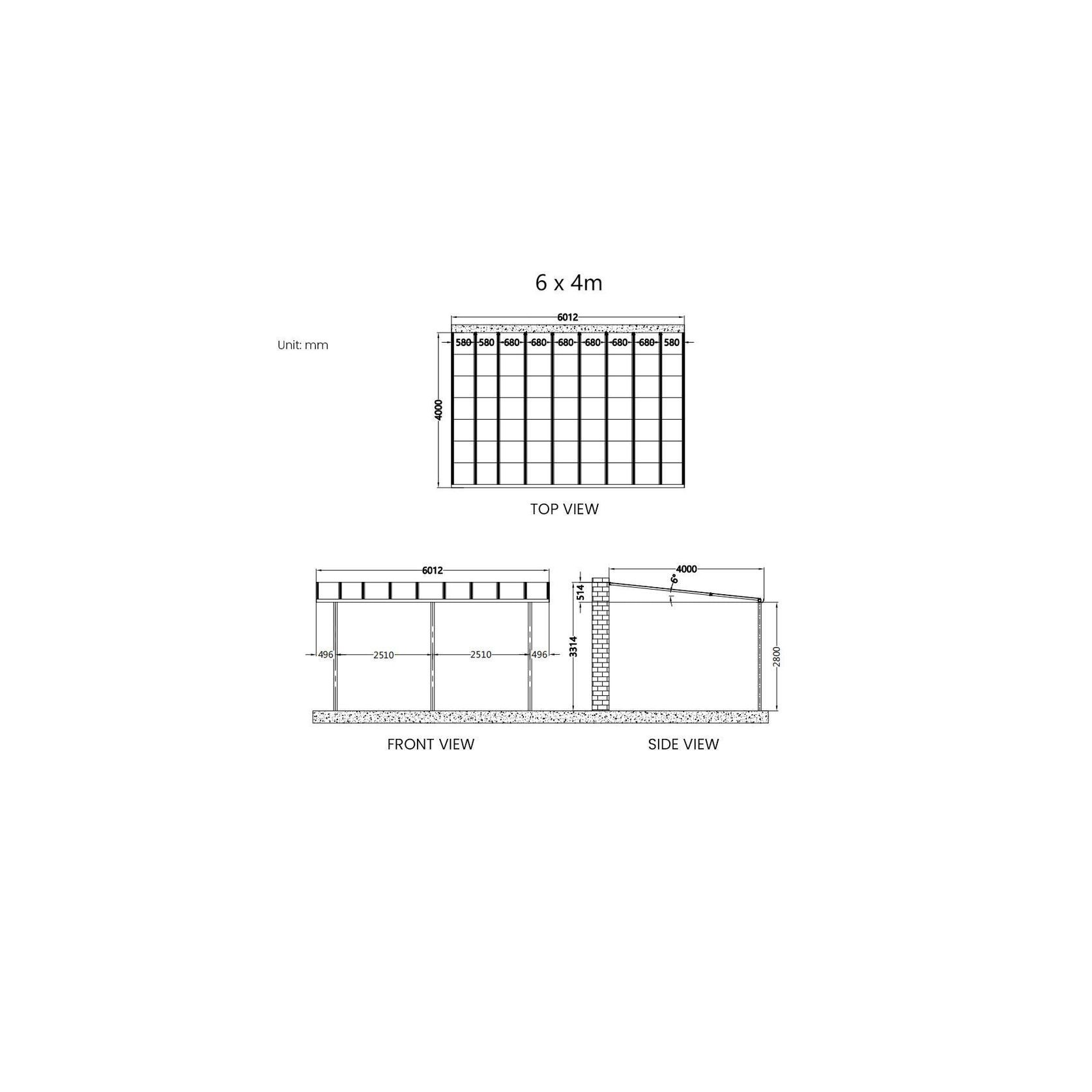

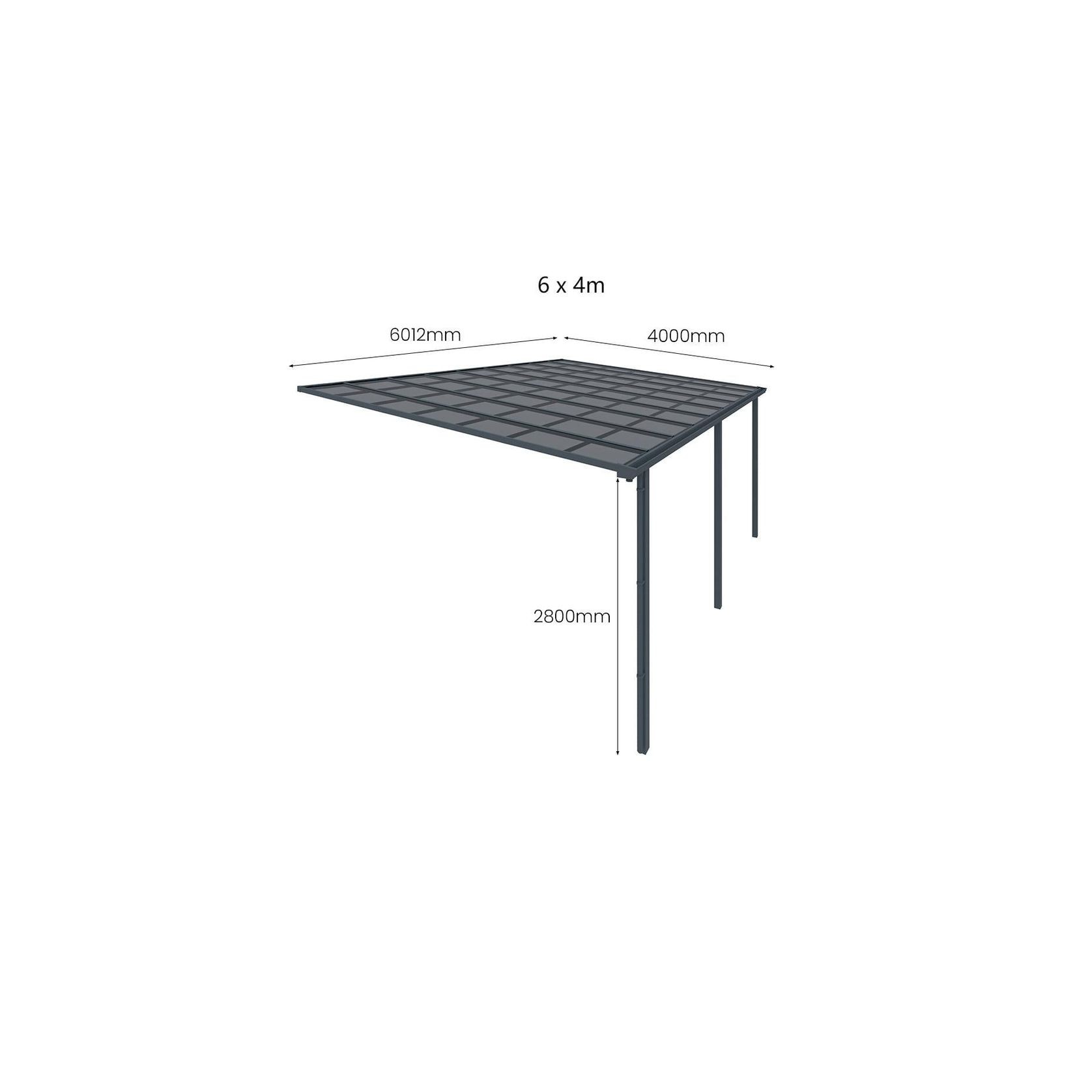

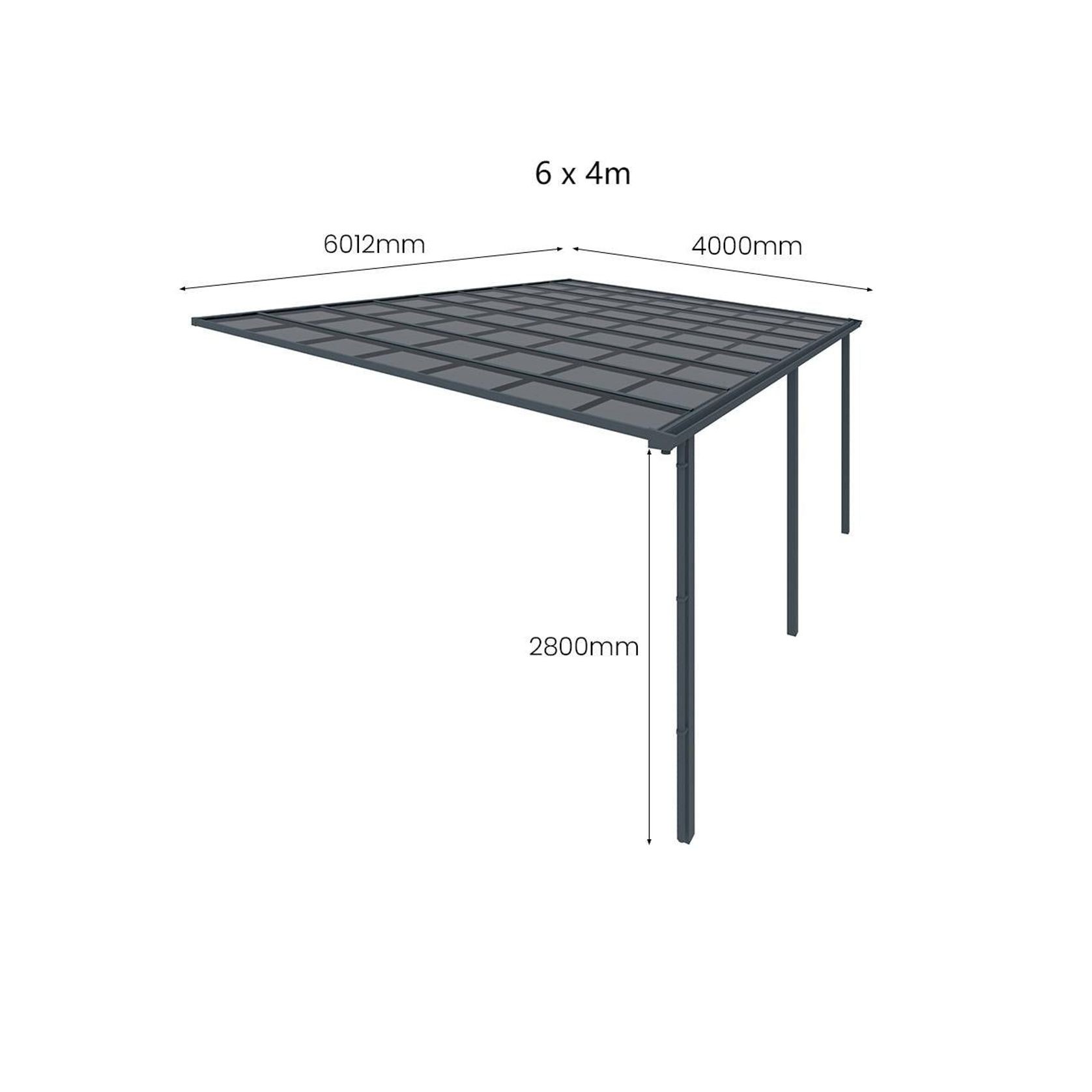

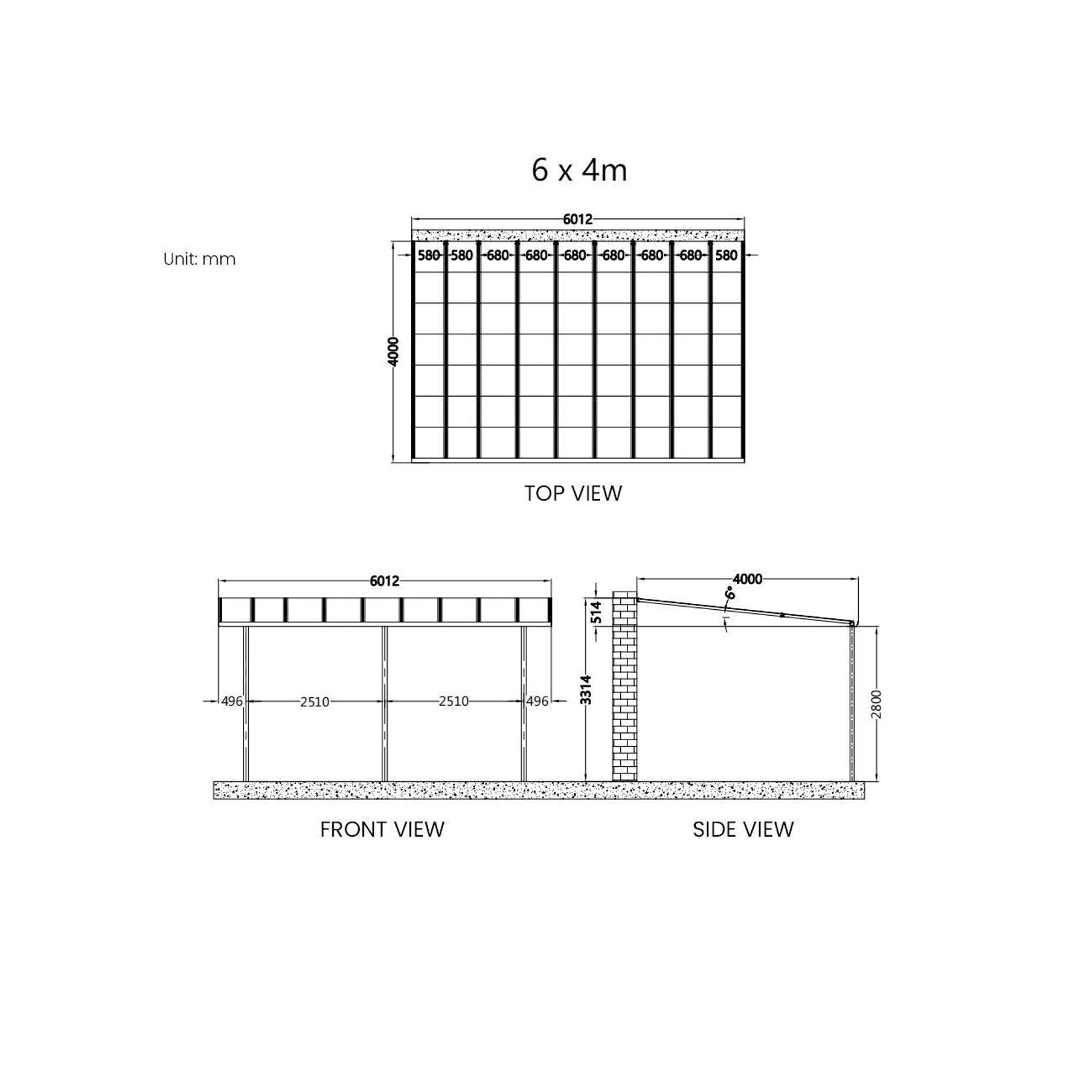

6 x 4m

  • Package 1: 398 x 27.5 x 18.5cm, 47.5kg
  • Package 2: 314 x 30.5 x 23cm, 61.5kg
  • Package 3: 50 x 50 x 73.5cm, 26.5kg
  • Package 4: 50 x 50 x 73.5cm, 38.5kg
Package Contents

1x Wall Mounted Patio Cover

1x Instruction Manual

SKU: wall-mounted-patio-cover-2-0-3 x 3m-White / Light Grey-Aluminium
