OmniCore Multi Room Heat Pump Solution
Wellington
- 414.2K profile views
- 130 saves
A Mitsubishi Electric OmniCore Multi Room Heat Pump System allows you to choose the perfect heat pump for each room with just one OmniCore outdoor unit.
Whether it is a small capacity whisper quiet high wall for the bedroom, a compact floor console for the home office or a discreet ducted model for the lounge, there is a style and capacity to fit any room – the choice is truly yours.
An OmniCore Multi Room System not only gives you the freedom to select the indoor model best suited to each and every room in the home, it also enhances exterior aesthetics by reducing the number of outdoor units required for total home comfort inside, and a sleek uncluttered exterior outside. Plus, you get the benefit of the superior efficiency and energy savings of Mitsubishi Electric Heat Pump Technology.
An OmniCore Multi Room Heat Pump System from Mitsubishi Electric is the ultimate in total home heating.
Our extended OmniCore Multi Room Heat Pump Range now offers a wide selection of market-leading R32 refrigerant solutions.
Product Details
- Product
- OmniCore Multi Room Heat Pump Solution
- Category
- Central Heating & Cooling
- Sold by
- Mitsubishi Electric
- Brand
- Mitsubishi Electric
Product Variants
- Capacity
- Material
- Connect:
Product specified by
A Mitsubishi Electric OmniCore Multi Room Heat Pump System allows you to choose the perfect heat pump for each room with just one OmniCore outdoor unit.
Whether it is a small capacity whisper quiet high wall for the bedroom, a compact floor console for the home office or a discreet ducted model for the lounge, there is a style and capacity to fit any room – the choice is truly yours.
An OmniCore Multi Room System not only gives you the freedom to select the indoor model best suited to each and every room in the home, it also enhances exterior aesthetics by reducing the number of outdoor units required for total home comfort inside, and a sleek uncluttered exterior outside. Plus, you get the benefit of the superior efficiency and energy savings of Mitsubishi Electric Heat Pump Technology.
An OmniCore Multi Room Heat Pump System from Mitsubishi Electric is the ultimate in total home heating.
Our extended OmniCore Multi Room Heat Pump Range now offers a wide selection of market-leading R32 refrigerant solutions.
- Size
- MXZ-2F52VF - D285 x W800 x H550 mm, MXZ-3F54VGD - D330 x W840 x H710 mm, MXZ-4F71VGD - D330 x W840 x H710 mm +7 more
- Dimensions
- MXZ-2F52VF - D285 x W800 x H550 mm MXZ-3F54VGD - D330 x W840 x H710 mm MXZ-4F71VGD - D330 x W840 x H710 mm MXZ-4F80VGD - D330 x W950 x H796 mm MXZ-5F100VGD - D330 x W950 x H796 mm MXZ-6F120VGD - D330 x W950 x H1048 mm PUMY-SP80VKMD - D330 x W1050 x H981 mm PUMY-SP112VKMD - D330 x W1050 x H981 mm PUMY-SP125VKMD - D330 x W1050 x H981 mm PUMY-SP140VKMD - D330 x W1050 x H981 mm
- Key Features
Mix and match the type of indoor style for each room

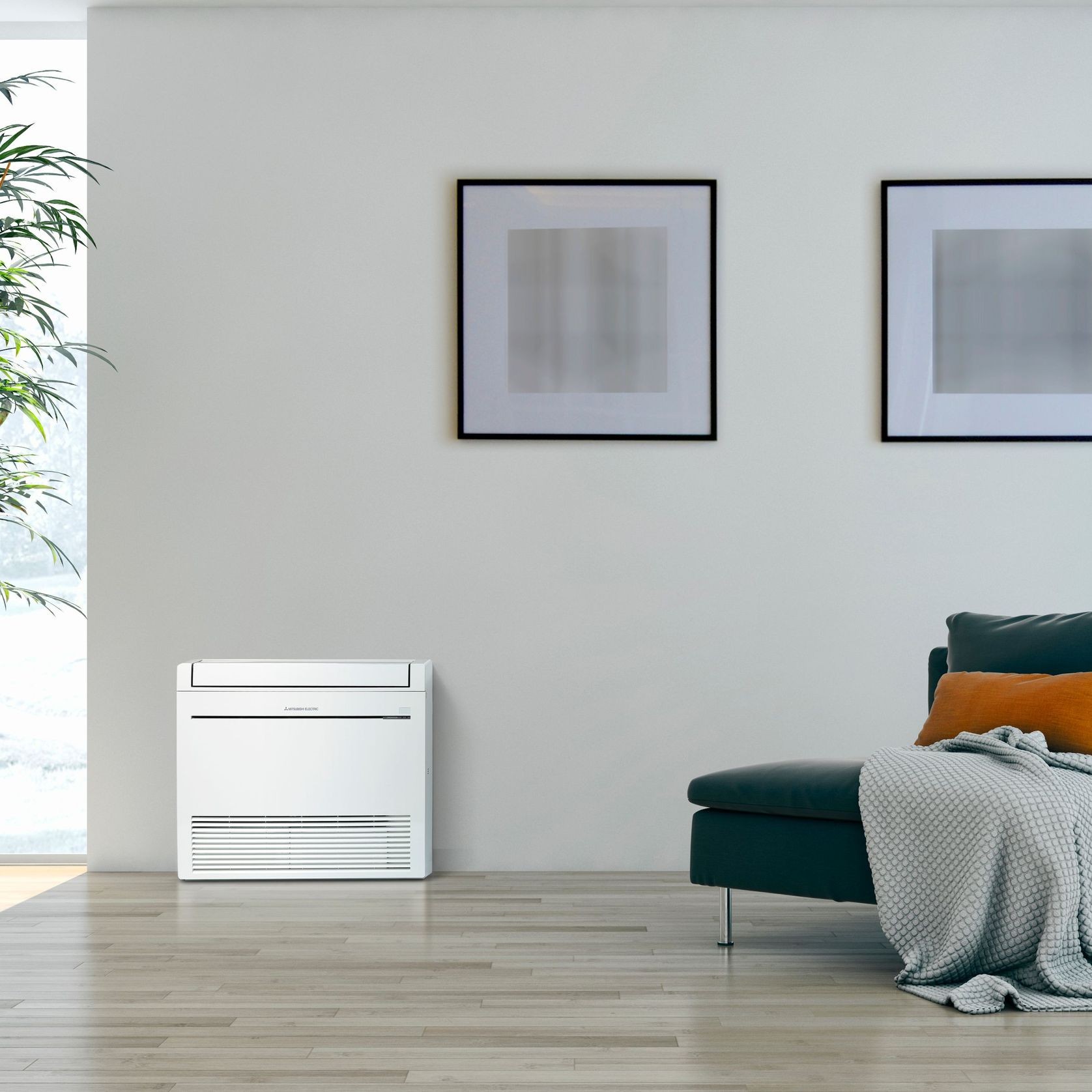

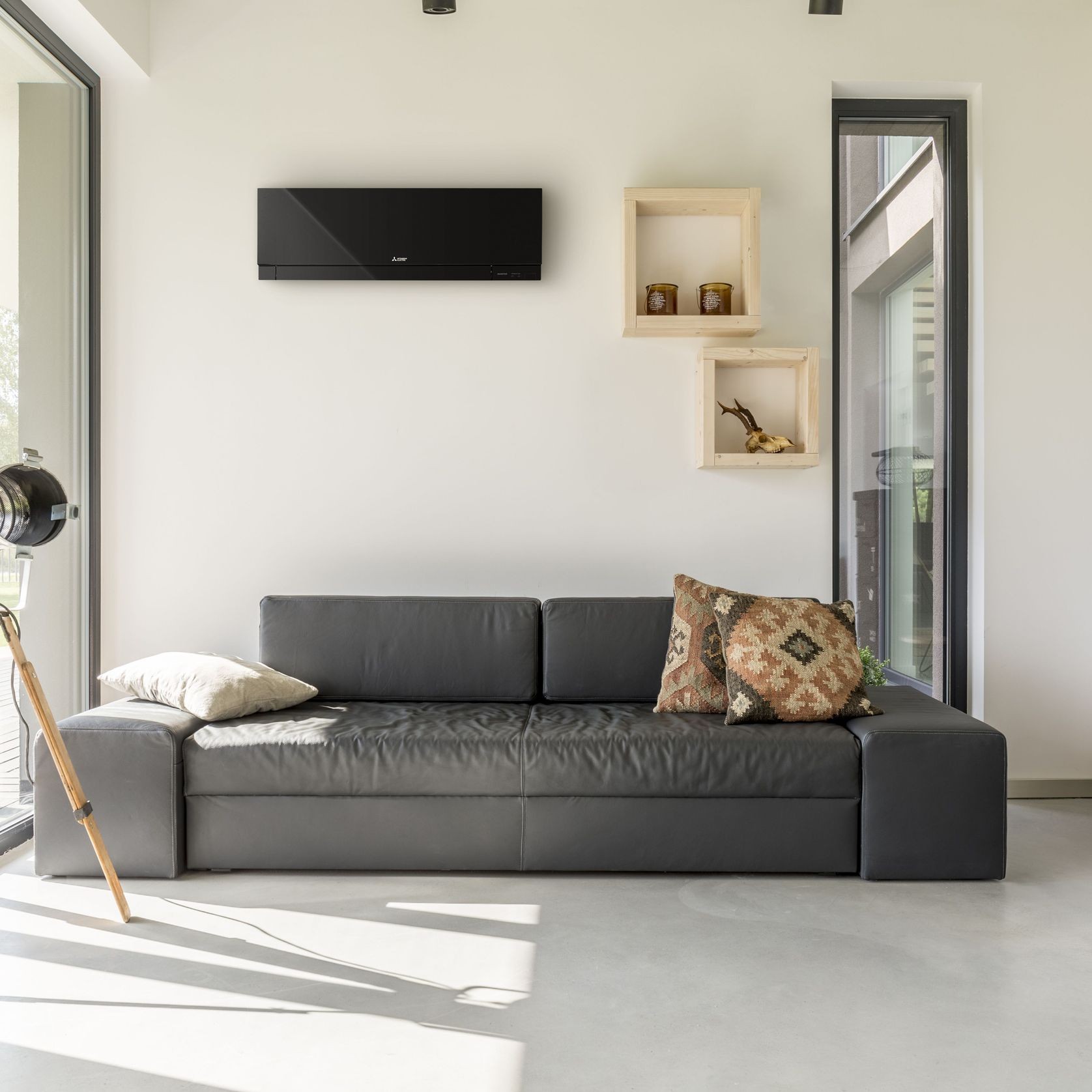

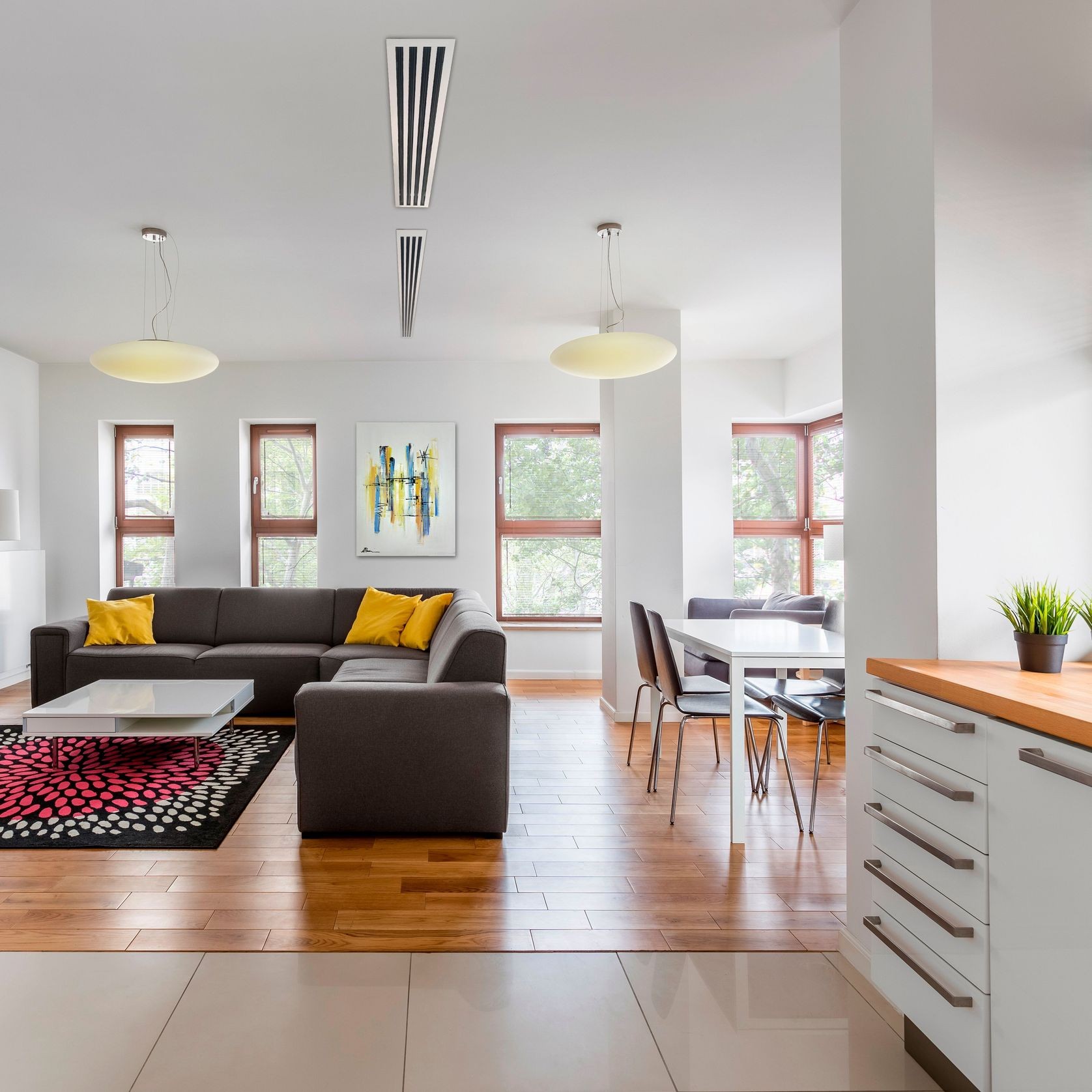

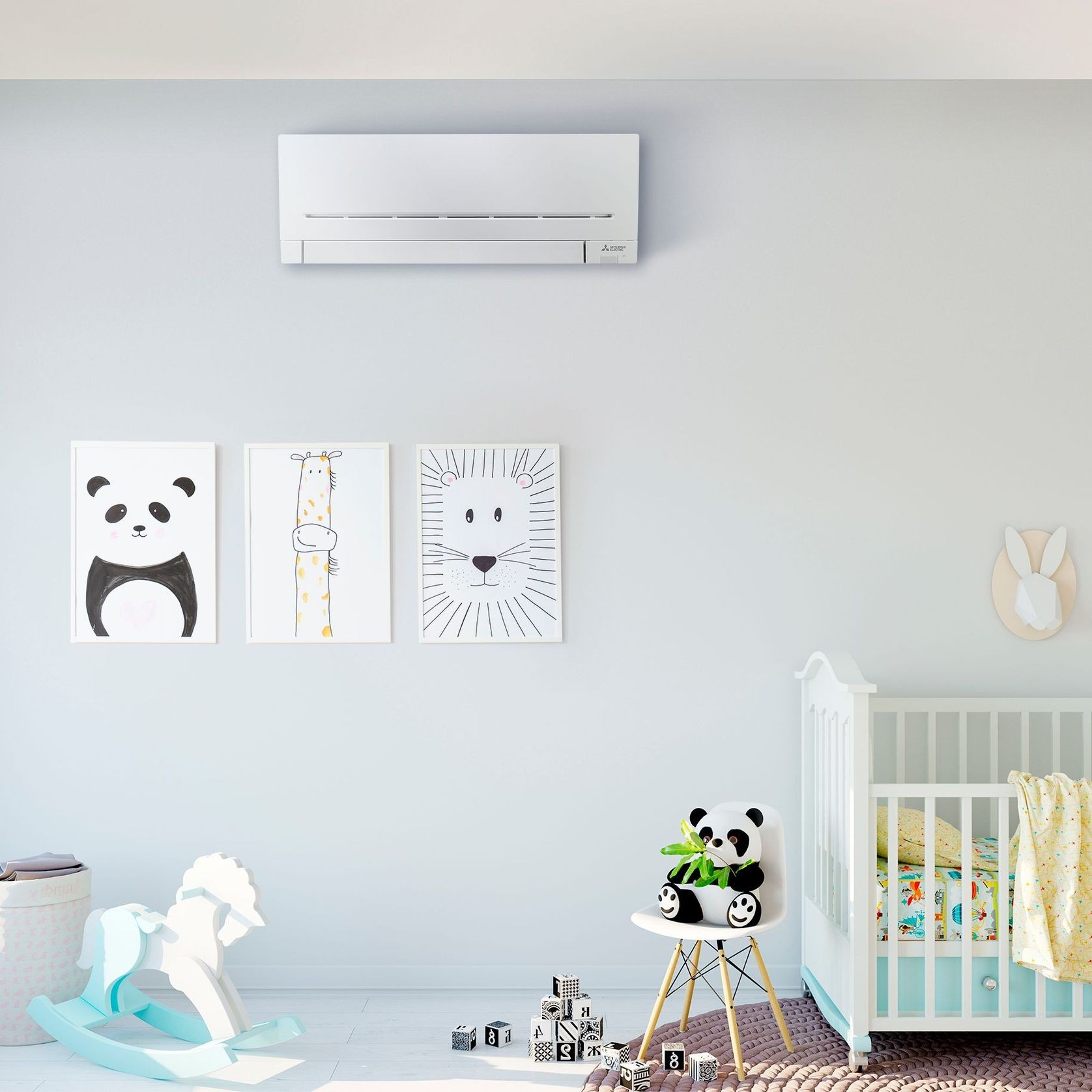

- Choose the perfect indoor heat pump for each room. Whether it’s a small capacity whisper quiet high wall for the bedroom, a compact floor console for the office or a discreet ducted model for the lounge, there is a style and capacity to fit any room – no matter the size or interior aesthetic.
Individual temperature control for each room
- With individual heat pump room control, you can adjust the temperature to suit your comfort levels and ensure each individual heat pump is only operating when needed; maximising energy savings by only heating or cooling the rooms that need it.
Keep your exterior clutter-free

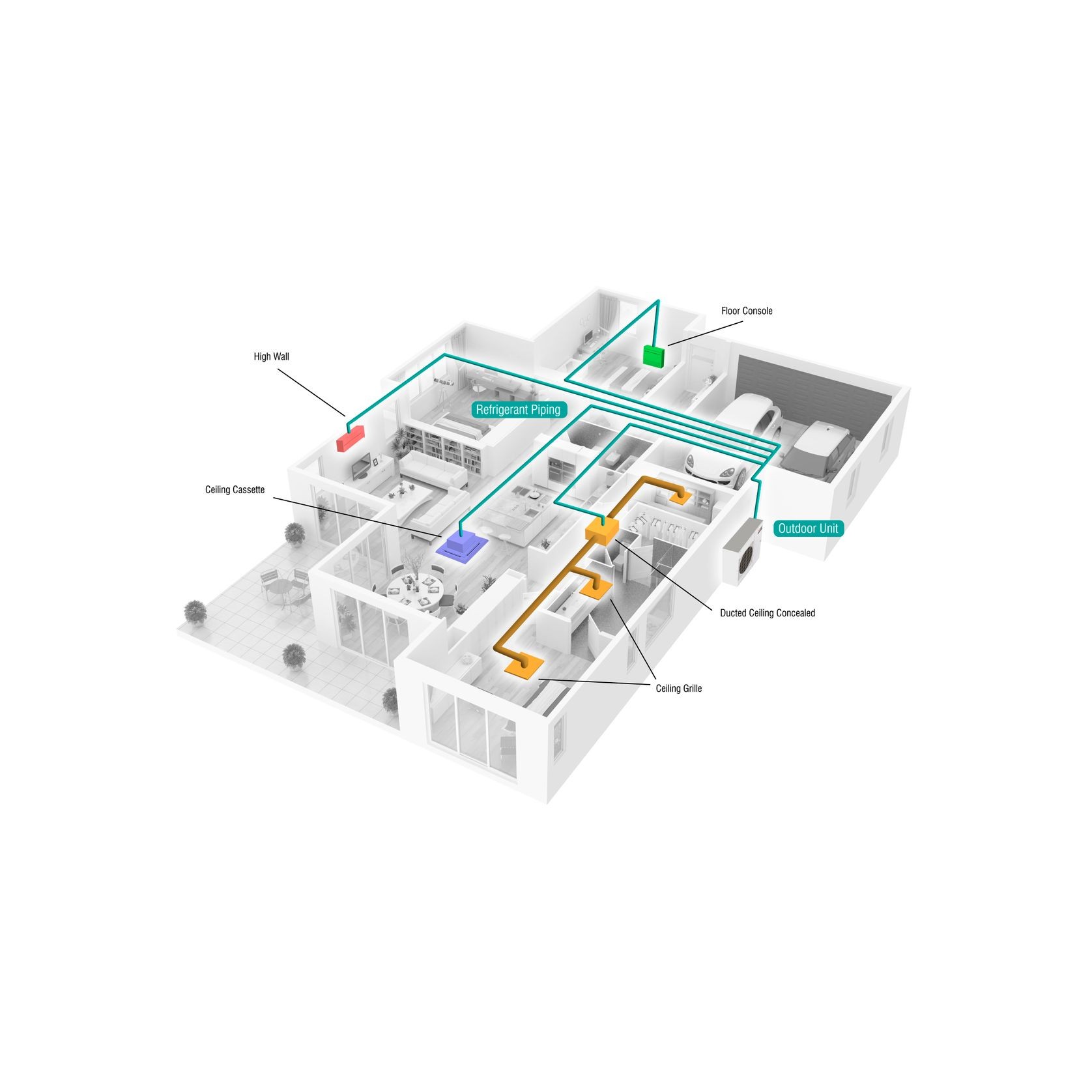

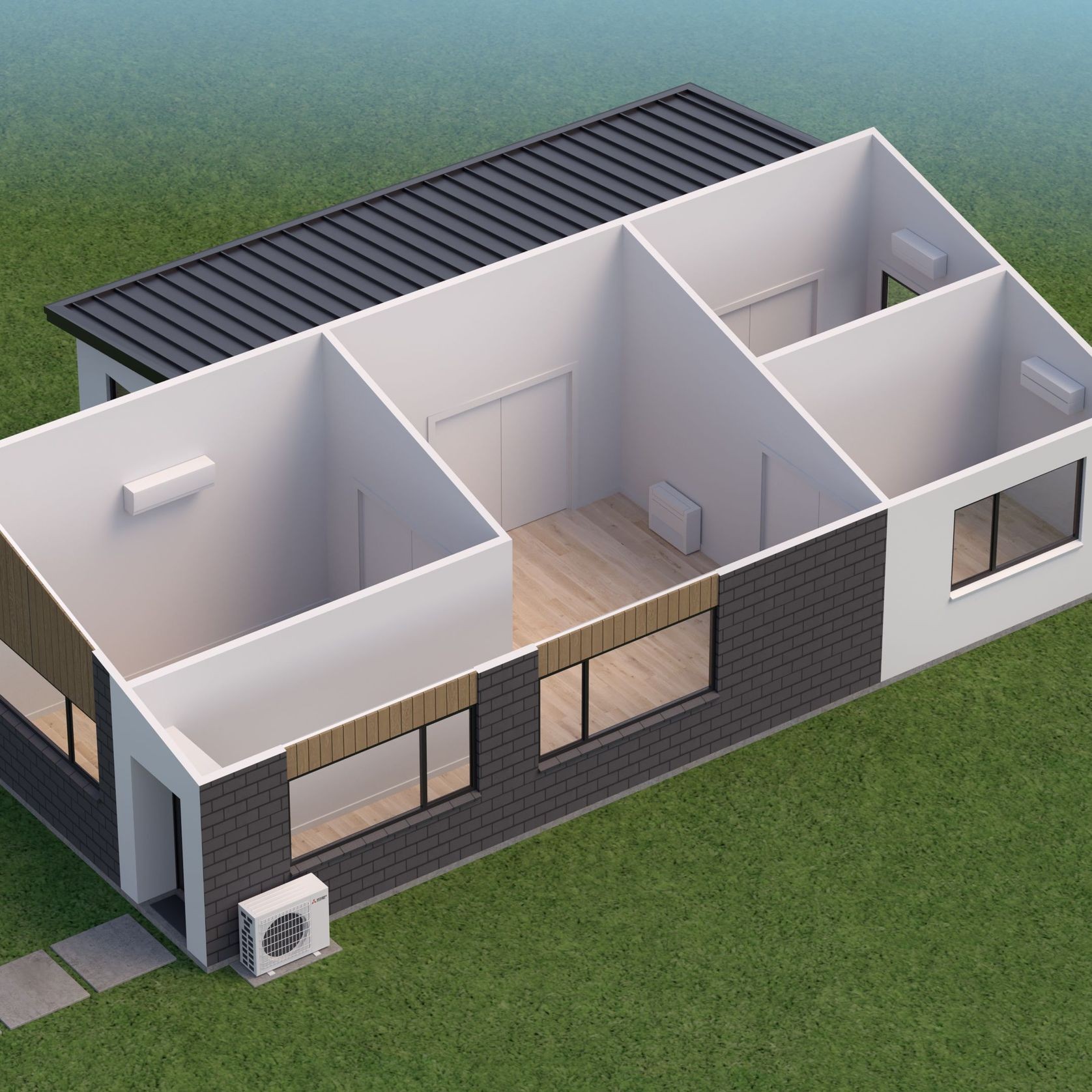

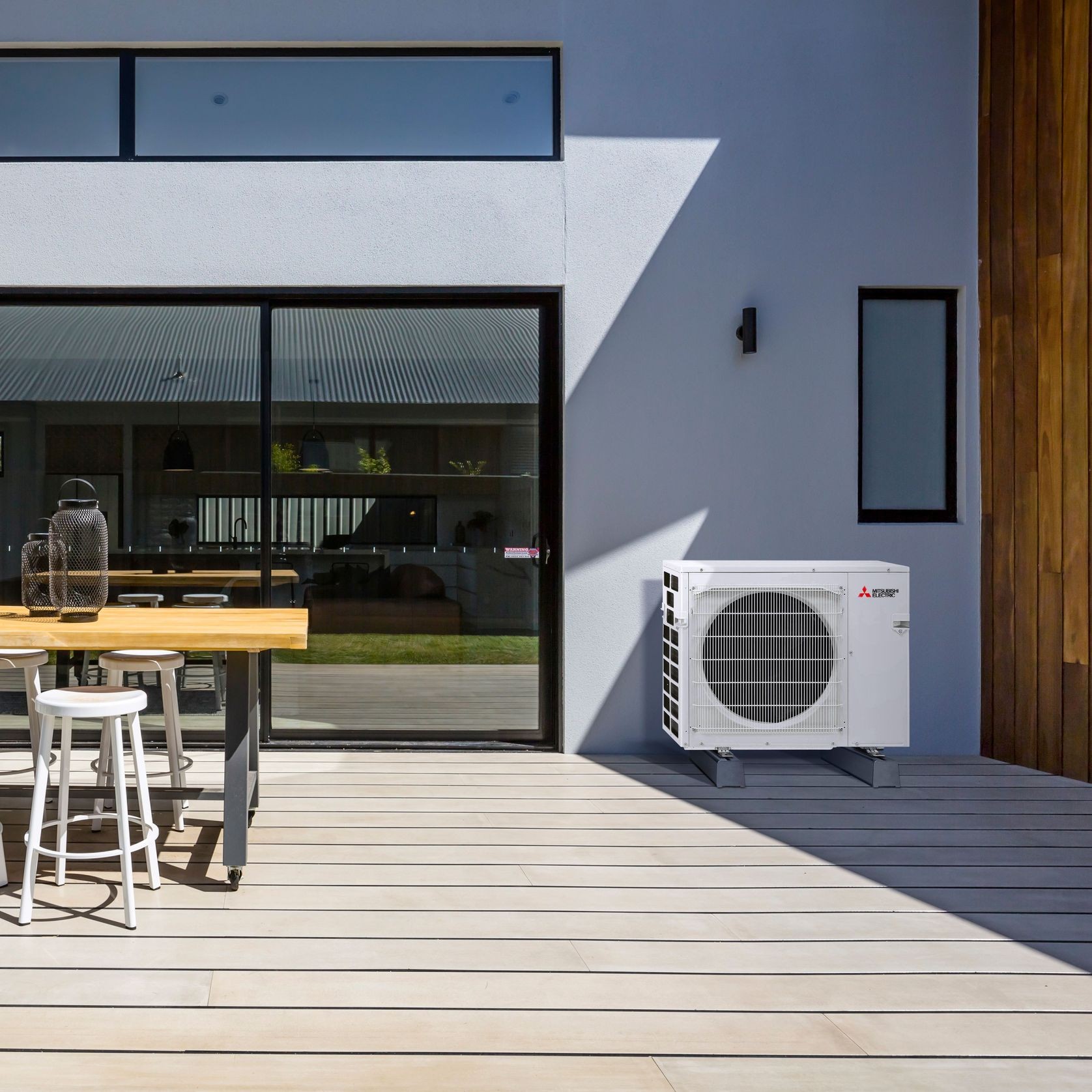

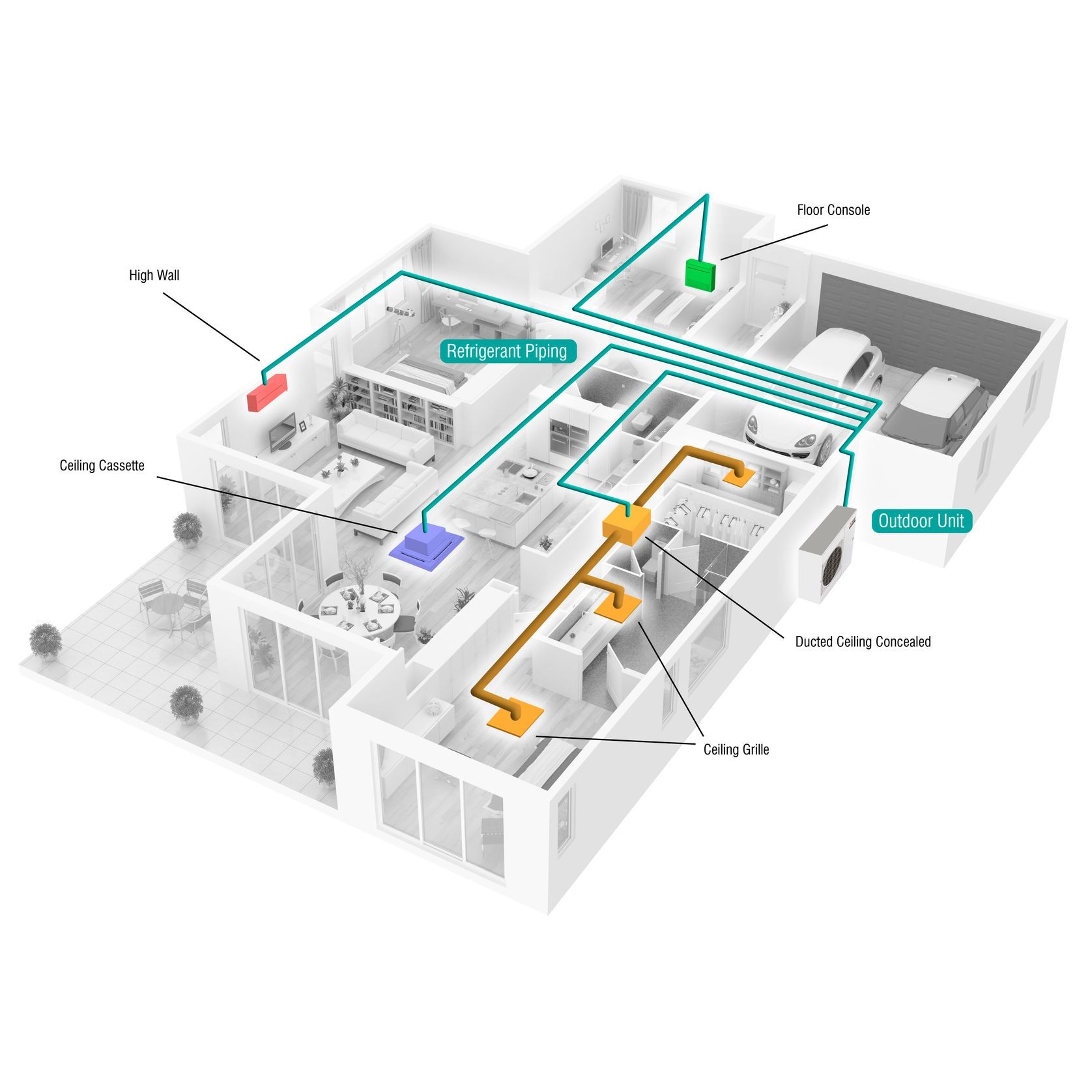

- While a standard heat pump system requires a separate outdoor unit for every indoor unit inside the home, an OmniCore Multi Room Heat Pump System is specifically designed so you have the flexibility to connect multiple indoor units to just one outdoor unit.
Future-proof and add units as your family grows

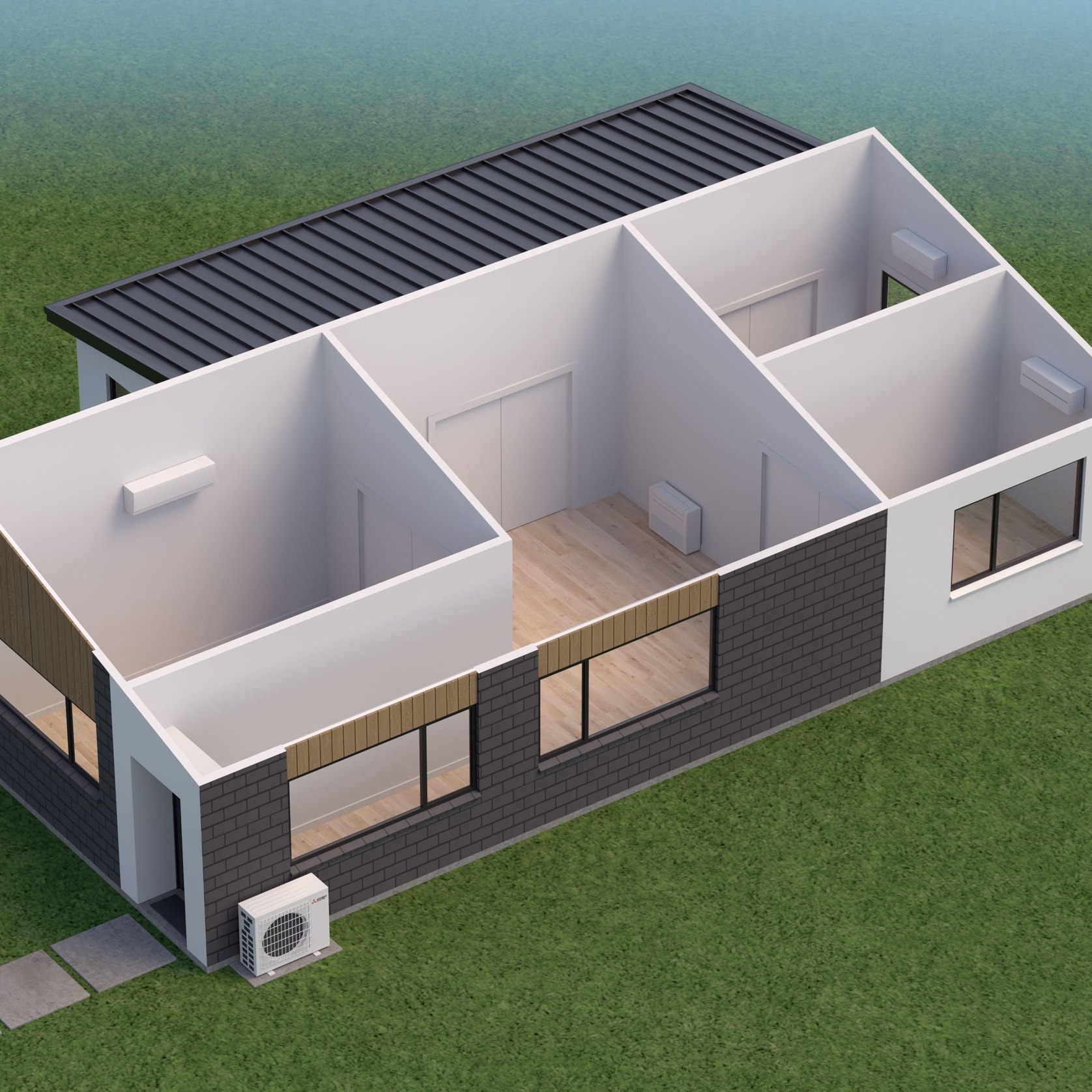

- Indoor units do not have to be connected up all at the same time when you first install the system, giving you the flexibility to add up more rooms in the future – all connected to the one outdoor unit. Forward planning means you do not end up with four large outdoor units cluttering up your exterior, which would be the case with a standard single room heat pump system.
Compatible Indoor Units

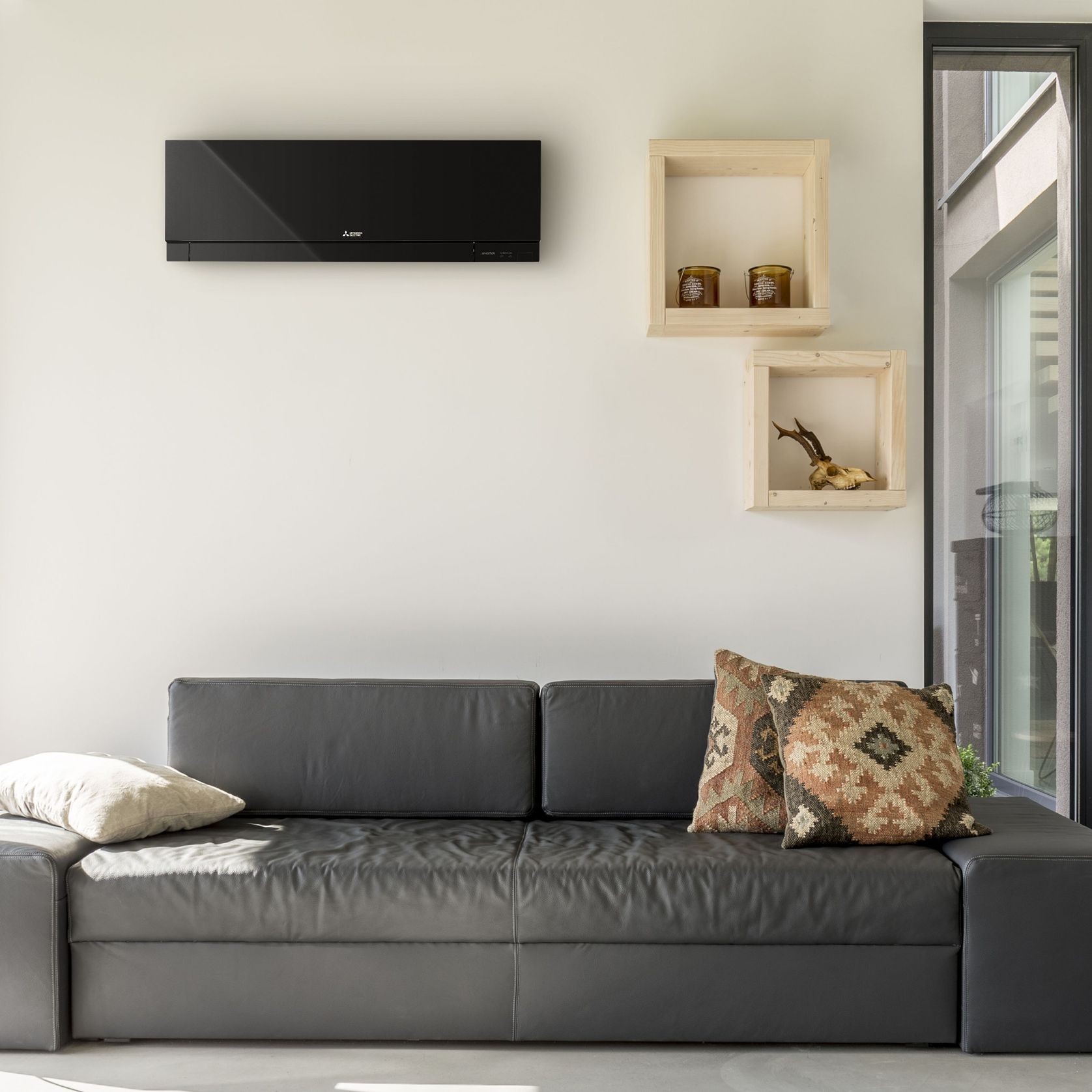

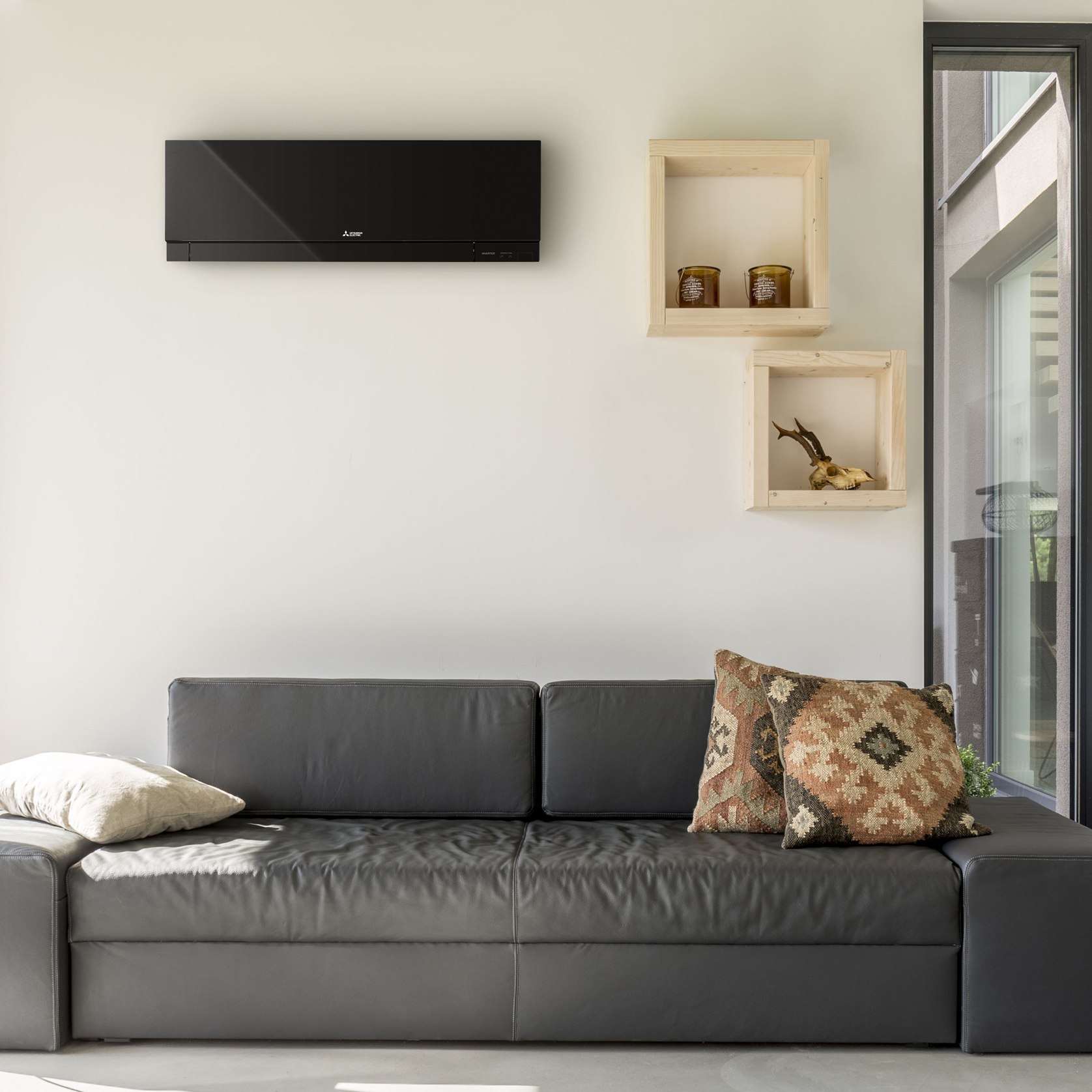

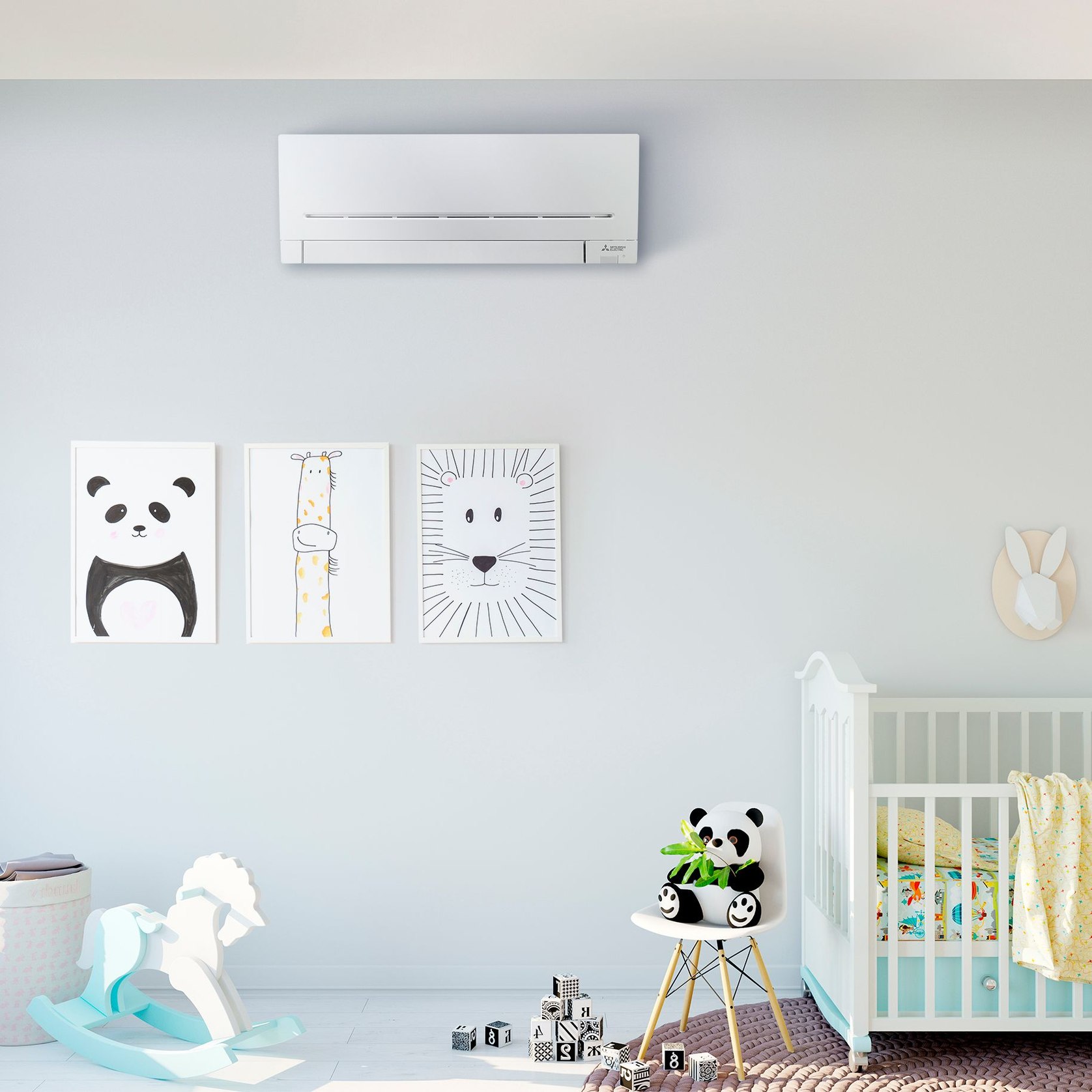

Highwall:
- AP Mini Series (1.5kW - 2.0kW)
- AP Series (2.5kW - 8.0kW)
- EF Series (2.2kW - 5.0kW)
- LN Series (2.5kW - 5.0kW)

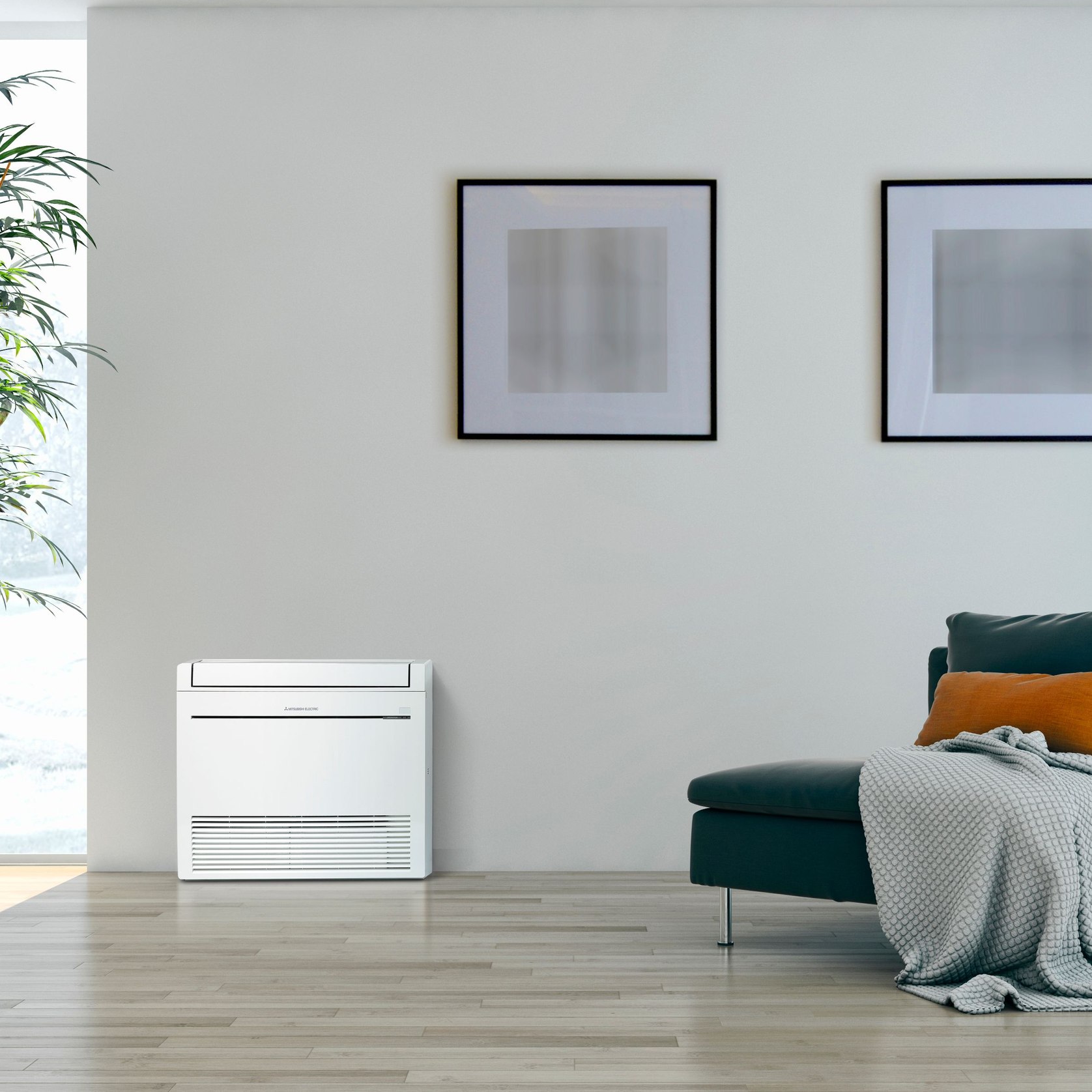

Floor Console:
- KW Series (2.5kW - 5.0kW)

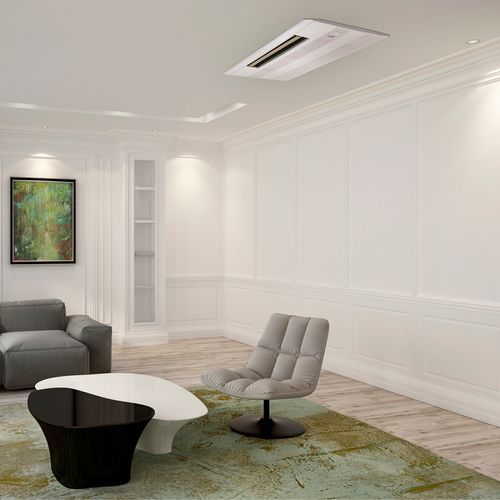

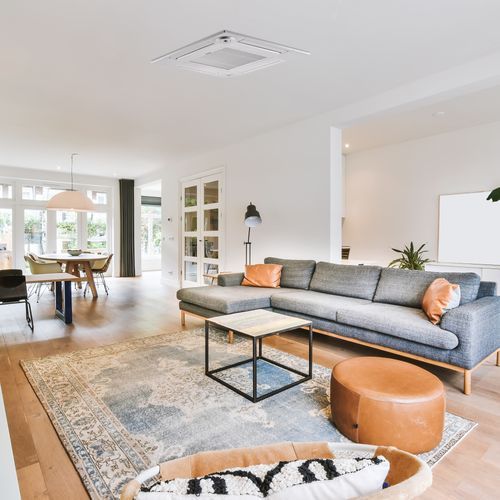

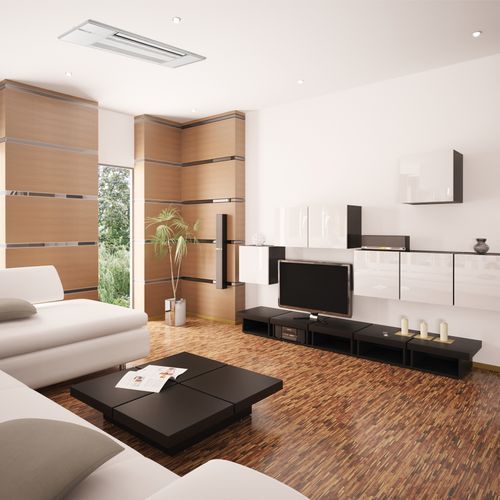

Ceiling Cassette:
- MLZ Series (2.5kW - 5.0kW)
- SLZ Series (2.5kW - 5.0kW)
- PLA Series (7.1kW - 10.0kW)
Under Ceiling:
- PCA Series (5.0kW - 10.0kW)
Ceiling Concealed:
- SEZ Series (3.5kW - 7.1kW)
Ducted:
- PEAD Series (5.0kW - 10.0kW)
Important Note on Wi-Fi Heat Pump Control Energy Monitoring:
Indoor units connected to OmniCore Multi Room Systems do not support energy monitoring, even if the model typically includes it. This includes all indoor units from the Smart Family range. Wi-Fi Control remains available, but energy monitoring will be disabled when connected to a multi-room outdoor unit.
Downloads
Downloads (4)4 Direct downloads • 11 Available on request
Frequently asked questions about
OmniCore Multi Room Heat Pump Solution
The OmniCore Multi Room Heat Pump Solution is supplied by Mitsubishi Electric. It is also on their website, and you can browse every product Mitsubishi Electric lists on ArchiPro.
Mitsubishi Electric does not publish a price for the OmniCore Multi Room Heat Pump Solution on ArchiPro. for pricing, or visit their website.
It comes in 10 capacity options (Heating 6.1kW | Cooling 5.2kW, Heating 7.0kW | Cooling 5.4kW, Heating 8.0kW | Cooling 7.1kW, Heating 8.8kW | Cooling 8.0kW, Heating 10.0kW | Cooling 10.0kW, Heating 13.2kW | Cooling 12.0kW, Heating 10.0kW | Cooling 9.0kW, Heating 14.0kW | Cooling 12.5kW, Heating 16.0kW | Cooling 14.0kW, Heating 16.5kW | Cooling 15.5kW), 2 material options (R32 Omnicore Multi Room System, R410A Omnicore Multi Room System) and 8 connect: options (2 Indoors, 2-3 Indoors, 2-4 Indoors, 1-4 Indoors, 1-5 Indoors, 1-6 Indoors, 2-7 Indoors, 2-8 Indoors). Pick one in the row under the description to see it.
Yes. It has been specified in projects on ArchiPro, including Victoria Lane Apartments - Redefining Apartment Living in Wellington by Mitsubishi Electric, Koroa House | Project of the Month by Dravitzki Brown Architecture and Steel the Limelight by David Reid Homes. See how it was used in a finished space.
