Utek Reversus 3 - Ventilation System with Heat Recovery

*Price indication

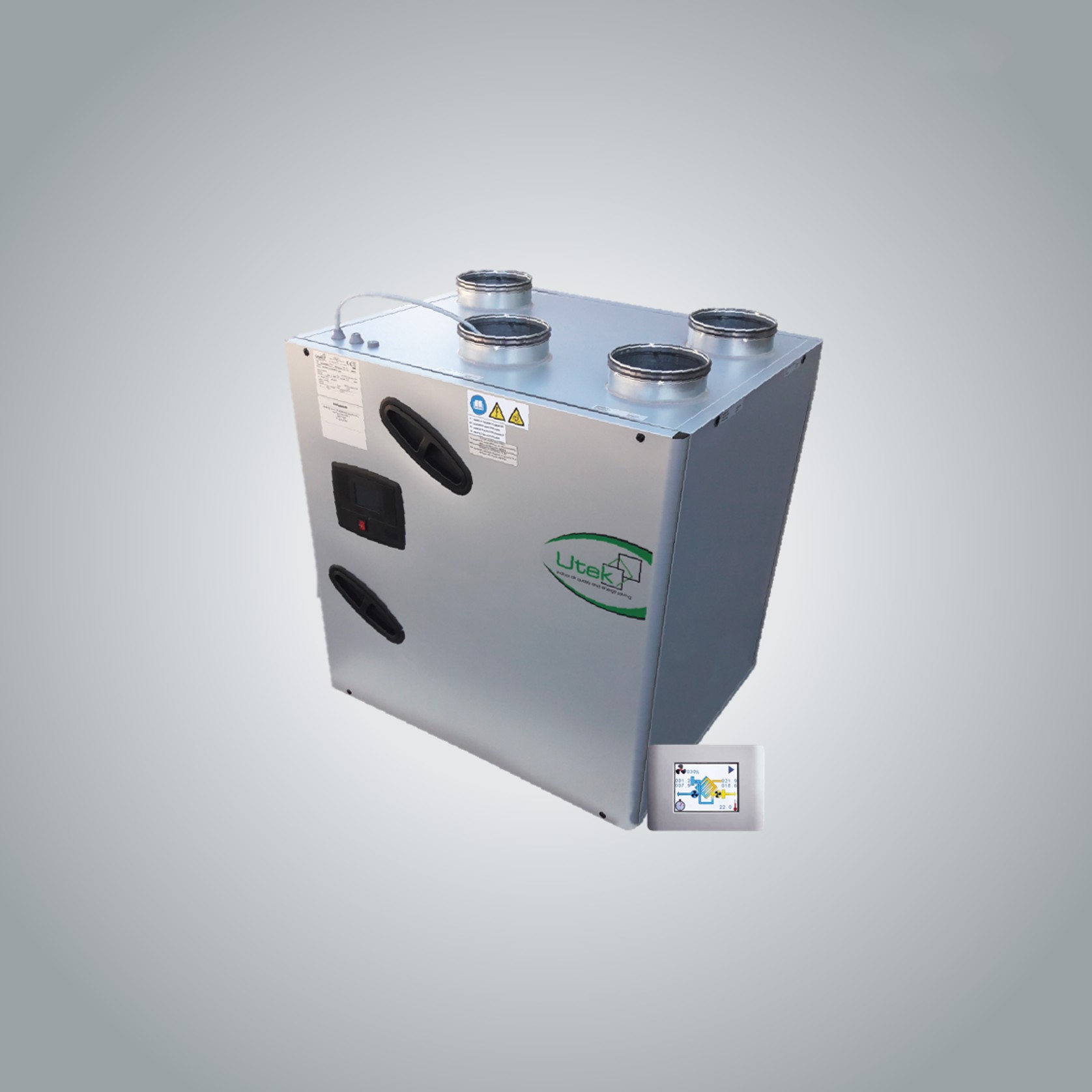

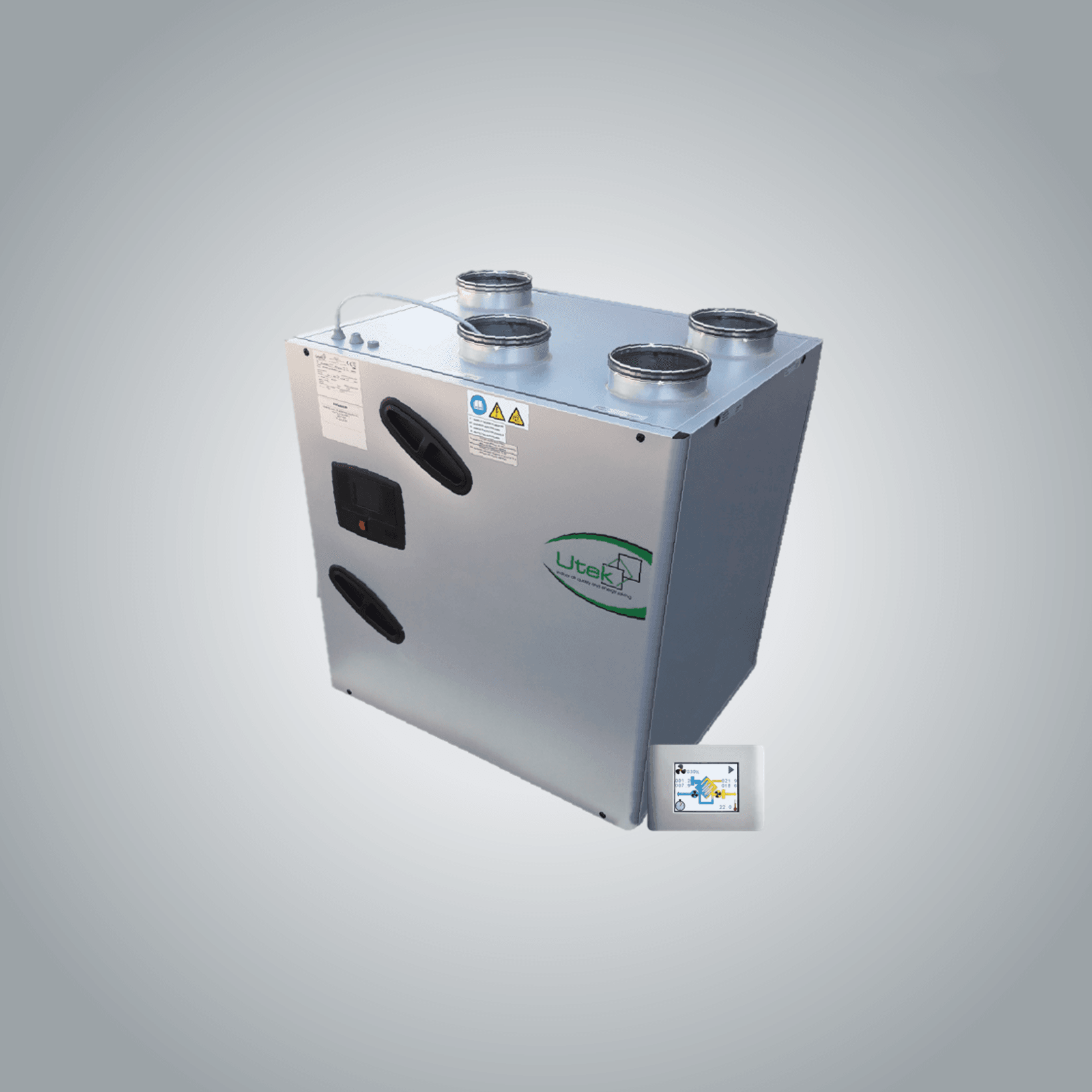

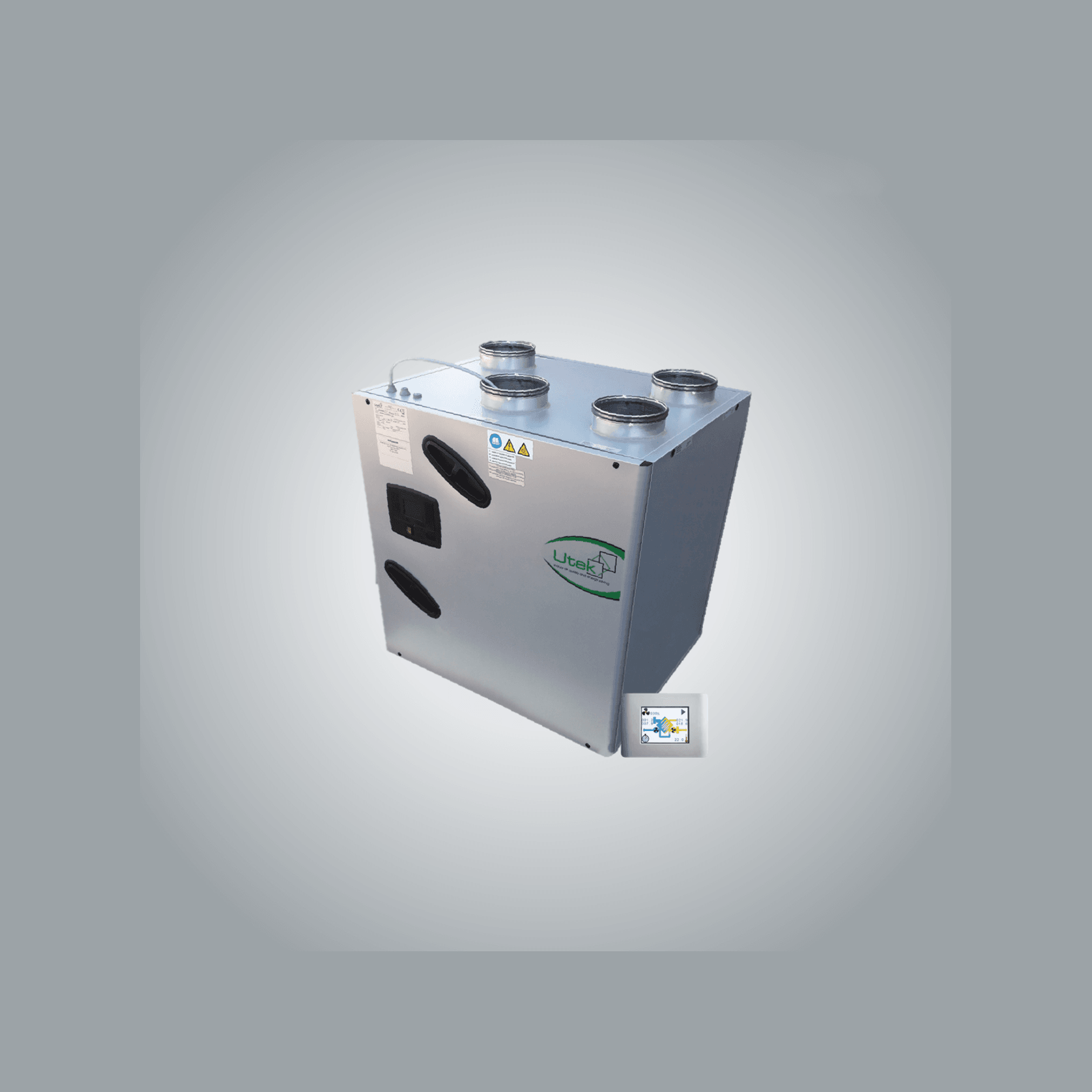

Utek Reversus 3 – Vertical Ventilation Unit

The Reversus unit from Utek Italy are highly developed MHRV units. With Utek’scommercial background these units are built to perform and last. Its excellent pressure performance makes the unit suitable for large houses and commercial spaces with space for vertical installation and top connection.


  • High-efficiency counterflow heat exchanger
  • EC-fans, pressure or flow controlled

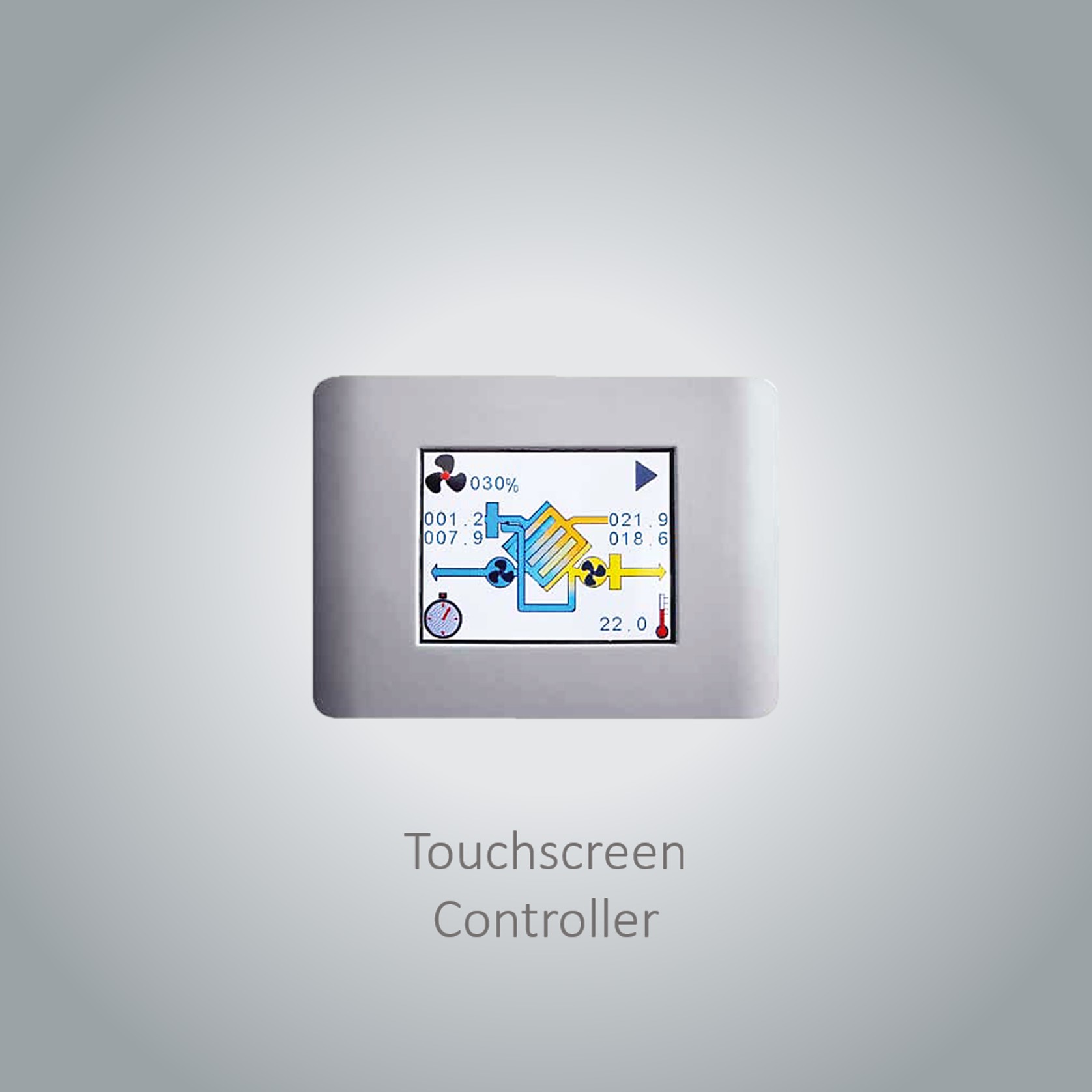

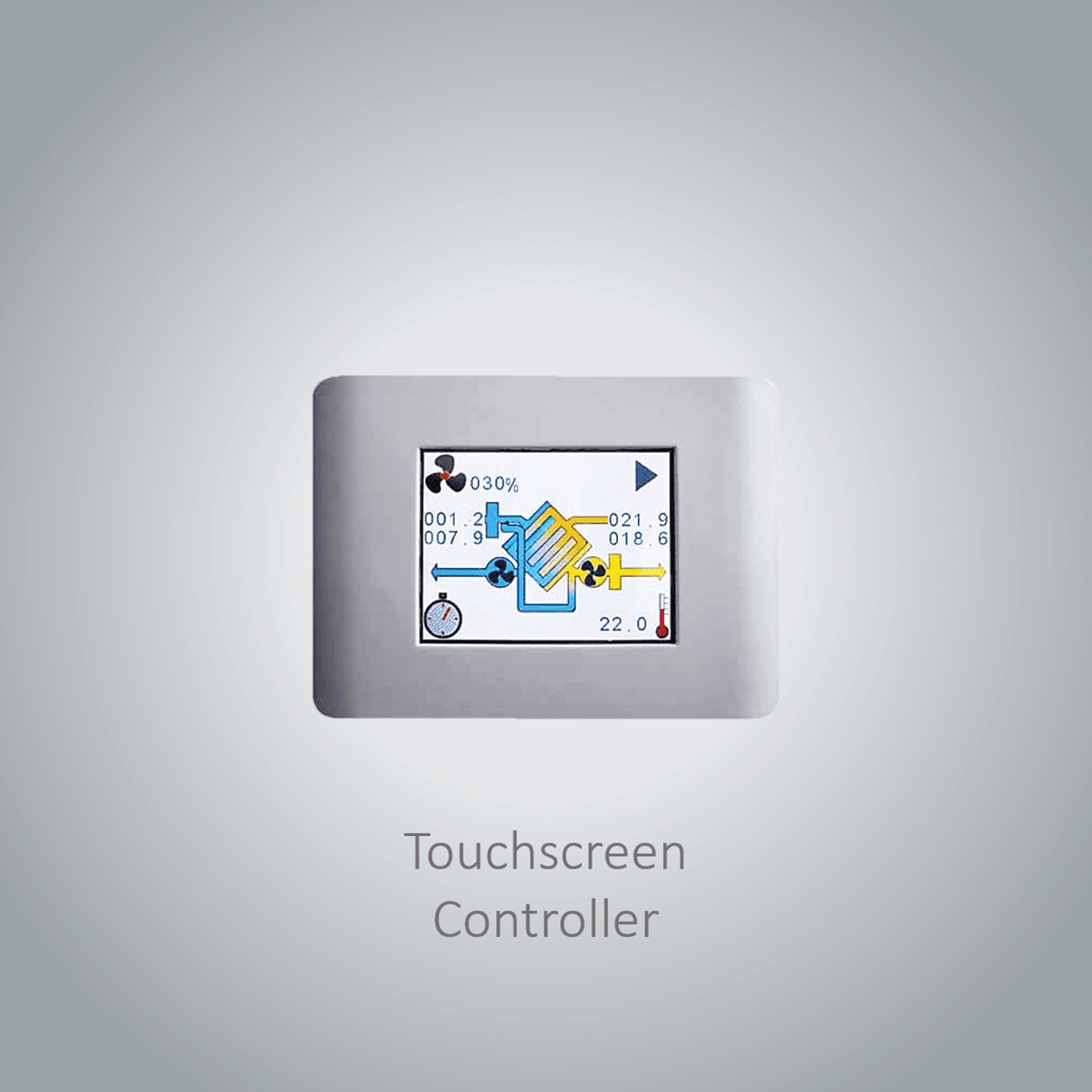

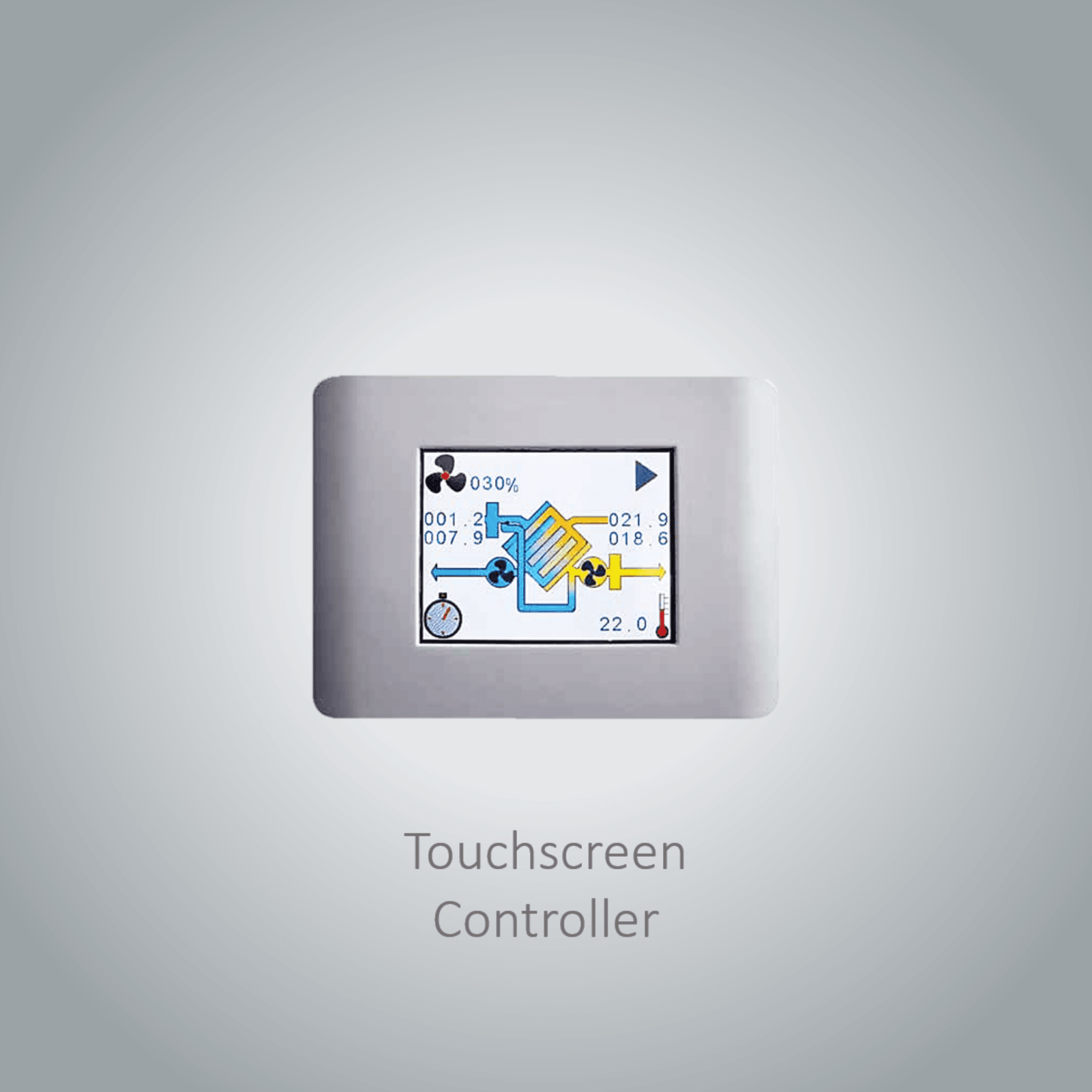

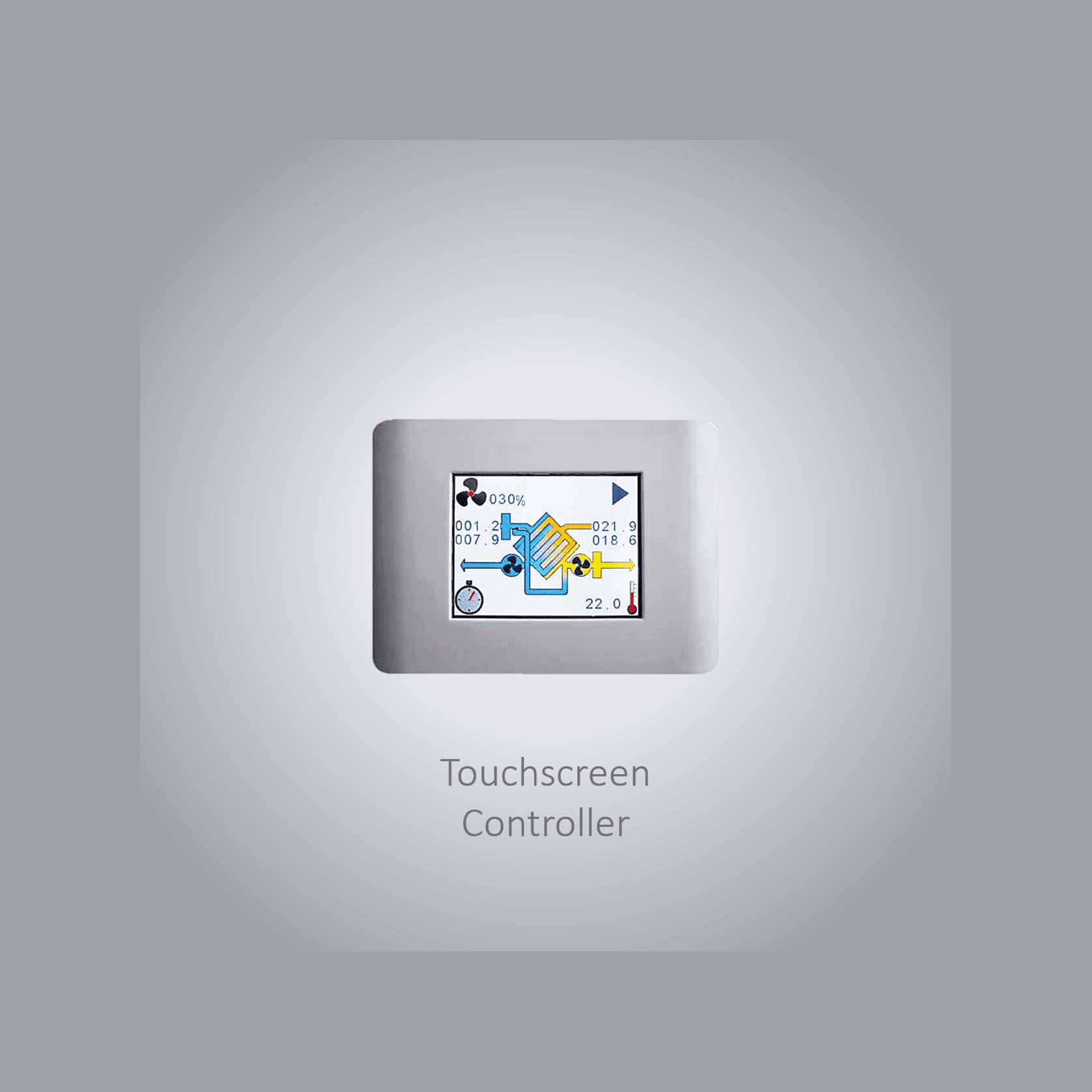

  • Touch-screen Controller
  • Optional ventilation on demand (CO2, RH, VOC)
  • Summer By-pass
  • Optional with hydronic Post-Heater/Cooler
  • High-grade F7 filter for supply air (G4 for exhaust air)
  • Meets G4 and Healthy Home Standard
  • 2-year warranty
  • Category
    Ducted Heat Pump Systems, Heat Recovery Ventilation, Mechanical Ventilation Systems
  • Range
    Ventilation Systems
  • Brand
    Utek - Italy
  • Warranty
    2 years
Scope of use

Typical Application

  • Domestic: Family houses with attic space
  • Commercial: Office space, training rooms
  • Includes dedicated bathroom, kitchen and laundry extraction

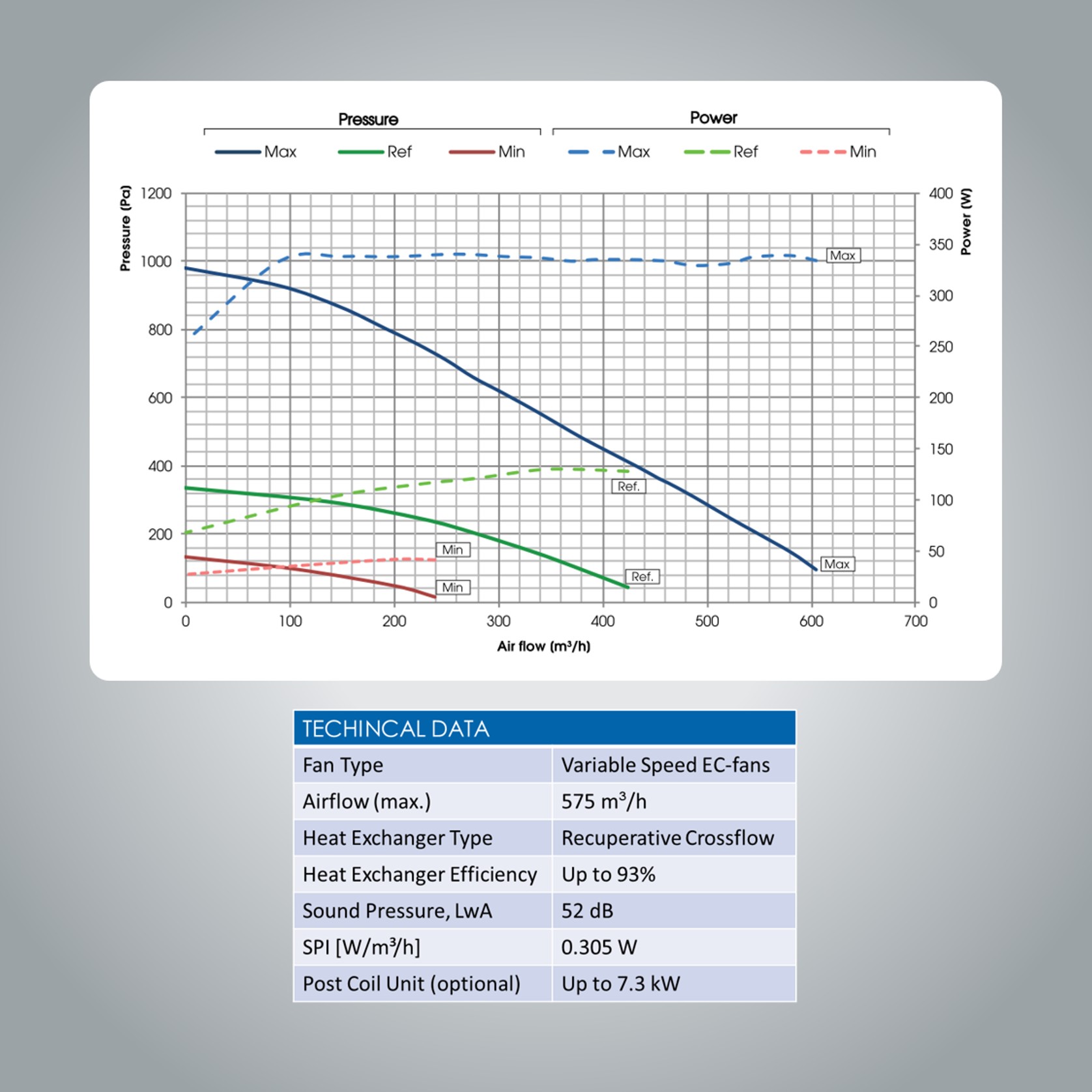

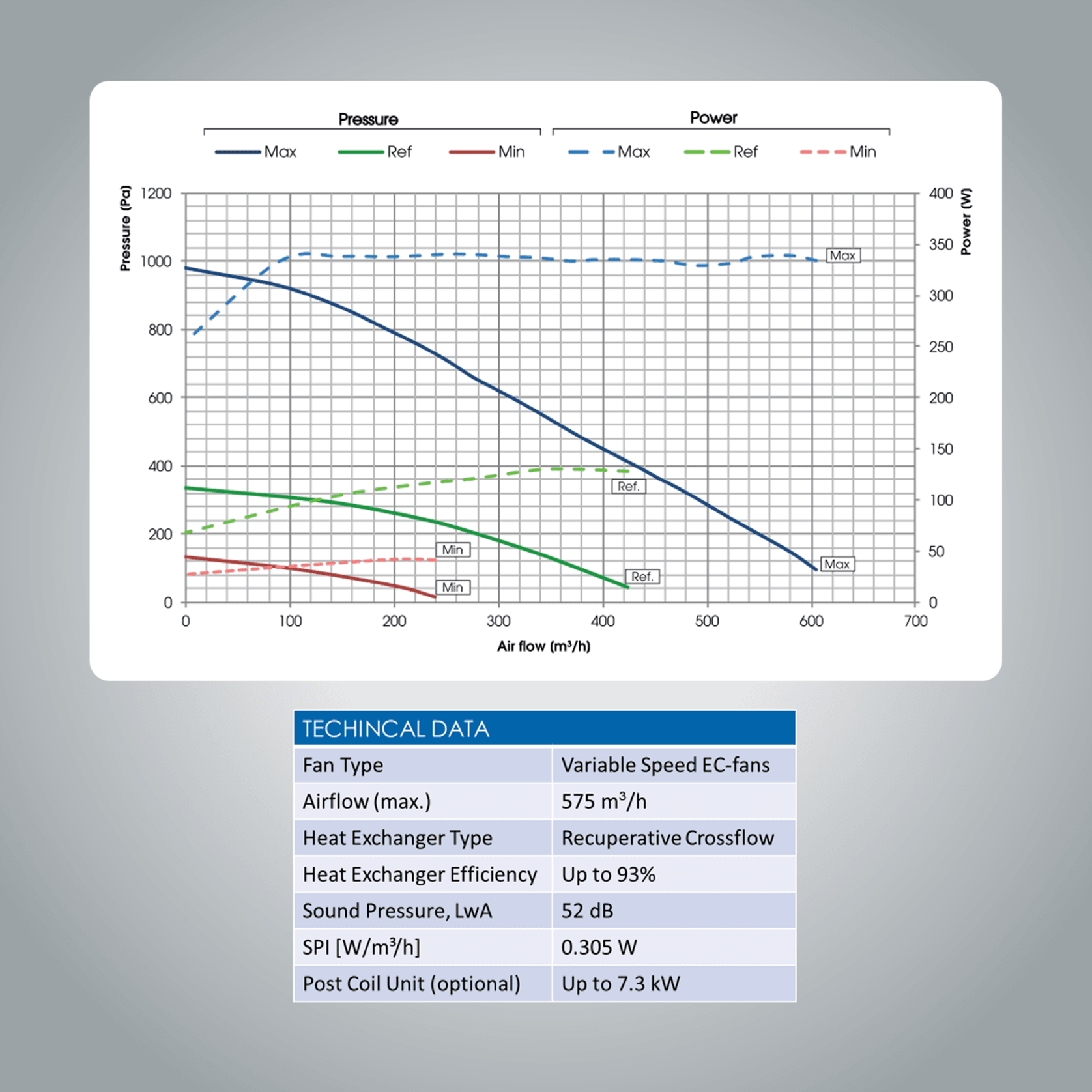

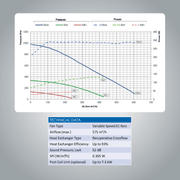

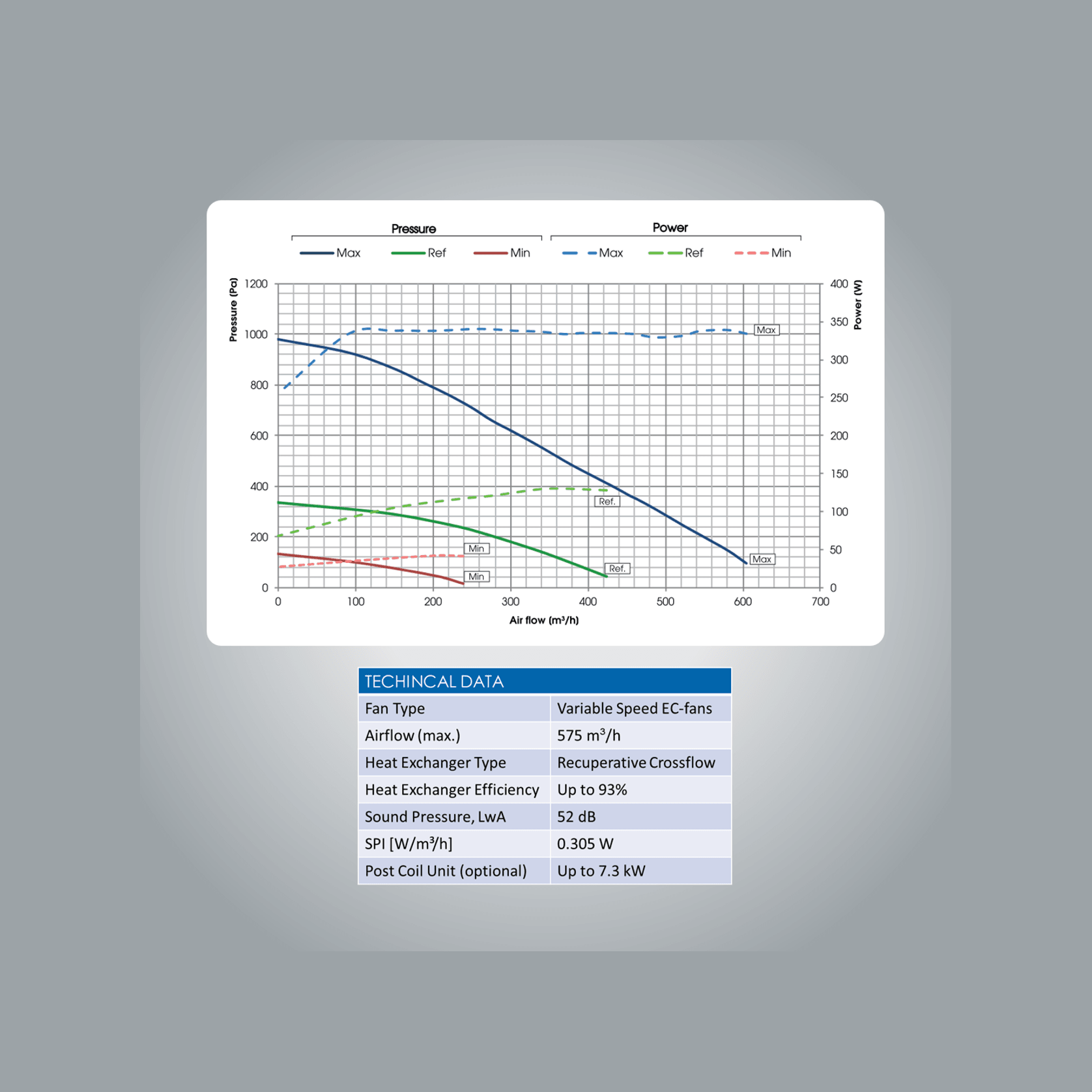

  • Airflow:​​575 m³/h (max.)
  • Pressure:​​900 Pa (max.)
  • Example: ​Duty point: 460m³/h @ 350Pa
  • House: 270m² with 2.6m ceiling
    ⇨ approx. 0.66 air changes per hour

Reversus 3

    MHRV unit without heater
  • BP EVOD-PH-IP Pre-Heater SV
    MHRV unit with electric Pre-Heater to protect heat-exchanger from frosting.Required for colder regions with winter frost.

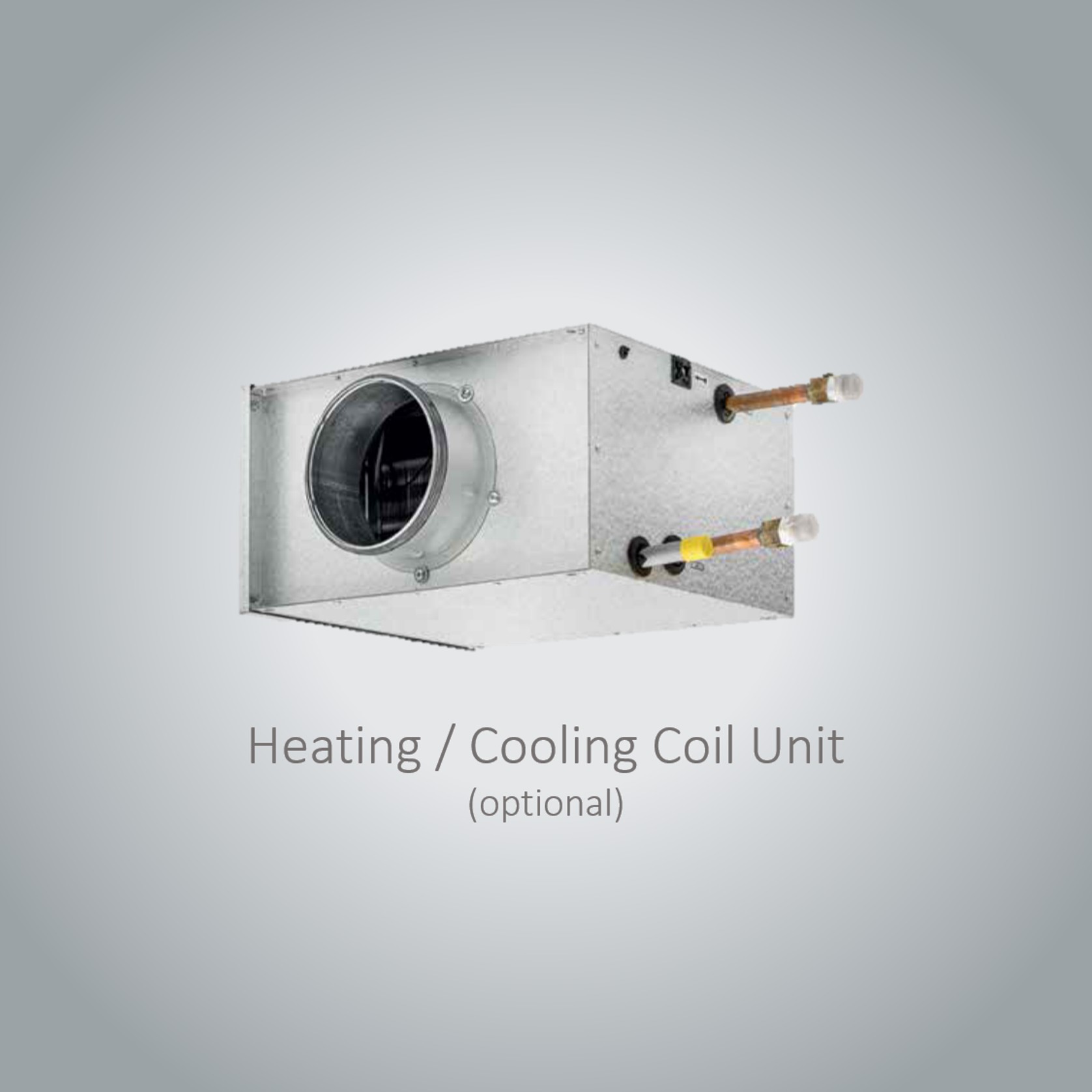

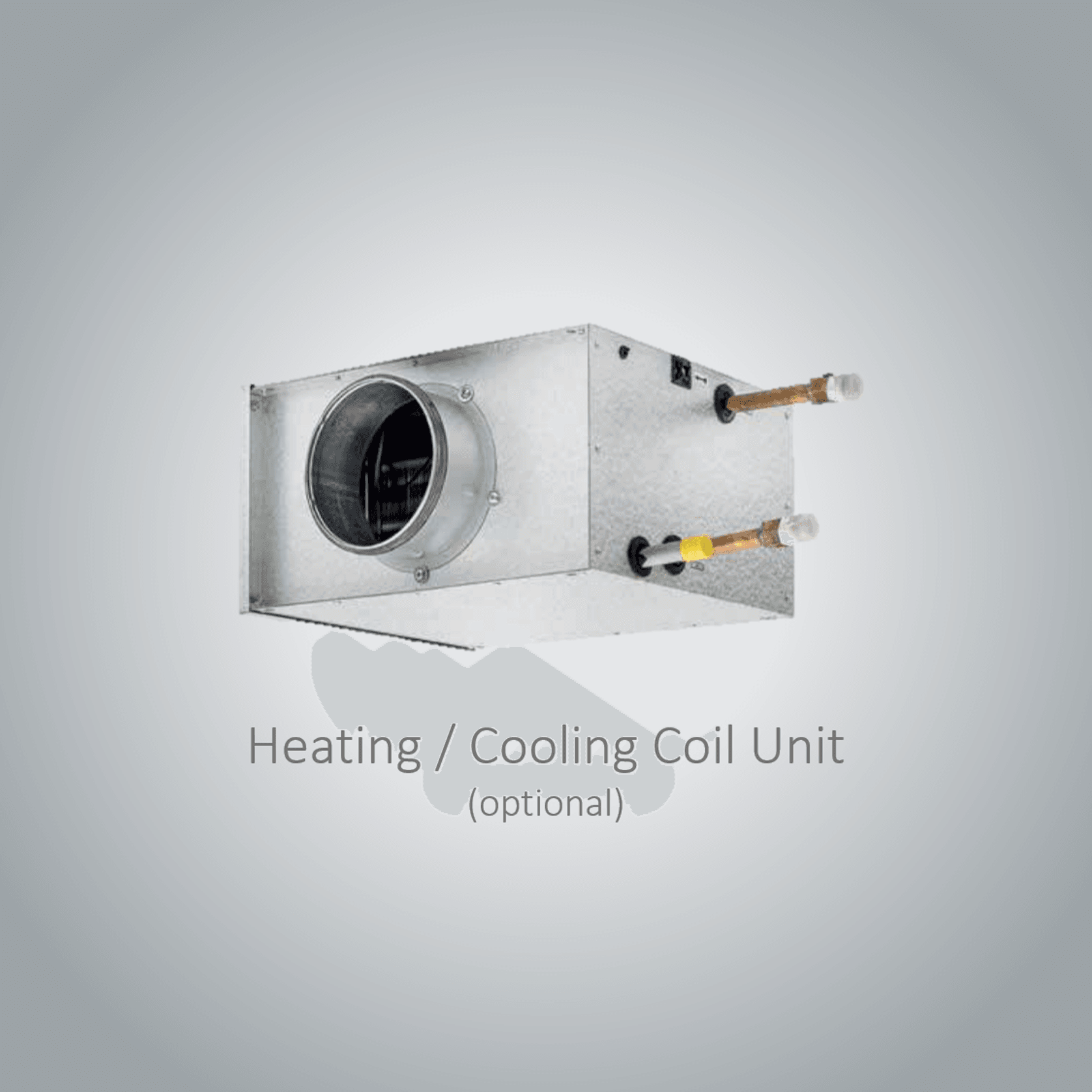

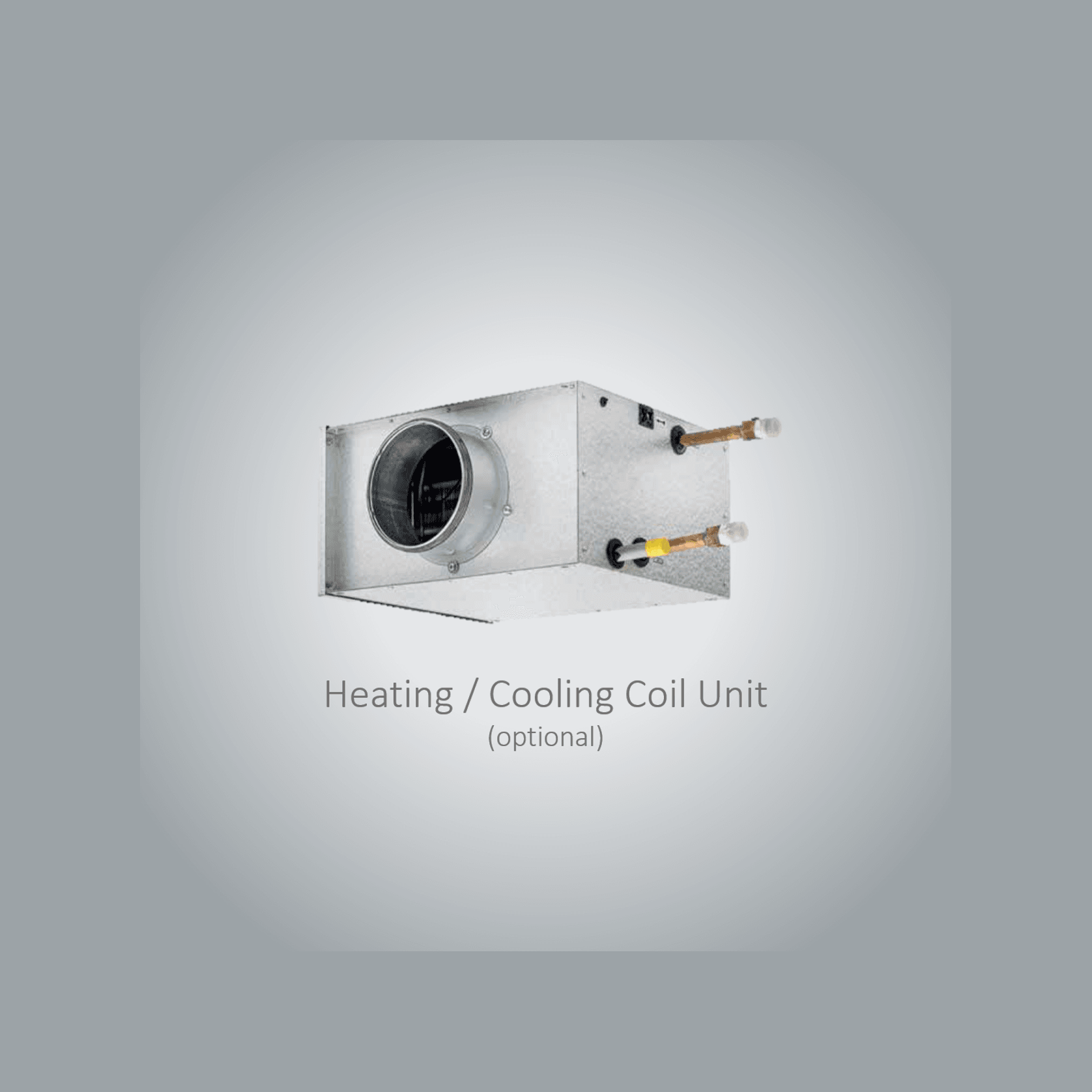

    MHRV unit with hydronic Post-Heater/Cooler (Coil Unit). Coil unit controlled by Reversus Controller. Requires hydronic heat pump connection.
  • BP EVOD-PH-IP Pre-Heater SV+HB+BAFC500-160
    MHRV unit with electric Pre-Heater and hydronic Post-Heater/Cooler.
In The Box
  • MHRV Unit
  • Touchscreen Controller
  • Wall-mounting brackets
  • User manual

Typically required for domestic installation

  • Tools and consumables (e.g. duct tape and screws)
  • Indoor Duct System (Recommended: BlauFast 75 or 90)
  • Ducting to outside (Recommended: EPP 160mm)
  • Outdoor grill/ Trade seal*
  • *Check with local council for acceptability
