Satin Nickle

The Assure SL is a slimline digital deadbolt featuring a highly robust and secure lock from Yale. The Yale Assure SL brings smart security to the masses with a number of features; up to 25 unique 4 to 8 digit entry codes can be set via the keypad, one touch locking, privacy button and an alarm that sounds when the lock is tampered with. It has a sleek key-free design and being battery powered it doesn't require any hard-wiring.

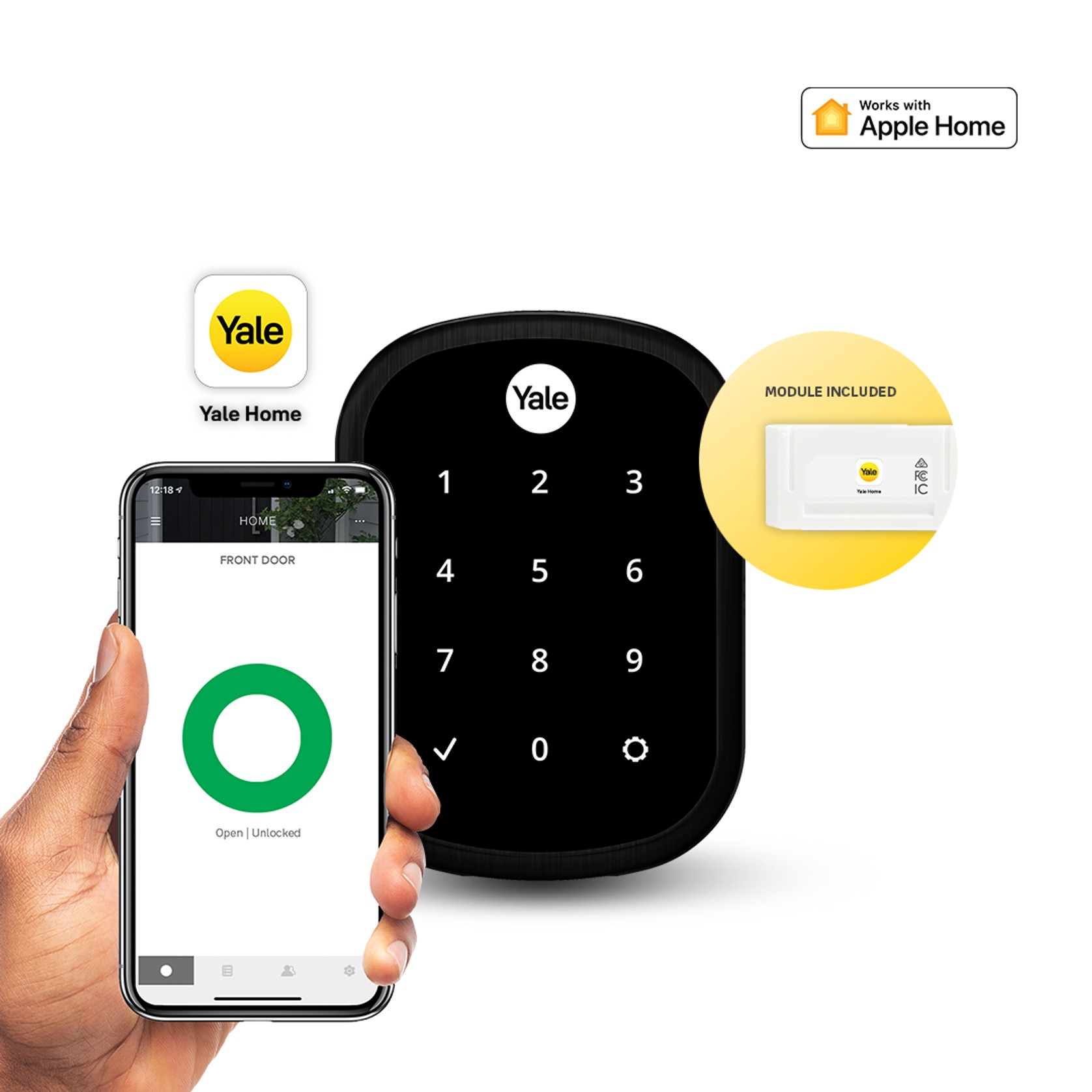

Download the Yale Home App for

  • App control
  • Guest access
  • 24/7 activity monitoring & notifications
  • Auto lock/unlock when you’re nearby
  • DoorSense™ technology: know when your door is open, closed or left ajar from anywhere
  • Integrate with Apple HomeKit smart home ecosystem

Upgrade with the Yale Connect Plus Hub 2 for

  • Manage access to your home from anywhere
  • Remote locking/unlocking
  • Integrate with voice assistants and smart home ecosystems, Amazon Alexa and Google Home, for hands-free control

Home Automation Compatible with Module**
Monitor access, lock and unlock your door from anywhere when you upgrade with the Yale Connect Plus Hub 2*, Zigbee or Z-Wave module** and integrate into a compatible home automation or security system.

* The Yale Connect Plus Hub 2 enables remote access to the Yale Home App (sold separately). ** Network modules sold separately.

Note: This product is suitable for residential applications on entry doors. It is not suitable for entry points where the escutcheon is exposed to outdoor elements.

  • Category
    Digital Door Locks, Entry Automation, Home Automation
  • Range
    Yale - Residential
  • Brand
  • Designer
  • Warranty
    3 years
  • Type of use
  • Care and cleaning
    Easy maintenance
  • Installation
    Minor installation required
  • Assembly
    Minor assembly required


  • Digital deadbolt

Mechanical keys

  • No

Pin code

  • 4-8 digits

User Codes

  • 25

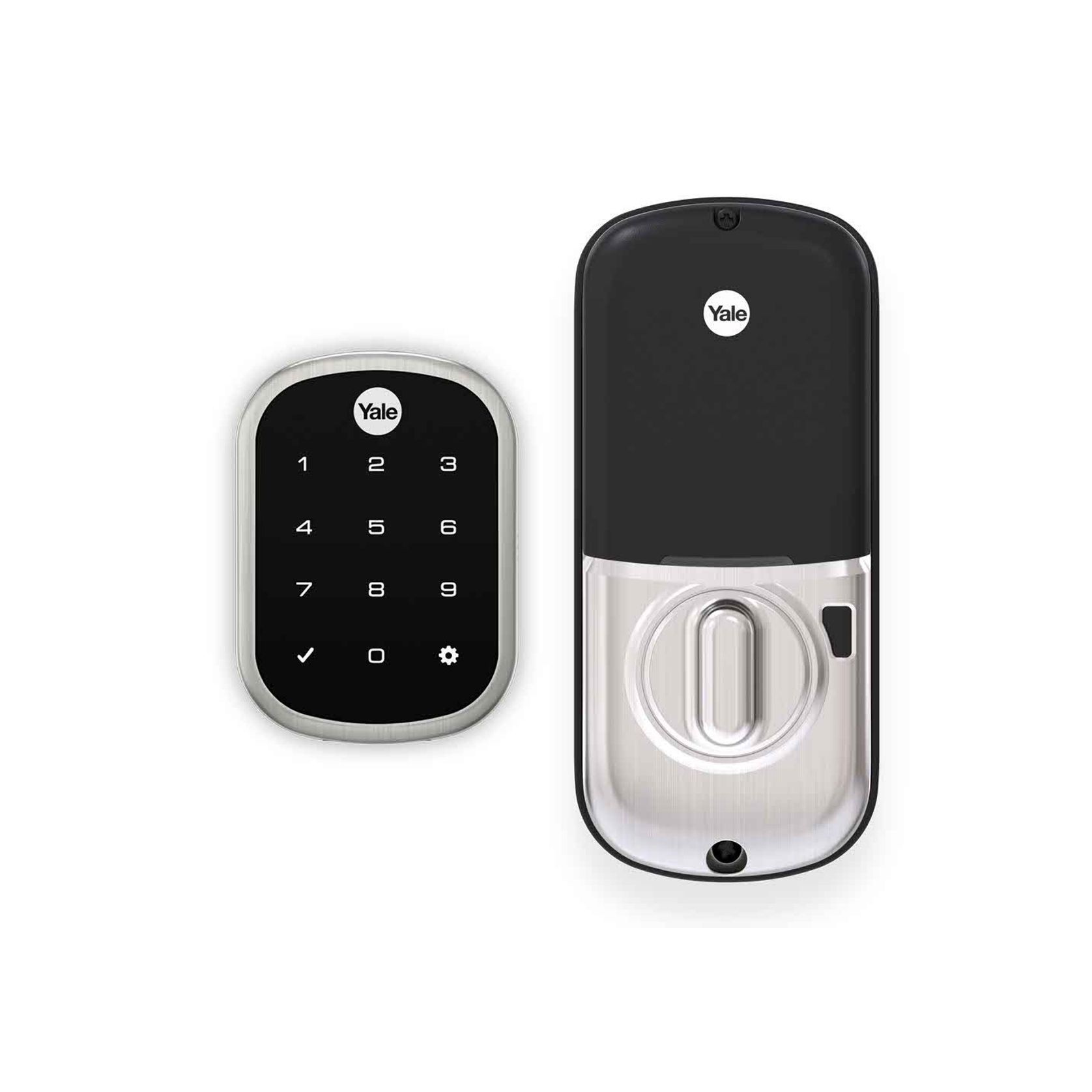

  • Satin Nickel

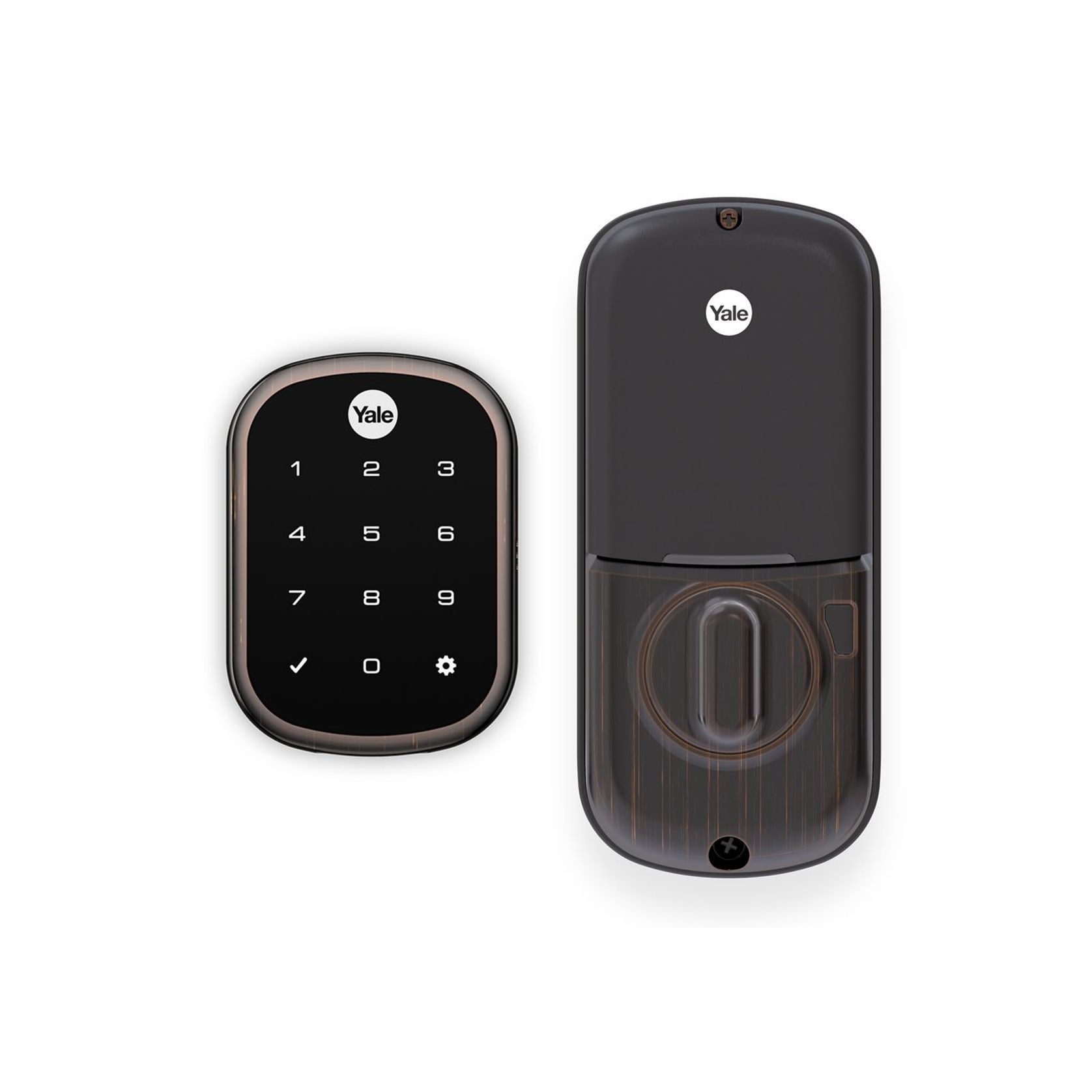

  • Oil Rubbed Bronze

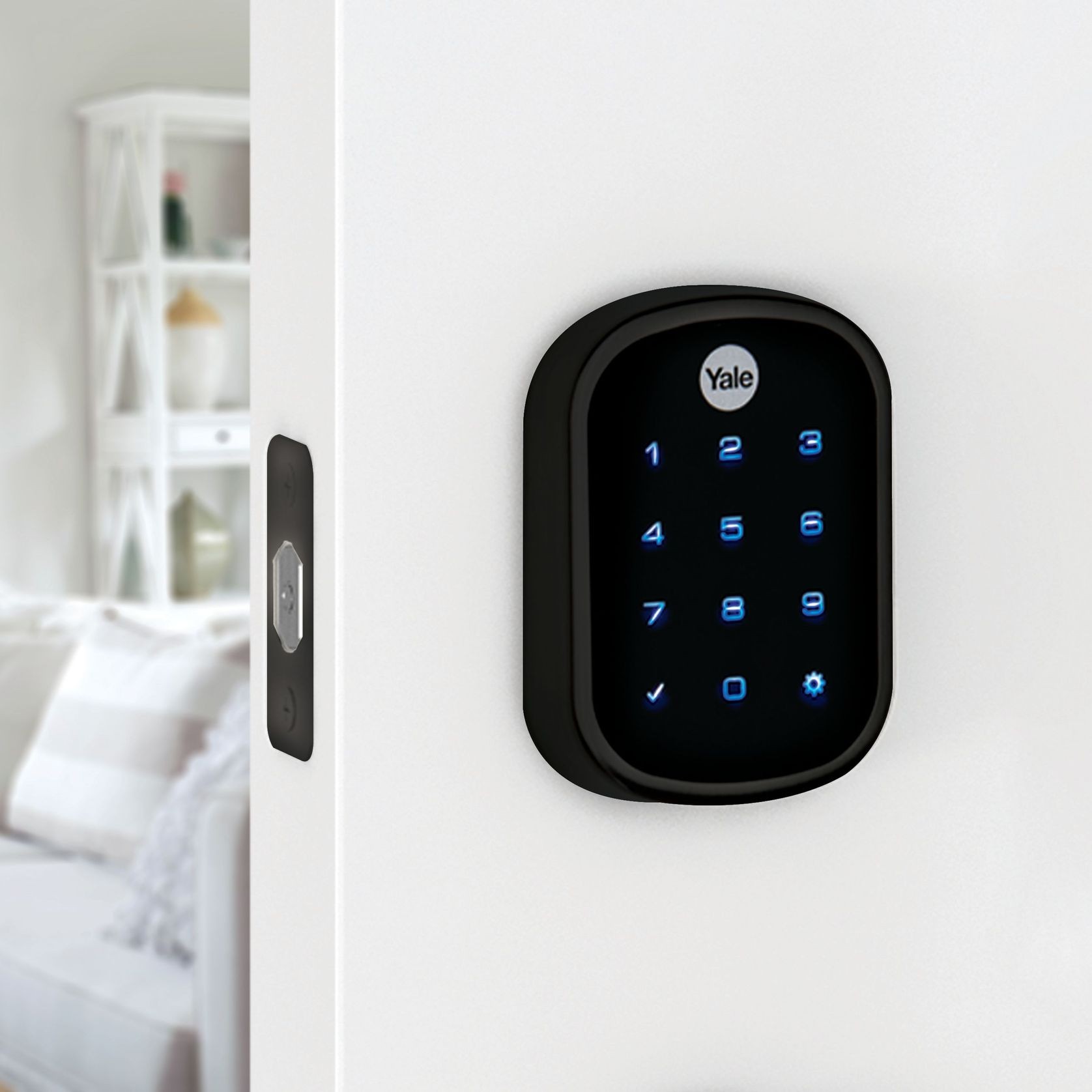

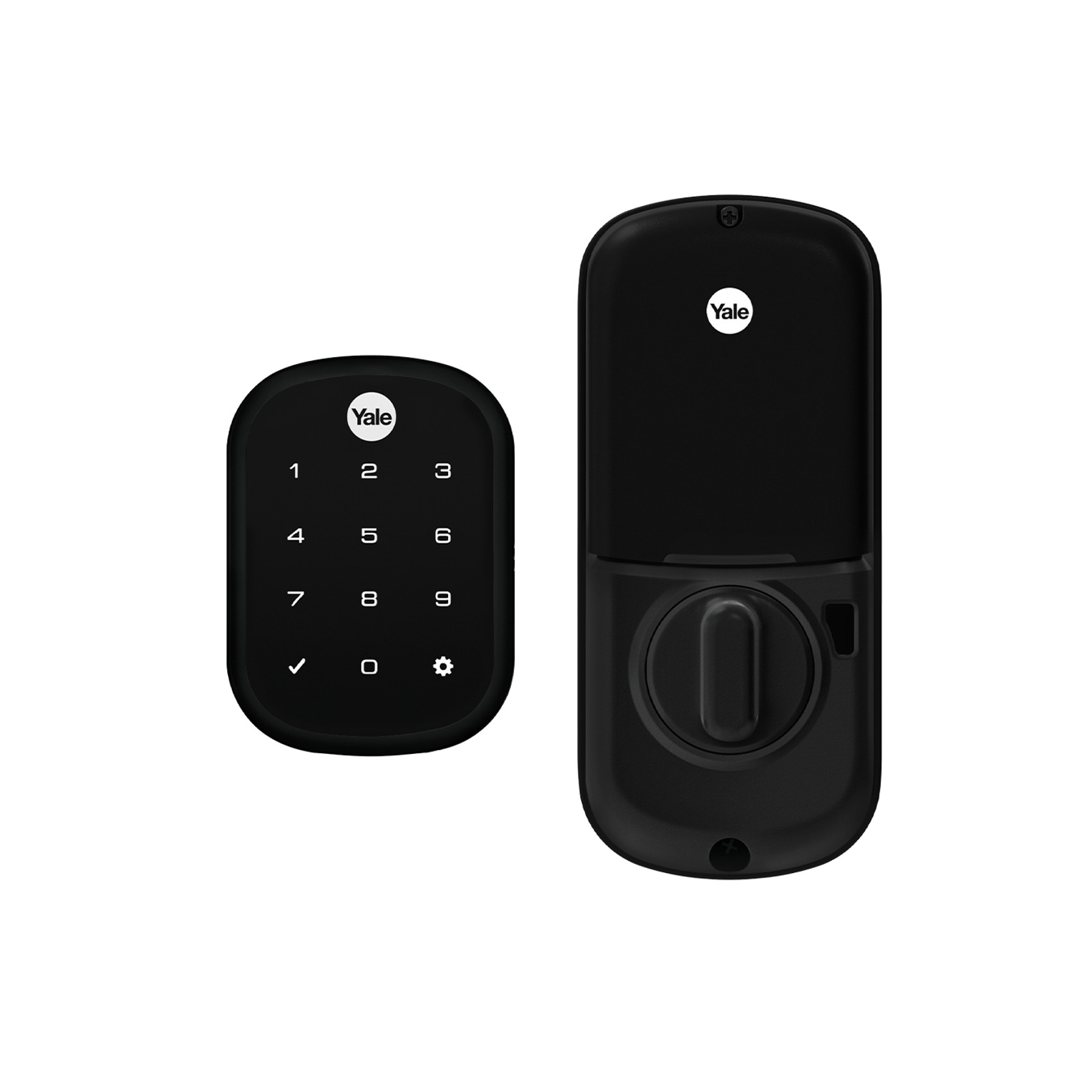

  • Matt Black

Door type

  • Aluminium and Timber

Door thickness

  • 35-57mm
Scope of use

Install Within Minutes

The Assure Lock SL is simple to install on standard doors and replaces an existing deadbolt in minutes with just a screwdriver. The lock even has voice guidance in three languages to guide set up and customising settings.

  • Fits on doors 35mm to 57mm thick
  • Backset 60mm or 70mm
  • Face Bore Hole: 54mm
  • Edge Bore Hole: 25mm
  • Adjustable latch
  • Available in Satin Nickel, Oil Rubbed Bronze and Matt Black
  • Weather Protection Gasket
  • One Touch Locking

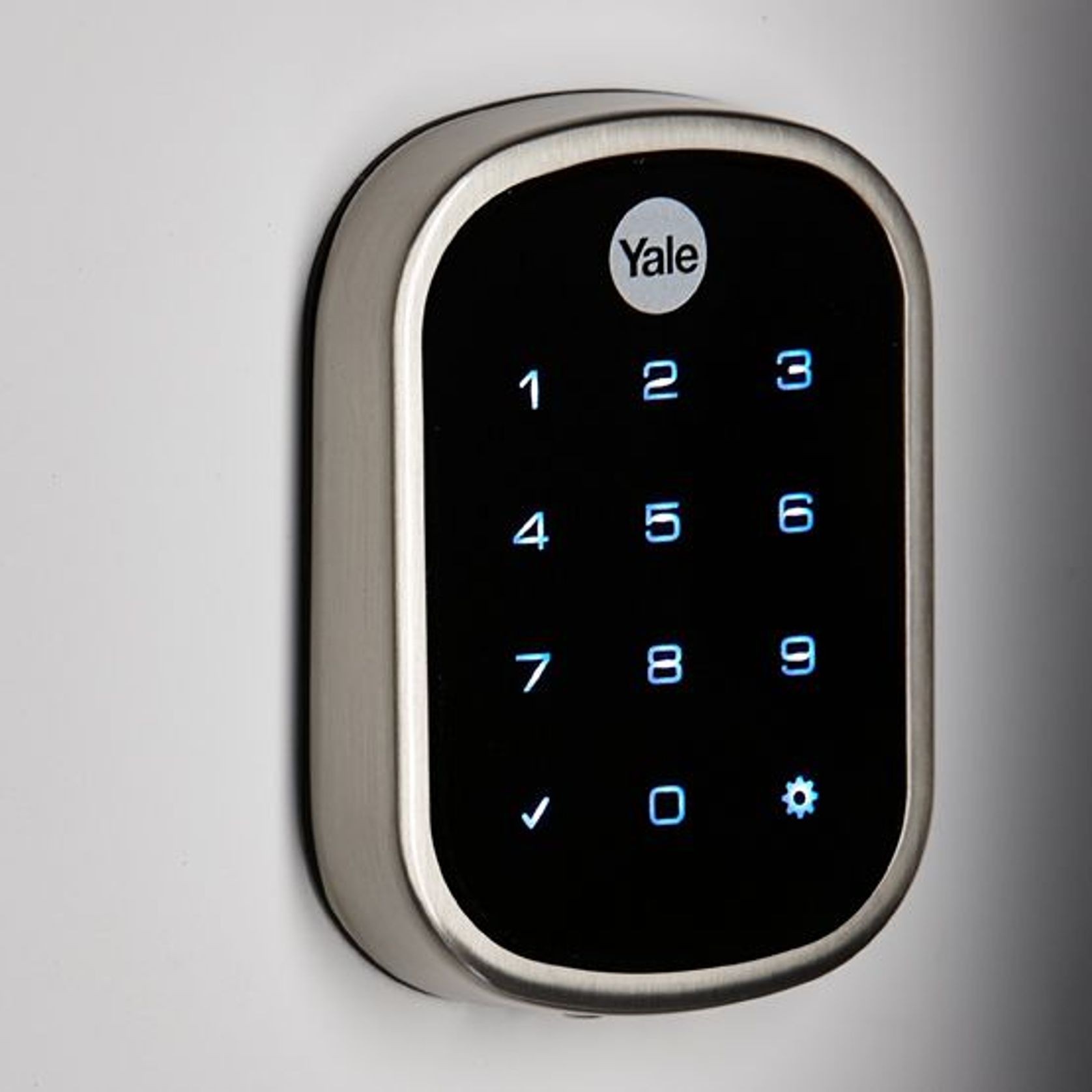

  • Backlit Numbers That Won't Wear Off
  • Privacy Button
  • Tamper Resistant Battery Cover - if batteries are dead the lock can be energised from the outside with a 9V battery
  • Suitable for aluminium and timber doors
  • Door thickness: 35-57mm
  • Replaces an existing deadbolt in minutes with just a screwdriver.
