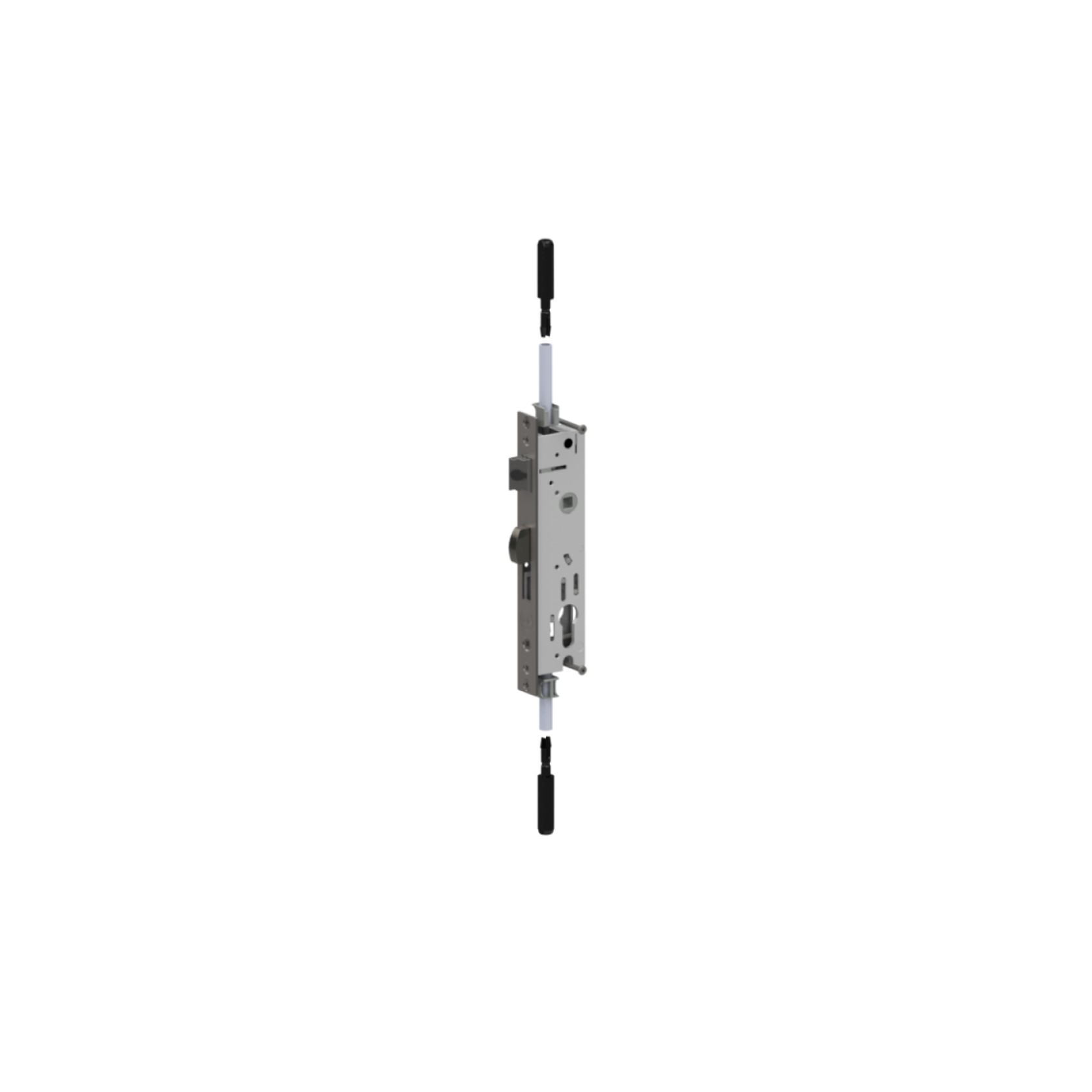

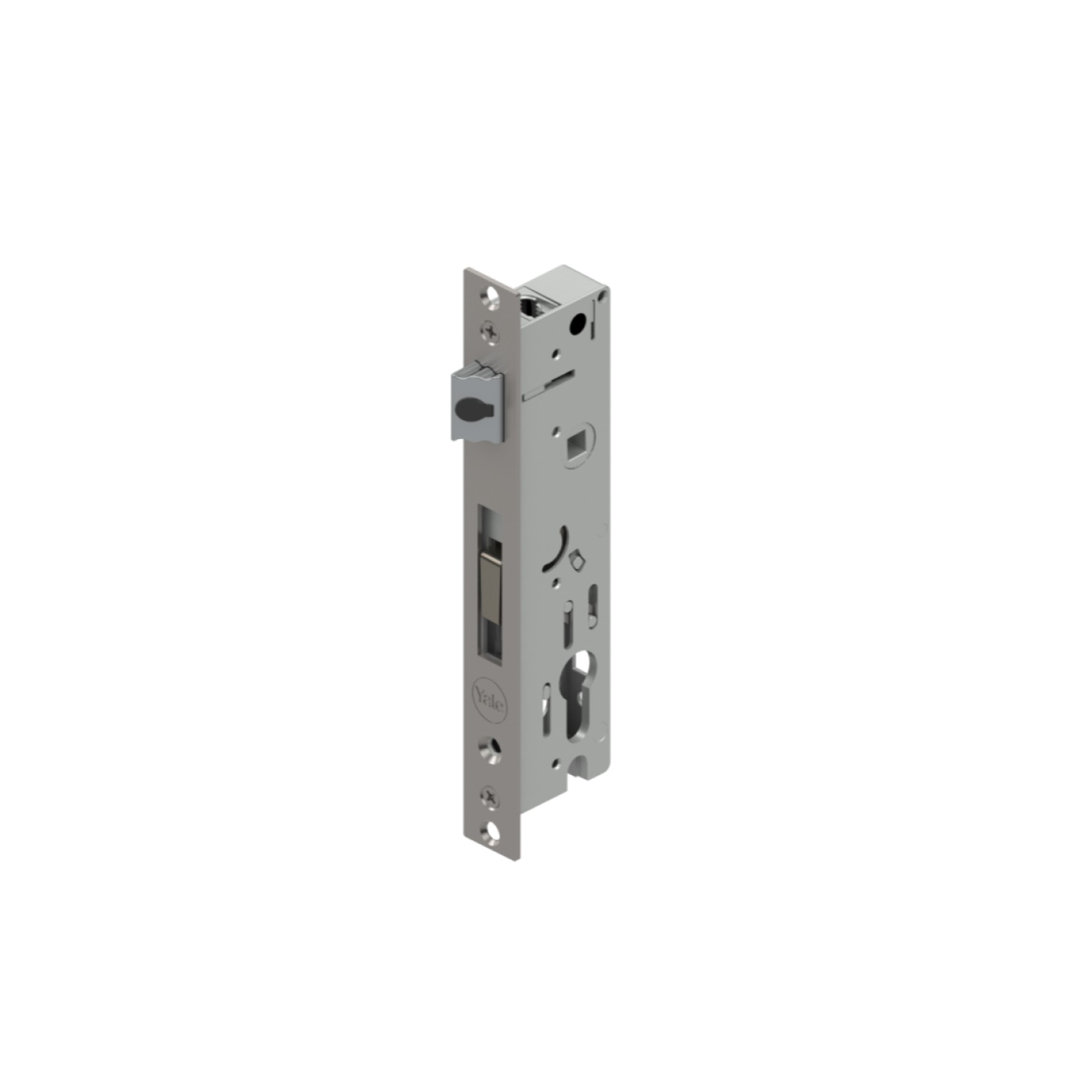

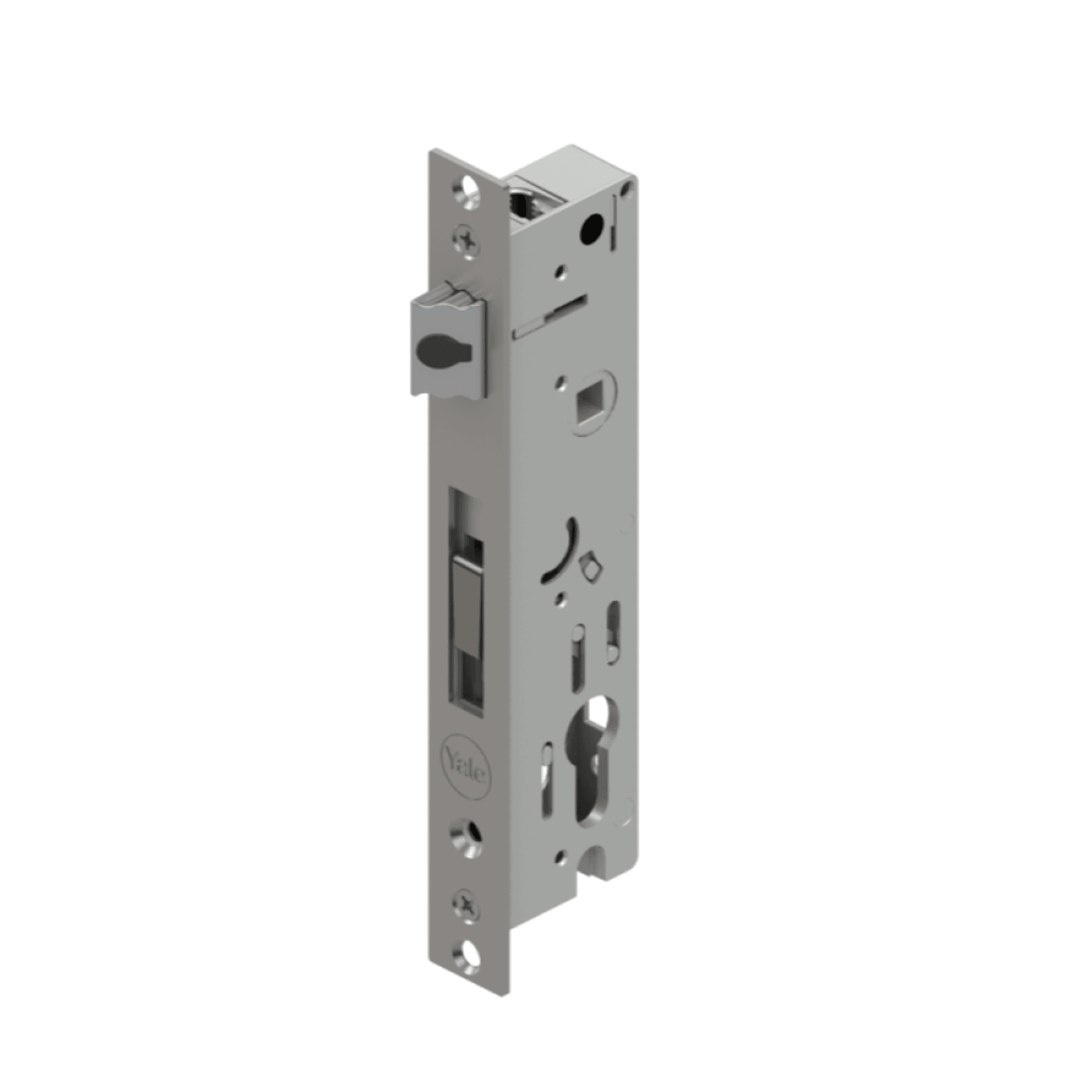

Yale Induro 4-Point Mortice Lock

The Induro® 4-Point Mortice Lock offers a new and improved locking system with enhanced furniture options available.

Specs

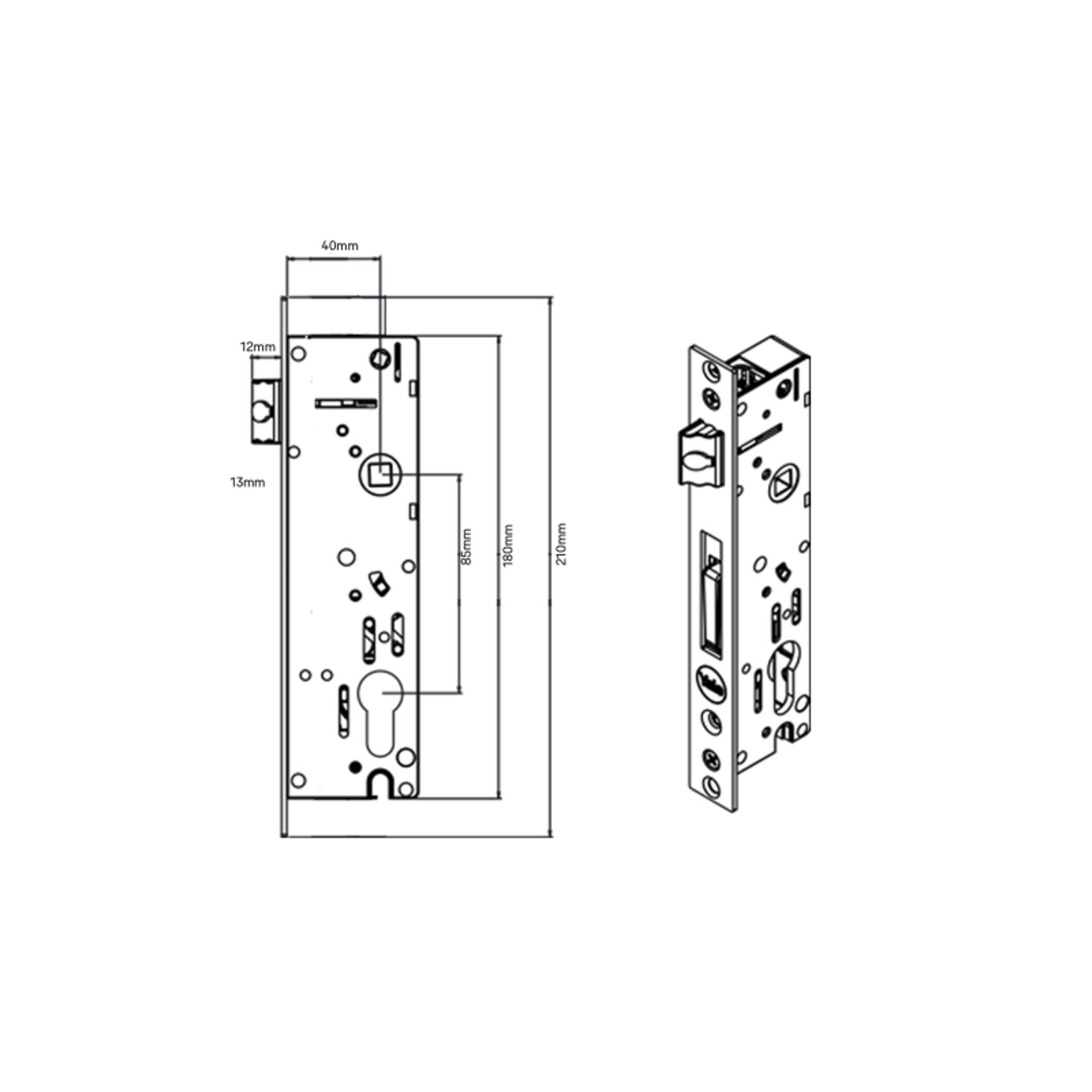

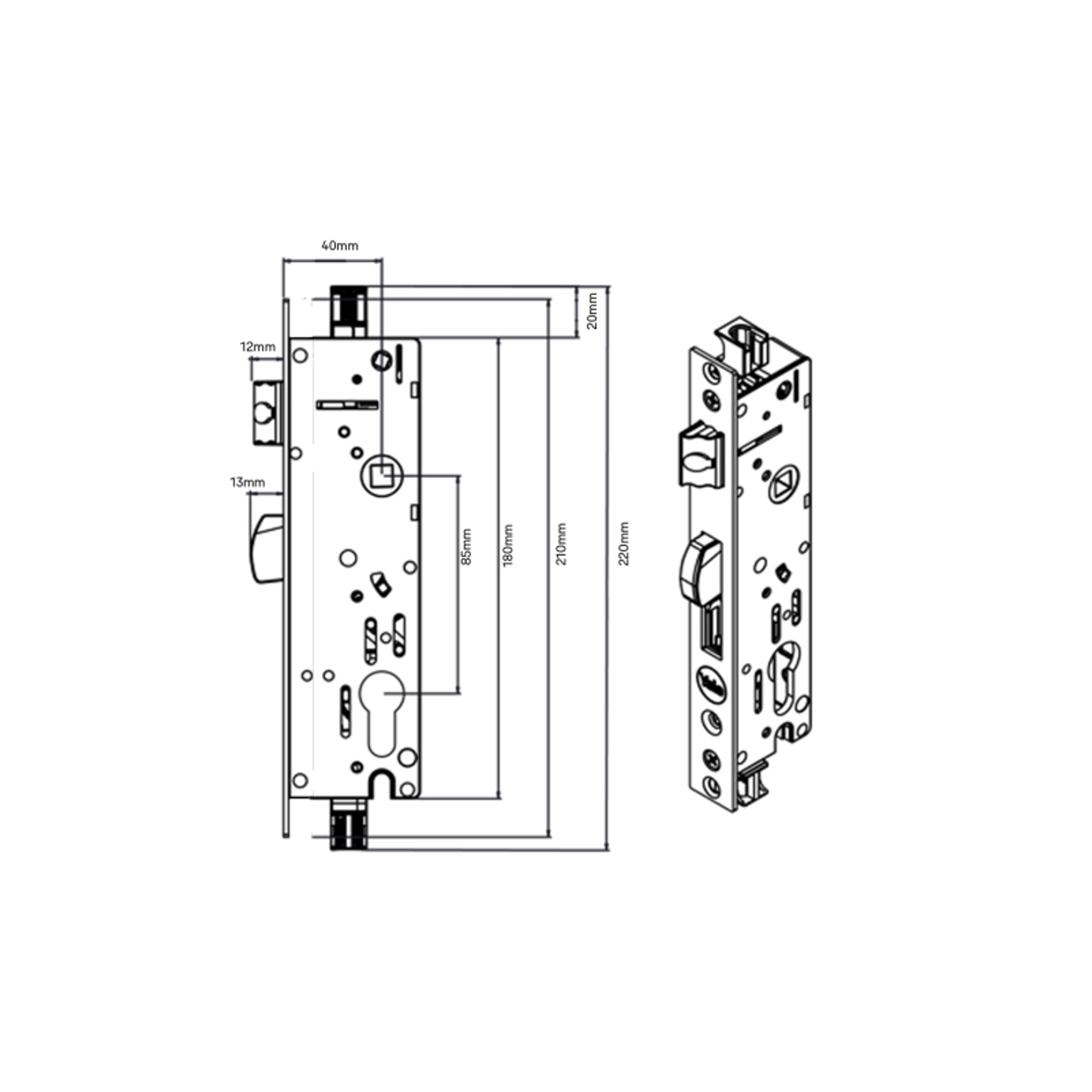

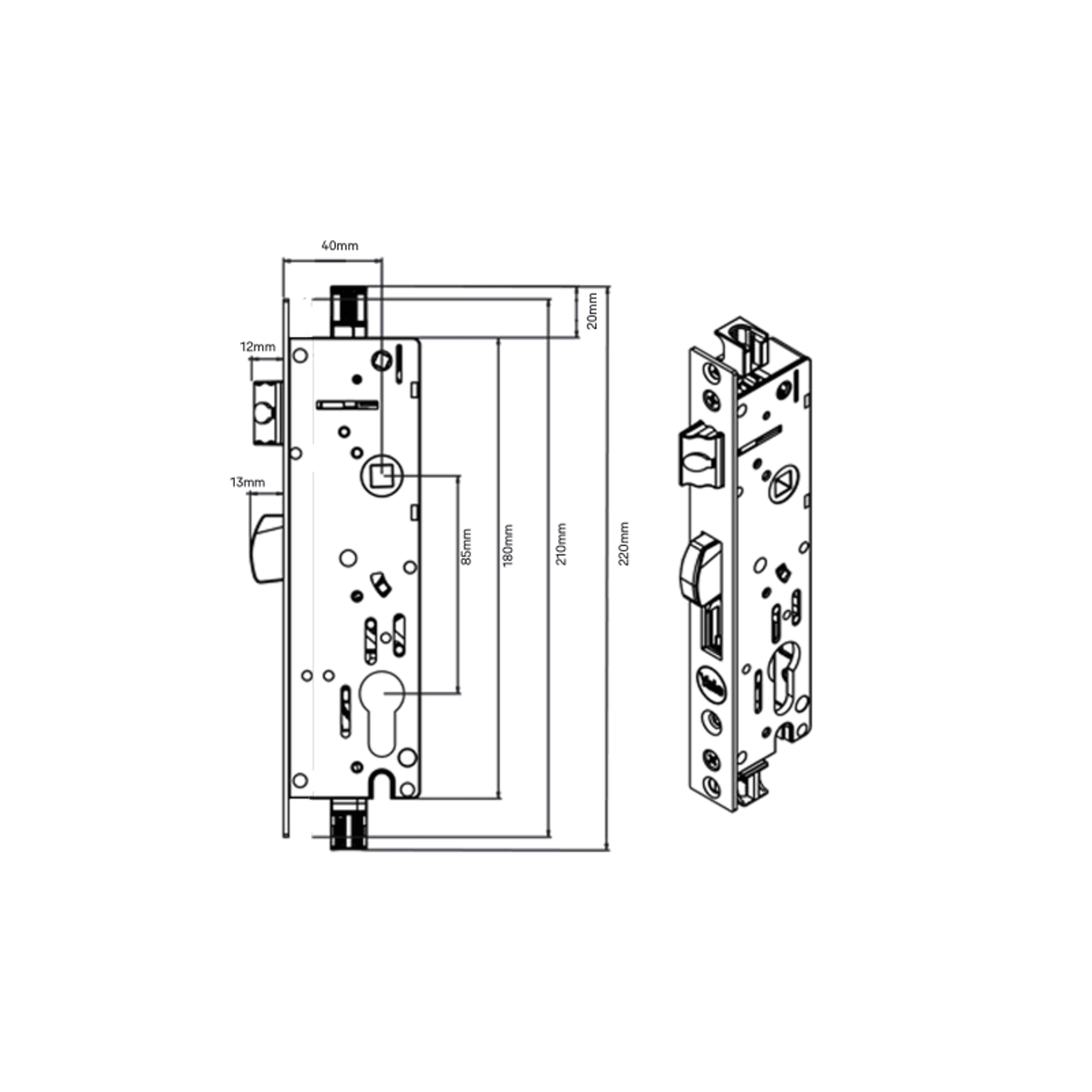

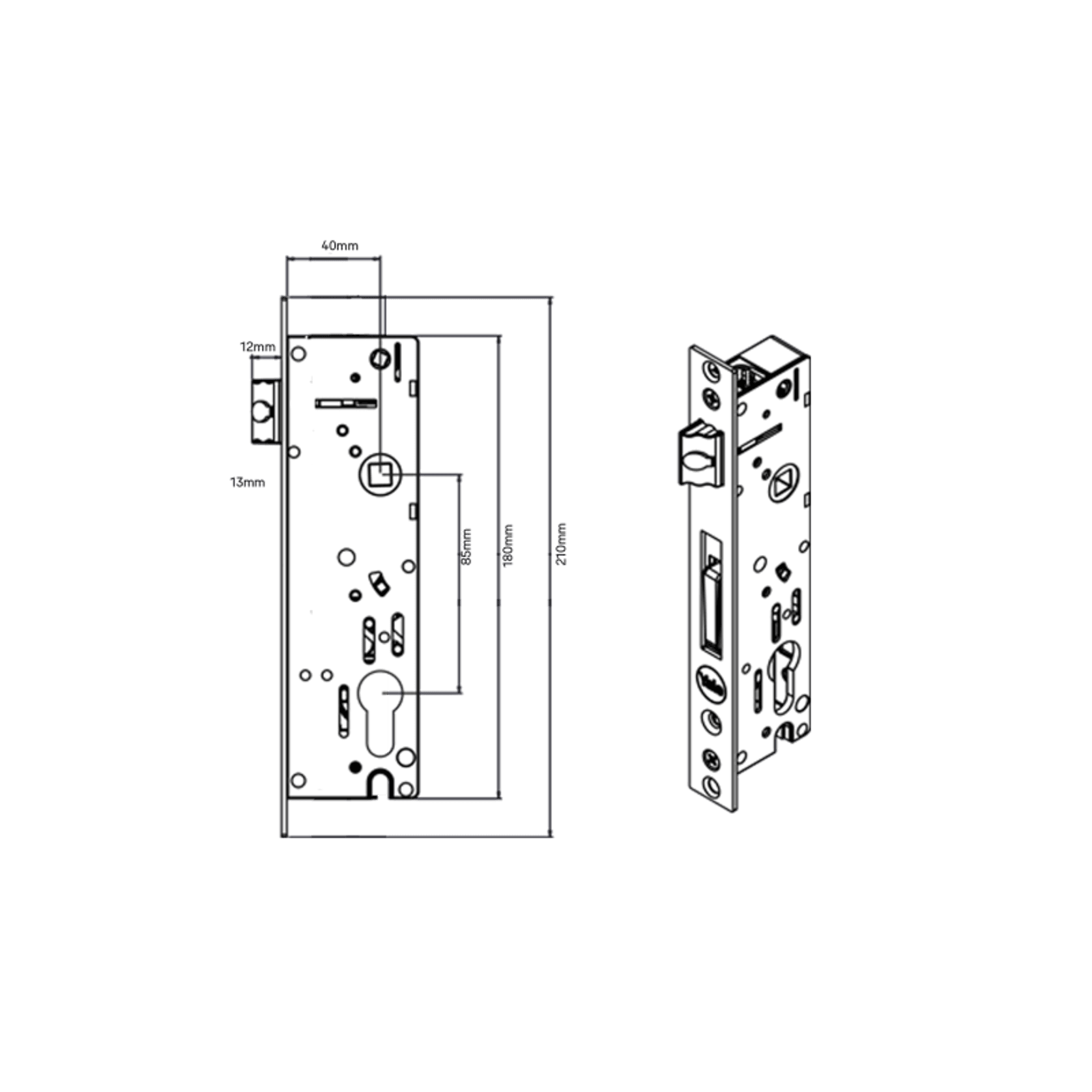

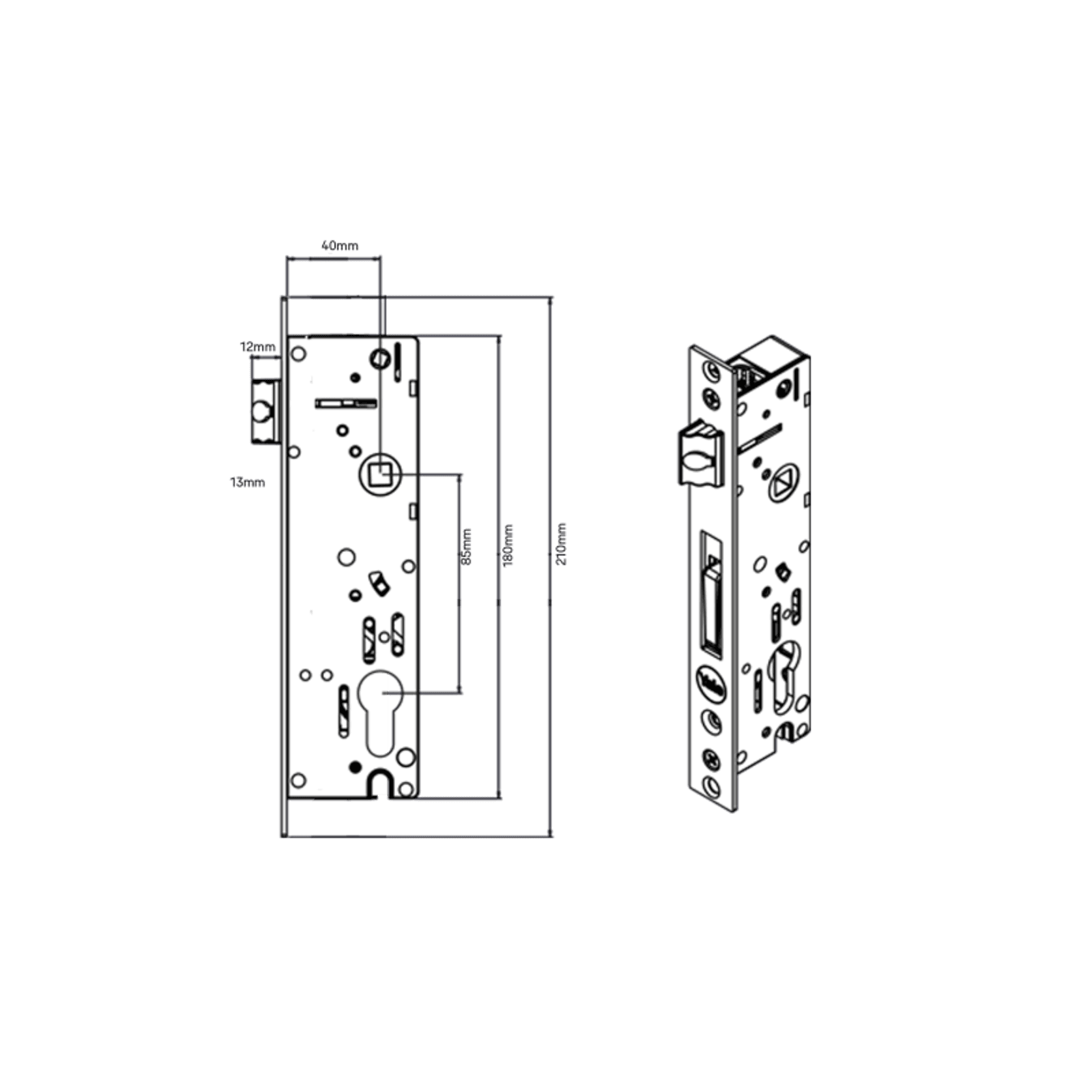

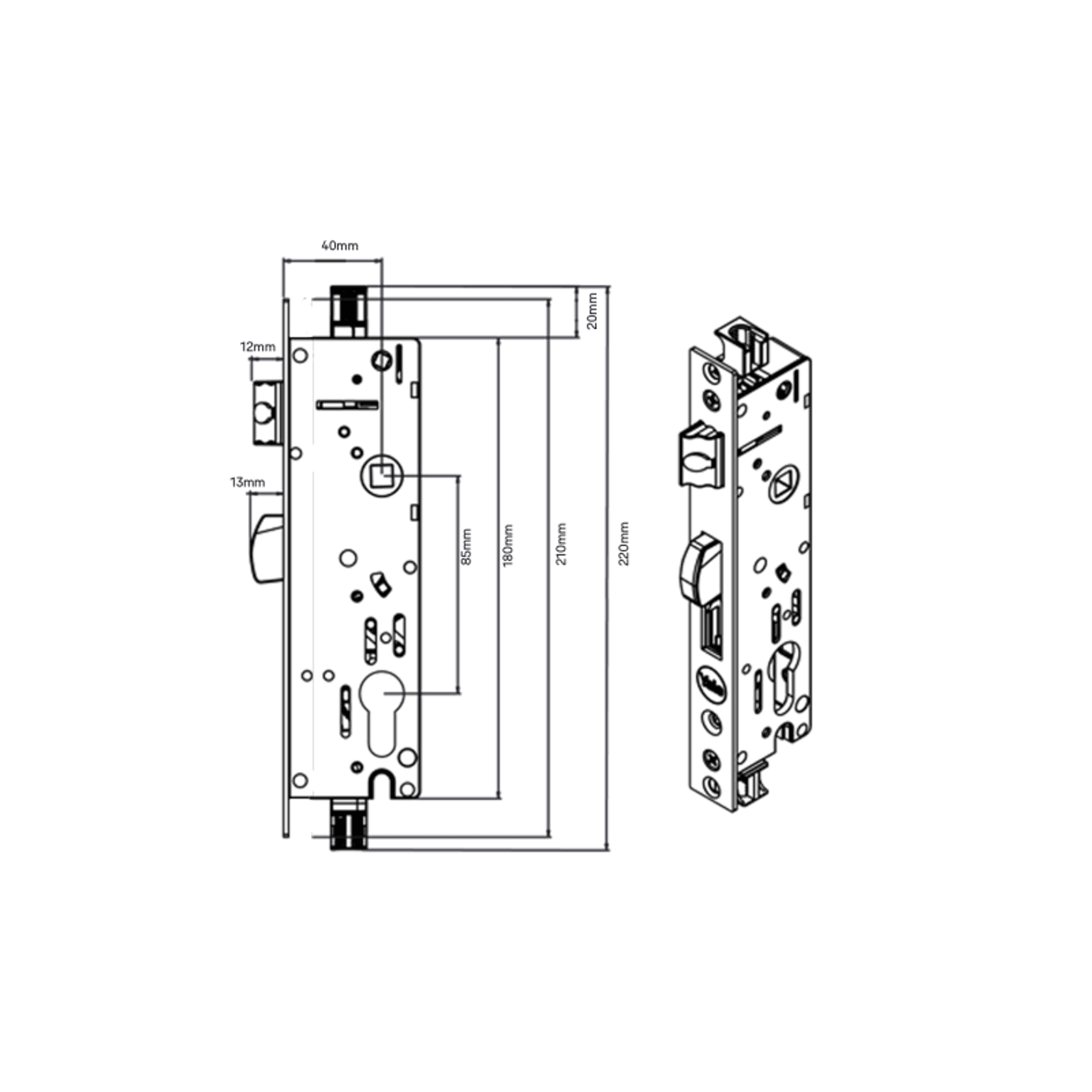

• Available with 30mm, 40mm or 50mm backset
• Short Throw 4-Point
• Long Throw 4-Point

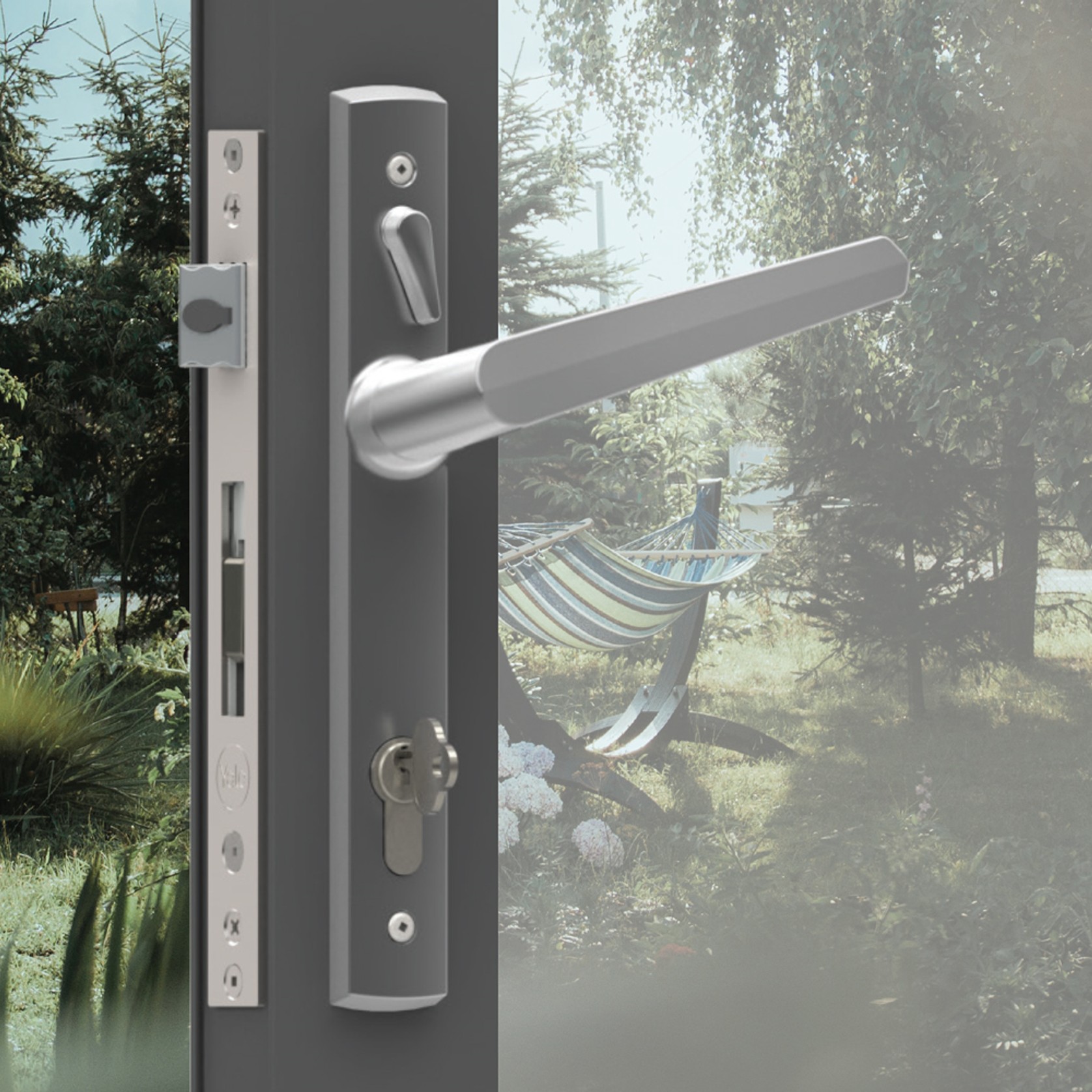

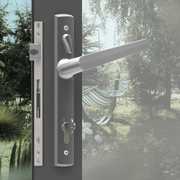

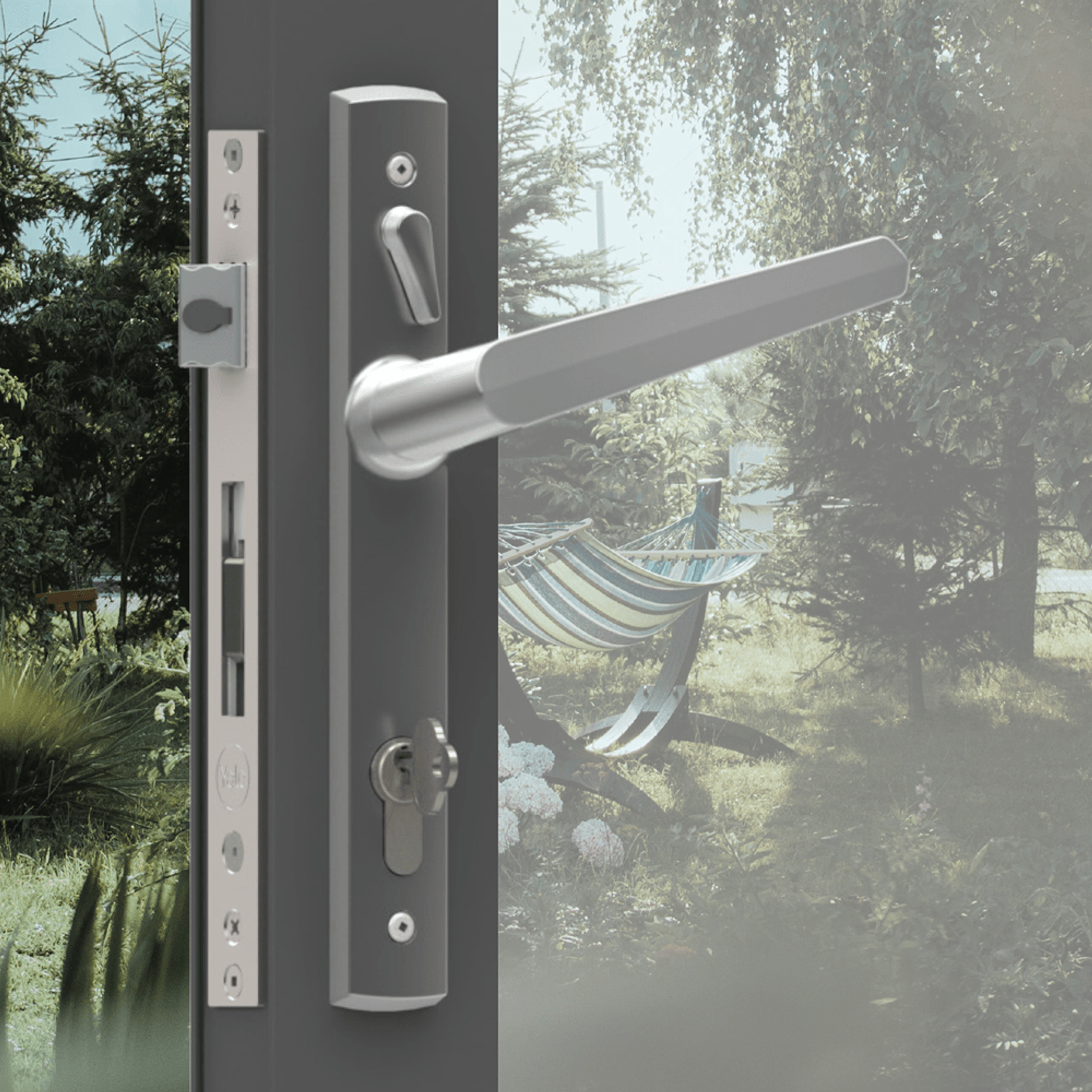

• Available with standard Verona and Palladium furniture or upgrade to Palladium Xtra with LockAlert™ and safety snib
• Double cylinder, cylinder and turnknob, half cylinder or half turnknob

Scope of use

Designed to be used in conjunction with the Verona and Palladium furniture ranges.

Performance

• Upgraded furniture option (Palladium Xtra) features LockAlert™ indicator which shows at a glance if the door has been deadlocked
• Upgraded furniture also comes with safety snib for at home security, enabling easy exit if required

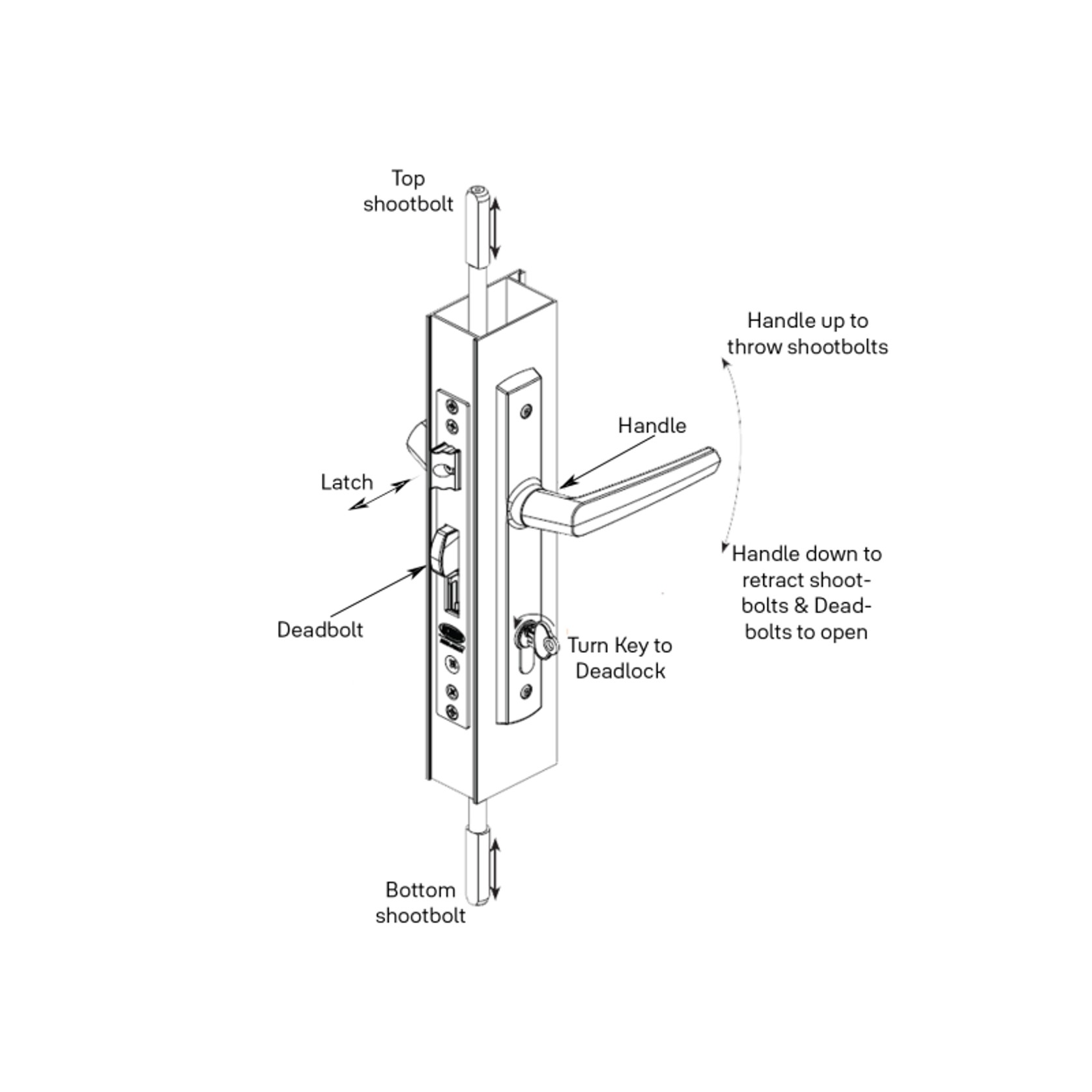

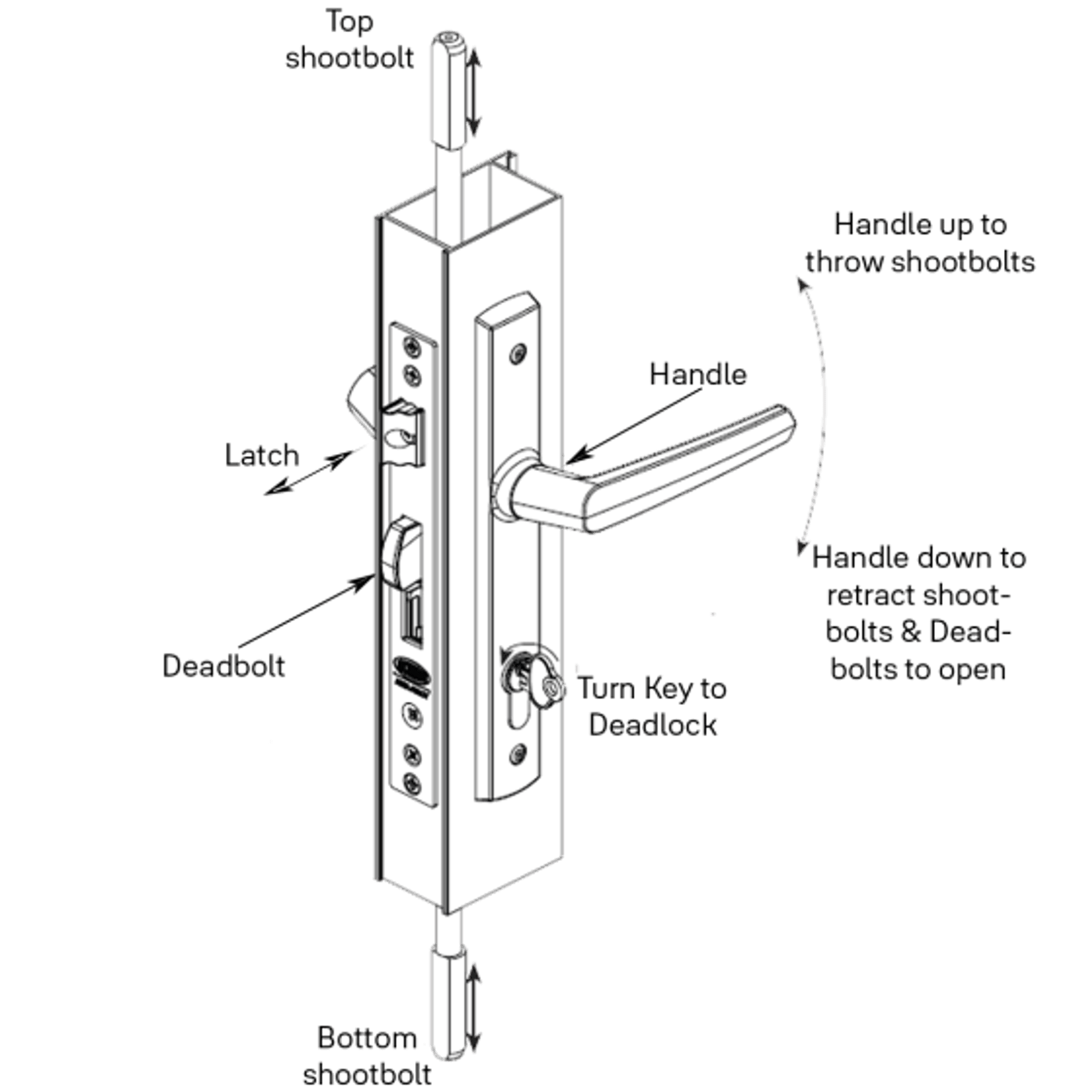

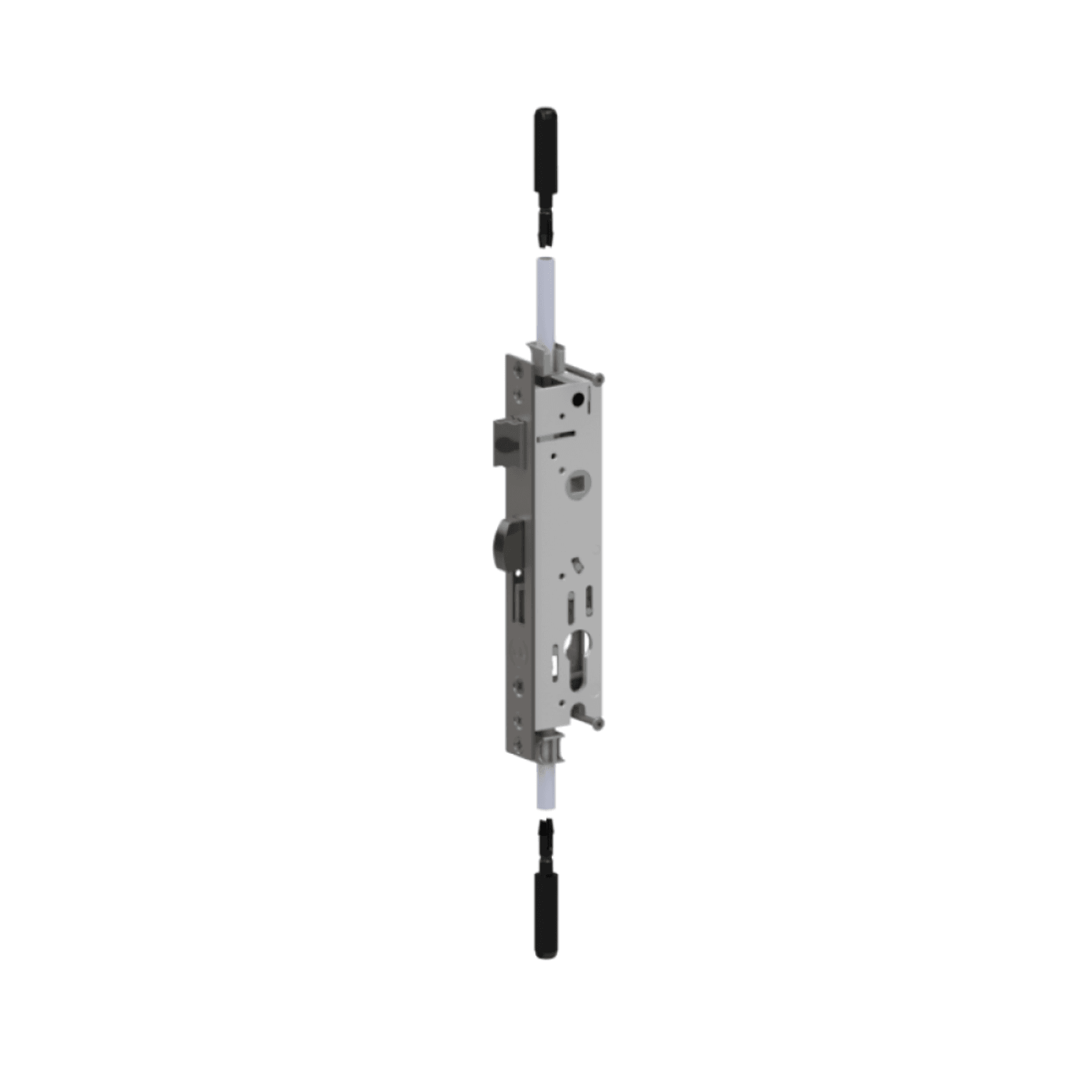

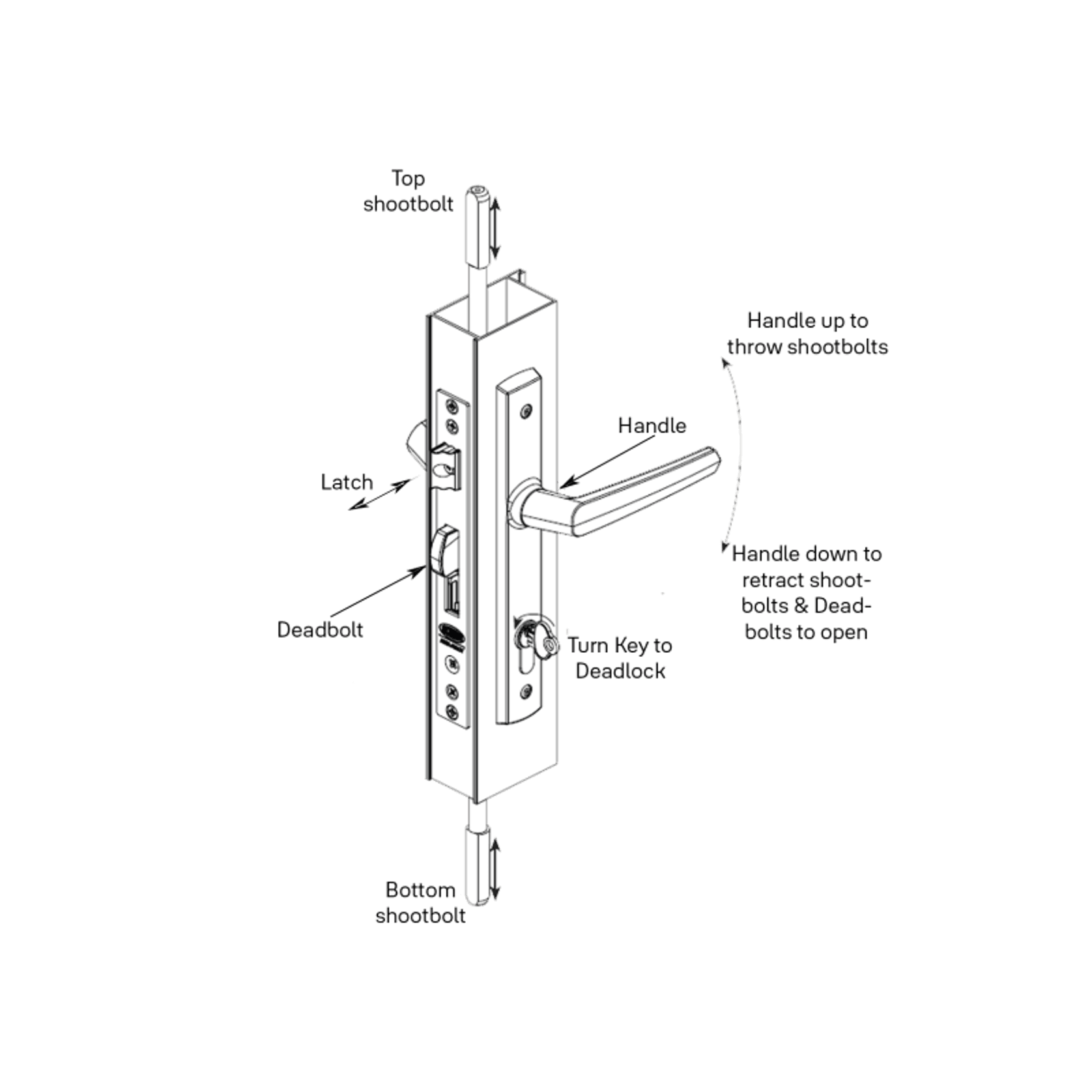

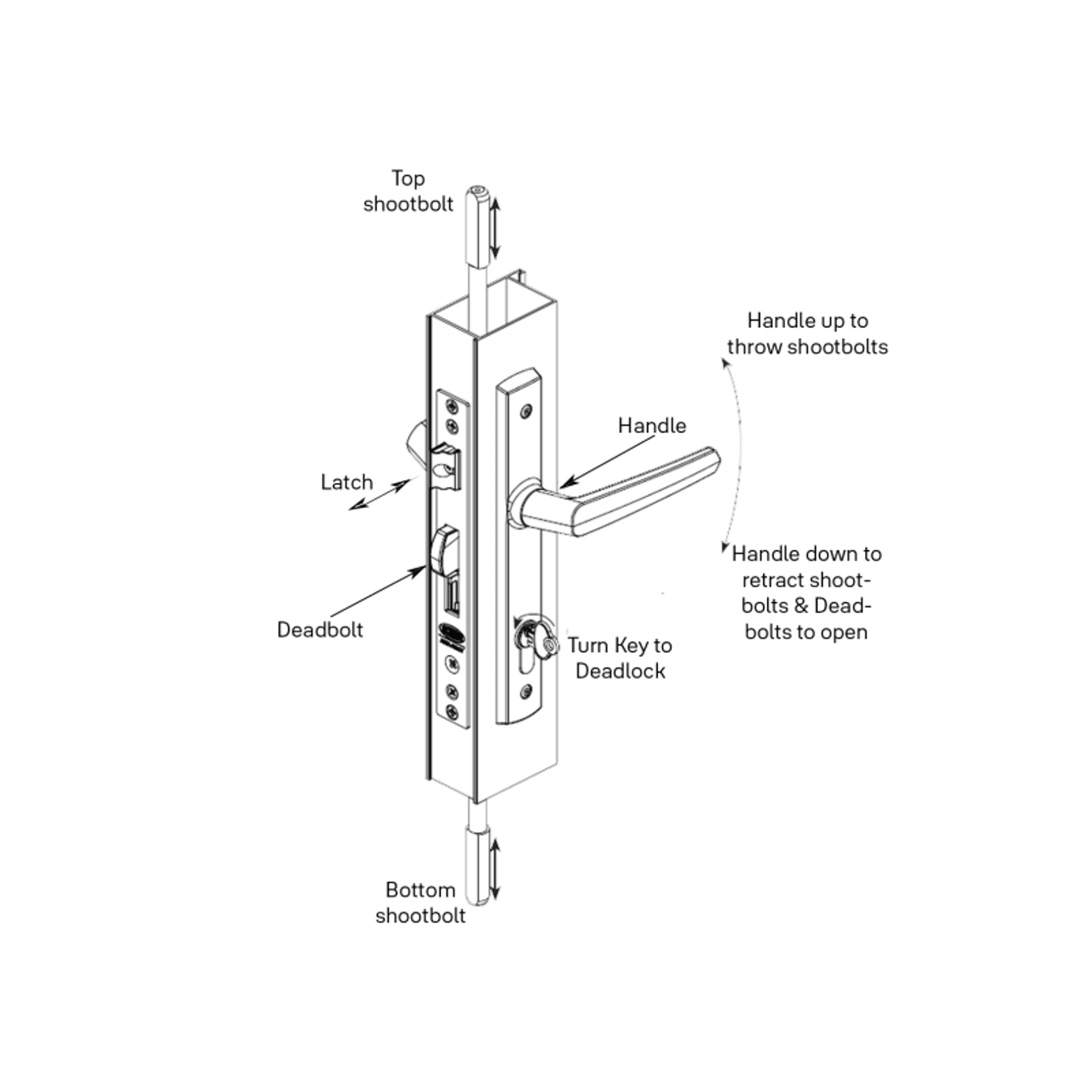

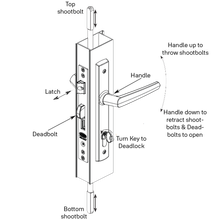

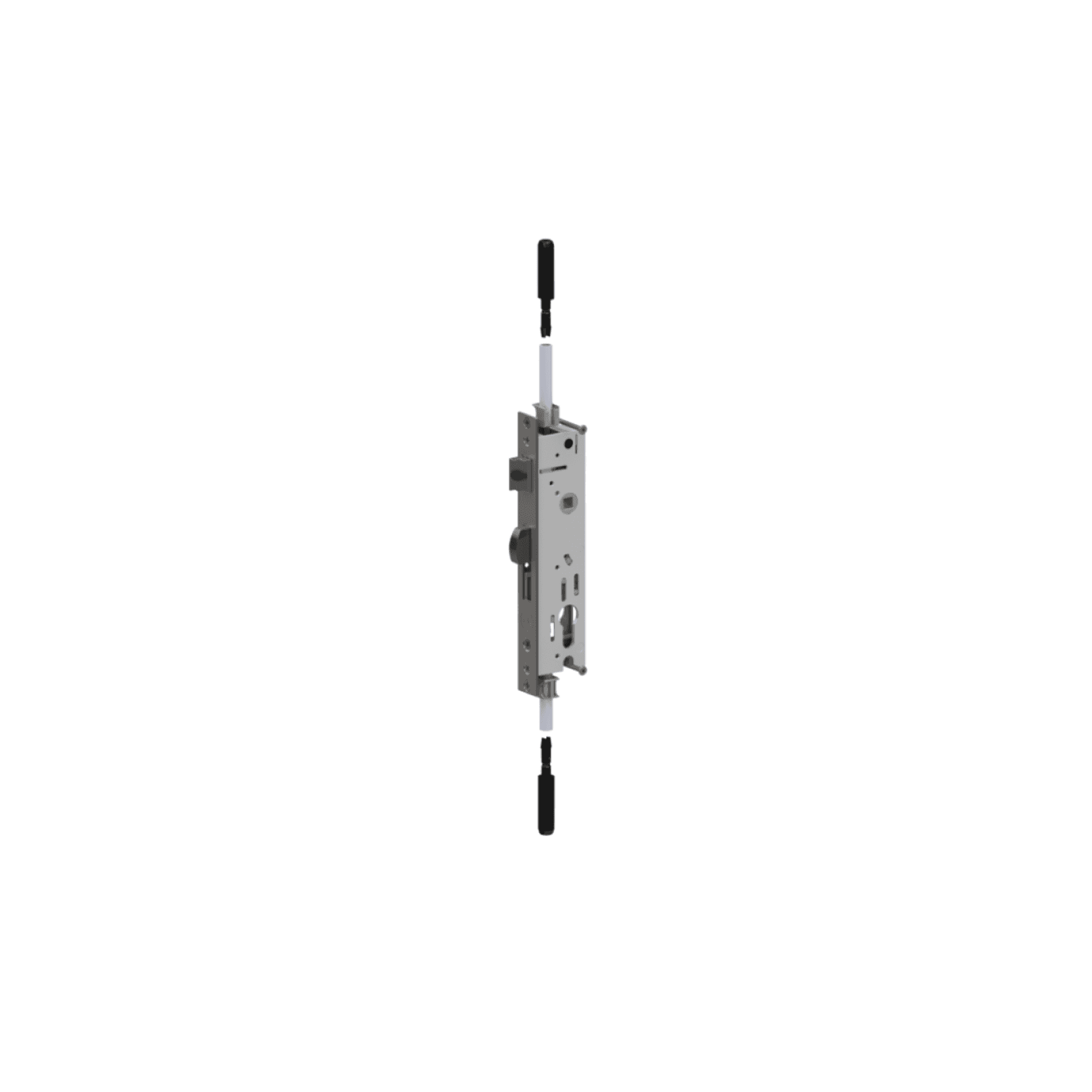

• Features four points of locking including the latch, deadbolt and shootbolts
• Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown)
• When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
• The handing of the lockset is adjusted by reversing the orientation of the latch bolt
• Standard kits are supplied with furniture and keyed cylinder
• Can be keyed alike to other ASSA ABLOY CYL4™ 5-Pin locks for one key convenience
• Achieves Australian Standards AS4145: 1993 (Part 2) Security Level S2 and Durability Level D2
• New Zealand made
