The Foundation of Effective Kitchen Ventilation

The ducting provides the pathway for this extracted air. Every element of that pathway (including duct diameter, length, routing, transitions and termination) affects the system's ability to achieve its intended airflow.

While motor performance is important, the complete ventilation system ultimately determines how effectively contaminants are removed from the indoor environment.

‍

Understanding Static Pressure

All duct systems generate resistance to airflow, commonly referred to as static pressure. As resistance increases, airflow decreases unless the fan is capable of overcoming the additional load. Excessive static pressure can reduce extraction performance, increase energy consumption and contribute to higher operating noise.

Common contributors include:

• Excessive duct lengths.
• Multiple 90-degree bends.
• Undersized duct diameters.

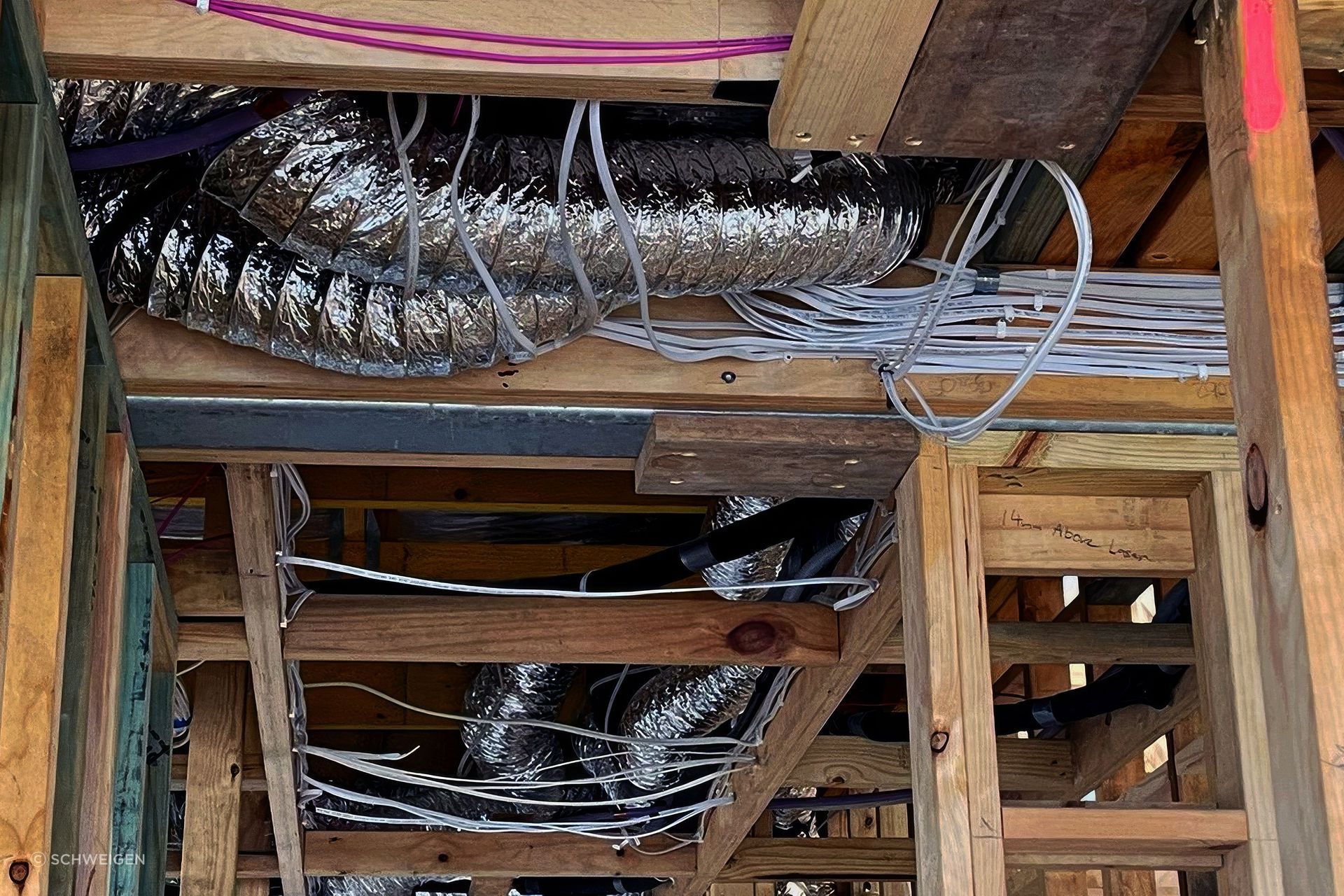

• Compressed or poorly supported flexible ducting.
• Not trimming excess ducting.
• Abrupt duct transitions.
• Restrictive roof or wall termination fittings.
• Poorly coordinated services creating unnecessary offsets.

While each factor may appear minor in isolation, their cumulative effect can significantly compromise system performance.

‍

Airflow Is Determined by the Entire System

A common misconception is that selecting a higher-capacity motor will compensate for poor duct design.

In practice, ventilation performance depends on the interaction between the fan and the duct system. Even the highest-performing extraction unit cannot achieve its rated performance when connected to a restrictive duct network.

Effective system design balances motor selection with appropriate duct sizing, efficient routing and minimal resistance, allowing the system to operate as designed.

Duct Diameter Has a Significant Impact

Duct diameter is one of the most influential factors affecting airflow efficiency.

Larger diameter ducting generally reduces air velocity and friction losses, enabling greater airflow while lowering static pressure.

Conversely, undersized ductwork increases resistance, forcing the motor to work harder to maintain airflow and potentially reducing extraction efficiency. Selecting the correct duct diameter during the design phase is considerably more effective than attempting to rectify airflow limitations after construction.

‍

Route for Performance

Air naturally follows the path of least resistance. Every bend, transition and deviation from a straight duct run increases turbulence and pressure loss.

Where practical, duct routes should be:

• As short as possible.
• As straight as possible.
• Sized appropriately for the selected extraction system.
• Coordinated with other building services to minimise unnecessary offsets.

Early coordination between architects, kitchen designers, builders and mechanical installers allows ventilation to be integrated into the building rather than accommodated after other services have been resolved.

‍

Design Early to Avoid Compromise

Kitchen ventilation is often considered late in the design process, after cabinetry layouts, ceiling framing and structural elements have already been finalised. This frequently results in compromised duct routes, additional bends, reduced duct diameters or extended duct runs that diminish overall system performance.

By considering ventilation during the early design stages, project teams can optimise ceiling spaces, bulkheads and service coordination while maintaining architectural intent. The result is improved extraction performance, cleaner detailing and more efficient installation.

‍

Duct Design Influences Acoustic Performance

Noise generated by a ventilation system is not solely determined by the motor. Poor duct design creates airflow turbulence that can increase air movement noise throughout the system.

Smooth airflow, appropriate duct sizing and reduced static pressure contribute to quieter operation while allowing extraction systems to perform more efficiently.

This system-wide approach to acoustics is particularly important in premium residential projects where occupant comfort is a key design objective.

‍

Installation Quality Completes the System

Even the highest-quality ventilation products rely on correct installation to achieve their intended performance. Attention to duct sizing, support, sealing, routing and external termination is essential for maintaining airflow efficiency throughout the life of the system. As with any engineered building service, the performance of the finished installation depends on the quality of every component.

‍

Designing for Long-Term Performance

Modern homes are becoming increasingly airtight, making effective mechanical ventilation more important than ever. Well-designed kitchen extraction systems contribute to improved indoor air quality by efficiently removing moisture, grease, smoke and airborne contaminants before they circulate throughout the home.

By combining premium extraction technology with quality ducting and considered duct design - projects can achieve stronger airflow, quieter operation and healthier indoor environment. Reach out for a free consult with a Schweigen Product Expert today at 1300 881 693.
