ALPOLIC®/fr Fired Rated Aluminum Cladding System

By PSP

ALPOLIC®/fr Fired Rated Aluminum Cladding System is the ideal choice as a cladding material due to its superior flatness and excellent surface colour uniformity.

Mitsubishi's global leadership in Aluminium Composite Material (ACM) technology now offers ALPOLIC®/fr, with a non-combustible mineral filled core.

The continuous laminating process combines aluminium skins with the core resulting in superior flatness. Plus the unique technology of coil coating provides the best quality of colour uniformity and no surface grain lines. While ALPOLIC®/fr is resistant to reasonable impact loads due to the unique composition, it is also incredibly formable. Cutting, curving, routing, grooving and other procedures are easy with aluminium/woodworking machines. ALPOLIC®/fr meets fire code requirements because of its non-combustible mineral filled core.

Details
  • Category
    Cladding & Facades
  • Range
    Design Solutions Range
  • Brand
    PSP Limited
  • Warranty
    15 years
Specifications
  • Fire Resistance - ALPOLIC®/fr meets fire code requirements because of its non-combustible mineral filled core.
  • Impact Resistance - ALPOLIC®/fr is resistance to reasonable impact loads due to the unique composite construction of strong aluminium skins bonded to a viscoelastic core.
  • Rigidity - ALPOLIC®/fr is a light and strong sheet material with an apparent specific gravity of 1.2 to 2.0, reducing weight by 40% compared with a solid aluminium sheets with equivalent rigidity.
  • Superior Flatness - The continuous laminating process combines the 0.5mm aluminium skin with the core to create a consistently flat surface.
  • Colour Conformity - The unique technology of coil coating provides the best quality of colour uniformity with no surface grain lines.
  • Fire-rated non-combustible core (passes NFPA285 and ISO9705 Group 1)
  • Coated with LUMIFLON® FEVE Polymer (CFTE) paint with a 20 year warranty
  • Available with a gloss level of 5% up to 90%
  • More than 230 colours available
  • 3 coat finish, the third layer is a protective clear coat
  • 15 year warranty
  • withstands up to 5kpa wind loading exceeding NZS4284
Scope of use
  • Commercial, high-rise & curtain-wall cladding
  • Corporate Signage
  • Fascias
  • Fire-rated wall linings
  • Fire-rated ceiling linings
  • Feature walls
  • petrol station & train station canopies
Get in touch
Visit Website

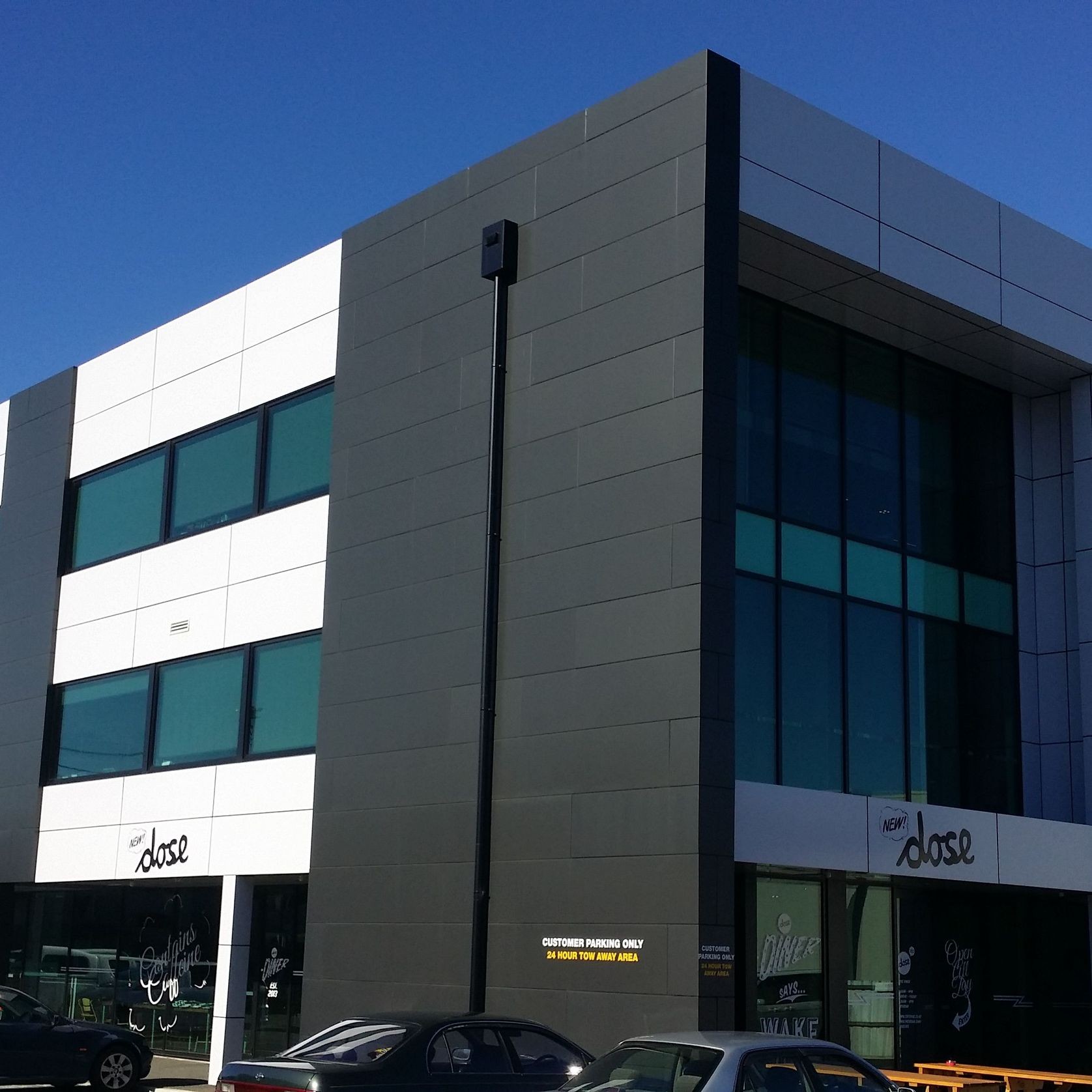

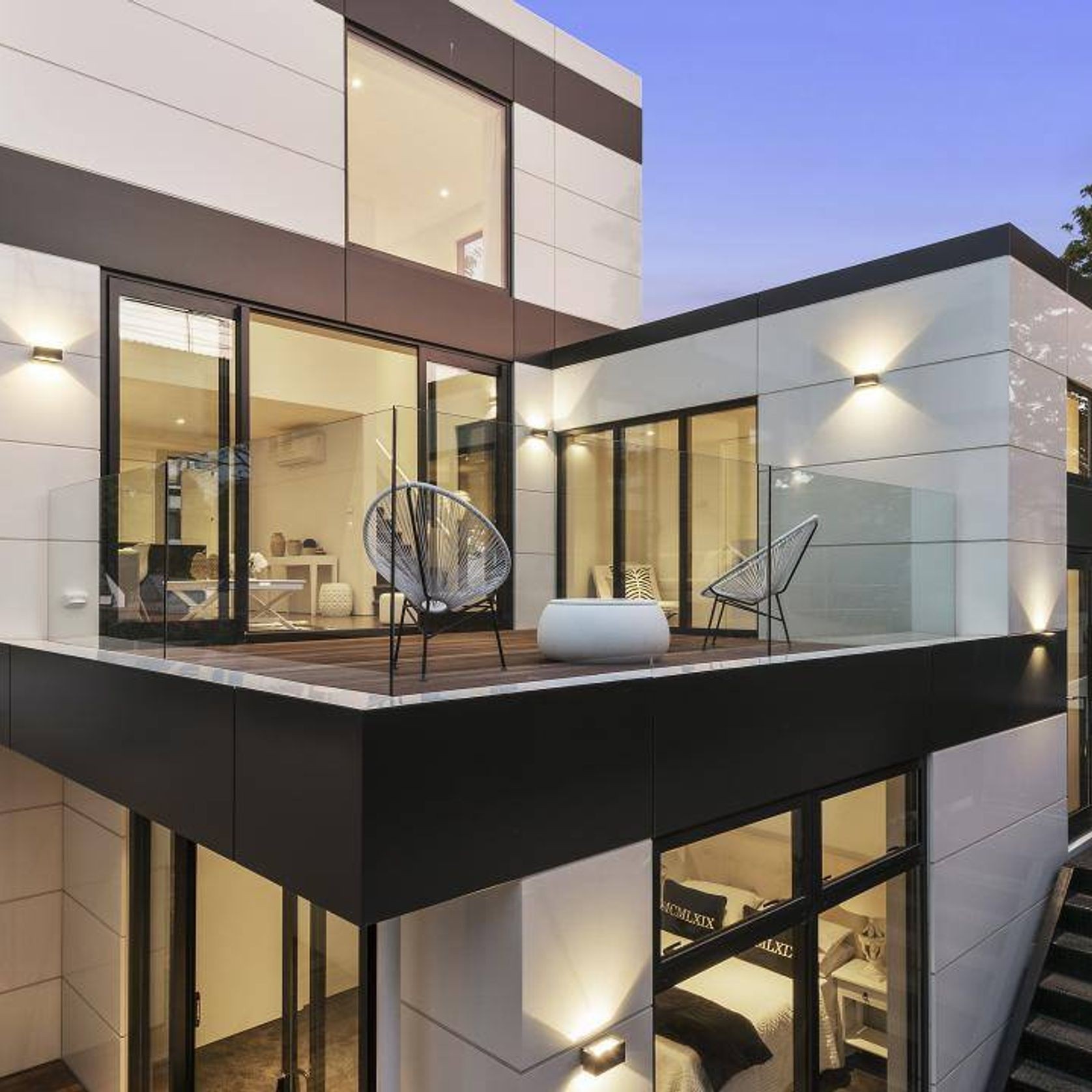

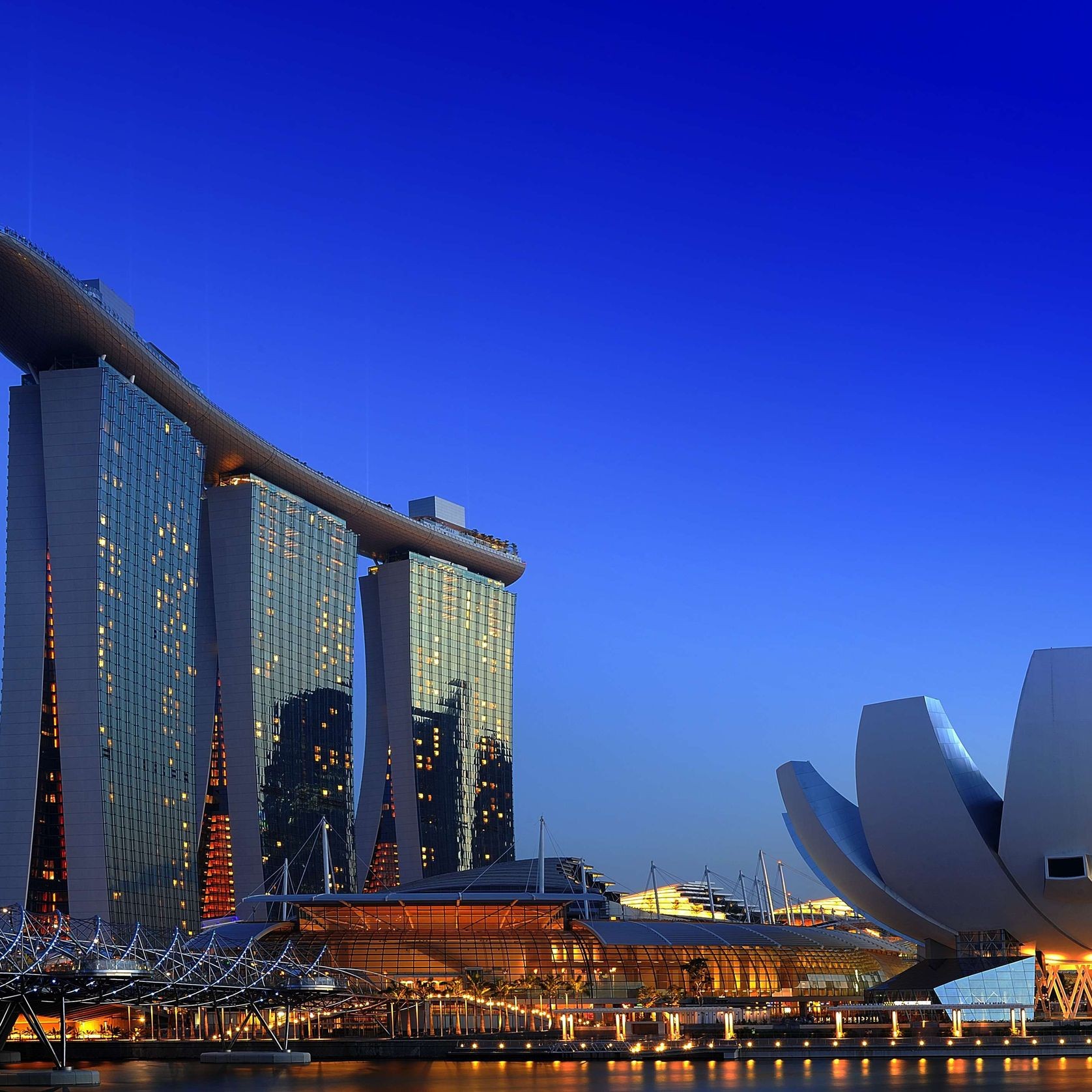

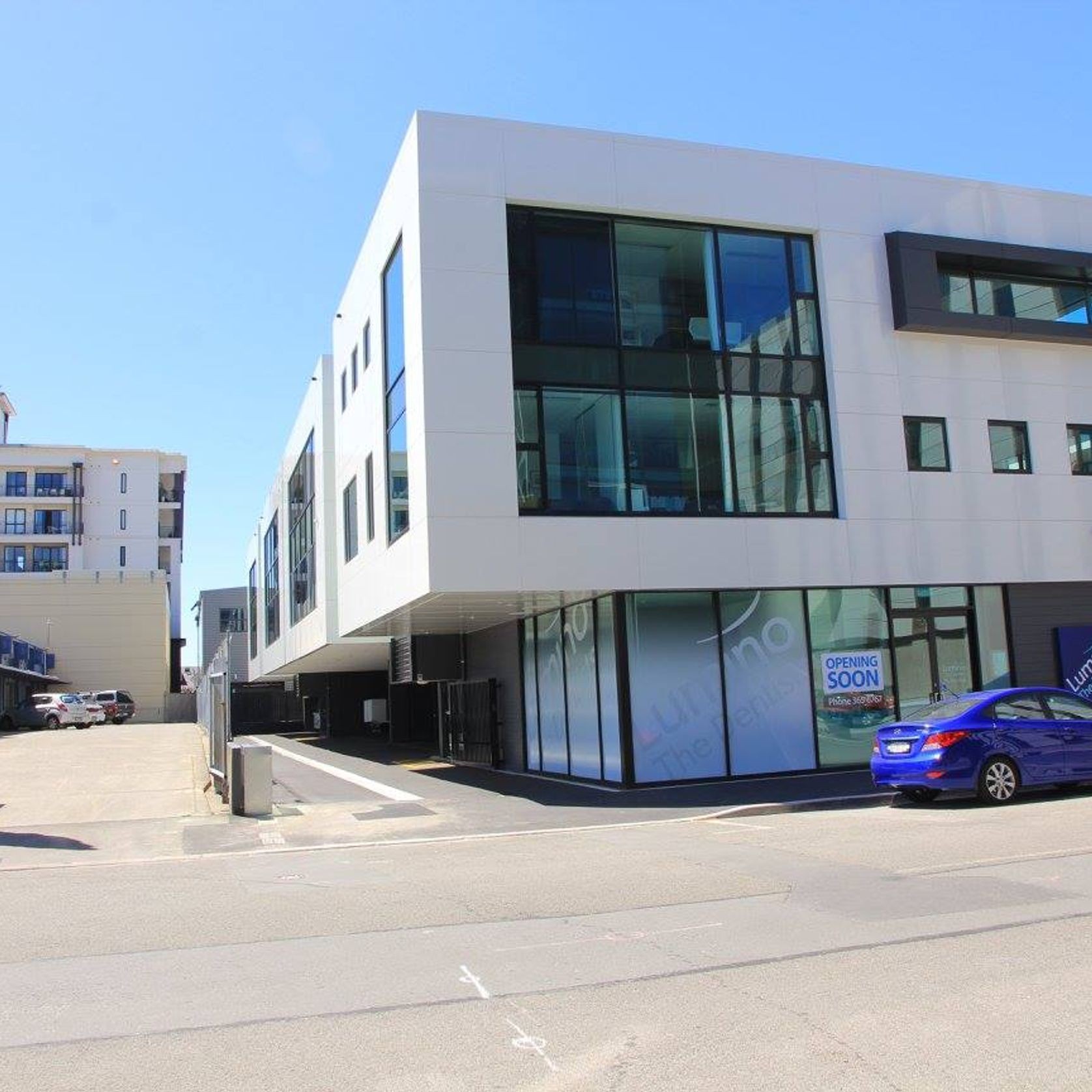

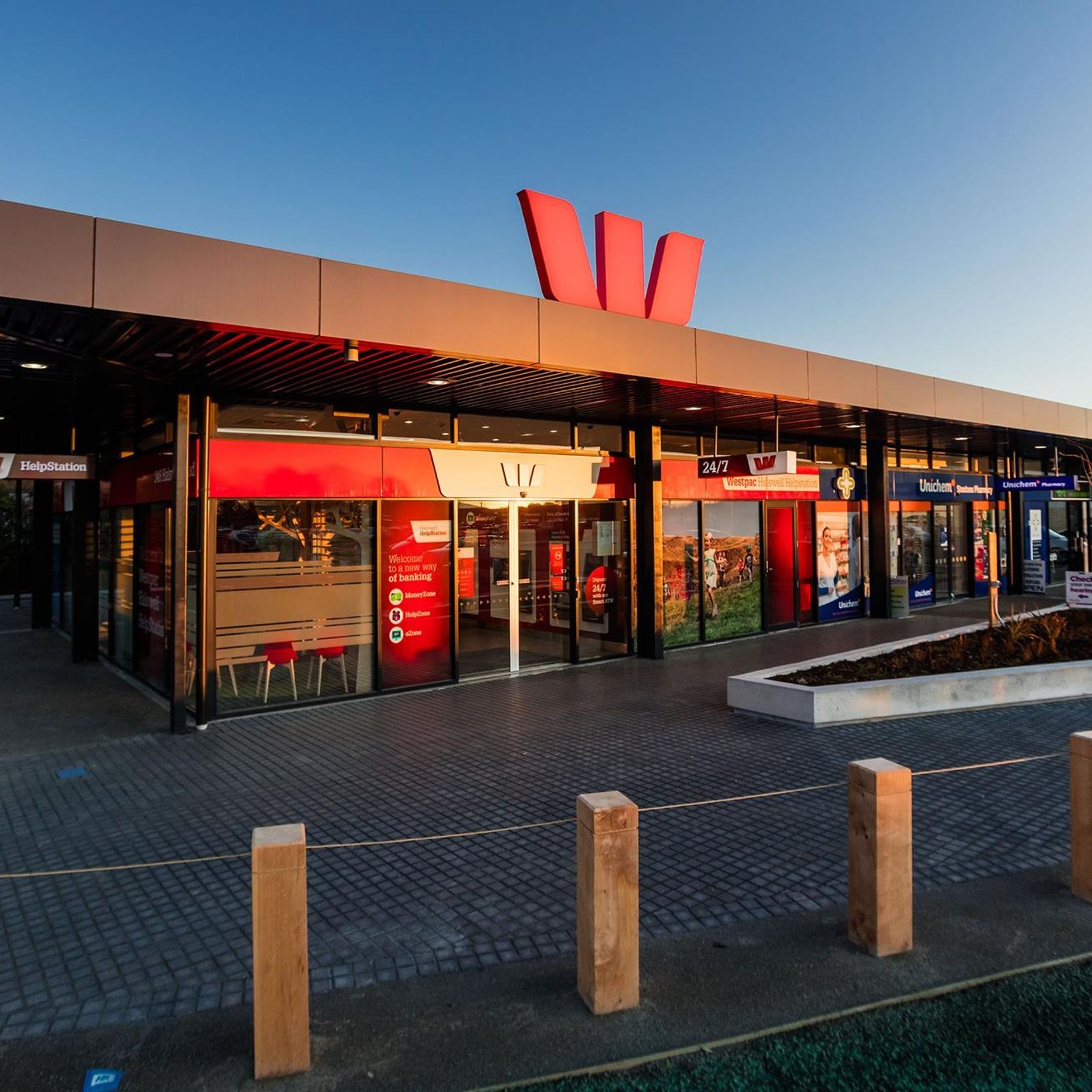

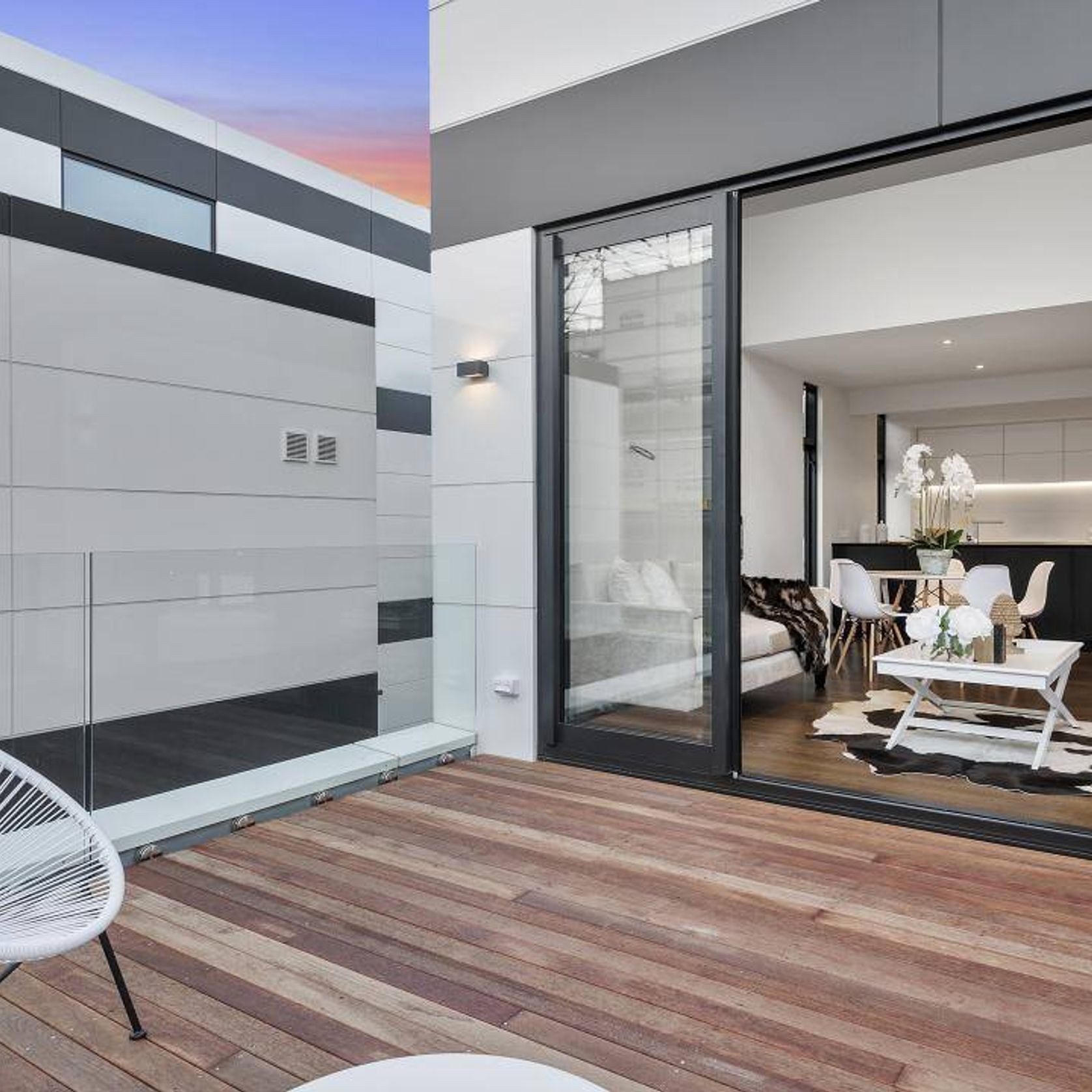

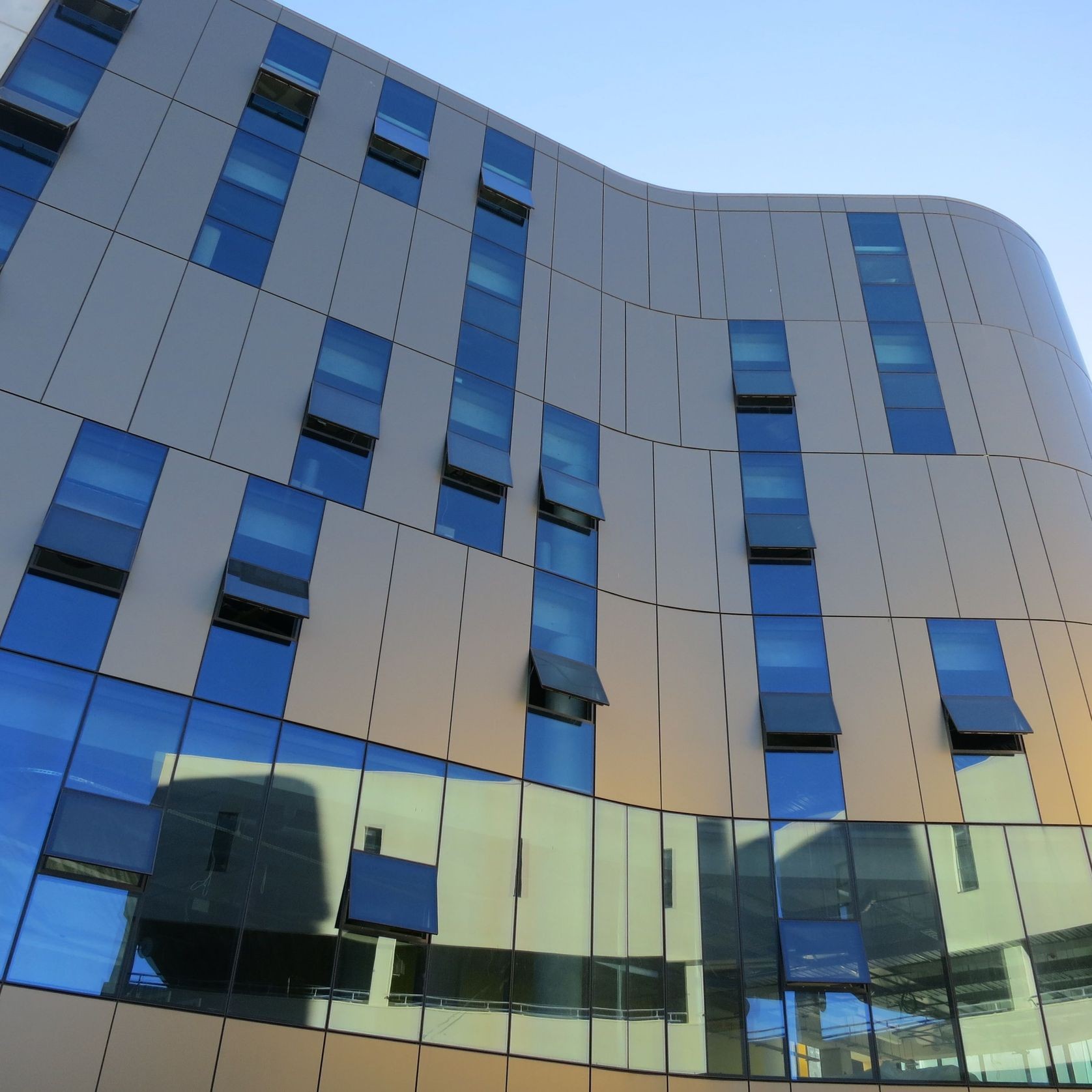

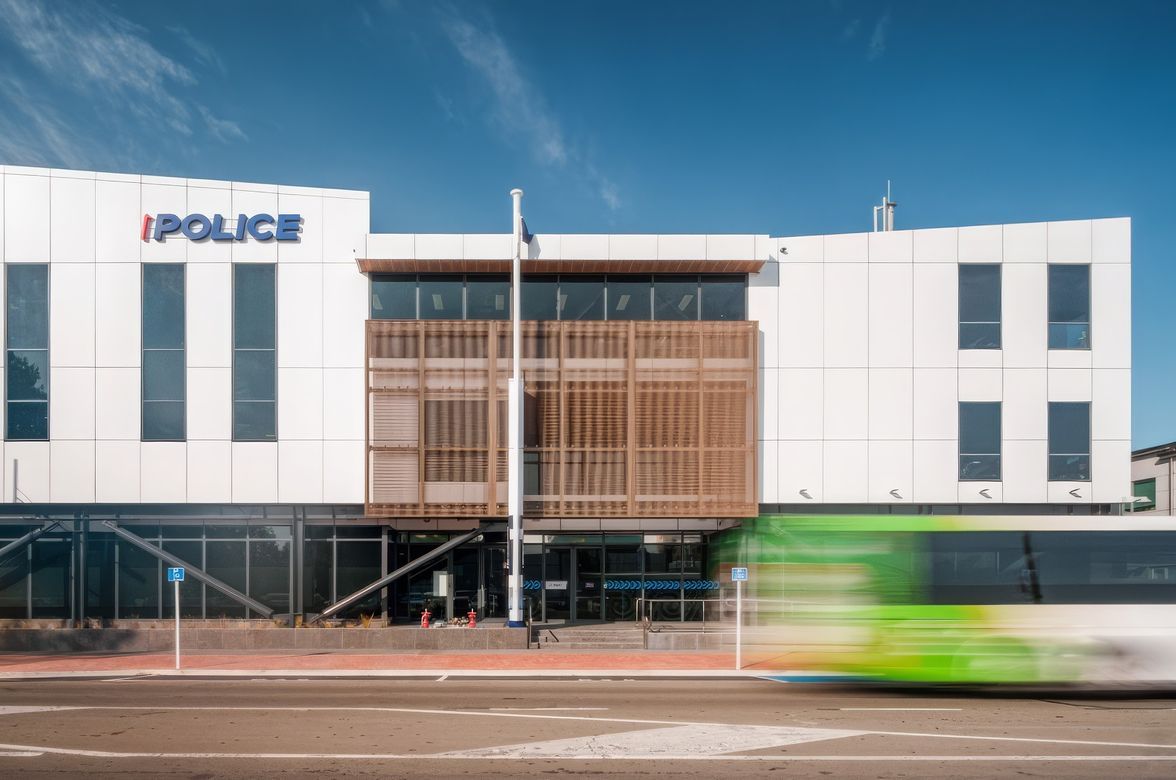

Projects featuring
