Phonic Dai Lotone Direct Fix Ceiling Tile

Name: Phonic Dai Lotone Direct Fix Ceiling Tile
Brand: T&R Interior Systems

Tauranga, New Zealand

181.8K profile views
24 saves

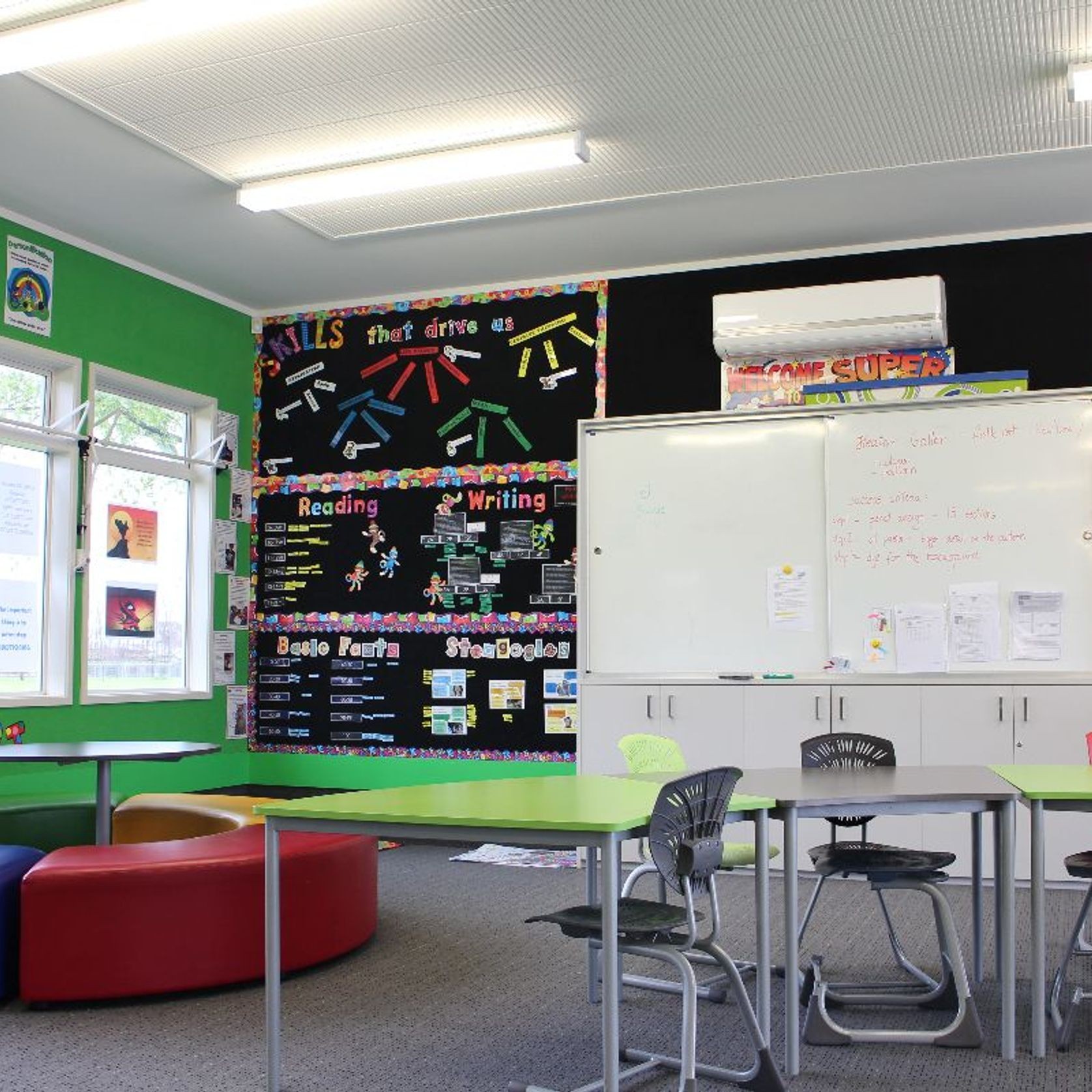

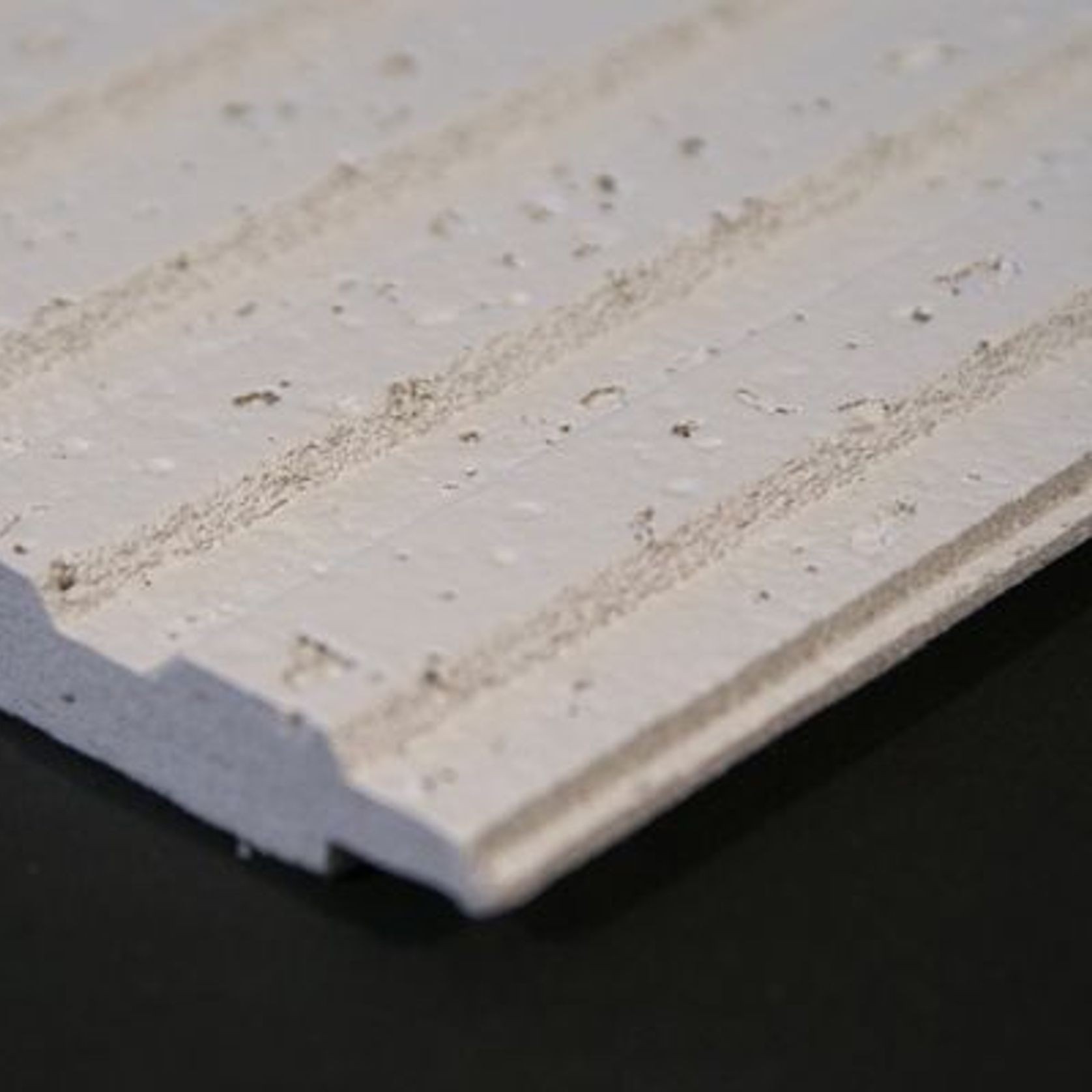

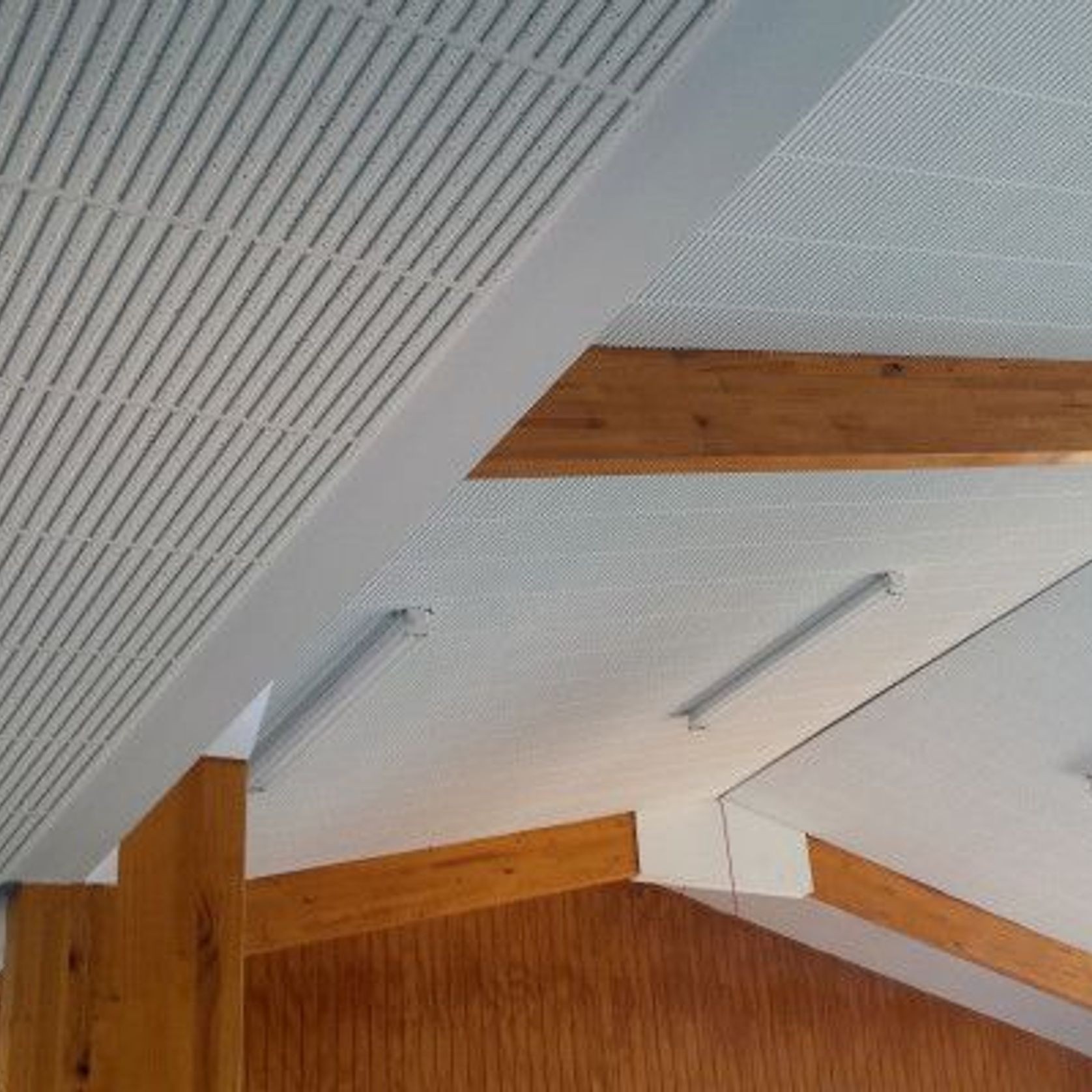

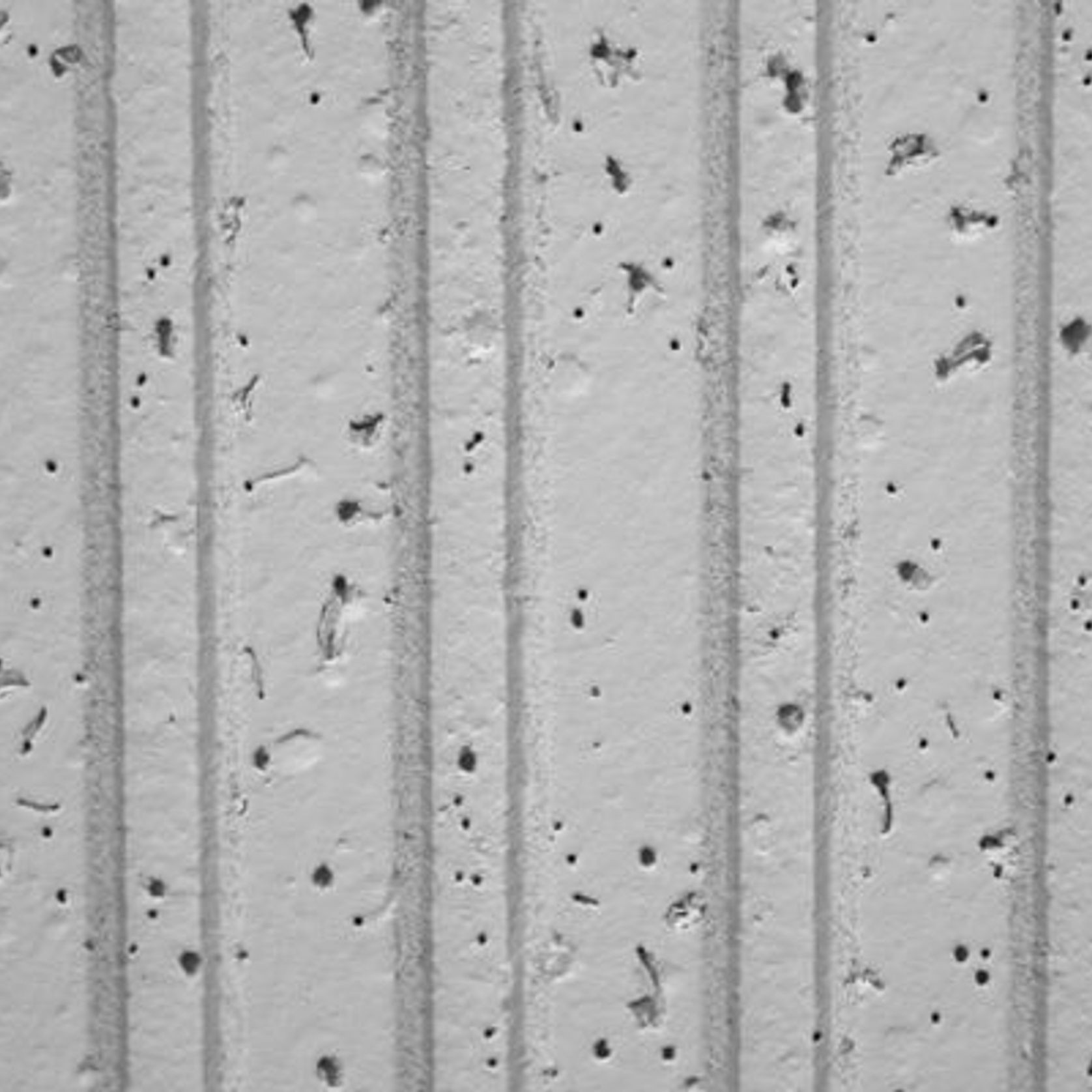

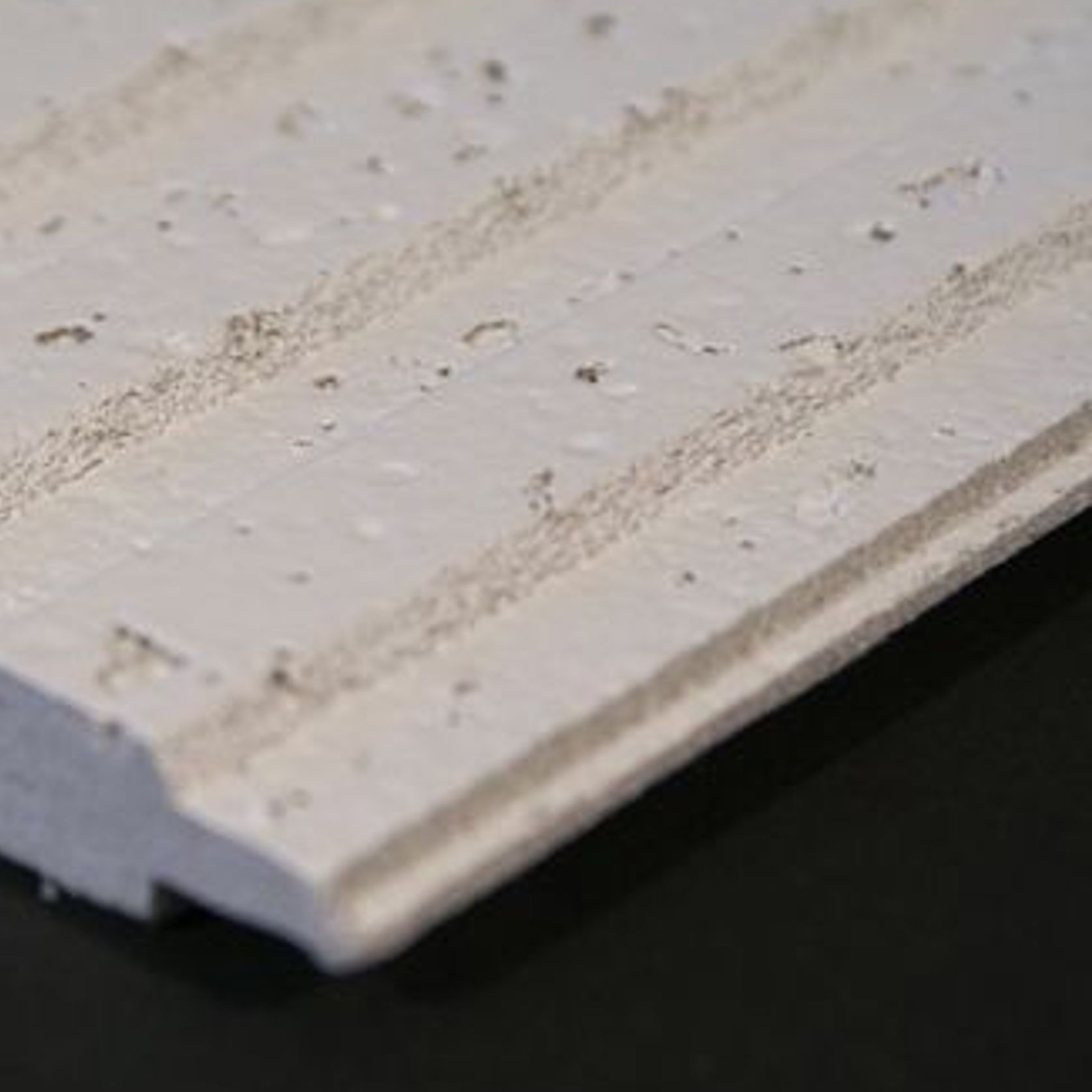

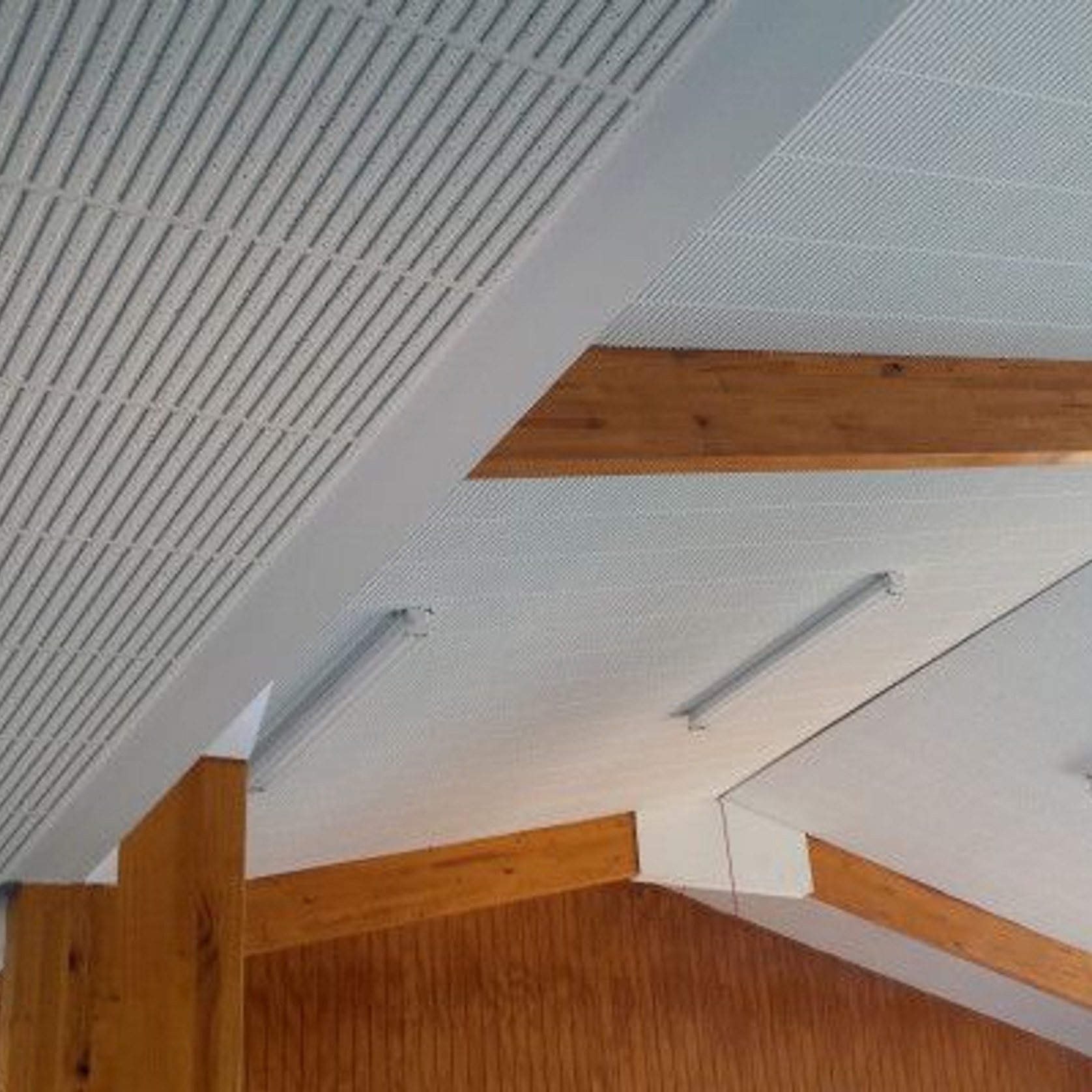

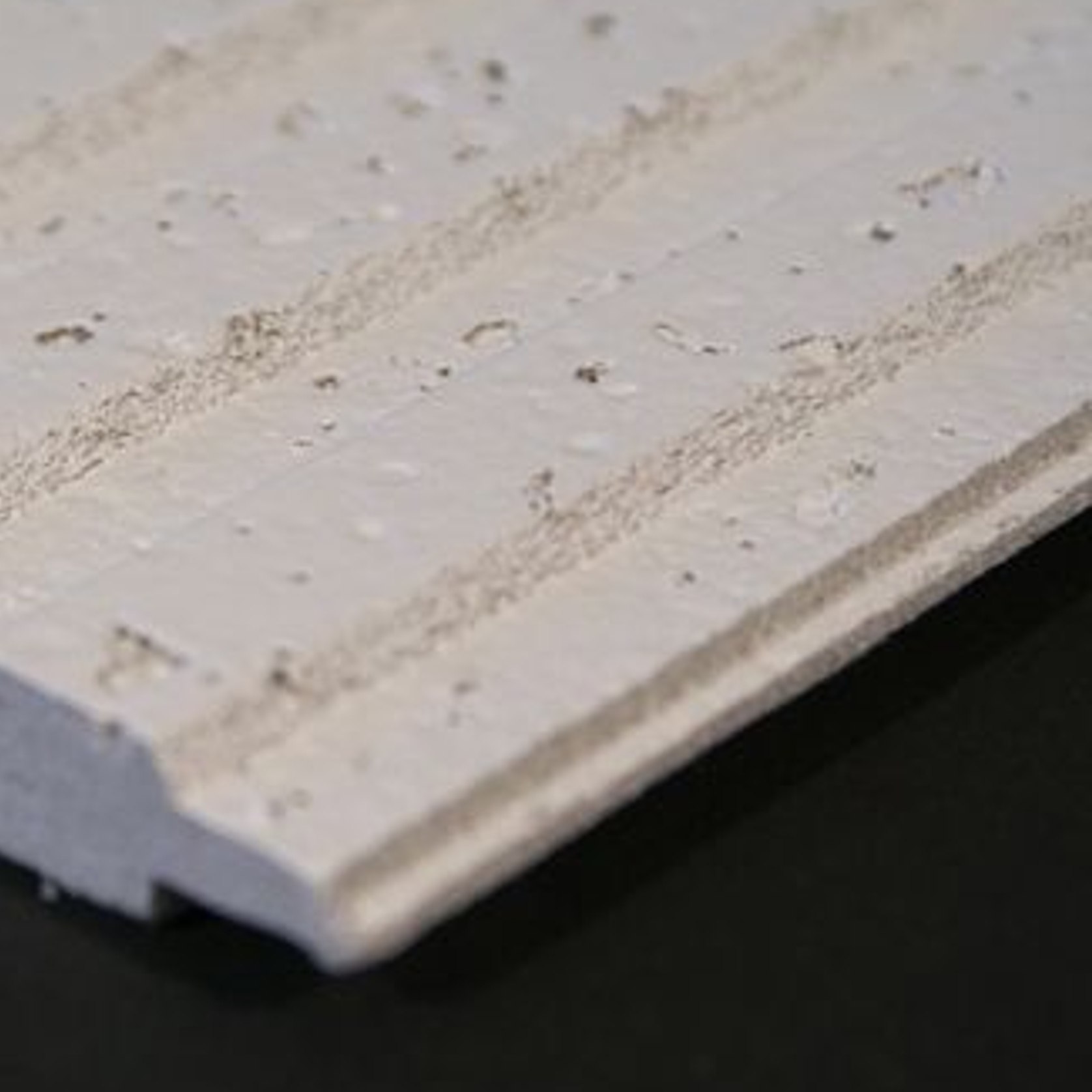

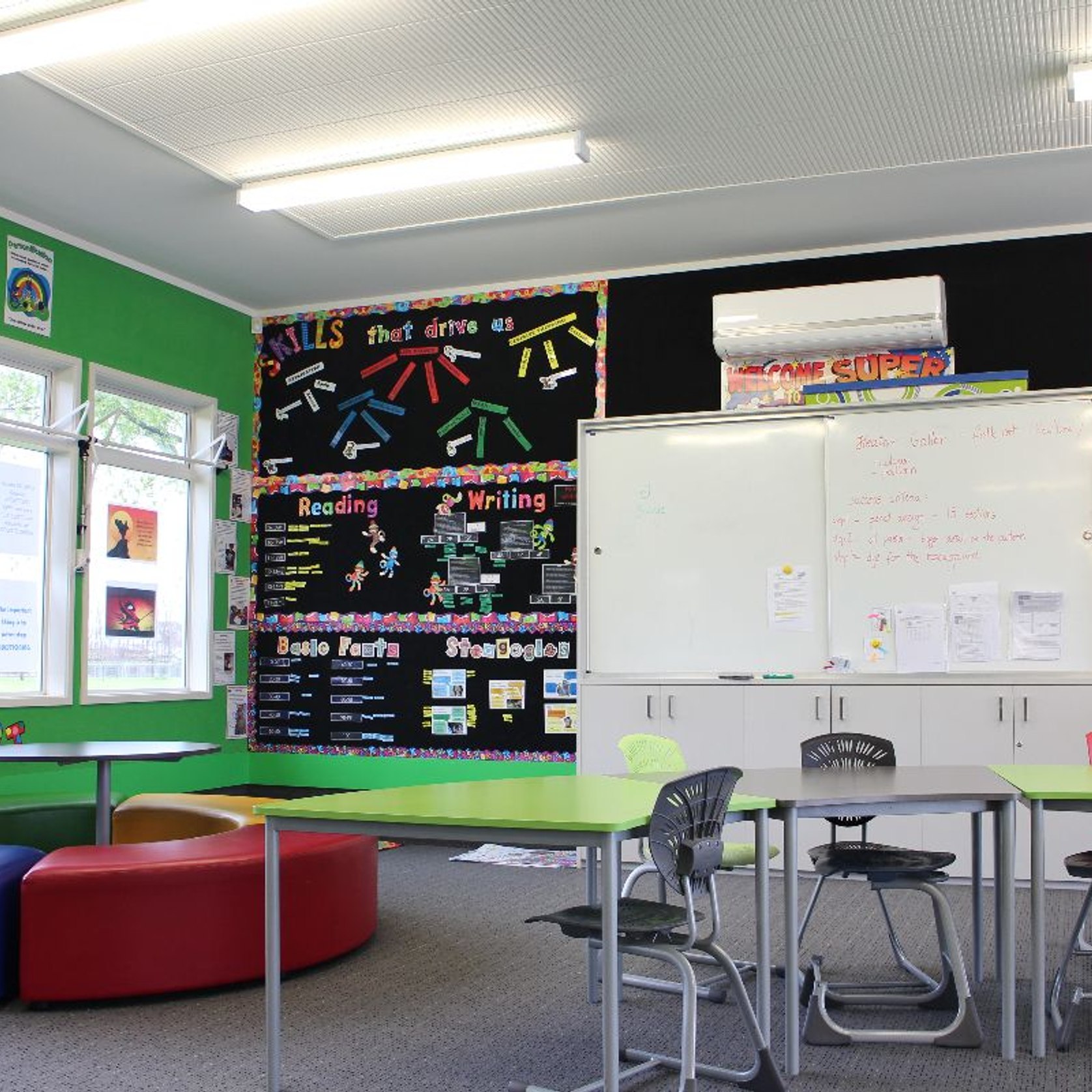

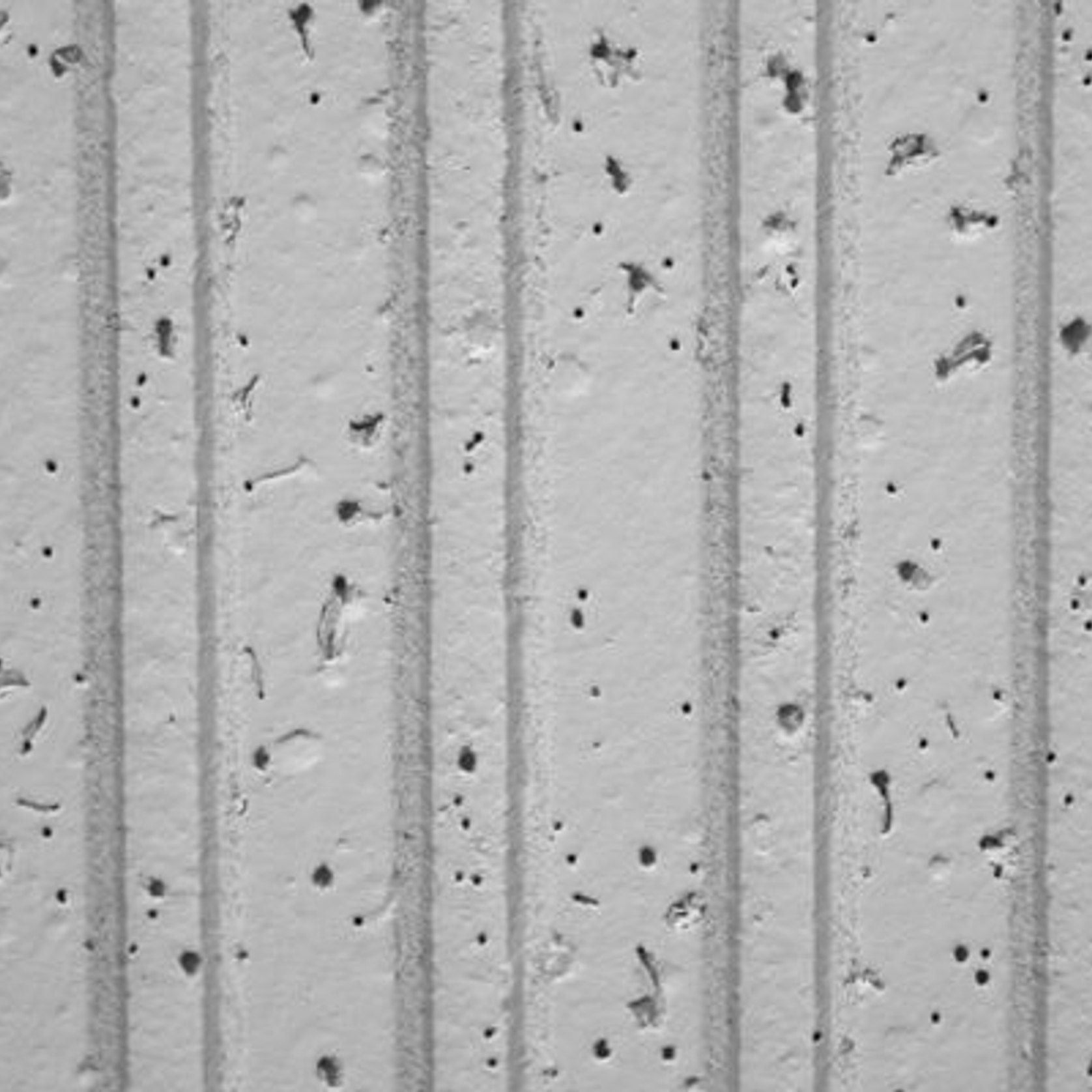

Daiken Dai Lotone is a high density tongue and groove mineral fibre ceiling tile with a white painted finish designed for direct fix applications to new and existing gypsum board or timber battens. This negates the need for an exposed grid enhancing its highly visual appeal. No additional painting required.

Dai Lotone is a mid-range tile with superior noise absorption and efficient thermal insulation (more than 6 times of gypsum board), while resisting sound transmission more effectively than glass fibre products. Due to its high density and fine grained substrate, Daiken can achieve unique and high quality detailing in their tiles. These tiles have outstanding fire resistance.

Tags

ceiling ceiling tile tile fibre fix

Product Details

Product: Phonic Dai Lotone Direct Fix Ceiling Tile
Category: Acoustic Panels
Sold by: T&R Interior Systems
Range: Phonic Ceiling Tiles

T&R Interior Systems is specified by

(24) Professionals

Phonic Dai Lotone Direct Fix Ceiling Tile

Visit site

This negates the need for an exposed grid enhancing its highly visual appeal. No additional painting required. Dai Lotone is a mid-range tile with superior noise absorption and efficient thermal insulation (more than 6 times of gypsum board), while resisting sound transmission more effectively than glass fibre products. Due to its high density and fine grained substrate, Daiken can achieve unique and high quality detailing in their tiles. These tiles have outstanding fire resistance.

Daiken Dai Lotone is a high density tongue and groove mineral fibre ceiling tile with a white painted finish designed for direct fix applications to new and existing gypsum board or timber battens.

This negates the need for an exposed grid enhancing its highly visual appeal. No additional painting required.

Specs: NRC 0.45

SAA 0.58

aw 0.45

CAC varies

LR1 75%

Moisture Content – 1.5%

Thermal Conductivity – 0.051 kcal/mhº C

Fire Test - ISO 5660 Parts 1 & 2 - Group 1-S

Size Non Rib: 9mm Depth x [606 x 303]

Size Rib: 12mm Depth x [606 x 303] Other sizes on request

Colour – White

30 year lifetime system warranty to withstand conditions up to 40° – 95% relative humidity without visible sag when used with a T&R brand suspension system
