Grey RAL

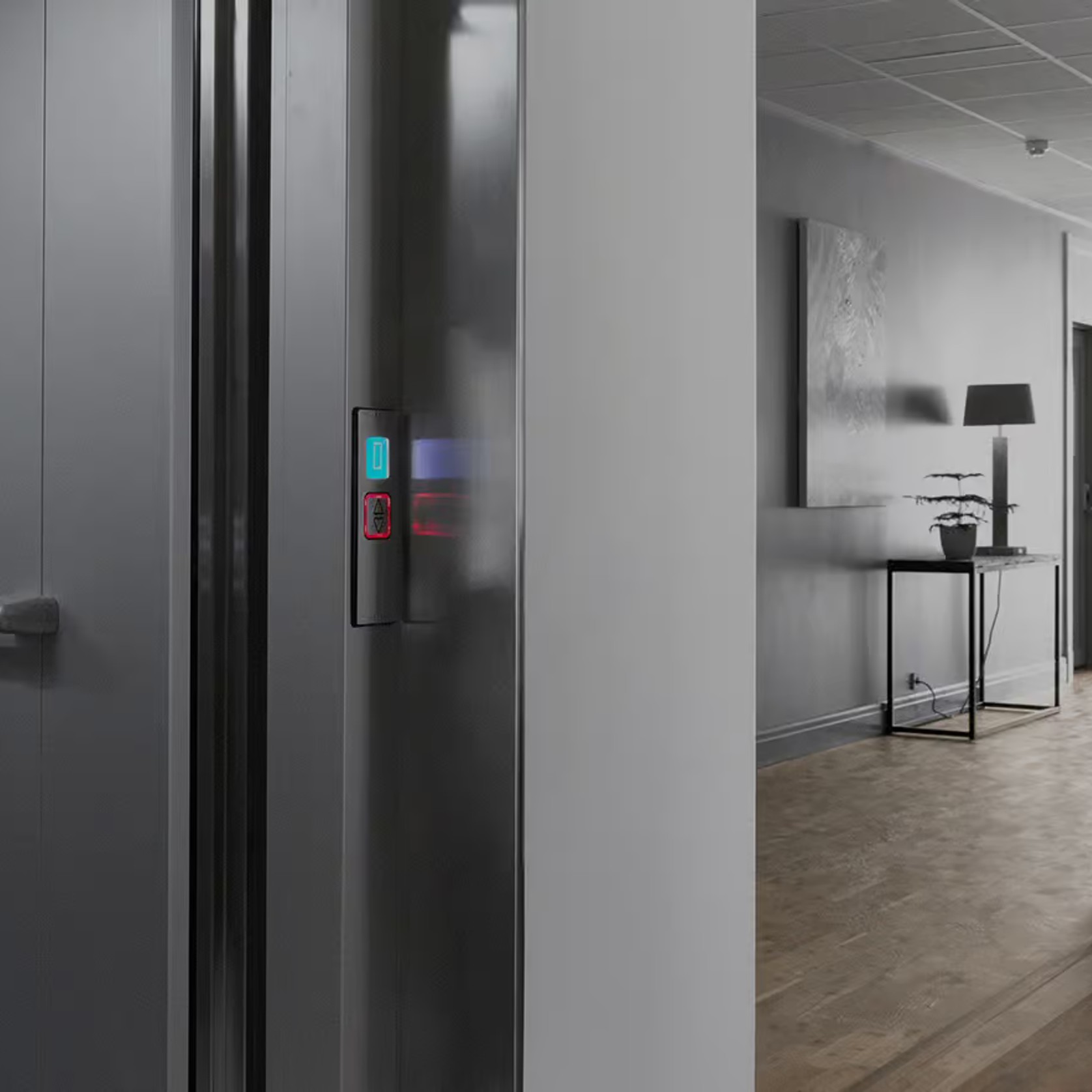

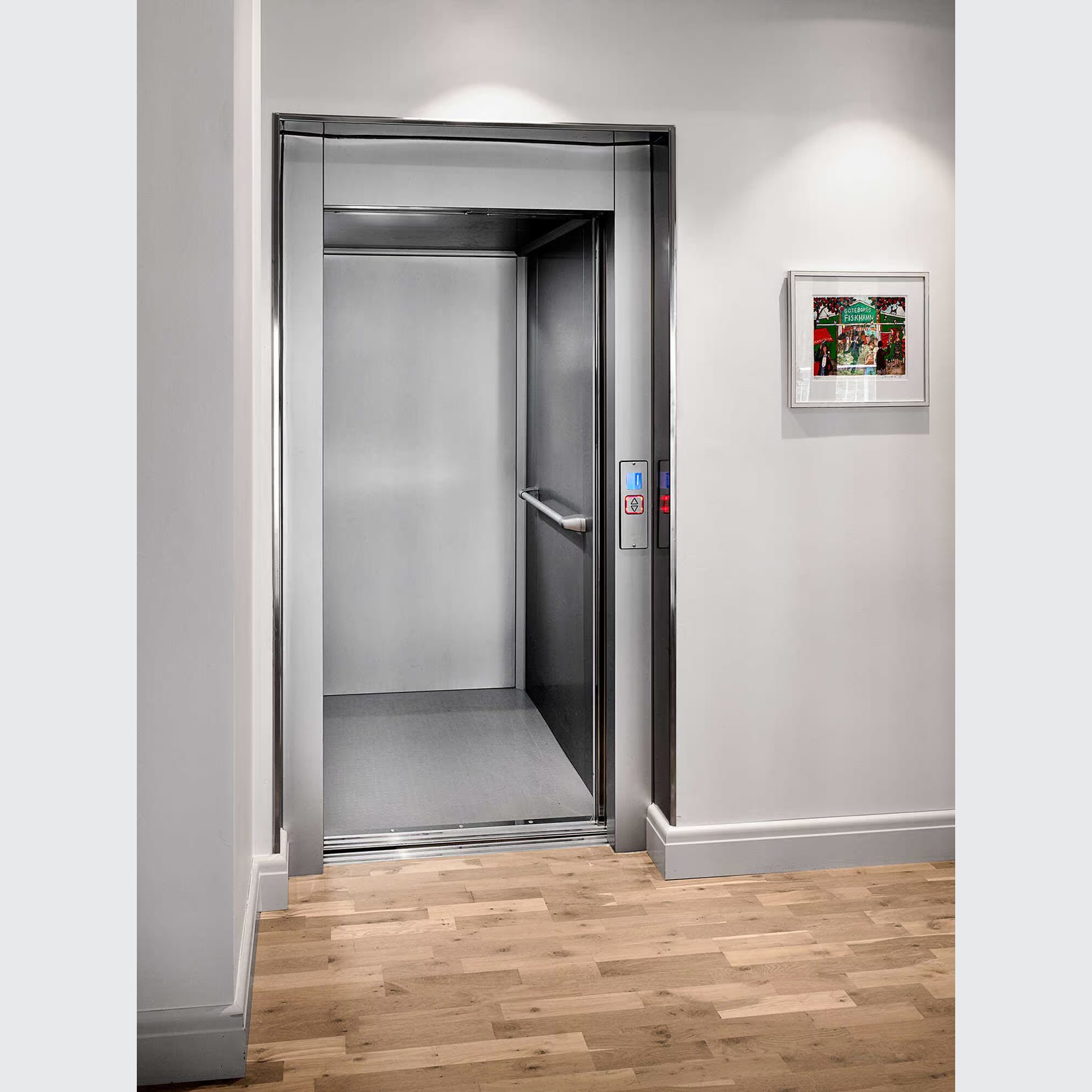

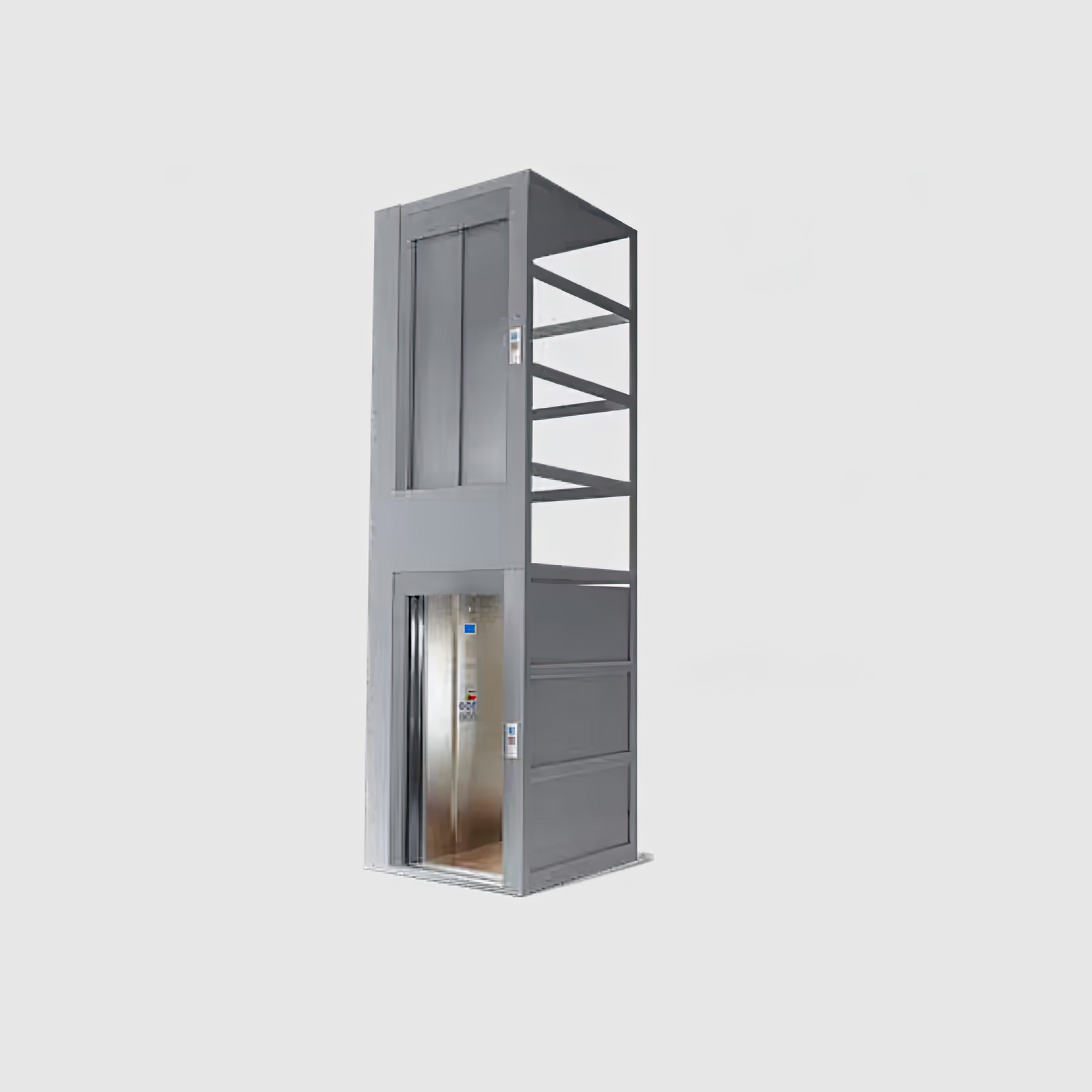

The Aritco PublicLift Cabin is a commercial elevator designed with simplicity in mind. It looks, feels, performs, and operates like conventional passenger elevators. With no machine room or deep pit required, it offers complete freedom in design and simple usability, providing total safety in use. The energy-efficient traction drive and fully automatic telescopic doors make it a versatile, cost-effective passenger elevator solution.

The Aritco PublicLift Cabin is designed with complete reliability in mind. The most significant advantages of the Aritco PublicLift Cabin are its modern design and ease of use, making it ideal as a commercial elevator, with no requirements of a machine room or deep pit to install. Its compact footprint takes up minimum floor space compared to standard elevator dimensions, allowing for more efficient use of space within a building, making it a very competitive elevator when looking for commercial elevator options.

The lift design is simple and efficient, making it one of the smallest commercial elevator sizes you will find regarding how much space is needed for installing the elevator. Its lightweight structure ensures enhanced and smooth ride comfort, and it’s also one of the elevators with the lowest maintenance and operating costs on the market.

Details
  • Category
    Lifts & Elevators
  • Brand
    Aritco
  • Warranty
    5 years
General
  • Type of use
    Commercial
Specifications

TECHNICAL COMPLIANCE
European Machine directive 2006/42/EC
European standard EN 81-70

DRIVE SYSTEM
Double belt traction drive system
3kW motor

RATED SPEED
Max 0,15 m/s

TRAVEL HEIGHT
250-14 600mm

TOP HEIGHT
Min. 2600mm
(Optional 2700-2800 mm)

NUMBER OF FLOORS
2-5 floors

DIMENSIONS
1000 x 1240 mm
1140 x 1400 mm

Rated load
400 kg

Persons
5 pers.

CUSTOMIZATION
Customization possibilities by the millimeter.
With or without self-supporting shaft.

INSTALLATION
Recessed installation with self-supporting shaft 140mm
Recessed installation in a wall shaft 120mm
Installed directly on floor with ramp

PLATFORM CONTROLS
One touch operation (press one time)

APPLICATION
Public and commercial environments
Indoor or outdoor installation environments

EMERGENCY LOWERING
Battery-powered

POWER SUPPLY
230 V 1-phase

WARRANTY
Aritco PublicLift Cabin comes with a 5 year warranty.
The belts have a 10 year warranty.

Features
  • Design, sizes and options tailored for public environments
  • Minimum interventions in the building
  • One of the lowest maintenance and operating costs on the market
  • Cabin control: Automatic ”one-touch”
  • Eurocode 3 compliant
