Pioneer Red
Steel

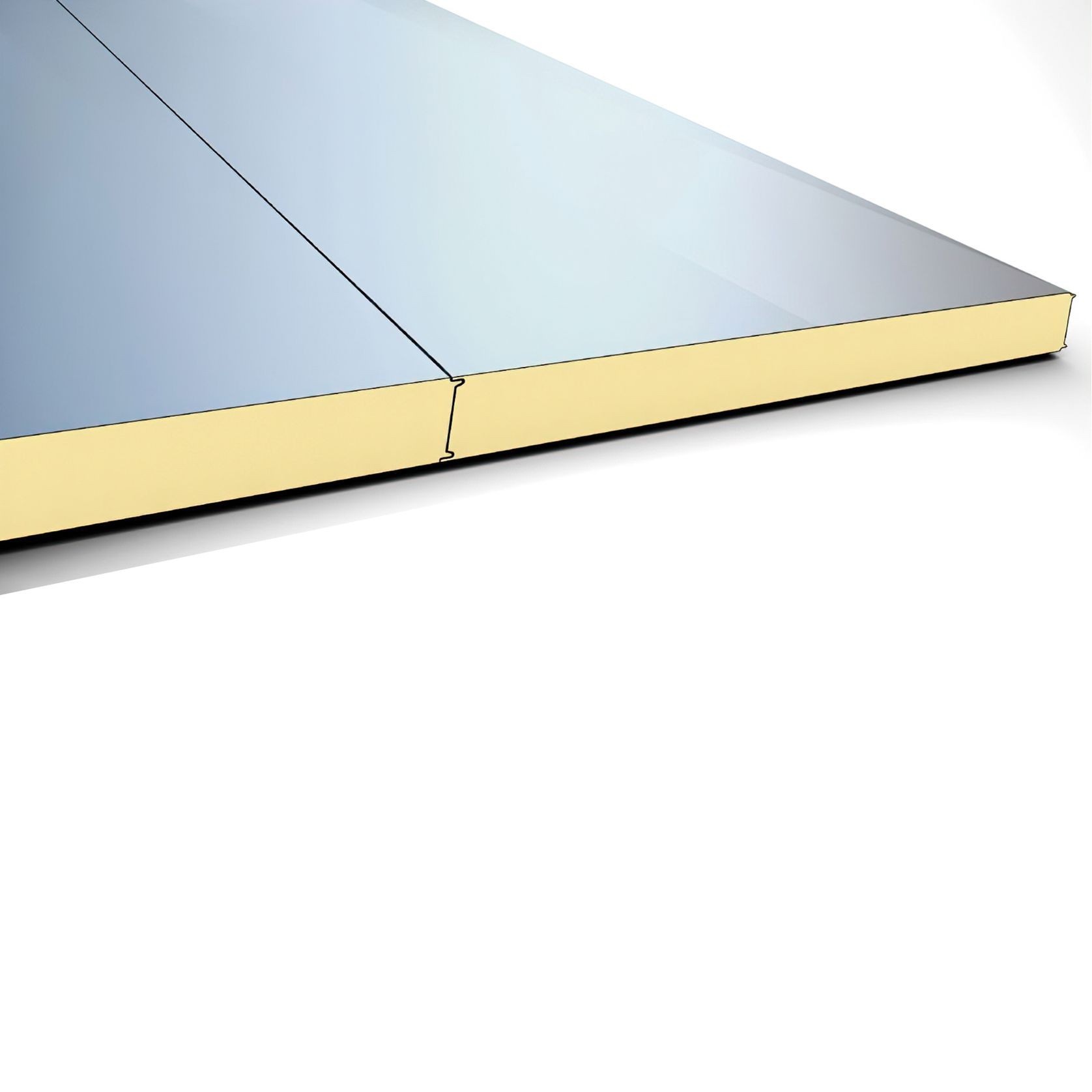

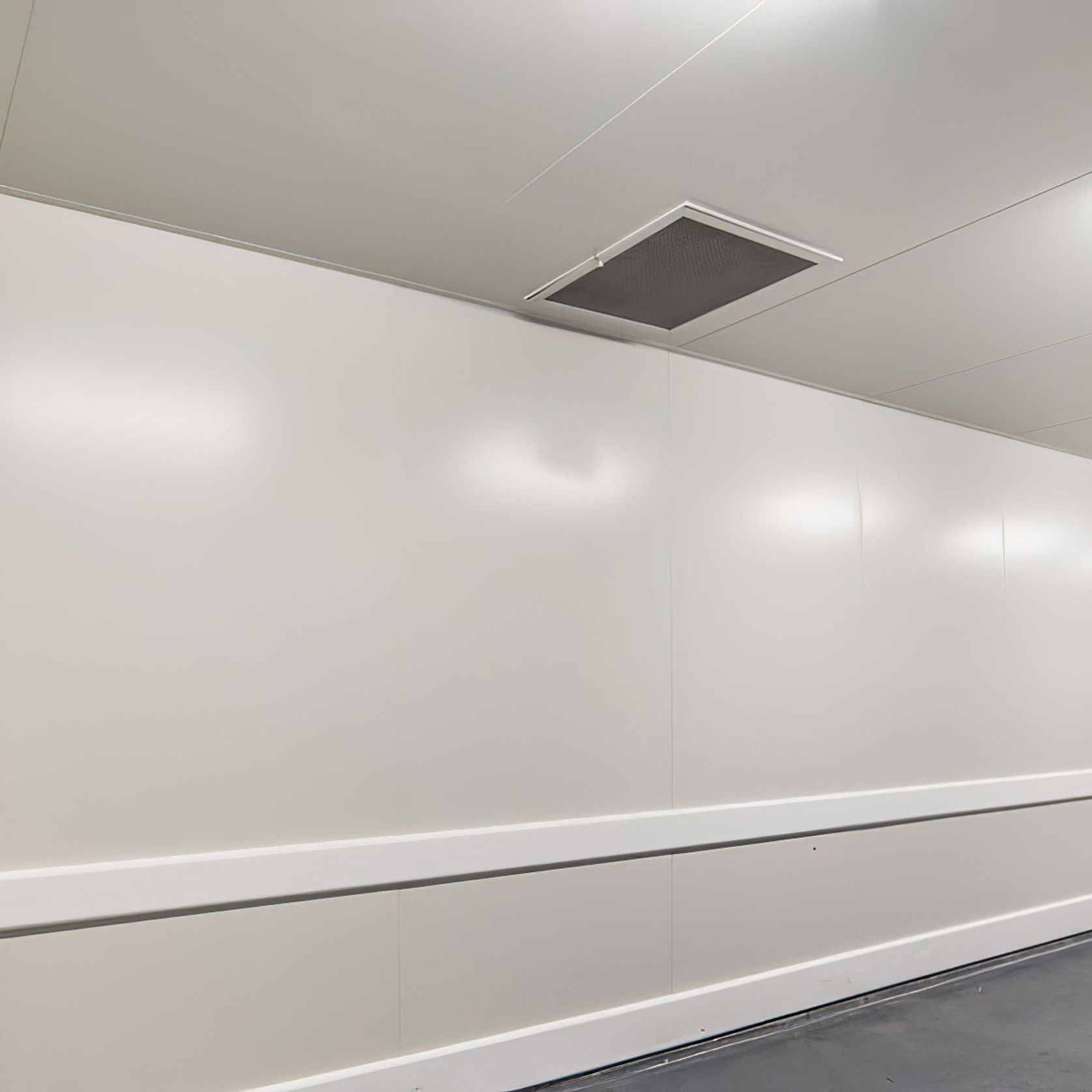

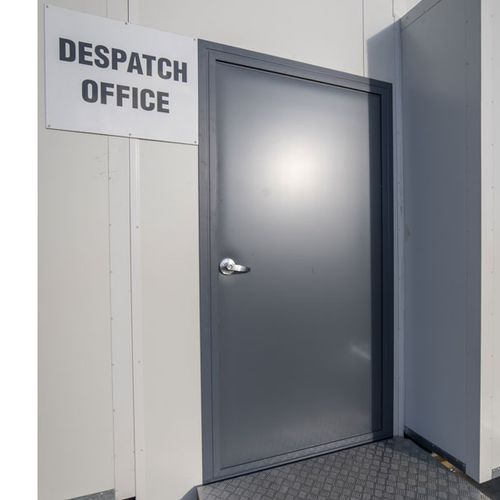

AspirePanel™ is a stressed skin sandwich panel, comprised of pre-painted steel skins continuously laminated over a fire retardant PIR core. AspirePanel™ is available in a range of colours with a variety of profile finishes, providing greater strength in walls and a clean, smooth aesthetic look.

Details
  • Category
    Roof & Ceiling Insulation, Steel Roofing
  • Range
    Metal Insulated Panels
Specifications

PIR CORE: AspirePanel (PIR) comprises of pre-painted steel skins bonded to a PIR core with a ceiling panel sheet bonded to the underside. Please consult Metalcraft Insulated Panels.

CODEMARK CERTIFIED: Aspirepanel® is now Codedmark Certified. Please refer to Codemark certification for scope and limitations of use of AspirePanel®

LARGE SCALE FIRE TESTED: 150mm Aspirepanel has achieved large scale fire testing -Branz Fire Test Report FF17611-01-1 -In accordance with BR 135:2013.

NZ MANUFACTURED: Manufactured in Auckland, using local products. Available nationwide

SHEET LENGTH: 15m un-piloted truck, longer lengths up to 24m are available depending on freight restrictions to site

EXTERNAL STEEL FACING OPTIONS: 0.59mm CP Grade Prepainted Galvanised Steel G300 Z275 consistent with AS 1397:2021. or 0.59mm COLORSTEEL® MAXAM® G300 AM150 consistent with AS 1397:2021. The correct steel is dependent on the environmental category and corrosion zone, please consult Metalcraft Insulated Panels

INTERNAL STEEL FACING OPTIONS: 0.59mm CP Grade Prepainted Galvanised Steel G300 Z275 consistent with G300 AM150 consistent with AS 1397:2021. or 0.59mm COLORSTEEL® MAXAM® G300 AM150 consistent with G300 AM150 consistent with AS 1397:2021. Please consult Metalcraft Insulated Panels for corect selection for application.

AspirePanel is available with a range of colour and ceiling profile finishes.

  • Flat Finish
  • Silkline Finish
  • Mesa Finish
  • Ribbed Finish
Scope of use

Please refer to Codemark certification for scope and limitations of use of AspirePanel®

Features
  • NZ Made for longer sheet lengths and shorter lead times
  • Fire retardant PIR flat core
  • Longer lengths
  • Shorter lead times
  • NZ Steel - COLORSTEEL® colours providing perfect colour match with flashings
  • Thermally efficient
  • Ease of cutting and trimming on site
  • Minimal mess on site
  • Compatibility with openings and design elements of the building
COLORSTEEL® Colour Options

AspirePanel® is available in standard colours* from New Zealand Steel in COLORSTEEL® MAXAM®. Colour brochures and steel swatches are available on request. *Excluding Ebony. This is due to heat build up on dark colours and in the worst case potential delamination of steel from the core.
