ThermoSpan EPS | Metal Insulated Panels

By Metalcraft Roofing
Website

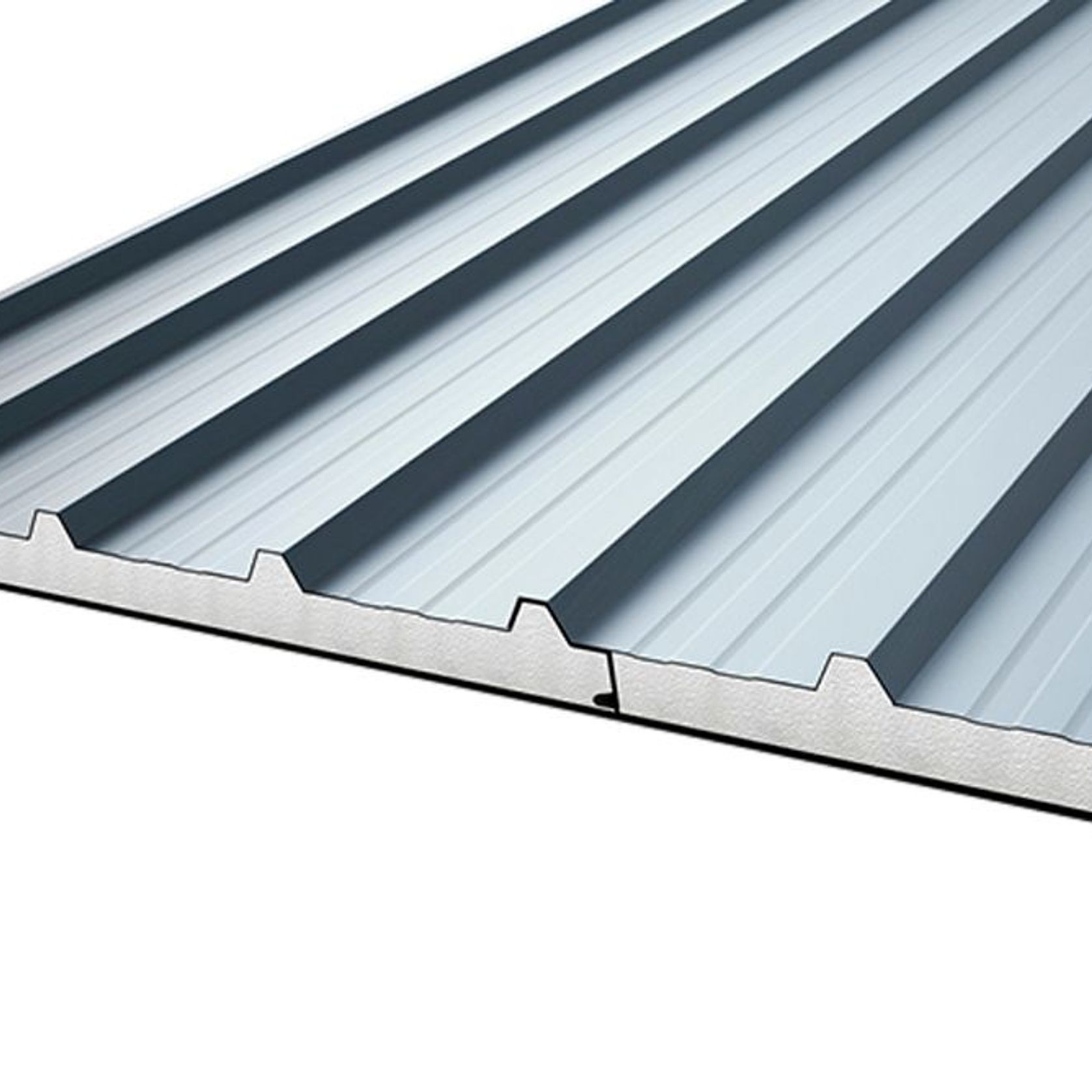

ThermoSpan EPS consists of a 0.59mm profiled roofing sheet bonded to an EPS core with a ceiling panel sheet bonded to the underside. ThermoSpan EPS does have fire retardant properties but is not fire rated.

Details
  • Category
    Roof & Ceiling Insulation
  • Range
    Metal Insulated Panels
Specifications

MINIMUM PITCH:
3 degrees

MANUFACTURED:
Auckland, available nationwide

ORIENTATION:
Roof and wall cladding

SHEET LENGTH:
15m un-piloted truck, longer lengths available depending on freight restrictions to site

LAPS:
End lapped upto 16m then step joints required

FEATURES AND BENEFITS:
ThermoSpan EPS consists of a 0.59mm profiled roofing sheet bonded to an EPS core with a ceiling panel sheet bonded to the underside. ThermoSpan EPS does have fire retardant properties but is not fire rated.

Product Benefits:

  • Fire Retardant treated
  • Long Spans
  • Thermally Efficient
  • Non ozone depleting
Scope of use

RESIDENTIAL OR COMMERCIAL:
ThermoSpan EPS can be used in a variety of residential and commercial, roof and wall cladding applications. ThermoSpan EPS panel's are also available in a limited colour range.

Get in touch
Visit Website

About the
Seller

Metalcraft Roofing is New Zealand’s largest and most established privately owned building product rollformer and installer with an extensive range of Longrun Roofing profiles, Lightweight Metal Tiles and Rainwater System solutions. By installing its own product Metalcraft Roofing offers a unique solution to domestic and commercial clients for any roof or wall cladding project.

Metalcraft Roofing’s wide selection of roofing and rainwater systems are manufactured from New Zealand Steel Galvsteel, Zincalume, Colorsteel Endura and Colorsteel Maxx.

With 12 branches nationwide providing unparalleled coverage, backed by solid manufacturing and installation warranties, Metalcraft Roofing offers a level of satisfaction and peace of mind unavailable from other manufacturers or installers.

Metalcraft Roofing manufactures and installs Longrun Roofing, Metal Tiles and Rainwater Systems for the New Zealand residential and commercial construction markets.  Metalcraft Roofing is a part of United Industries (www.unitedindustries.co.nz). United Industries is made up of nine companies serving various requirements to the New Zealand construction industry.

Metalcraft Roofing has been operating since the 1950’s and originated in Palmerston North. Expansion of Metalcraft Roofing’s operations since those days has been significant and there are now twelve branches nationwide servicing enquiries from Cape Reinga to the Bluff.
