AspireSpan (PIR) Insulated Panels

By Metalcraft Roofing
Website
Cloud
Steel

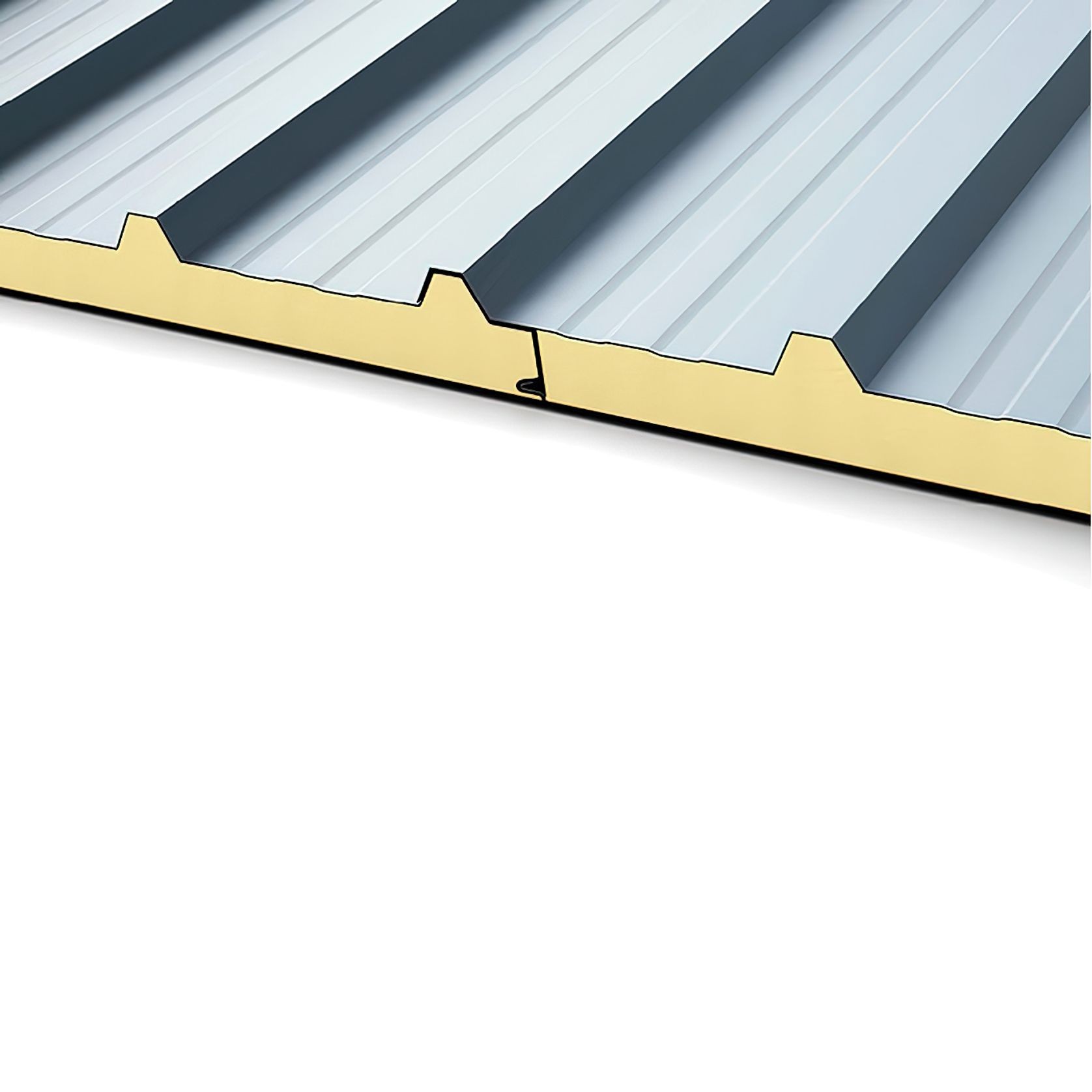

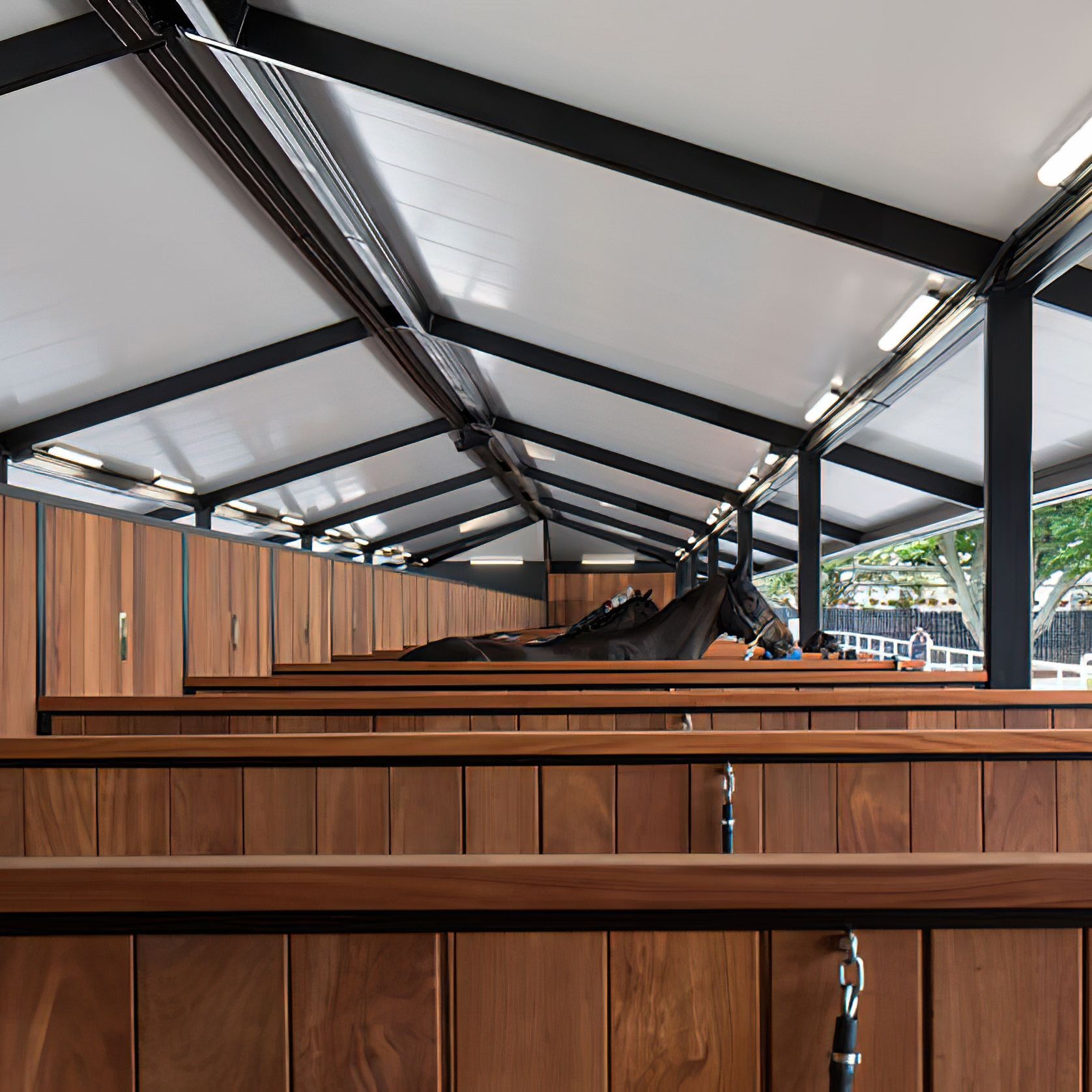

AspireSpan a stressed skin sandwich panel, comprising of pre-painted steel skins continuously laminated over a fire retardant PIR core. AspireSpan is available is a range of colours with a variety of profile finishes, providing greater strength in walls and a clean, smooth aesthetic look.

ApsireSpan has a unique interlocking inner skin joint that helps assist AspireSpan in providing greater resistance of downward forces.

Details
  • Category
    Roof & Ceiling Insulation, Steel Roofing
  • Range
    Metal Insulated Panels
Specifications

COMPLIANCE WITH H1: Aspirespan with 150mm** thick PIR insulation core can achieve a thermal resistance rating of R7.5 (Thermal Resistance R-value (m2K/W) @15 degree C).

PIR CORE: AspireSpan consists of a 0.59mm profiled roofing sheet bonded to a PIR core with a ceiling panel sheet bonded to the underside.

MINIMUM PITCH: 3 degrees

NZ MANUFACTURED: Manufactured in Auckland, using locally and imported products. Available nationwide

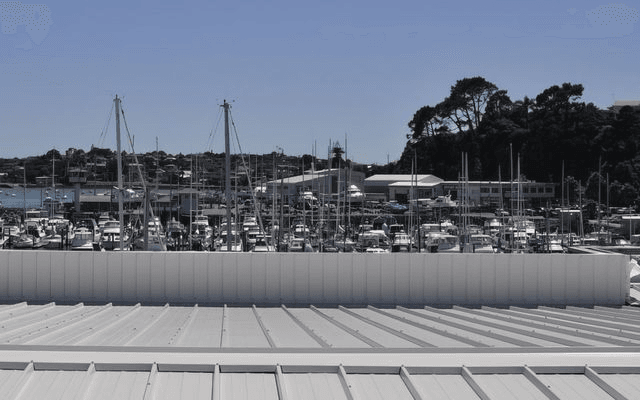

ORIENTATION: Roof and wall cladding

SHEET LENGTH: Lengths from 2m-24m. Please note lengths are restricted by transportation to site. If sheet lengths longer than 15m are required, please check with Metalcraft Insulated Panels.

NZ STEEL - COLORSTEEL®: NZ Steel - COLORSTEEL® colours providing perfect colour match with flashings

AspireSpan is available with a range of colour and ceiling profile finishes.

  • Flat Finish
  • Silkline Finish
  • Mesa Finish
  • Ribbed Finish
Features
  • Fire resistant core
  • Long spans
  • NZ Steel COLORSTEEL®
  • NZ warranty
  • Thermally efficient
  • A reduction of wet trades
  • Efficient concealed fixing system
  • Ease of cutting and trimming on site
  • Minimal mess on site
  • Compatibility with openings and design elements of the building
COLORSTEEL® Colour Options

Standard colour is Titania to both sides. All colours are available in COLORSTEEL® ENDURA® and COLORSTEEL® MAXX®. Please note colours below are indicative and we recommend you request a steel colour sample from your nearest Metalcraft Roofing branch. The homeowner should be aware that temperatures of dark colours are higher than those of lighter colours. Darker colours will thermally expand more. Thermal expansion of metal roofs is covered in the MRM Code of Practice. The MBIE document on roof cladding advises that noise from thermal expansion is normal and should be expected. Refer to MBIE -Guide to tolerances, materials and workmanship in new residential construction 2015.
