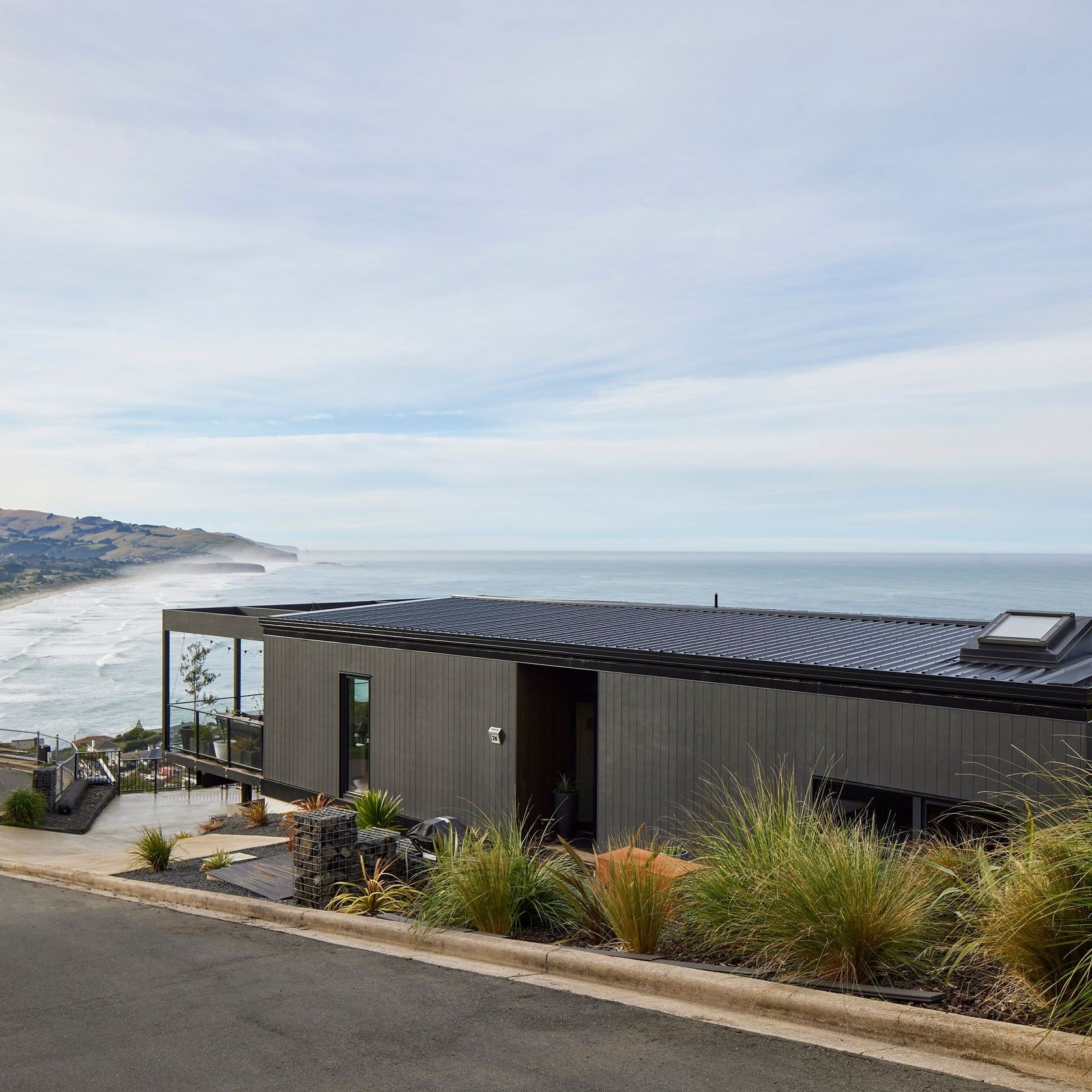

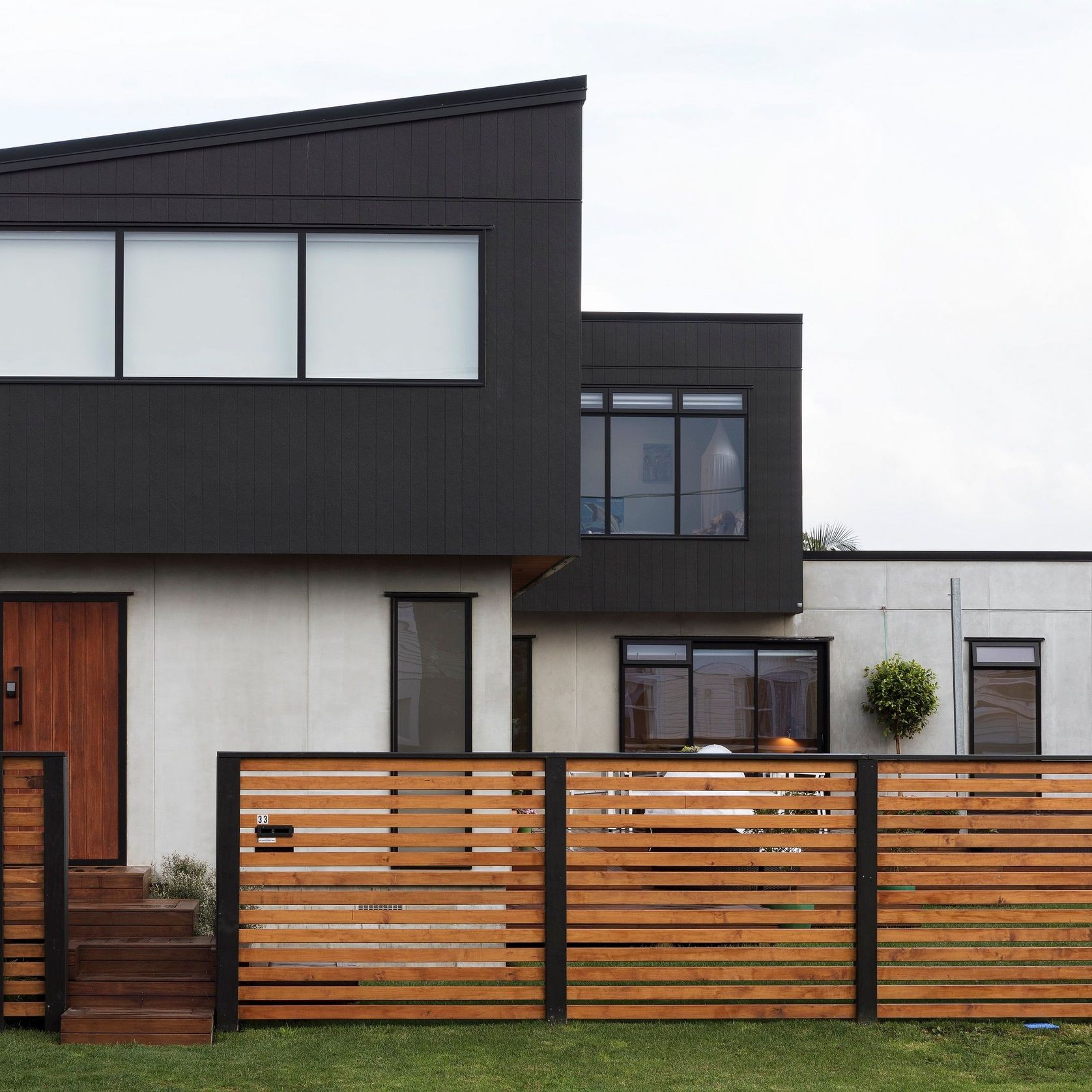

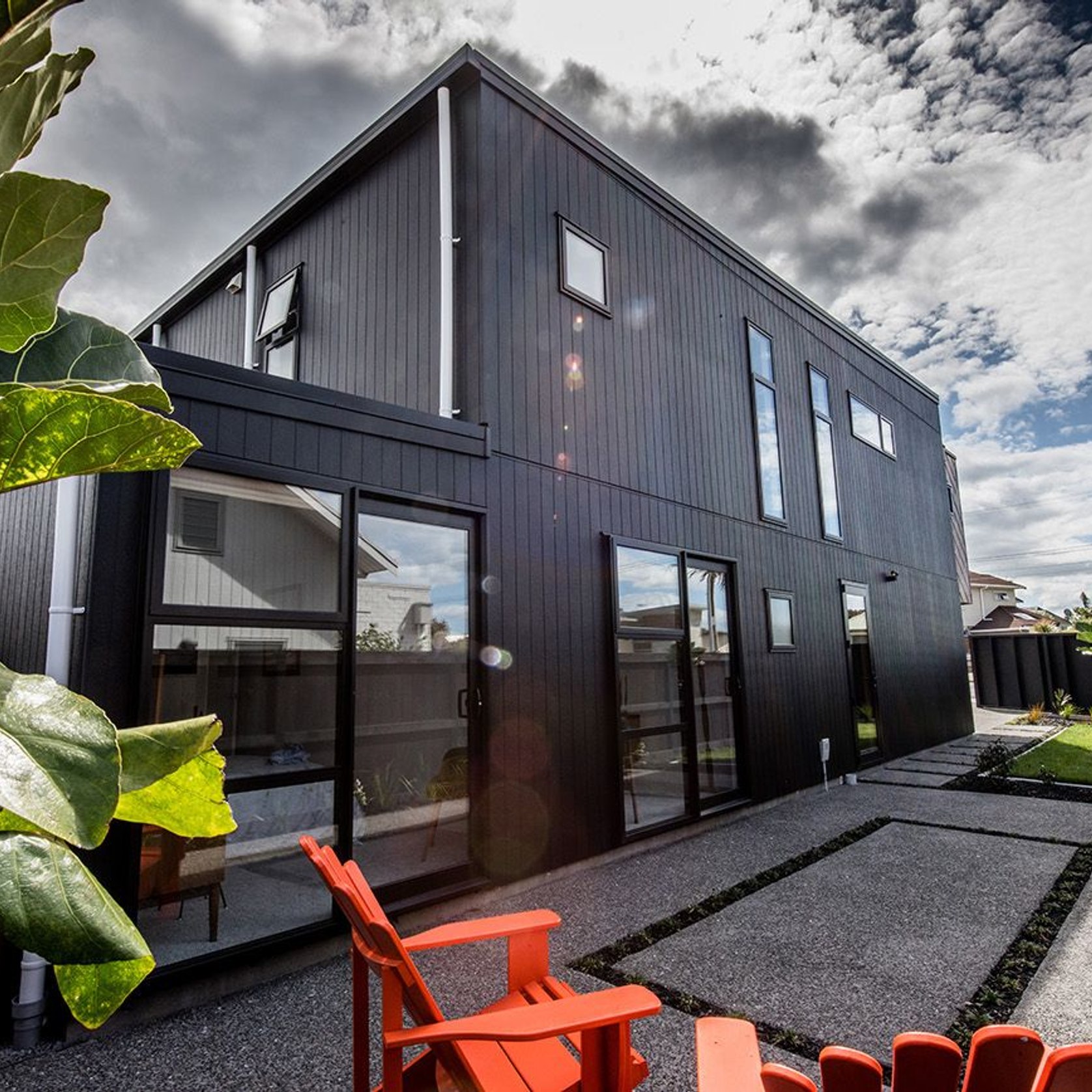

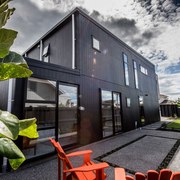

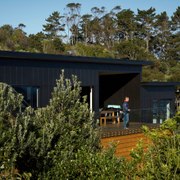

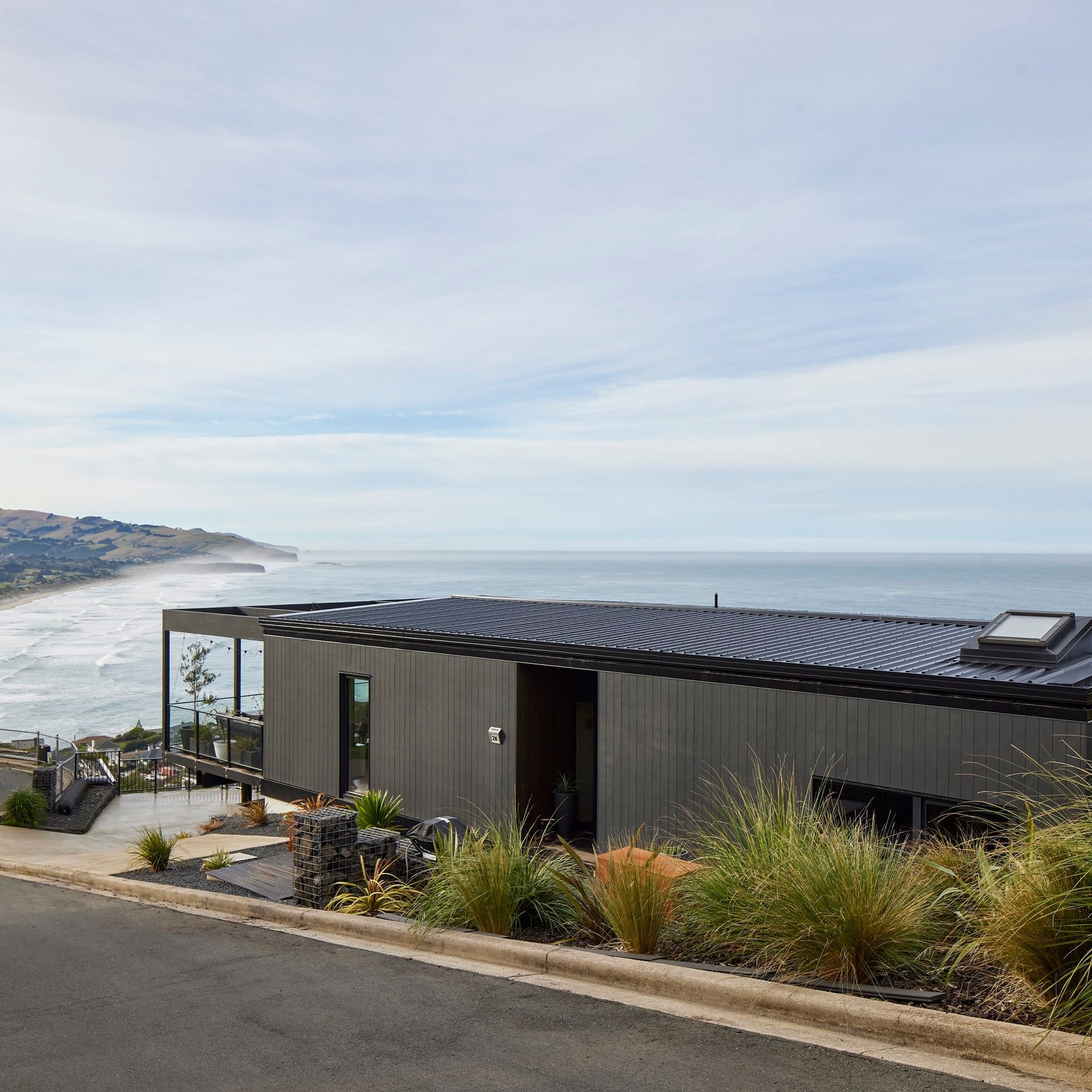

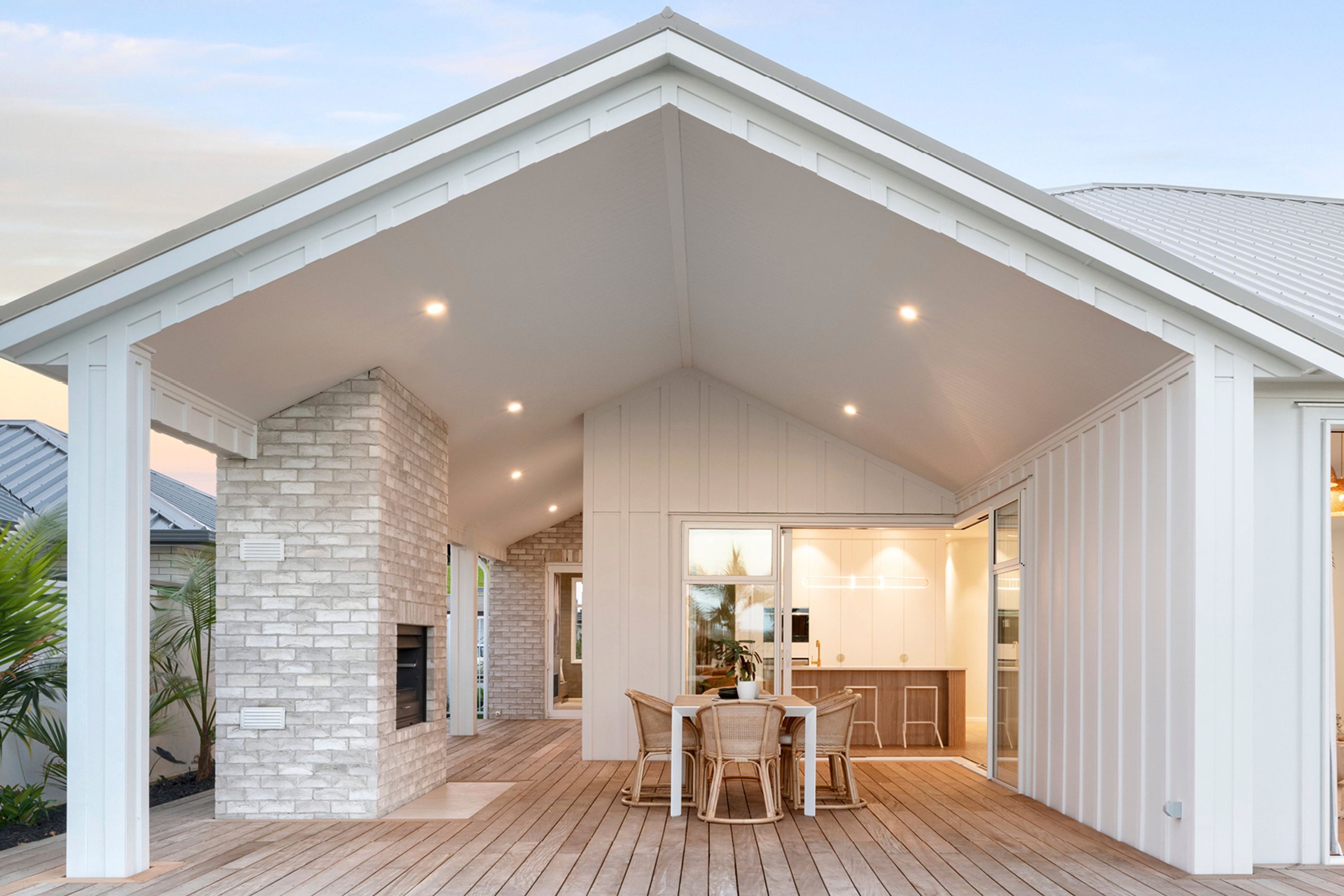

Creating a strong visual impact for your design is easier than ever with Axon™ Panel.  Easy to install, robust and versatile, Axon™ Panel is a vertical shiplap panel available in five finishes.  The textures and grooves complement classic and modern building designs to create stand out facades and bring interest to outdoor rooms.

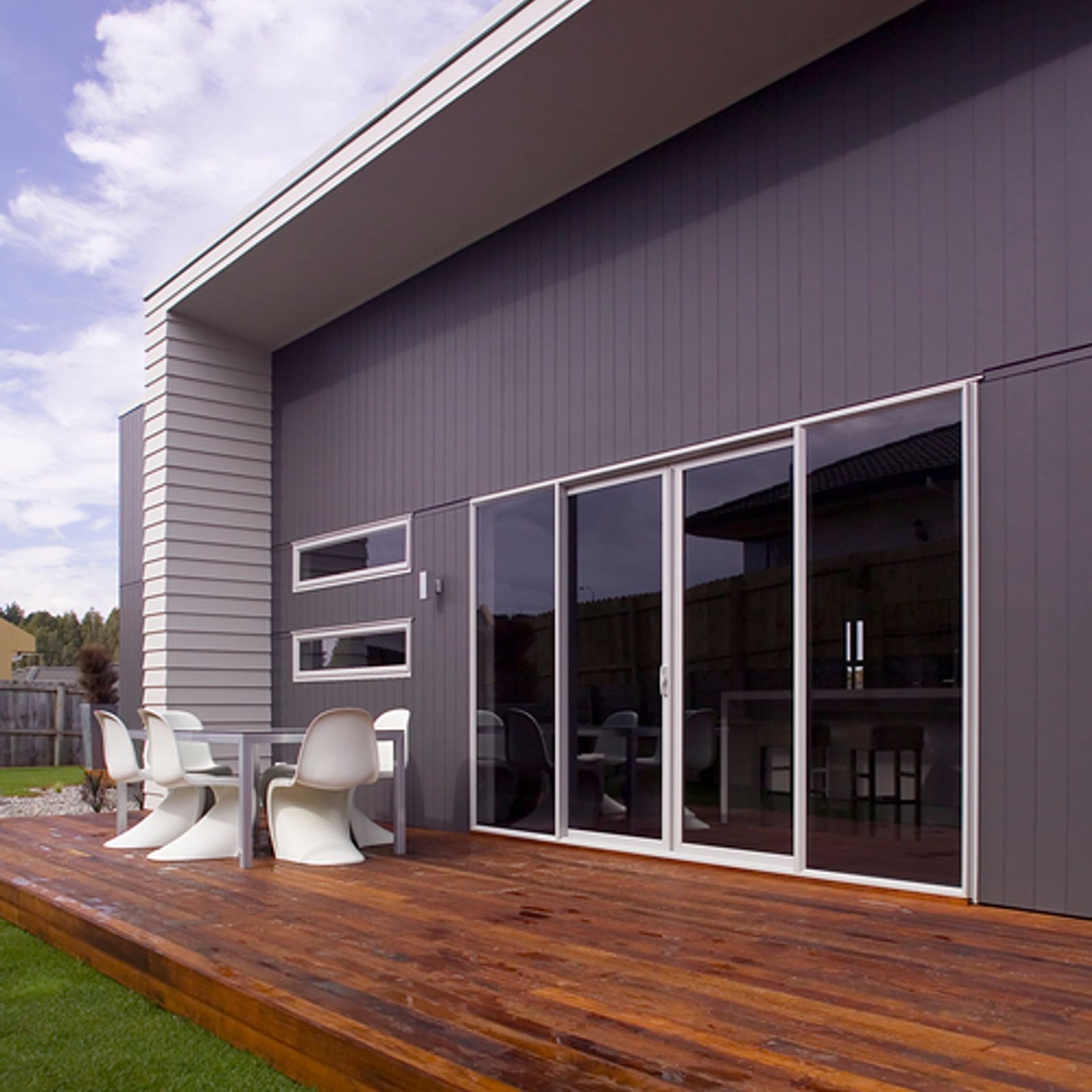

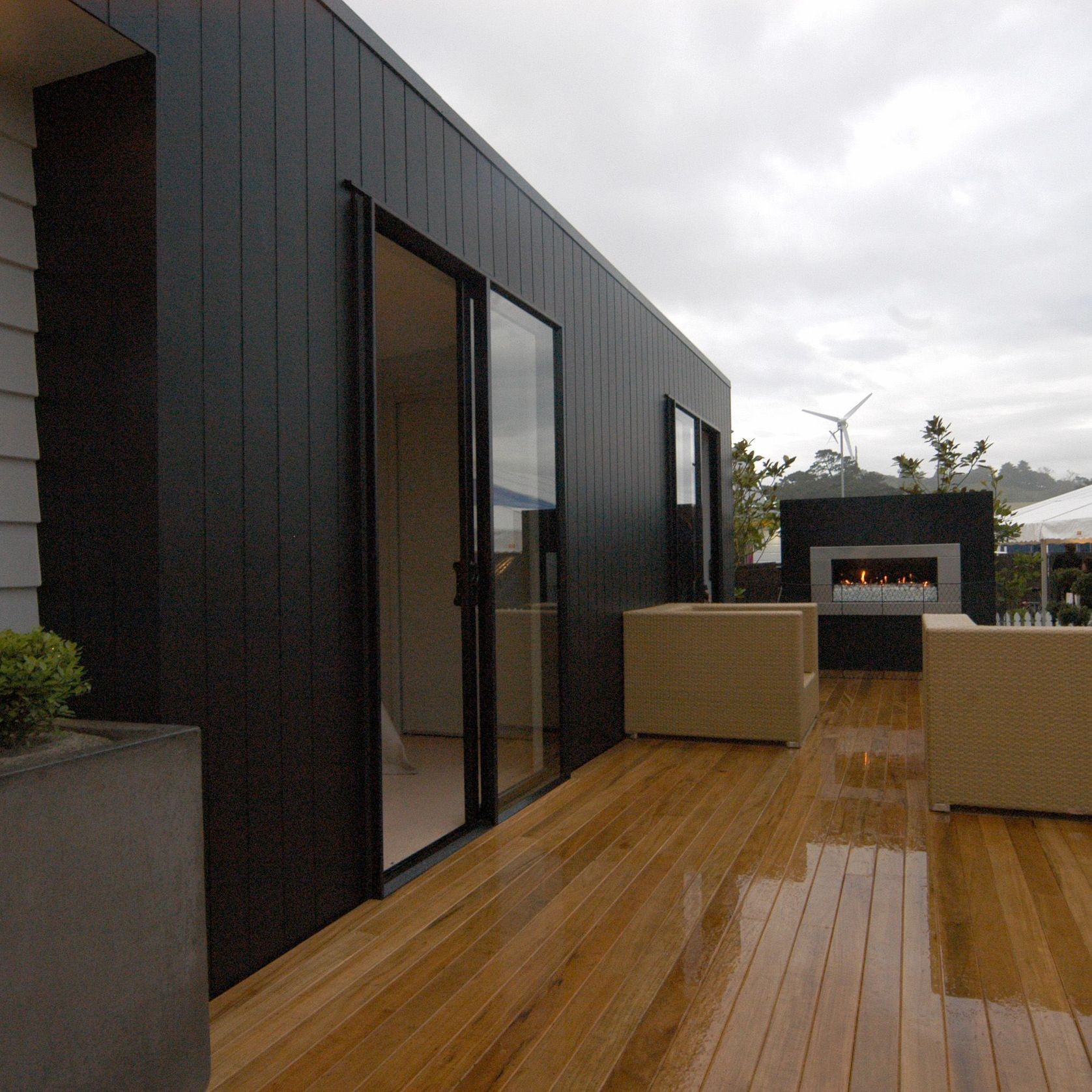

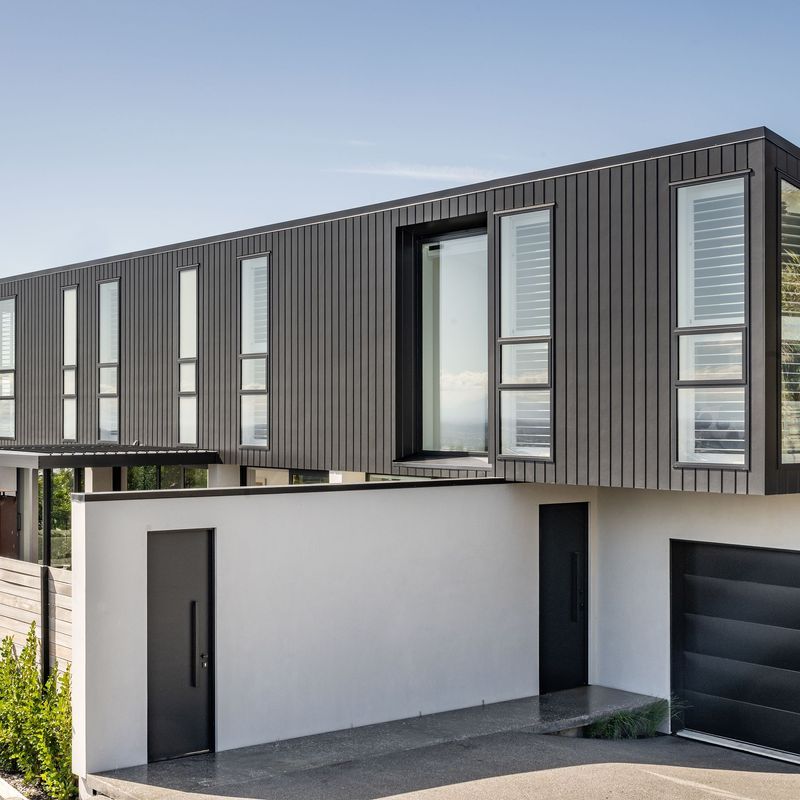

Grooved Collection

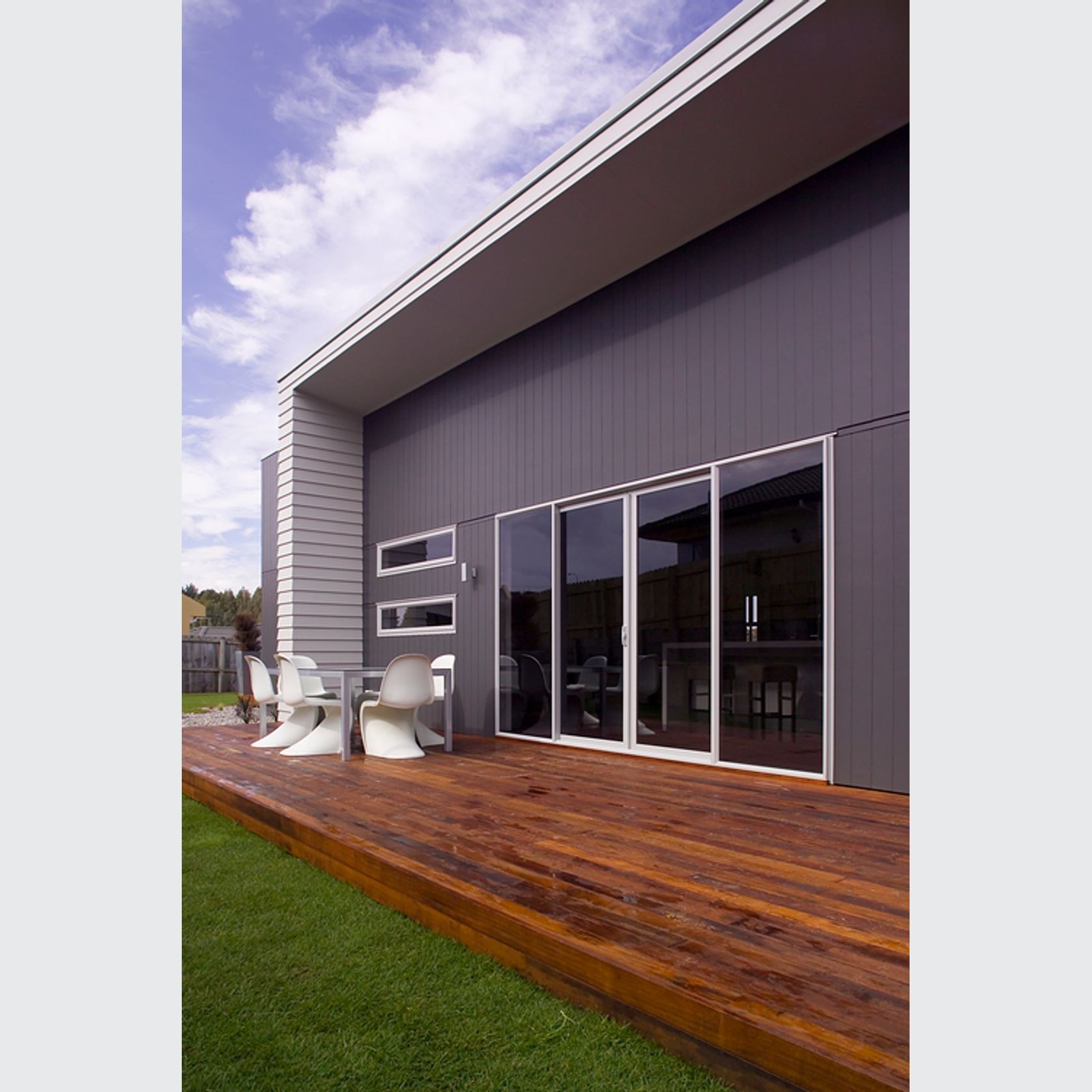

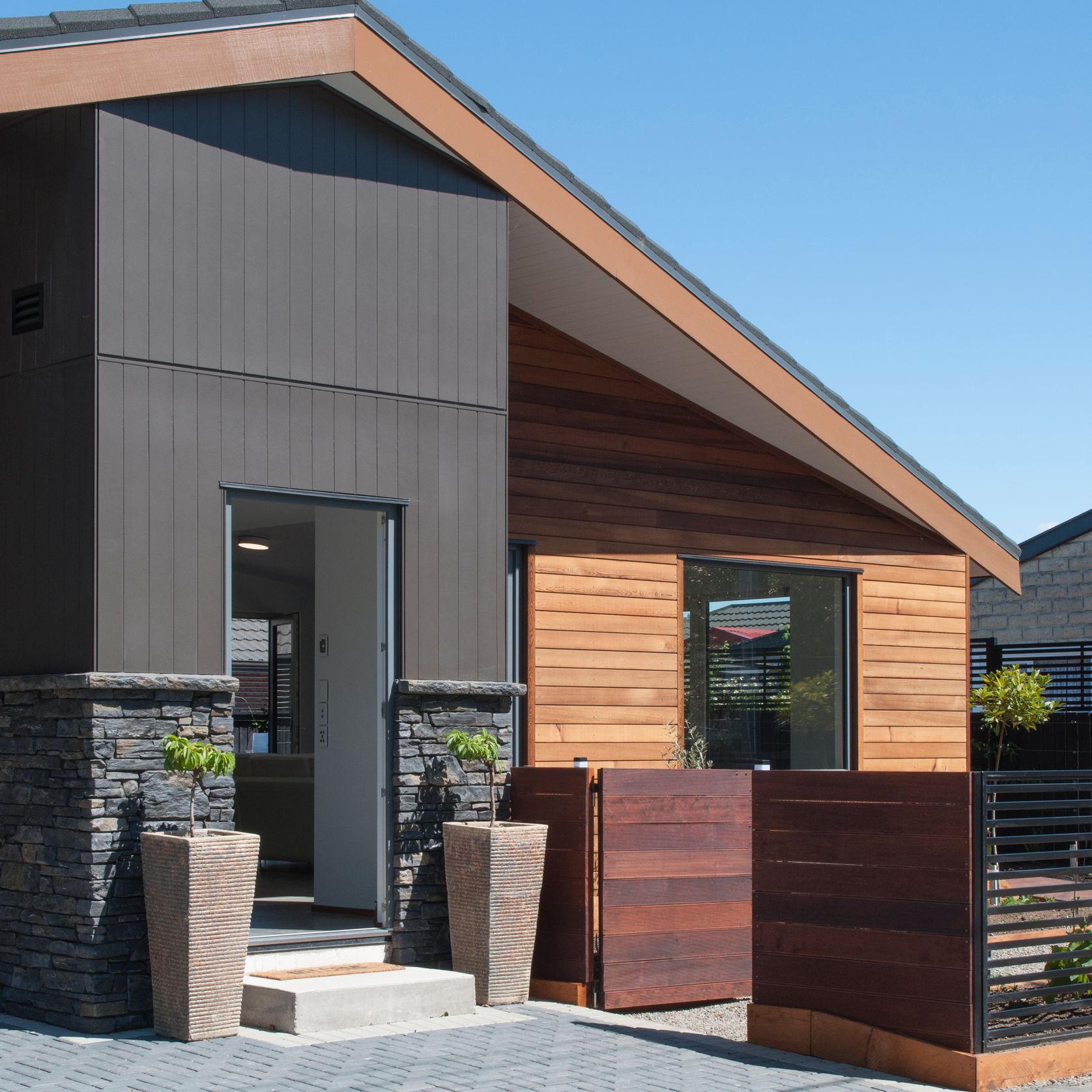

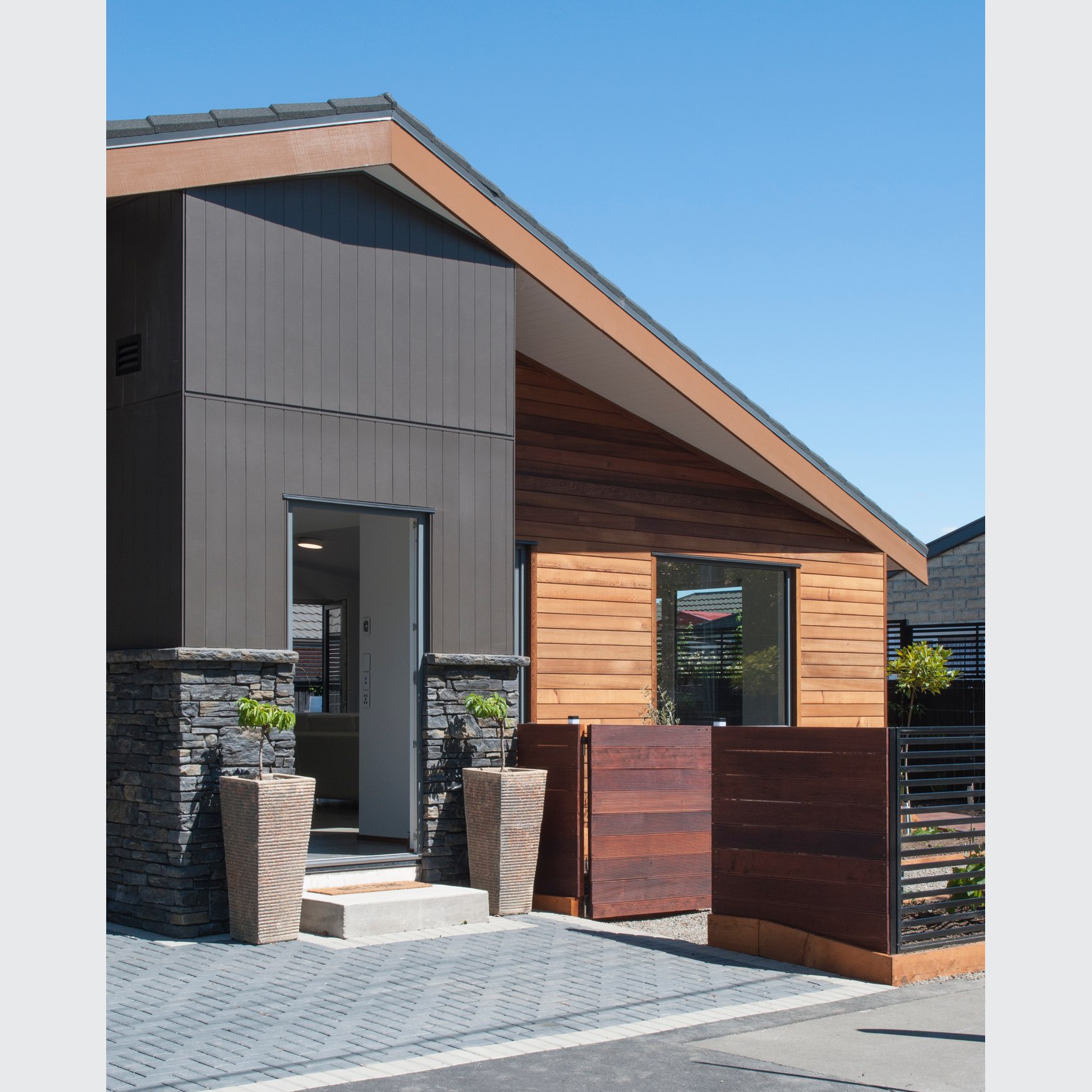

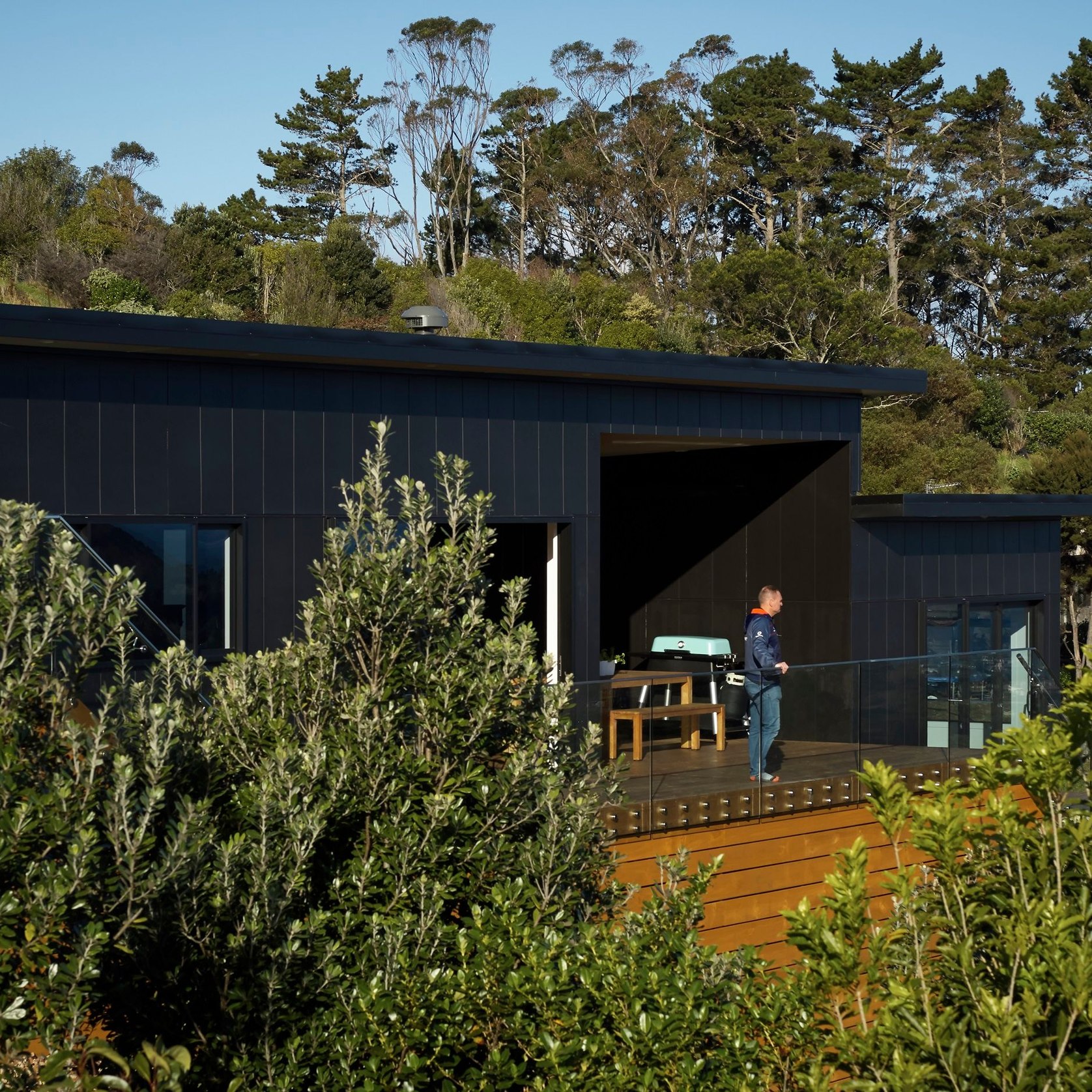

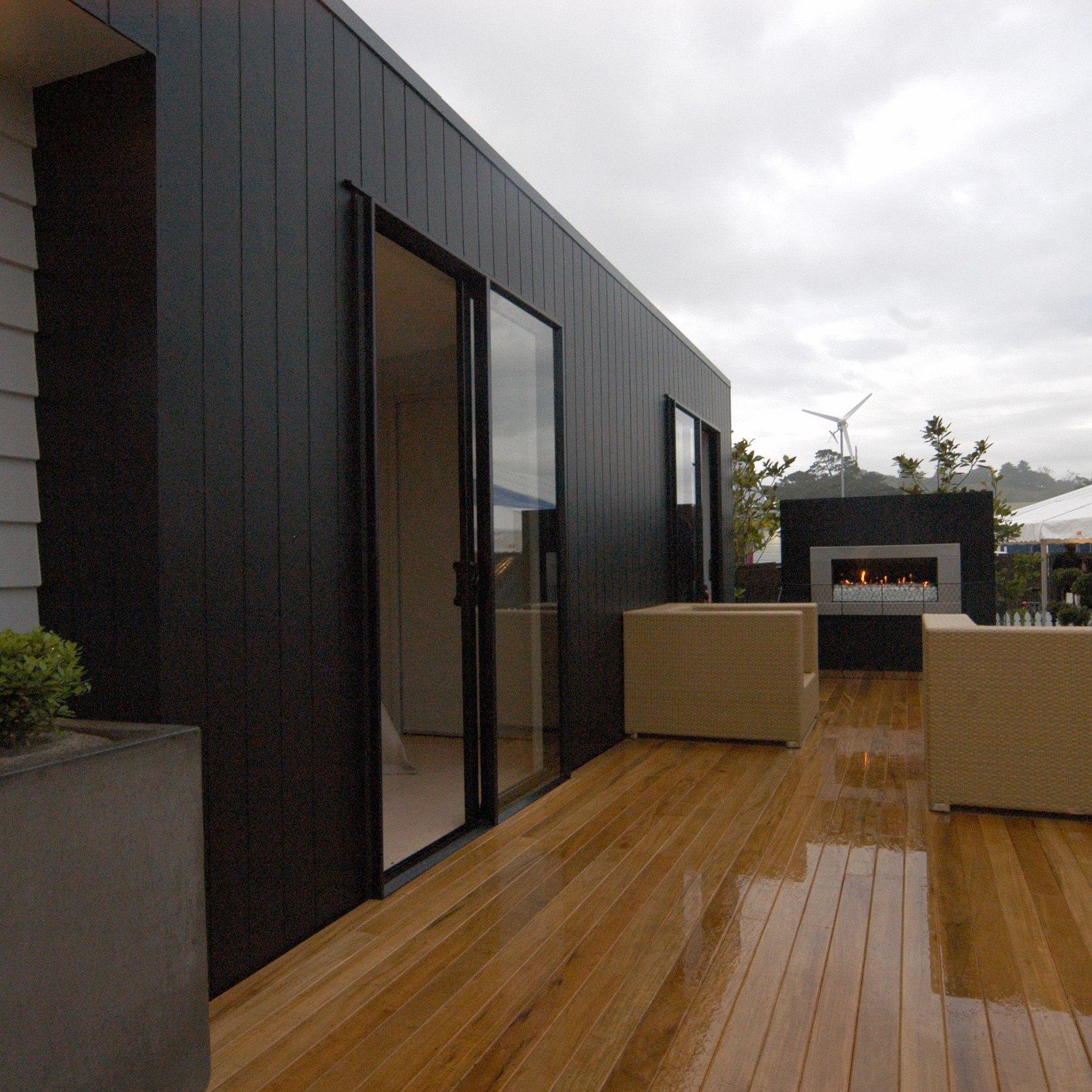

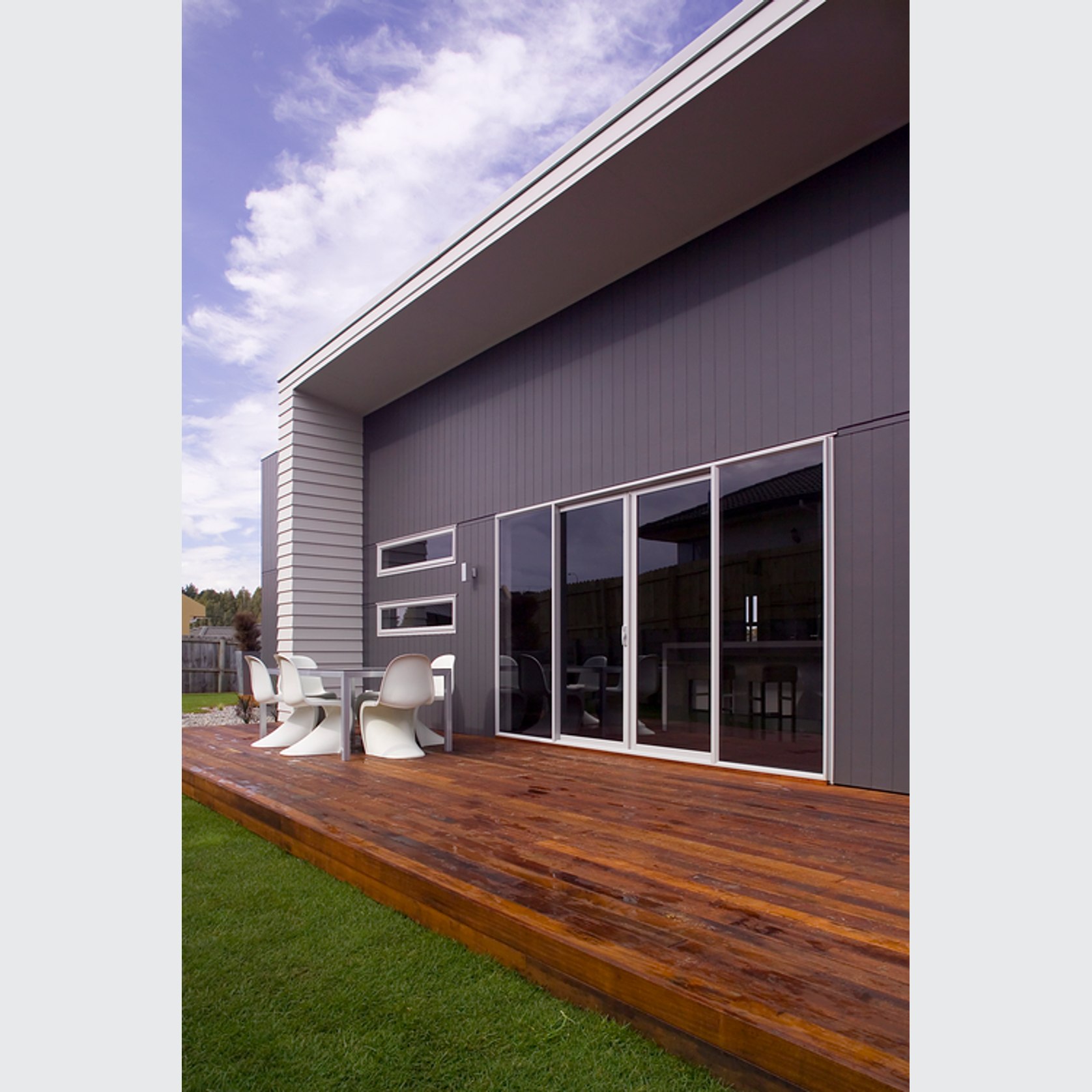

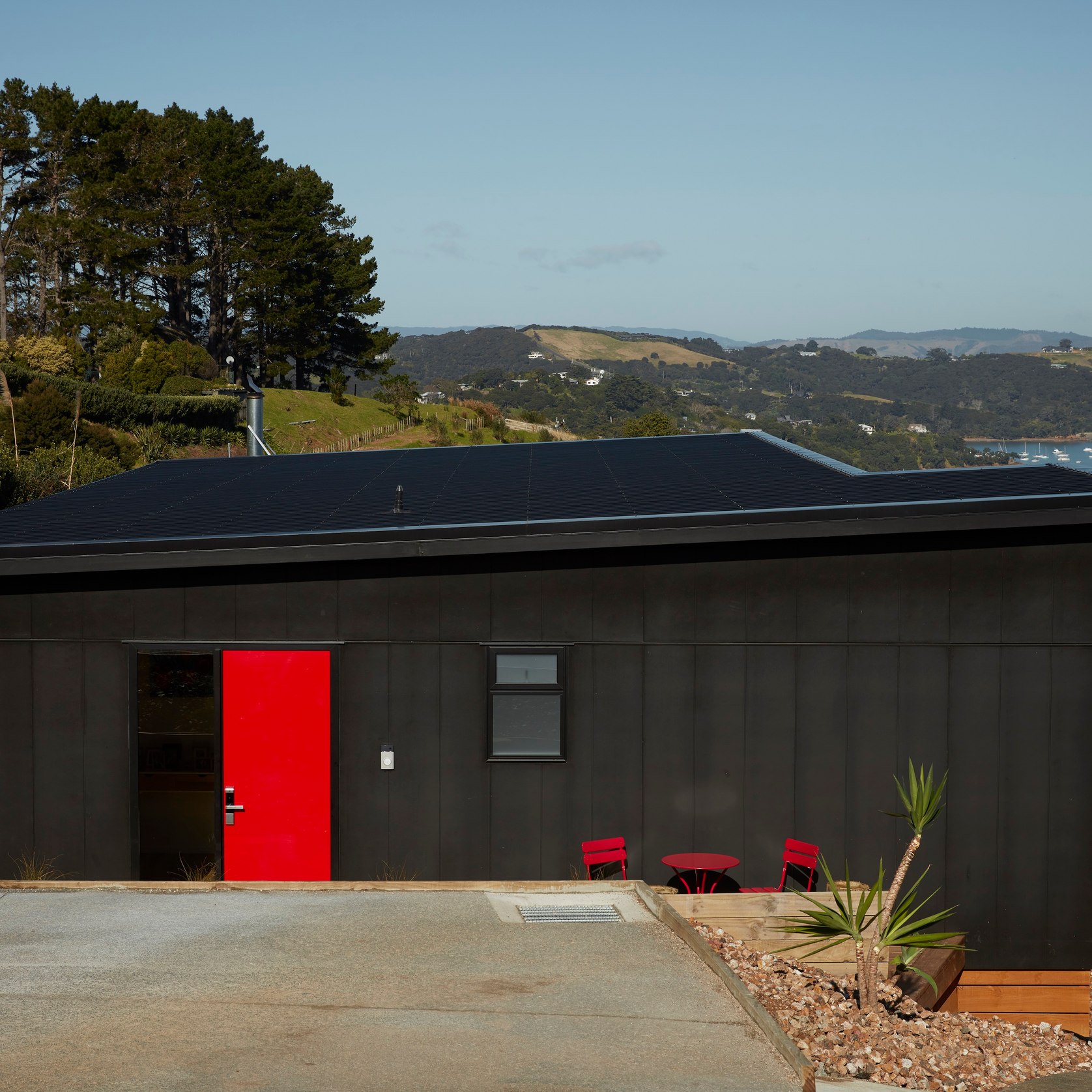

The vertically grooved panels are available with a 133mm or 400mm wide groove pattern that looks sharp and uniform. The grooves on the face of the panel are nominal 10mm wide. The 133mm grooved spacing is also available in a grained finish.

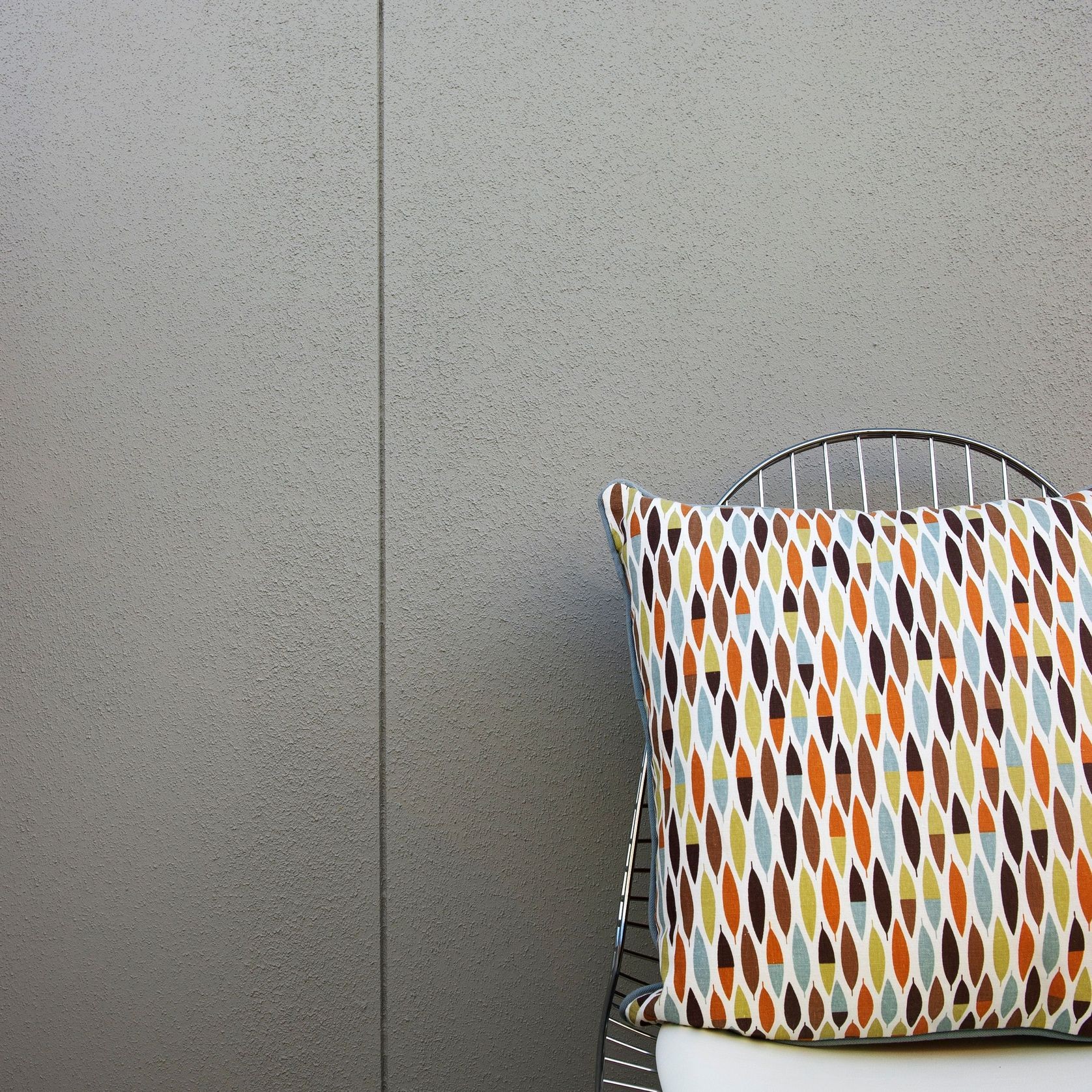

Textured Collection

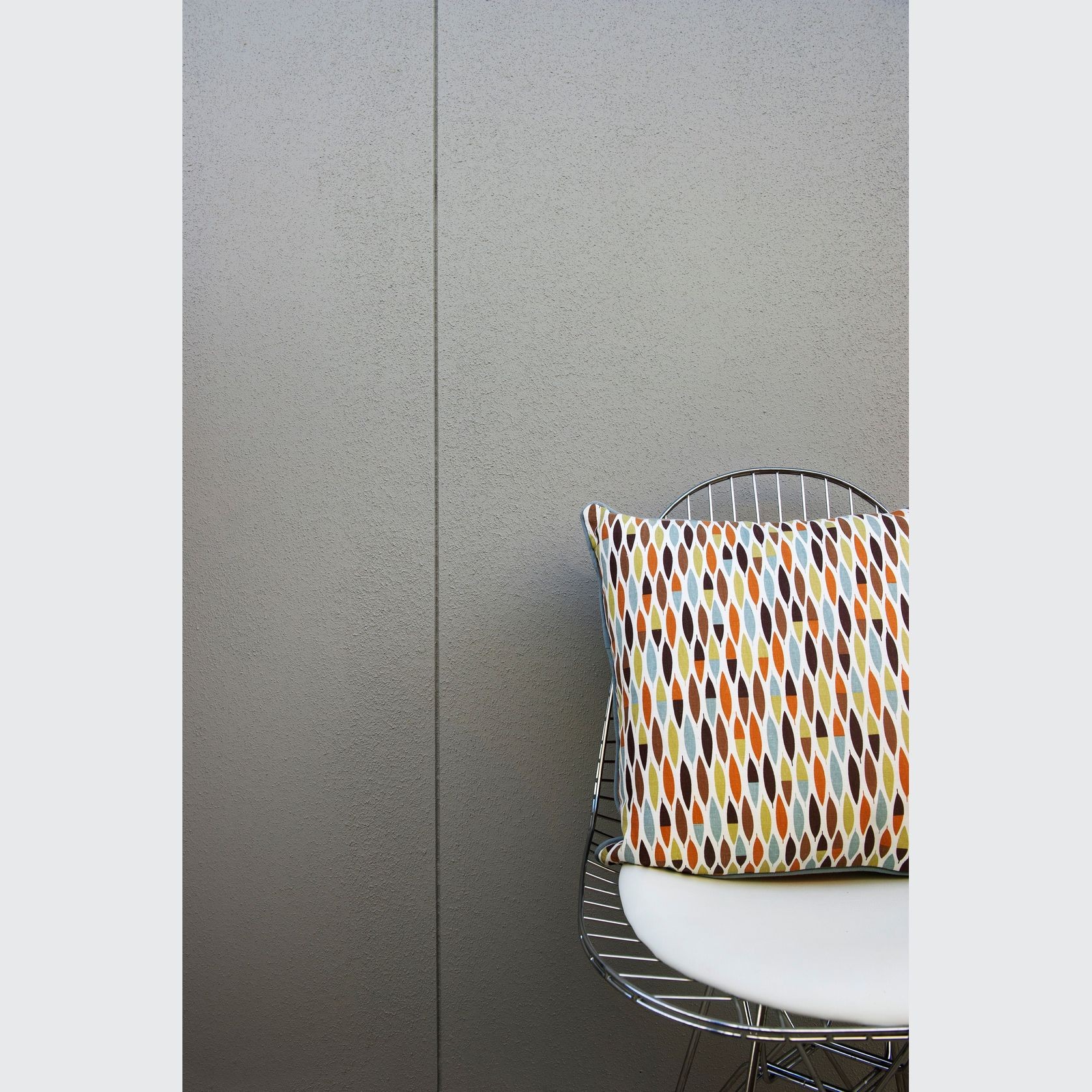

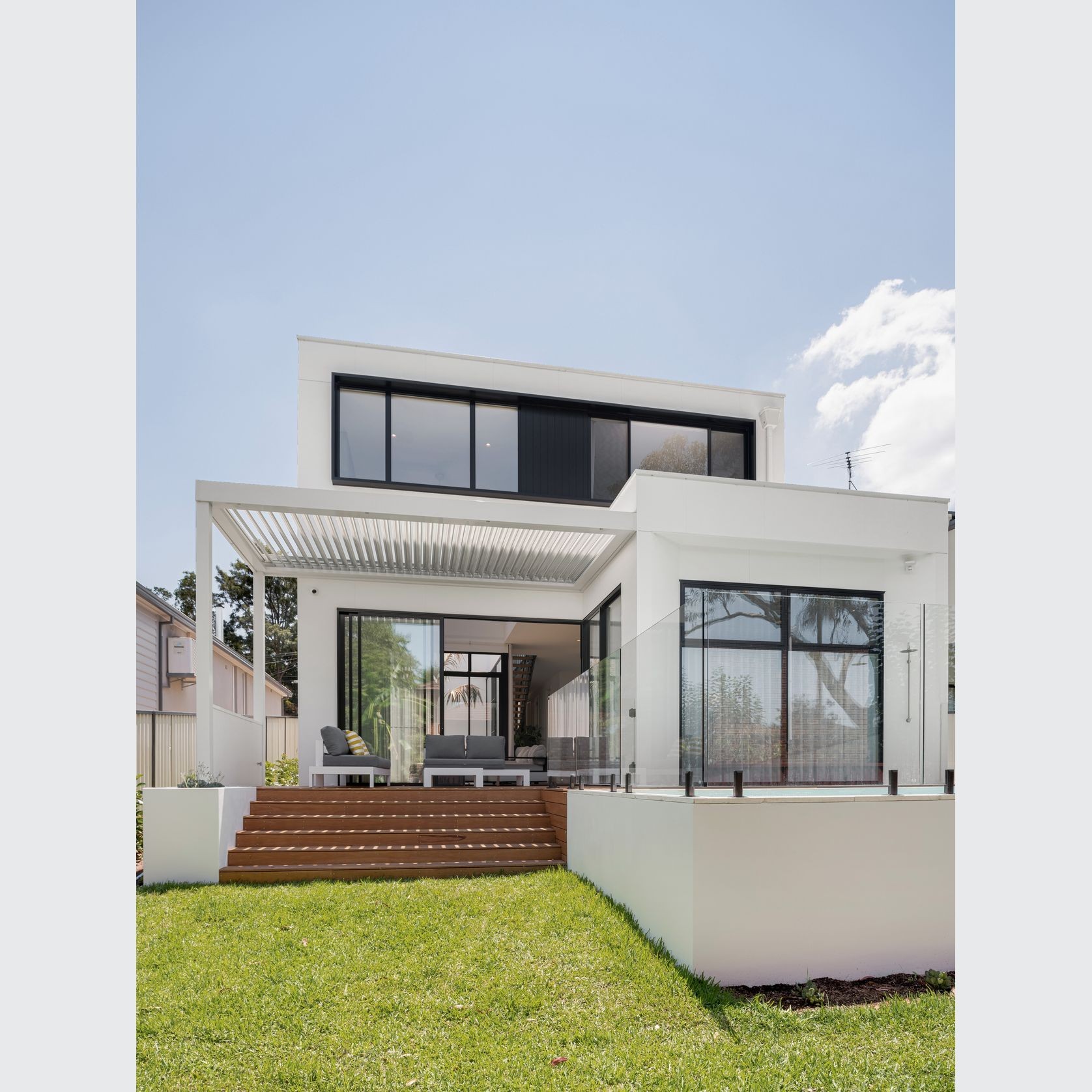

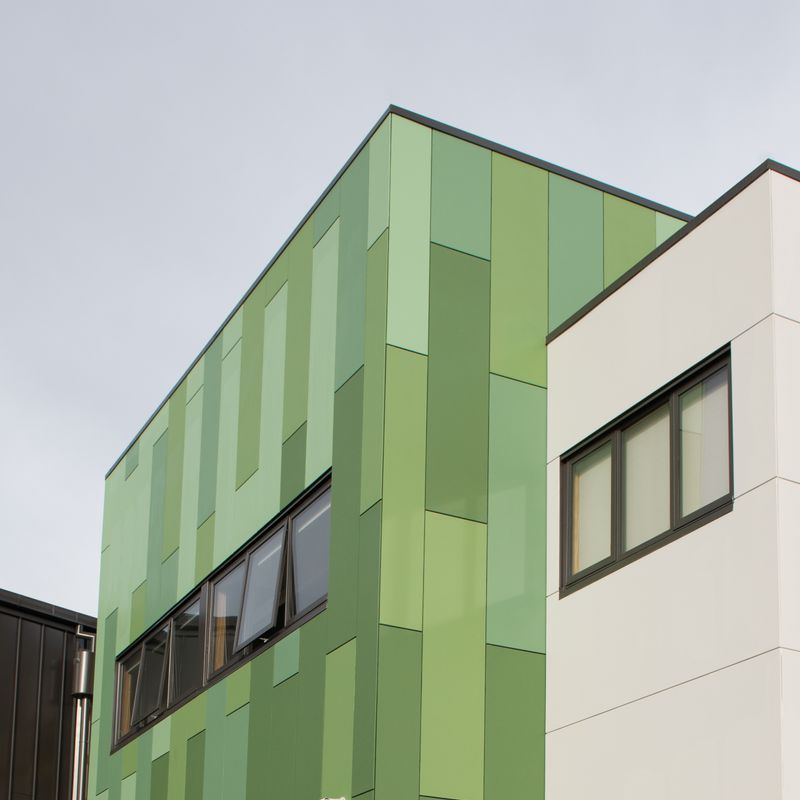

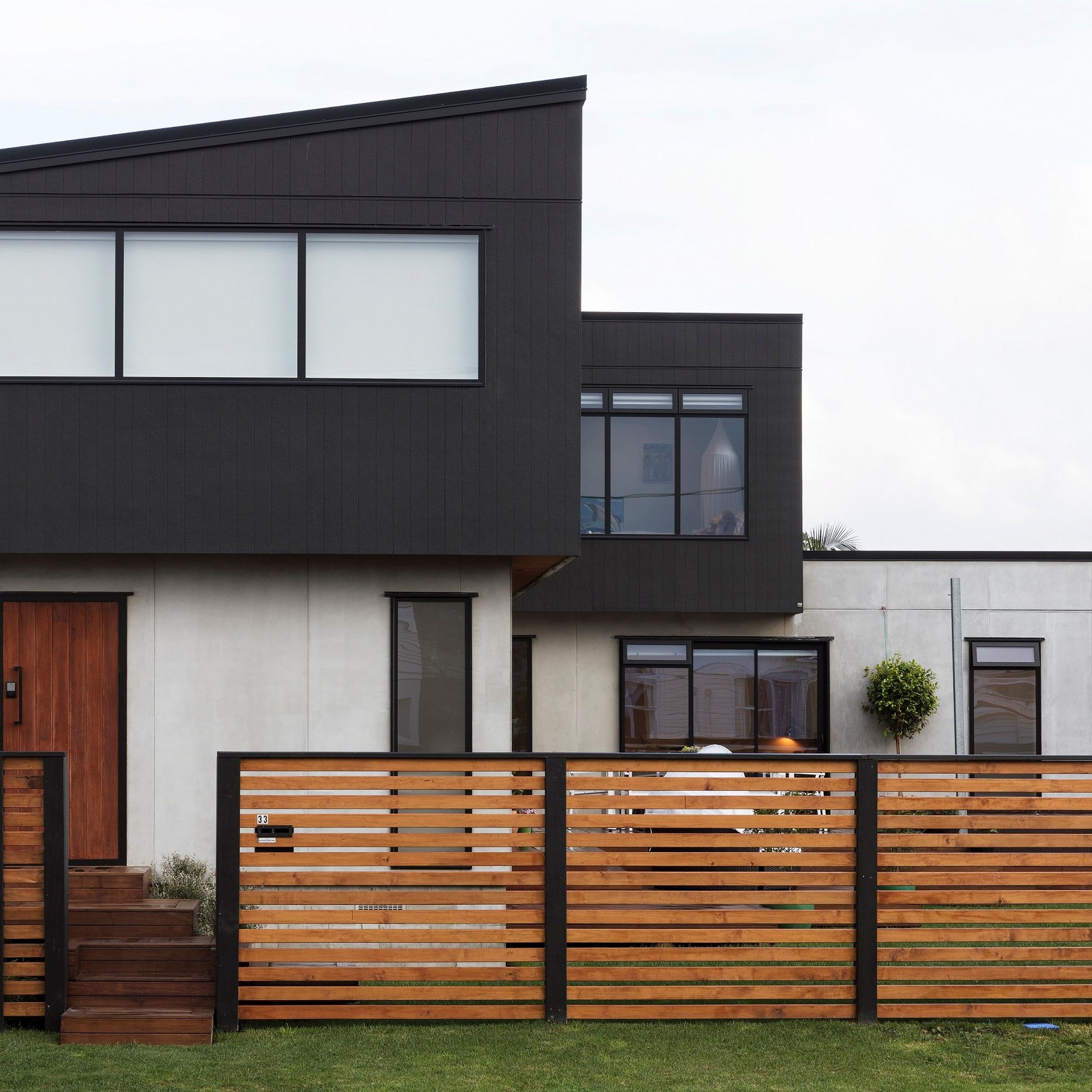

Use Axon™ Panel Textured to wrap an entire house for a clean panelised design or mix it up with other wall materials and colours to get a distinctive, modern look.

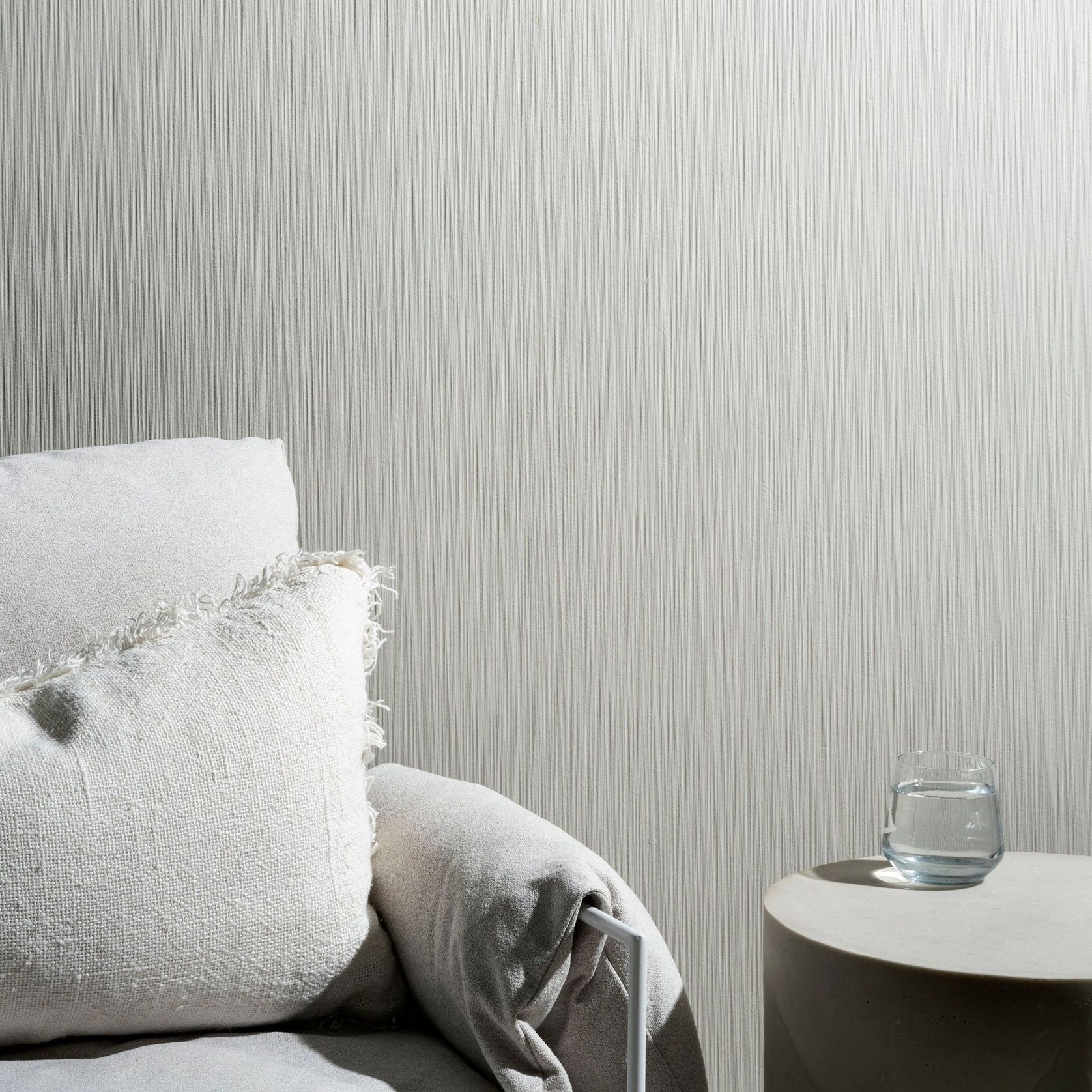

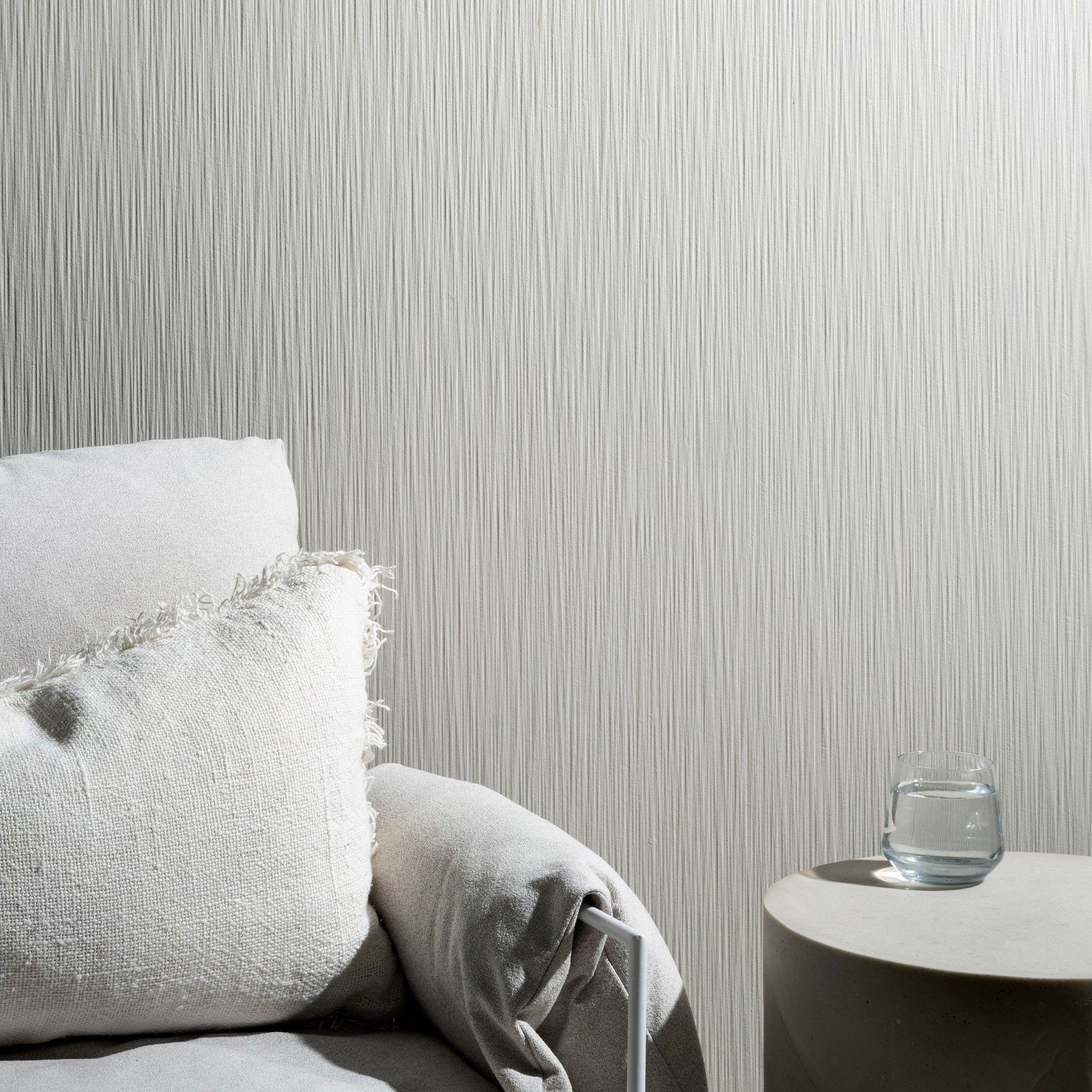

Axon™ Panel Brushed Concrete is inspired by the craftsmanship of softly brushed concrete and transforms with light and proximity. The embedded swept texture of these panels give designs a finish that’s visually sophisticated, and dynamic to the touch.

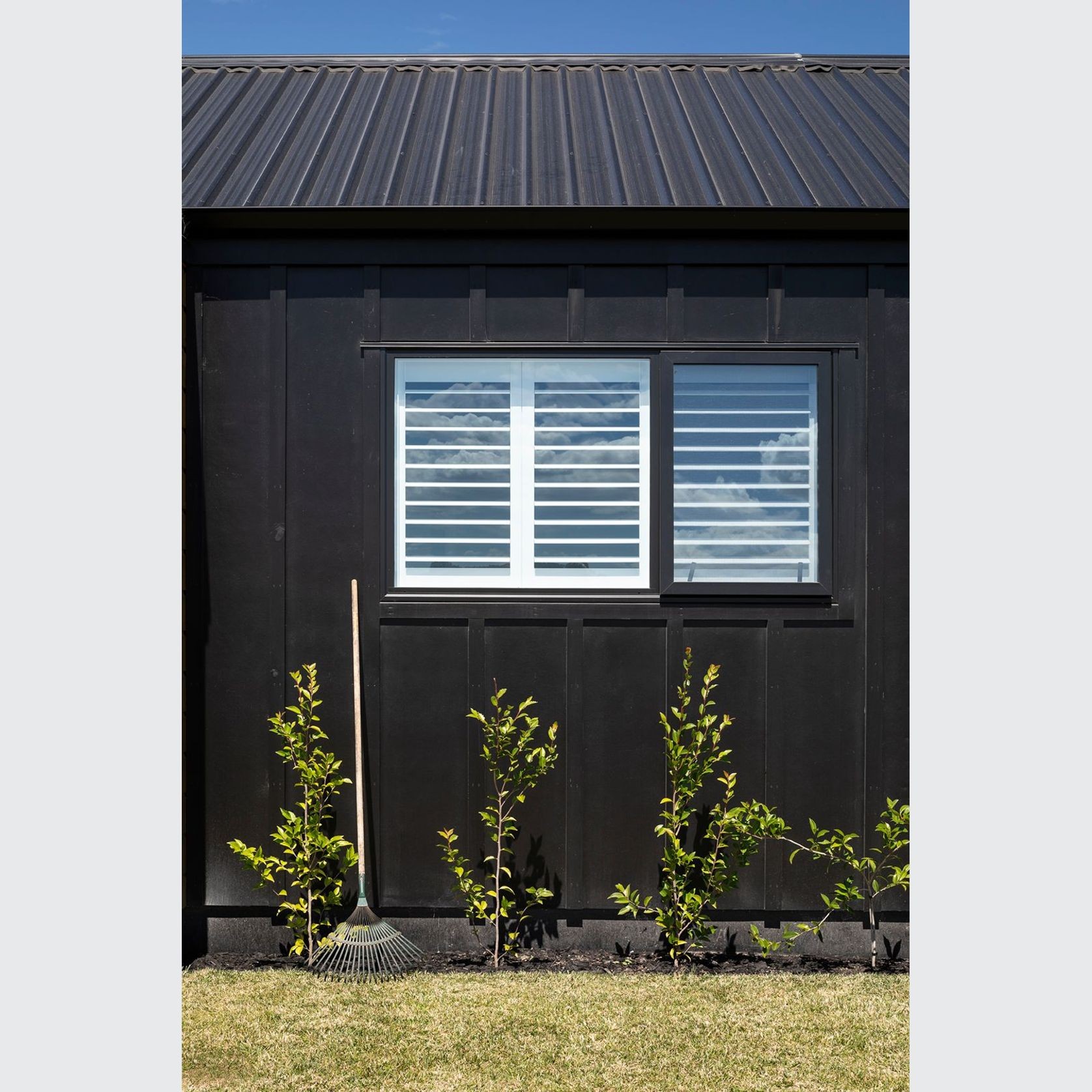

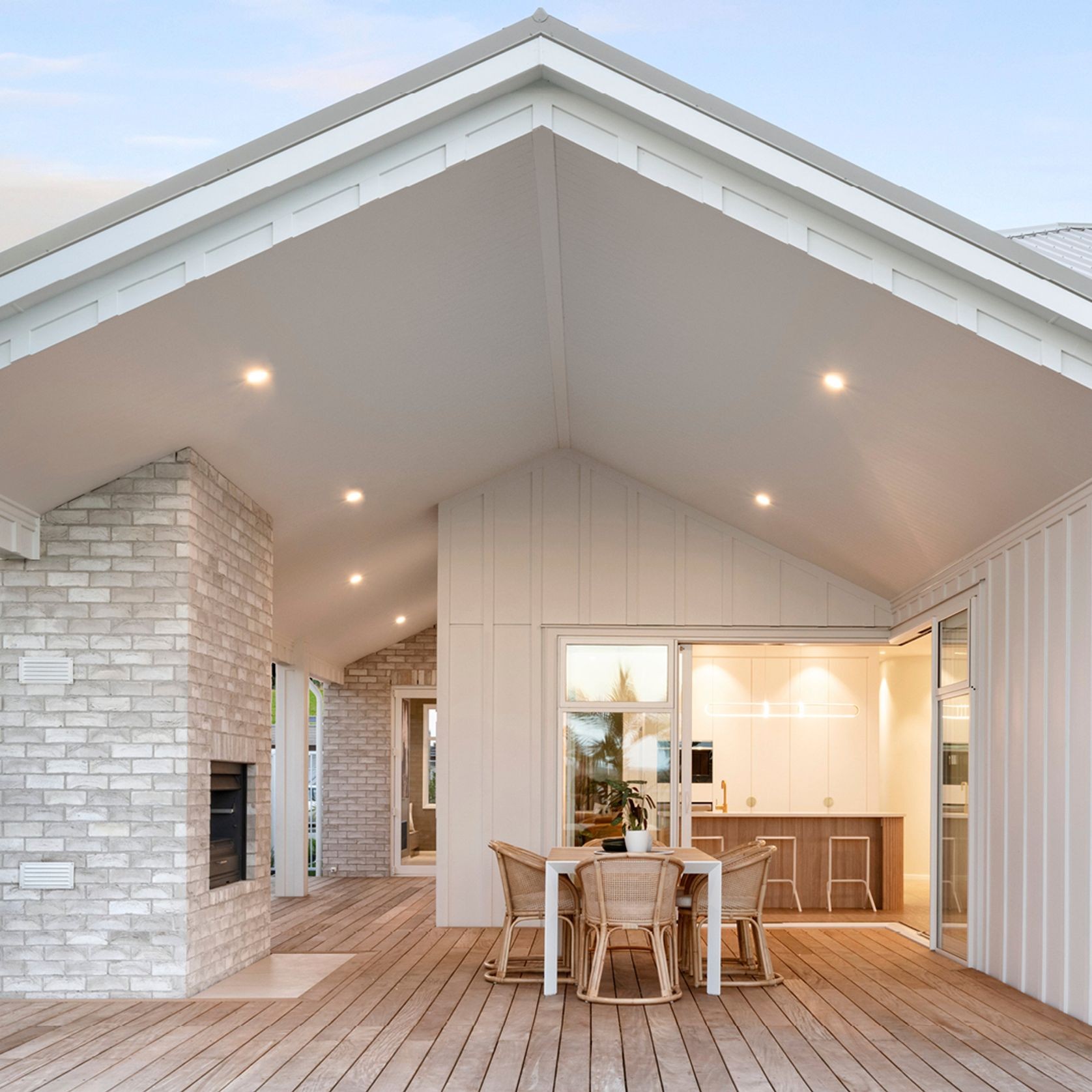

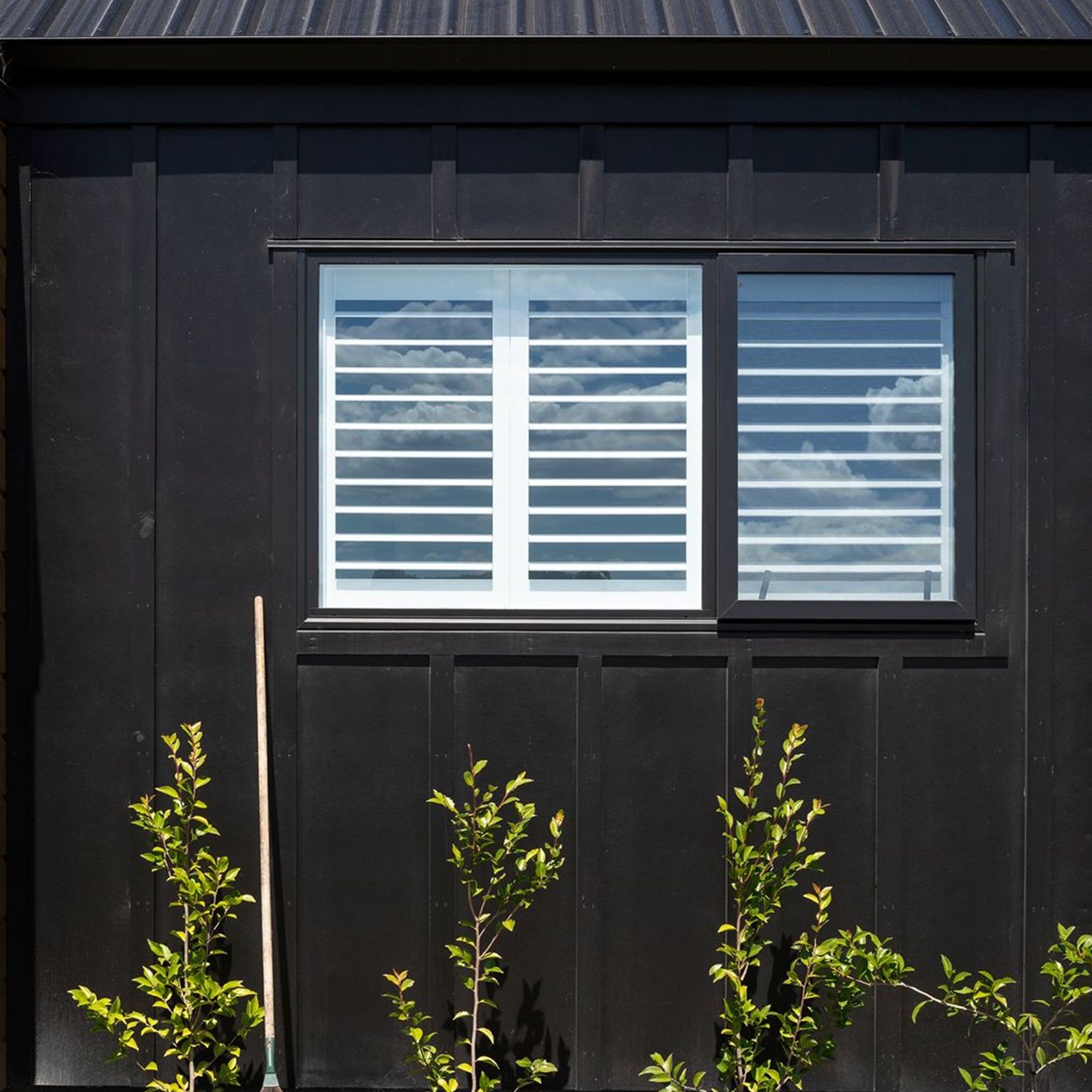

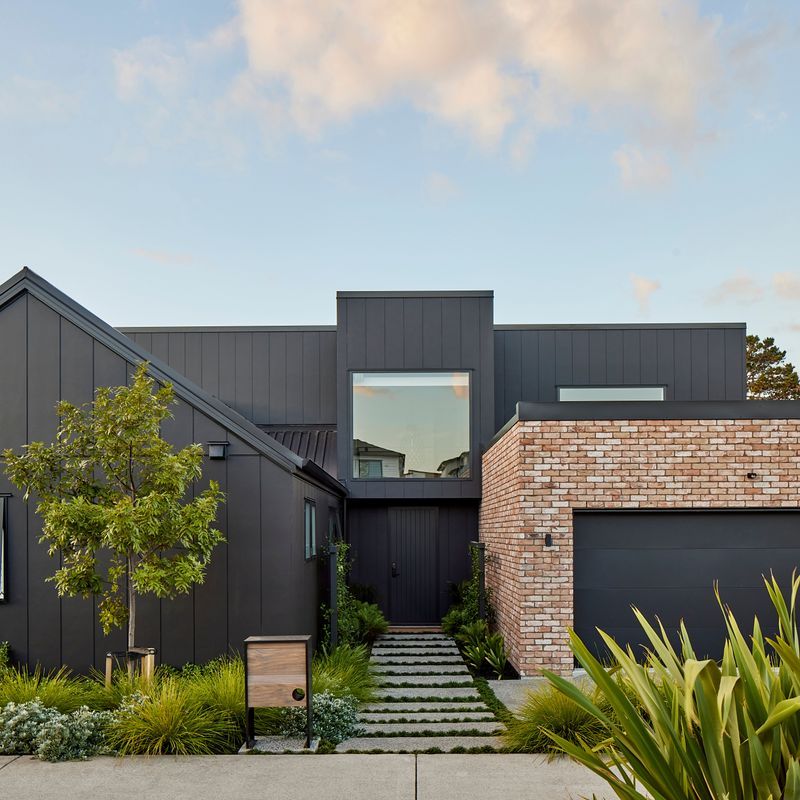

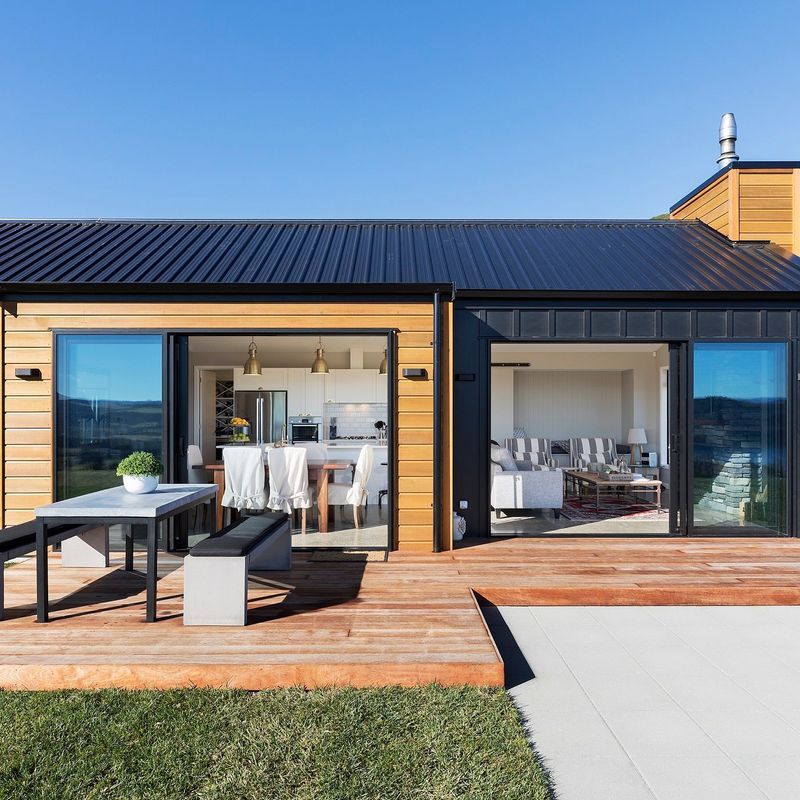

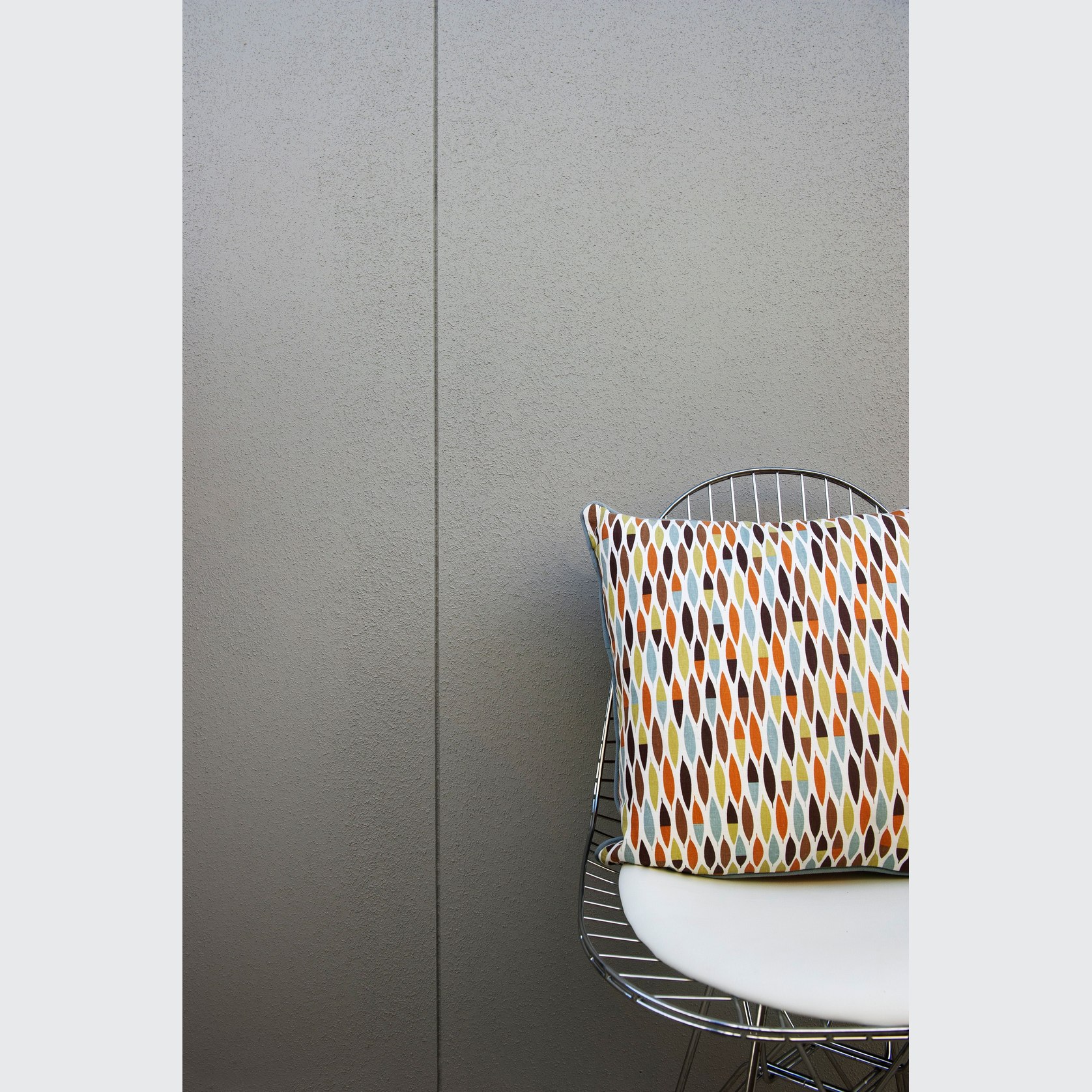

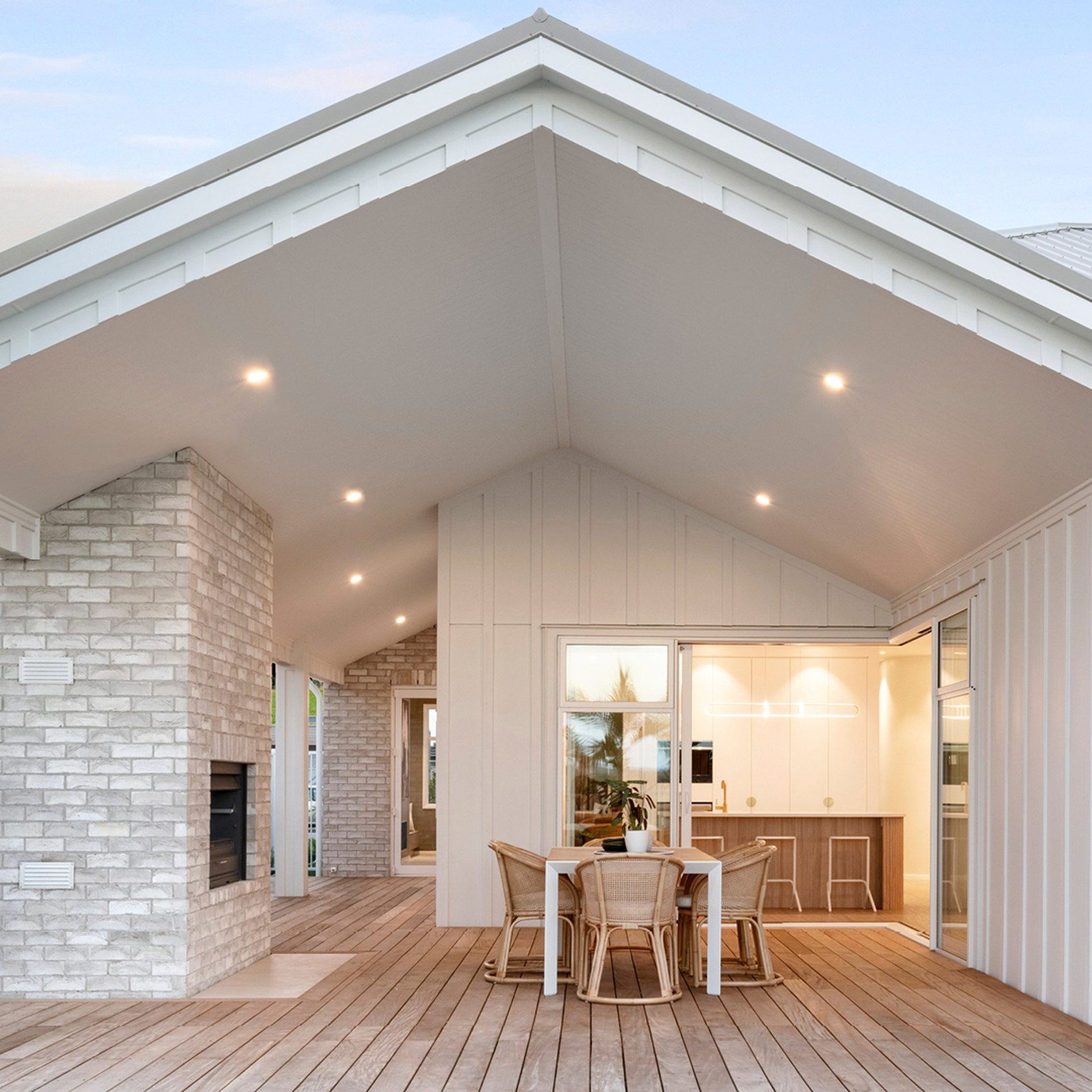

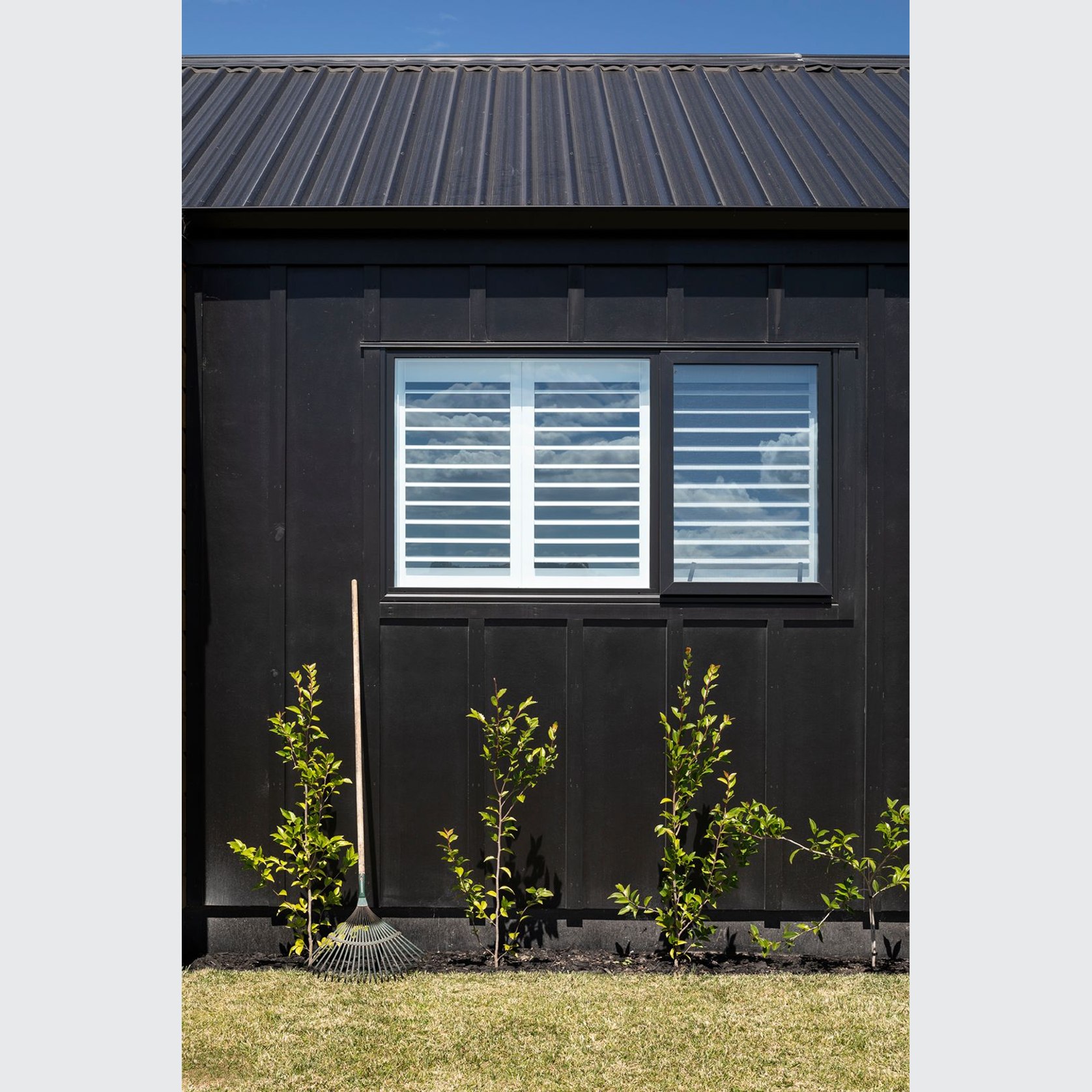

Axon™ Panel Smooth (previously known as EasyLap™ Panel) can be finished with a site applied roll on textured acrylic paint for that rendered look, or you can paint it smooth. It also makes the perfect surface for board and batten applications when used in conjunction with Hardie™ Axent™ Trim.

Details
  • Category
    Fibre Cement Cladding
  • Range
    CLADDING
Features and benefits
  • Engineered to stand up to harsh conditions, including coastal conditions
  • Axon™ Panel has been tested and complies to the new E2/VM2 verification method for building facades up to 25m high
  • Can be painted any colour, even the darker shades
  • Cost effective and long-lasting
  • Resistant to fire, rot resistant and resistant to moisture damage
  • Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the James Hardie Fire and Acoustic Design Manual
  • Classified as a lightweight cladding
  • Classified as non-combustible material
  • Low maintenance
  • Easy installation makes Axon Panel a fast and effective way to cover your home’s exterior
  • BRANZ Appraised
  • CodeMark Certified
  • GreenTag Certified
  • 15 year product warranty
Product profiles

Product profiles for the grooved collection:

Grooved 133mm

Available in:

  • Thickness: 9mm
  • Length: 2450mm, 2750mm, 3000mm or 3600mm
  • Width: 1200mm

Grooved 400mm

Available in:

  • Thickness: 9mm
  • Length: 2450mm, 2750mm or 3000mm
  • Width: 1200mm

Grooved Grained 133mm

Available in:

  • Thickness: 9mm
  • Length: 3000mm
  • Width: 1200mm

Product profiles for the textured collection:

NEW Brushed Concrete:

  • Thickness: 8.5mm
  • Length: 2440mm, 2750mm, 3000mm or 3600mm
  • Width: 1200mm

Smooth (previously known as EasyLap™ Panel):

  • Thickness: 9mm
  • Length: 2450mm or 3000mm
  • Width: 1200mm
All James Hardie products available in New Zealand are sold via distributors and are not sold directly. For any pricing requests, please contact your local supplier. Stockists include PlaceMakers, Bunnings, Carters, ITM, Mitre10 and BuildLink Group. To order samples and brochures, order direct from the James Hardie website.
