Backlite 11W / 22W / 33W Flexible LED Strip Lighting

Colab Lighting
Visit Website
Backlite 11W / 22W / 33W Flexible LED Strip Lighting gallery detail image
W235 x H503.5 mm

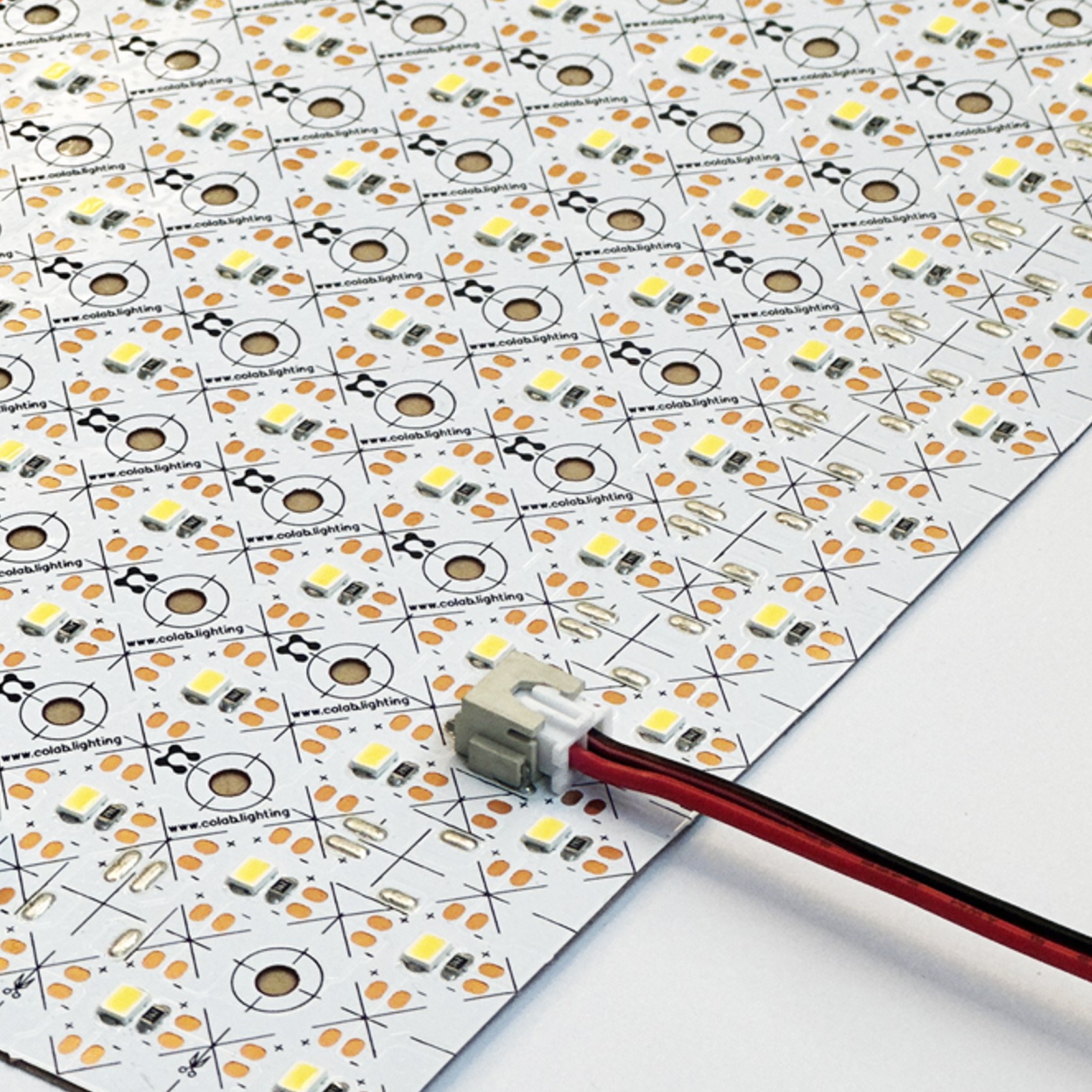

Backlite presents an efficient and versatile 24V flexible LED sheet that can be used for a vast range of back lighting  applications. Available in multiple wattage options and comes as standard with a CRI of 90+ and a 3-Step-Mac-Adams ellipse for greater colour fidelity and consistency. Unique single cuttable LED technology allows for greater creativity and flexibility.

Utilising Vossloh-Schwabe, Tridonic or Meanwell constant voltage LED drivers. Optional DALI-2 dimming, or Bluetooth Wireless upon request. The Backlite series offers a 5 year warranty.

Sea-Freight LCL - 3-4 weeks (2 weeks shipping + 1 week at sorting depot).
Air-Freight (Approx. 5-7 days once order has been picked up) please note, we cannot be responsible to delays due to customs inspections.

Details
  • Category
    LED Strip Lights
  • Range
    Strip Lighting
  • Warranty
    5 years
Specifications
  • Wattage: 11W per sheet, 22W per sheet, 33W per sheet
  • Luminous Flux/m: 1012-1144Lm, 2024-2156Lm, 3036-3432Lm
  • Luminaire Efficacy Lm/W: 92Lm/W
  • CCT: 2700K, 3000K, 4000K
  • CRI: >90
  • Distribution: 120°
  • Colour Deviation: 3-SDCM
  • Dimensions: Width 235 x Length 503.5mm
  • Dimming: Non-dimmable, DALI-2, BLE (basicDIM Wireless / Casambi)
  • Minimum cuttable Section: 1pcs x SMD LED
  • Longevity: >50,000hrs L80
  • Warranty: 5 years
SKU: backlit-1
Thank you for contacting Colab.Lighting, one of our staff will be reaching out to you soon. Regards Colab Team

About the
Seller

Lighting the spaces we live, work, and play.

CoLab specialises in quality architectural lighting products for projects of all scales. We work closely and collaboratively with our industry partners to create innovative lighting solutions that work for our clients and showcase the possibility of light.

CoLab is a commercial lighting company with collaboration at its heart. Previously Onelight, our new name reflects our collaborative approach and innovative spirit.

With resources to create bespoke products and unique functions, our factory facilities and experienced team welcome creative challenges bringing your ideas to light.
