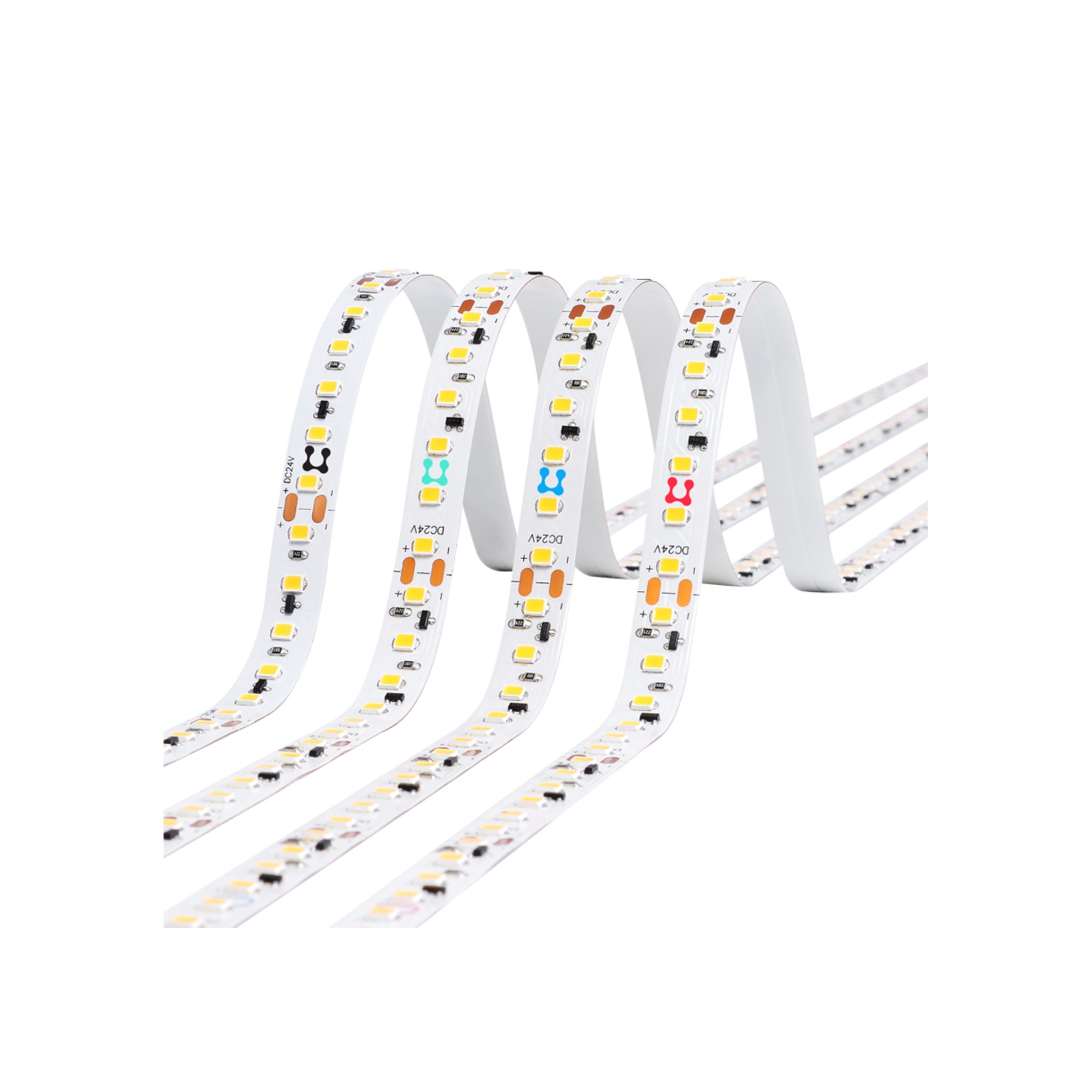

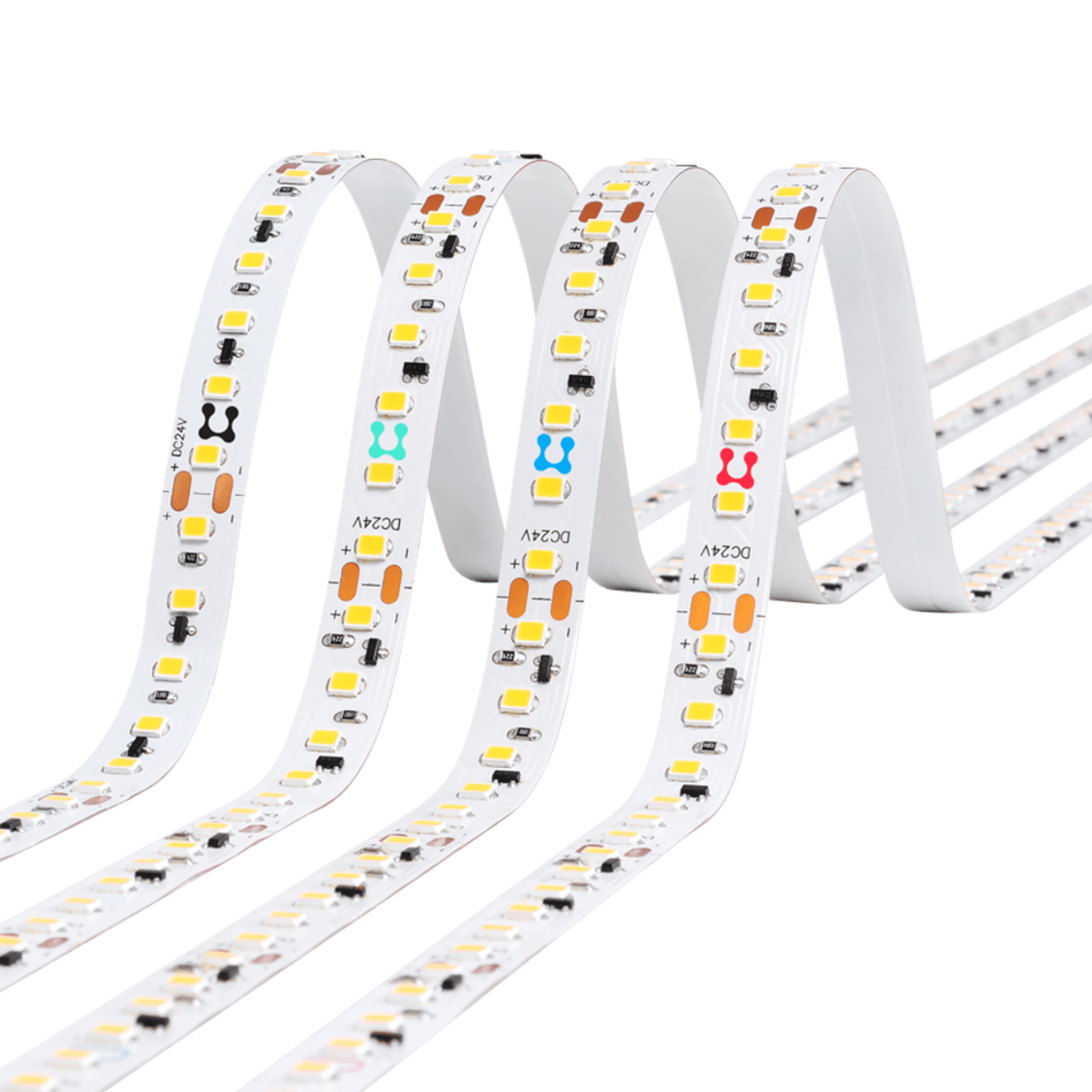

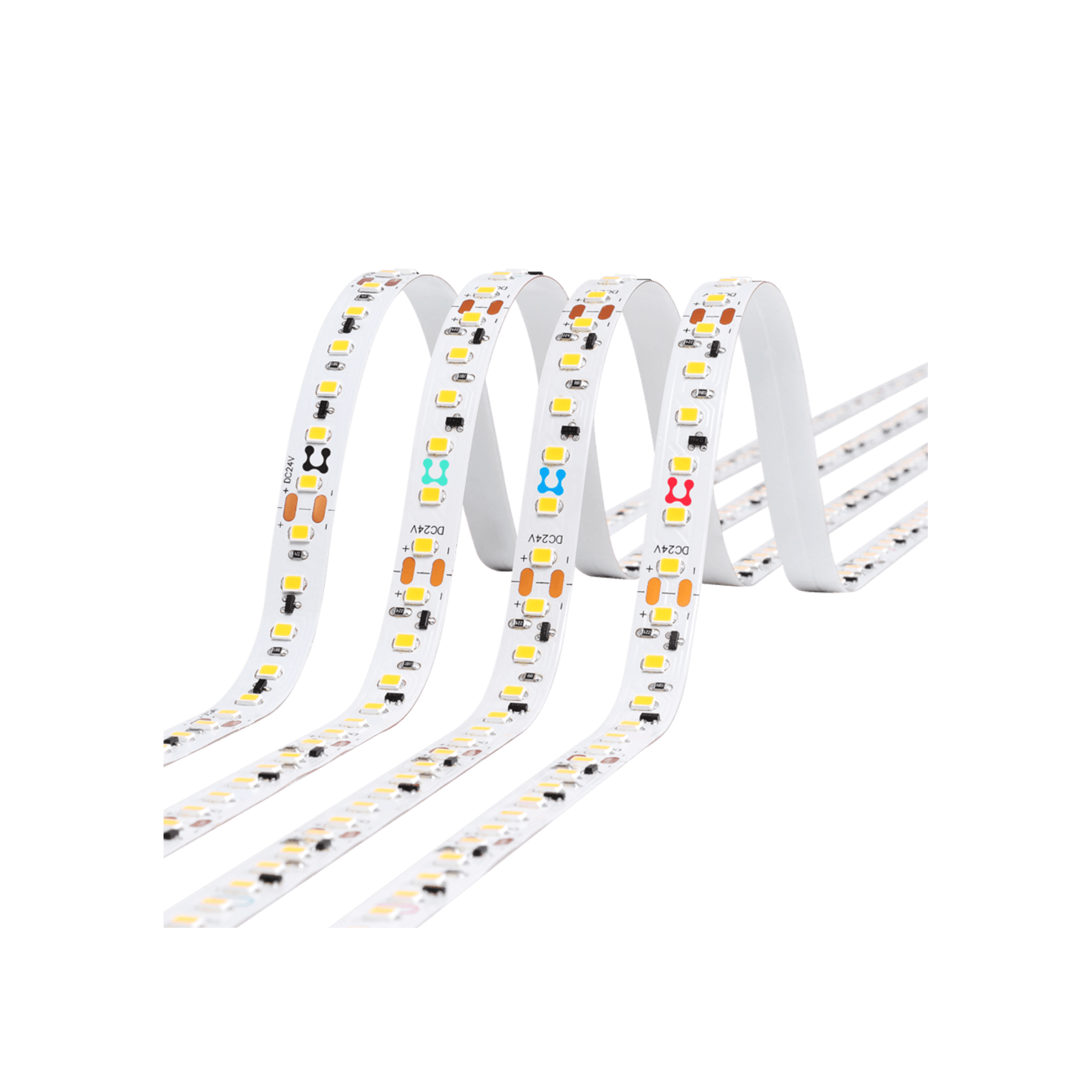

5W/10W/15W/20W Flexible LED Strip Lighting

Deltaflex presents an efficient and versatile 24V flexible LED system that can be used for a vast range of direct and indirect interior lighting applications. Available in multiple wattage options and comes as standard with a CRI of 90+ and a 3-Step-Mac-Adams ellipse for greater colour fidelity and consistency.

Utilising Vossloh-Schwabe, Tridonic or Meanwell constant voltage LED drivers. Optional DALI-2 dimming, or Bluetooth Wireless upon request. The Deltaflex series offers a 5 year warranty.

Details
  • Category
    LED Strip Lights
  • Range
    Strip Lighting
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage:

  • 5W
  • 10W
  • 15W
  • 20W

Luminous Flux/m:

  • 420-480 Lm/m
  • 786-810 Lm/m
  • 1248-1286 Lm/m
  • 1506-1604 Lm/m

Luminaire Efficacy Lm/W:

  • 84 Lm/W
  • 78.6 Lm/W
  • 83.2 Lm/W
  • 75.3 Lm/W

Max Continuous Length:

  • 15m
  • 12m
  • 10m
  • 8m

CCT:

•2700K
•3000K
•4000K

CRI: >90

Distribution: 120°

Colour Deviation: 3-SDCM

Dimensions: Width 10mm x Height 3mm x Length 5000mm

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Minimum cuttable Section: 50mm

Longevity: >50,000hrs L80

Warranty: 5 years
