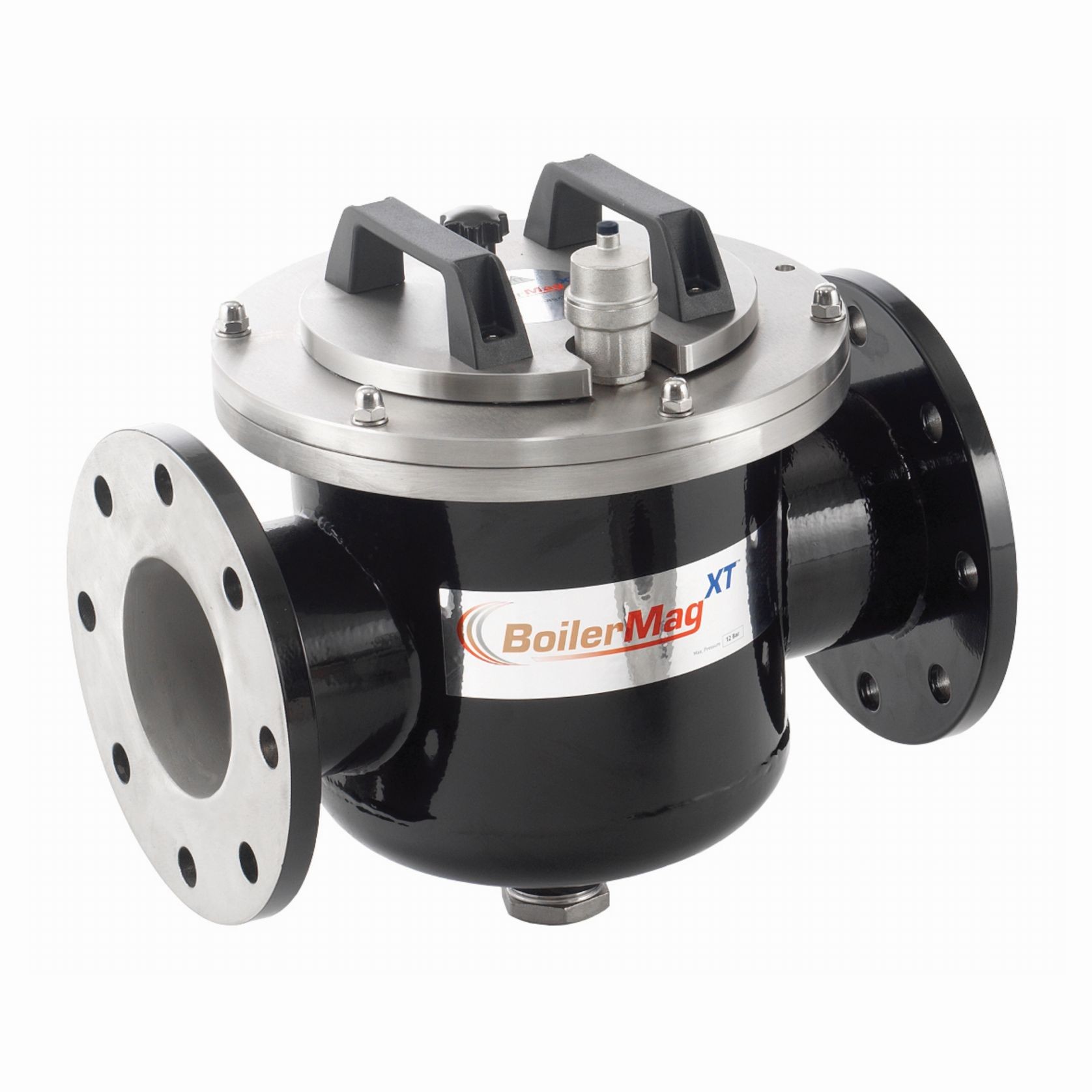

BoilerMagXT is a range of high specification full flow filters for large industrial sized heating and cooling systems.
BoilerMagXT features a robust fabricated stainless steel construction which is ideal for the most demanding of applications.
With model sizes compatible for 2” up to 12” port sizes and PN16 flanges, BoilerMagXT easily handles the efficiency and reliability demands of large industrial heating and cooling systems.
It provides long lasting protection for system components such as heat exchangers, pumps, radiators and fan coil units.
Product Details
- Product
- Boilermag Industrial Magnetic Filter - Boilermag XT
- Category
- Water Filter Systems
- Sold by
- Warm NZ Heating Solutions
- Range
- Boilermag
- Type of use
- Commercial
- Warranty
- 10 years
Warm NZ Heating Solutions is specified by
Stephen Jones ArchitectsArchitects
Evelyn McNamara ArchitectureArchitects
Christian Anderson ArchitectsArchitects
Chaplin Crooks ArchitectsArchitects
Hulena ArchitectsArchitects
Brendon Gordon ArchitectsArchitects
Hamish Shaw ArchitectsArchitects
I Am DeveloperArchitects
Stephan Meijer ArchitectureArchitects
Charissa Snijders ArchitectArchitects
Emandee HomesBuilders
Dash BuildBuilders
Harrison LaneBuilders
PlumbcraftPlumbers & Gas Fitters
Precision ConstructionBuilders
Home ProjectsBuilders
QUATTRO UNOKitchen & Bathroom Designers
M C Fearnley DesignArchitectural Designers
Nicola Manning DesignInterior Designers
Wilson ConstructionConstruction
Our ProjectsBuilders
Beck BuildingBuilders
Christopher Hay ConstructionBuilders
Stehr Brothers ConstructionBuilders
No Shock ElectricalElectricians
BoilerMagXT is a range of high specification full flow filters for large industrial sized heating and cooling systems.
BoilerMagXT features a robust fabricated stainless steel construction which is ideal for the most demanding of applications.
With model sizes compatible for 2” up to 12” port sizes and PN16 flanges, BoilerMagXT easily handles the efficiency and reliability demands of large industrial heating and cooling systems.
It provides long lasting protection for system components such as heat exchangers, pumps, radiators and fan coil units.
- Pricing
- From $9,600 - $50,000 *Price indication
- Benefits
- Easy installation – fits standard PN16 flanged connections
- Extends boiler life

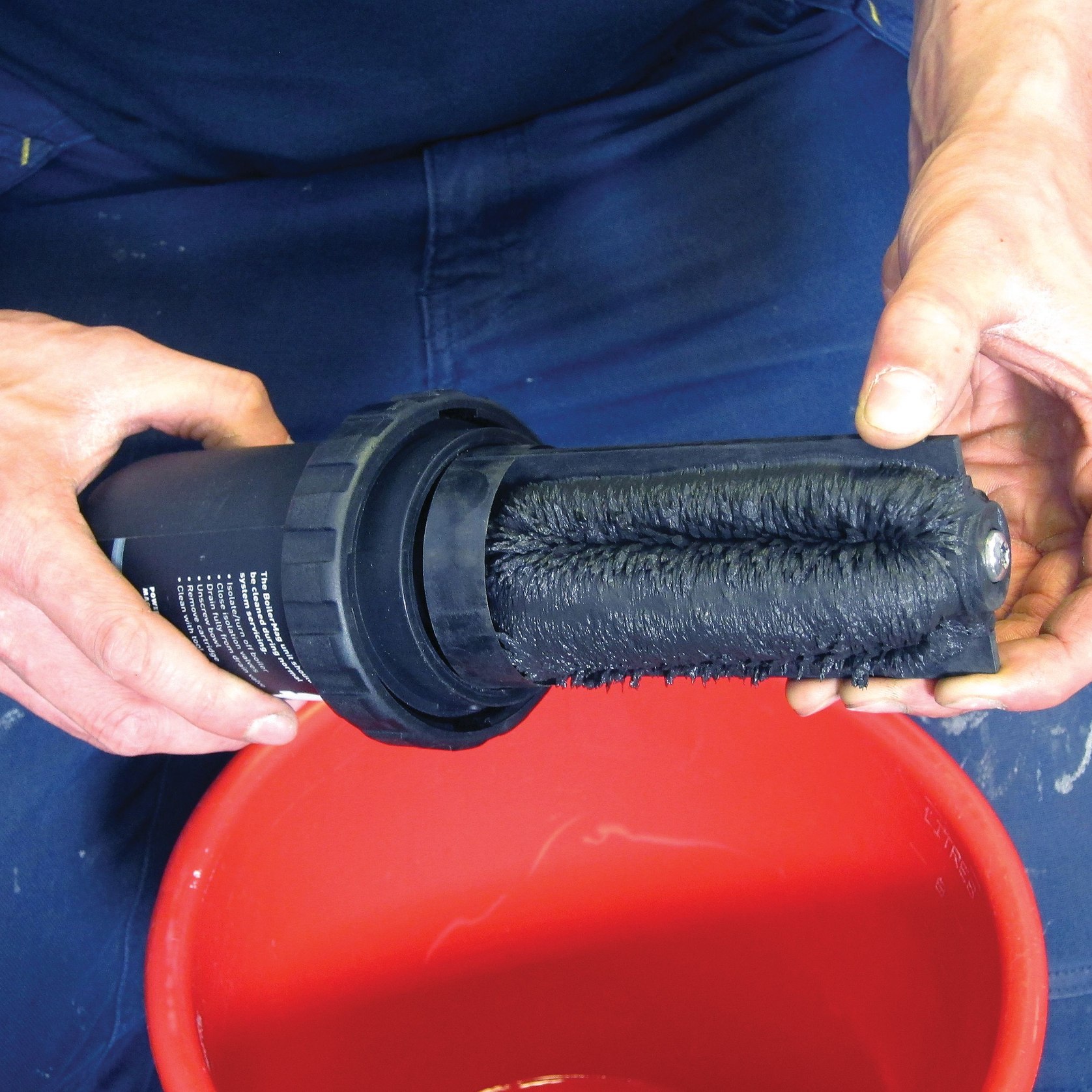

- Simple to service and clean – no need to disconnect
- Operating temperature up to 150˚C*
- Operating pressure up to 12 bar**
- Flow rates up to 310m³/hr
- Automatic Air Vent reduces the risk of air generated corrosion
- Inhibitor dosing can be done at filter
- No on-going running costs
- 10-year warranty
- Minimal pressure reductions
- Easy to service and clean
- Large collection capacity
- Huge dirt collection capacity
- Full flow – filters 100% of fluid
*If using the Automatic Air Vent option, the maximum temperature is 110˚C
**If using the Automatic Air Vent option, the working pressure is 10 bar
