Phonic Combo + Acoustic Ceiling Tile

Name: Phonic Combo + Acoustic Ceiling Tile
Brand: T&R Interior Systems
Availability: InStock

T&R Interior Systems

Visit Website

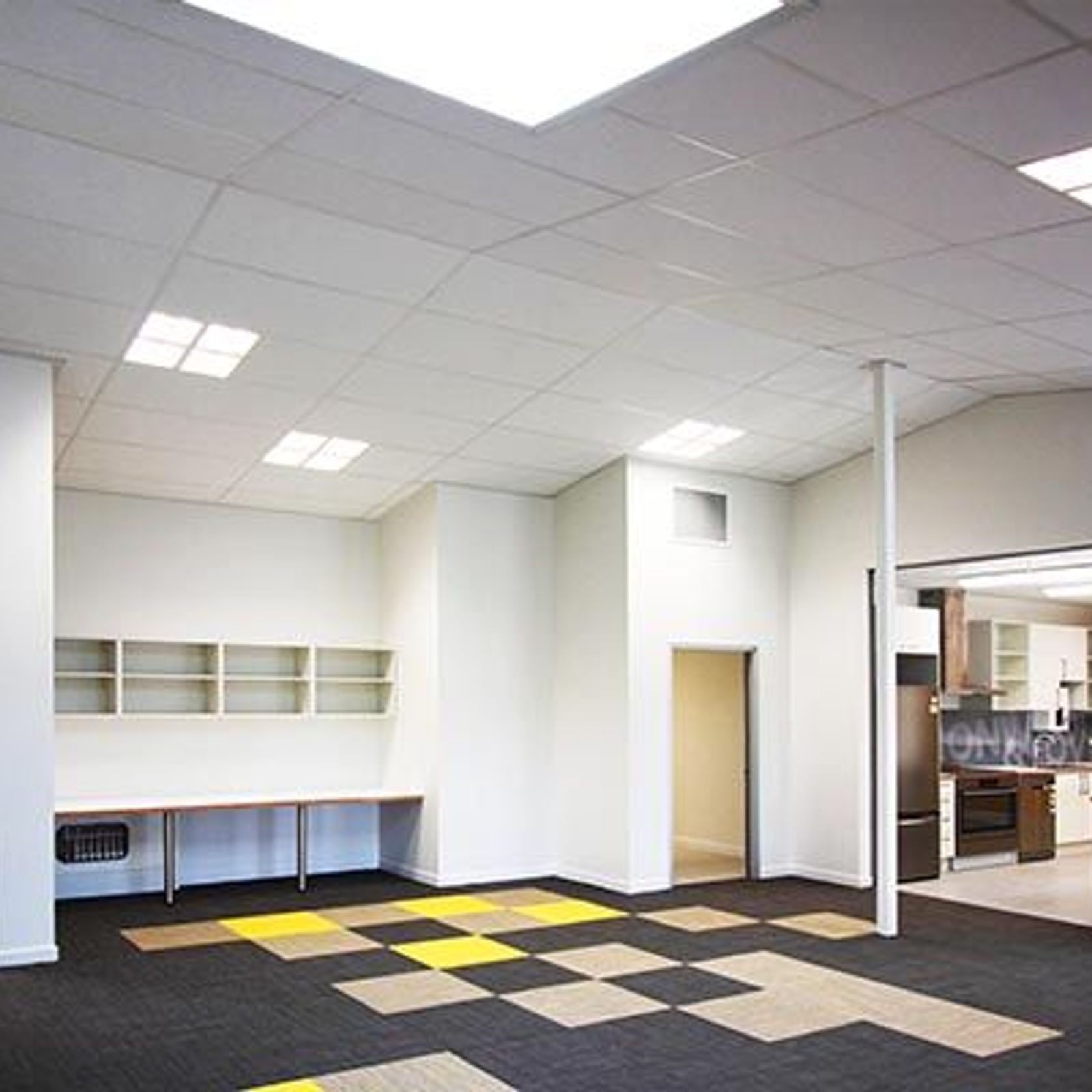

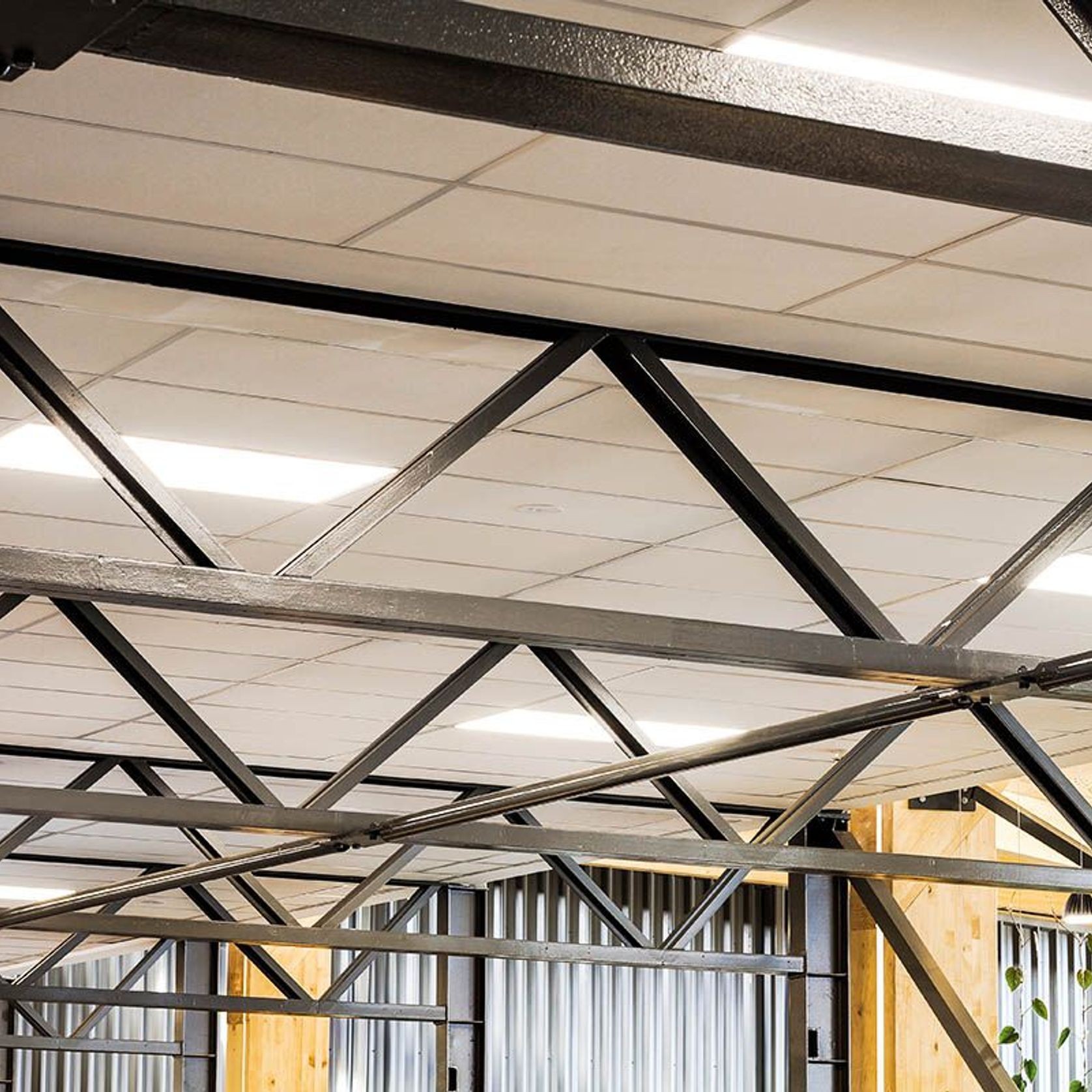

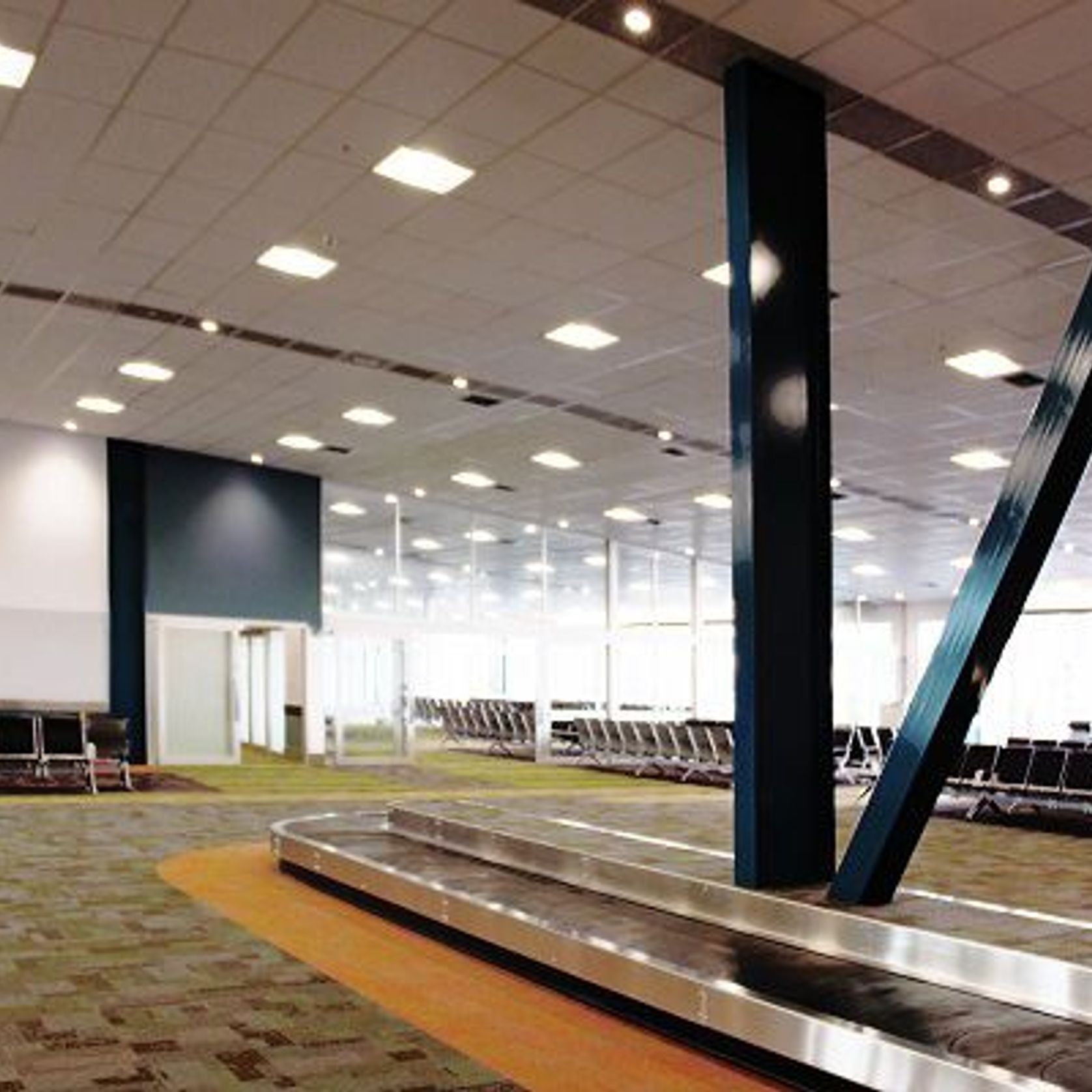

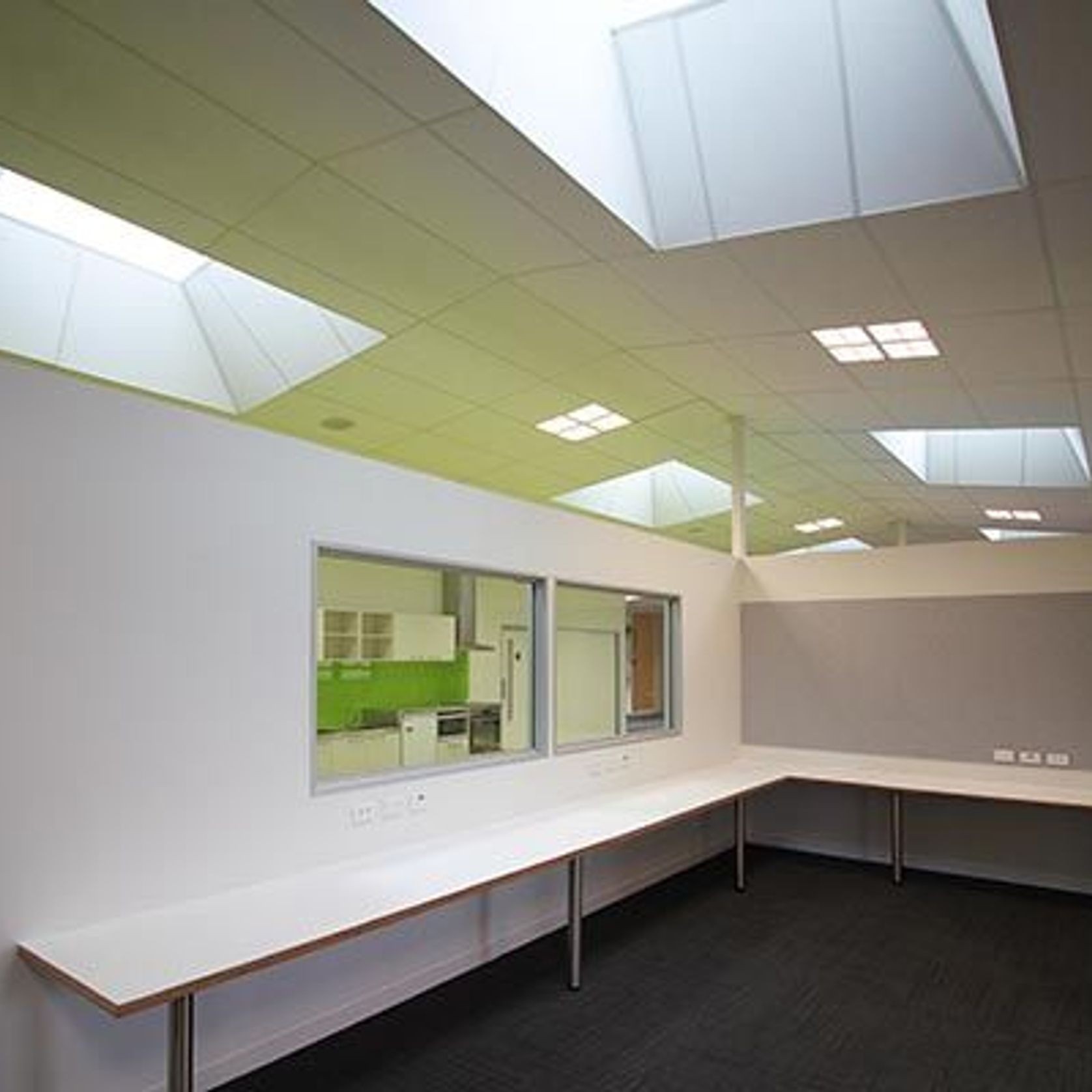

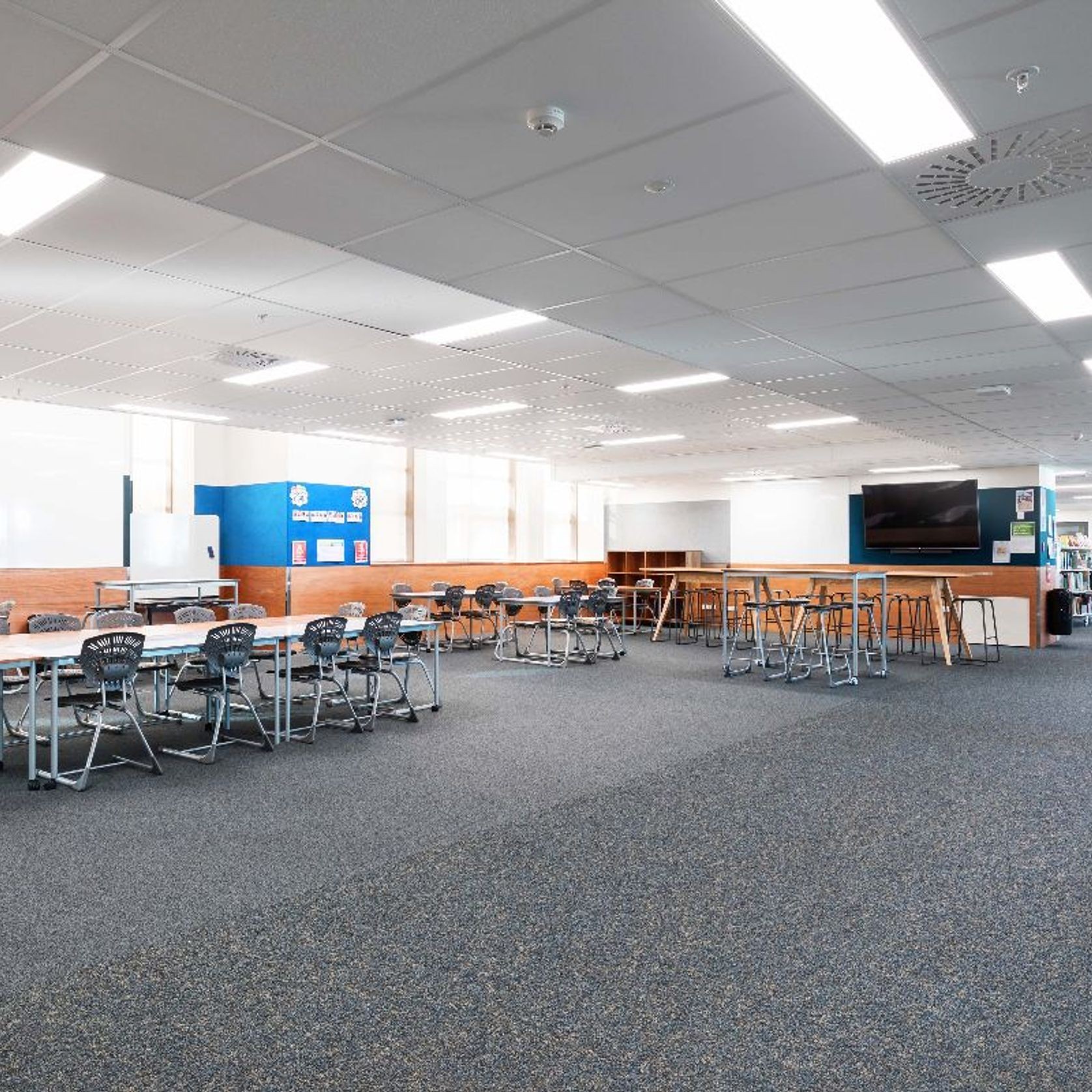

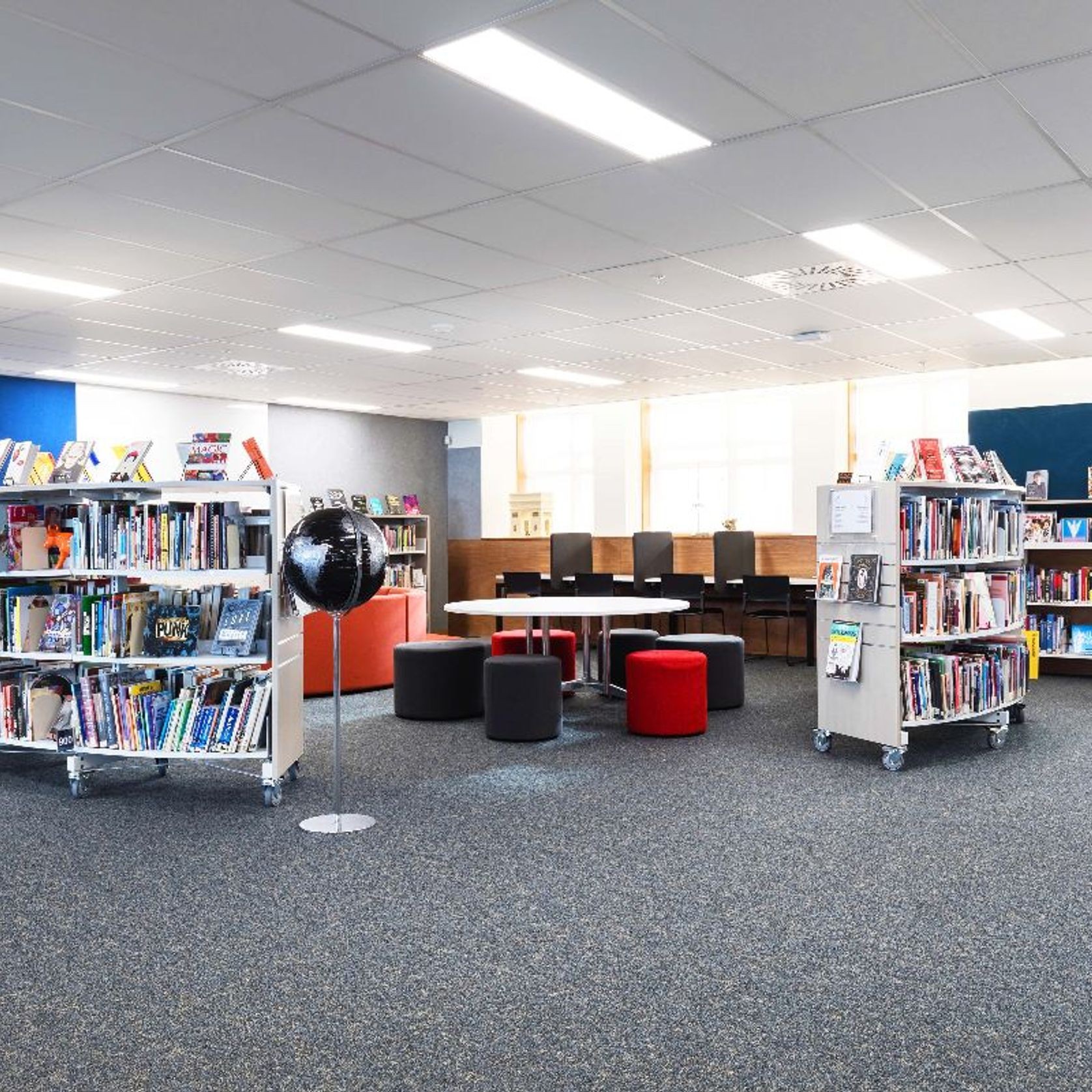

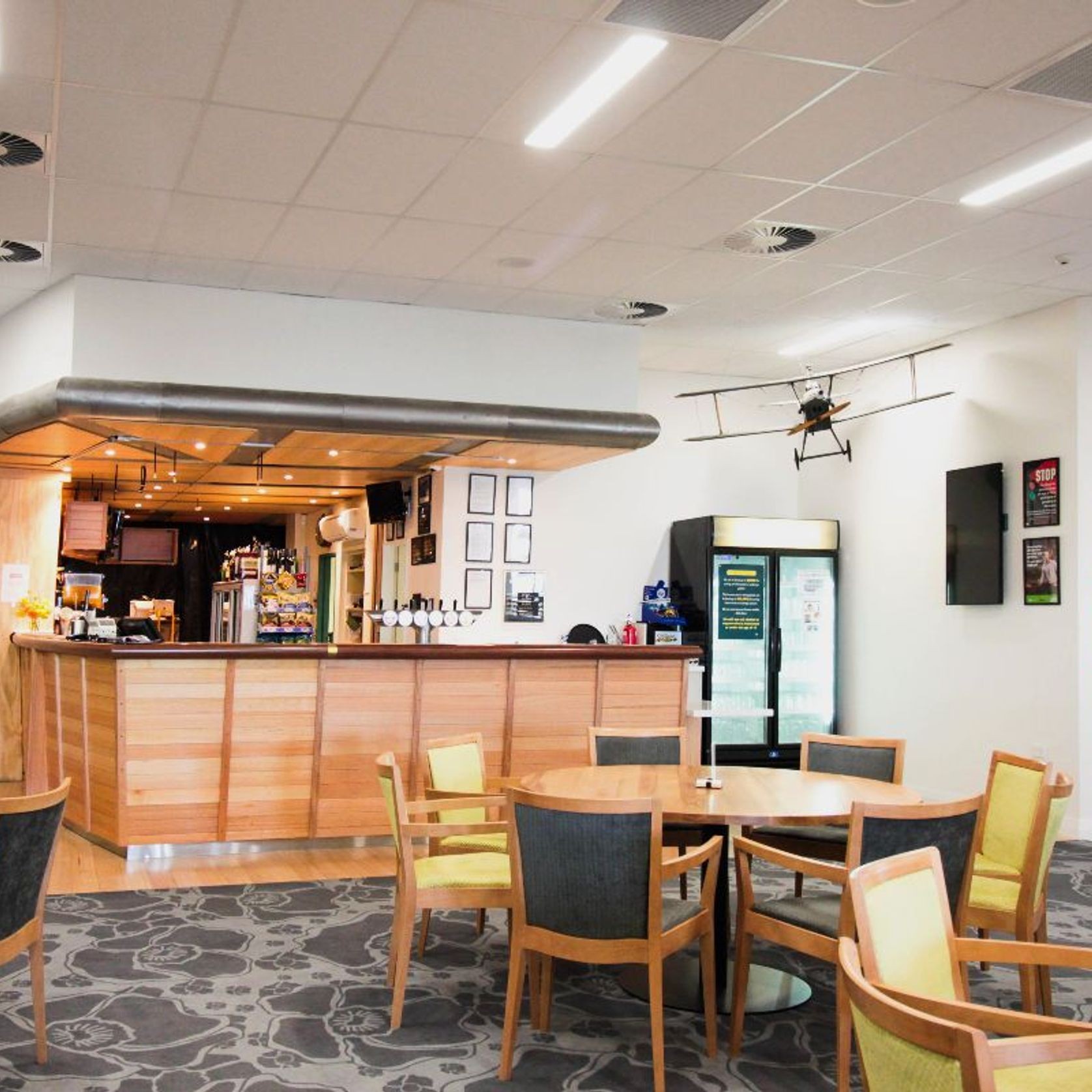

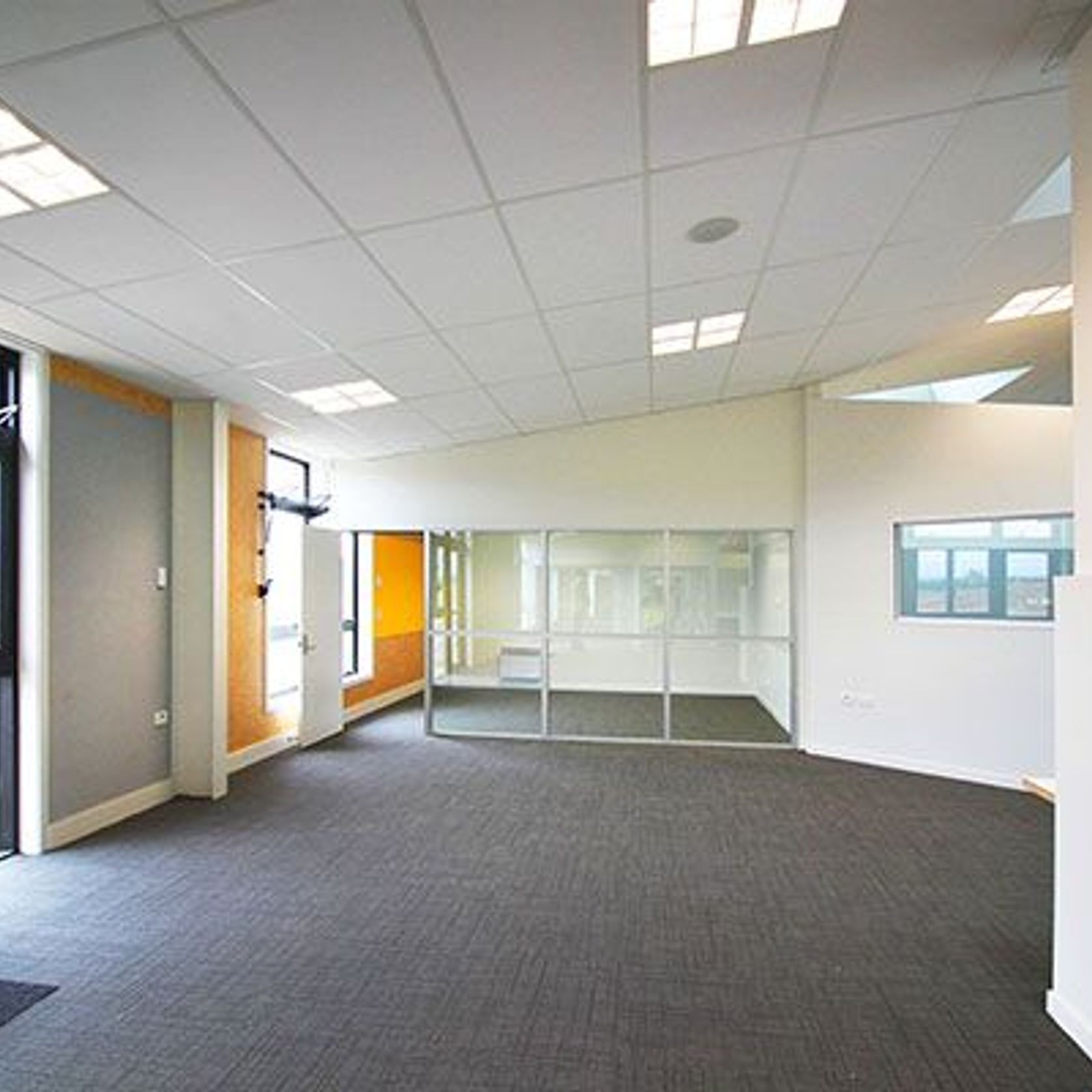

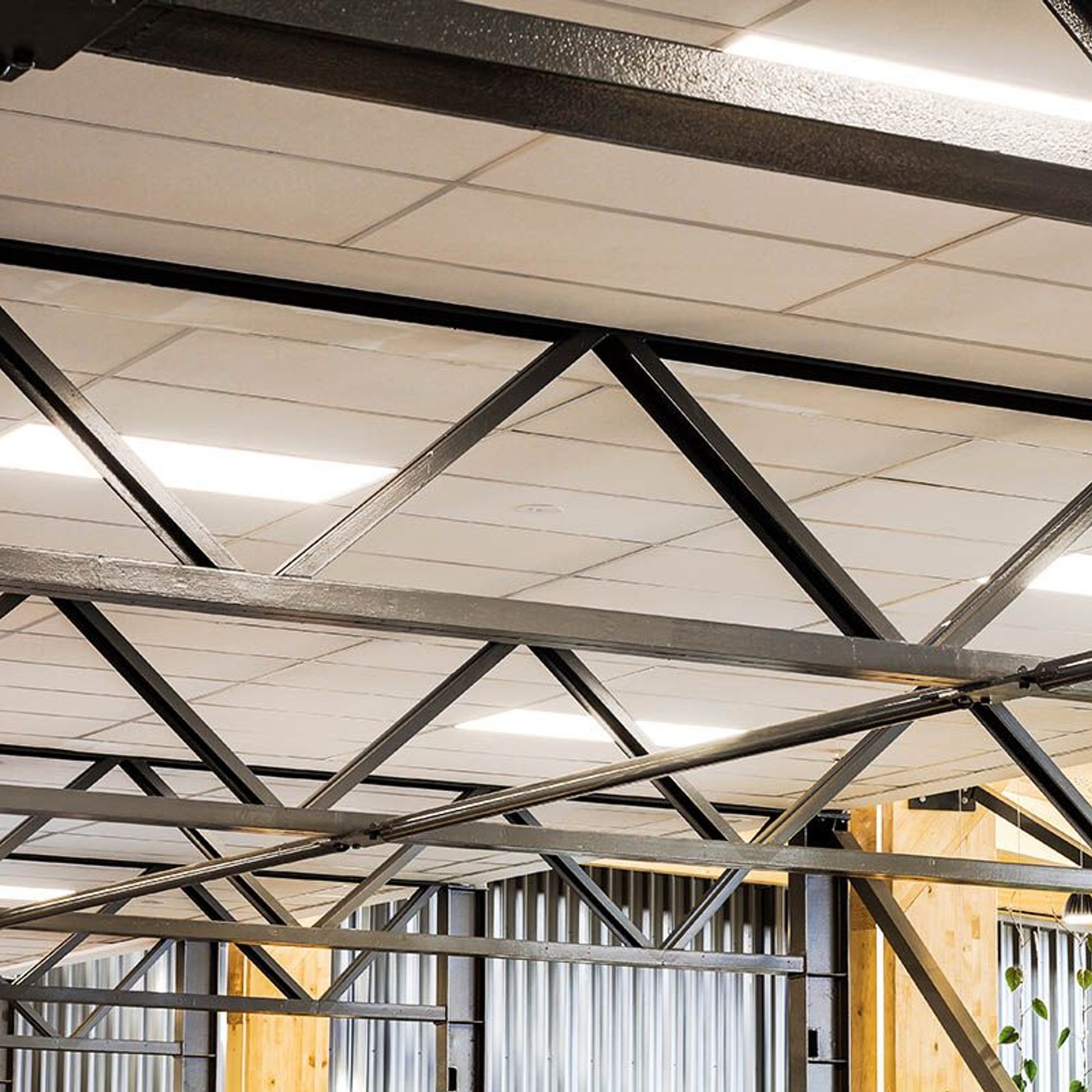

Phonic Combo + Acoustic Ceiling Tile gallery detail image

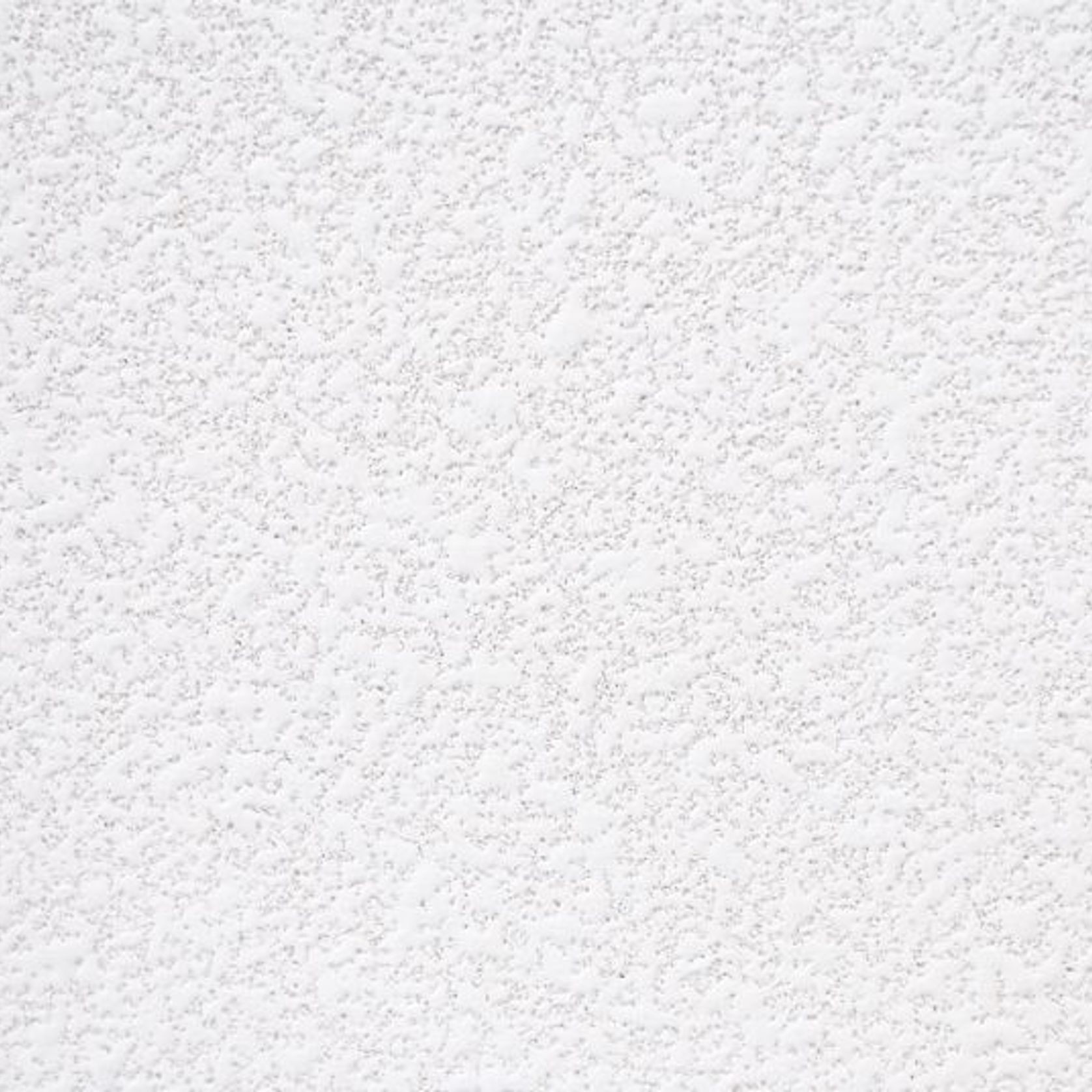

C Max Combo Plus is a composite tile with a refined white painted, monolithic, pre-finished face. It has an absorptive layer with an attenuating backer behind. Combo Plus not only has amazing acoustic properties (and meets Ministry of Education requirements) but also is a much better solution for seismic requirements. Performance data demonstrates an NRC of 0.85 and a minimum CAC of 42, that can be increased to a CAC of 52 quite easily.

The invention comprises two layers of material that are flexibly attached together with an air gap in between. This allows each of the layers to flex and vibrate and to define a cavity. The resulting tile weight is only 7.5kg/m2.

Details

Category
Acoustic Tiles, Ceiling Tiles
Range
Phonic Ceiling Tiles

Specifications

Absorption

NRC 0.85
SAA 0.94
aw 0.80

Attenuation

CAC & D n,c,w 42 with the ability to increase easily

Weight - 7.5kg/m²

LR > 87%

Fire Test ISO 5660 Parts 1 & 2 - Group 1 – S

Moisture Rate 1%

Mineral Fibre Layer

Thickness - 15mm
Conductivity W/mK - <=0.065W/mk
Density kg/m³ - 280-320kg/m3
Moisture Rate (JC/670-2005 ) - <=3%

Fibreglass Testing

20mm
0.49-0.042W/mk
100kgm3
<1%

Performance data demonstrates an NRC of 0.85 and a minimum CAC of 42, that can be increased to a CAC of 52 quite easily

Size: 1200 x 600 *2400 x 600 *1500 x 300 *1200 x 300

Colours – white, black available by indent and MOQ

30 year lifetime system warranty to withstand conditions up to 40° and 99% relative humidity without visible sag when used with a T&R brand suspension system.

Case Studies

Lemonwood School

Downloads

T&R Interior Systems

View locations (4)

View Profile

Visit Website

Other products in this range

Phonic Harmony + Ceiling TileT&R Interior Systems

Phonic Absorb Acoustic Ceiling TileT&R Interior Systems

Phonic Direct Fix Acoustic Ceiling TileT&R Interior Systems

Phonic Impact Ceiling TileT&R Interior Systems

Phonic Impact Combo + Acoustic Sports TileT&R Interior Systems

Phonic Dai Lotone Direct Fix Ceiling TileT&R Interior Systems

Phonic Fine Fissured Acoustic Ceiling TileT&R Interior Systems

Phonic NDF Acoustic Suspended Ceiling TileT&R Interior Systems

Projects featuring Phonic Combo + Acoustic Ceiling Tile

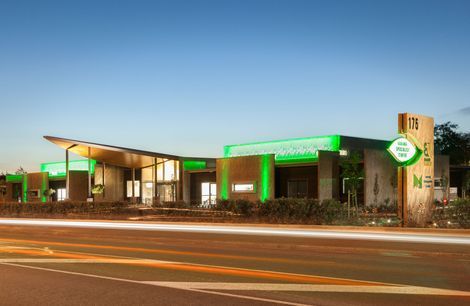

Aorangi Specialist CentrePak Design
